Yamaha 9FMH Parts Catalog

Yamaha 9FMH Outboard parts and diagrams

Yamaha 9FMH outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE, CRANKSHAFT. PISTON, INTAKE, CARBURETOR, FUEL 1, FUEL 2, STARTER, GENERATOR, ELECTRICAL, BOTTOM COWLING, STEERING, CONTROL, REMOTE CONTROL ATTACHMENT, BRACKET 1, BRACKET 2, UPPER CASING, LOWER CASING. DRIVE 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

93 linked store products are available across 22 catalog sections. 592 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

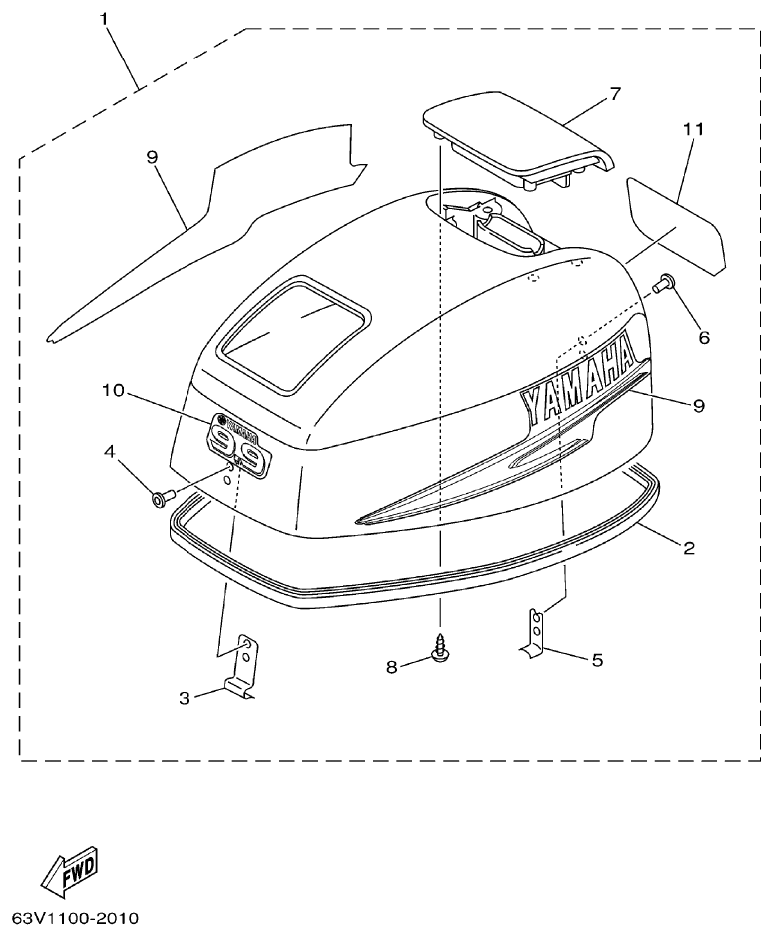

Yamaha 9FMH TOP COWLING parts diagram
Fig. 1 — TOP COWLING
14 items
Yamaha 9FMH CYLINDER. CRANKCASE parts diagram

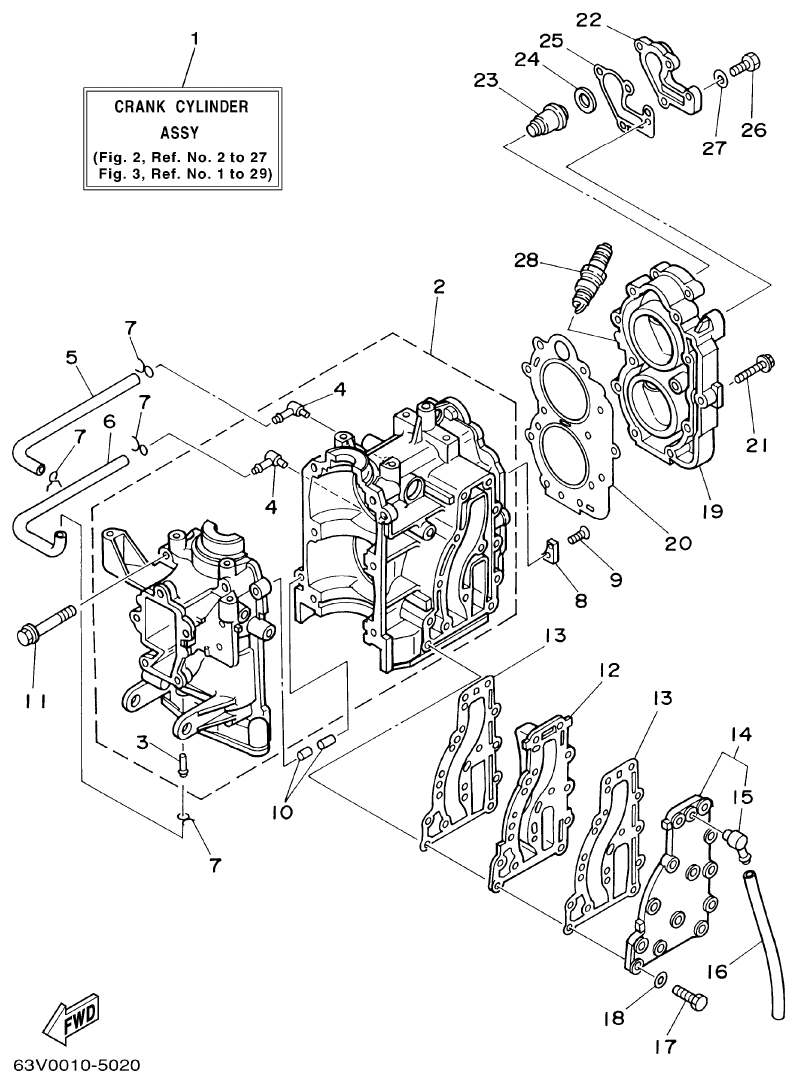

Fig. 2 — CYLINDER. CRANKCASE
29 items · 5 available products
Yamaha 9FMH CRANKSHAFT. PISTON parts diagram

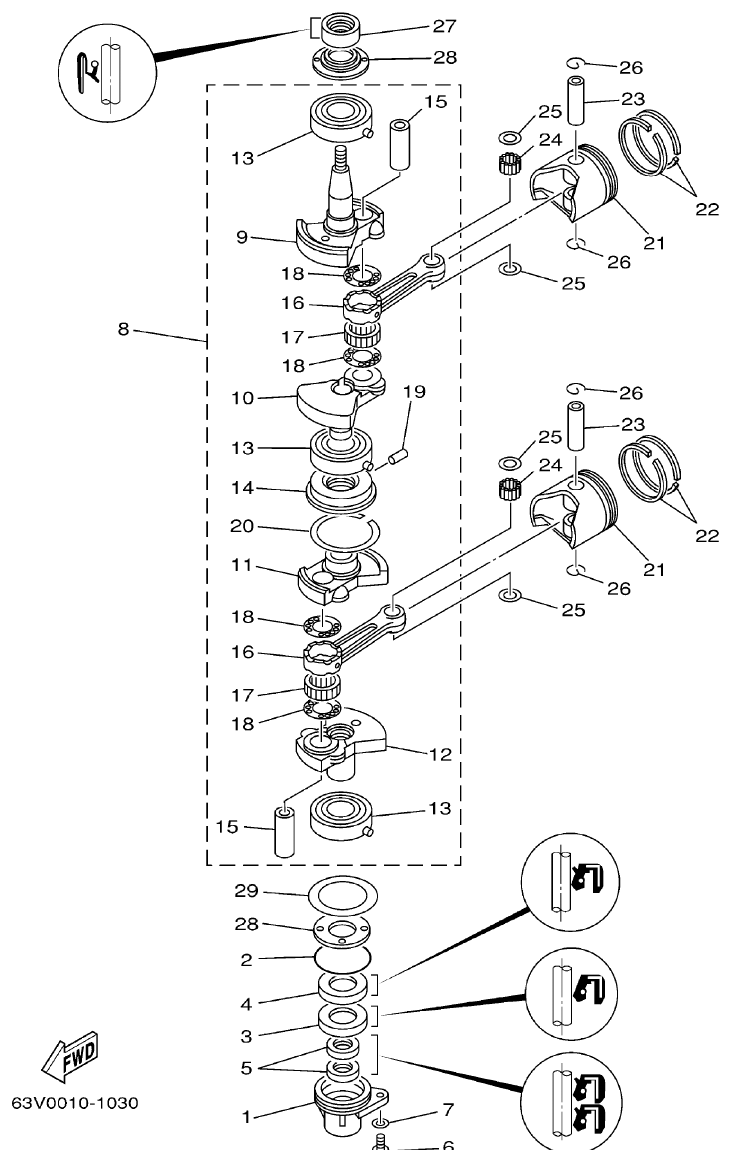

Fig. 3 — CRANKSHAFT. PISTON
33 items · 11 available products

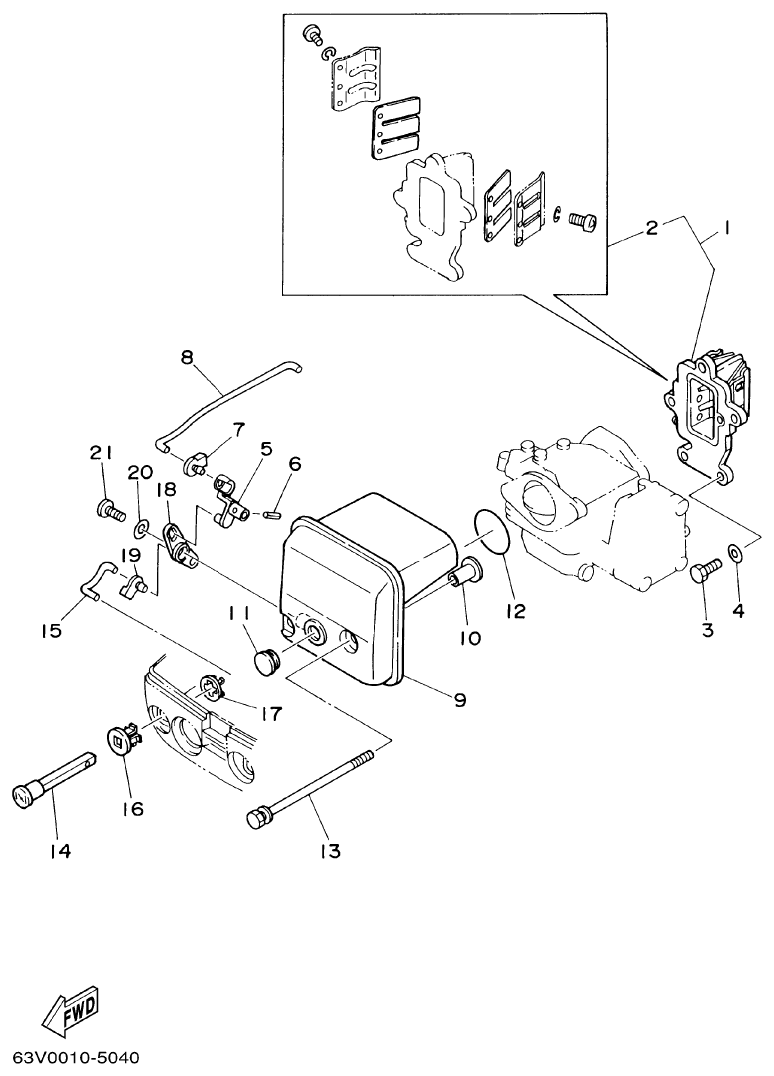

Yamaha 9FMH INTAKE parts diagram
Fig. 4 — INTAKE
23 items · 3 available products
Yamaha 9FMH CARBURETOR parts diagram

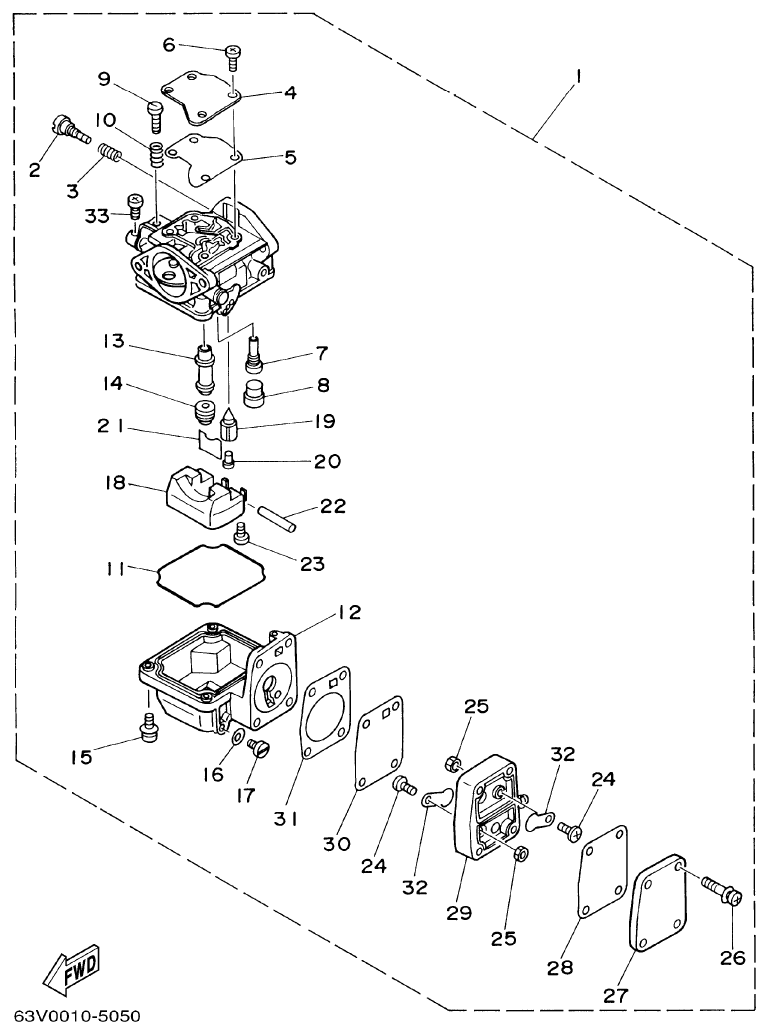

Fig. 5 — CARBURETOR
33 items · 9 available products

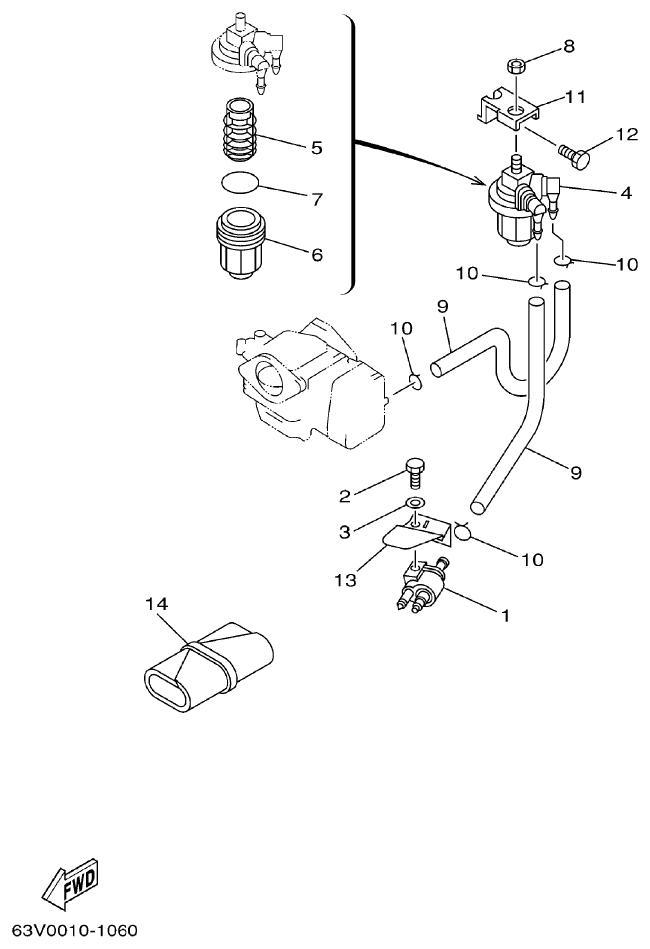

Yamaha 9FMH FUEL 1 parts diagram
Fig. 6 — FUEL 1
14 items · 2 available products
Yamaha 9FMH FUEL 2 parts diagram

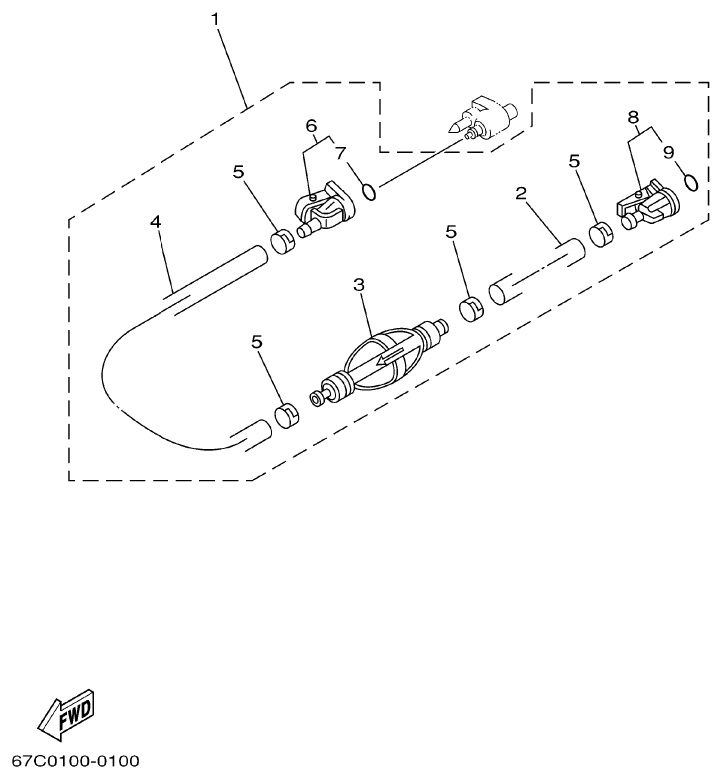

Fig. 7 — FUEL 2
9 items · 1 available products

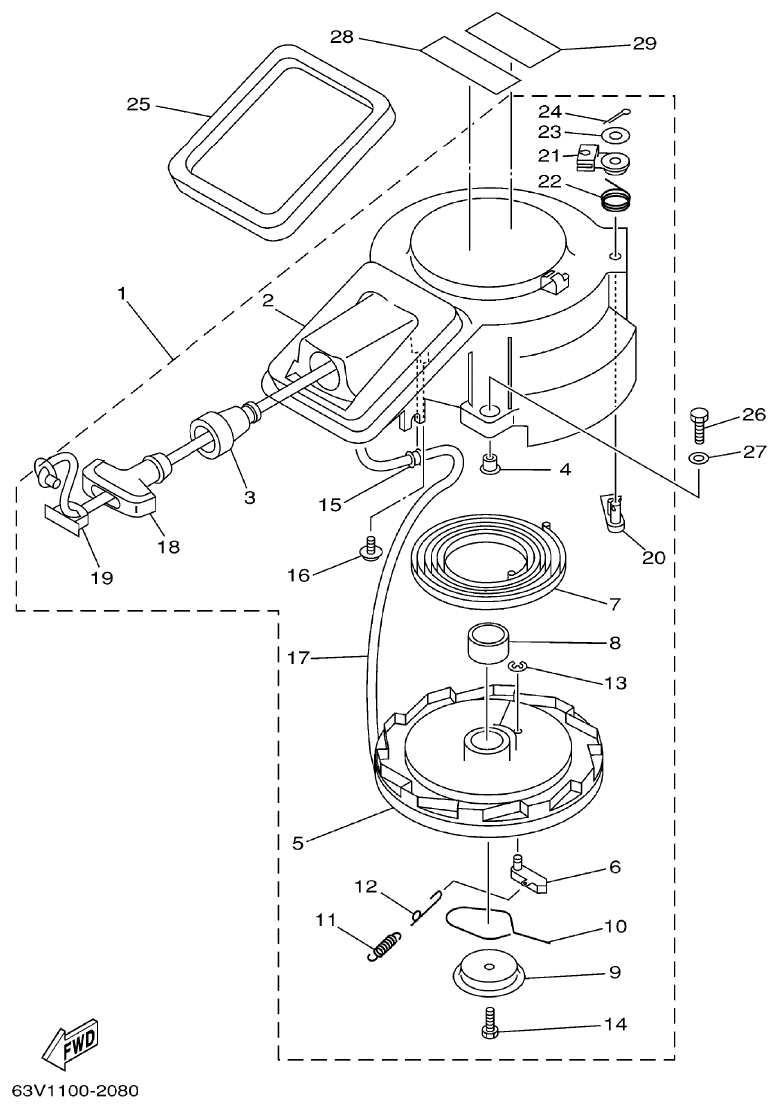

Yamaha 9FMH STARTER parts diagram
Fig. 8 — STARTER
28 items · 7 available products

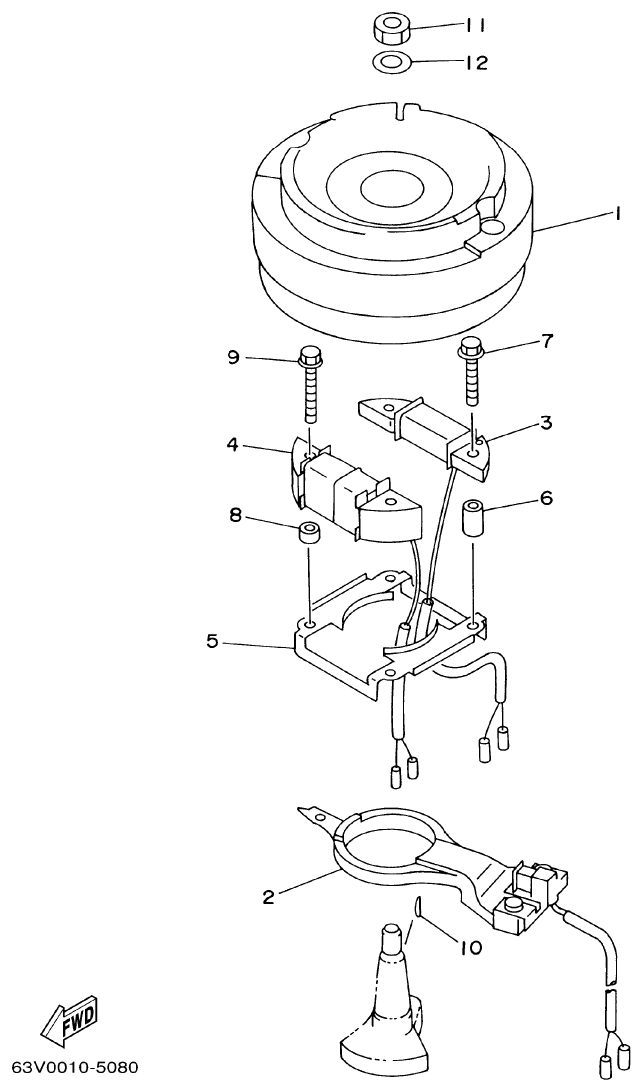

Yamaha 9FMH GENERATOR parts diagram
Fig. 9 — GENERATOR
13 items · 1 available products

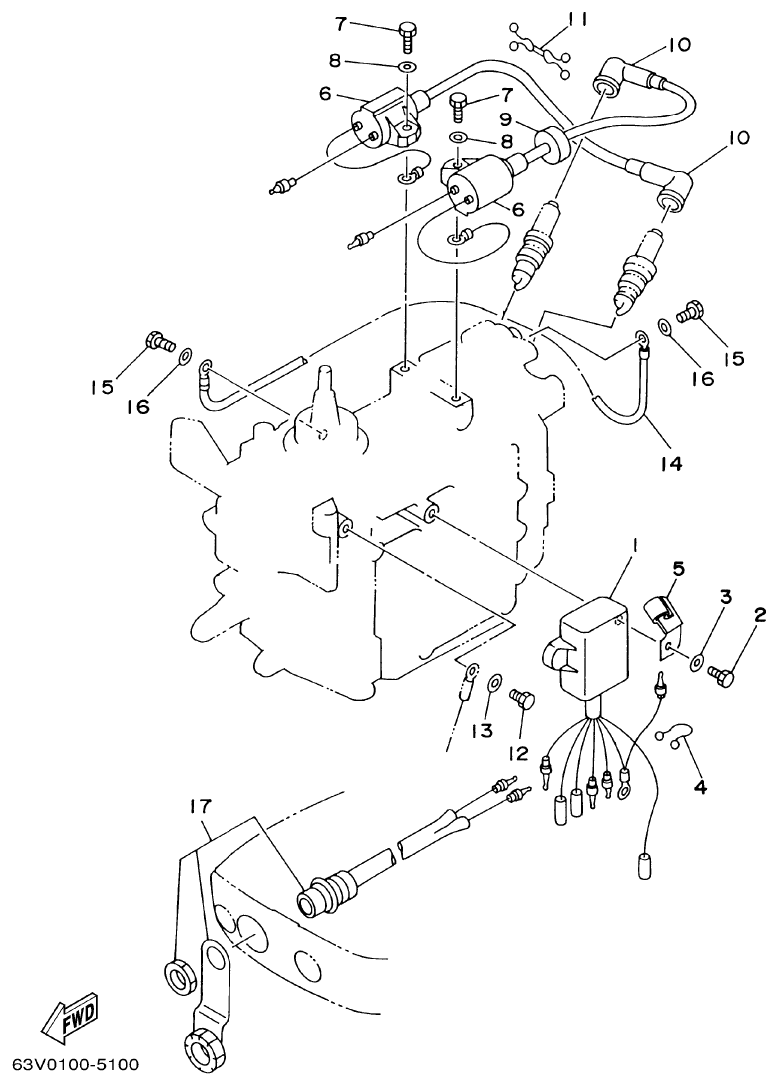

Yamaha 9FMH ELECTRICAL parts diagram
Fig. 10 — ELECTRICAL
18 items · 3 available products

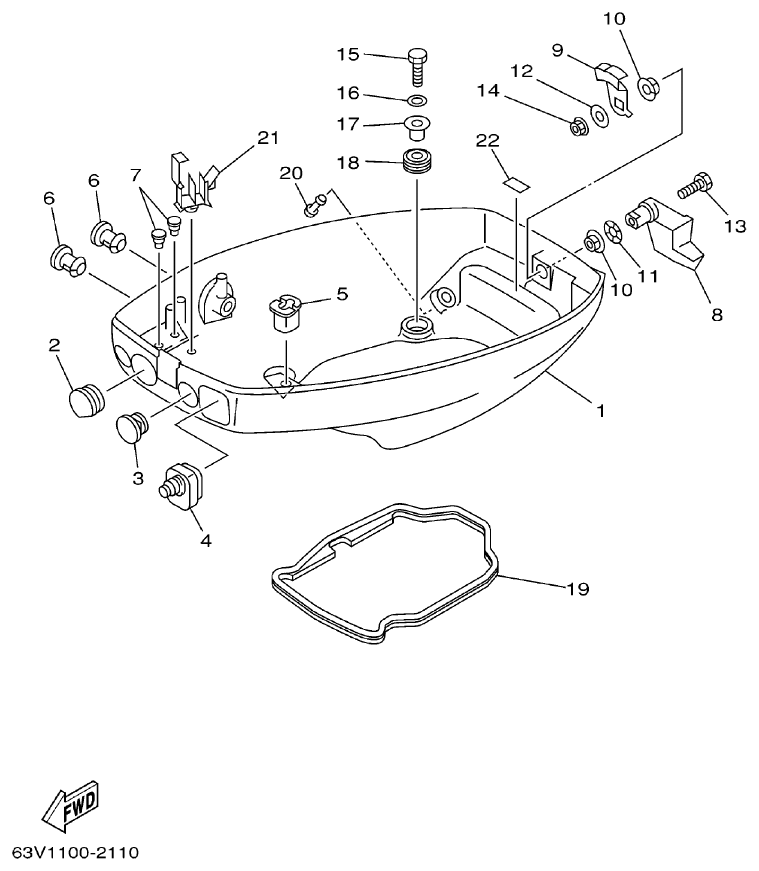

Yamaha 9FMH BOTTOM COWLING parts diagram
Fig. 11 — BOTTOM COWLING
23 items

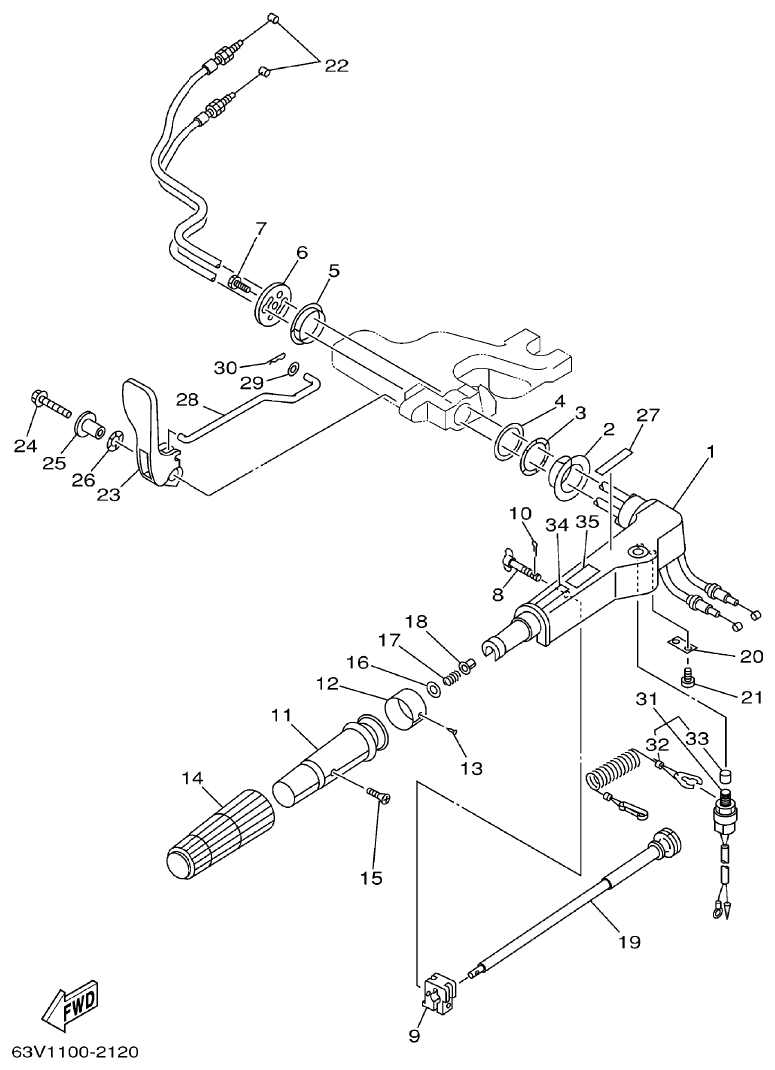

Yamaha 9FMH STEERING parts diagram
Fig. 12 — STEERING
35 items · 5 available products

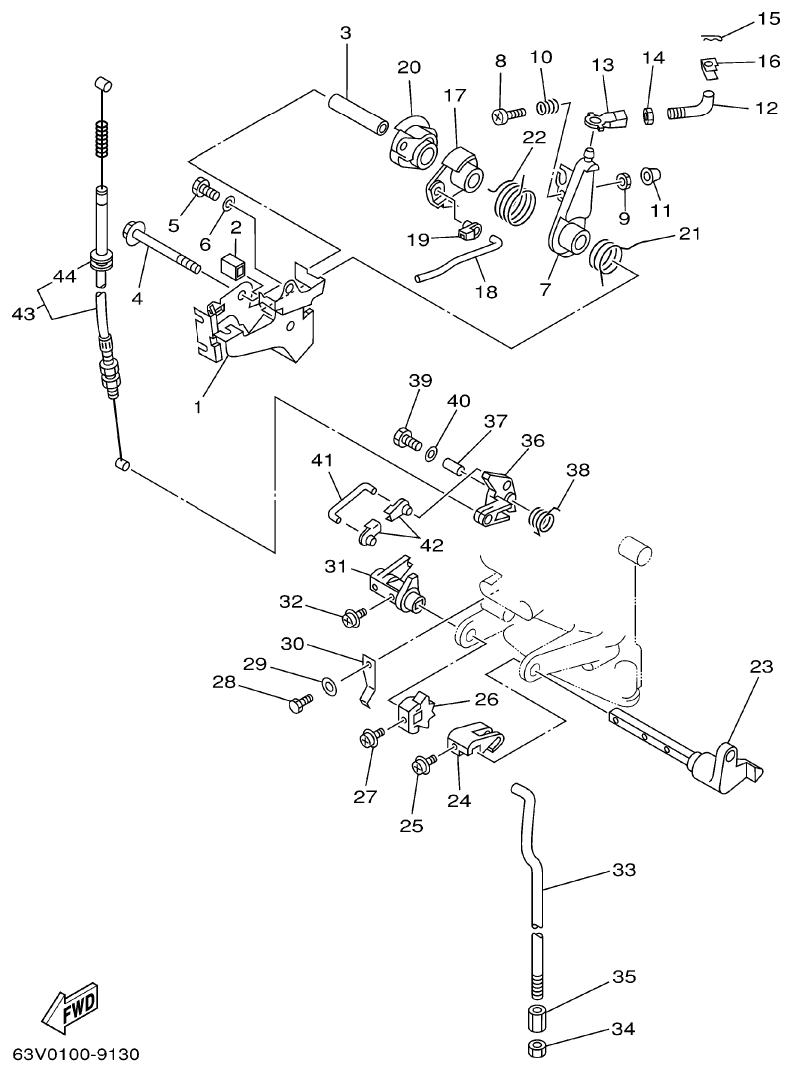

Yamaha 9FMH CONTROL parts diagram
Fig. 13 — CONTROL
44 items · 6 available products

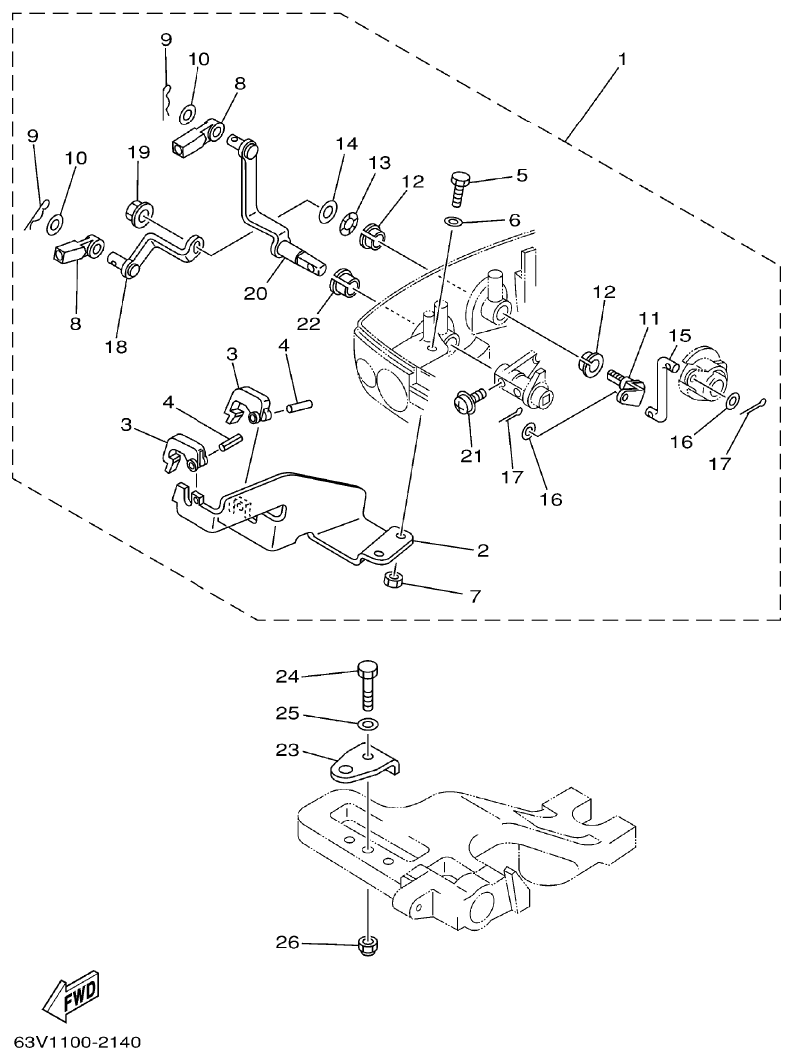

Yamaha 9FMH REMOTE CONTROL ATTACHMENT parts diagram
Fig. 14 — REMOTE CONTROL ATTACHMENT
26 items
Yamaha 9FMH BRACKET 1 parts diagram

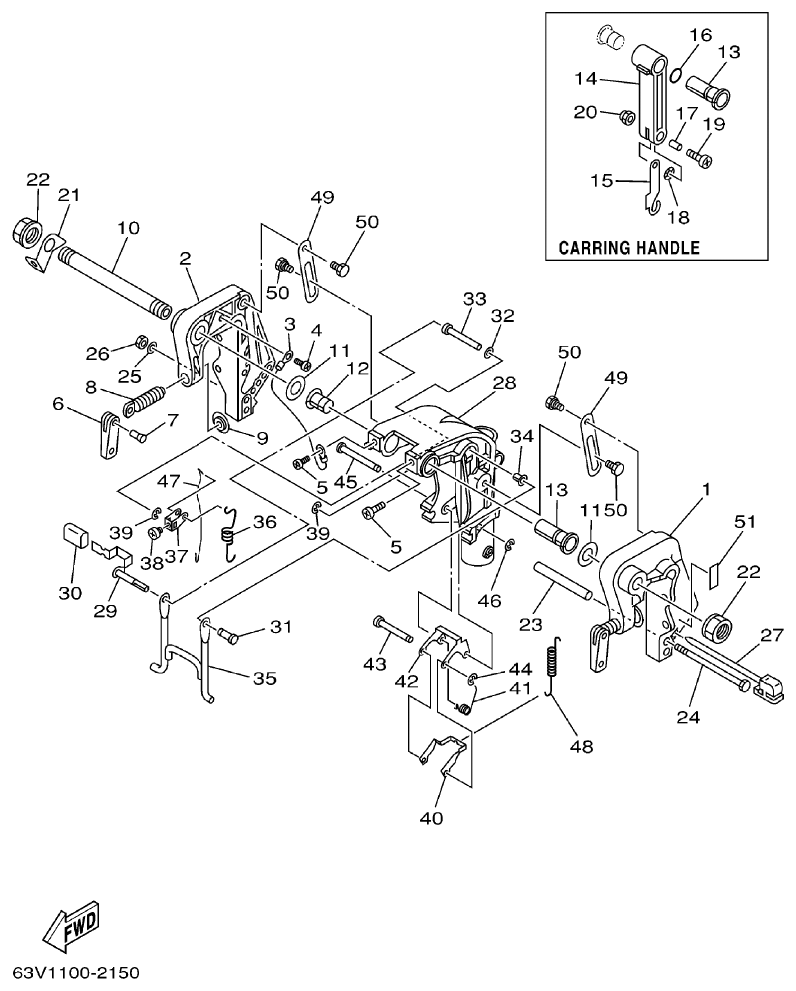

Fig. 15 — BRACKET 1
51 items · 3 available products
Yamaha 9FMH BRACKET 2 parts diagram

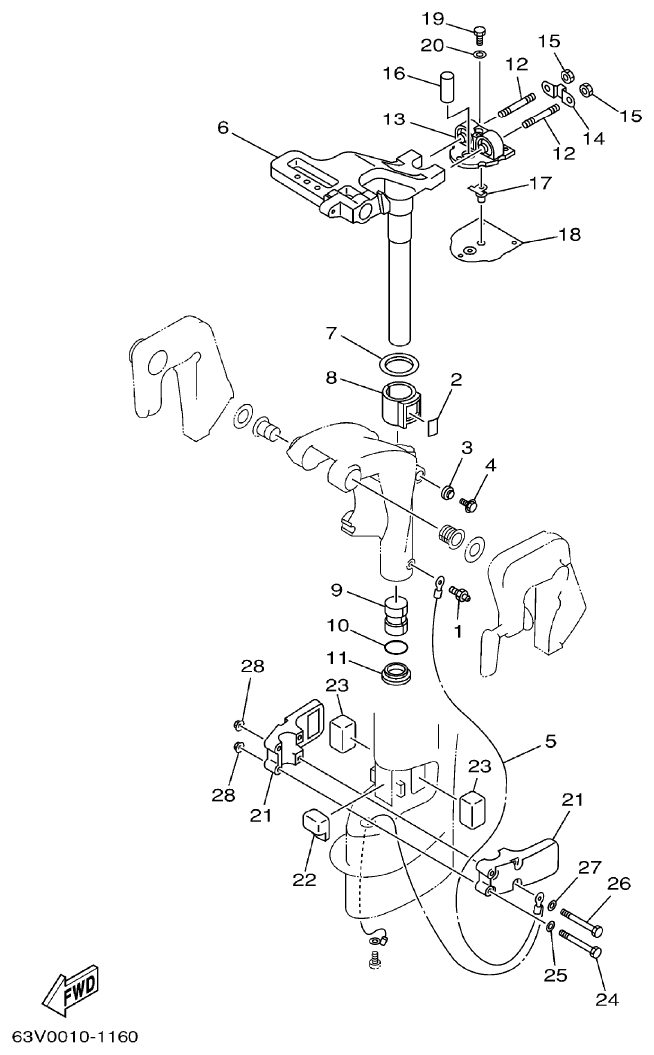

Fig. 16 — BRACKET 2
28 items · 2 available products
Yamaha 9FMH UPPER CASING parts diagram

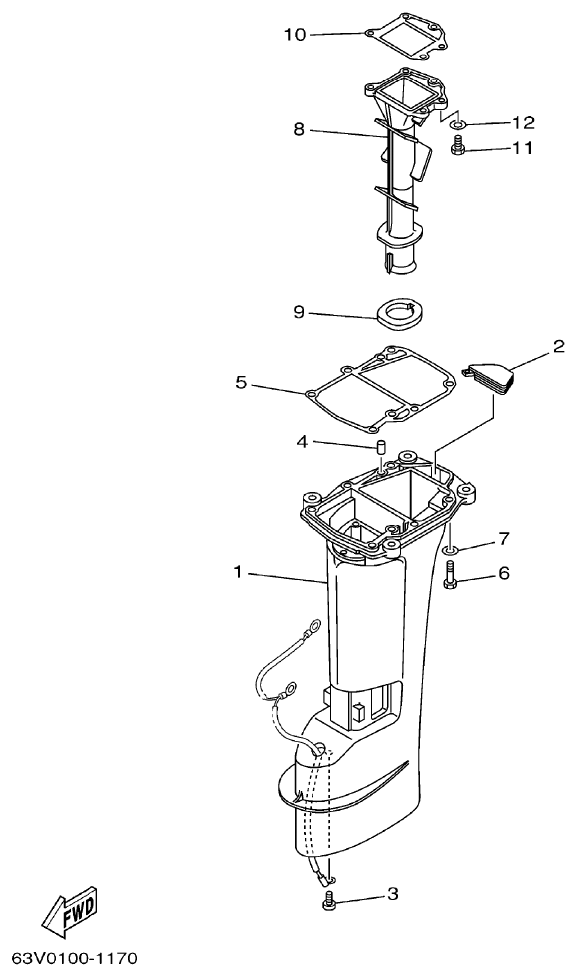

Fig. 17 — UPPER CASING
13 items · 2 available products

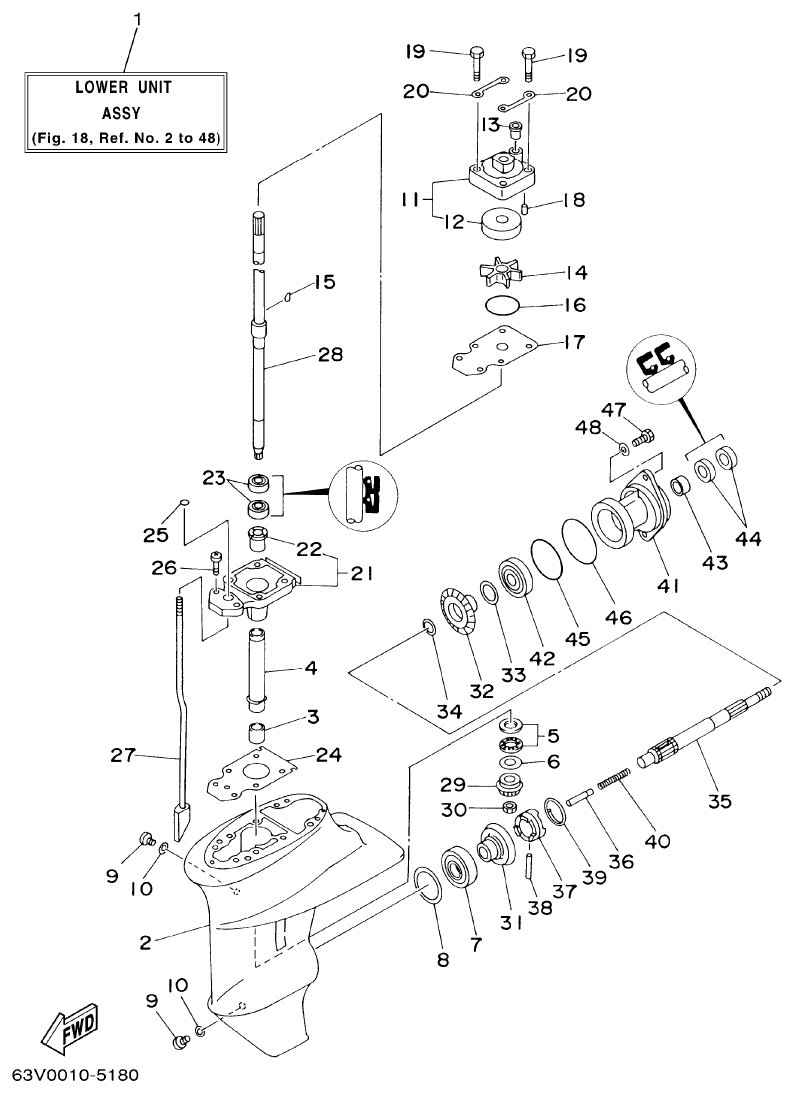

Yamaha 9FMH LOWER CASING. DRIVE 1 parts diagram
Fig. 18 — LOWER CASING. DRIVE 1
60 items · 13 available products
Yamaha 9FMH LOWER CASING. DRIVE 2 parts diagram

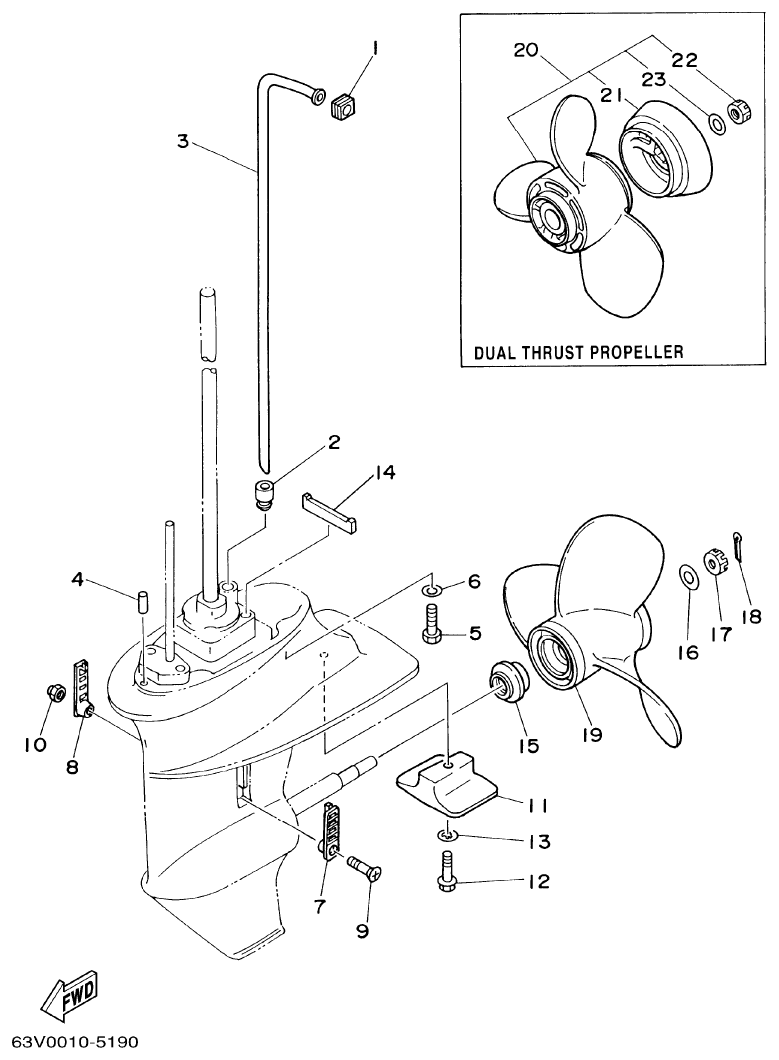

Fig. 19 — LOWER CASING. DRIVE 2
31 items · 4 available products

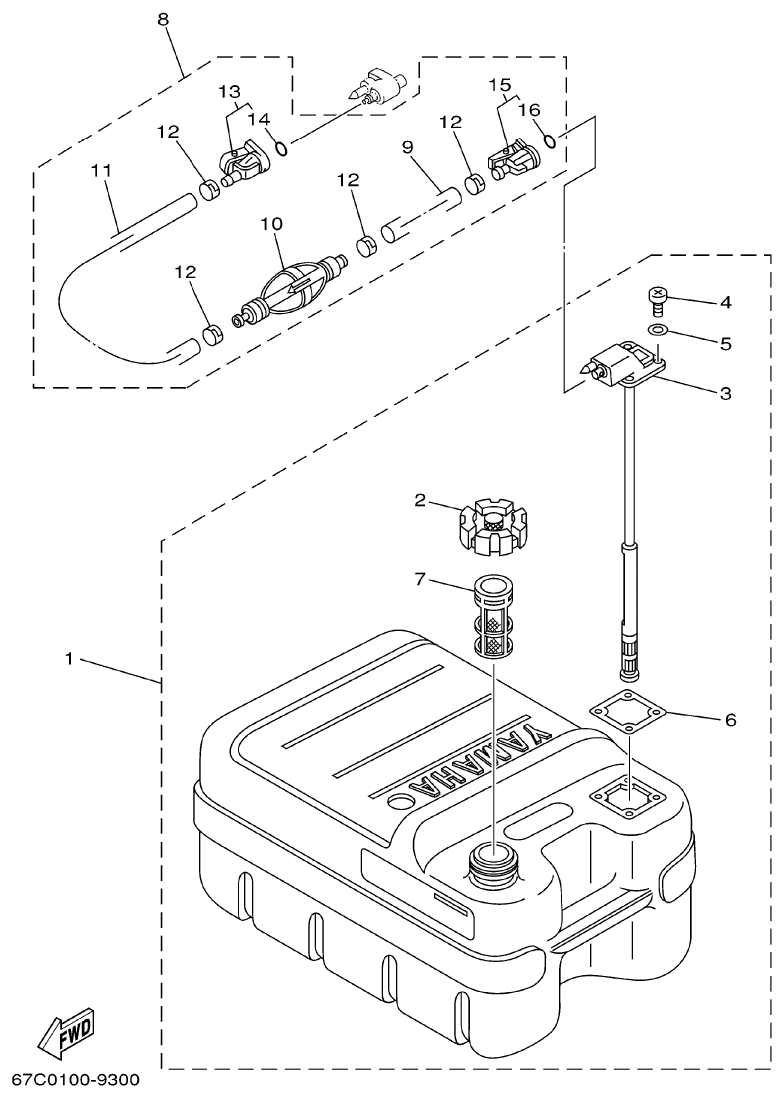

Yamaha 9FMH FUEL TANK parts diagram
Fig. 20 — FUEL TANK
19 items · 3 available products

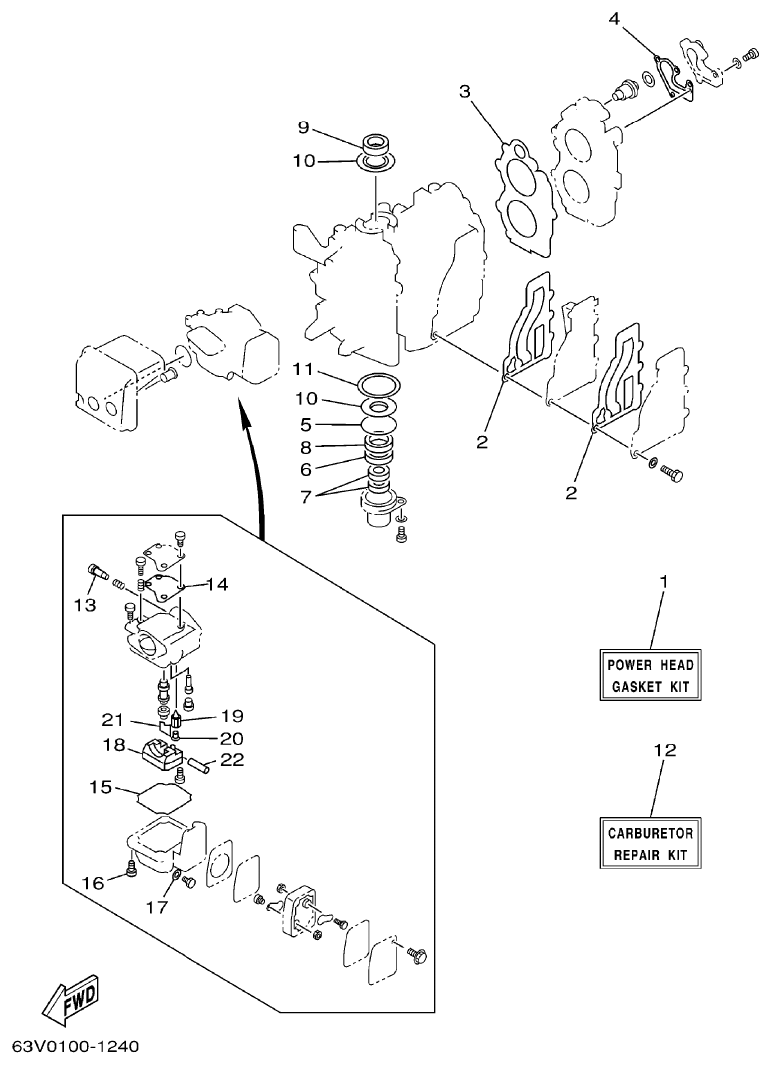

Yamaha 9FMH REPAIR KIT 1 parts diagram
Fig. 21 — REPAIR KIT 1
22 items · 7 available products

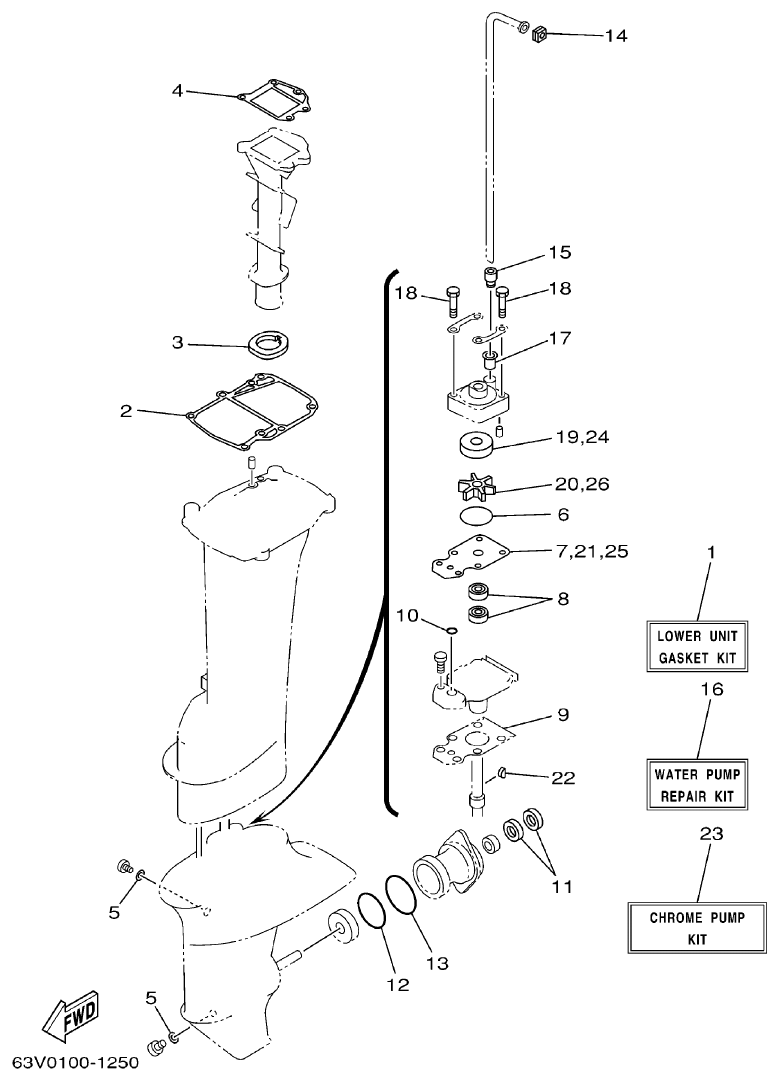

Yamaha 9FMH REPAIR KIT 2 parts diagram
Fig. 22 — REPAIR KIT 2
26 items · 6 available products
