Yamaha 9FMH, 15FMH Parts Catalog

Yamaha 9FMH, 15FMH Outboard parts and diagrams

Yamaha 9FMH, 15FMH outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL 1, FUEL 2, STARTER, GENERATOR, ELECTRICAL, BOTTOM COWLING, STEERING, CONTROL, REMO-CON ATTACHMENT, BRACKET 1, BRACKET 2, UPPER CASING, LOWER CASING & DRIVE 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

95 linked store products are available across 22 catalog sections. 604 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha 9FMH, 15FMH TOP COWLING parts diagram

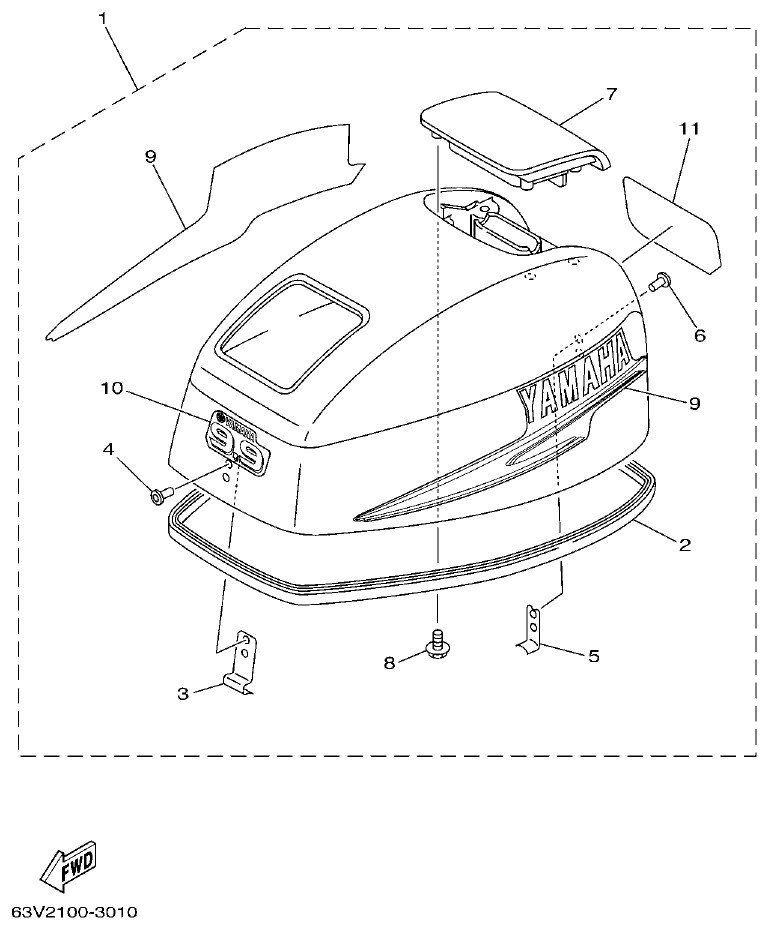

Fig. 1 — TOP COWLING
14 items
Yamaha 9FMH, 15FMH CYLINDER & CRANKCASE parts diagram

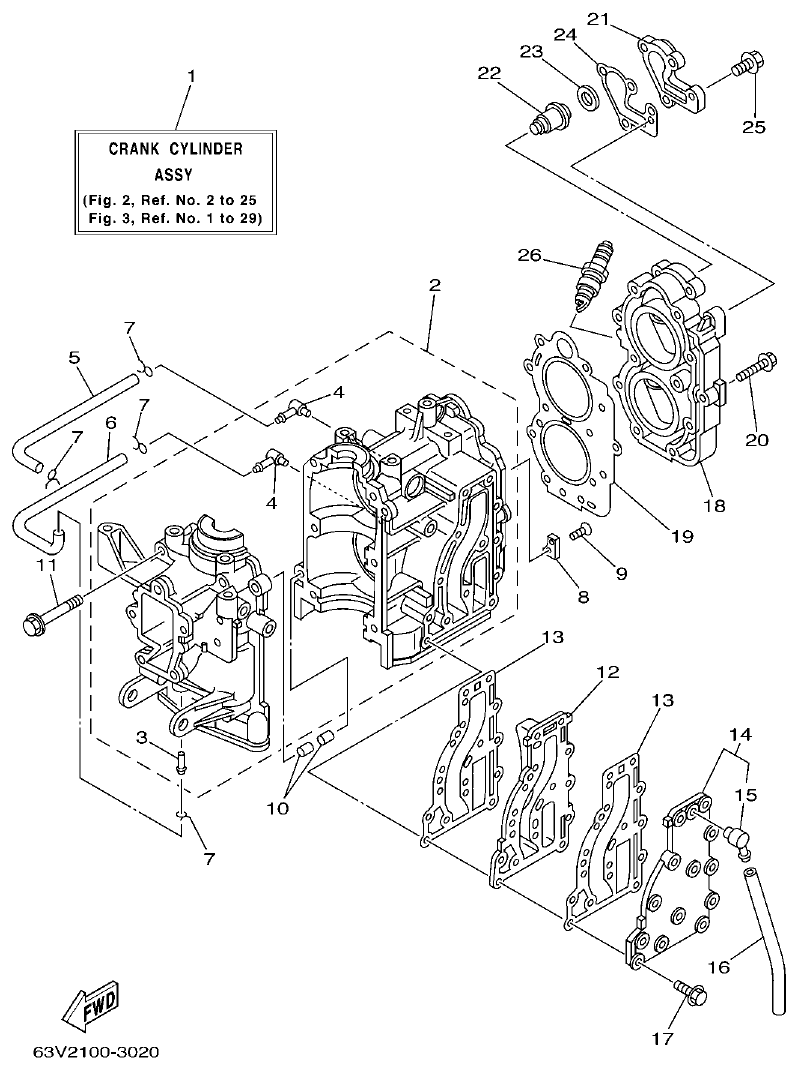

Fig. 2 — CYLINDER & CRANKCASE
27 items · 5 available products
Yamaha 9FMH, 15FMH CRANKSHAFT & PISTON parts diagram

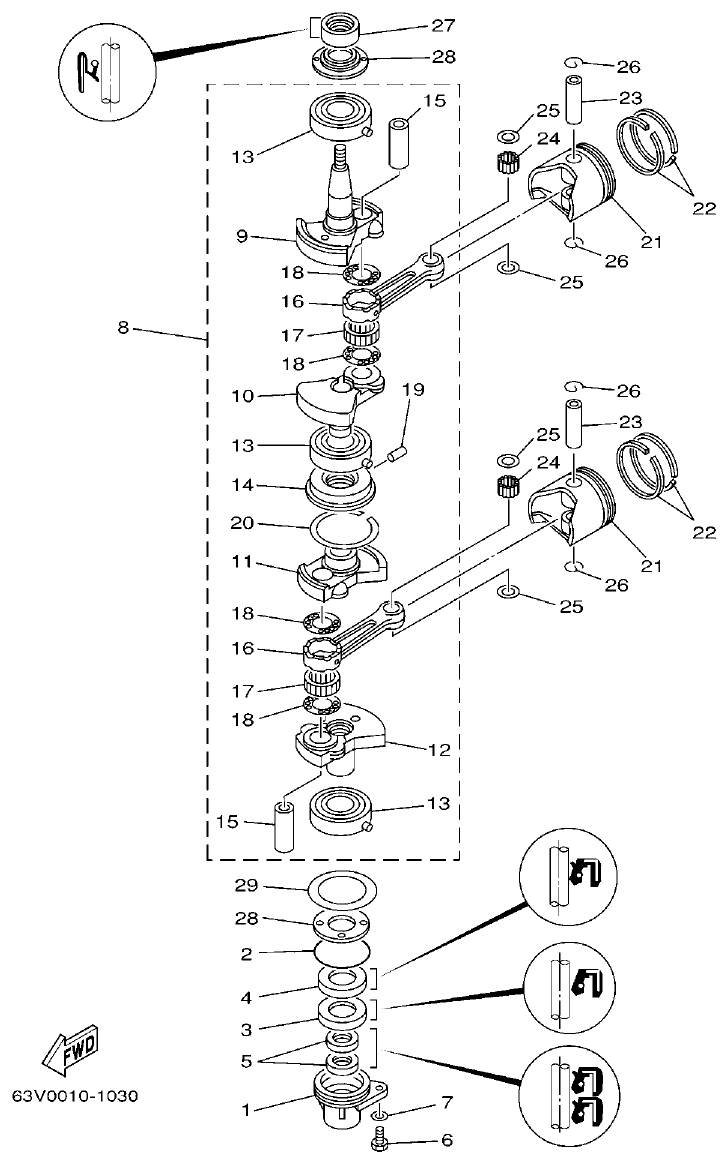

Fig. 3 — CRANKSHAFT & PISTON
33 items · 11 available products
Yamaha 9FMH, 15FMH INTAKE parts diagram

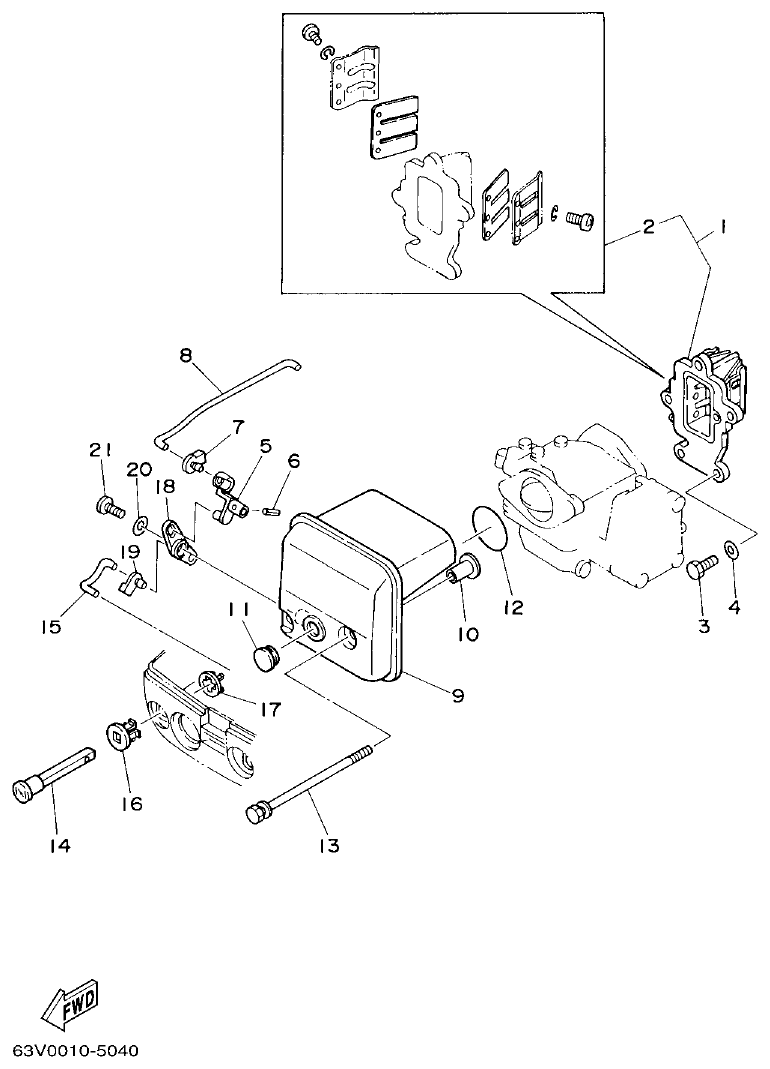

Fig. 4 — INTAKE
23 items · 3 available products
Yamaha 9FMH, 15FMH CARBURETOR parts diagram

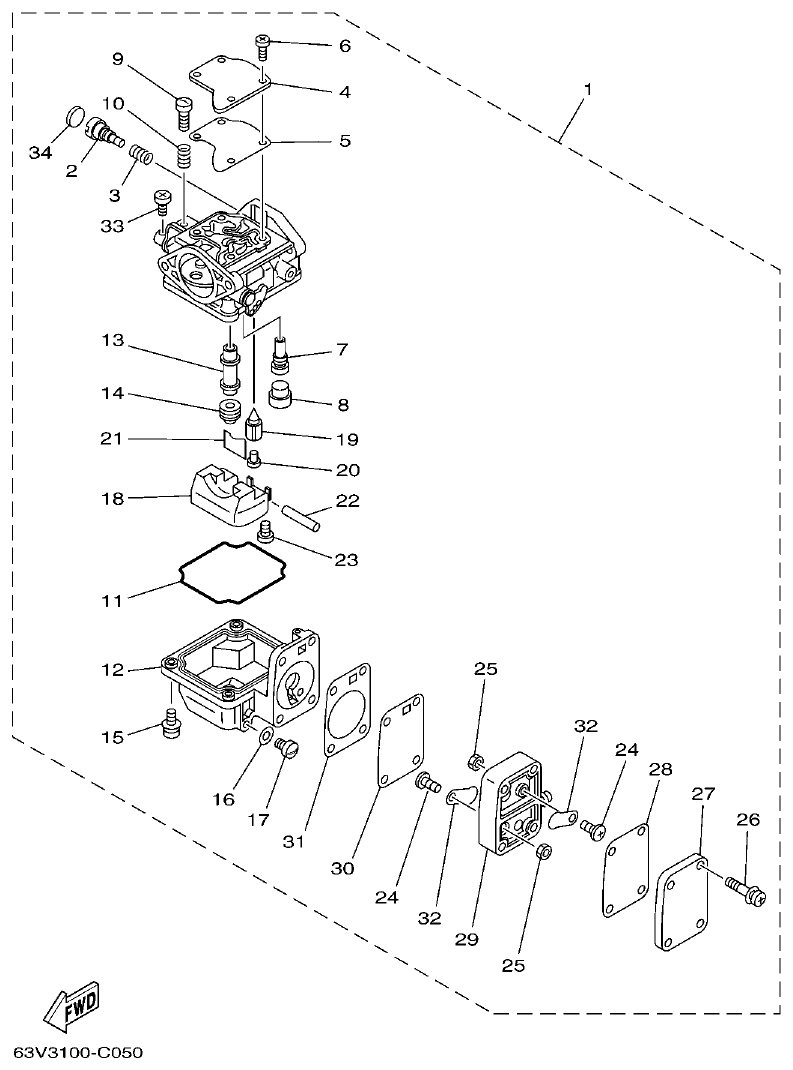

Fig. 5 — CARBURETOR
35 items · 9 available products
Yamaha 9FMH, 15FMH FUEL 1 parts diagram

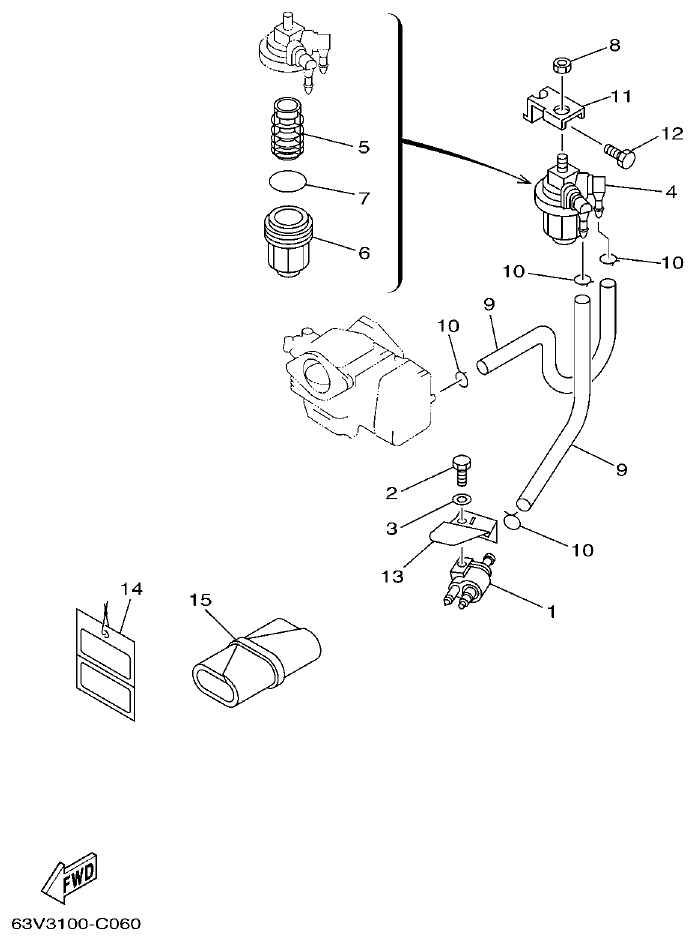

Fig. 6 — FUEL 1
15 items · 2 available products
Yamaha 9FMH, 15FMH FUEL 2 parts diagram

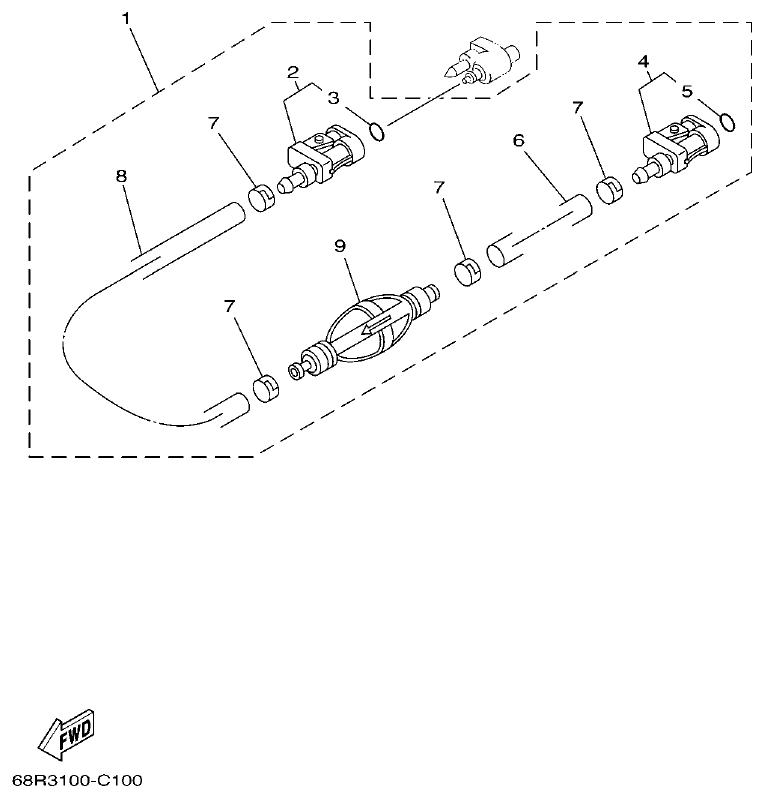

Fig. 7 — FUEL 2
9 items · 2 available products

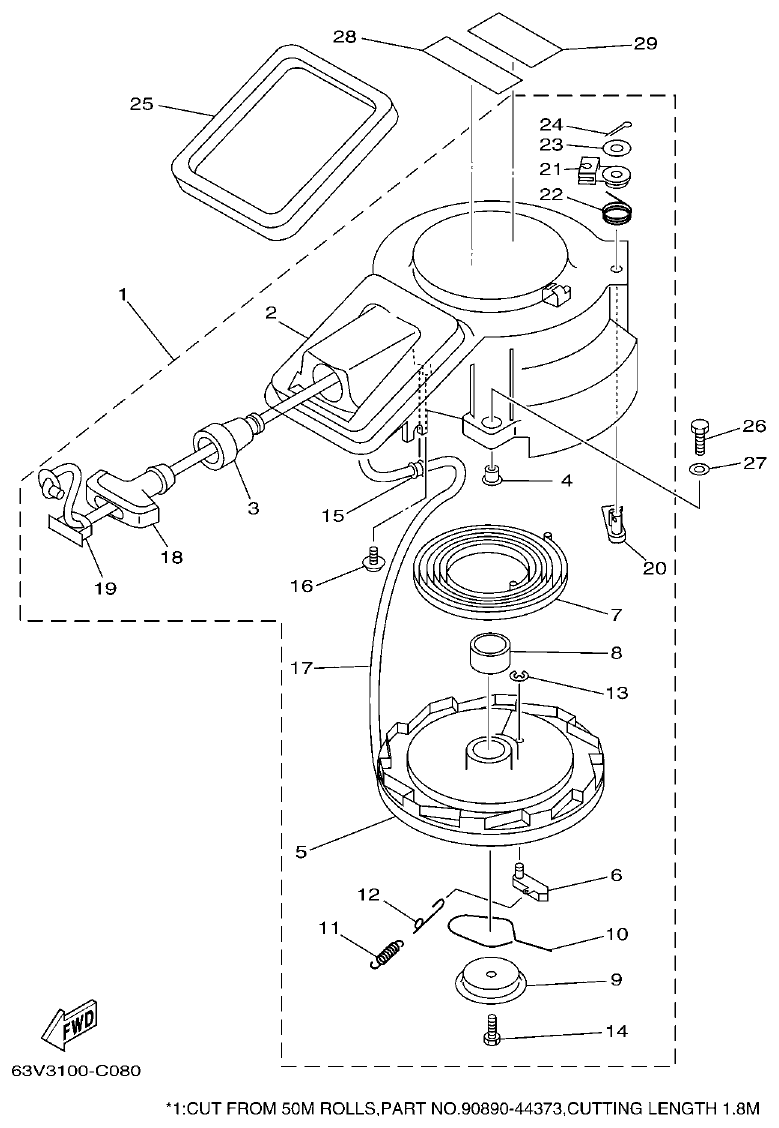

Yamaha 9FMH, 15FMH STARTER parts diagram
Fig. 8 — STARTER
28 items · 7 available products
Yamaha 9FMH, 15FMH GENERATOR parts diagram

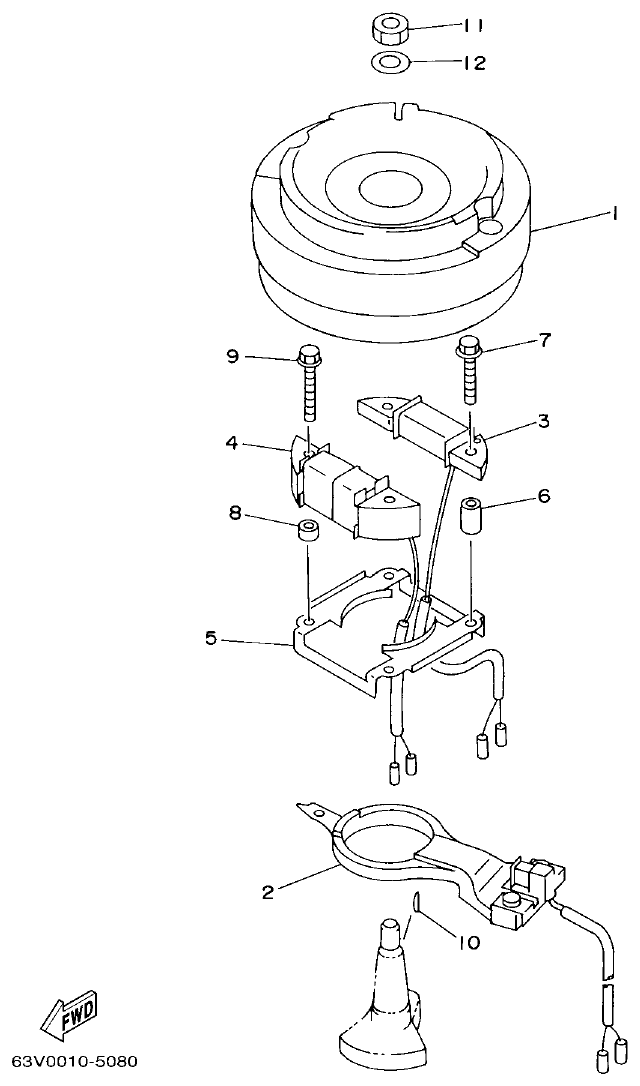

Fig. 9 — GENERATOR
13 items · 2 available products
Yamaha 9FMH, 15FMH ELECTRICAL parts diagram

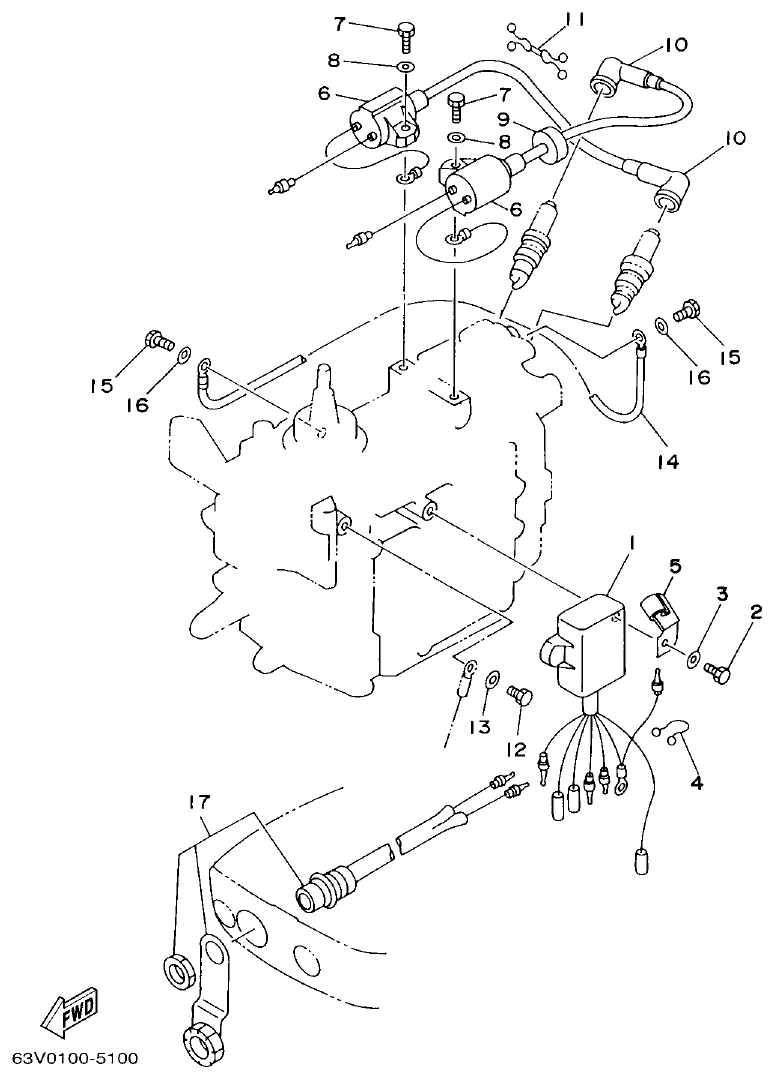

Fig. 10 — ELECTRICAL
18 items · 3 available products
Yamaha 9FMH, 15FMH BOTTOM COWLING parts diagram

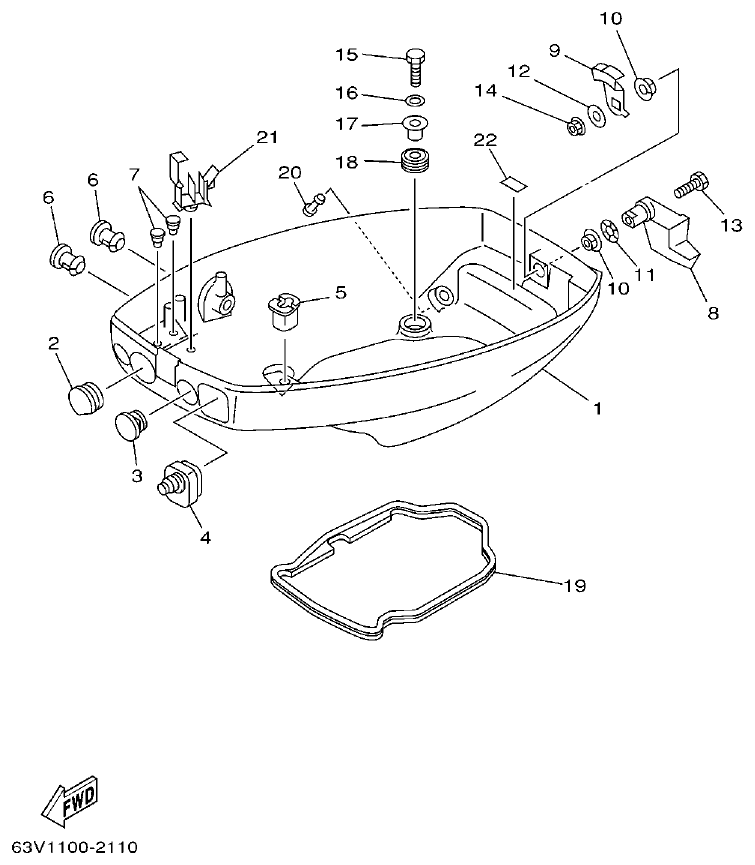

Fig. 11 — BOTTOM COWLING
23 items

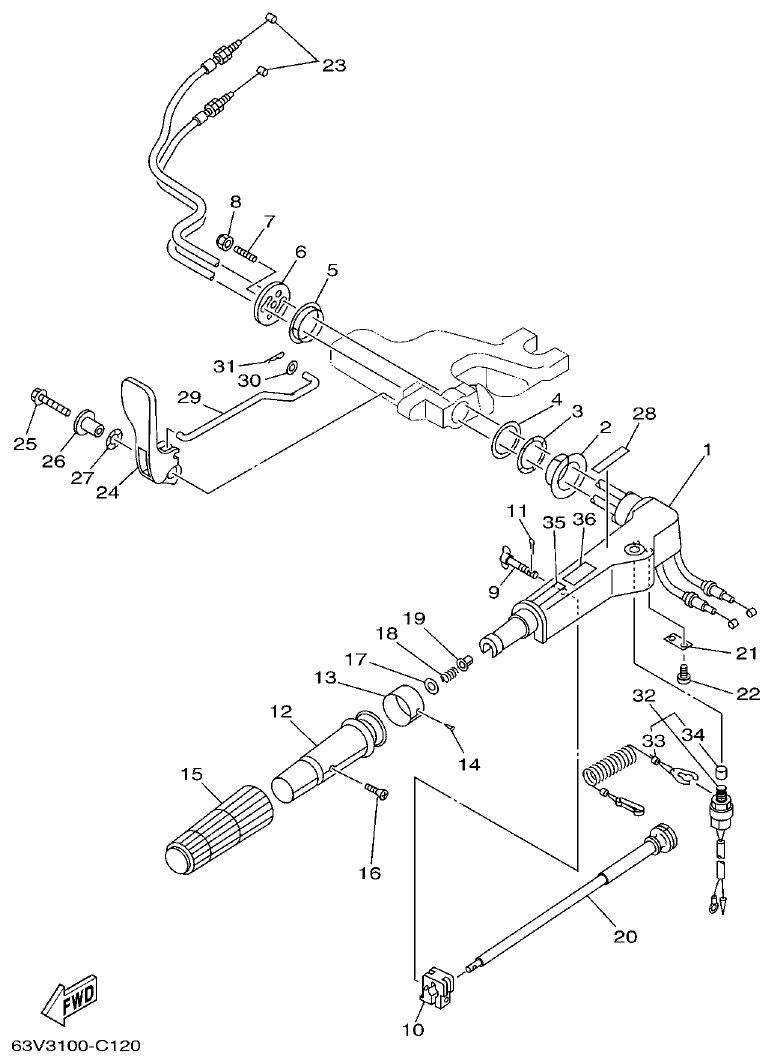

Yamaha 9FMH, 15FMH STEERING parts diagram
Fig. 12 — STEERING
36 items · 5 available products
Yamaha 9FMH, 15FMH CONTROL parts diagram

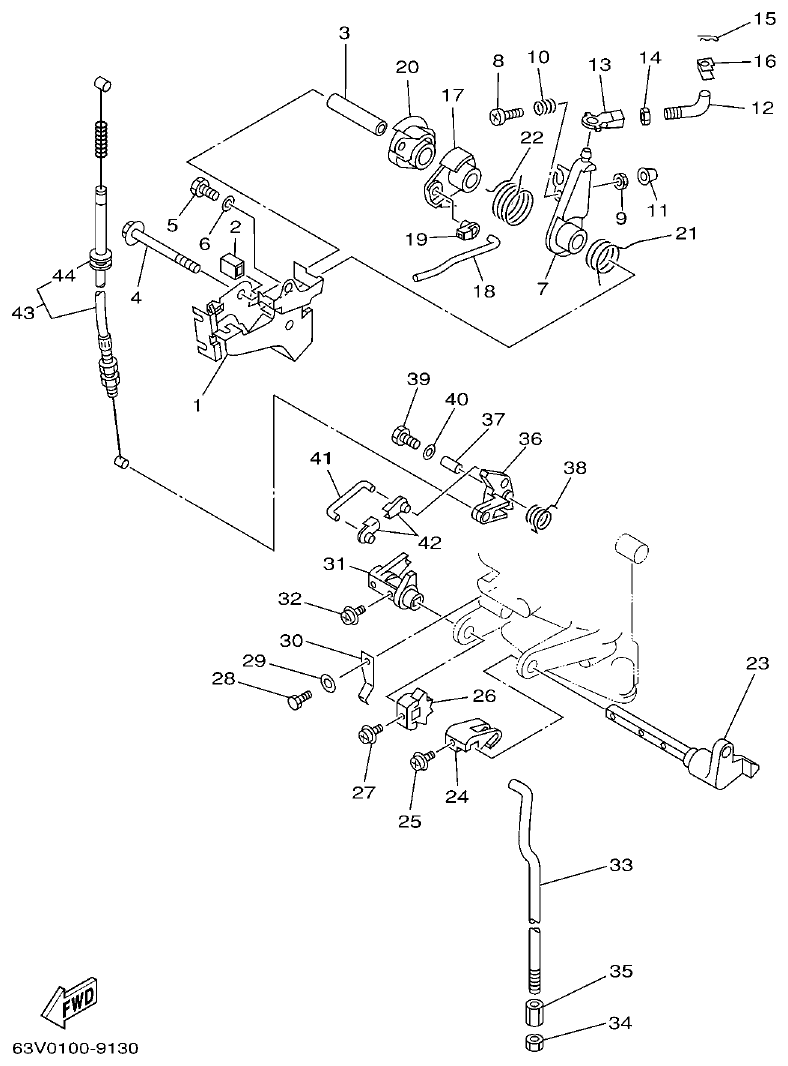

Fig. 13 — CONTROL
44 items · 6 available products

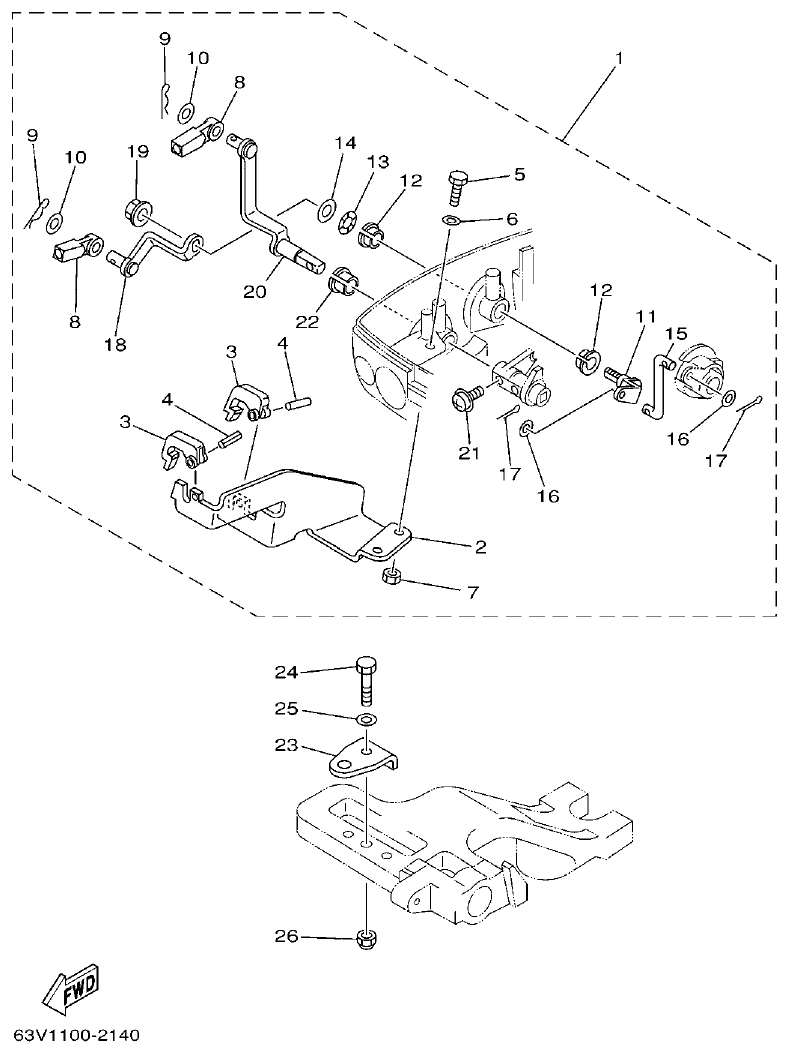

Yamaha 9FMH, 15FMH REMO-CON ATTACHMENT parts diagram
Fig. 14 — REMO-CON ATTACHMENT
26 items

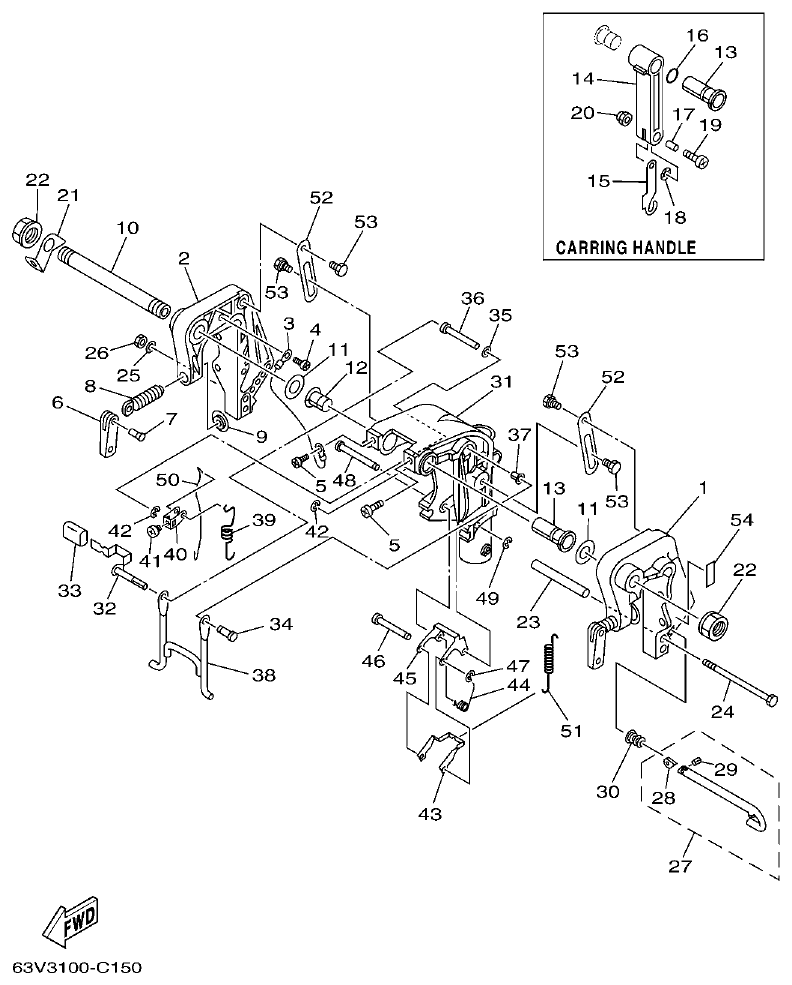

Yamaha 9FMH, 15FMH BRACKET 1 parts diagram
Fig. 15 — BRACKET 1
54 items · 4 available products

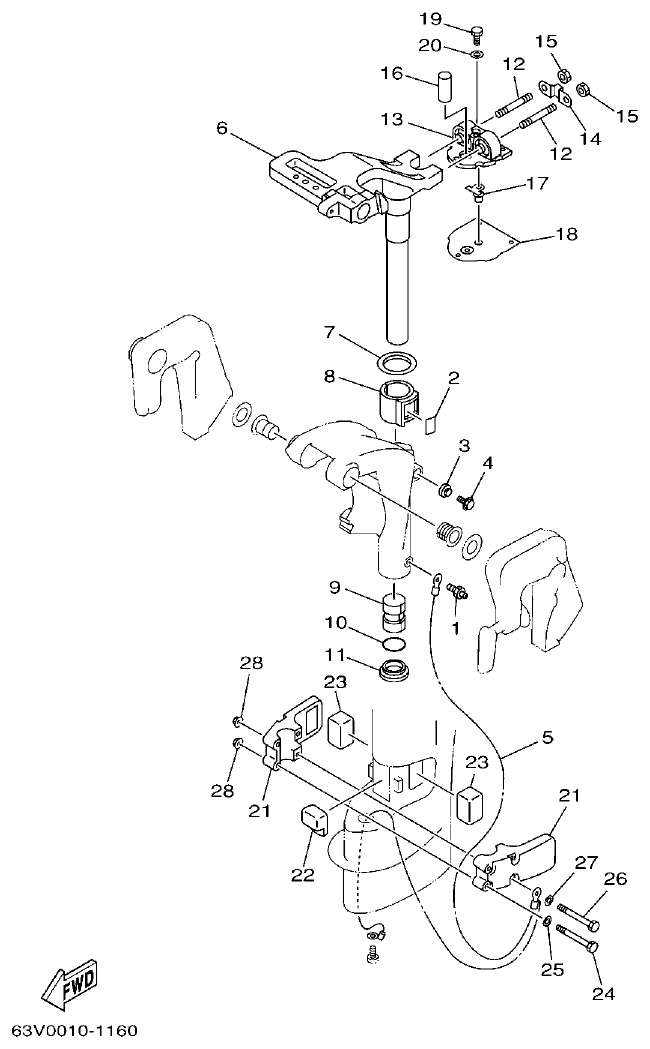

Yamaha 9FMH, 15FMH BRACKET 2 parts diagram
Fig. 16 — BRACKET 2
28 items · 2 available products
Yamaha 9FMH, 15FMH UPPER CASING parts diagram

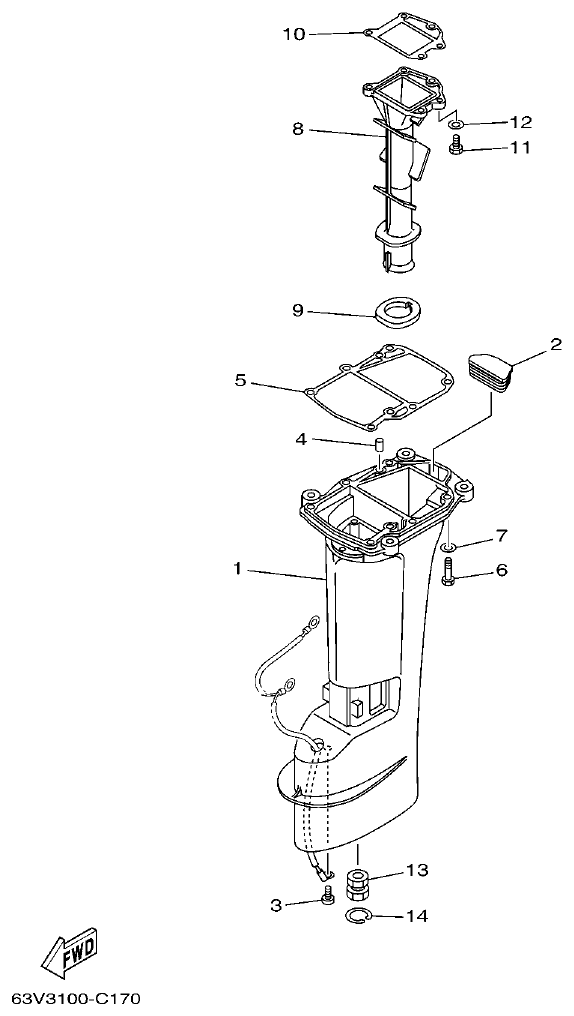

Fig. 17 — UPPER CASING
15 items · 2 available products
Yamaha 9FMH, 15FMH LOWER CASING & DRIVE 1 parts diagram

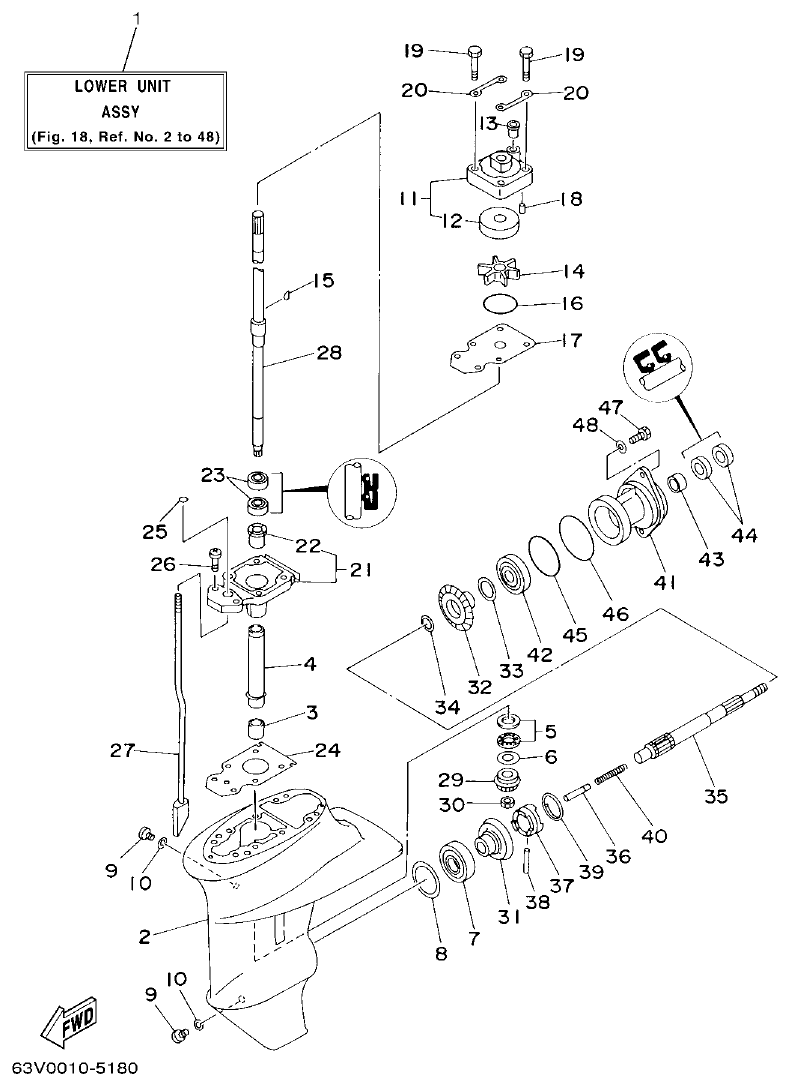

Fig. 18 — LOWER CASING & DRIVE 1
60 items · 13 available products

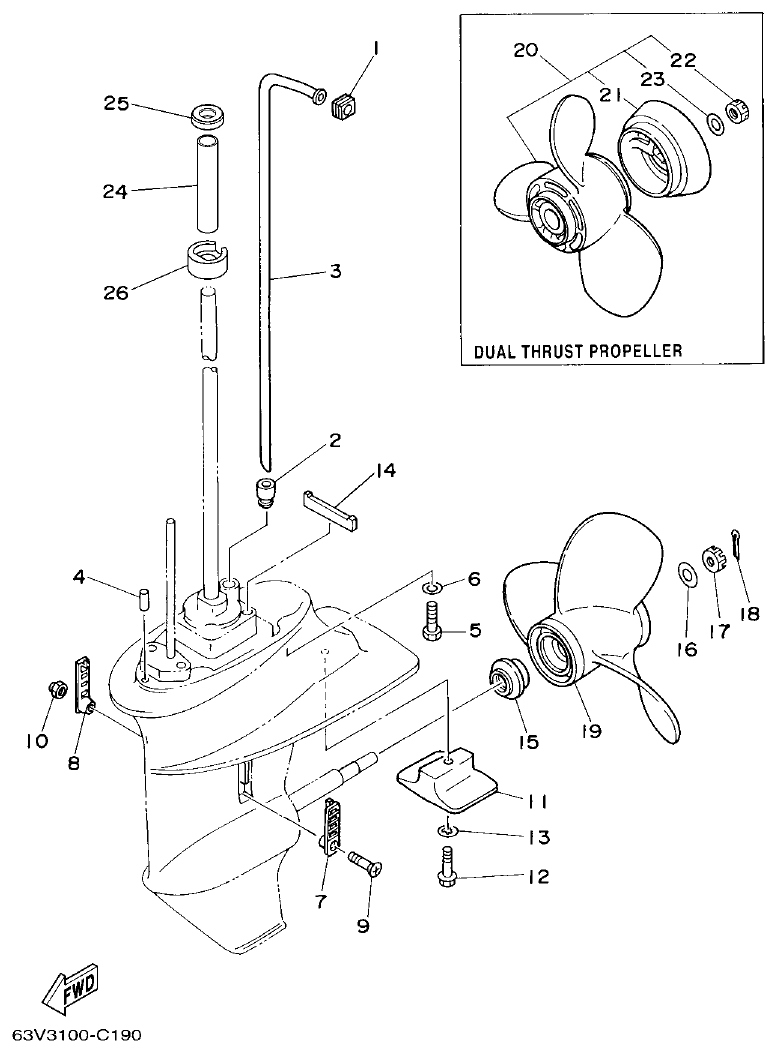

Yamaha 9FMH, 15FMH LOWER CASING & DRIVE 2 parts diagram
Fig. 19 — LOWER CASING & DRIVE 2
35 items · 4 available products
Yamaha 9FMH, 15FMH FUEL TANK parts diagram

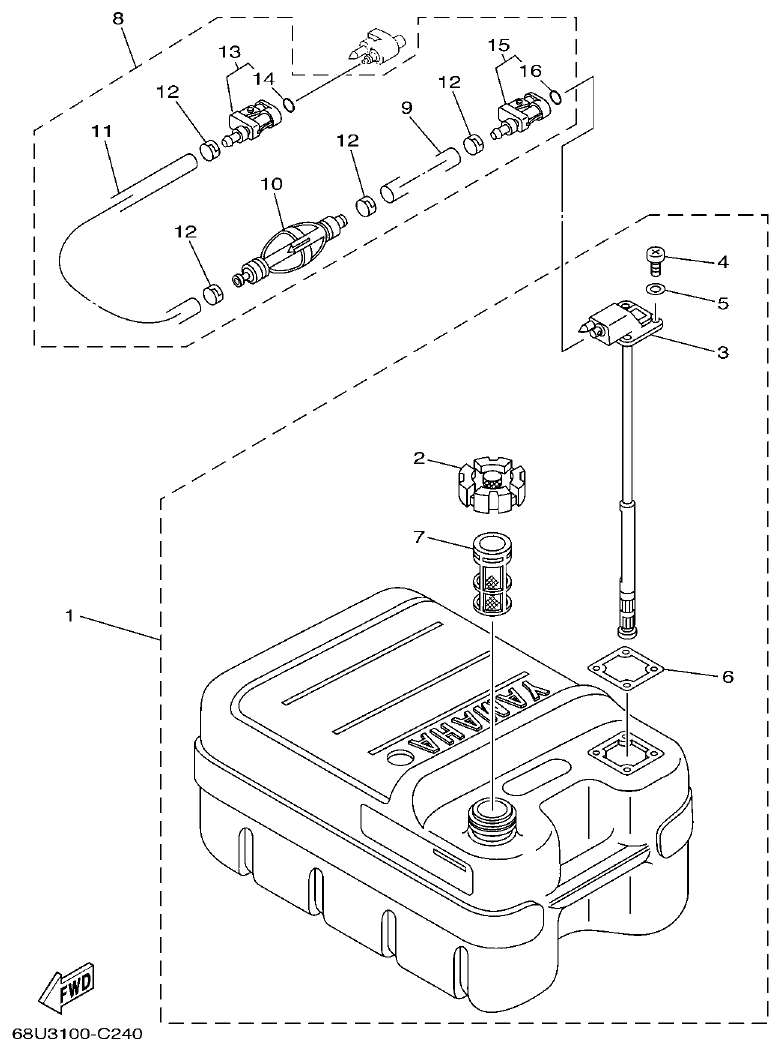

Fig. 20 — FUEL TANK
20 items · 2 available products

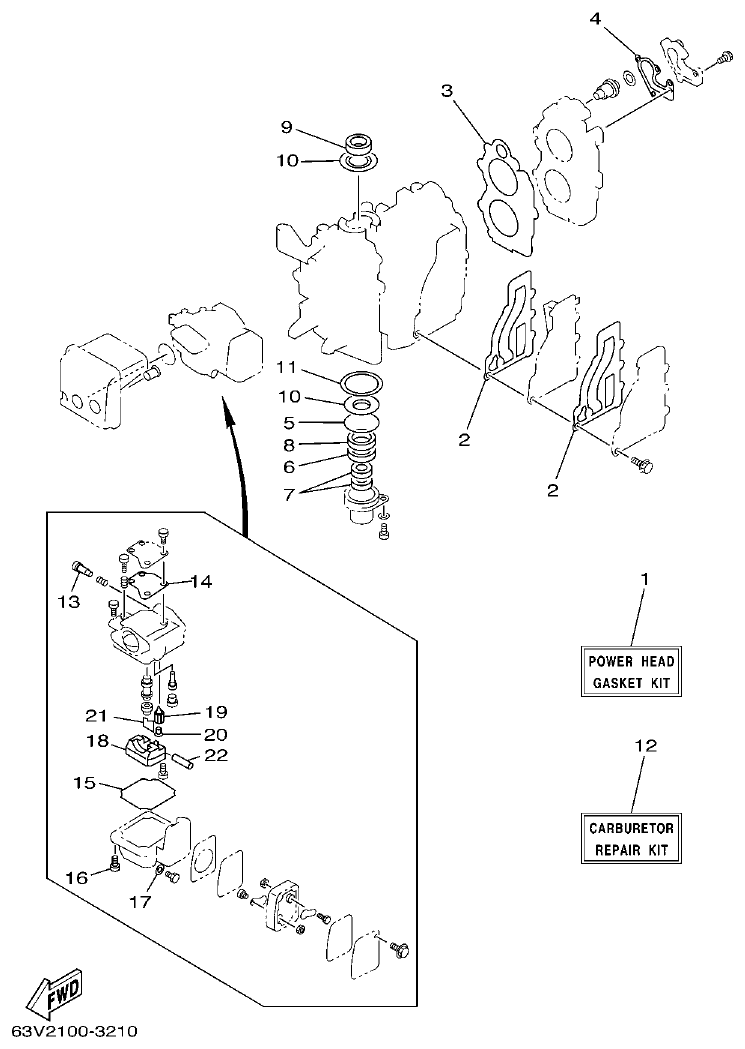

Yamaha 9FMH, 15FMH REPAIR KIT 1 parts diagram
Fig. 21 — REPAIR KIT 1
22 items · 7 available products

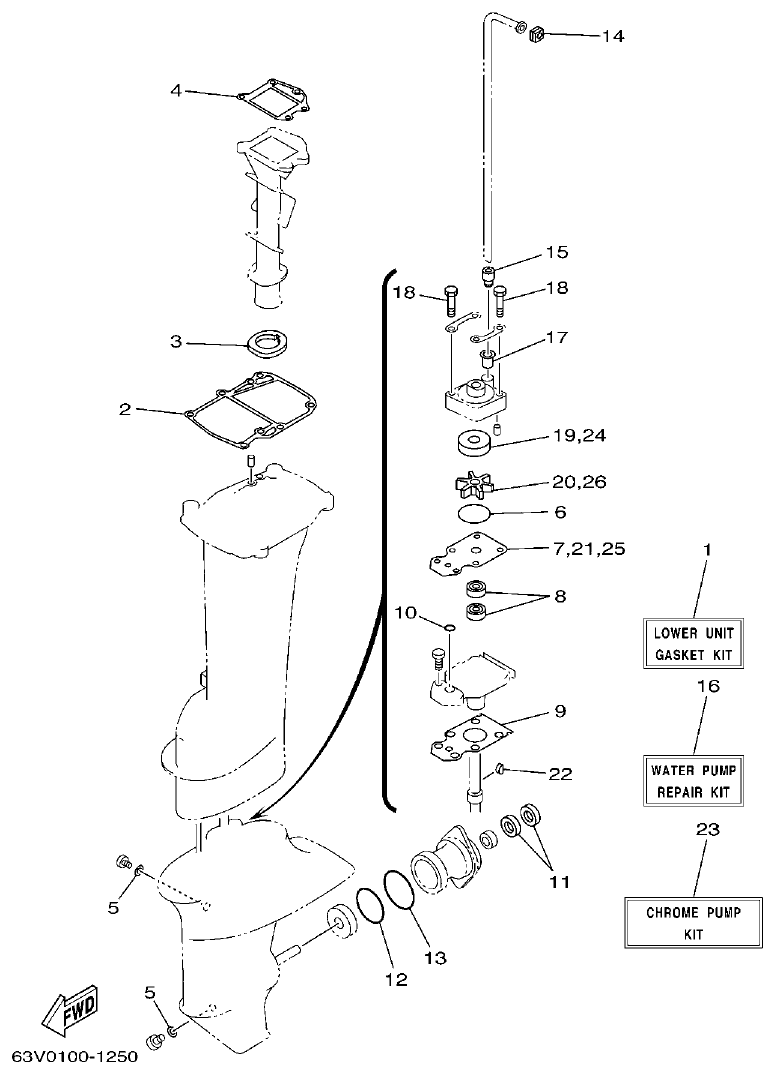

Yamaha 9FMH, 15FMH REPAIR KIT 2 parts diagram
Fig. 22 — REPAIR KIT 2
26 items · 6 available products
