Yamaha 9FMH, 9GMH, 15FMH Parts Catalog

Yamaha 9FMH, 9GMH, 15FMH Outboard parts and diagrams

Yamaha 9FMH, 9GMH, 15FMH outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL, BOTTOM COWLING, STEERING, CONTROL, REMO CON ATTACHMENT, BRACKET 1, BRACKET 2, UPPER CASING, LOWER CASING & DRIVE 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

114 linked store products are available across 24 catalog sections. 617 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

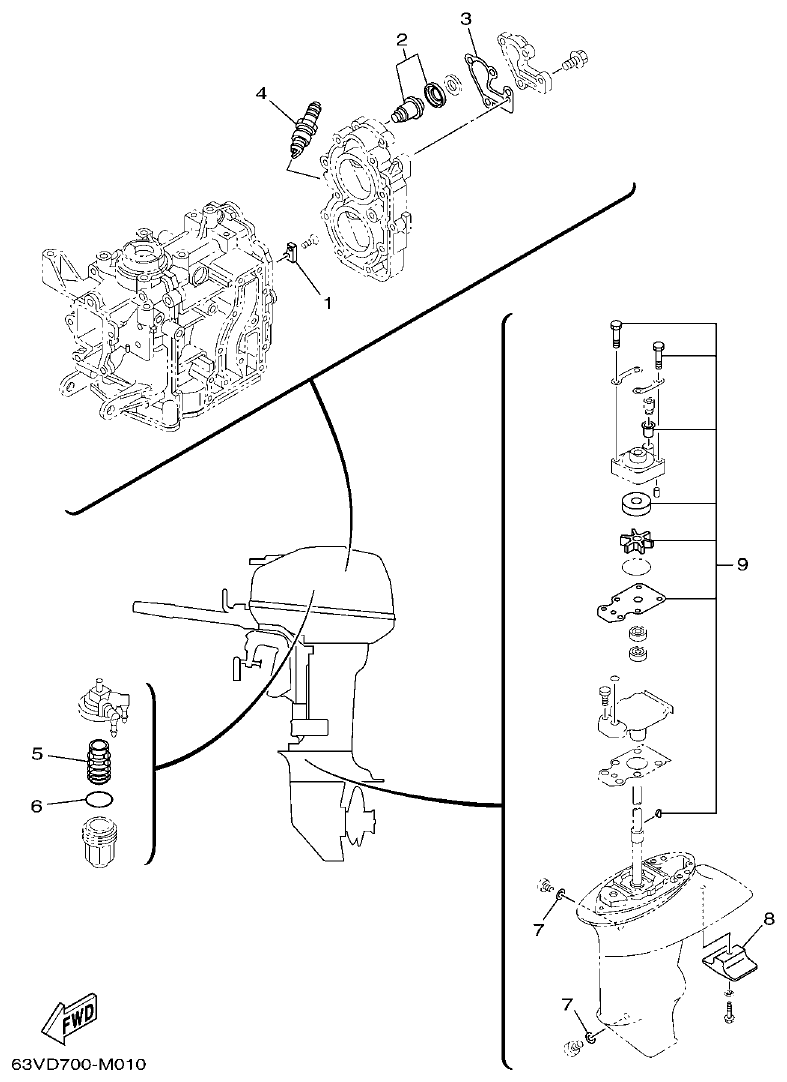

Yamaha 9FMH, 9GMH, 15FMH SCHEDULED SERVICE PARTS parts diagram
Fig. 1 — SCHEDULED SERVICE PARTS
10 items · 4 available products
Yamaha 9FMH, 9GMH, 15FMH TOP COWLING parts diagram

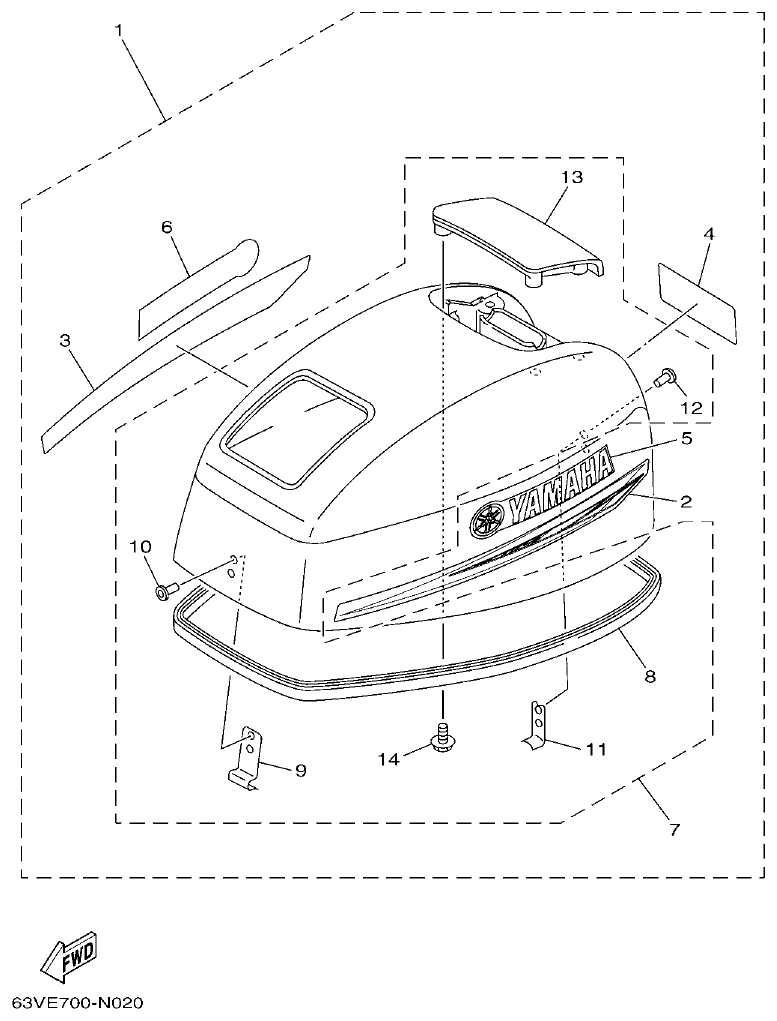

Fig. 2 — TOP COWLING
16 items

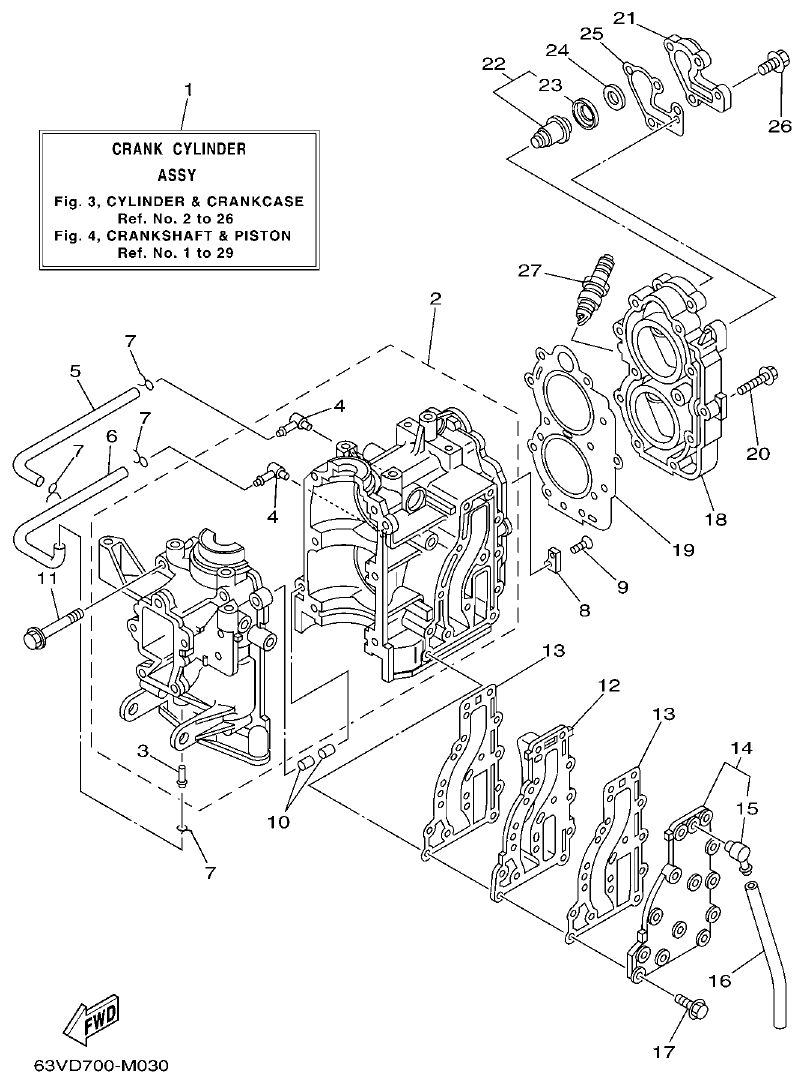

Yamaha 9FMH, 9GMH, 15FMH CYLINDER & CRANKCASE parts diagram
Fig. 3 — CYLINDER & CRANKCASE
27 items · 6 available products
Yamaha 9FMH, 9GMH, 15FMH CRANKSHAFT & PISTON parts diagram

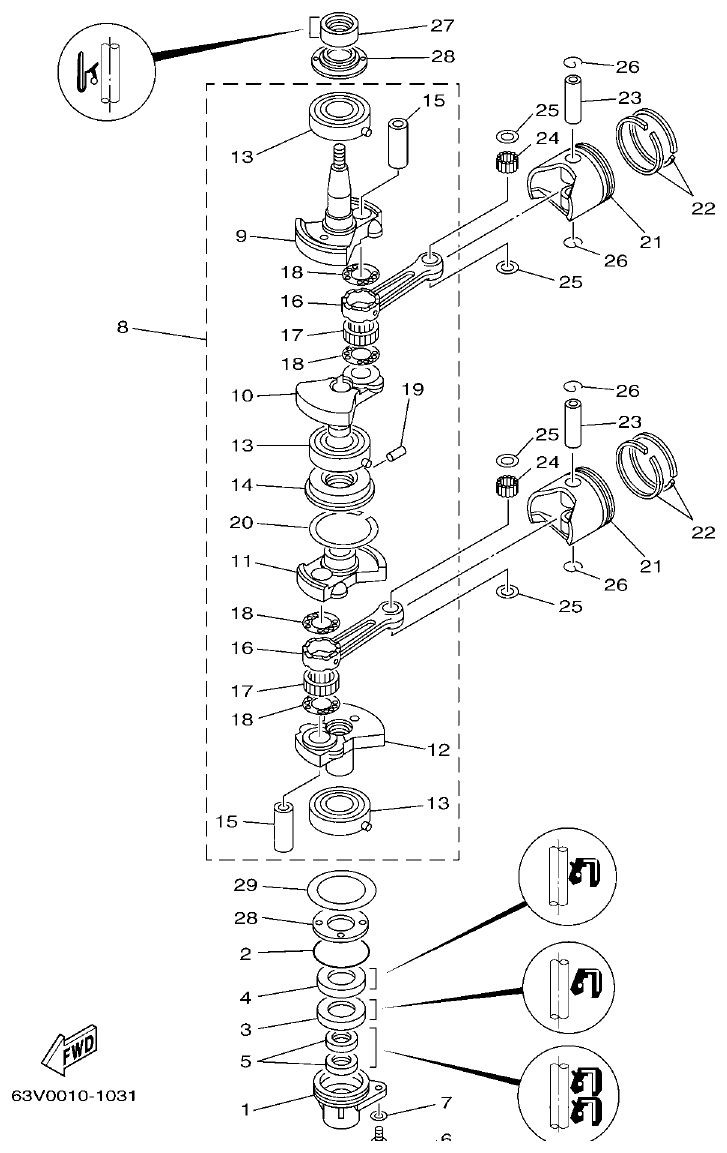

Fig. 4 — CRANKSHAFT & PISTON
33 items · 11 available products
Yamaha 9FMH, 9GMH, 15FMH INTAKE parts diagram
Fig. 5 — INTAKE
22 items · 4 available products
Yamaha 9FMH, 9GMH, 15FMH CARBURETOR parts diagram

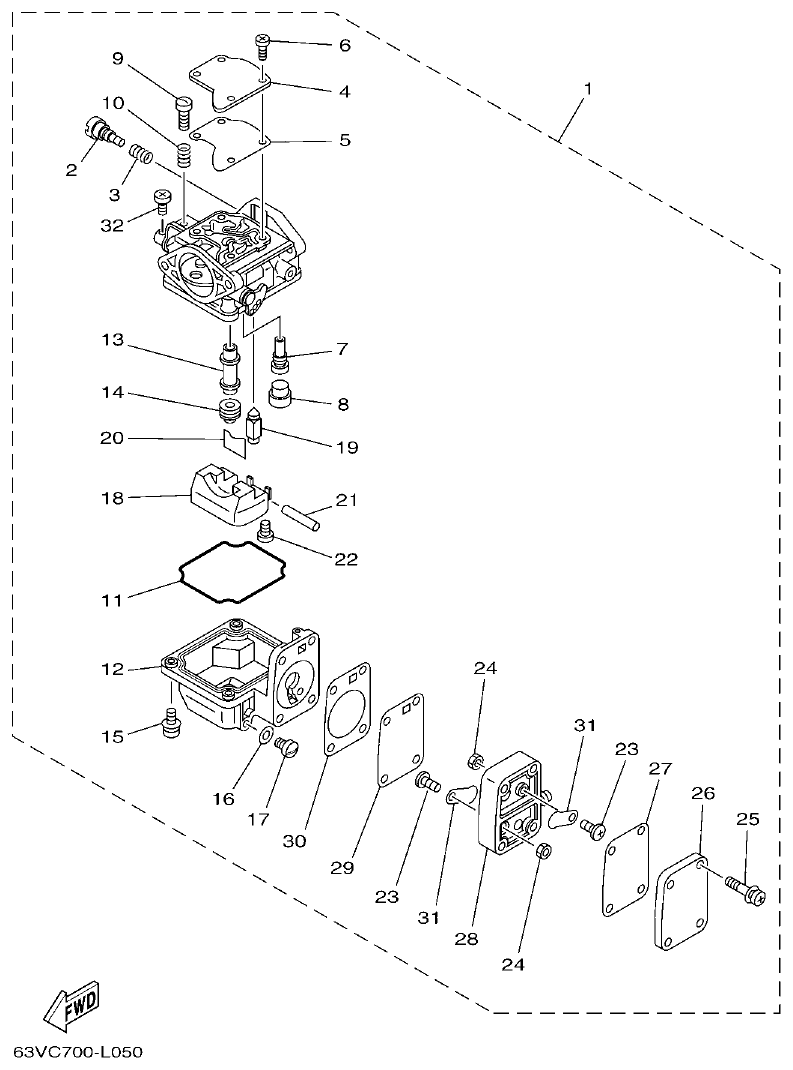

Fig. 6 — CARBURETOR
32 items · 10 available products
Yamaha 9FMH, 9GMH, 15FMH FUEL parts diagram

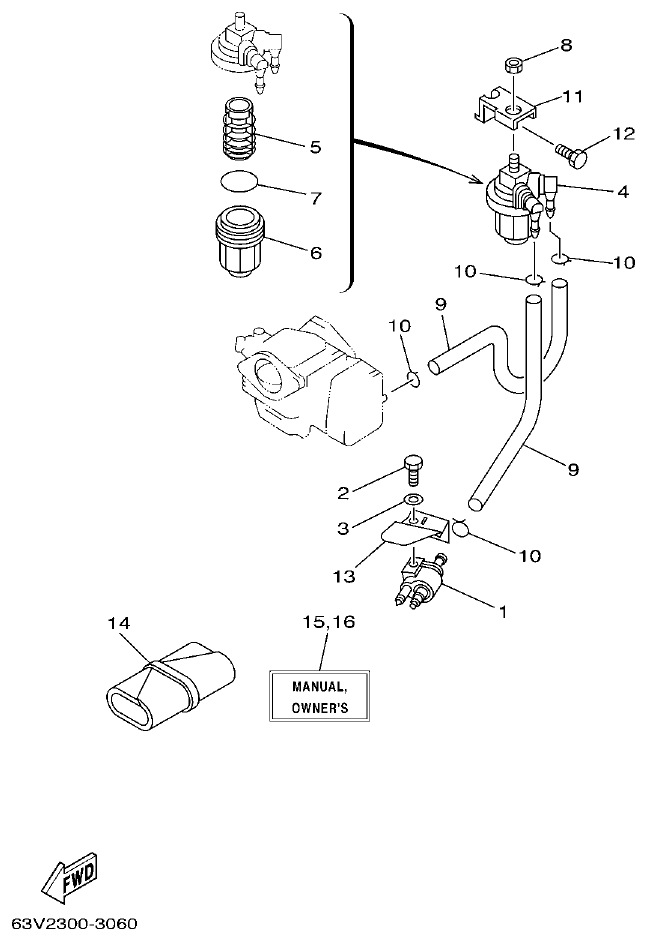

Fig. 7 — FUEL
26 items · 2 available products

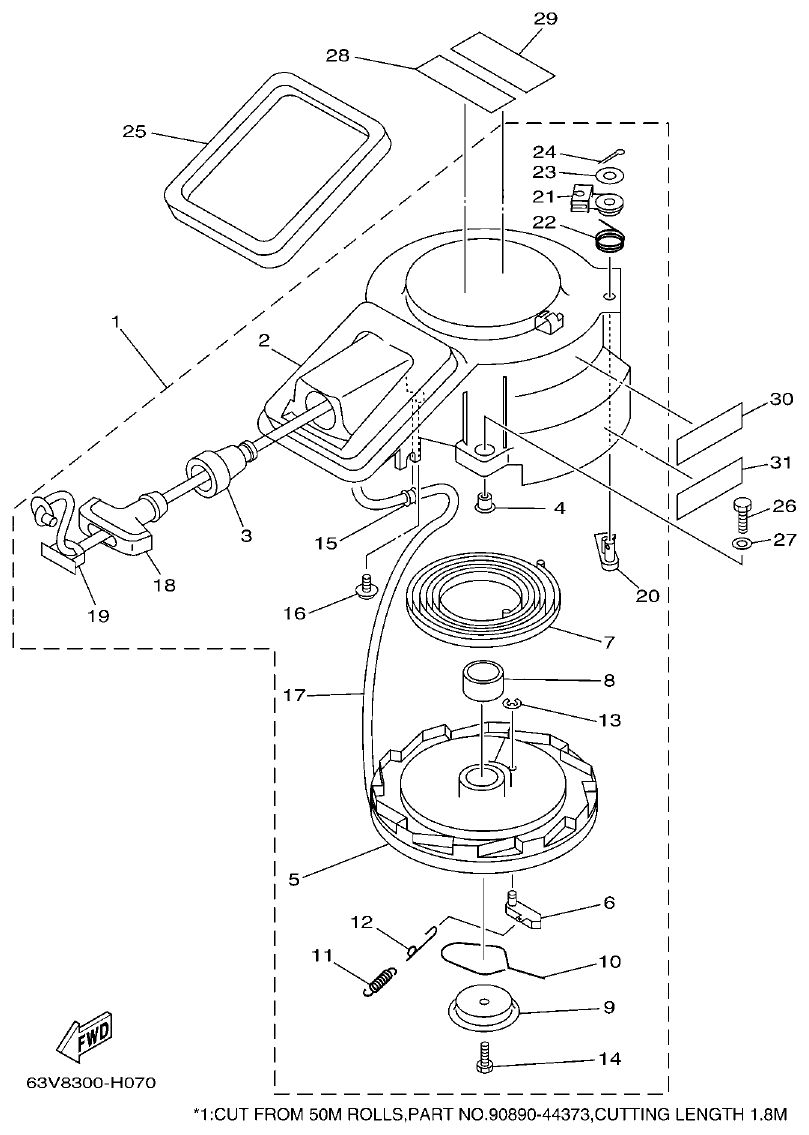

Yamaha 9FMH, 9GMH, 15FMH STARTER parts diagram
Fig. 8 — STARTER
30 items · 7 available products

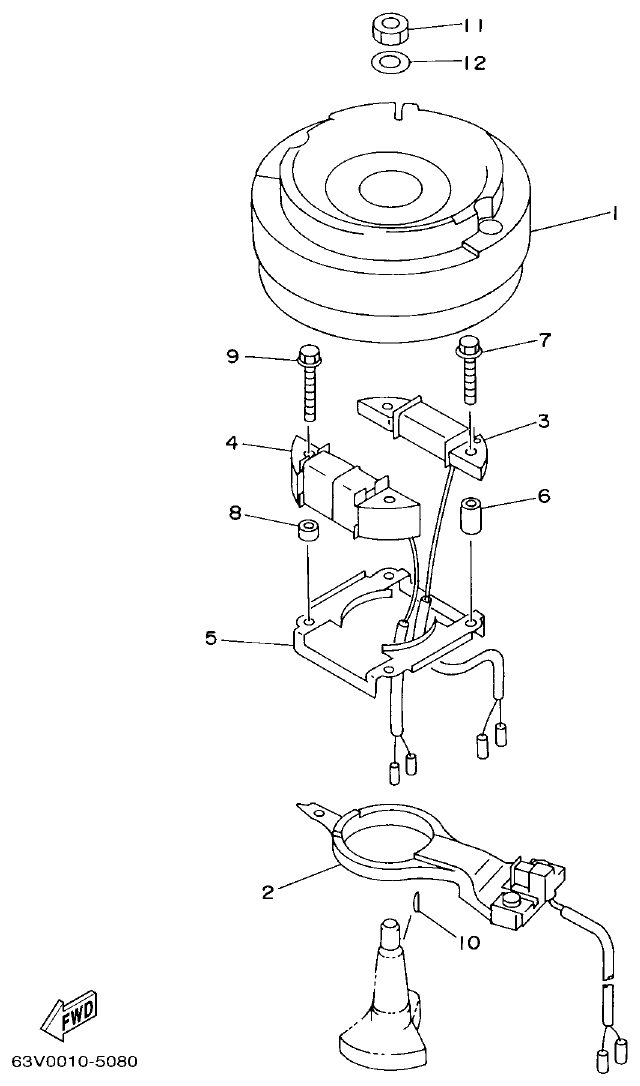

Yamaha 9FMH, 9GMH, 15FMH GENERATOR parts diagram
Fig. 9 — GENERATOR
12 items · 2 available products
Yamaha 9FMH, 9GMH, 15FMH ELECTRICAL parts diagram

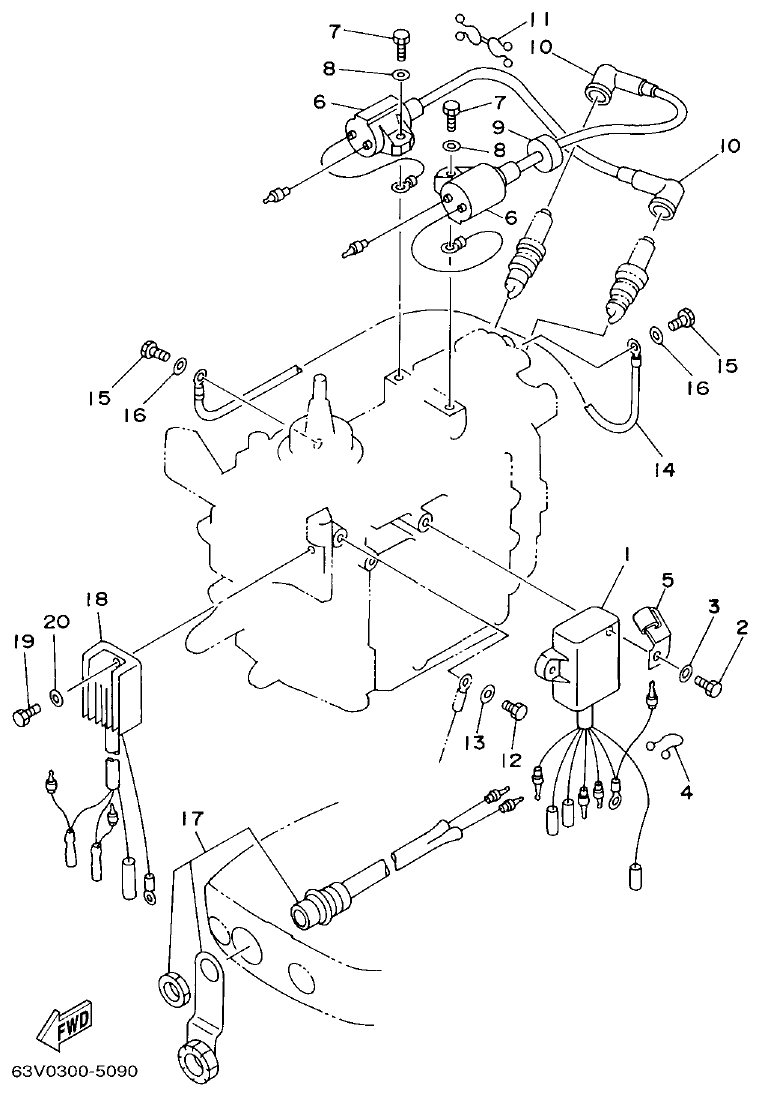

Fig. 10 — ELECTRICAL
20 items · 2 available products

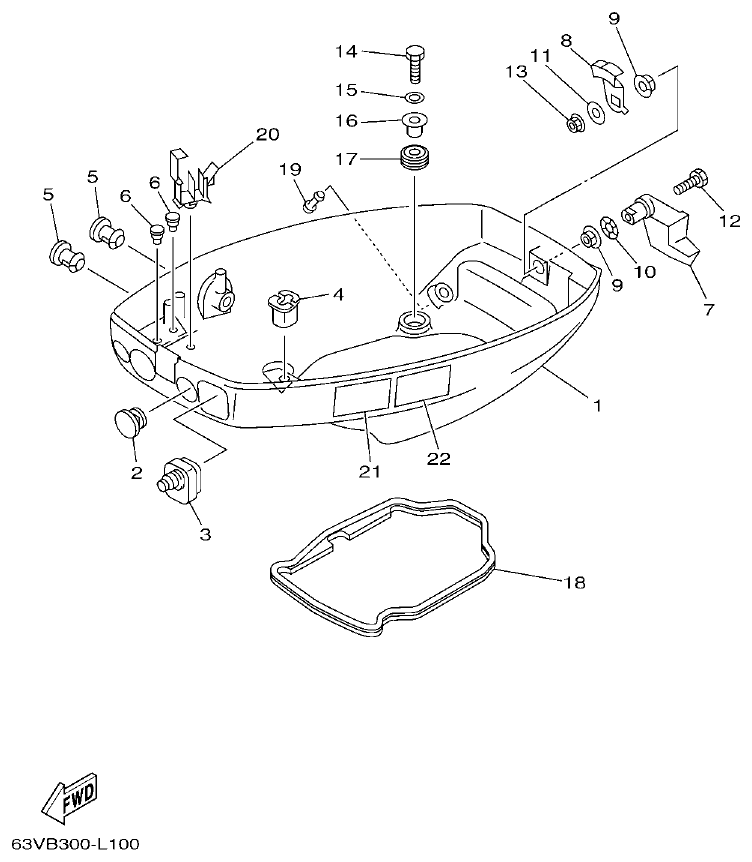

Yamaha 9FMH, 9GMH, 15FMH BOTTOM COWLING parts diagram
Fig. 11 — BOTTOM COWLING
22 items · 1 available products
Yamaha 9FMH, 9GMH, 15FMH STEERING parts diagram

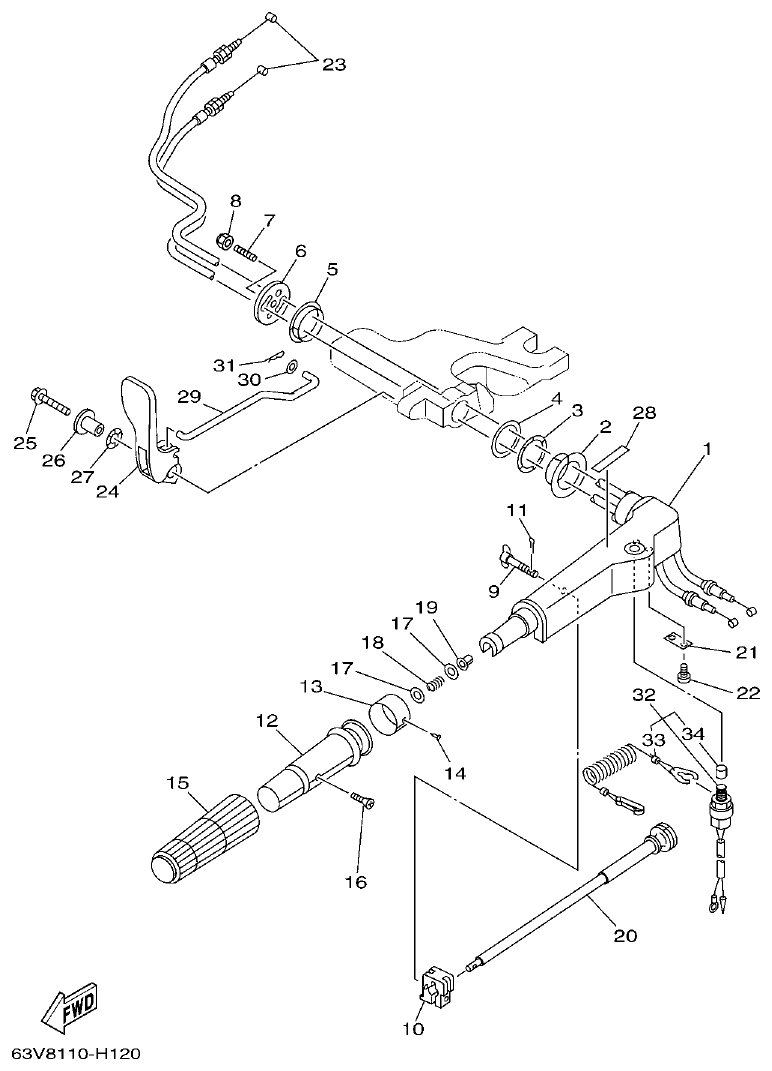

Fig. 12 — STEERING
34 items · 6 available products
Yamaha 9FMH, 9GMH, 15FMH CONTROL parts diagram

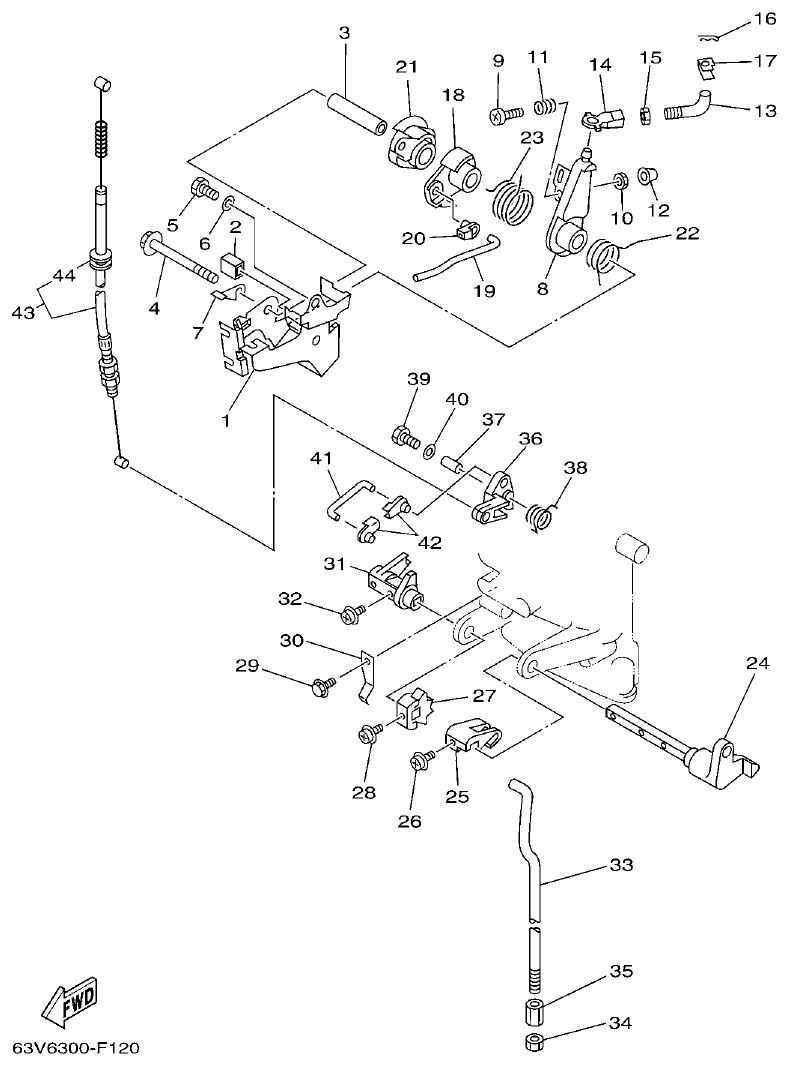

Fig. 13 — CONTROL
44 items · 7 available products
Yamaha 9FMH, 9GMH, 15FMH REMO CON ATTACHMENT parts diagram

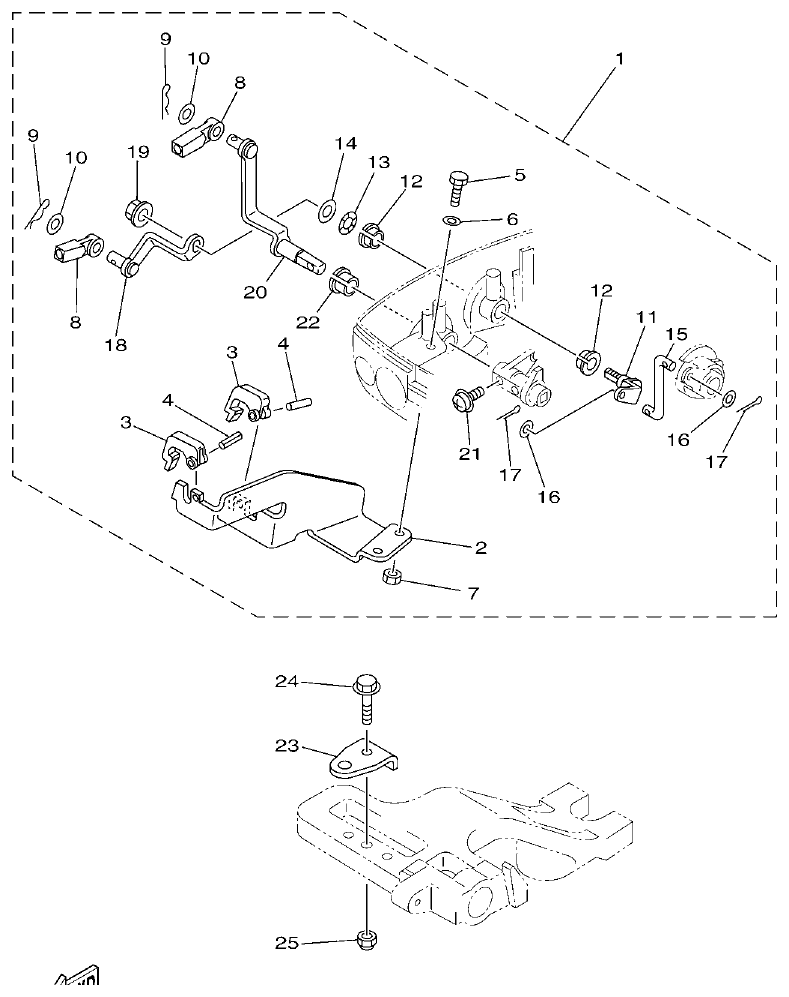

Fig. 14 — REMO CON ATTACHMENT
25 items
Yamaha 9FMH, 9GMH, 15FMH BRACKET 1 parts diagram

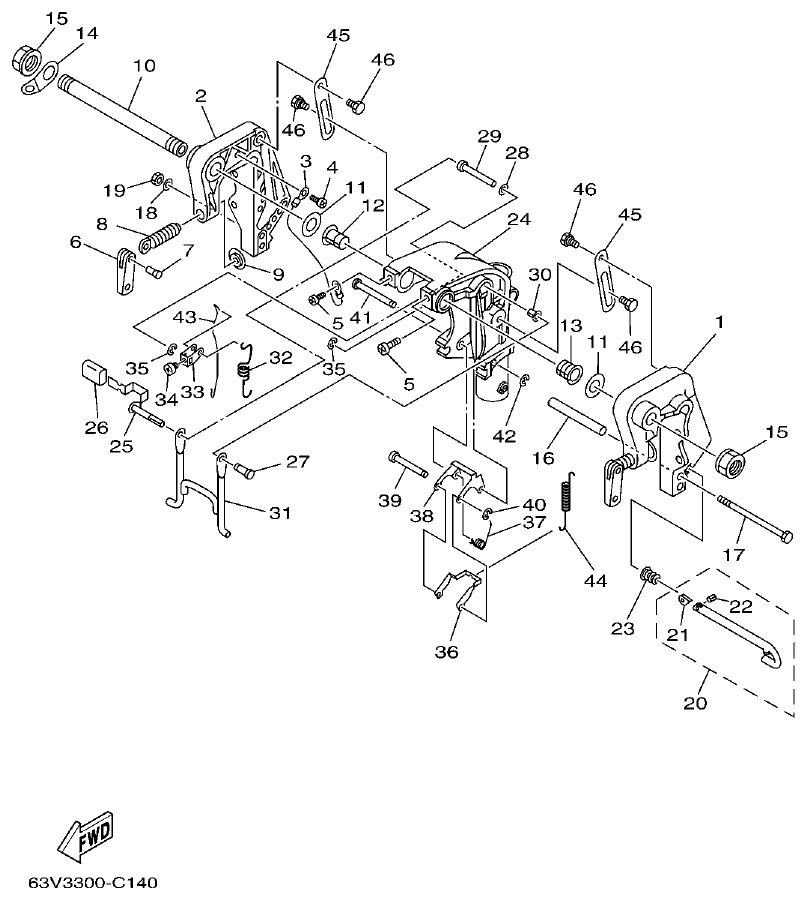

Fig. 15 — BRACKET 1
46 items · 4 available products
Yamaha 9FMH, 9GMH, 15FMH BRACKET 2 parts diagram

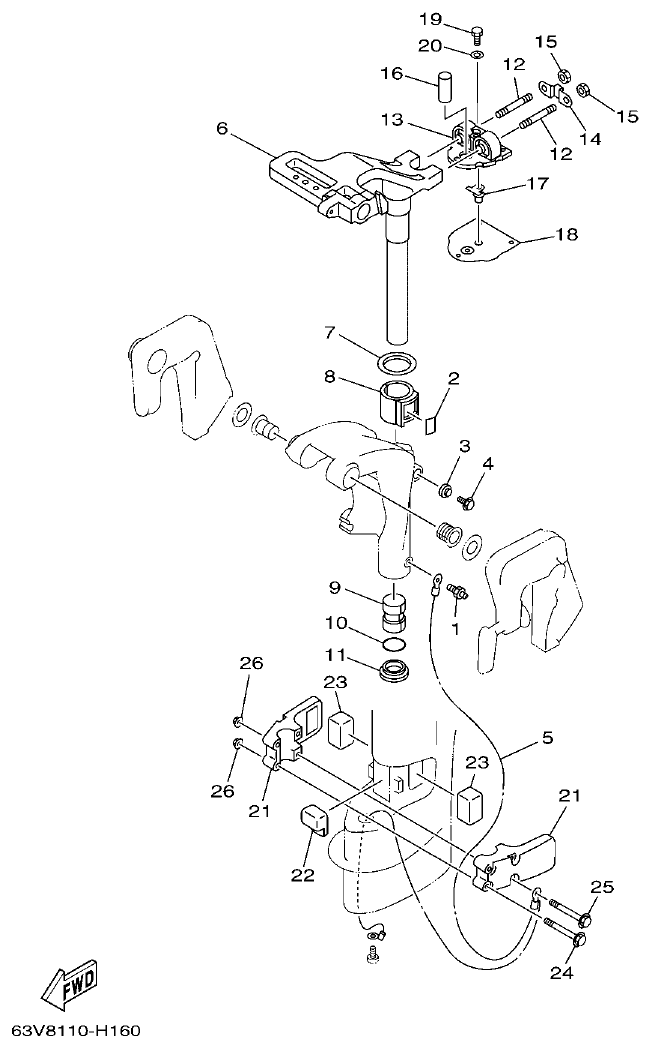

Fig. 16 — BRACKET 2
26 items · 2 available products
Yamaha 9FMH, 9GMH, 15FMH UPPER CASING parts diagram

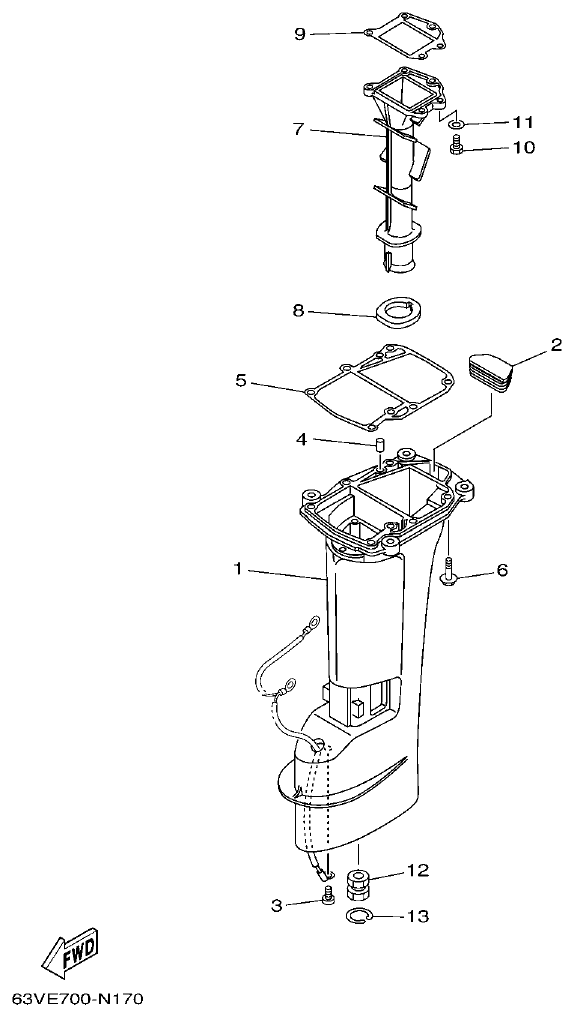

Fig. 17 — UPPER CASING
14 items · 2 available products
Yamaha 9FMH, 9GMH, 15FMH LOWER CASING & DRIVE 1 parts diagram

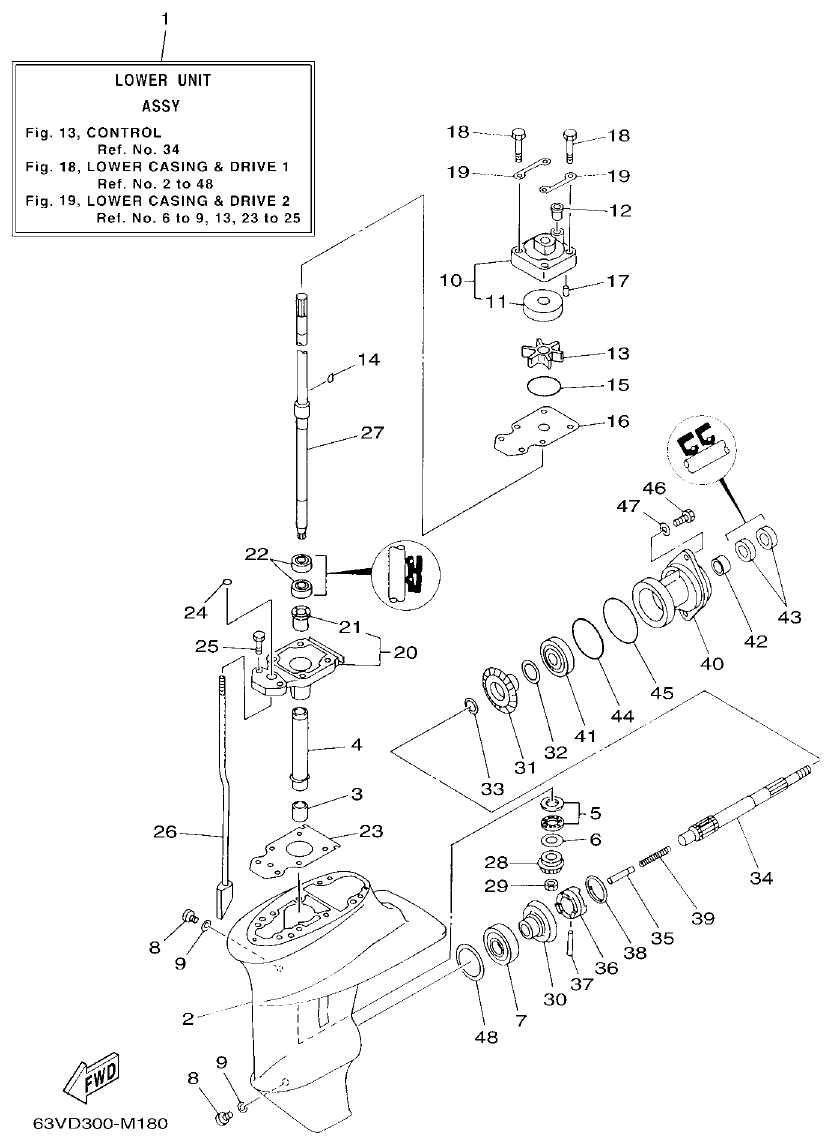

Fig. 18 — LOWER CASING & DRIVE 1
62 items · 18 available products
Yamaha 9FMH, 9GMH, 15FMH LOWER CASING & DRIVE 2 parts diagram

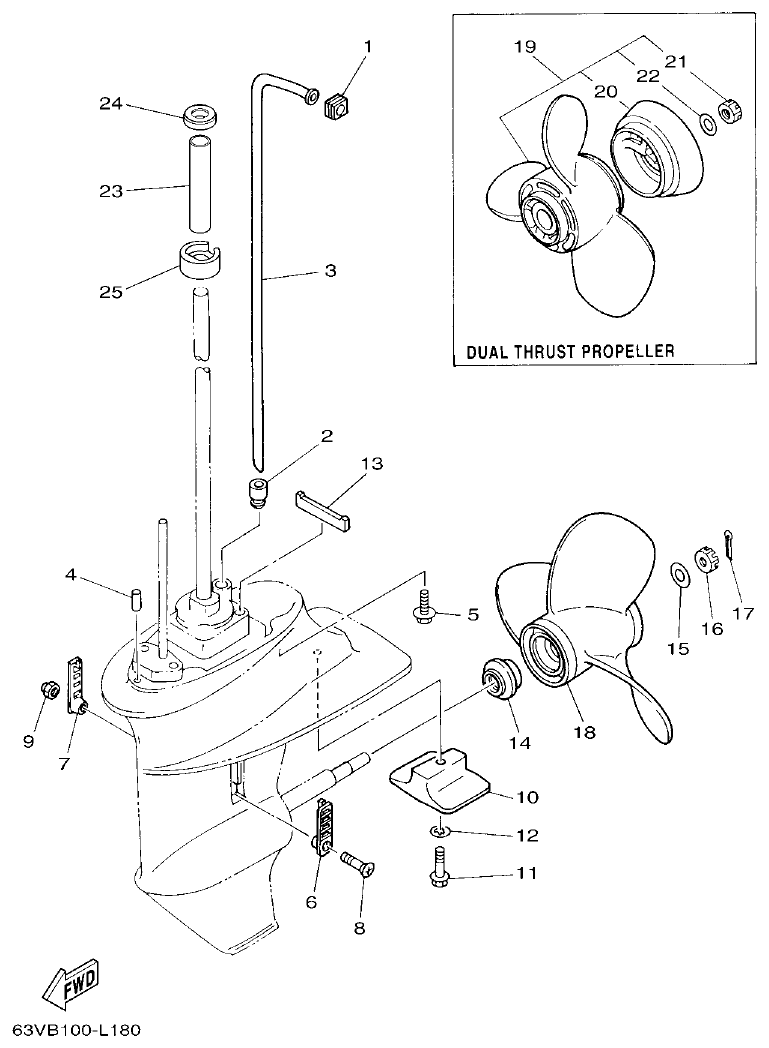

Fig. 19 — LOWER CASING & DRIVE 2
36 items · 7 available products

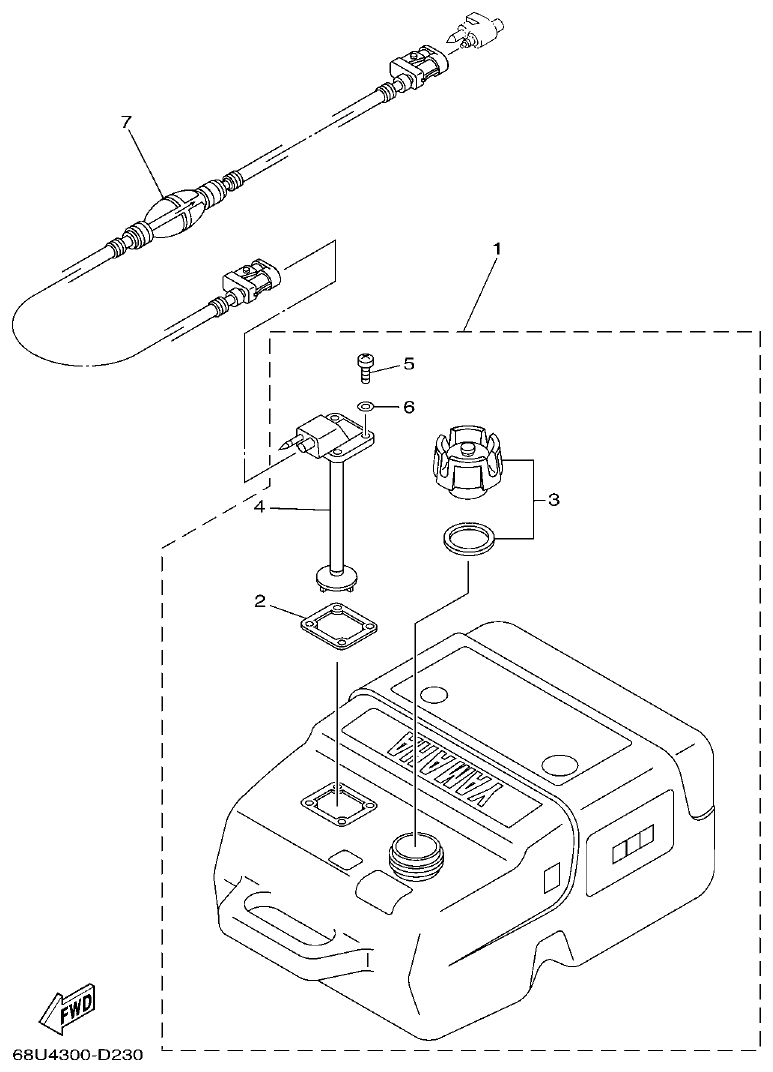

Yamaha 9FMH, 9GMH, 15FMH FUEL TANK 1 parts diagram
Fig. 20 — FUEL TANK 1
7 items
Yamaha 9FMH, 9GMH, 15FMH FUEL TANK 2 parts diagram

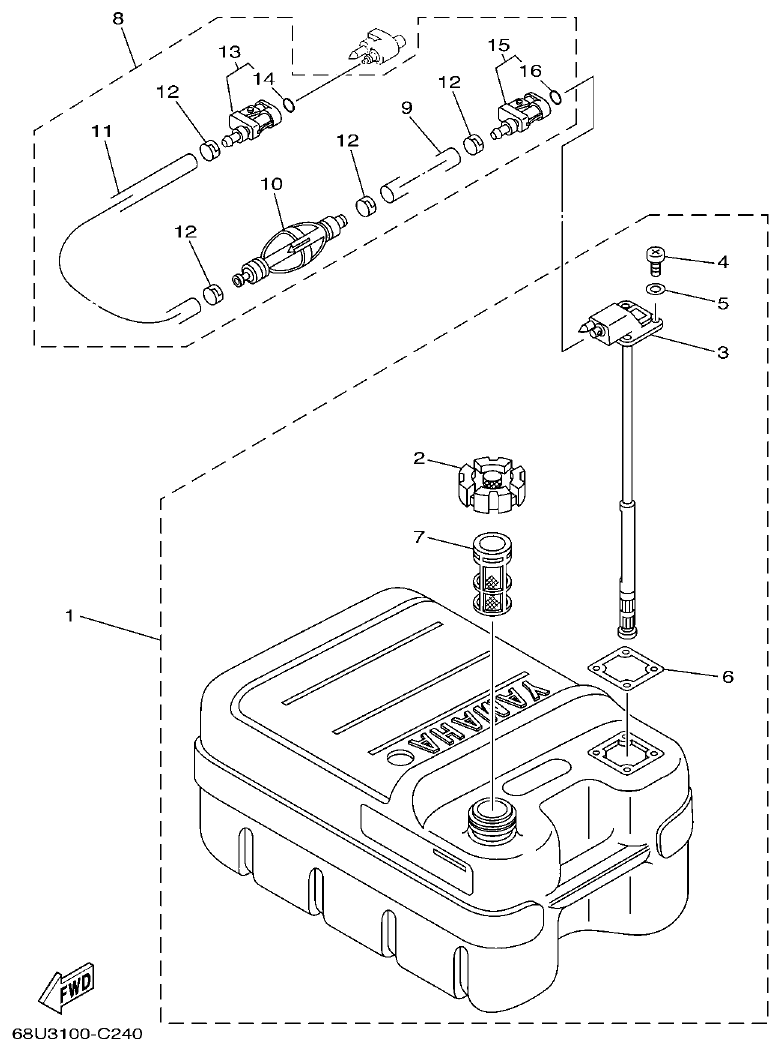

Fig. 21 — FUEL TANK 2
16 items · 4 available products

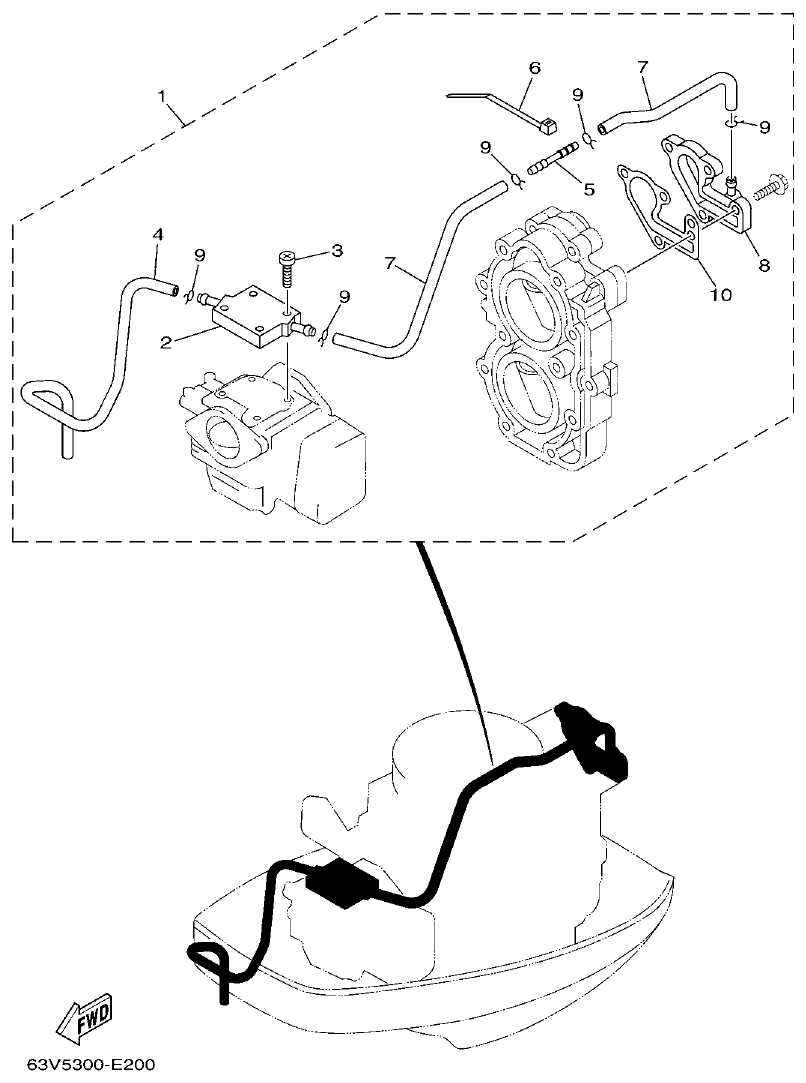

Yamaha 9FMH, 9GMH, 15FMH OPTIONAL PARTS parts diagram
Fig. 22 — OPTIONAL PARTS
10 items · 1 available products
Yamaha 9FMH, 9GMH, 15FMH REPAIR KIT 1 parts diagram

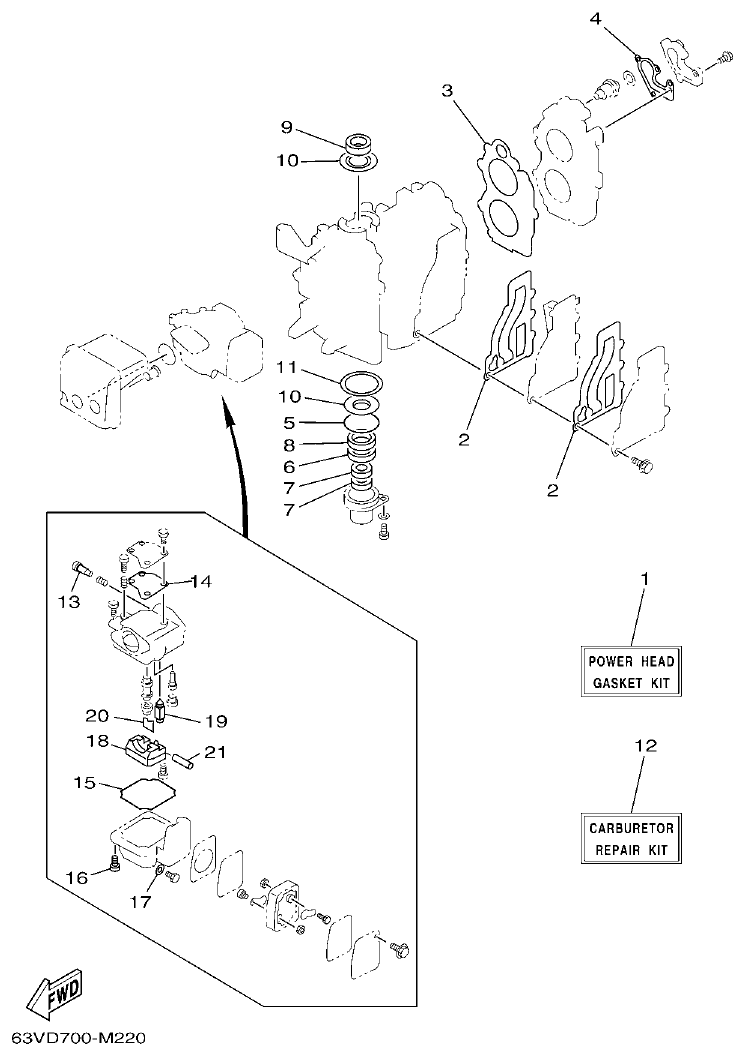

Fig. 23 — REPAIR KIT 1
21 items · 8 available products

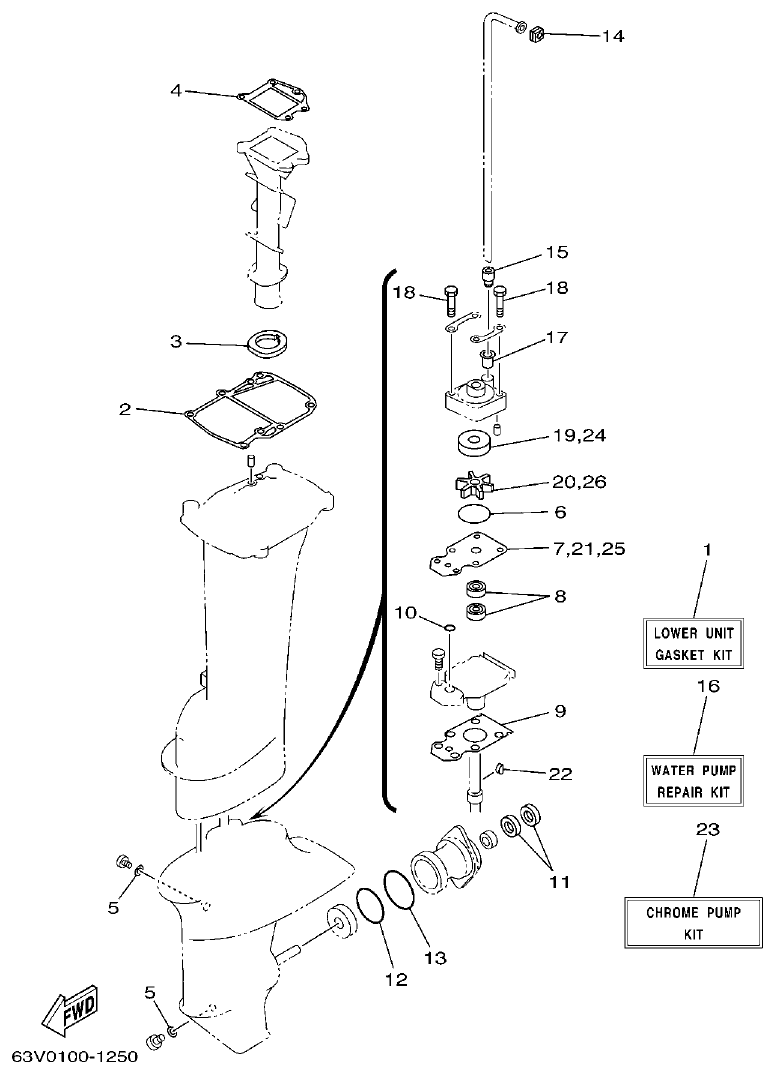

Yamaha 9FMH, 9GMH, 15FMH REPAIR KIT 2 parts diagram
Fig. 24 — REPAIR KIT 2
26 items · 6 available products
