Yamaha 9JMH, 9JE Parts Catalog

Yamaha 9JMH, 9JE Outboard parts and diagrams

Yamaha 9JMH, 9JE outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE, CARBURETOR, OIL PUMP, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, STEERING FRICTION. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

90 linked store products are available across 37 catalog sections. 926 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

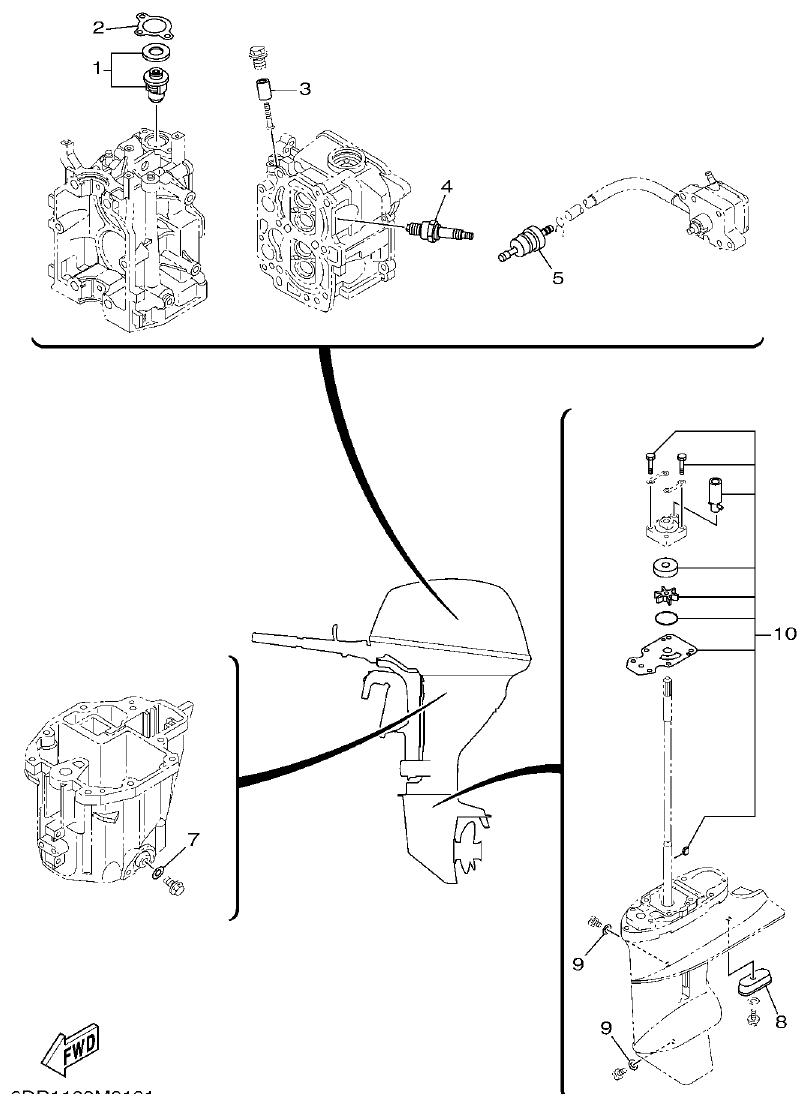

Yamaha 9JMH, 9JE SCHEDULED SERVICE PARTS parts diagram
Fig. 1 — SCHEDULED SERVICE PARTS
9 items · 5 available products
Yamaha 9JMH, 9JE TOP COWLING parts diagram

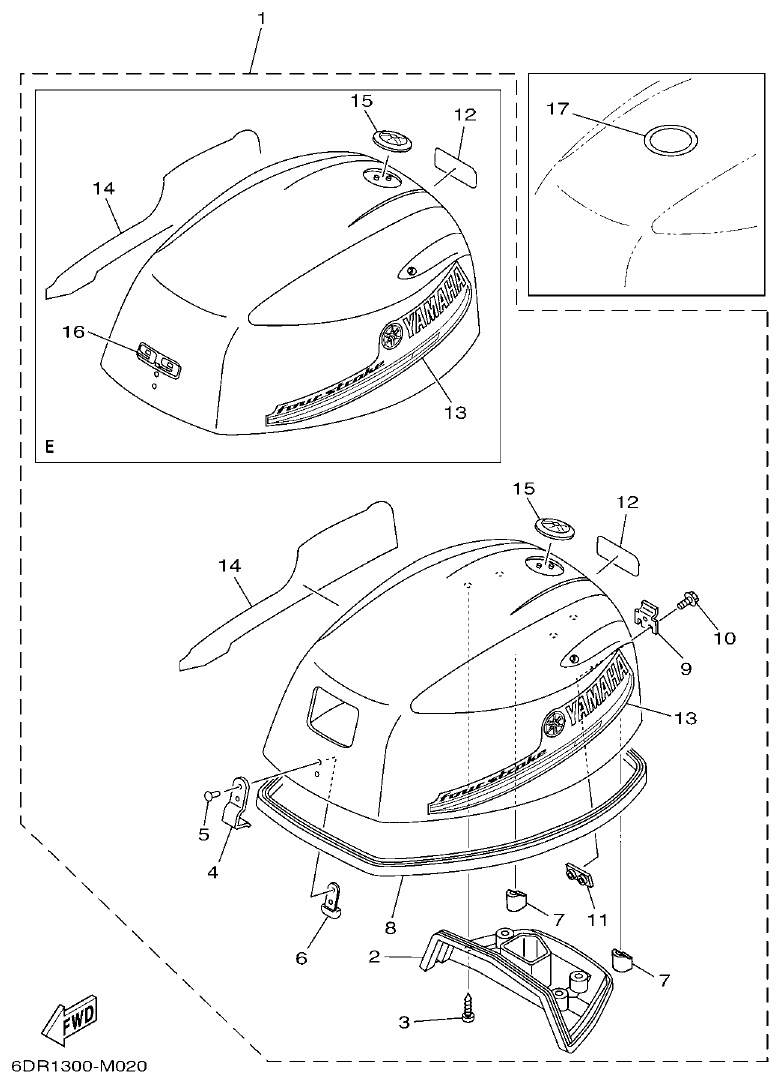

Fig. 2 — TOP COWLING
18 items

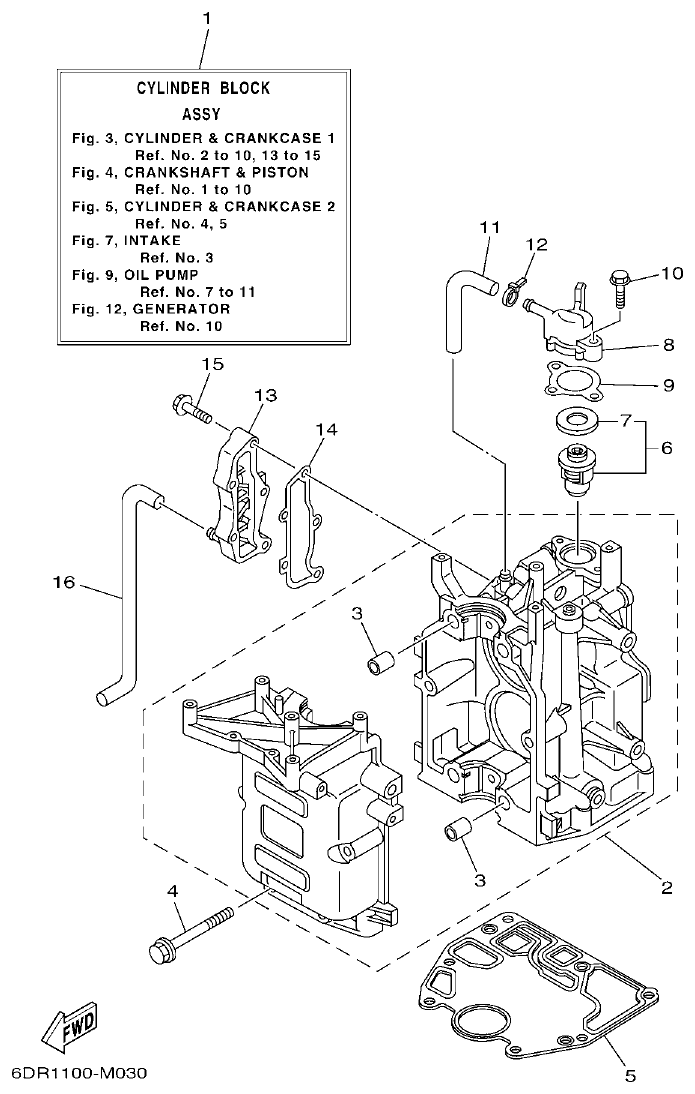

Yamaha 9JMH, 9JE CYLINDER & CRANKCASE 1 parts diagram
Fig. 3 — CYLINDER & CRANKCASE 1
16 items · 5 available products

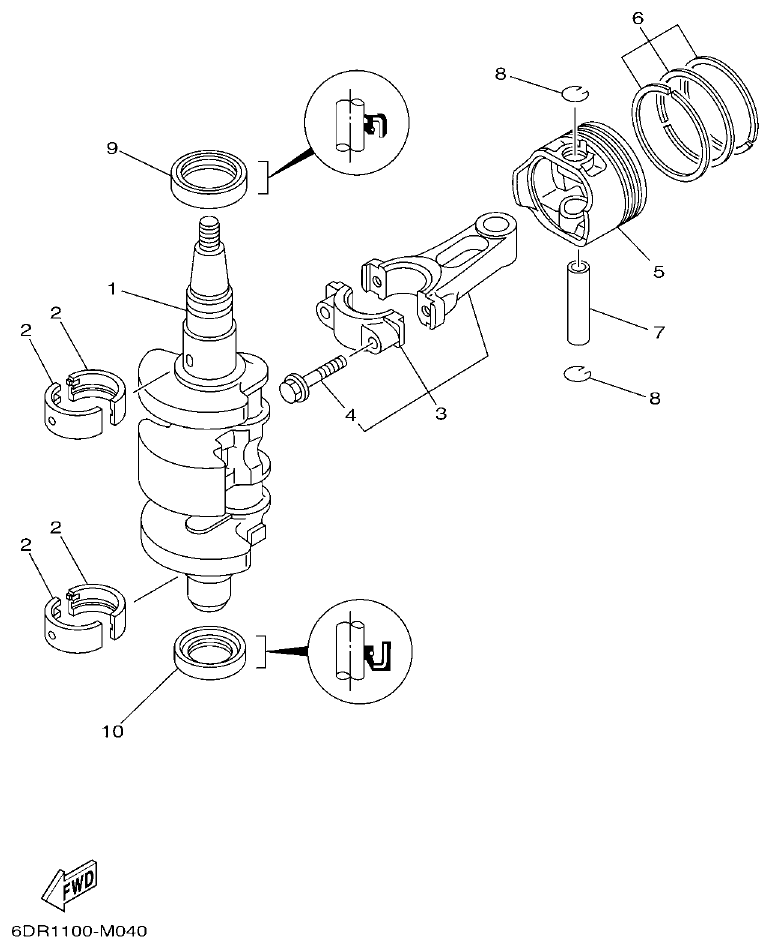

Yamaha 9JMH, 9JE CRANKSHAFT & PISTON parts diagram
Fig. 4 — CRANKSHAFT & PISTON
16 items

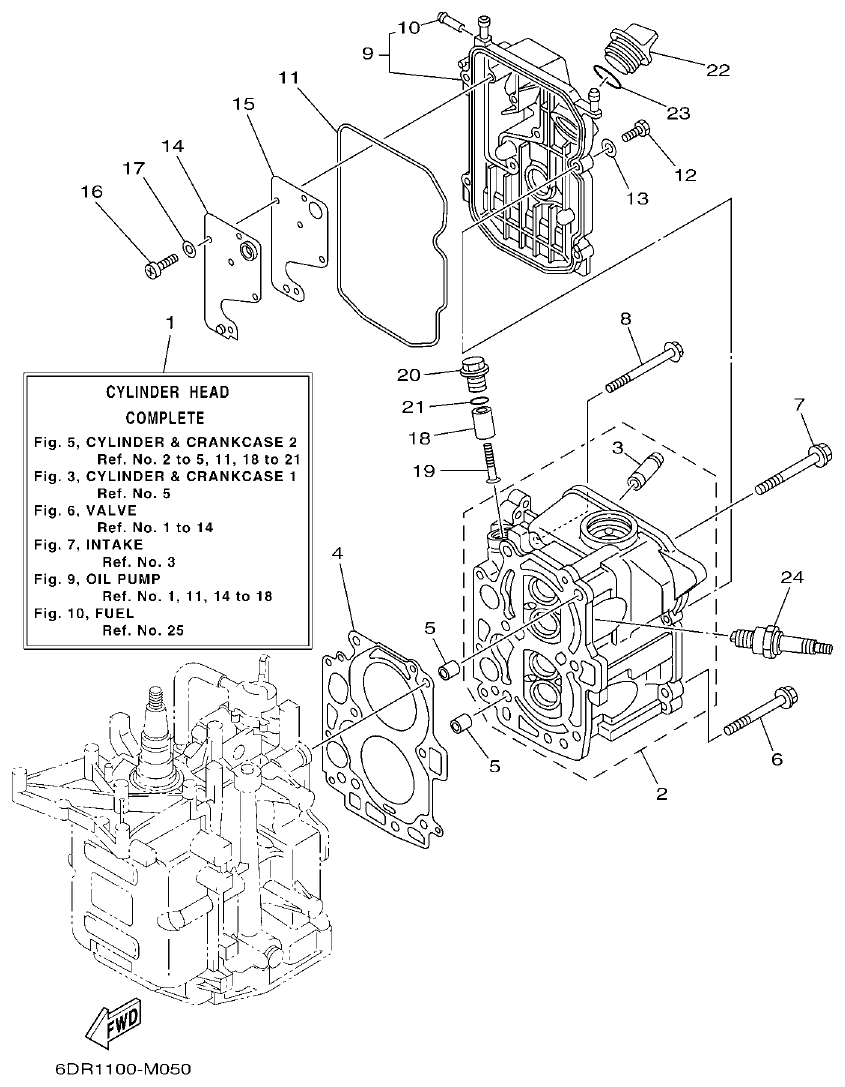

Yamaha 9JMH, 9JE CYLINDER & CRANKCASE 2 parts diagram
Fig. 5 — CYLINDER & CRANKCASE 2
24 items · 2 available products
Yamaha 9JMH, 9JE VALVE parts diagram
Fig. 6 — VALVE
14 items · 1 available products
Yamaha 9JMH, 9JE INTAKE parts diagram

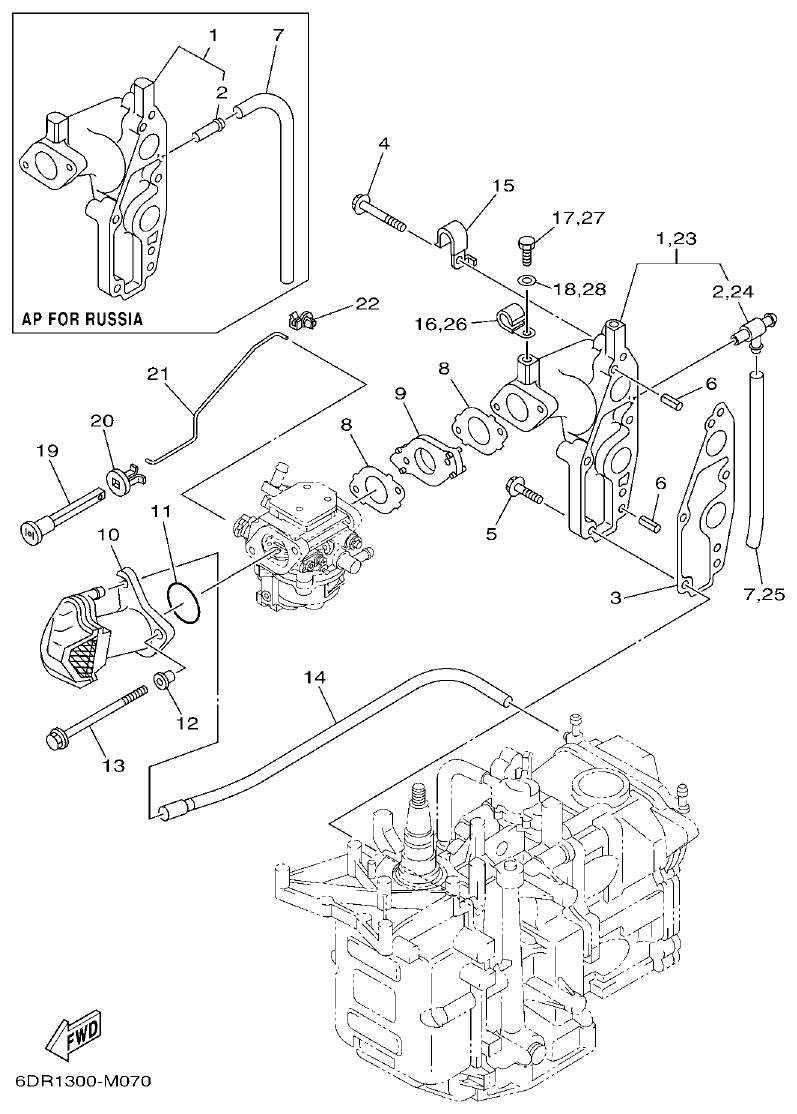

Fig. 7 — INTAKE
31 items · 4 available products
Yamaha 9JMH, 9JE CARBURETOR parts diagram

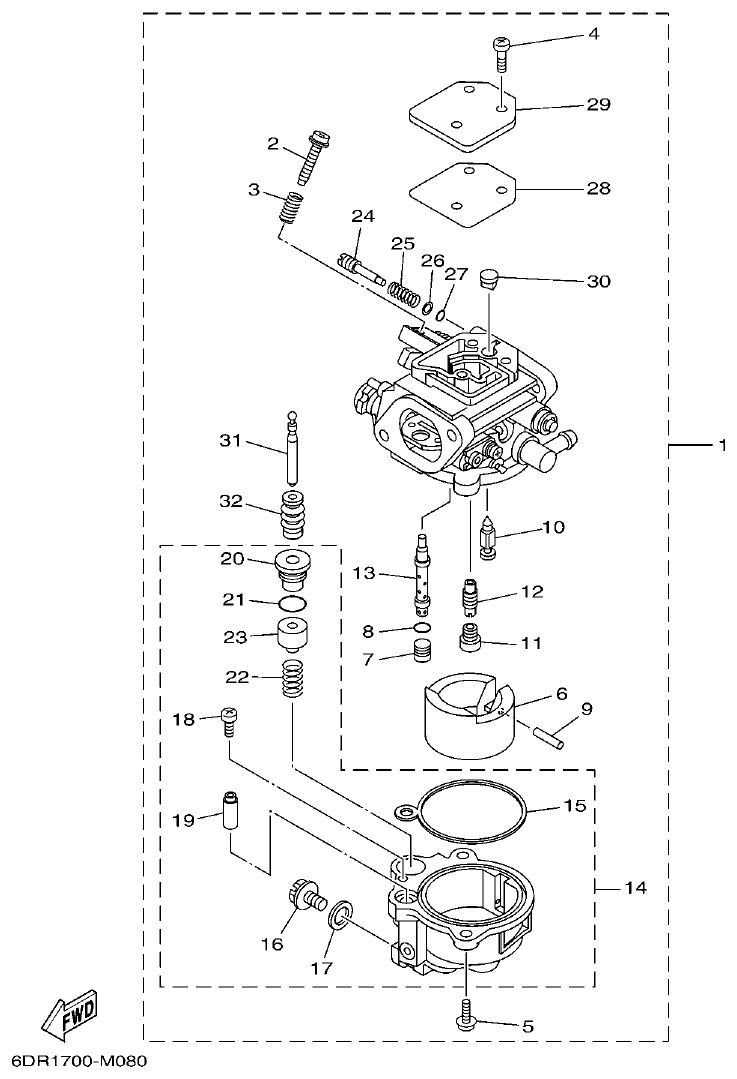

Fig. 8 — CARBURETOR
33 items

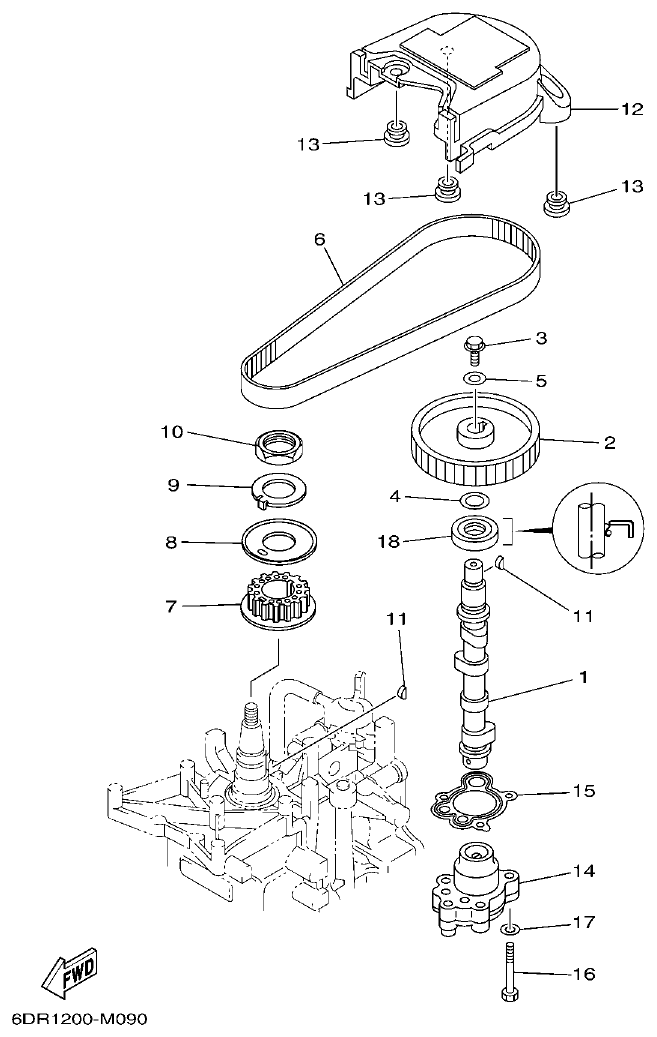

Yamaha 9JMH, 9JE OIL PUMP parts diagram
Fig. 9 — OIL PUMP
18 items · 2 available products

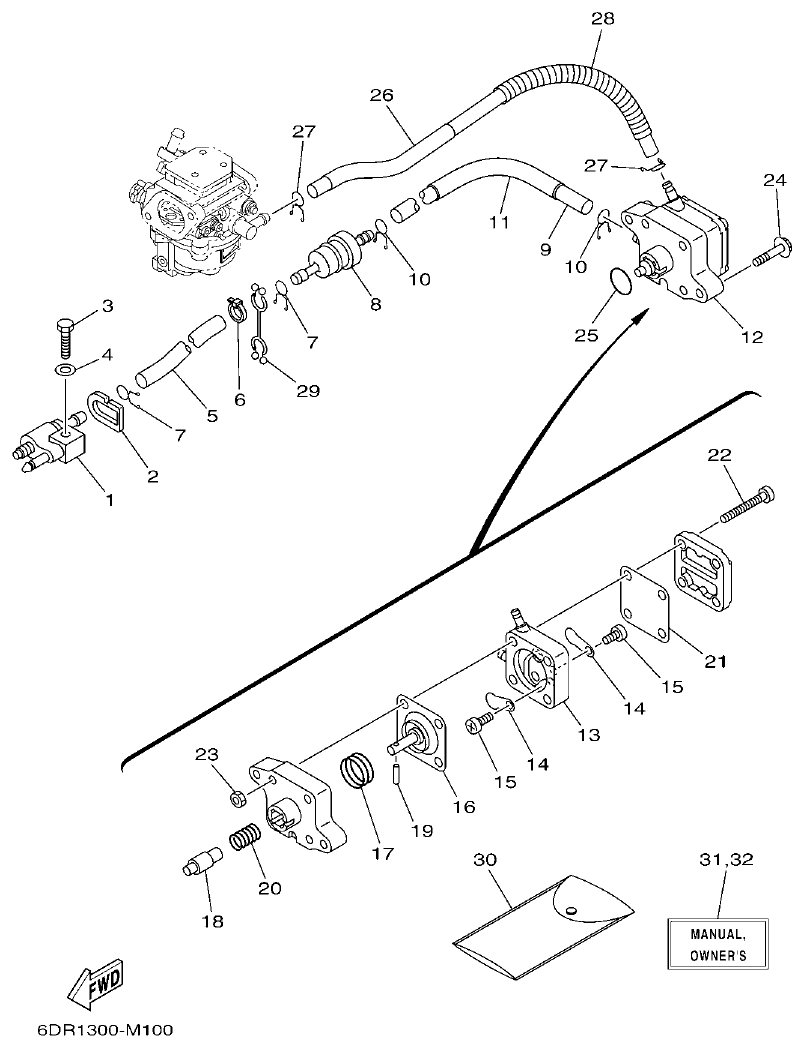

Yamaha 9JMH, 9JE FUEL parts diagram
Fig. 10 — FUEL
42 items · 1 available products

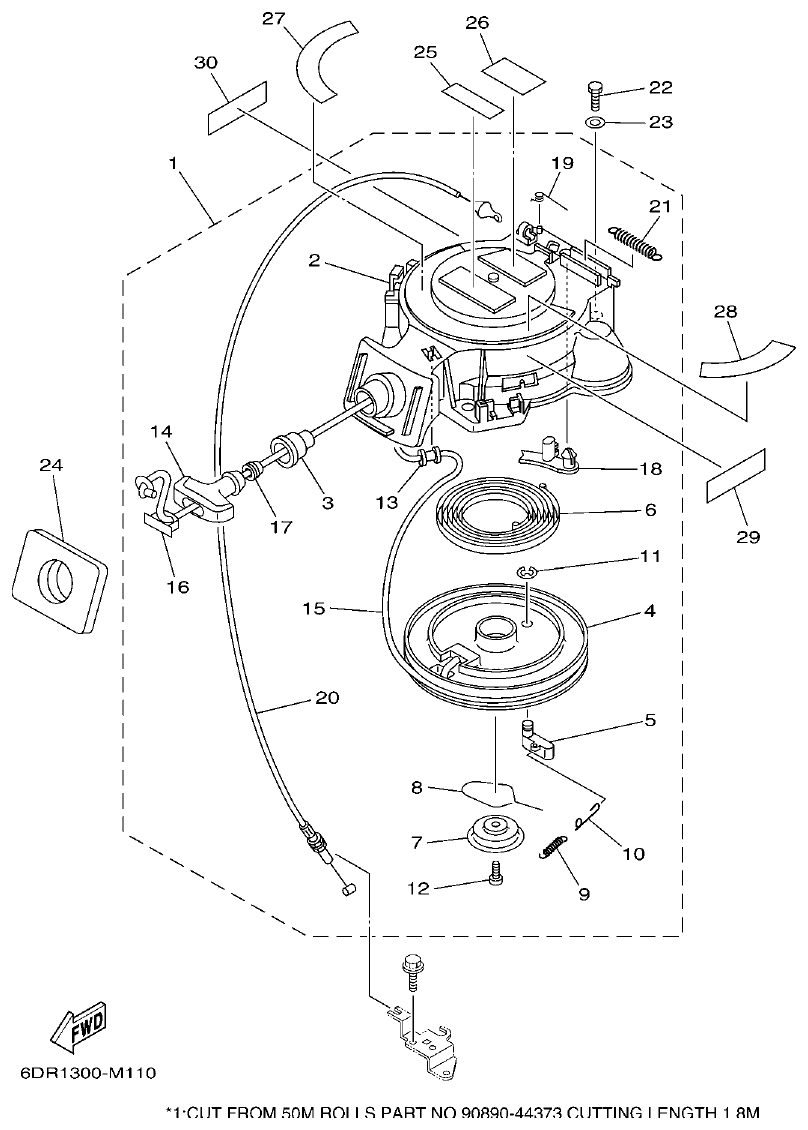

Yamaha 9JMH, 9JE STARTER parts diagram
Fig. 11 — STARTER
29 items · 7 available products
Yamaha 9JMH, 9JE GENERATOR parts diagram

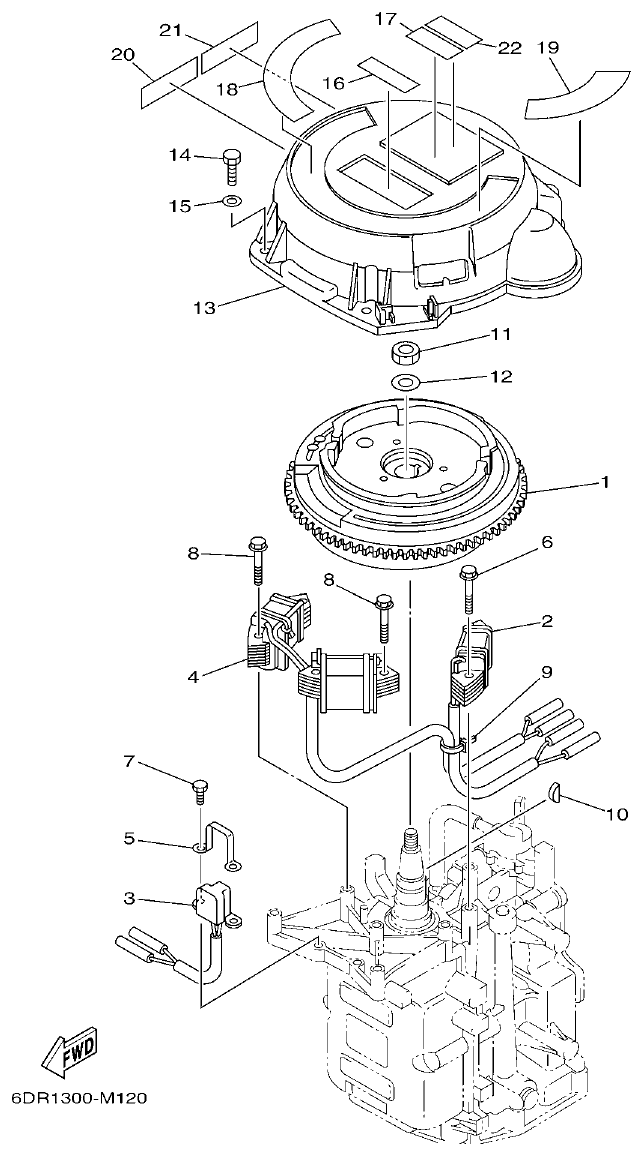

Fig. 12 — GENERATOR
22 items · 1 available products

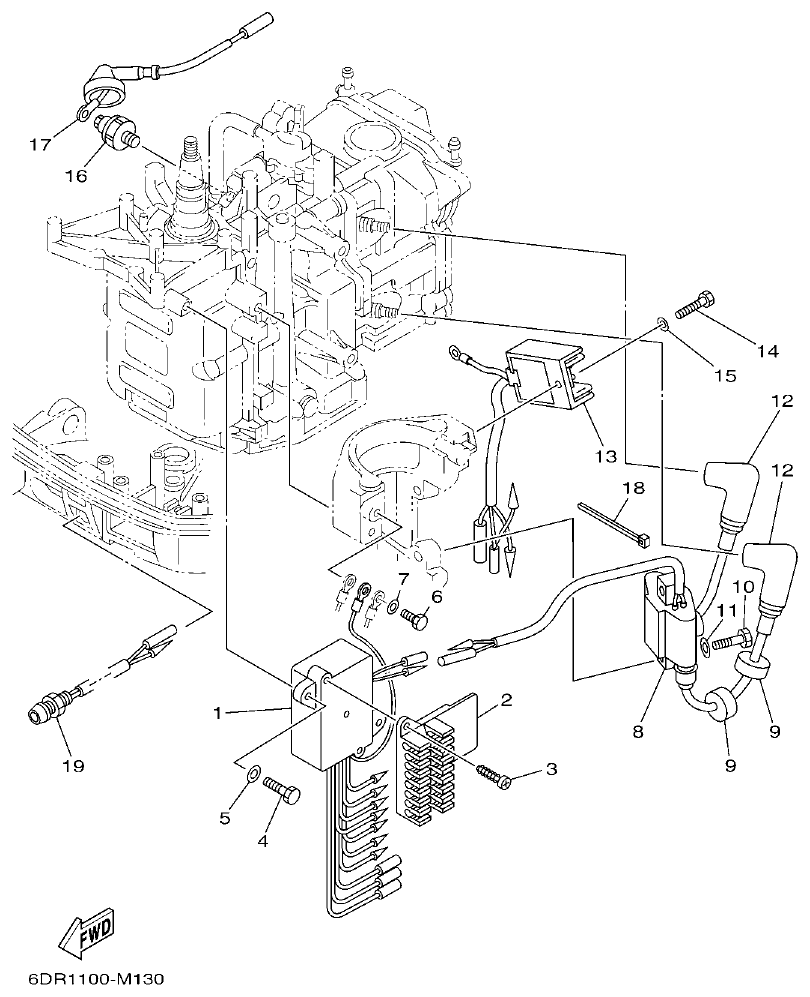

Yamaha 9JMH, 9JE ELECTRICAL 1 parts diagram
Fig. 13 — ELECTRICAL 1
19 items · 2 available products

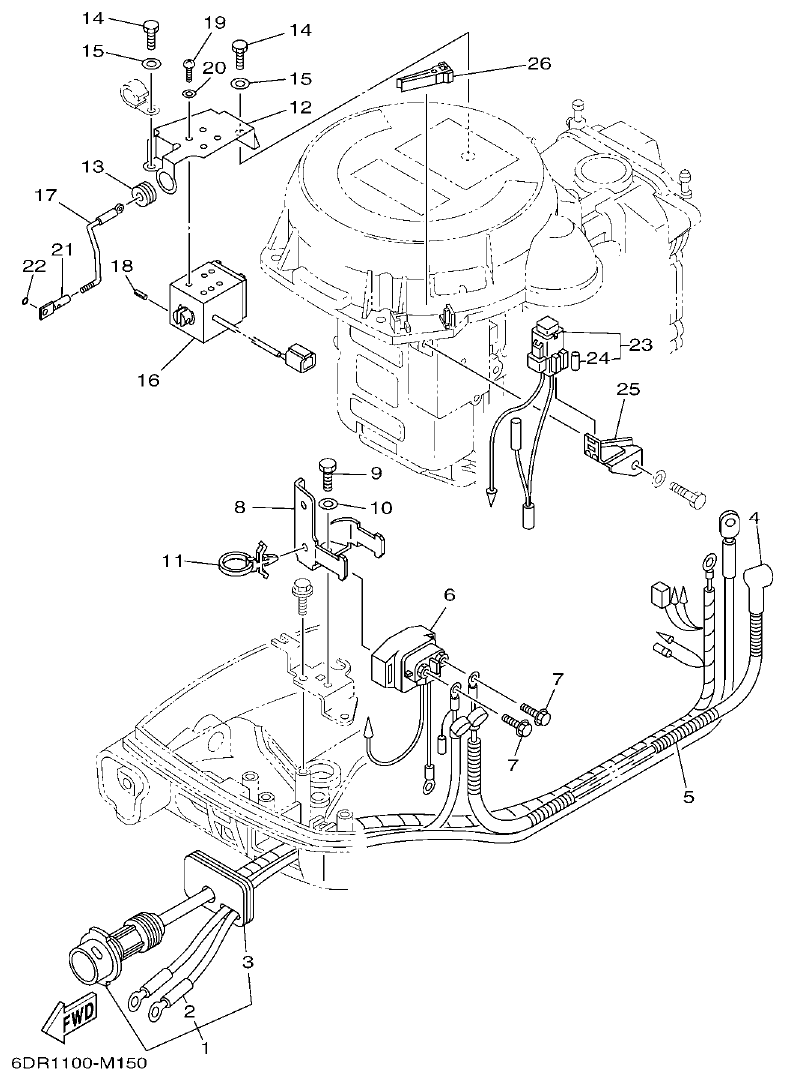

Yamaha 9JMH, 9JE ELECTRICAL 2 parts diagram
Fig. 14 — ELECTRICAL 2
26 items

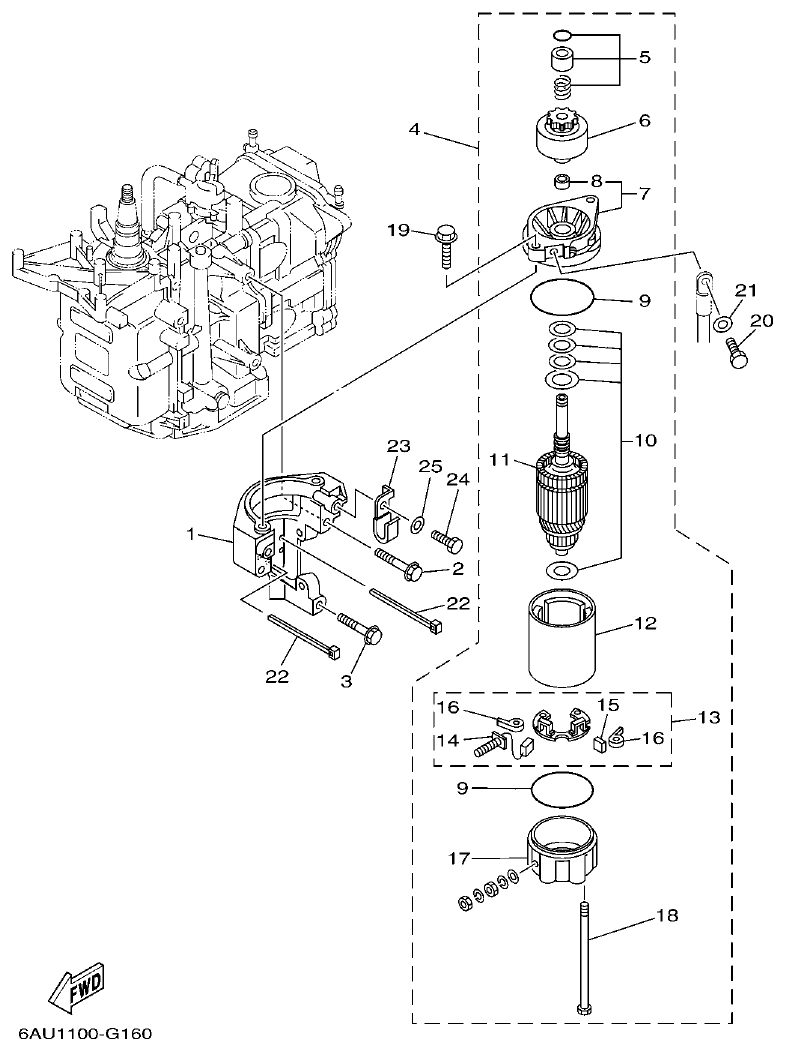

Yamaha 9JMH, 9JE STARTING MOTOR parts diagram
Fig. 15 — STARTING MOTOR
25 items · 3 available products
Yamaha 9JMH, 9JE BOTTOM COWLING parts diagram

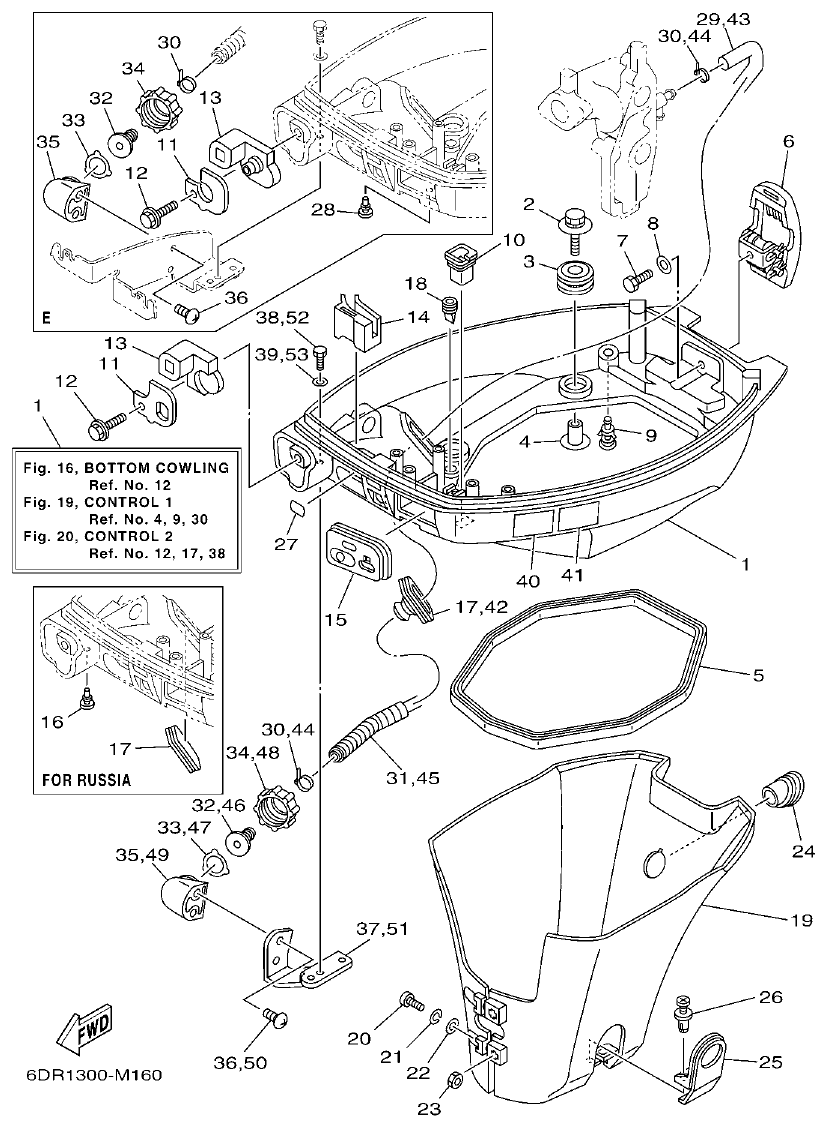

Fig. 16 — BOTTOM COWLING
56 items · 5 available products

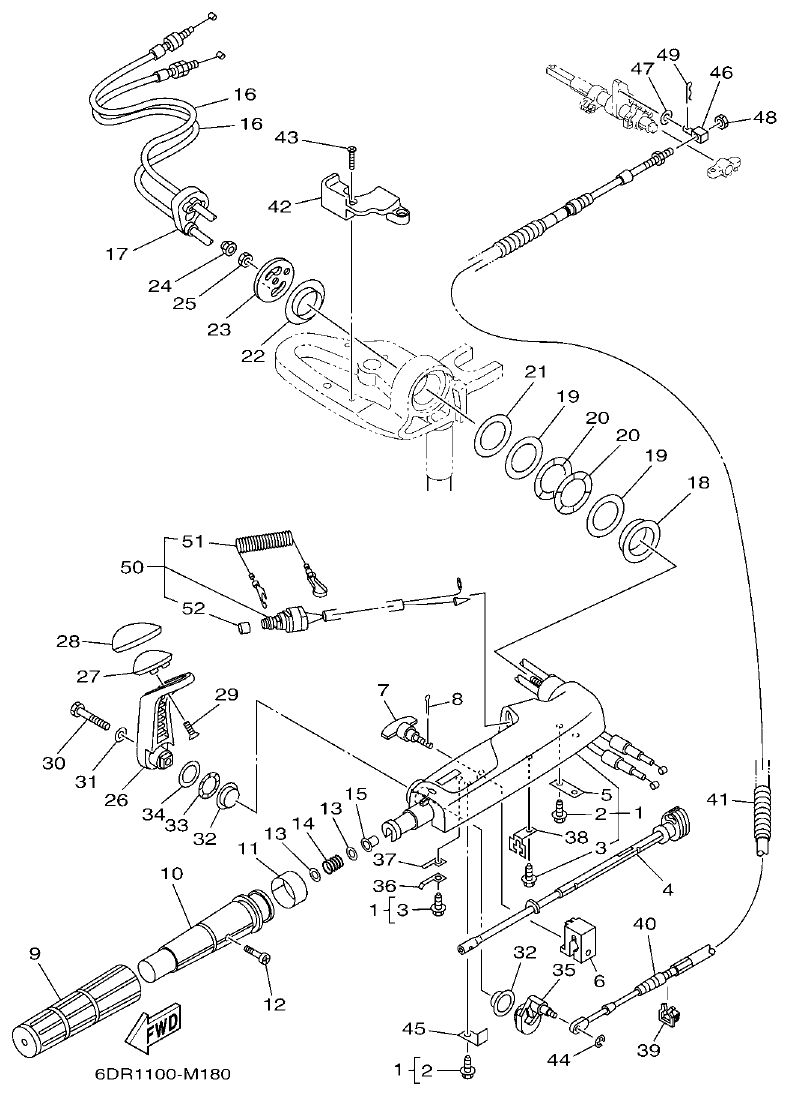

Yamaha 9JMH, 9JE STEERING parts diagram
Fig. 17 — STEERING
52 items · 6 available products

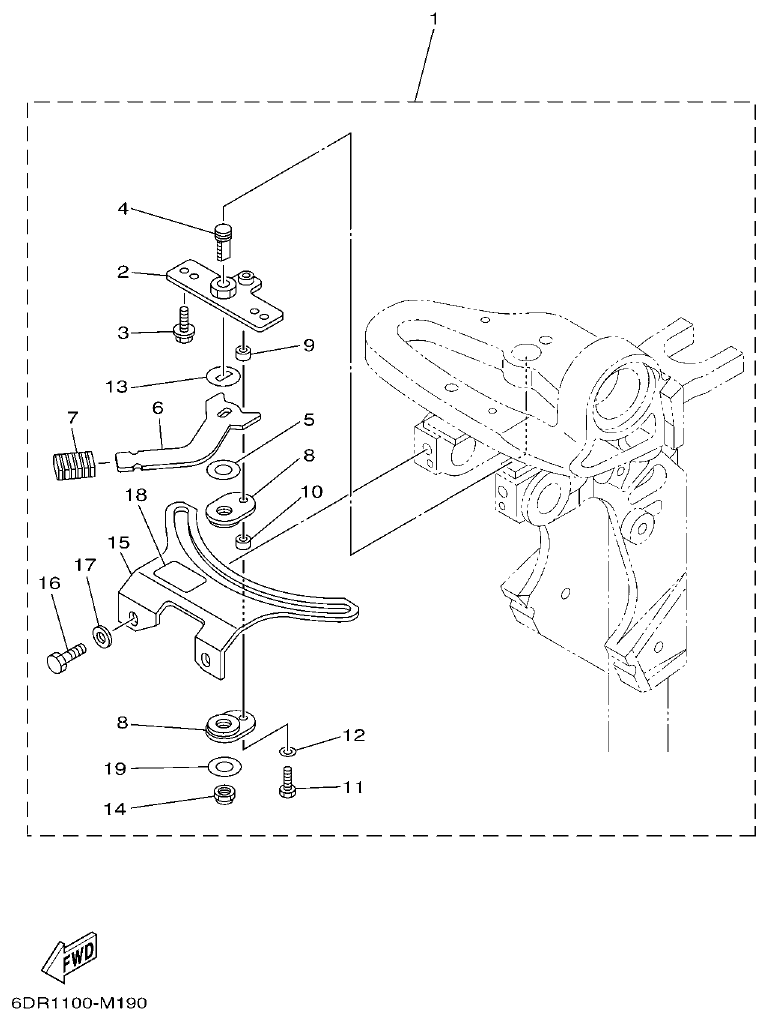

Yamaha 9JMH, 9JE STEERING FRICTION parts diagram
Fig. 18 — STEERING FRICTION
19 items
Yamaha 9JMH, 9JE CONTROL 1 parts diagram

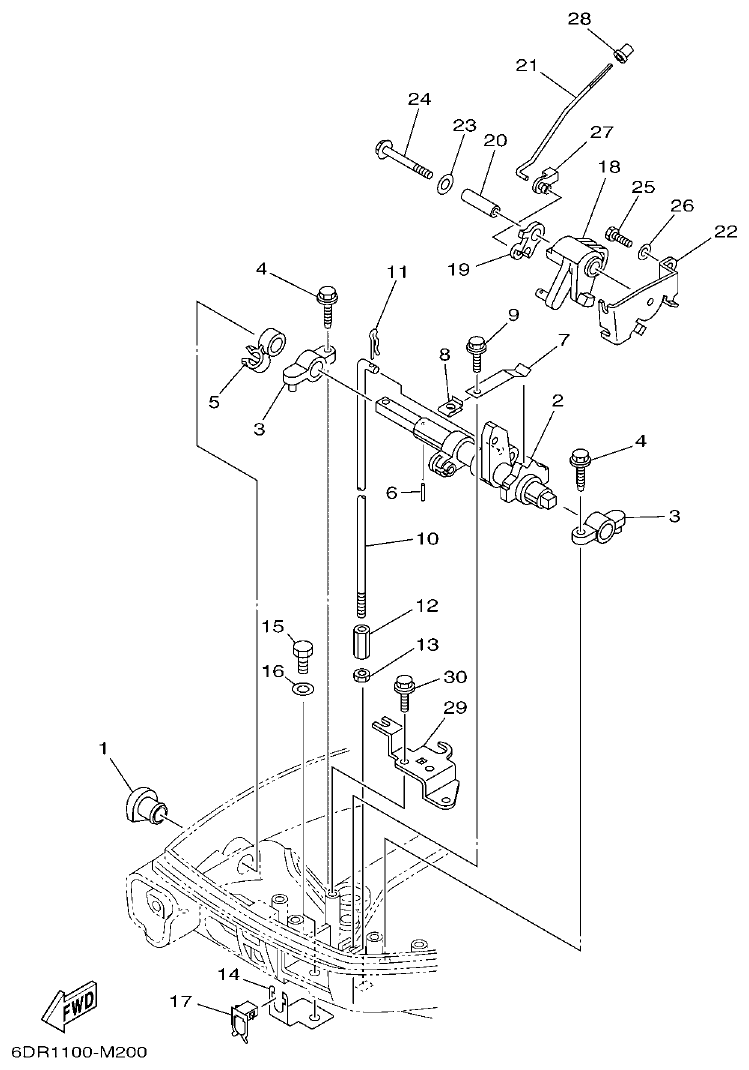

Fig. 19 — CONTROL 1
31 items · 2 available products

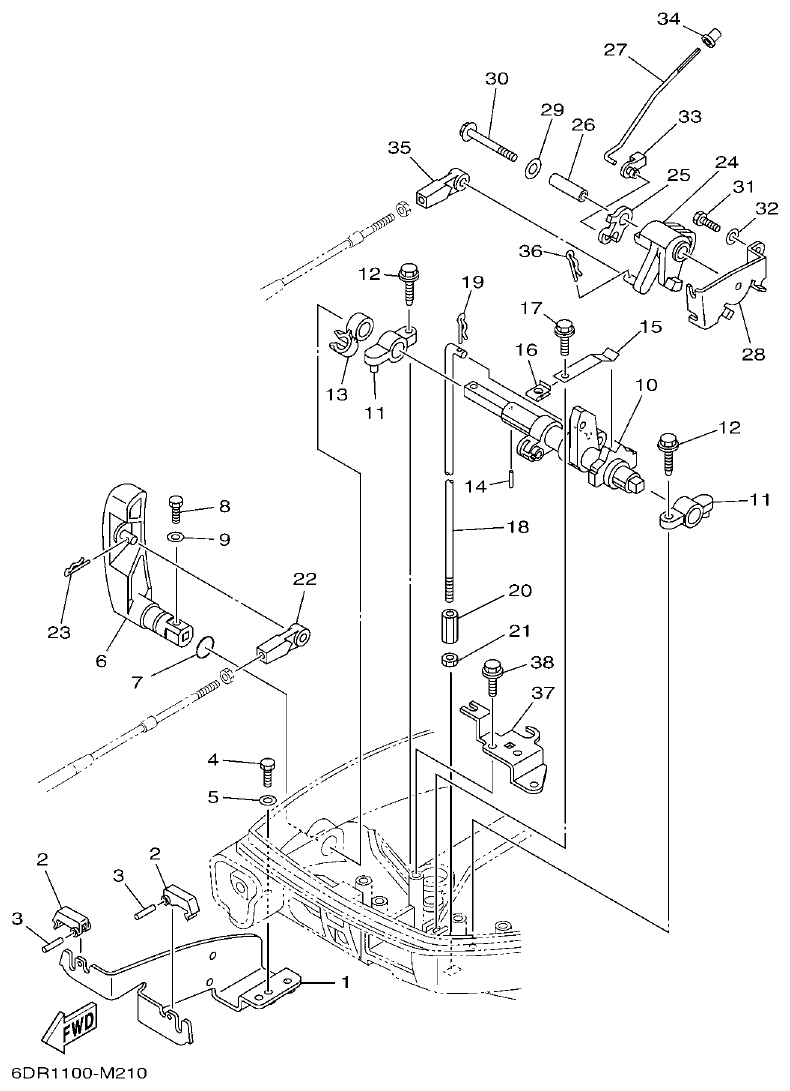

Yamaha 9JMH, 9JE CONTROL 2 parts diagram
Fig. 20 — CONTROL 2
39 items · 2 available products

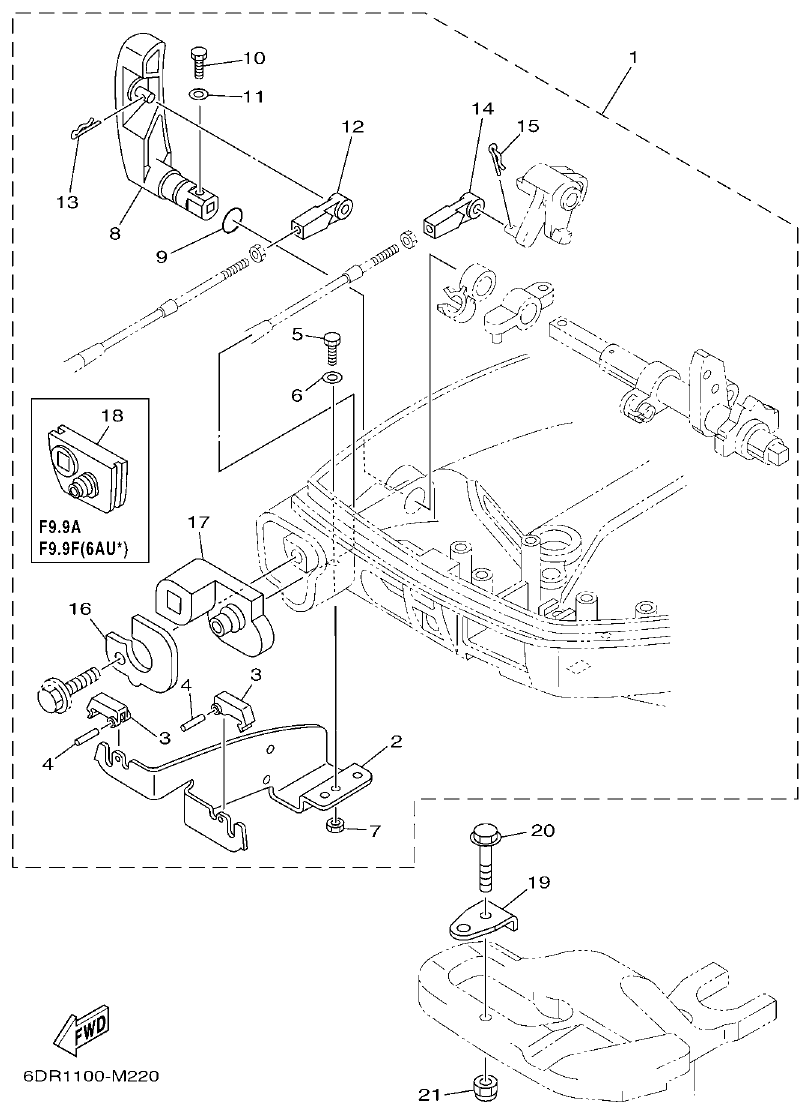

Yamaha 9JMH, 9JE REMO CON ATTACHMENT parts diagram
Fig. 21 — REMO CON ATTACHMENT
21 items
Yamaha 9JMH, 9JE BRACKET 1 parts diagram

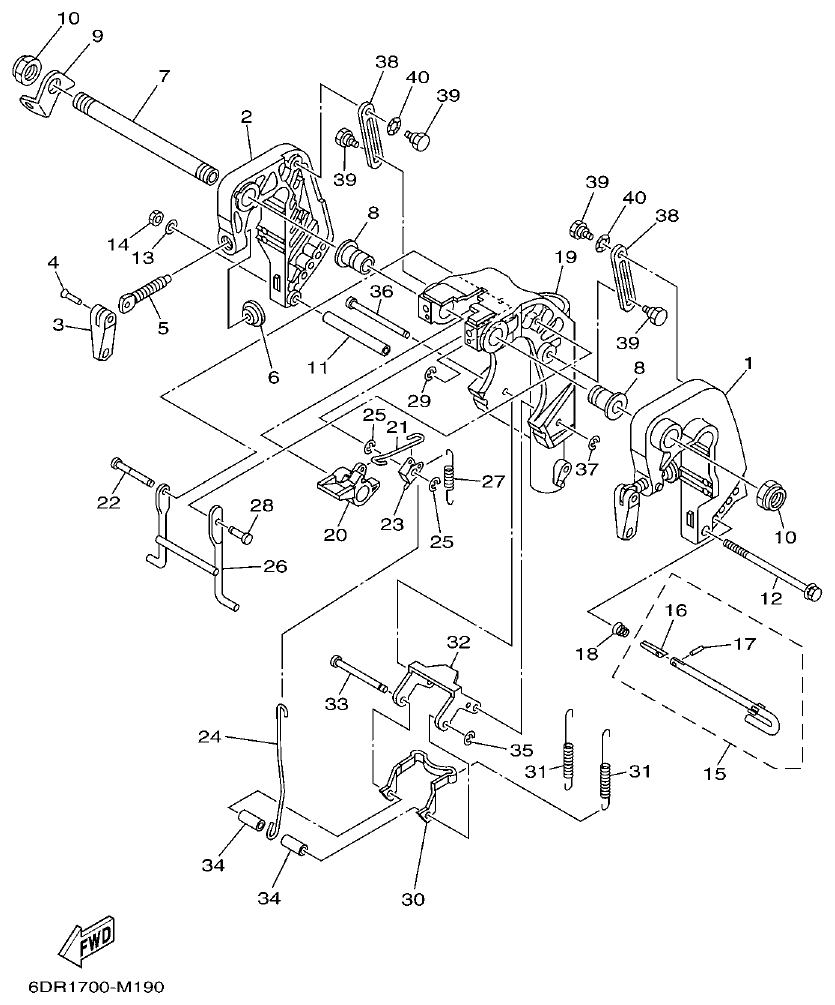

Fig. 22 — BRACKET 1
43 items · 3 available products
Yamaha 9JMH, 9JE BRACKET 2 parts diagram

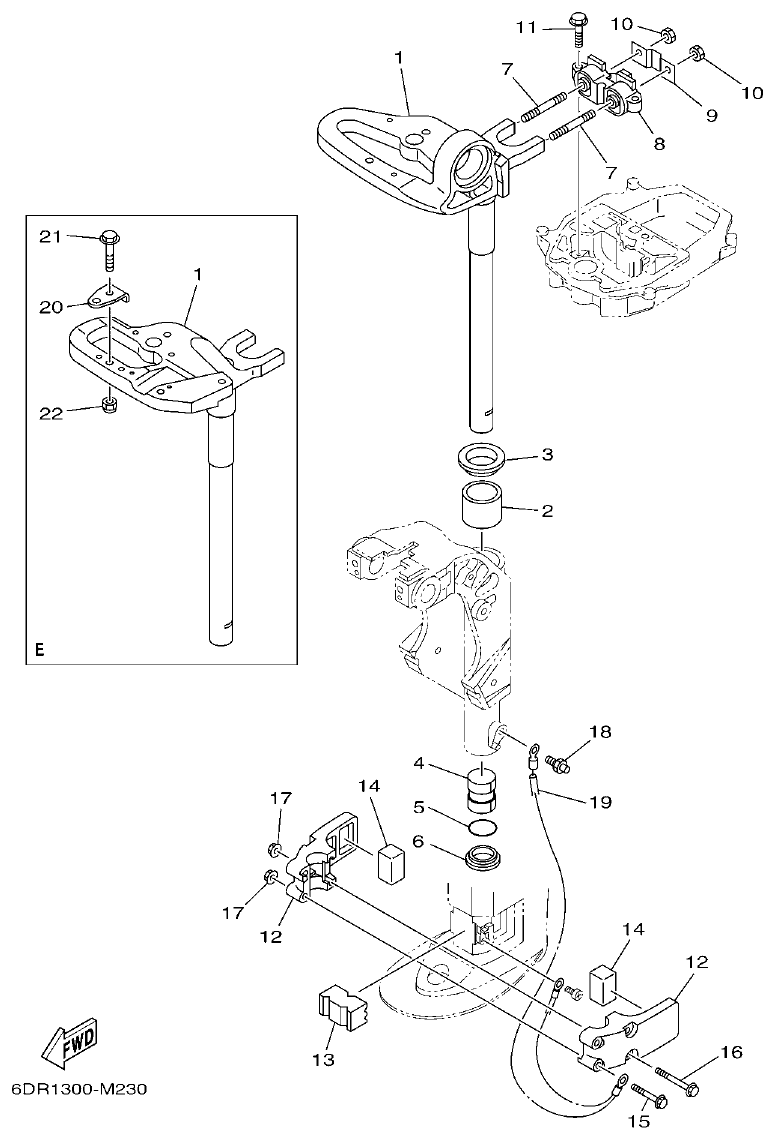

Fig. 23 — BRACKET 2
25 items

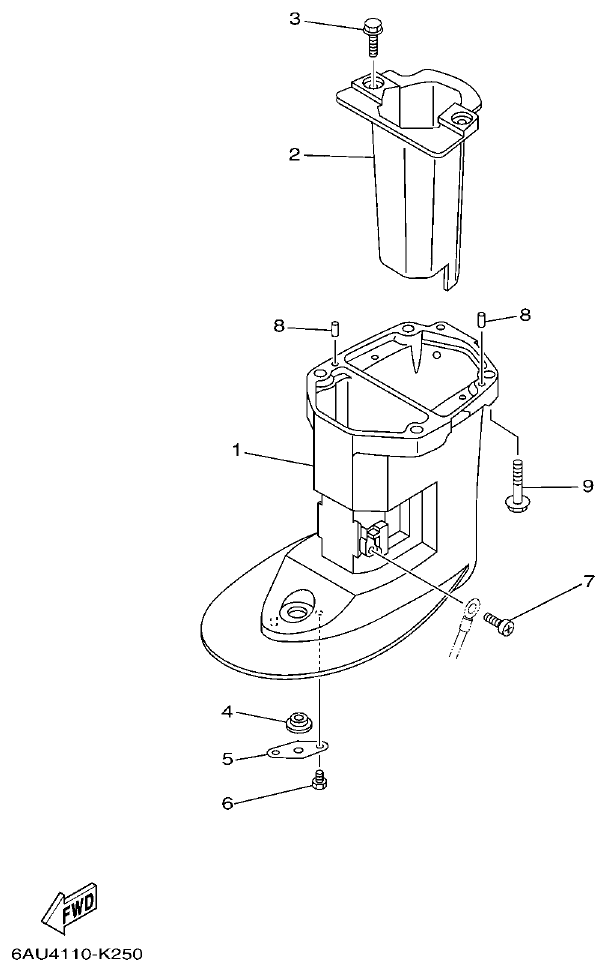

Yamaha 9JMH, 9JE UPPER CASING parts diagram
Fig. 24 — UPPER CASING
10 items

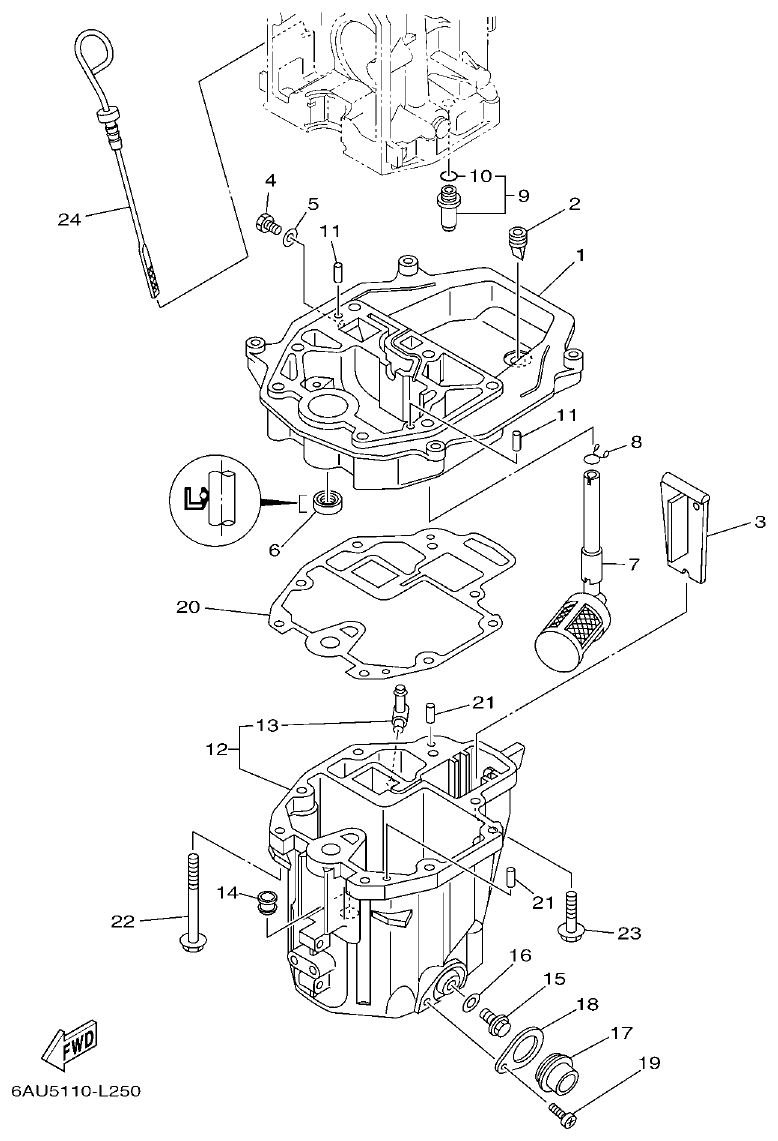

Yamaha 9JMH, 9JE OIL PAN parts diagram
Fig. 25 — OIL PAN
24 items · 1 available products

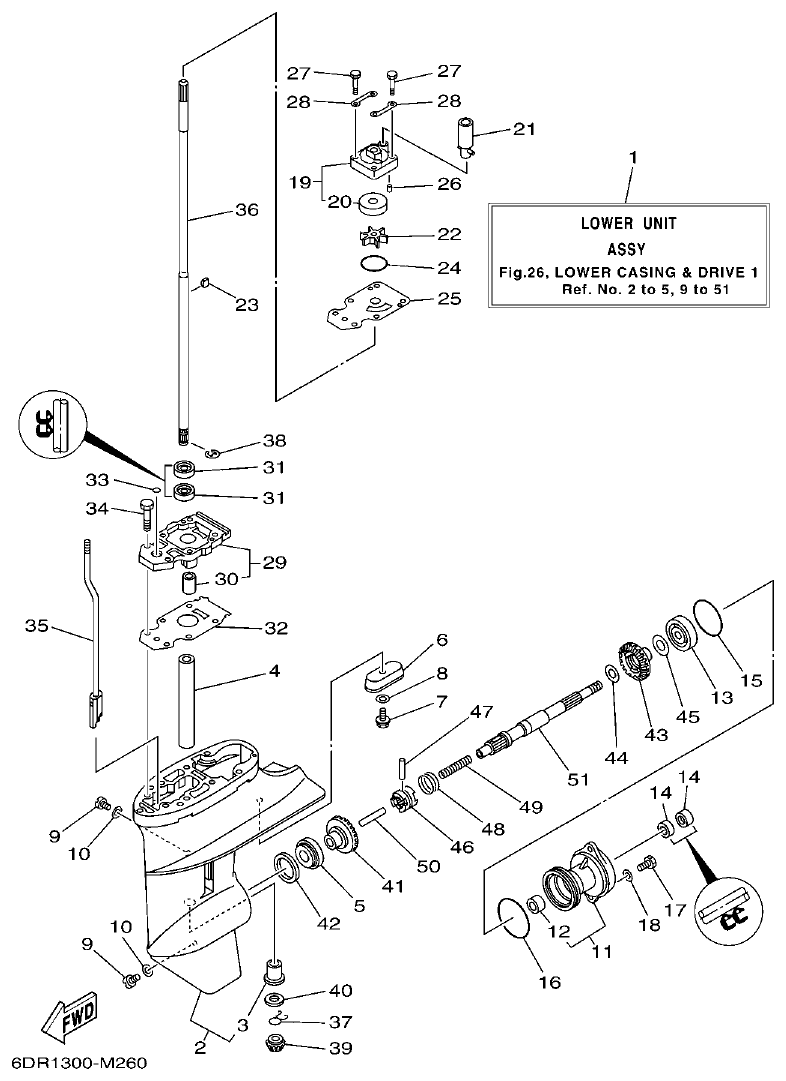

Yamaha 9JMH, 9JE LOWER CASING & DRIVE 1 parts diagram
Fig. 26 — LOWER CASING & DRIVE 1
62 items · 14 available products

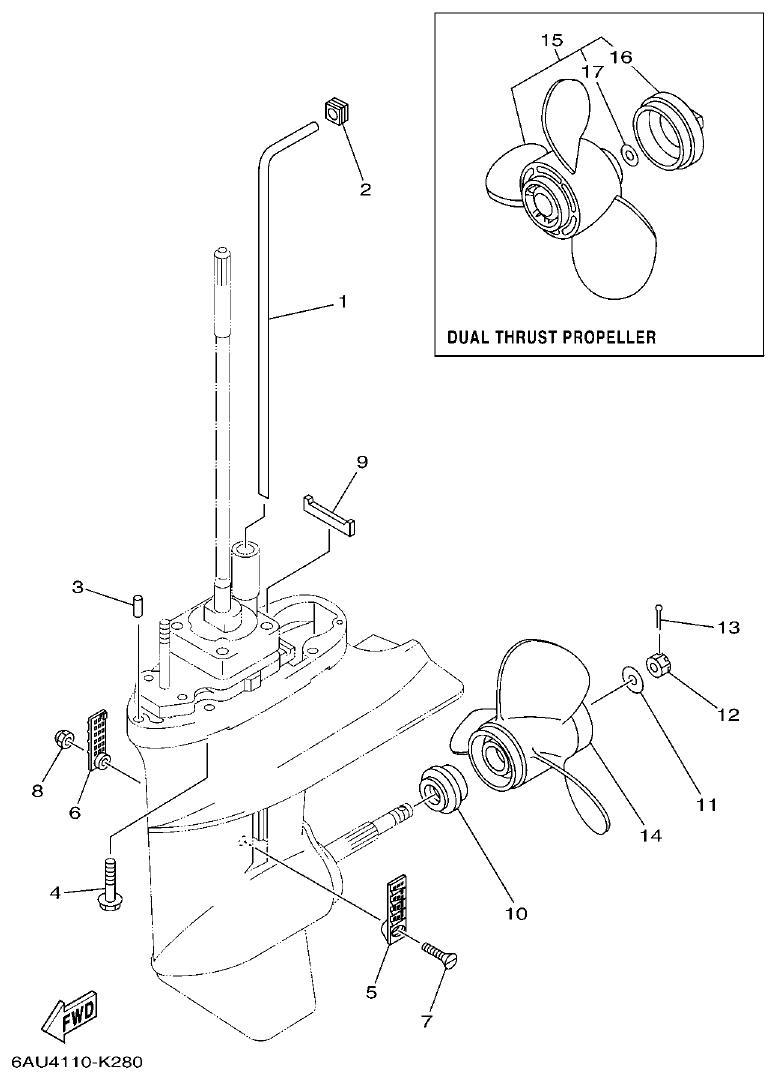

Yamaha 9JMH, 9JE LOWER CASING & DRIVE 2 parts diagram
Fig. 27 — LOWER CASING & DRIVE 2
23 items · 3 available products

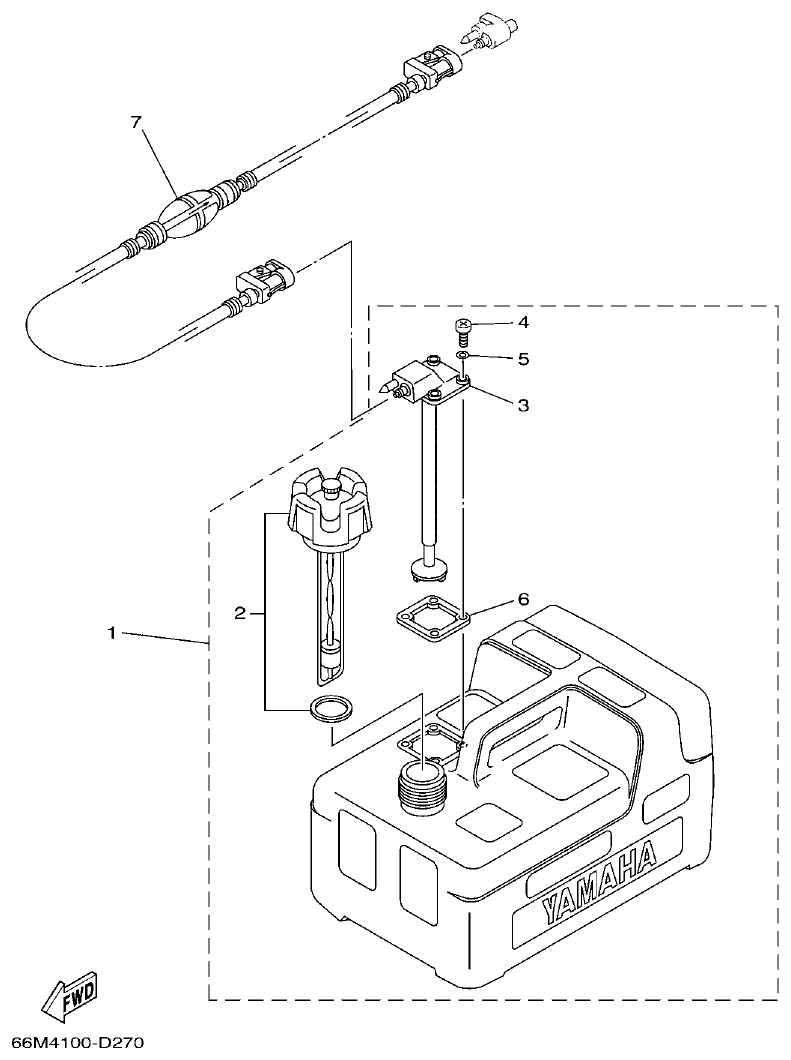

Yamaha 9JMH, 9JE FUEL TANK parts diagram
Fig. 28 — FUEL TANK
7 items

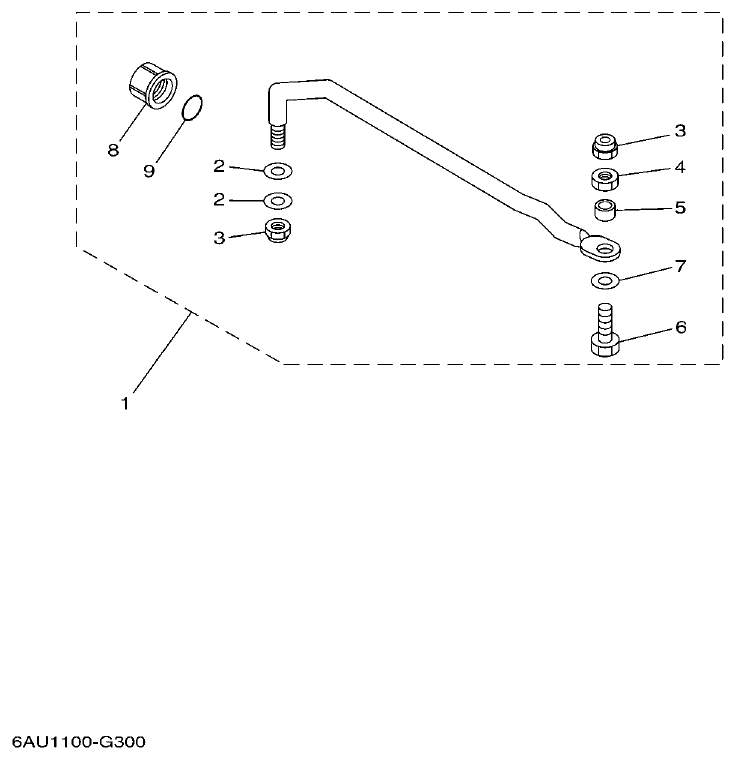

Yamaha 9JMH, 9JE STEERING GUIDE parts diagram
Fig. 29 — STEERING GUIDE
9 items · 1 available products
Yamaha 9JMH, 9JE REMOTE CONTROL BOX parts diagram
Fig. 30 — REMOTE CONTROL BOX
4 items

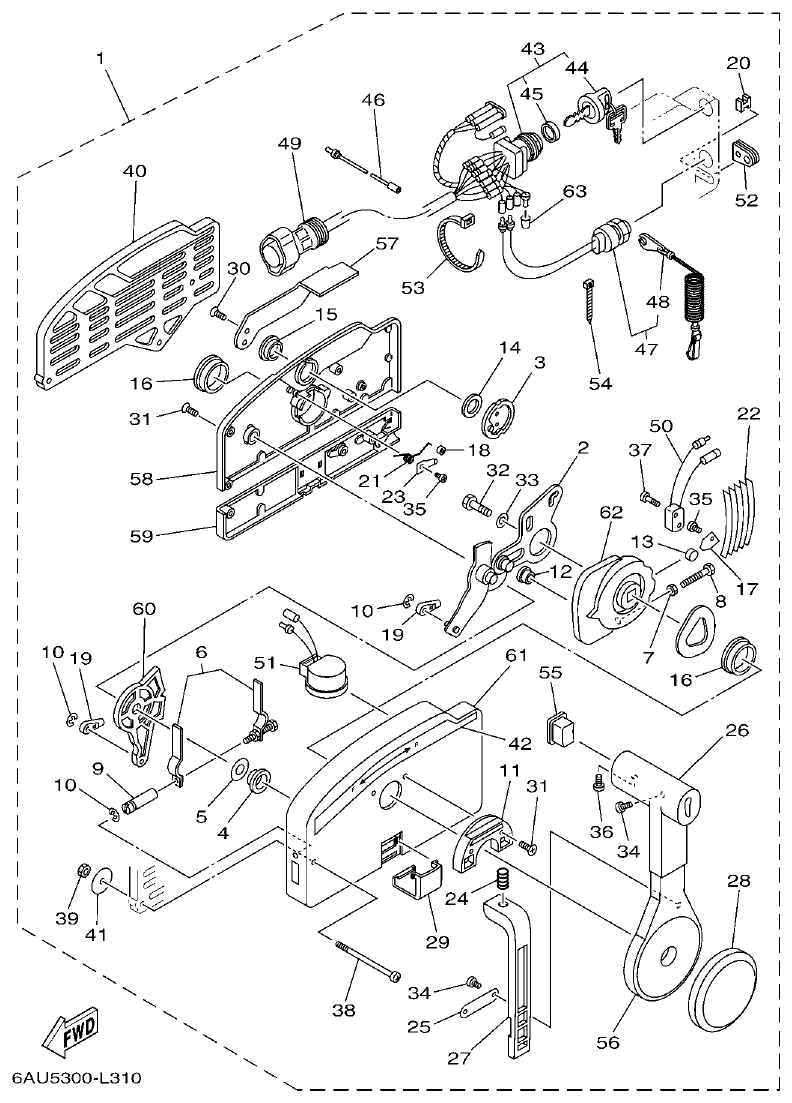

Yamaha 9JMH, 9JE REMOTE CONTROL ASSY parts diagram
Fig. 31 — REMOTE CONTROL ASSY
63 items · 11 available products
Yamaha 9JMH, 9JE OPTIONAL PARTS 1 parts diagram

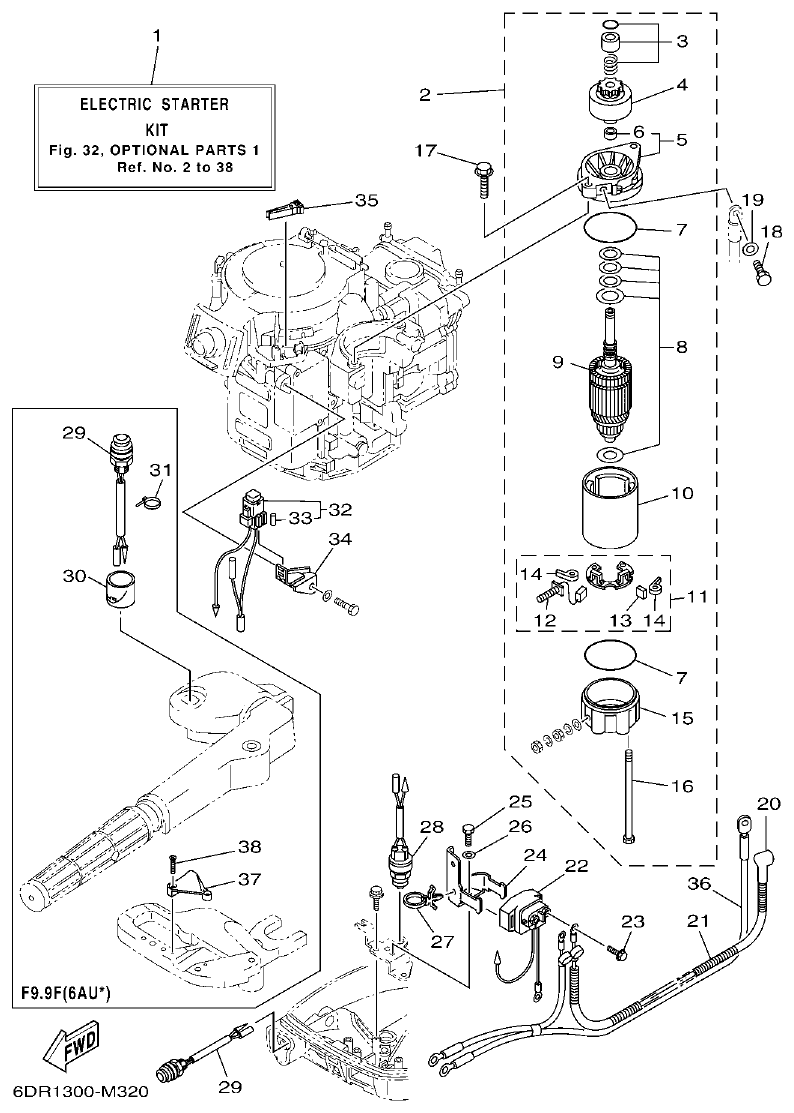

Fig. 32 — OPTIONAL PARTS 1
38 items · 3 available products
Yamaha 9JMH, 9JE OPTIONAL PARTS 2 parts diagram

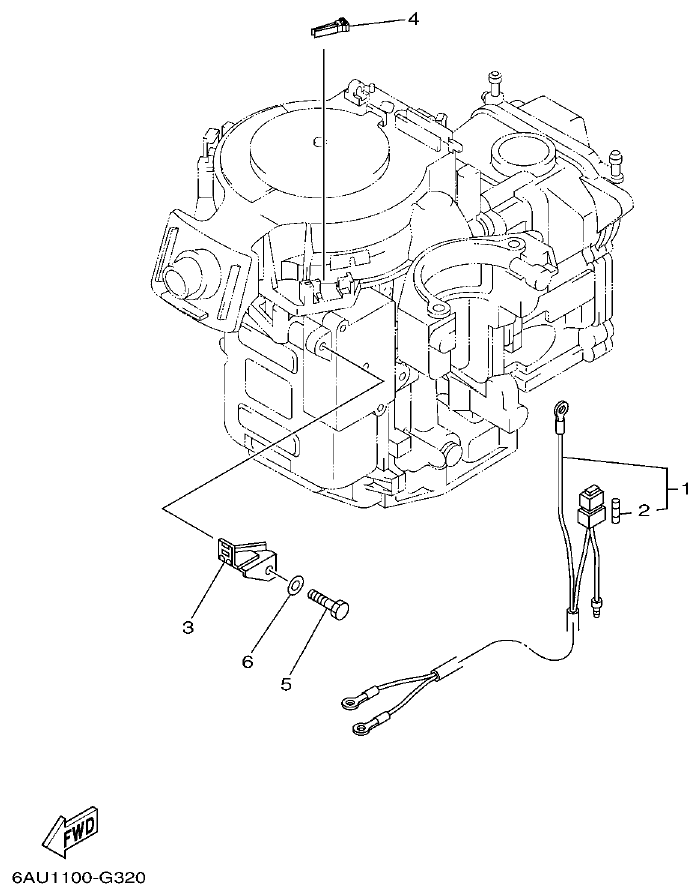

Fig. 33 — OPTIONAL PARTS 2
6 items

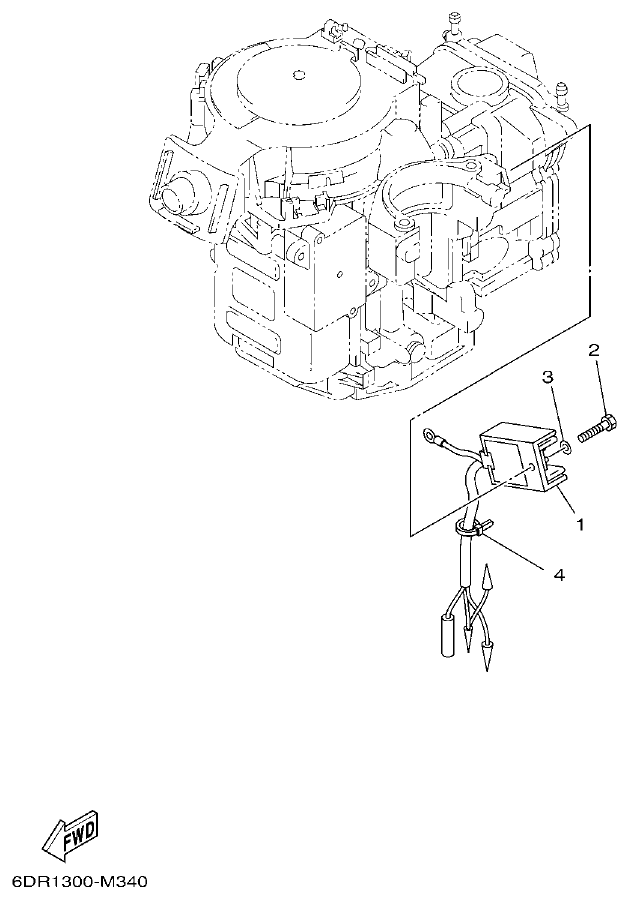

Yamaha 9JMH, 9JE OPTIONAL PARTS 3 parts diagram
Fig. 34 — OPTIONAL PARTS 3
4 items
Yamaha 9JMH, 9JE REPAIR KIT 1 parts diagram

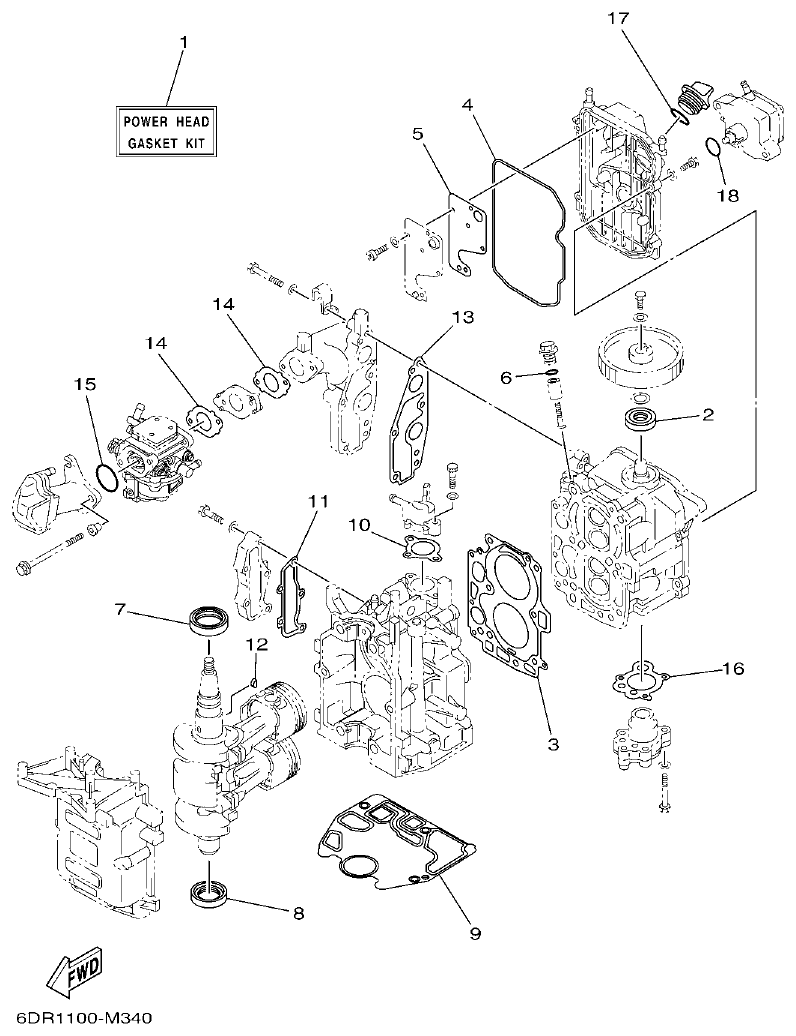

Fig. 35 — REPAIR KIT 1
18 items · 1 available products

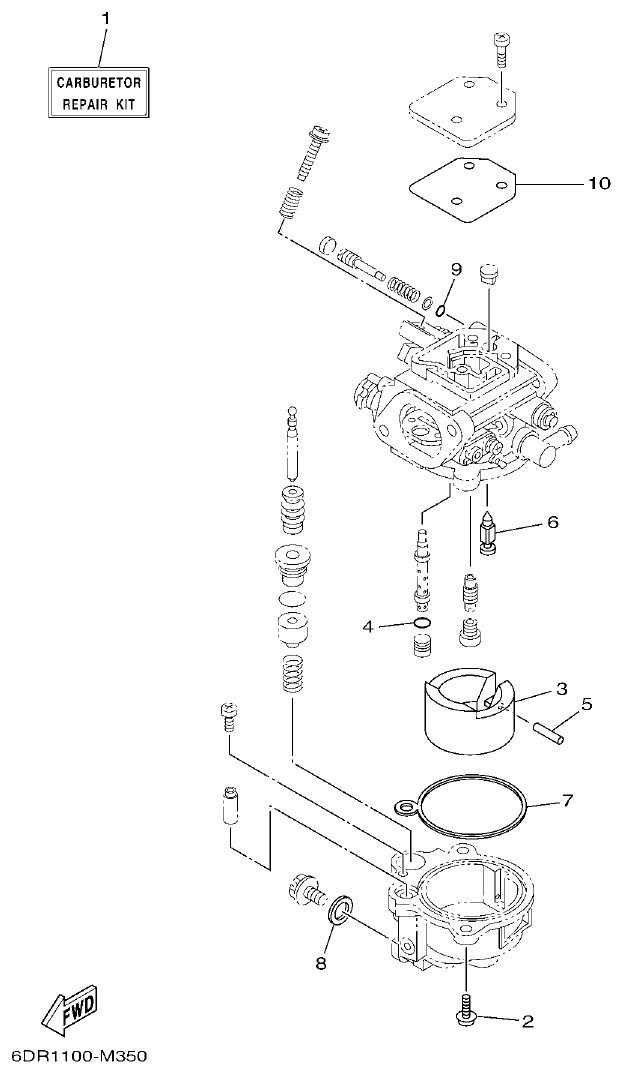

Yamaha 9JMH, 9JE REPAIR KIT 2 parts diagram
Fig. 36 — REPAIR KIT 2
10 items

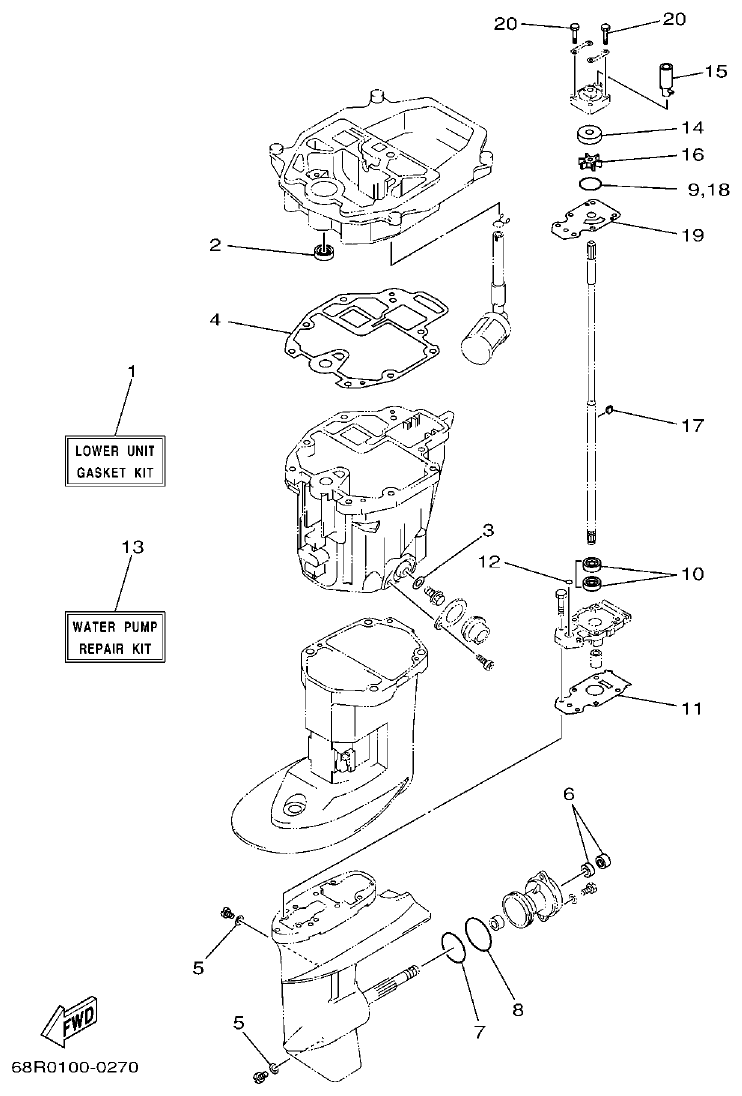

Yamaha 9JMH, 9JE REPAIR KIT 3 parts diagram
Fig. 37 — REPAIR KIT 3
20 items · 5 available products
