Yamaha E25B, E30H Parts Catalog

Yamaha E25B, E30H Outboard parts and diagrams

Yamaha E25B, E30H outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE, CRANKSHAFT. PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL 1, CONTROL 2, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

124 linked store products are available across 27 catalog sections. 884 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

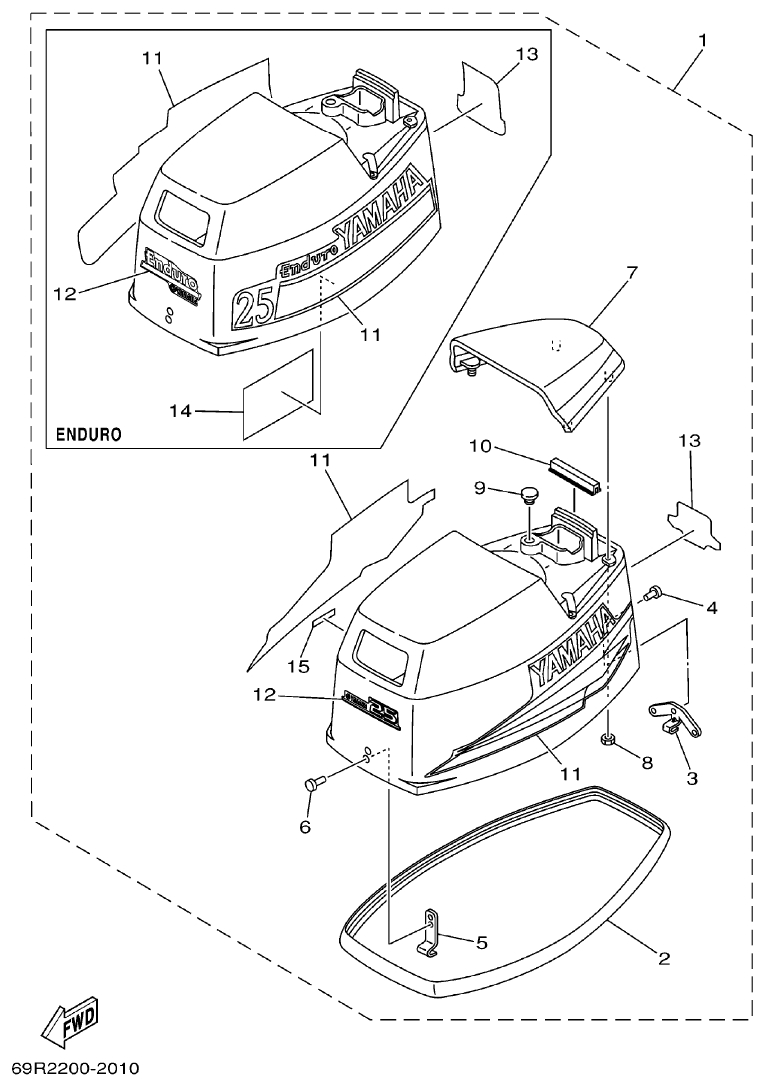

Yamaha E25B, E30H TOP COWLING parts diagram
Fig. 1 — TOP COWLING
25 items
Yamaha E25B, E30H CYLINDER. CRANKCASE parts diagram

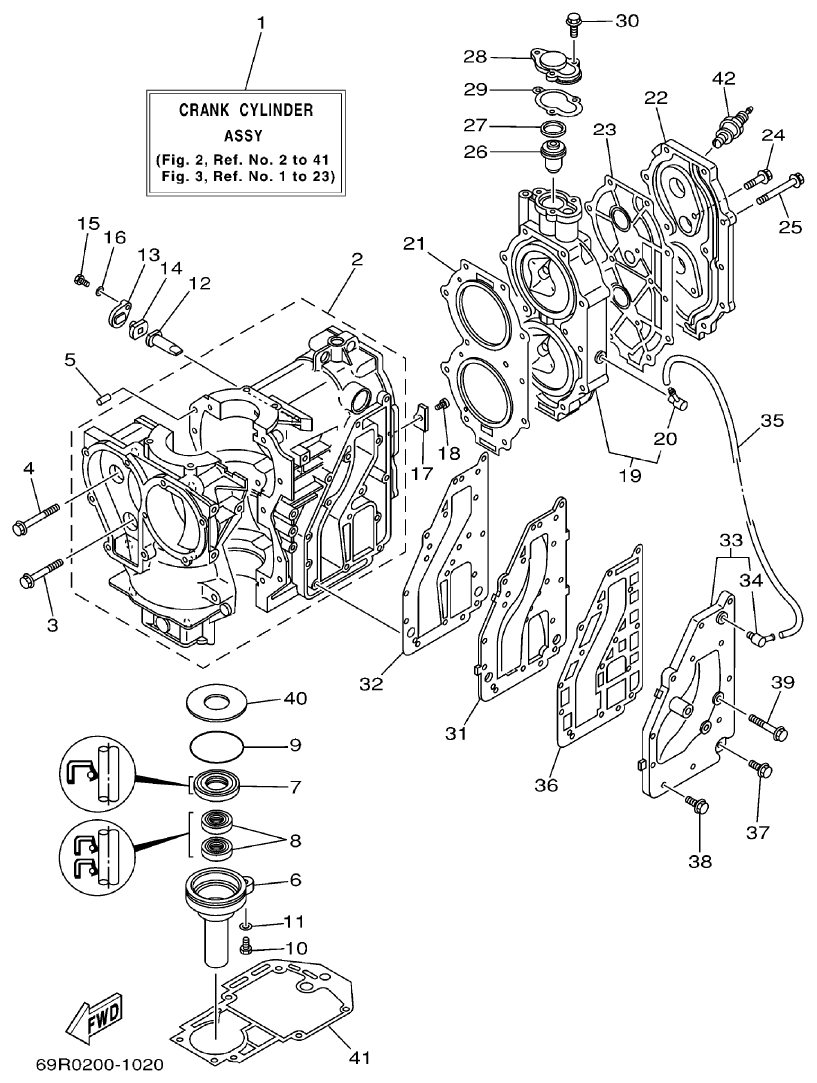

Fig. 2 — CYLINDER. CRANKCASE
47 items · 6 available products

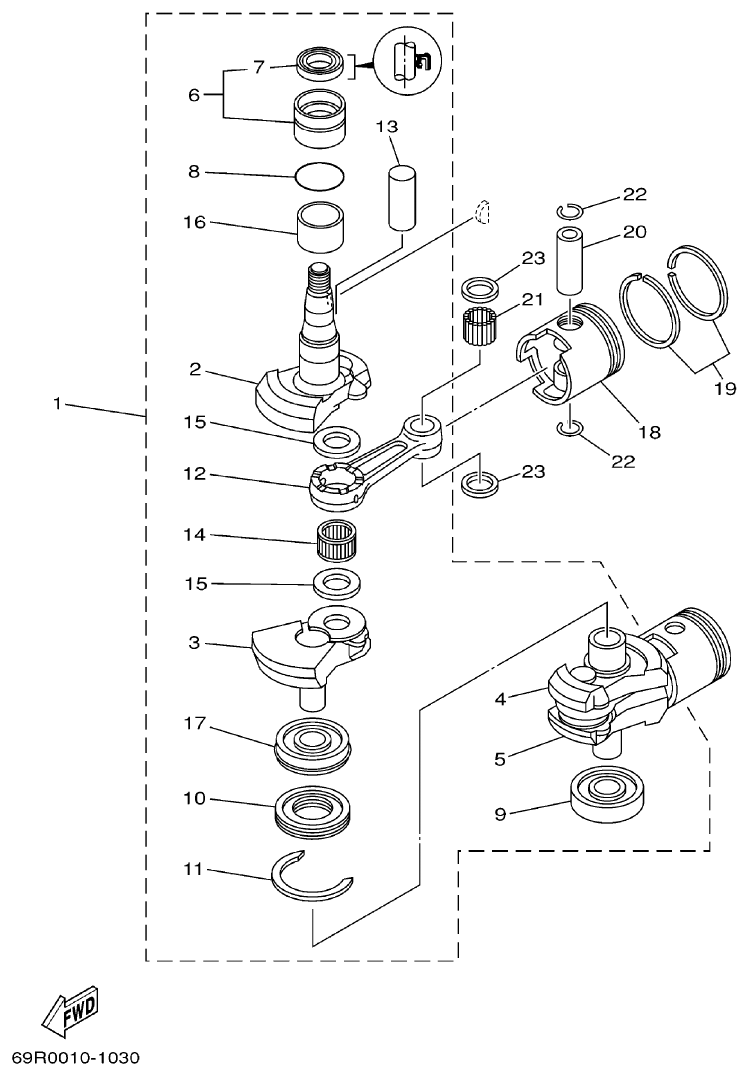

Yamaha E25B, E30H CRANKSHAFT. PISTON parts diagram
Fig. 3 — CRANKSHAFT. PISTON
27 items · 11 available products
Yamaha E25B, E30H INTAKE parts diagram

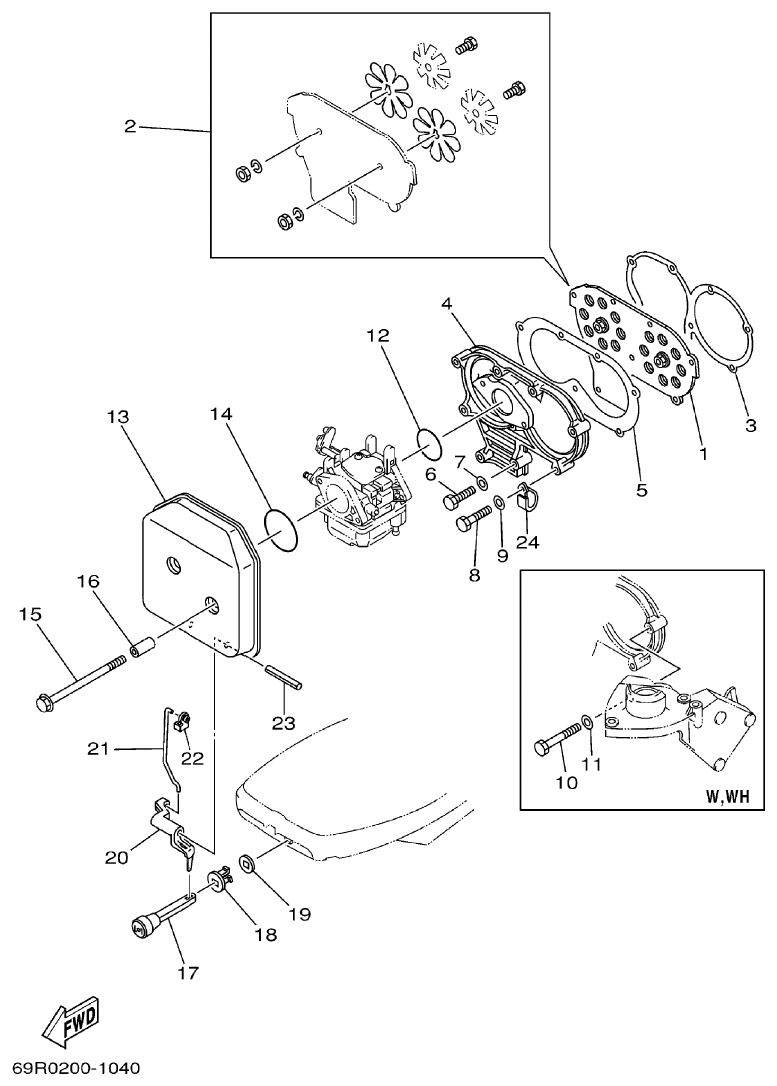

Fig. 4 — INTAKE
27 items · 4 available products

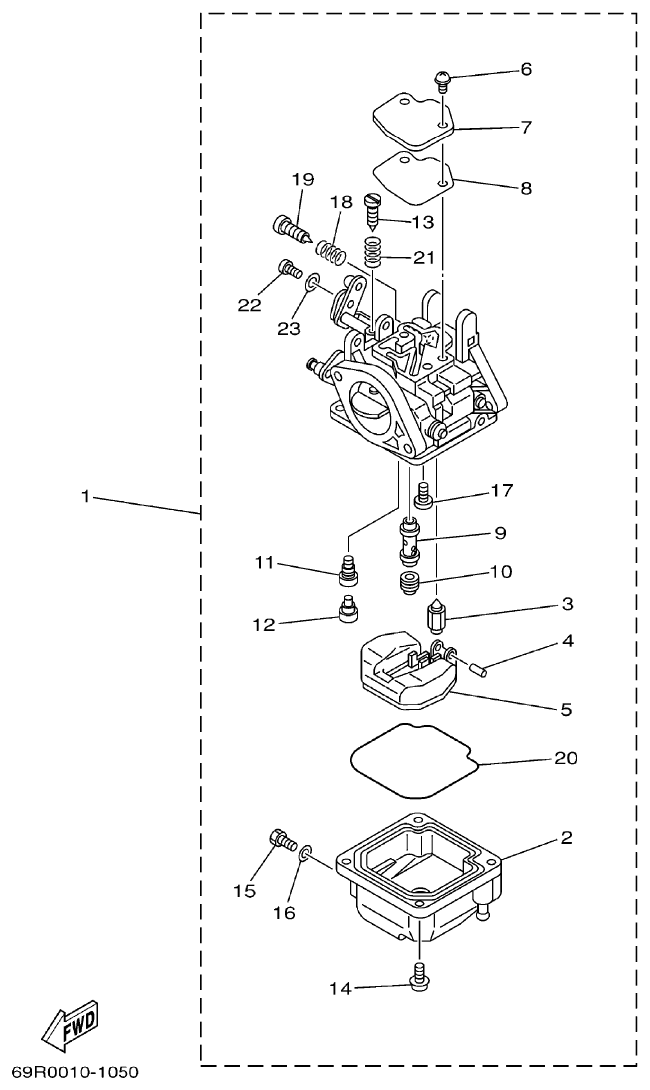

Yamaha E25B, E30H CARBURETOR parts diagram
Fig. 5 — CARBURETOR
30 items · 2 available products
Yamaha E25B, E30H FUEL parts diagram

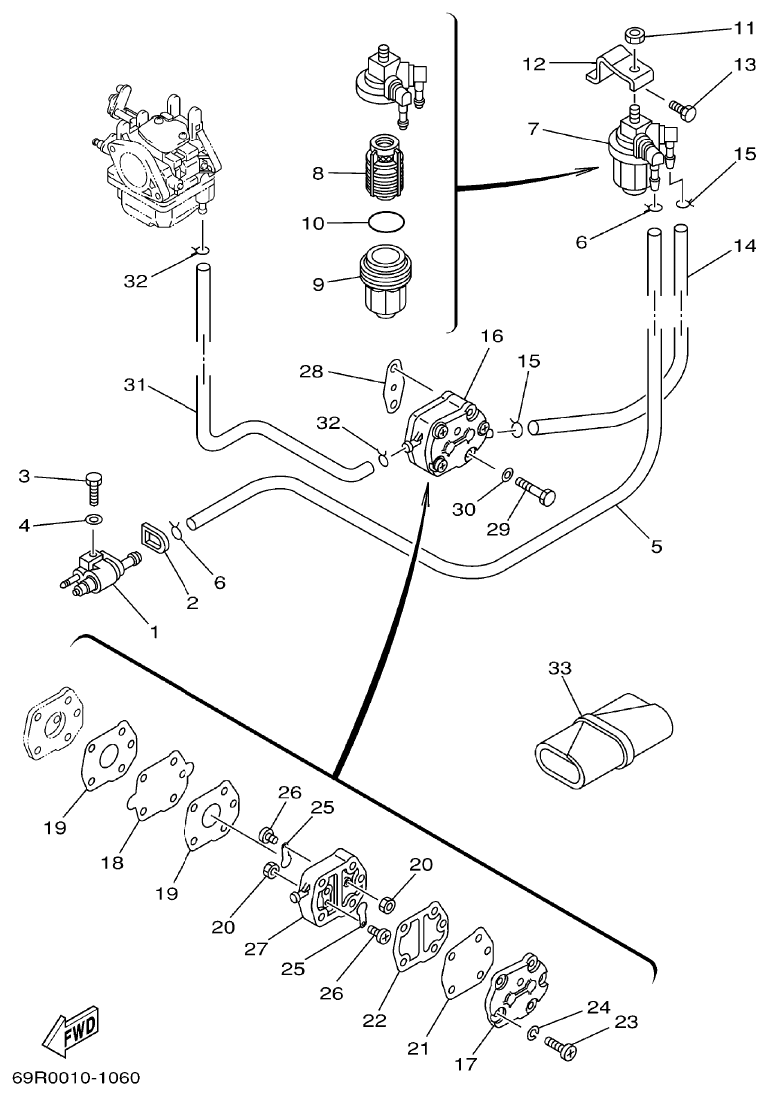

Fig. 6 — FUEL
33 items · 6 available products
Yamaha E25B, E30H STARTER parts diagram

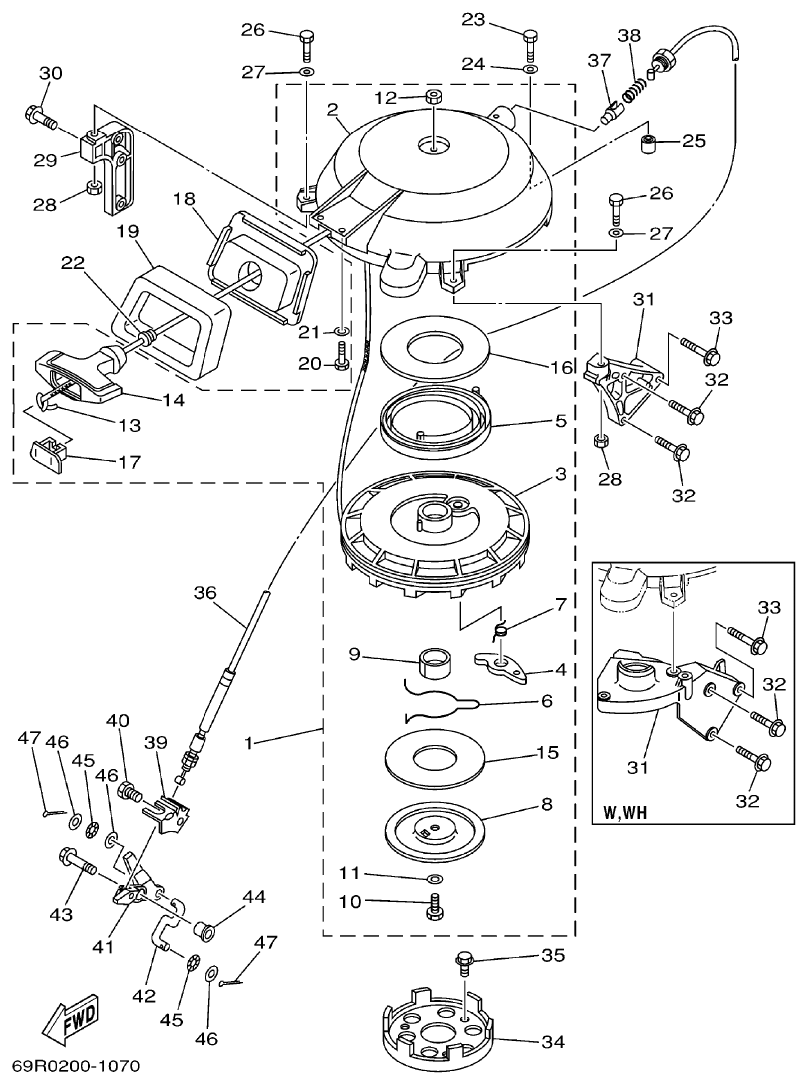

Fig. 7 — STARTER
49 items · 6 available products
Yamaha E25B, E30H GENERATOR parts diagram

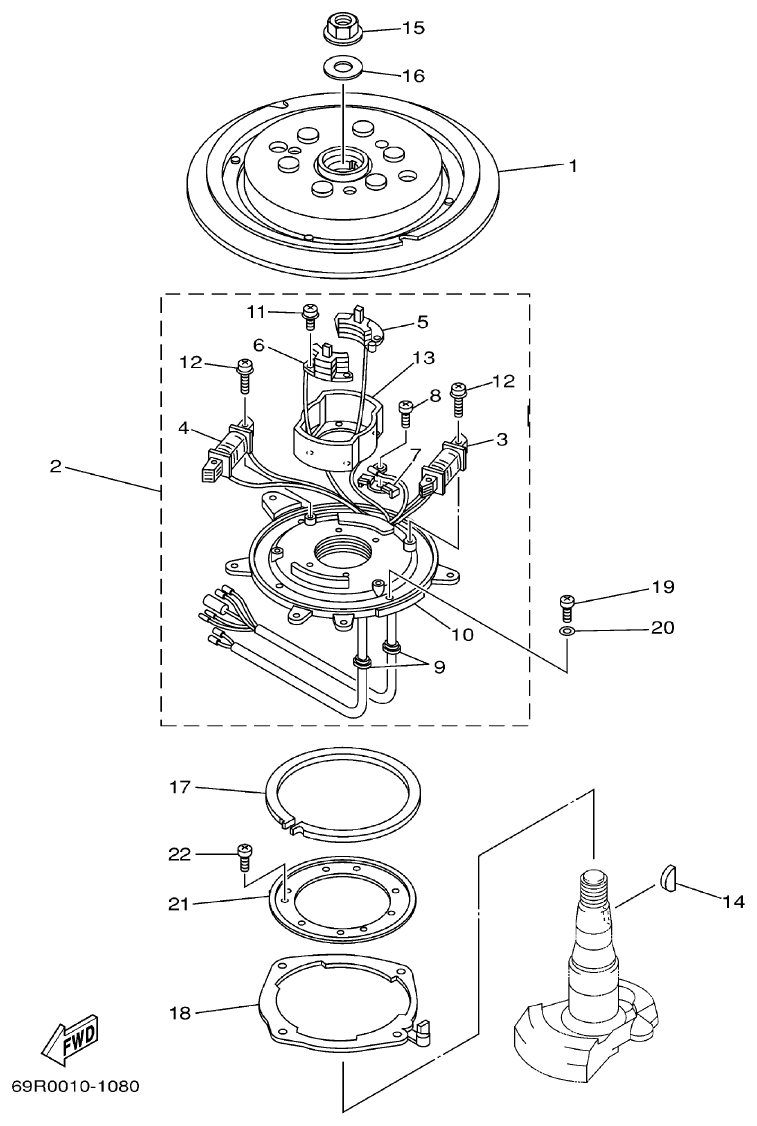

Fig. 8 — GENERATOR
23 items · 4 available products

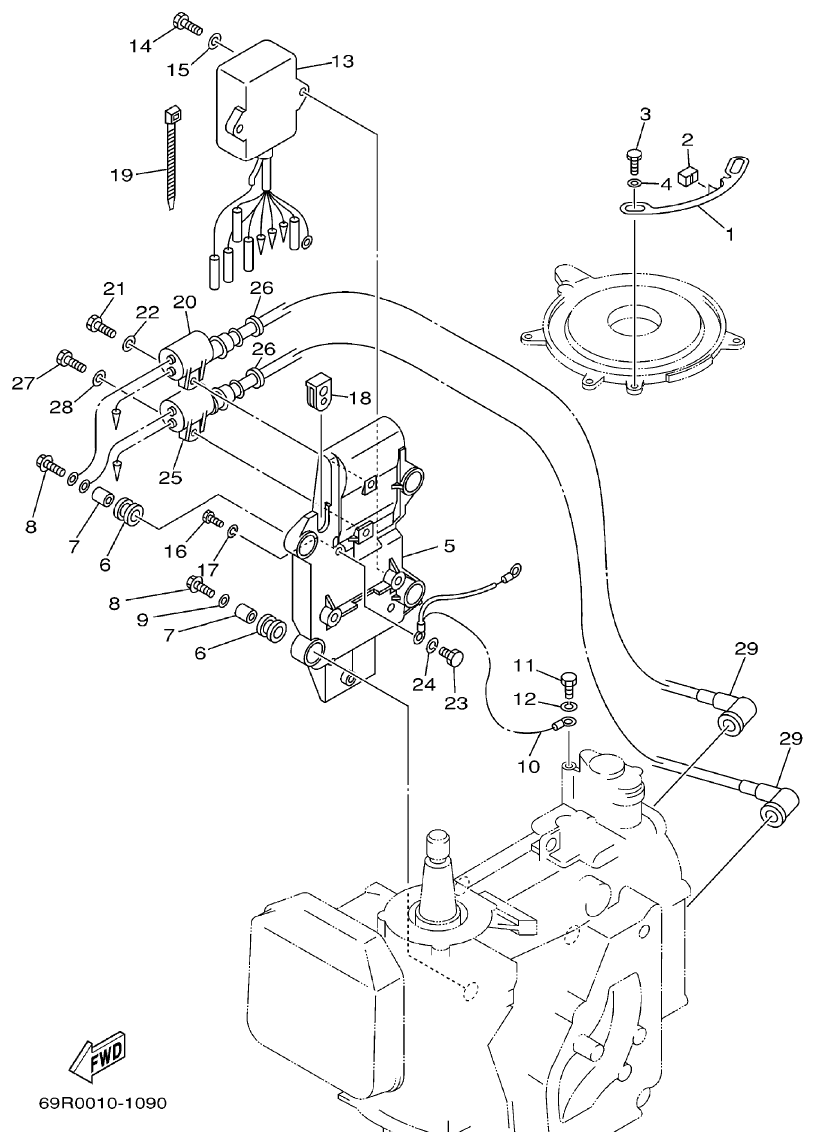

Yamaha E25B, E30H ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
33 items · 5 available products

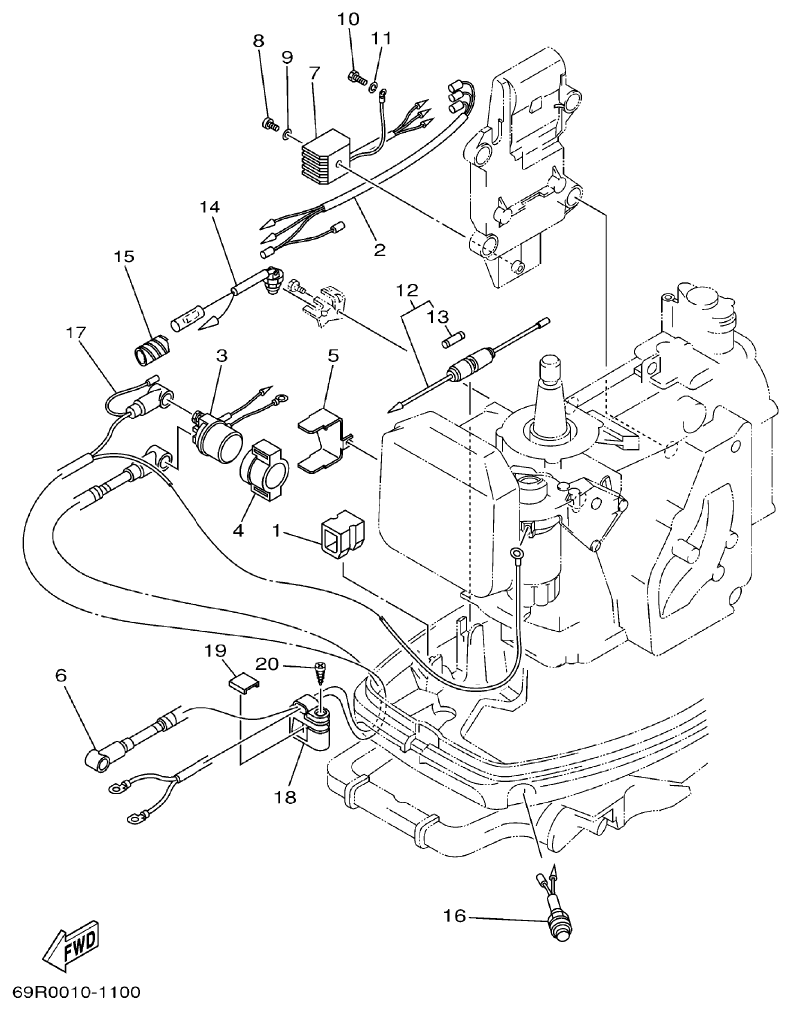

Yamaha E25B, E30H ELECTRICAL 2 parts diagram
Fig. 10 — ELECTRICAL 2
20 items · 2 available products

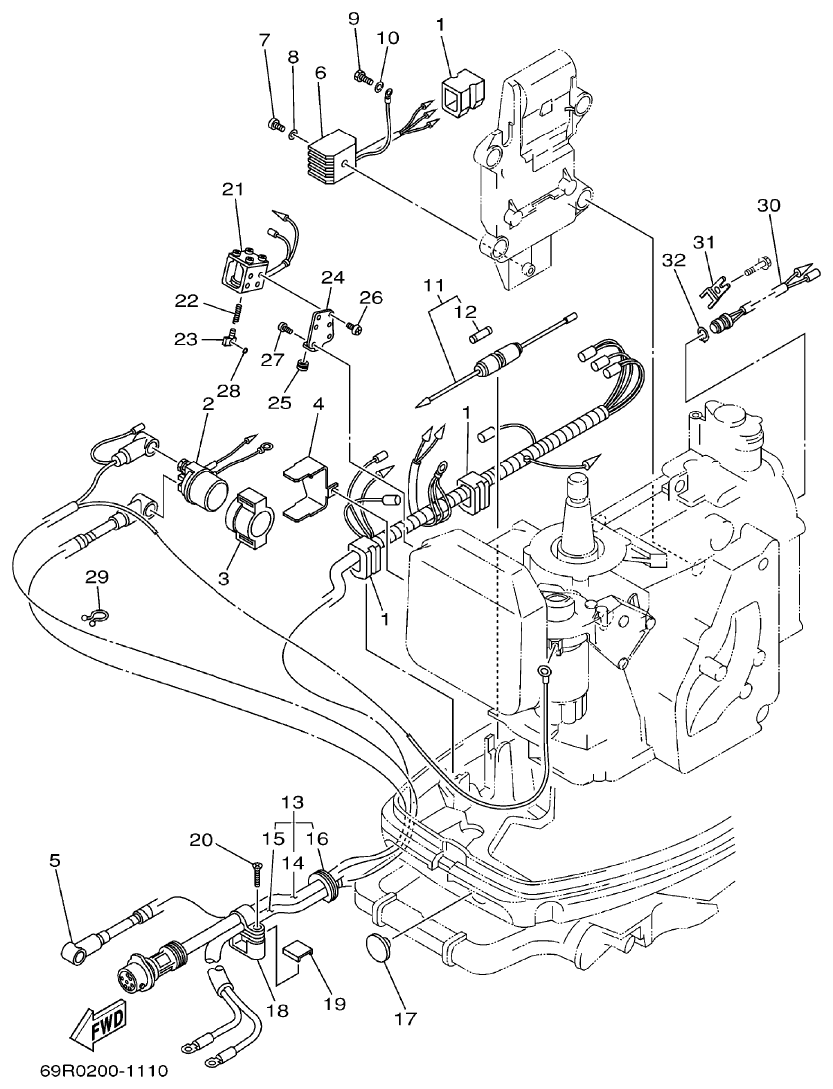

Yamaha E25B, E30H ELECTRICAL 3 parts diagram
Fig. 11 — ELECTRICAL 3
32 items · 2 available products

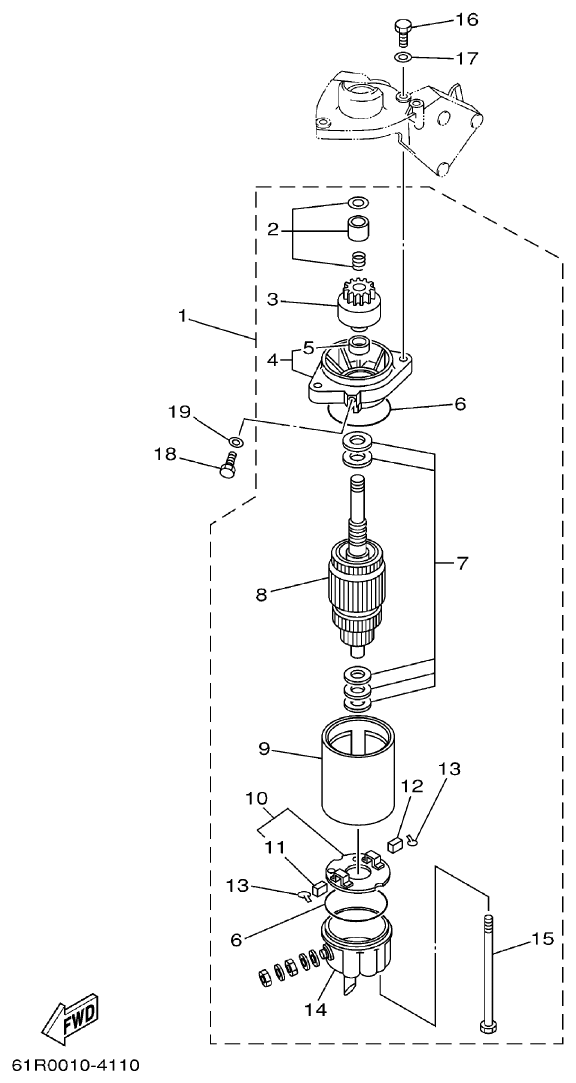

Yamaha E25B, E30H STARTING MOTOR parts diagram
Fig. 12 — STARTING MOTOR
19 items · 4 available products

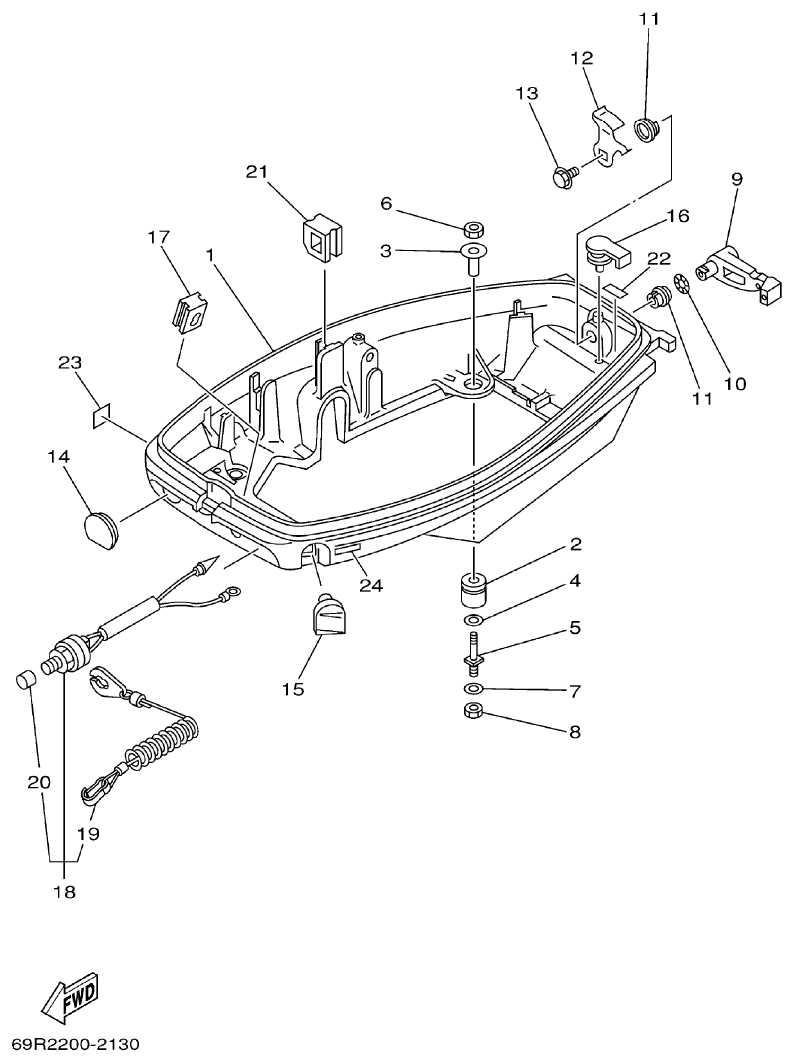

Yamaha E25B, E30H BOTTOM COWLING parts diagram
Fig. 13 — BOTTOM COWLING
29 items · 4 available products

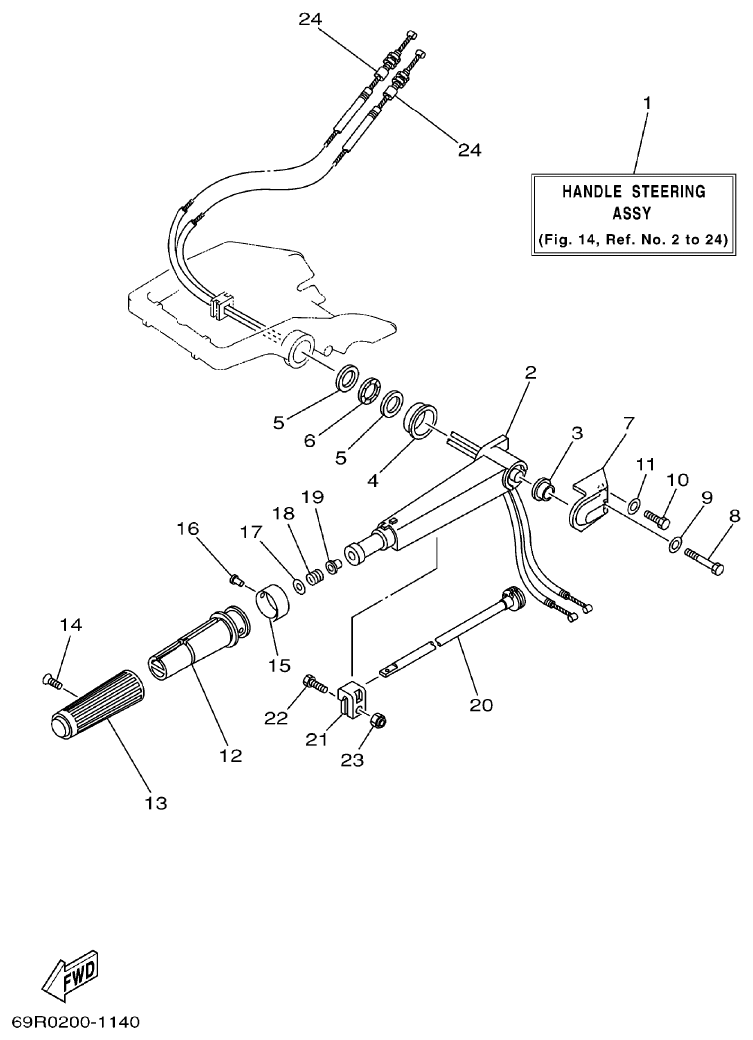

Yamaha E25B, E30H STEERING parts diagram
Fig. 14 — STEERING
24 items · 2 available products

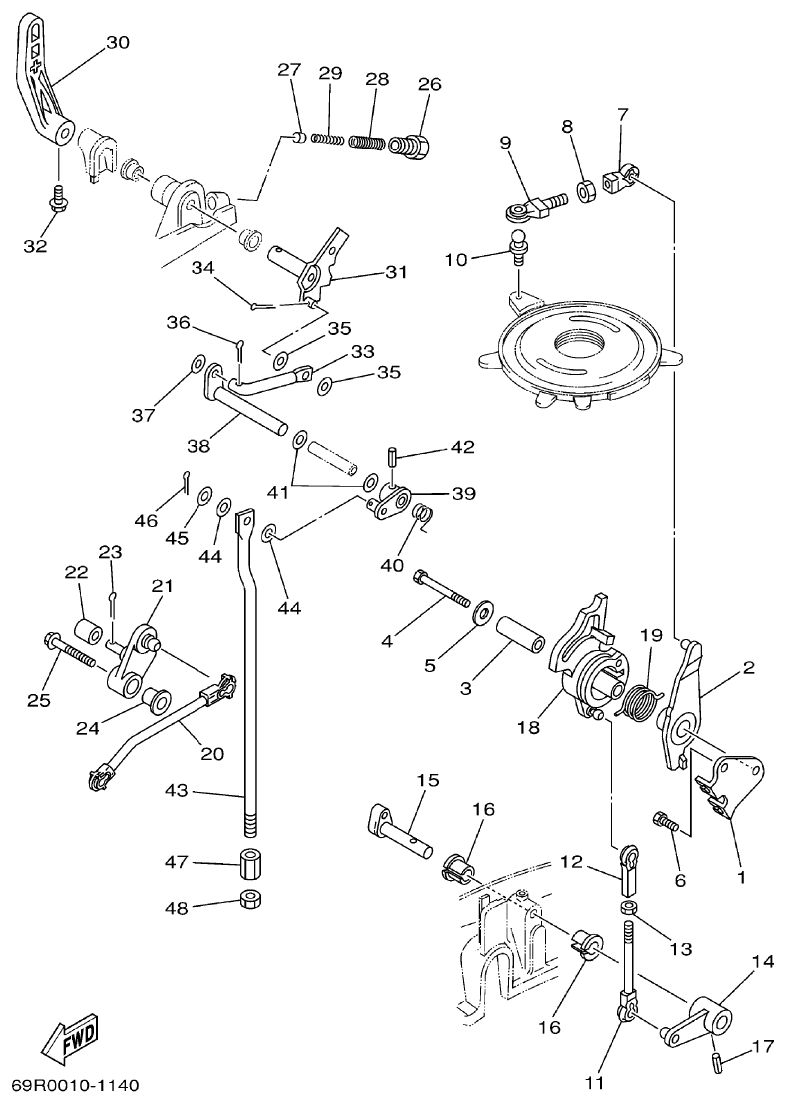

Yamaha E25B, E30H CONTROL 1 parts diagram
Fig. 15 — CONTROL 1
48 items · 7 available products

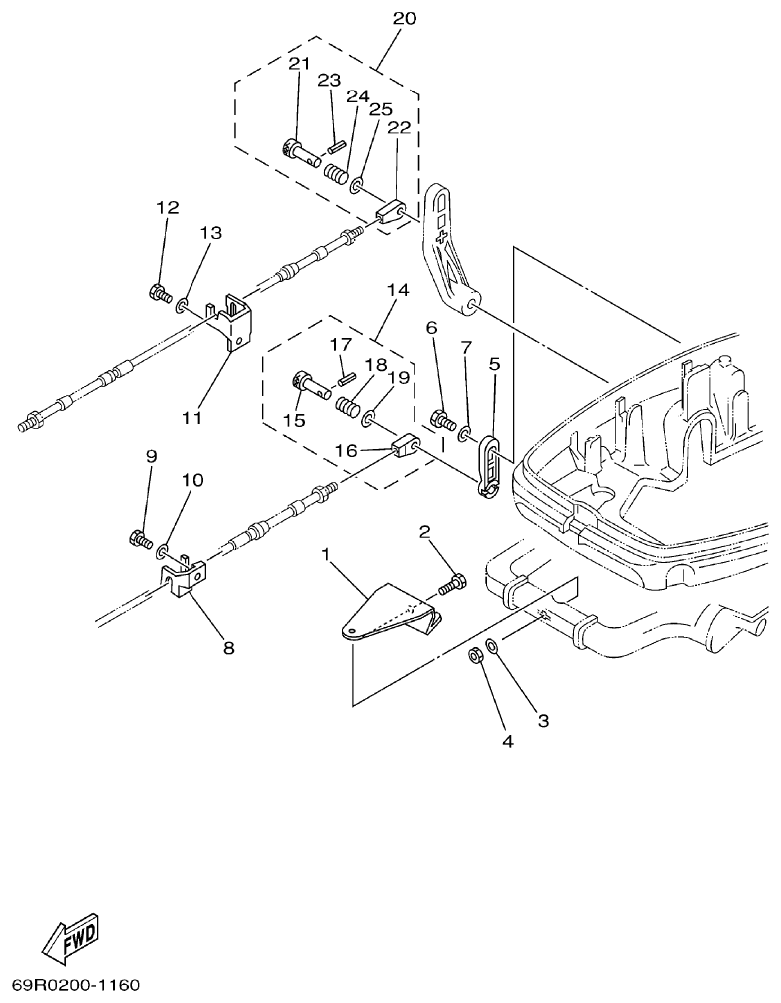

Yamaha E25B, E30H CONTROL 2 parts diagram
Fig. 16 — CONTROL 2
25 items

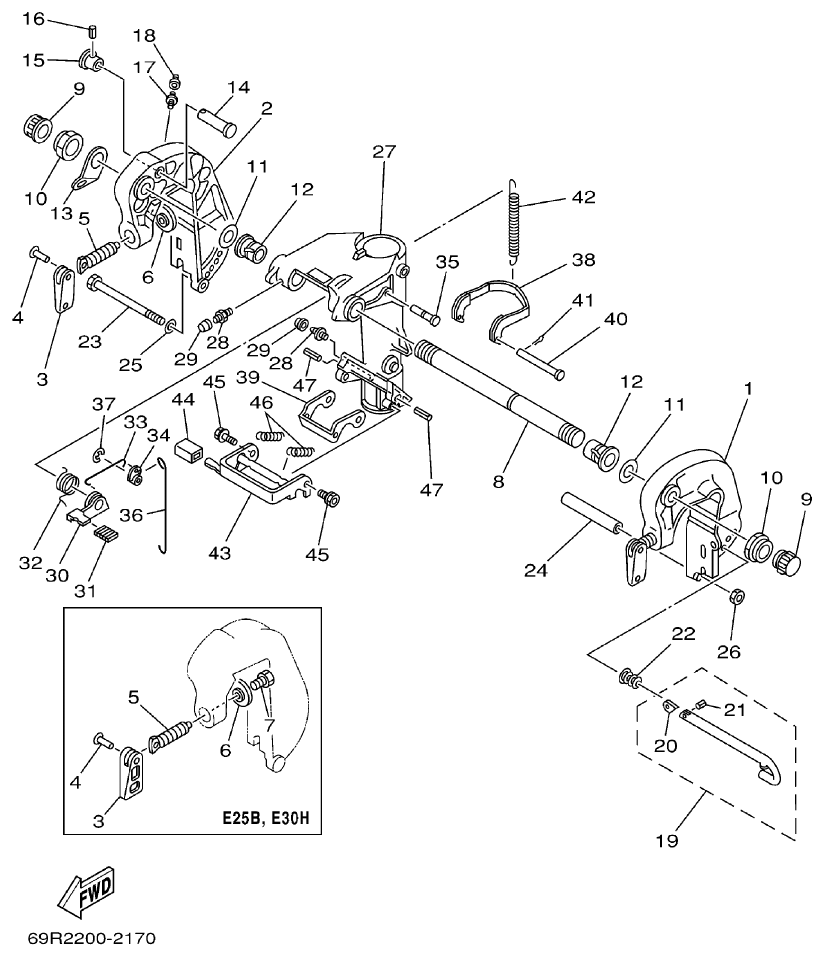

Yamaha E25B, E30H BRACKET 1 parts diagram
Fig. 17 — BRACKET 1
51 items · 11 available products

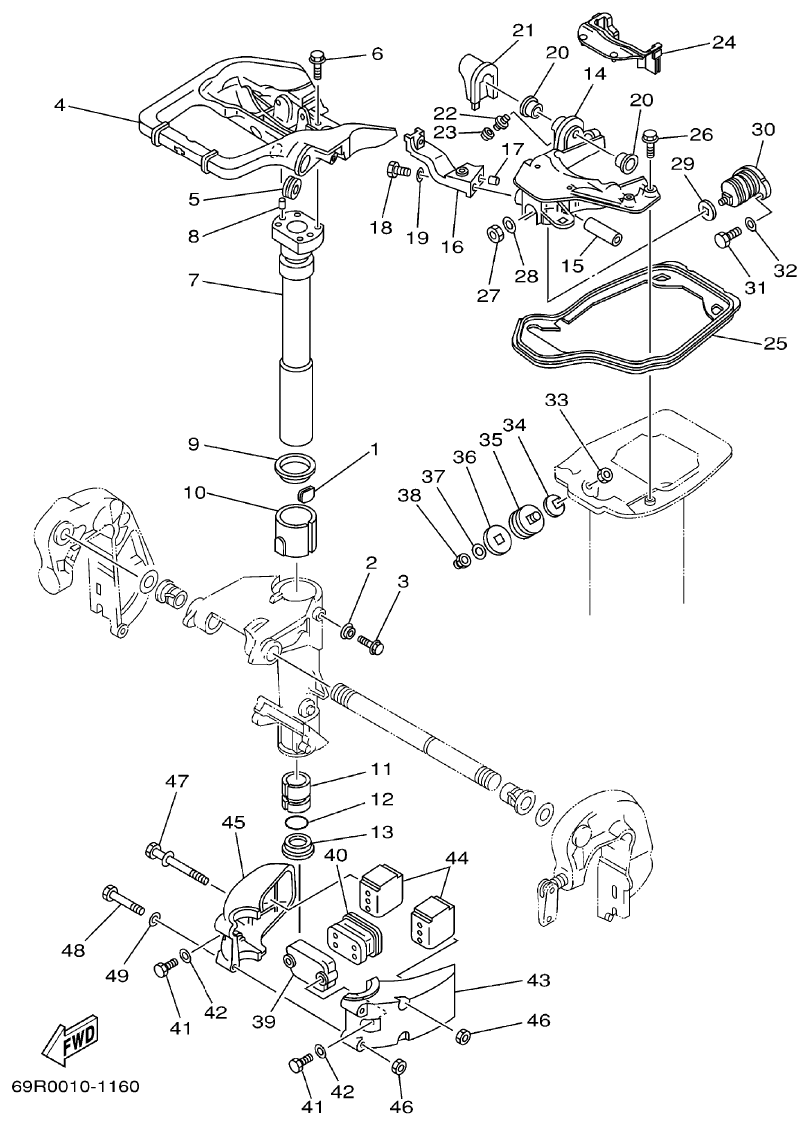

Yamaha E25B, E30H BRACKET 2 parts diagram
Fig. 18 — BRACKET 2
49 items · 2 available products

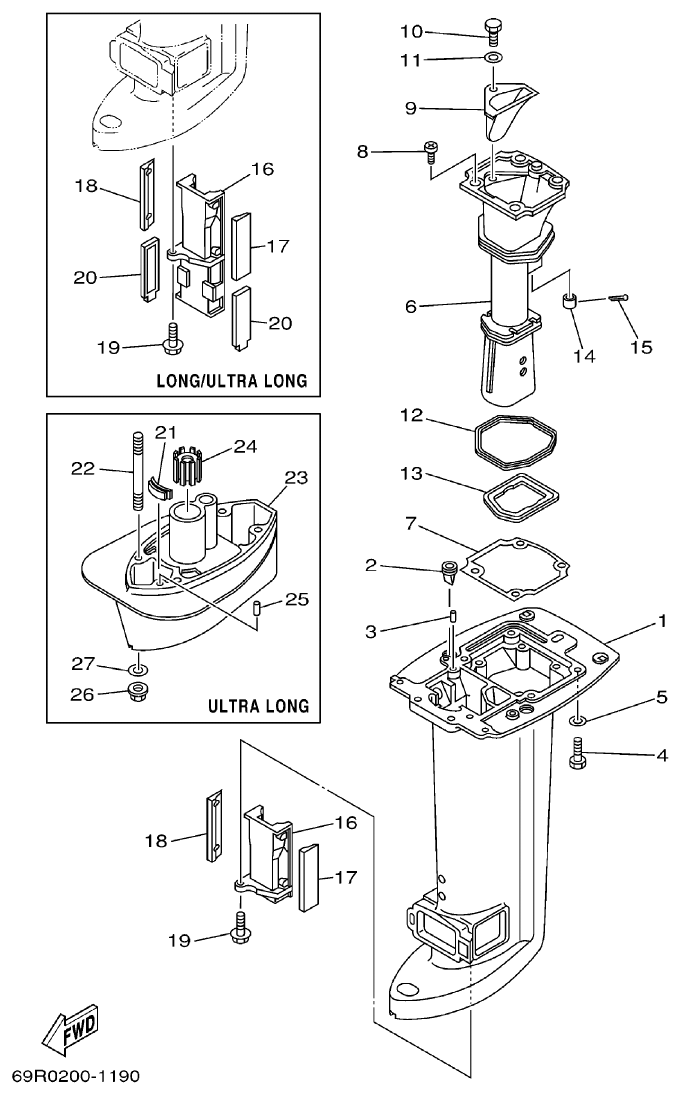

Yamaha E25B, E30H UPPER CASING parts diagram
Fig. 19 — UPPER CASING
30 items
Yamaha E25B, E30H LOWER CASING. DRIVE 1 parts diagram

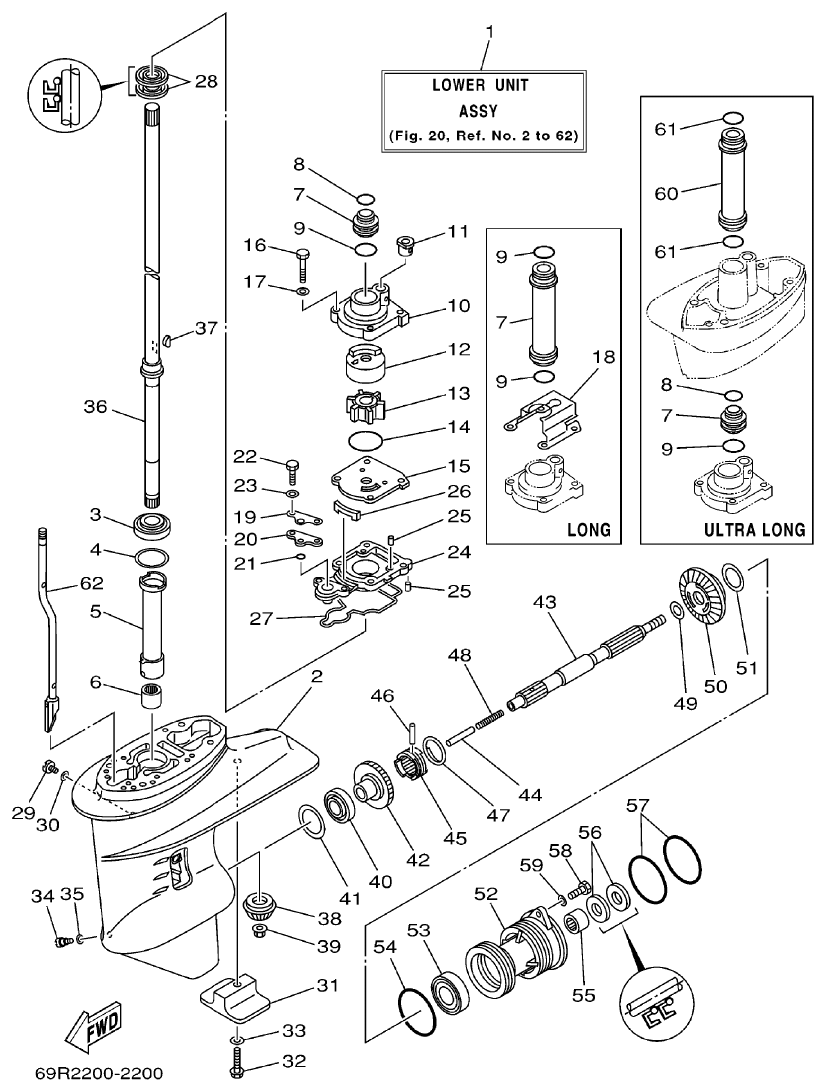

Fig. 20 — LOWER CASING. DRIVE 1
86 items · 14 available products

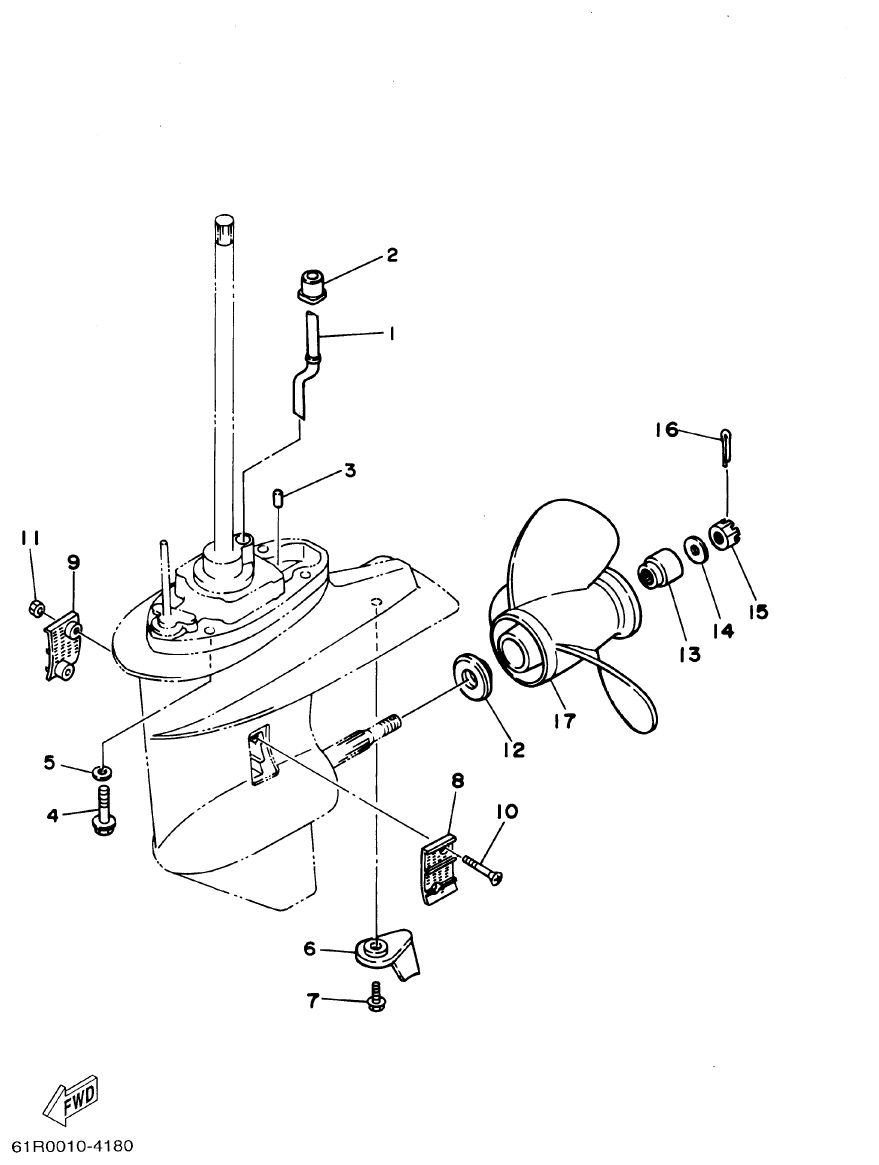

Yamaha E25B, E30H LOWER CASING. DRIVE 2 parts diagram
Fig. 21 — LOWER CASING. DRIVE 2
26 items · 6 available products
Yamaha E25B, E30H FUEL TANK parts diagram

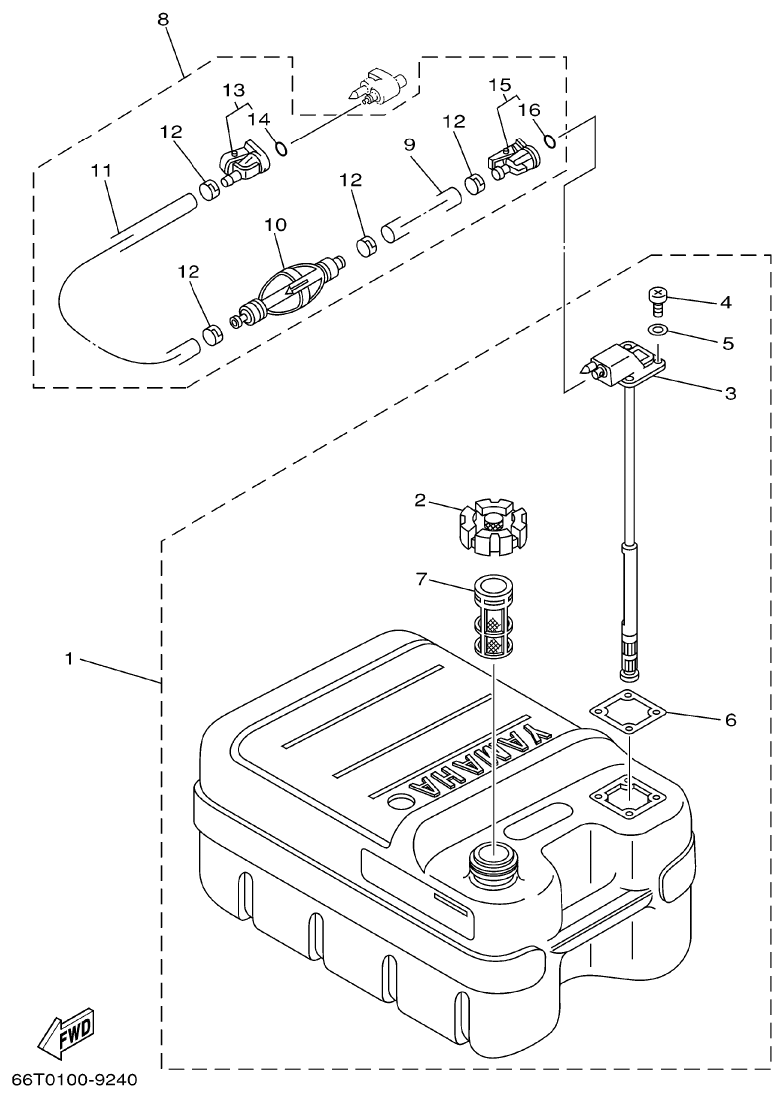

Fig. 22 — FUEL TANK
18 items · 2 available products

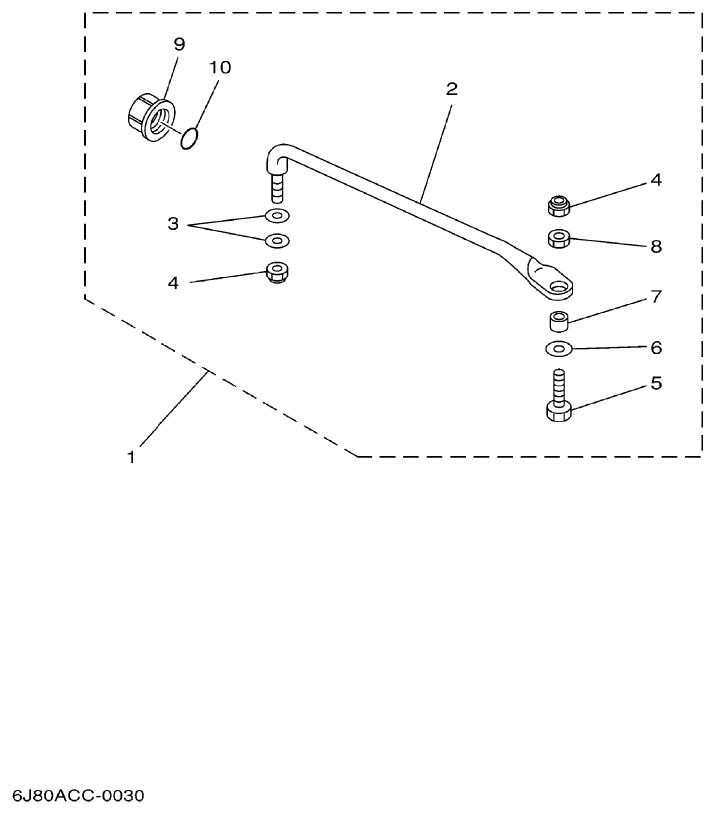

Yamaha E25B, E30H STEERING GUIDE parts diagram
Fig. 23 — STEERING GUIDE
10 items · 1 available products
Yamaha E25B, E30H REMOTE CONTROL BOX parts diagram
Fig. 24 — REMOTE CONTROL BOX
3 items

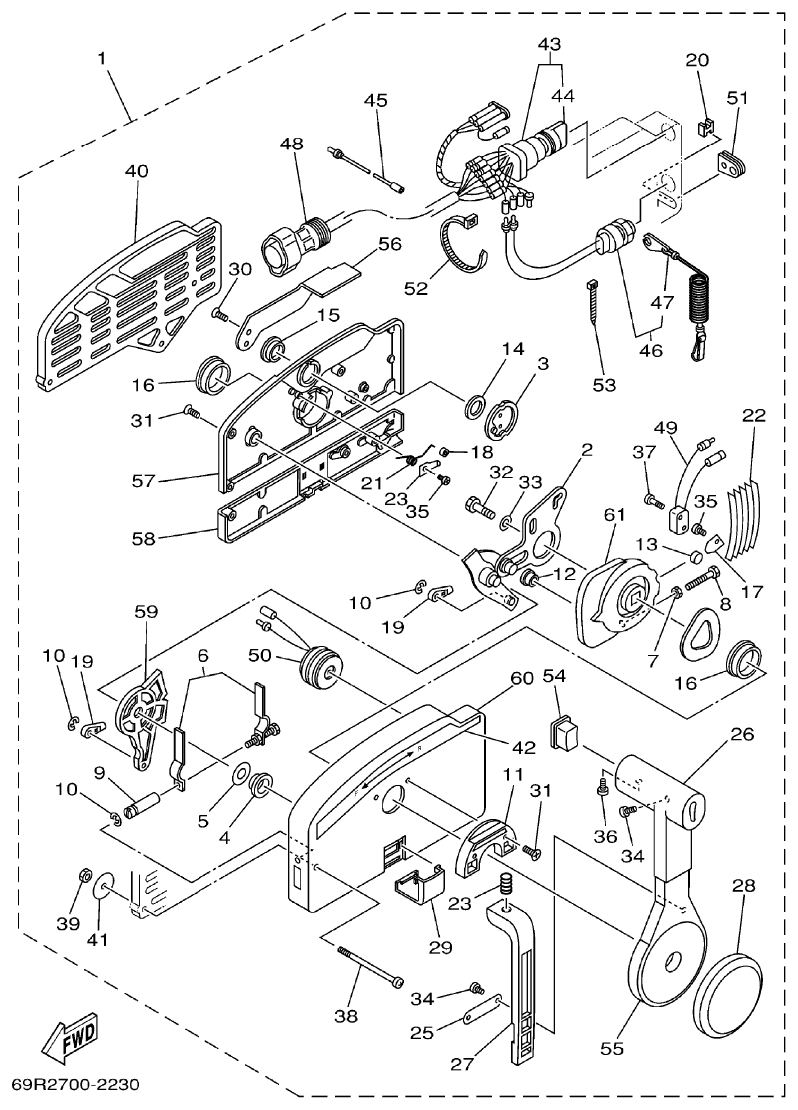

Yamaha E25B, E30H REMOTE CONTROL ASSY parts diagram
Fig. 25 — REMOTE CONTROL ASSY
61 items · 10 available products
Yamaha E25B, E30H REPAIR KIT 1 parts diagram

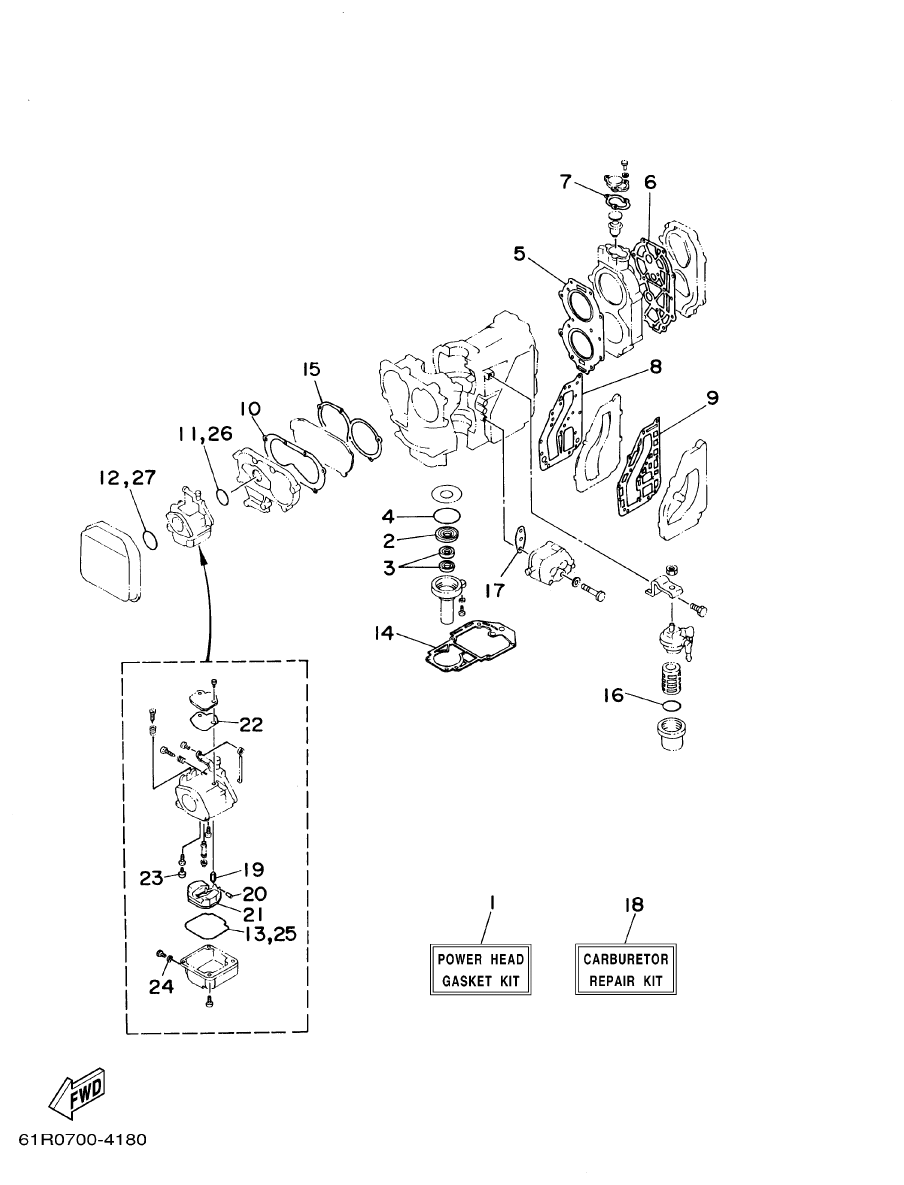

Fig. 26 — REPAIR KIT 1
27 items · 9 available products

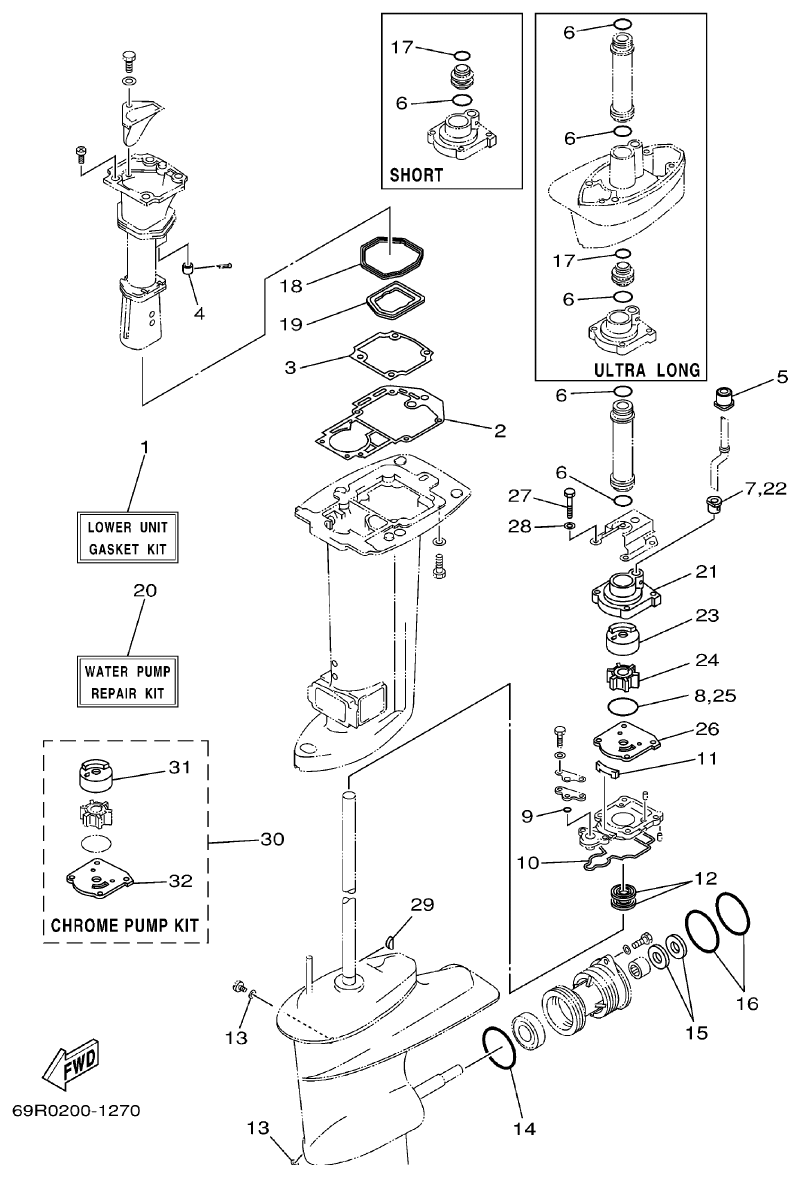

Yamaha E25B, E30H REPAIR KIT 2 parts diagram
Fig. 27 — REPAIR KIT 2
32 items · 4 available products
