Yamaha E40XMH Parts Catalog

Yamaha E40XMH Outboard parts and diagrams

Yamaha E40XMH outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE, CRANKSHAFT. PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, STEERING FRICTION, CONTROL, REMOTE CONTROL ATTACHMENT, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

174 linked store products are available across 30 catalog sections. 920 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

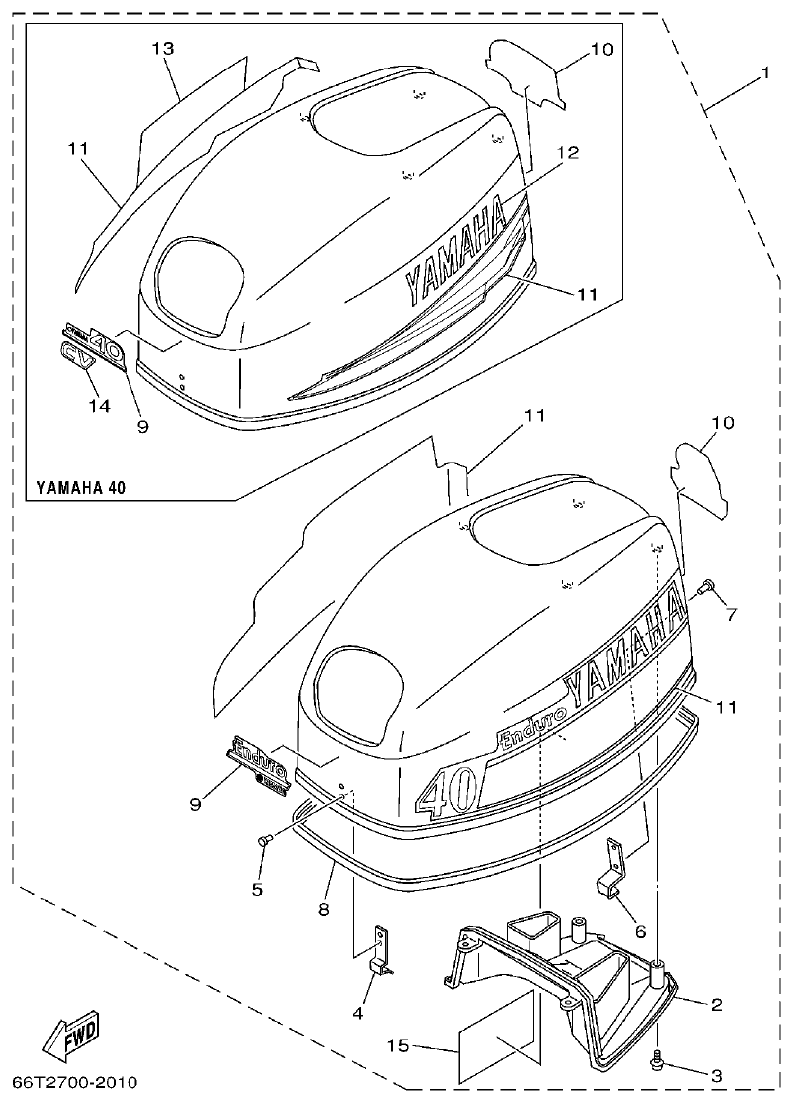

Yamaha E40XMH TOP COWLING parts diagram
Fig. 1 — TOP COWLING
19 items · 2 available products

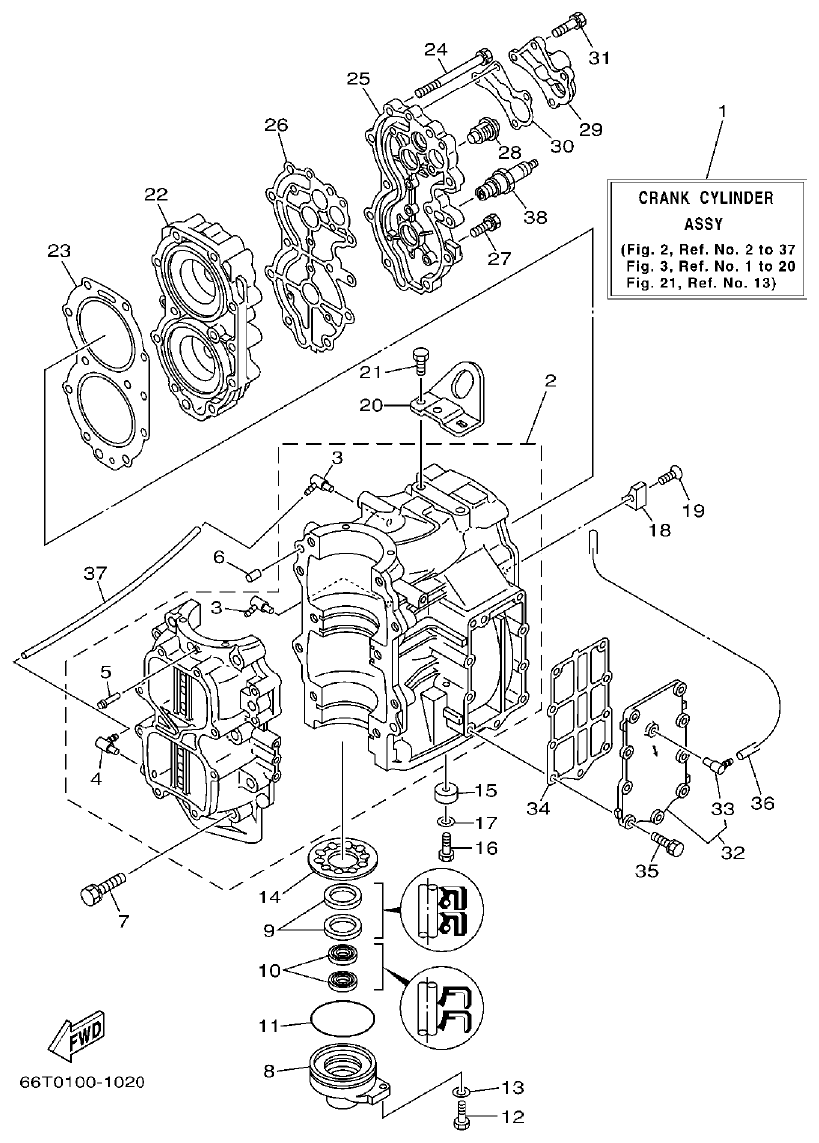

Yamaha E40XMH CYLINDER. CRANKCASE parts diagram
Fig. 2 — CYLINDER. CRANKCASE
38 items · 11 available products
Yamaha E40XMH CRANKSHAFT. PISTON parts diagram

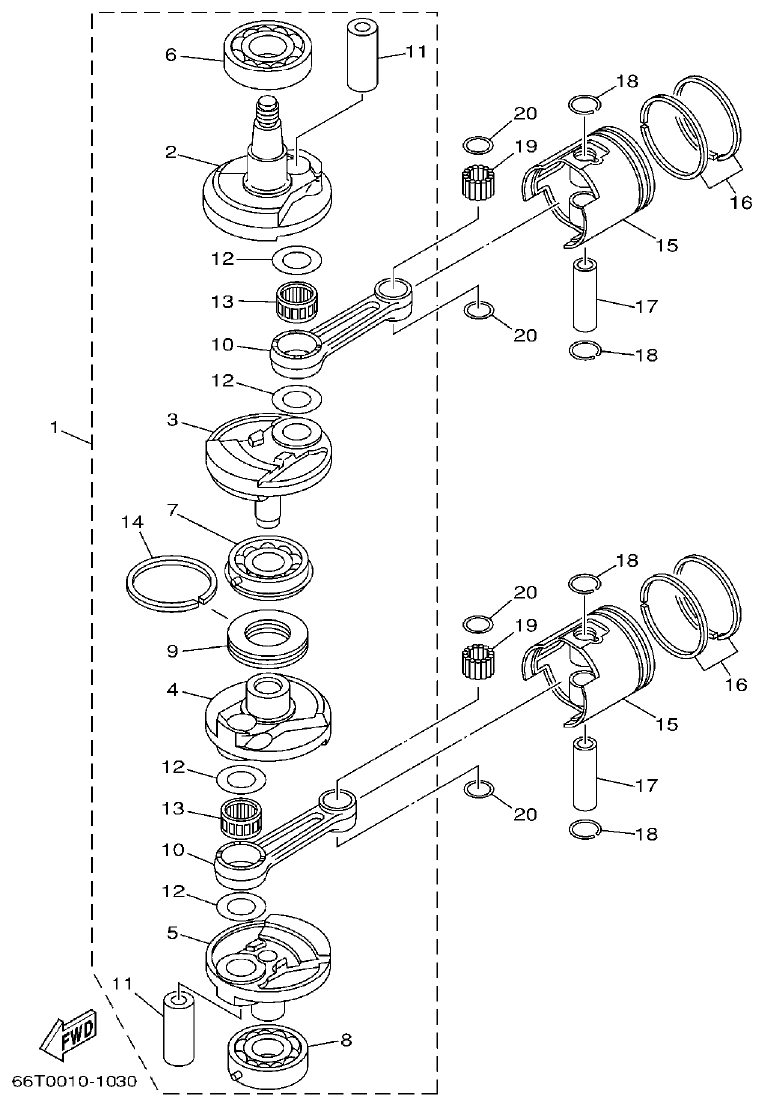

Fig. 3 — CRANKSHAFT. PISTON
24 items · 11 available products
Yamaha E40XMH INTAKE parts diagram

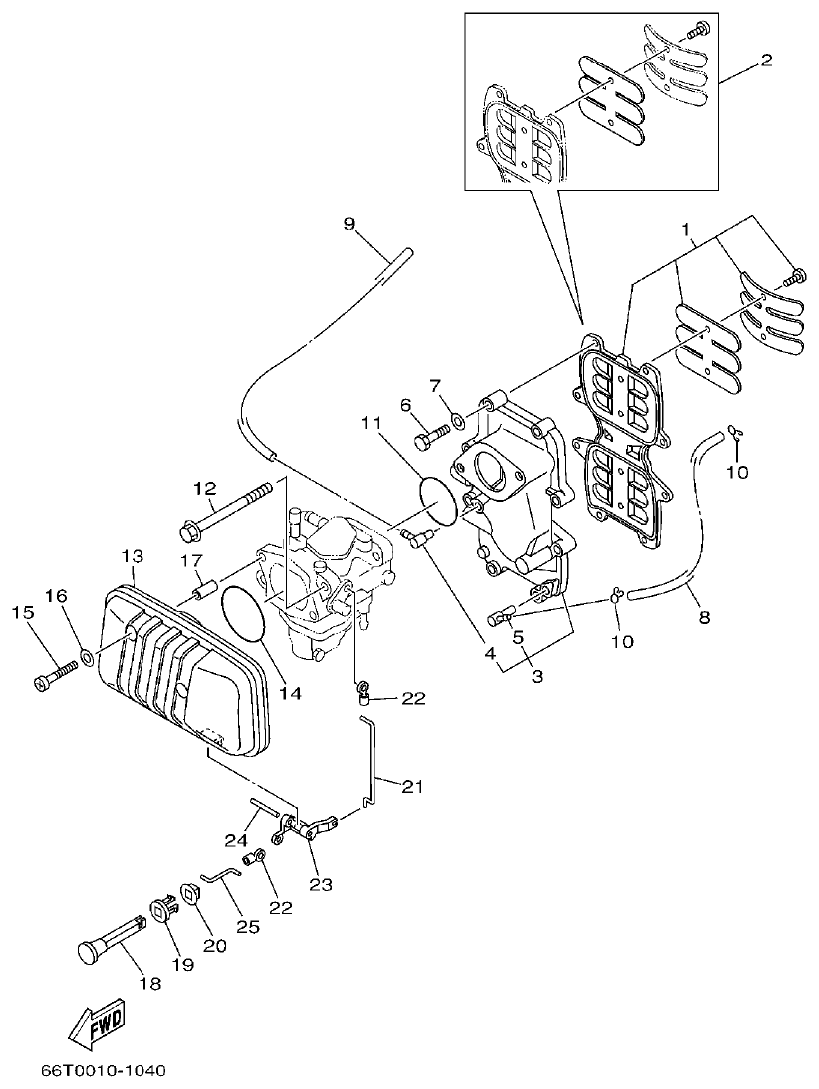

Fig. 4 — INTAKE
25 items · 9 available products

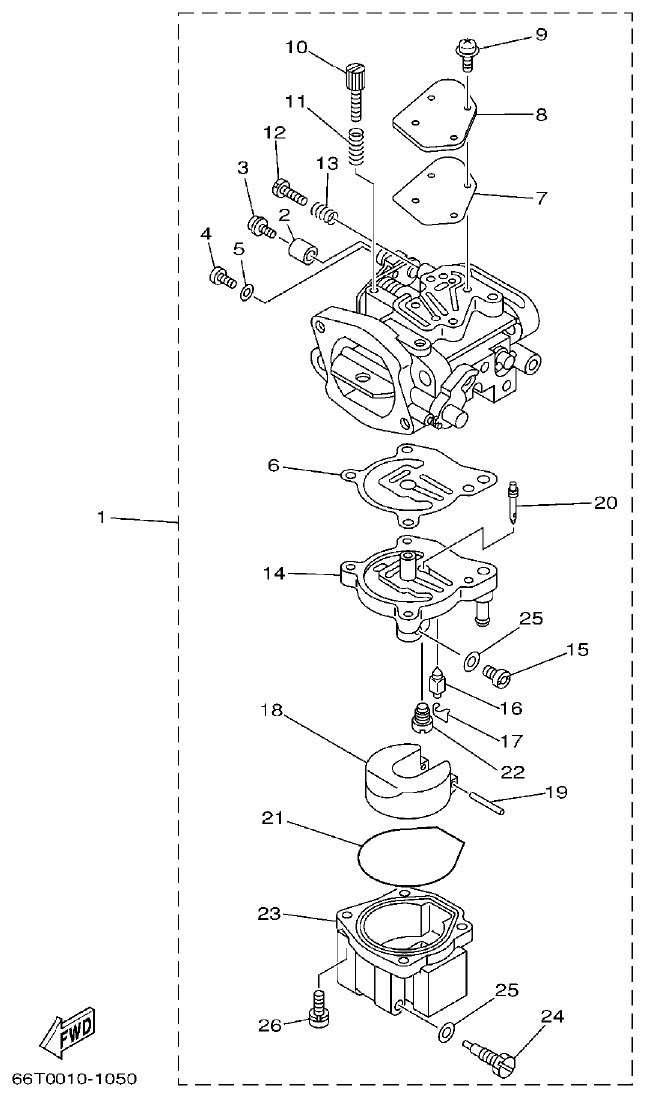

Yamaha E40XMH CARBURETOR parts diagram
Fig. 5 — CARBURETOR
27 items · 8 available products

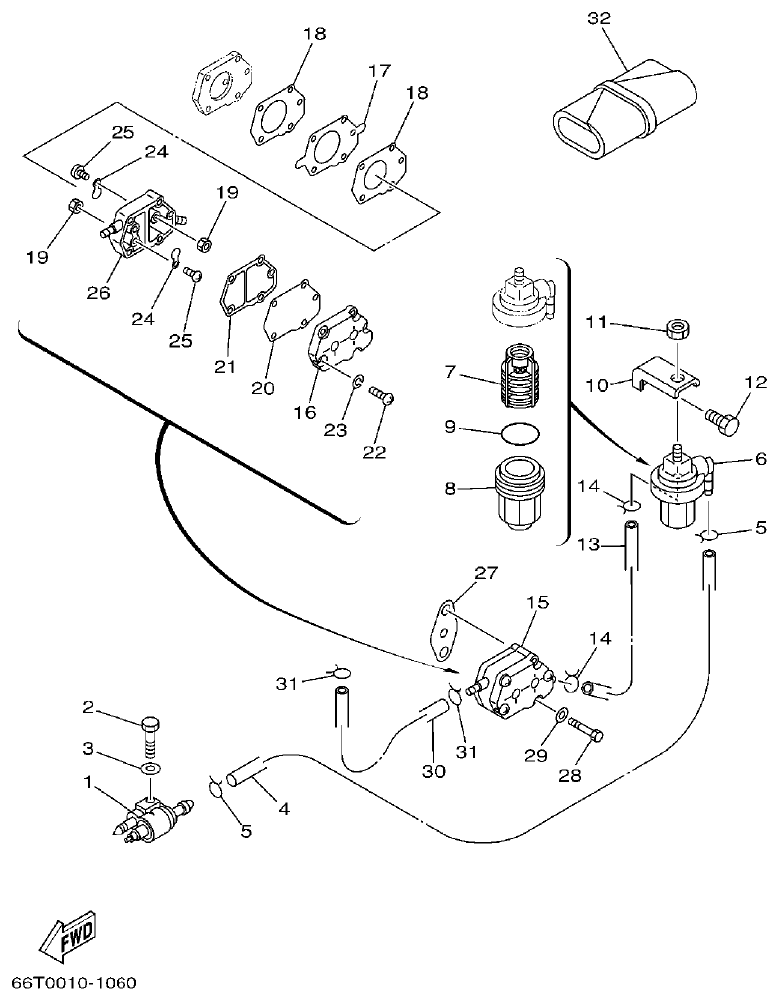

Yamaha E40XMH FUEL parts diagram
Fig. 6 — FUEL
32 items · 6 available products

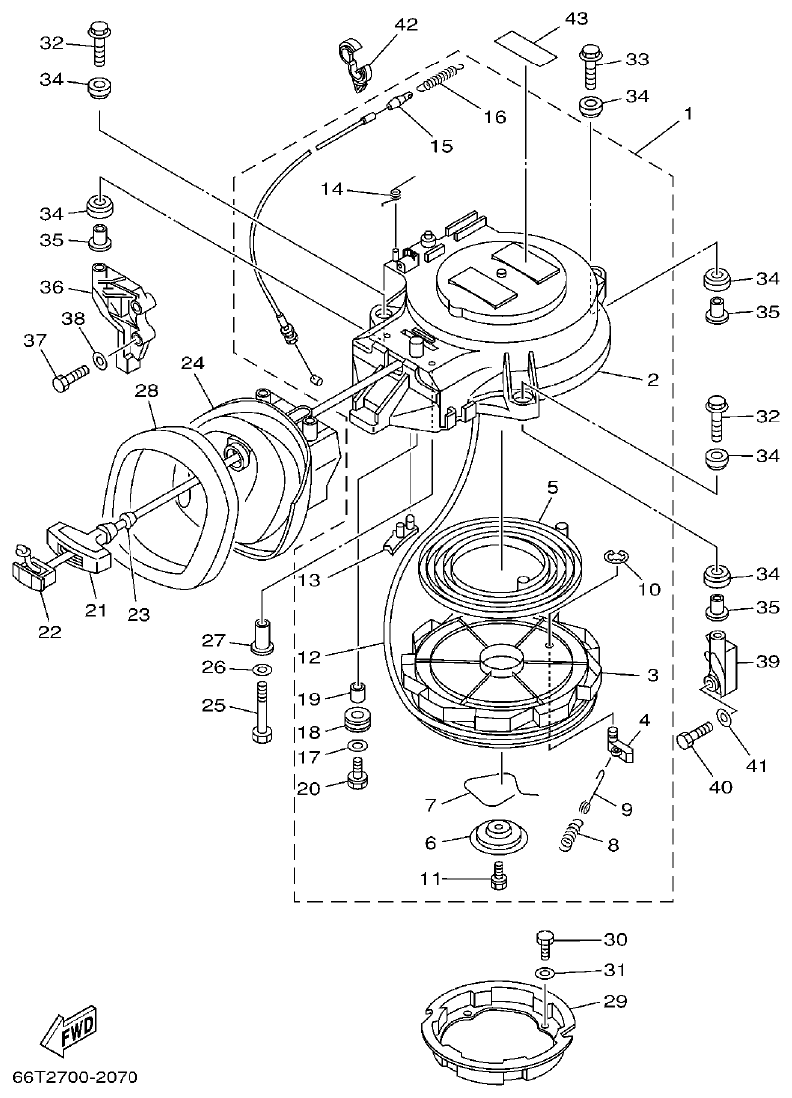

Yamaha E40XMH STARTER parts diagram
Fig. 7 — STARTER
42 items · 13 available products

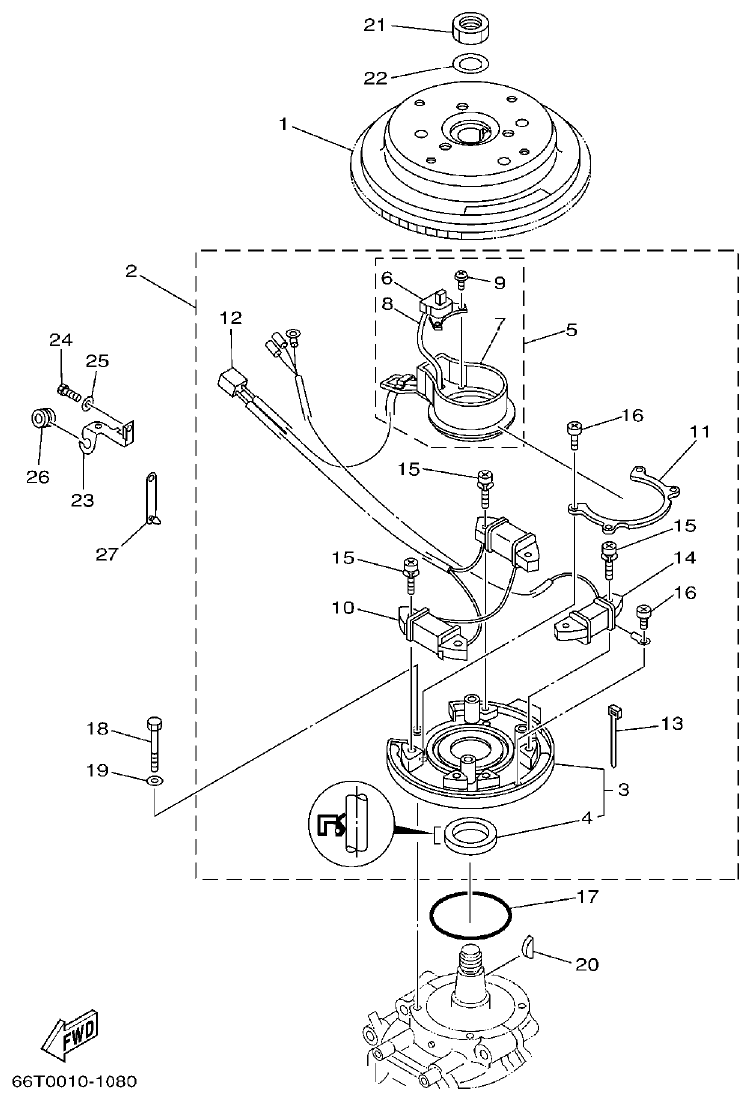

Yamaha E40XMH GENERATOR parts diagram
Fig. 8 — GENERATOR
28 items · 5 available products

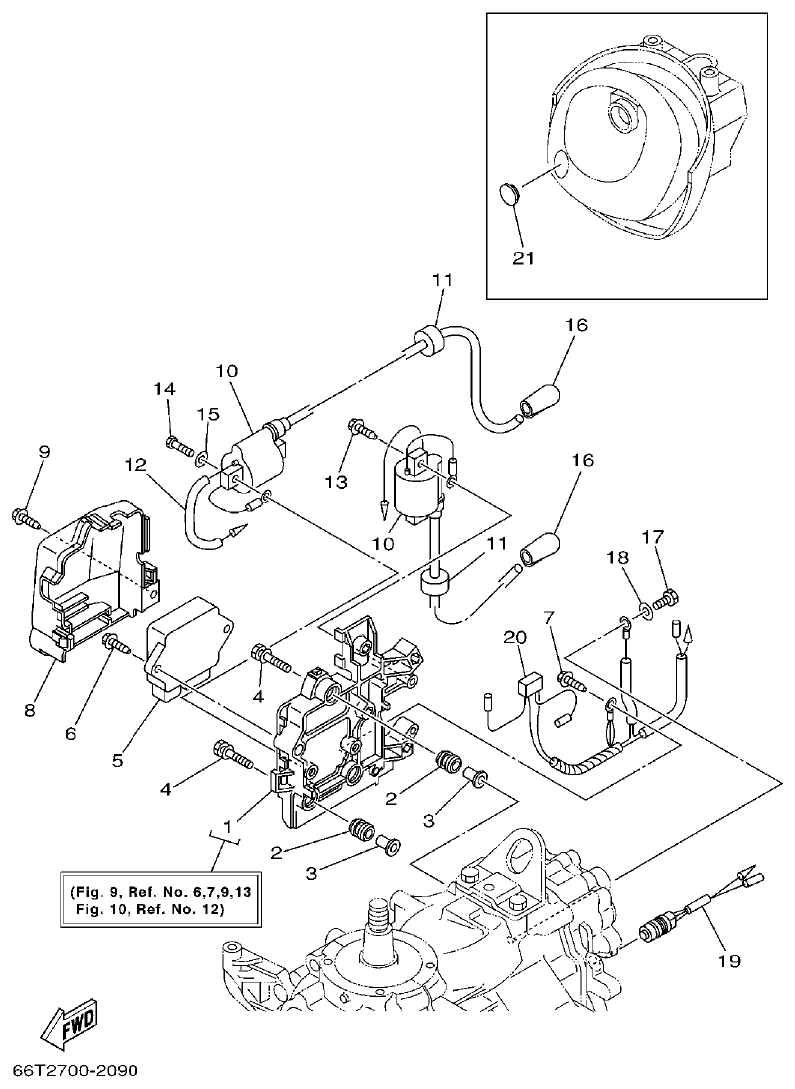

Yamaha E40XMH ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
21 items · 4 available products

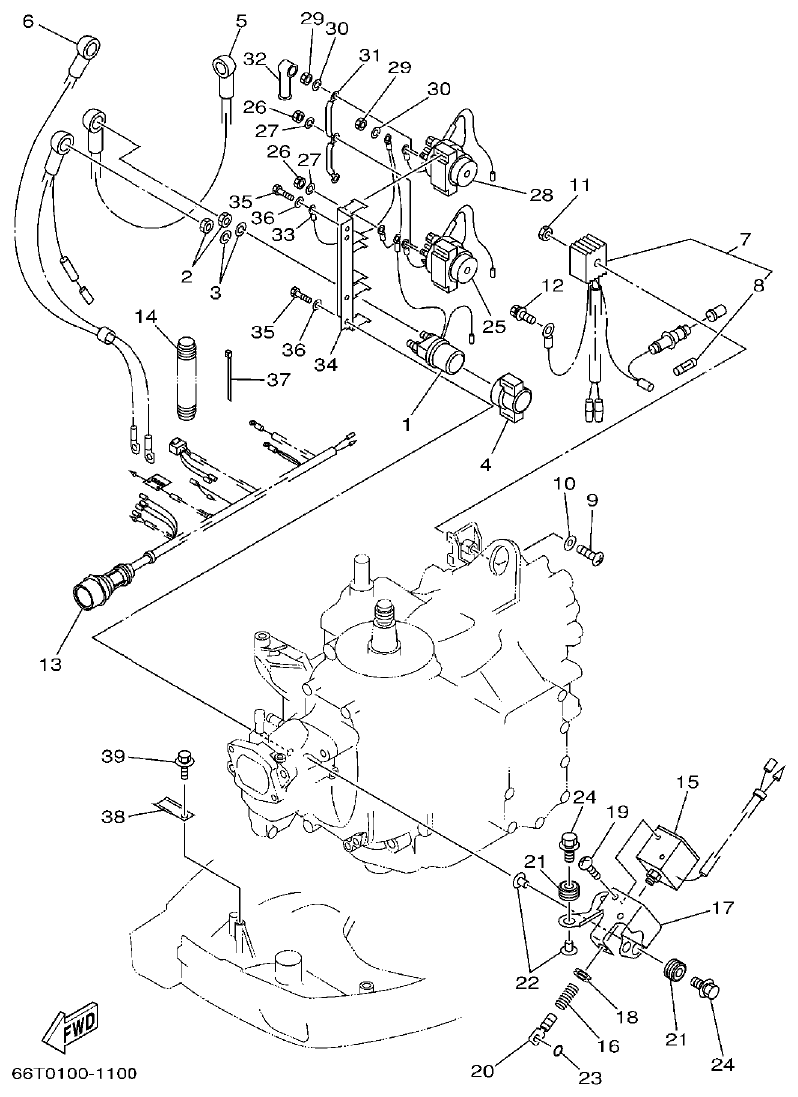

Yamaha E40XMH ELECTRICAL 2 parts diagram
Fig. 10 — ELECTRICAL 2
39 items · 2 available products

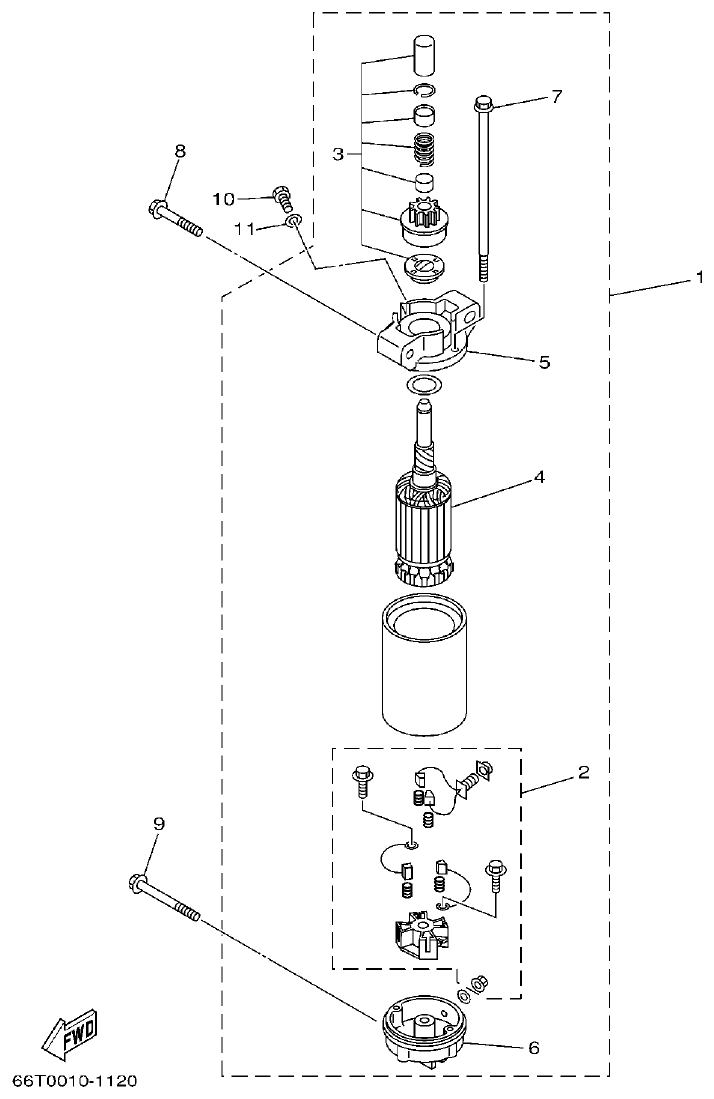

Yamaha E40XMH STARTING MOTOR parts diagram
Fig. 11 — STARTING MOTOR
11 items · 1 available products
Yamaha E40XMH BOTTOM COWLING parts diagram

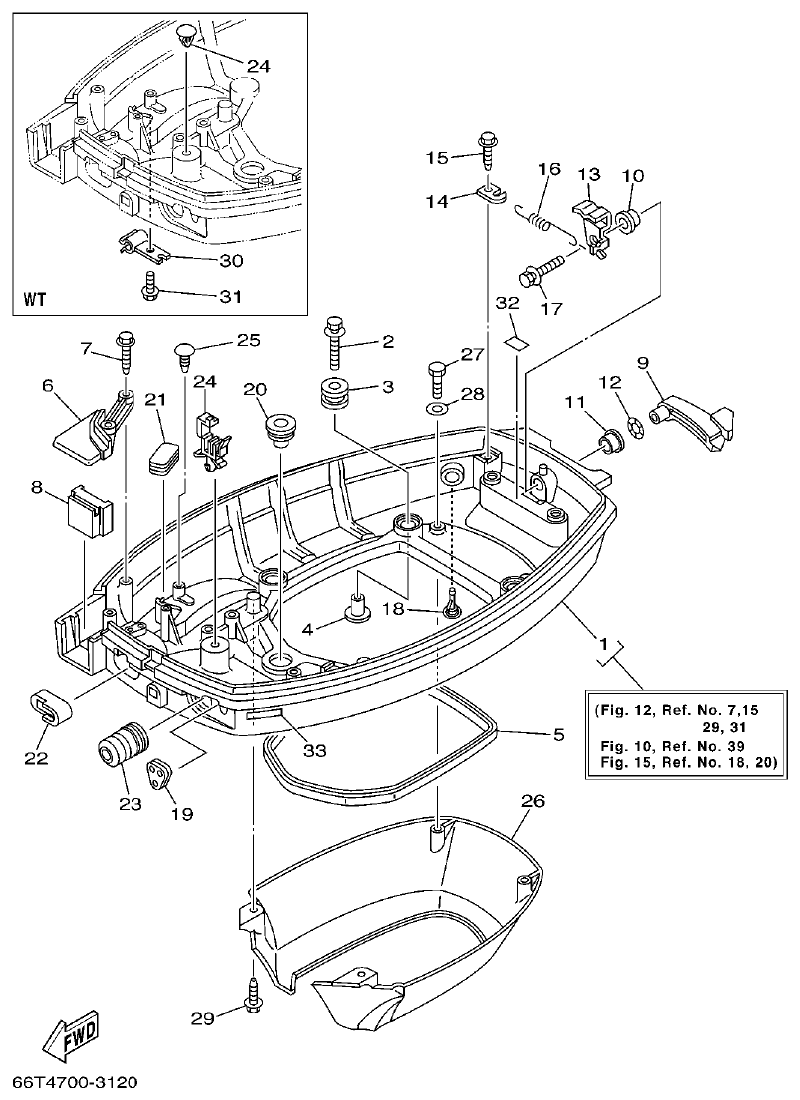

Fig. 12 — BOTTOM COWLING
38 items · 3 available products

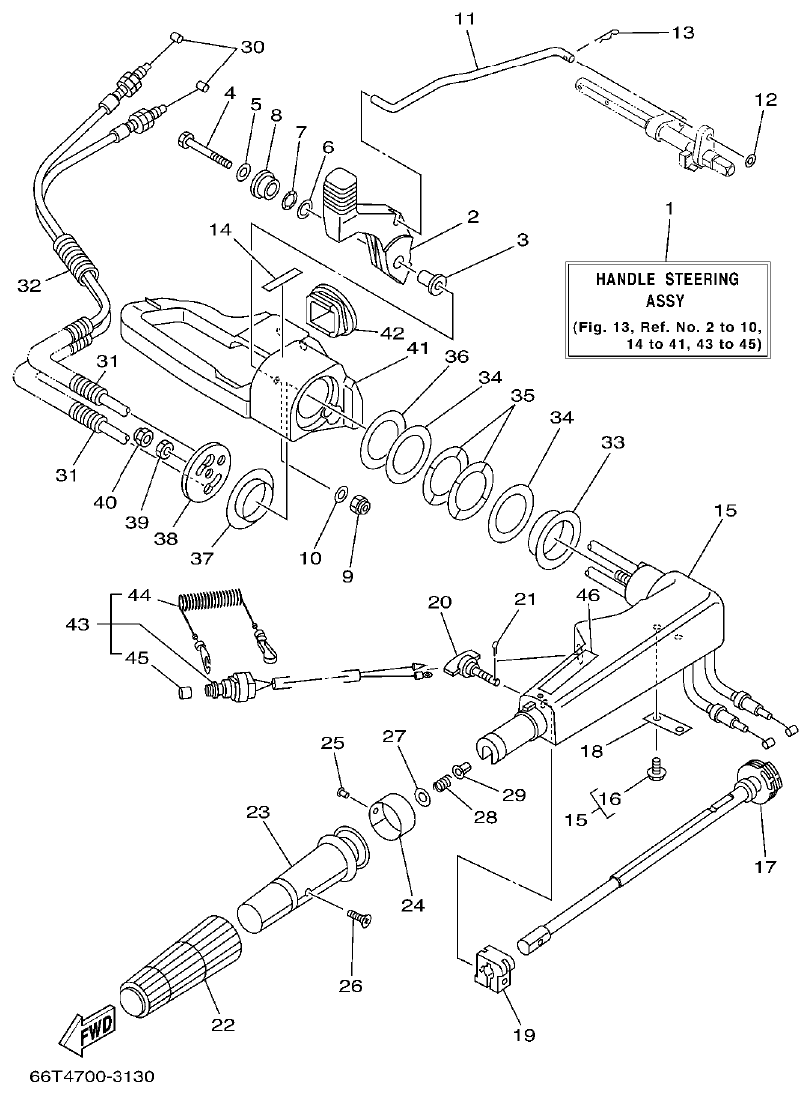

Yamaha E40XMH STEERING parts diagram
Fig. 13 — STEERING
46 items · 9 available products

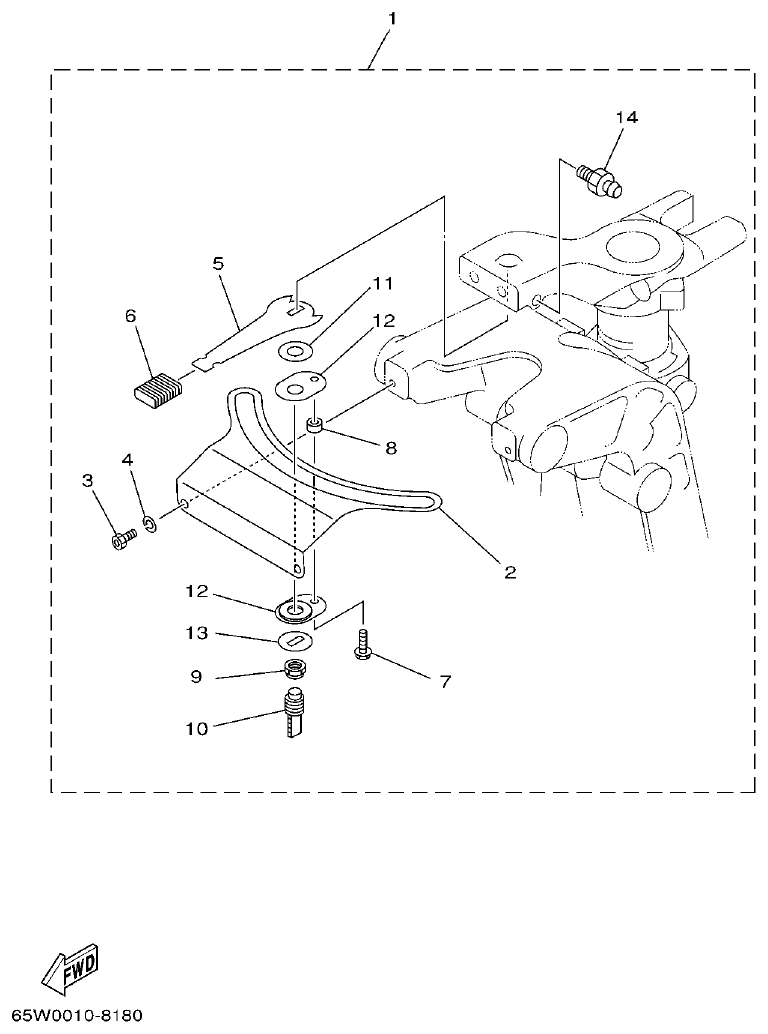

Yamaha E40XMH STEERING FRICTION parts diagram
Fig. 14 — STEERING FRICTION
14 items
Yamaha E40XMH CONTROL parts diagram

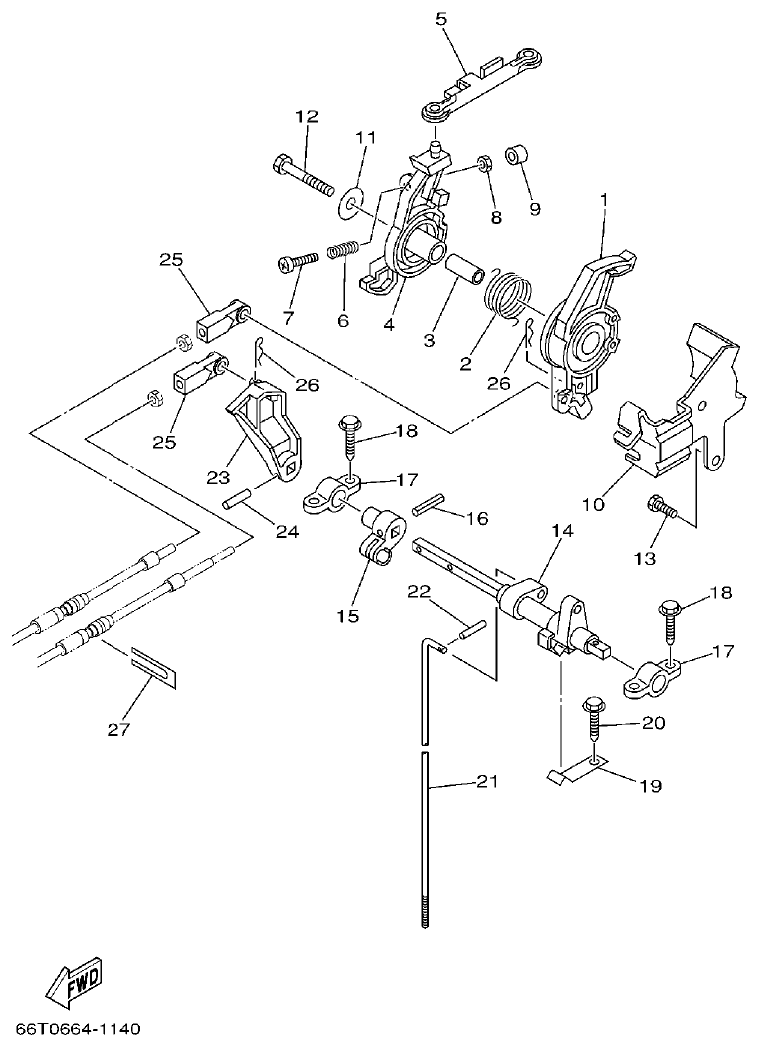

Fig. 15 — CONTROL
27 items · 6 available products

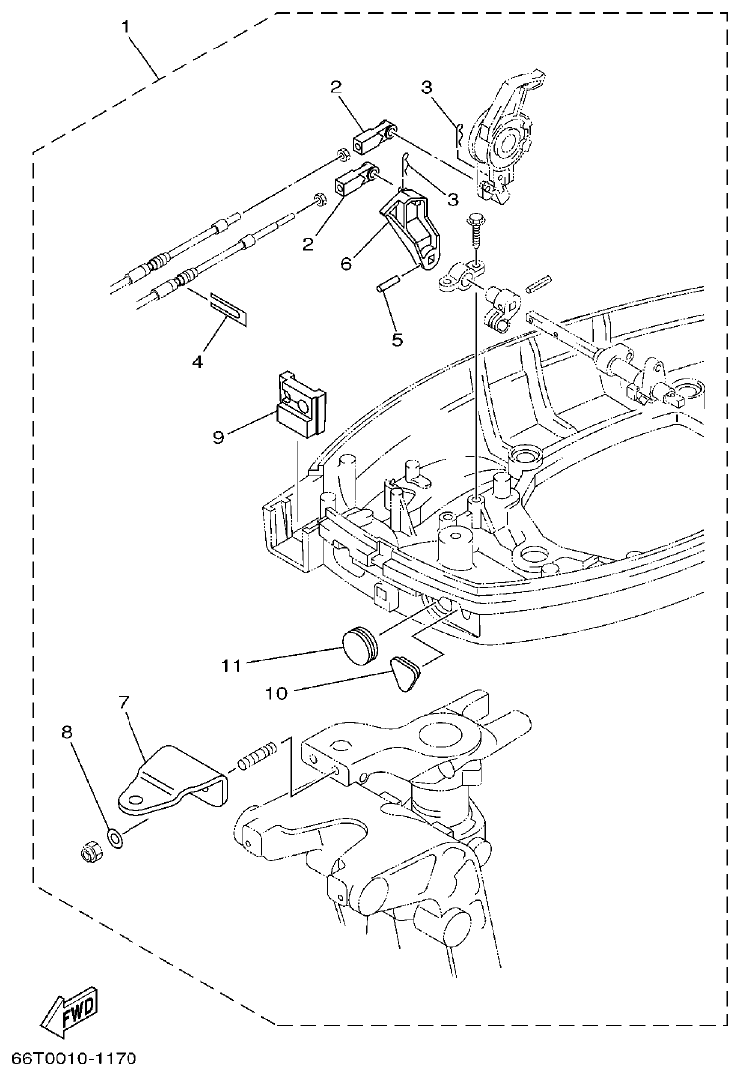

Yamaha E40XMH REMOTE CONTROL ATTACHMENT parts diagram
Fig. 16 — REMOTE CONTROL ATTACHMENT
11 items · 2 available products

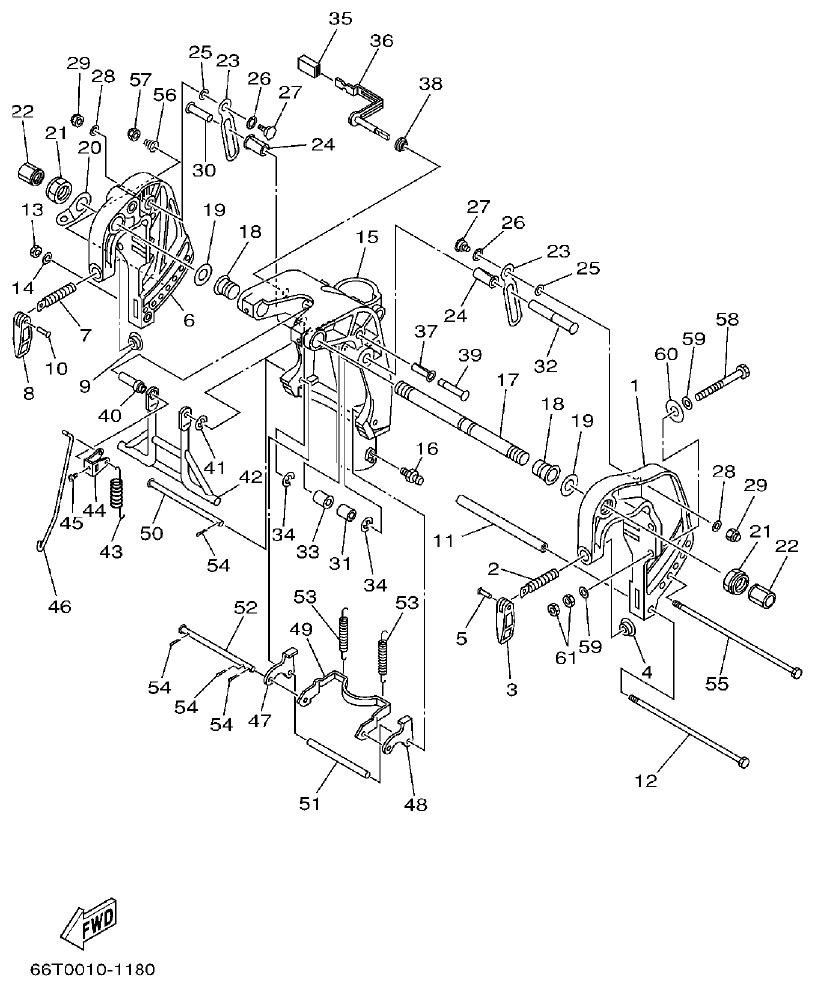

Yamaha E40XMH BRACKET 1 parts diagram
Fig. 17 — BRACKET 1
61 items · 3 available products

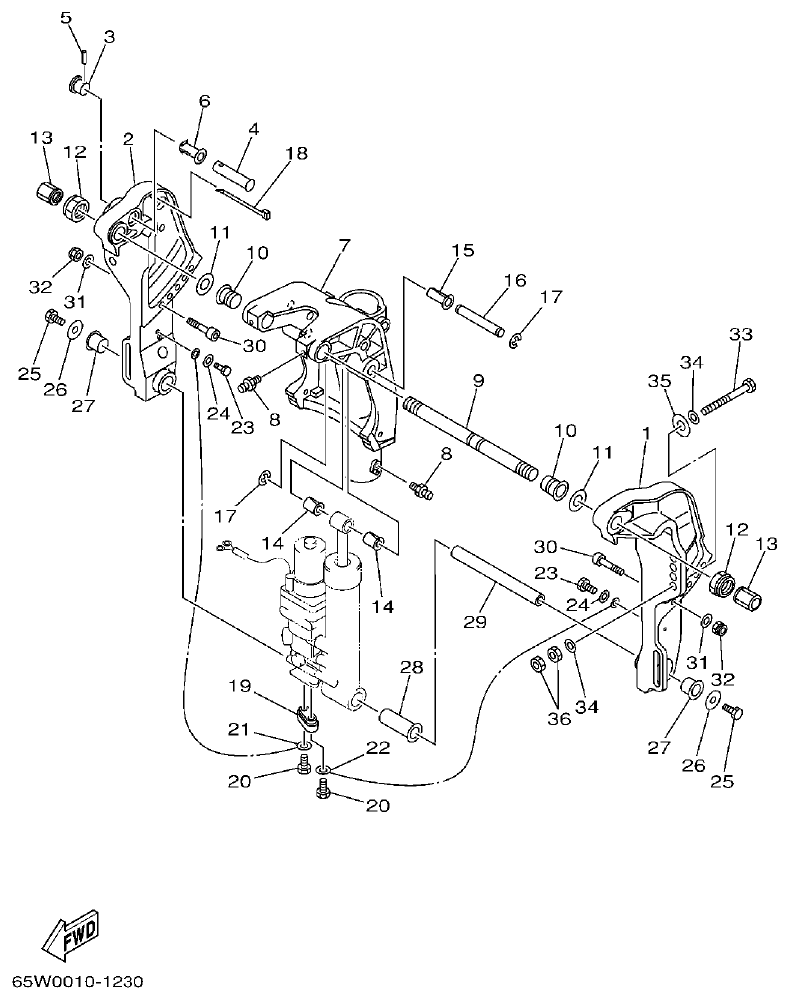

Yamaha E40XMH BRACKET 2 parts diagram
Fig. 18 — BRACKET 2
36 items · 4 available products
Yamaha E40XMH BRACKET 3 parts diagram

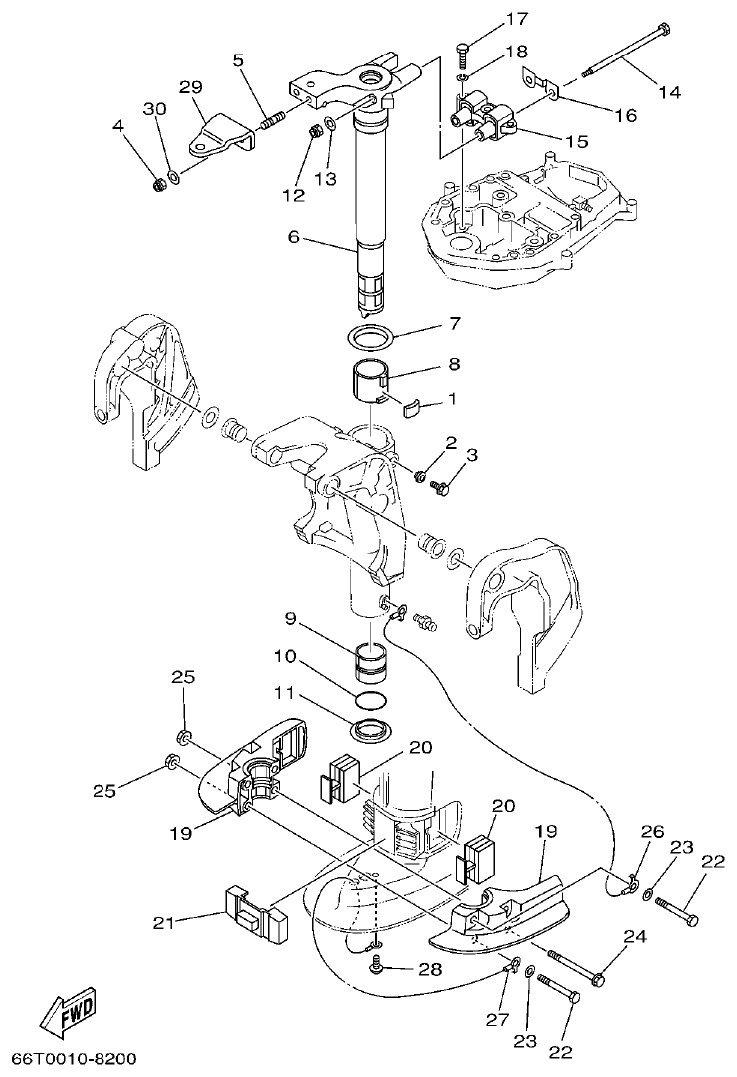

Fig. 19 — BRACKET 3
30 items · 1 available products
Yamaha E40XMH POWER TRIM & TILT ASSY parts diagram

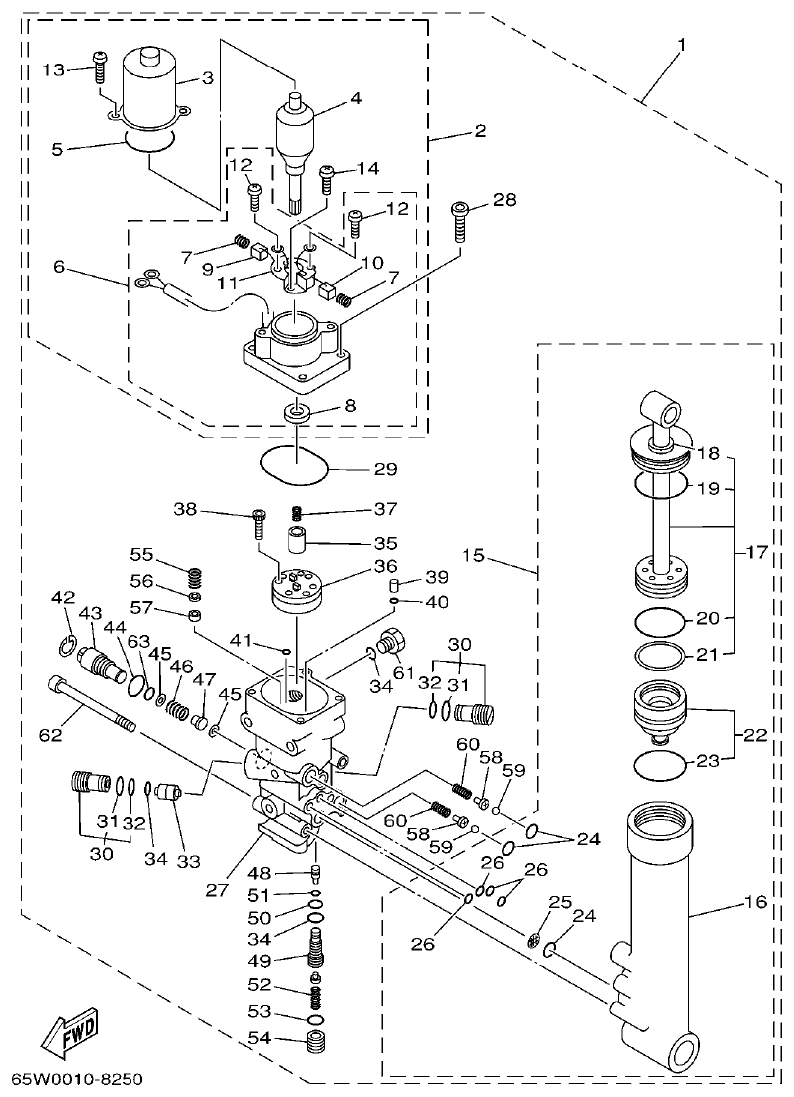

Fig. 20 — POWER TRIM & TILT ASSY
63 items · 8 available products

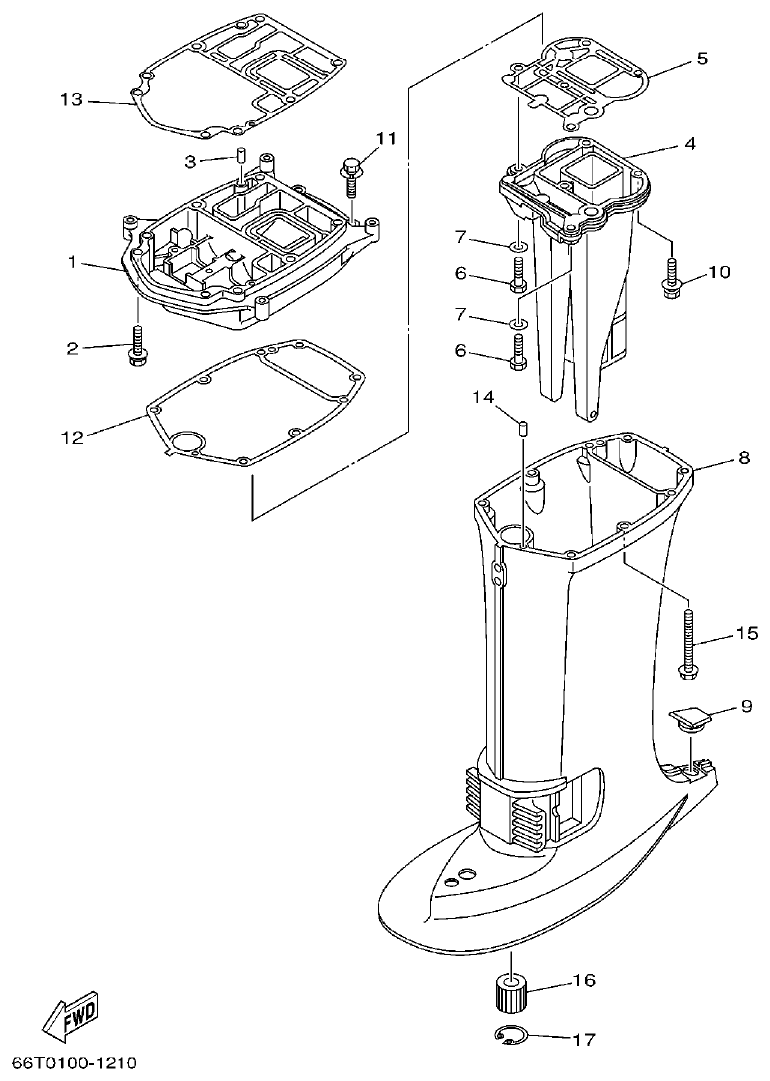

Yamaha E40XMH UPPER CASING parts diagram
Fig. 21 — UPPER CASING
17 items · 4 available products

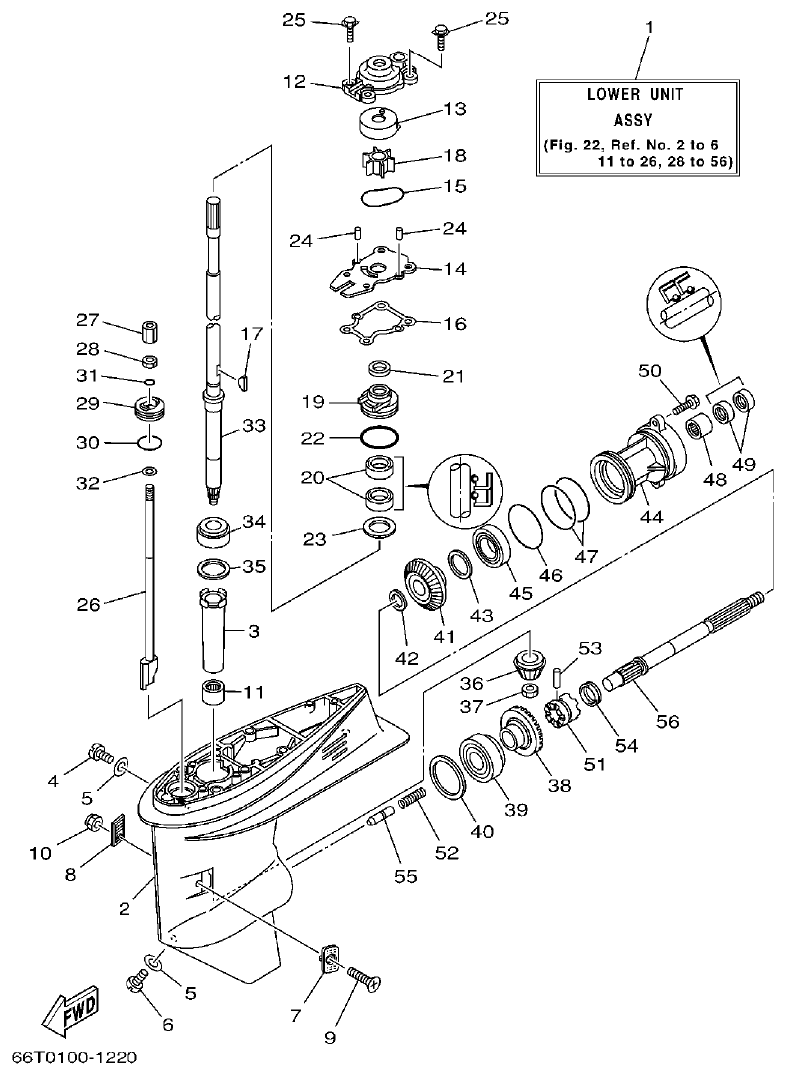

Yamaha E40XMH LOWER CASING. DRIVE 1 parts diagram
Fig. 22 — LOWER CASING. DRIVE 1
74 items · 21 available products

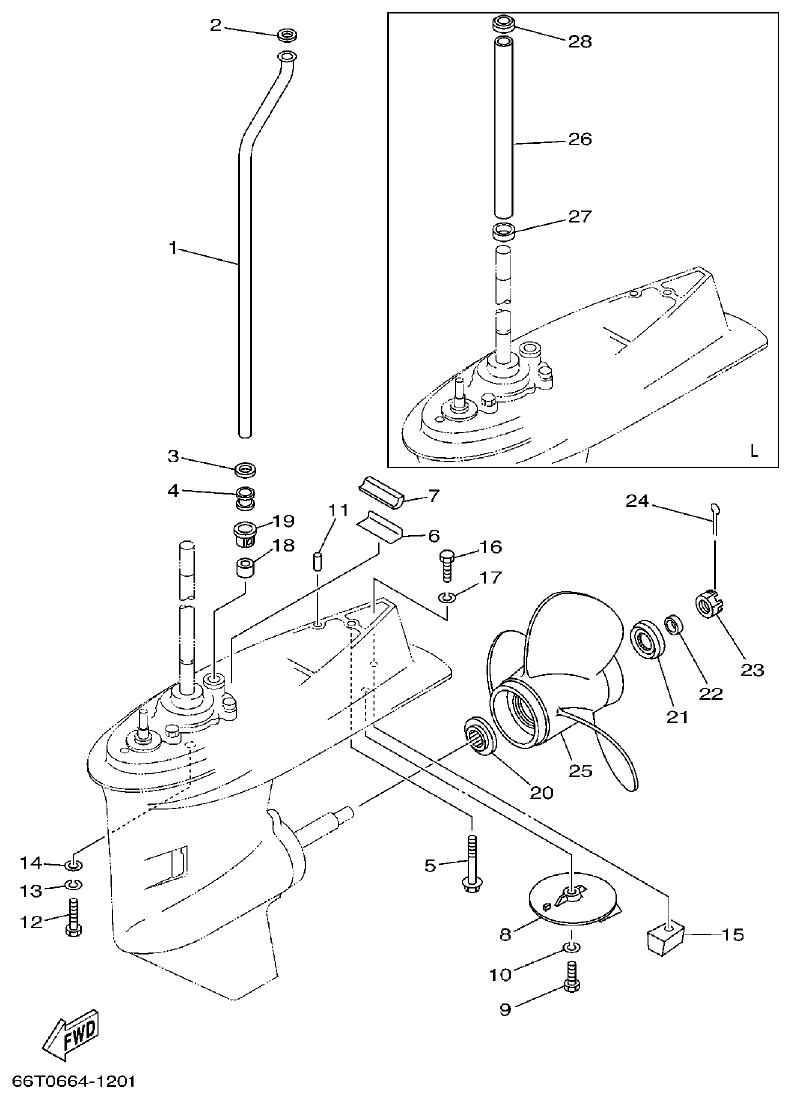

Yamaha E40XMH LOWER CASING. DRIVE 2 parts diagram
Fig. 23 — LOWER CASING. DRIVE 2
43 items · 6 available products

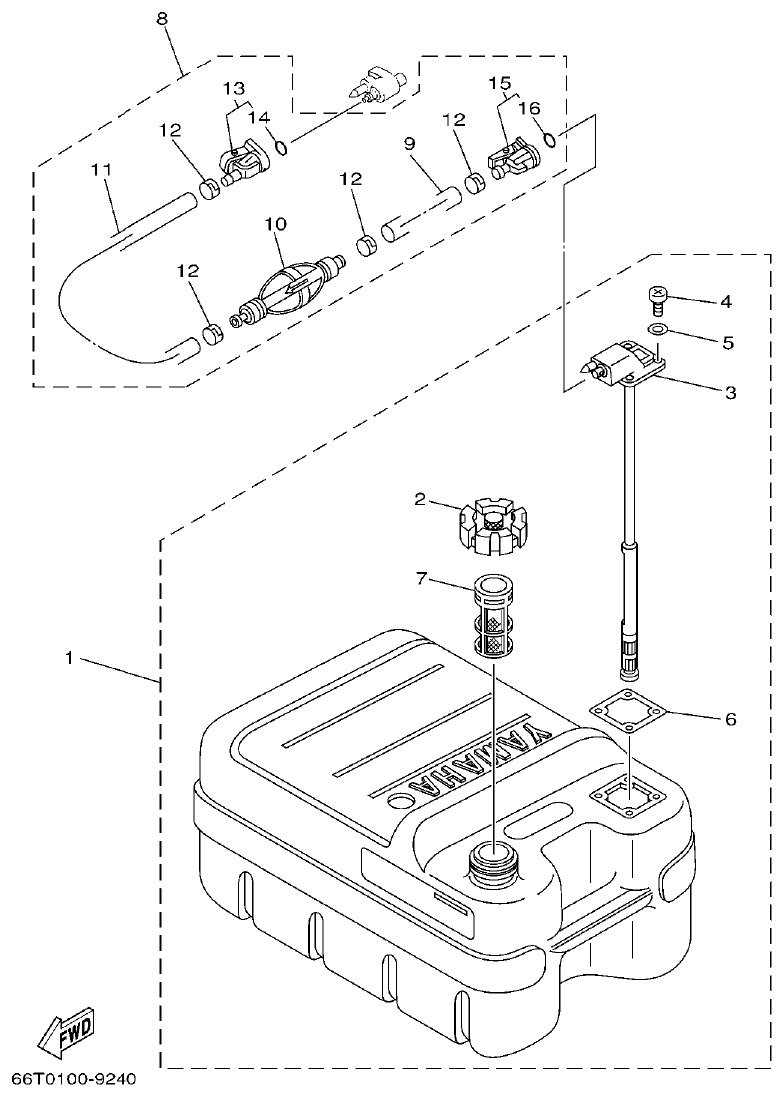

Yamaha E40XMH FUEL TANK parts diagram
Fig. 24 — FUEL TANK
16 items · 1 available products

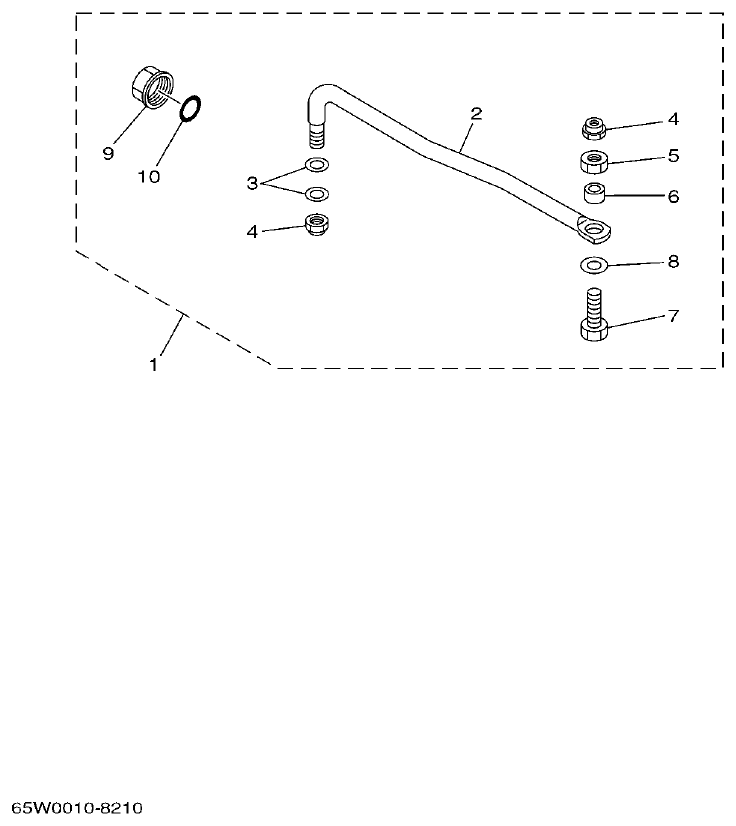

Yamaha E40XMH STEERING GUIDE parts diagram
Fig. 25 — STEERING GUIDE
10 items · 1 available products
Yamaha E40XMH REMOTE CONTROL BOX parts diagram

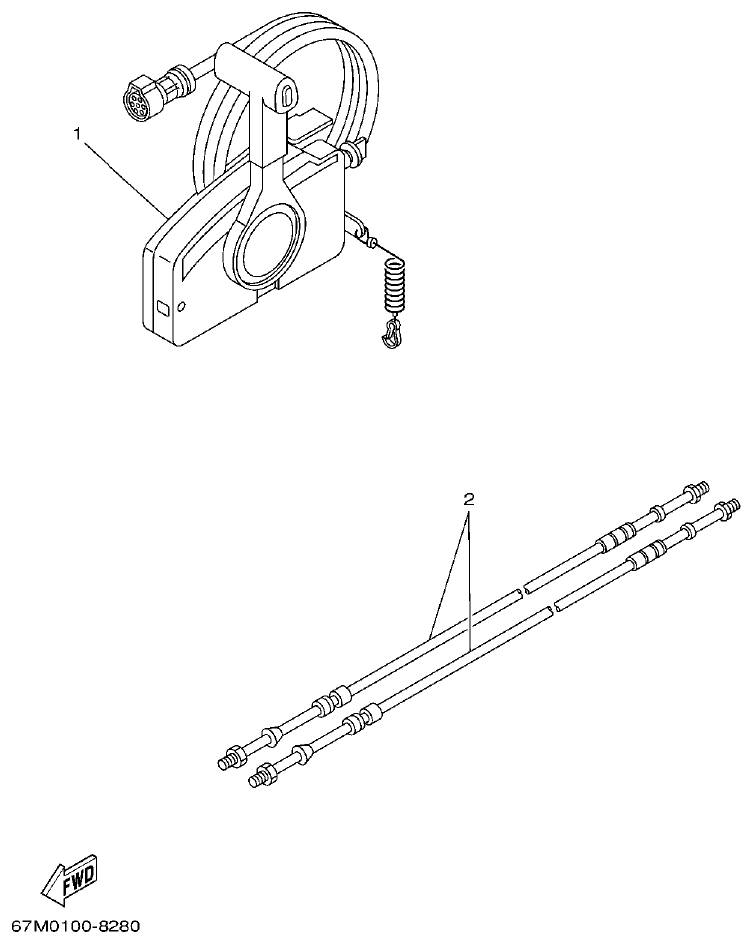

Fig. 26 — REMOTE CONTROL BOX
8 items

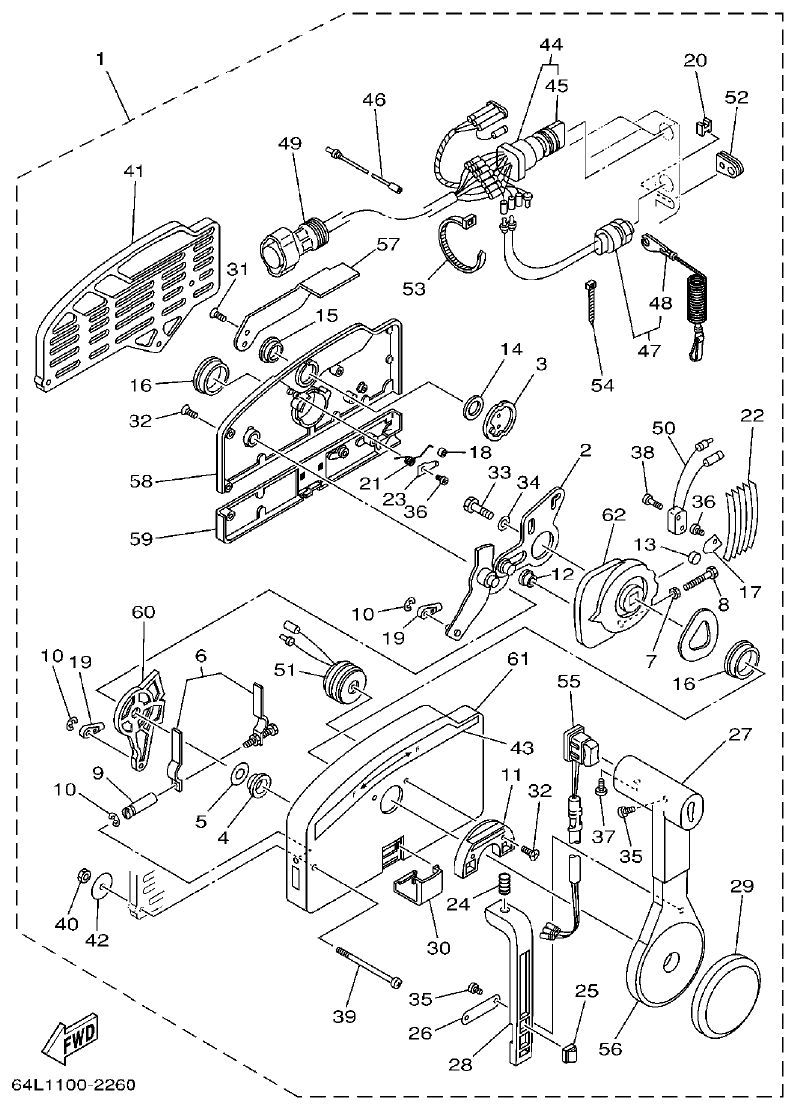

Yamaha E40XMH REMOTE CONTROL ASSY parts diagram
Fig. 27 — REMOTE CONTROL ASSY
62 items · 12 available products

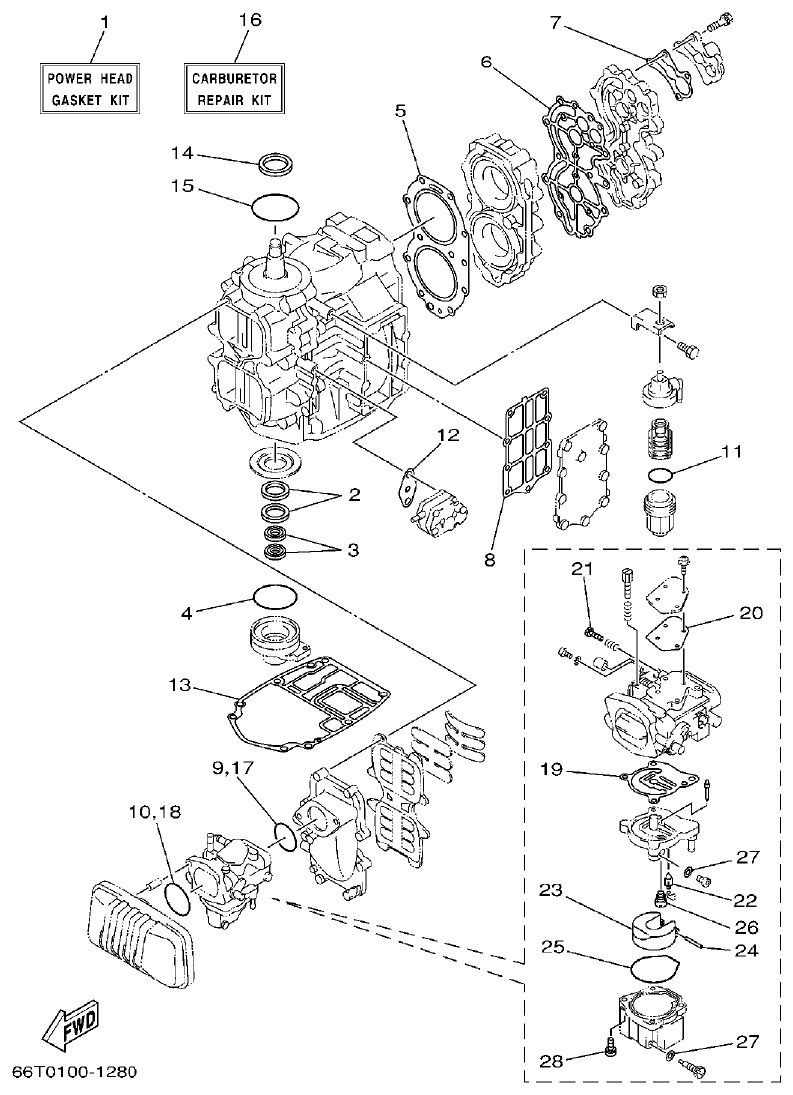

Yamaha E40XMH REPAIR KIT 1 parts diagram
Fig. 28 — REPAIR KIT 1
28 items · 12 available products

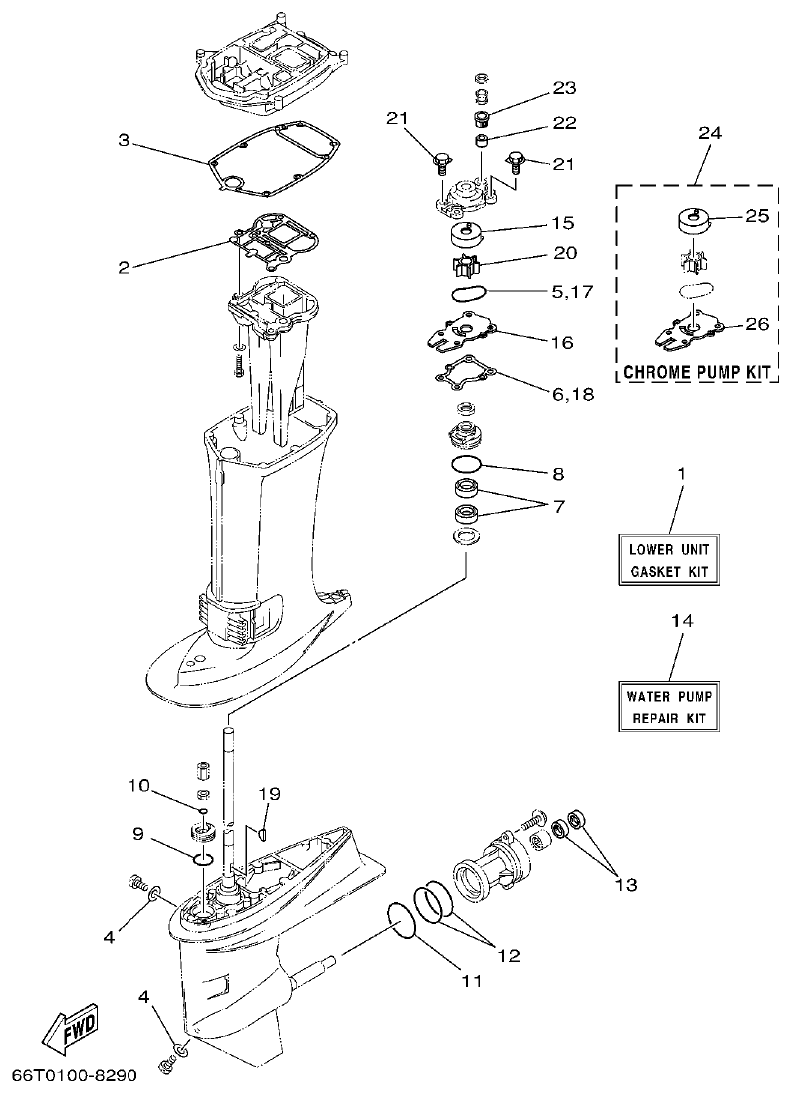

Yamaha E40XMH REPAIR KIT 2 parts diagram
Fig. 29 — REPAIR KIT 2
26 items · 8 available products
Yamaha E40XMH REPAIR KIT 3 parts diagram

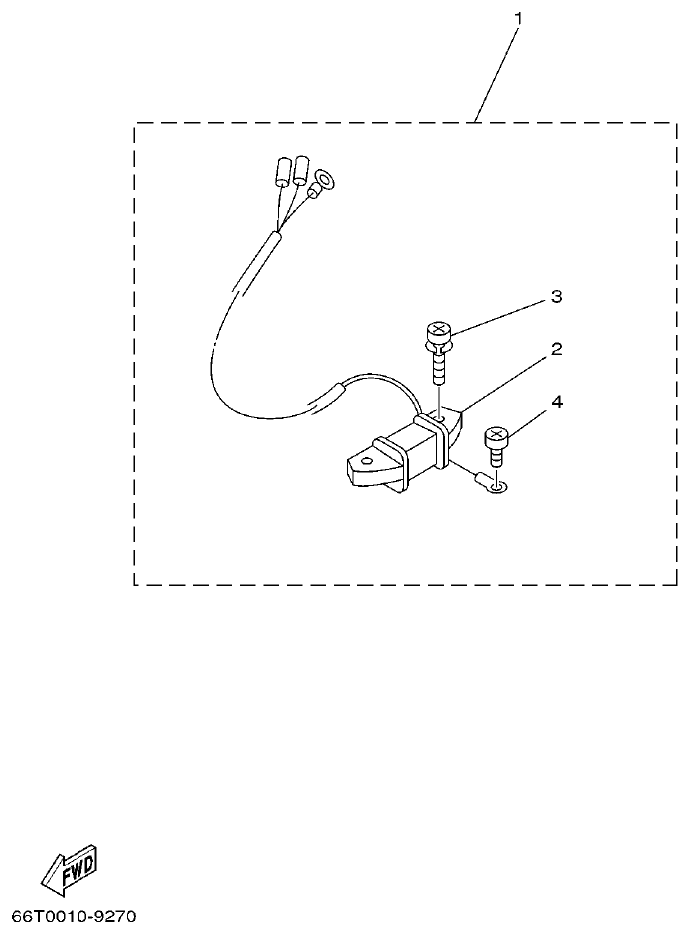

Fig. 30 — REPAIR KIT 3
4 items · 1 available products
