Yamaha F115A, FL115A, FL115AET Parts Catalog

Yamaha F115A, FL115A, FL115AET Outboard parts and diagrams

Yamaha F115A, FL115A, FL115AET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, FUEL 3, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

342 linked store products are available across 51 catalog sections. 1632 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha F115A, FL115A, FL115AET SCHEDULED SERVICE PARTS parts diagram

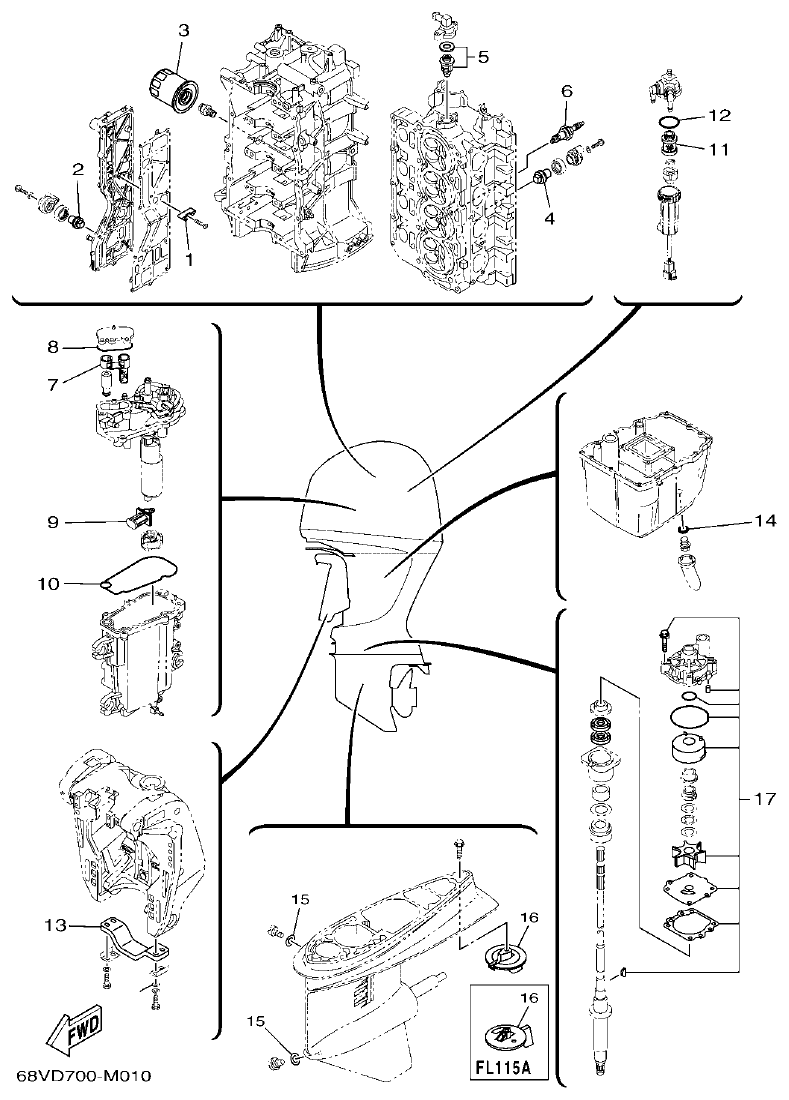

Fig. 1 — SCHEDULED SERVICE PARTS
18 items · 14 available products

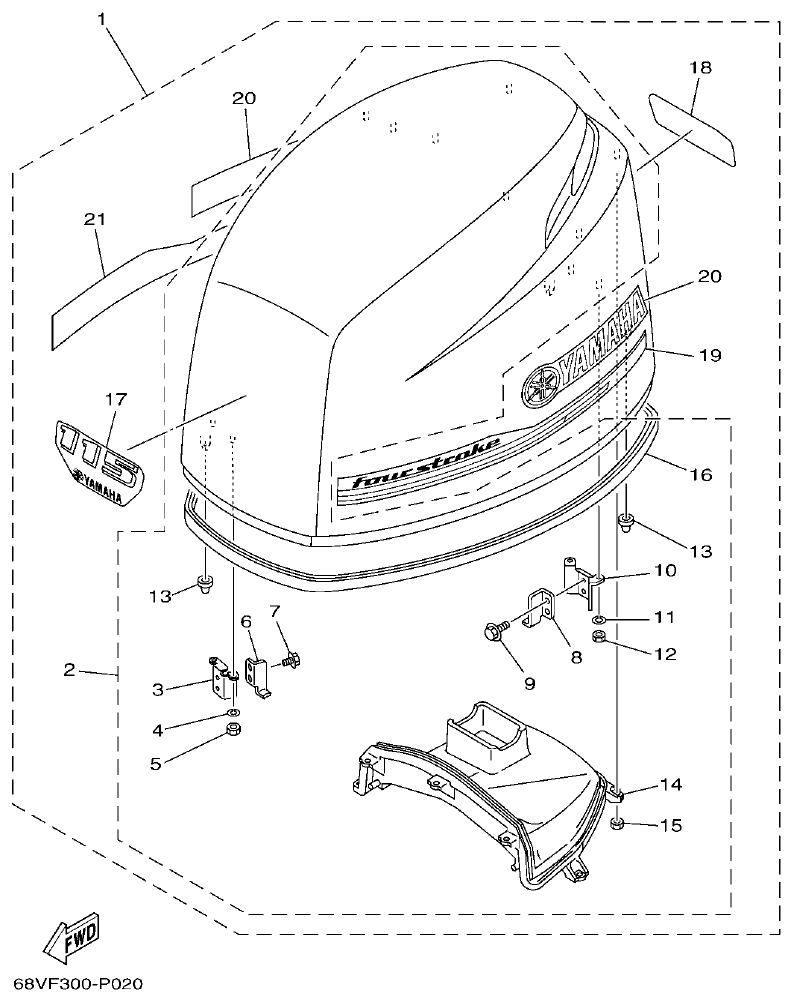

Yamaha F115A, FL115A, FL115AET TOP COWLING parts diagram
Fig. 2 — TOP COWLING
21 items · 1 available products
Yamaha F115A, FL115A, FL115AET CYLINDER & CRANKCASE 1 parts diagram

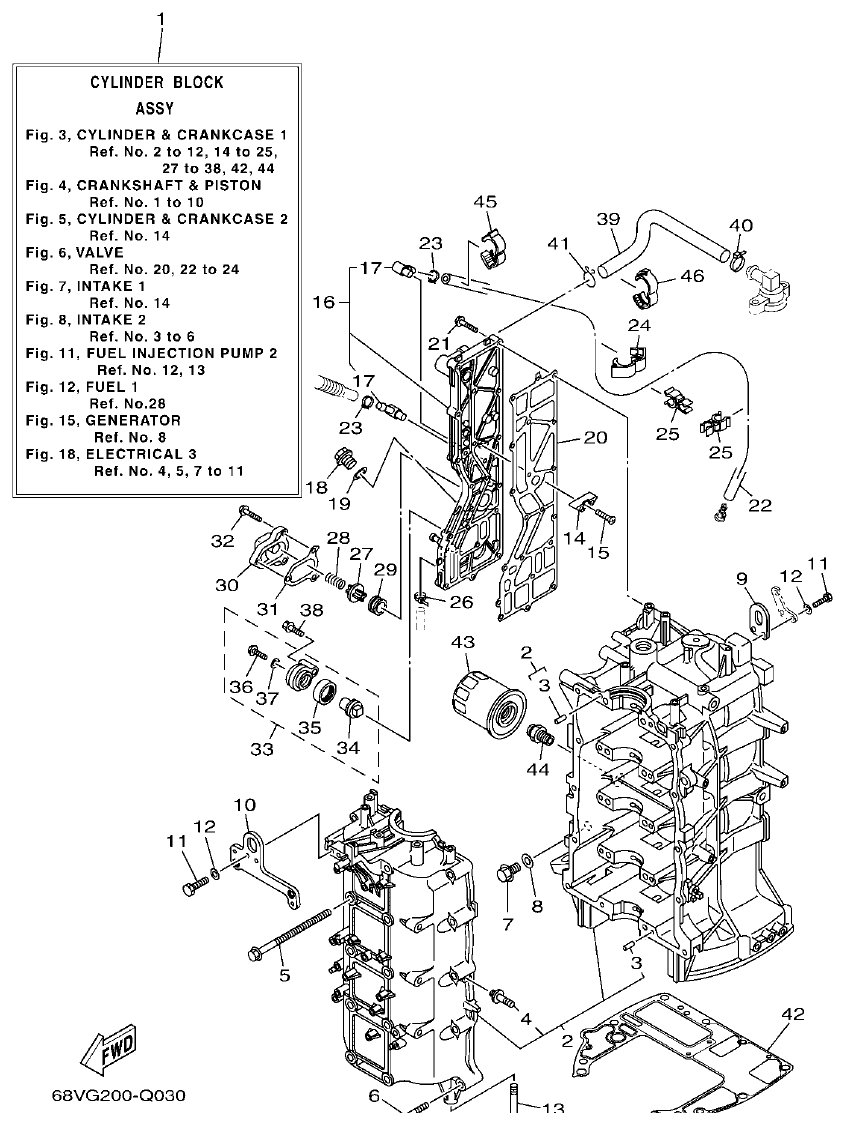

Fig. 3 — CYLINDER & CRANKCASE 1
46 items · 8 available products
Yamaha F115A, FL115A, FL115AET CRANKSHAFT & PISTON parts diagram

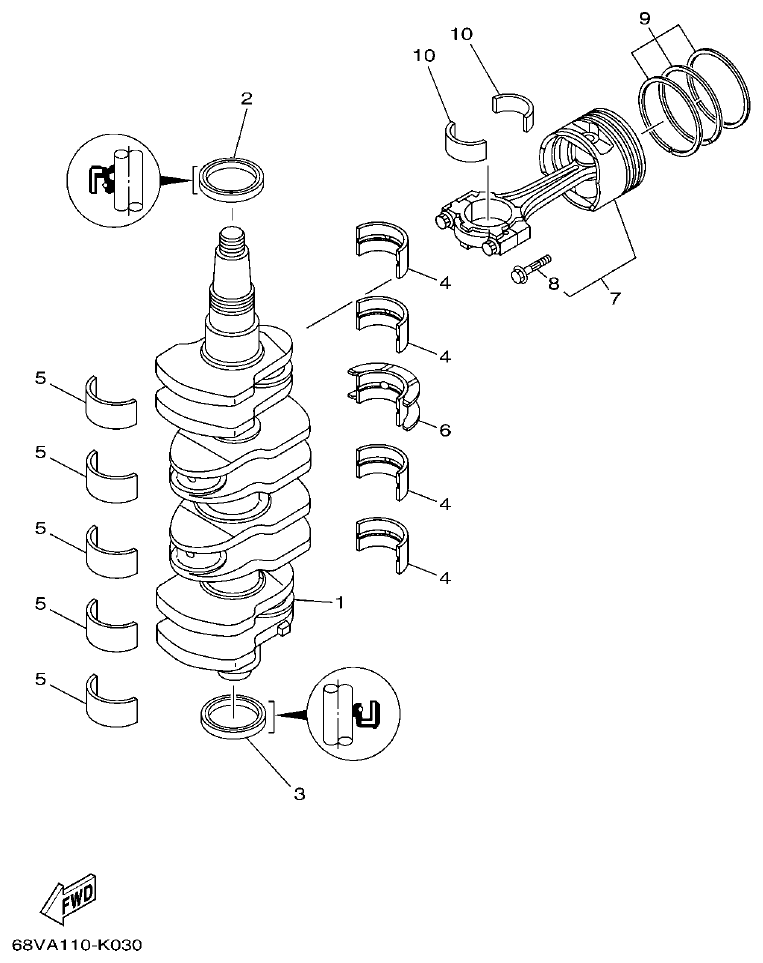

Fig. 4 — CRANKSHAFT & PISTON
22 items · 15 available products
Yamaha F115A, FL115A, FL115AET CYLINDER & CRANKCASE 2 parts diagram
Fig. 5 — CYLINDER & CRANKCASE 2
35 items · 6 available products
Yamaha F115A, FL115A, FL115AET VALVE parts diagram

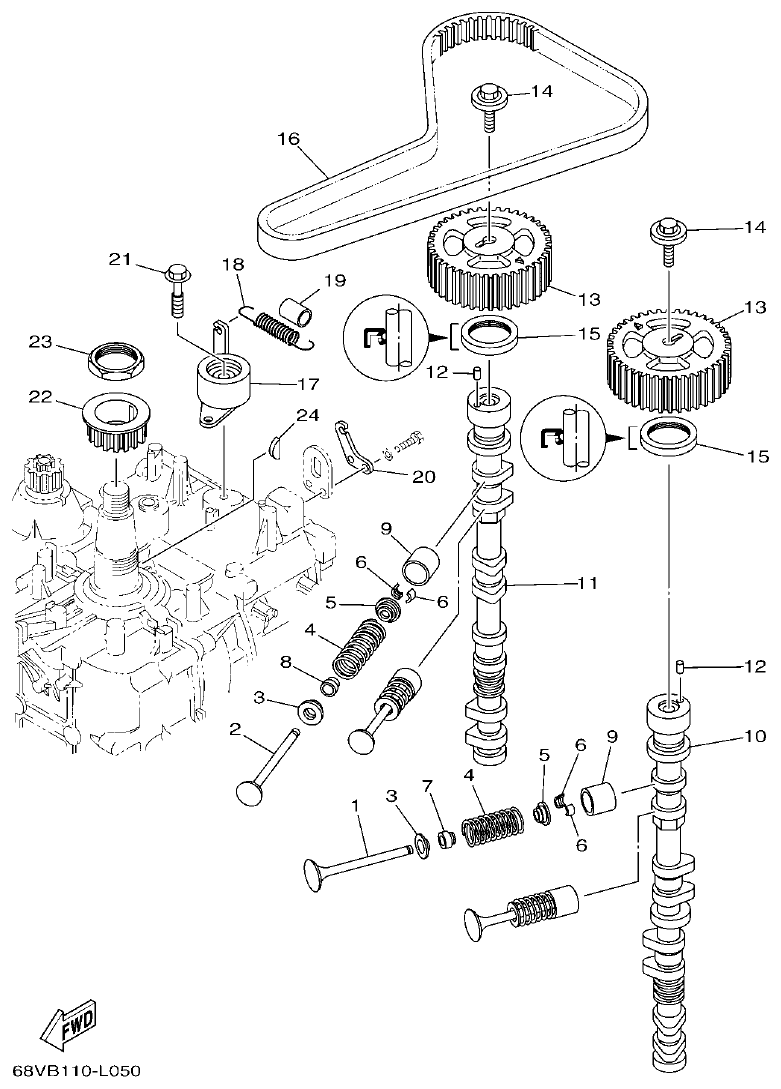

Fig. 6 — VALVE
52 items · 10 available products

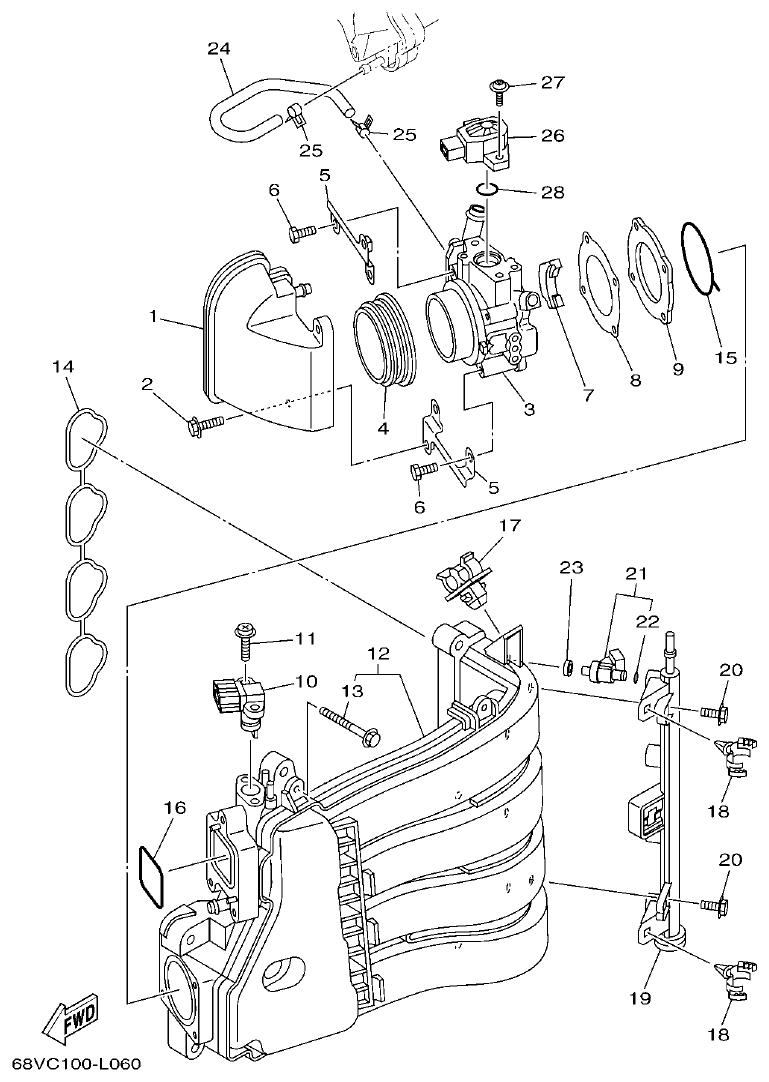

Yamaha F115A, FL115A, FL115AET INTAKE 1 parts diagram
Fig. 7 — INTAKE 1
28 items · 6 available products

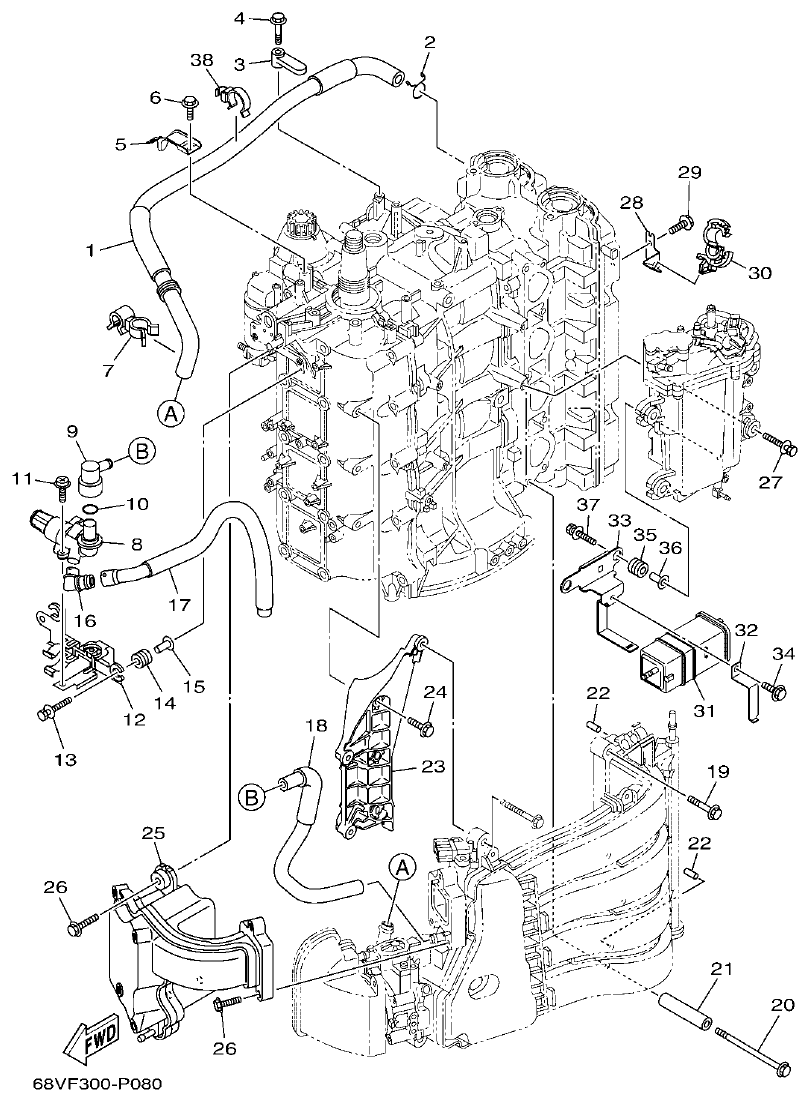

Yamaha F115A, FL115A, FL115AET INTAKE 2 parts diagram
Fig. 8 — INTAKE 2
38 items · 2 available products

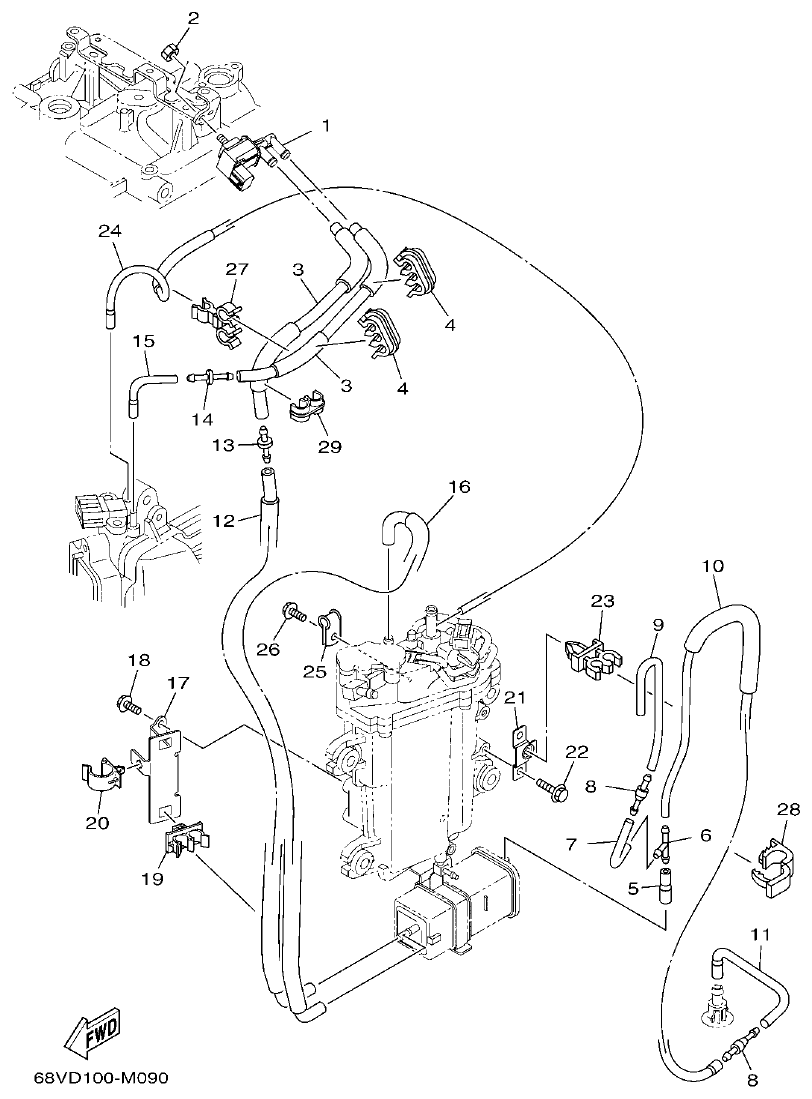

Yamaha F115A, FL115A, FL115AET INTAKE 3 parts diagram
Fig. 9 — INTAKE 3
29 items · 3 available products
Yamaha F115A, FL115A, FL115AET FUEL INJECTION PUMP 1 parts diagram

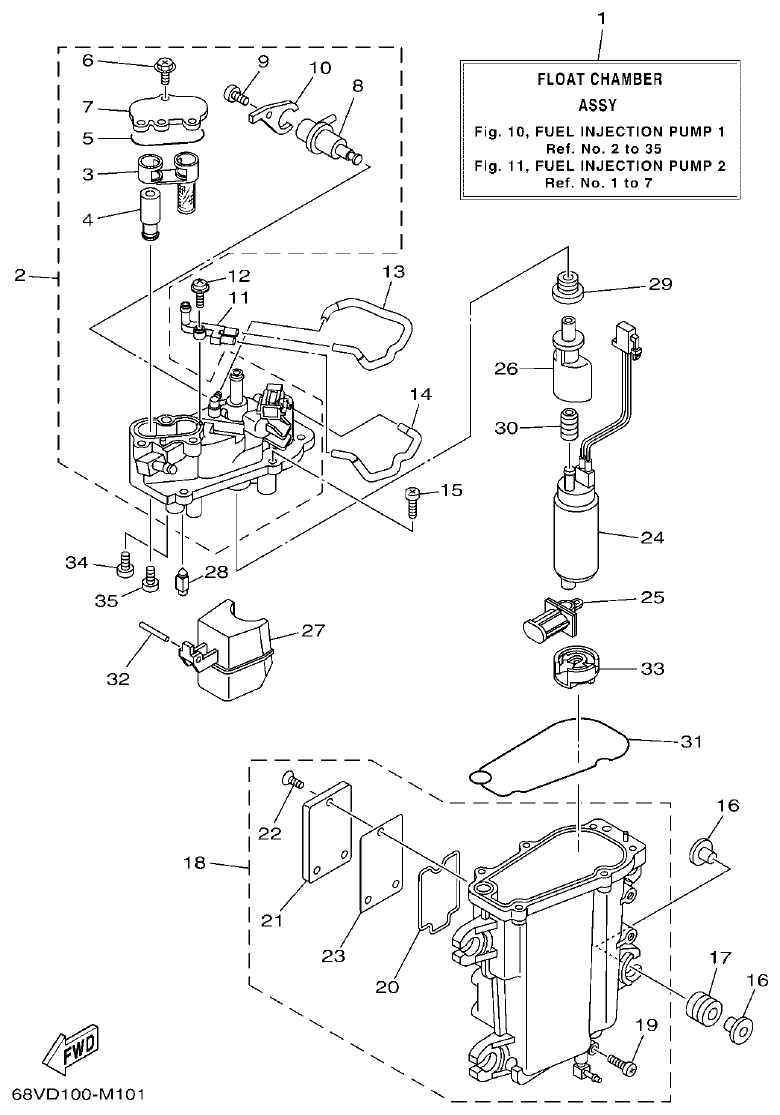

Fig. 10 — FUEL INJECTION PUMP 1
36 items · 13 available products

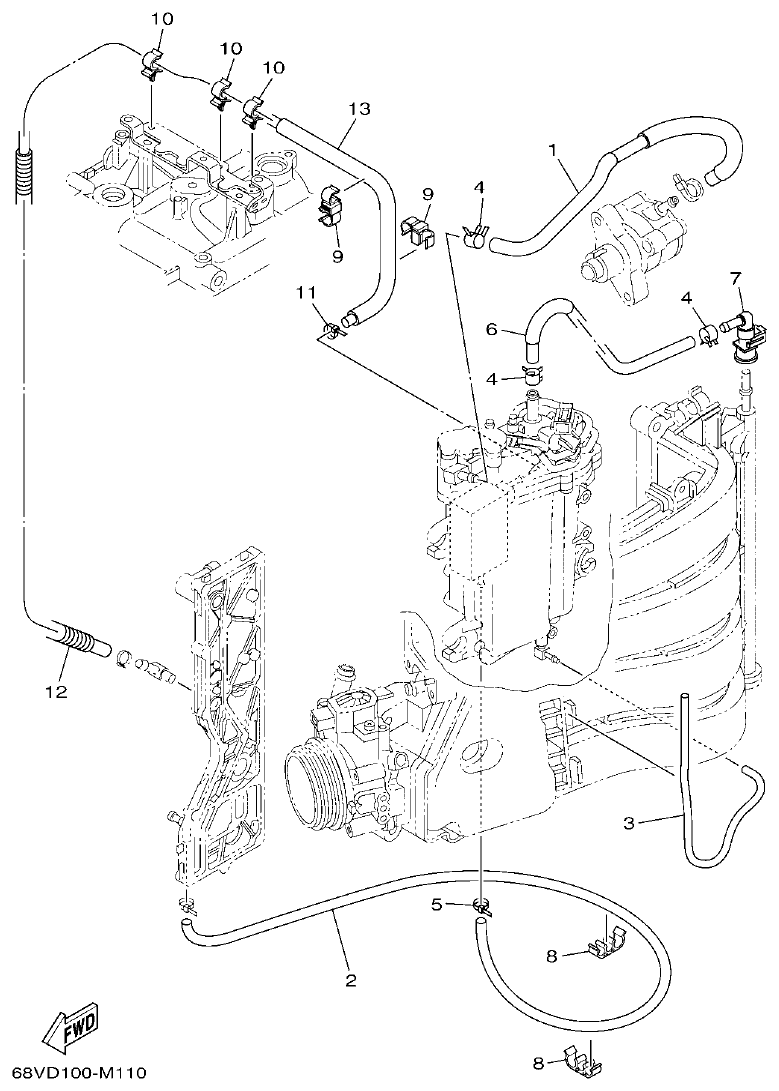

Yamaha F115A, FL115A, FL115AET FUEL INJECTION PUMP 2 parts diagram
Fig. 11 — FUEL INJECTION PUMP 2
14 items
Yamaha F115A, FL115A, FL115AET FUEL 1 parts diagram

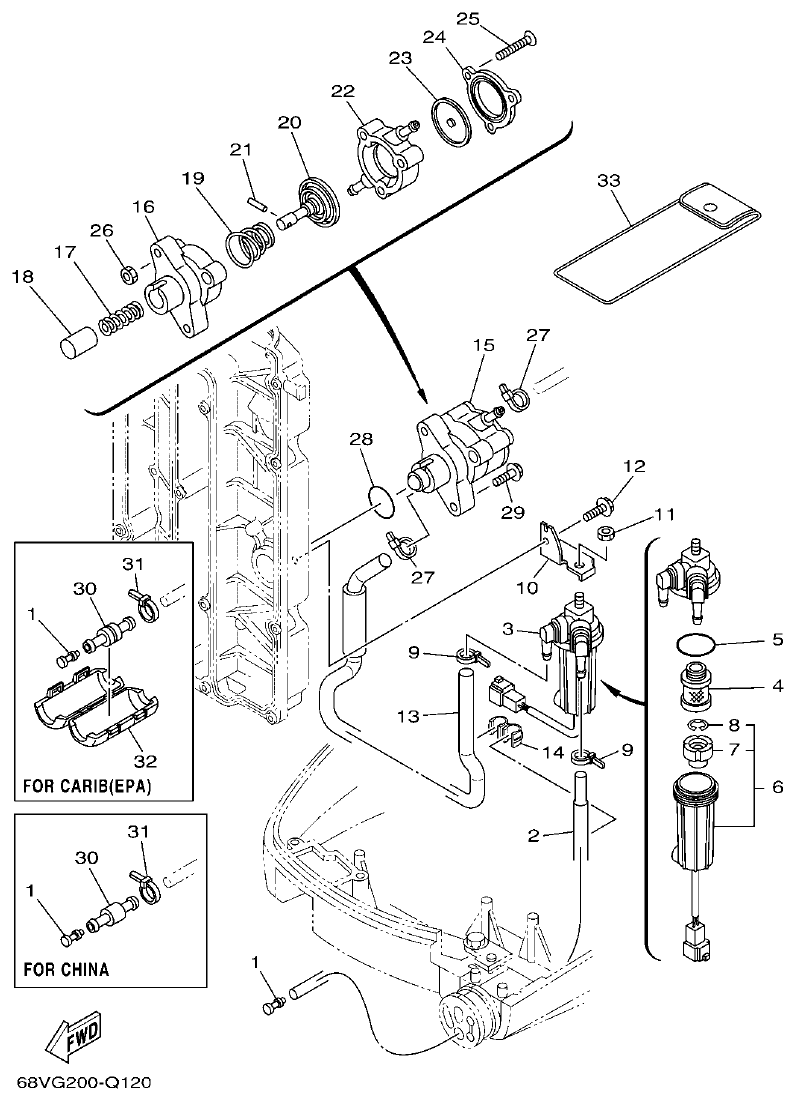

Fig. 12 — FUEL 1
38 items · 5 available products

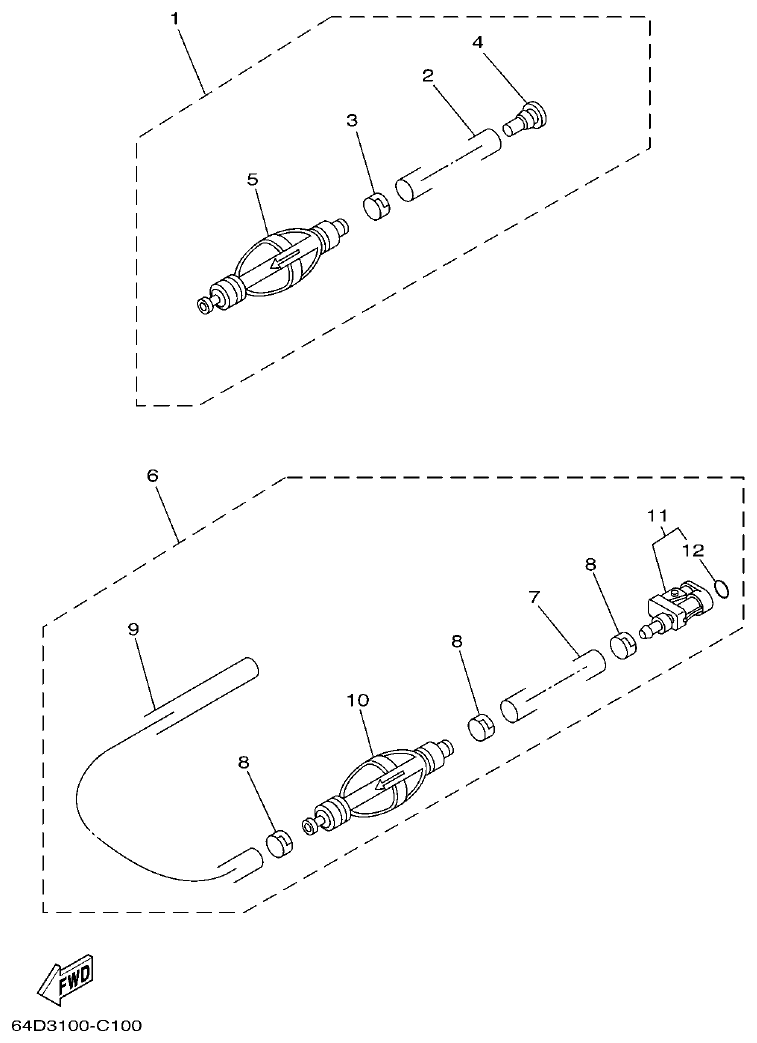

Yamaha F115A, FL115A, FL115AET FUEL 2 parts diagram
Fig. 13 — FUEL 2
12 items · 4 available products
Yamaha F115A, FL115A, FL115AET FUEL 3 parts diagram

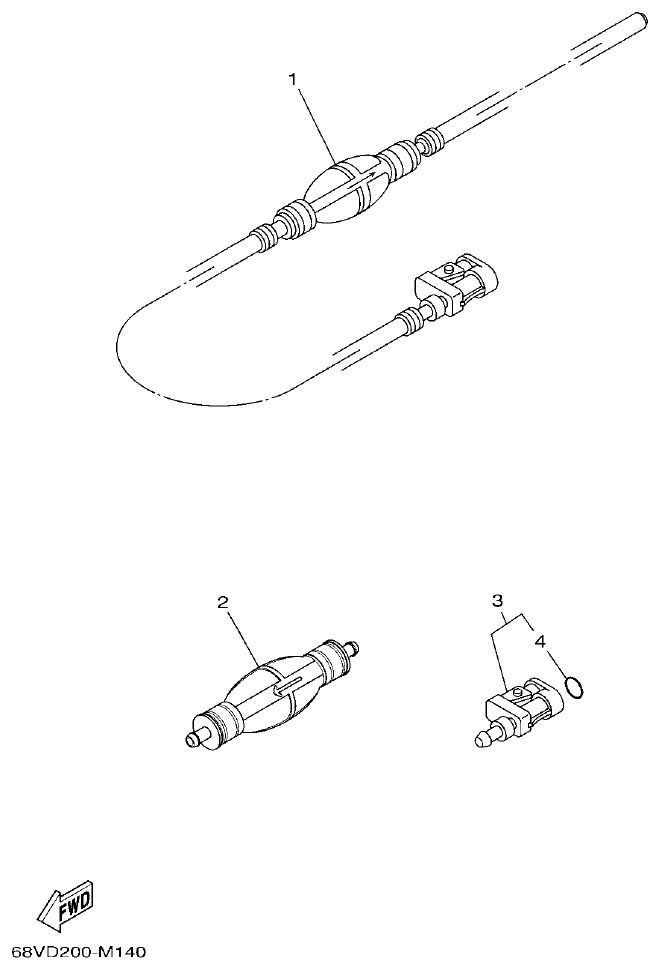

Fig. 14 — FUEL 3
4 items · 2 available products
Yamaha F115A, FL115A, FL115AET GENERATOR parts diagram

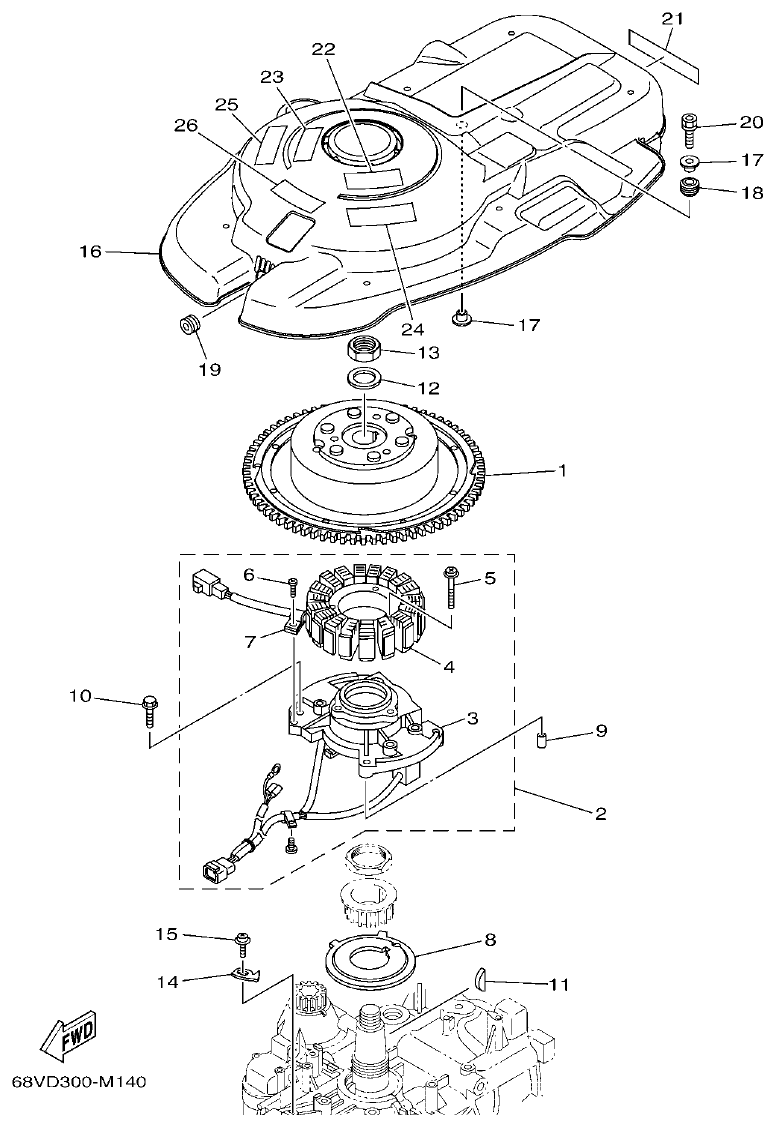

Fig. 15 — GENERATOR
27 items

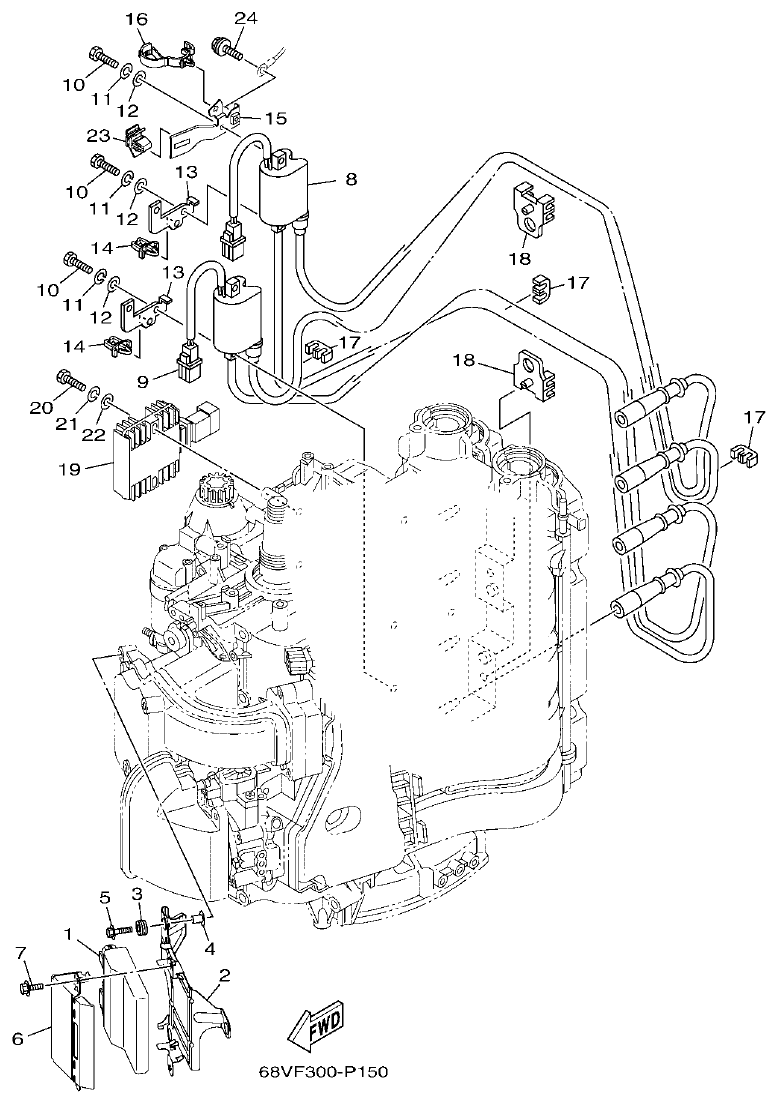

Yamaha F115A, FL115A, FL115AET ELECTRICAL 1 parts diagram
Fig. 16 — ELECTRICAL 1
25 items · 2 available products
Yamaha F115A, FL115A, FL115AET ELECTRICAL 2 parts diagram

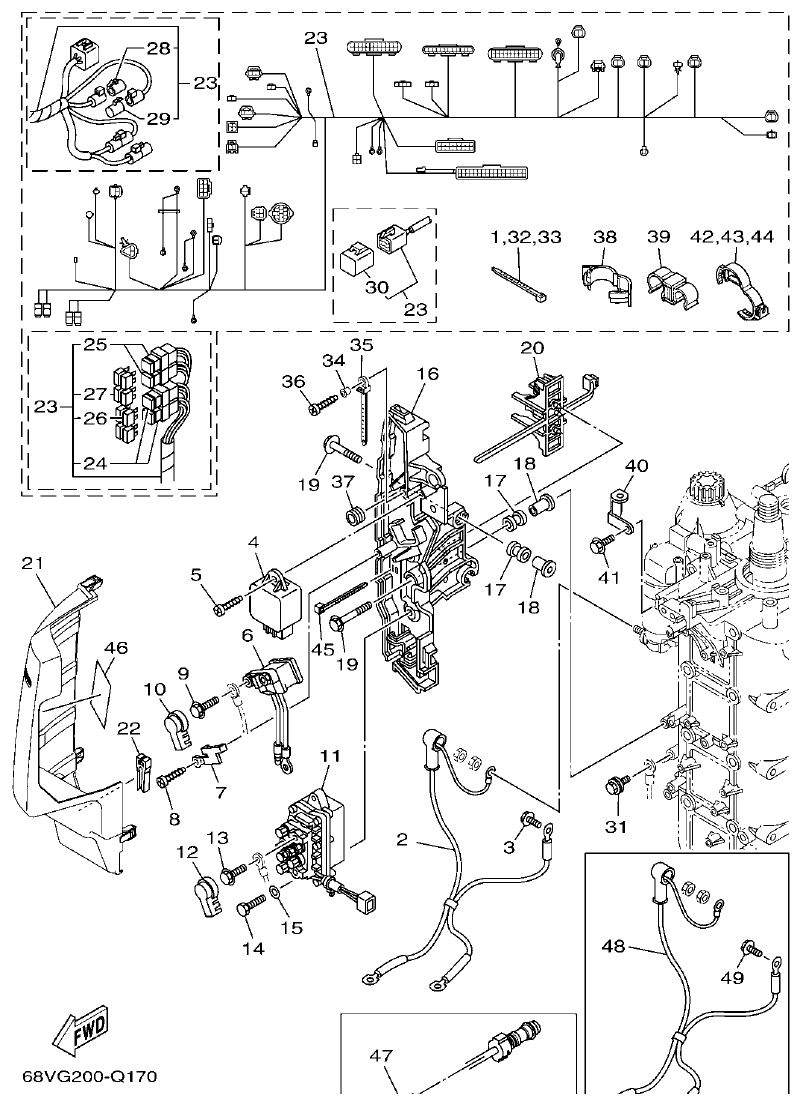

Fig. 17 — ELECTRICAL 2
49 items · 4 available products
Yamaha F115A, FL115A, FL115AET ELECTRICAL 3 parts diagram

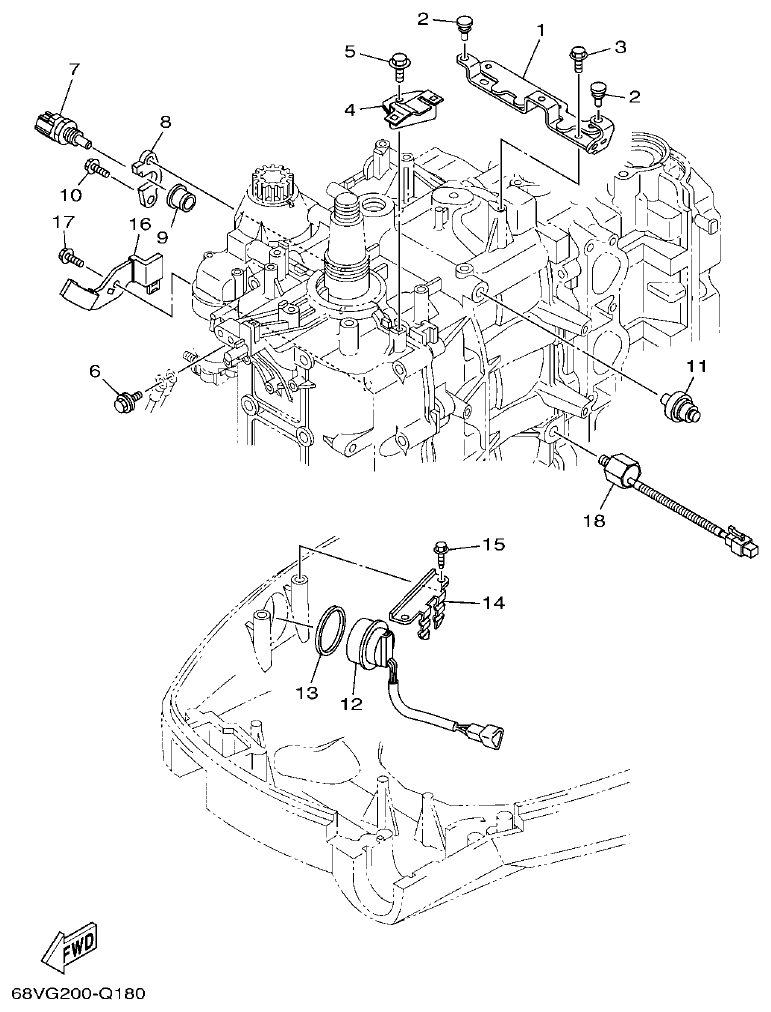

Fig. 18 — ELECTRICAL 3
18 items · 3 available products
Yamaha F115A, FL115A, FL115AET STARTING MOTOR parts diagram

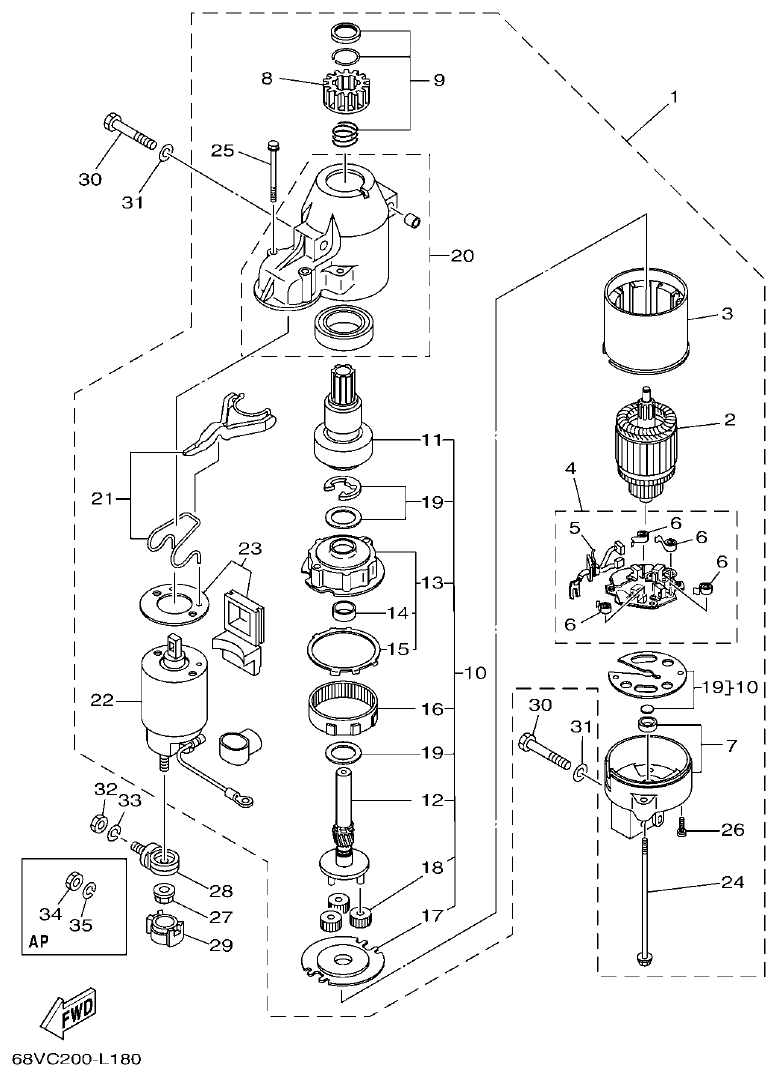

Fig. 19 — STARTING MOTOR
35 items · 4 available products

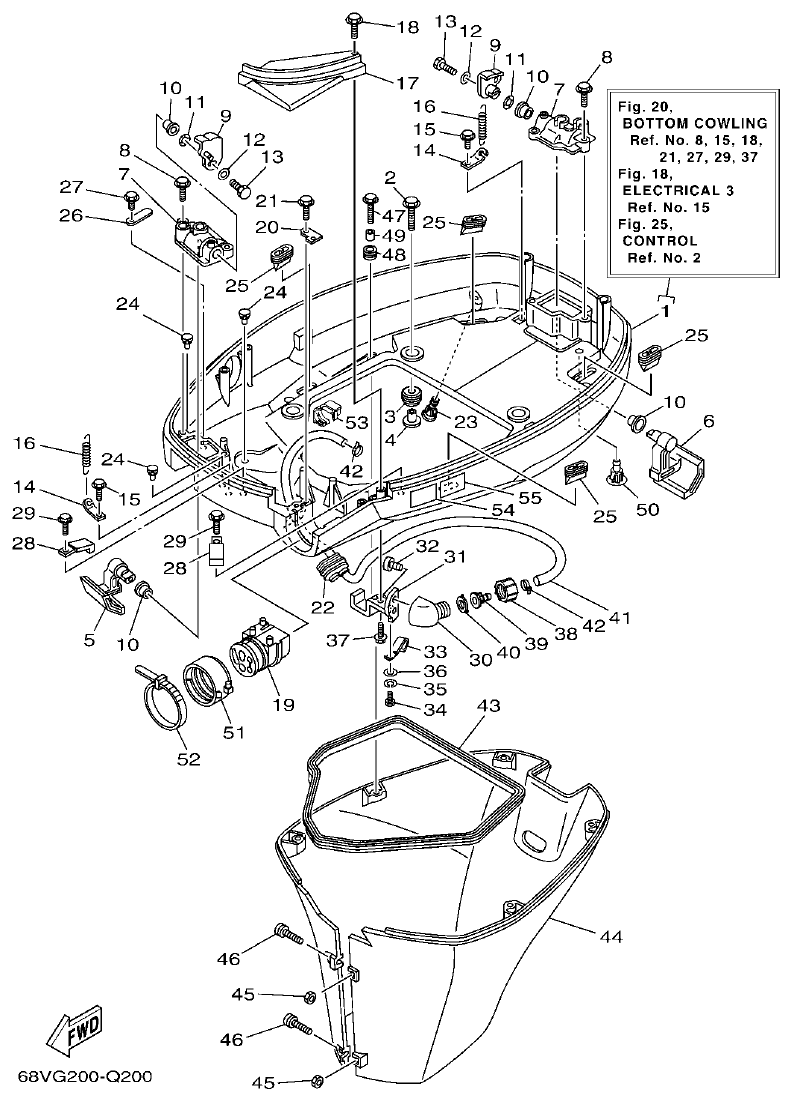

Yamaha F115A, FL115A, FL115AET BOTTOM COWLING parts diagram
Fig. 20 — BOTTOM COWLING
56 items · 9 available products
Yamaha F115A, FL115A, FL115AET STEERING 1 parts diagram

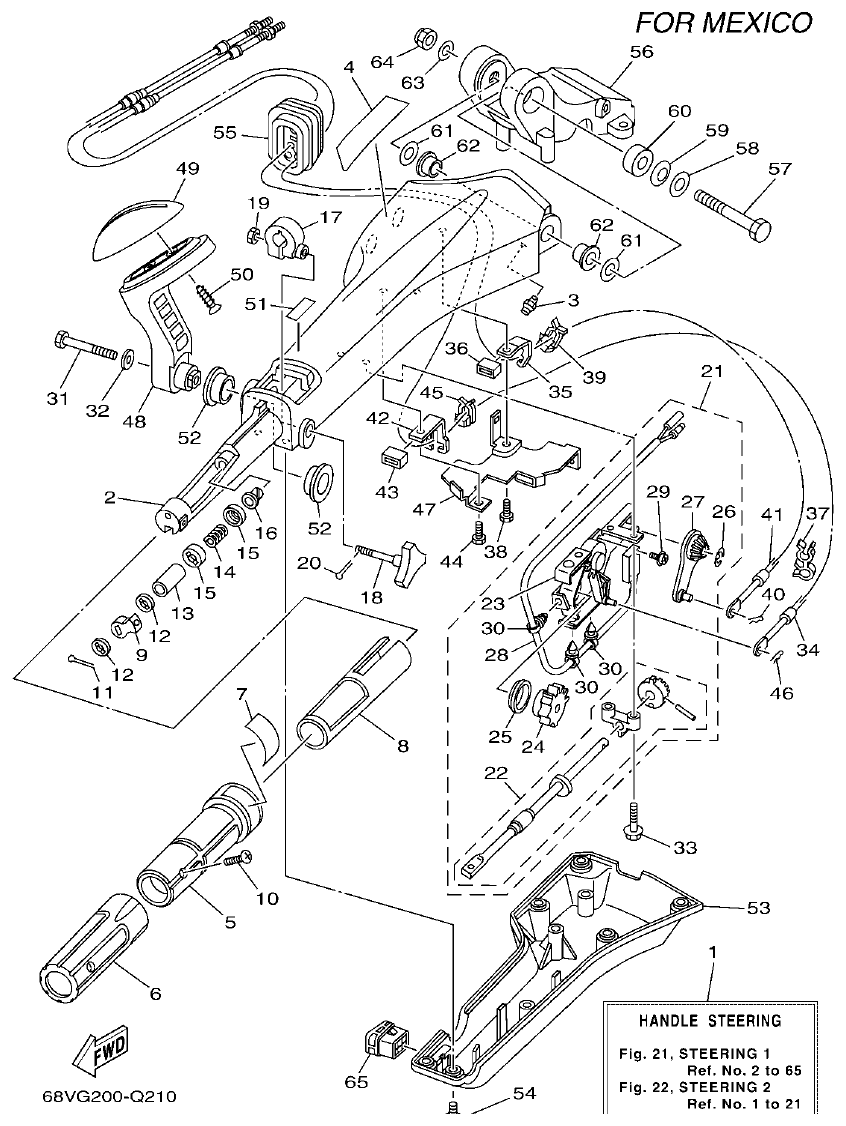

Fig. 21 — STEERING 1
65 items
Yamaha F115A, FL115A, FL115AET STEERING 2 parts diagram

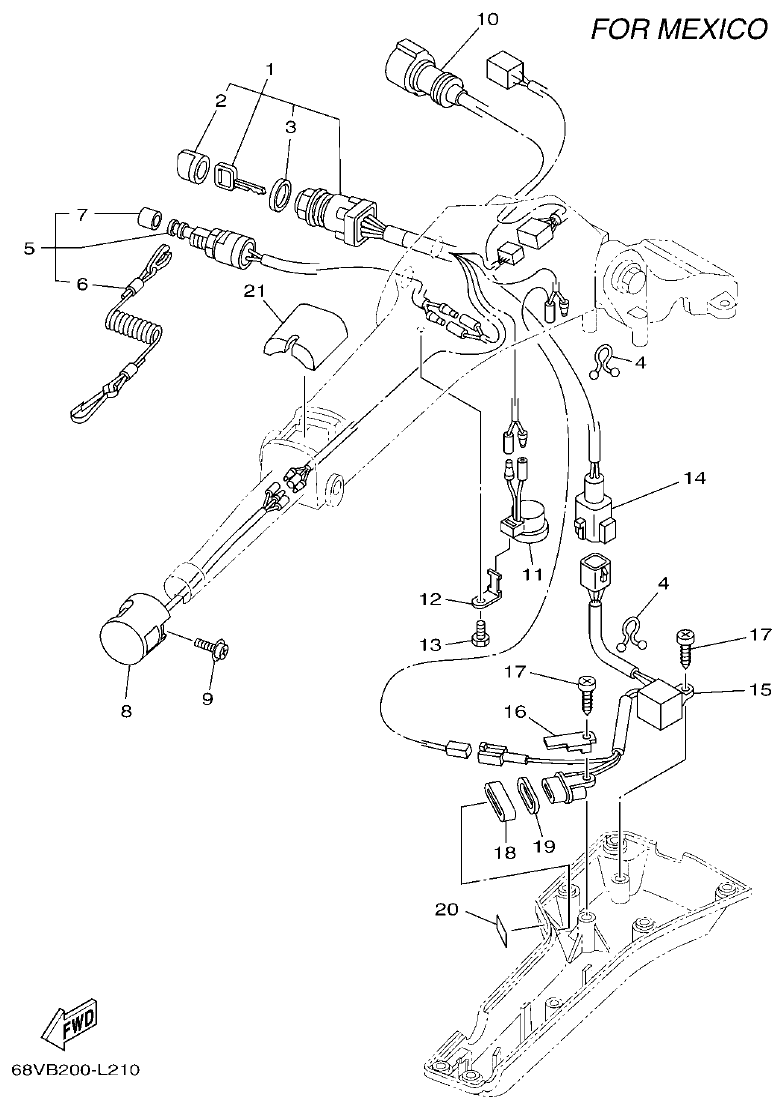

Fig. 22 — STEERING 2
21 items · 2 available products

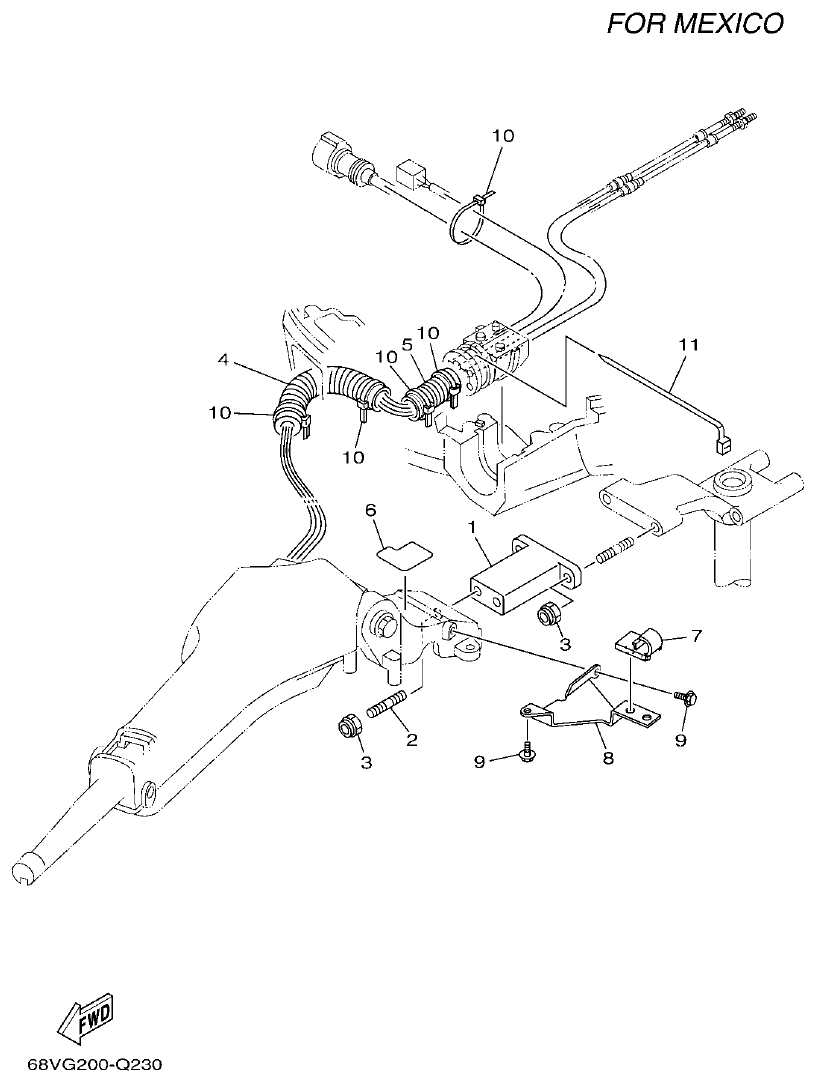

Yamaha F115A, FL115A, FL115AET STEERING 3 parts diagram
Fig. 23 — STEERING 3
11 items
Yamaha F115A, FL115A, FL115AET STEERING FRICTION parts diagram

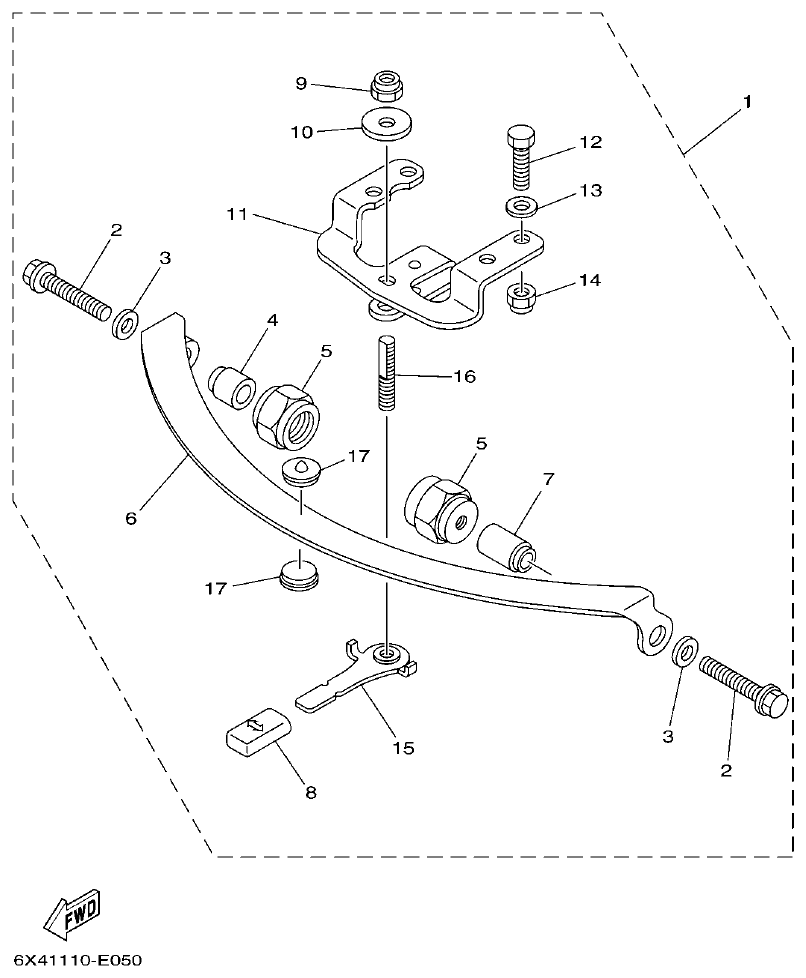

Fig. 24 — STEERING FRICTION
17 items
Yamaha F115A, FL115A, FL115AET CONTROL parts diagram

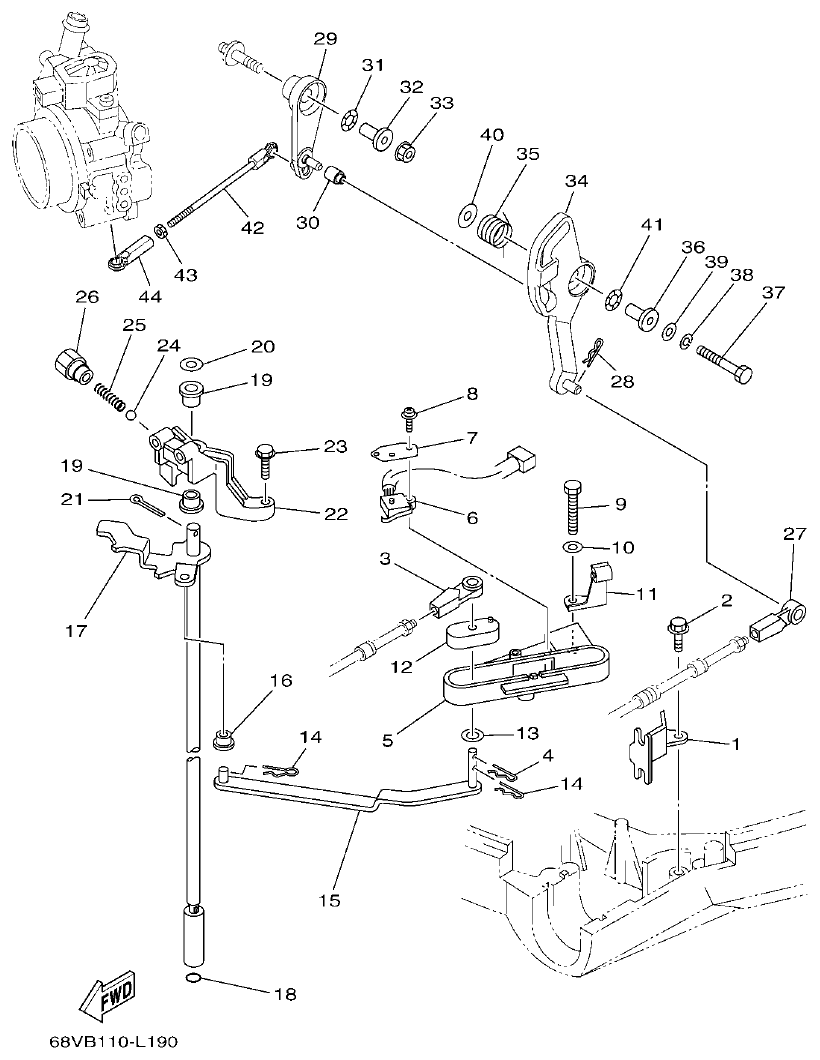

Fig. 25 — CONTROL
45 items · 4 available products
Yamaha F115A, FL115A, FL115AET BRACKET 1 parts diagram

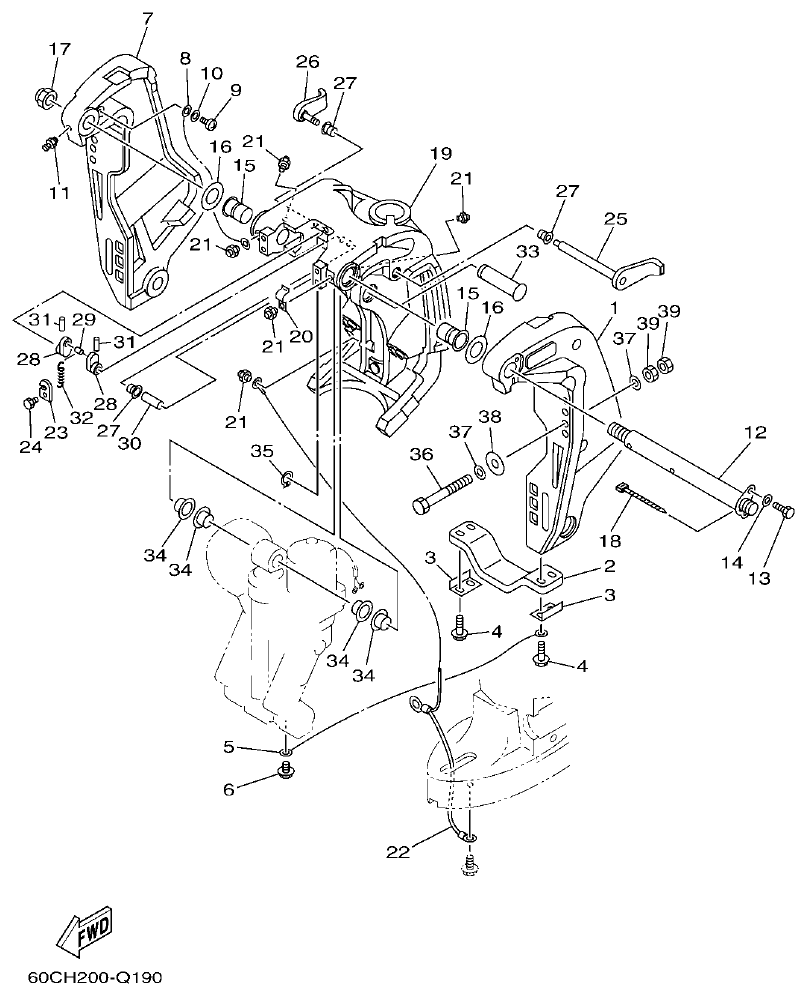

Fig. 26 — BRACKET 1
44 items · 9 available products

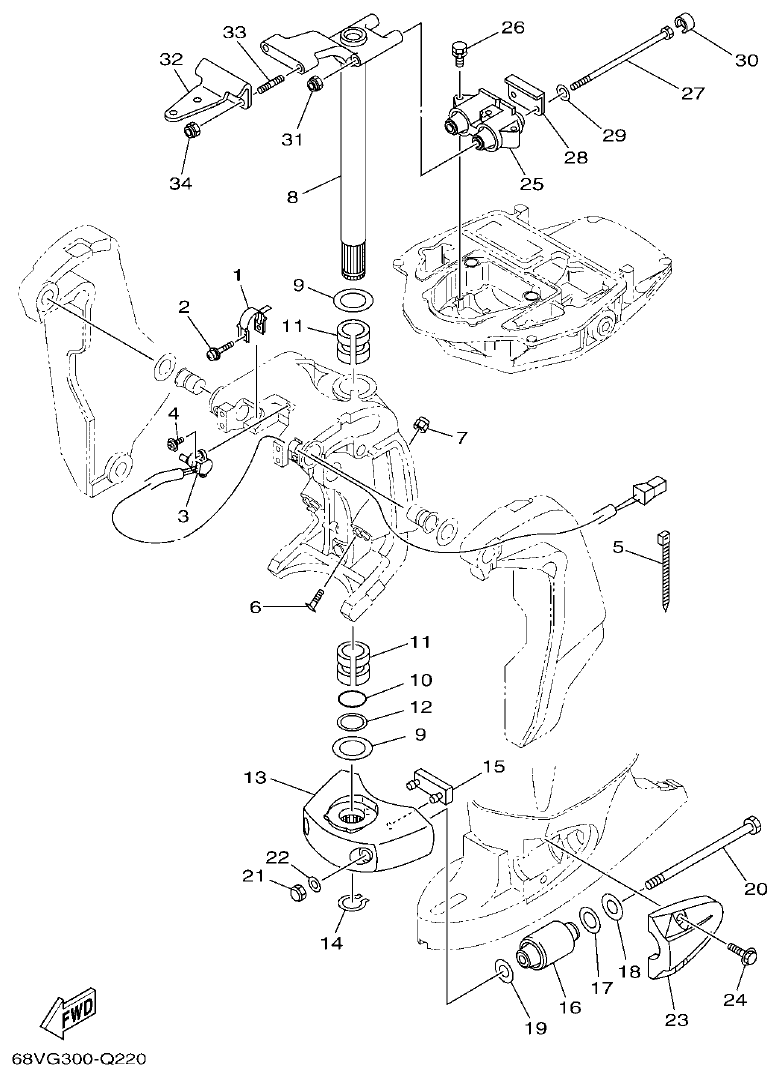

Yamaha F115A, FL115A, FL115AET BRACKET 2 parts diagram
Fig. 27 — BRACKET 2
35 items · 4 available products

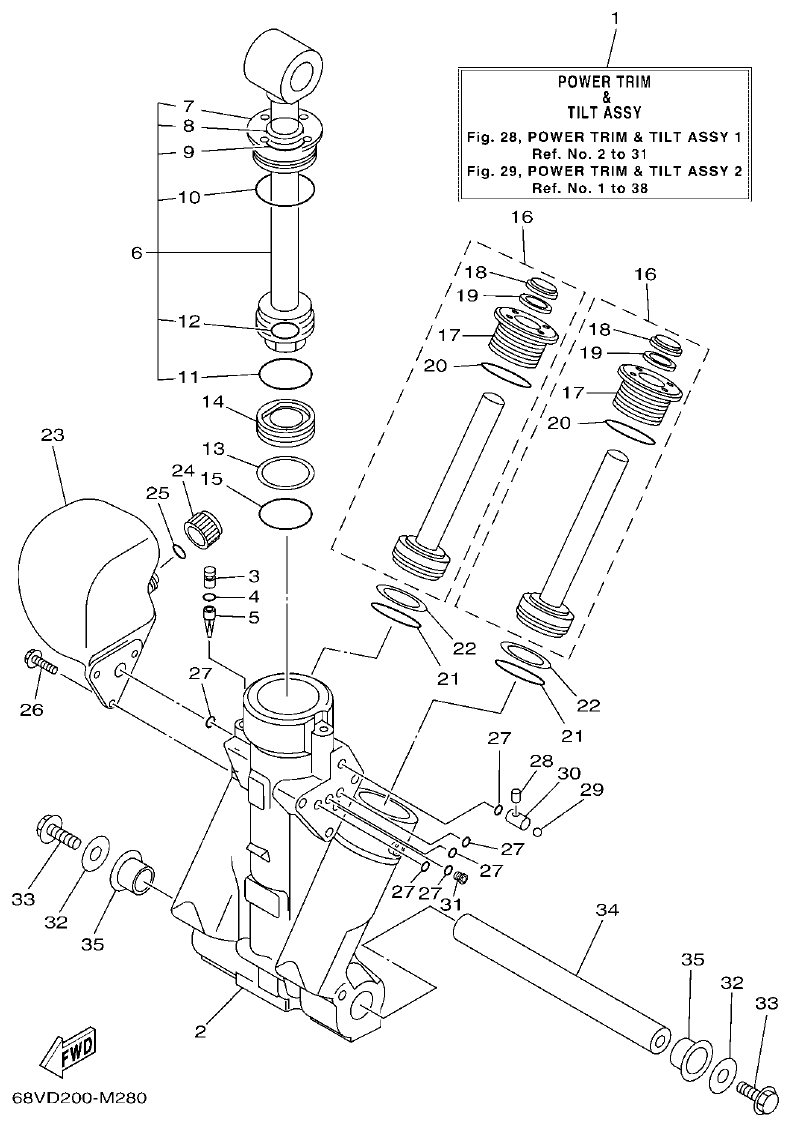

Yamaha F115A, FL115A, FL115AET POWER TRIM & TILT ASSY 1 parts diagram
Fig. 28 — POWER TRIM & TILT ASSY 1
35 items · 14 available products
Yamaha F115A, FL115A, FL115AET POWER TRIM & TILT ASSY 2 parts diagram

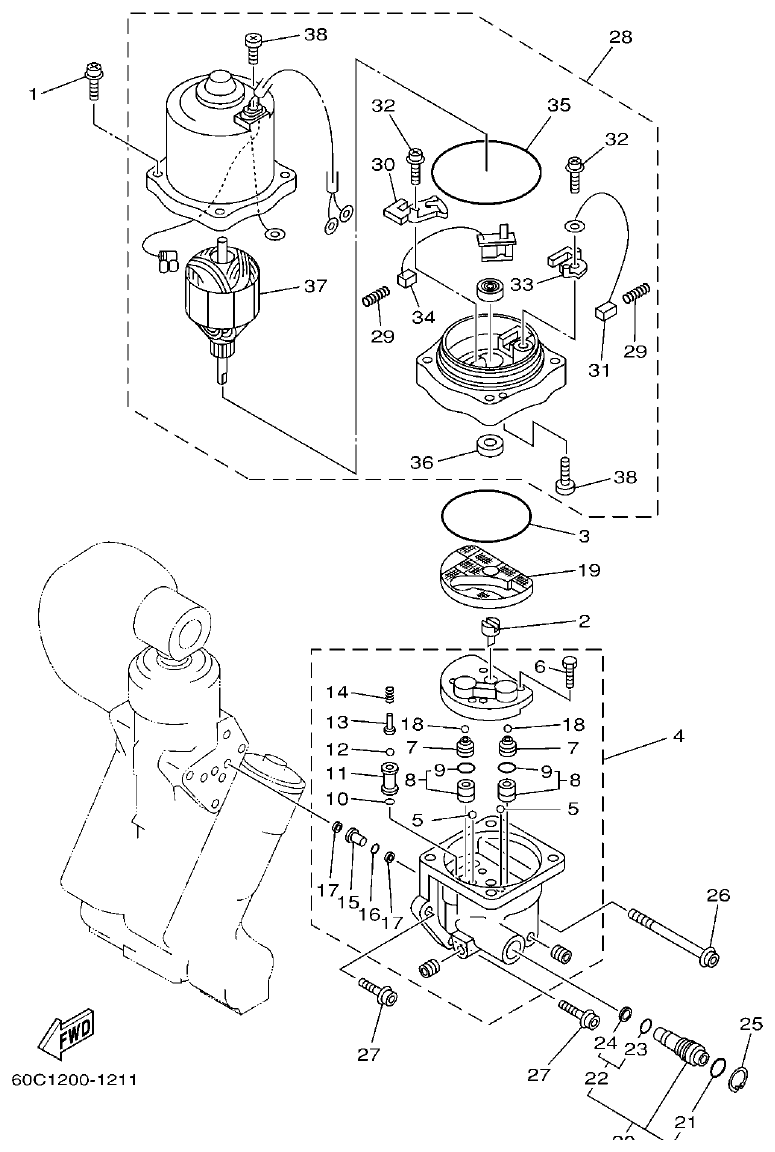

Fig. 29 — POWER TRIM & TILT ASSY 2
38 items · 15 available products
Yamaha F115A, FL115A, FL115AET UPPER CASING parts diagram

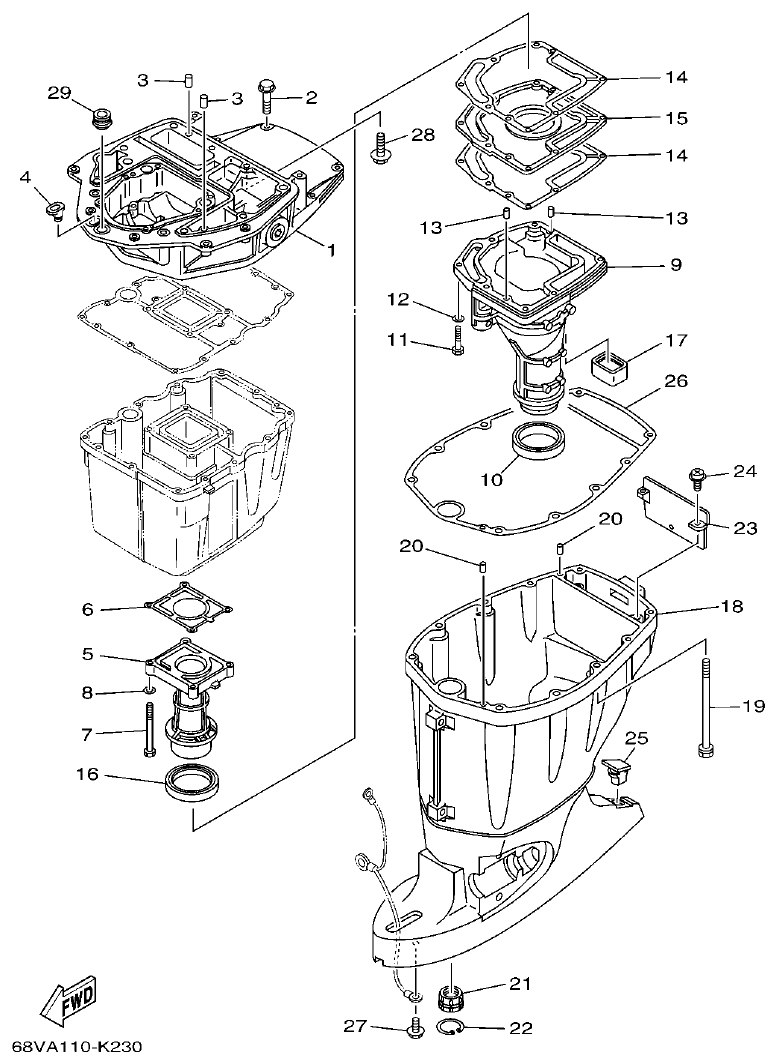

Fig. 30 — UPPER CASING
31 items · 7 available products
Yamaha F115A, FL115A, FL115AET OIL PAN parts diagram

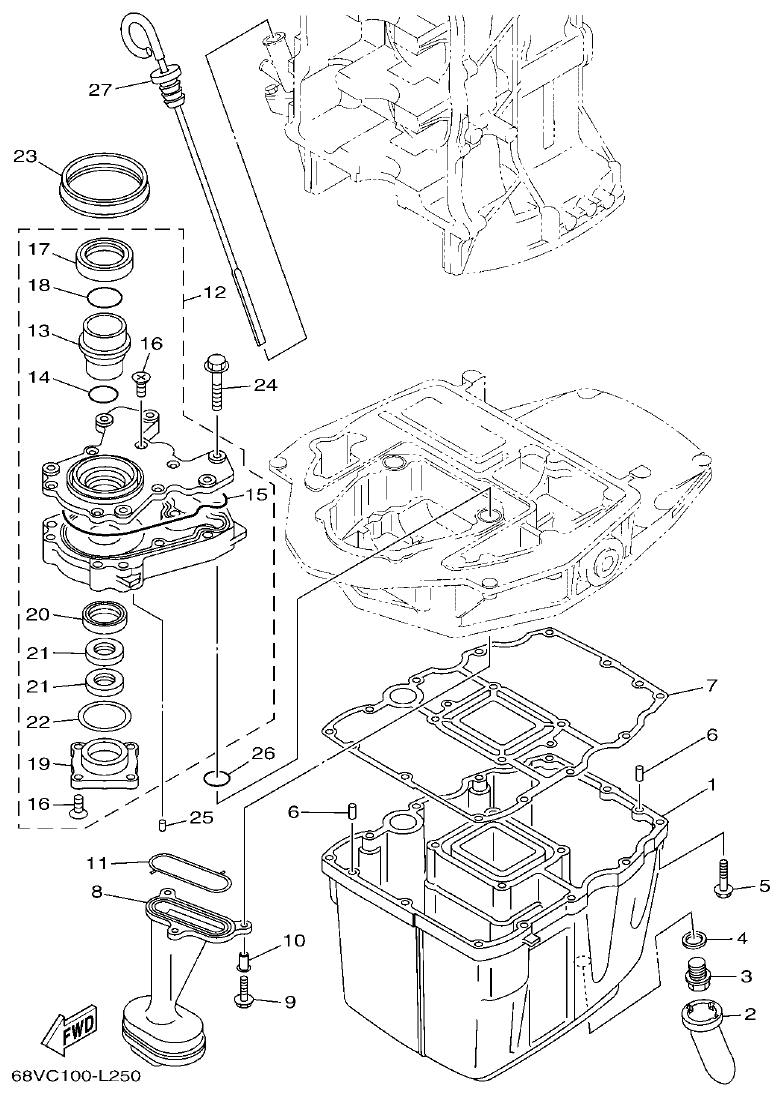

Fig. 31 — OIL PAN
27 items · 13 available products
Yamaha F115A, FL115A, FL115AET LOWER CASING & DRIVE 1 parts diagram

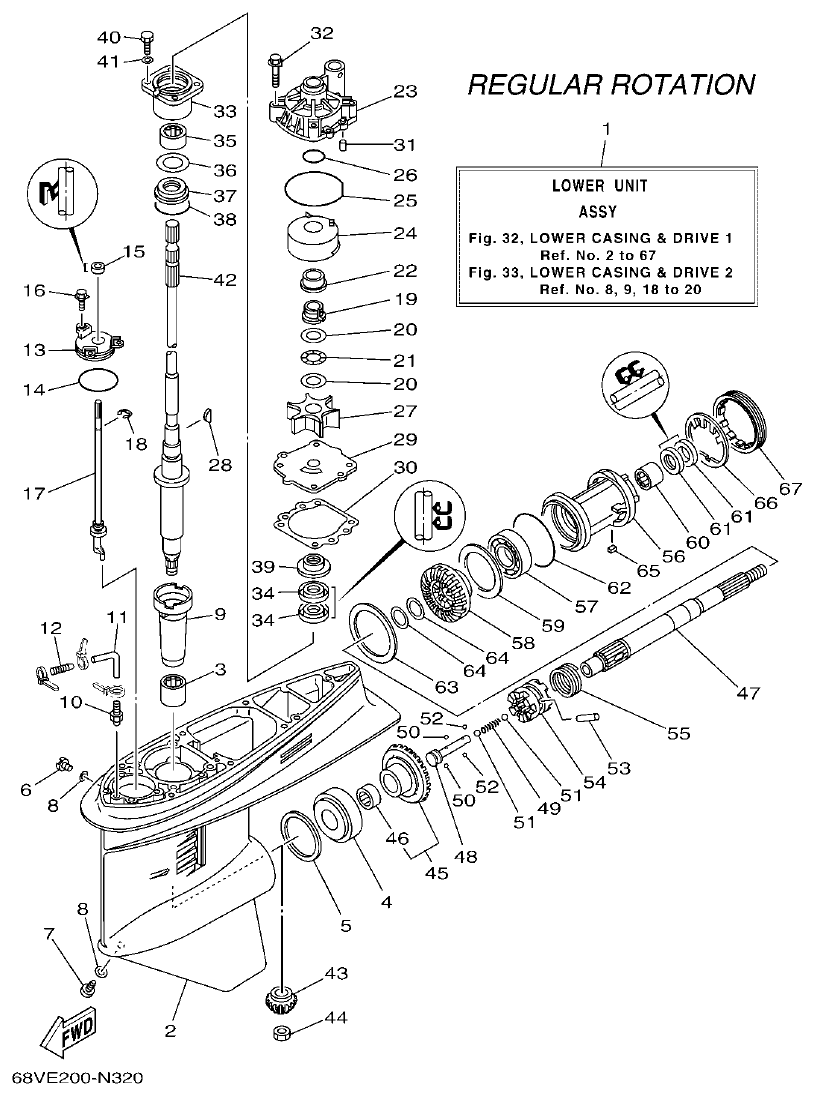

Fig. 32 — LOWER CASING & DRIVE 1
88 items · 35 available products
Yamaha F115A, FL115A, FL115AET LOWER CASING & DRIVE 2 parts diagram

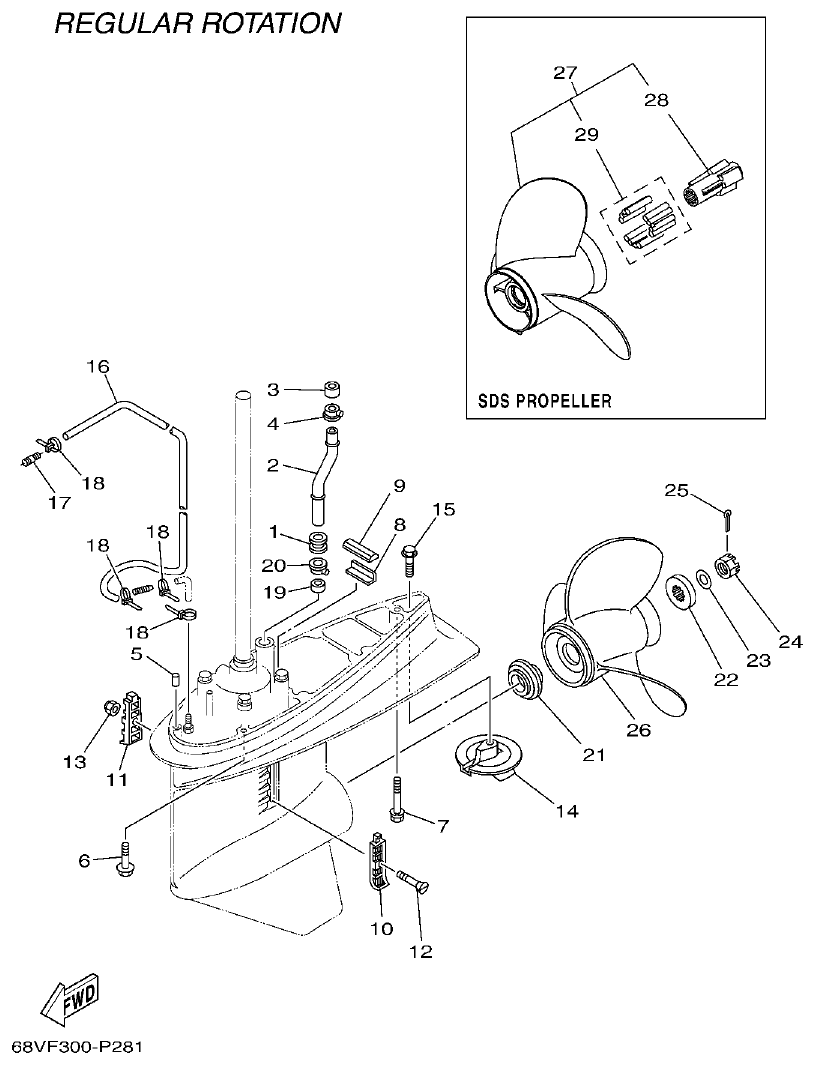

Fig. 33 — LOWER CASING & DRIVE 2
52 items · 24 available products
Yamaha F115A, FL115A, FL115AET LOWER CASING & DRIVE 3 parts diagram

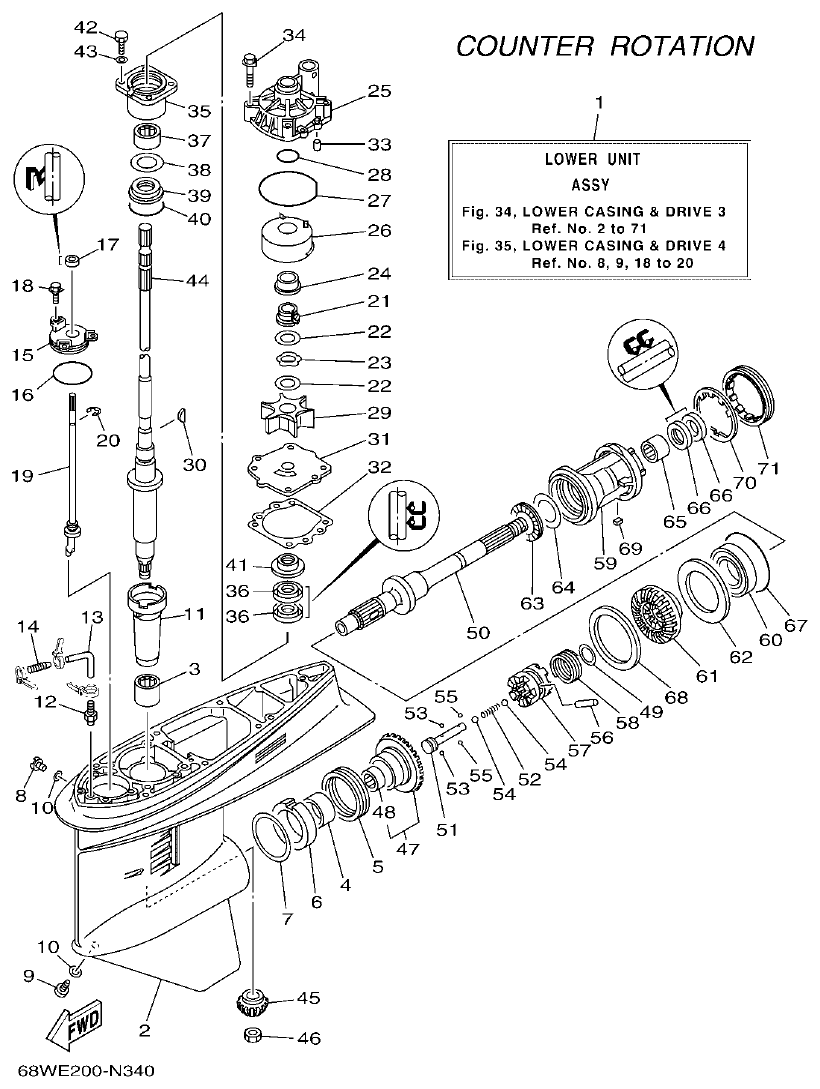

Fig. 34 — LOWER CASING & DRIVE 3
95 items · 39 available products

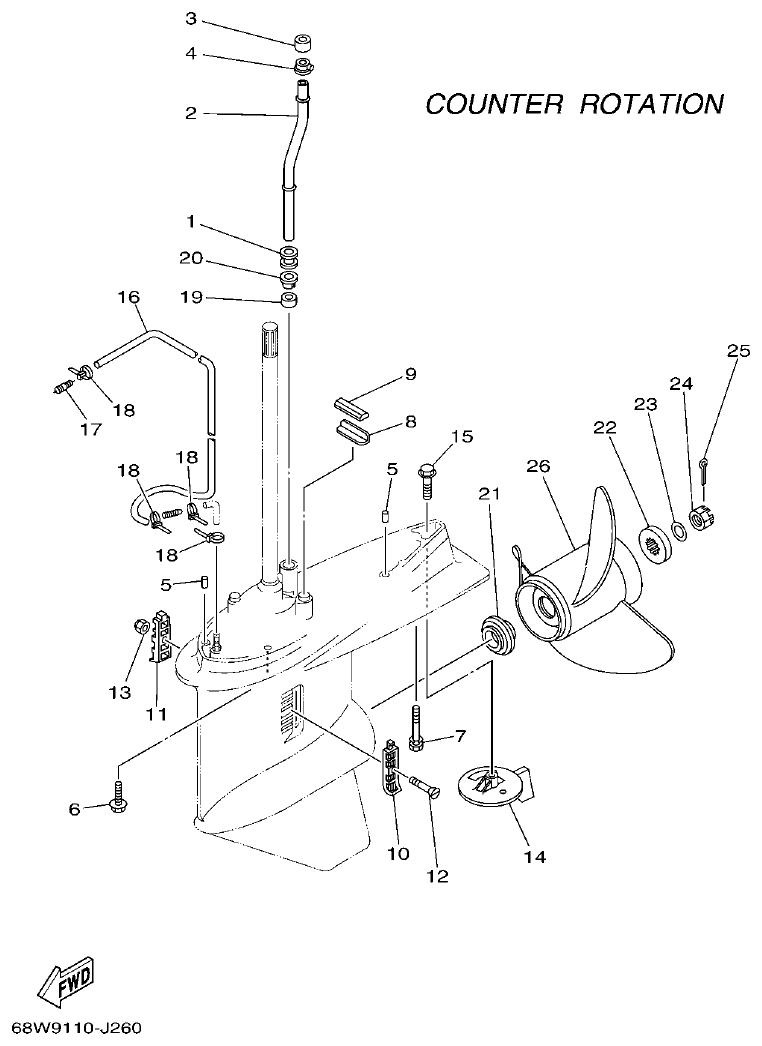

Yamaha F115A, FL115A, FL115AET LOWER CASING & DRIVE 4 parts diagram
Fig. 35 — LOWER CASING & DRIVE 4
28 items · 12 available products

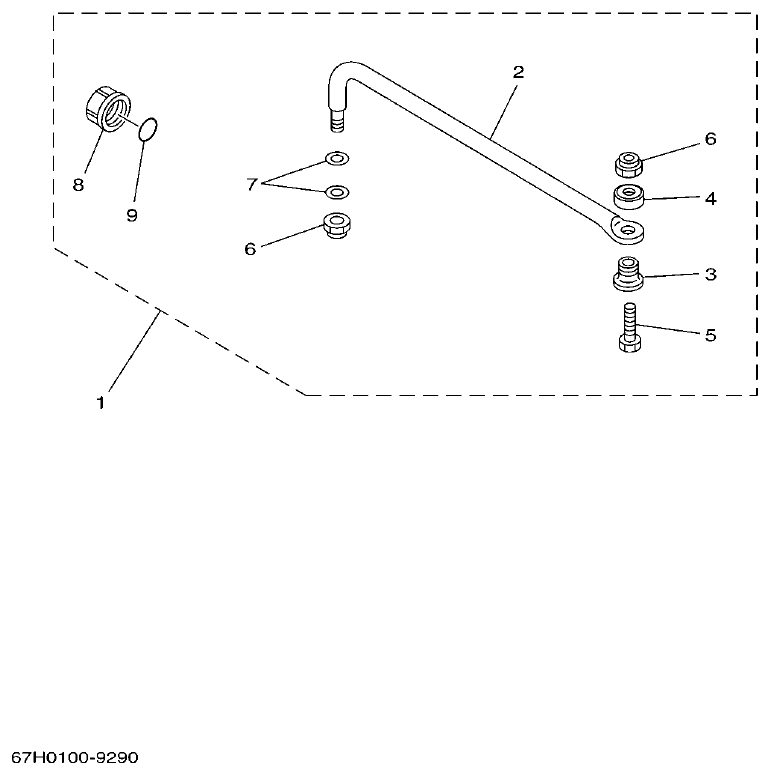

Yamaha F115A, FL115A, FL115AET STEERING GUIDE ATTACHMENT 1 parts diagram
Fig. 36 — STEERING GUIDE ATTACHMENT 1
9 items · 2 available products
Yamaha F115A, FL115A, FL115AET STEERING GUIDE ATTACHMENT 2 parts diagram

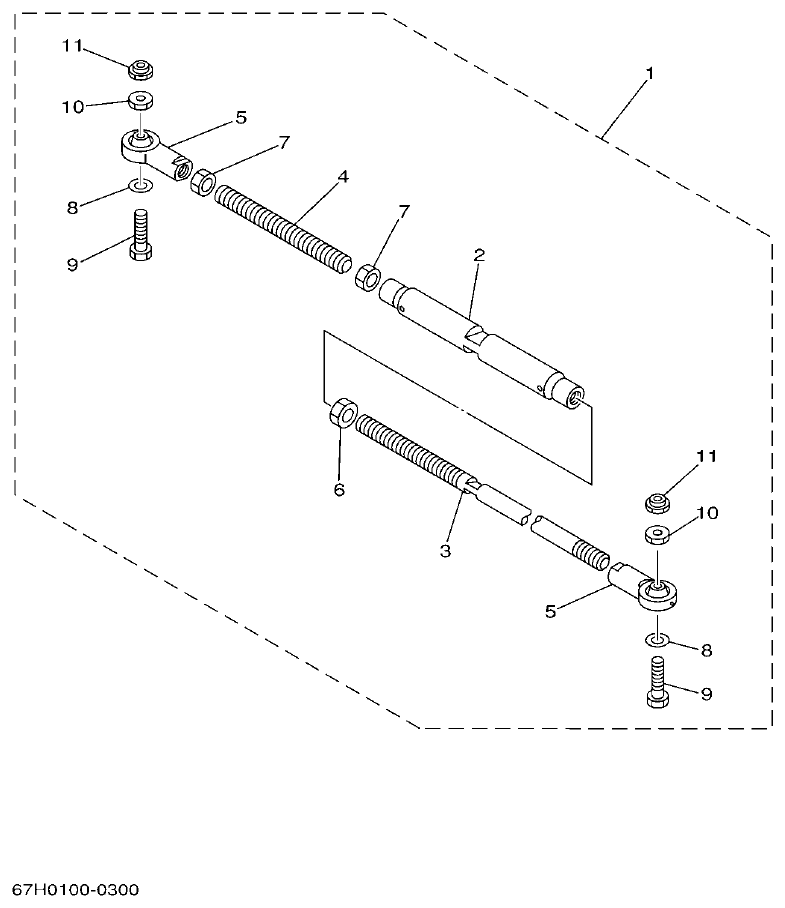

Fig. 37 — STEERING GUIDE ATTACHMENT 2
11 items · 1 available products
Yamaha F115A, FL115A, FL115AET REMOTE CONTROL BOX parts diagram

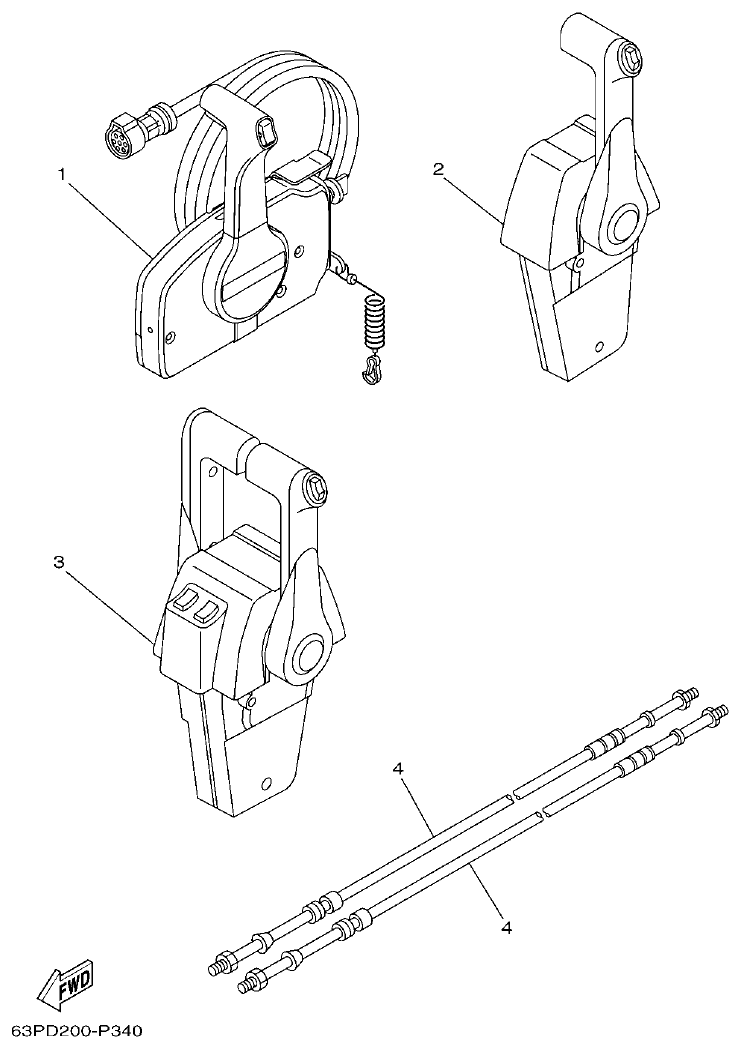

Fig. 38 — REMOTE CONTROL BOX
9 items
Yamaha F115A, FL115A, FL115AET REMOTE CONTROL ASSY 1 parts diagram

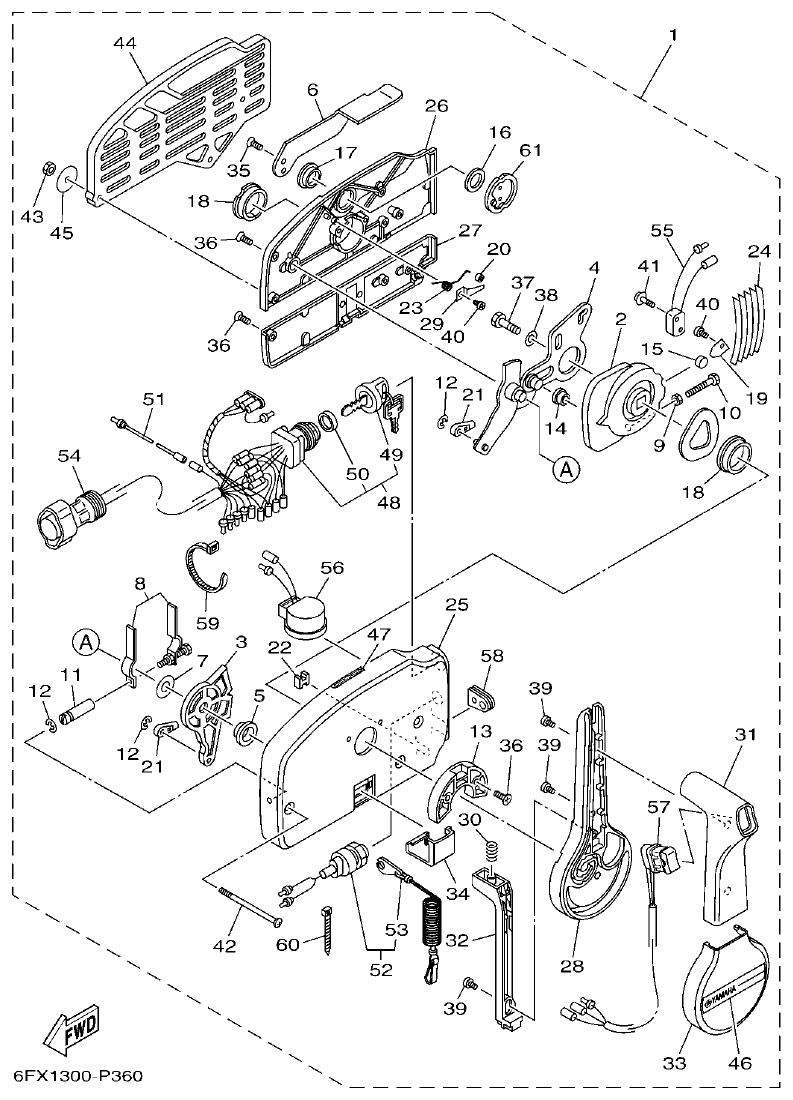

Fig. 39 — REMOTE CONTROL ASSY 1
61 items · 10 available products

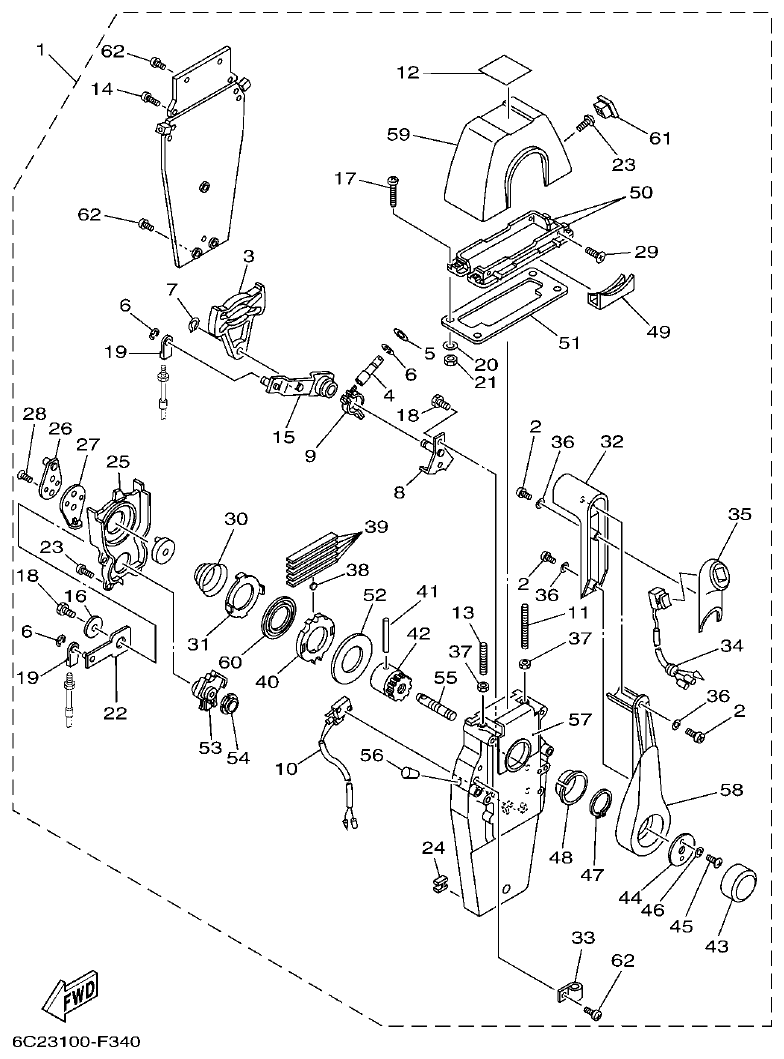

Yamaha F115A, FL115A, FL115AET REMOTE CONTROL ASSY 2 parts diagram
Fig. 40 — REMOTE CONTROL ASSY 2
62 items · 1 available products
Yamaha F115A, FL115A, FL115AET REMOTE CONTROL ASSY 3 parts diagram

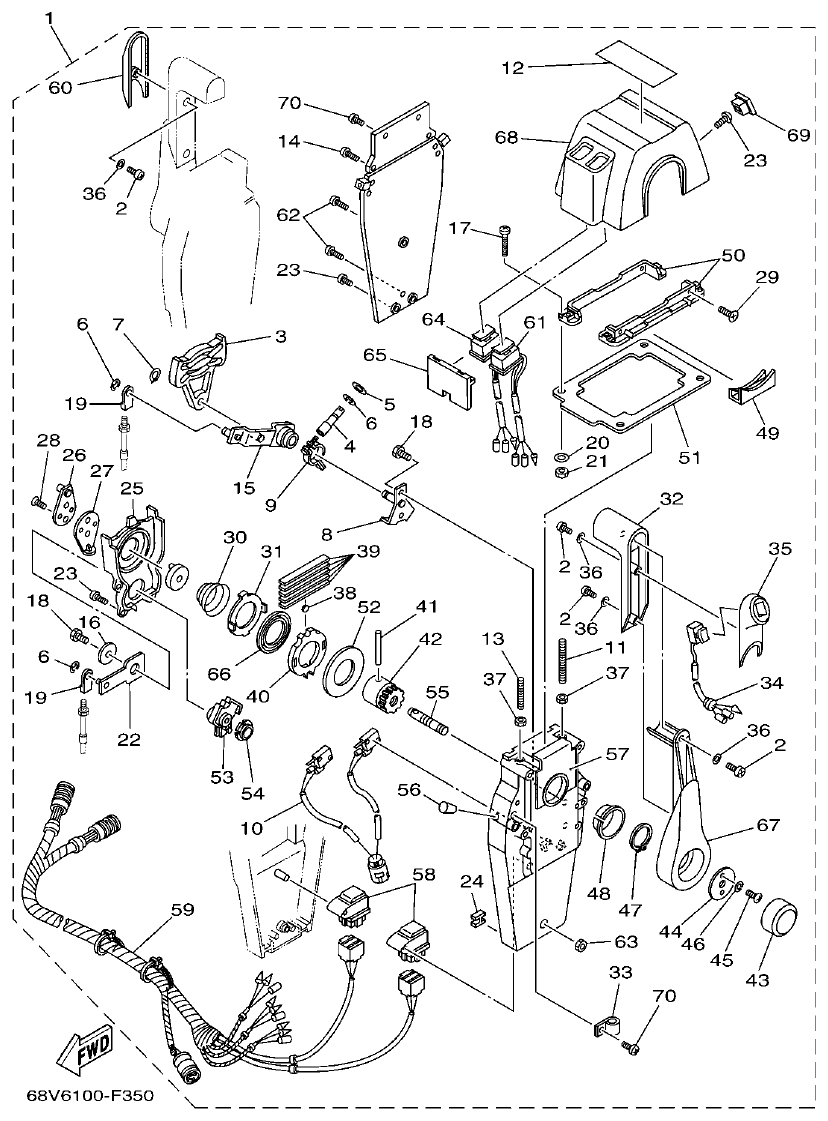

Fig. 41 — REMOTE CONTROL ASSY 3
70 items · 2 available products
Yamaha F115A, FL115A, FL115AET METER parts diagram

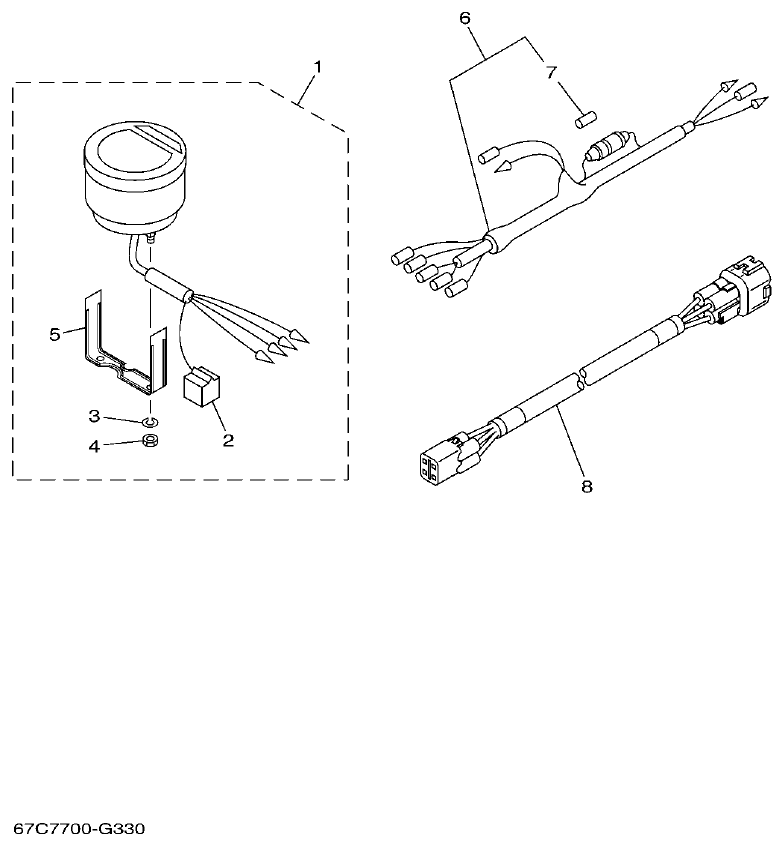

Fig. 42 — METER
8 items · 1 available products

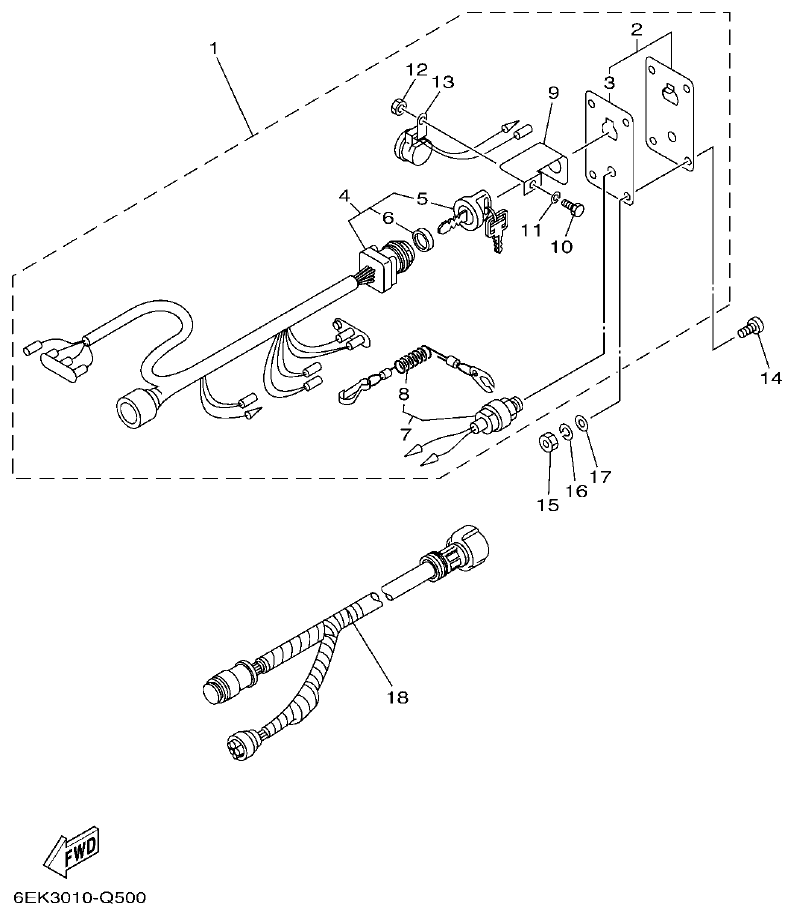

Yamaha F115A, FL115A, FL115AET SWITCH & PANEL parts diagram
Fig. 43 — SWITCH & PANEL
18 items · 3 available products
Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 1 parts diagram

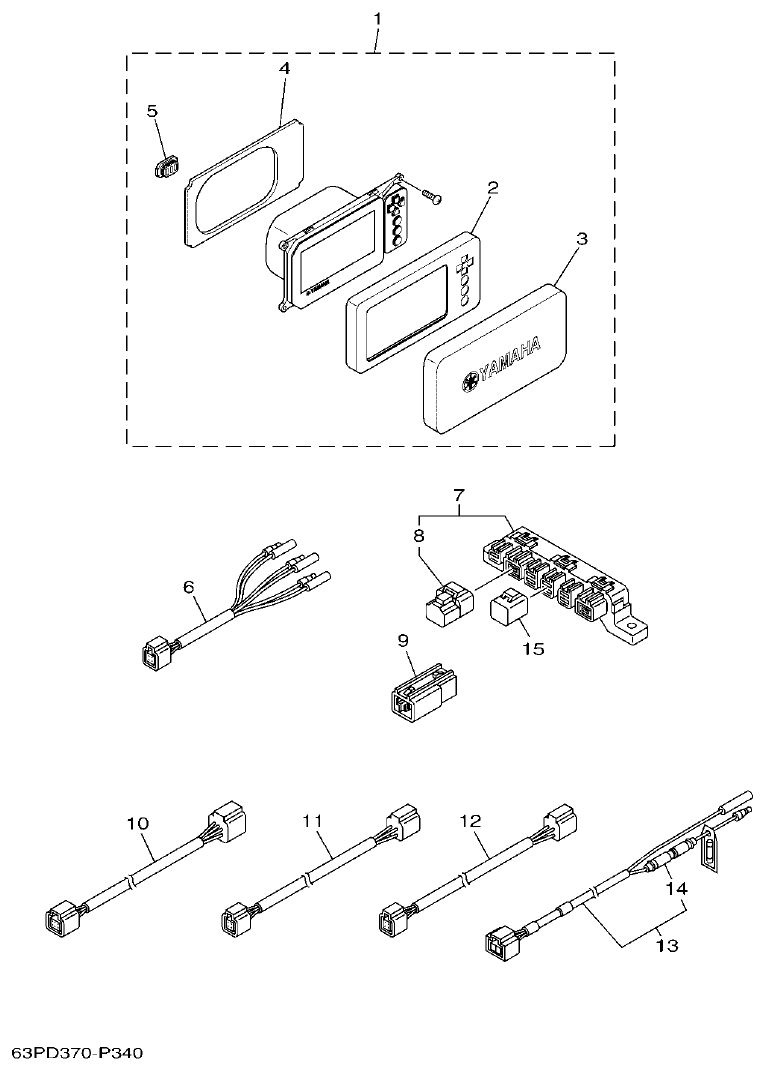

Fig. 44 — OPTIONAL PARTS 1
15 items · 7 available products
Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 2 parts diagram

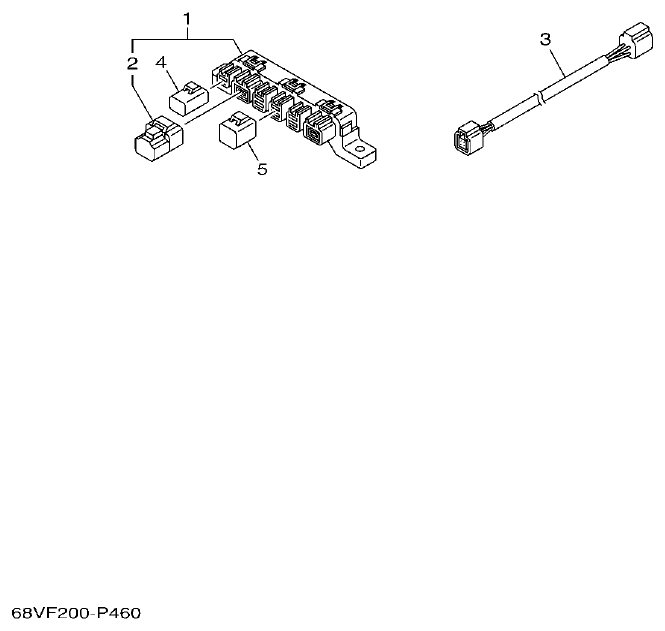

Fig. 45 — OPTIONAL PARTS 2
5 items · 3 available products
Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 3 parts diagram

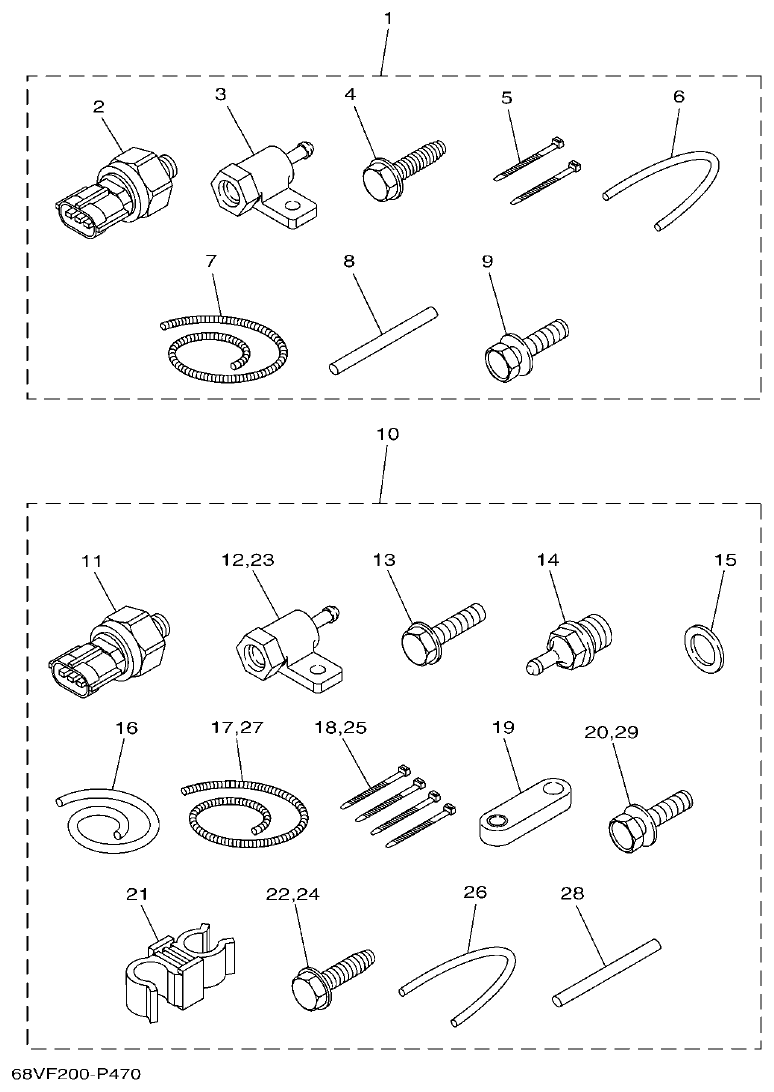

Fig. 46 — OPTIONAL PARTS 3
29 items
Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 4 parts diagram

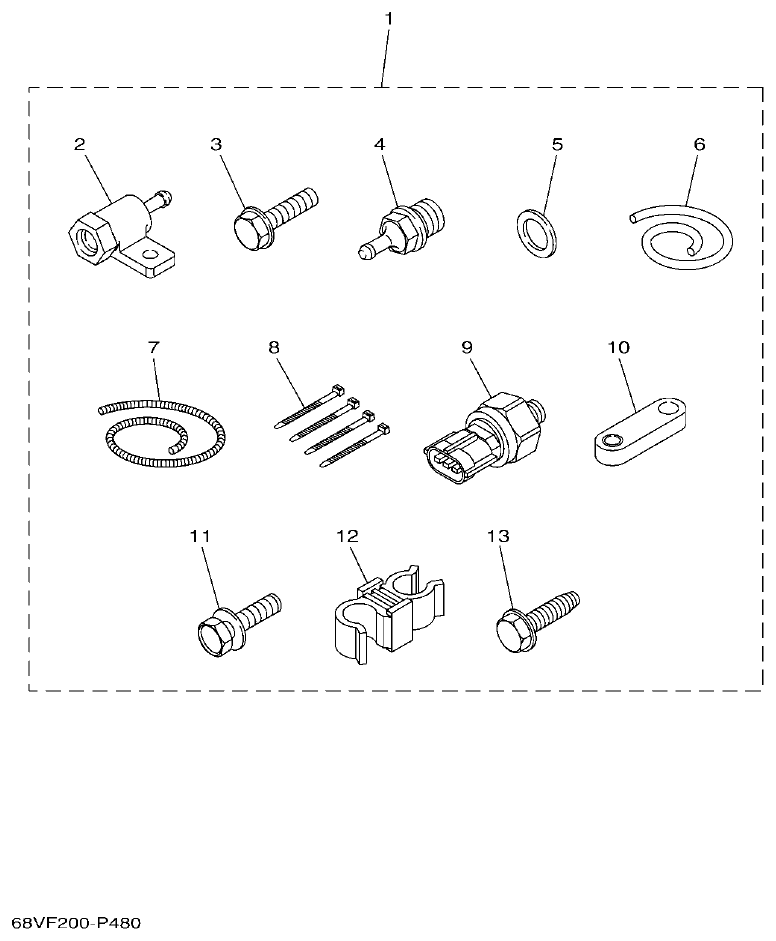

Fig. 47 — OPTIONAL PARTS 4
13 items
Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 5 parts diagram

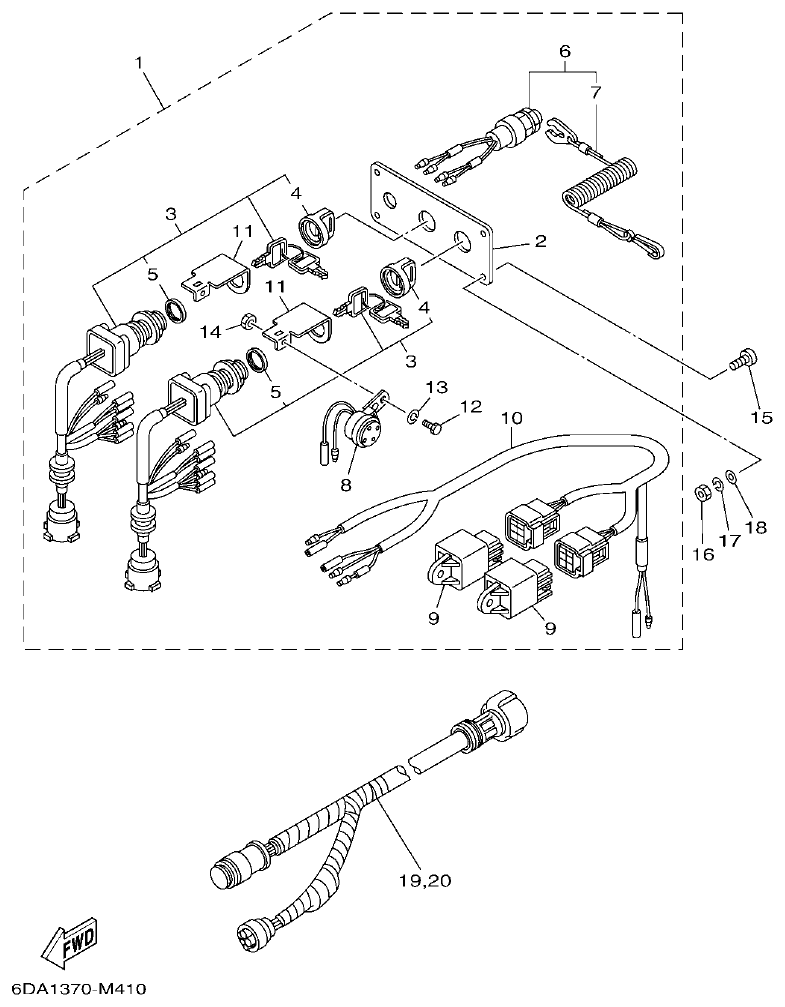

Fig. 48 — OPTIONAL PARTS 5
20 items · 2 available products

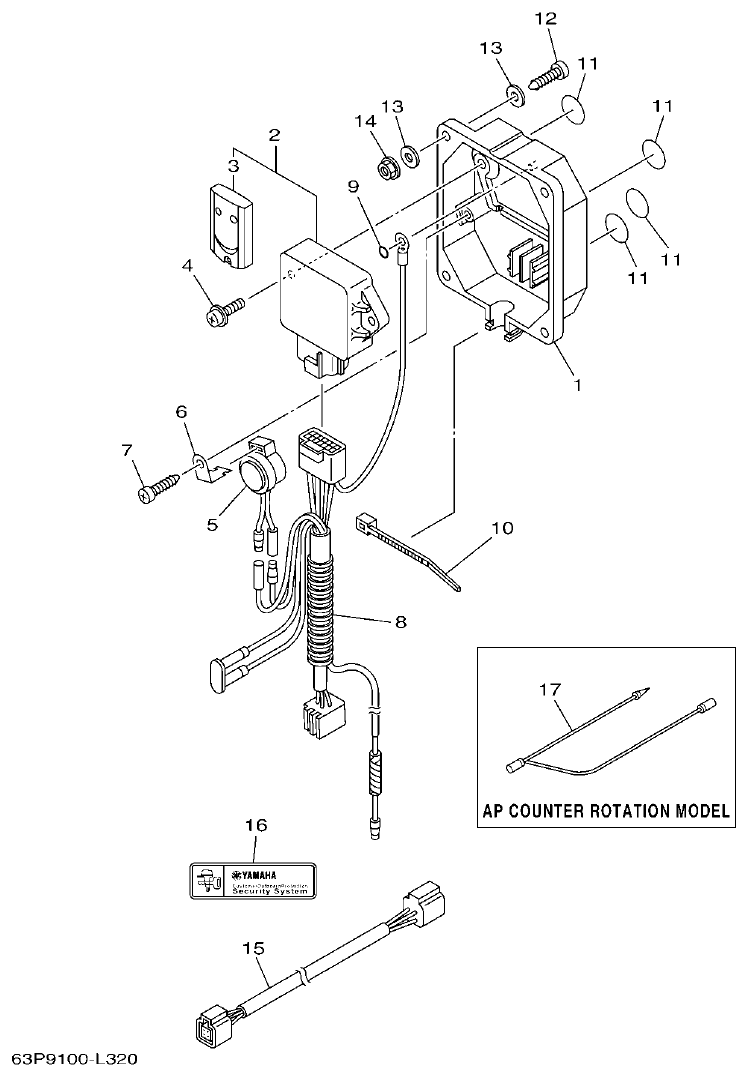

Yamaha F115A, FL115A, FL115AET OPTIONAL PARTS 6 parts diagram
Fig. 49 — OPTIONAL PARTS 6
18 items · 1 available products
Yamaha F115A, FL115A, FL115AET REPAIR KIT 1 parts diagram

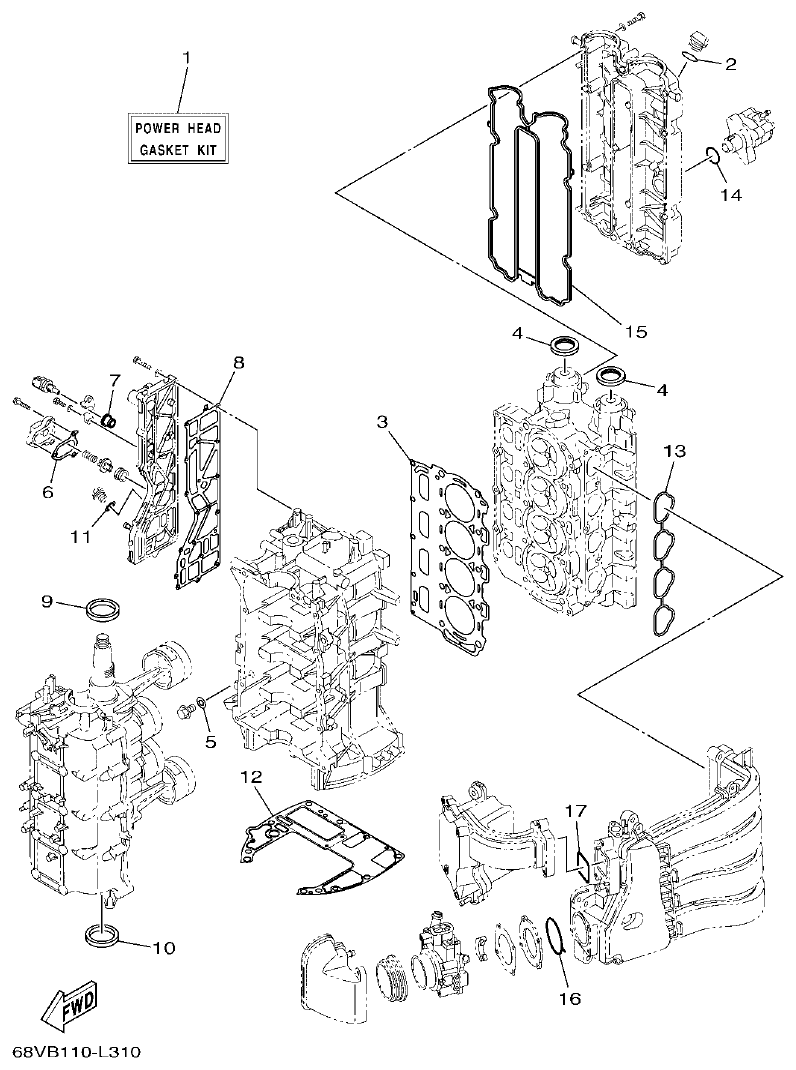

Fig. 50 — REPAIR KIT 1
17 items · 7 available products
Yamaha F115A, FL115A, FL115AET REPAIR KIT 2 parts diagram

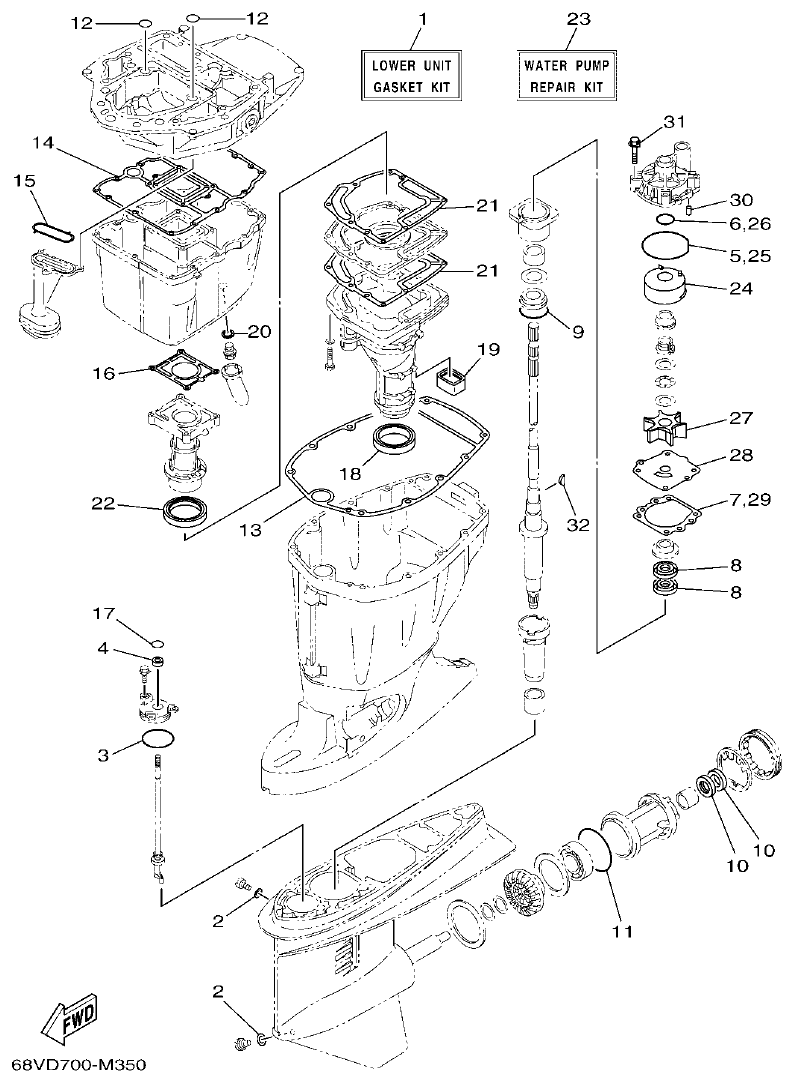

Fig. 51 — REPAIR KIT 2
32 items · 13 available products
