Yamaha F130AET, FL130AET Parts Catalog

Yamaha F130AET, FL130AET Outboard parts and diagrams

Yamaha F130AET, FL130AET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, EXHAUST, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

308 linked store products are available across 50 catalog sections. 1408 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

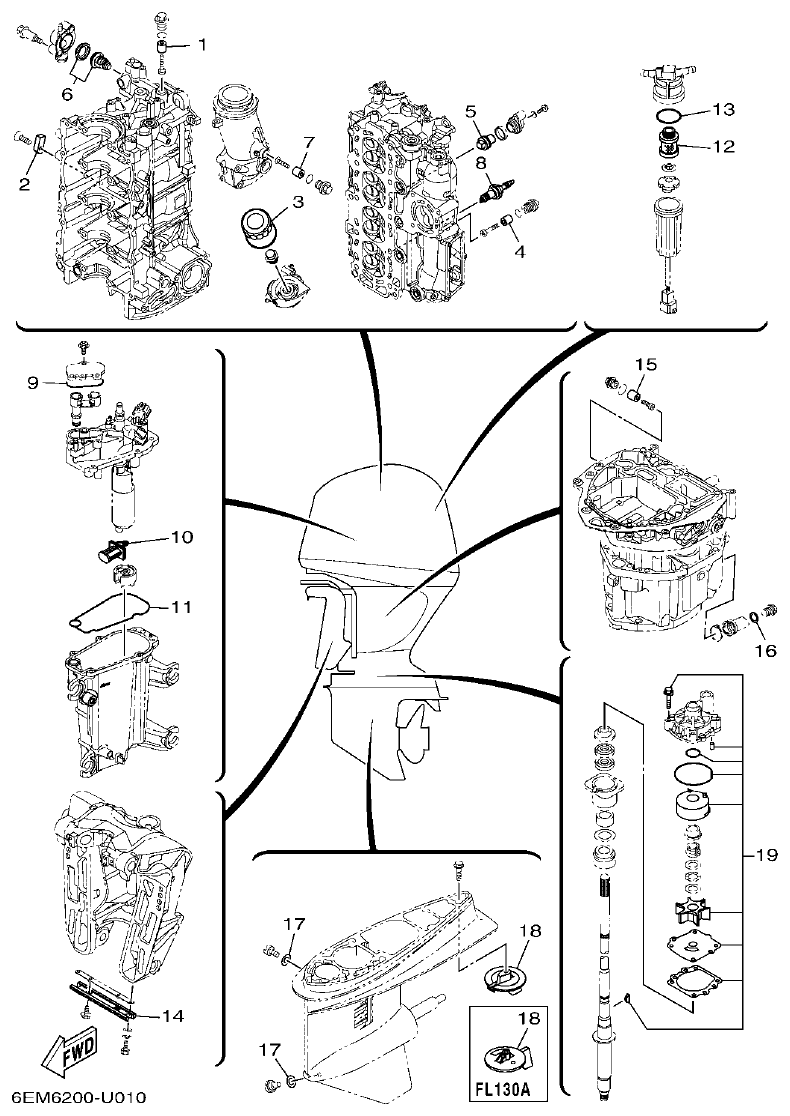

Yamaha F130AET, FL130AET SCHEDULED SERVICE PARTS parts diagram
Fig. 1 — SCHEDULED SERVICE PARTS
20 items · 14 available products

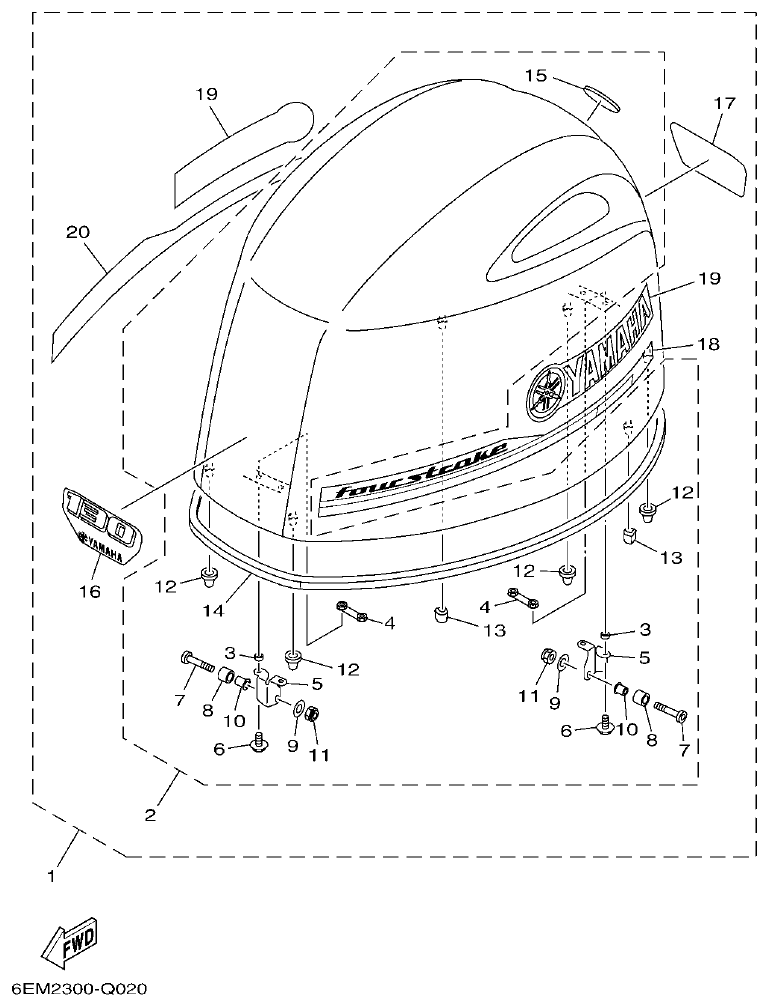

Yamaha F130AET, FL130AET TOP COWLING parts diagram
Fig. 2 — TOP COWLING
20 items · 2 available products

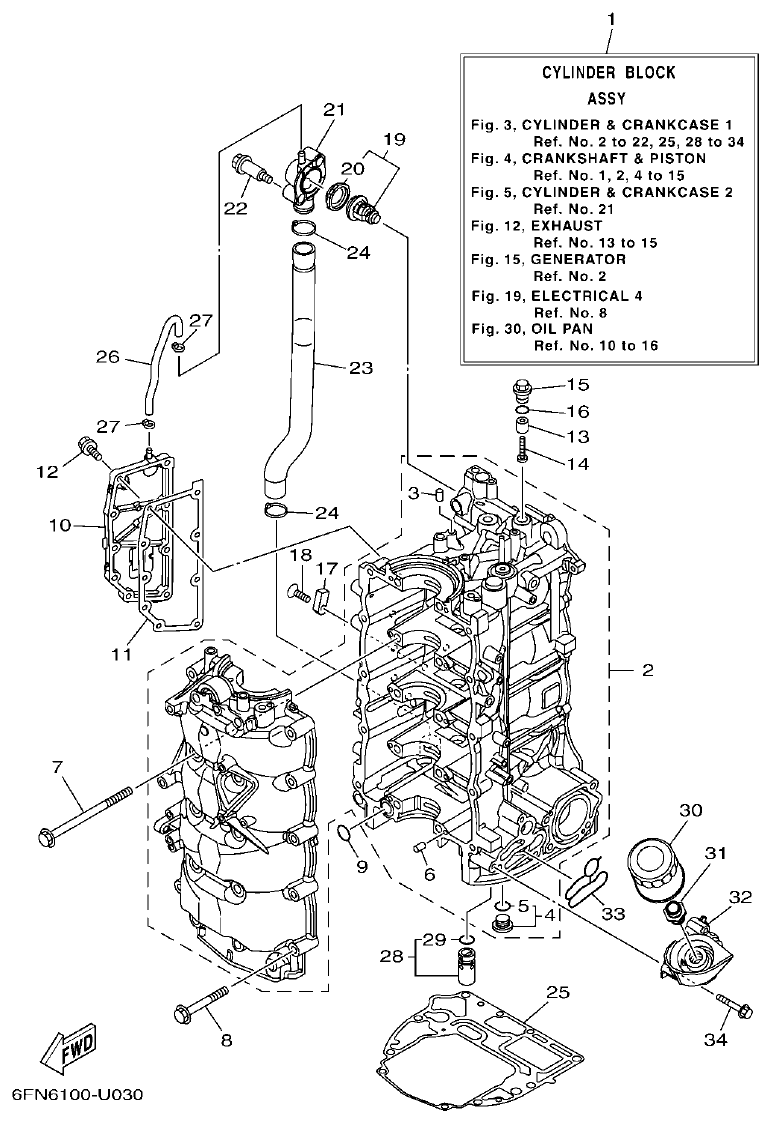

Yamaha F130AET, FL130AET CYLINDER & CRANKCASE 1 parts diagram
Fig. 3 — CYLINDER & CRANKCASE 1
34 items · 7 available products

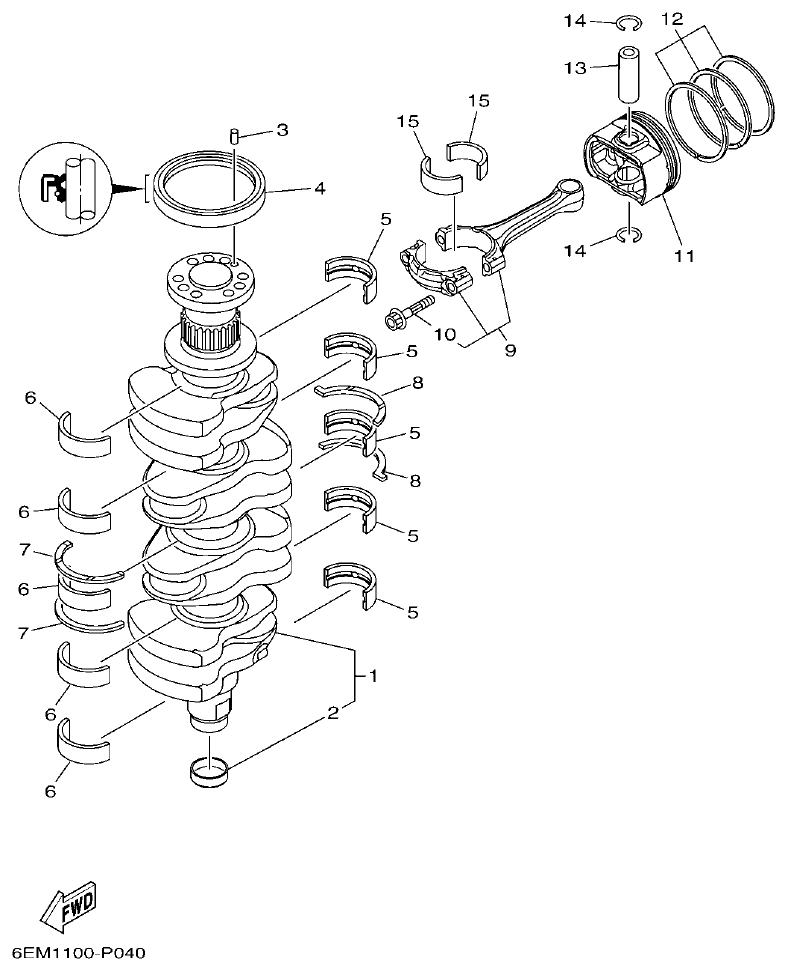

Yamaha F130AET, FL130AET CRANKSHAFT & PISTON parts diagram
Fig. 4 — CRANKSHAFT & PISTON
29 items · 17 available products

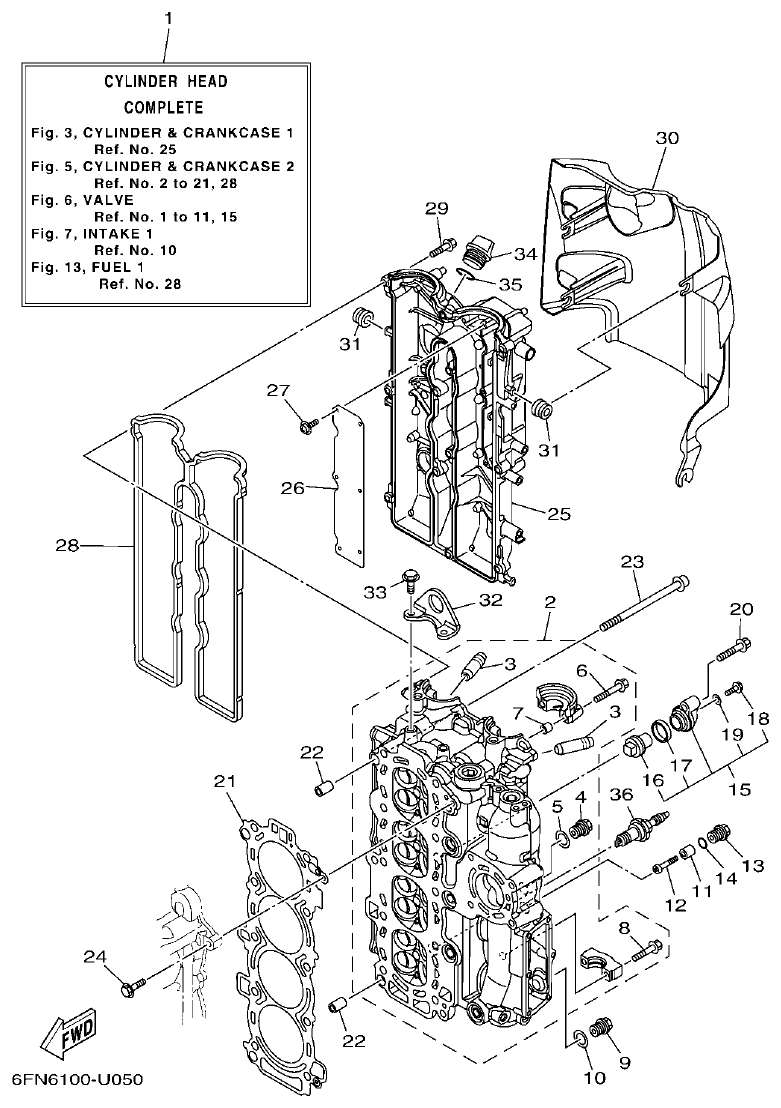

Yamaha F130AET, FL130AET CYLINDER & CRANKCASE 2 parts diagram
Fig. 5 — CYLINDER & CRANKCASE 2
36 items · 7 available products

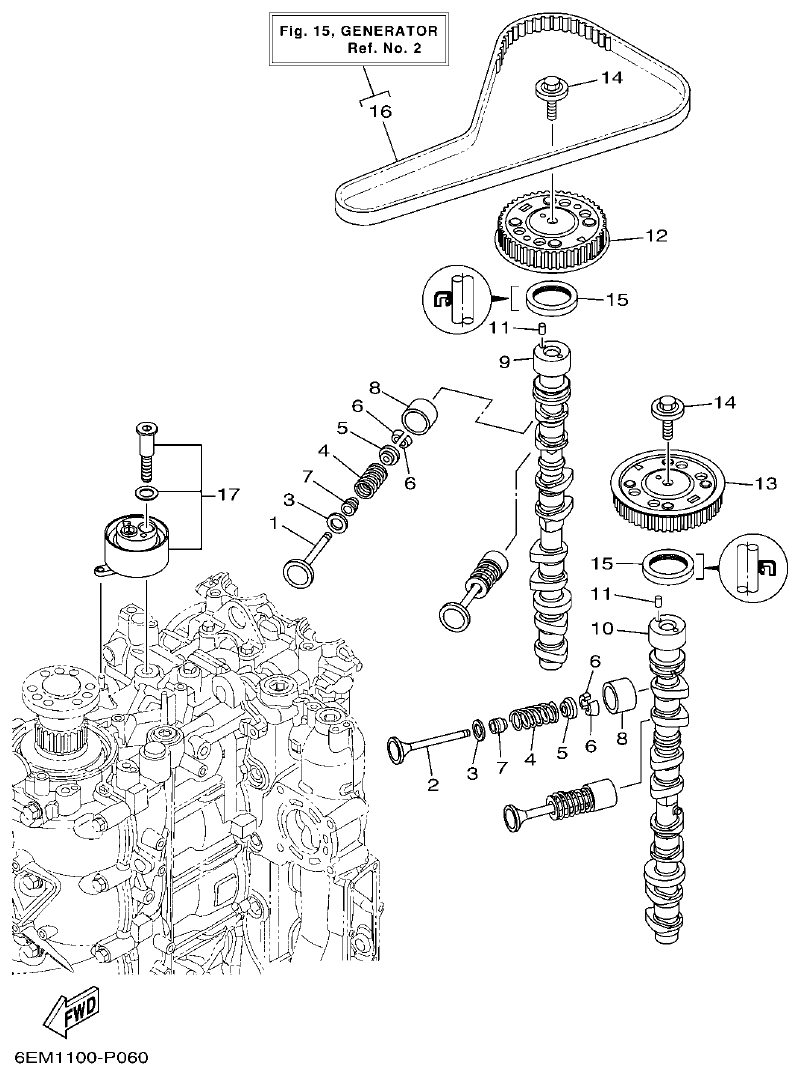

Yamaha F130AET, FL130AET VALVE parts diagram
Fig. 6 — VALVE
45 items · 8 available products

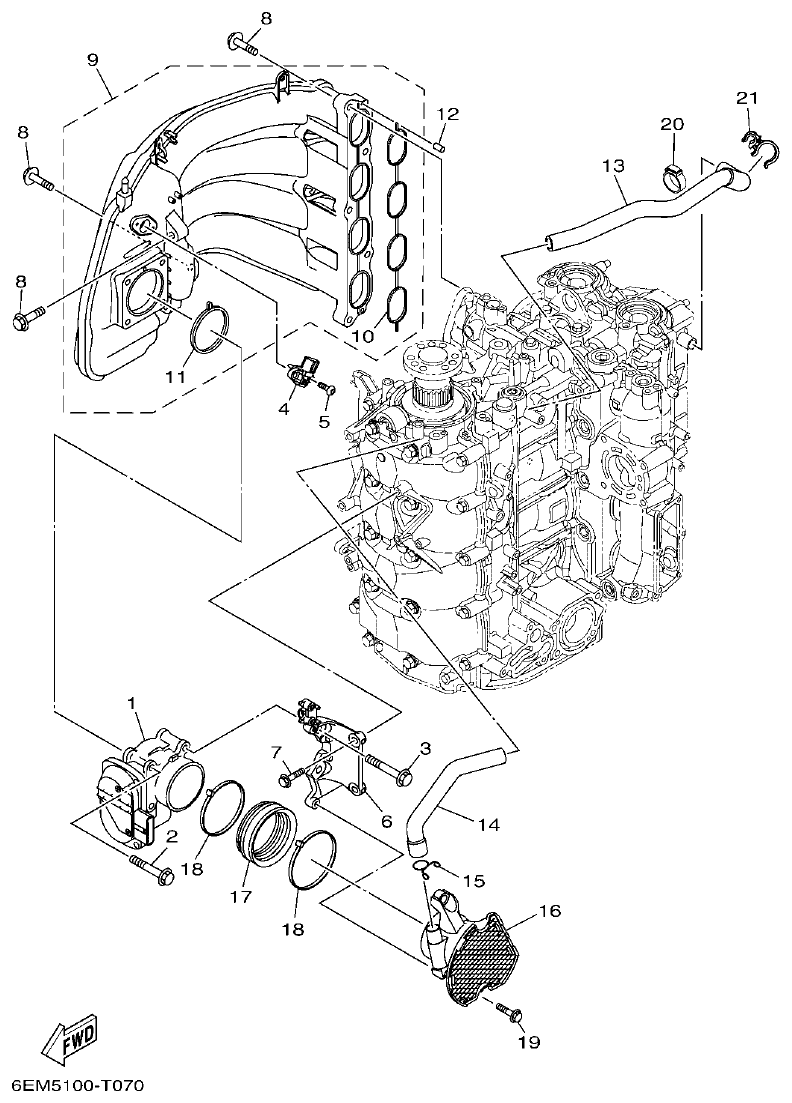

Yamaha F130AET, FL130AET INTAKE 1 parts diagram
Fig. 7 — INTAKE 1
21 items · 3 available products
Yamaha F130AET, FL130AET INTAKE 2 parts diagram
Fig. 8 — INTAKE 2
19 items · 3 available products

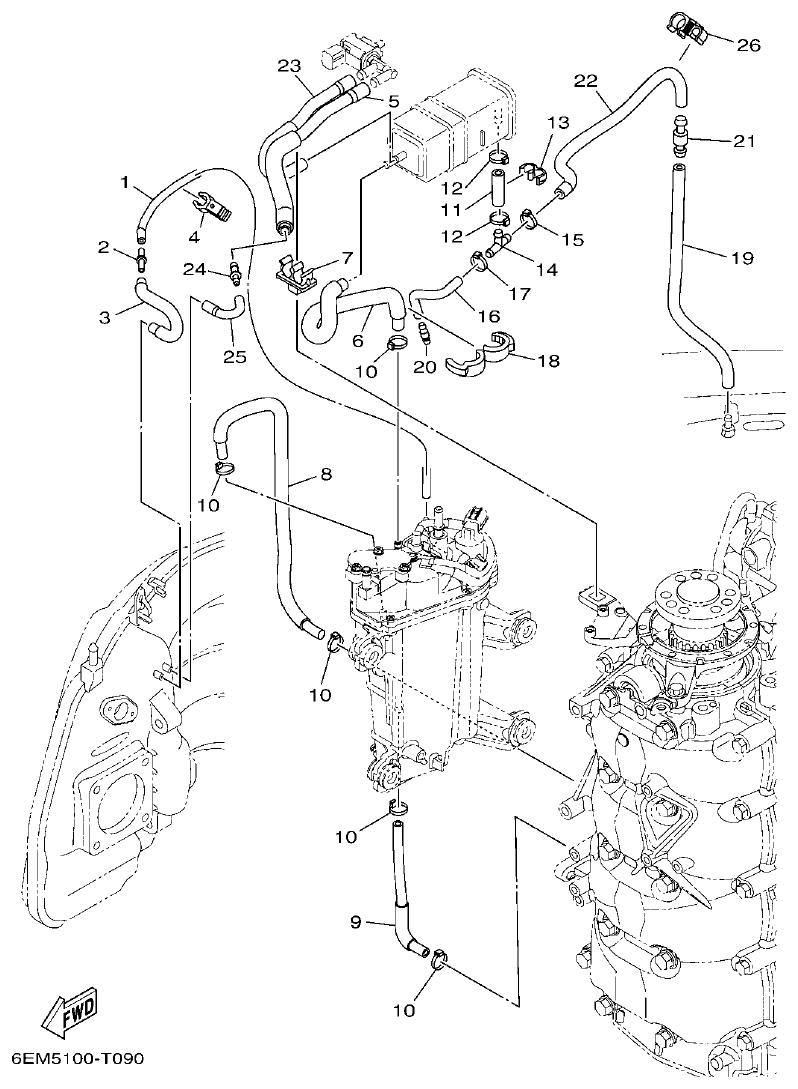

Yamaha F130AET, FL130AET INTAKE 3 parts diagram
Fig. 9 — INTAKE 3
26 items · 2 available products

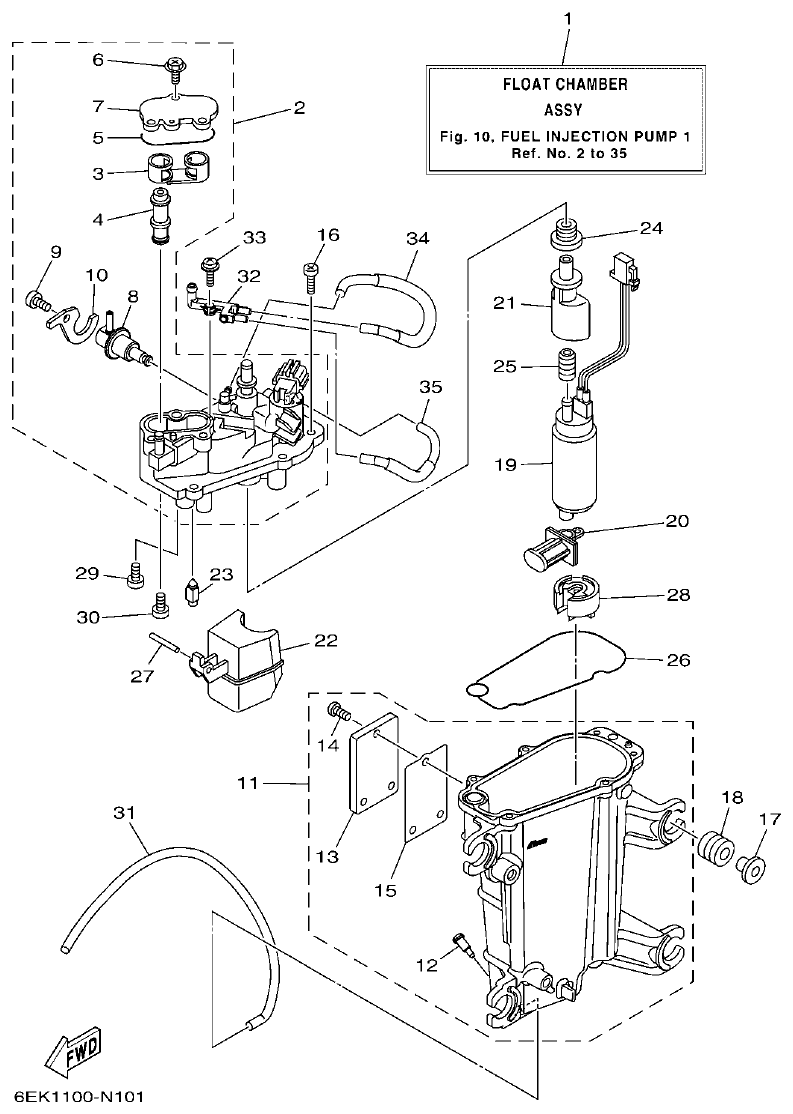

Yamaha F130AET, FL130AET FUEL INJECTION PUMP 1 parts diagram
Fig. 10 — FUEL INJECTION PUMP 1
35 items · 12 available products

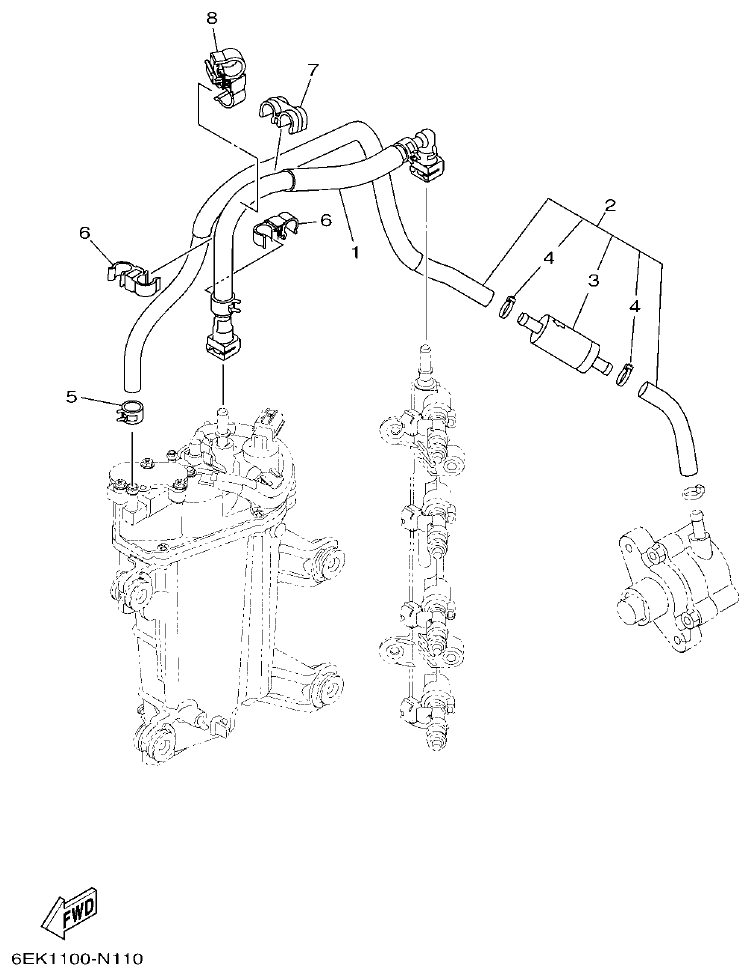

Yamaha F130AET, FL130AET FUEL INJECTION PUMP 2 parts diagram
Fig. 11 — FUEL INJECTION PUMP 2
8 items · 1 available products

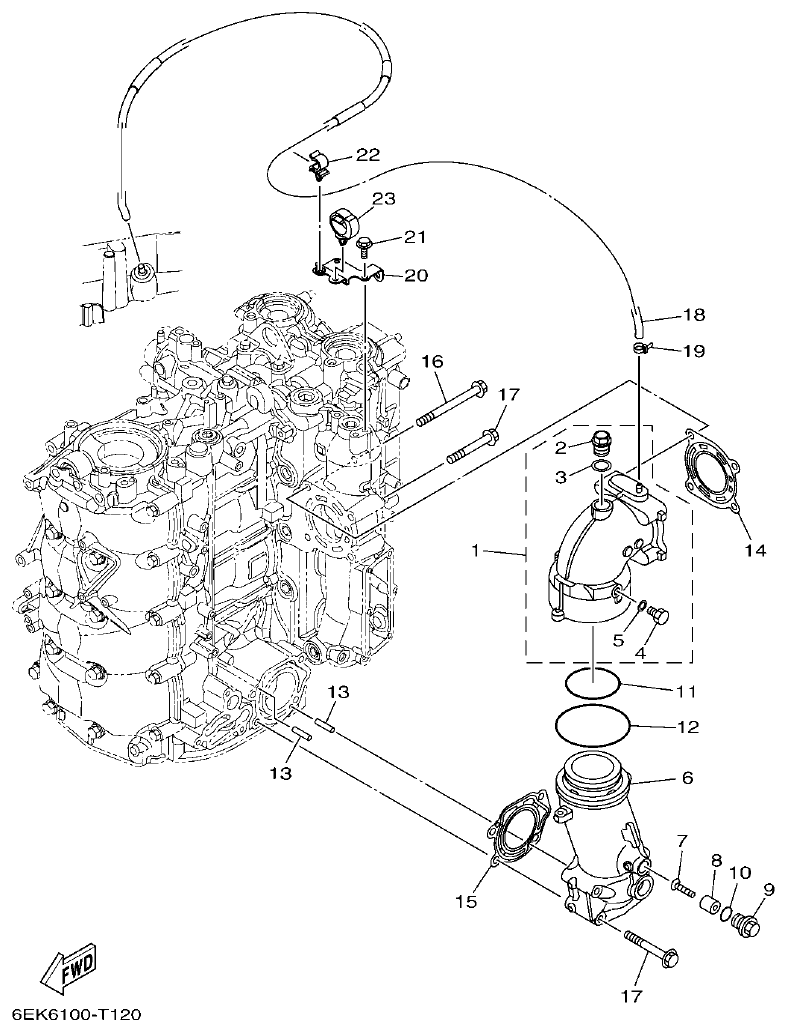

Yamaha F130AET, FL130AET EXHAUST parts diagram
Fig. 12 — EXHAUST
23 items

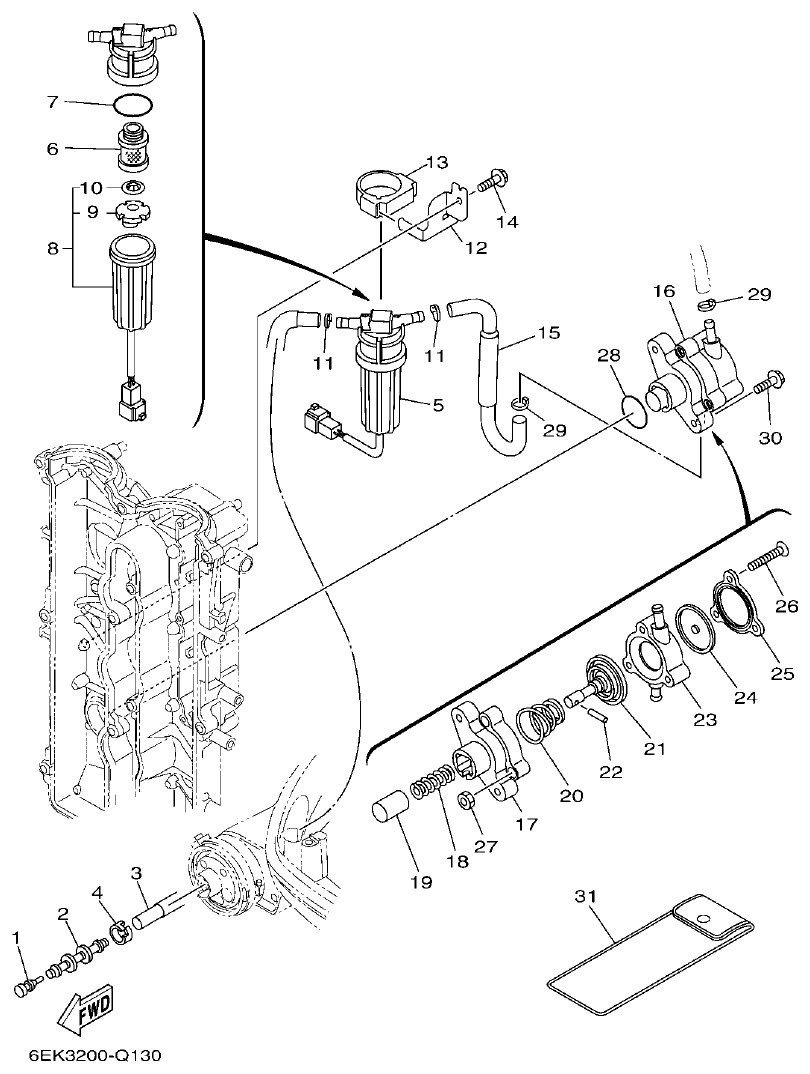

Yamaha F130AET, FL130AET FUEL 1 parts diagram
Fig. 13 — FUEL 1
32 items · 7 available products

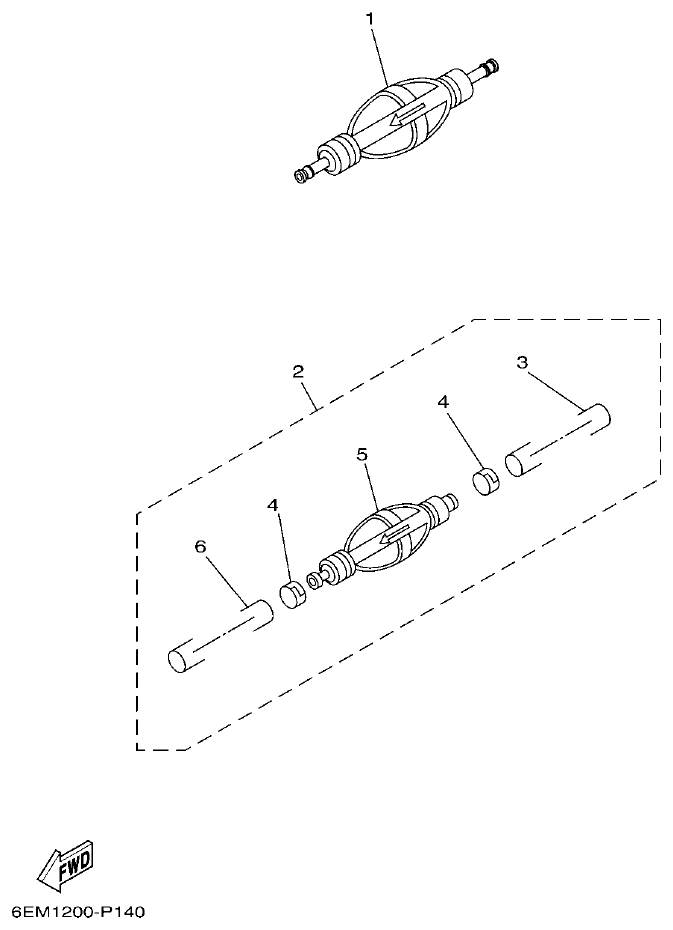

Yamaha F130AET, FL130AET FUEL 2 parts diagram
Fig. 14 — FUEL 2
6 items · 3 available products

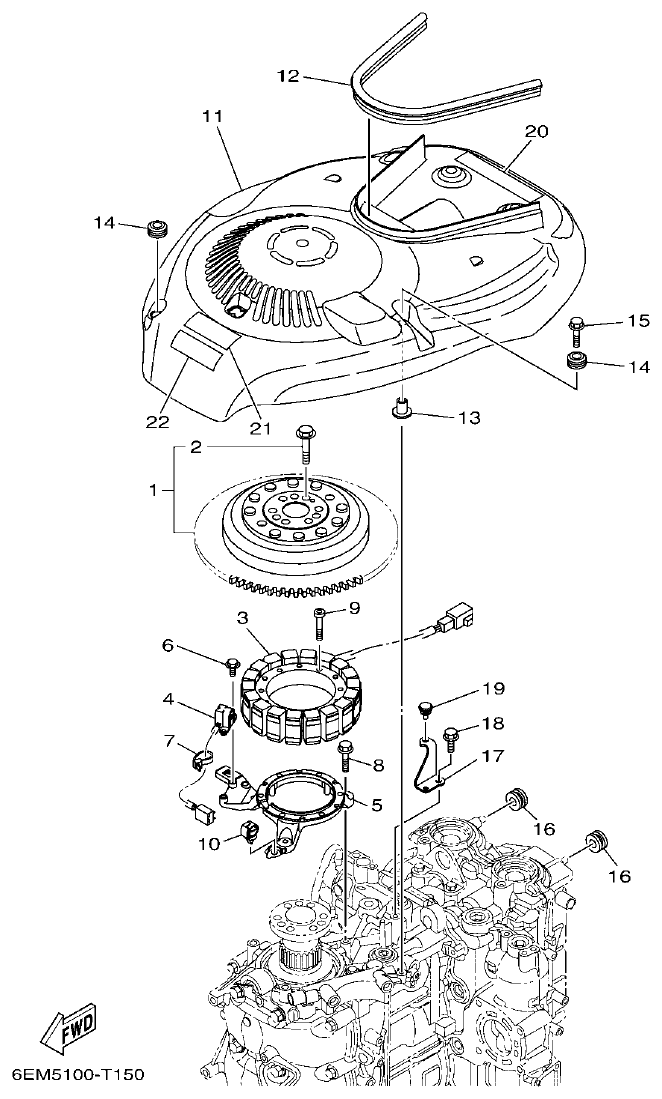

Yamaha F130AET, FL130AET GENERATOR parts diagram
Fig. 15 — GENERATOR
22 items · 6 available products

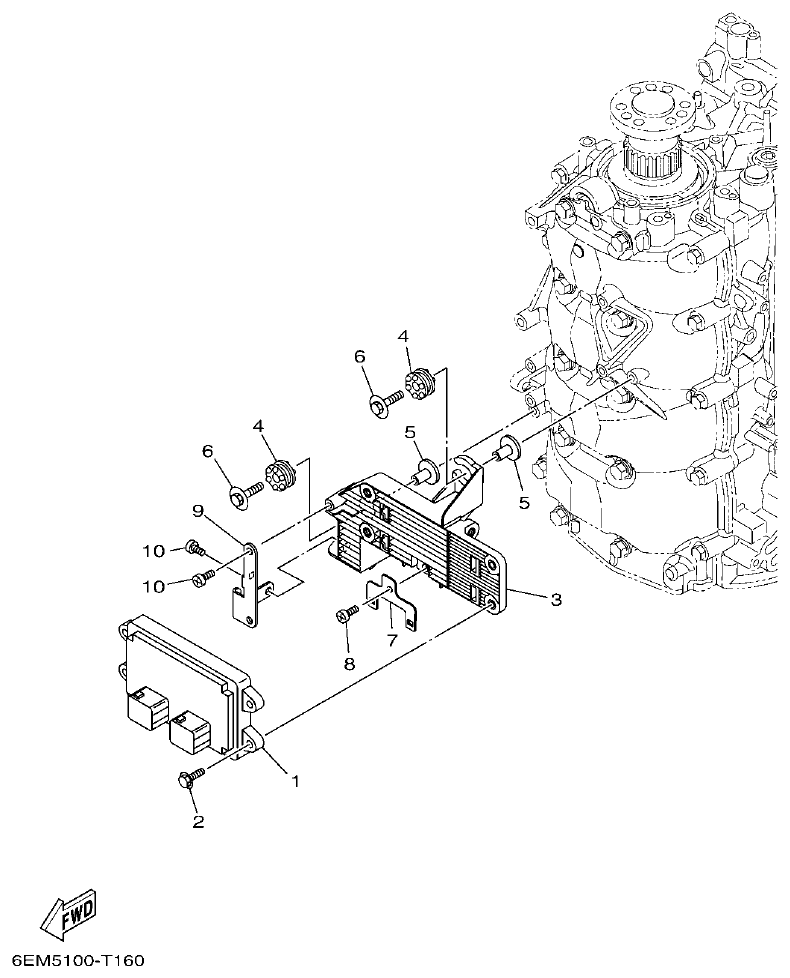

Yamaha F130AET, FL130AET ELECTRICAL 1 parts diagram
Fig. 16 — ELECTRICAL 1
10 items

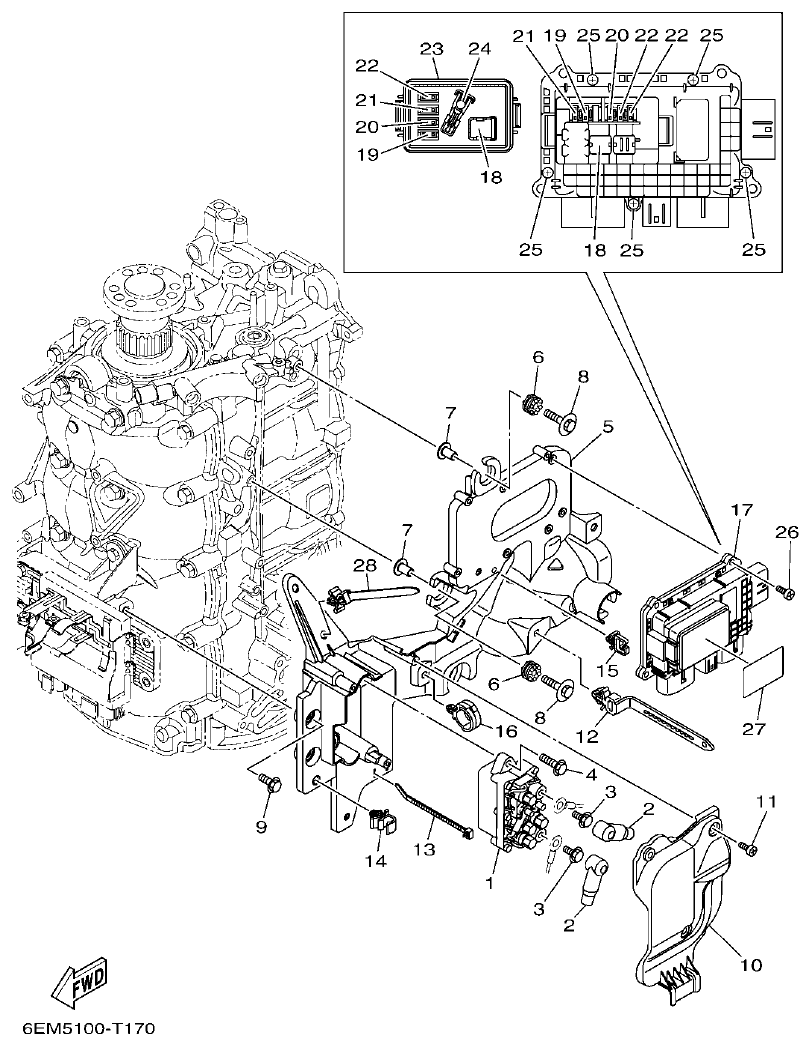

Yamaha F130AET, FL130AET ELECTRICAL 2 parts diagram
Fig. 17 — ELECTRICAL 2
28 items · 7 available products

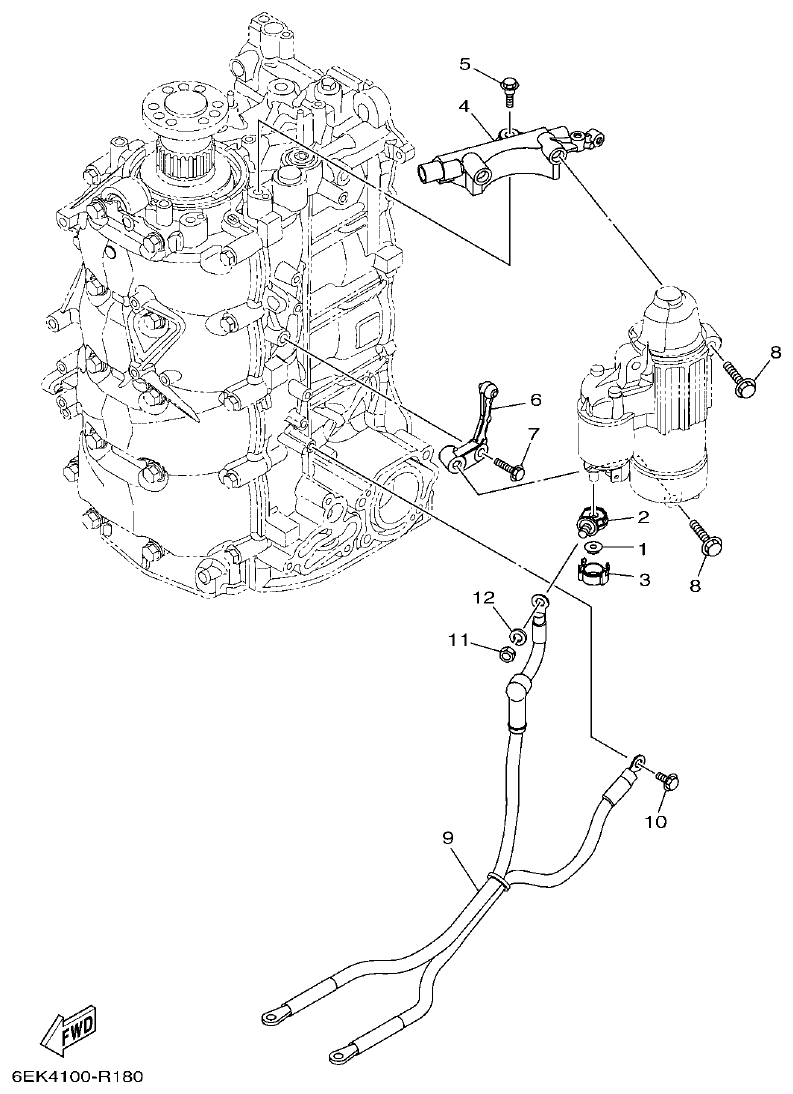

Yamaha F130AET, FL130AET ELECTRICAL 3 parts diagram
Fig. 18 — ELECTRICAL 3
12 items · 2 available products

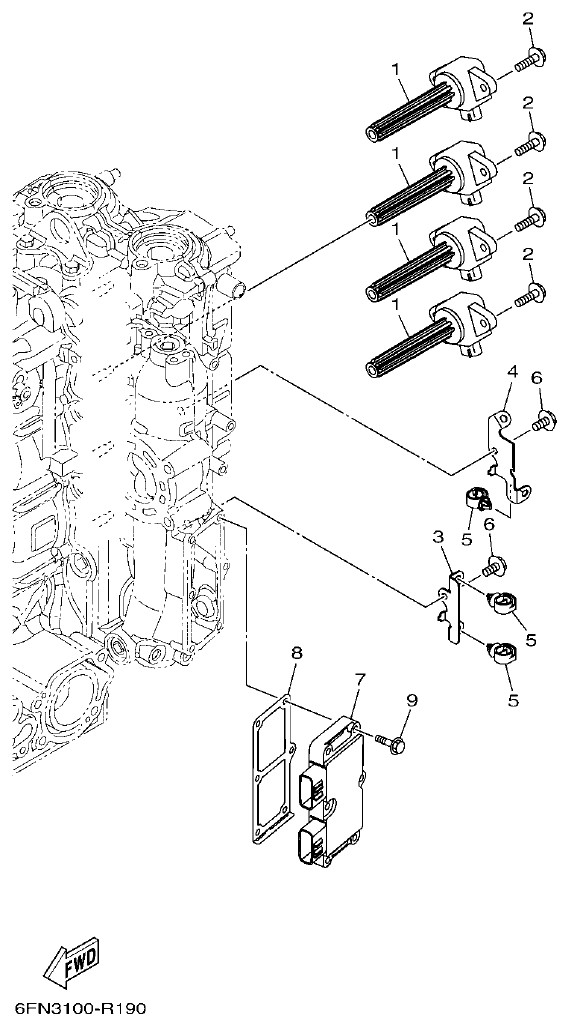

Yamaha F130AET, FL130AET ELECTRICAL 4 parts diagram
Fig. 19 — ELECTRICAL 4
9 items · 2 available products

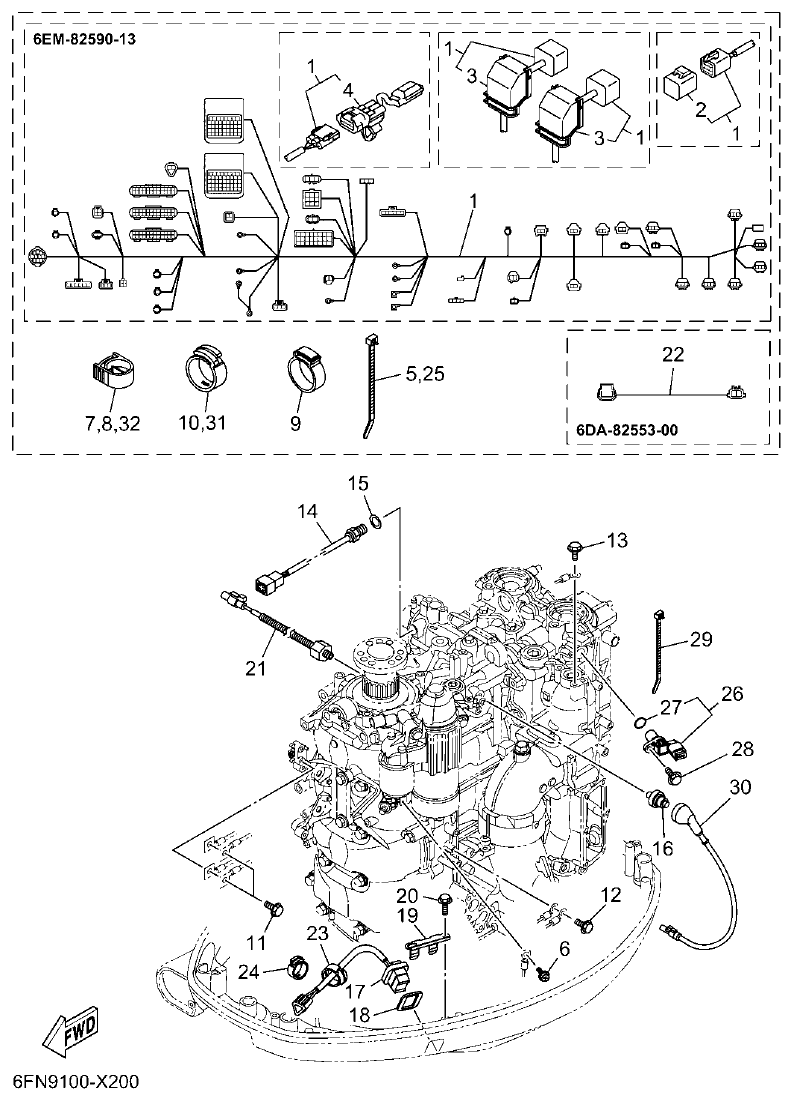

Yamaha F130AET, FL130AET ELECTRICAL 5 parts diagram
Fig. 20 — ELECTRICAL 5
32 items · 5 available products

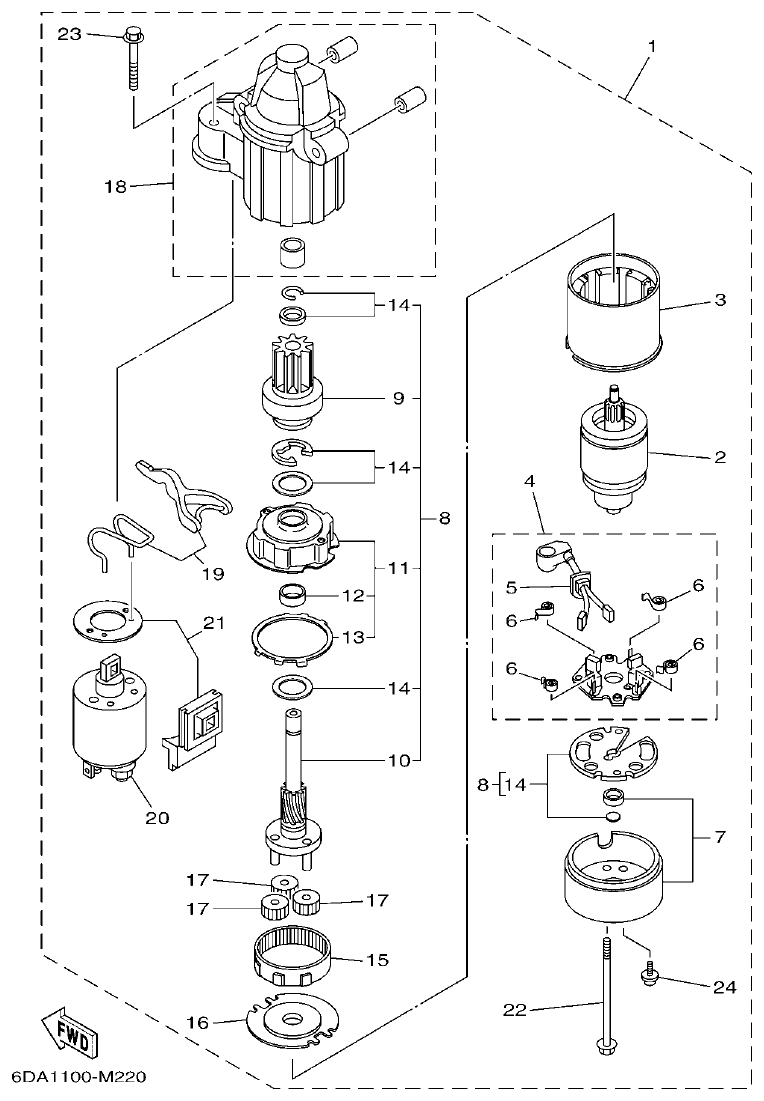

Yamaha F130AET, FL130AET STARTING MOTOR parts diagram
Fig. 21 — STARTING MOTOR
24 items · 5 available products

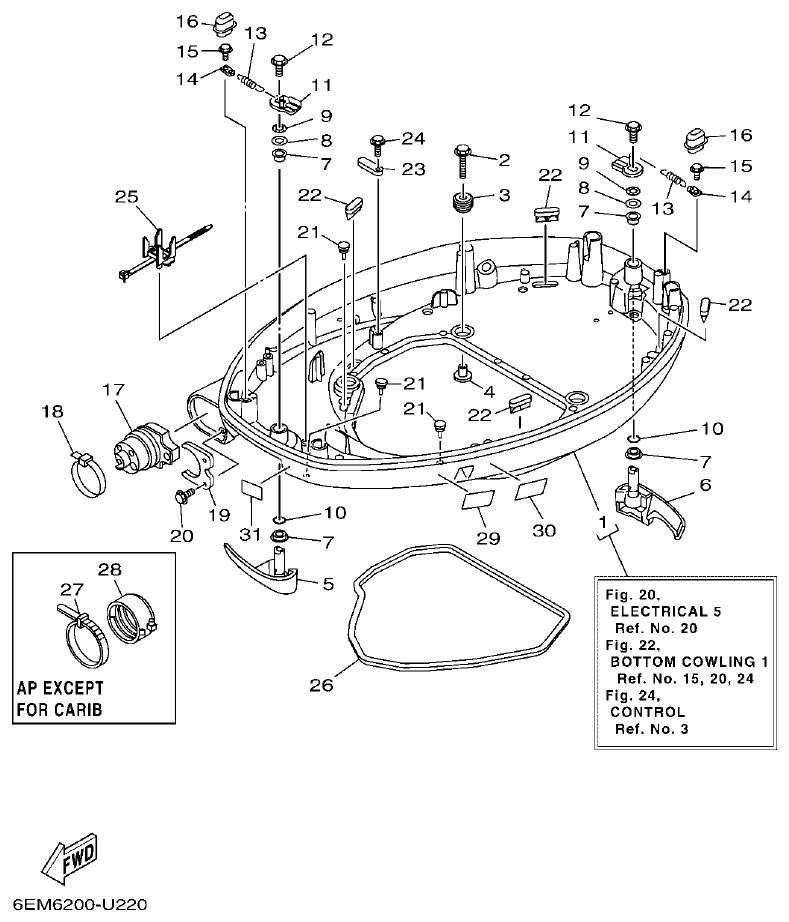

Yamaha F130AET, FL130AET BOTTOM COWLING 1 parts diagram
Fig. 22 — BOTTOM COWLING 1
31 items · 4 available products

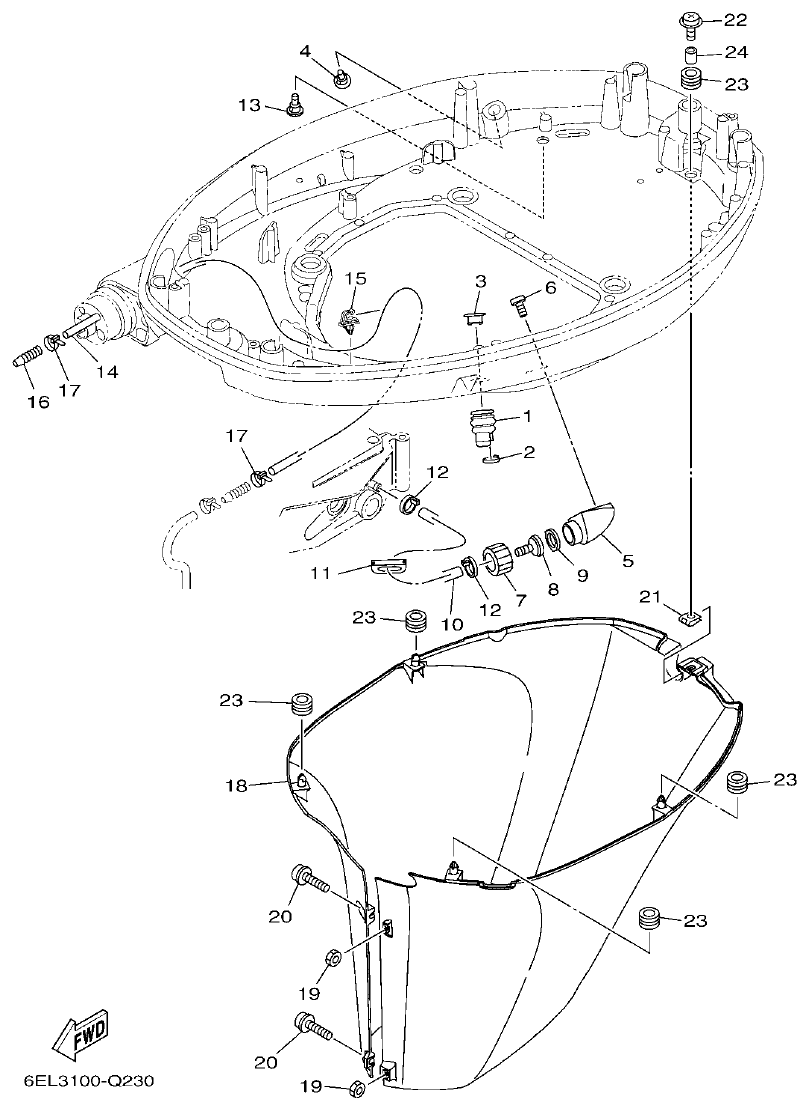

Yamaha F130AET, FL130AET BOTTOM COWLING 2 parts diagram
Fig. 23 — BOTTOM COWLING 2
24 items · 6 available products

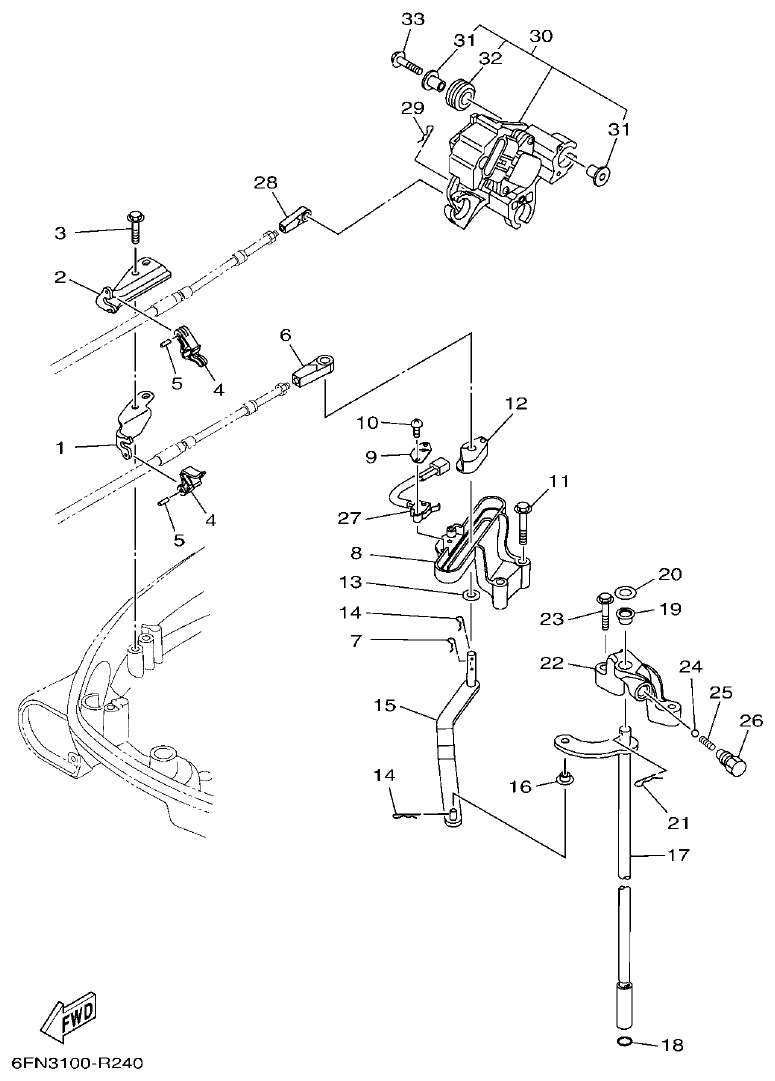

Yamaha F130AET, FL130AET CONTROL parts diagram
Fig. 24 — CONTROL
34 items · 5 available products

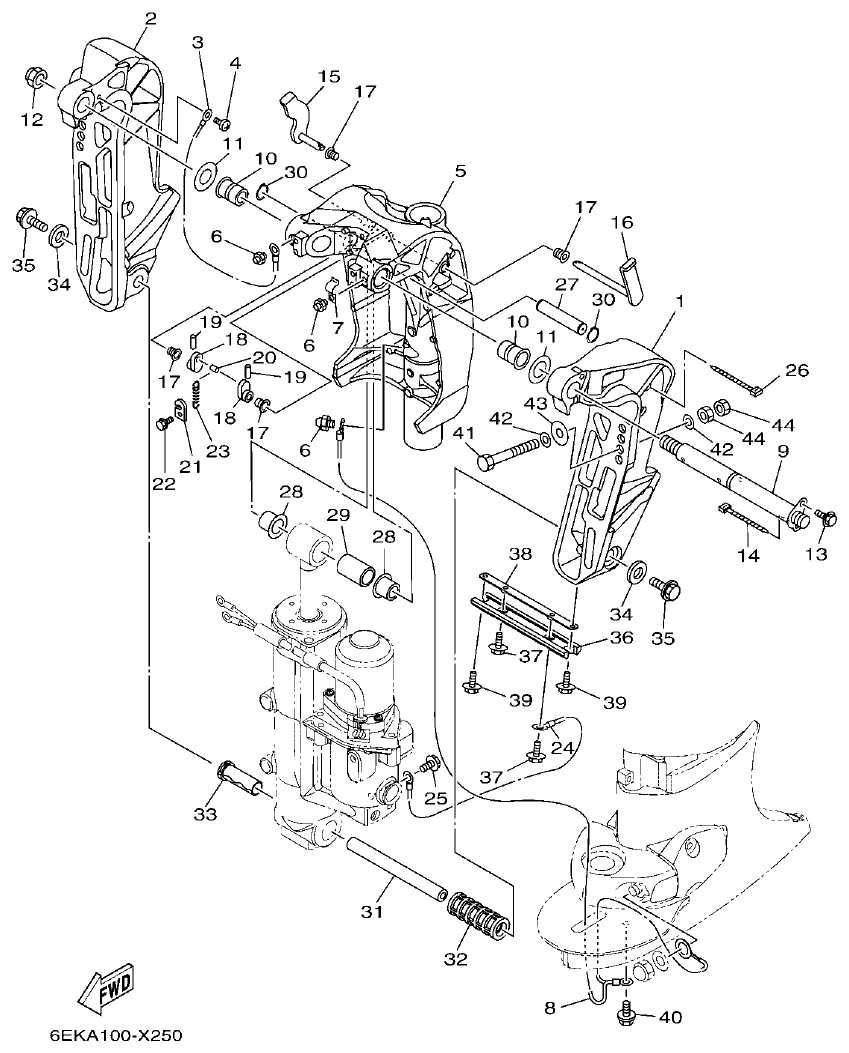

Yamaha F130AET, FL130AET BRACKET 1 parts diagram
Fig. 25 — BRACKET 1
48 items · 5 available products

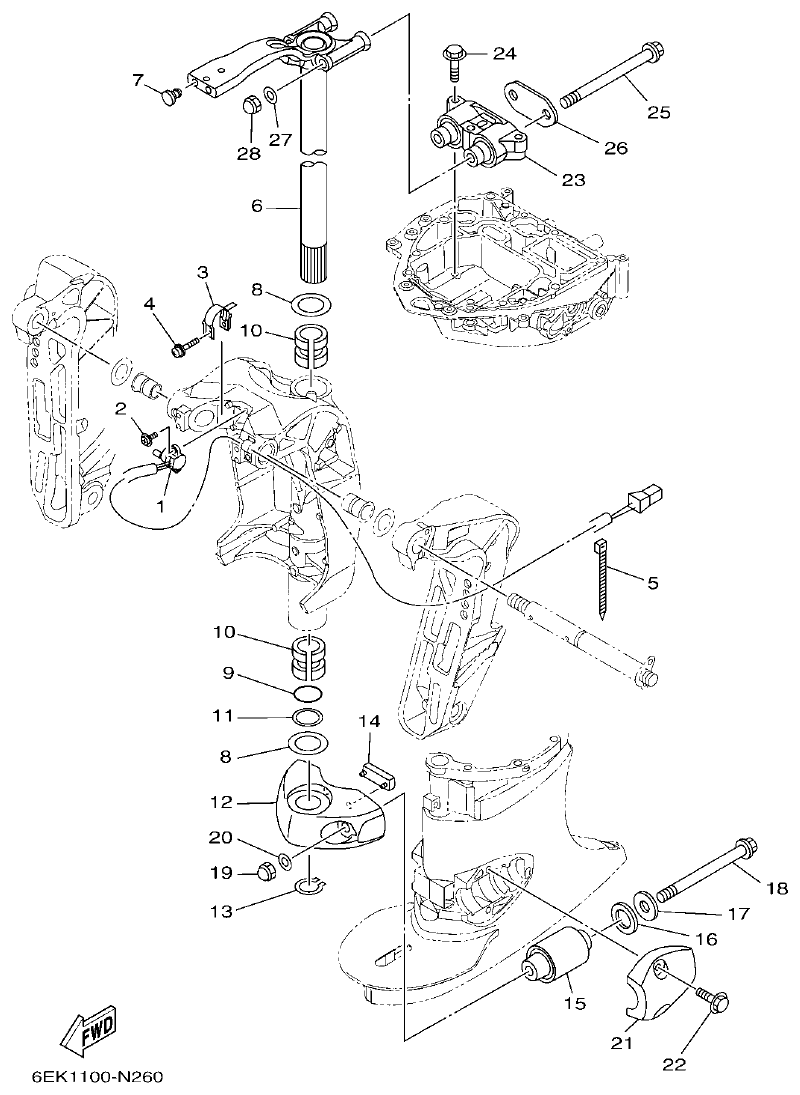

Yamaha F130AET, FL130AET BRACKET 2 parts diagram
Fig. 26 — BRACKET 2
29 items · 5 available products

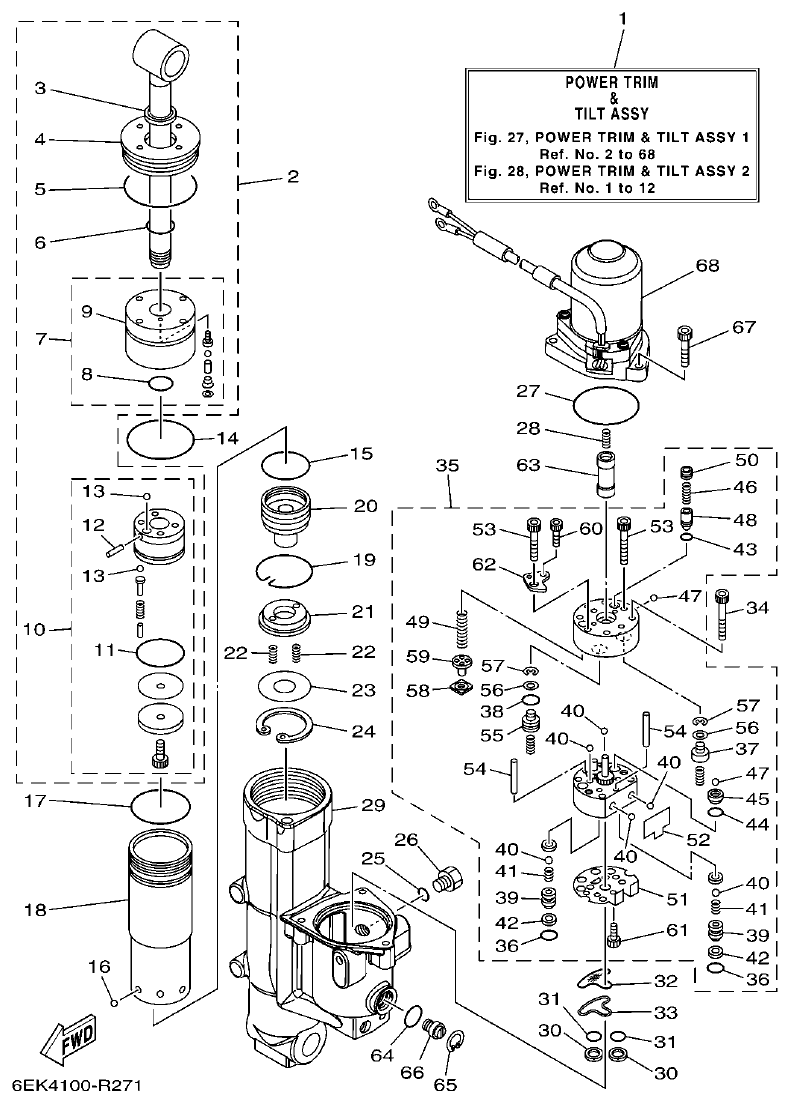

Yamaha F130AET, FL130AET POWER TRIM & TILT ASSY 1 parts diagram
Fig. 27 — POWER TRIM & TILT ASSY 1
68 items · 8 available products

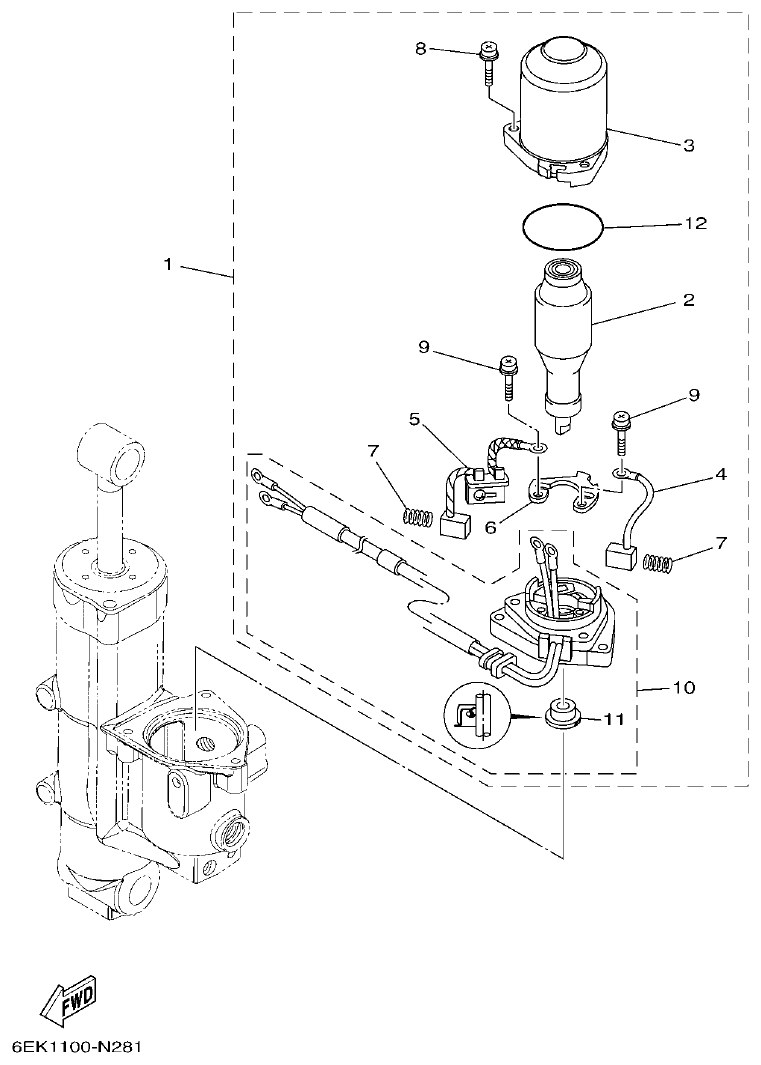

Yamaha F130AET, FL130AET POWER TRIM & TILT ASSY 2 parts diagram
Fig. 28 — POWER TRIM & TILT ASSY 2
12 items · 5 available products

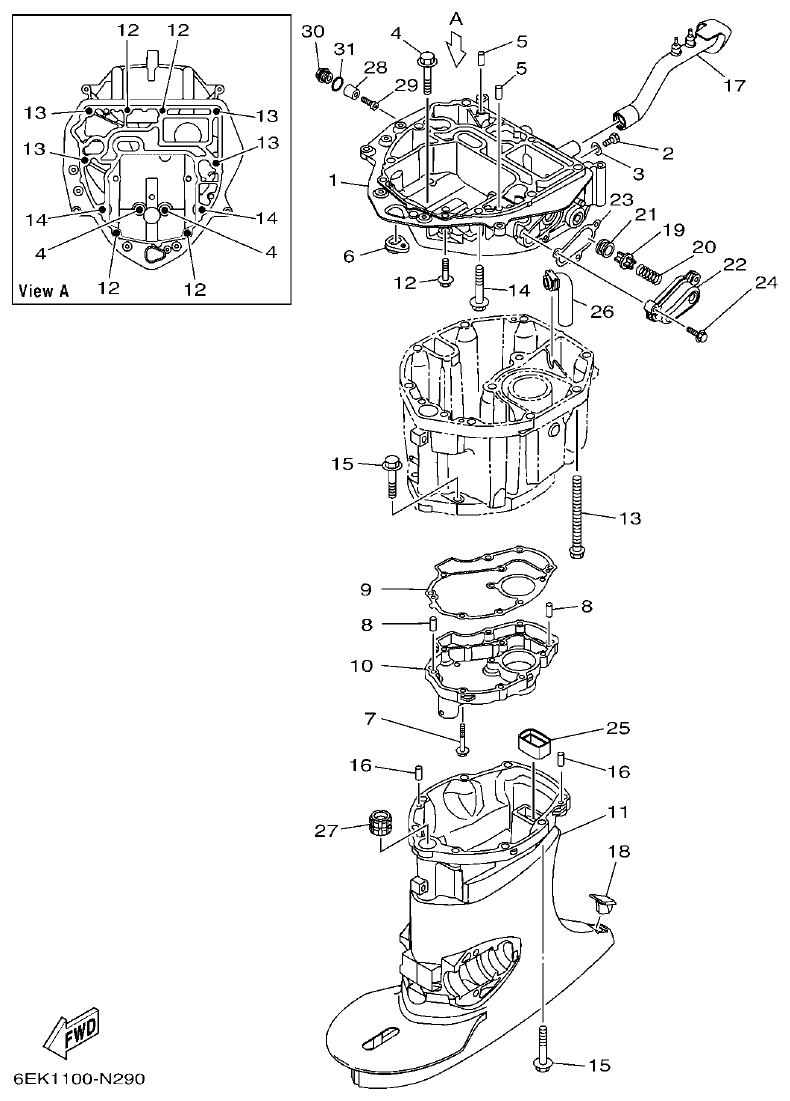

Yamaha F130AET, FL130AET UPPER CASING parts diagram
Fig. 29 — UPPER CASING
32 items · 3 available products

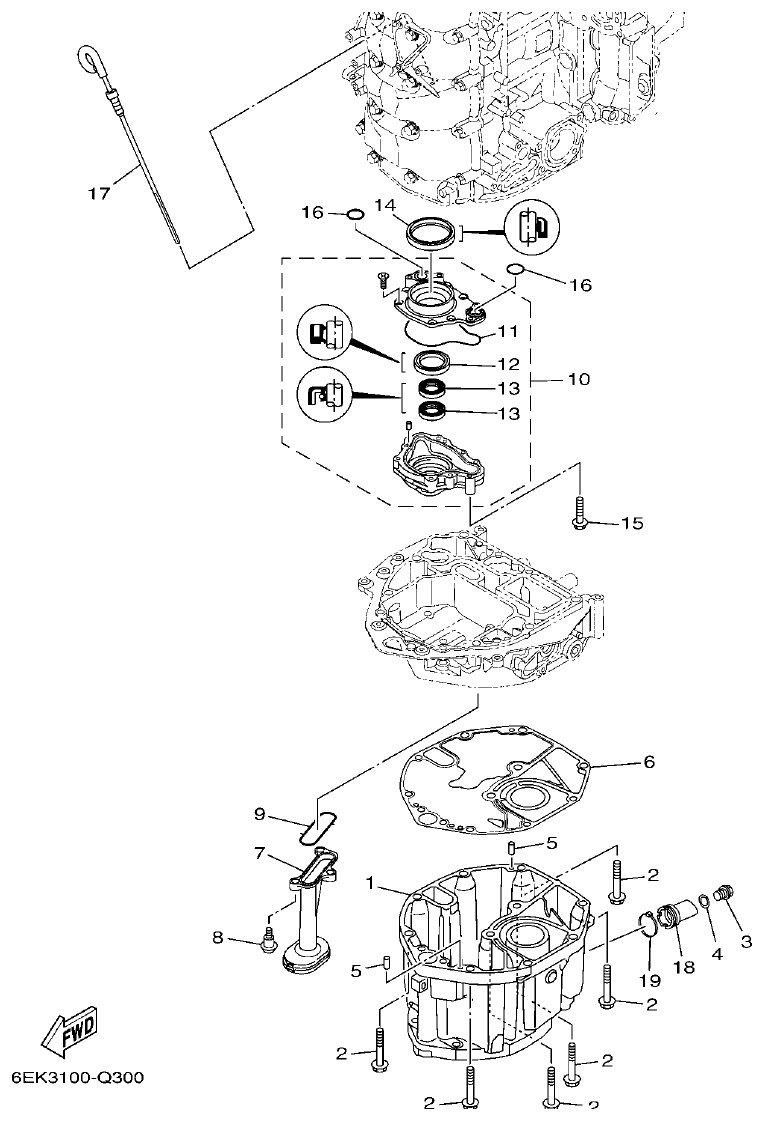

Yamaha F130AET, FL130AET OIL PAN parts diagram
Fig. 30 — OIL PAN
19 items · 6 available products

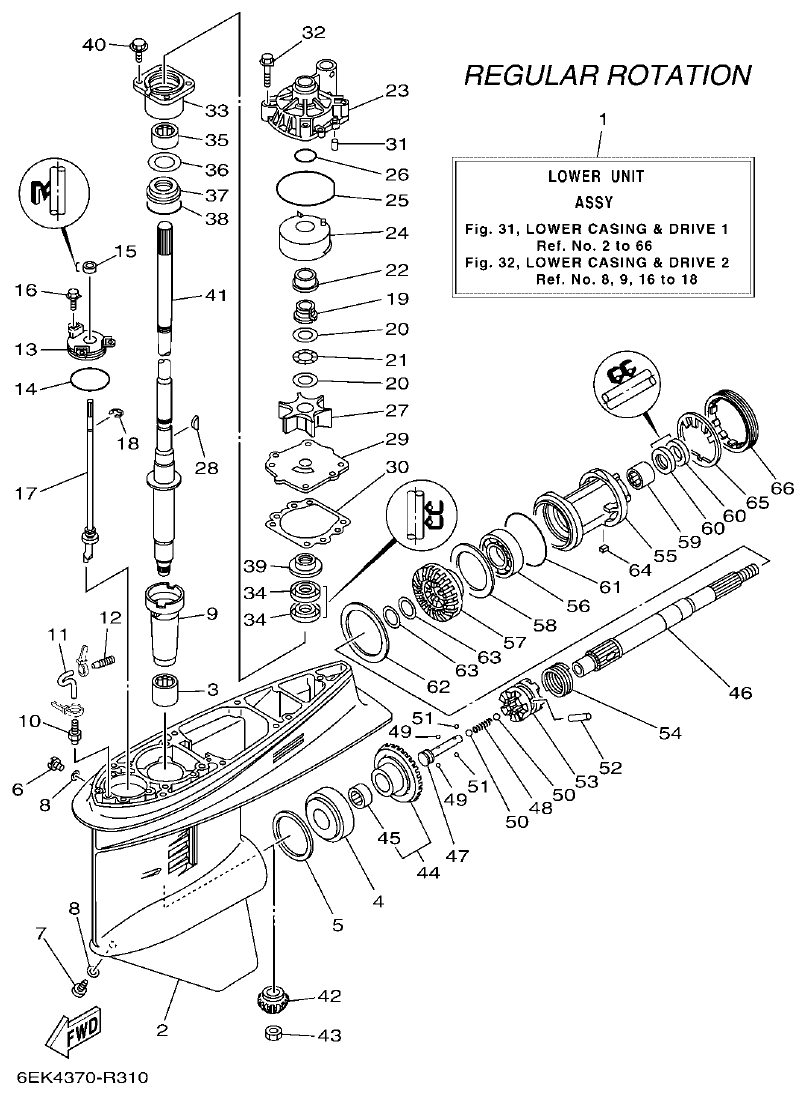

Yamaha F130AET, FL130AET LOWER CASING & DRIVE 1 parts diagram
Fig. 31 — LOWER CASING & DRIVE 1
87 items · 34 available products

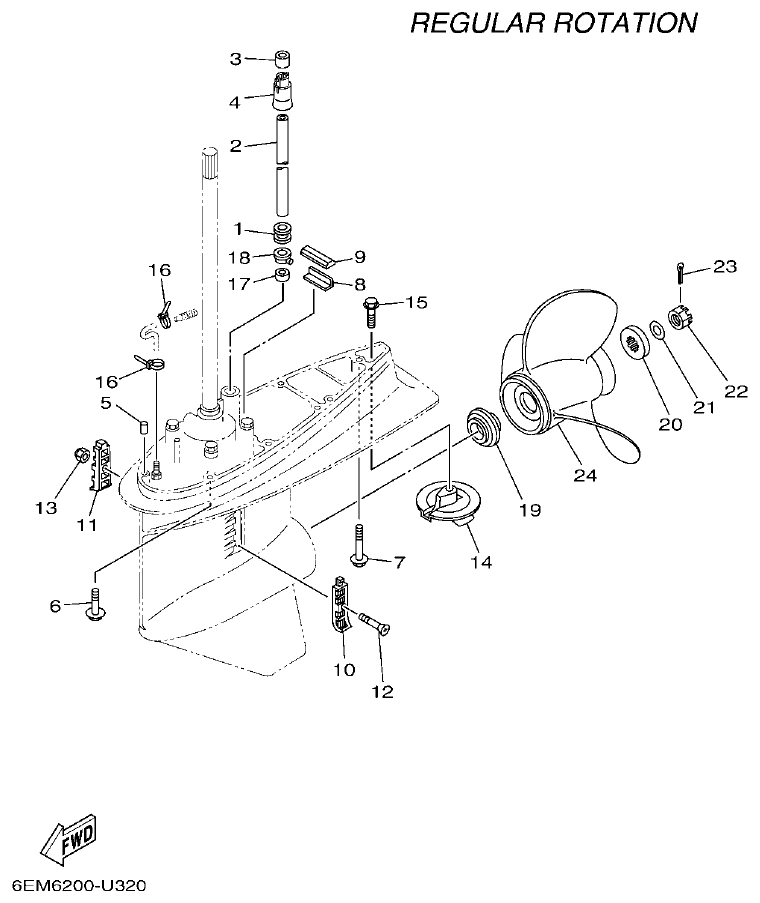

Yamaha F130AET, FL130AET LOWER CASING & DRIVE 2 parts diagram
Fig. 32 — LOWER CASING & DRIVE 2
25 items · 11 available products
Yamaha F130AET, FL130AET LOWER CASING & DRIVE 3 parts diagram
Fig. 33 — LOWER CASING & DRIVE 3
94 items · 39 available products

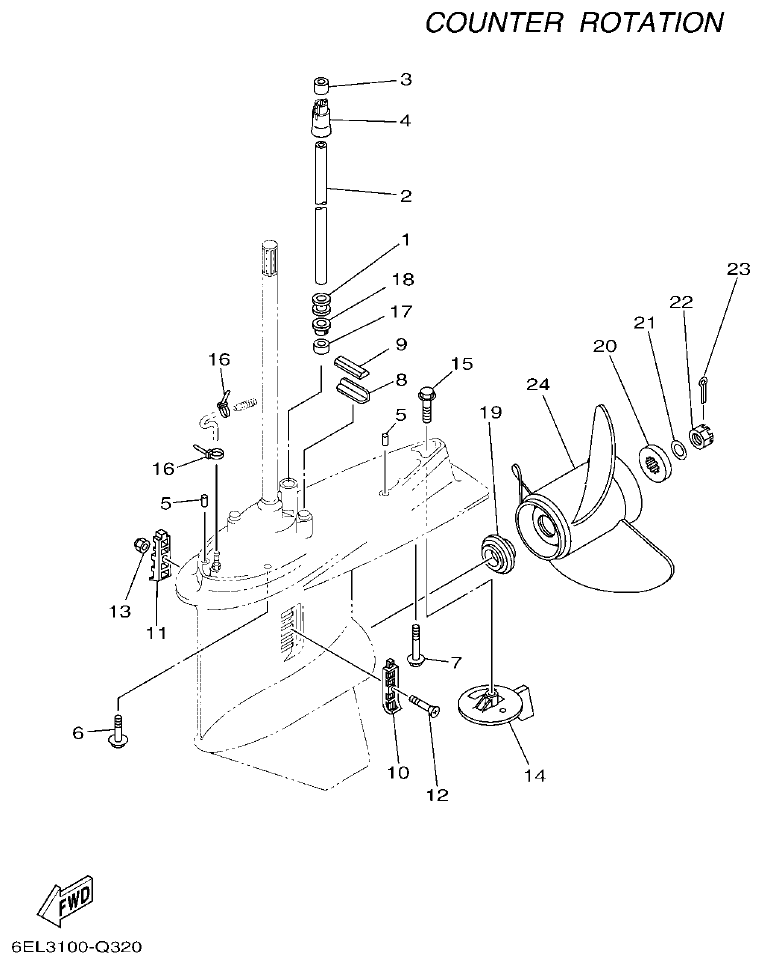

Yamaha F130AET, FL130AET LOWER CASING & DRIVE 4 parts diagram
Fig. 34 — LOWER CASING & DRIVE 4
24 items · 11 available products

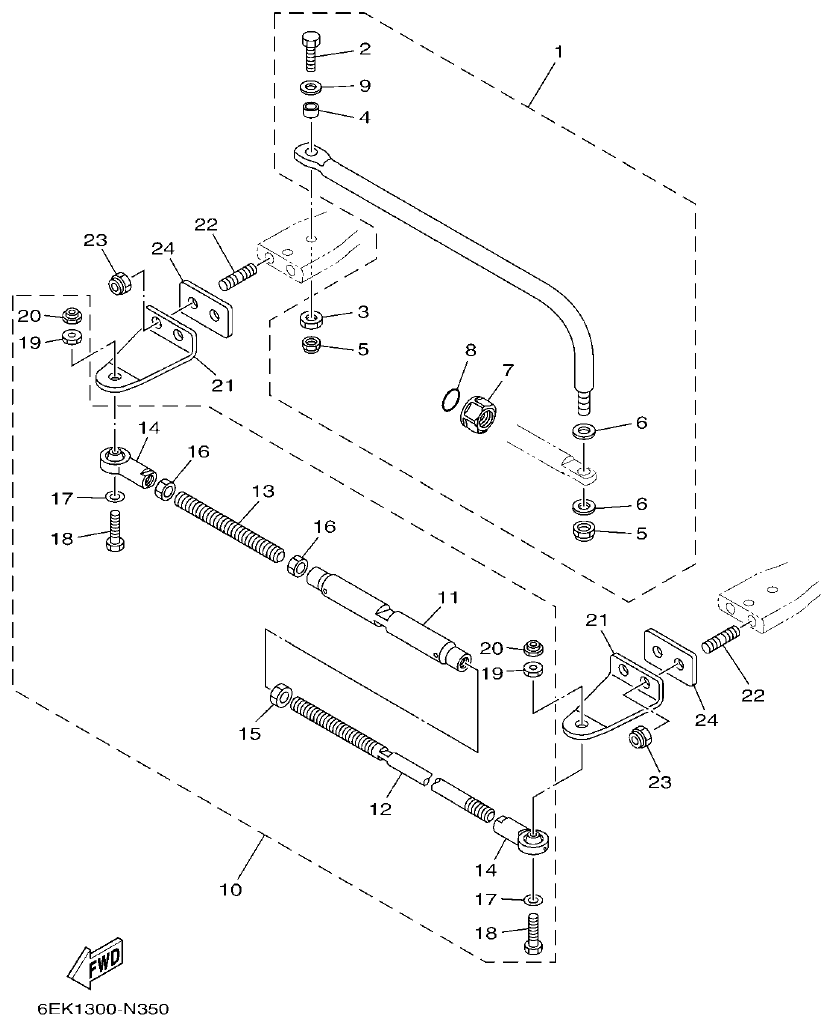

Yamaha F130AET, FL130AET STEERING GUIDE parts diagram
Fig. 35 — STEERING GUIDE
24 items · 3 available products

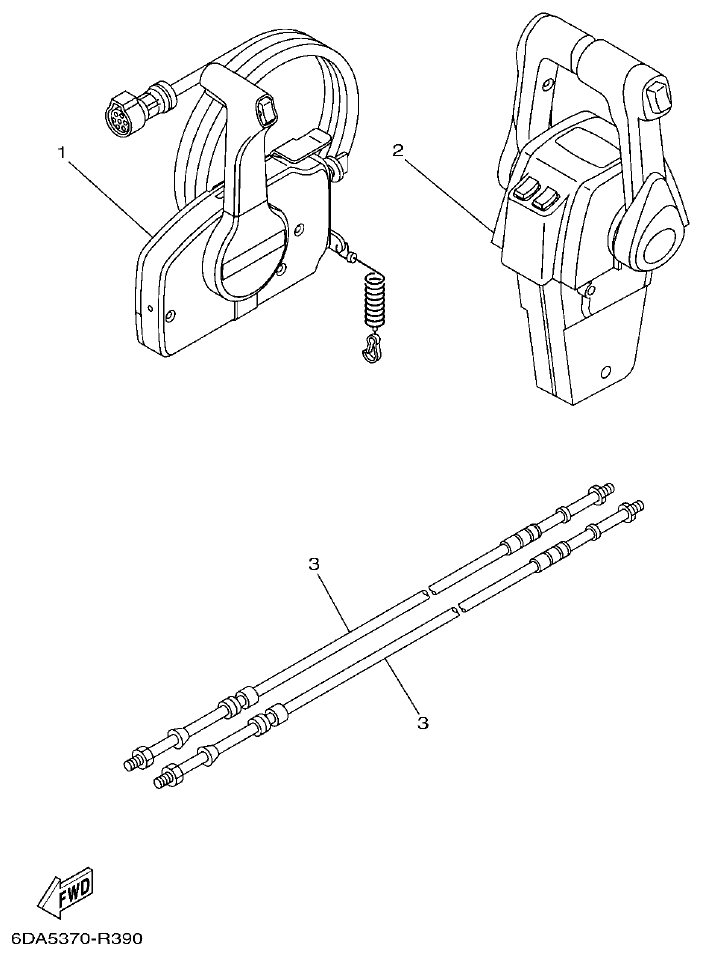

Yamaha F130AET, FL130AET REMOTE CONTROL BOX parts diagram
Fig. 36 — REMOTE CONTROL BOX
8 items · 2 available products

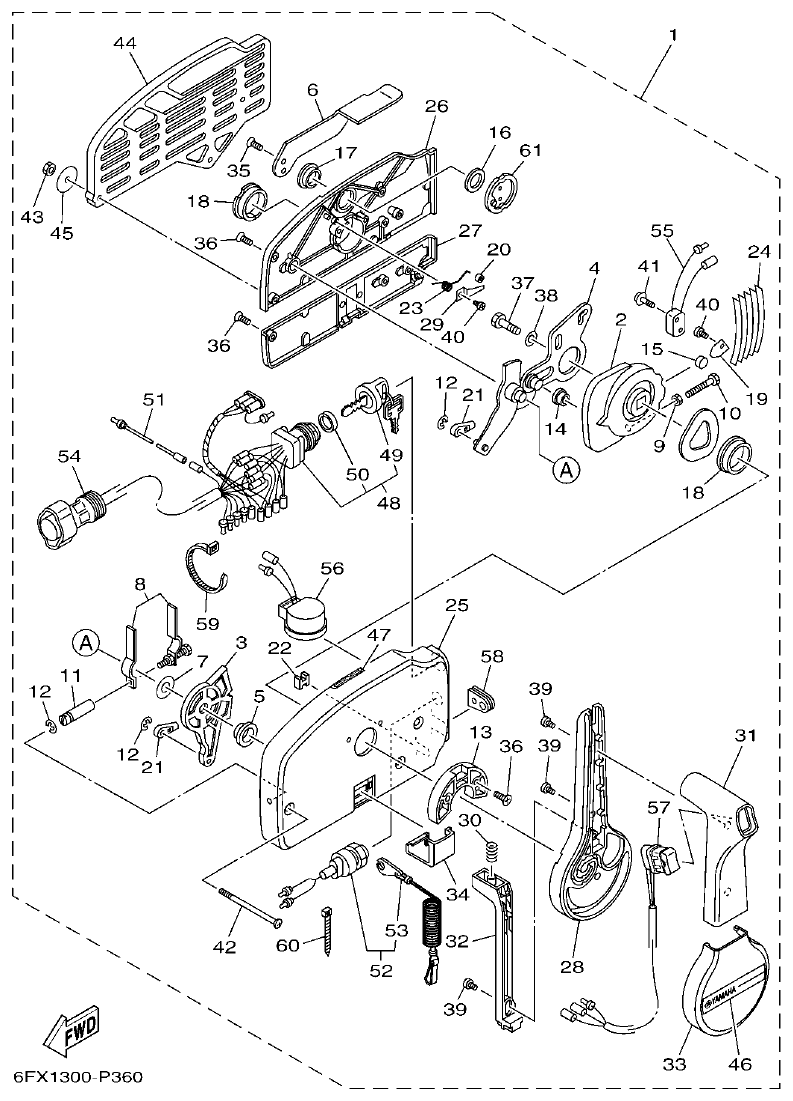

Yamaha F130AET, FL130AET REMOTE CONTROL ASSY 1 parts diagram
Fig. 37 — REMOTE CONTROL ASSY 1
61 items · 13 available products

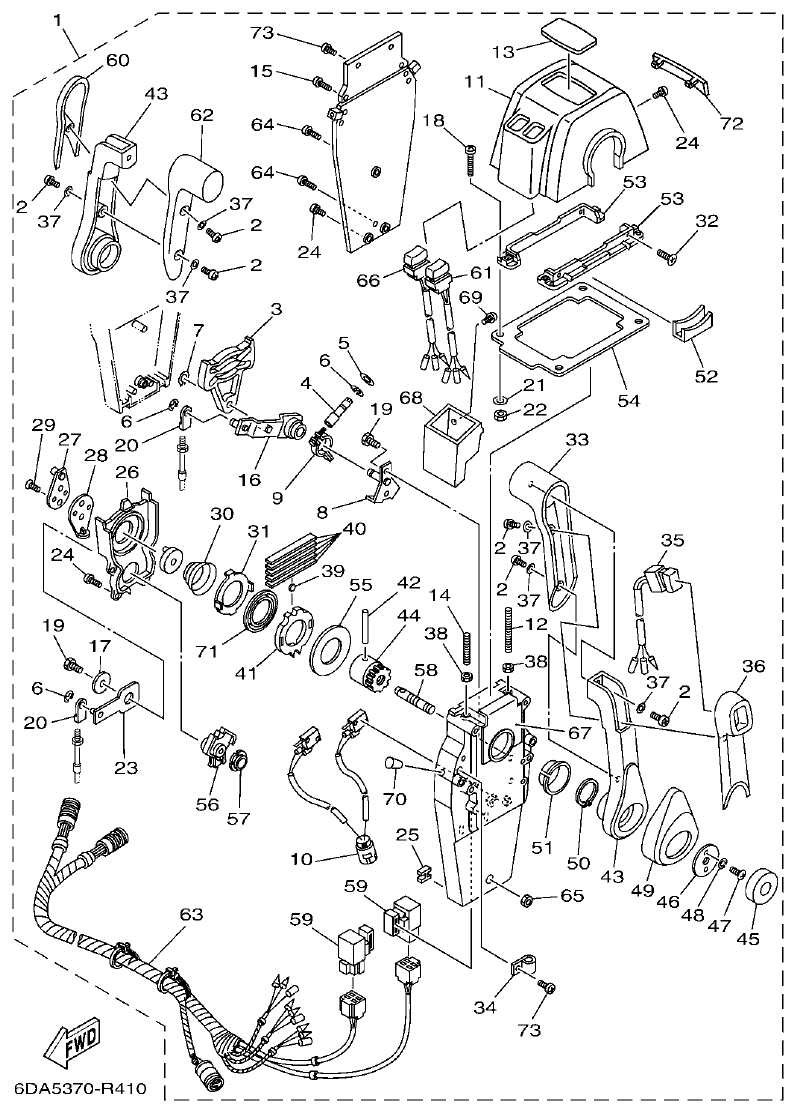

Yamaha F130AET, FL130AET REMOTE CONTROL ASSY 2 parts diagram
Fig. 38 — REMOTE CONTROL ASSY 2
73 items · 6 available products

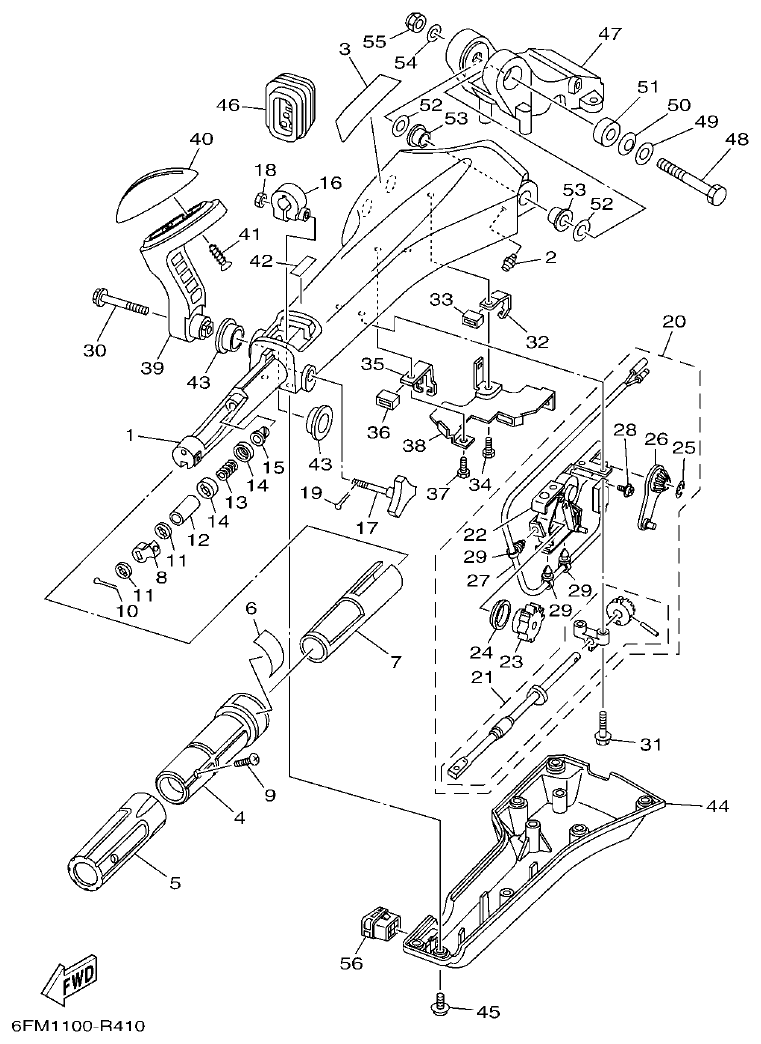

Yamaha F130AET, FL130AET OPTIONAL PARTS 1 parts diagram
Fig. 39 — OPTIONAL PARTS 1
56 items

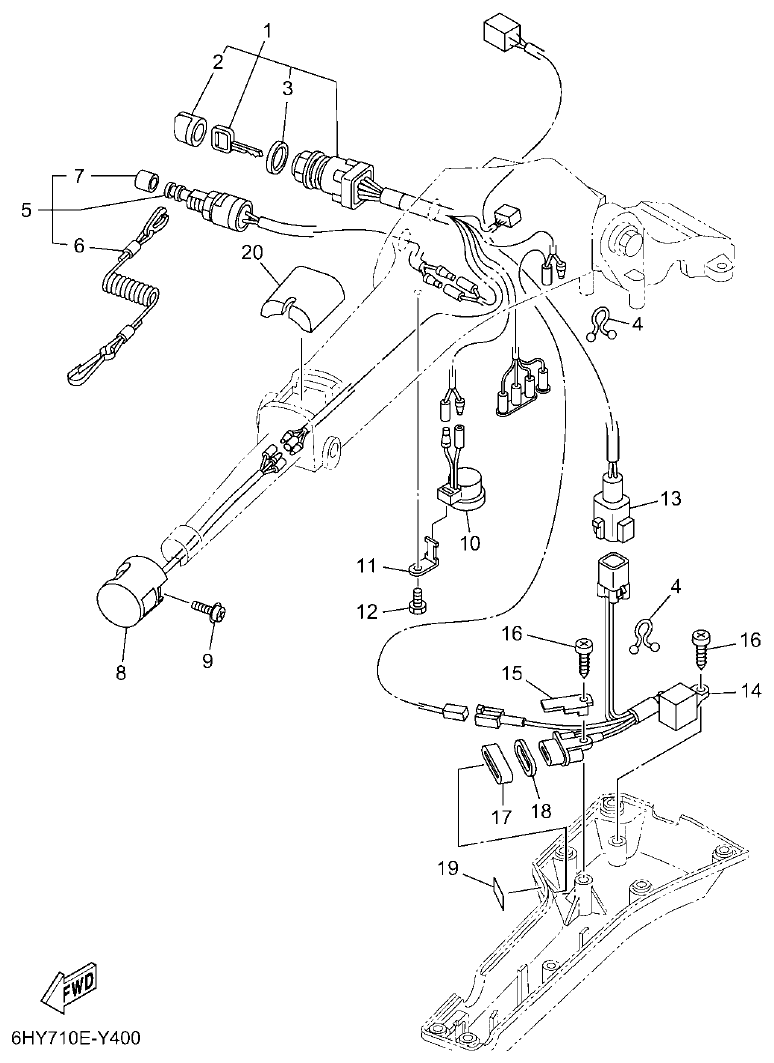

Yamaha F130AET, FL130AET OPTIONAL PARTS 2 parts diagram
Fig. 40 — OPTIONAL PARTS 2
20 items · 3 available products

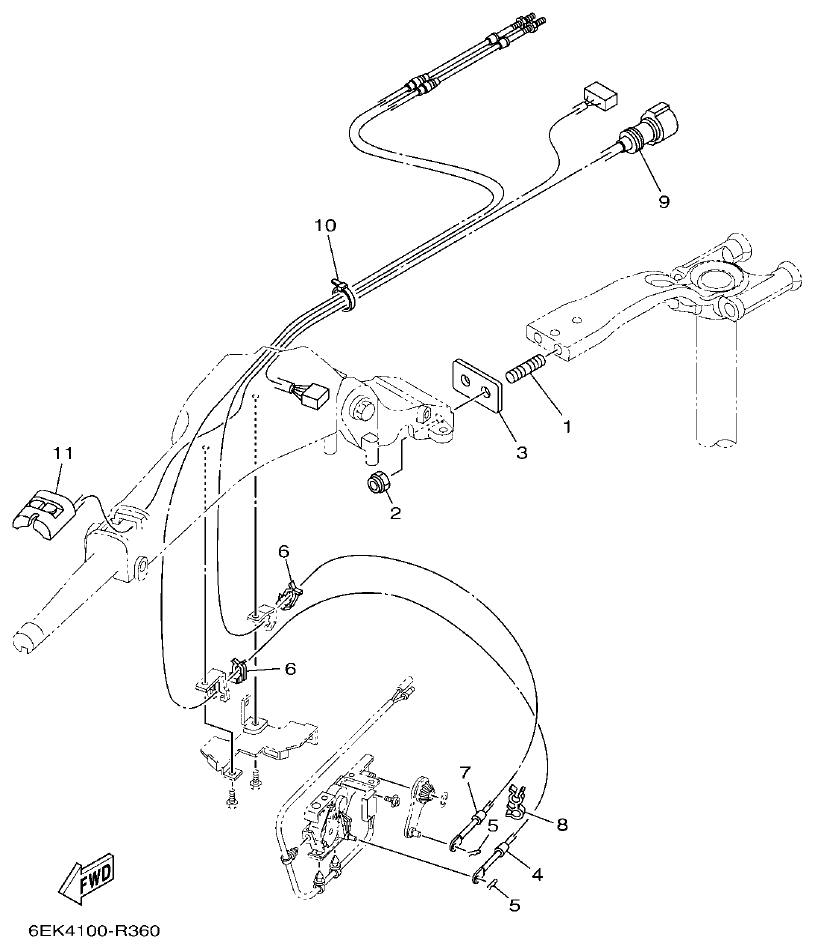

Yamaha F130AET, FL130AET OPTIONAL PARTS 3 parts diagram
Fig. 41 — OPTIONAL PARTS 3
11 items

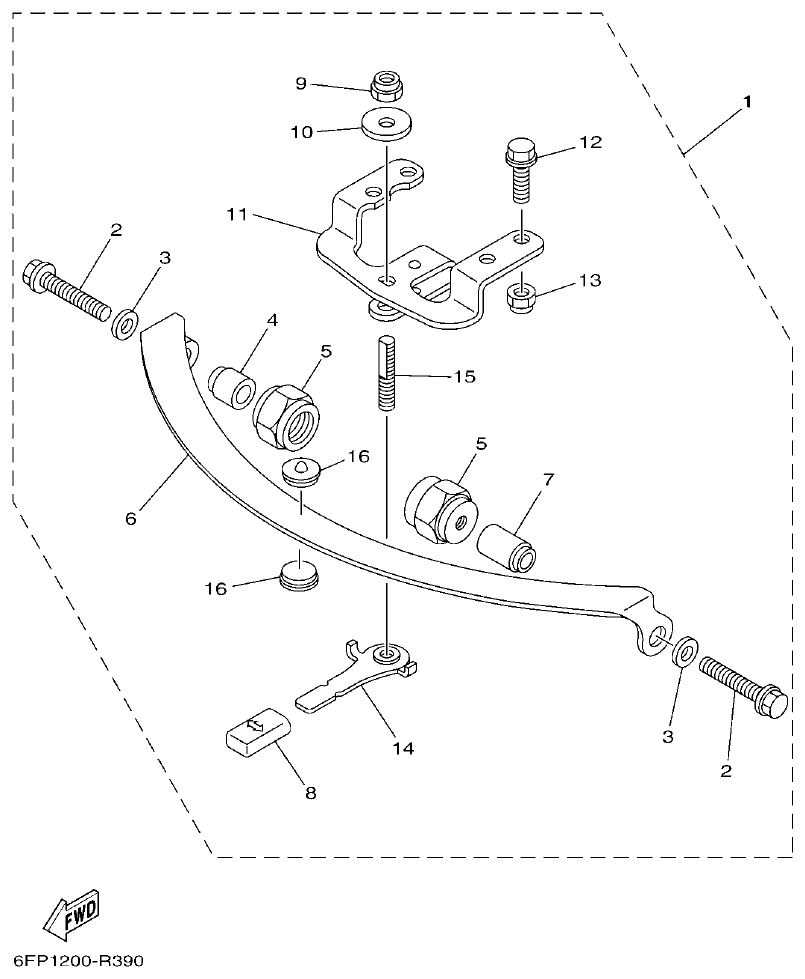

Yamaha F130AET, FL130AET OPTIONAL PARTS 4 parts diagram
Fig. 42 — OPTIONAL PARTS 4
16 items

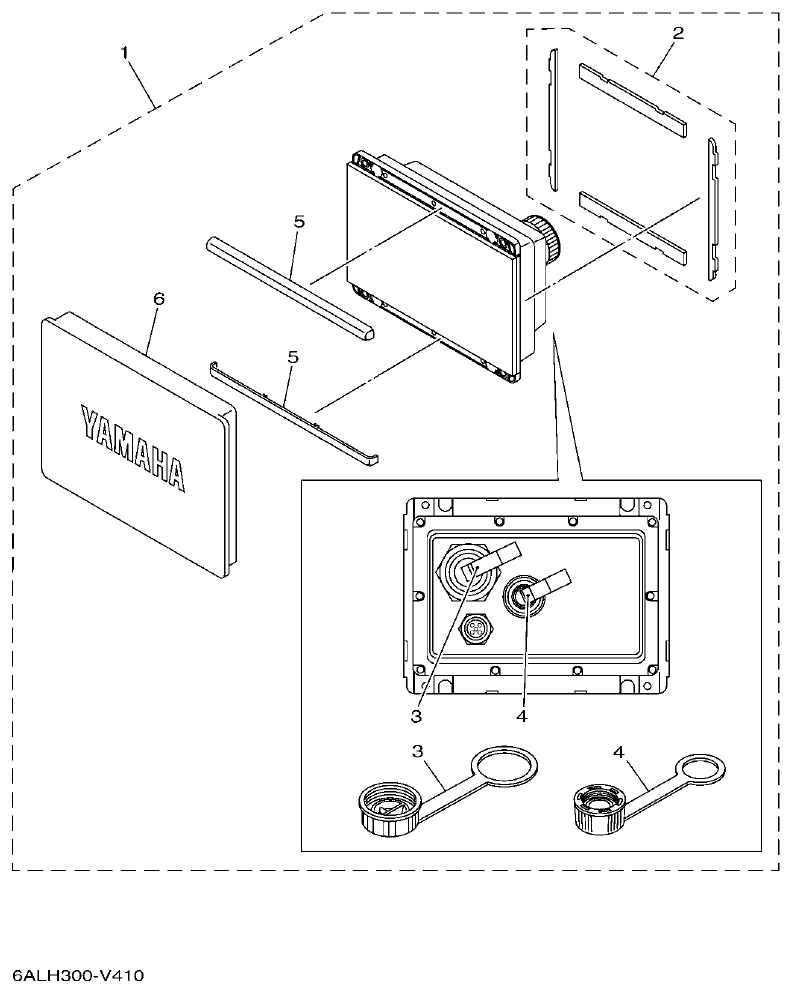

Yamaha F130AET, FL130AET OPTIONAL PARTS 5 parts diagram
Fig. 43 — OPTIONAL PARTS 5
6 items

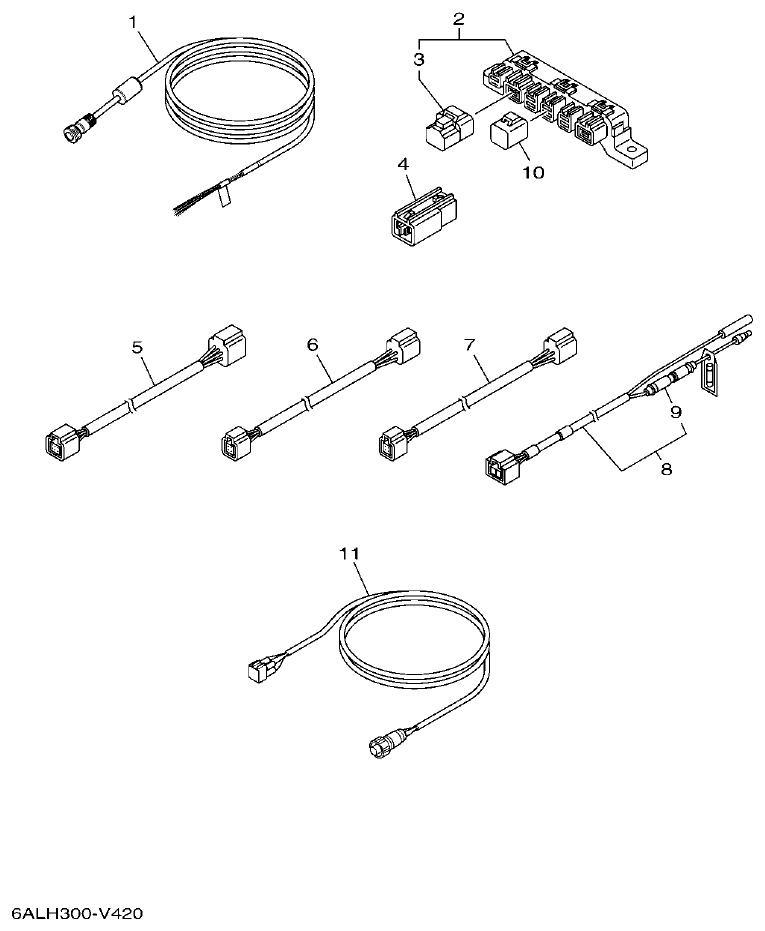

Yamaha F130AET, FL130AET OPTIONAL PARTS 6 parts diagram
Fig. 44 — OPTIONAL PARTS 6
11 items · 8 available products

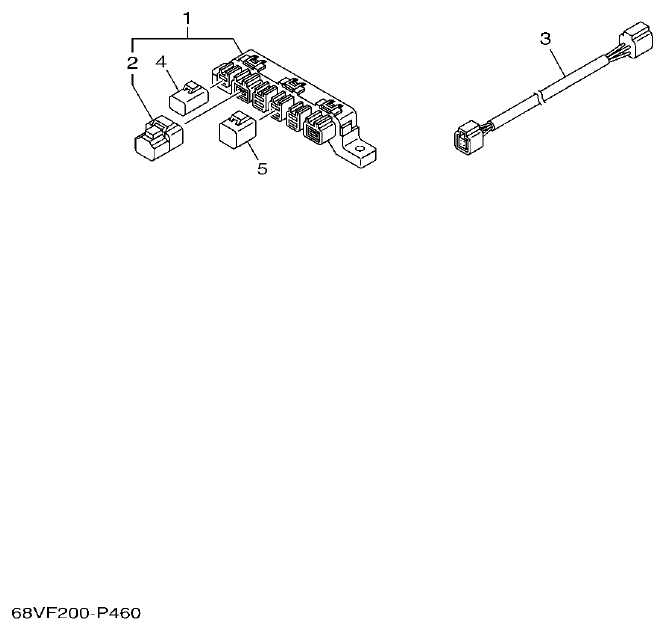

Yamaha F130AET, FL130AET OPTIONAL PARTS 7 parts diagram
Fig. 45 — OPTIONAL PARTS 7
5 items · 3 available products

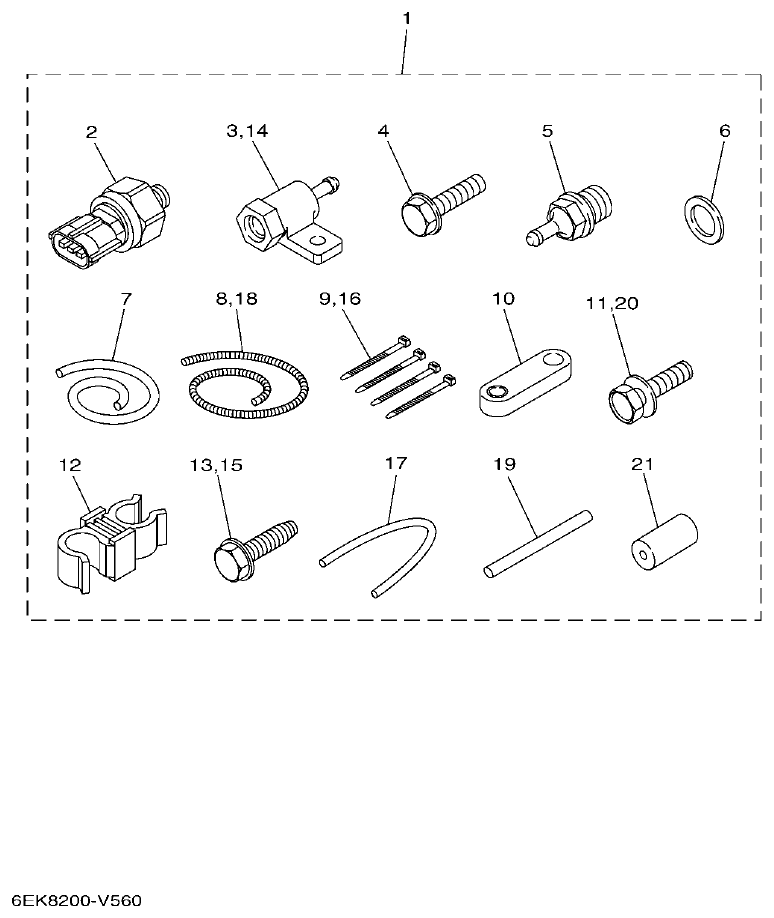

Yamaha F130AET, FL130AET OPTIONAL PARTS 8 parts diagram
Fig. 46 — OPTIONAL PARTS 8
21 items · 1 available products

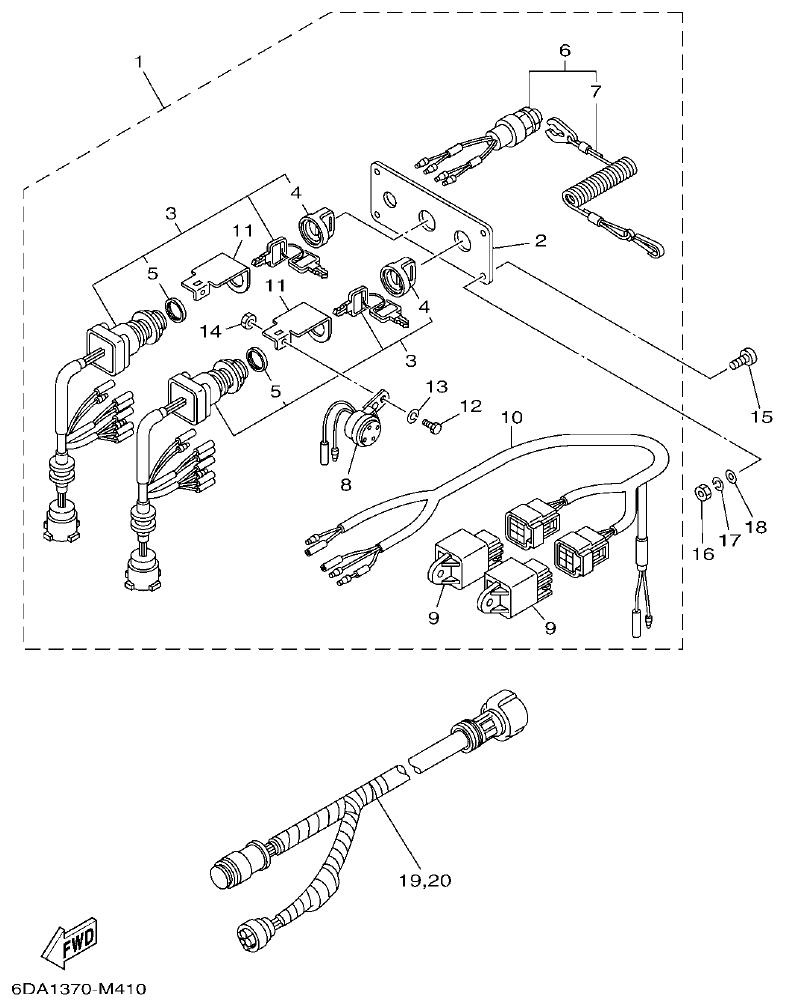

Yamaha F130AET, FL130AET OPTIONAL PARTS 9 parts diagram
Fig. 47 — OPTIONAL PARTS 9
20 items · 4 available products

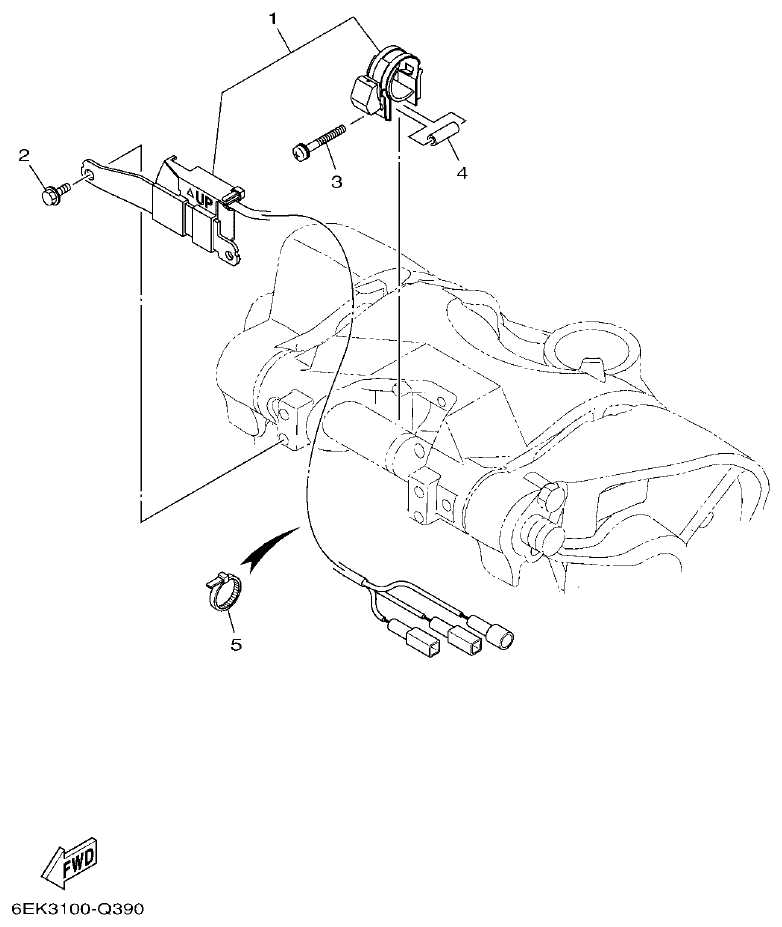

Yamaha F130AET, FL130AET OPTIONAL PARTS 10 parts diagram
Fig. 48 — OPTIONAL PARTS 10
5 items

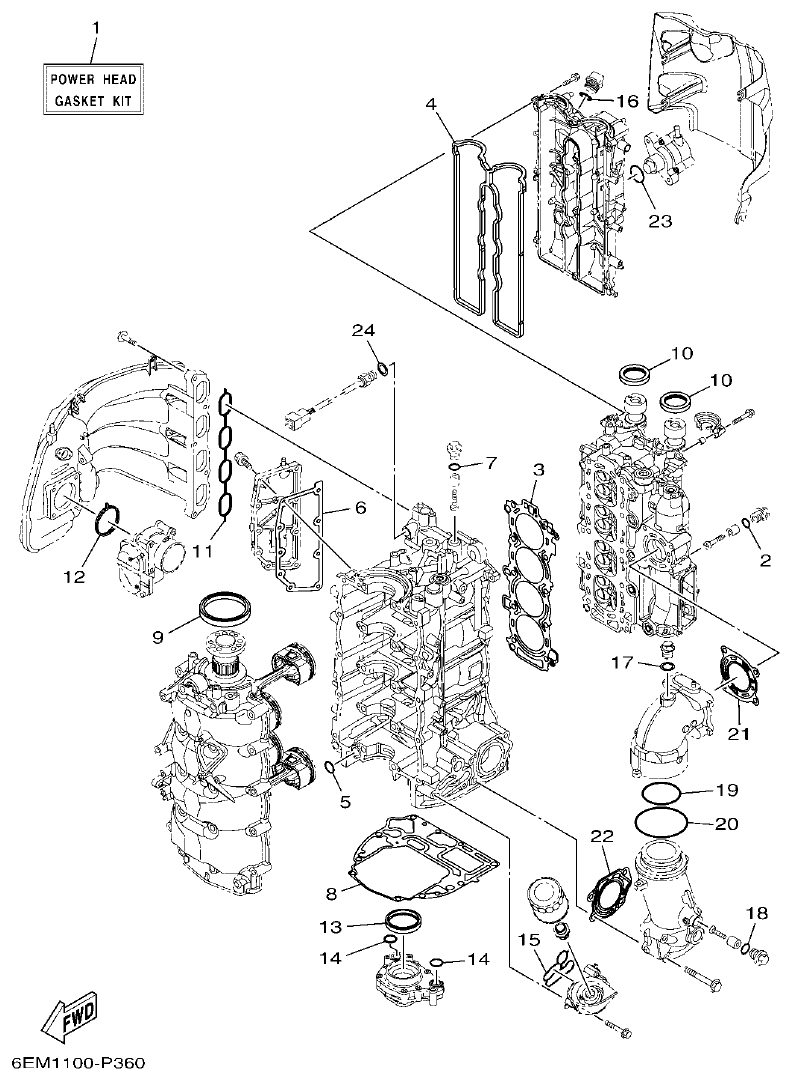

Yamaha F130AET, FL130AET REPAIR KIT 1 parts diagram
Fig. 49 — REPAIR KIT 1
24 items · 4 available products

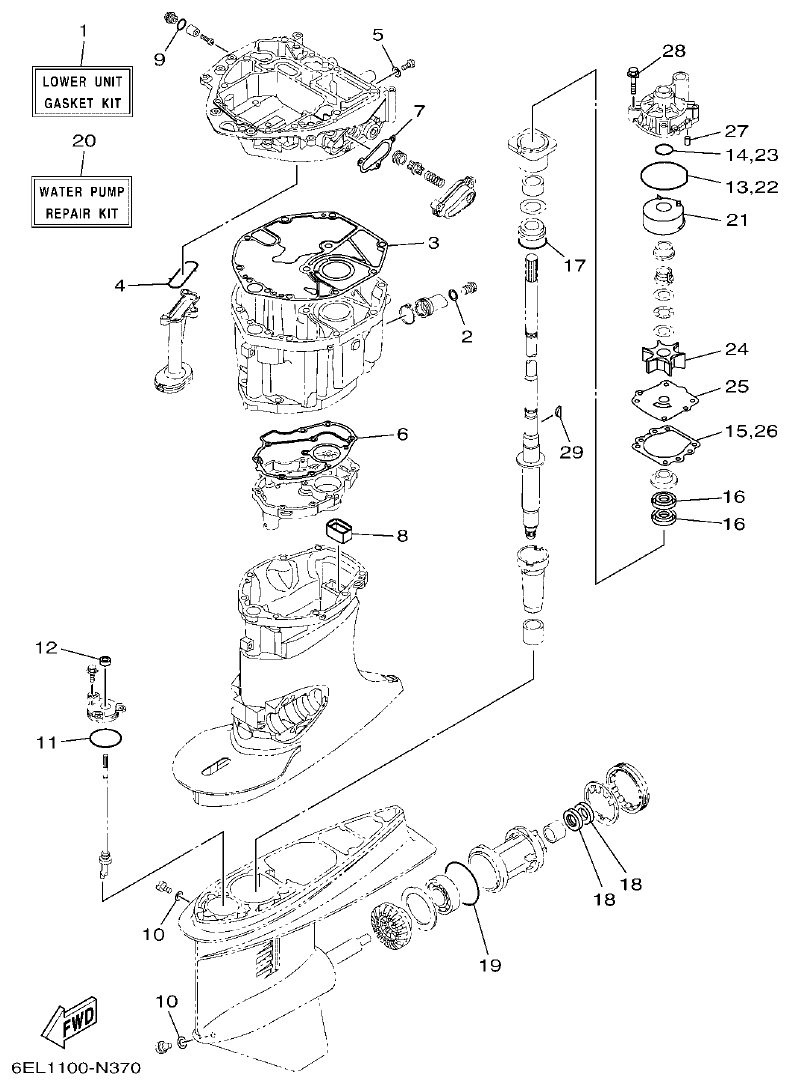

Yamaha F130AET, FL130AET REPAIR KIT 2 parts diagram
Fig. 50 — REPAIR KIT 2
29 items · 6 available products
