Yamaha F150AET, FL150AET, F150TR, LF150TR Parts Catalog

Yamaha F150AET, FL150AET, F150TR, LF150TR Outboard parts and diagrams

Yamaha F150AET, FL150AET, F150TR, LF150TR outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, STARTING MOTOR. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

261 linked store products are available across 40 catalog sections. 1501 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

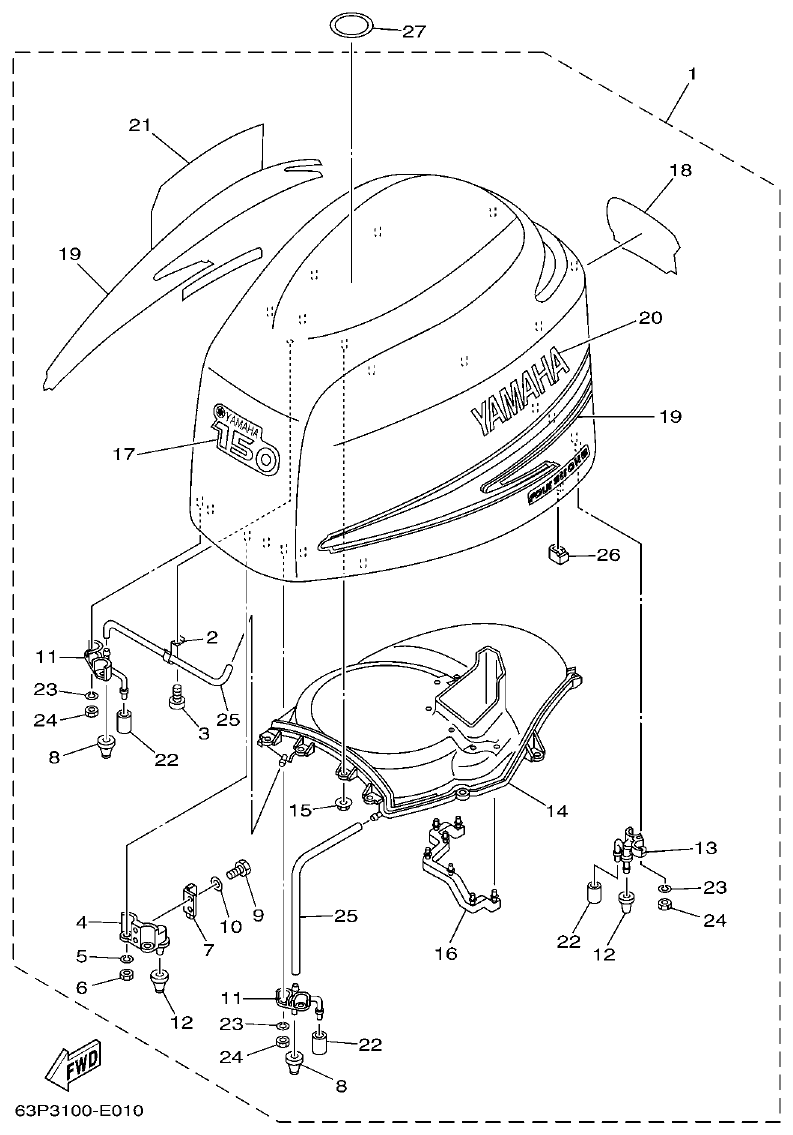

Yamaha F150AET, FL150AET, F150TR, LF150TR TOP COWLING parts diagram
Fig. 1 — TOP COWLING
27 items

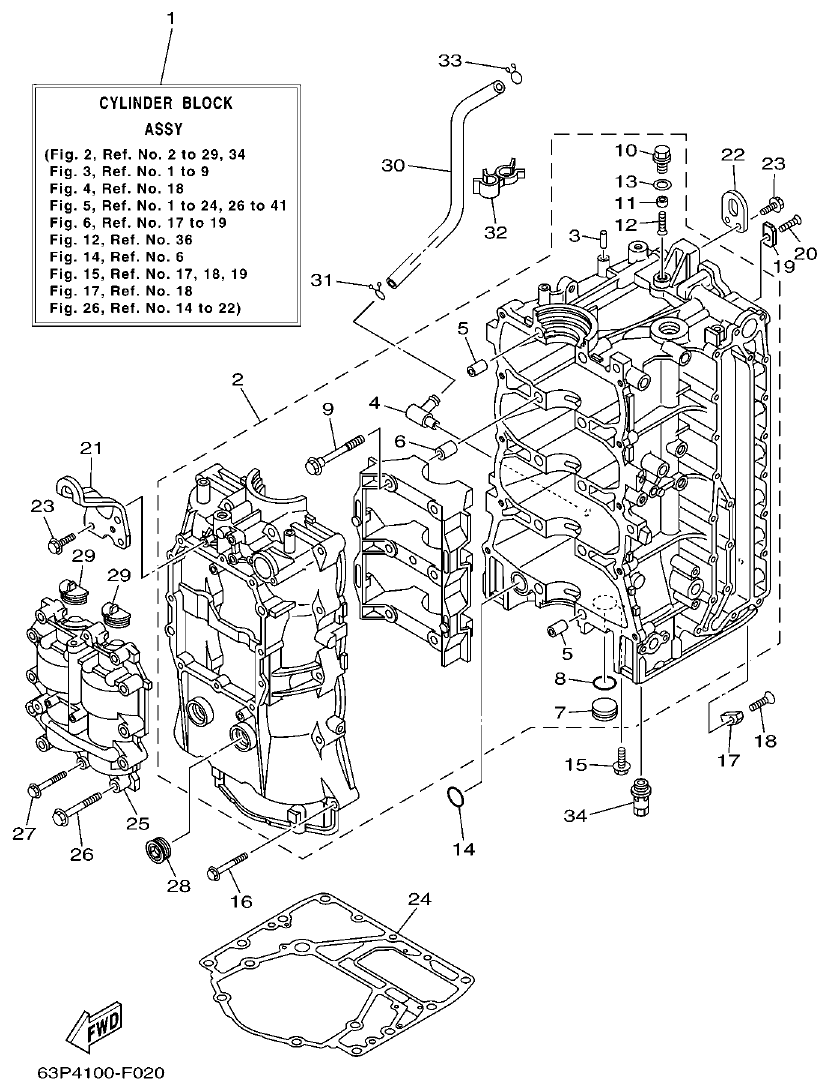

Yamaha F150AET, FL150AET, F150TR, LF150TR CYLINDER & CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER & CRANKCASE 1
34 items · 5 available products

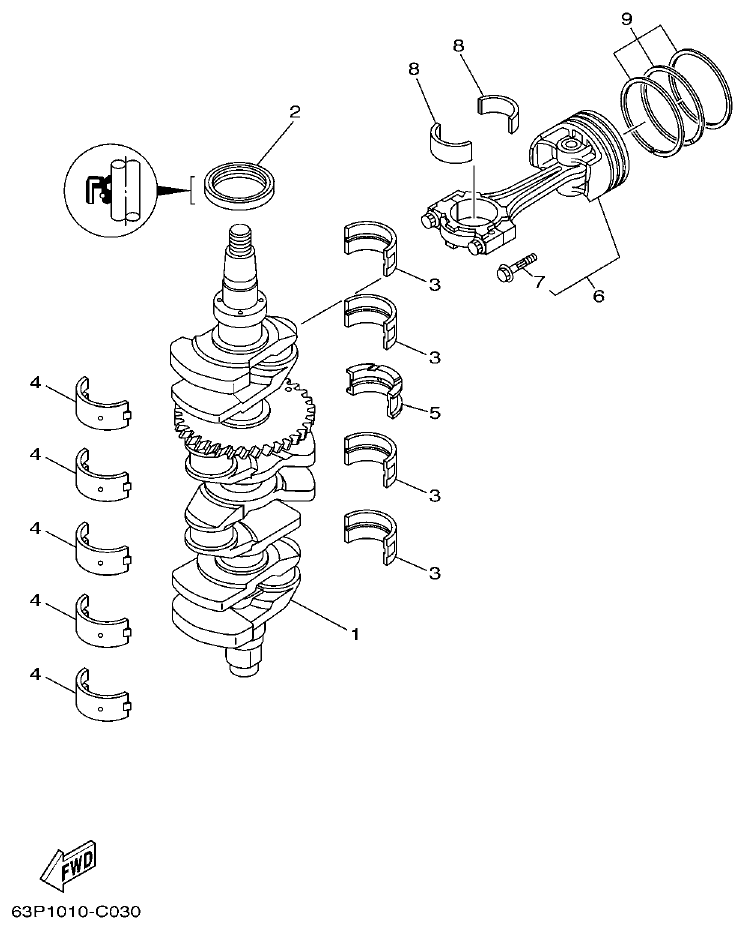

Yamaha F150AET, FL150AET, F150TR, LF150TR CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
20 items · 2 available products

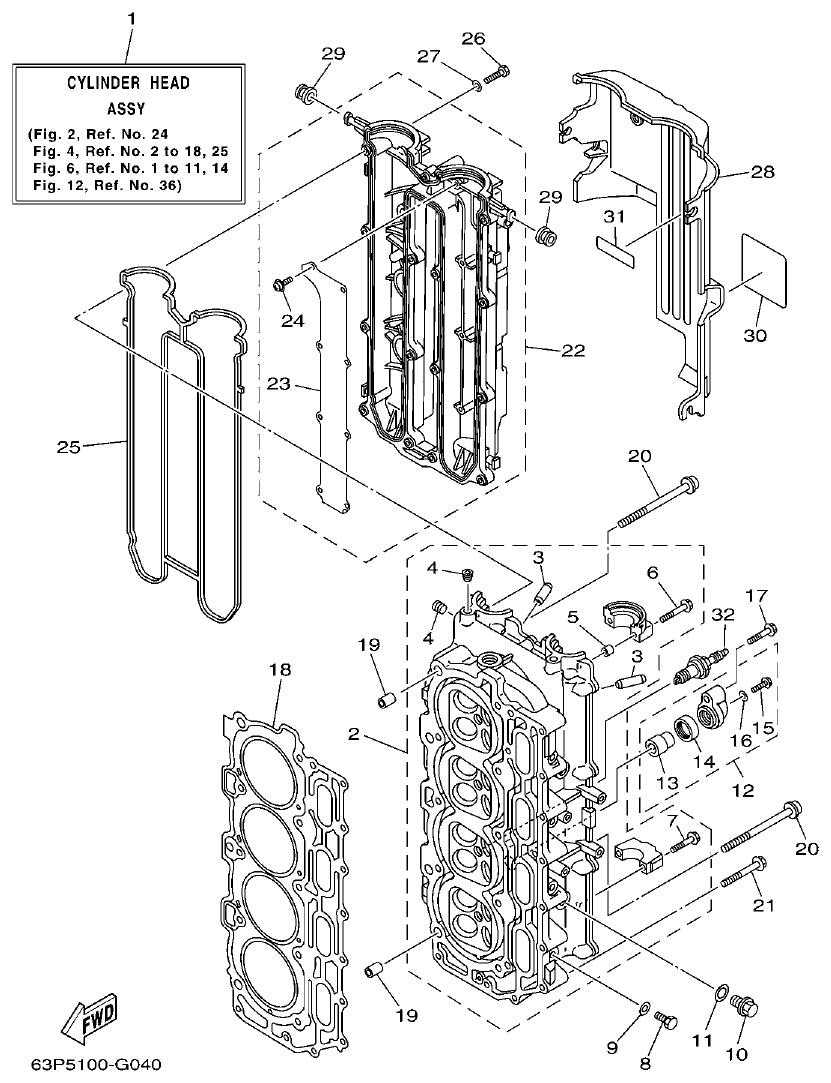

Yamaha F150AET, FL150AET, F150TR, LF150TR CYLINDER & CRANKCASE 2 parts diagram
Fig. 4 — CYLINDER & CRANKCASE 2
34 items · 5 available products

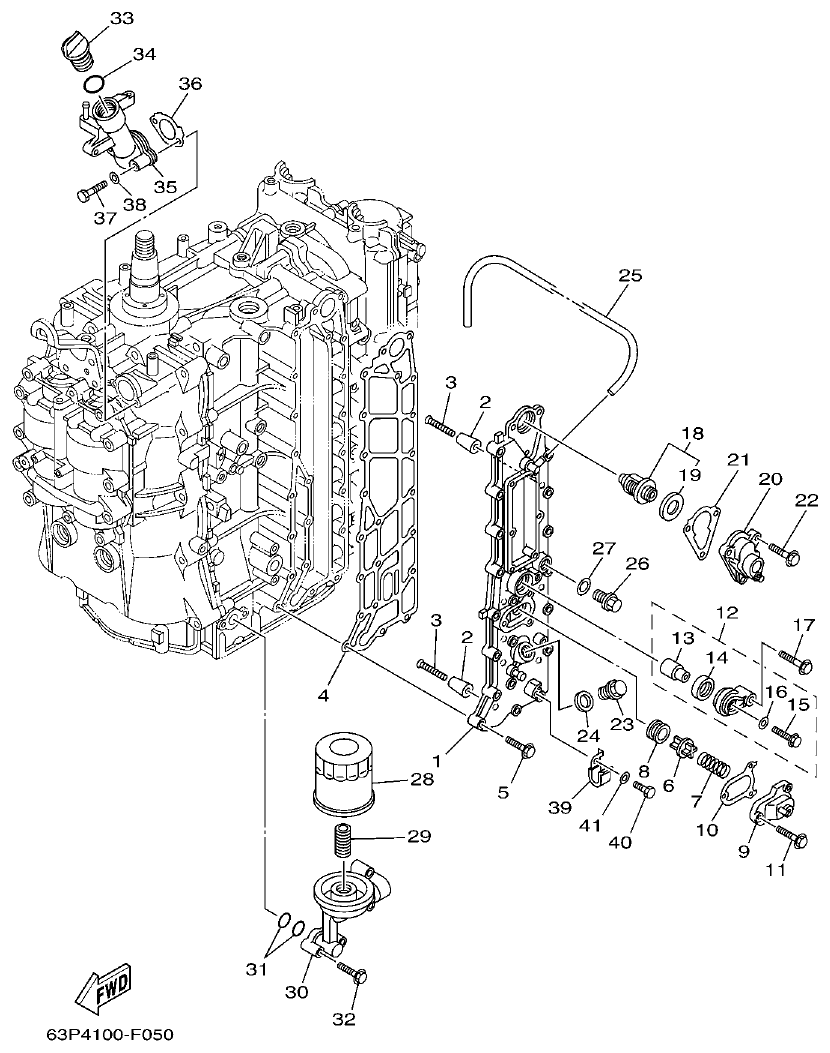

Yamaha F150AET, FL150AET, F150TR, LF150TR CYLINDER & CRANKCASE 3 parts diagram
Fig. 5 — CYLINDER & CRANKCASE 3
41 items · 9 available products

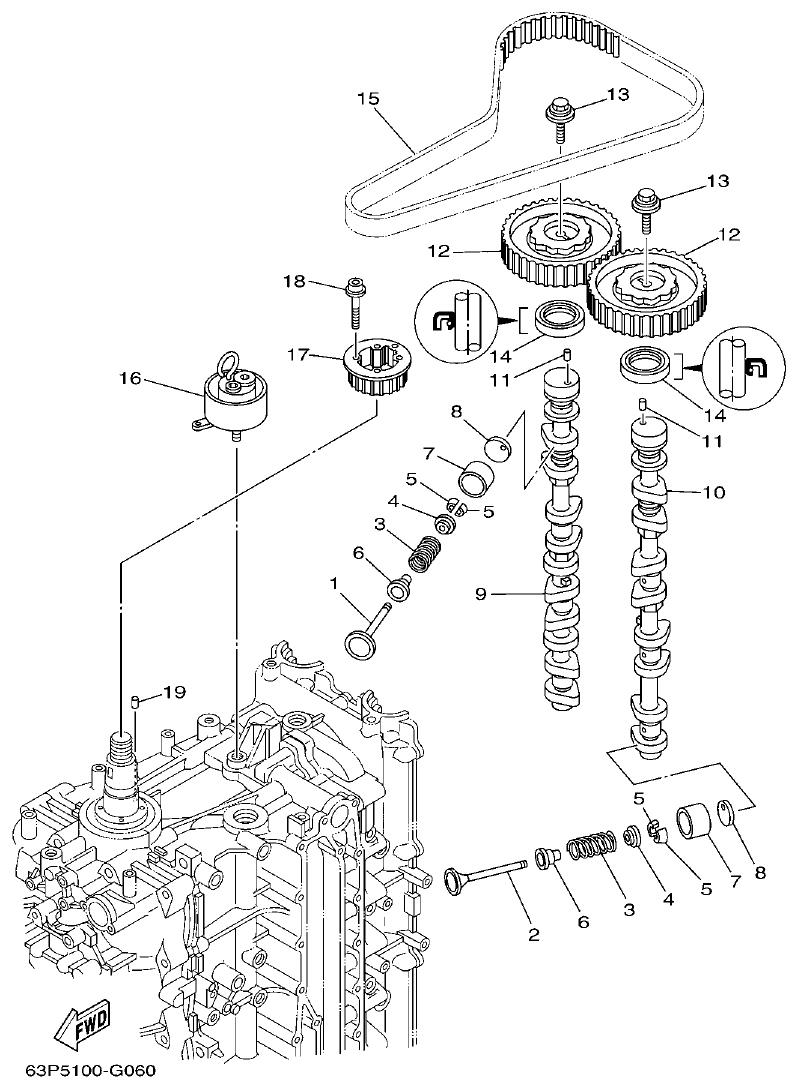

Yamaha F150AET, FL150AET, F150TR, LF150TR VALVE parts diagram
Fig. 6 — VALVE
51 items · 16 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR INTAKE 1 parts diagram

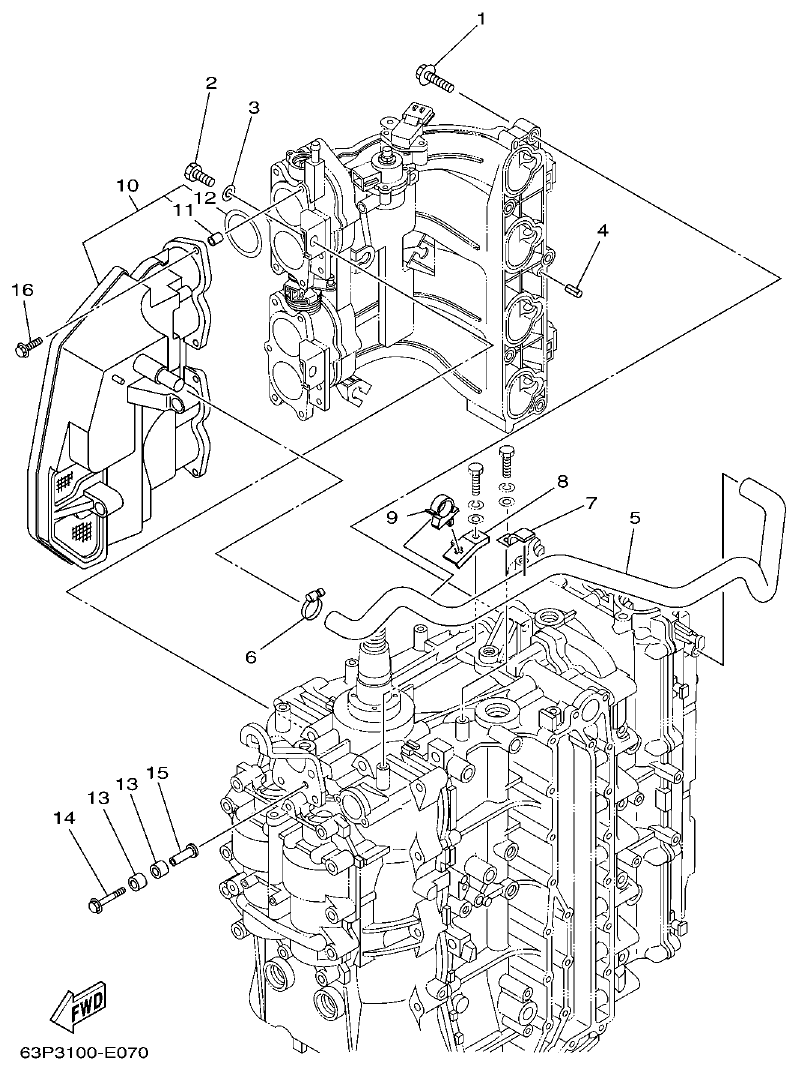

Fig. 7 — INTAKE 1
16 items · 1 available products

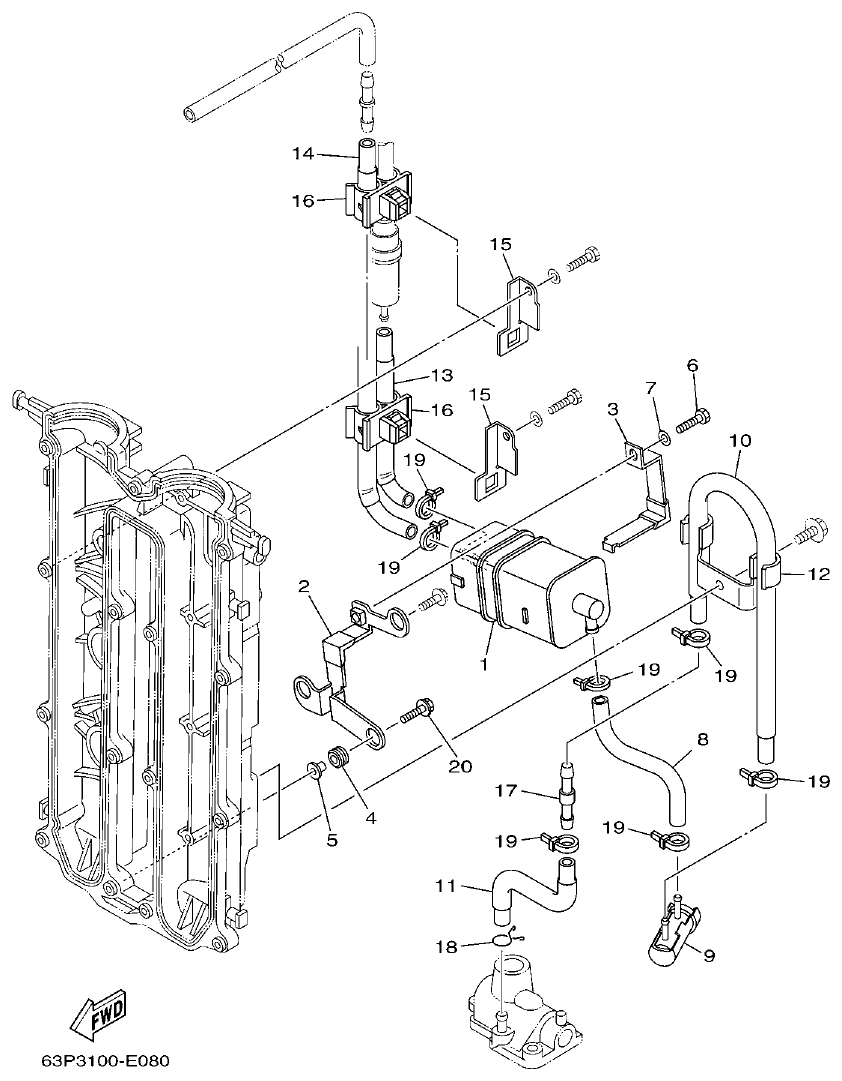

Yamaha F150AET, FL150AET, F150TR, LF150TR INTAKE 2 parts diagram
Fig. 8 — INTAKE 2
20 items · 2 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR INTAKE 3 parts diagram

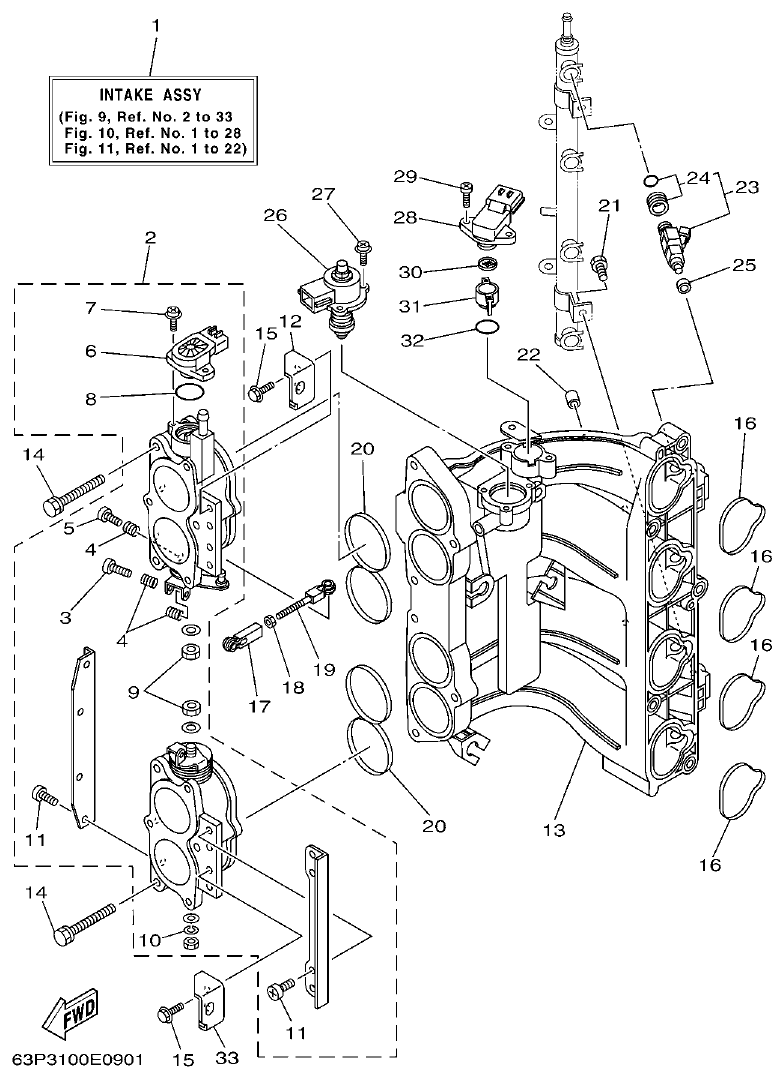

Fig. 9 — INTAKE 3
36 items · 8 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR FUEL INJECTION PUMP 1 parts diagram

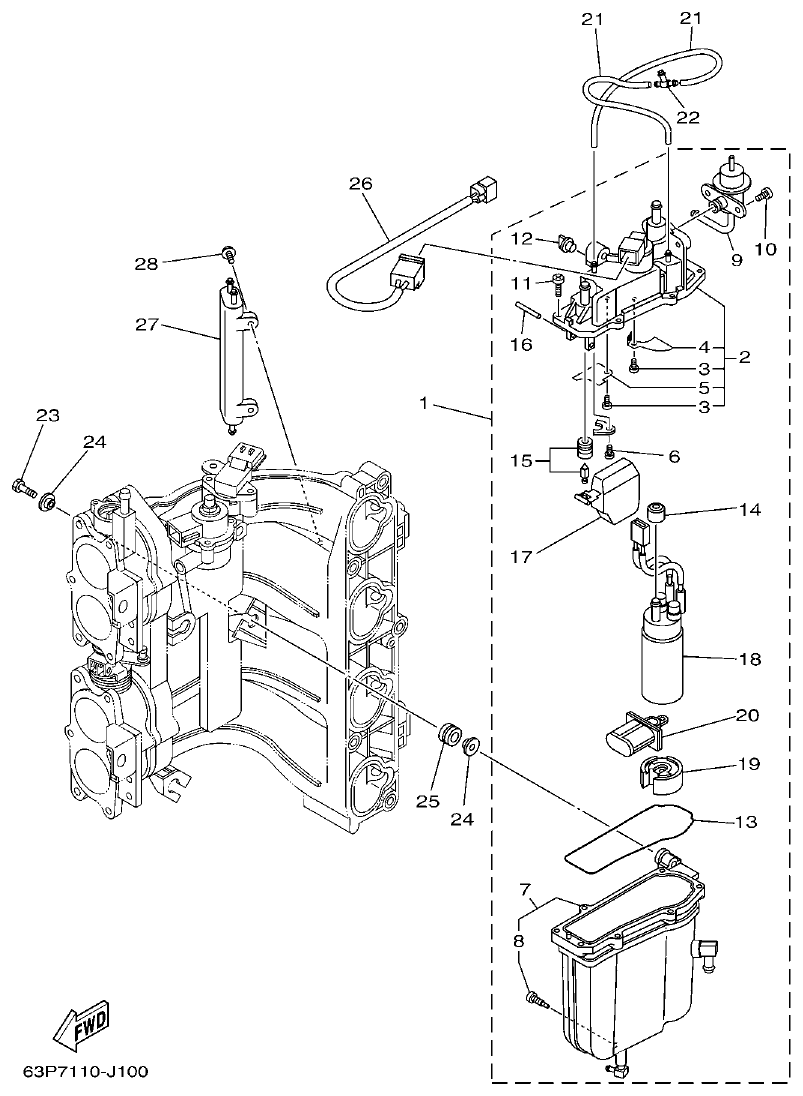

Fig. 10 — FUEL INJECTION PUMP 1
37 items · 6 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR FUEL INJECTION PUMP 2 parts diagram

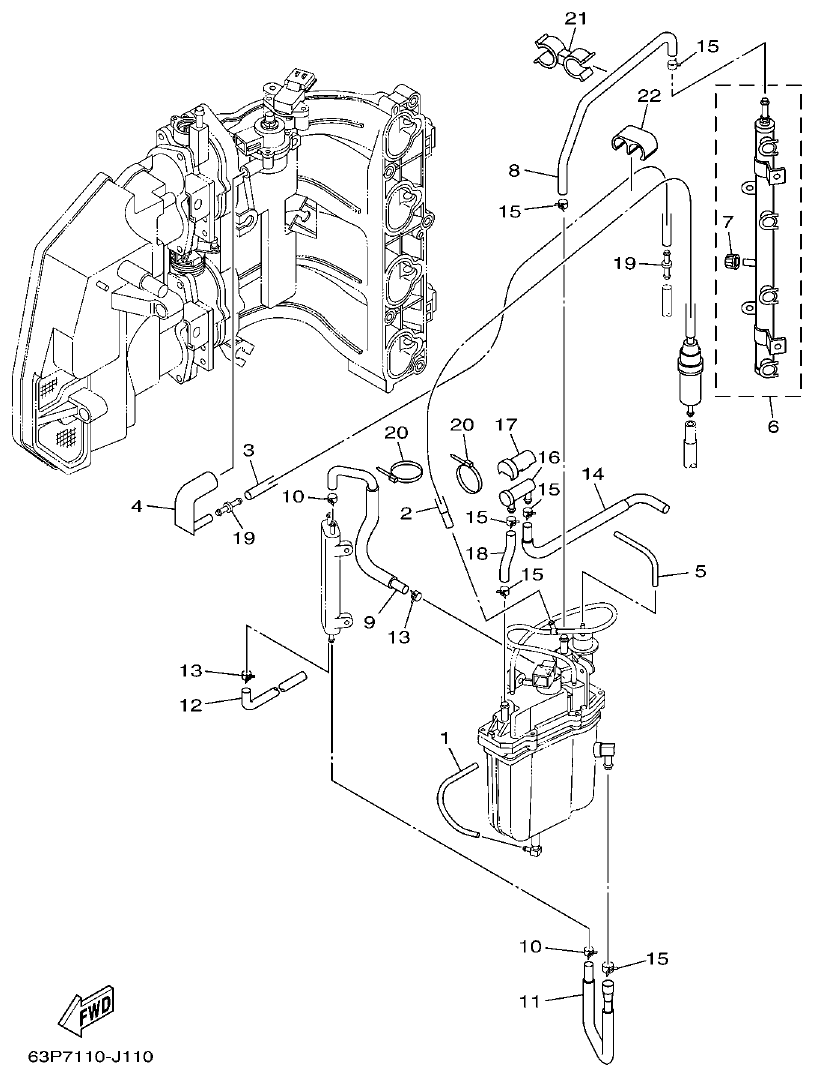

Fig. 11 — FUEL INJECTION PUMP 2
26 items · 1 available products

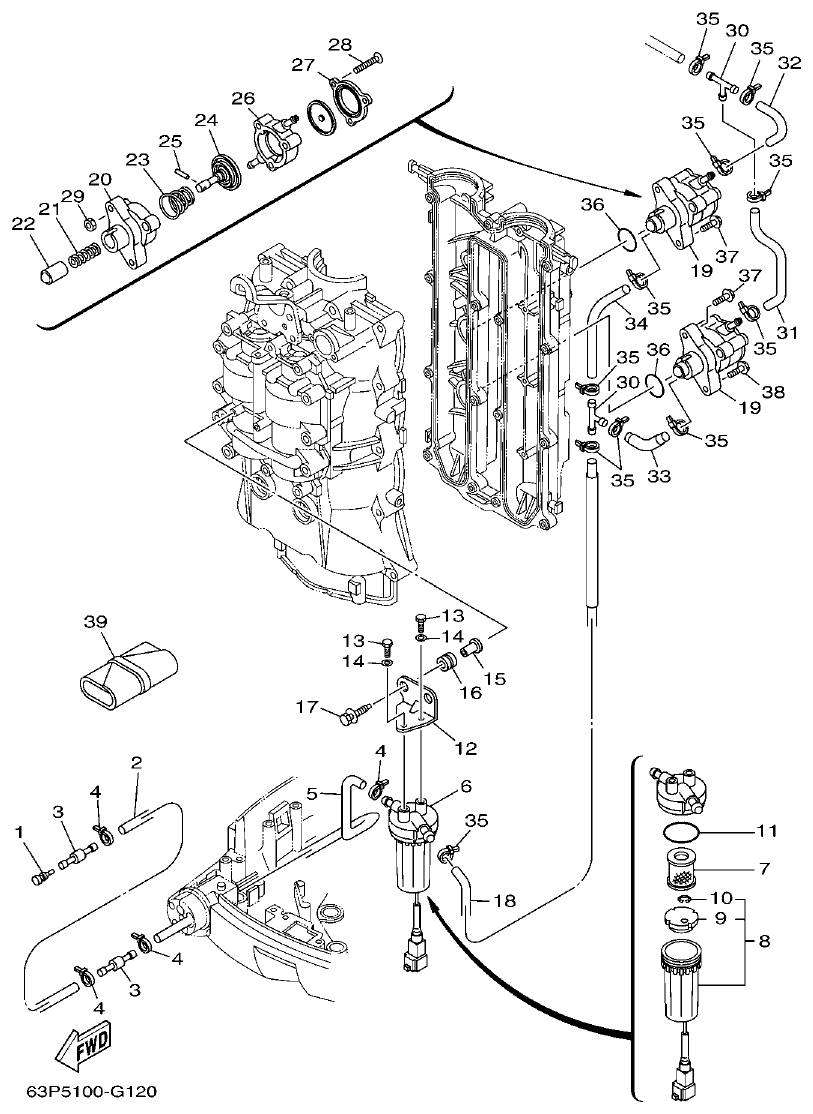

Yamaha F150AET, FL150AET, F150TR, LF150TR FUEL 1 parts diagram
Fig. 12 — FUEL 1
39 items · 3 available products

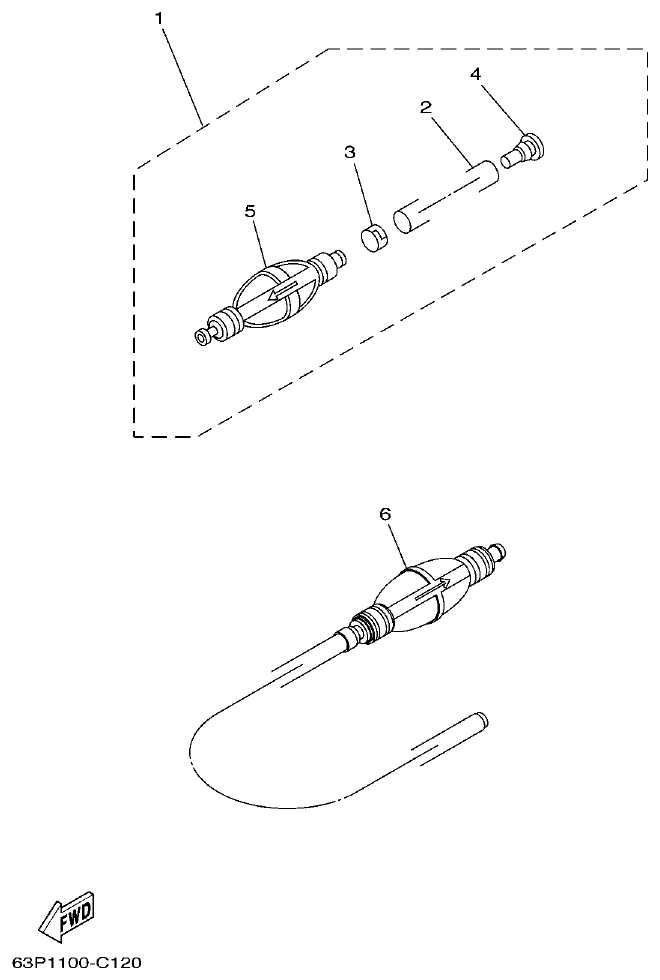

Yamaha F150AET, FL150AET, F150TR, LF150TR FUEL 2 parts diagram
Fig. 13 — FUEL 2
6 items · 2 available products

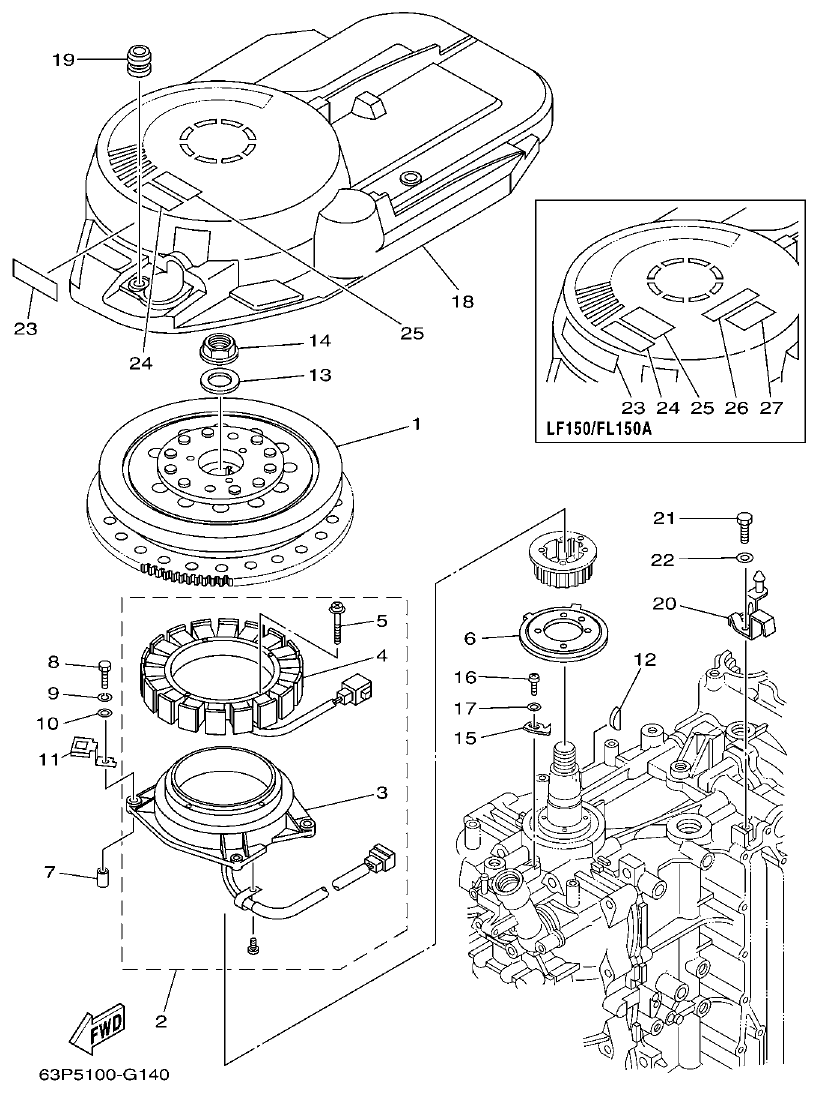

Yamaha F150AET, FL150AET, F150TR, LF150TR GENERATOR parts diagram
Fig. 14 — GENERATOR
29 items · 1 available products

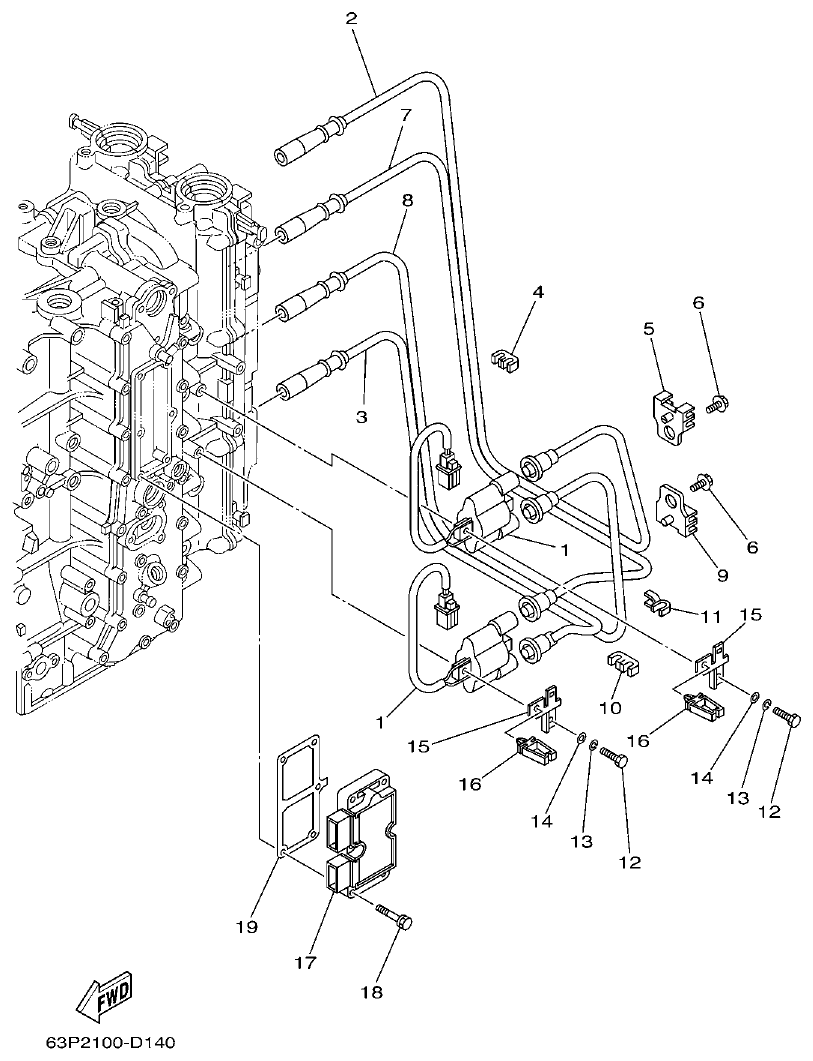

Yamaha F150AET, FL150AET, F150TR, LF150TR ELECTRICAL 1 parts diagram
Fig. 15 — ELECTRICAL 1
19 items · 2 available products

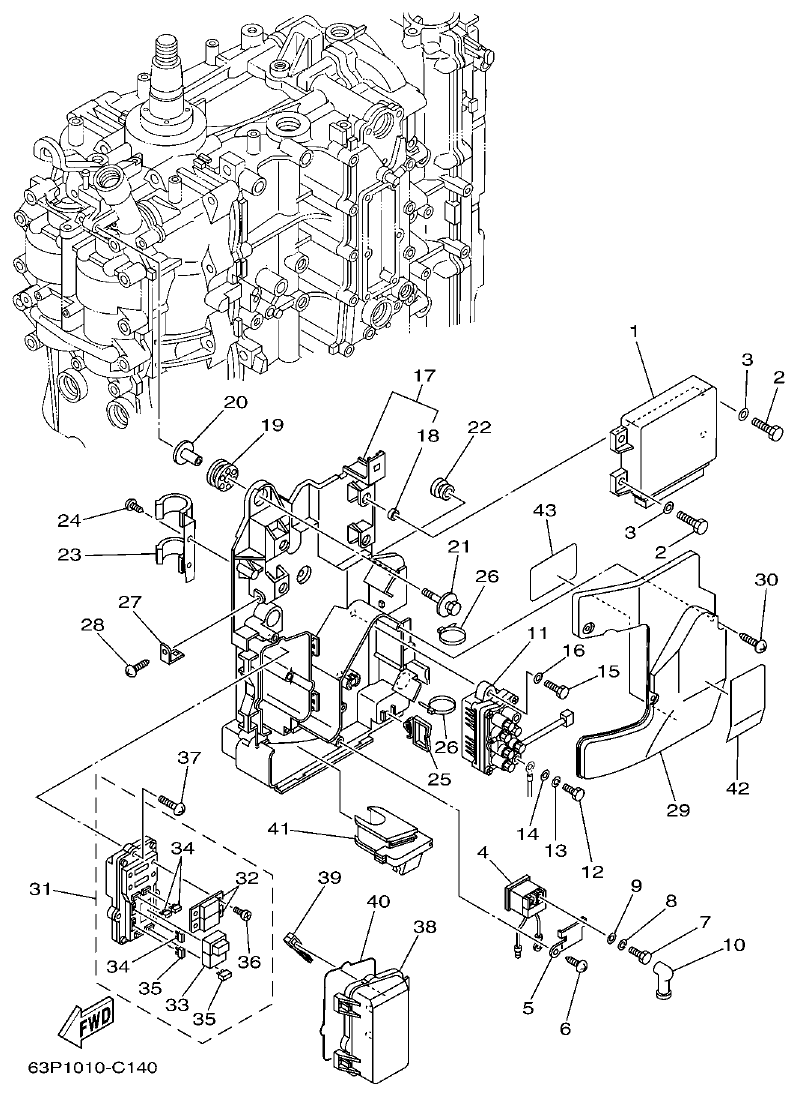

Yamaha F150AET, FL150AET, F150TR, LF150TR ELECTRICAL 2 parts diagram
Fig. 16 — ELECTRICAL 2
45 items · 4 available products

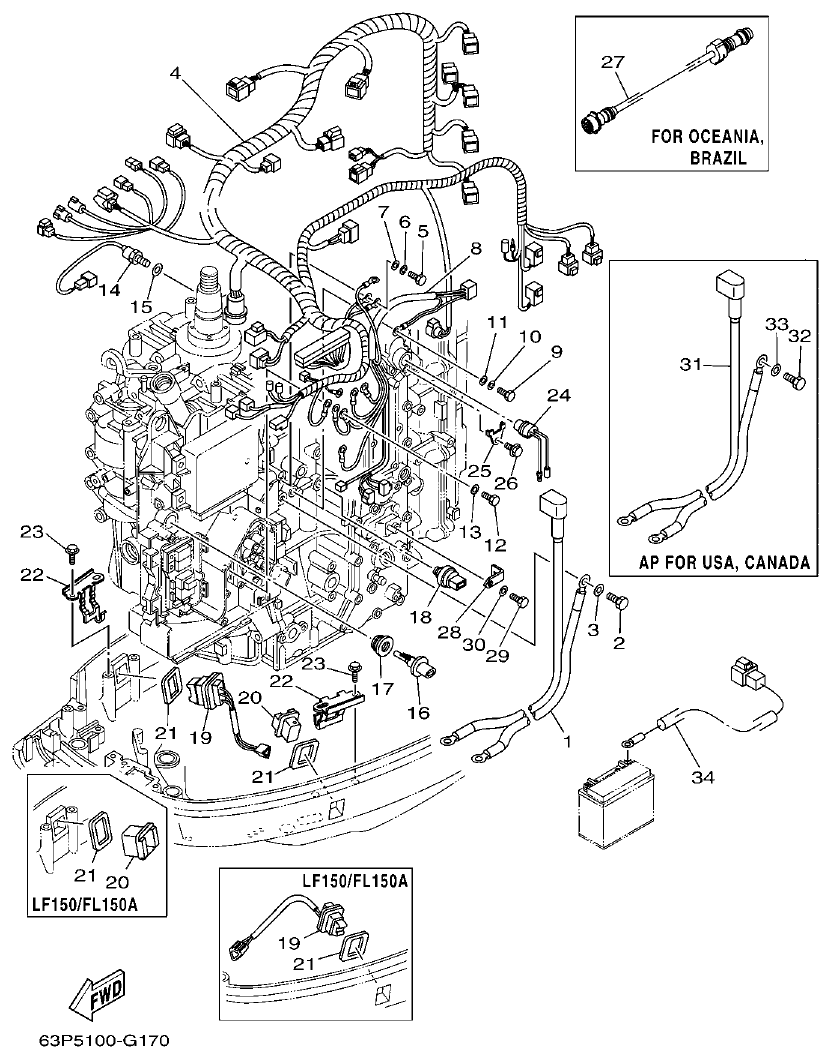

Yamaha F150AET, FL150AET, F150TR, LF150TR ELECTRICAL 3 parts diagram
Fig. 17 — ELECTRICAL 3
34 items · 3 available products

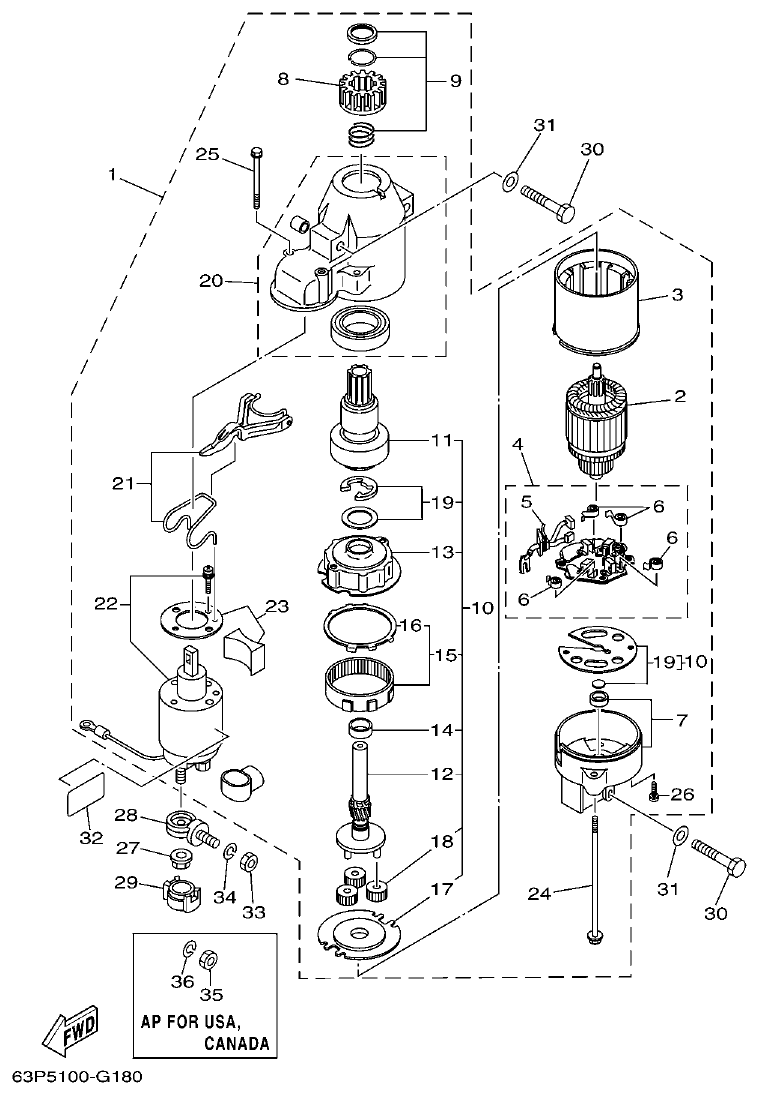

Yamaha F150AET, FL150AET, F150TR, LF150TR STARTING MOTOR parts diagram
Fig. 18 — STARTING MOTOR
36 items · 5 available products

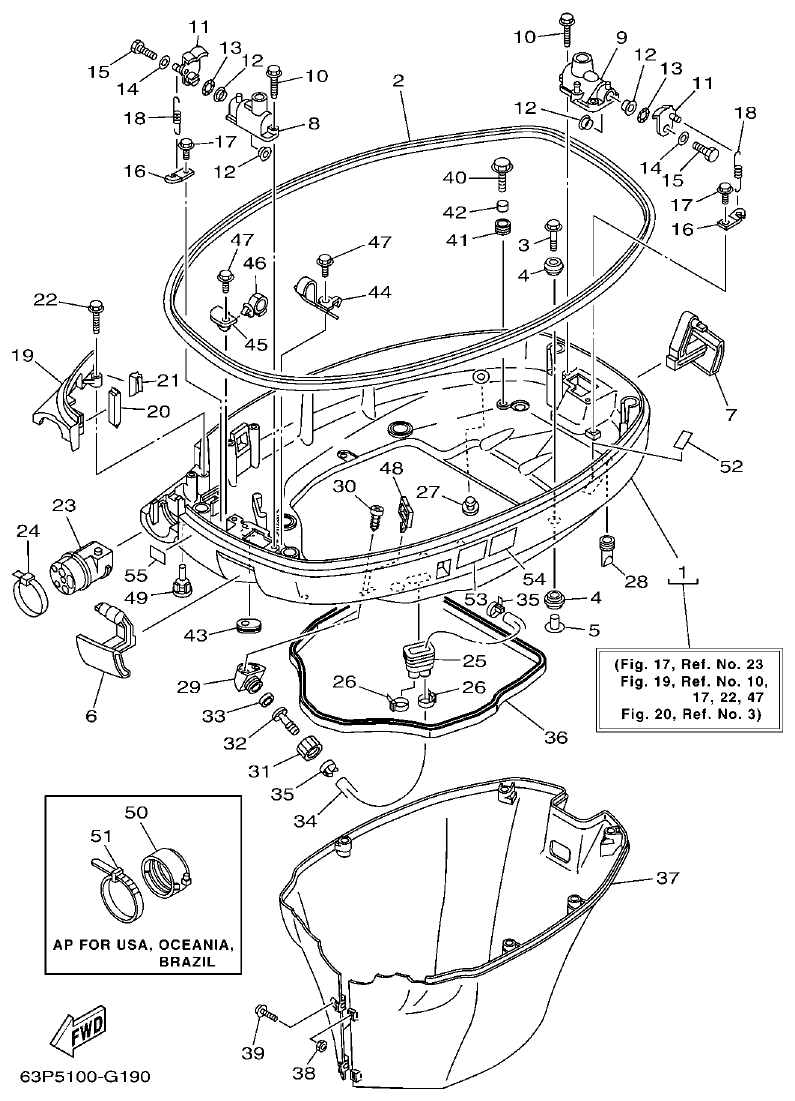

Yamaha F150AET, FL150AET, F150TR, LF150TR BOTTOM COWLING parts diagram
Fig. 19 — BOTTOM COWLING
55 items · 6 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR CONTROL parts diagram

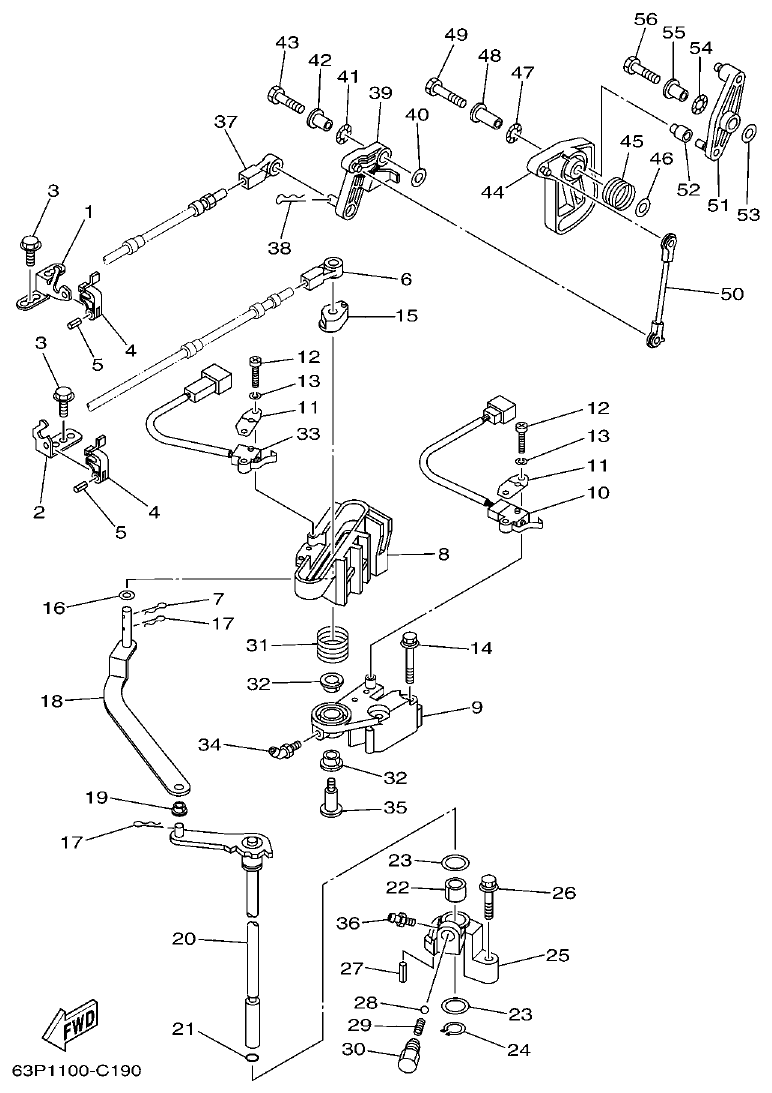

Fig. 20 — CONTROL
56 items · 5 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR BRACKET 1 parts diagram

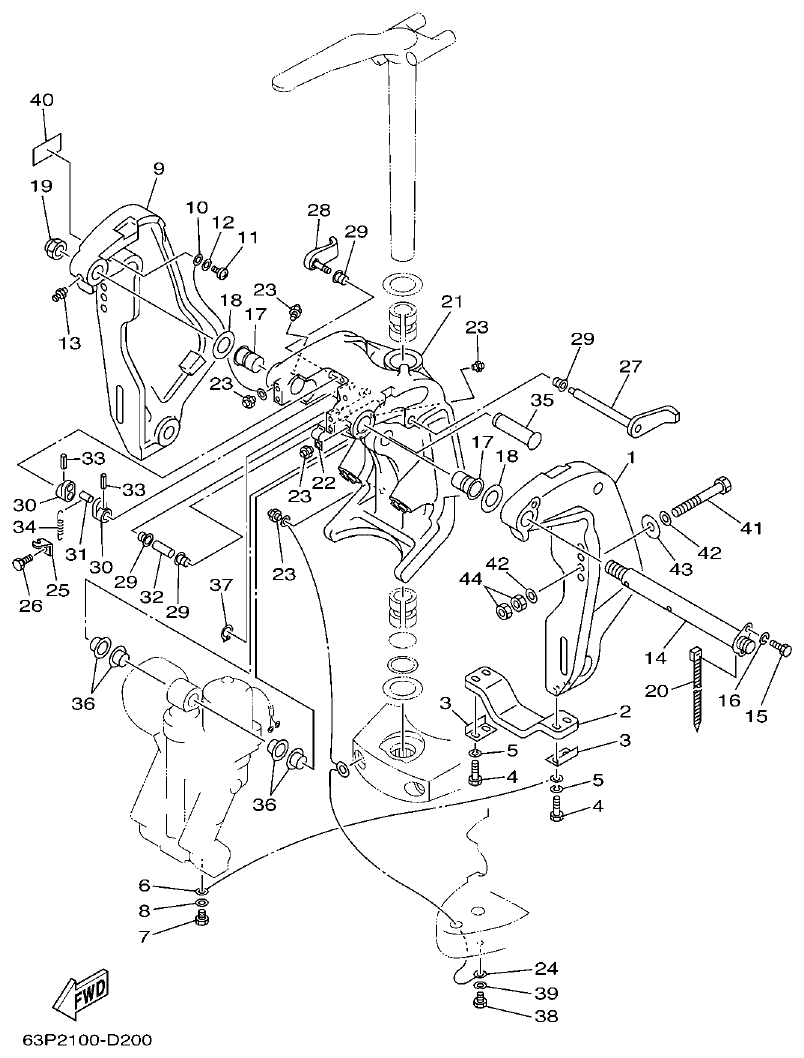

Fig. 21 — BRACKET 1
45 items · 9 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR BRACKET 2 parts diagram

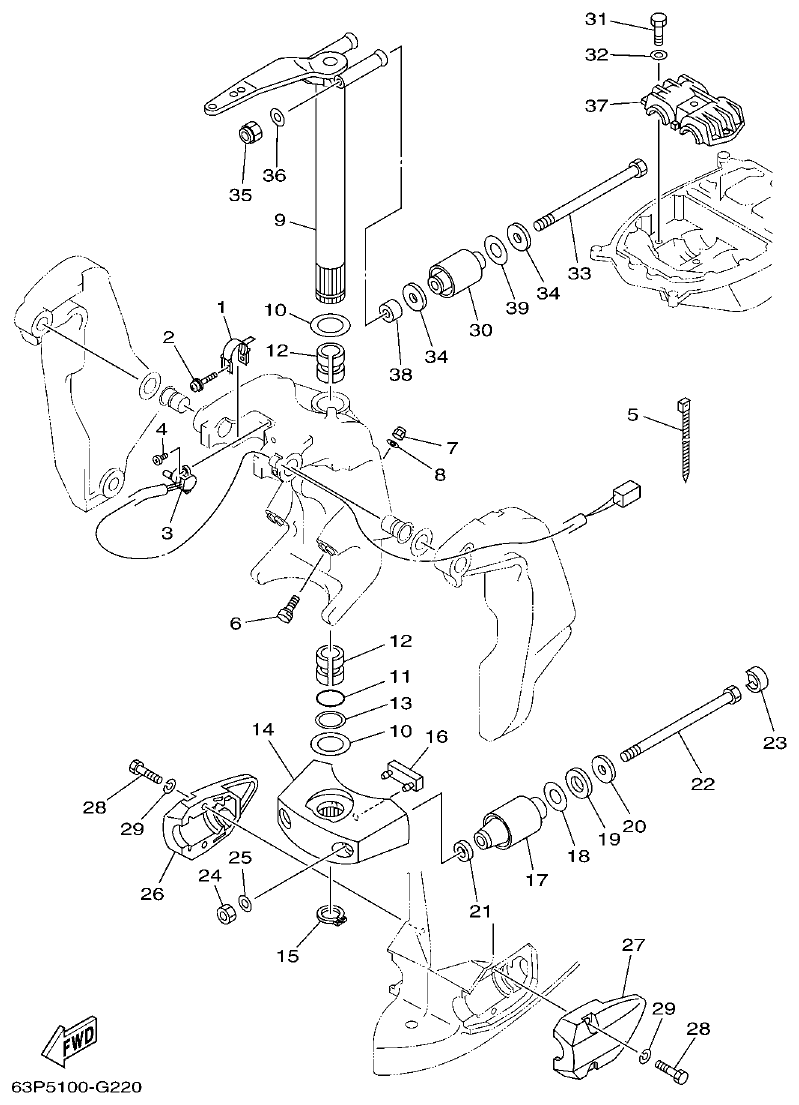

Fig. 22 — BRACKET 2
40 items · 2 available products

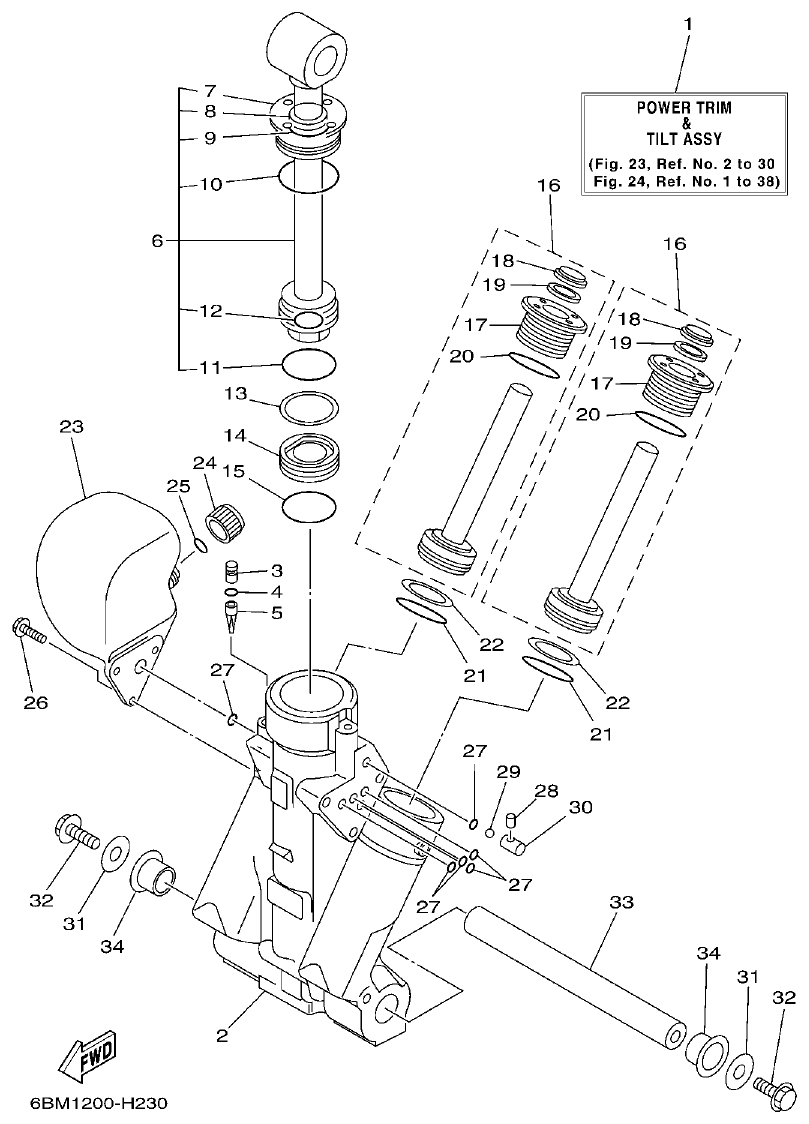

Yamaha F150AET, FL150AET, F150TR, LF150TR POWER TRIM & TILT ASSY 1 parts diagram
Fig. 23 — POWER TRIM & TILT ASSY 1
34 items · 9 available products

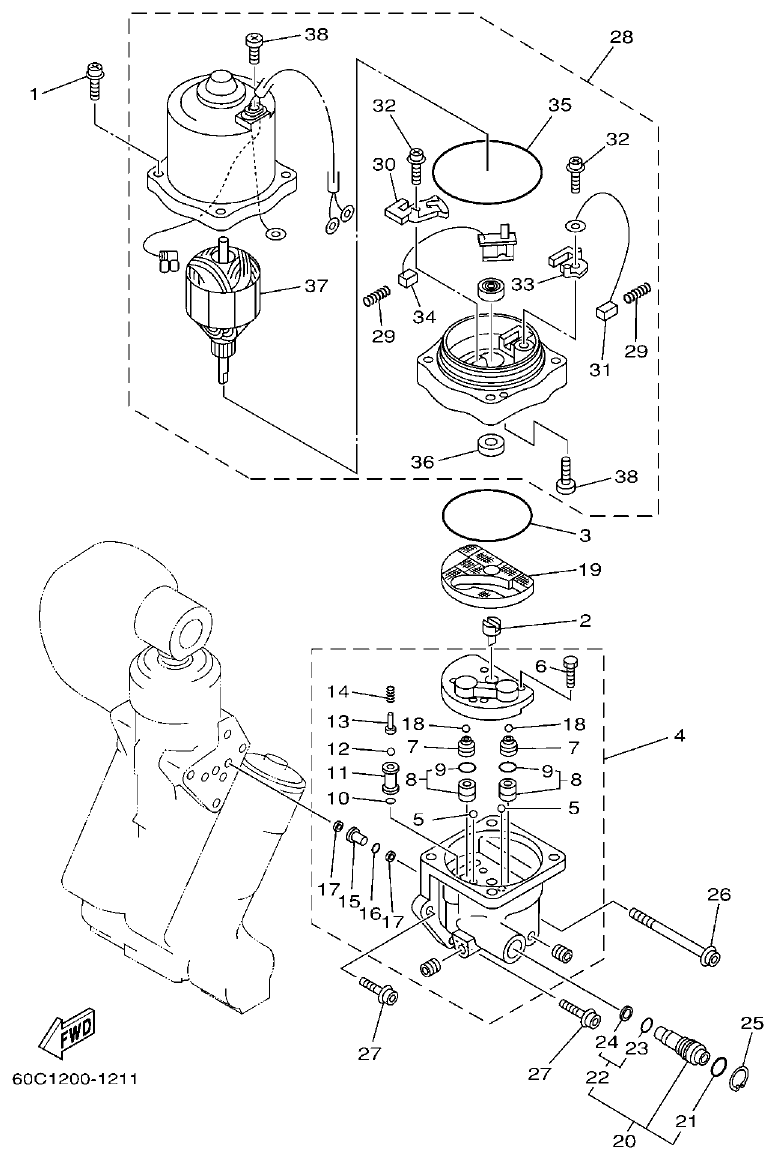

Yamaha F150AET, FL150AET, F150TR, LF150TR POWER TRIM & TILT ASSY 2 parts diagram
Fig. 24 — POWER TRIM & TILT ASSY 2
38 items · 9 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR UPPER CASING parts diagram

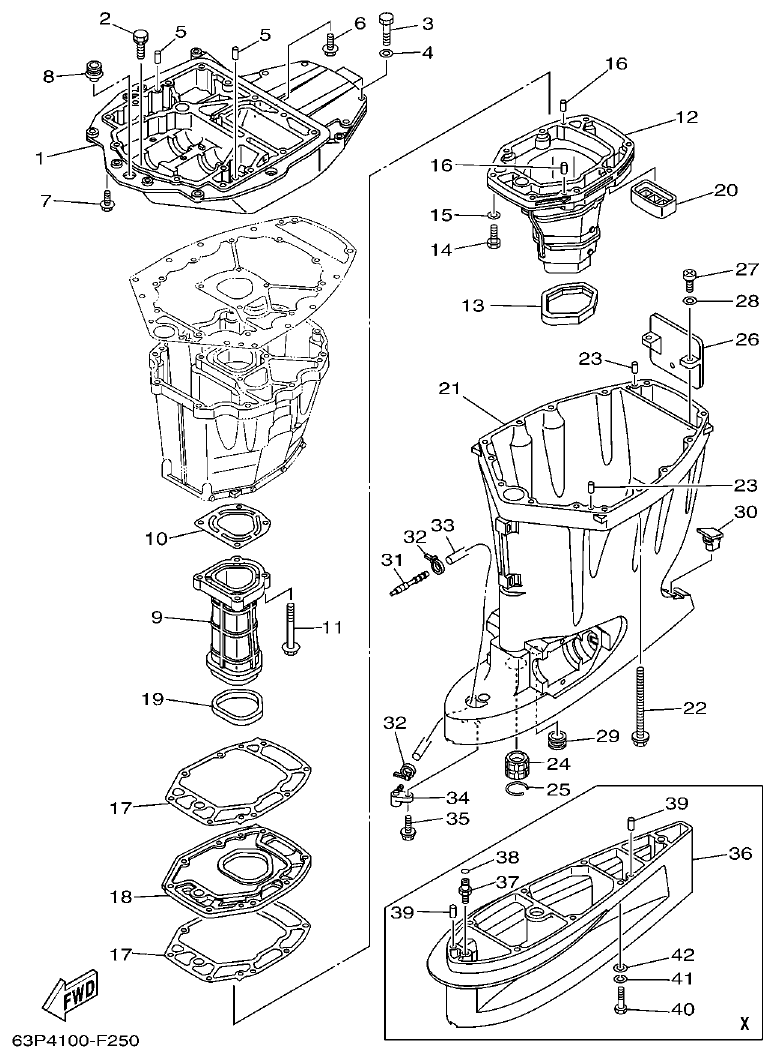

Fig. 25 — UPPER CASING
42 items · 6 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR OIL PAN parts diagram

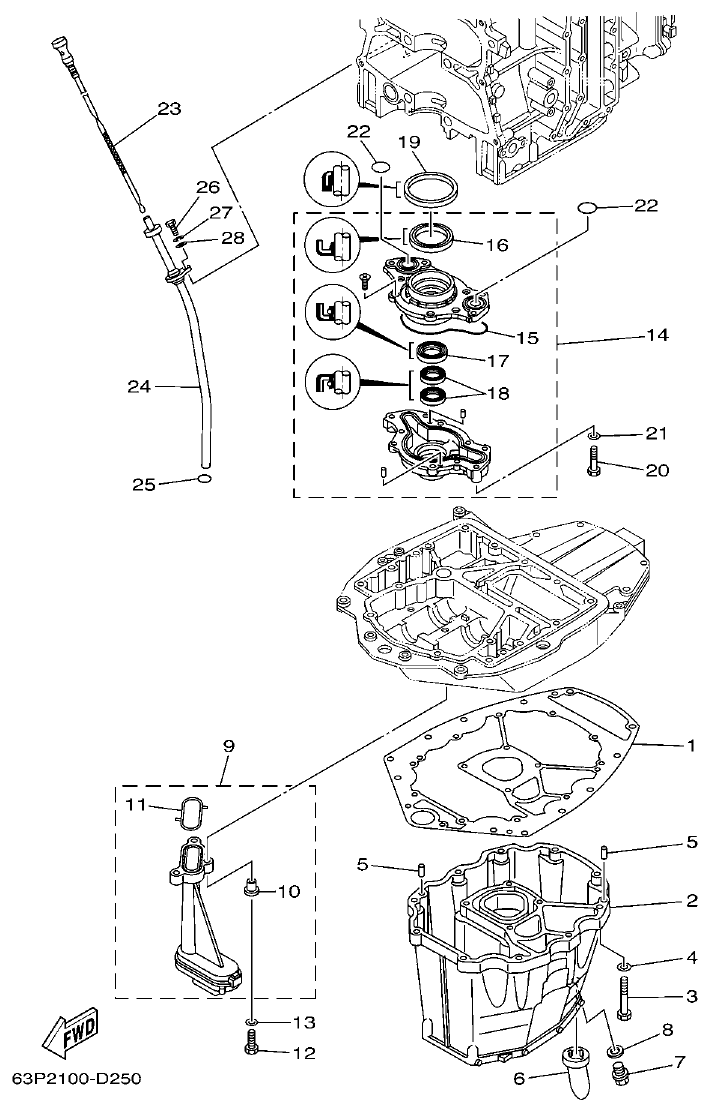

Fig. 26 — OIL PAN
28 items · 8 available products

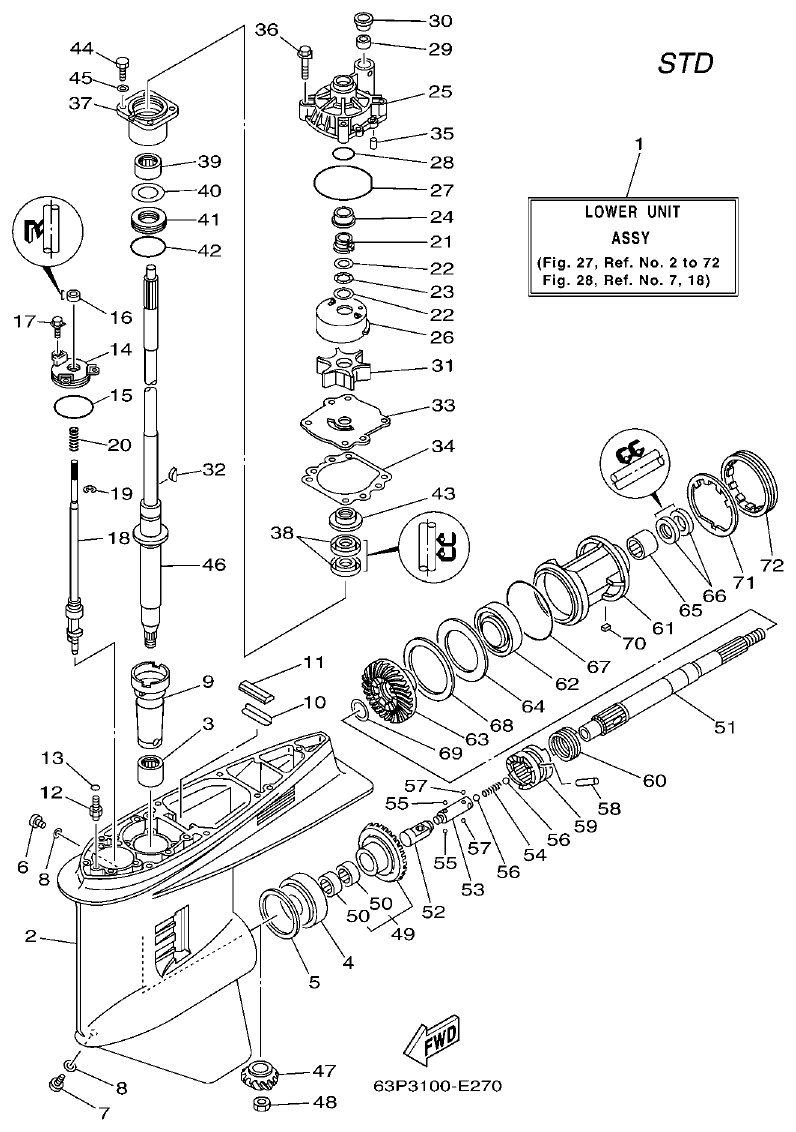

Yamaha F150AET, FL150AET, F150TR, LF150TR LOWER CASING & DRIVE 1 parts diagram
Fig. 27 — LOWER CASING & DRIVE 1
93 items · 37 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR LOWER CASING & DRIVE 2 parts diagram

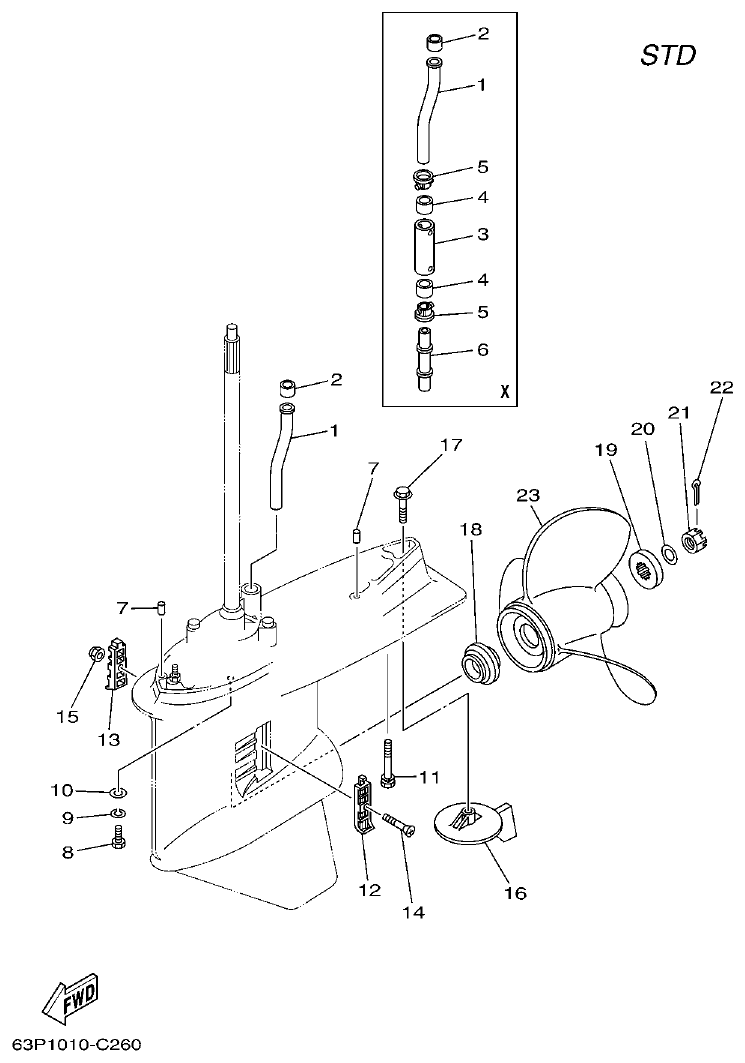

Fig. 28 — LOWER CASING & DRIVE 2
44 items · 9 available products

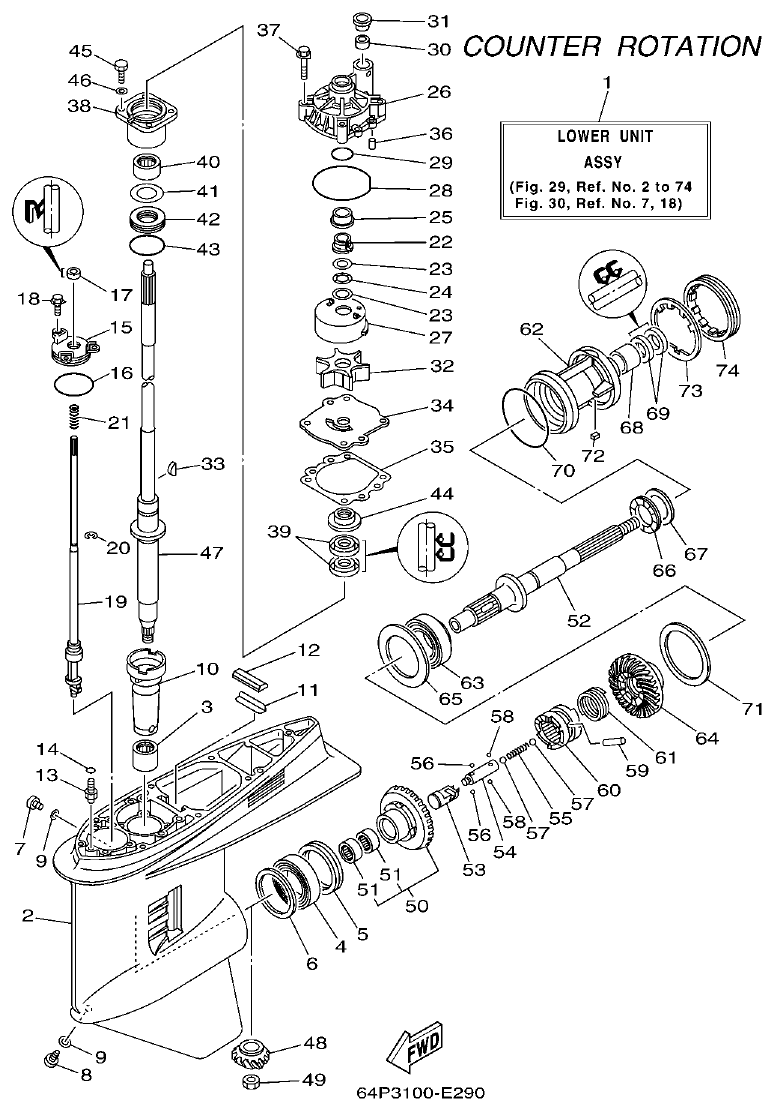

Yamaha F150AET, FL150AET, F150TR, LF150TR LOWER CASING & DRIVE 3 parts diagram
Fig. 29 — LOWER CASING & DRIVE 3
98 items · 44 available products

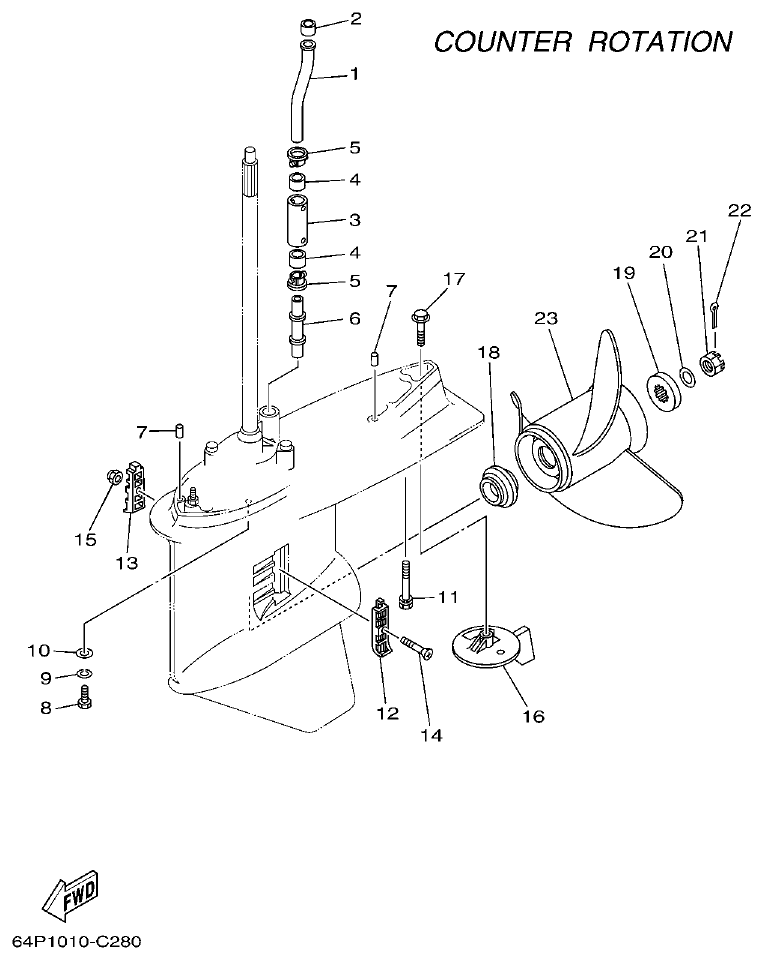

Yamaha F150AET, FL150AET, F150TR, LF150TR LOWER CASING & DRIVE 4 parts diagram
Fig. 30 — LOWER CASING & DRIVE 4
34 items · 9 available products

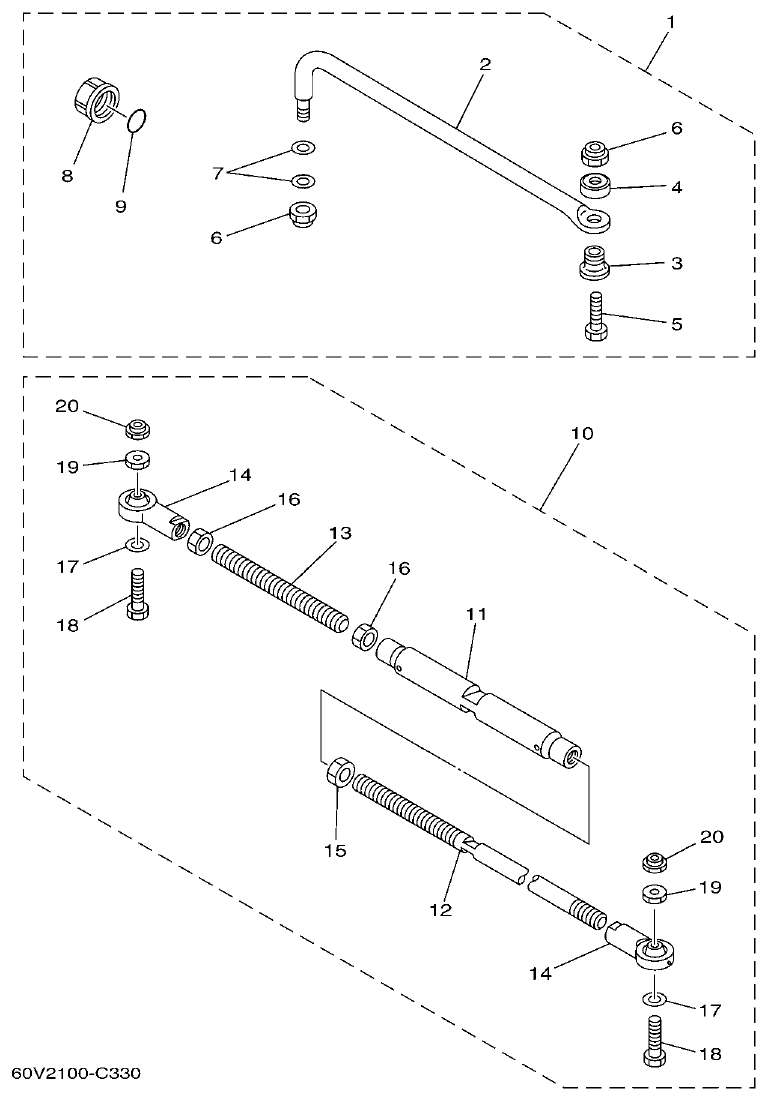

Yamaha F150AET, FL150AET, F150TR, LF150TR STEERING GUIDE parts diagram
Fig. 31 — STEERING GUIDE
20 items · 3 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR REMOTE CONTROL BOX parts diagram

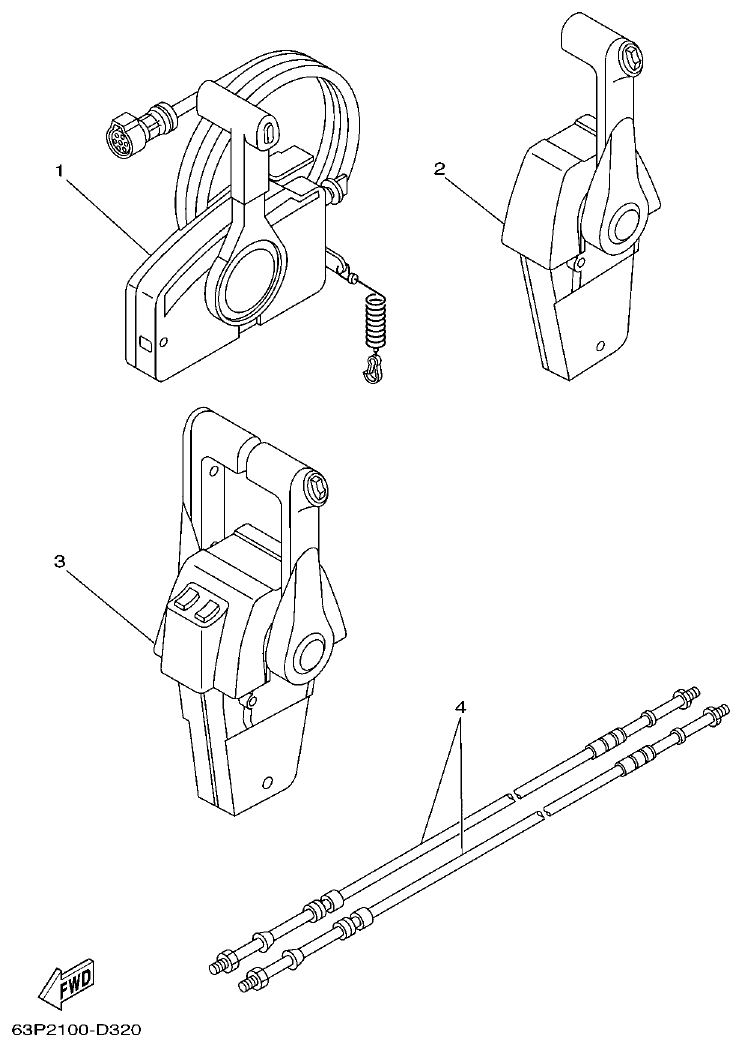

Fig. 32 — REMOTE CONTROL BOX
8 items
Yamaha F150AET, FL150AET, F150TR, LF150TR REMOTE CONTROL ASSY 1 parts diagram

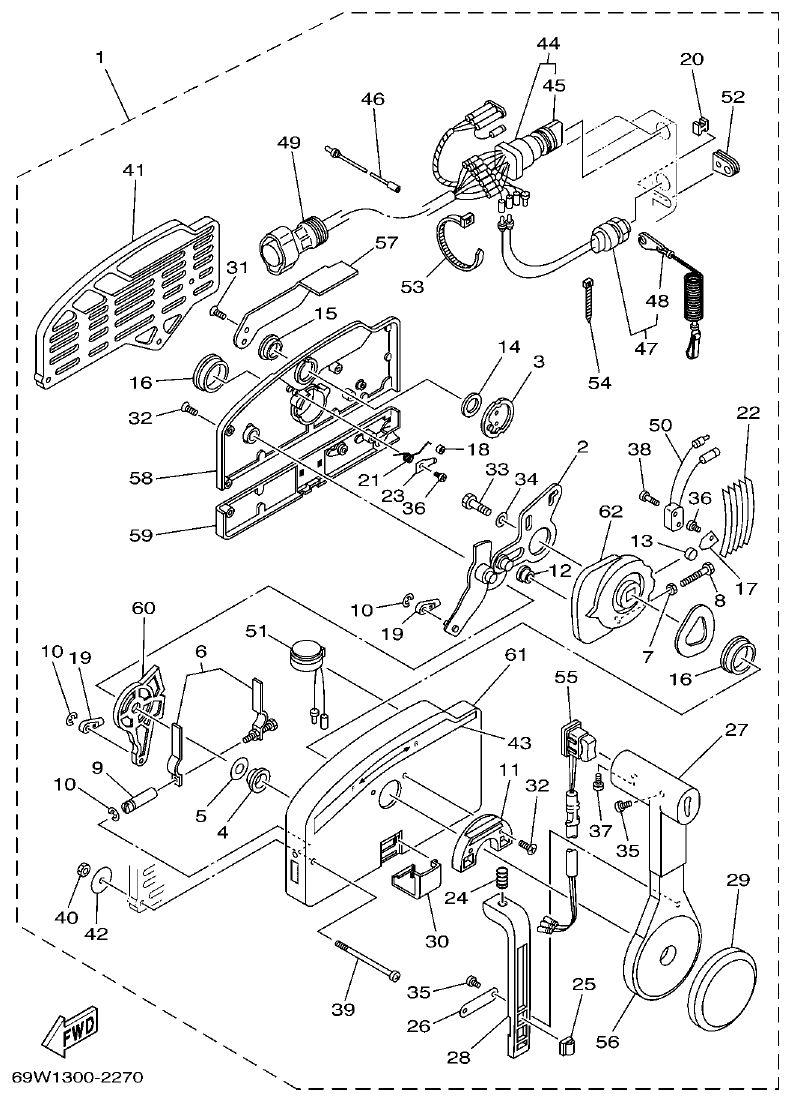

Fig. 33 — REMOTE CONTROL ASSY 1
62 items · 11 available products

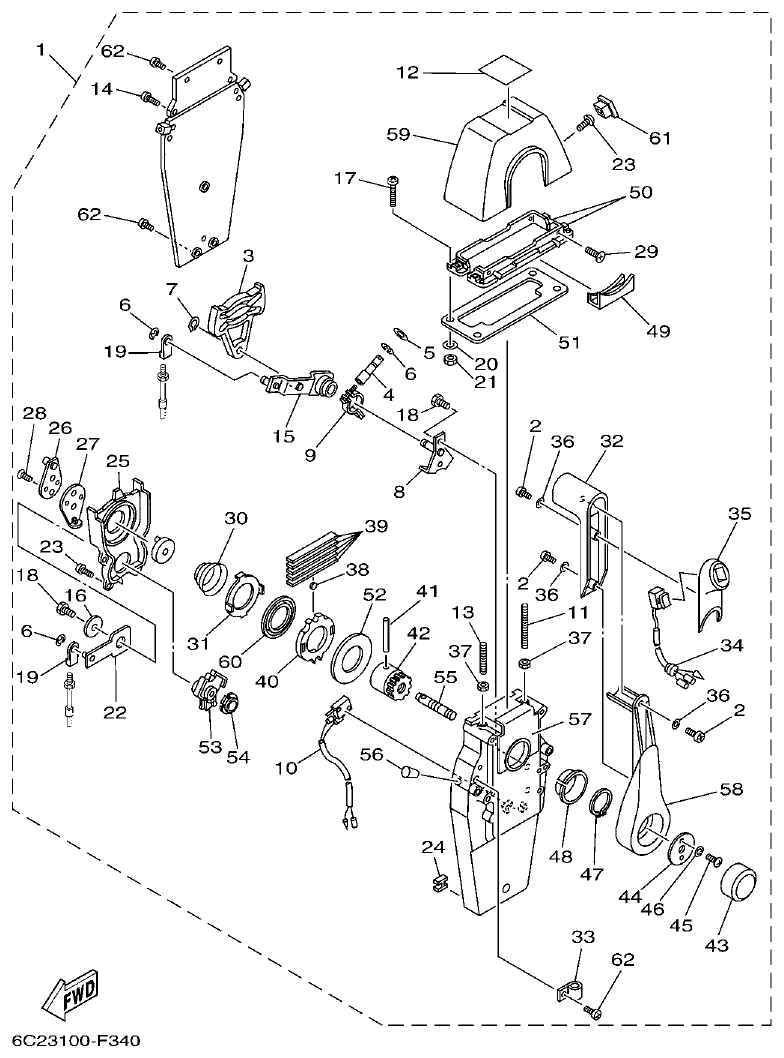

Yamaha F150AET, FL150AET, F150TR, LF150TR REMOTE CONTROL ASSY 2 parts diagram
Fig. 34 — REMOTE CONTROL ASSY 2
62 items · 1 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR REMOTE CONTROL ASSY 3 parts diagram

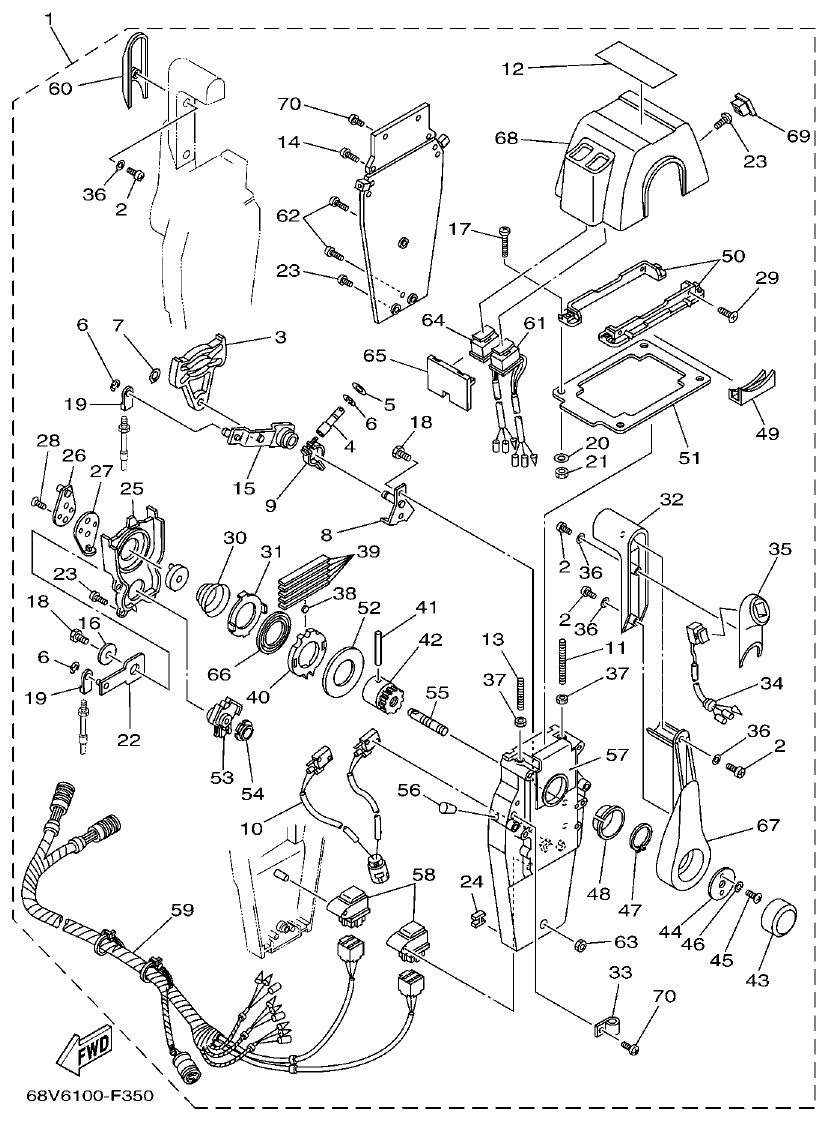

Fig. 35 — REMOTE CONTROL ASSY 3
70 items · 2 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR METER parts diagram

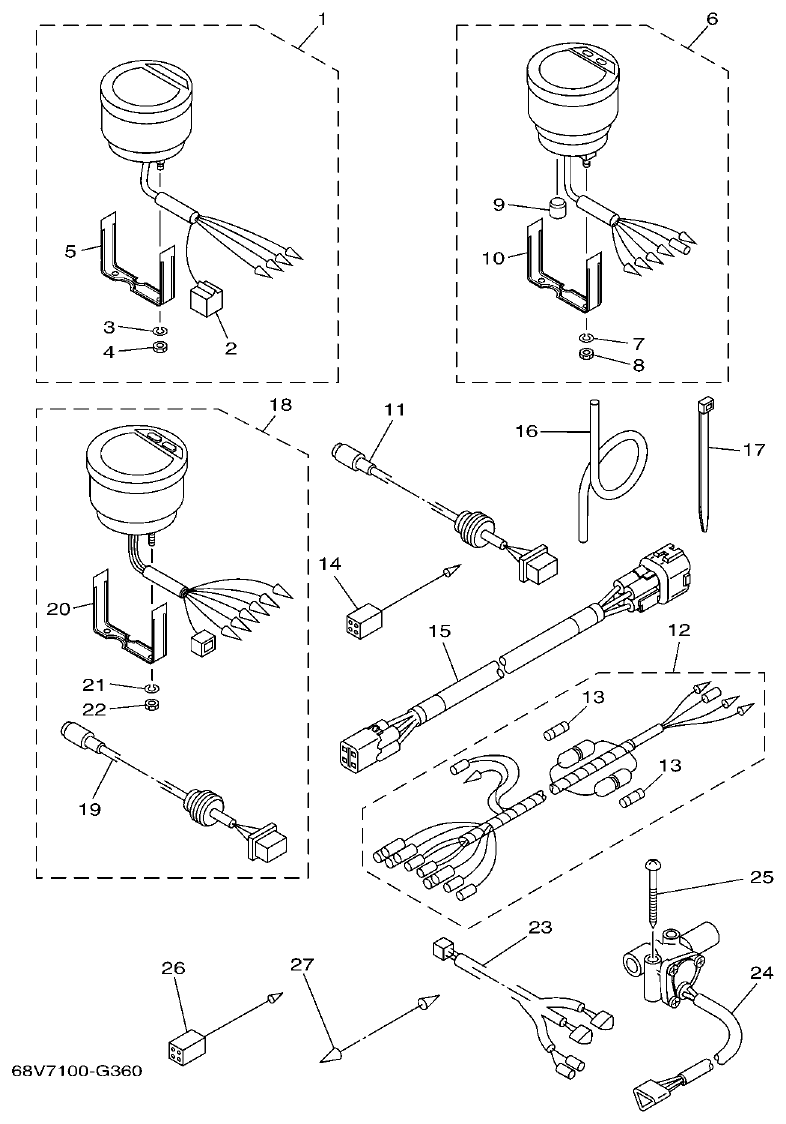

Fig. 36 — METER
30 items · 2 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR SWITCH & PANEL 1 parts diagram

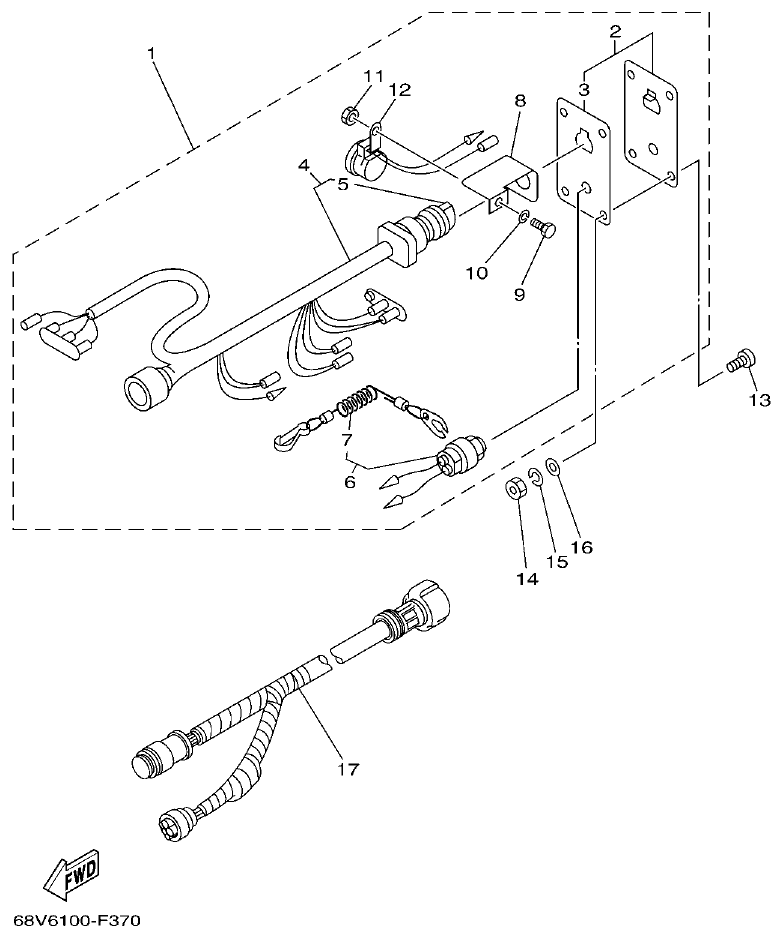

Fig. 37 — SWITCH & PANEL 1
17 items · 1 available products

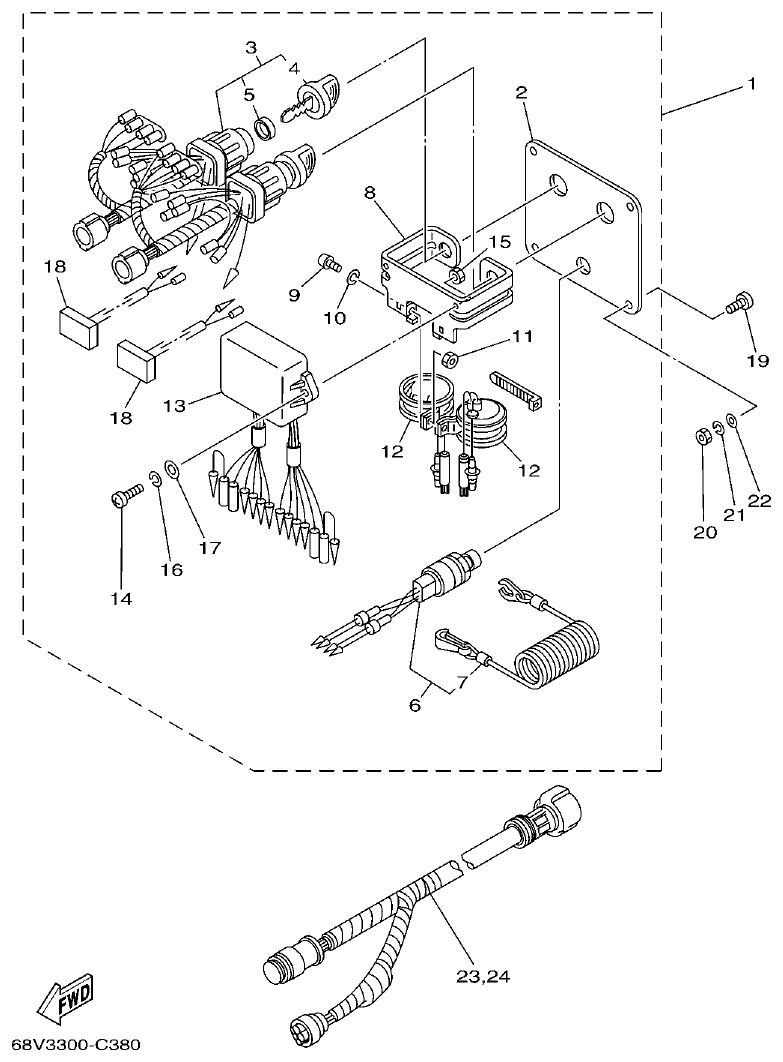

Yamaha F150AET, FL150AET, F150TR, LF150TR SWITCH & PANEL 2 parts diagram
Fig. 38 — SWITCH & PANEL 2
24 items · 2 available products

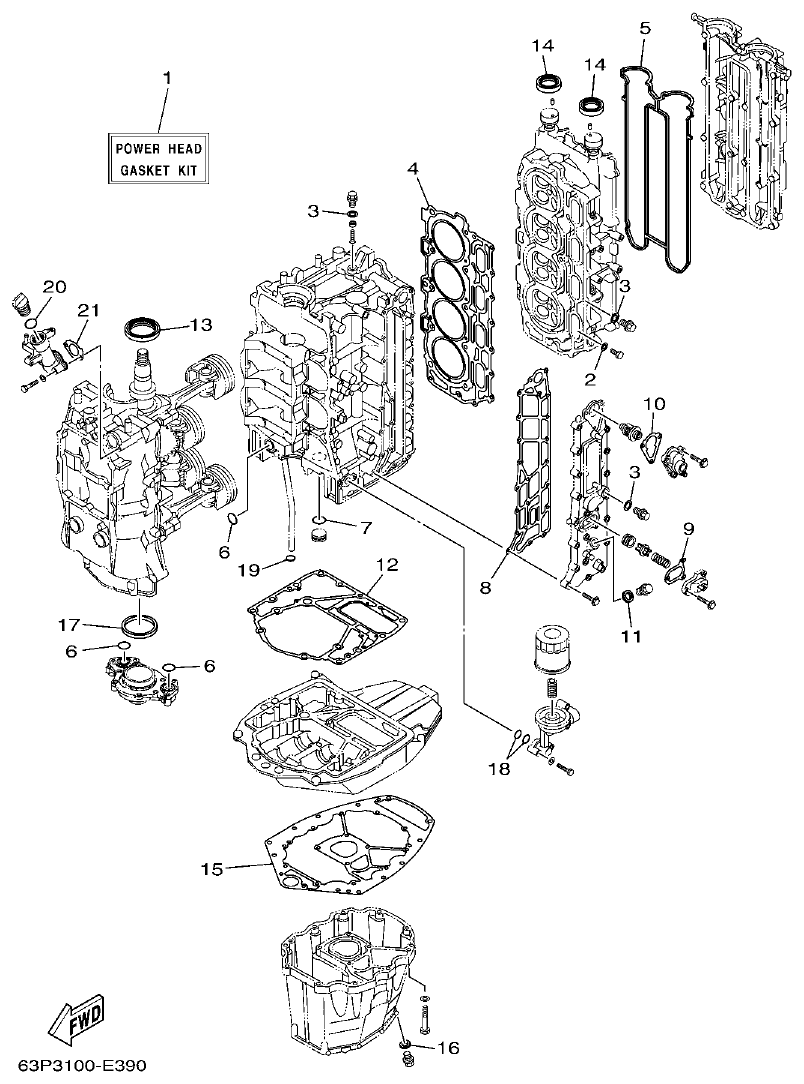

Yamaha F150AET, FL150AET, F150TR, LF150TR REPAIR KIT 1 parts diagram
Fig. 39 — REPAIR KIT 1
21 items · 5 available products
Yamaha F150AET, FL150AET, F150TR, LF150TR REPAIR KIT 2 parts diagram

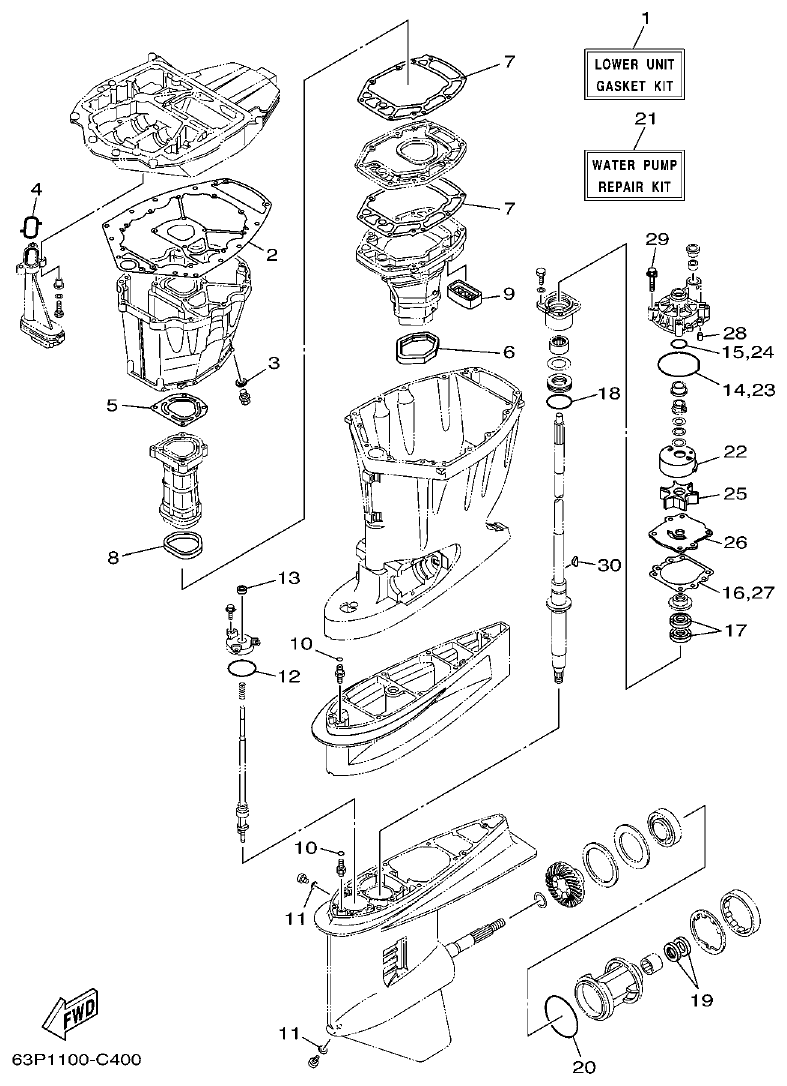

Fig. 40 — REPAIR KIT 2
30 items · 6 available products
