Yamaha F150AET, FL150AET, F150TRC, LF150TRC Parts Catalog

Yamaha F150AET, FL150AET, F150TRC, LF150TRC Outboard parts and diagrams

Yamaha F150AET, FL150AET, F150TRC, LF150TRC outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, VALVE, INTAKE 1, INTAKE 2, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, STARTING MOTOR, BOTTOM COWLING. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

203 linked store products are available across 40 catalog sections. 1463 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha F150AET, FL150AET, F150TRC, LF150TRC TOP COWLING parts diagram

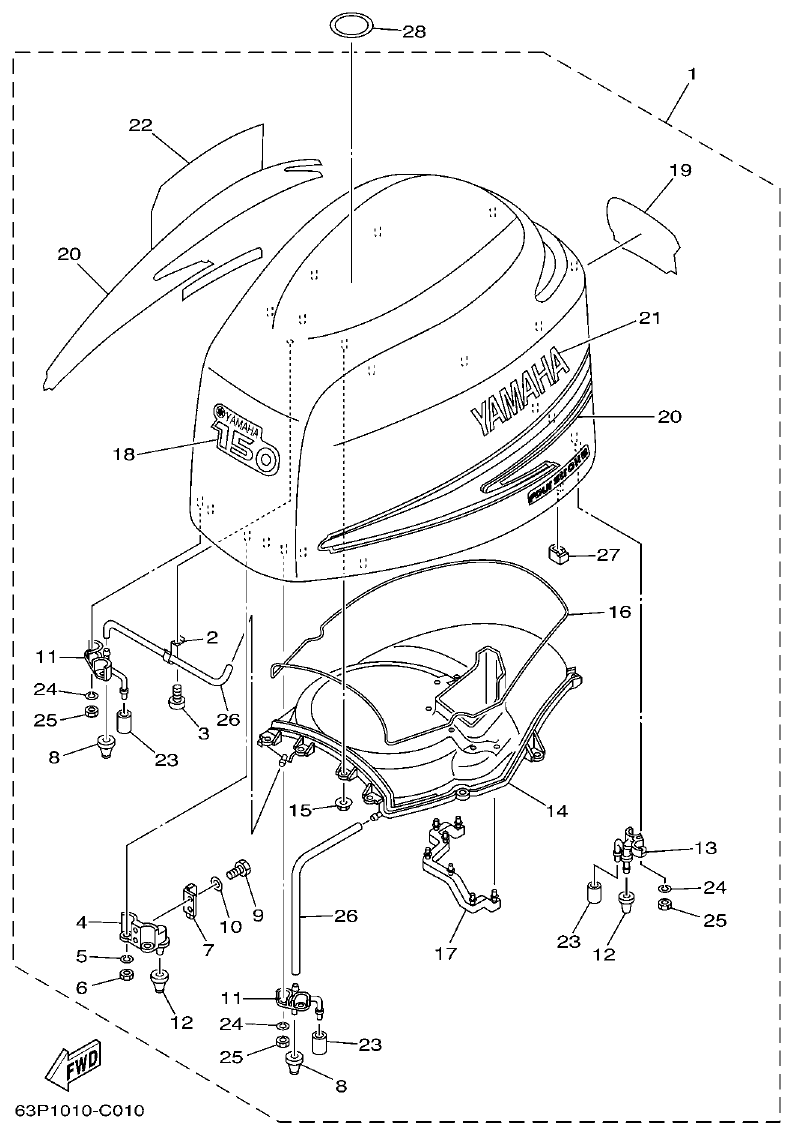

Fig. 1 — TOP COWLING
28 items

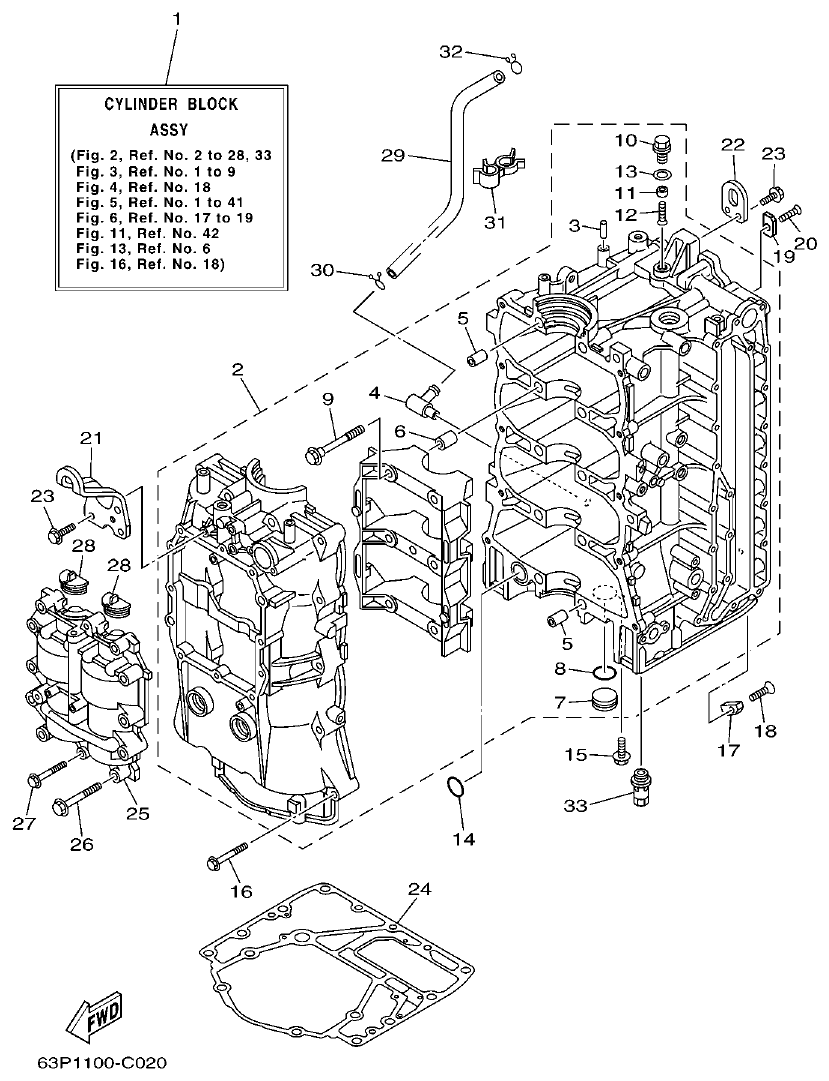

Yamaha F150AET, FL150AET, F150TRC, LF150TRC CYLINDER & CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER & CRANKCASE 1
33 items · 5 available products

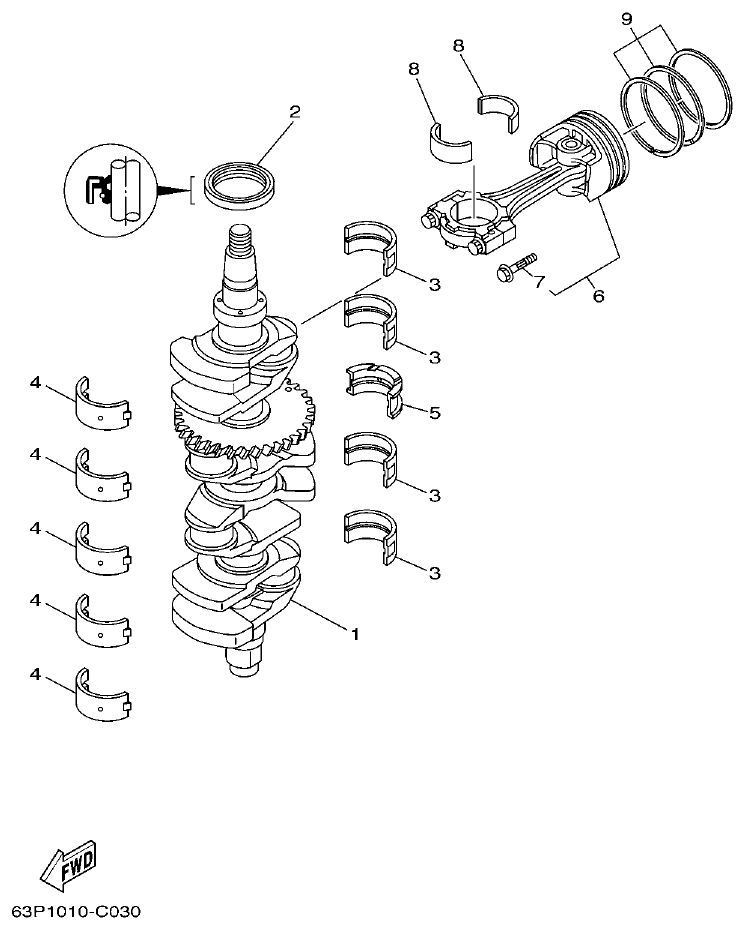

Yamaha F150AET, FL150AET, F150TRC, LF150TRC CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
18 items · 1 available products

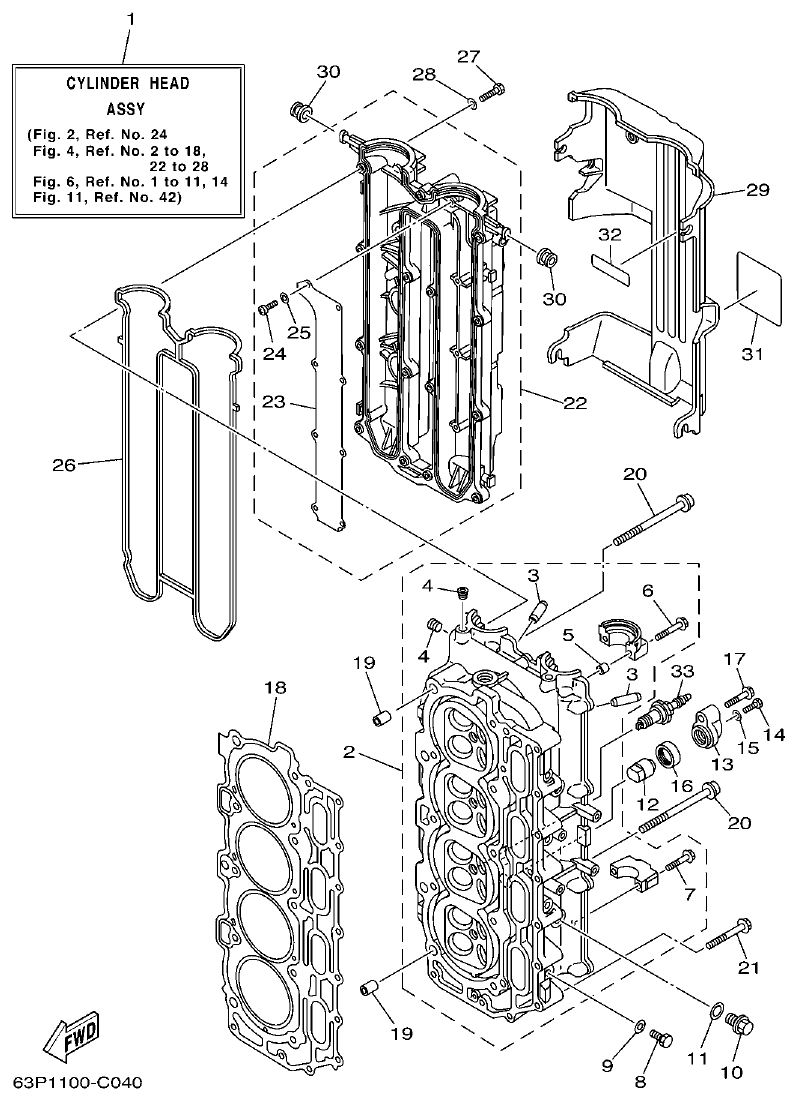

Yamaha F150AET, FL150AET, F150TRC, LF150TRC CYLINDER & CRANKCASE 2 parts diagram
Fig. 4 — CYLINDER & CRANKCASE 2
35 items · 4 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC CYLINDER & CRANKCASE 3 parts diagram

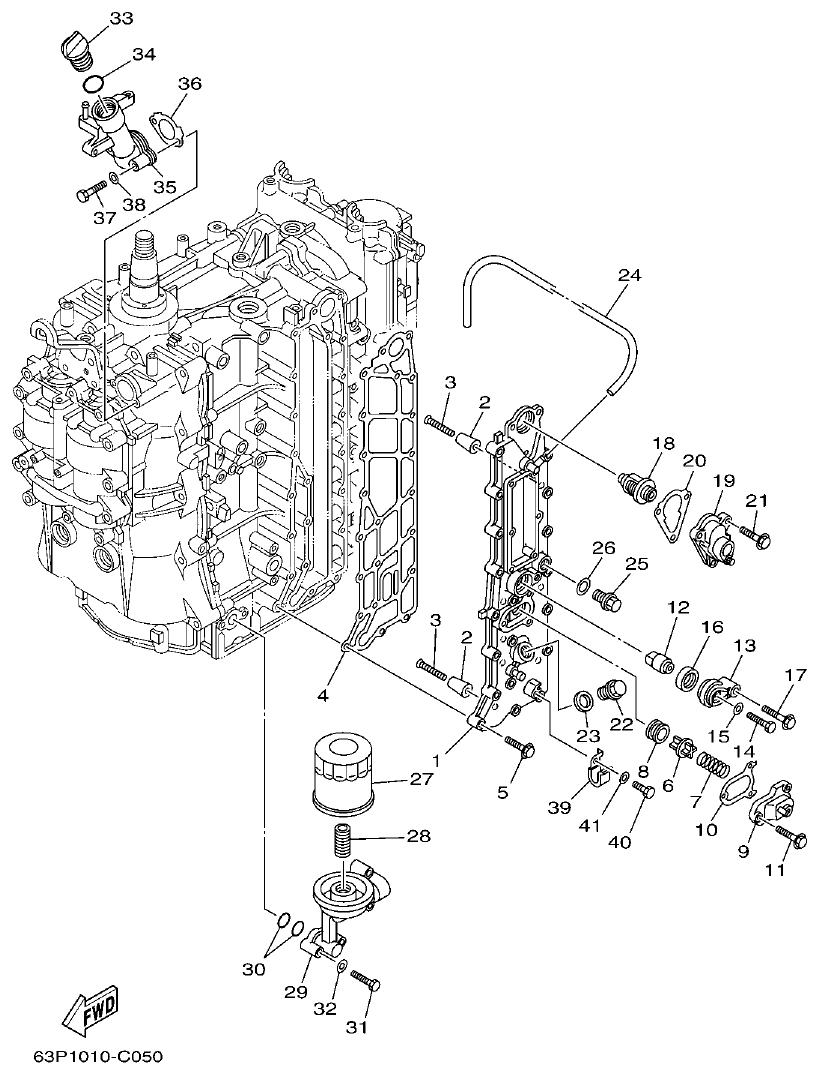

Fig. 5 — CYLINDER & CRANKCASE 3
41 items · 8 available products

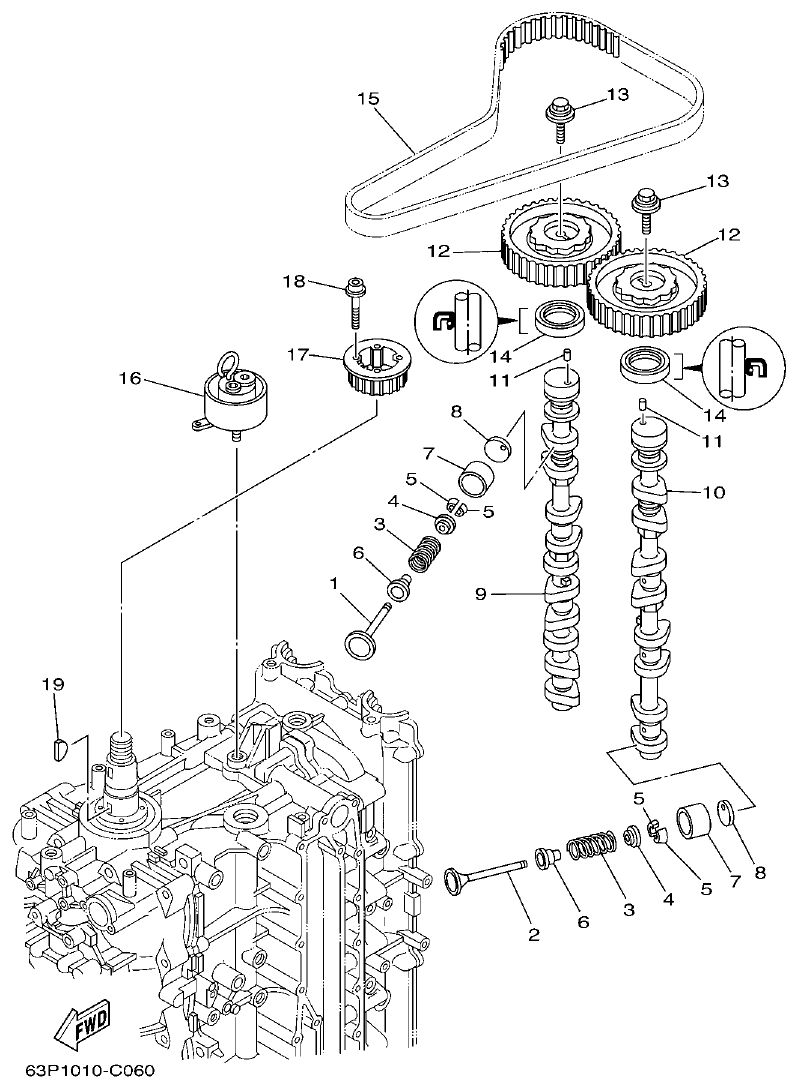

Yamaha F150AET, FL150AET, F150TRC, LF150TRC VALVE parts diagram
Fig. 6 — VALVE
51 items · 7 available products

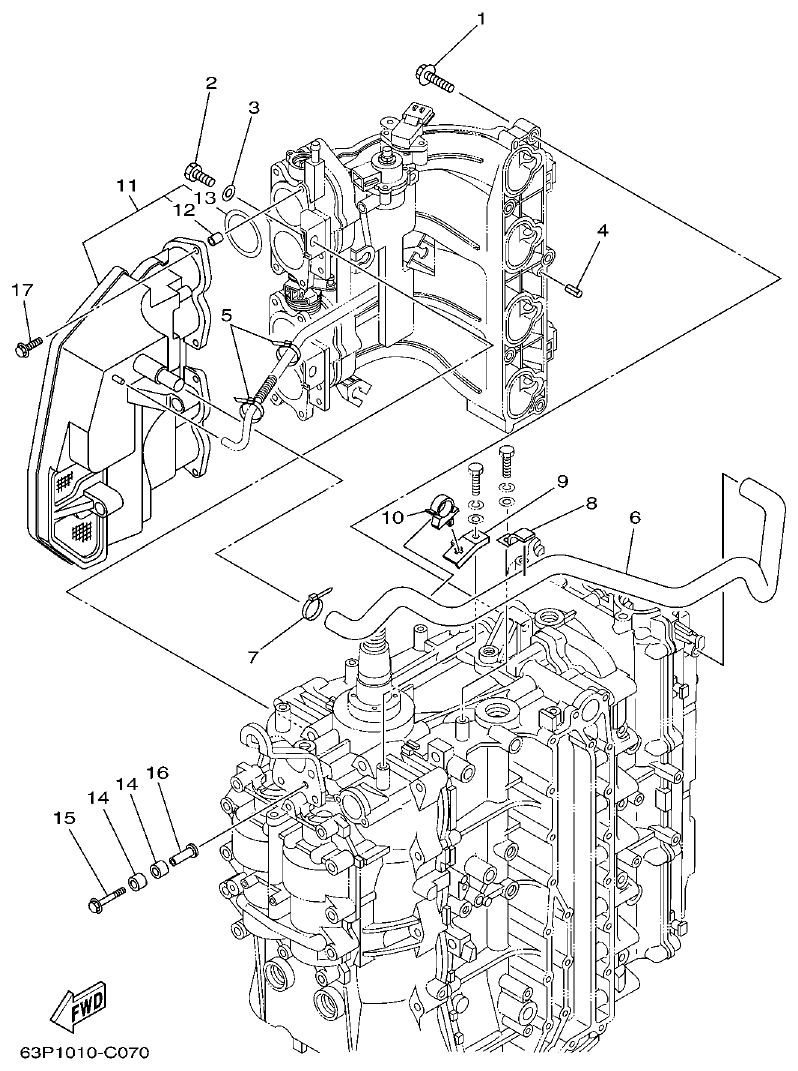

Yamaha F150AET, FL150AET, F150TRC, LF150TRC INTAKE 1 parts diagram
Fig. 7 — INTAKE 1
17 items · 1 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC INTAKE 2 parts diagram

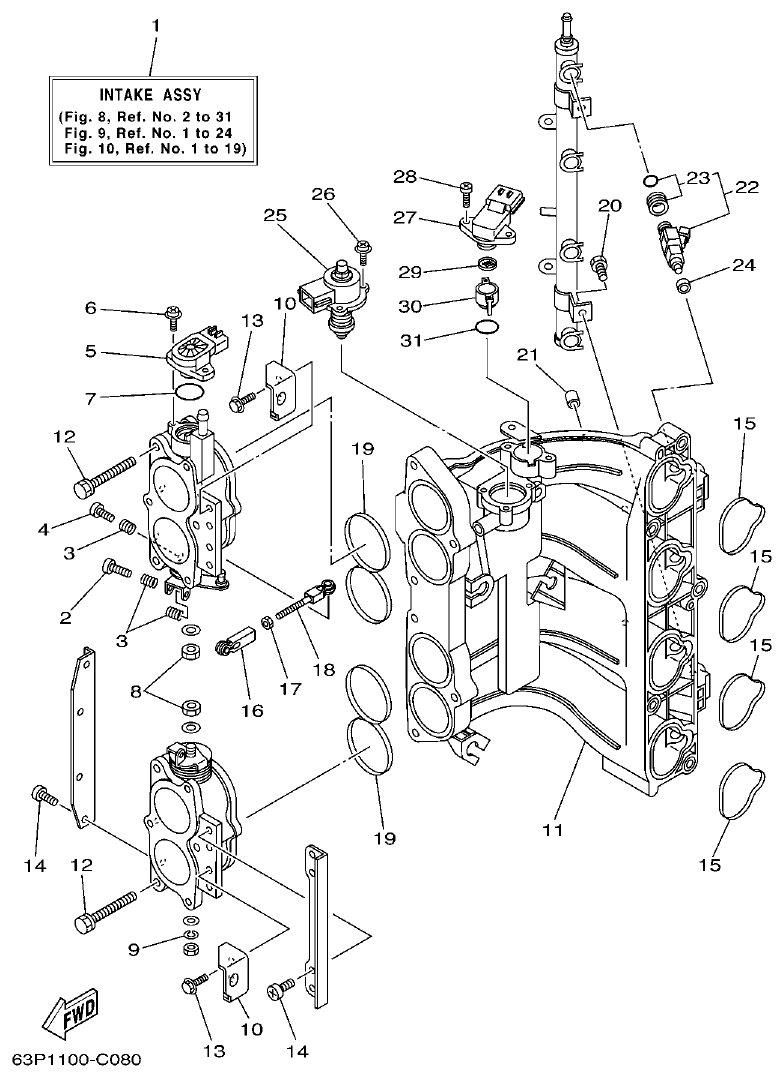

Fig. 8 — INTAKE 2
31 items · 7 available products

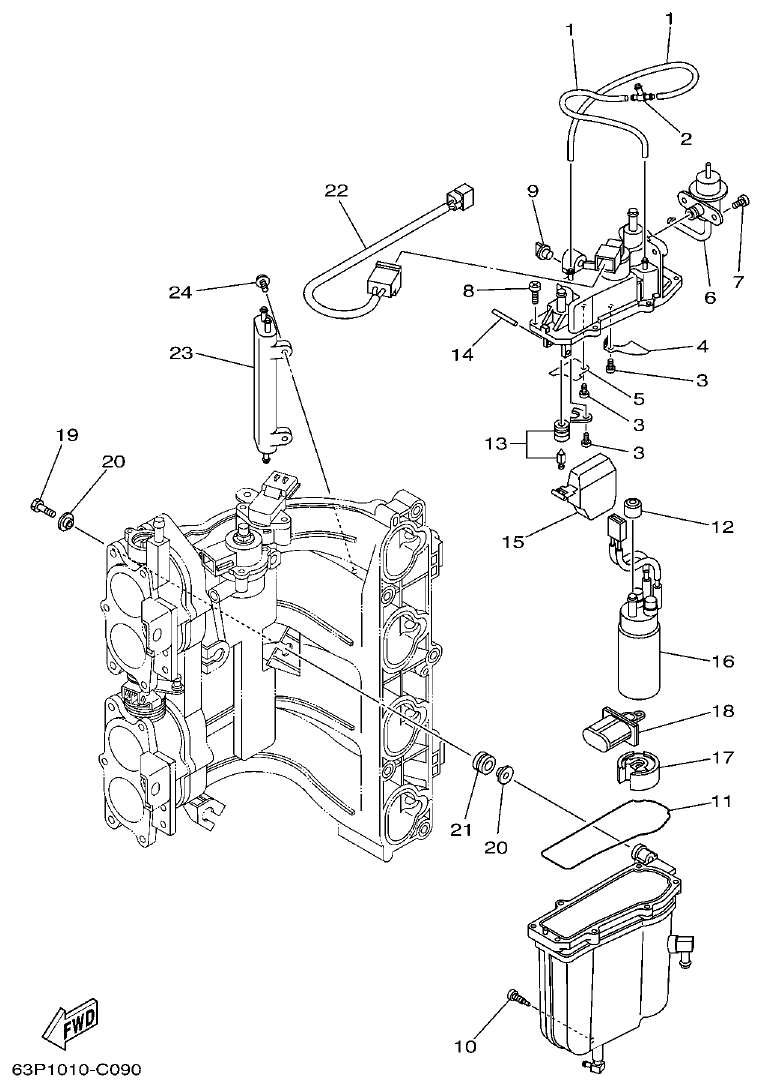

Yamaha F150AET, FL150AET, F150TRC, LF150TRC FUEL INJECTION PUMP 1 parts diagram
Fig. 9 — FUEL INJECTION PUMP 1
24 items · 7 available products

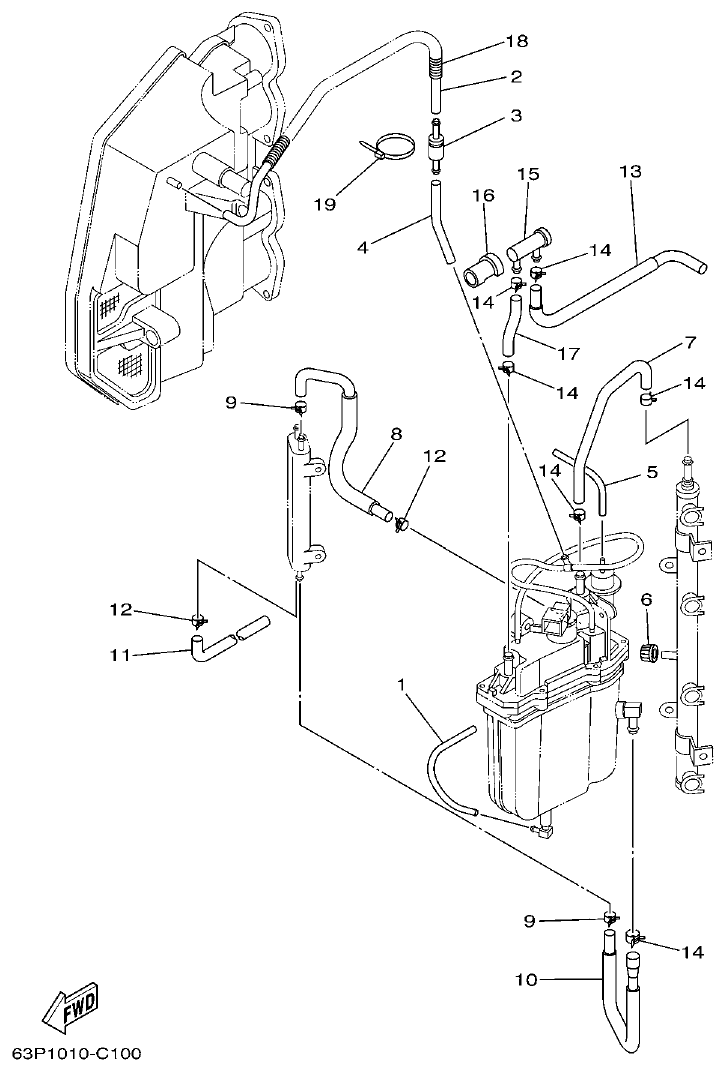

Yamaha F150AET, FL150AET, F150TRC, LF150TRC FUEL INJECTION PUMP 2 parts diagram
Fig. 10 — FUEL INJECTION PUMP 2
19 items · 2 available products

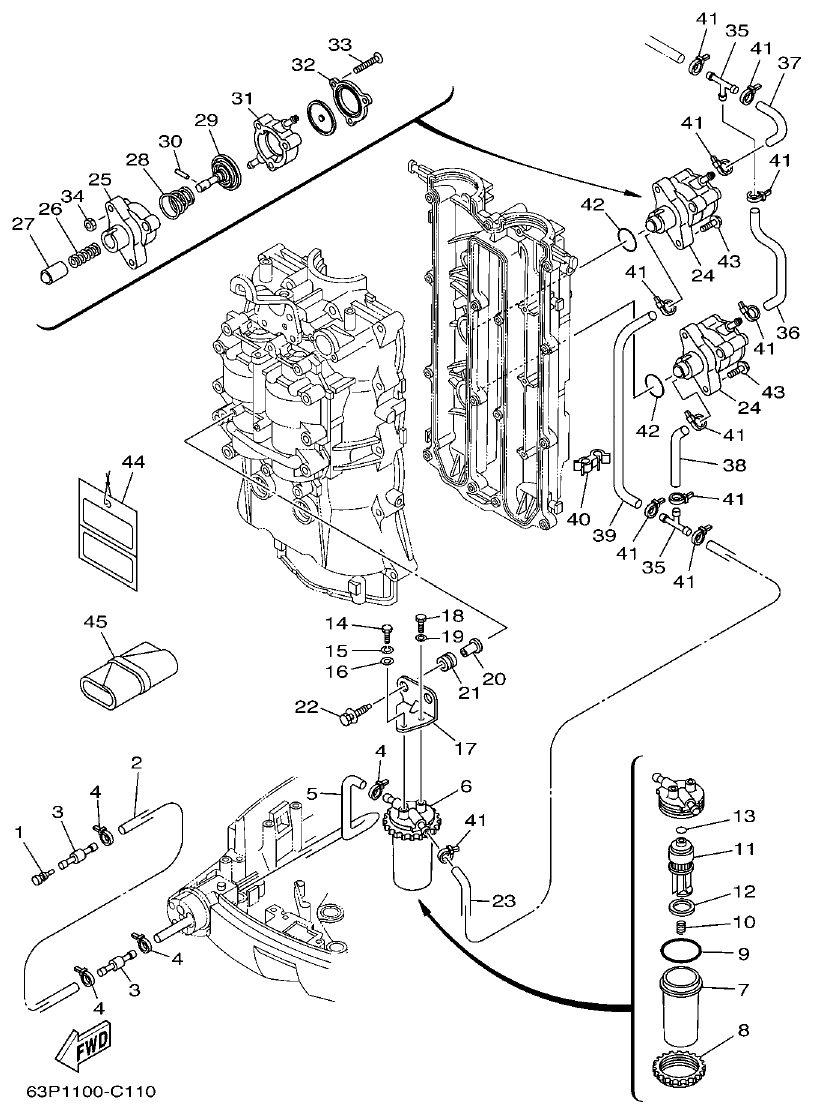

Yamaha F150AET, FL150AET, F150TRC, LF150TRC FUEL 1 parts diagram
Fig. 11 — FUEL 1
45 items · 4 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC FUEL 2 parts diagram

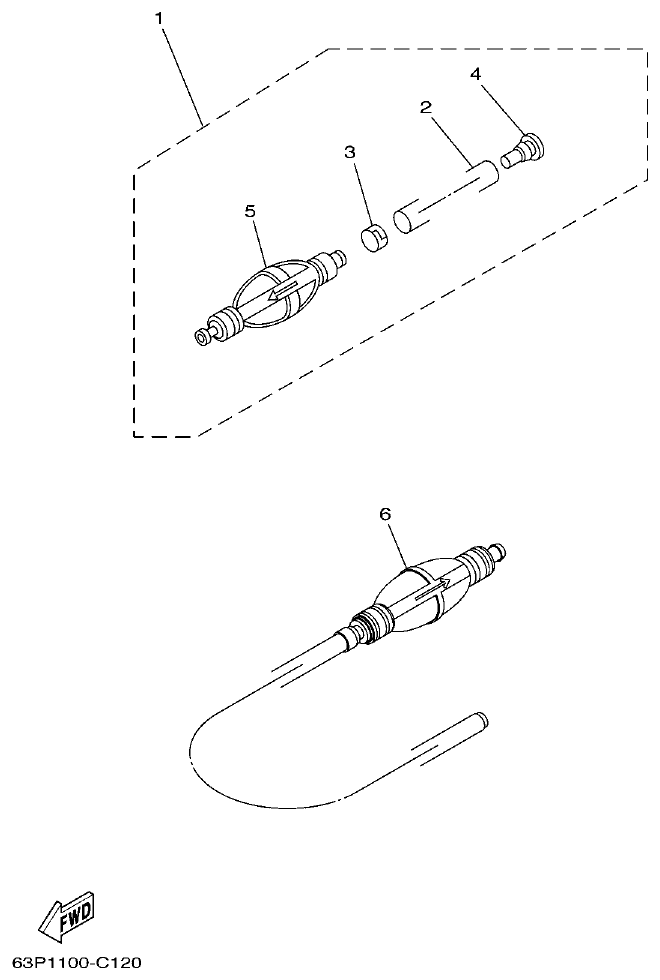

Fig. 12 — FUEL 2
6 items · 2 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC GENERATOR parts diagram

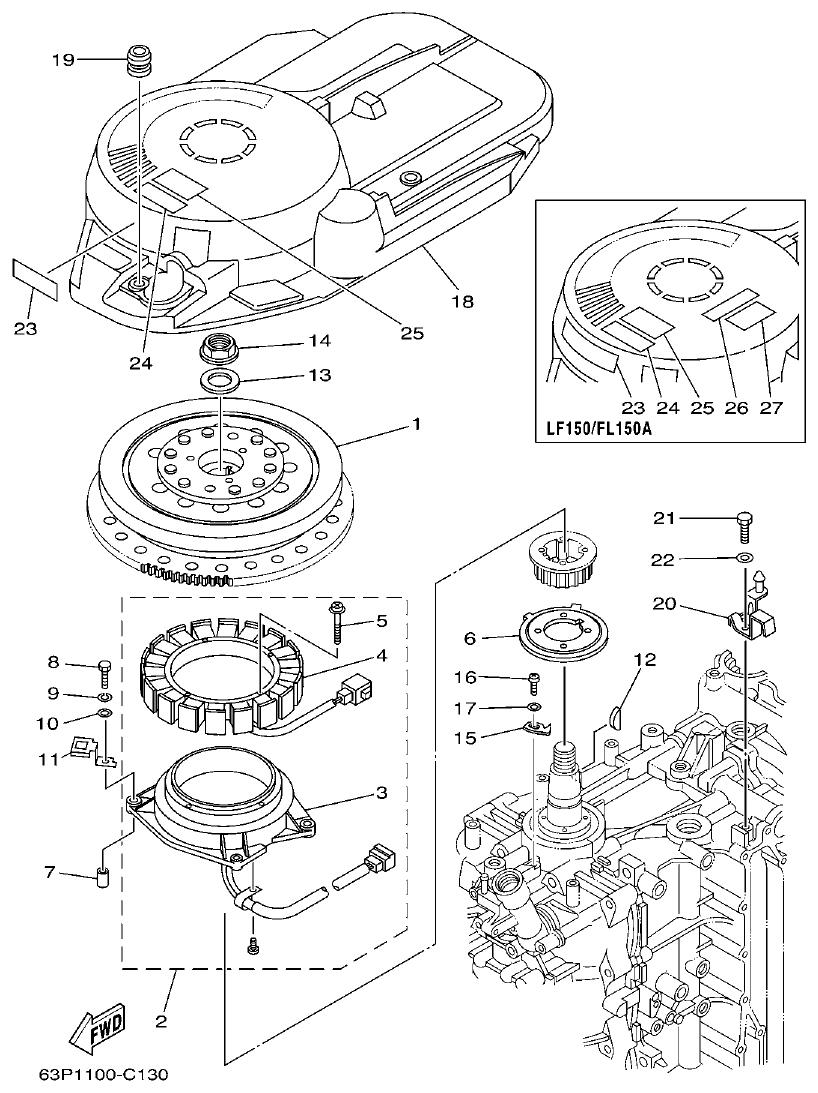

Fig. 13 — GENERATOR
29 items · 1 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC ELECTRICAL 1 parts diagram

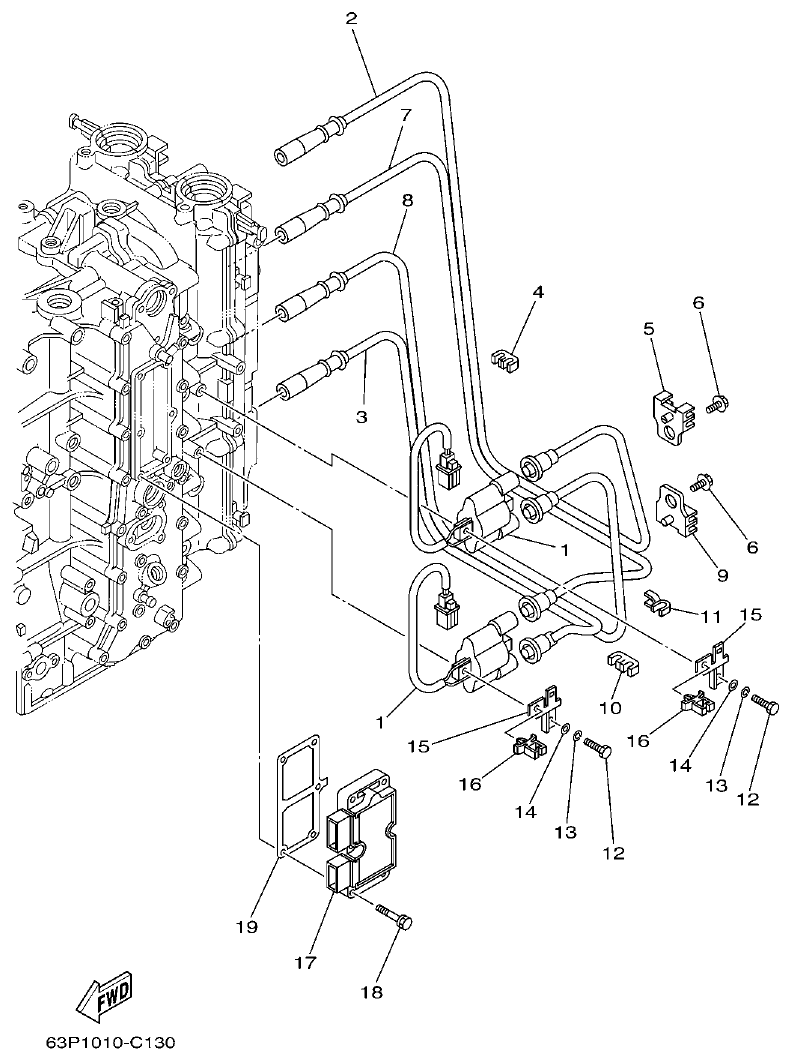

Fig. 14 — ELECTRICAL 1
19 items · 1 available products

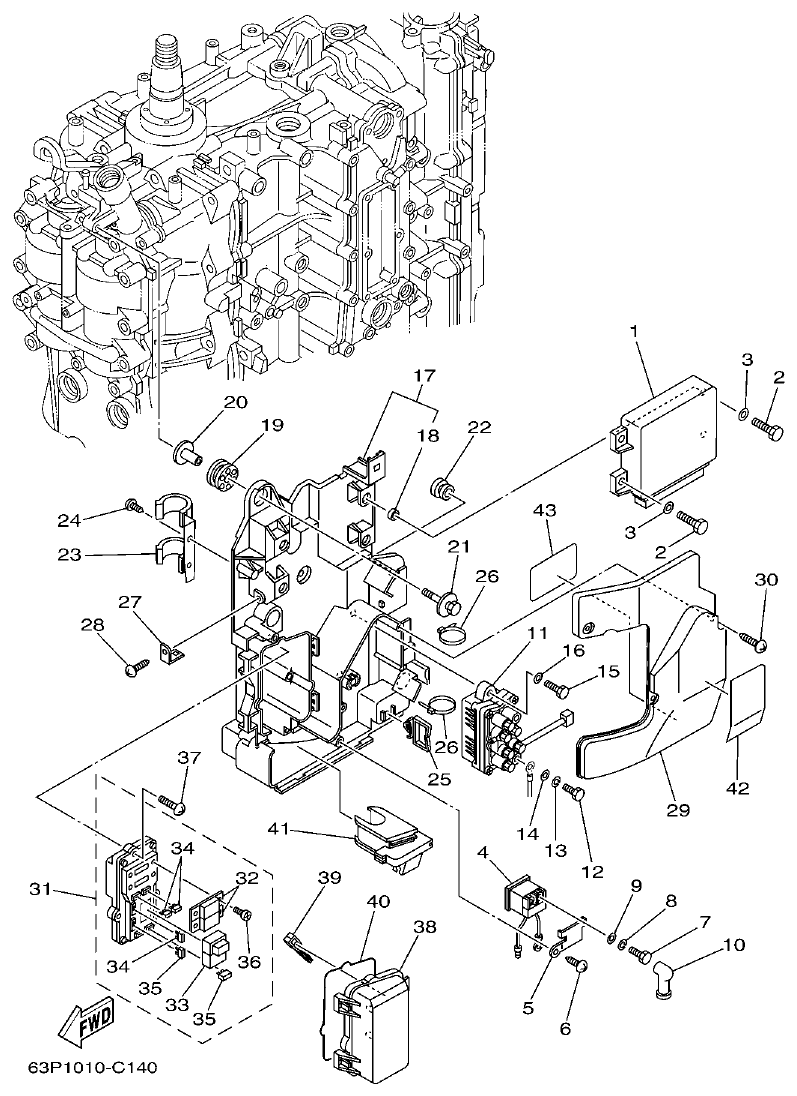

Yamaha F150AET, FL150AET, F150TRC, LF150TRC ELECTRICAL 2 parts diagram
Fig. 15 — ELECTRICAL 2
44 items · 4 available products

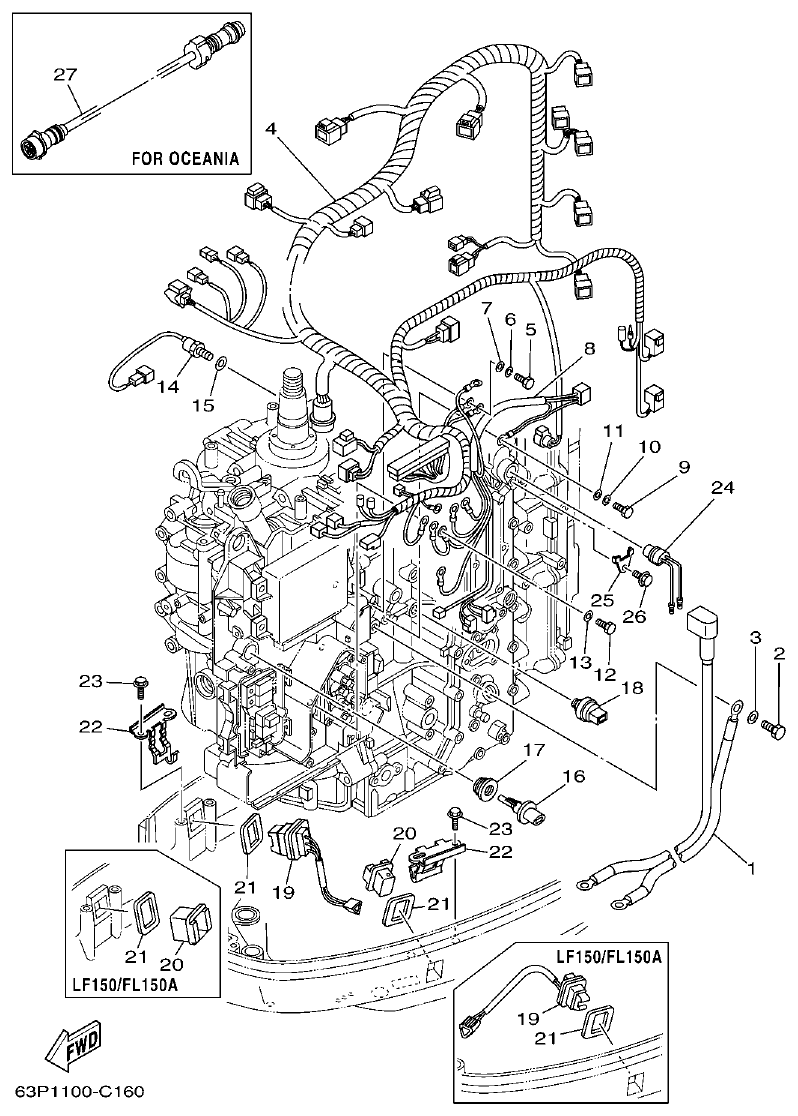

Yamaha F150AET, FL150AET, F150TRC, LF150TRC ELECTRICAL 3 parts diagram
Fig. 16 — ELECTRICAL 3
28 items · 2 available products

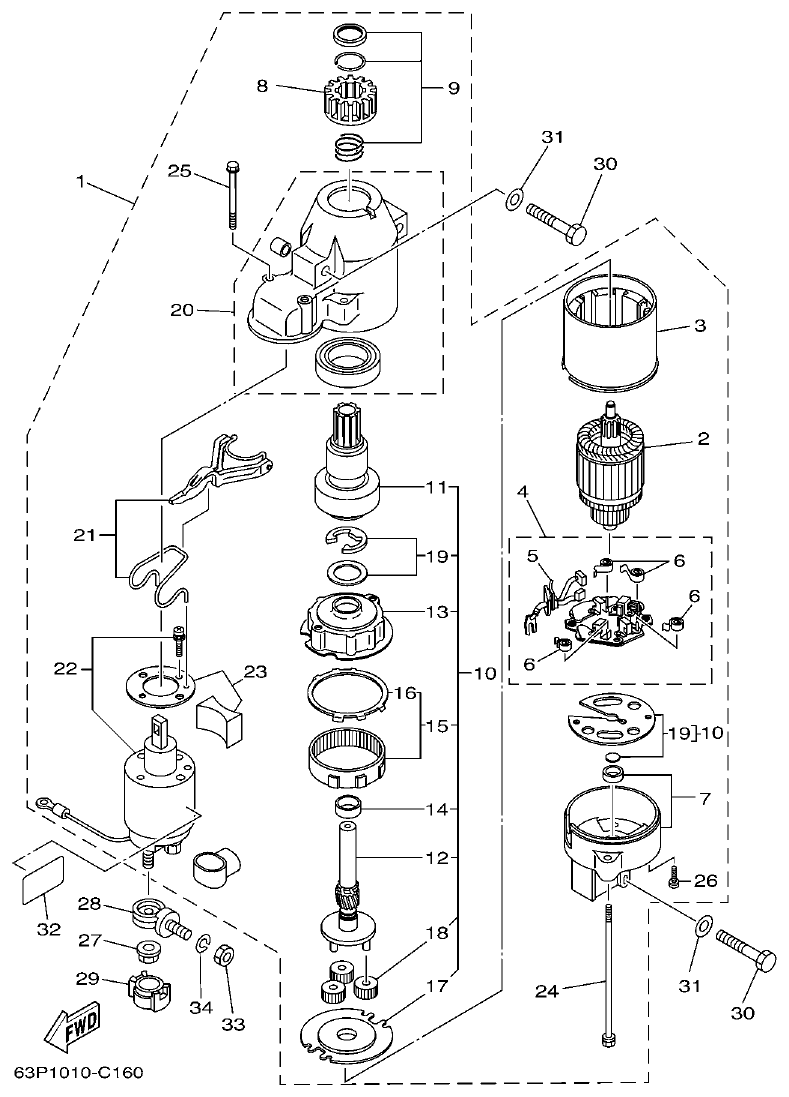

Yamaha F150AET, FL150AET, F150TRC, LF150TRC STARTING MOTOR parts diagram
Fig. 17 — STARTING MOTOR
34 items · 4 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC BOTTOM COWLING parts diagram

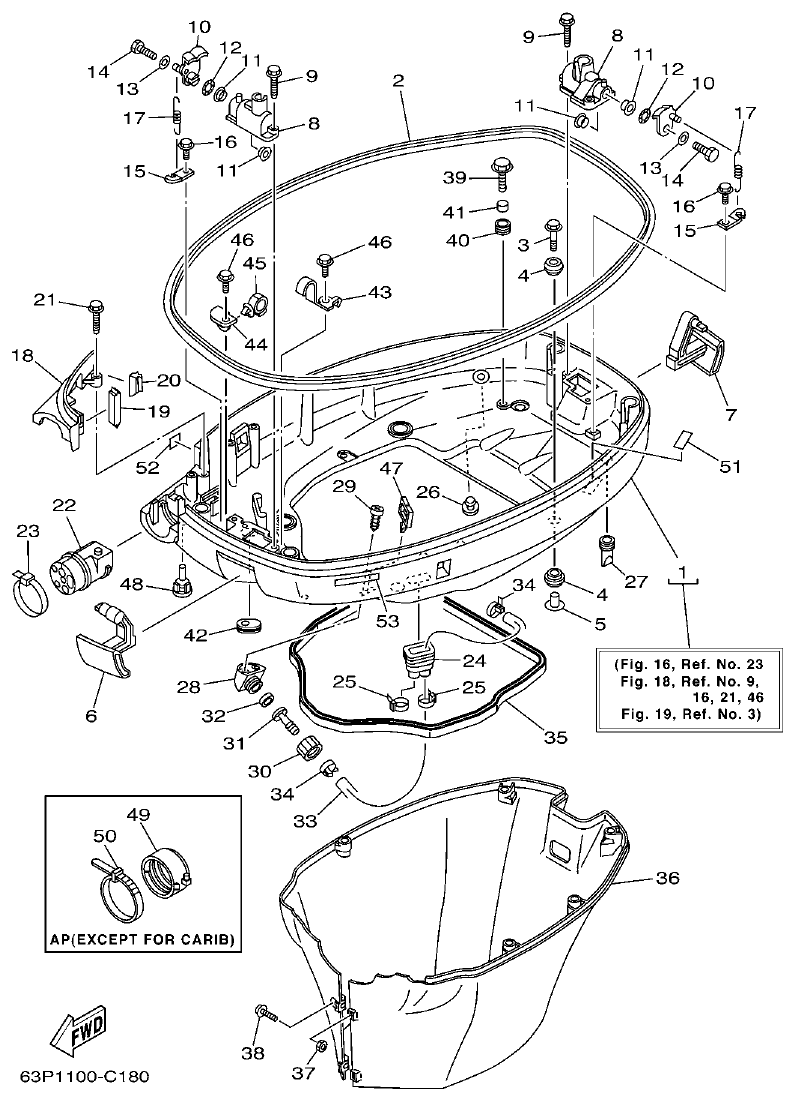

Fig. 18 — BOTTOM COWLING
53 items · 5 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC CONTROL parts diagram

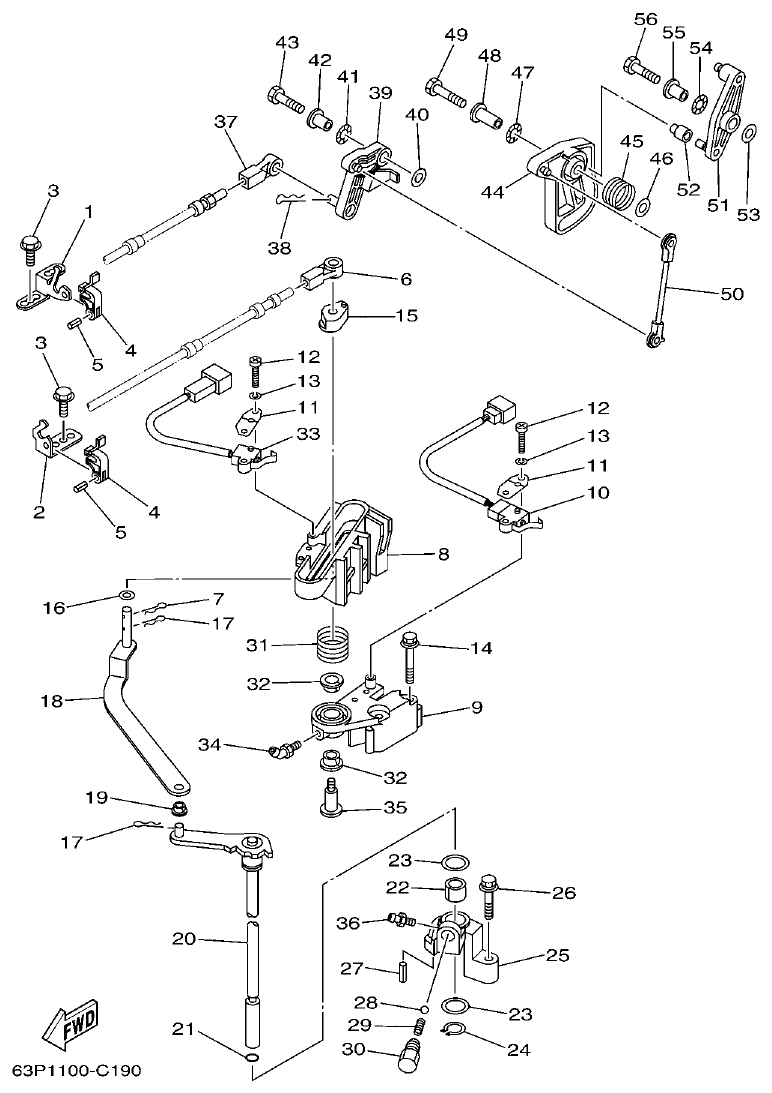

Fig. 19 — CONTROL
56 items · 5 available products

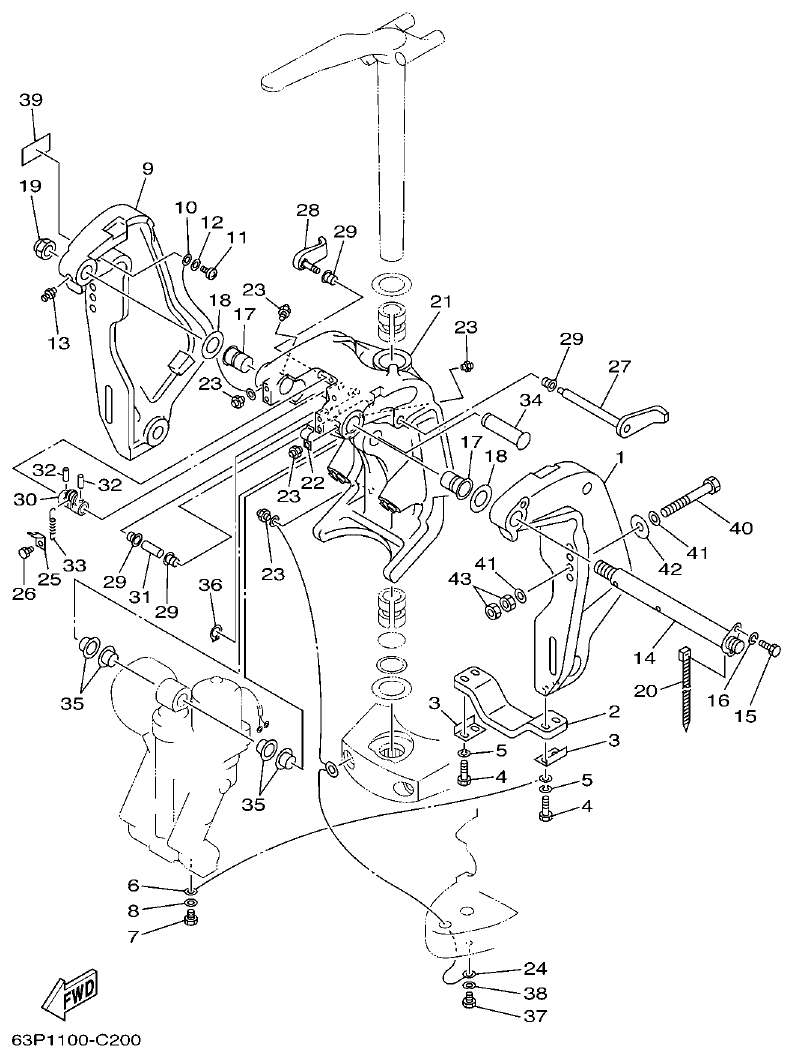

Yamaha F150AET, FL150AET, F150TRC, LF150TRC BRACKET 1 parts diagram
Fig. 20 — BRACKET 1
44 items · 8 available products

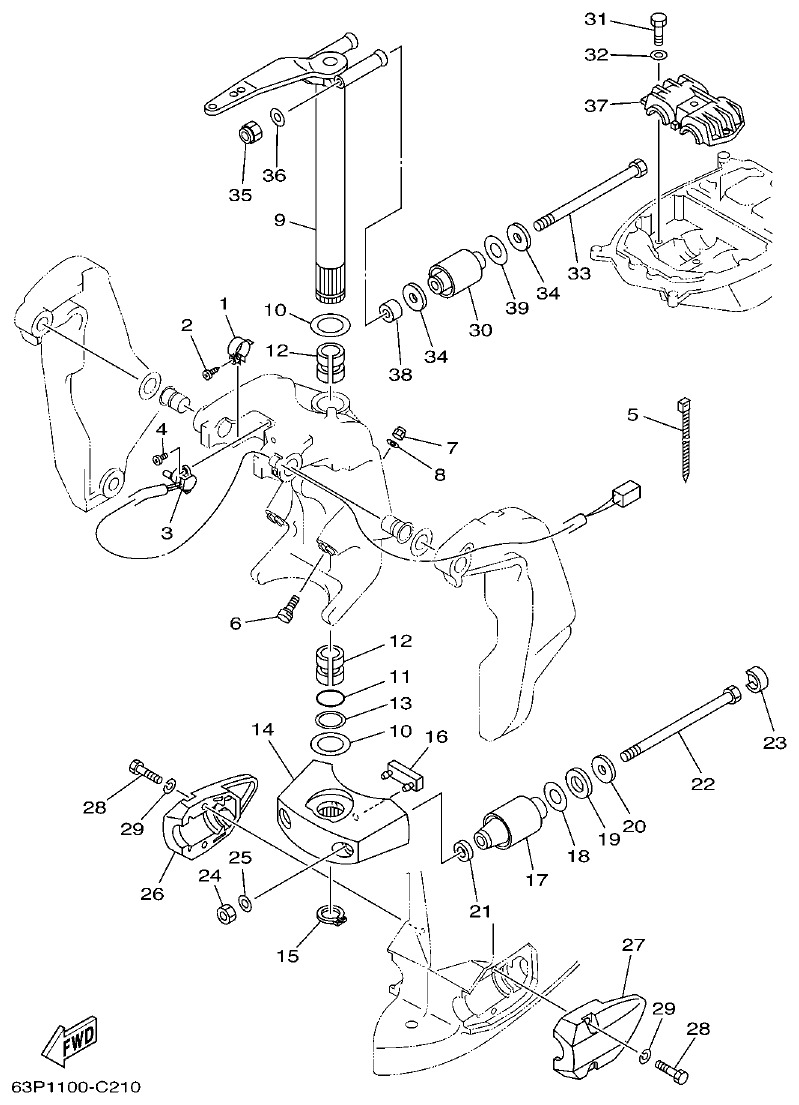

Yamaha F150AET, FL150AET, F150TRC, LF150TRC BRACKET 2 parts diagram
Fig. 21 — BRACKET 2
41 items · 2 available products

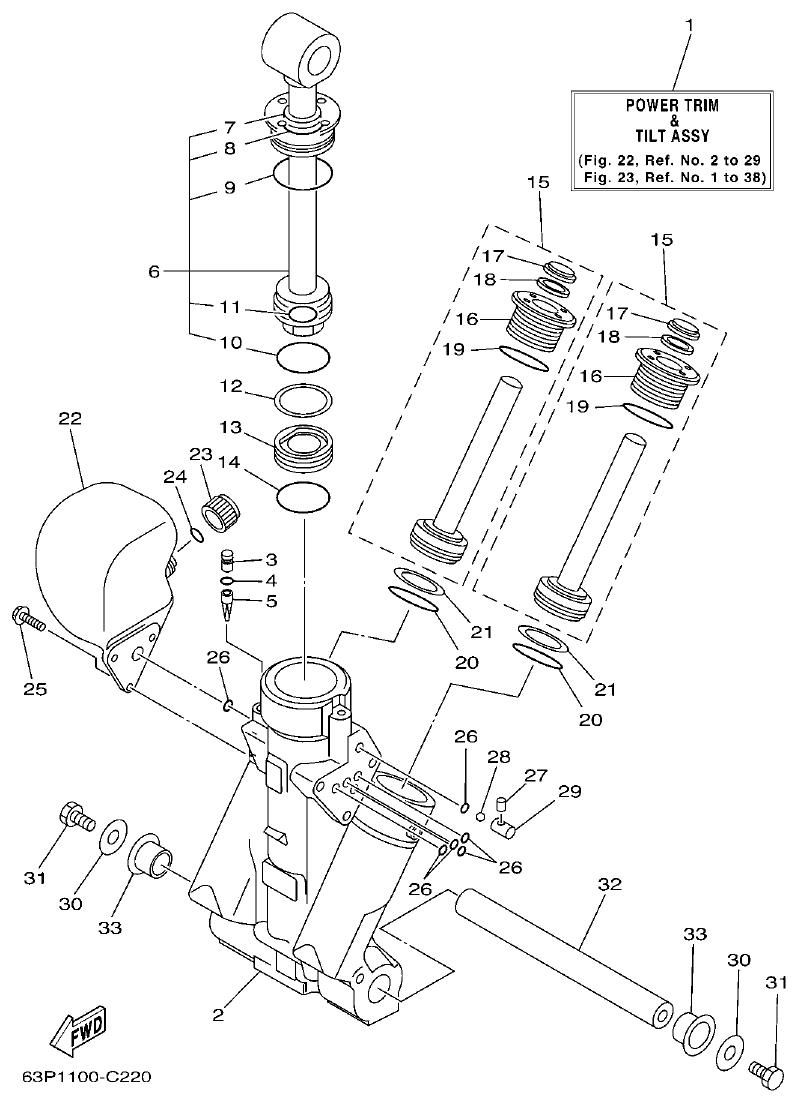

Yamaha F150AET, FL150AET, F150TRC, LF150TRC POWER TRIM & TILT ASSY 1 parts diagram
Fig. 22 — POWER TRIM & TILT ASSY 1
33 items · 8 available products

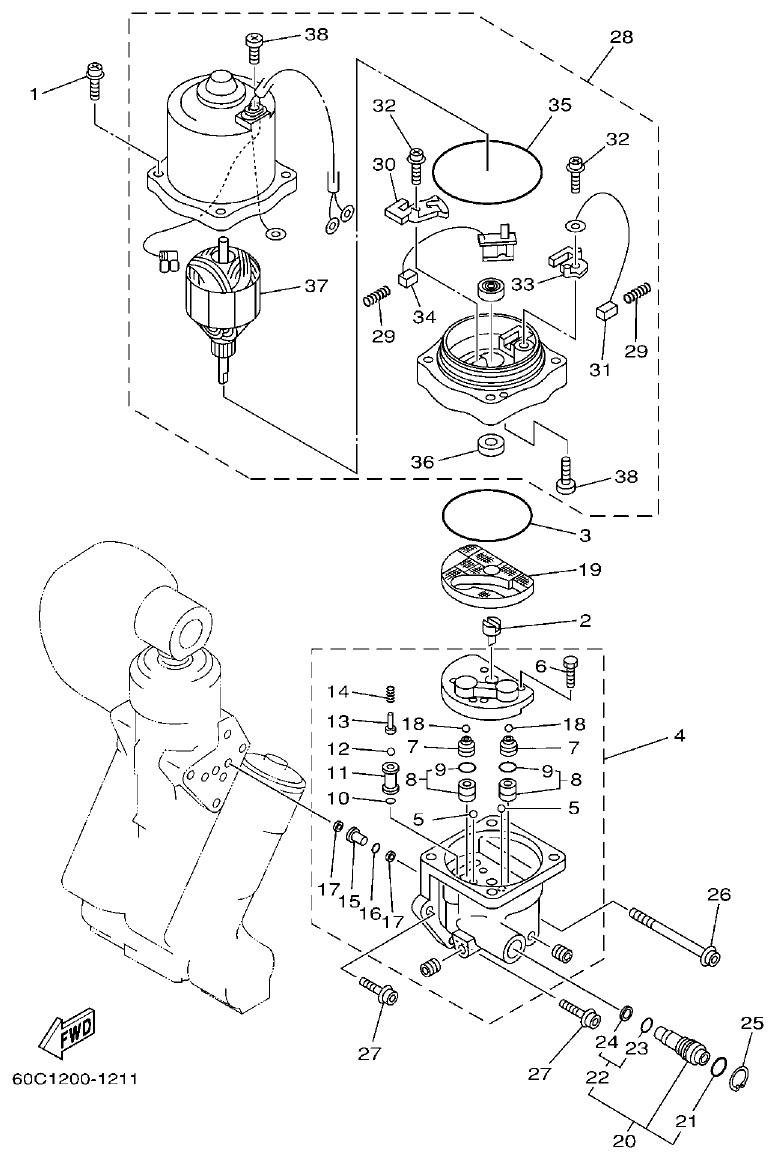

Yamaha F150AET, FL150AET, F150TRC, LF150TRC POWER TRIM & TILT ASSY 2 parts diagram
Fig. 23 — POWER TRIM & TILT ASSY 2
38 items · 9 available products

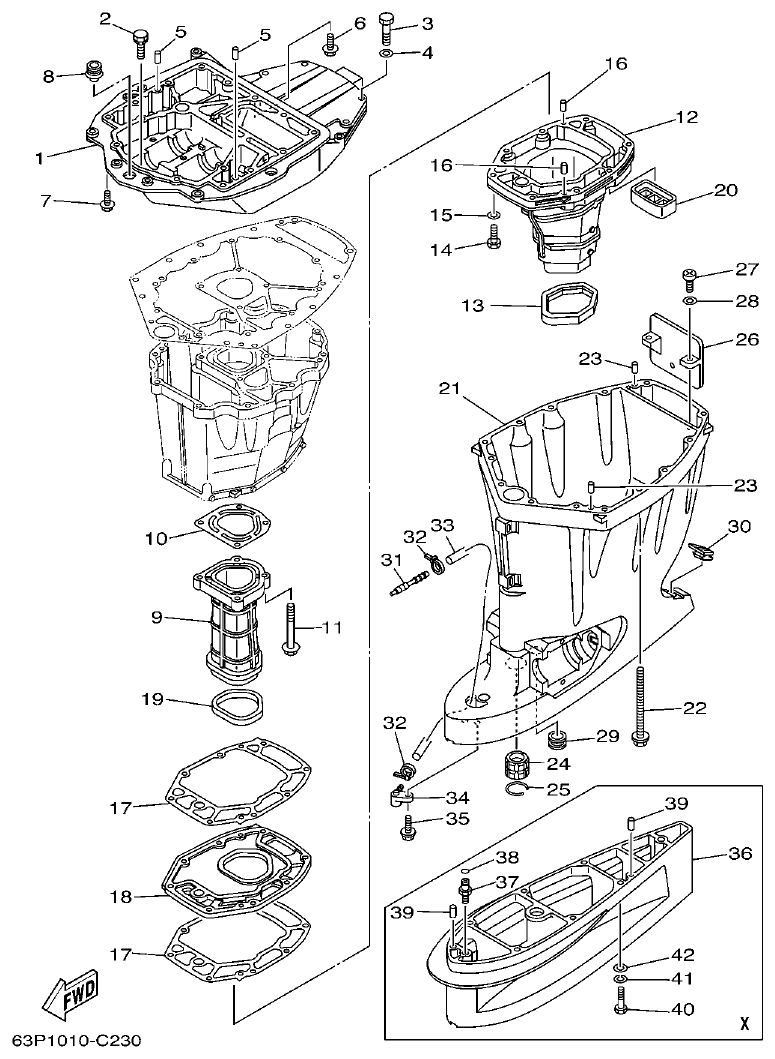

Yamaha F150AET, FL150AET, F150TRC, LF150TRC UPPER CASING parts diagram
Fig. 24 — UPPER CASING
42 items · 6 available products

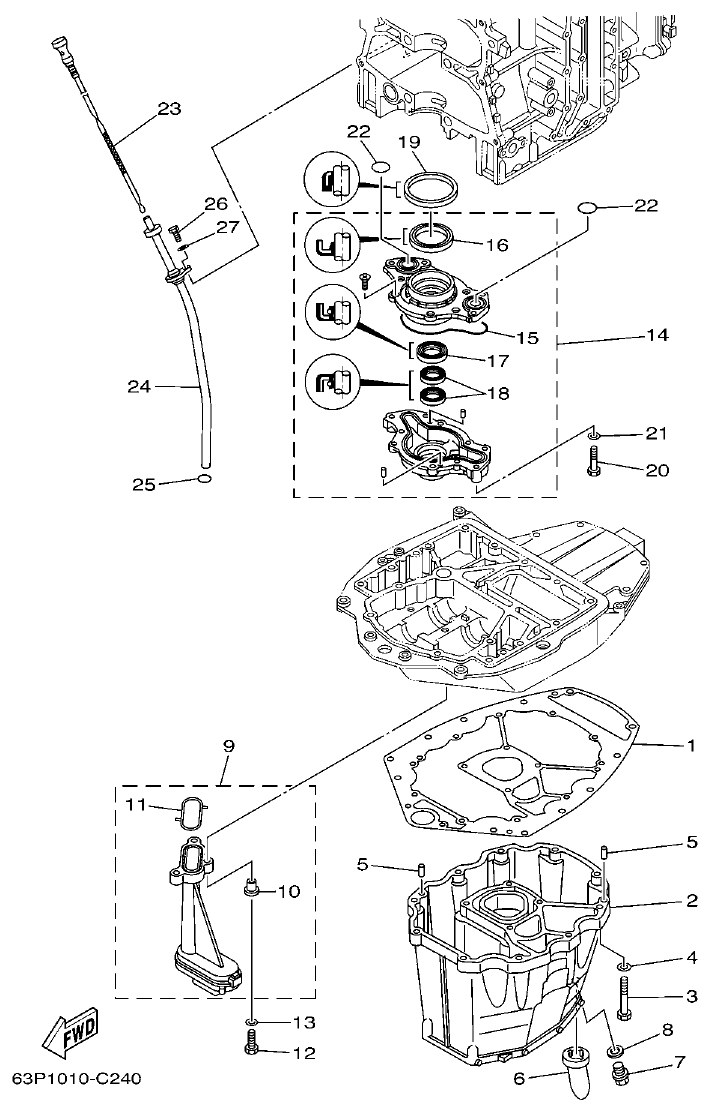

Yamaha F150AET, FL150AET, F150TRC, LF150TRC OIL PAN parts diagram
Fig. 25 — OIL PAN
27 items · 8 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC LOWER CASING & DRIVE 1 parts diagram

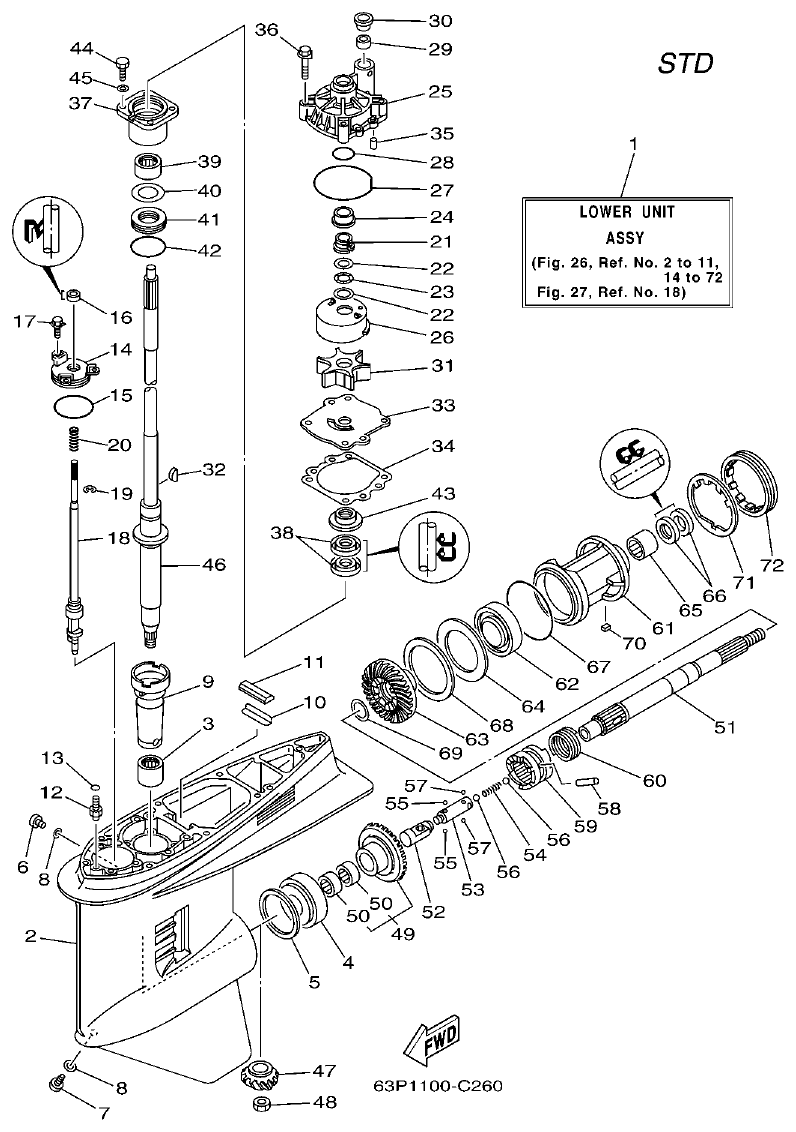

Fig. 26 — LOWER CASING & DRIVE 1
93 items · 20 available products

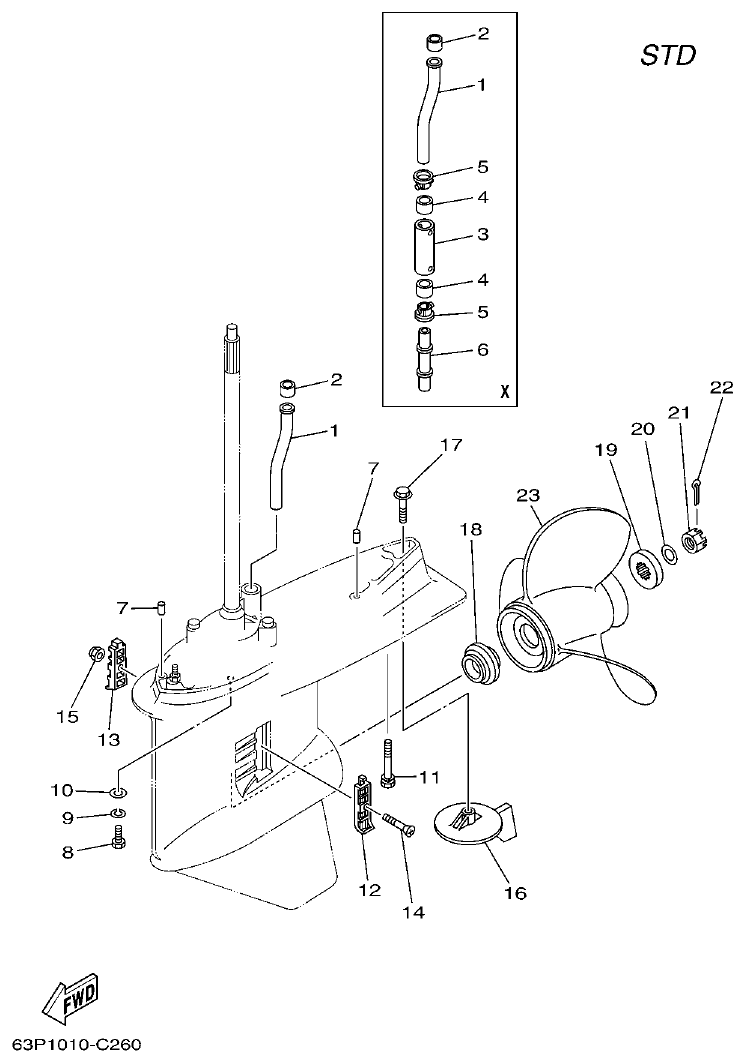

Yamaha F150AET, FL150AET, F150TRC, LF150TRC LOWER CASING & DRIVE 2 parts diagram
Fig. 27 — LOWER CASING & DRIVE 2
44 items · 9 available products

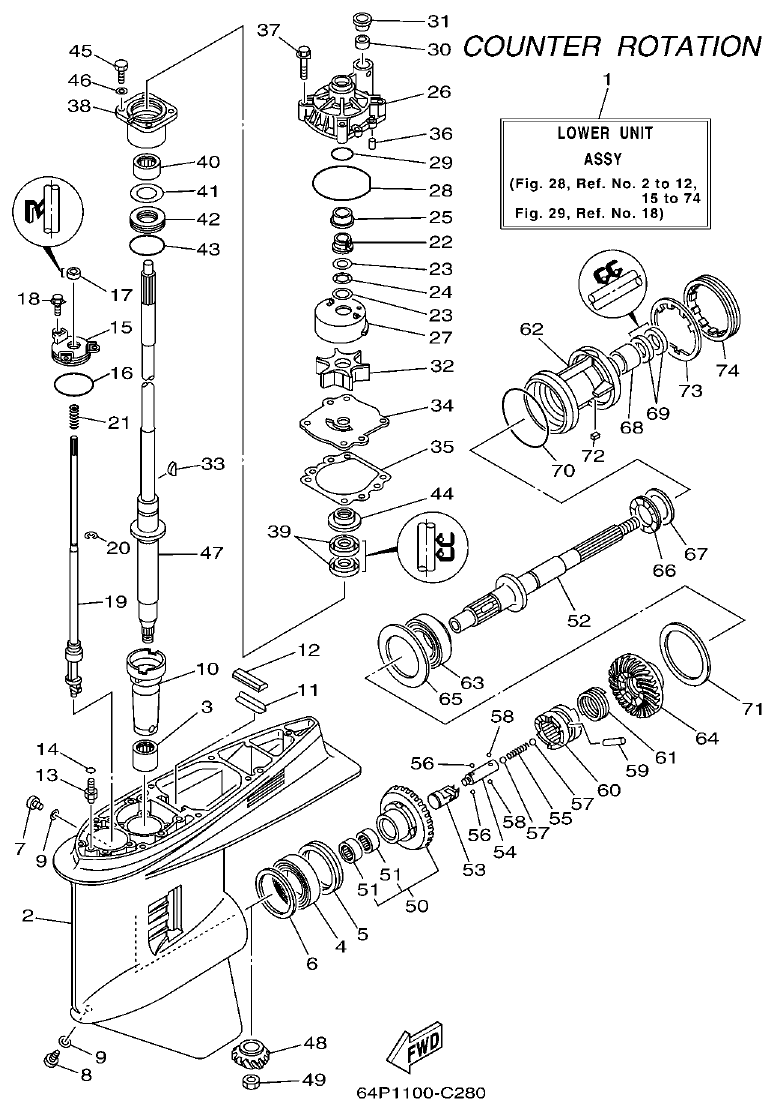

Yamaha F150AET, FL150AET, F150TRC, LF150TRC LOWER CASING & DRIVE 3 parts diagram
Fig. 28 — LOWER CASING & DRIVE 3
98 items · 20 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC LOWER CASING & DRIVE 4 parts diagram

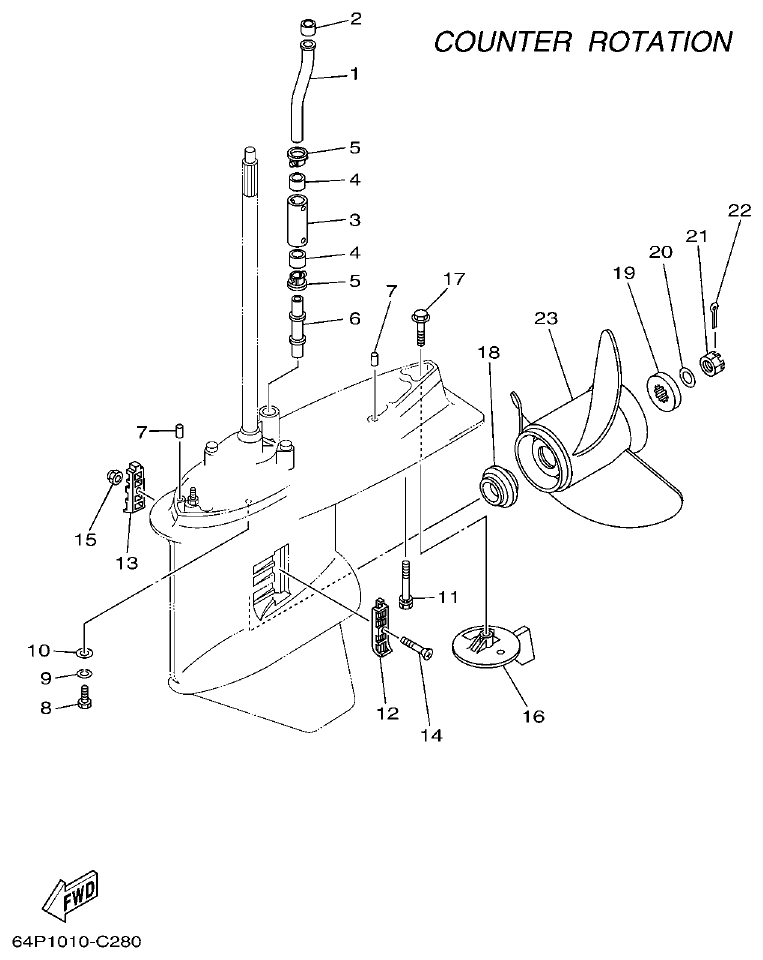

Fig. 29 — LOWER CASING & DRIVE 4
34 items · 9 available products

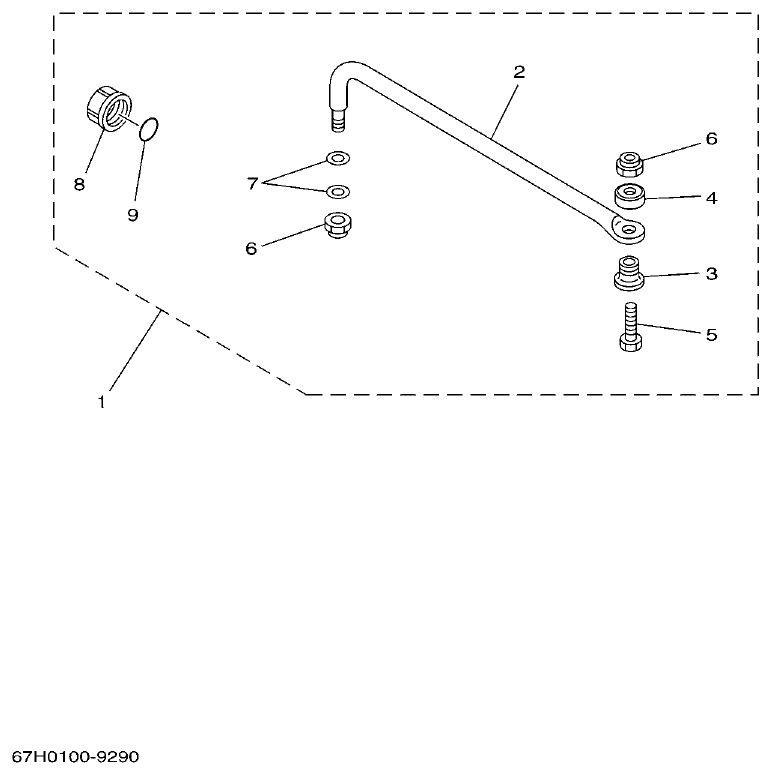

Yamaha F150AET, FL150AET, F150TRC, LF150TRC STEERING GUIDE ATTACHMENT 1 parts diagram
Fig. 30 — STEERING GUIDE ATTACHMENT 1
9 items · 2 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC STEERING GUIDE ATTACHMENT 2 parts diagram

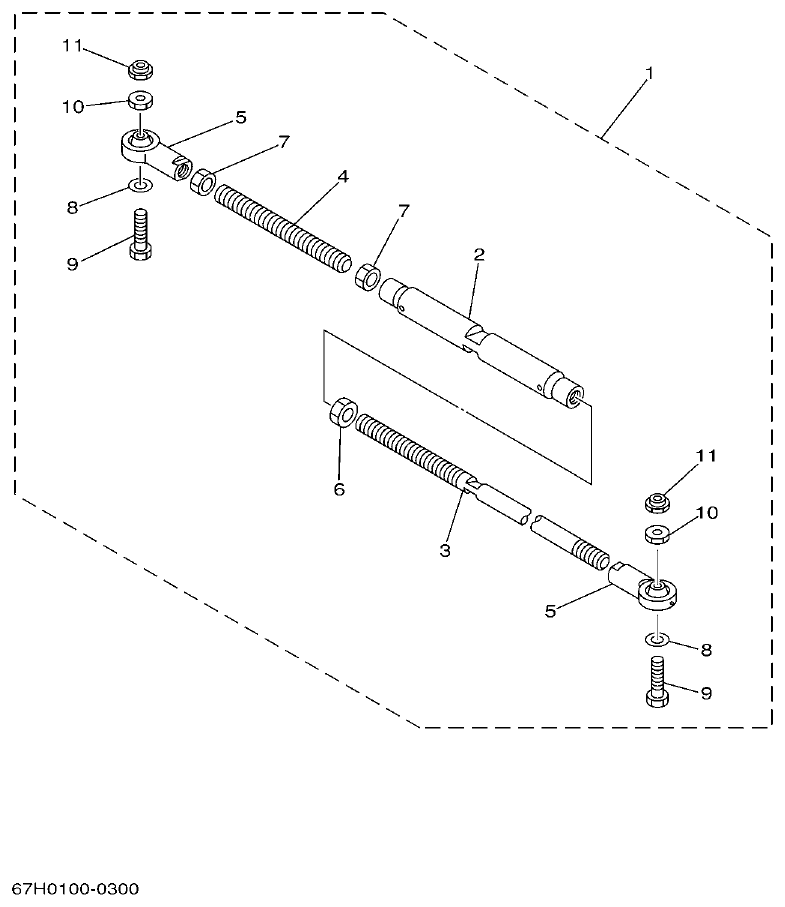

Fig. 31 — STEERING GUIDE ATTACHMENT 2
11 items · 1 available products

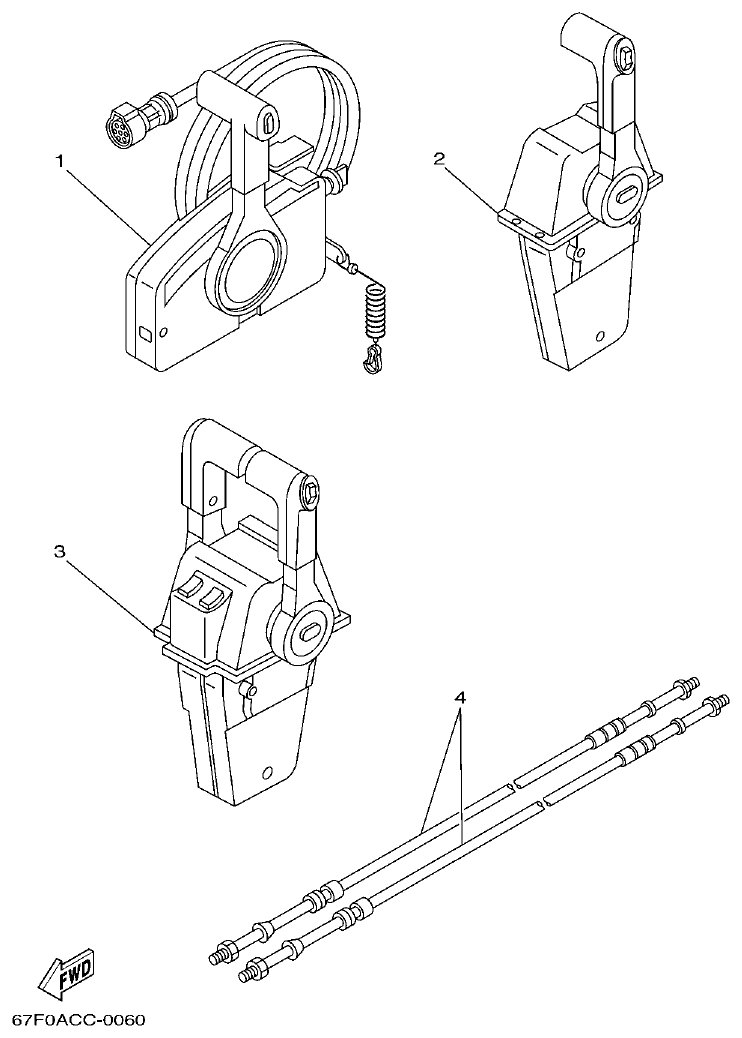

Yamaha F150AET, FL150AET, F150TRC, LF150TRC REMOTE CONTROL BOX parts diagram
Fig. 32 — REMOTE CONTROL BOX
8 items
Yamaha F150AET, FL150AET, F150TRC, LF150TRC REMOTE CONTROL ASSY 1 parts diagram

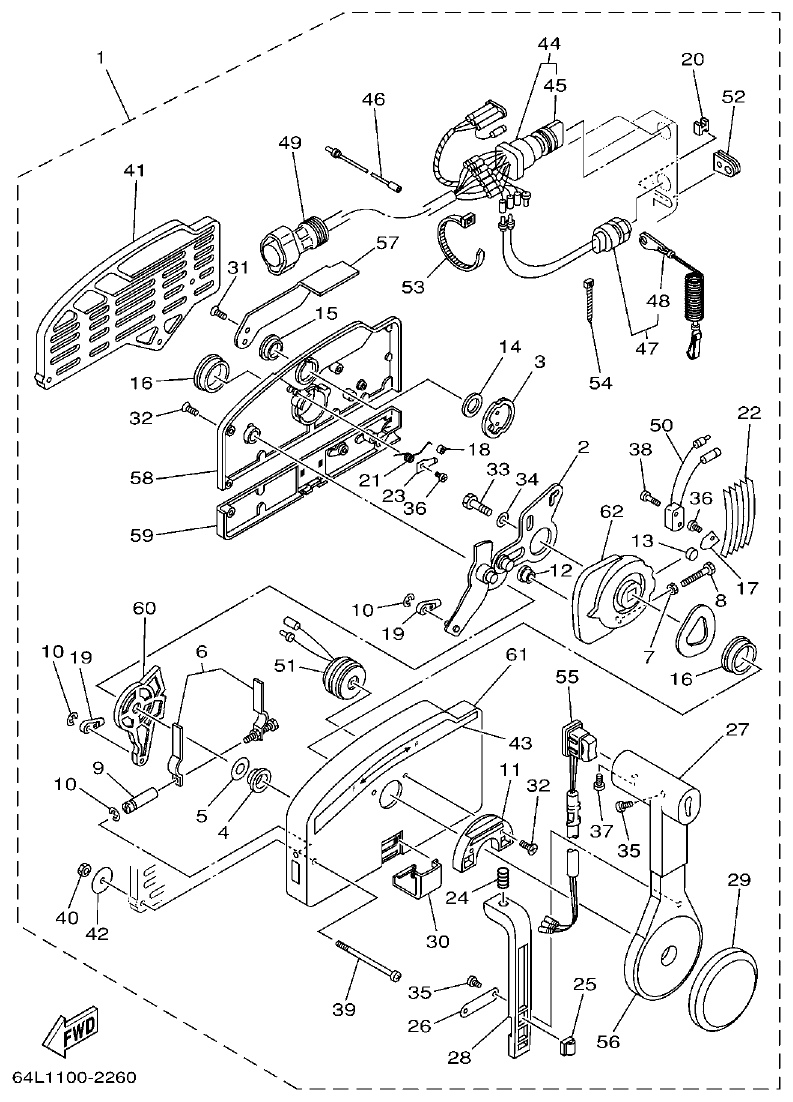

Fig. 33 — REMOTE CONTROL ASSY 1
62 items · 12 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC REMOTE CONTROL ASSY 2 parts diagram

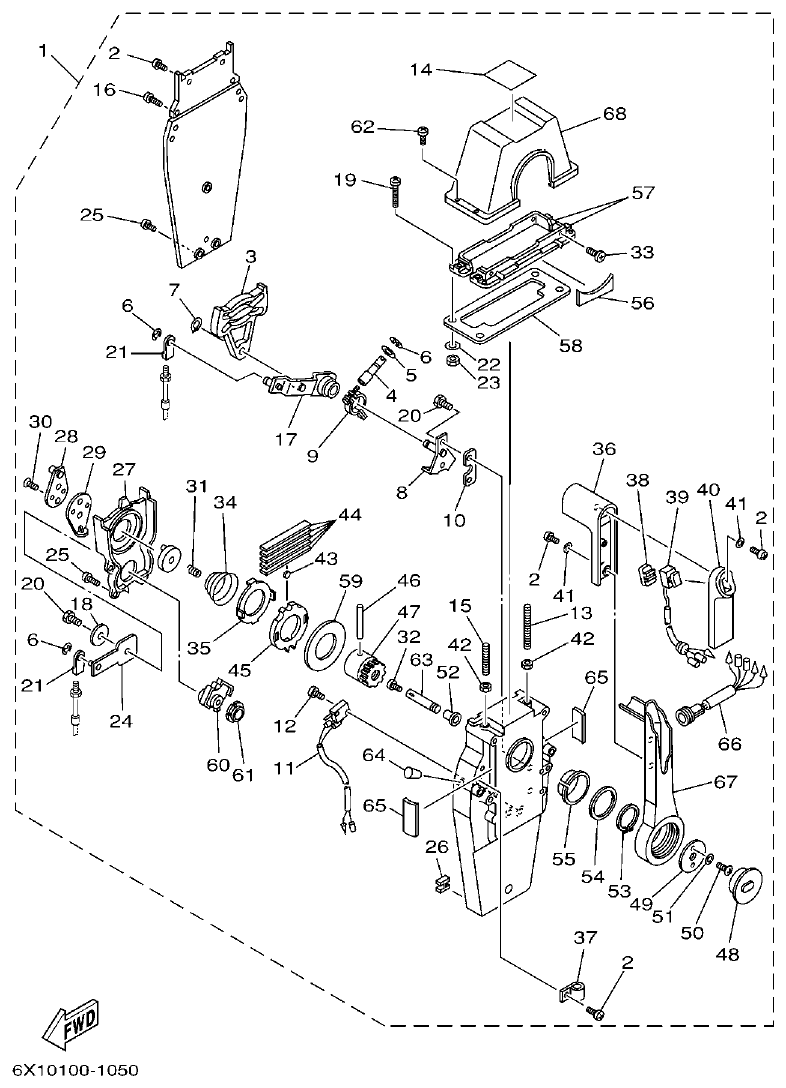

Fig. 34 — REMOTE CONTROL ASSY 2
68 items · 1 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC REMOTE CONTROL ASSY 3 parts diagram

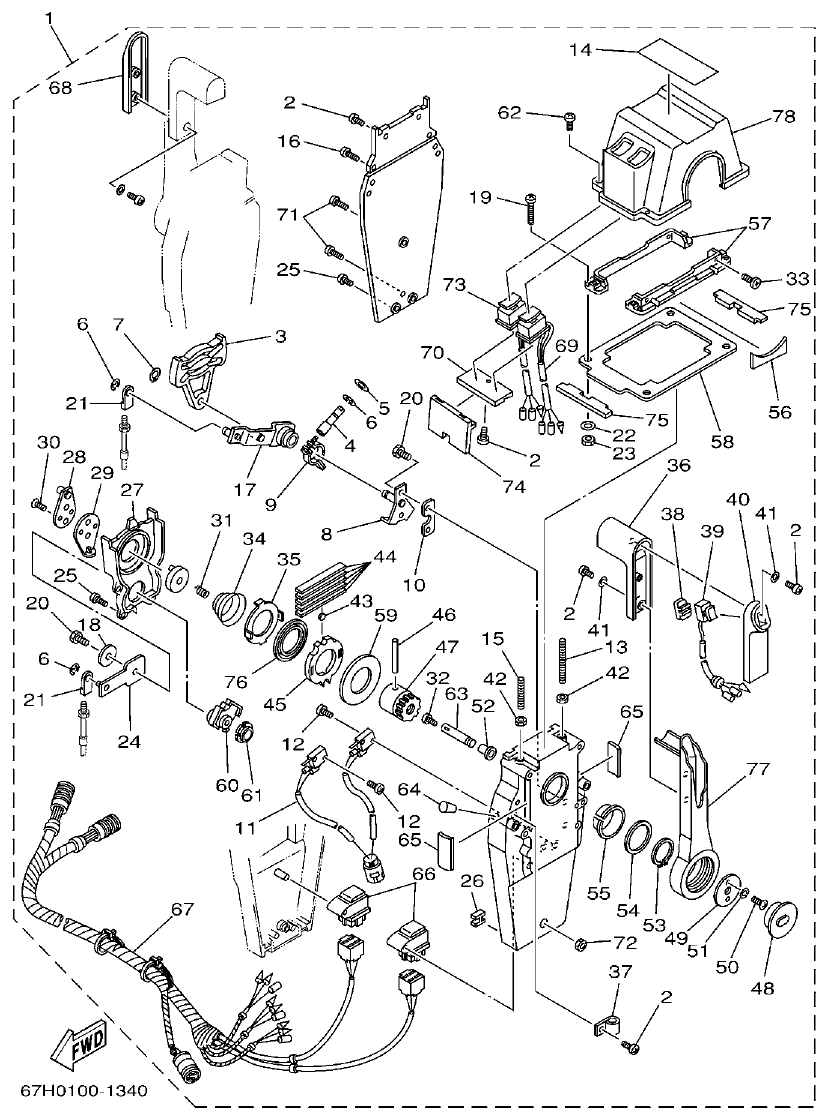

Fig. 35 — REMOTE CONTROL ASSY 3
78 items · 2 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC METER parts diagram

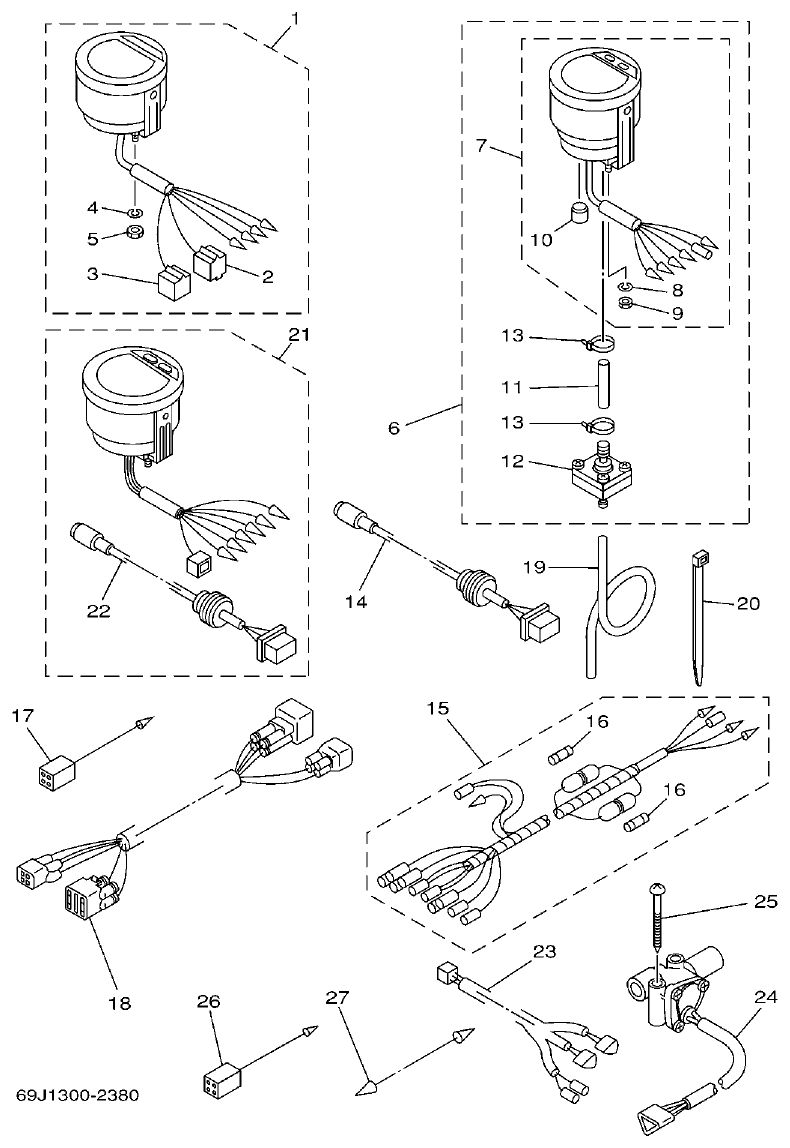

Fig. 36 — METER
30 items · 2 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC SWITCH & PANEL 1 parts diagram

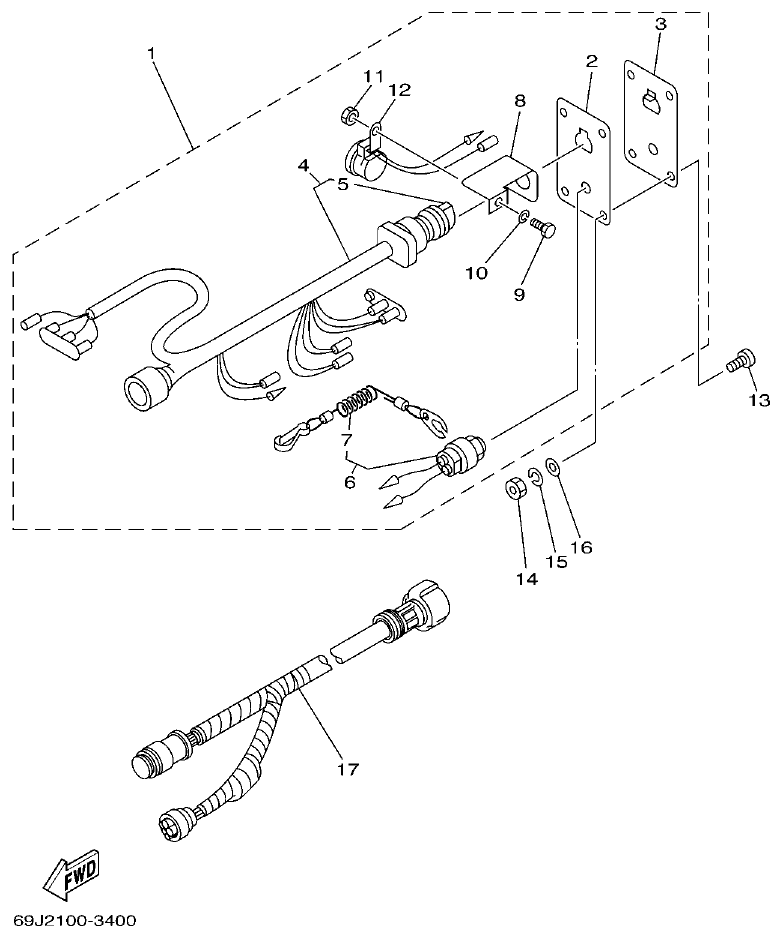

Fig. 37 — SWITCH & PANEL 1
17 items · 1 available products

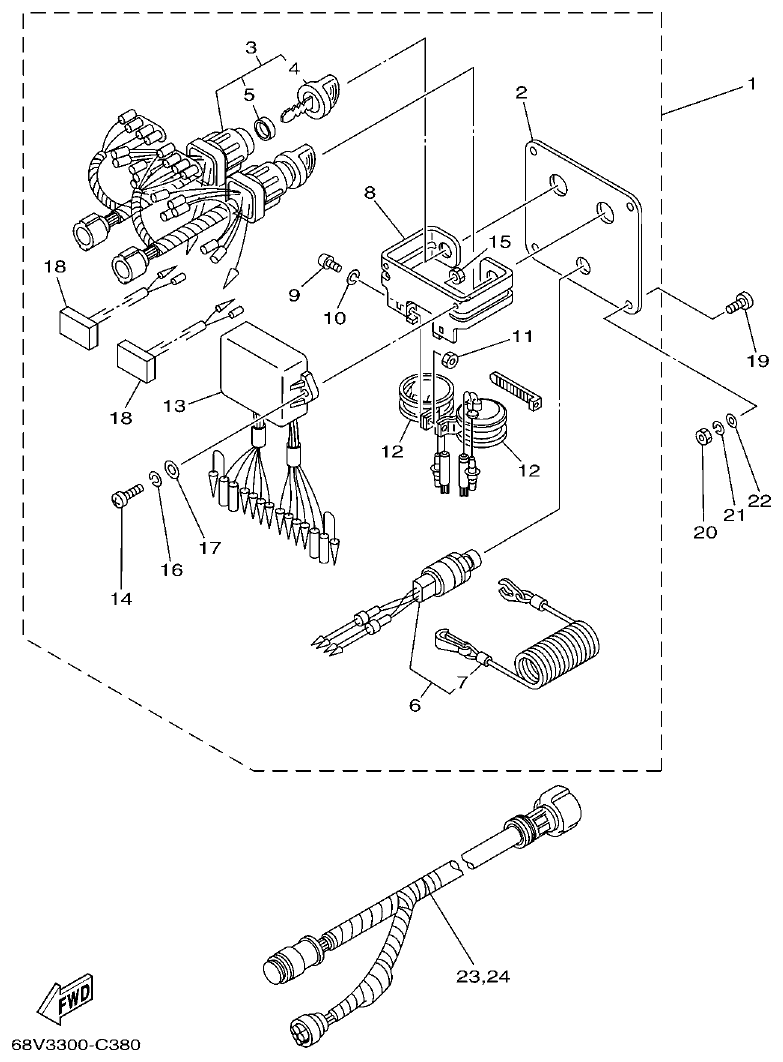

Yamaha F150AET, FL150AET, F150TRC, LF150TRC SWITCH & PANEL 2 parts diagram
Fig. 38 — SWITCH & PANEL 2
24 items · 2 available products
Yamaha F150AET, FL150AET, F150TRC, LF150TRC REPAIR KIT 1 parts diagram
Fig. 39 — REPAIR KIT 1
21 items · 5 available products

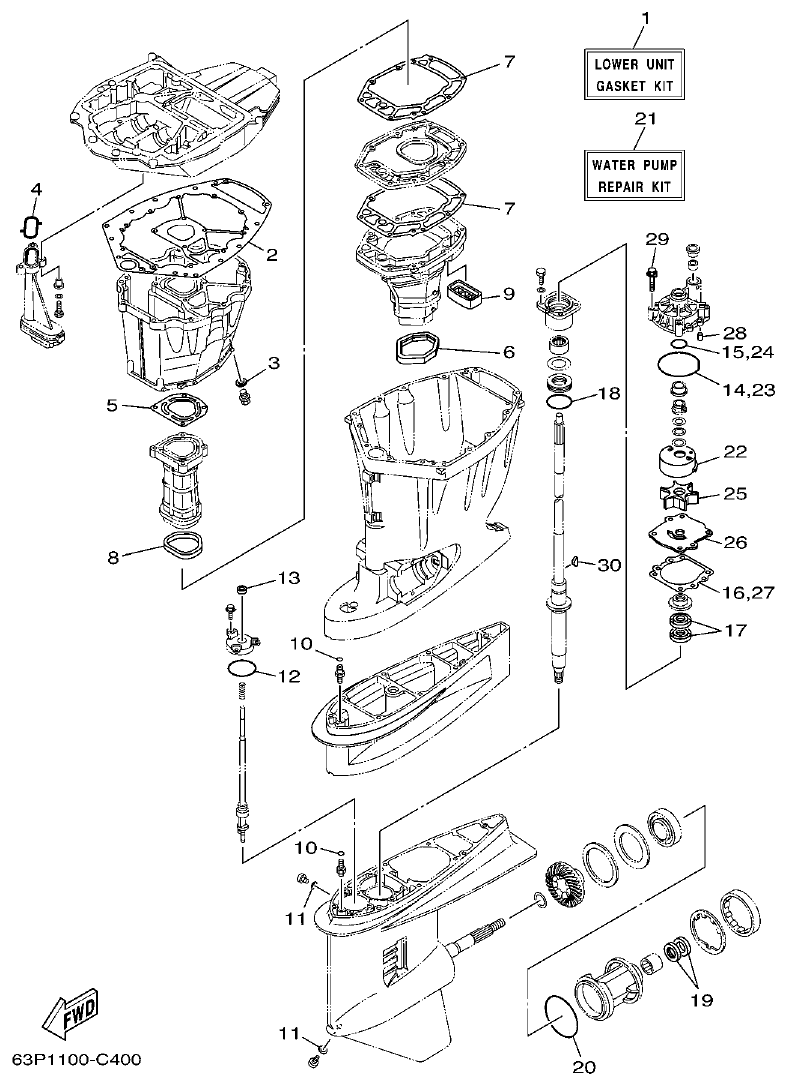

Yamaha F150AET, FL150AET, F150TRC, LF150TRC REPAIR KIT 2 parts diagram
Fig. 40 — REPAIR KIT 2
30 items · 6 available products
