Yamaha F150BET, FL150BET Parts Catalog
Yamaha F150BET, FL150BET Outboard parts and diagrams
Yamaha F150BET, FL150BET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
898 linked store products are available across 124 catalog sections. 4465 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

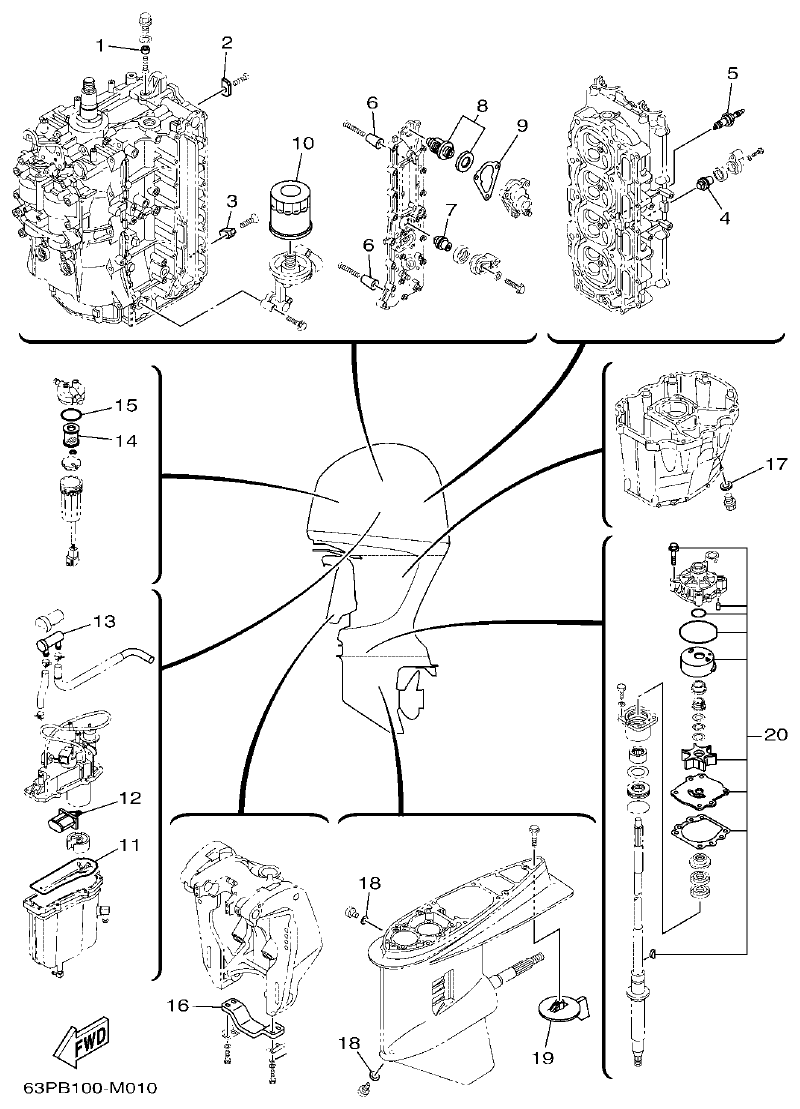

Fig. 1 — SCHEDULED SERVICE PARTS
21 items
· 17 available products

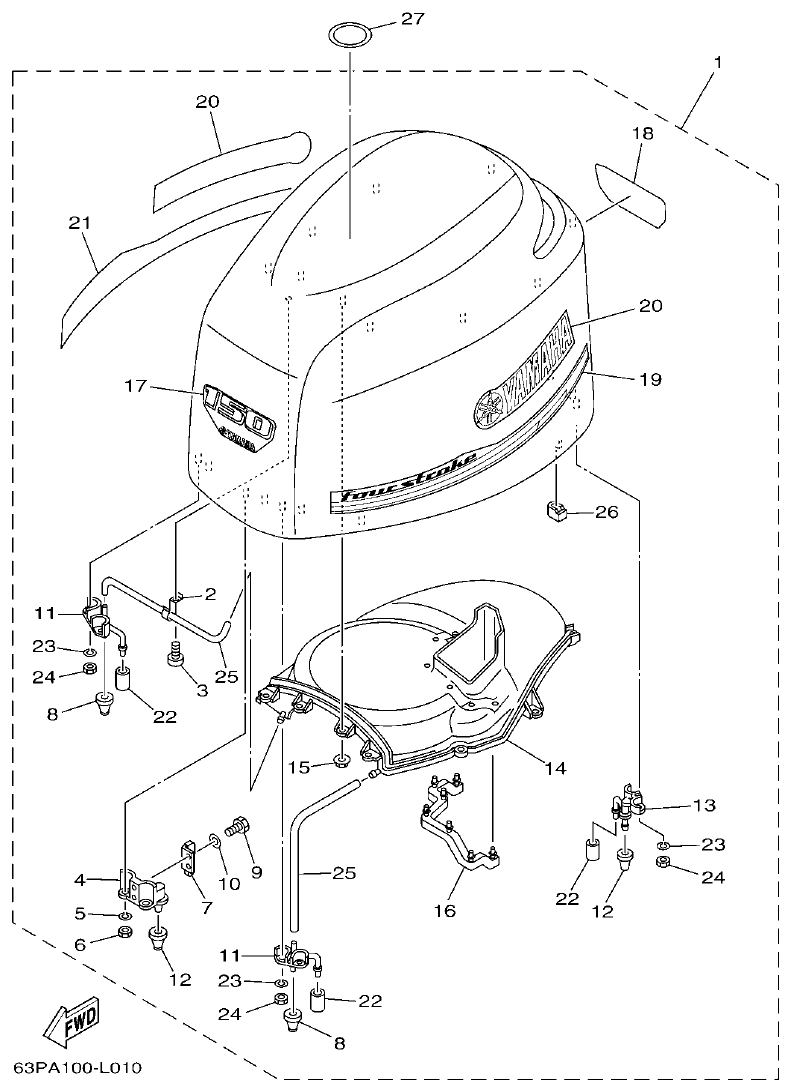

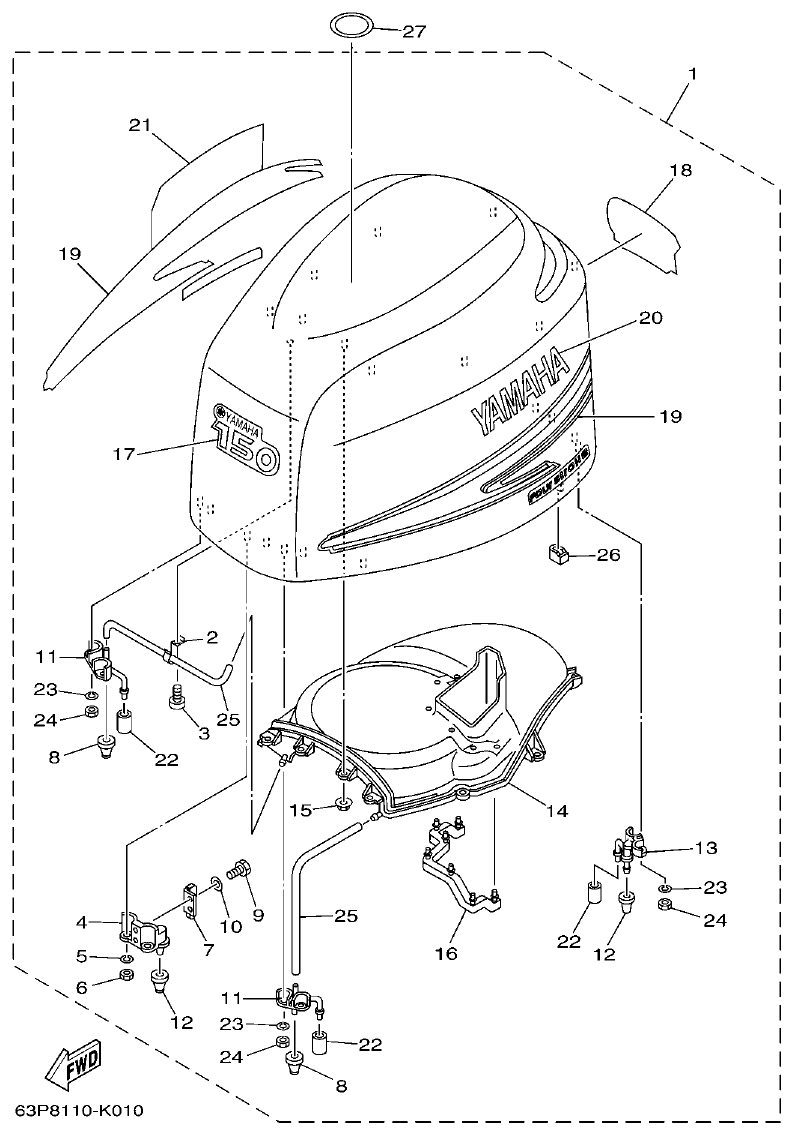

Fig. 2 — TOP COWLING
27 items
· 2 available products

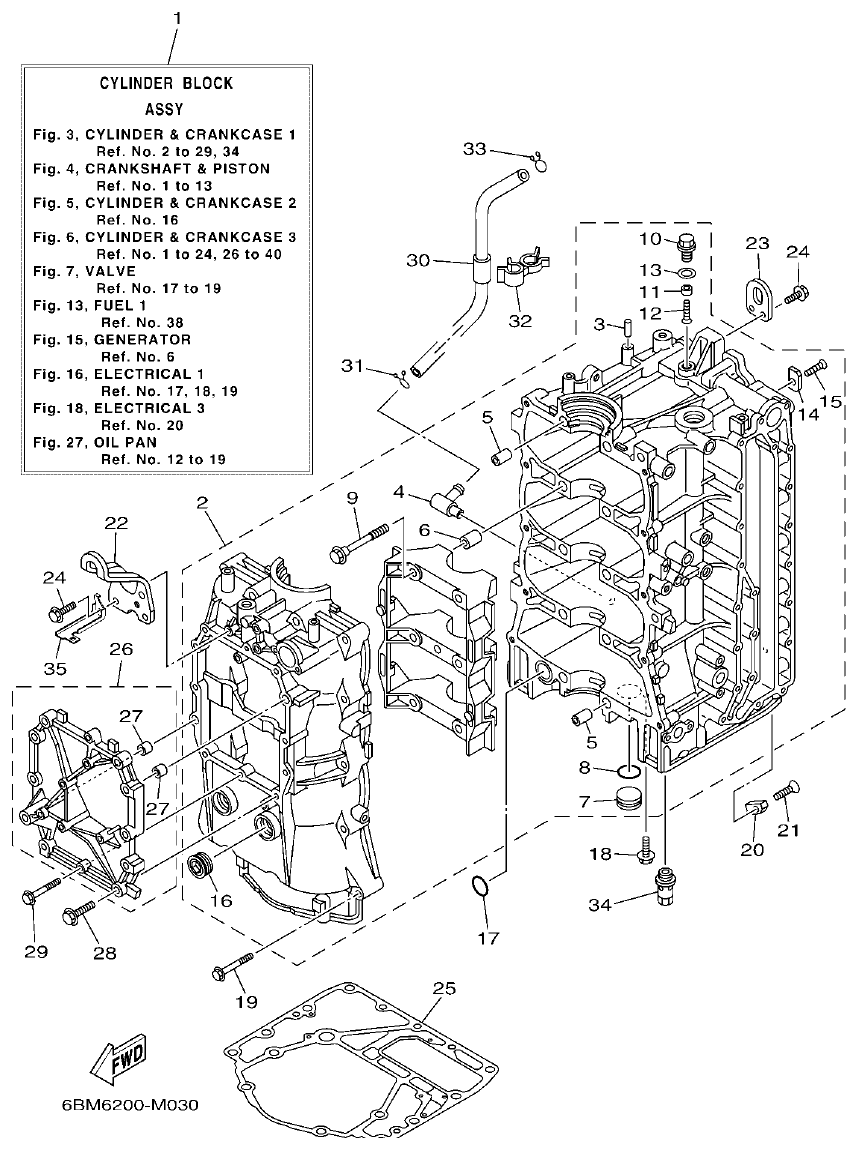

Fig. 3 — CYLINDER & CRANKCASE 1
35 items
· 4 available products

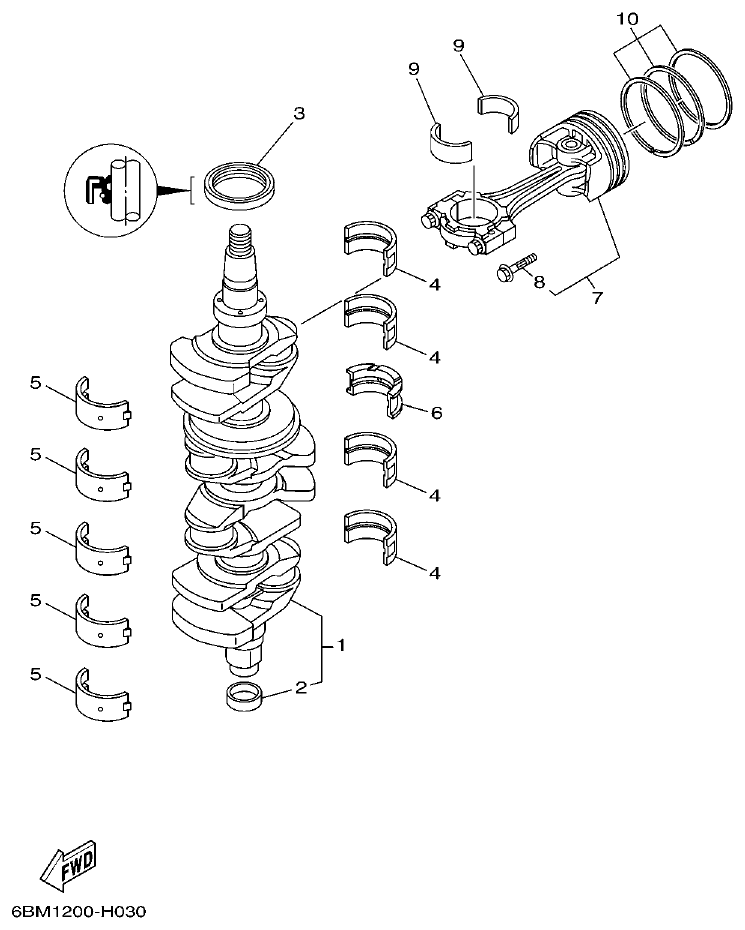

Fig. 4 — CRANKSHAFT & PISTON
25 items
· 19 available products

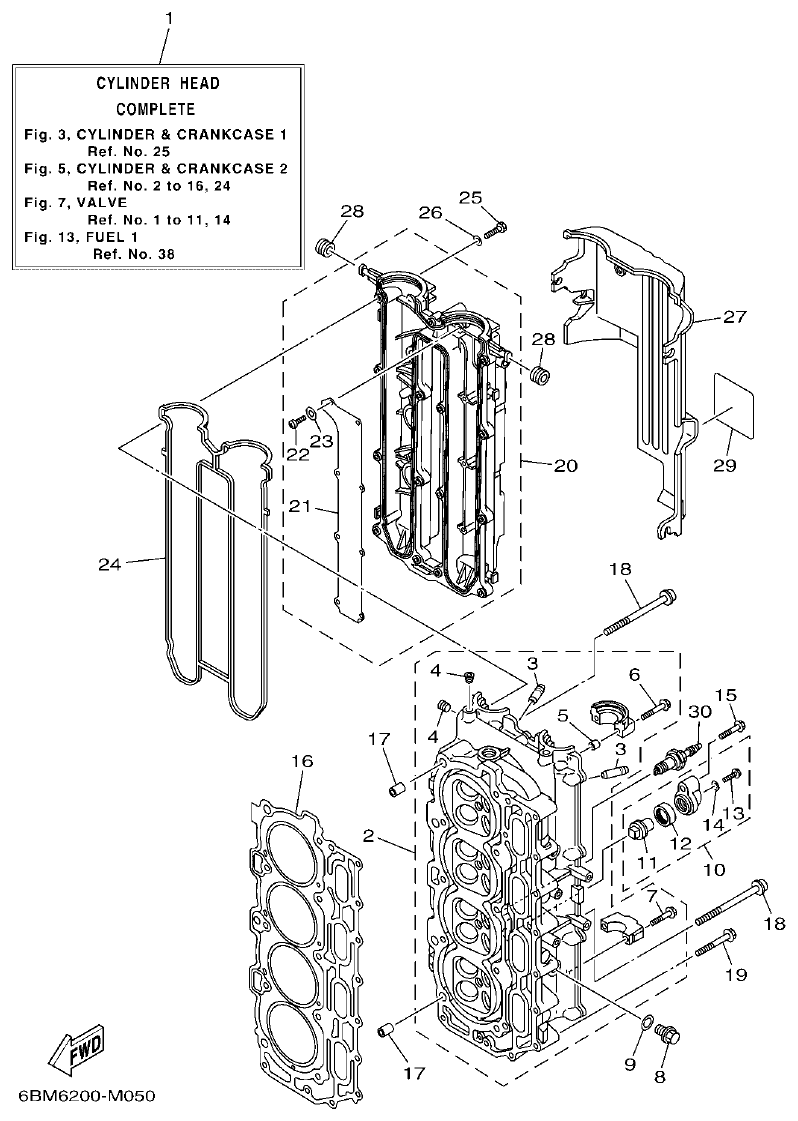

Fig. 5 — CYLINDER & CRANKCASE 2
30 items
· 5 available products
Fig. 6 — CYLINDER & CRANKCASE 3
40 items
· 9 available products

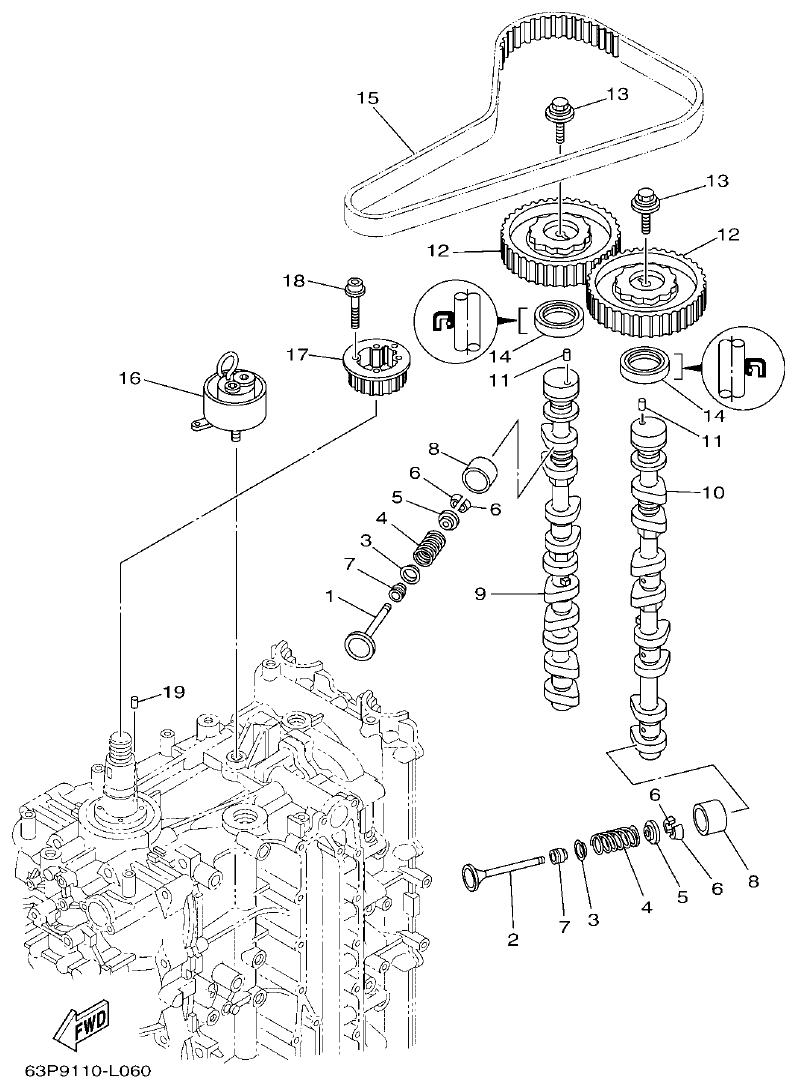

Fig. 7 — VALVE
53 items
· 33 available products

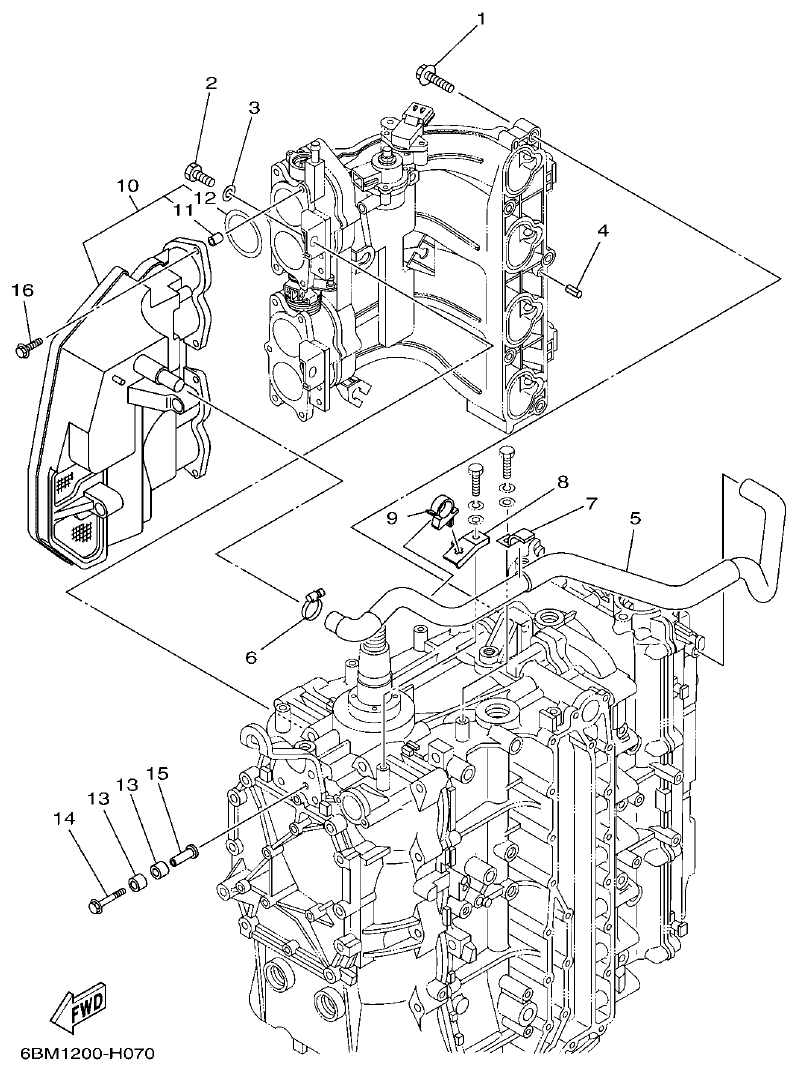

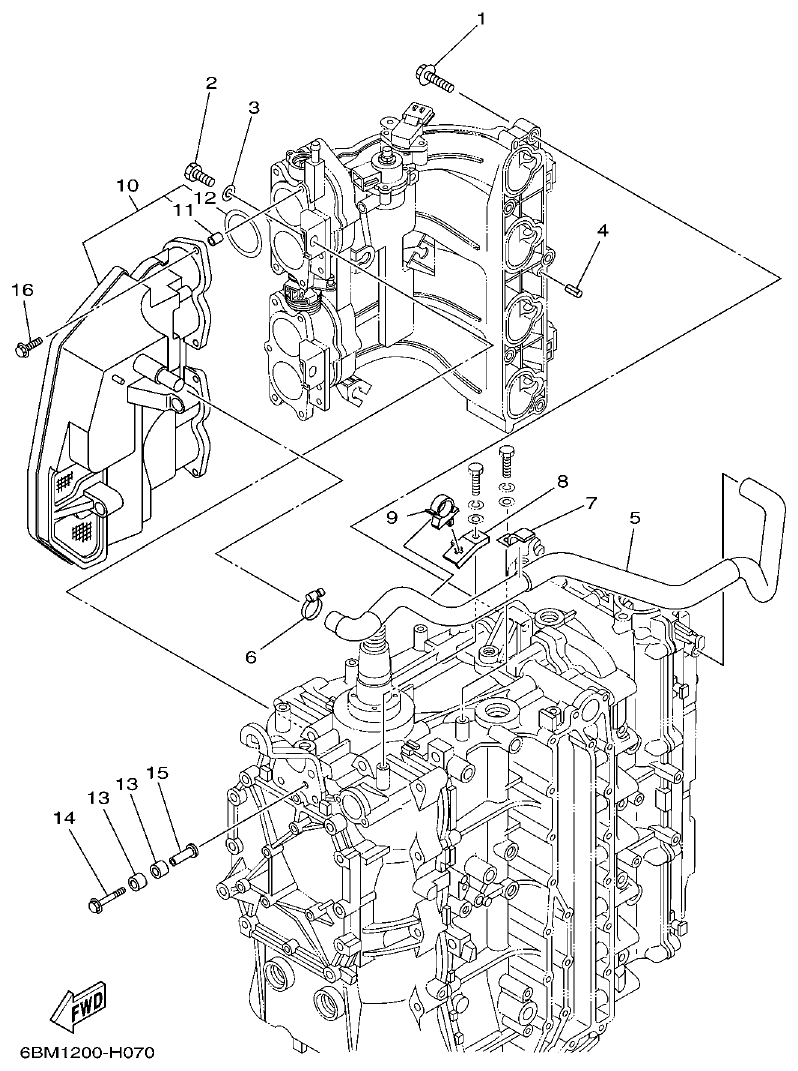

Fig. 8 — INTAKE 1
16 items
· 1 available products

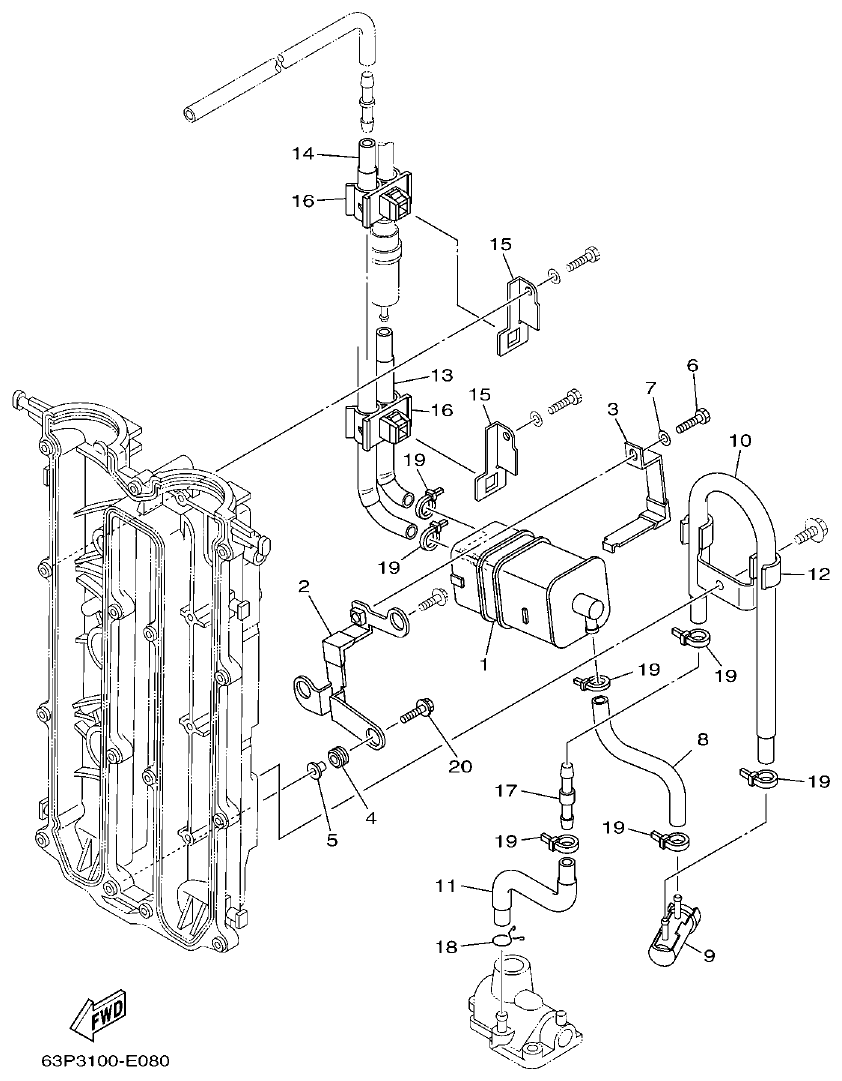

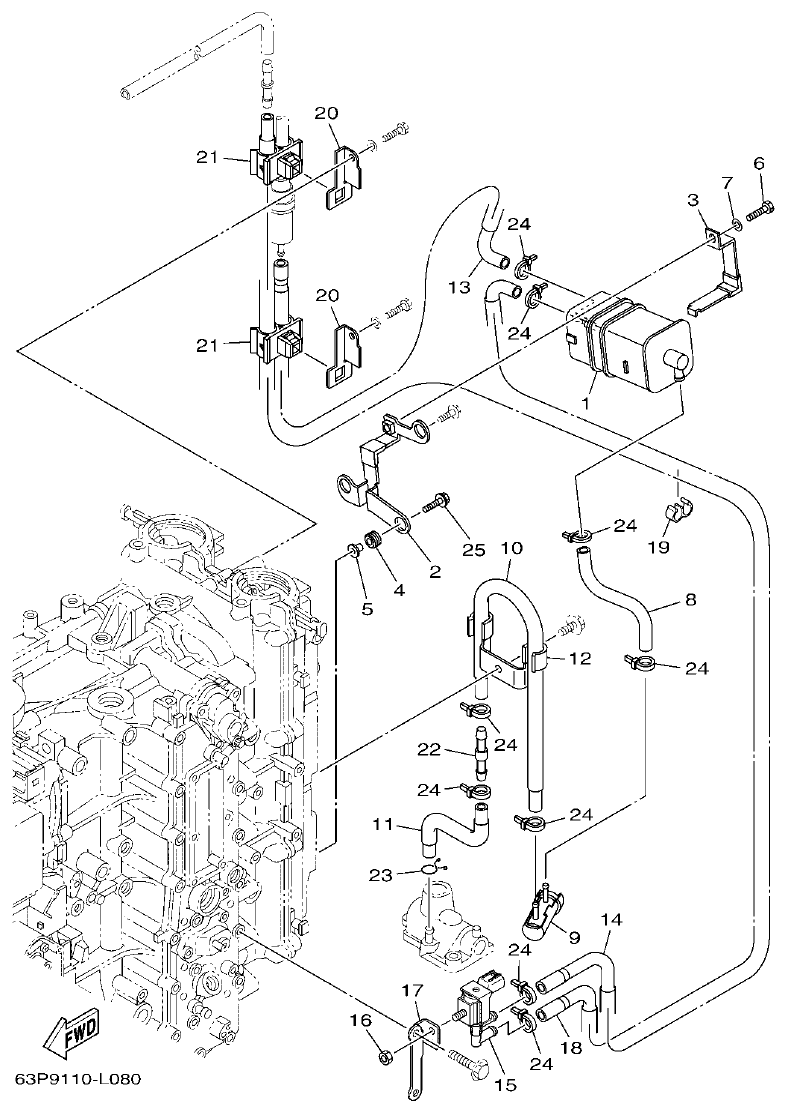

Fig. 9 — INTAKE 2
25 items
· 3 available products

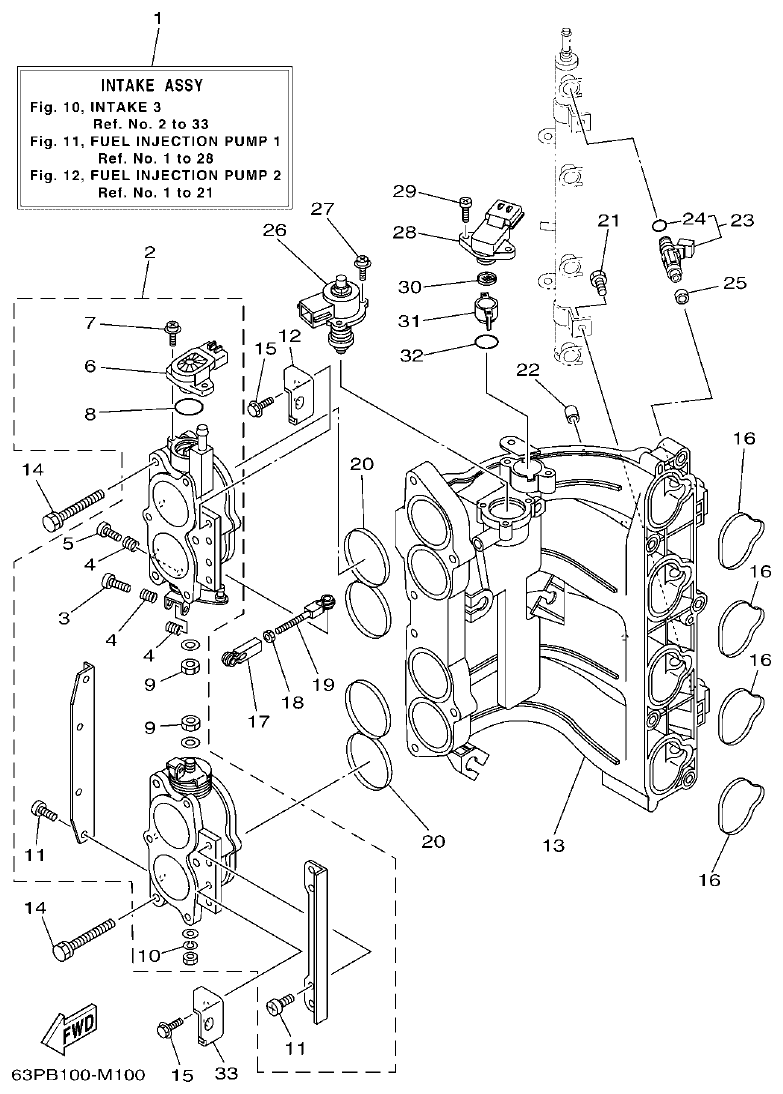

Fig. 10 — INTAKE 3
34 items
· 7 available products
Fig. 11 — FUEL INJECTION PUMP 1
28 items
· 7 available products
Fig. 12 — FUEL INJECTION PUMP 2
26 items
· 1 available products
Fig. 13 — FUEL 1
50 items
· 3 available products

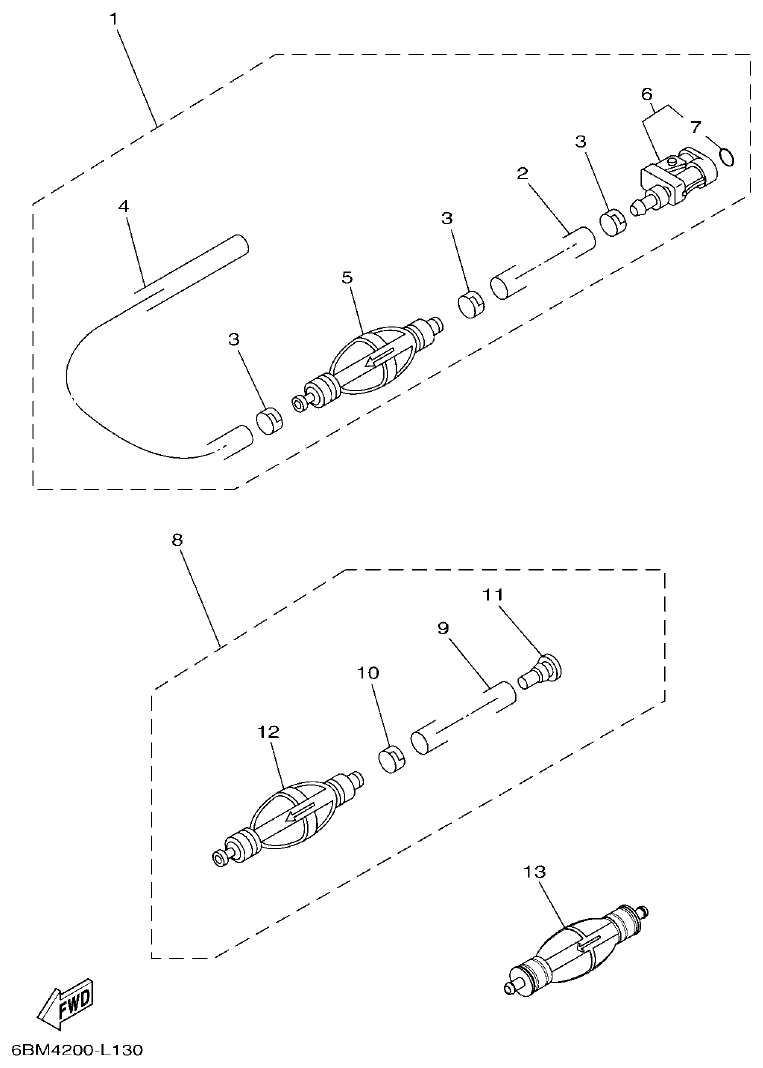

Fig. 14 — FUEL 2
13 items
· 4 available products

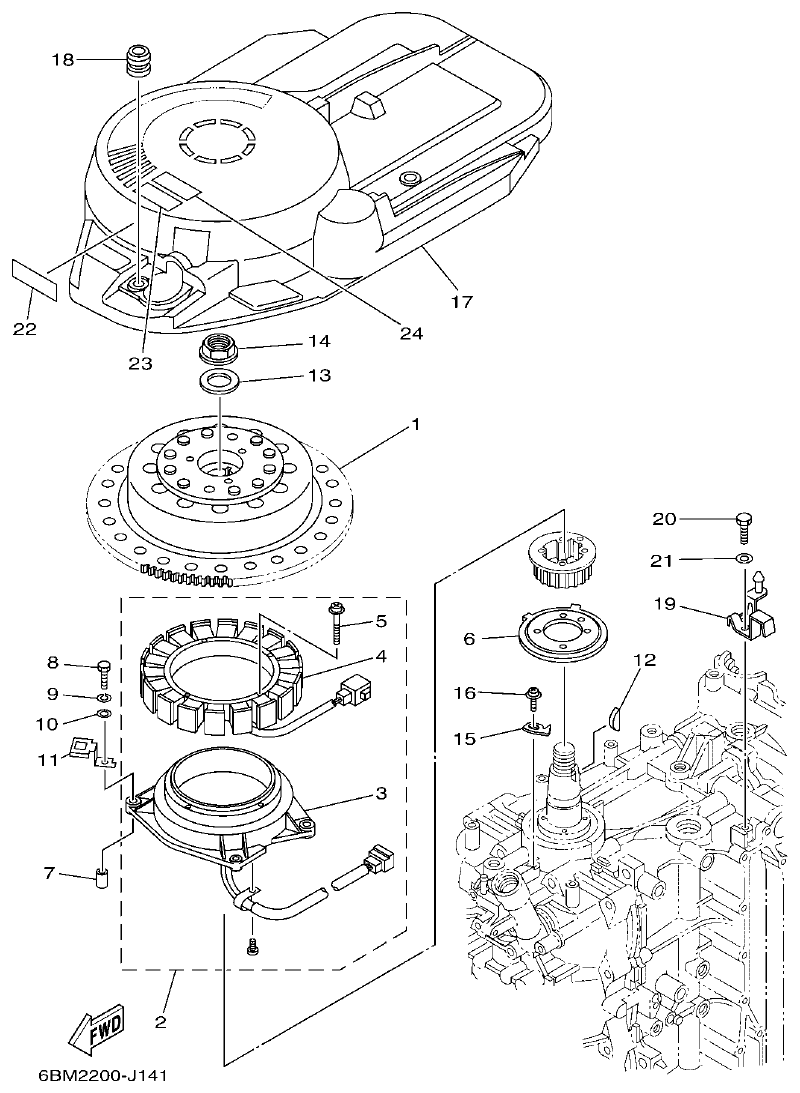

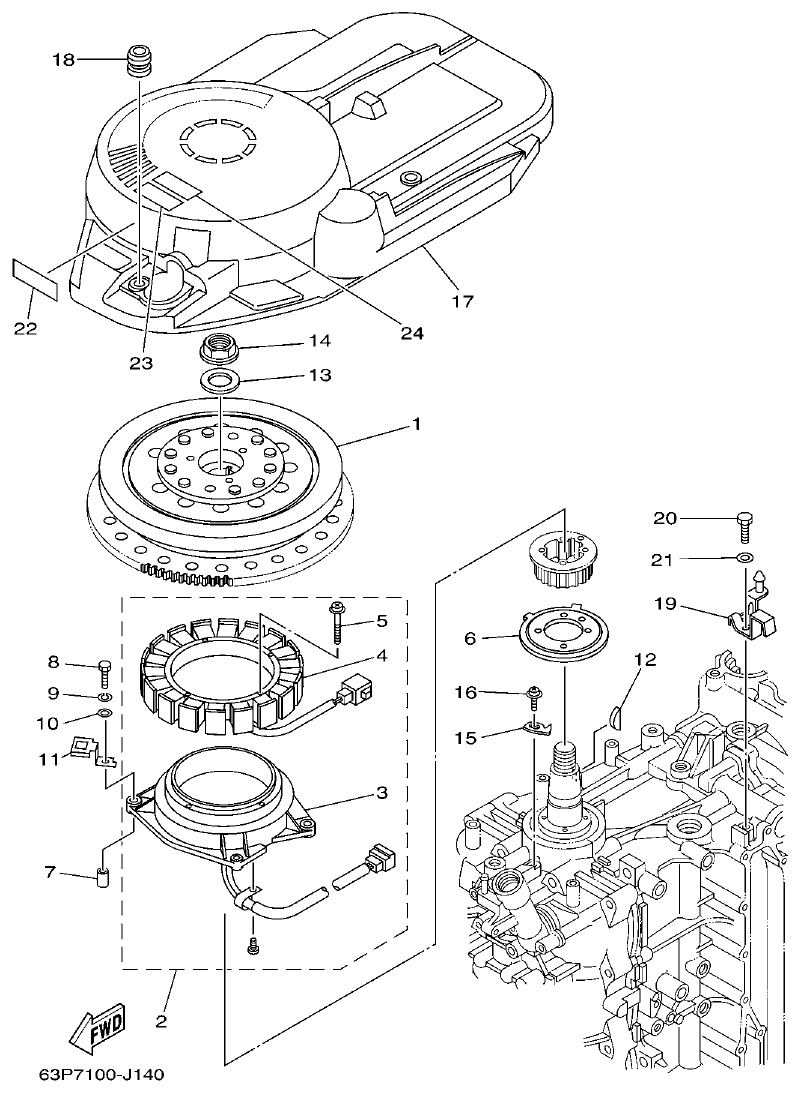

Fig. 15 — GENERATOR
25 items
· 1 available products
Fig. 16 — ELECTRICAL 1
19 items
· 2 available products

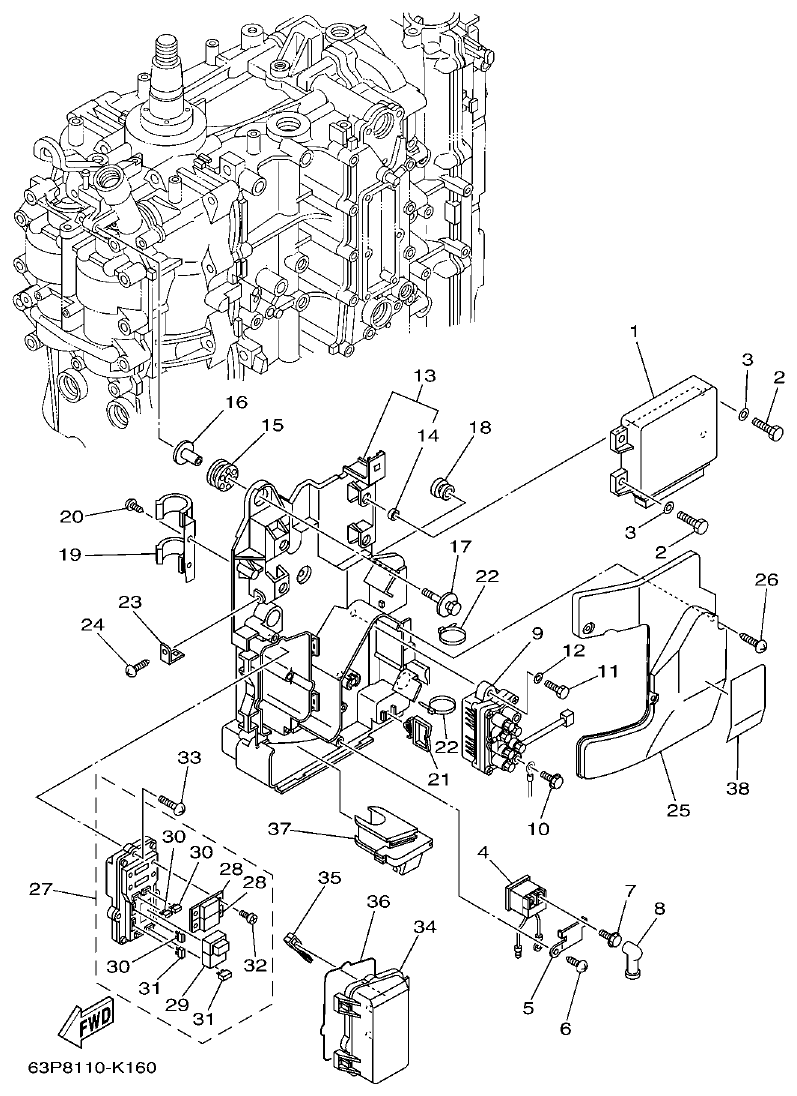

Fig. 17 — ELECTRICAL 2
37 items
· 5 available products

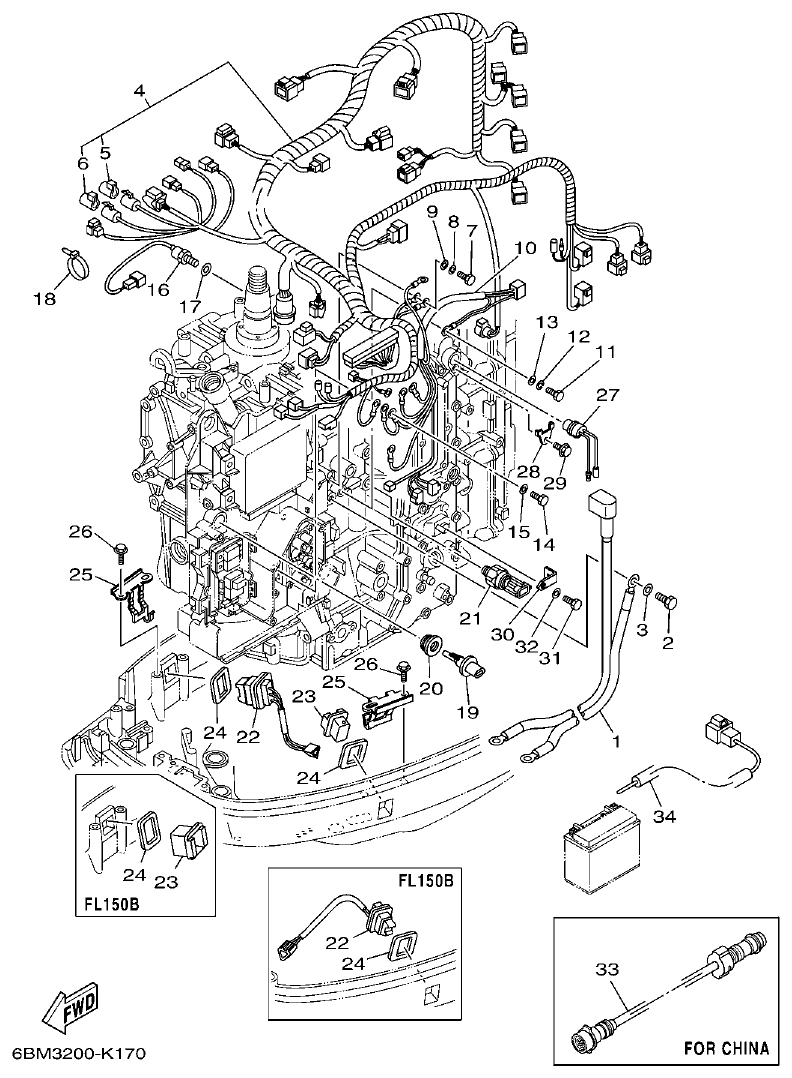

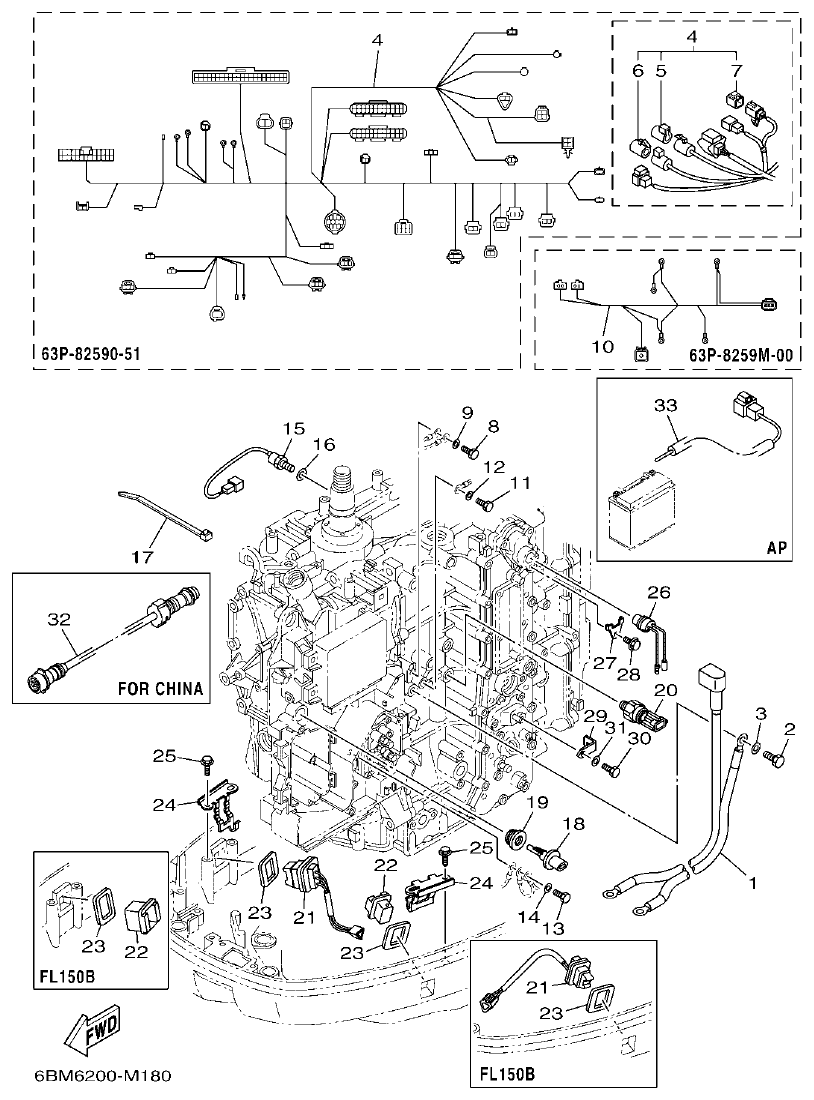

Fig. 18 — ELECTRICAL 3
33 items
· 3 available products
Fig. 19 — STARTING MOTOR
33 items
· 5 available products

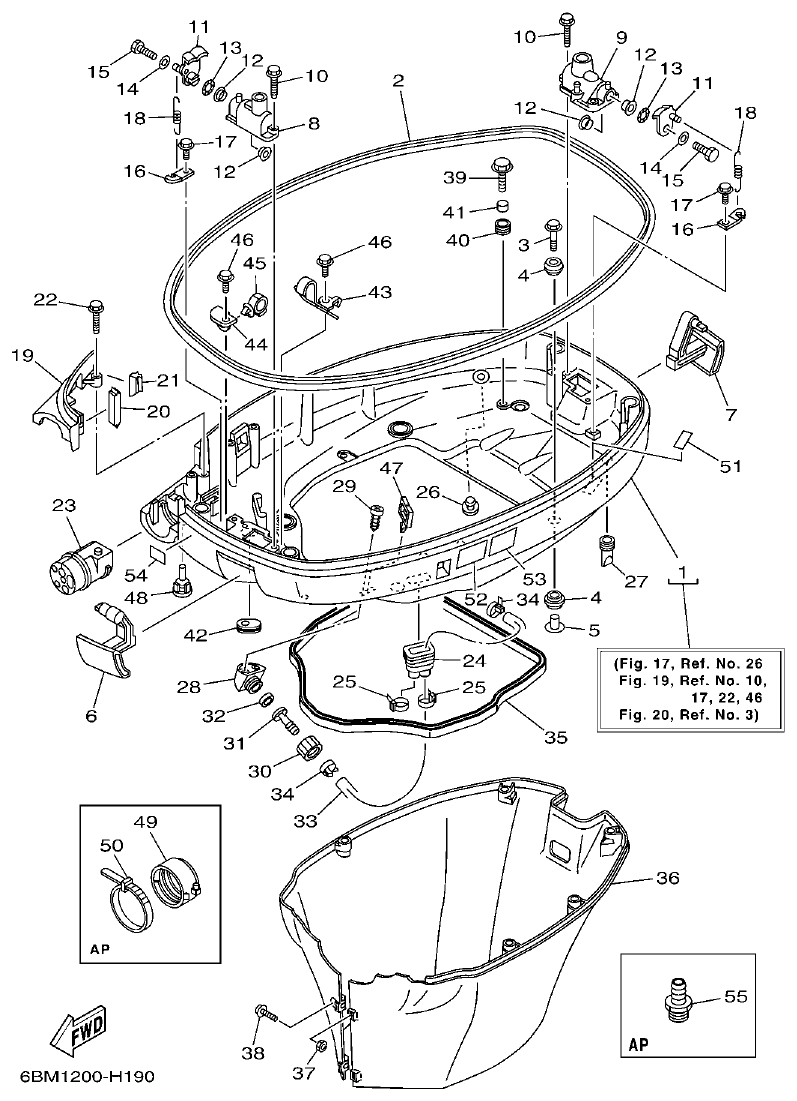

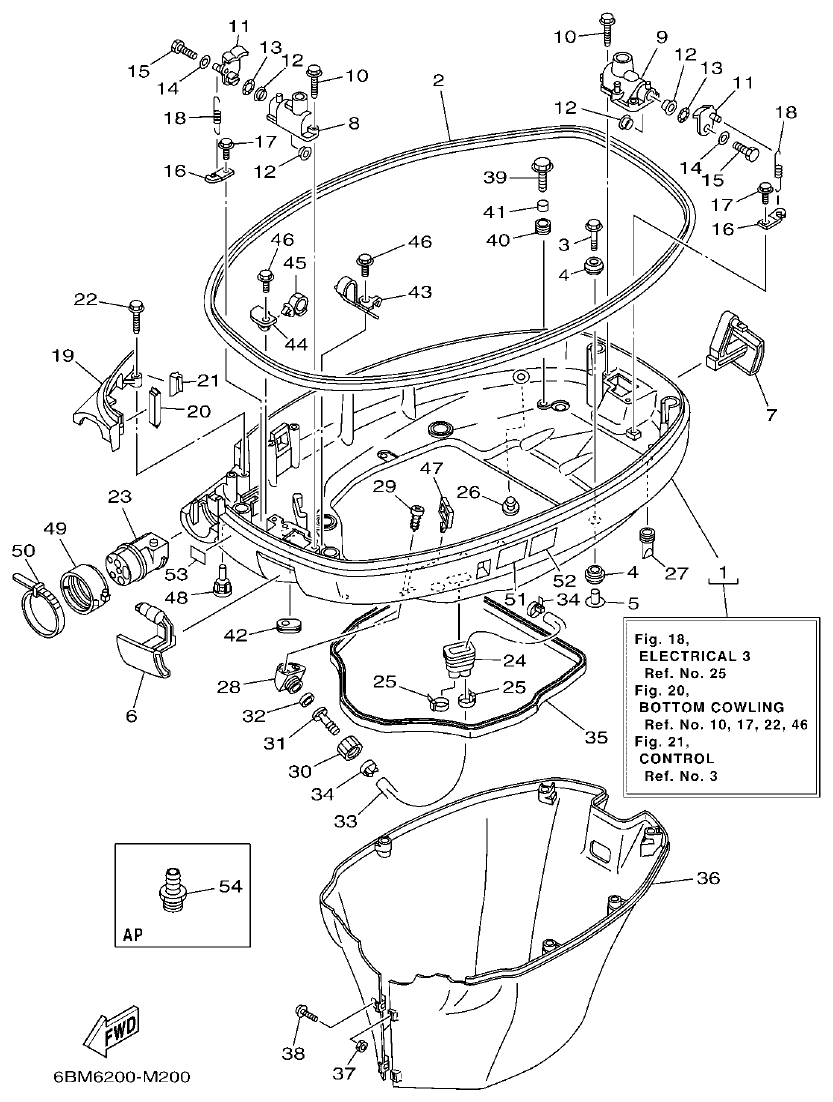

Fig. 20 — BOTTOM COWLING
54 items
· 7 available products
Fig. 21 — CONTROL
55 items
· 5 available products

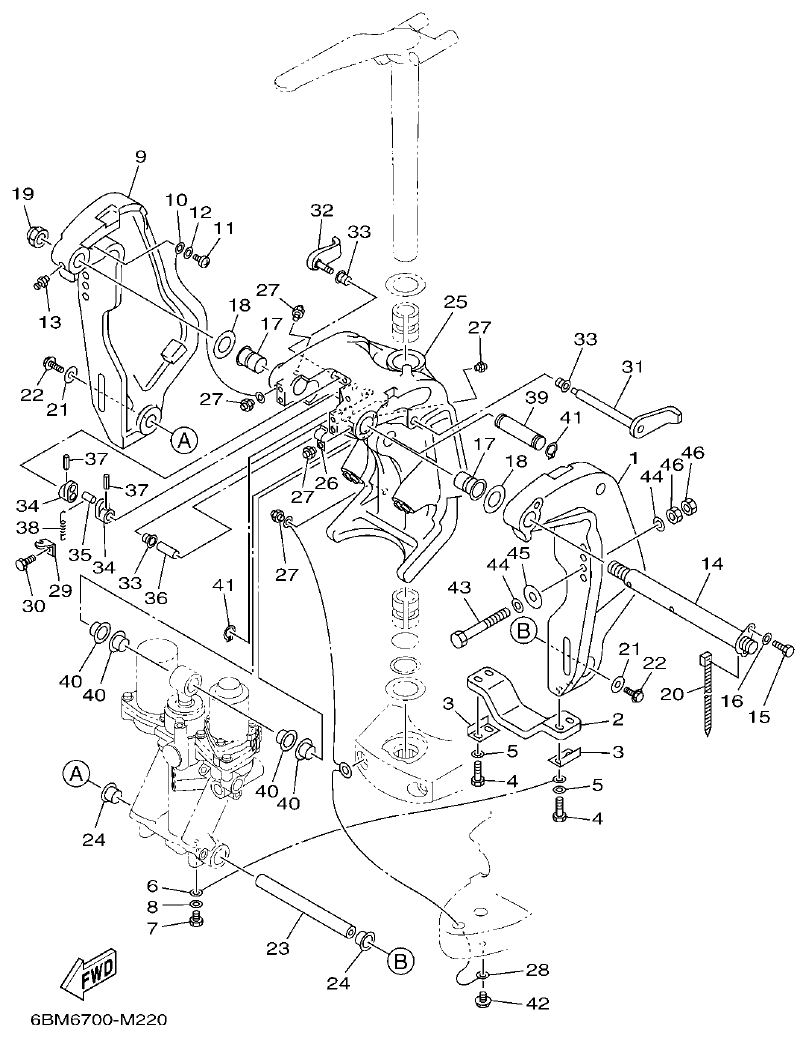

Fig. 22 — BRACKET 1
46 items
· 9 available products

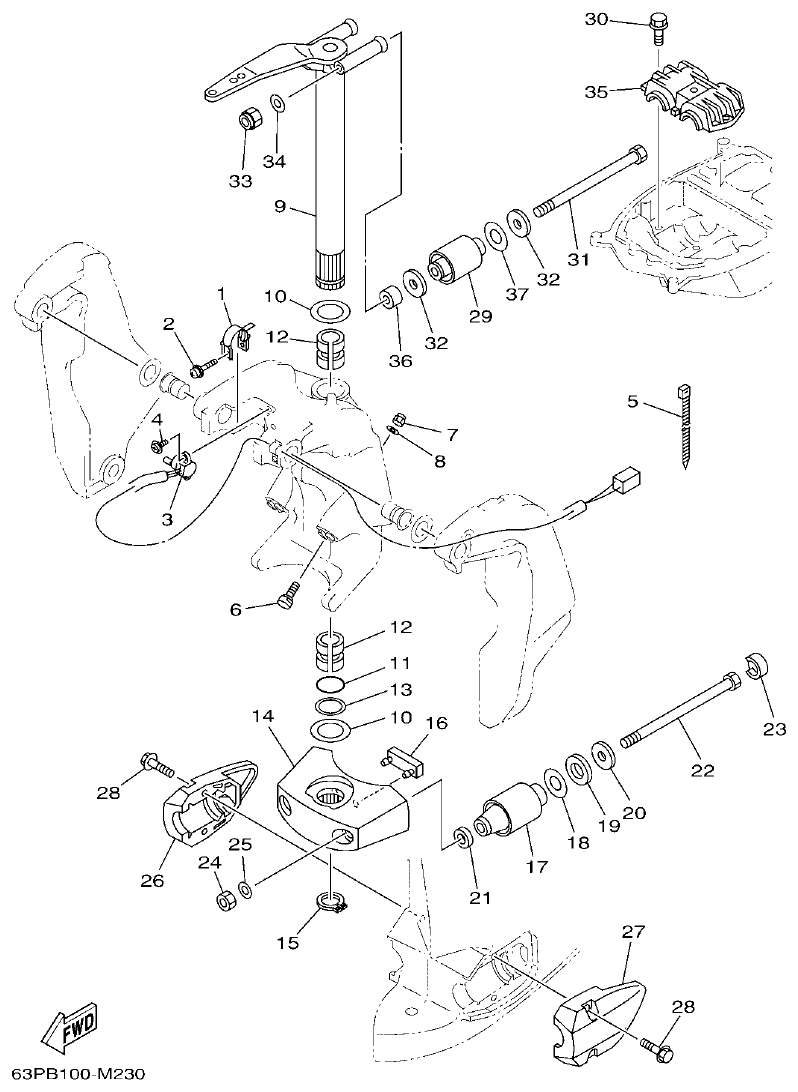

Fig. 23 — BRACKET 2
37 items
· 4 available products

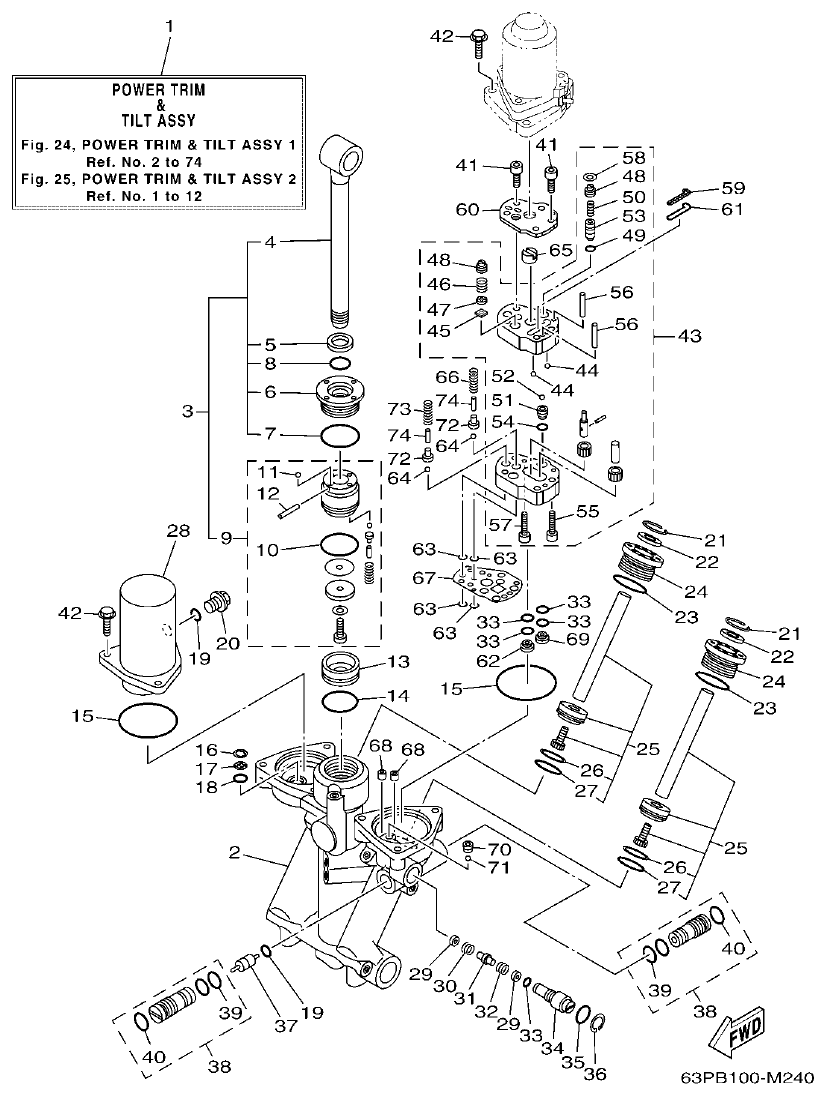

Fig. 24 — POWER TRIM & TILT ASSY 1
74 items
· 15 available products

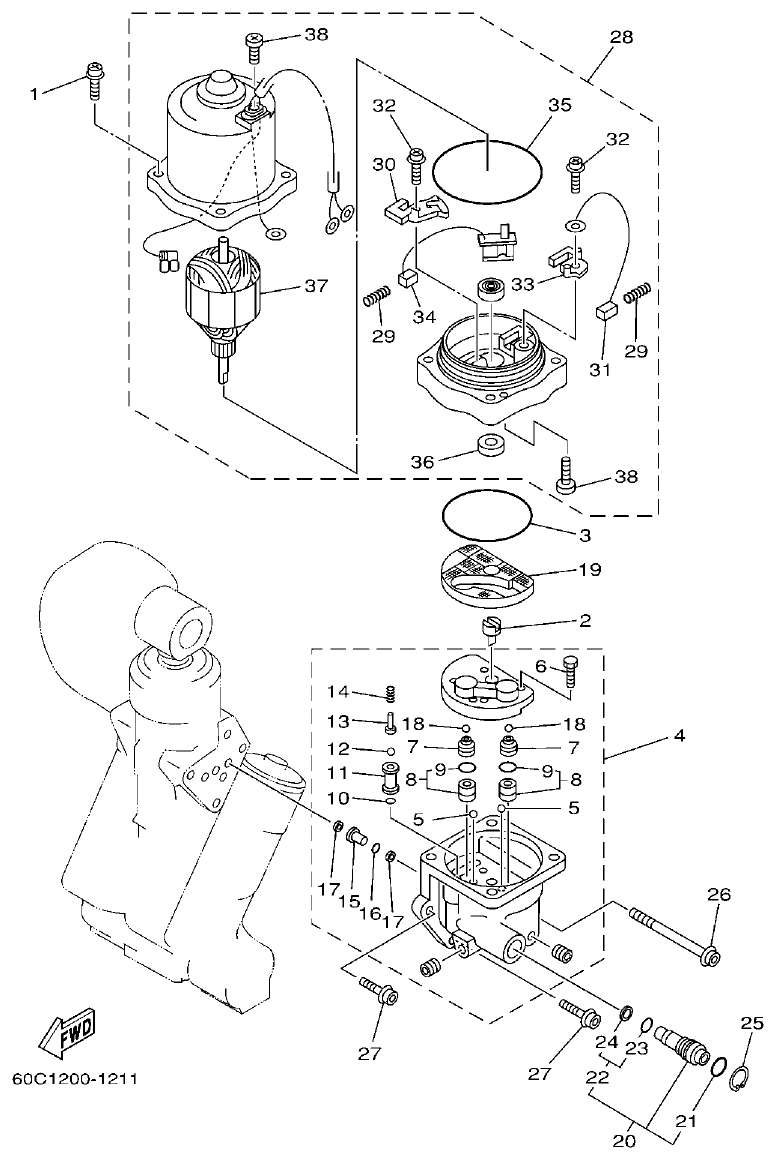

Fig. 25 — POWER TRIM & TILT ASSY 2
12 items
· 4 available products
Fig. 26 — UPPER CASING
40 items
· 6 available products

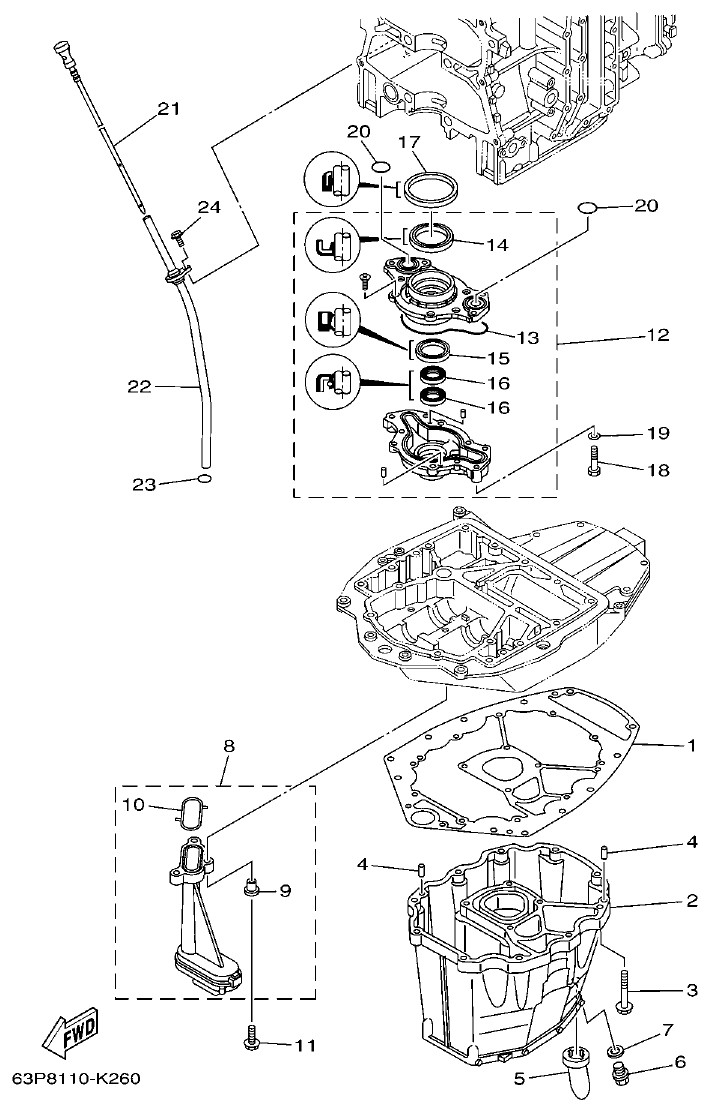

Fig. 27 — OIL PAN
23 items
· 6 available products

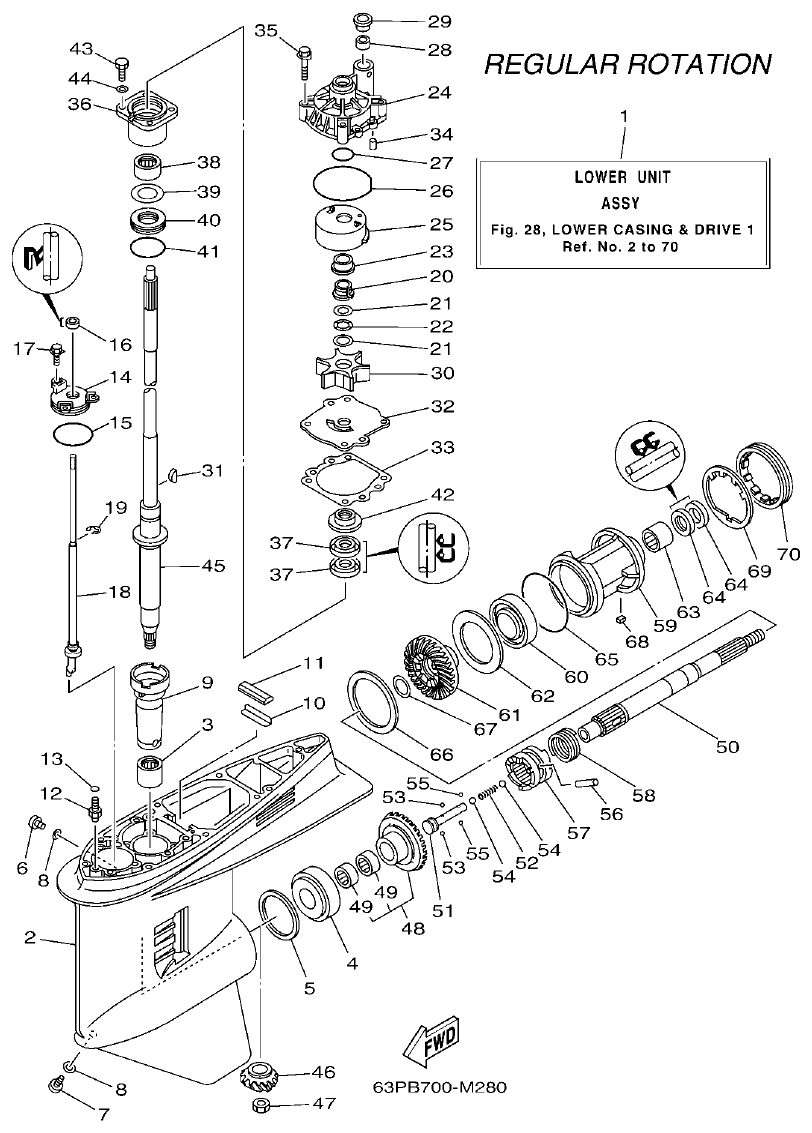

Fig. 28 — LOWER CASING & DRIVE 1
88 items
· 42 available products

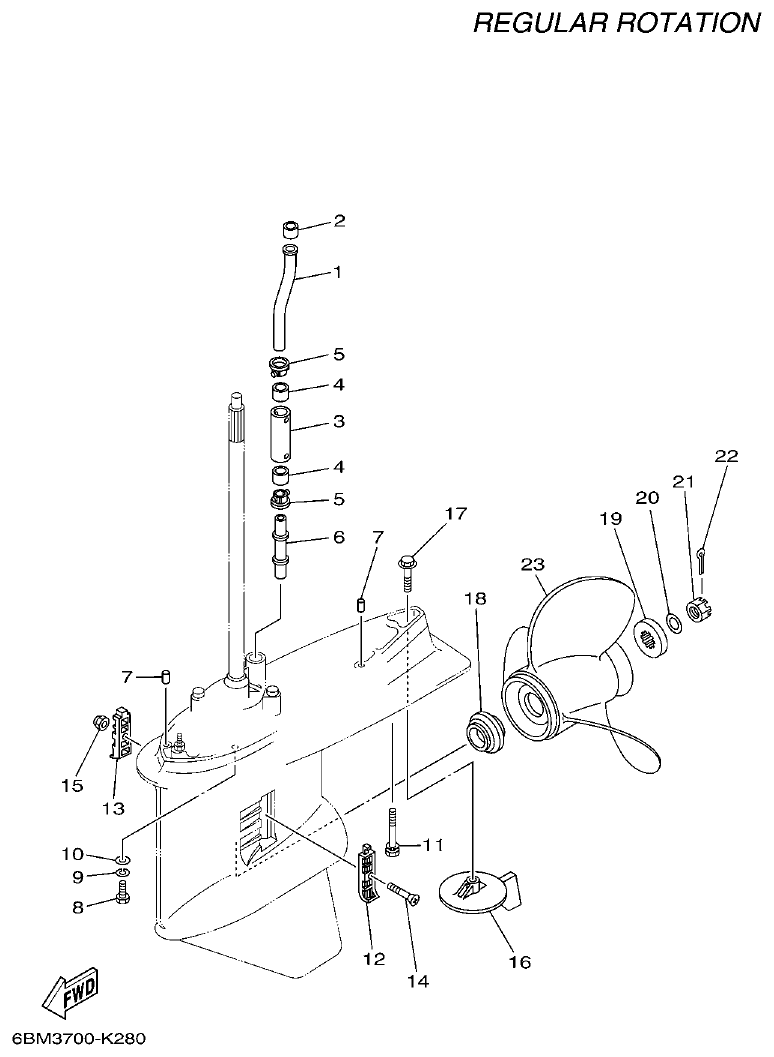

Fig. 29 — LOWER CASING & DRIVE 2
43 items
· 15 available products

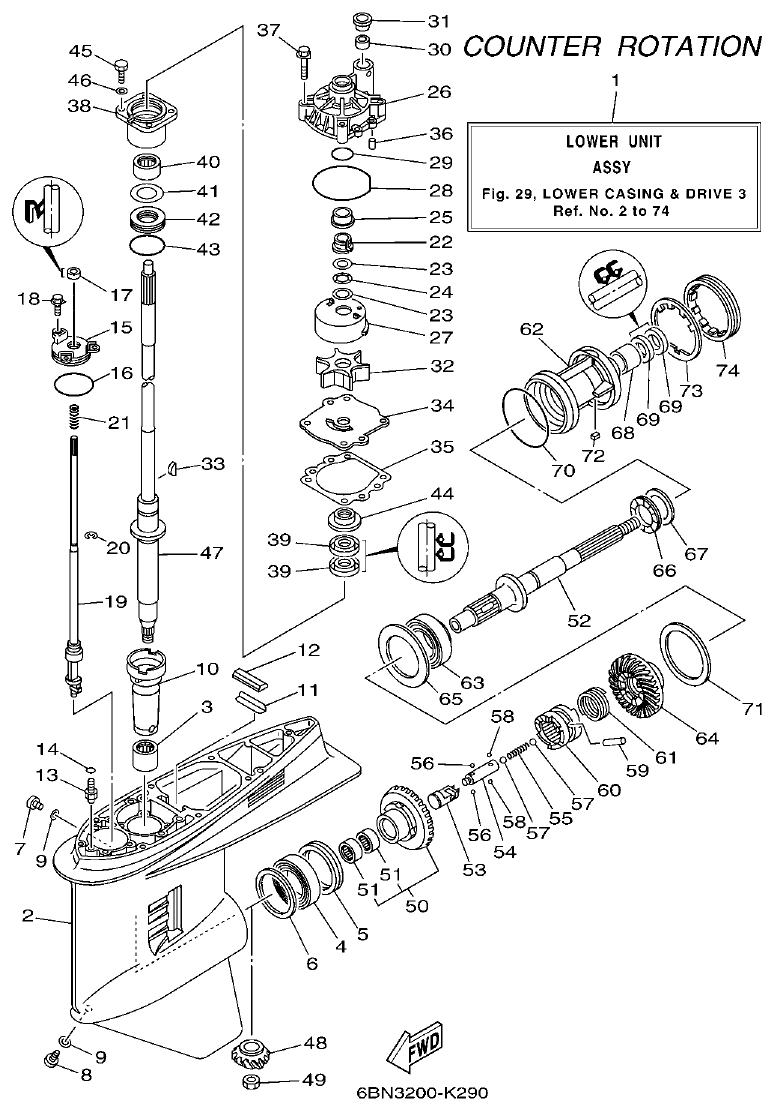

Fig. 30 — LOWER CASING & DRIVE 3
96 items
· 49 available products

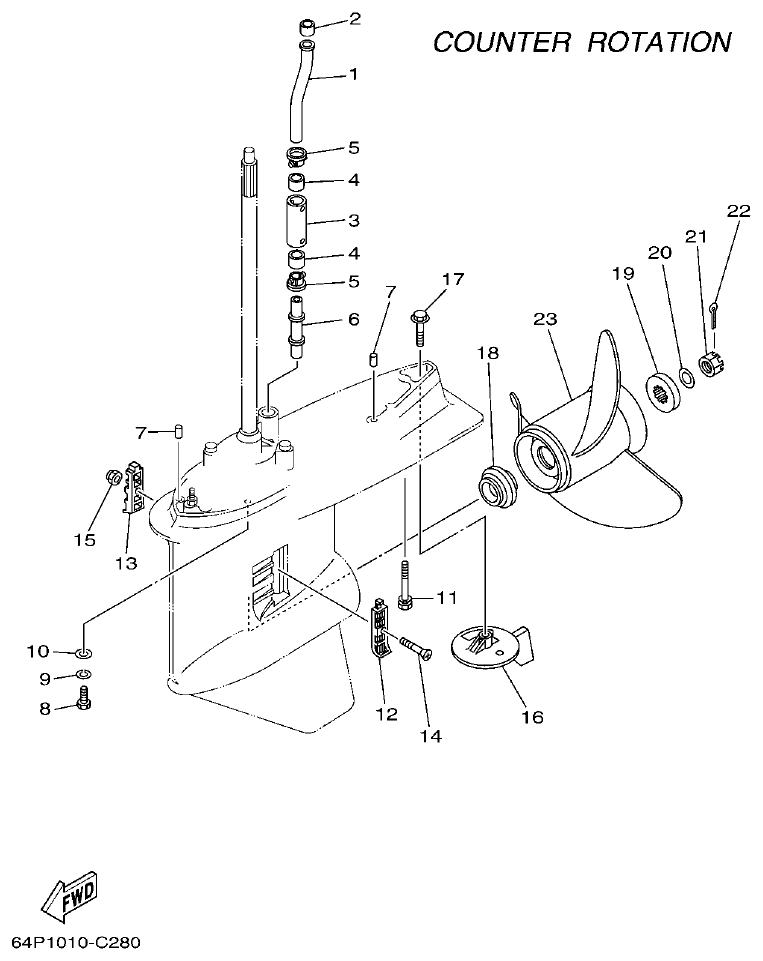

Fig. 31 — LOWER CASING & DRIVE 4
34 items
· 16 available products

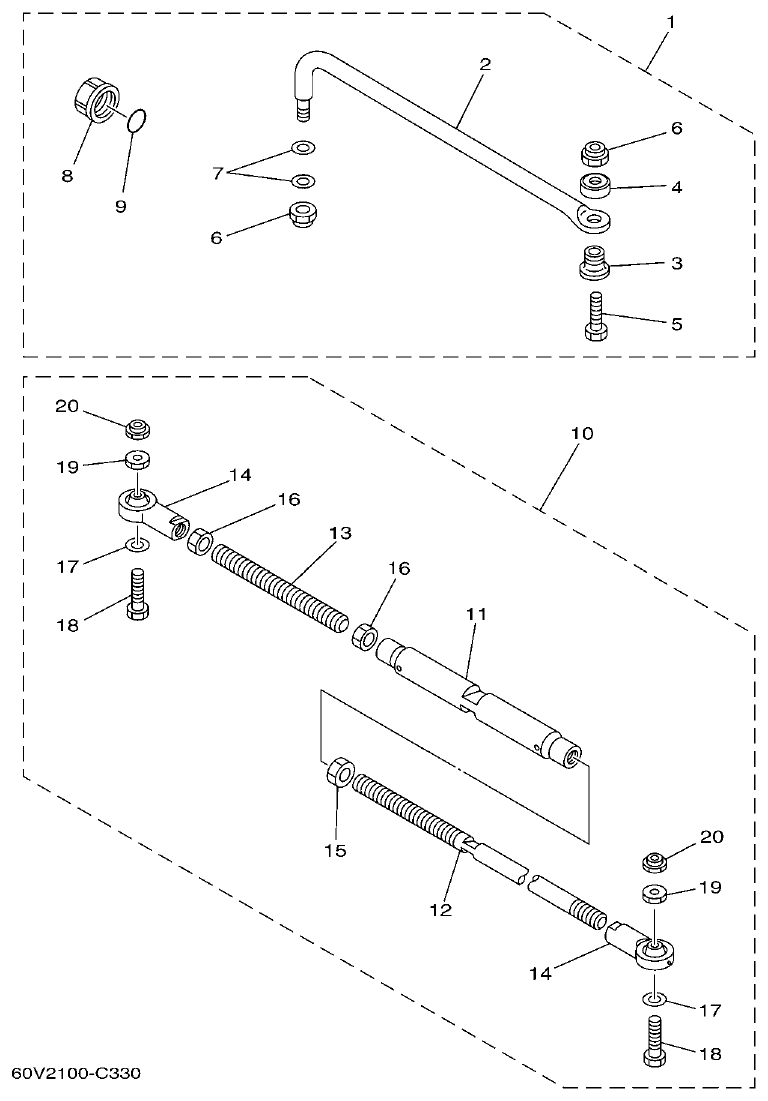

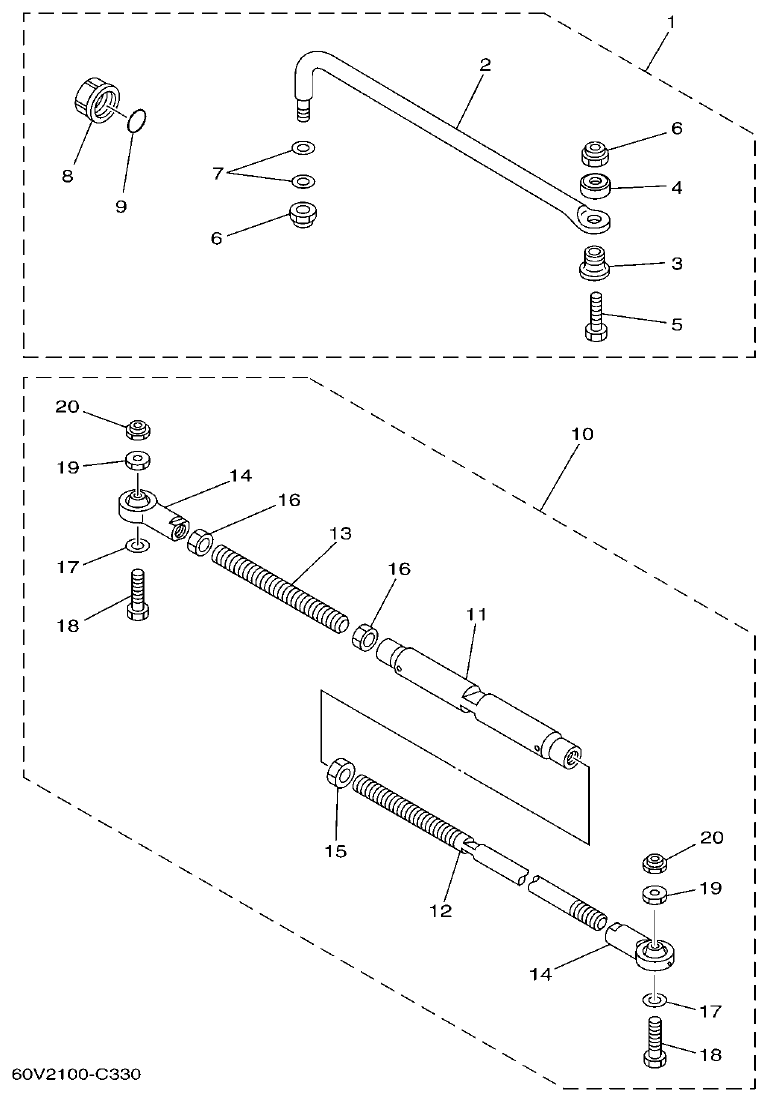

Fig. 32 — STEERING GUIDE
20 items
· 3 available products
Fig. 33 — REMOTE CONTROL BOX
9 items

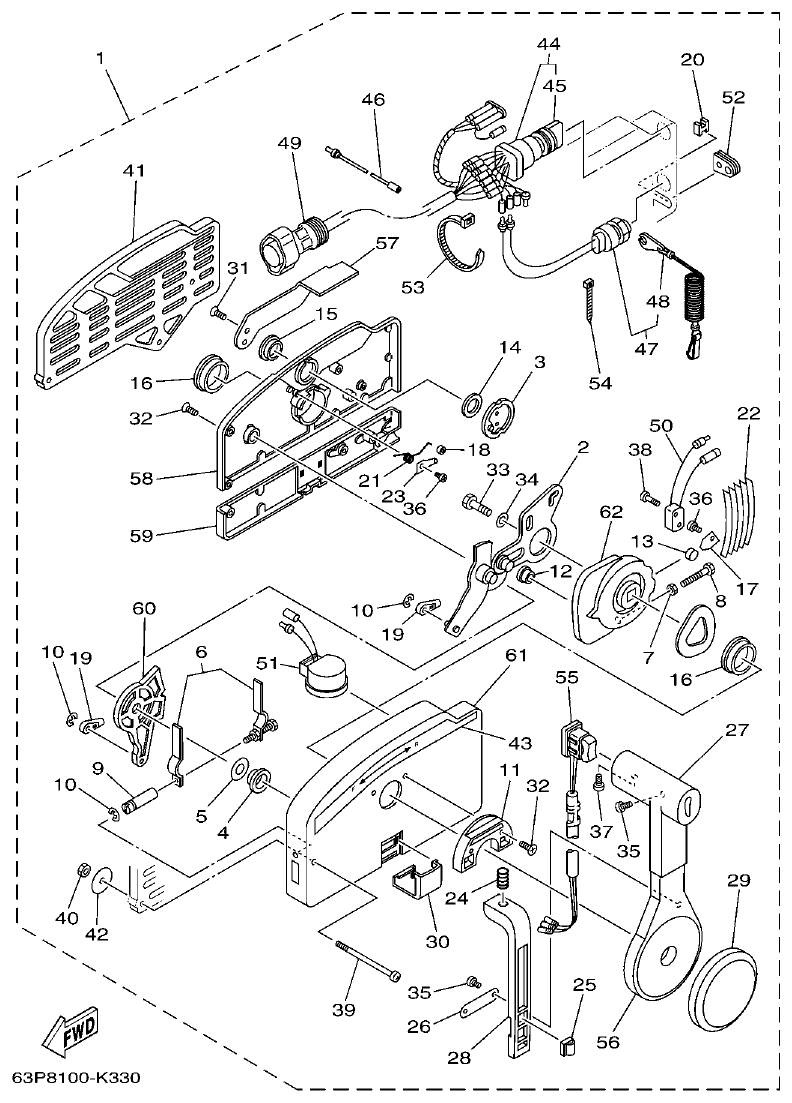

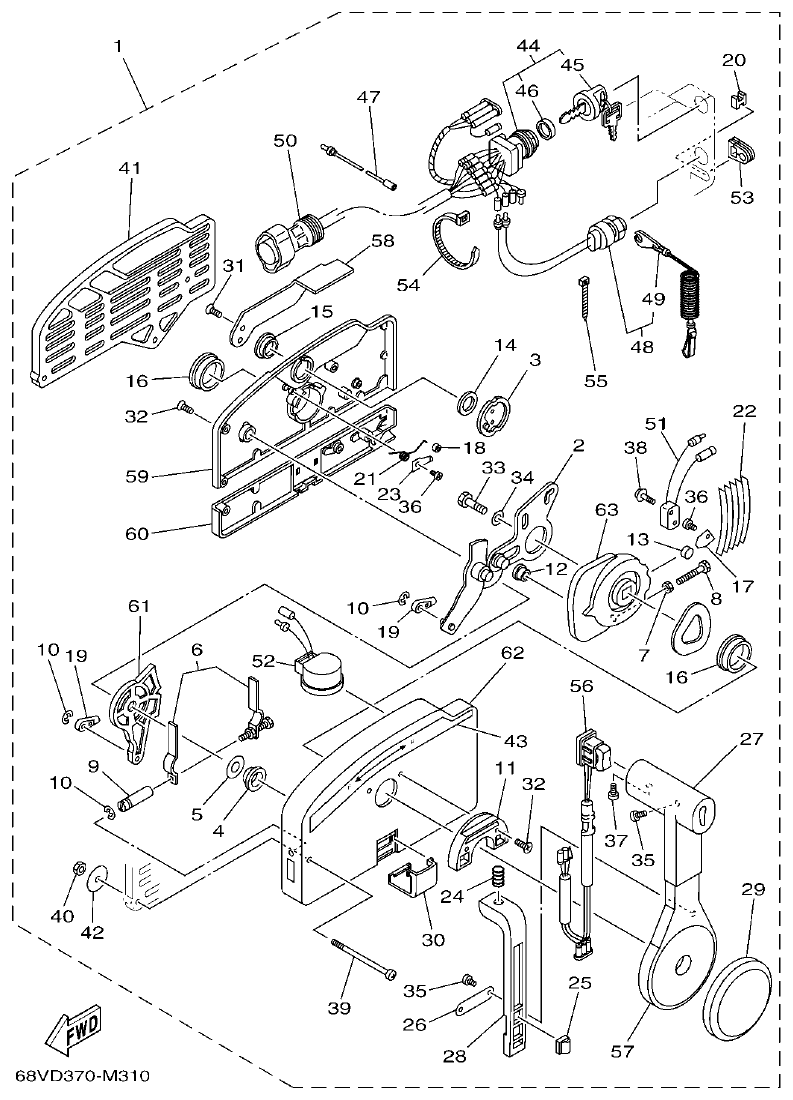

Fig. 34 — REMOTE CONTROL ASSY 1
63 items
· 11 available products

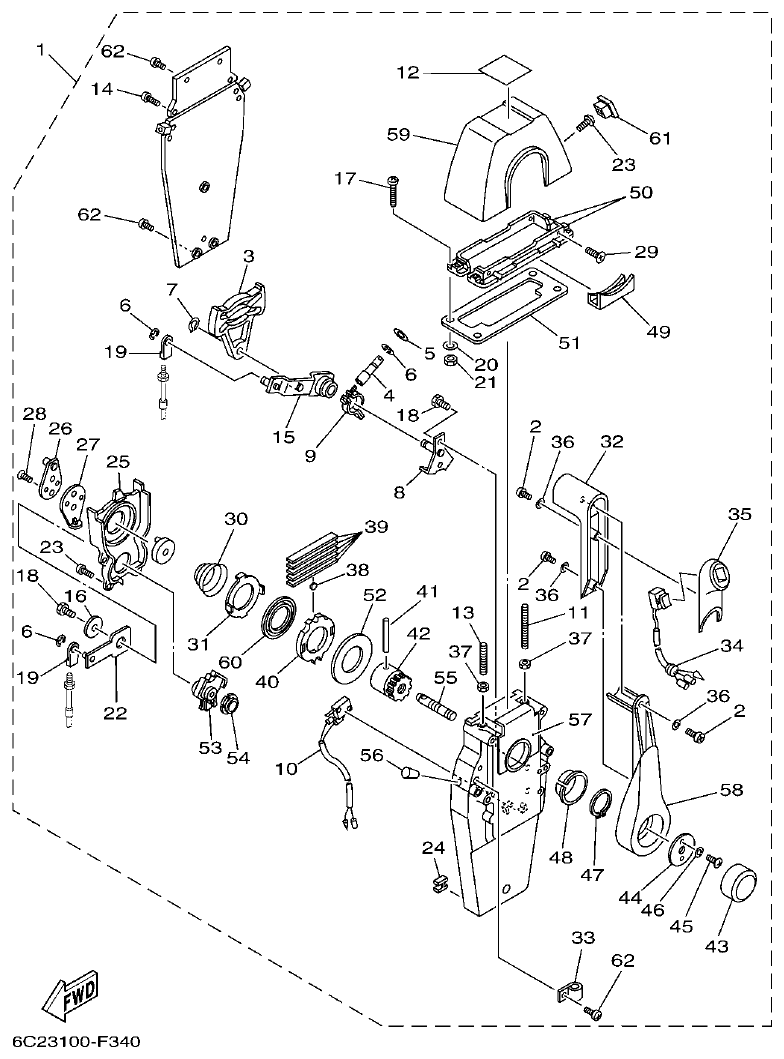

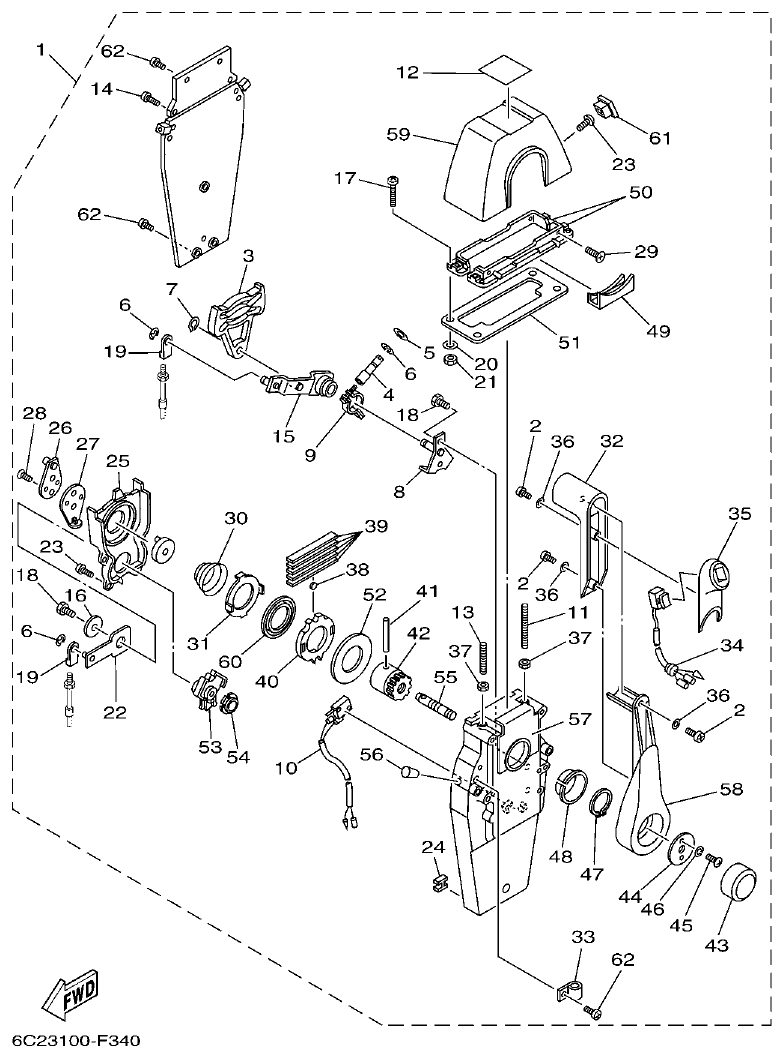

Fig. 35 — REMOTE CONTROL ASSY 2
62 items
· 1 available products
Fig. 36 — REMOTE CONTROL ASSY 3
70 items
· 2 available products

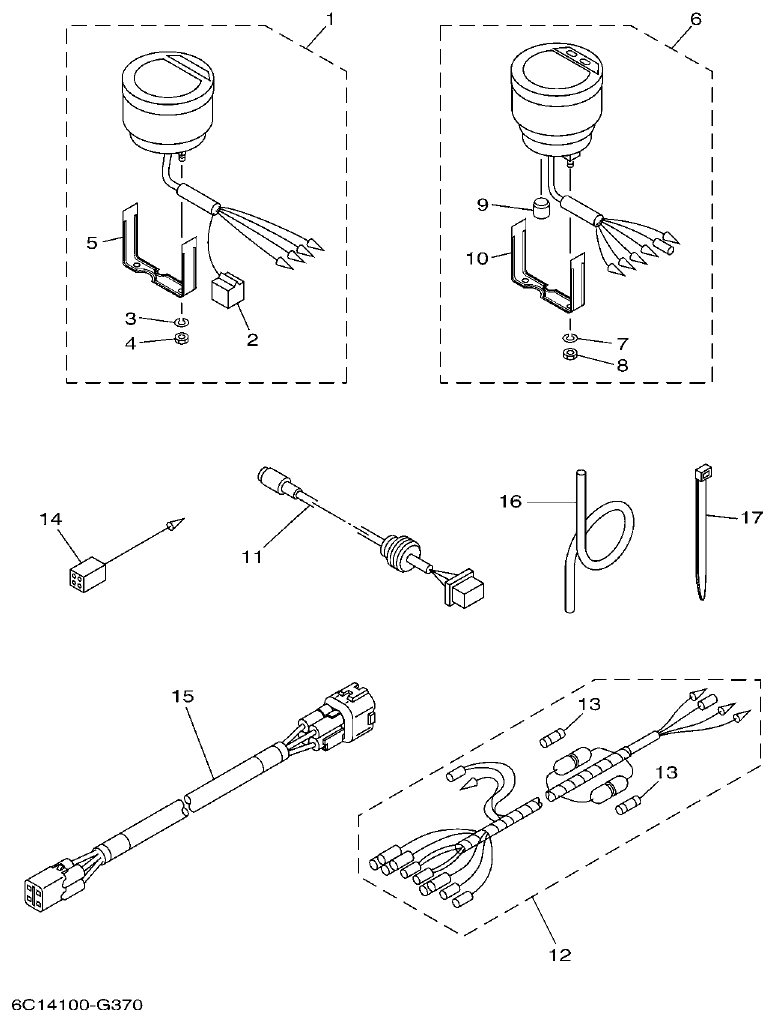

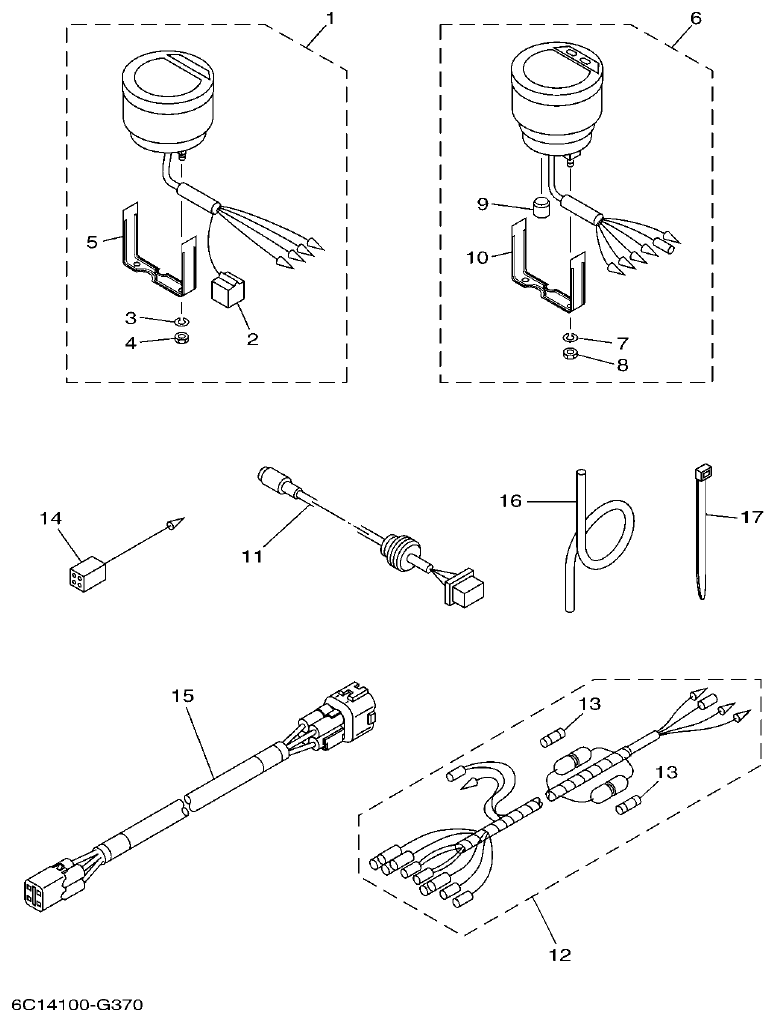

Fig. 37 — METER
20 items
· 1 available products

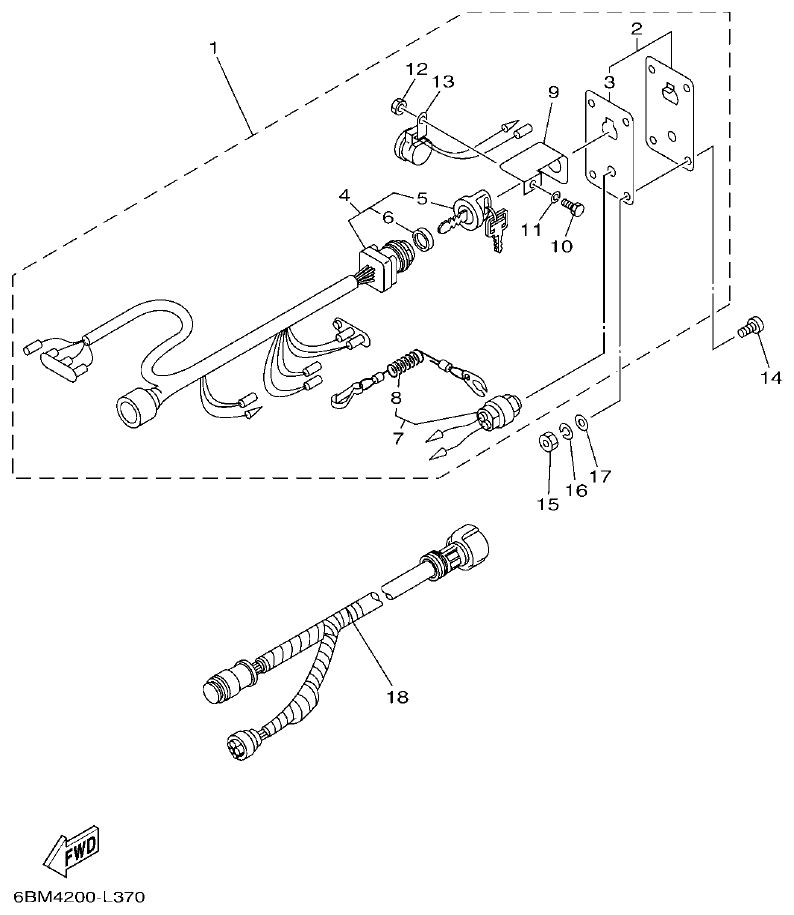

Fig. 38 — SWITCH & PANEL 1
18 items
· 2 available products
Fig. 39 — SWITCH & PANEL 2
24 items
· 1 available products

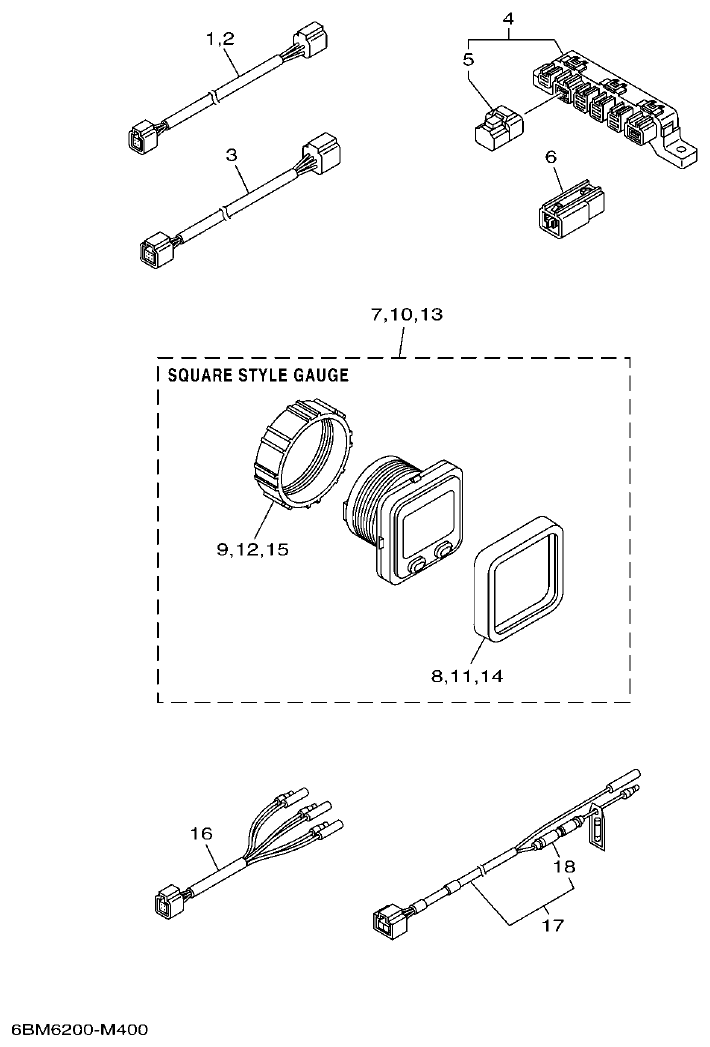

Fig. 40 — OPTIONAL PARTS 1
18 items
· 7 available products

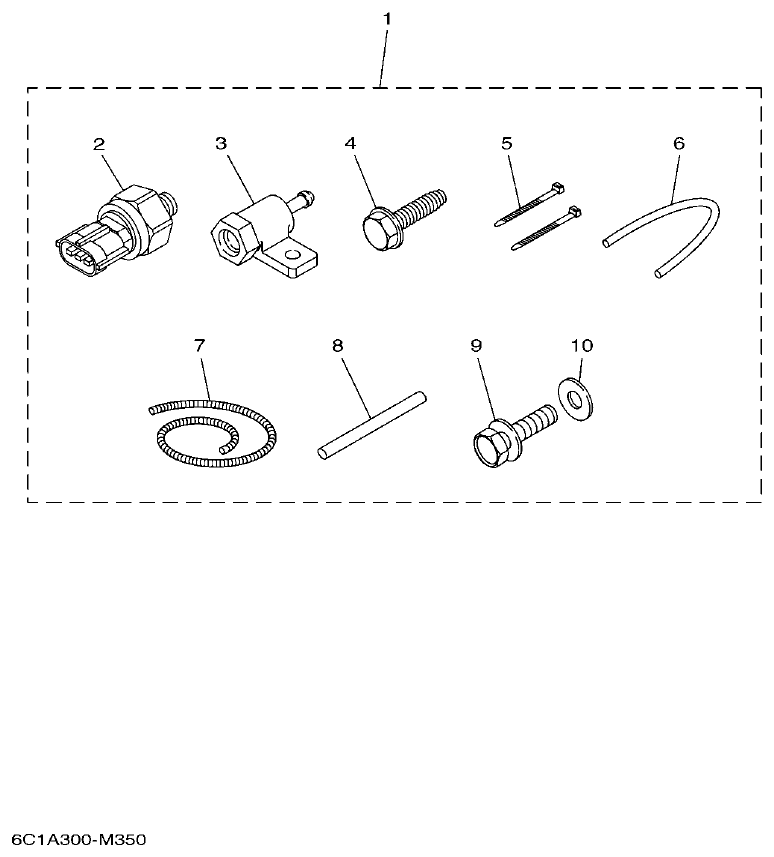

Fig. 41 — OPTIONAL PARTS 2
10 items

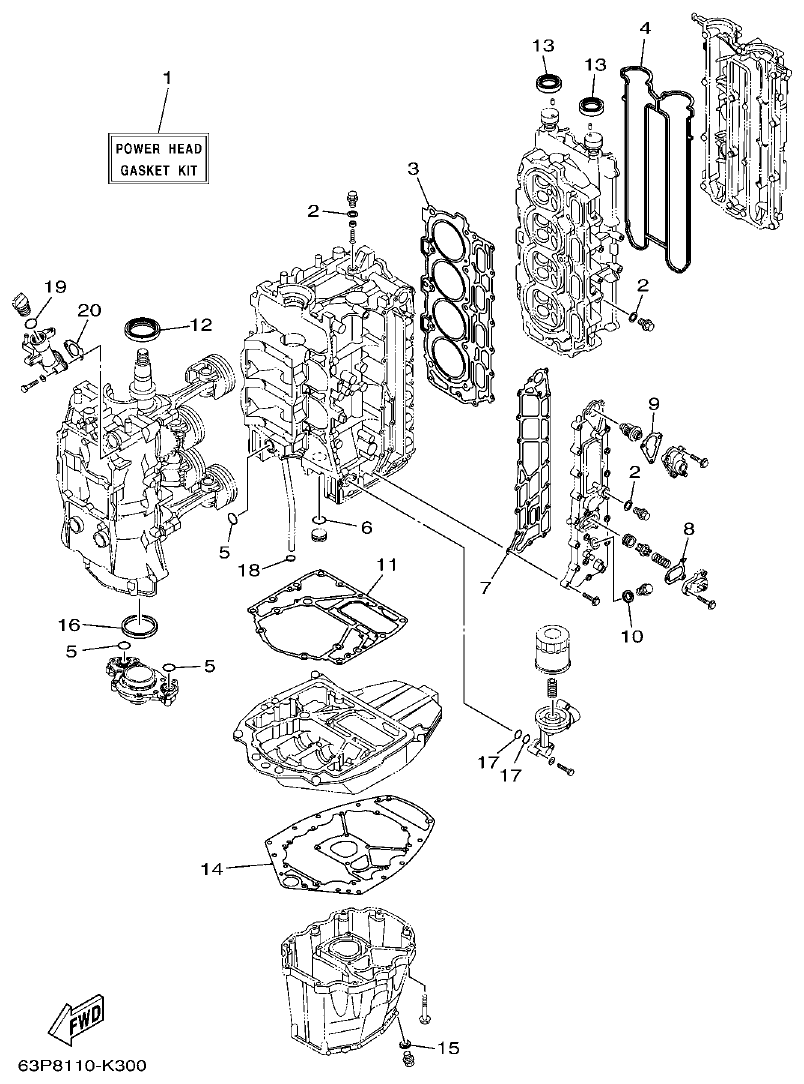

Fig. 42 — REPAIR KIT 1
20 items
· 5 available products

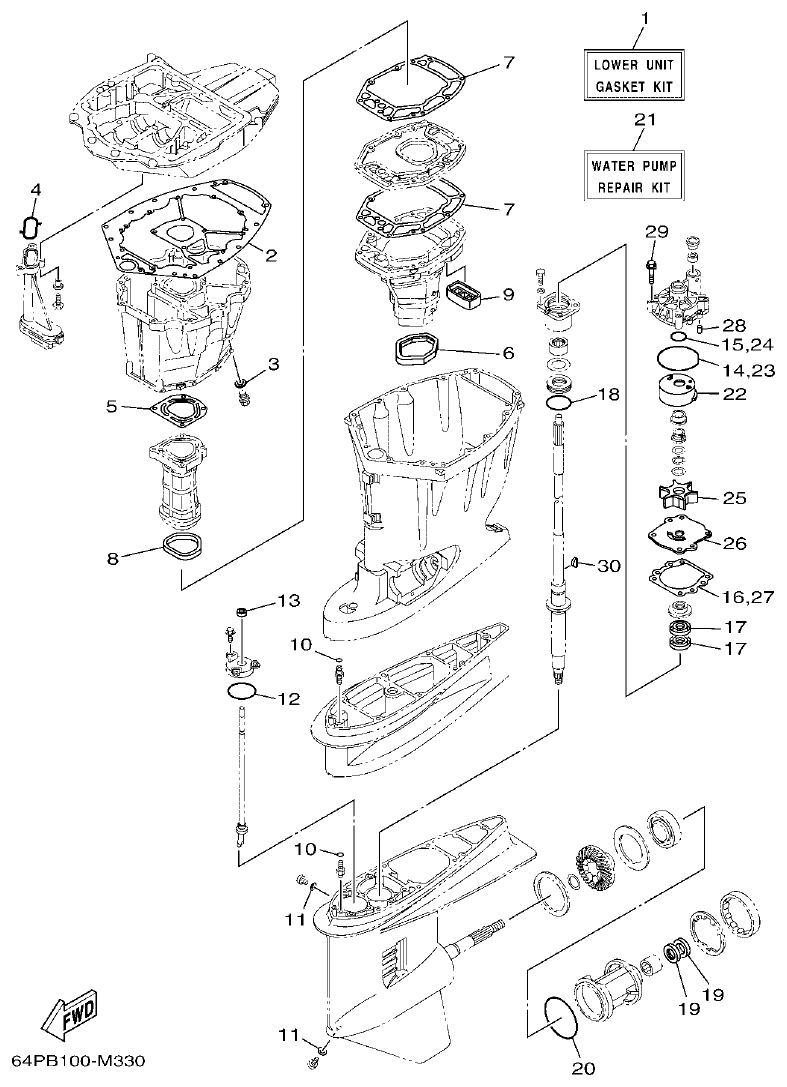

Fig. 43 — REPAIR KIT 2
30 items
· 7 available products
 /images/fig-1-top-cowling.png)
Fig. 1 — TOP COWLING
27 items

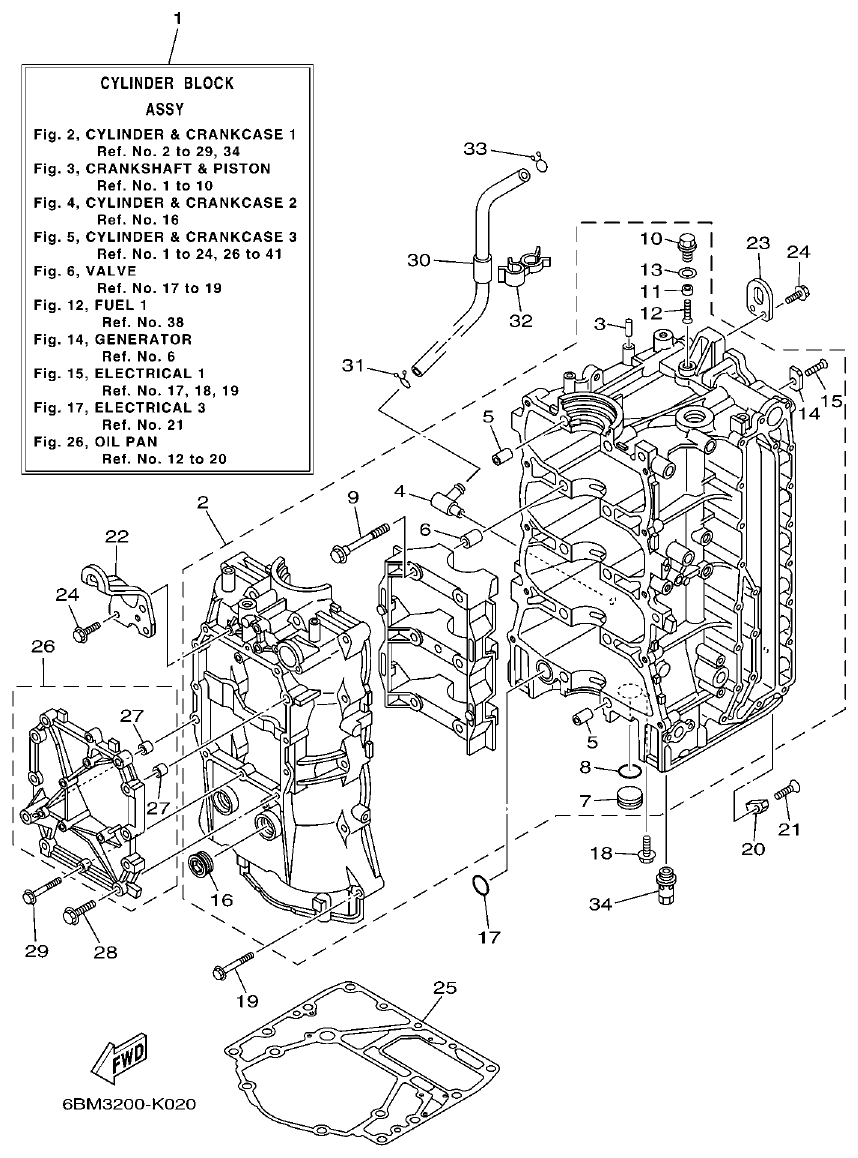

 /images/fig-2-cylinder-crankcase-1.png)
Fig. 2 — CYLINDER & CRANKCASE 1
34 items
· 4 available products

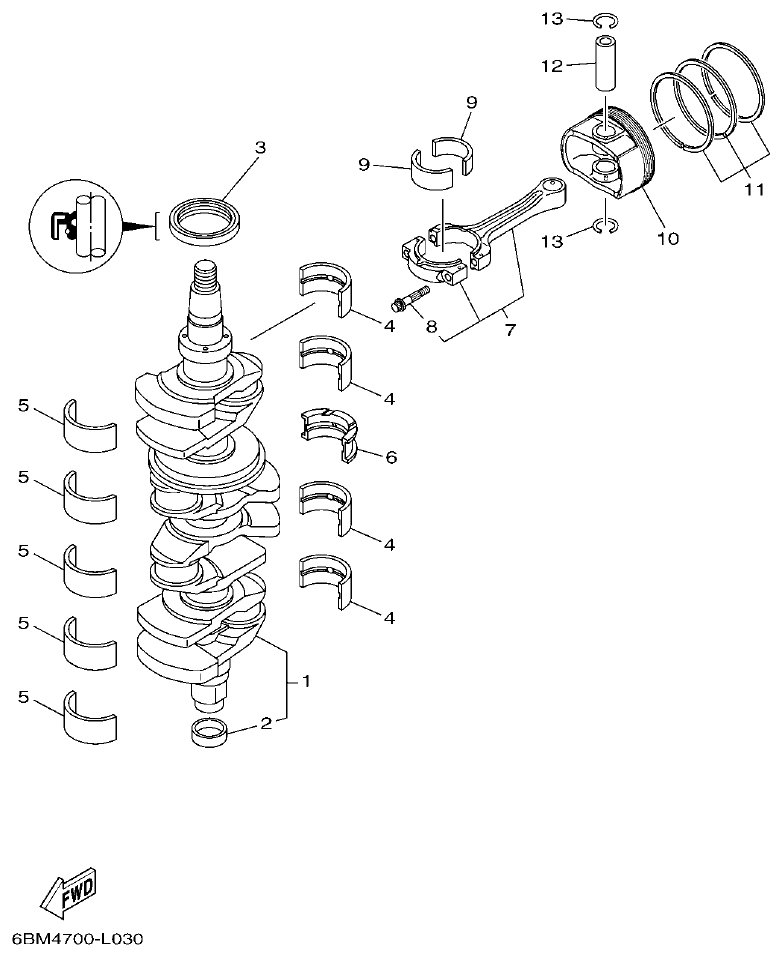

 /images/fig-3-crankshaft-piston.png)
Fig. 3 — CRANKSHAFT & PISTON
21 items
· 2 available products

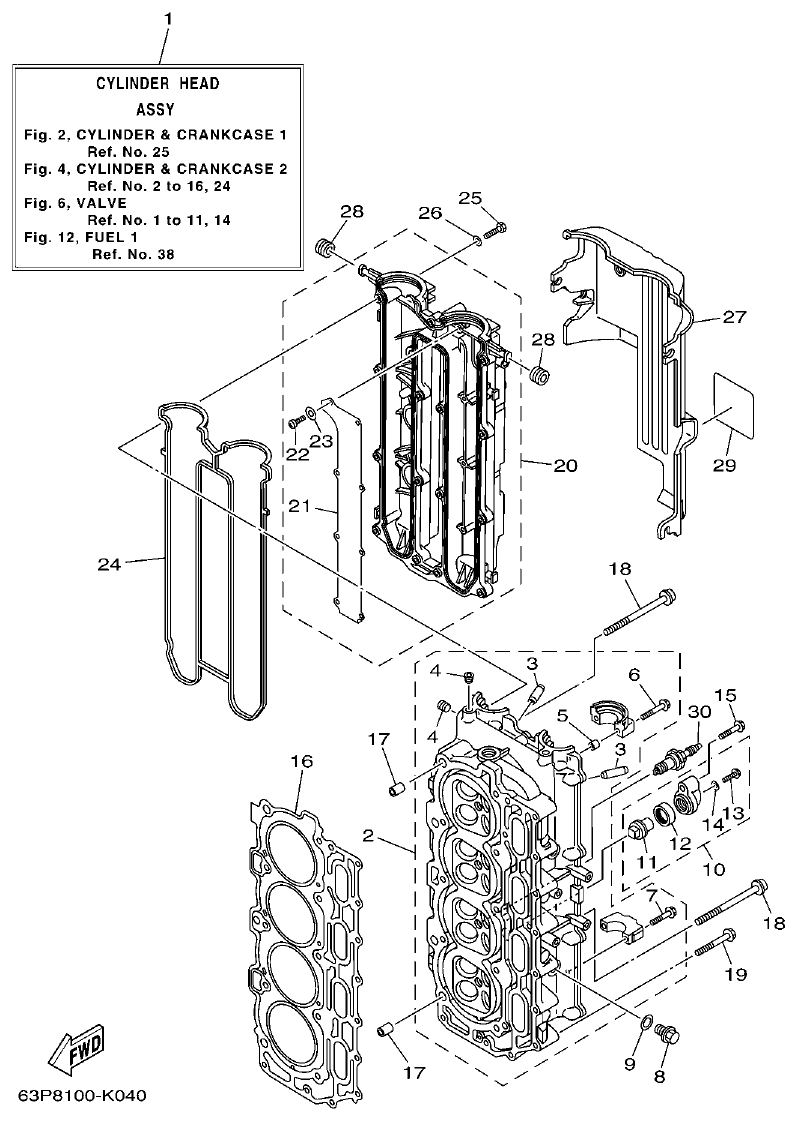

 /images/fig-4-cylinder-crankcase-2.png)
Fig. 4 — CYLINDER & CRANKCASE 2
34 items
· 5 available products

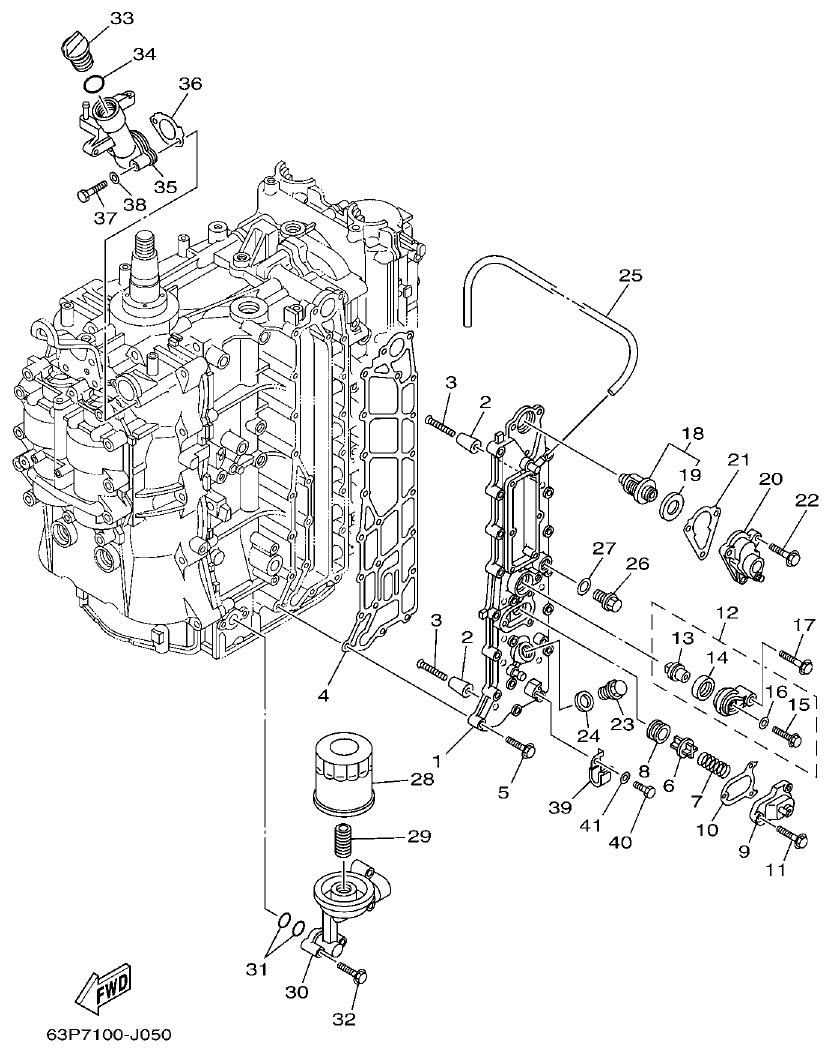

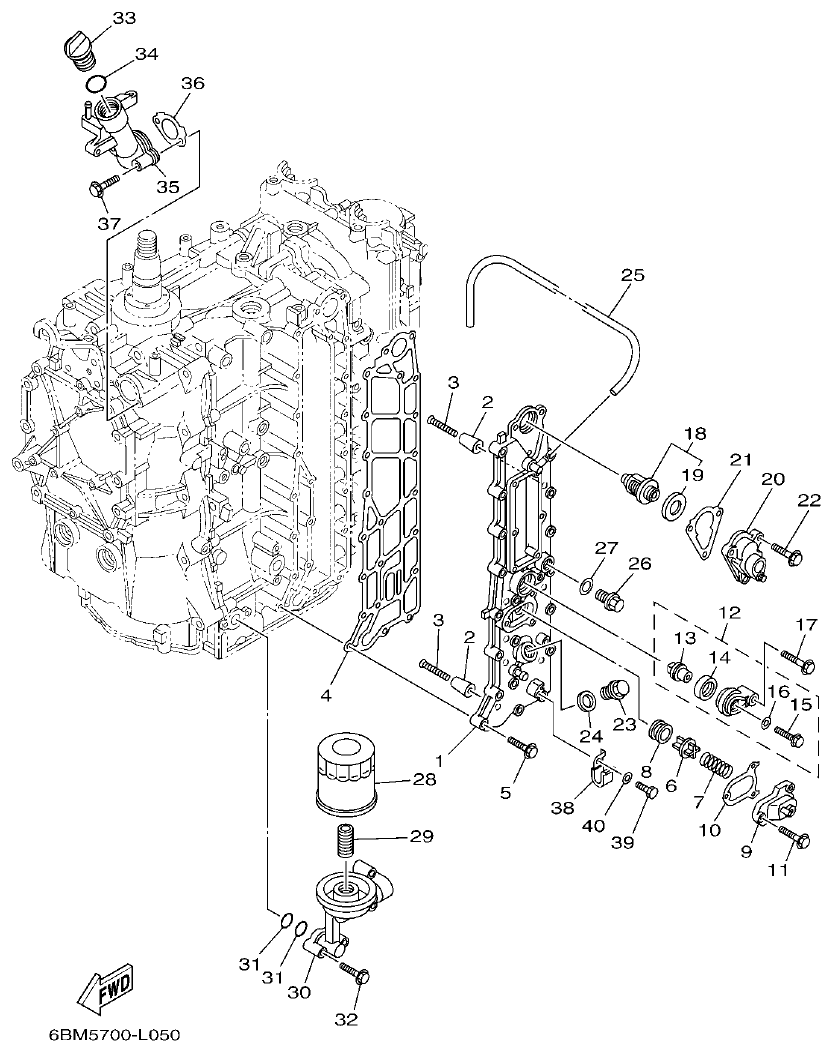

 /images/fig-5-cylinder-crankcase-3.png)
Fig. 5 — CYLINDER & CRANKCASE 3
41 items
· 9 available products

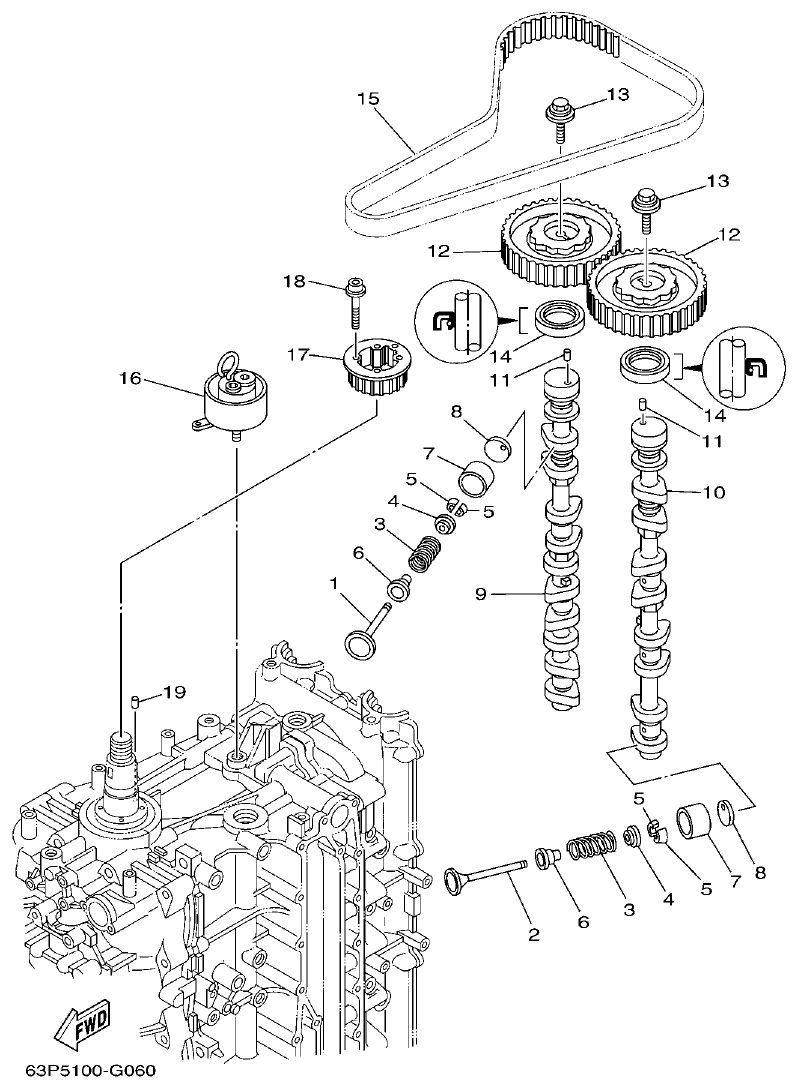

 /images/fig-6-valve.png)
Fig. 6 — VALVE
51 items
· 17 available products
 /images/fig-7-intake-1.png)
Fig. 7 — INTAKE 1
16 items
· 1 available products
 /images/fig-8-intake-2.png)
Fig. 8 — INTAKE 2
20 items
· 2 available products

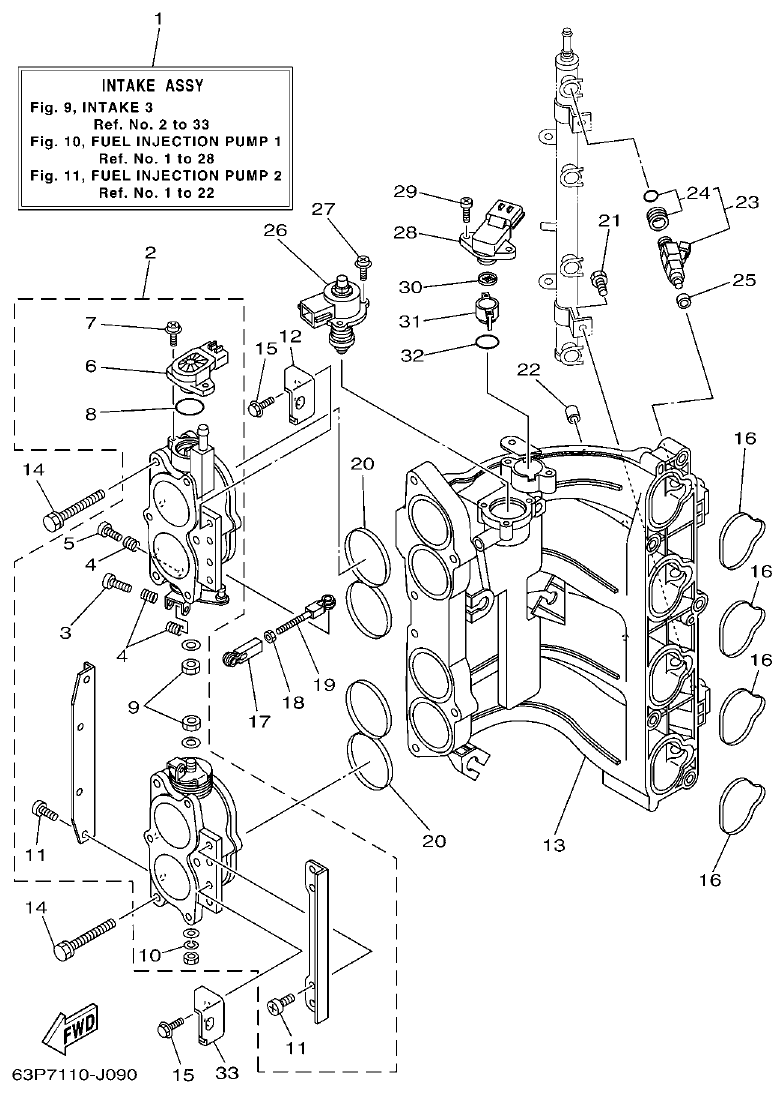

 /images/fig-9-intake-3.png)
Fig. 9 — INTAKE 3
33 items
· 7 available products

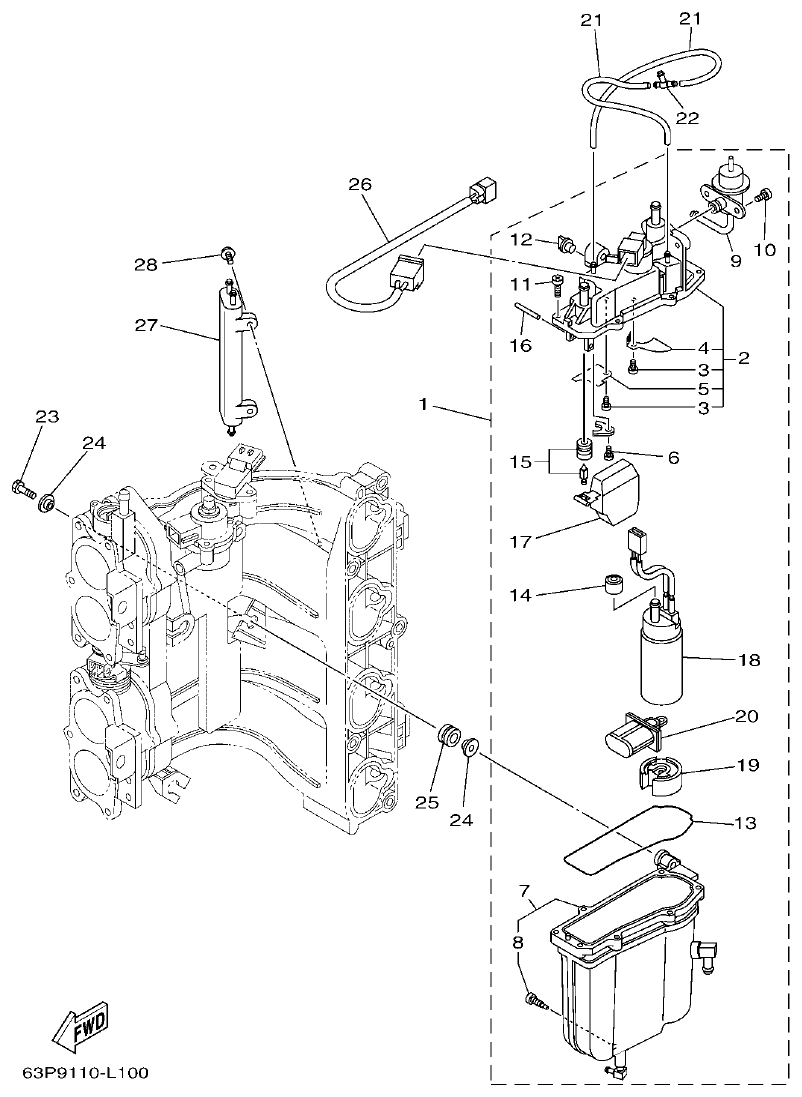

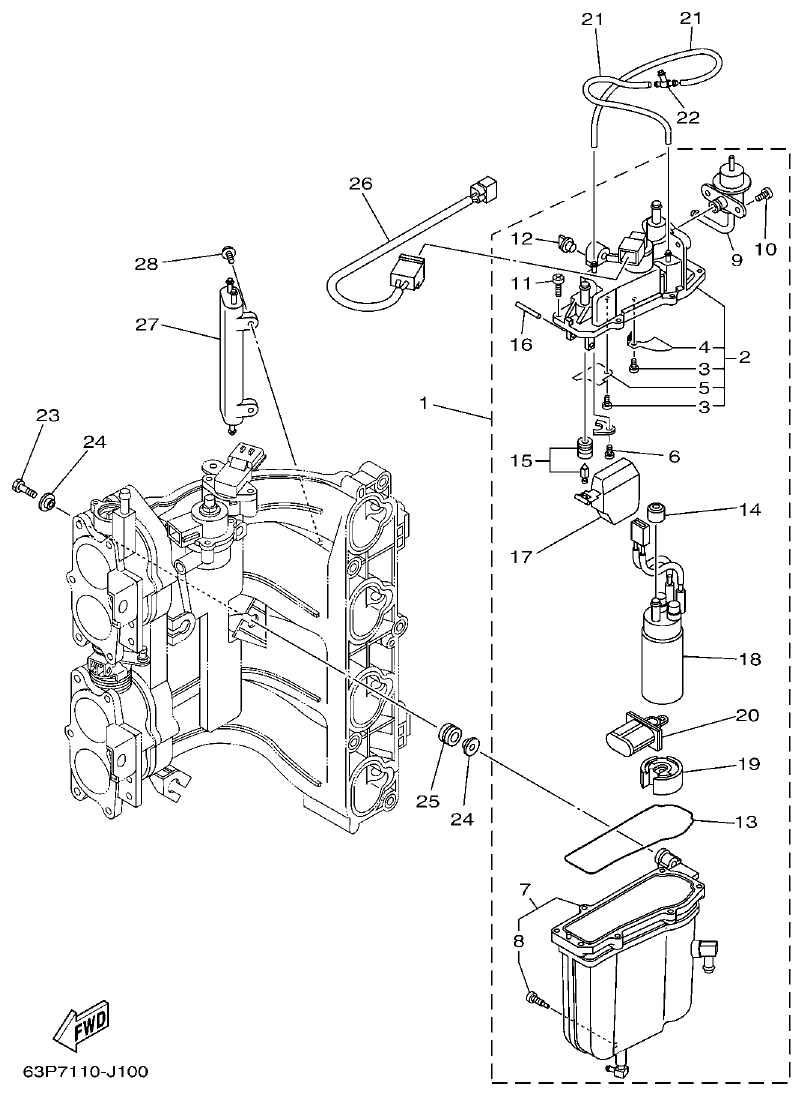

 /images/fig-10-fuel-injection-pump-1.png)
Fig. 10 — FUEL INJECTION PUMP 1
28 items
· 6 available products

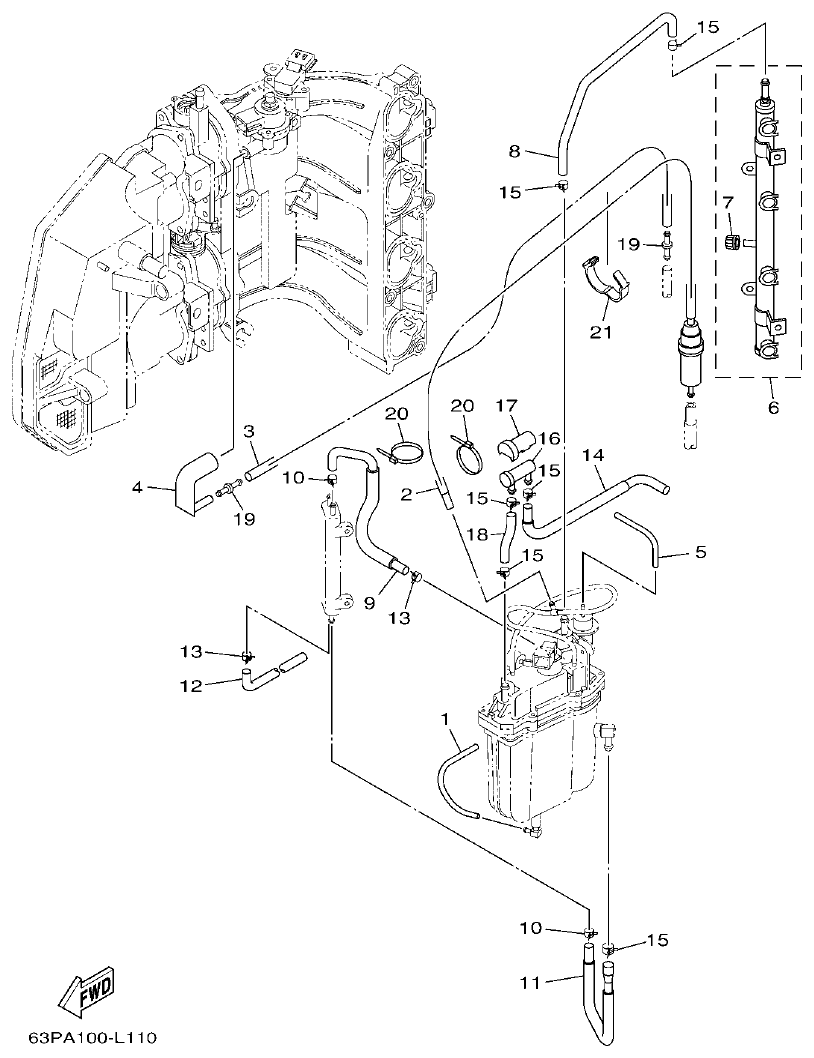

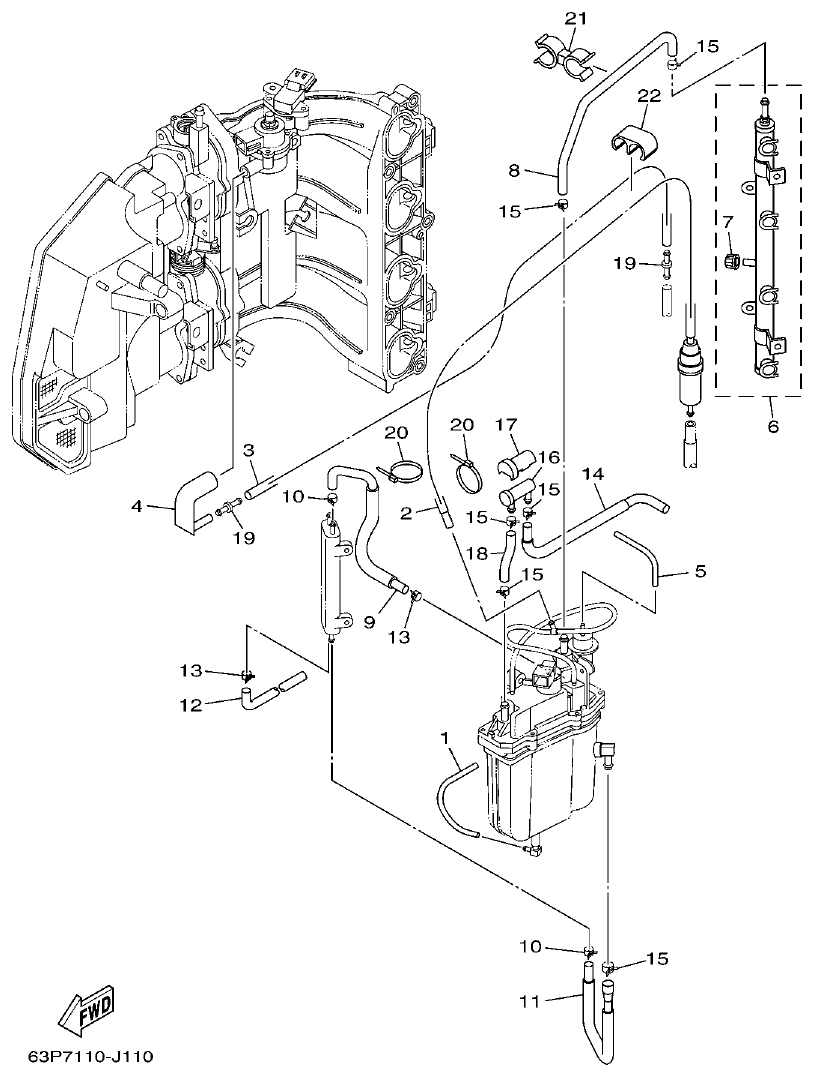

 /images/fig-11-fuel-injection-pump-2.png)
Fig. 11 — FUEL INJECTION PUMP 2
22 items
· 1 available products

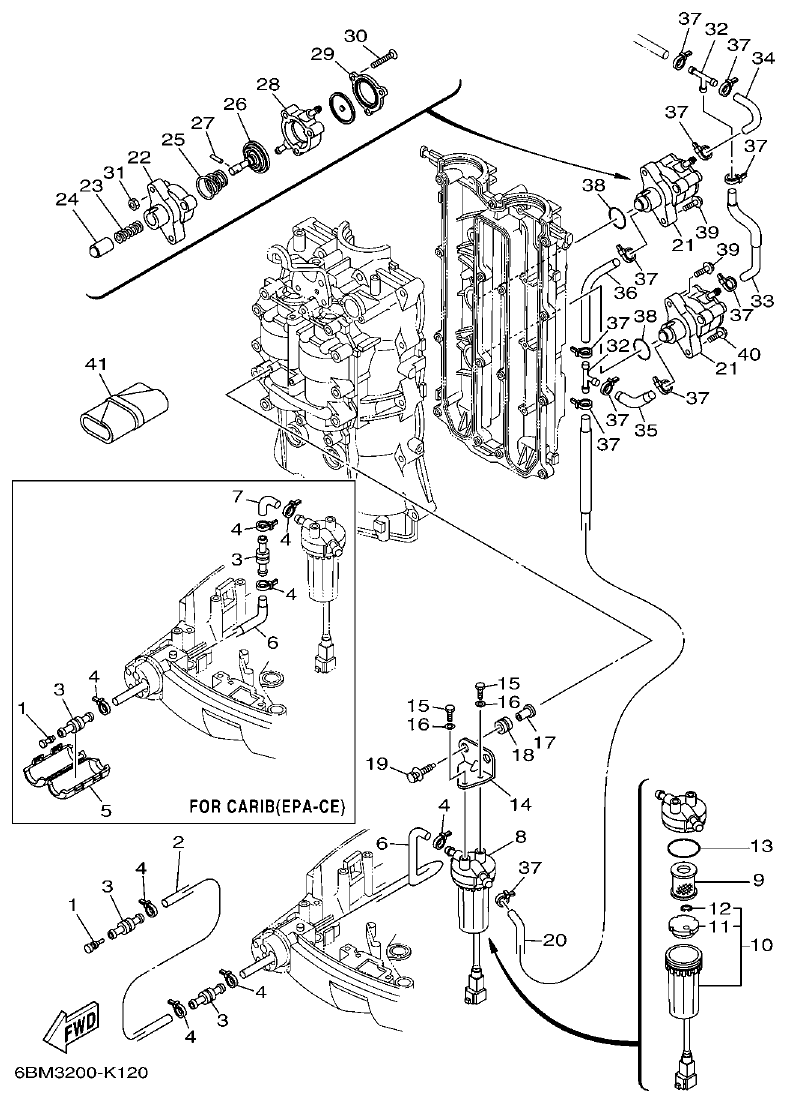

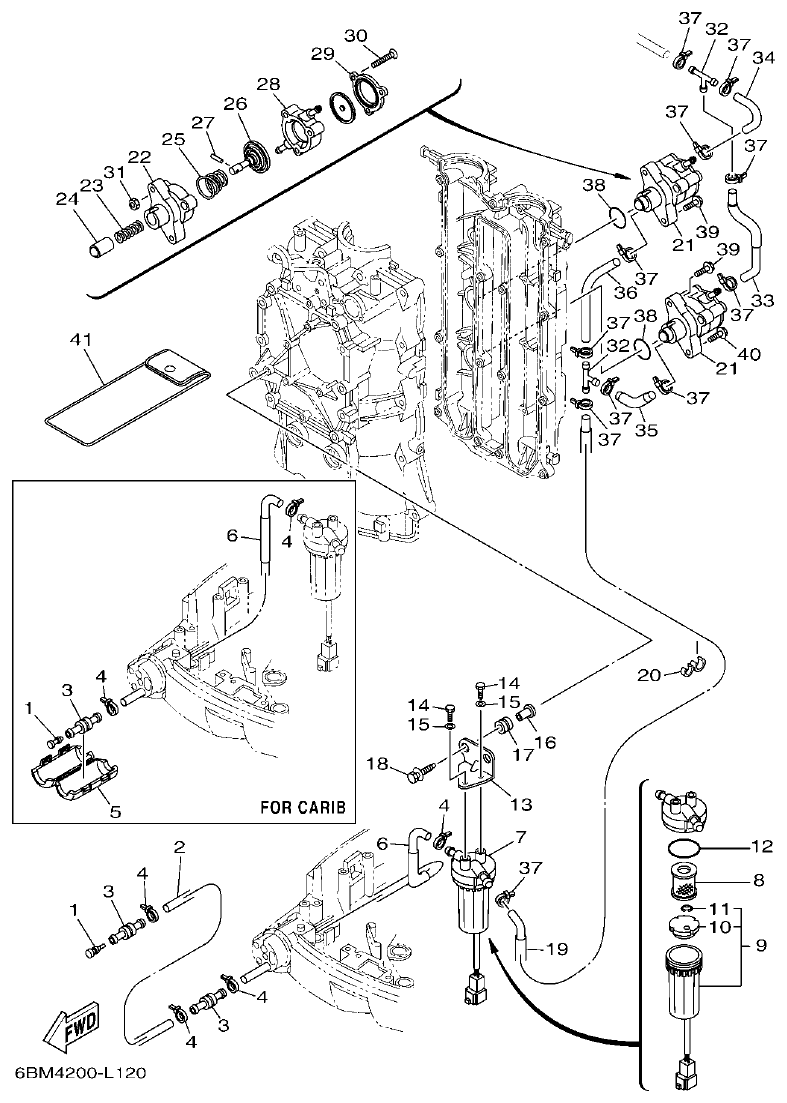

 /images/fig-12-fuel-1.png)
Fig. 12 — FUEL 1
42 items
· 3 available products

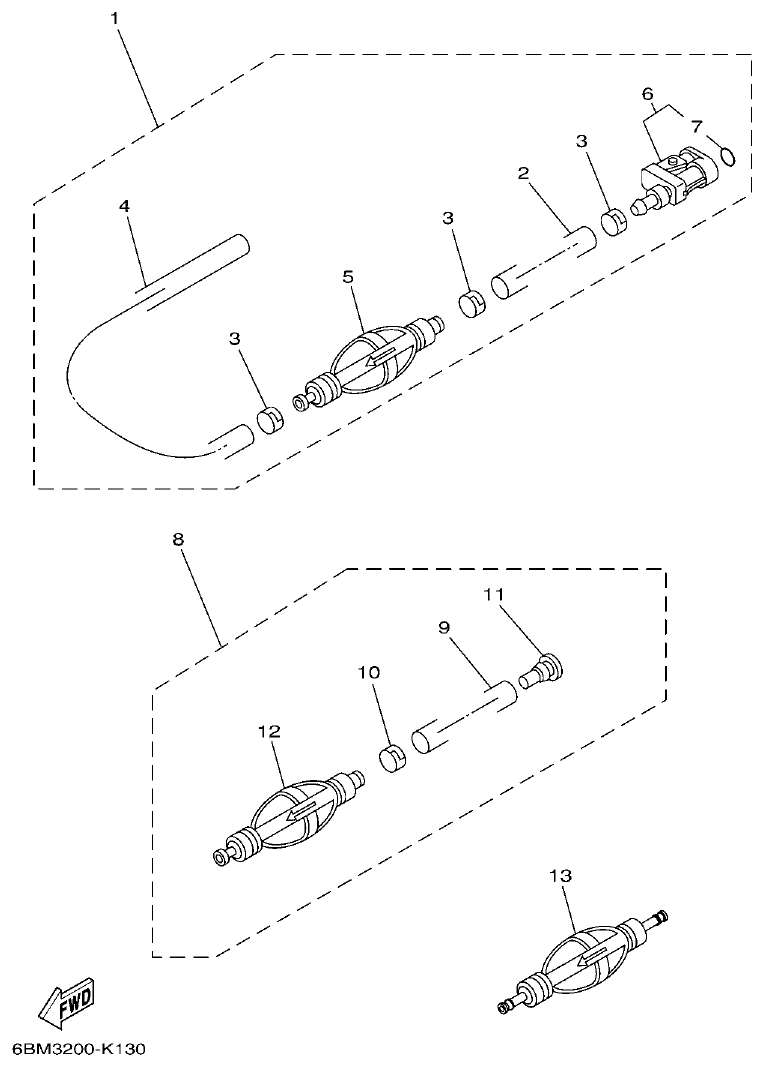

 /images/fig-13-fuel-2.png)
Fig. 13 — FUEL 2
6 items
· 2 available products
 /images/fig-14-generator.png)
Fig. 14 — GENERATOR
25 items
· 1 available products

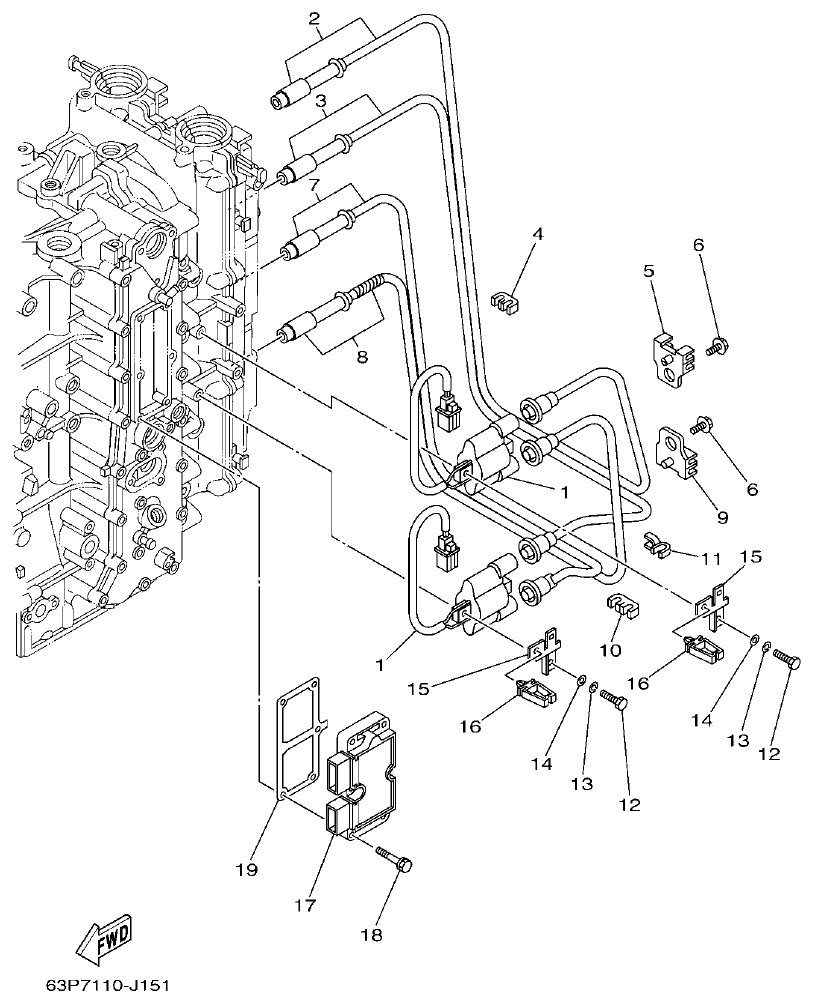

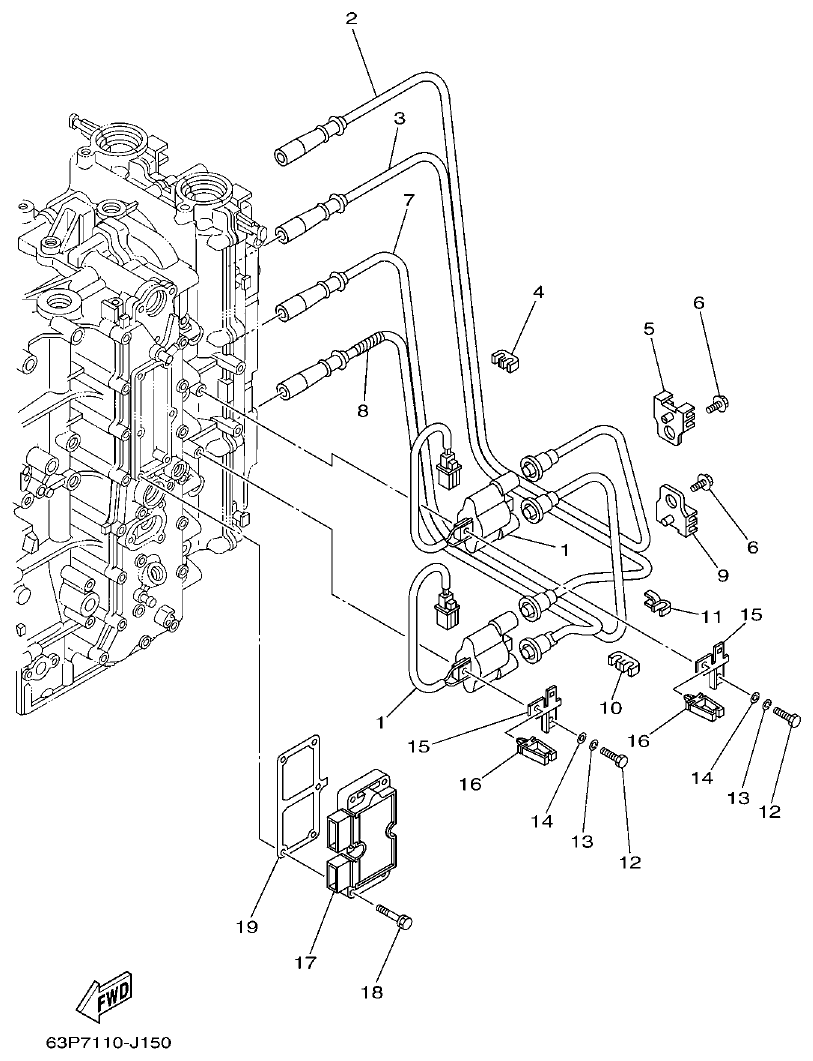

 /images/fig-15-electrical-1.png)
Fig. 15 — ELECTRICAL 1
19 items
· 2 available products

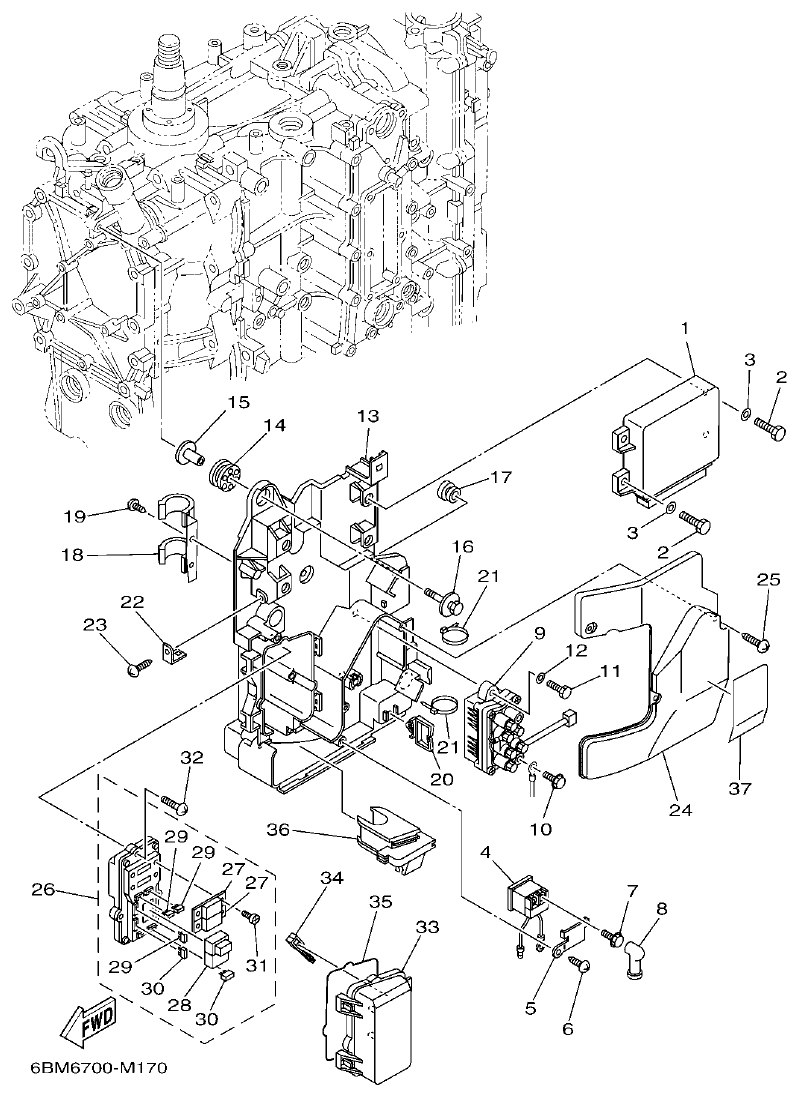

 /images/fig-16-electrical-2.png)
Fig. 16 — ELECTRICAL 2
51 items
· 5 available products
 /images/fig-17-electrical-3.png)
Fig. 17 — ELECTRICAL 3
33 items
· 2 available products

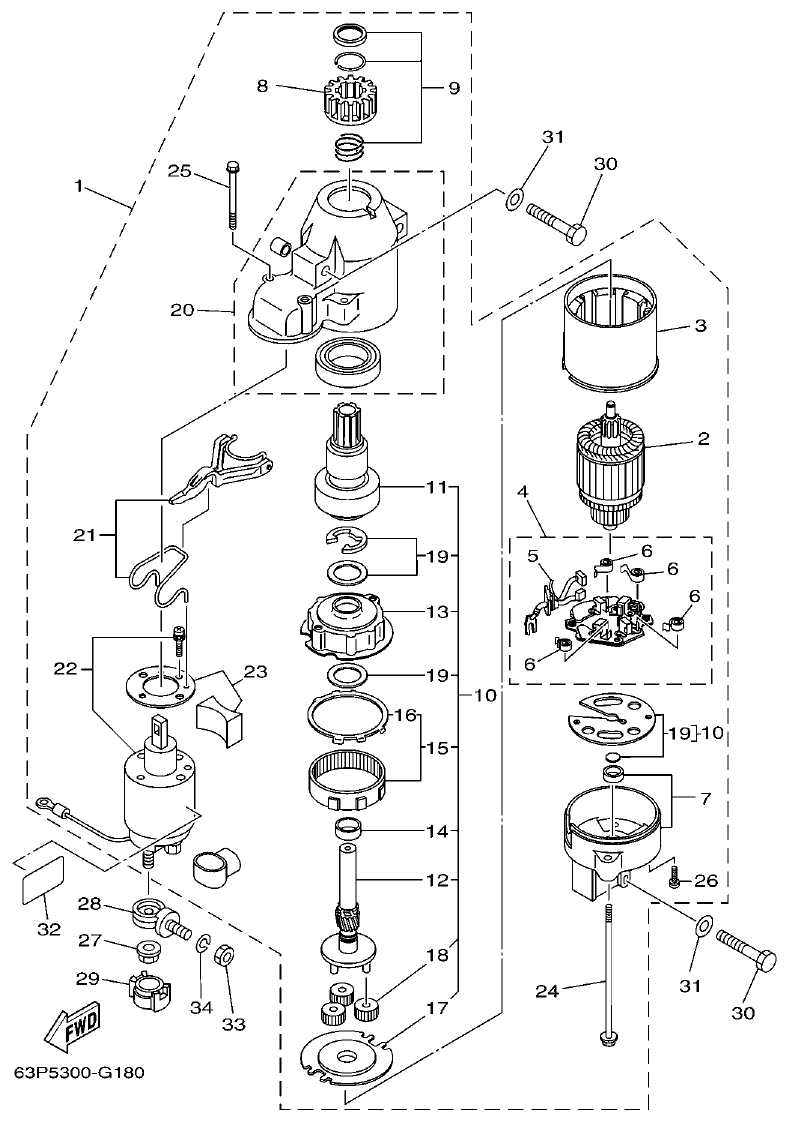

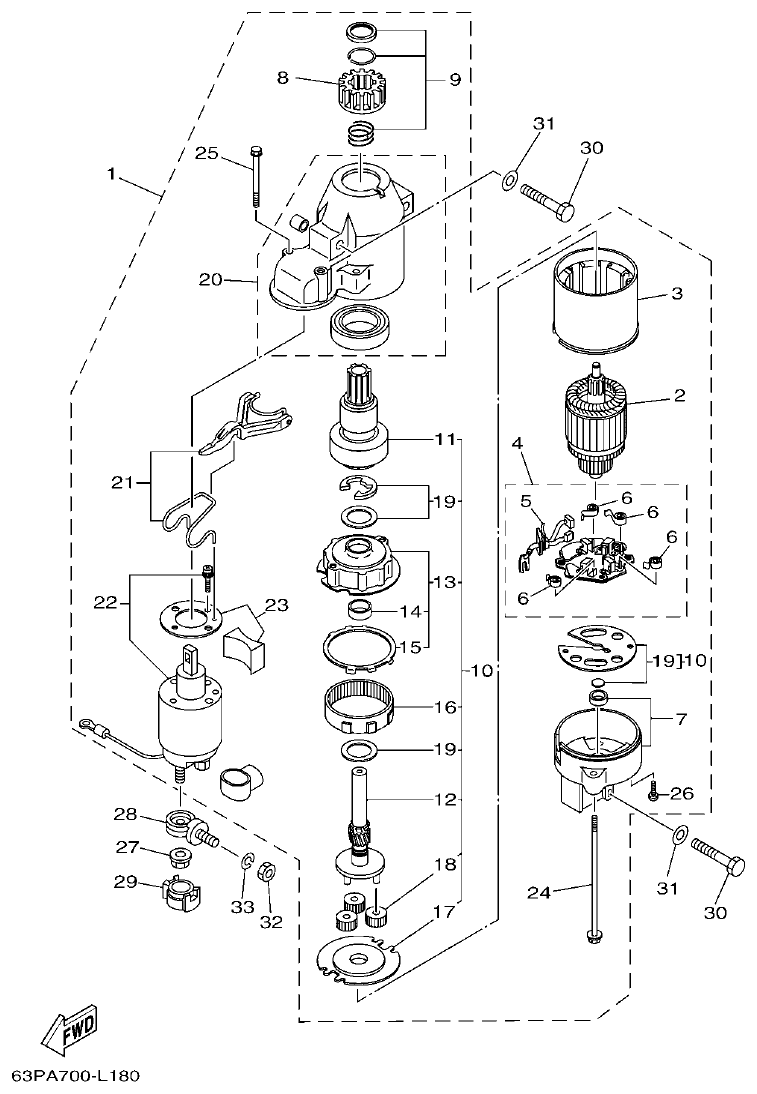

 /images/fig-18-starting-motor.png)
Fig. 18 — STARTING MOTOR
34 items
· 5 available products
 /images/fig-19-bottom-cowling.png)
Fig. 19 — BOTTOM COWLING
55 items
· 7 available products

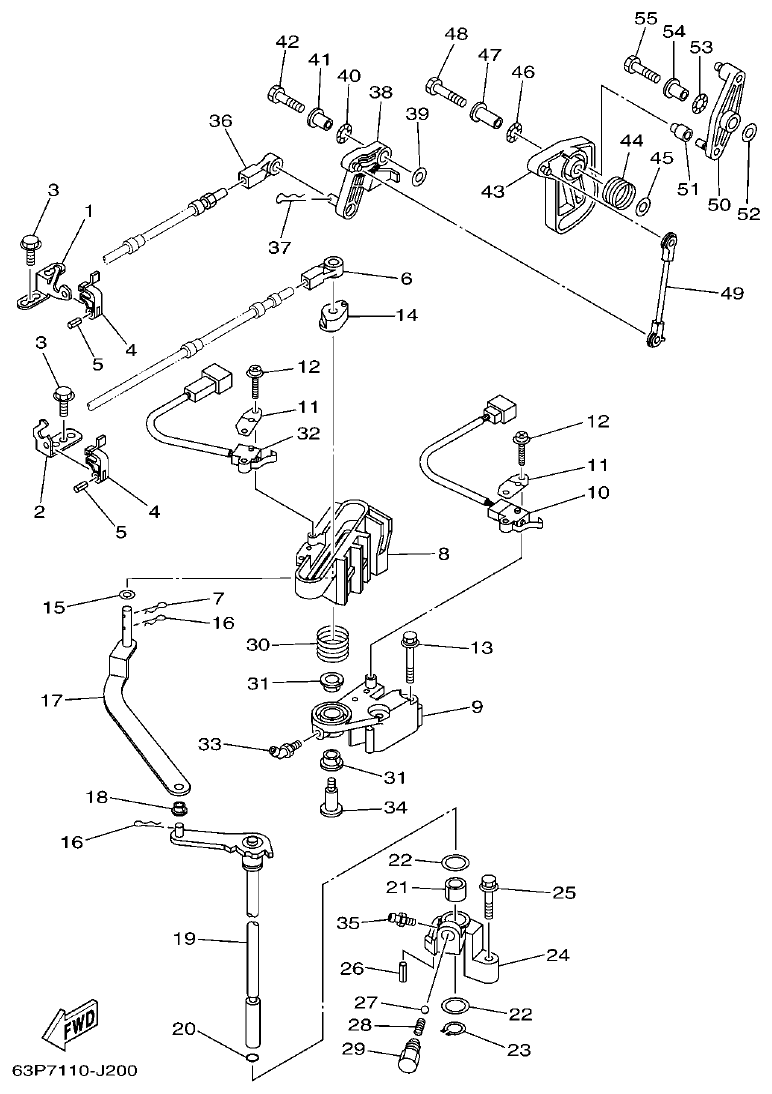

 /images/fig-20-control.png)
Fig. 20 — CONTROL
55 items
· 5 available products

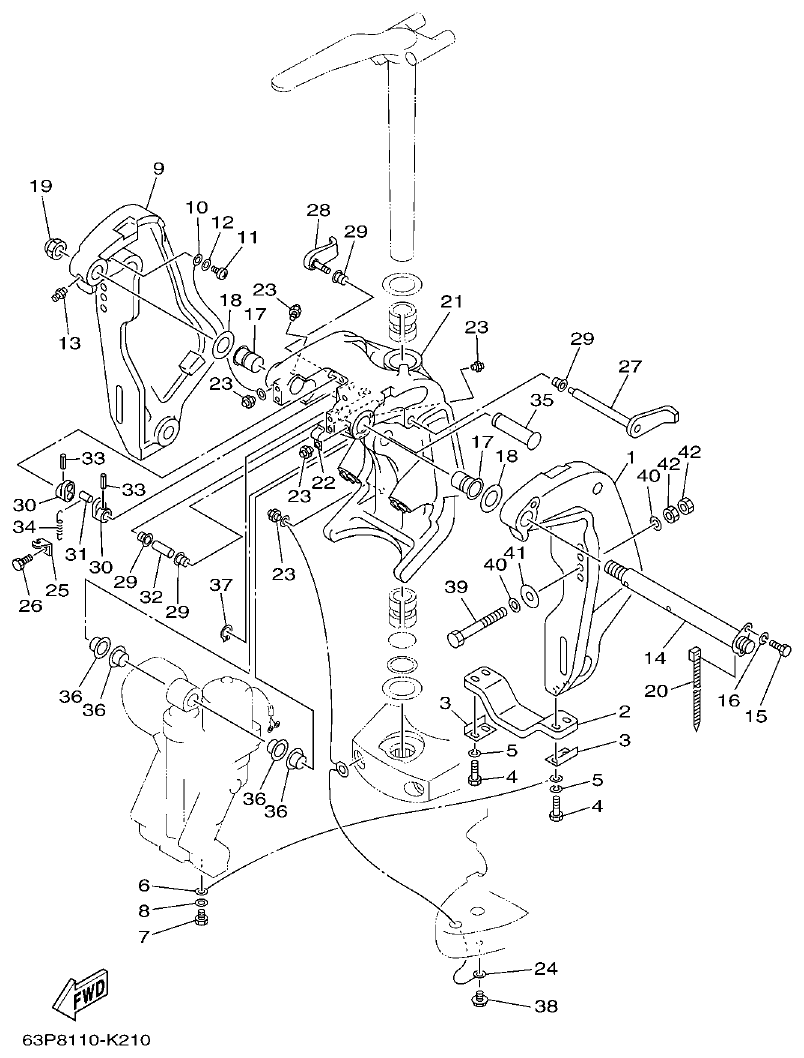

 /images/fig-21-bracket-1.png)
Fig. 21 — BRACKET 1
43 items
· 9 available products

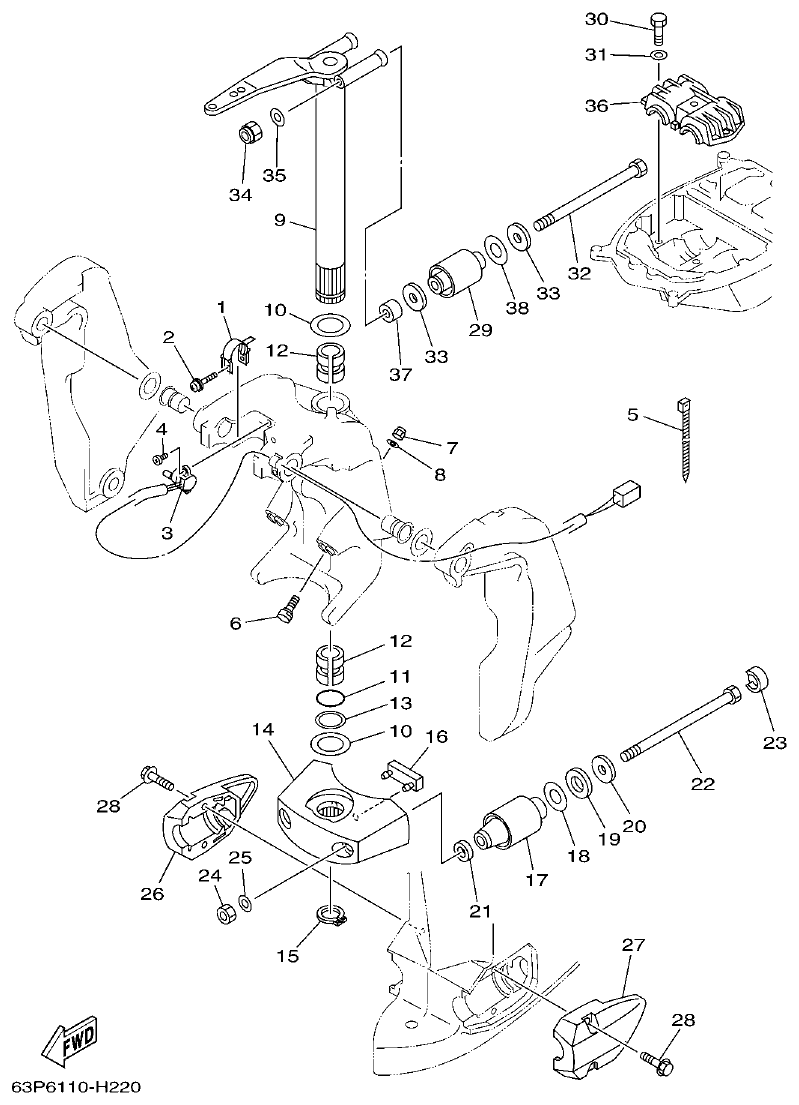

 /images/fig-22-bracket-2.png)
Fig. 22 — BRACKET 2
38 items
· 2 available products

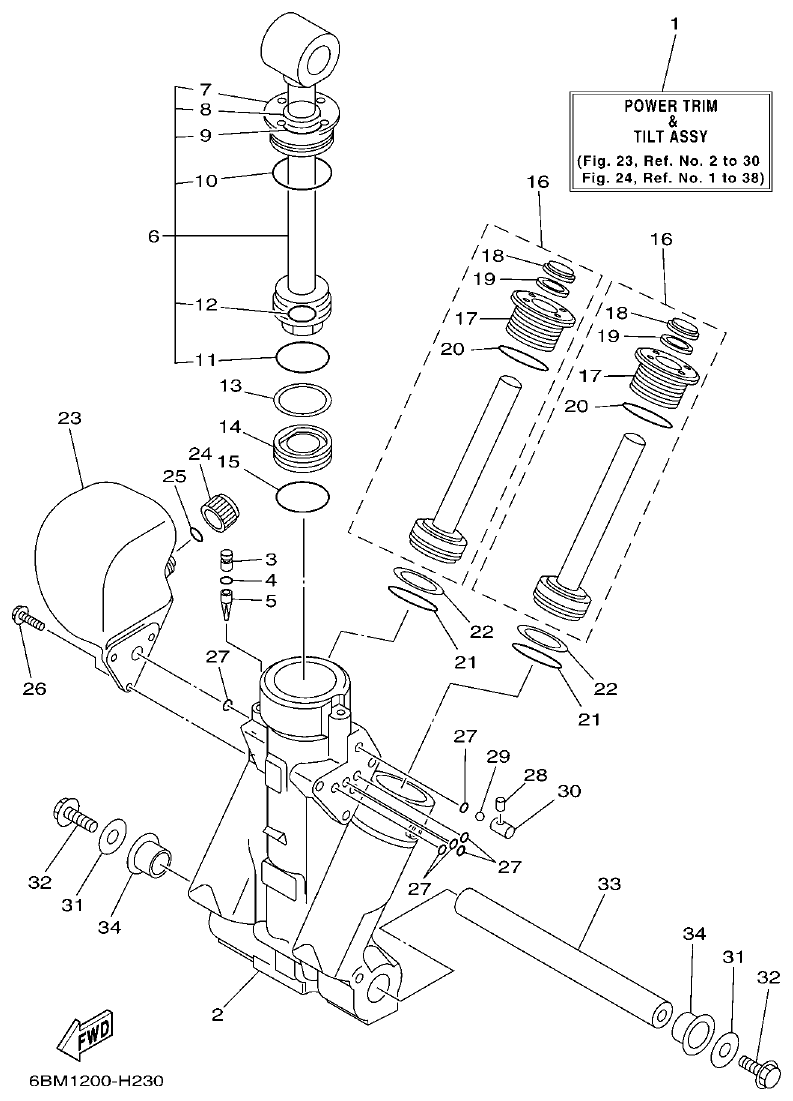

 /images/fig-23-power-trim-tilt-assy-1.png)
Fig. 23 — POWER TRIM & TILT ASSY 1
34 items
· 13 available products

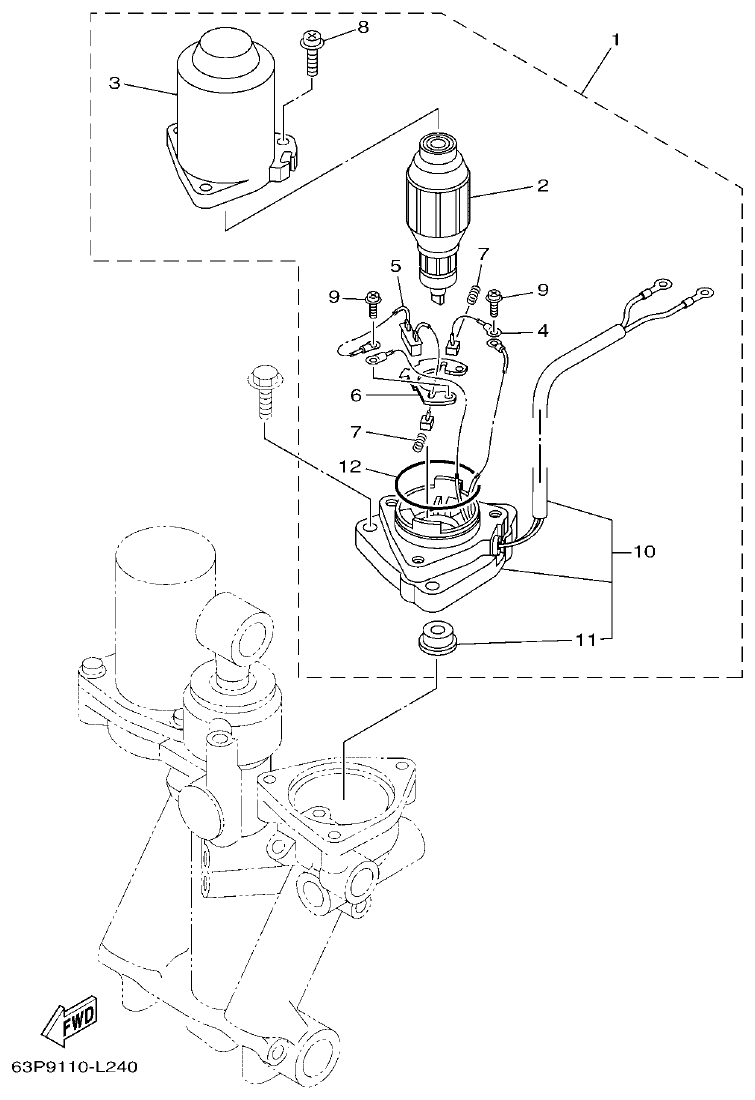

 /images/fig-24-power-trim-tilt-assy-2.png)
Fig. 24 — POWER TRIM & TILT ASSY 2
38 items
· 13 available products

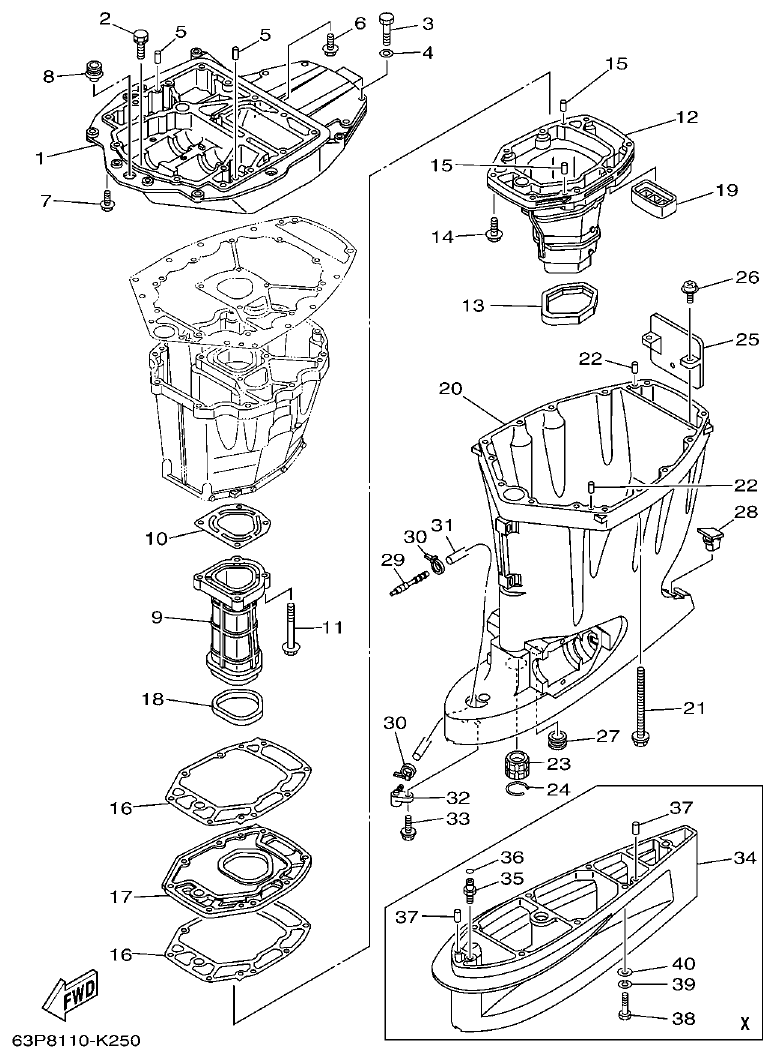

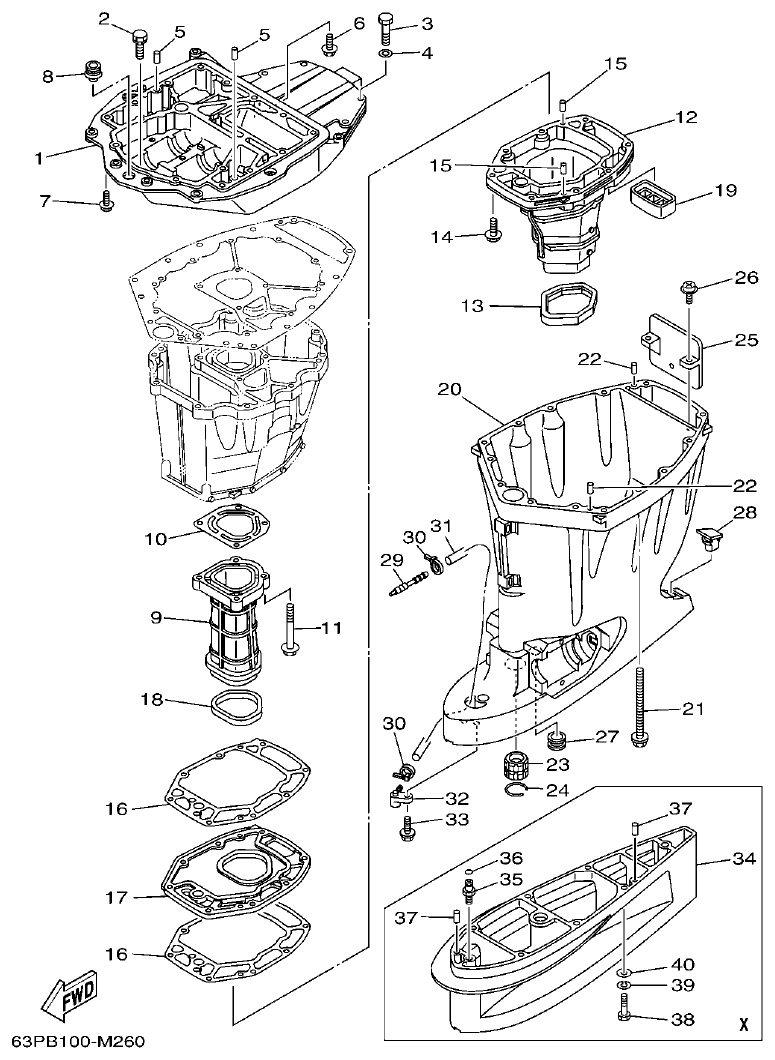

 /images/fig-25-upper-casing.png)
Fig. 25 — UPPER CASING
40 items
· 6 available products

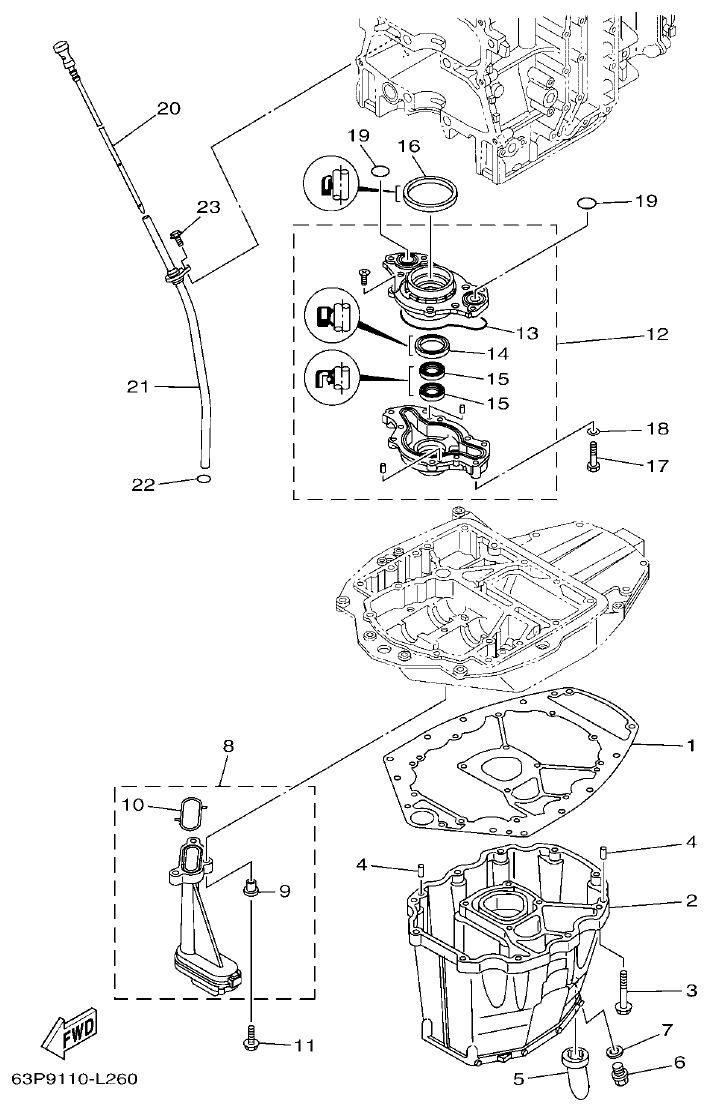

 /images/fig-26-oil-pan.png)
Fig. 26 — OIL PAN
28 items
· 7 available products

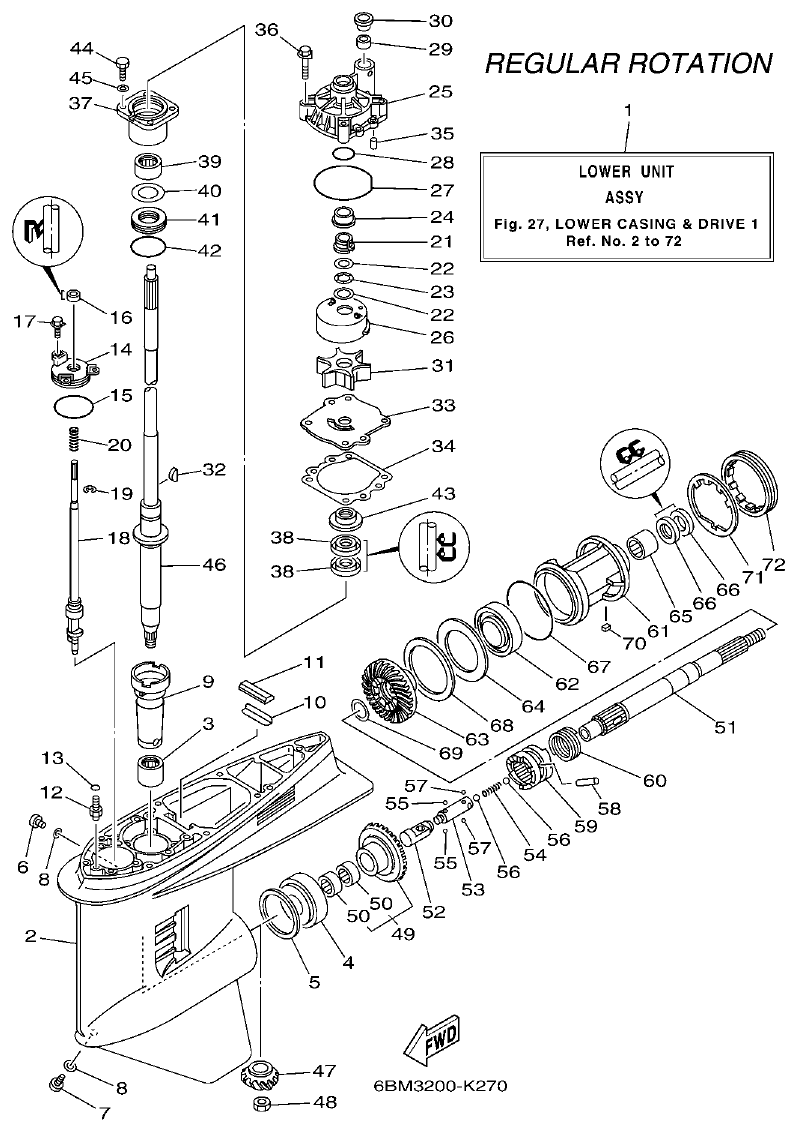

 /images/fig-27-lower-casing-drive-1.png)
Fig. 27 — LOWER CASING & DRIVE 1
90 items
· 37 available products
 /images/fig-28-lower-casing-drive-2.png)
Fig. 28 — LOWER CASING & DRIVE 2
41 items
· 9 available products

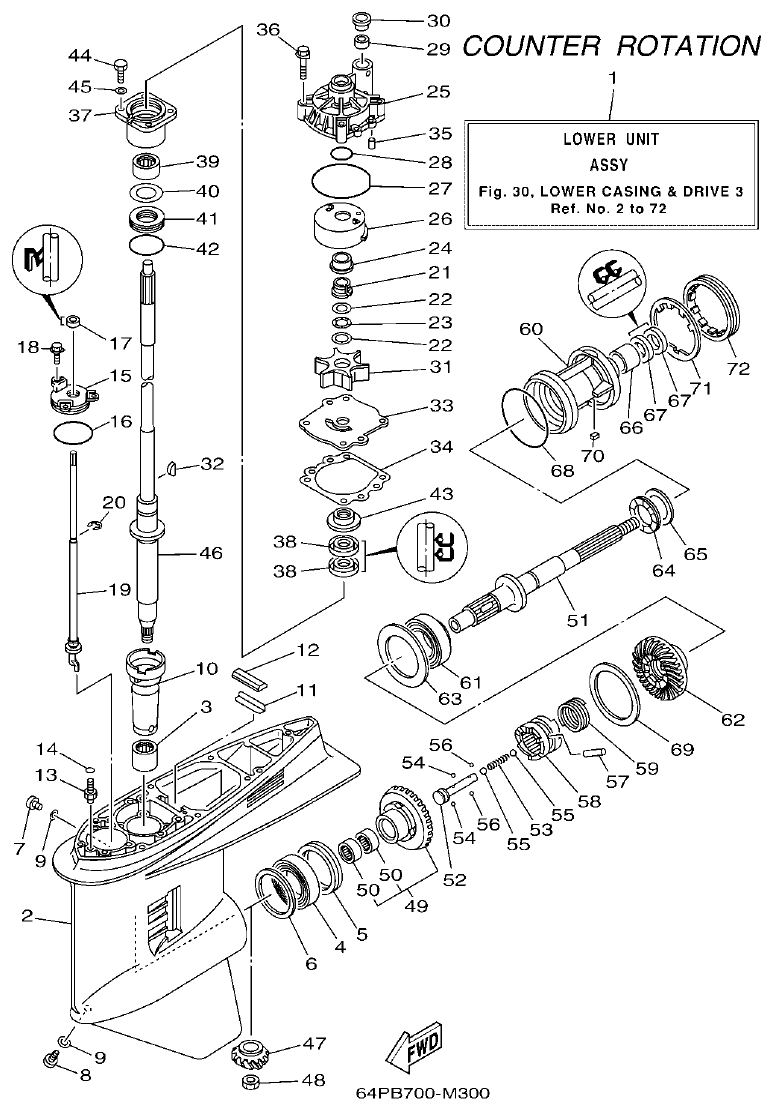

 /images/fig-29-lower-casing-drive-3.png)
Fig. 29 — LOWER CASING & DRIVE 3
98 items
· 45 available products

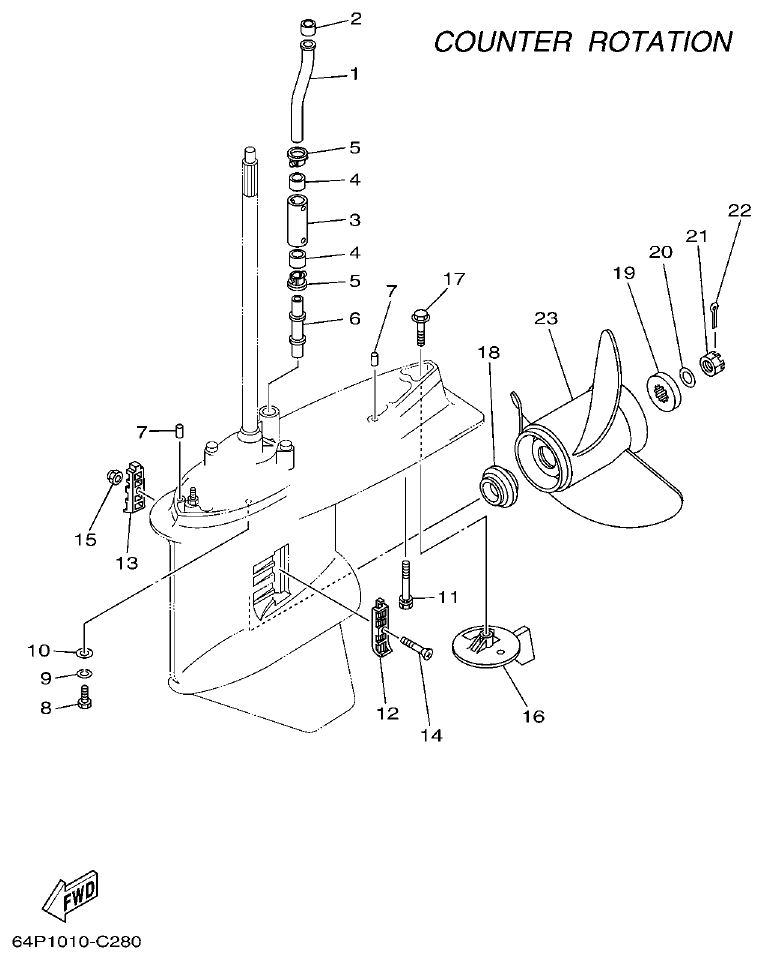

 /images/fig-30-lower-casing-drive-4.png)
Fig. 30 — LOWER CASING & DRIVE 4
32 items
· 9 available products
 /images/fig-31-fuel-tank.png)
Fig. 31 — FUEL TANK
14 items
· 5 available products
 /images/fig-32-steering-guide.png)
Fig. 32 — STEERING GUIDE
20 items
· 3 available products

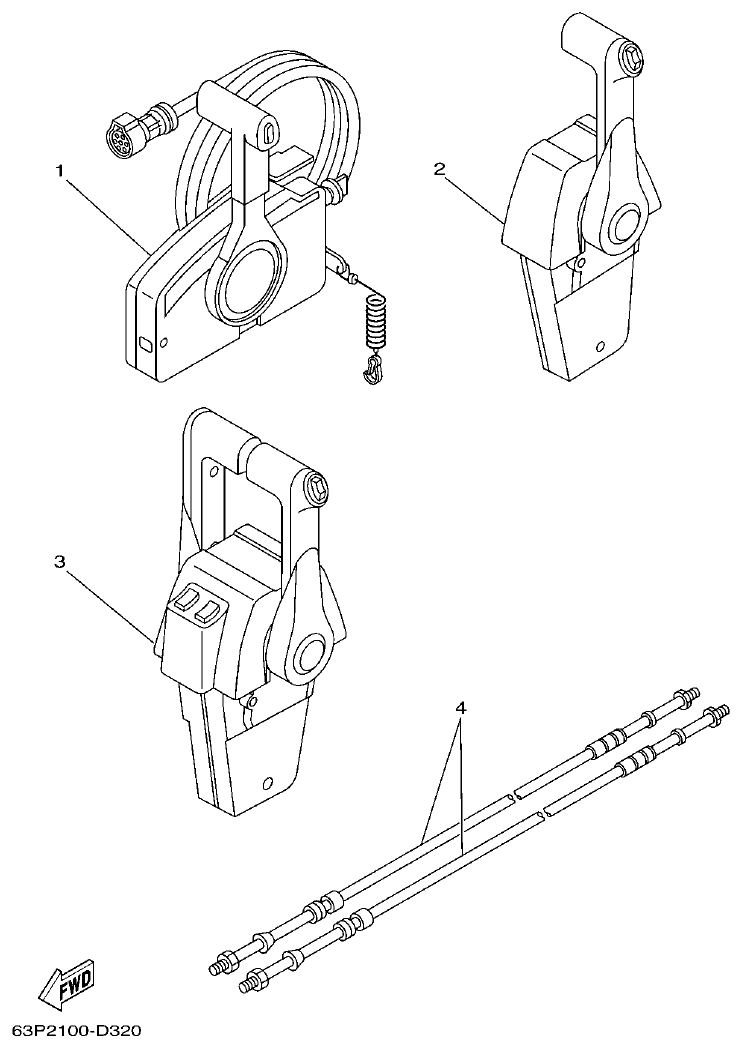

 /images/fig-33-remote-control-box.png)
Fig. 33 — REMOTE CONTROL BOX
9 items
 /images/fig-34-remote-control-assy-1.png)
Fig. 34 — REMOTE CONTROL ASSY 1
62 items
· 11 available products
 /images/fig-35-remote-control-assy-2.png)
Fig. 35 — REMOTE CONTROL ASSY 2
62 items
· 1 available products

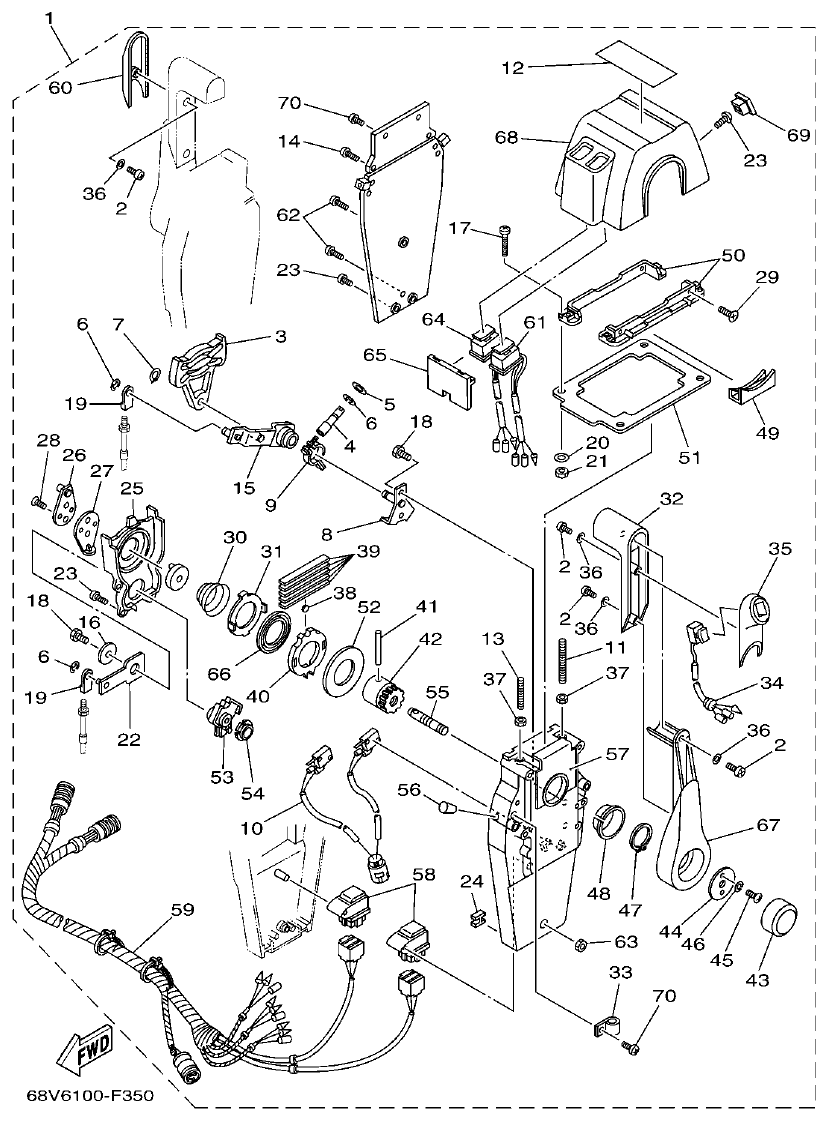

 /images/fig-36-remote-control-assy-3.png)
Fig. 36 — REMOTE CONTROL ASSY 3
70 items
· 2 available products
 /images/fig-37-meter.png)
Fig. 37 — METER
20 items
· 1 available products

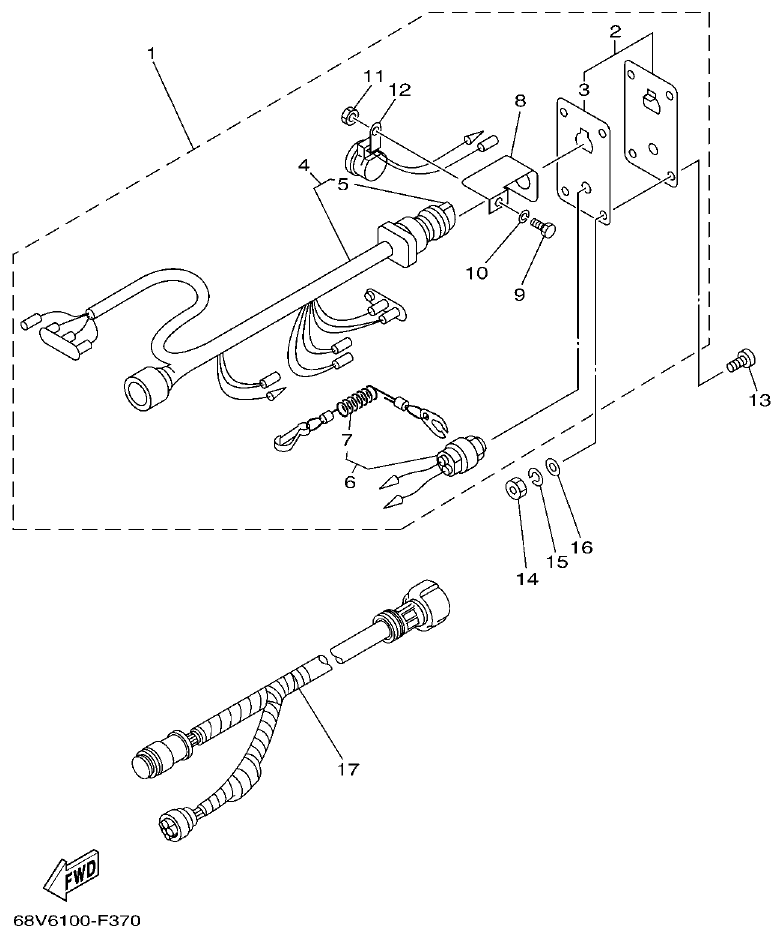

 /images/fig-38-switch-panel-1.png)
Fig. 38 — SWITCH & PANEL 1
17 items
· 1 available products

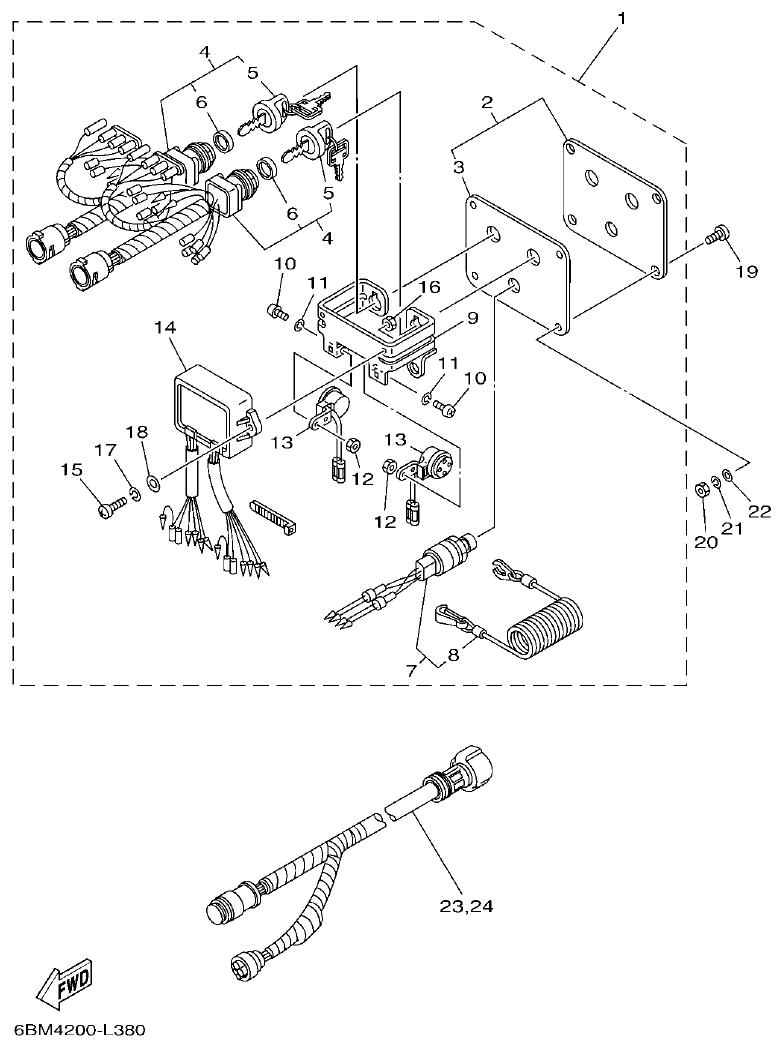

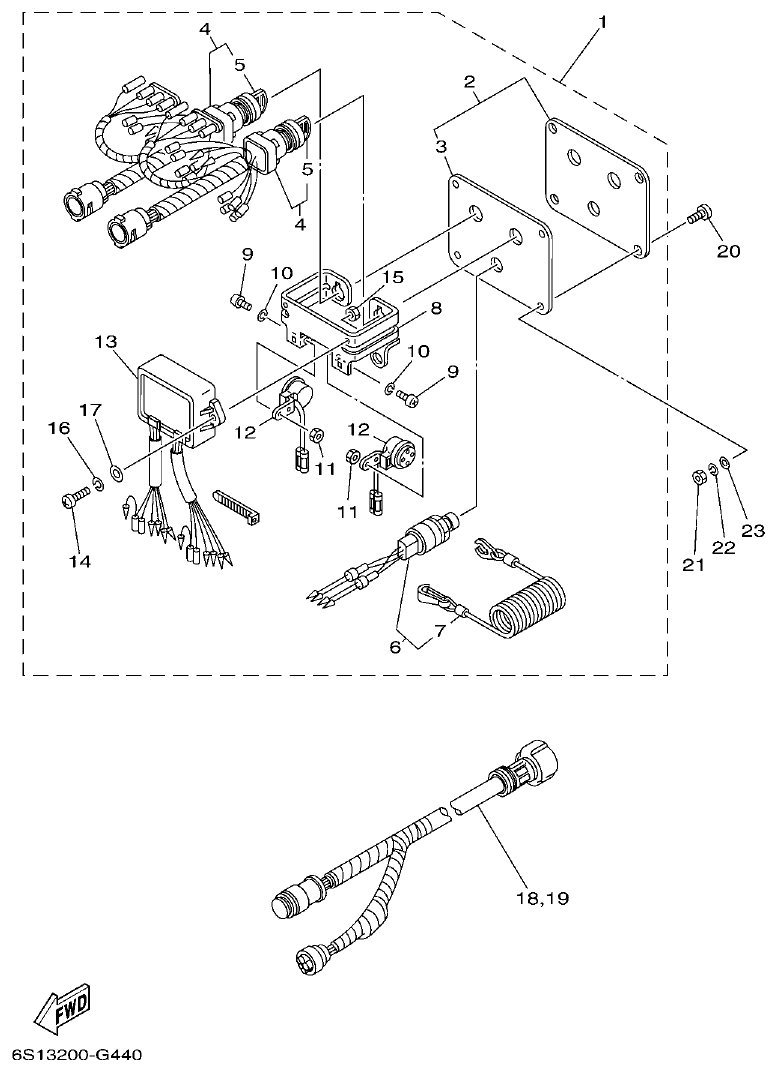

 /images/fig-39-switch-panel-2.png)
Fig. 39 — SWITCH & PANEL 2
23 items
· 1 available products

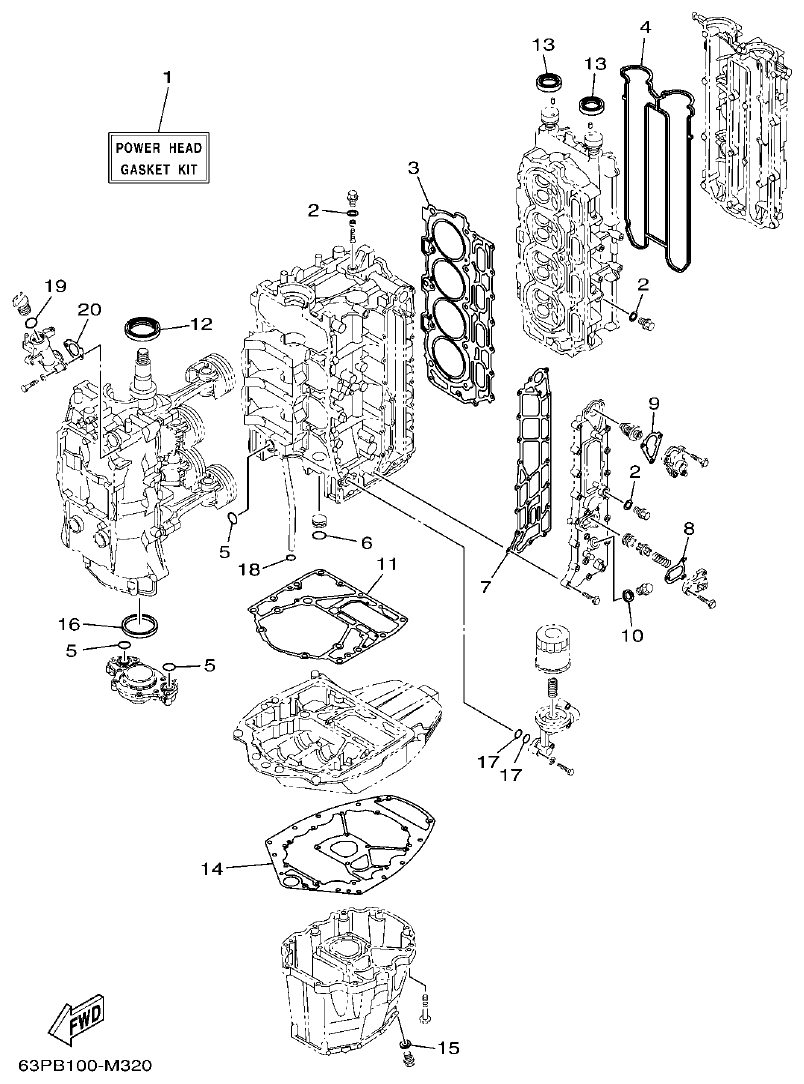

 /images/fig-40-repair-kit-1.png)
