Yamaha F150DET, FL150DET Parts Catalog
Browse 49 catalog sections for Yamaha F150DET, FL150DET. Open a section to view the parts diagram, reference numbers and available products.

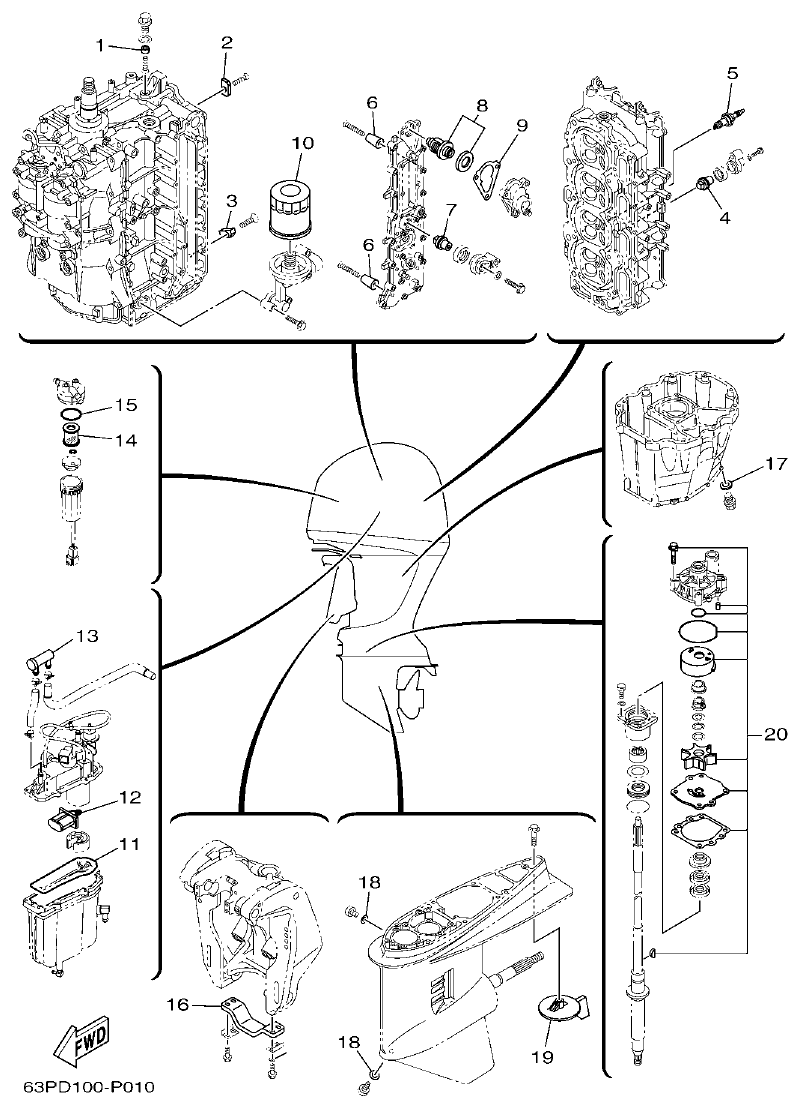

Fig. 1 — SCHEDULED SERVICE PARTS
19 items
· 13 available products

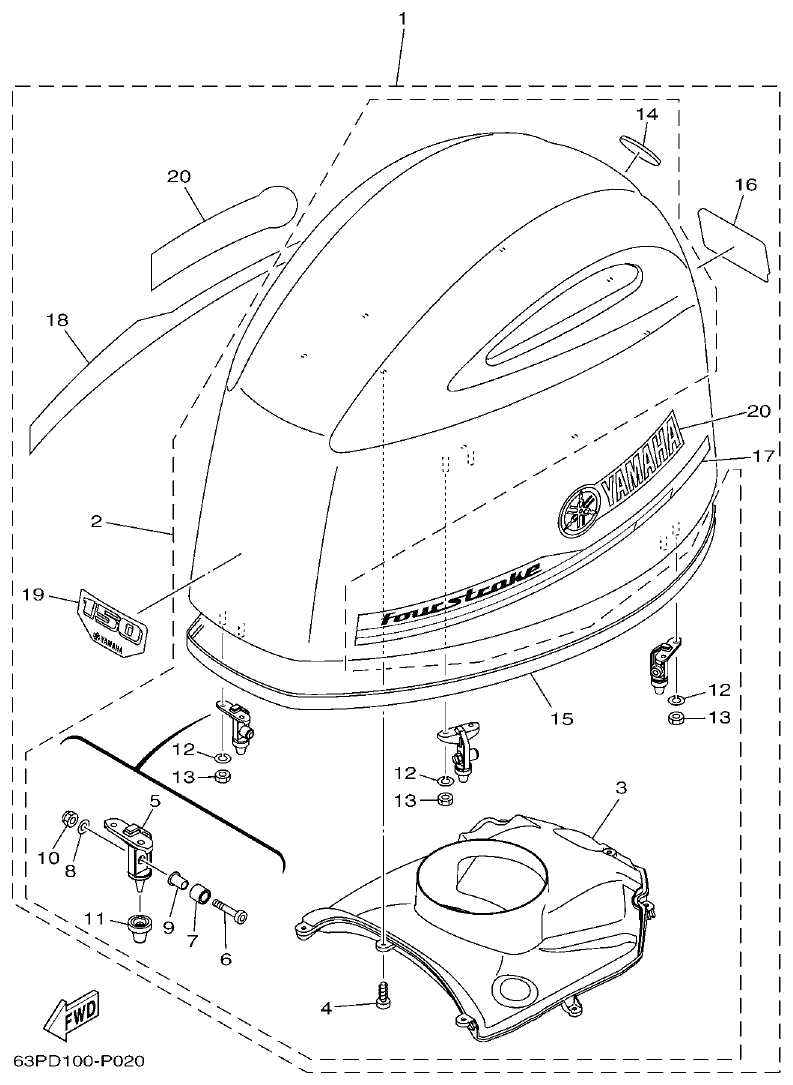

Fig. 2 — TOP COWLING
12 items
· 2 available products

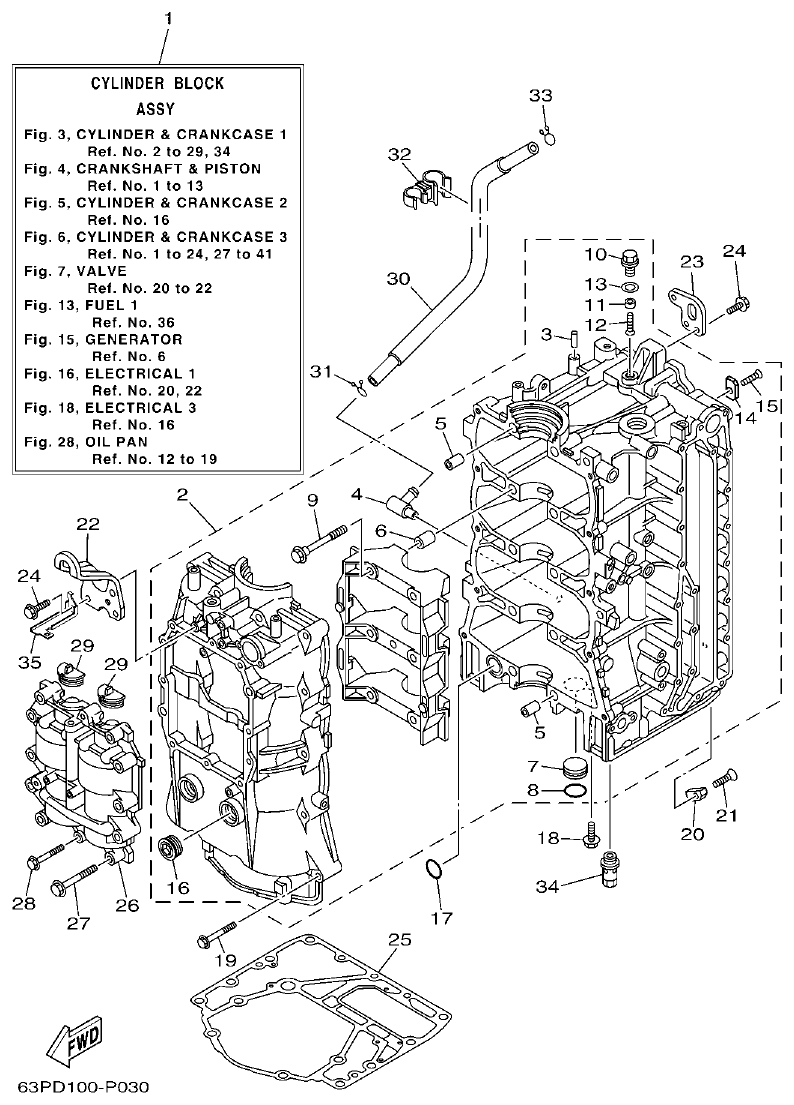

Fig. 3 — CYLINDER & CRANKCASE 1
15 items
· 5 available products

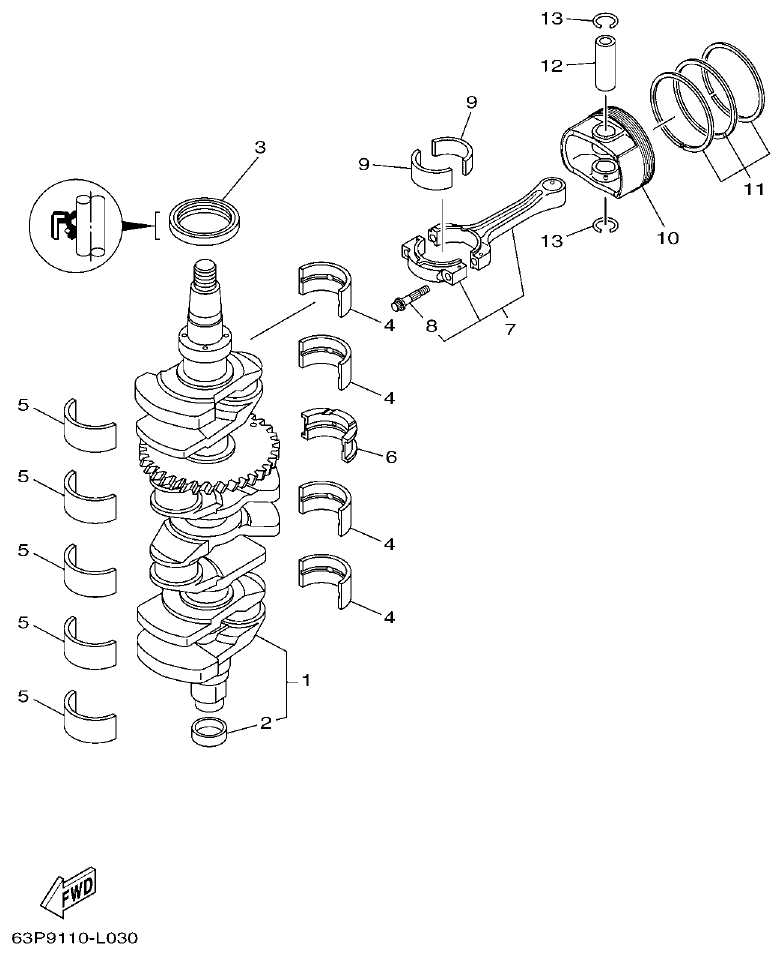

Fig. 4 — CRANKSHAFT & PISTON
24 items
· 19 available products

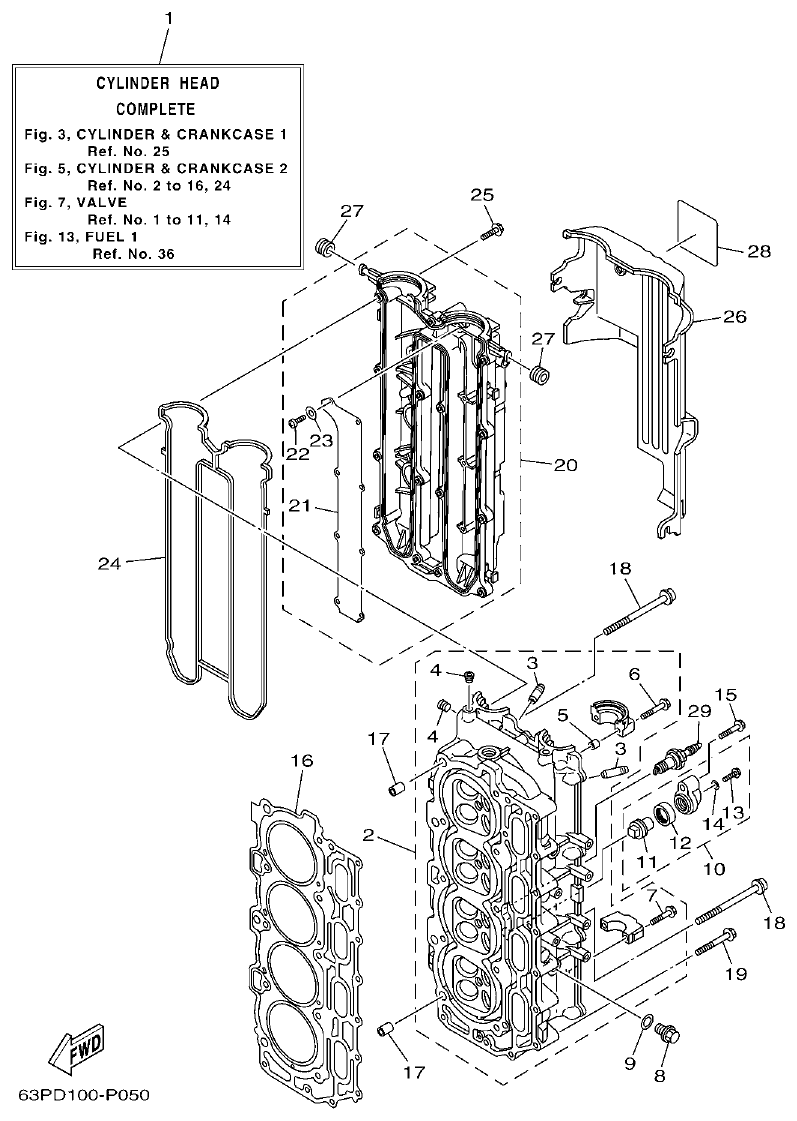

Fig. 5 — CYLINDER & CRANKCASE 2
12 items
· 4 available products

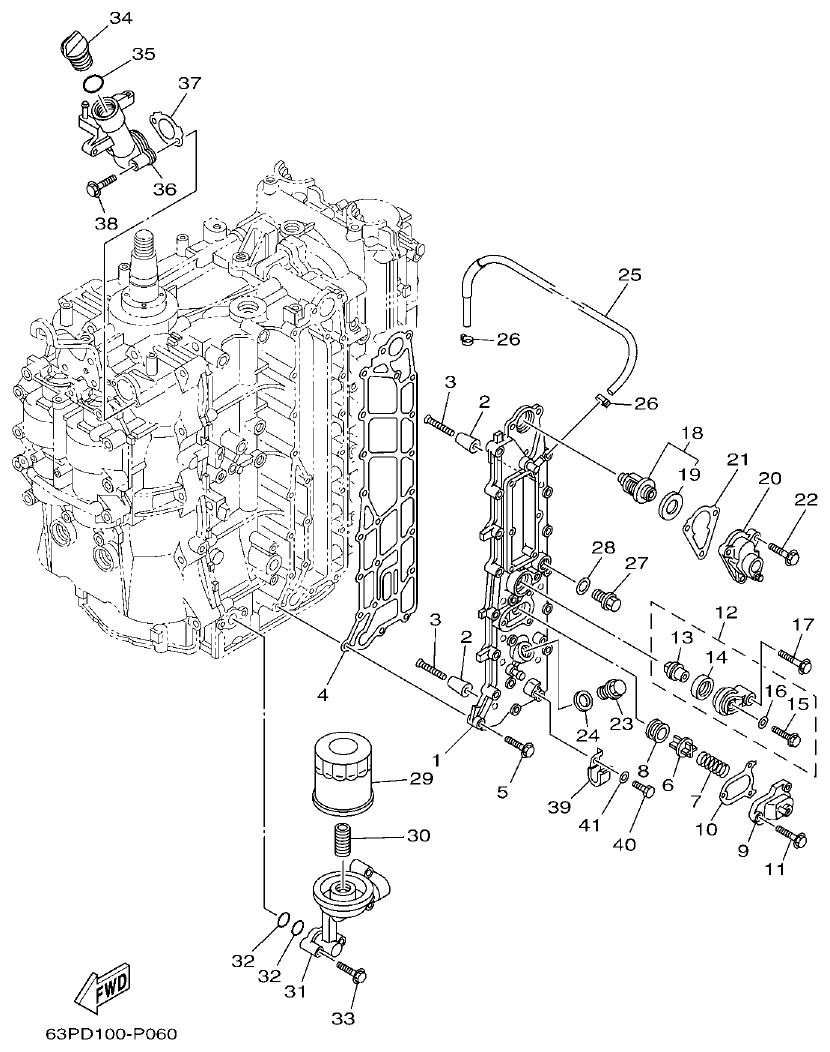

Fig. 6 — CYLINDER & CRANKCASE 3
20 items
· 7 available products

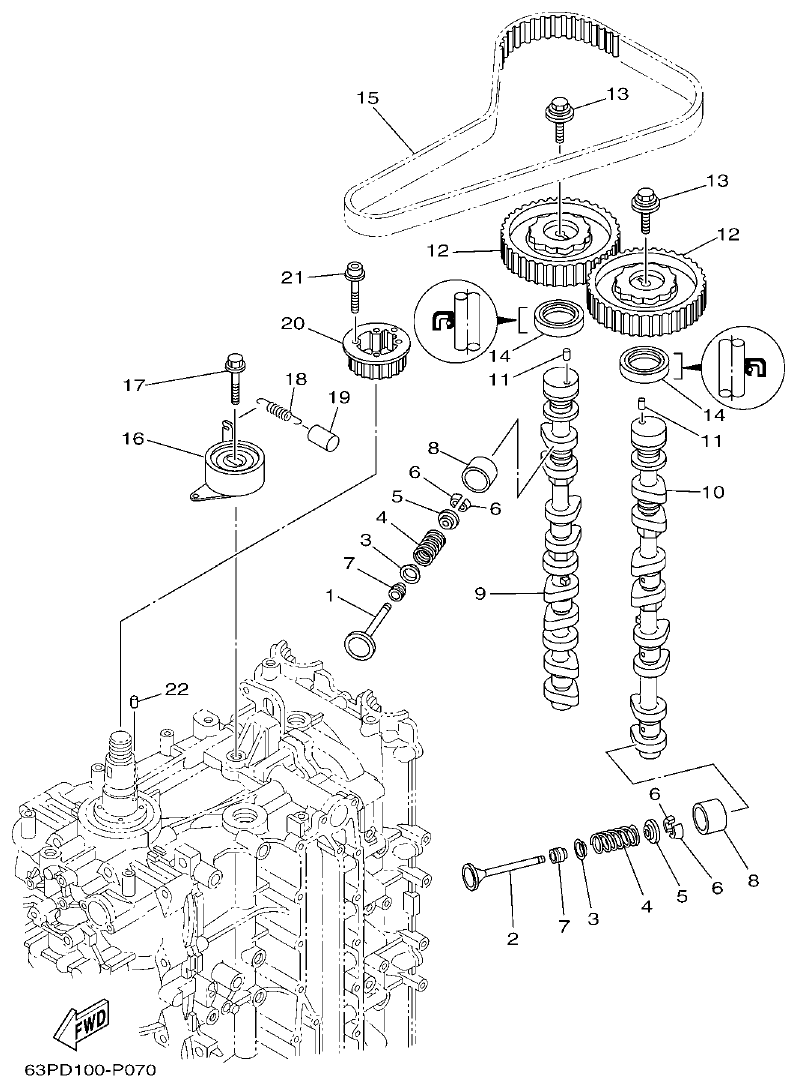

Fig. 7 — VALVE
48 items
· 34 available products

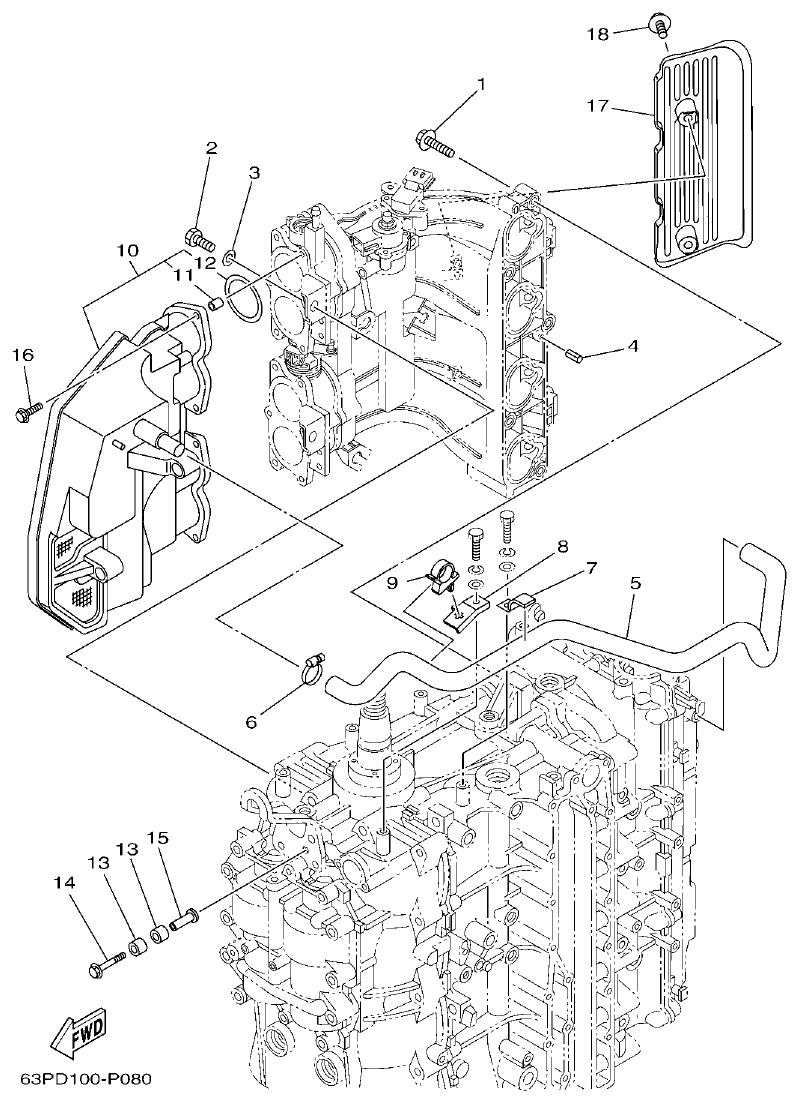

Fig. 8 — INTAKE 1
6 items
· 1 available products

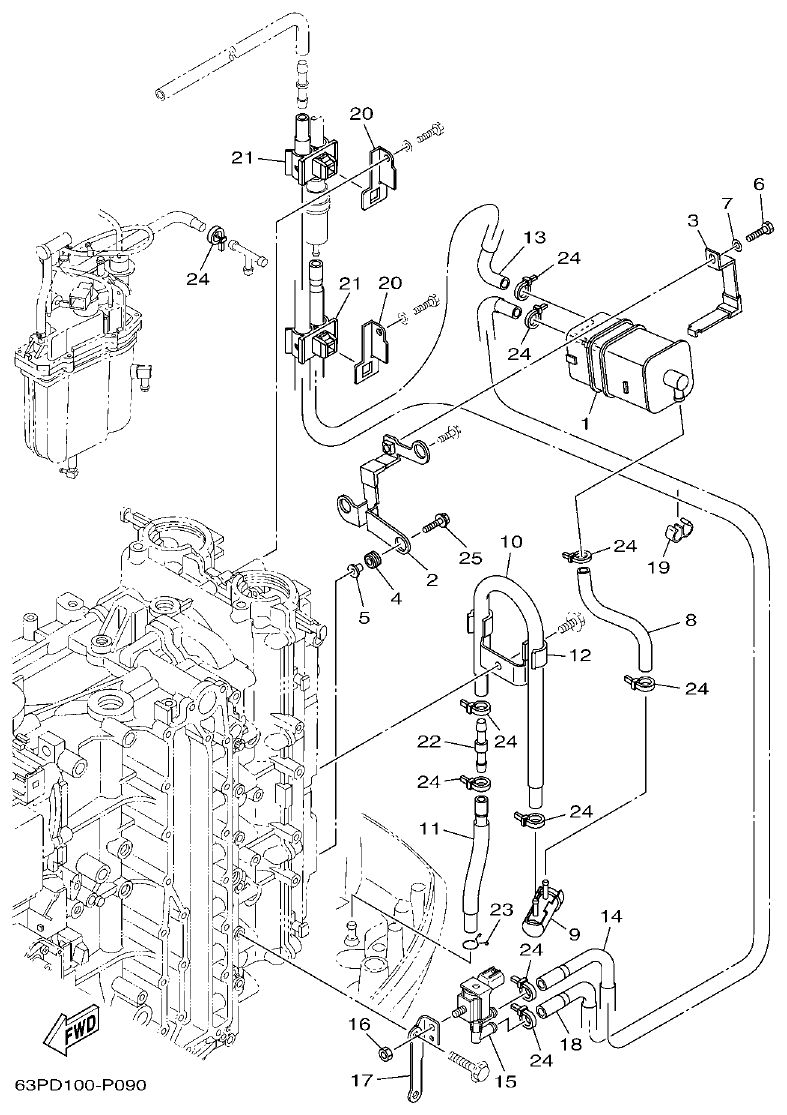

Fig. 9 — INTAKE 2
15 items
· 3 available products

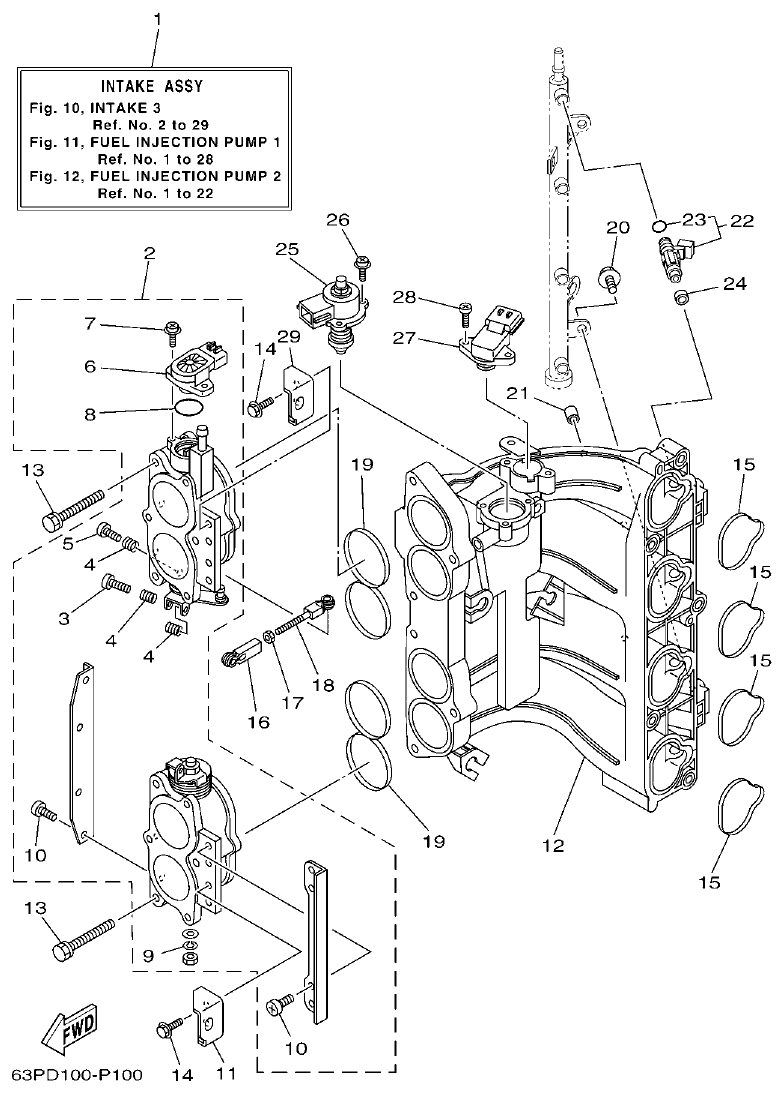

Fig. 10 — INTAKE 3
31 items
· 8 available products

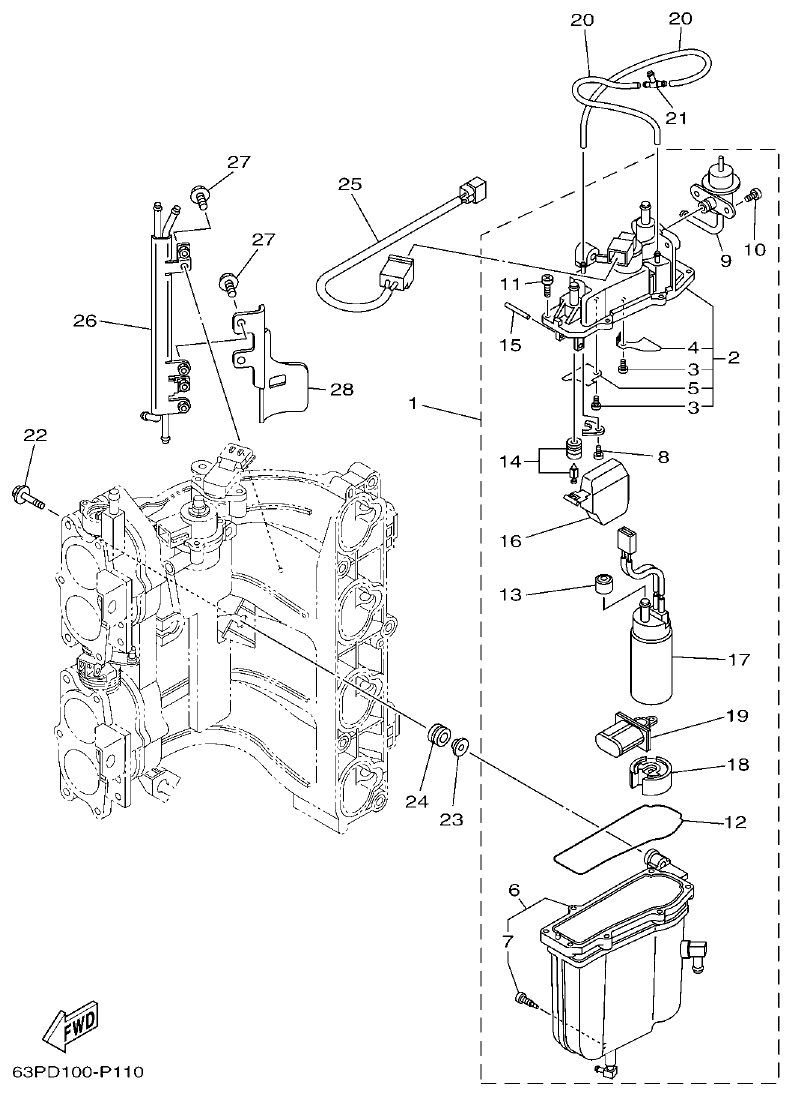

Fig. 11 — FUEL INJECTION PUMP 1
36 items
· 5 available products

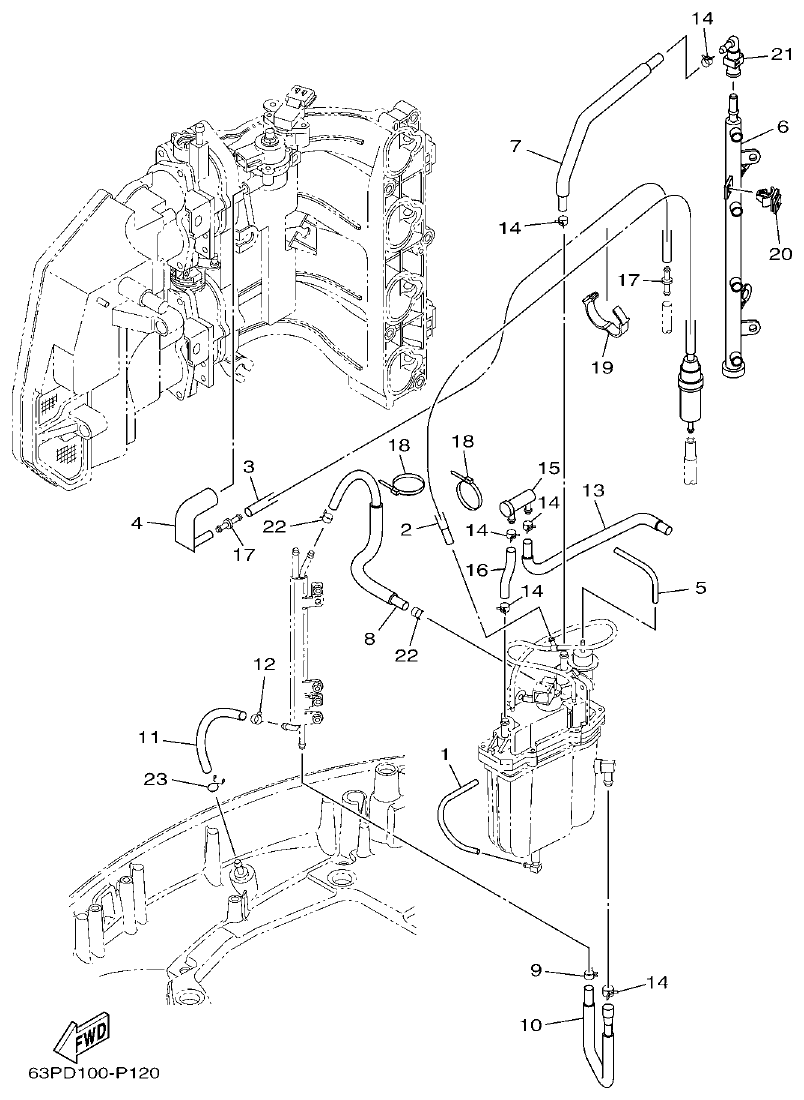

Fig. 12 — FUEL INJECTION PUMP 2
24 items
· 1 available products

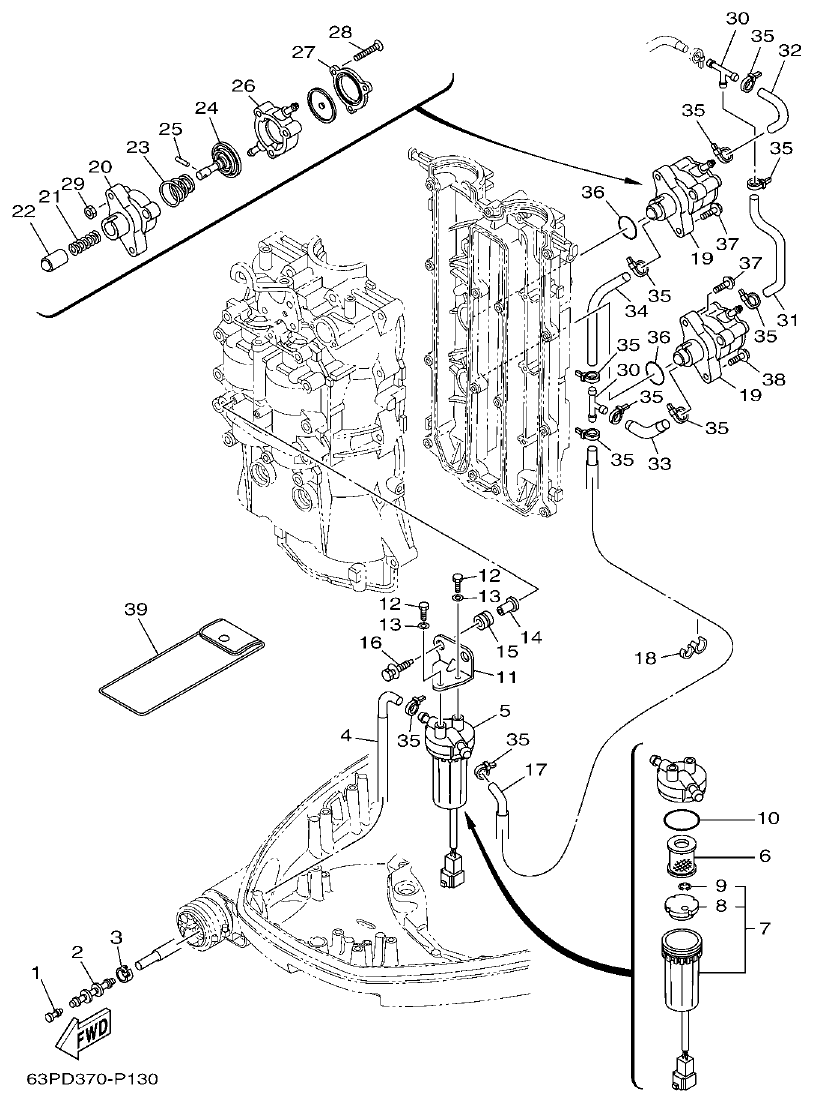

Fig. 13 — FUEL 1
35 items
· 5 available products

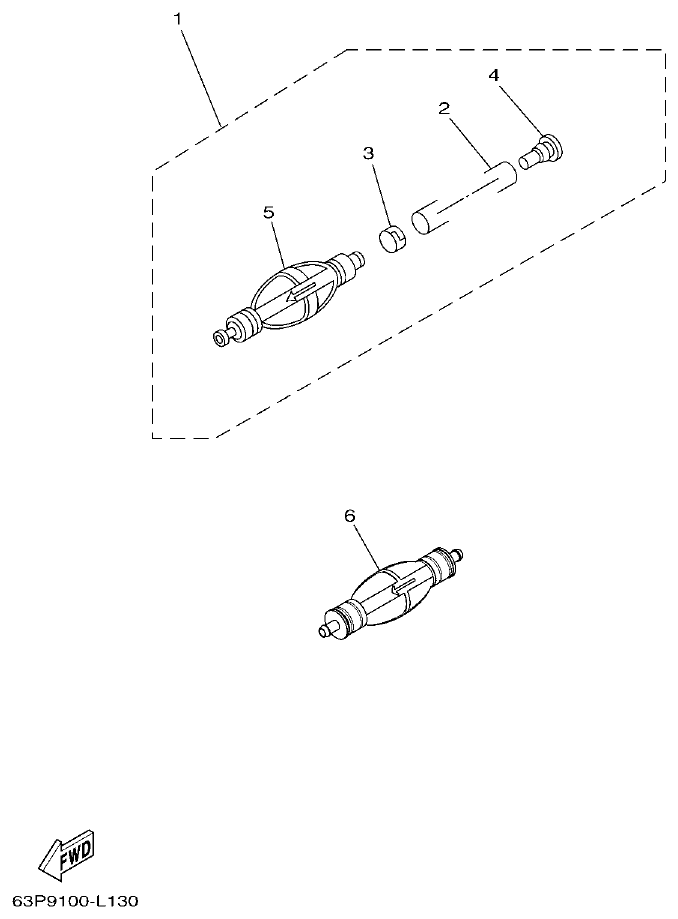

Fig. 14 — FUEL 2
4 items
· 3 available products

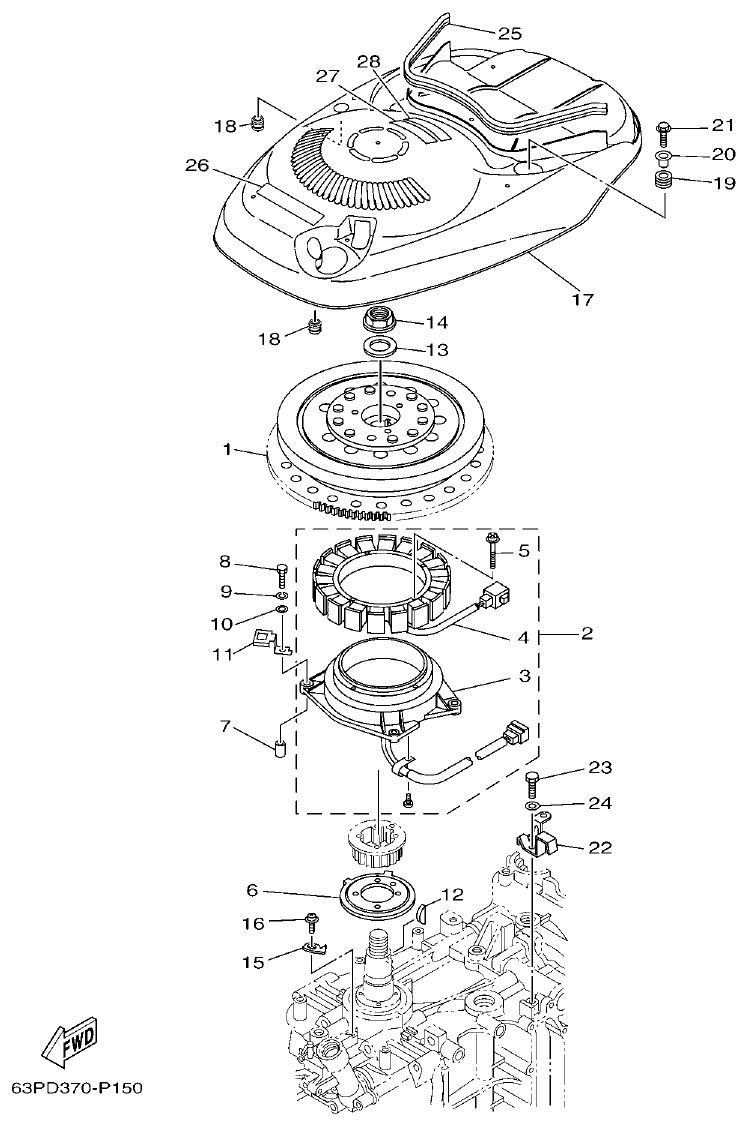

Fig. 15 — GENERATOR
16 items
· 2 available products

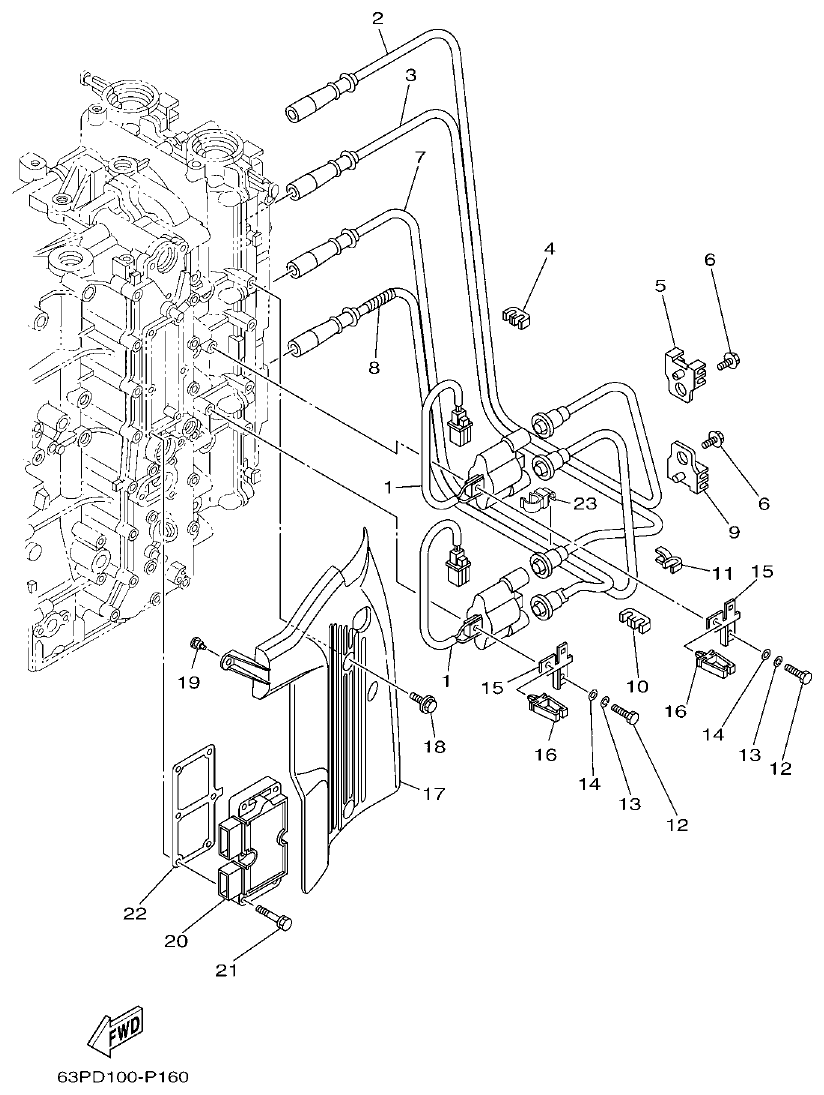

Fig. 16 — ELECTRICAL 1
13 items
· 2 available products

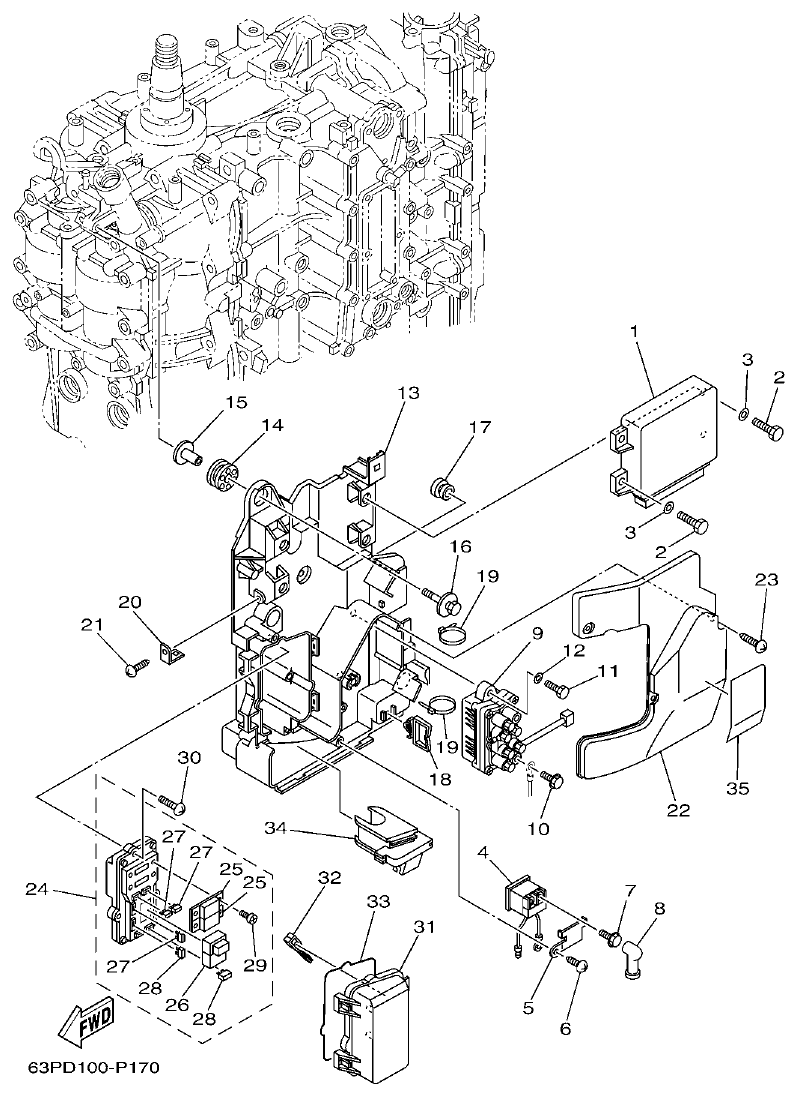

Fig. 17 — ELECTRICAL 2
23 items
· 4 available products

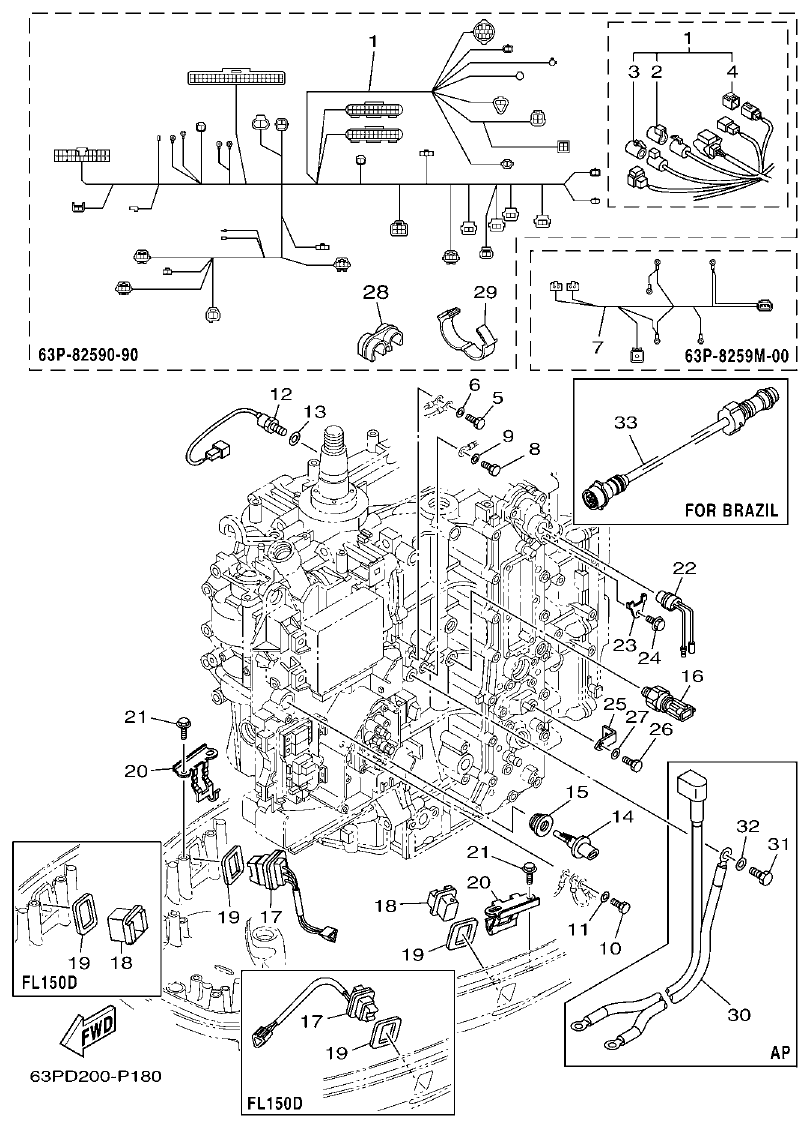

Fig. 18 — ELECTRICAL 3
18 items
· 4 available products

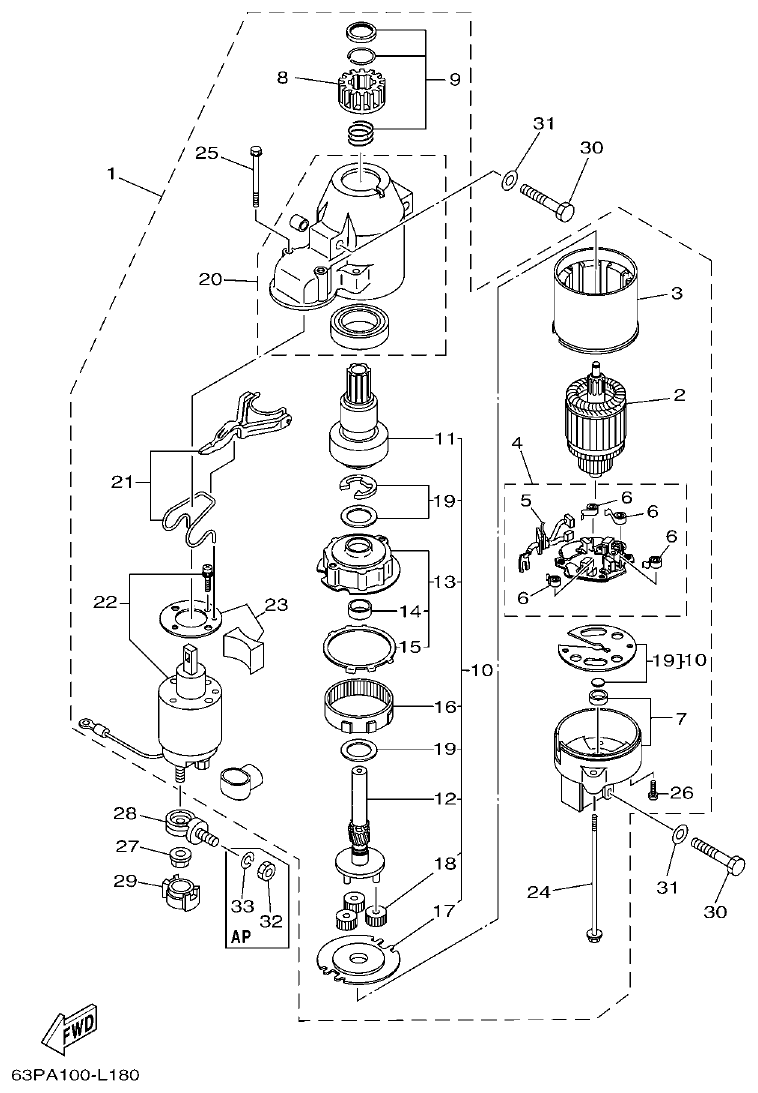

Fig. 19 — STARTING MOTOR
28 items
· 5 available products

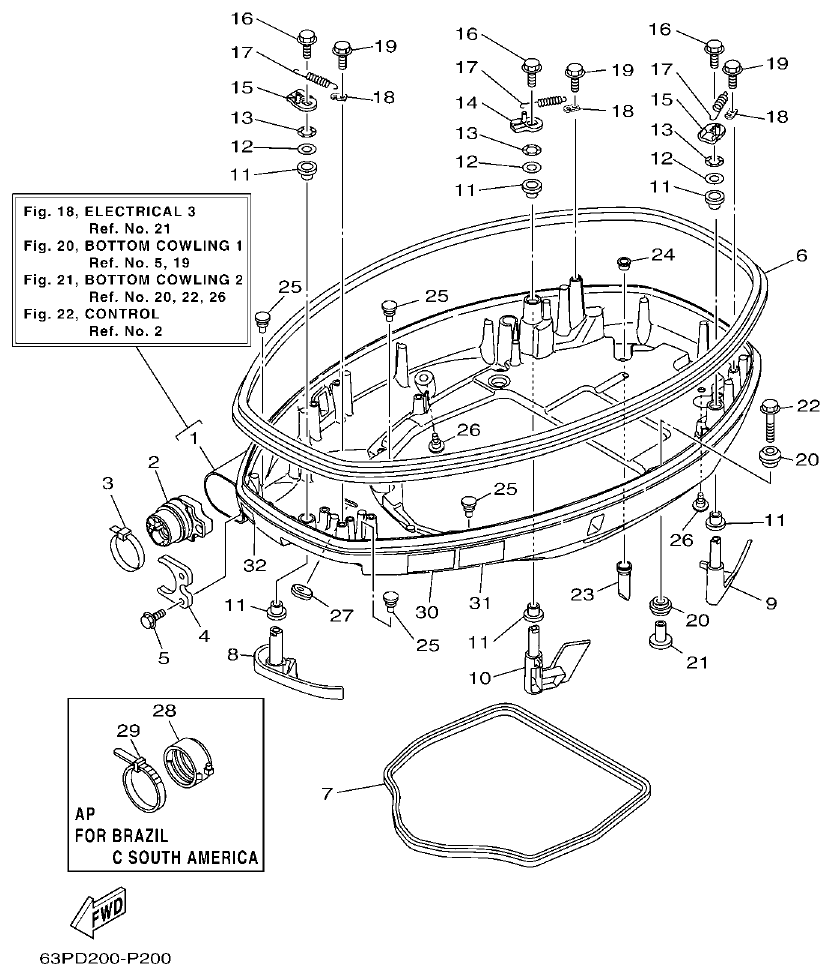

Fig. 20 — BOTTOM COWLING 1
21 items
· 5 available products

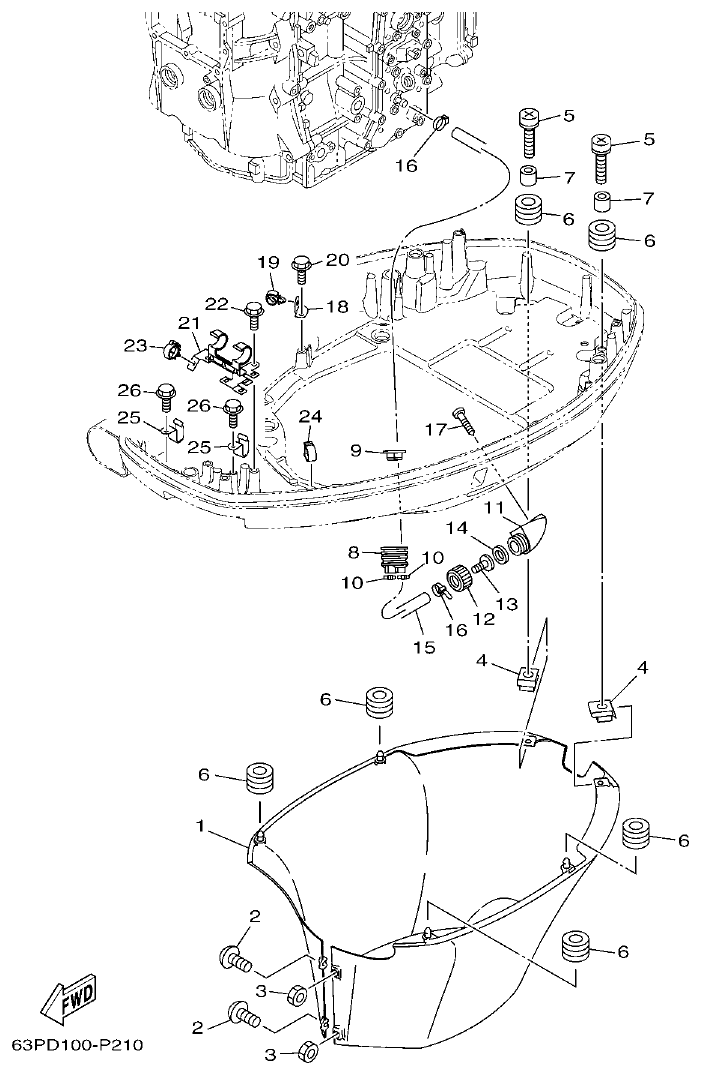

Fig. 21 — BOTTOM COWLING 2
10 items
· 4 available products

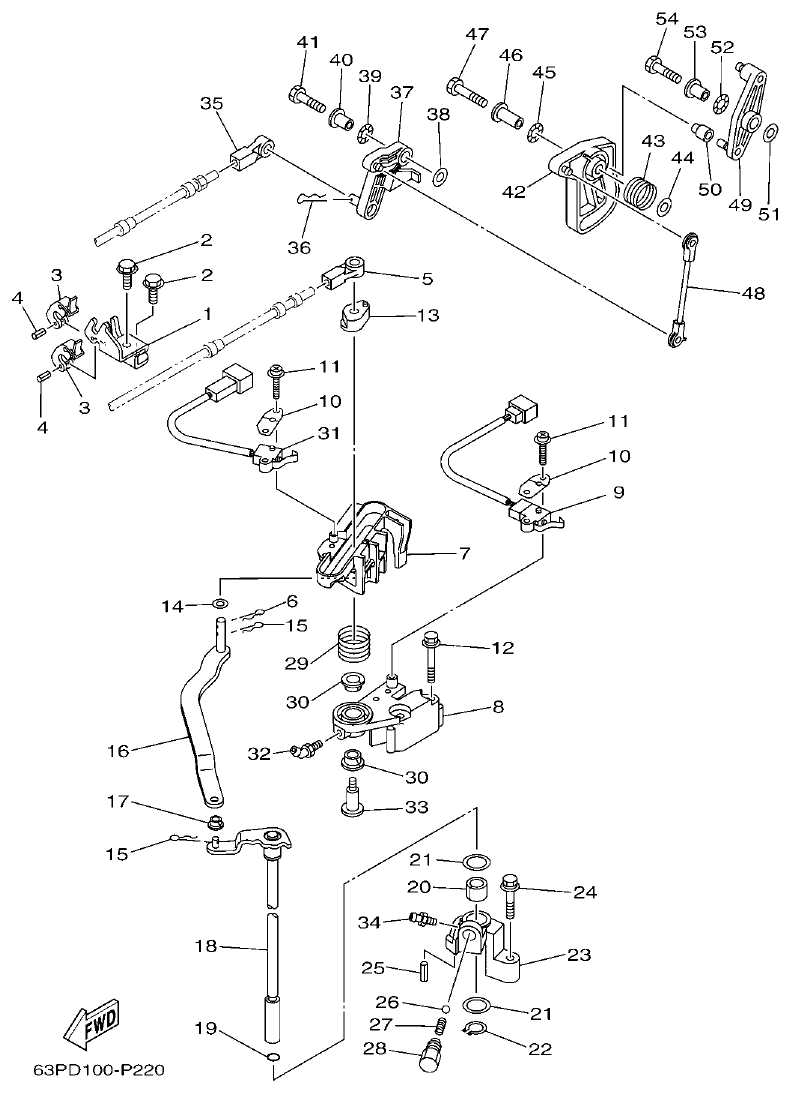

Fig. 22 — CONTROL
20 items
· 4 available products

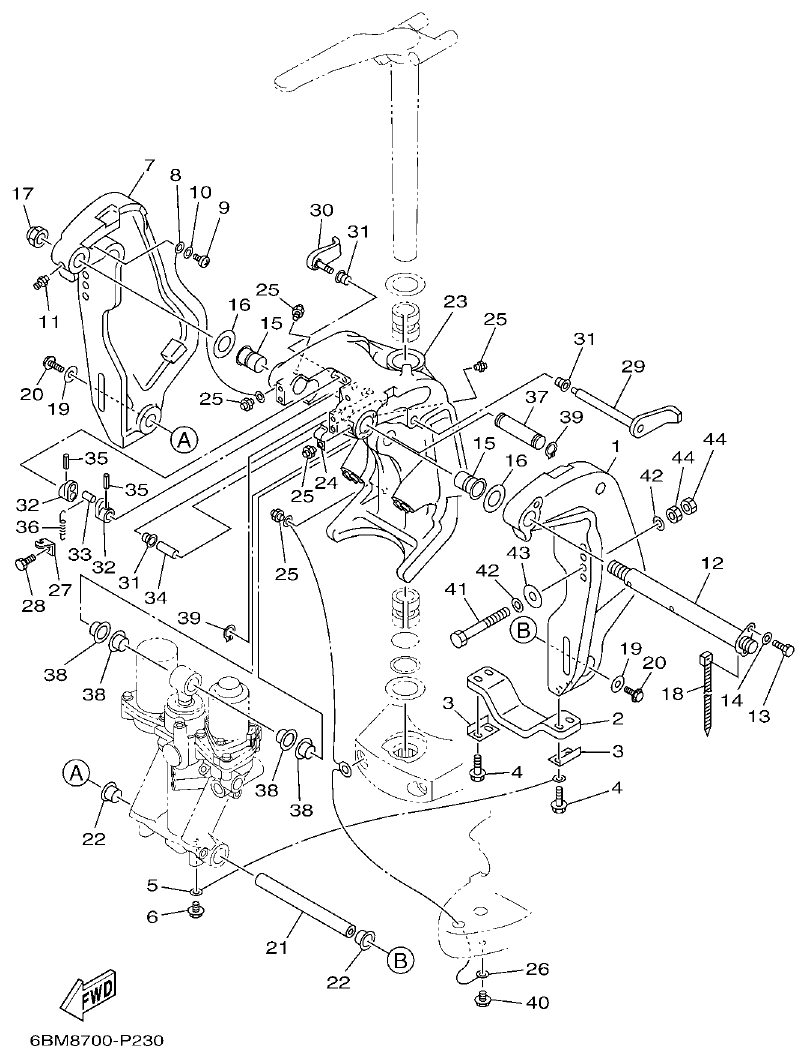

Fig. 23 — BRACKET 1
15 items
· 9 available products

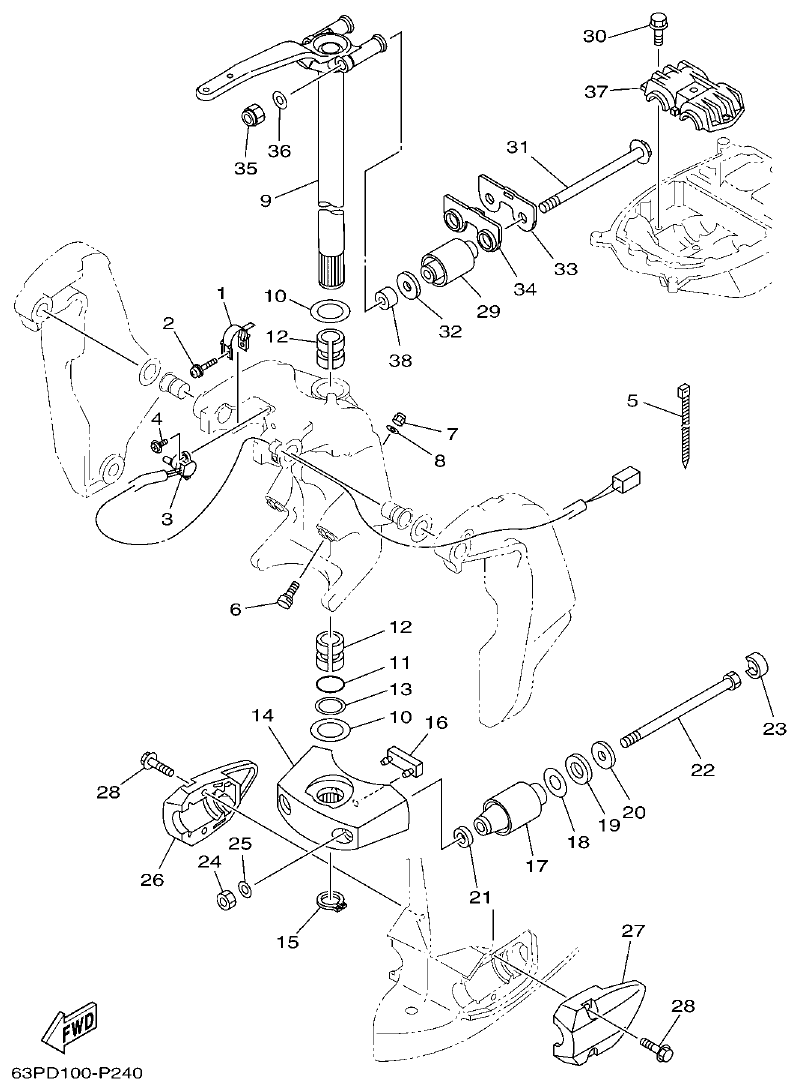

Fig. 24 — BRACKET 2
15 items
· 3 available products

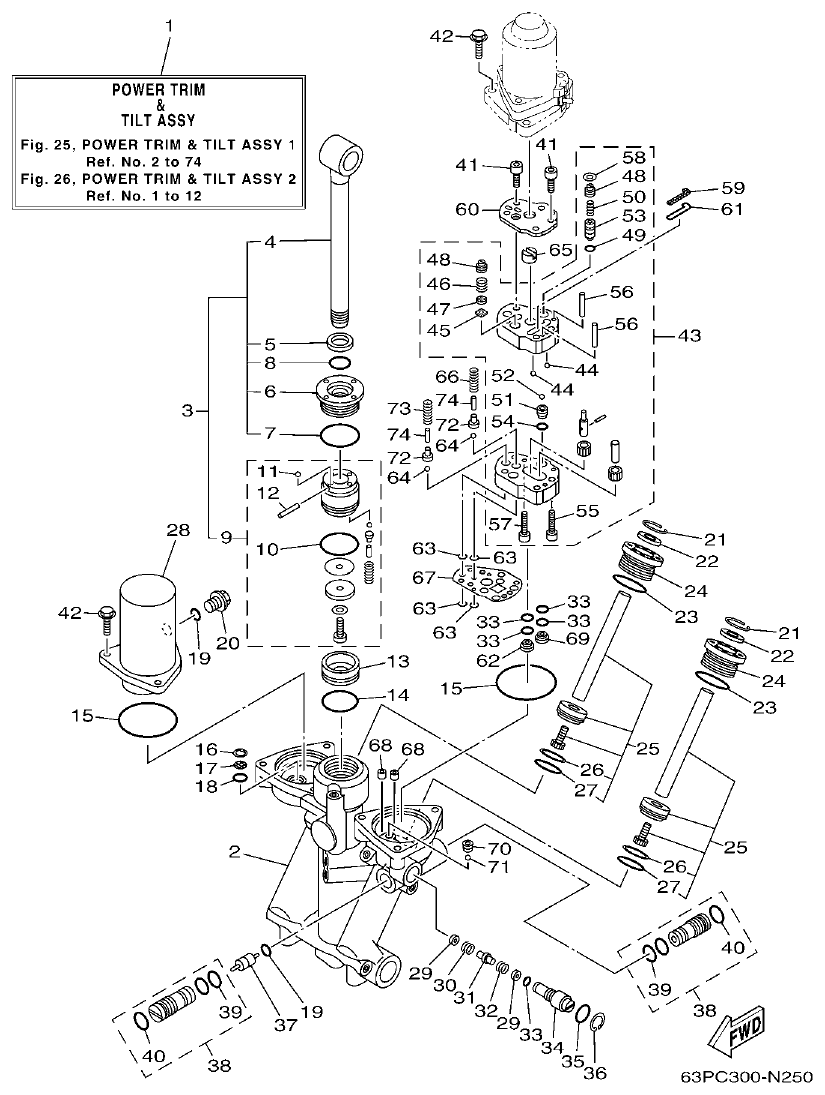

Fig. 25 — POWER TRIM & TILT ASSY 1
53 items
· 15 available products

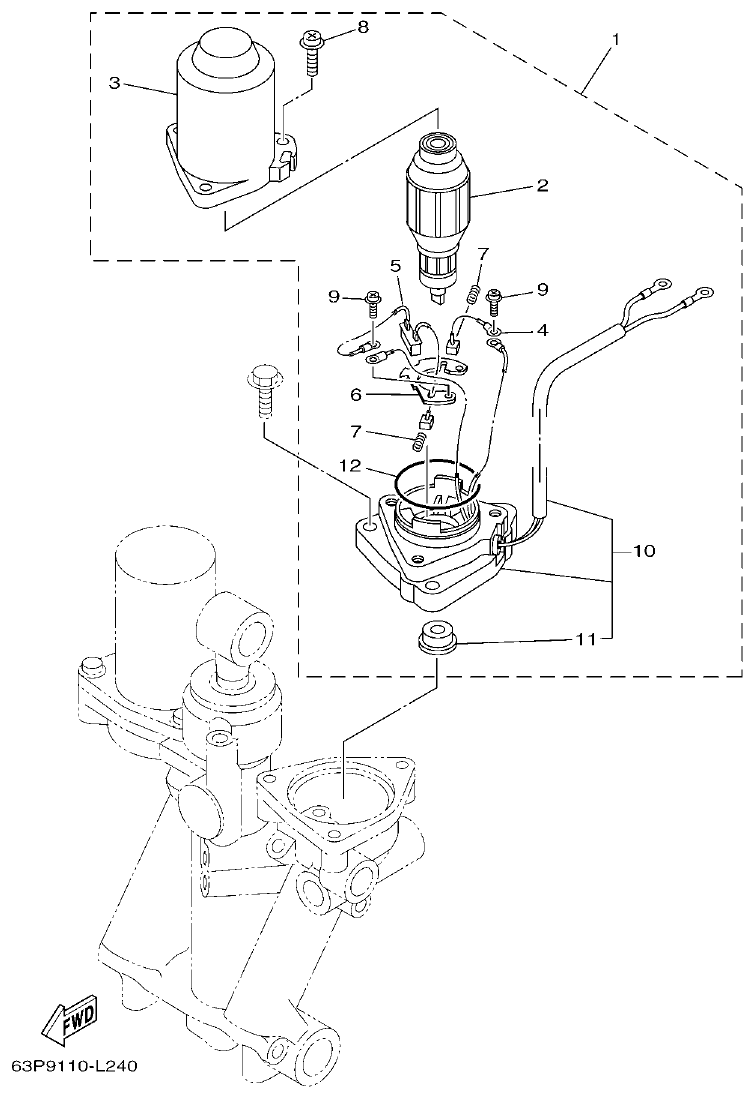

Fig. 26 — POWER TRIM & TILT ASSY 2
9 items
· 4 available products

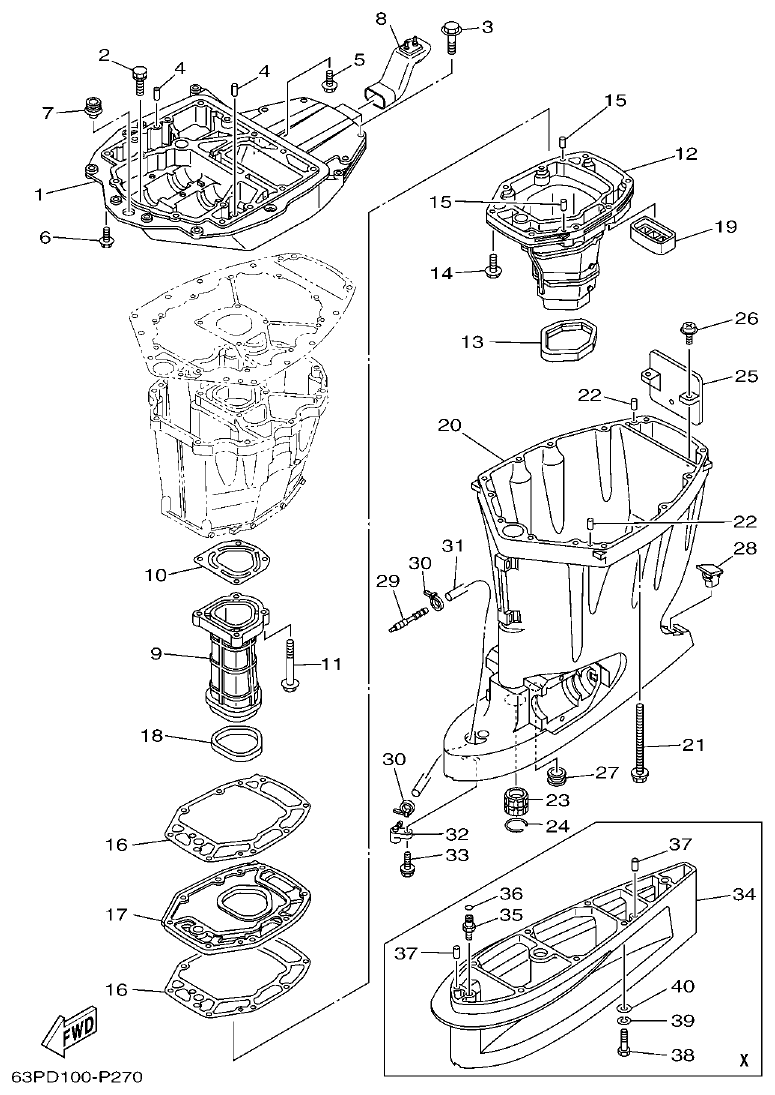

Fig. 27 — UPPER CASING
20 items
· 5 available products

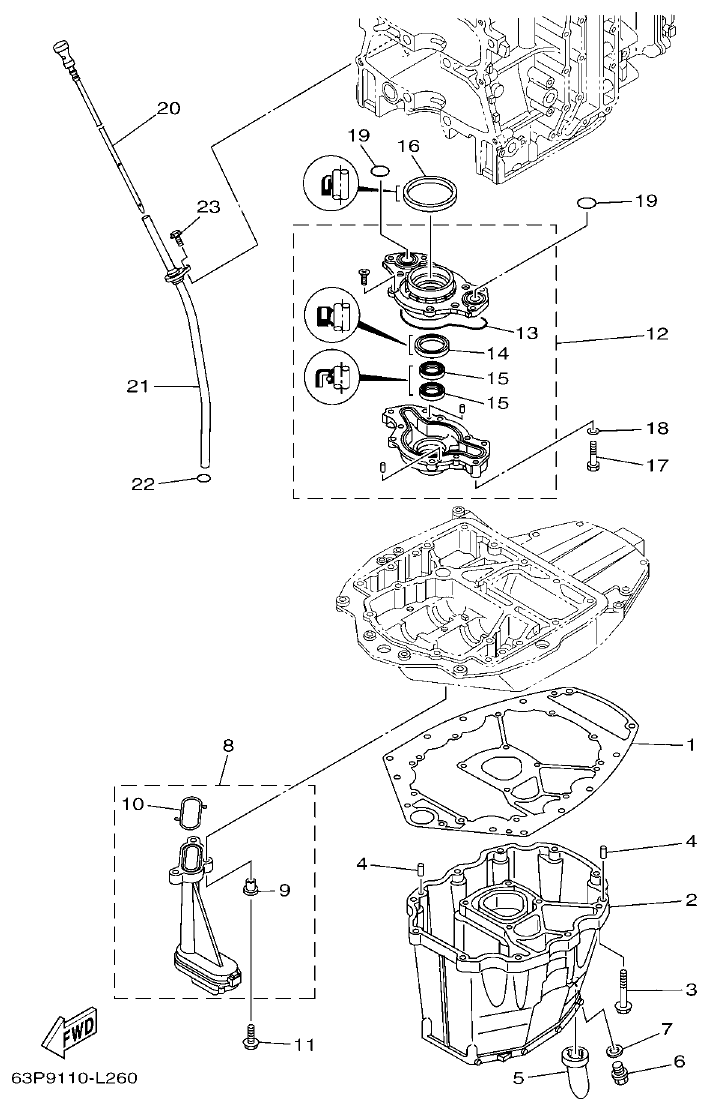

Fig. 28 — OIL PAN
12 items
· 6 available products

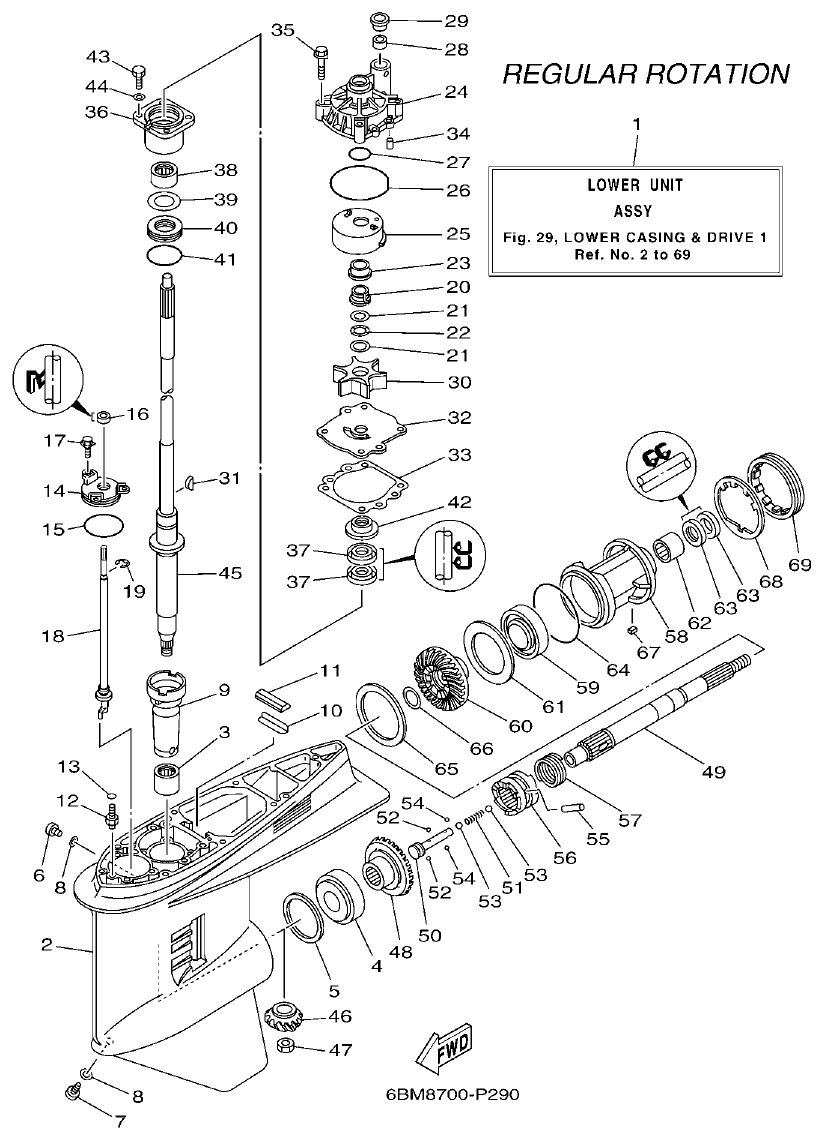

Fig. 29 — LOWER CASING & DRIVE 1
56 items
· 44 available products

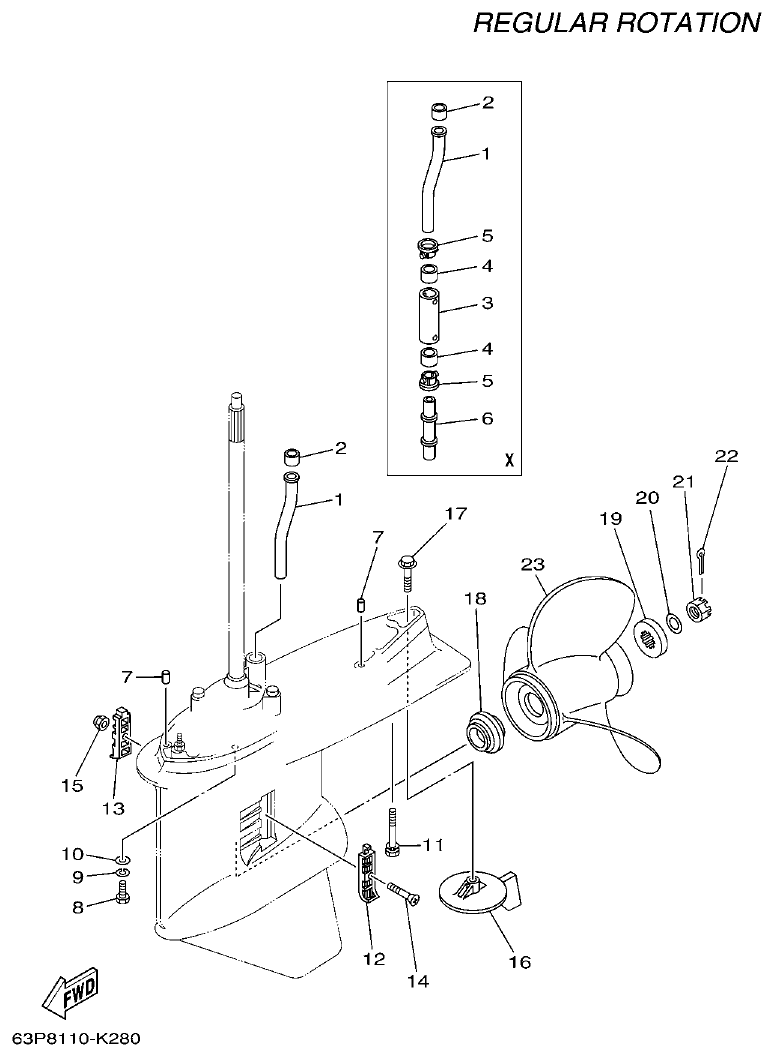

Fig. 30 — LOWER CASING & DRIVE 2
32 items
· 15 available products

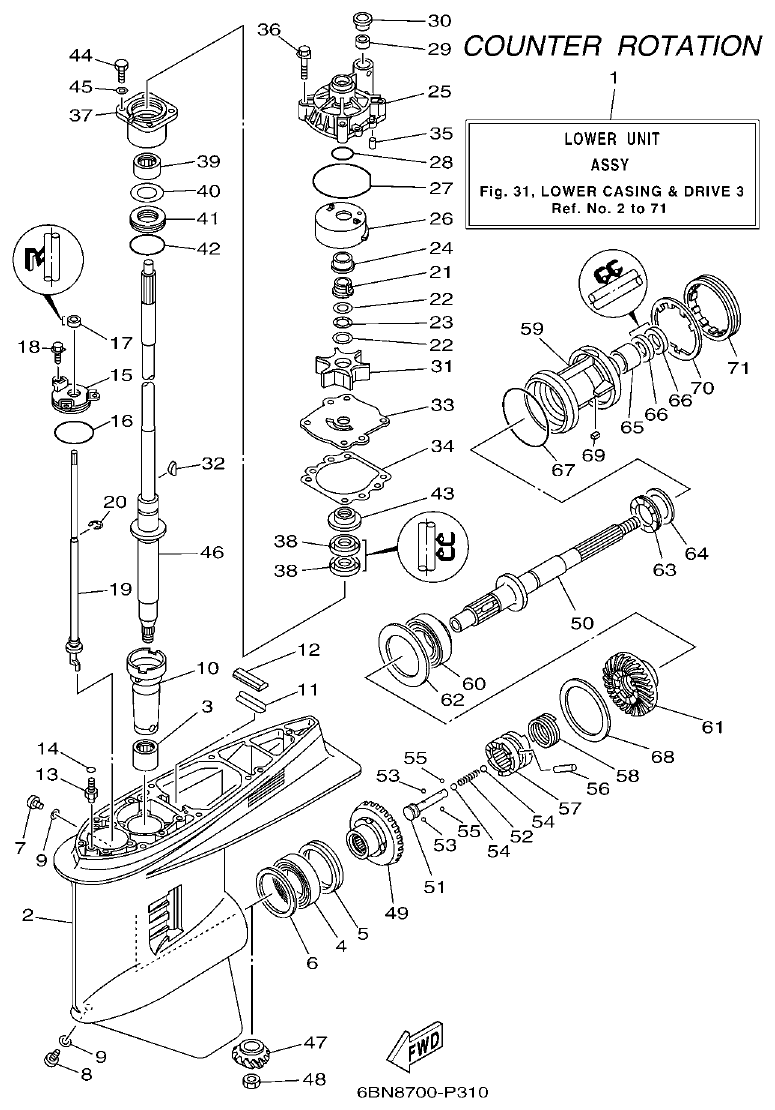

Fig. 31 — LOWER CASING & DRIVE 3
60 items
· 49 available products

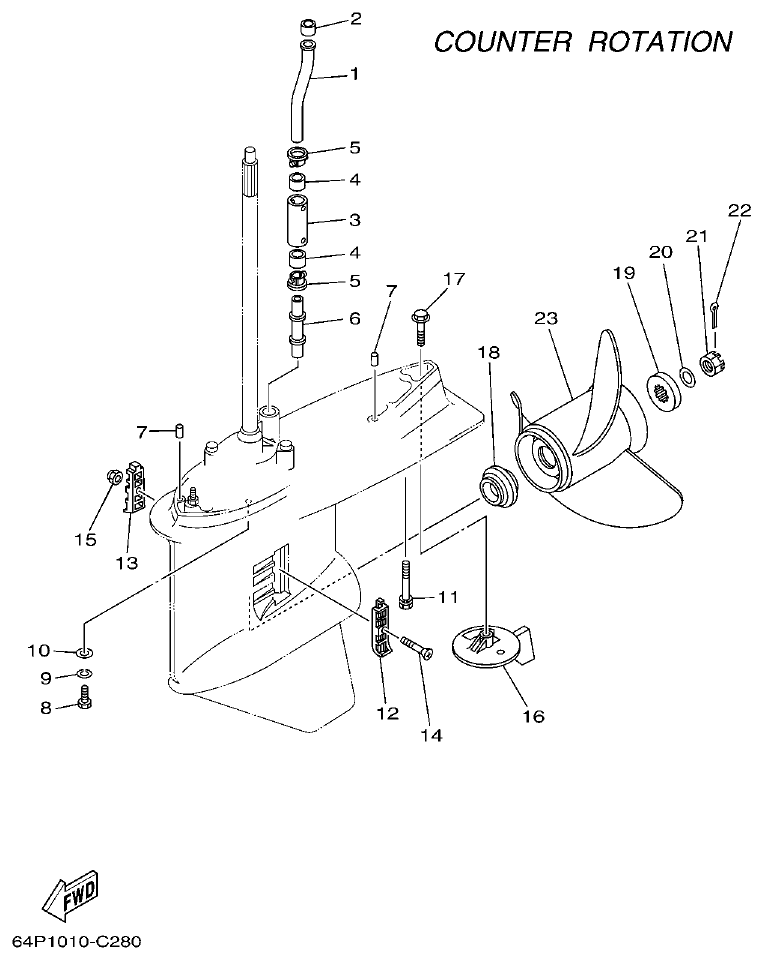

Fig. 32 — LOWER CASING & DRIVE 4
23 items
· 16 available products

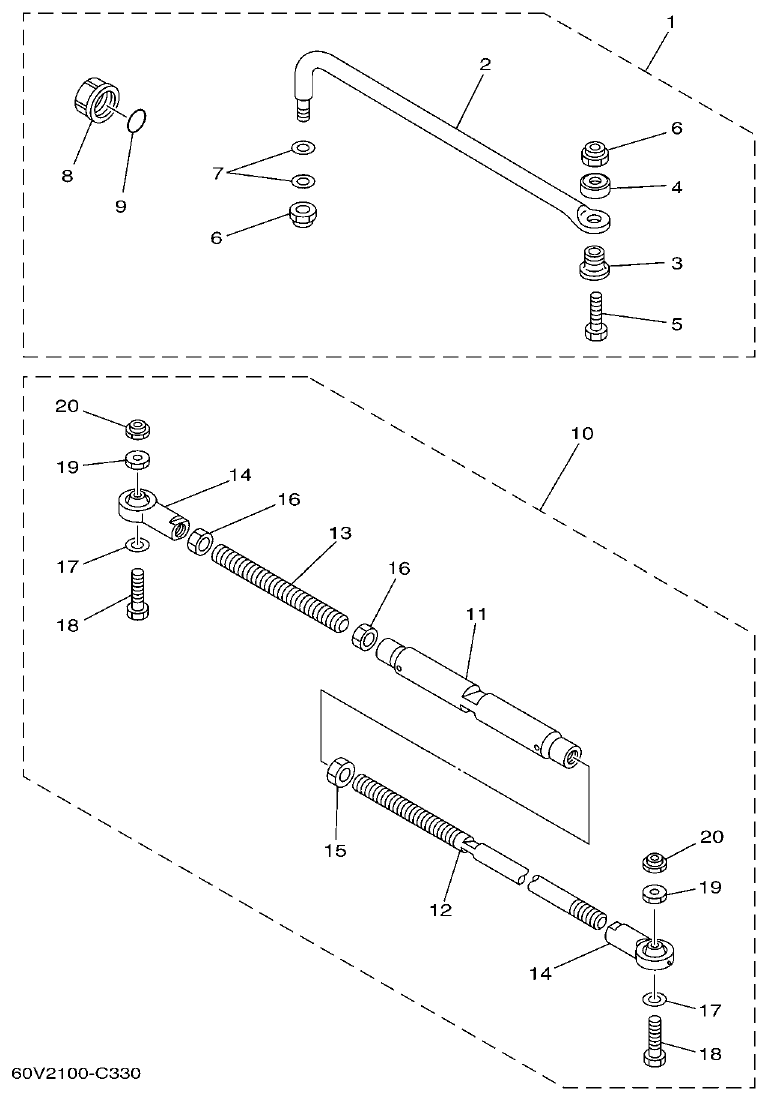

Fig. 33 — STEERING GUIDE
9 items
· 3 available products

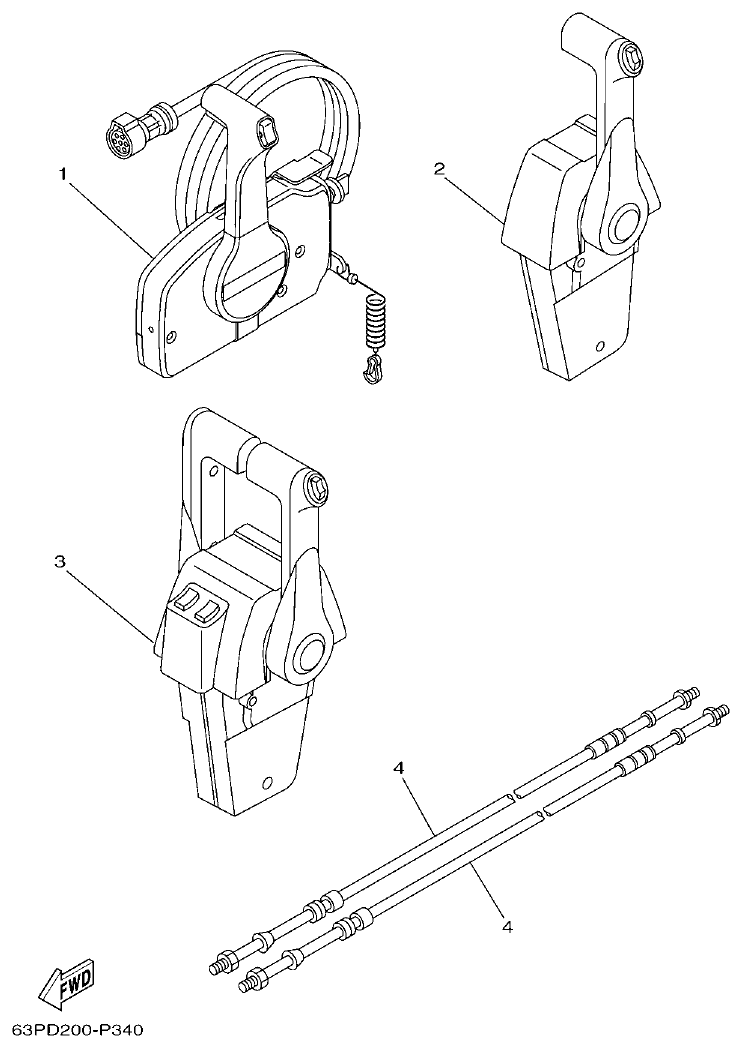

Fig. 34 — REMOTE CONTROL BOX
8 items

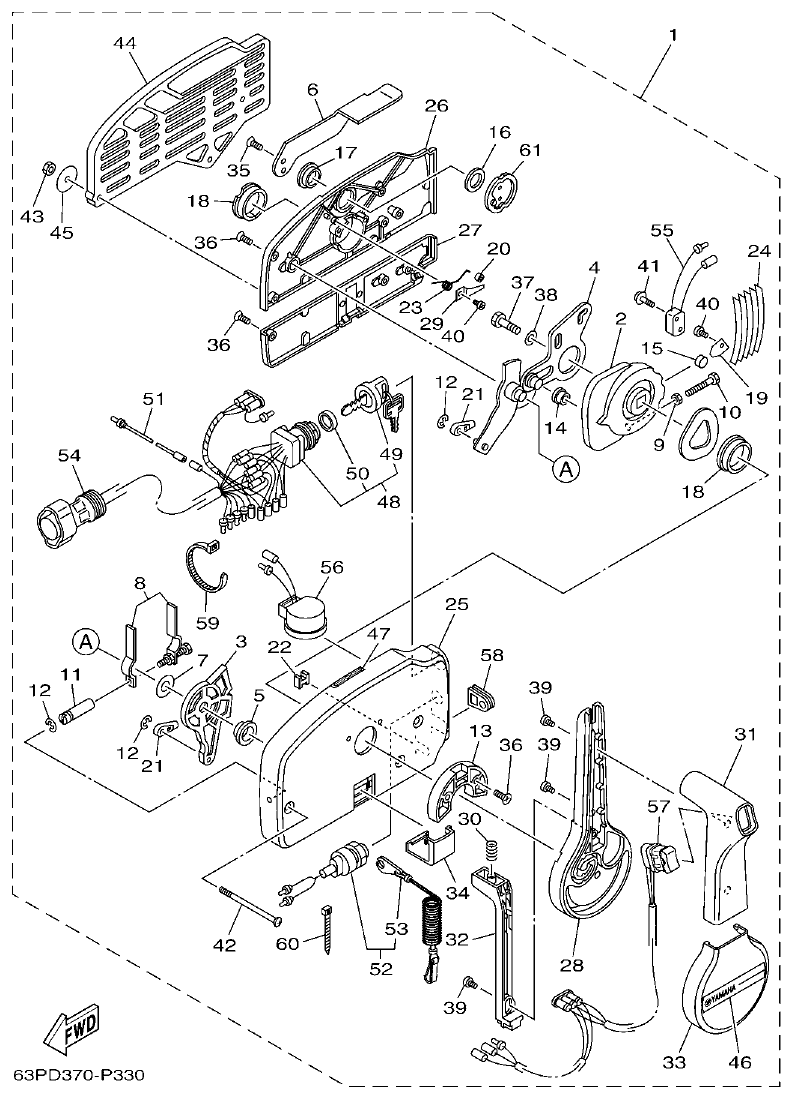

Fig. 35 — REMOTE CONTROL ASSY 1
54 items
· 9 available products

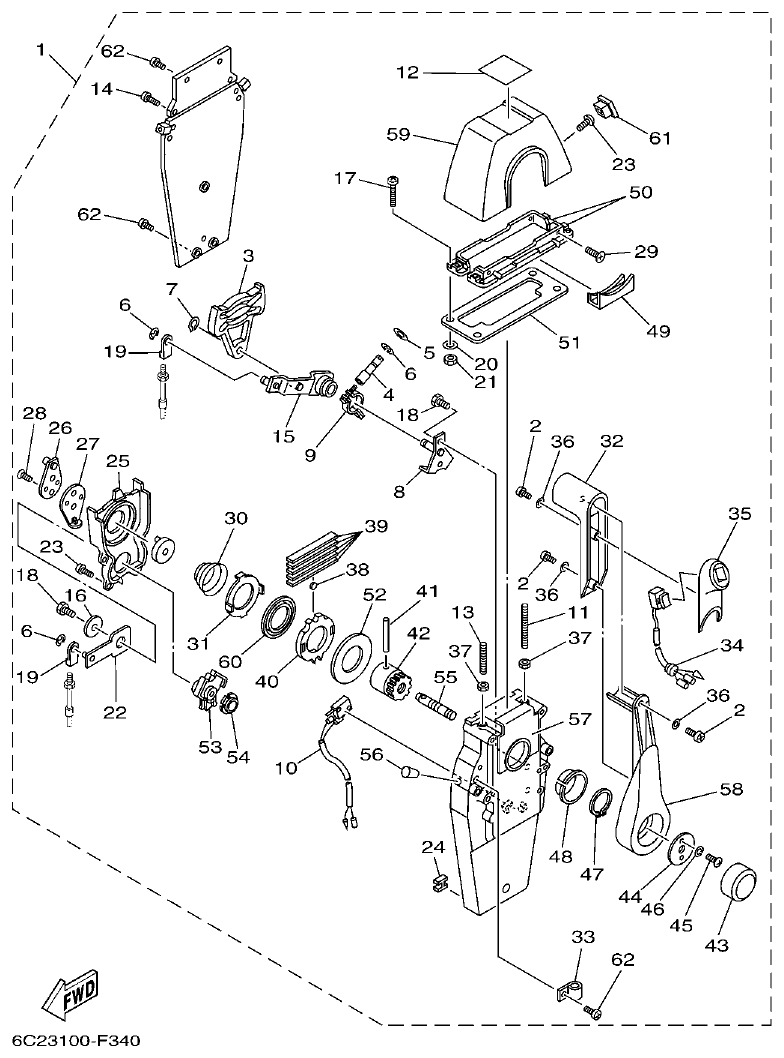

Fig. 36 — REMOTE CONTROL ASSY 2
51 items
· 1 available products

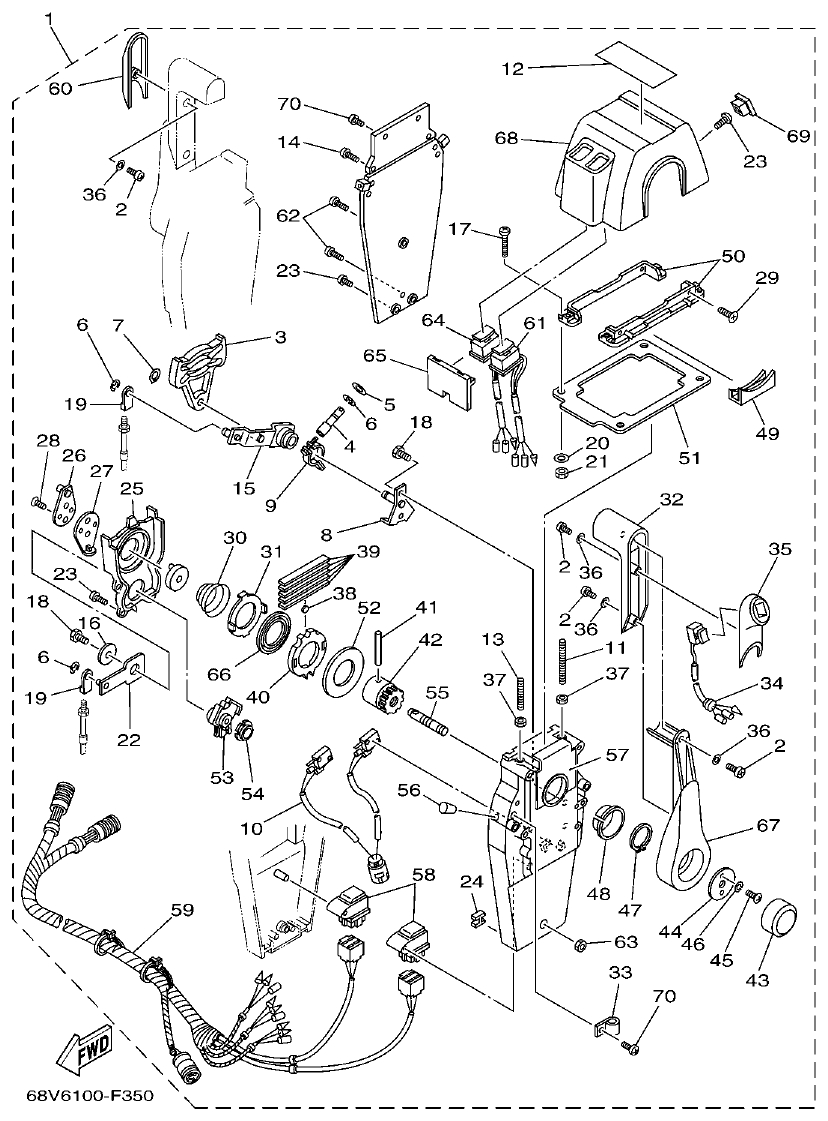

Fig. 37 — REMOTE CONTROL ASSY 3
59 items
· 2 available products

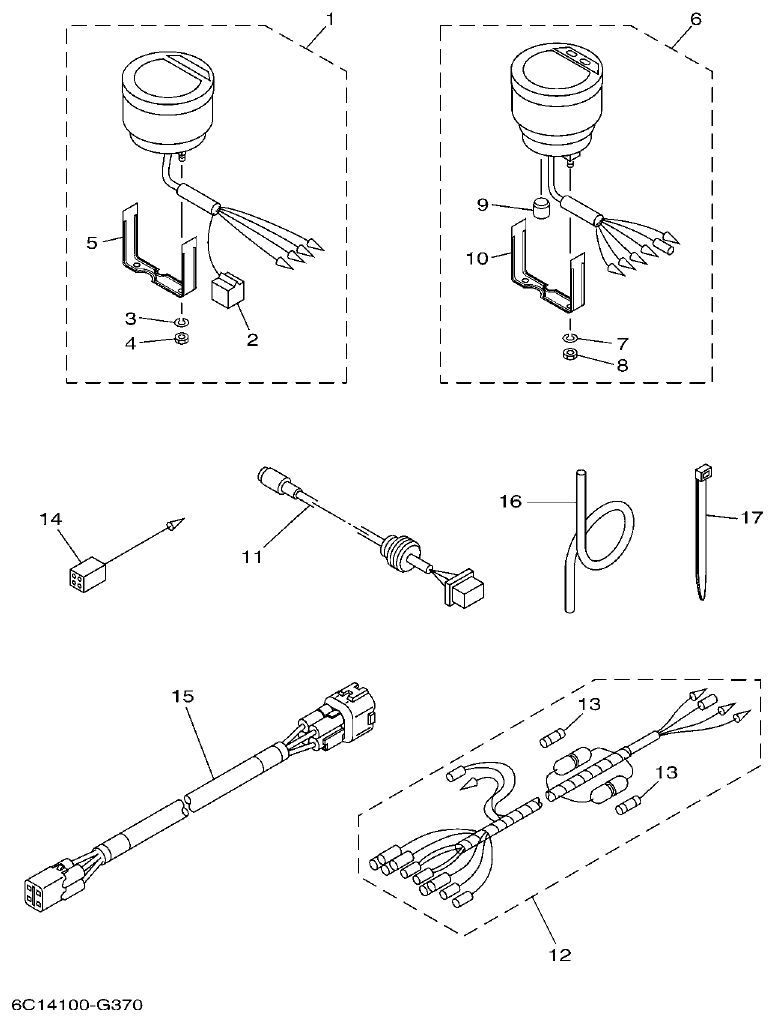

Fig. 38 — METER 1
11 items
· 1 available products

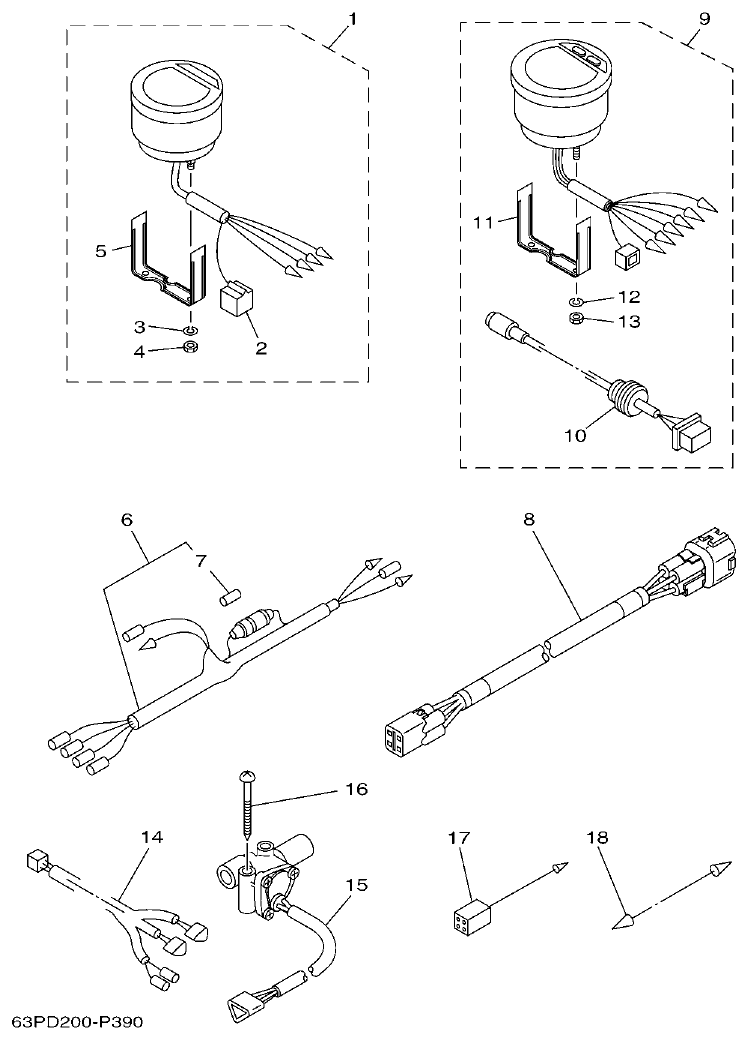

Fig. 39 — METER 2
12 items
· 2 available products

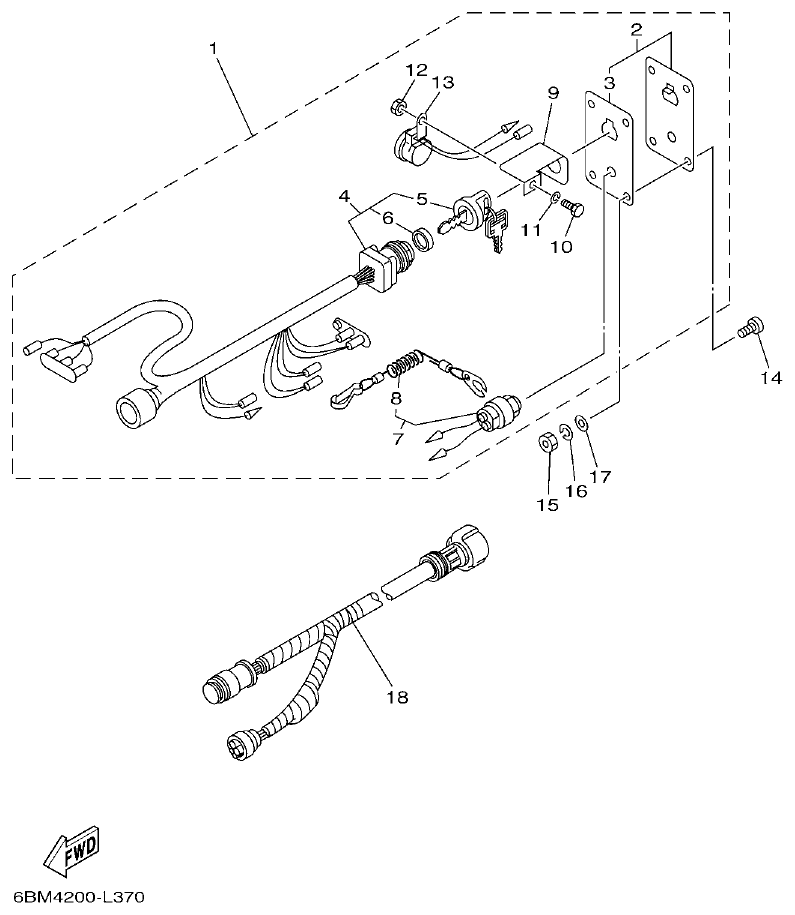

Fig. 40 — SWITCH & PANEL 1
11 items
· 1 available products

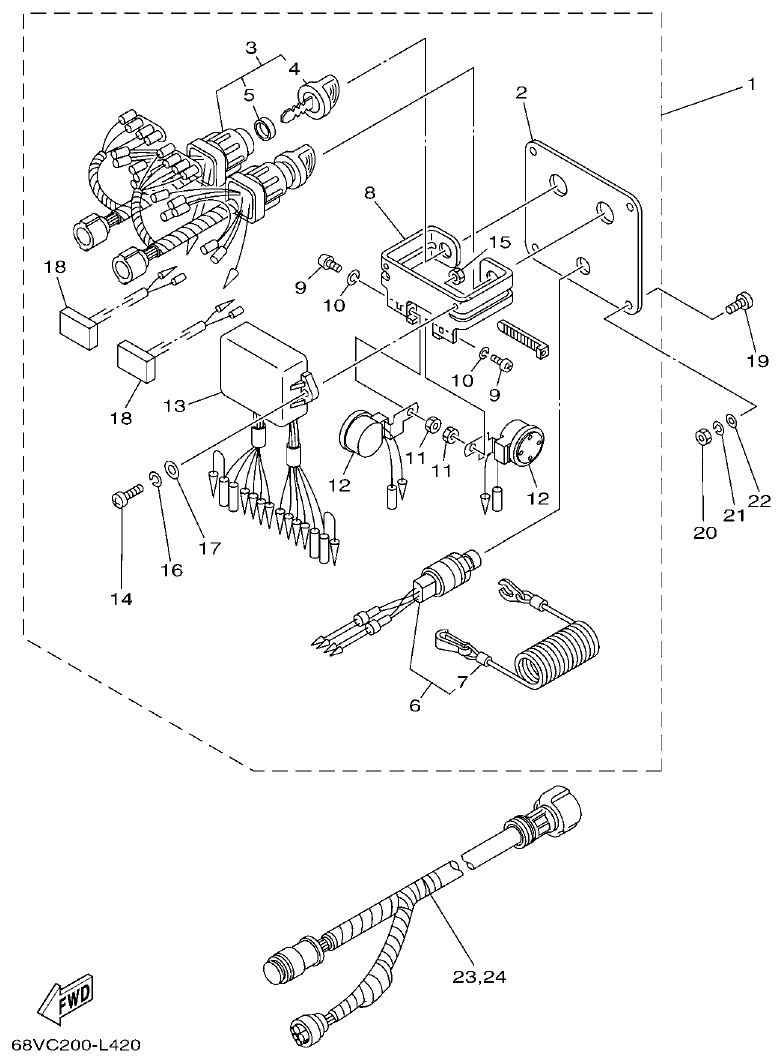

Fig. 41 — SWITCH & PANEL 2
13 items
· 2 available products

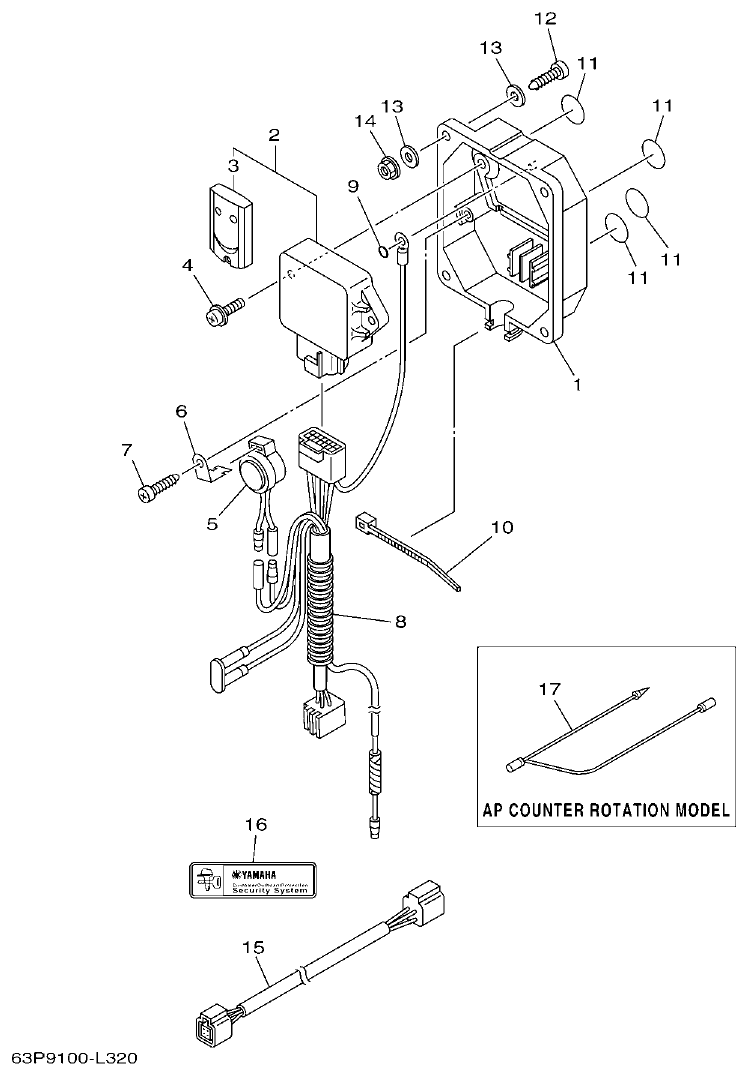

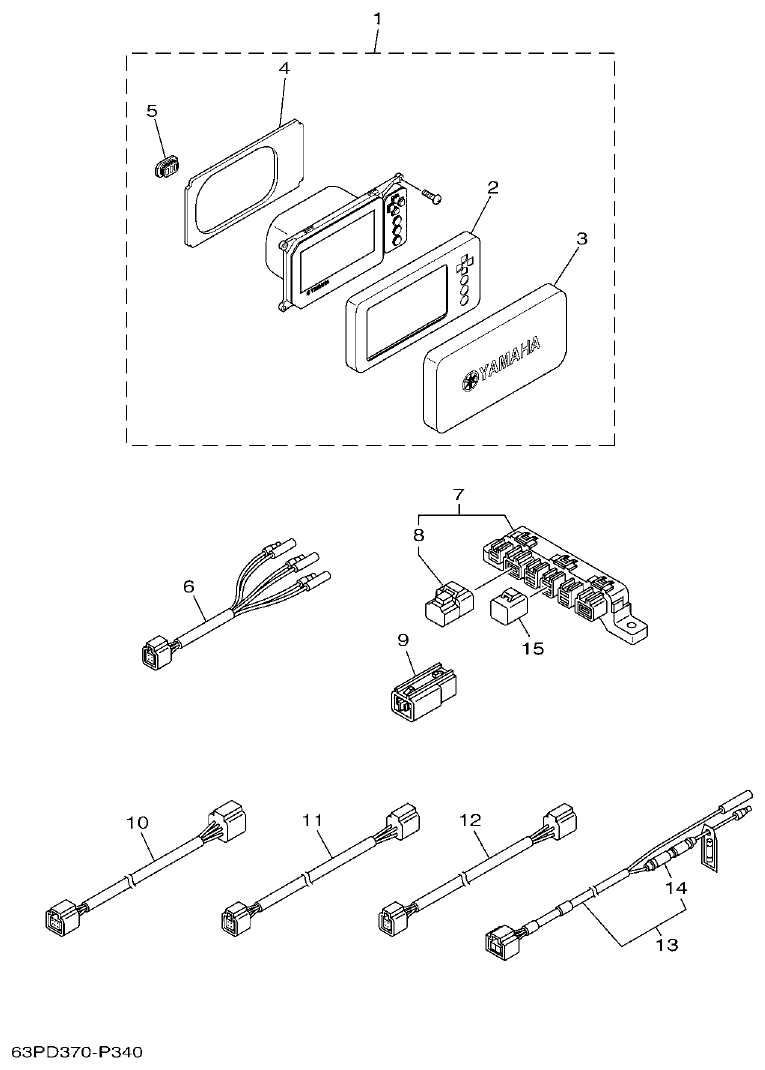

Fig. 42 — OPTIONAL PARTS 1
10 items
· 1 available products
Fig. 43 — OPTIONAL PARTS 2
15 items
· 7 available products

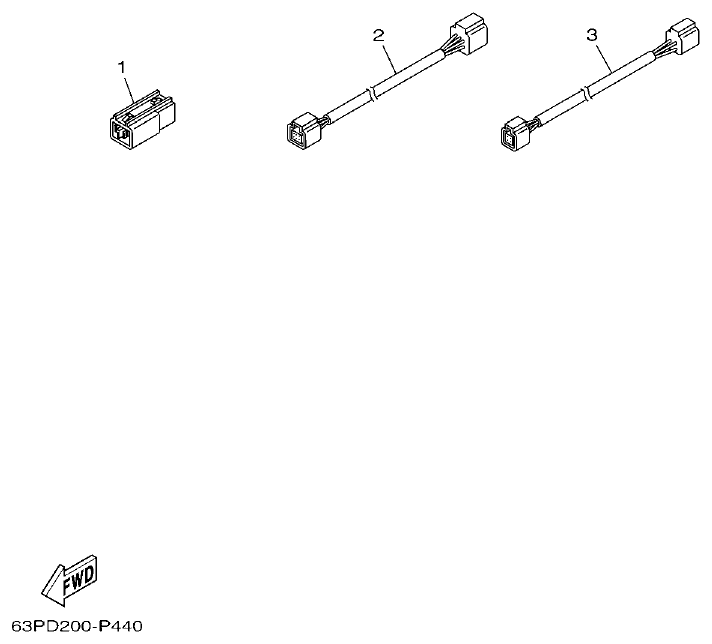

Fig. 44 — OPTIONAL PARTS 3
3 items
· 2 available products

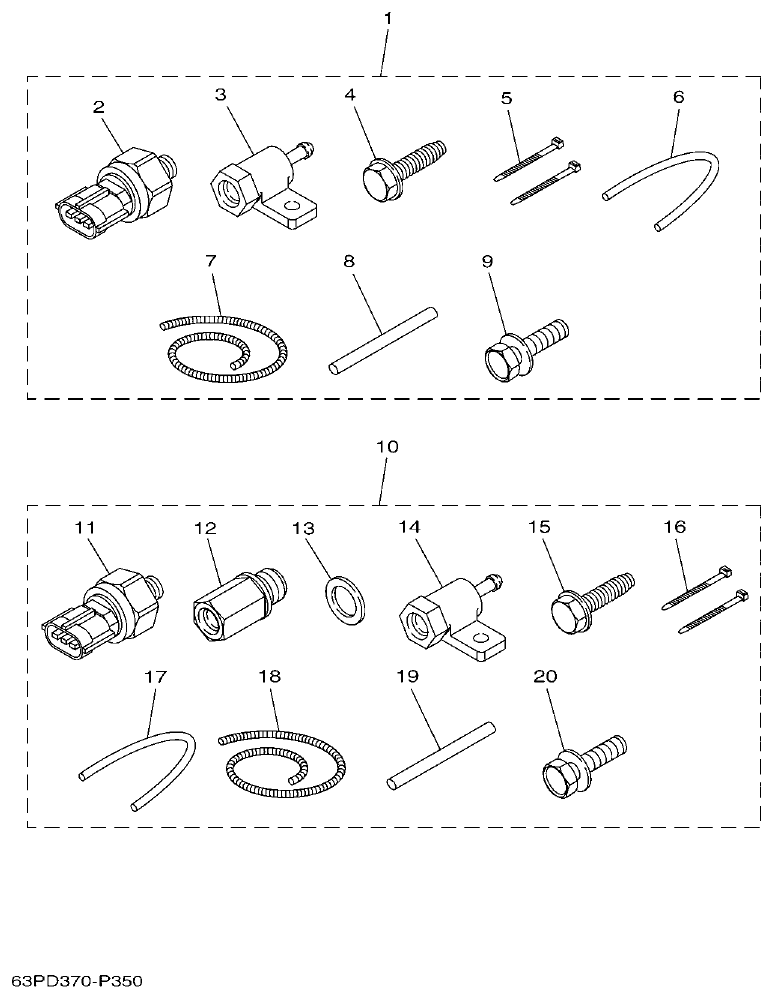

Fig. 45 — OPTIONAL PARTS 4
9 items

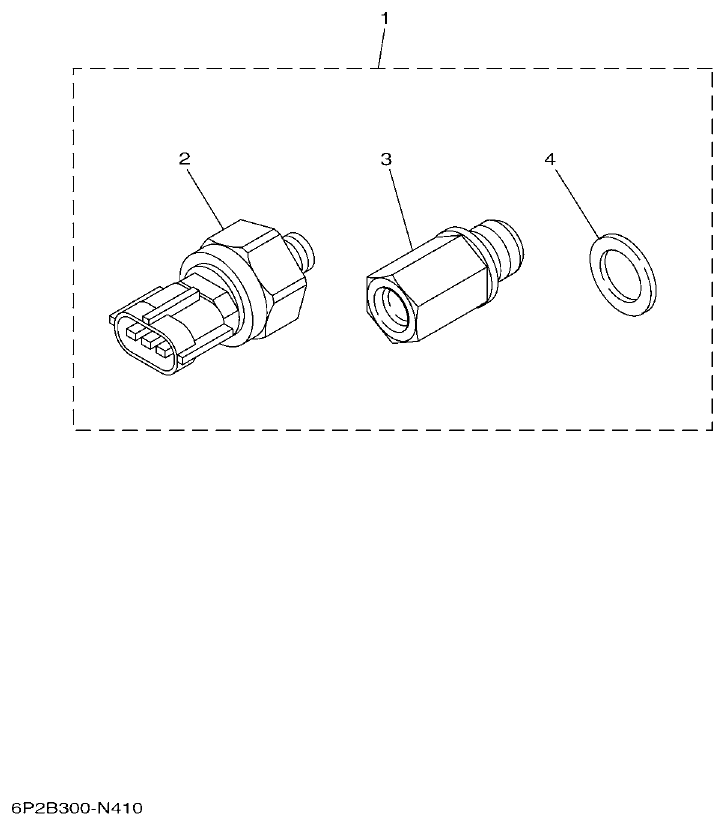

Fig. 46 — OPTIONAL PARTS 5
3 items

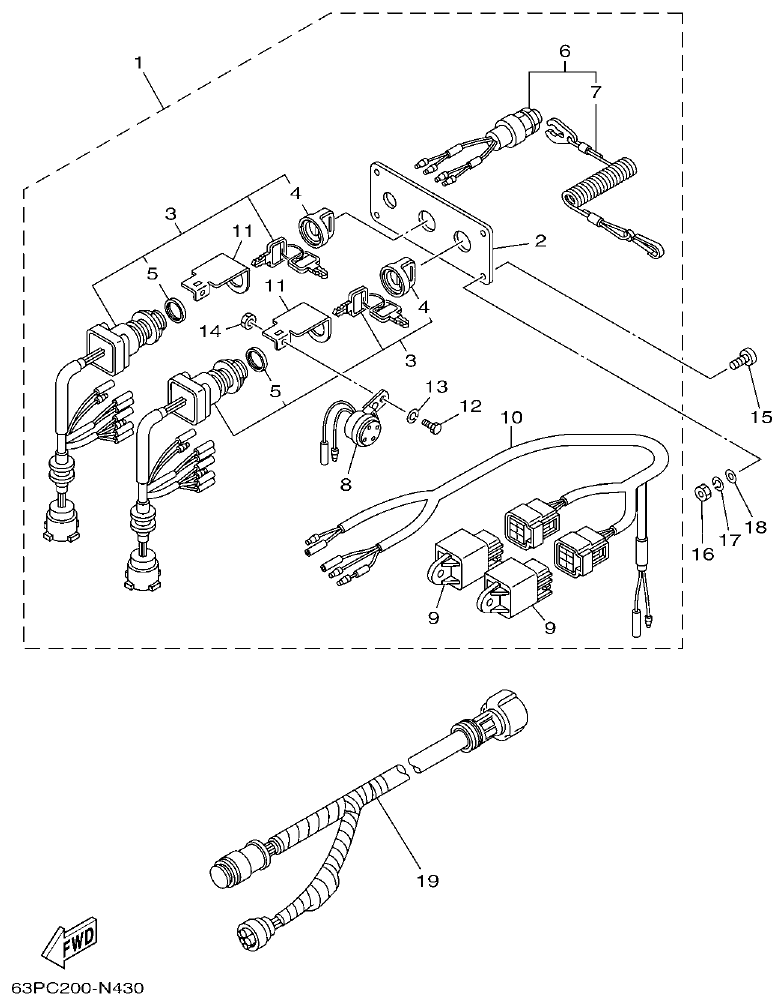

Fig. 47 — OPTIONAL PARTS 6
12 items
· 2 available products

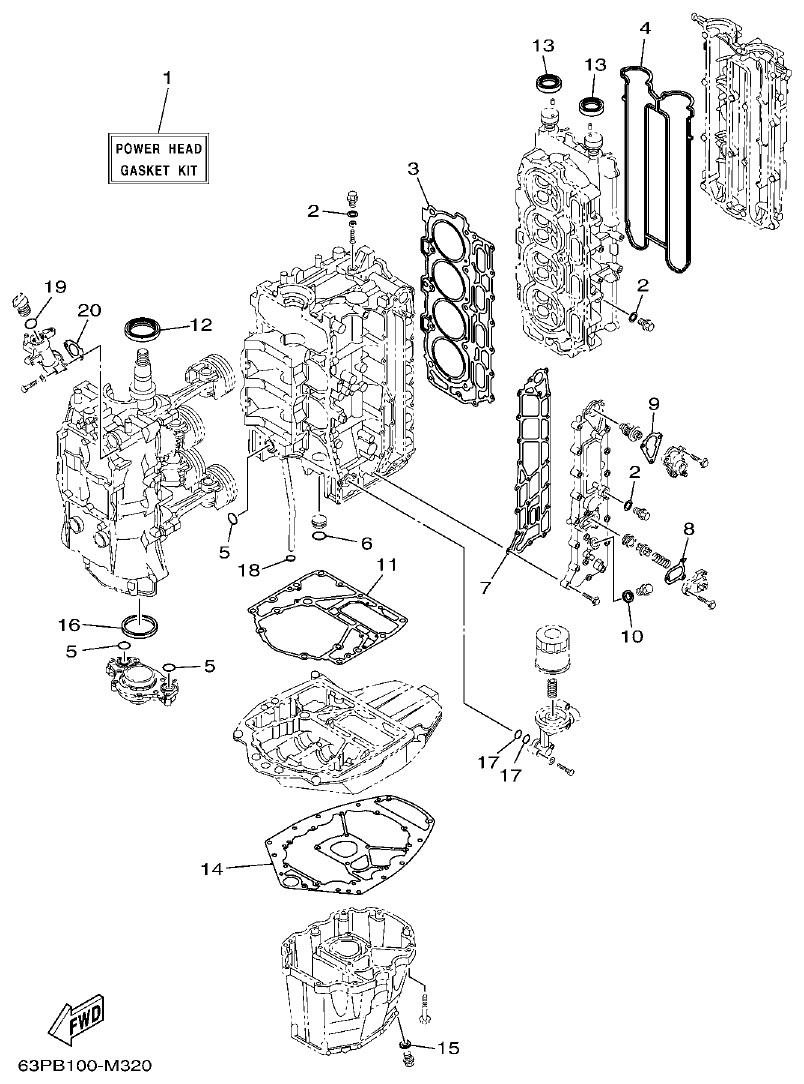

Fig. 48 — REPAIR KIT 1
10 items
· 6 available products

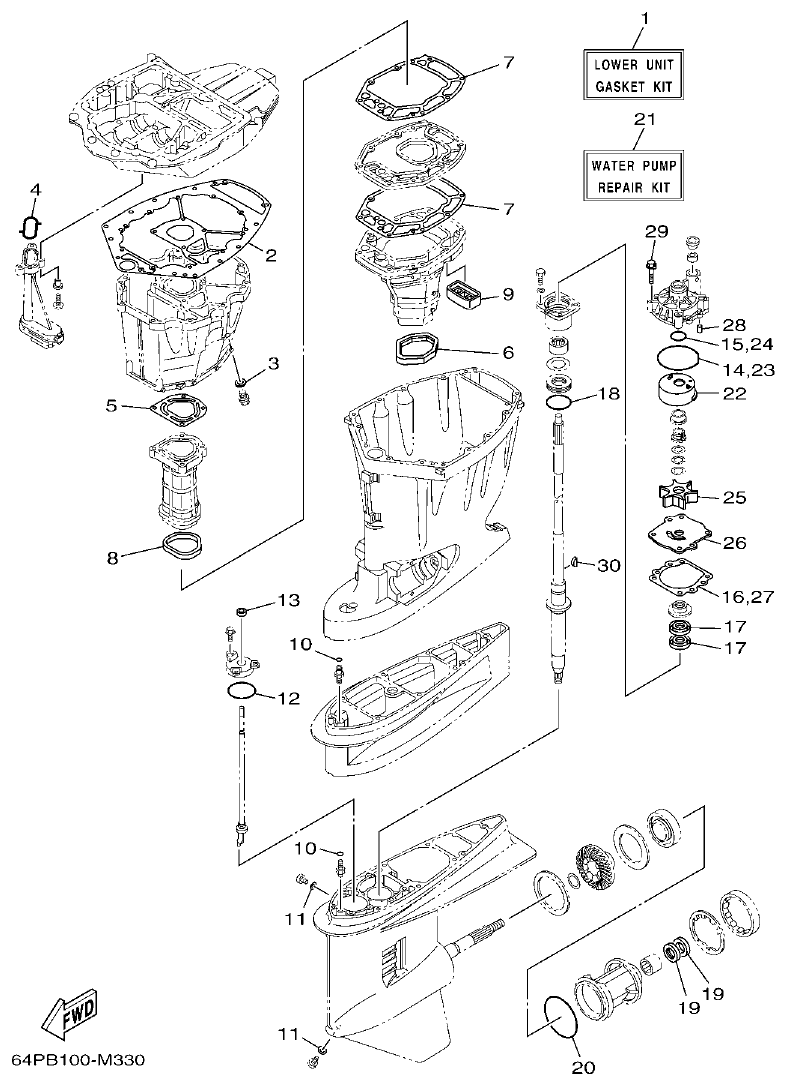

Fig. 49 — REPAIR KIT 2
14 items
· 6 available products
