Yamaha F200A, F225A, FL200A, FL225A, F225TR, F200TR, LF225TR, LF200TR Parts Catalog
Yamaha F200A, F225A, FL200A, FL225A, F225TR, F200TR, LF225TR, LF200TR Outboard parts and diagrams
Yamaha F200A, F225A, FL200A, FL225A, F225TR, F200TR, LF225TR, LF200TR outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, VALVE, INTAKE 1, INTAKE 2, THROTTLE BODY ASSY 1, THROTTLE BODY ASSY 2, THROTTLE BODY ASSY 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
566 linked store products are available across 84 catalog sections. 3081 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

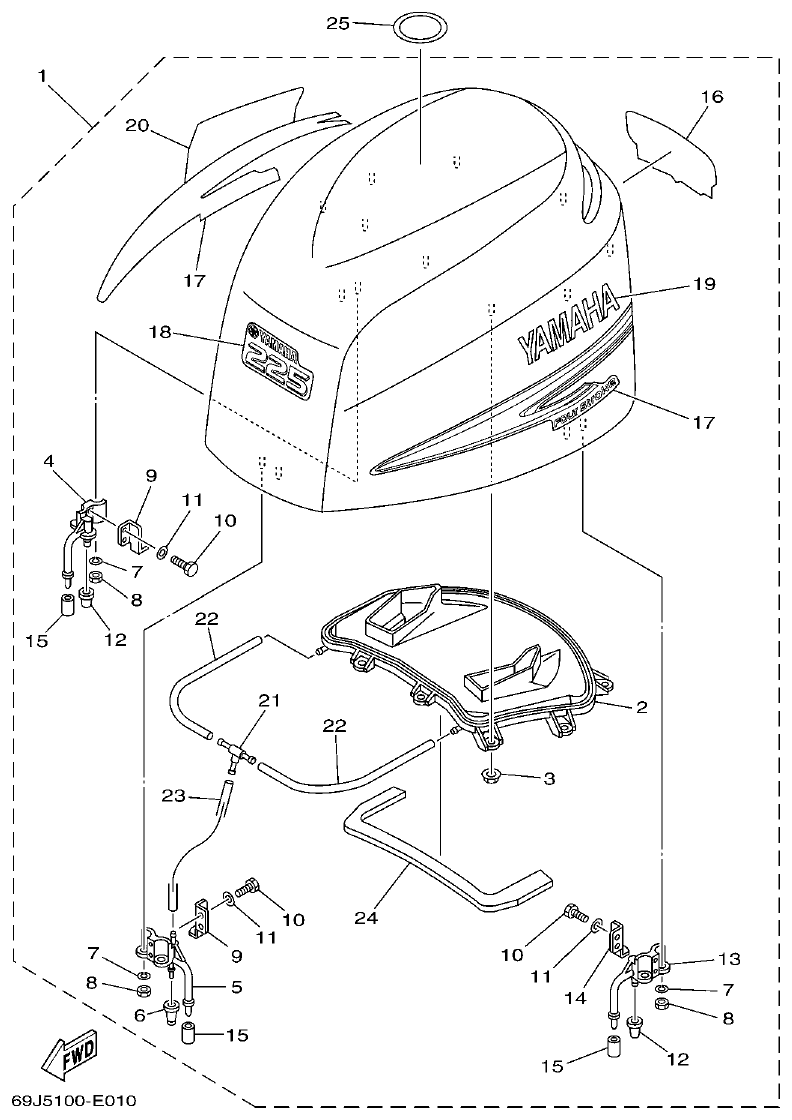

Fig. 1 — TOP COWLING
28 items
· 1 available products

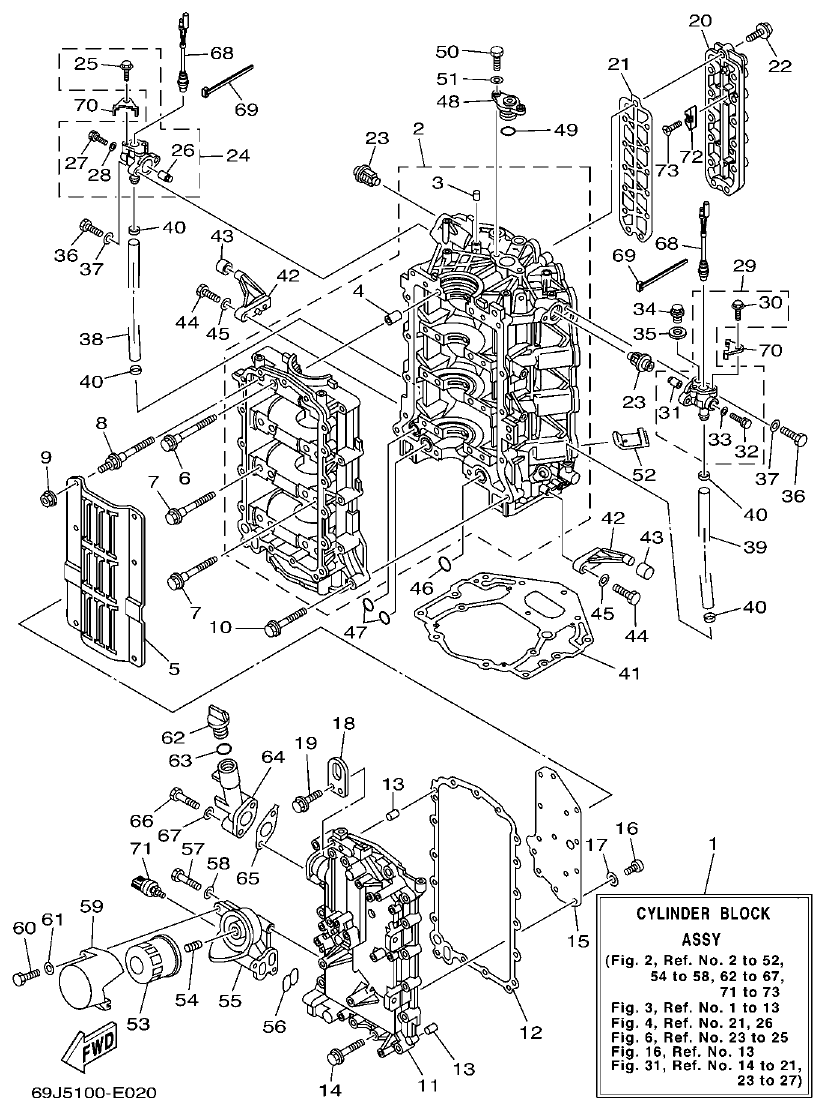

Fig. 2 — CYLINDER & CRANKCASE 1
73 items
· 6 available products
Fig. 3 — CRANKSHAFT & PISTON
23 items
· 12 available products

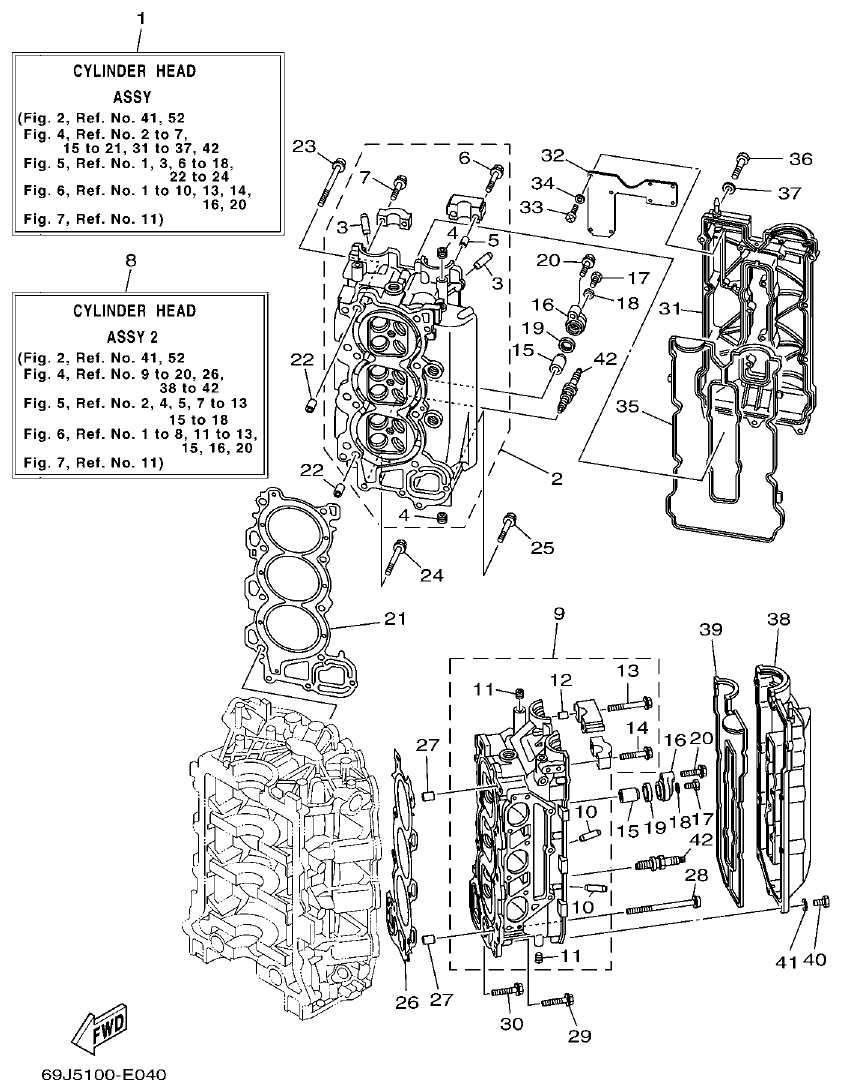

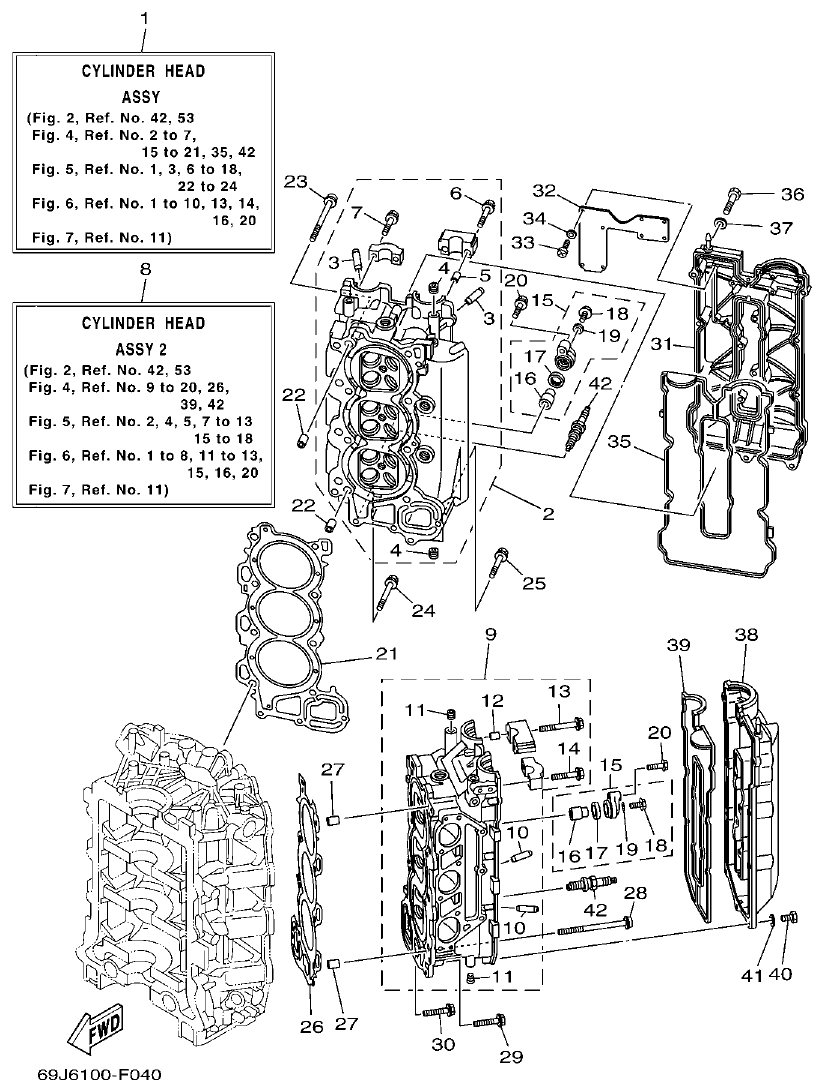

Fig. 4 — CYLINDER & CRANKCASE 2
42 items
· 6 available products

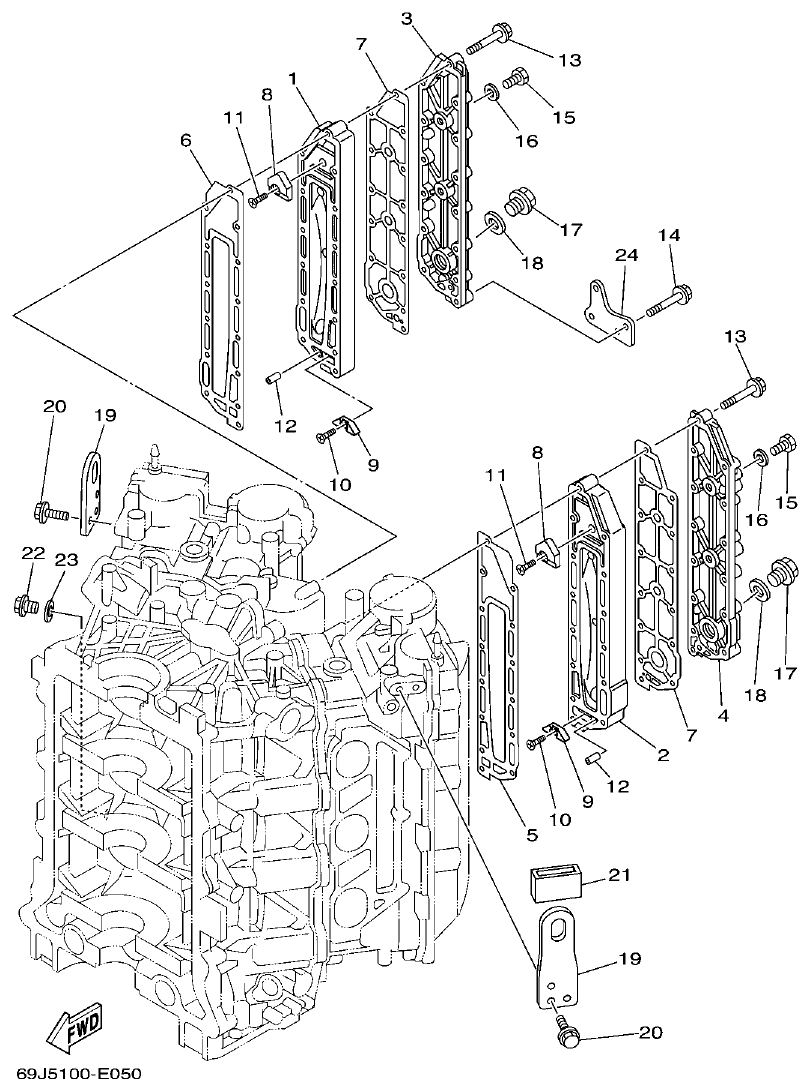

Fig. 5 — CYLINDER & CRANKCASE 3
24 items
· 5 available products

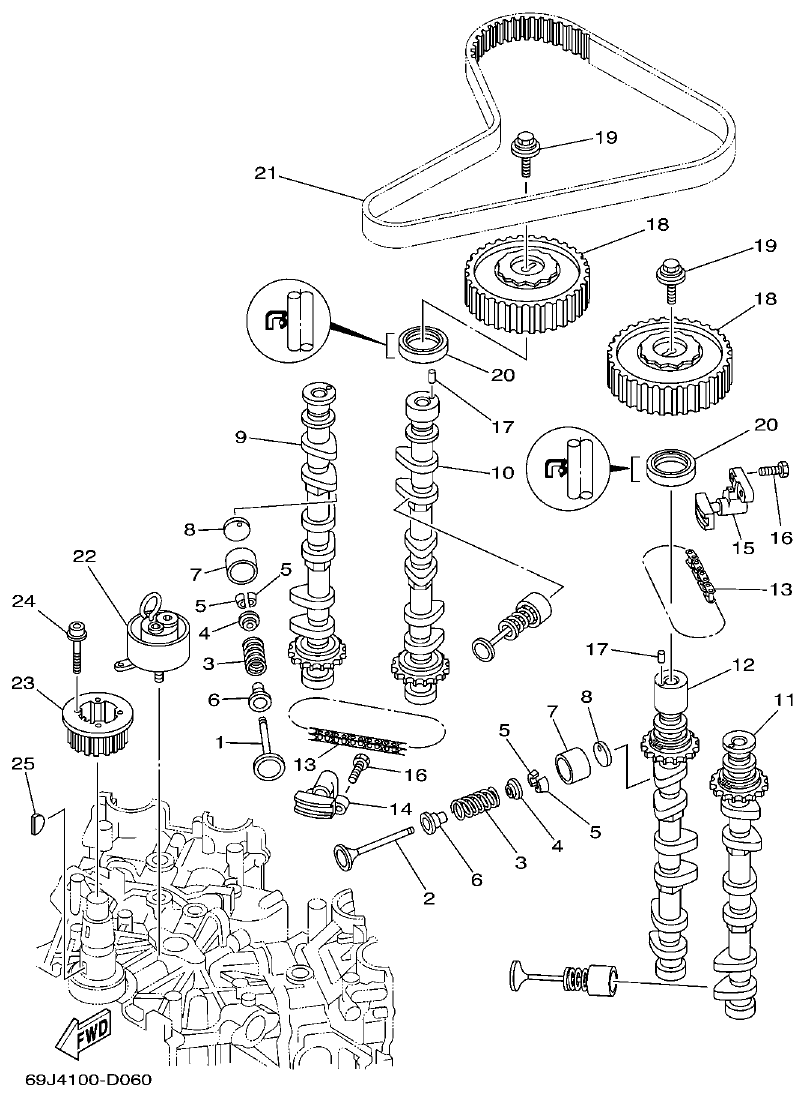

Fig. 6 — VALVE
57 items
· 11 available products

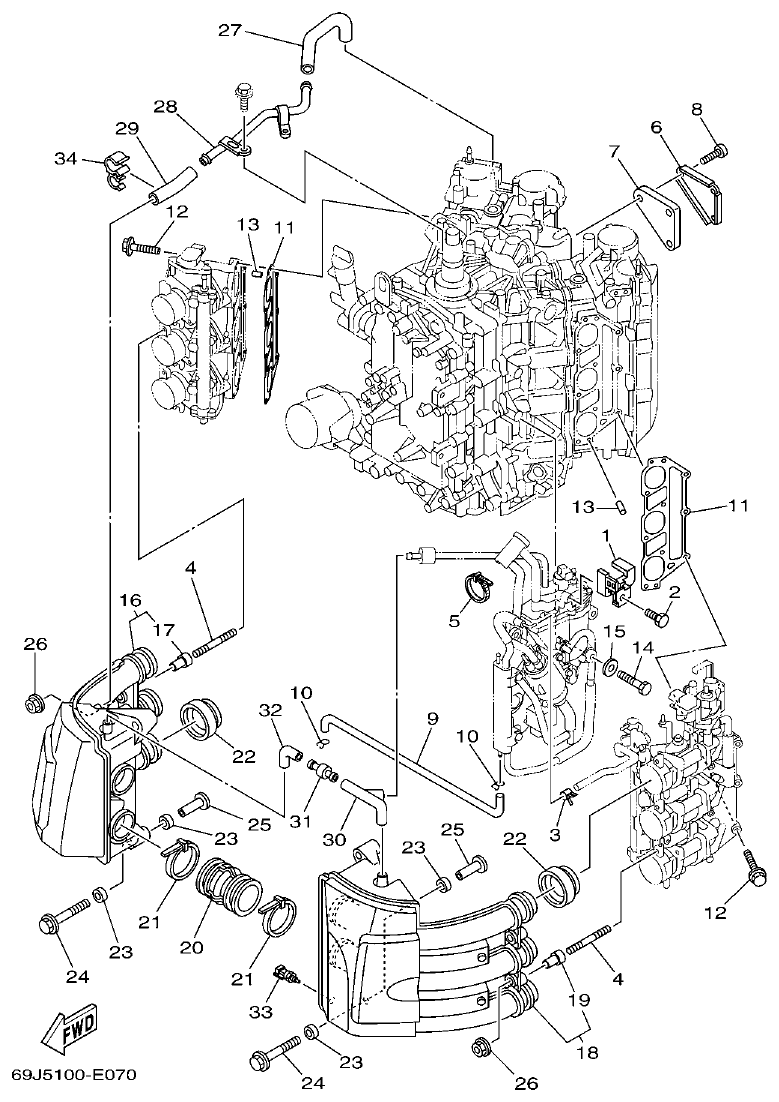

Fig. 7 — INTAKE 1
34 items
· 3 available products

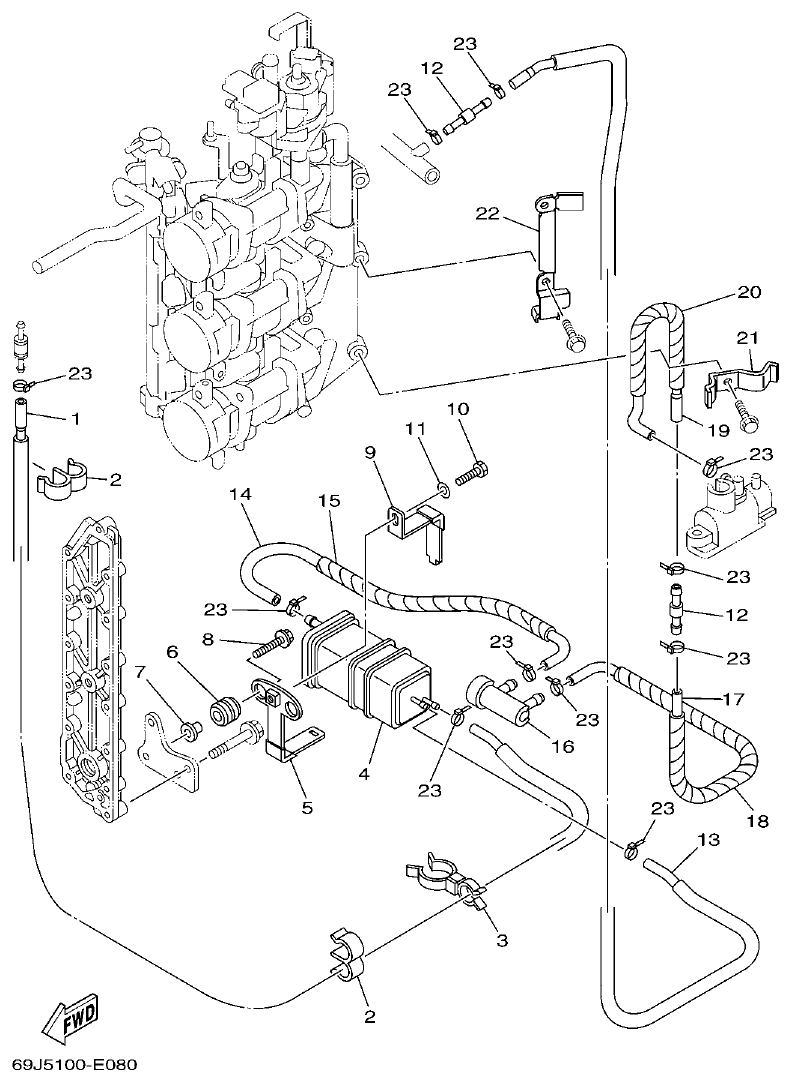

Fig. 8 — INTAKE 2
23 items
· 1 available products
Fig. 9 — THROTTLE BODY ASSY 1
51 items
· 6 available products

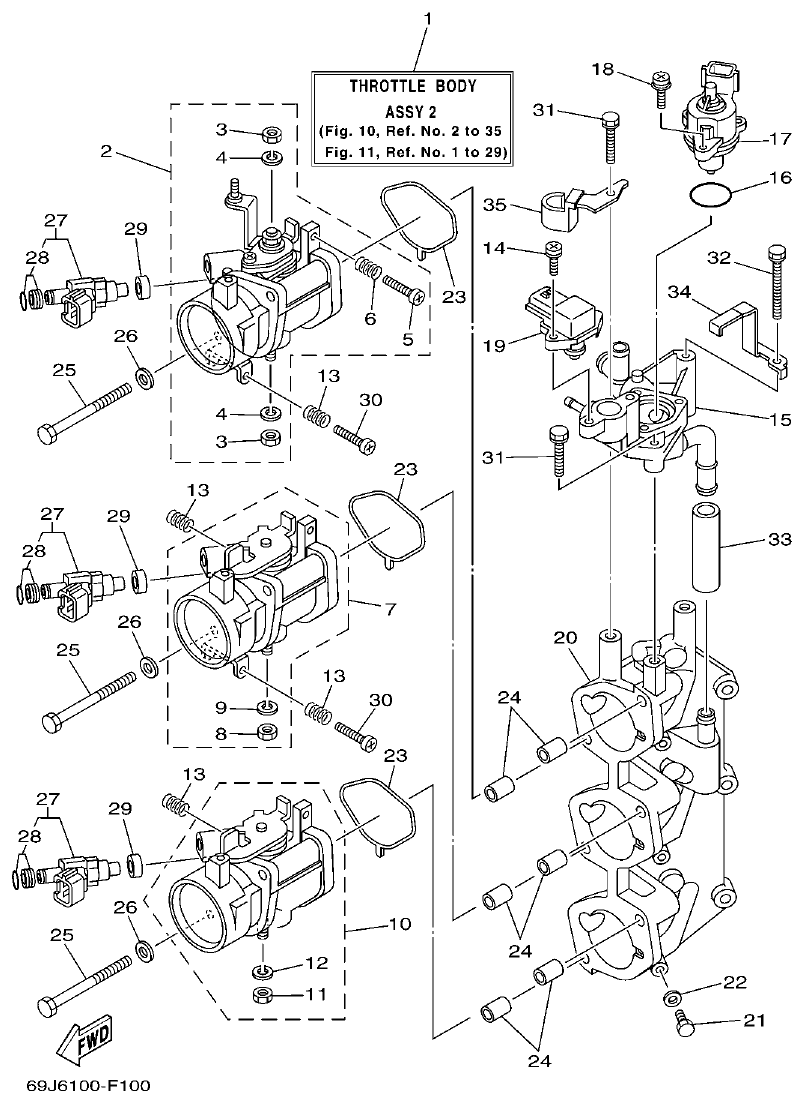

Fig. 10 — THROTTLE BODY ASSY 2
39 items
· 5 available products

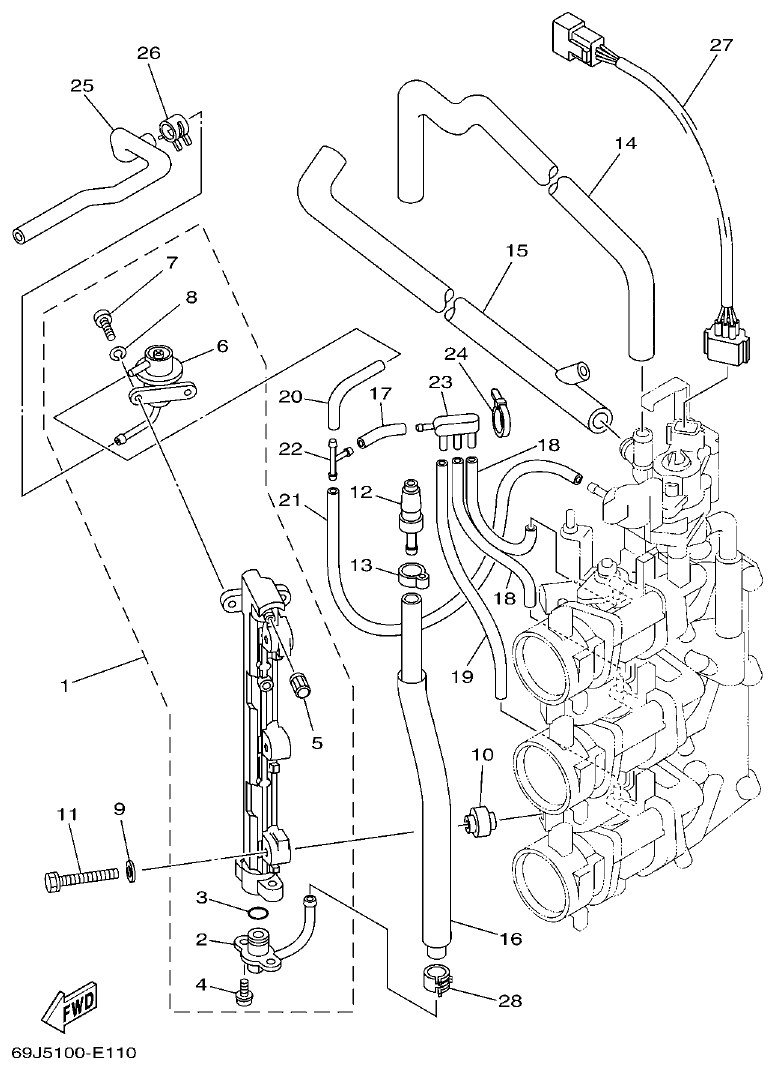

Fig. 11 — THROTTLE BODY ASSY 3
28 items
· 4 available products

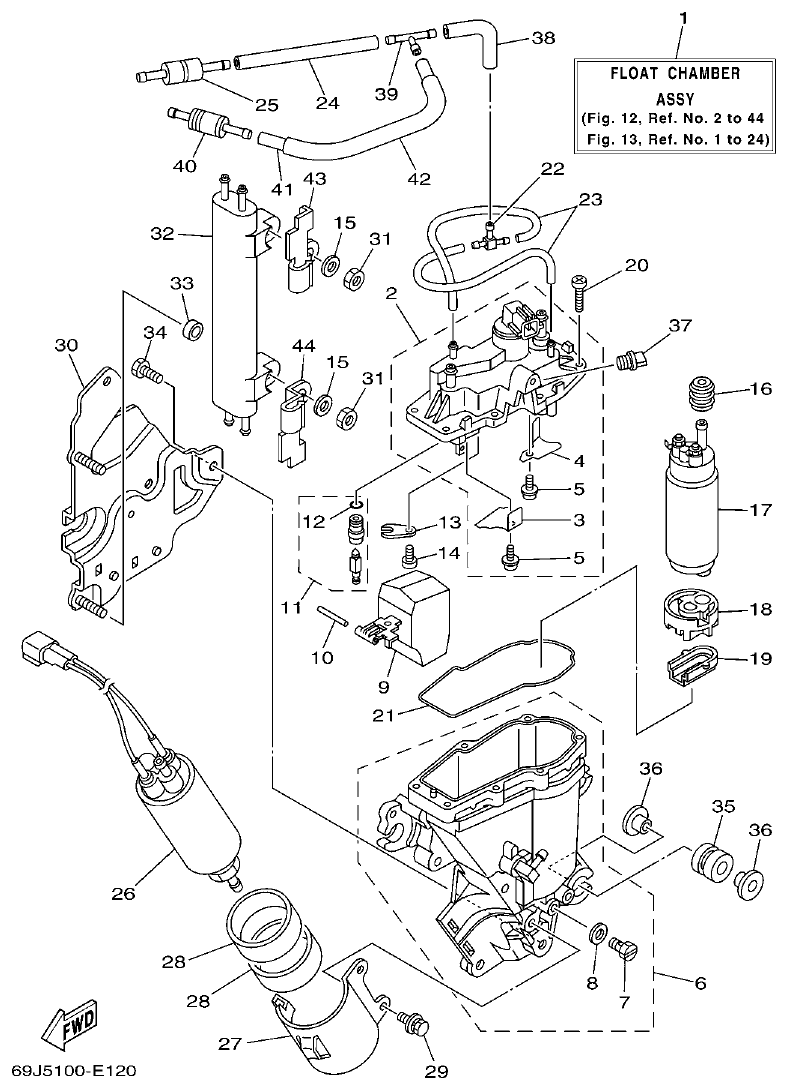

Fig. 12 — FUEL INJECTION PUMP 1
44 items
· 4 available products

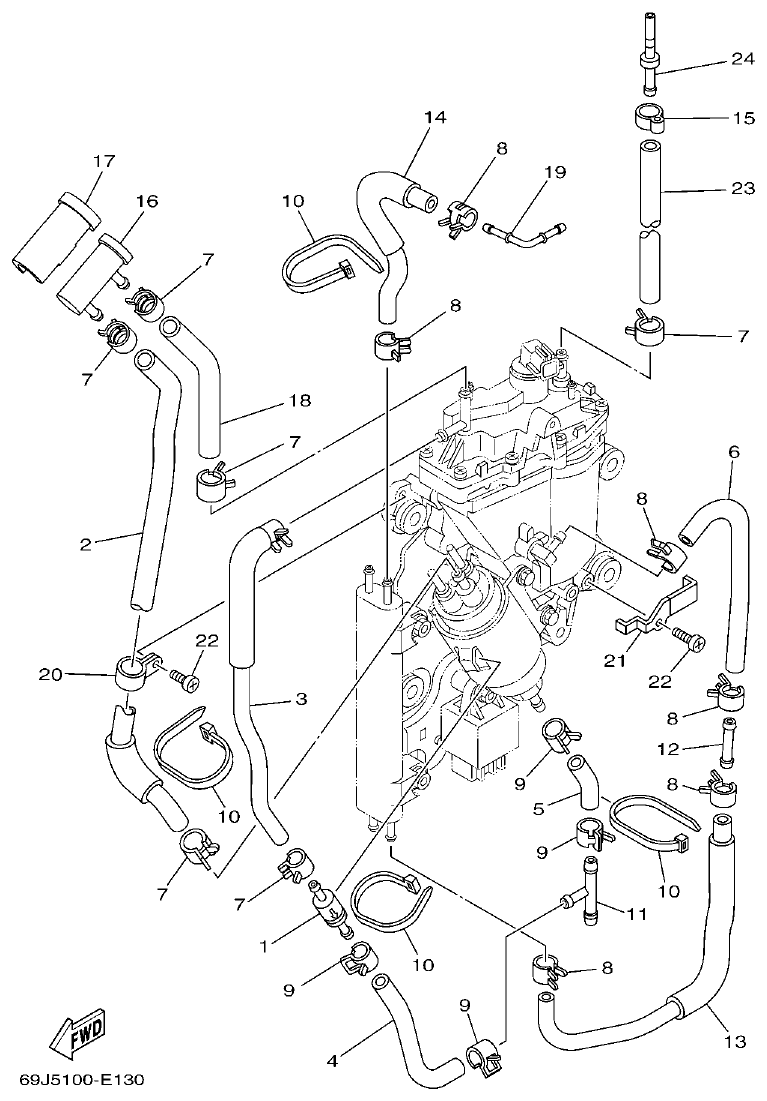

Fig. 13 — FUEL INJECTION PUMP 2
24 items
· 2 available products

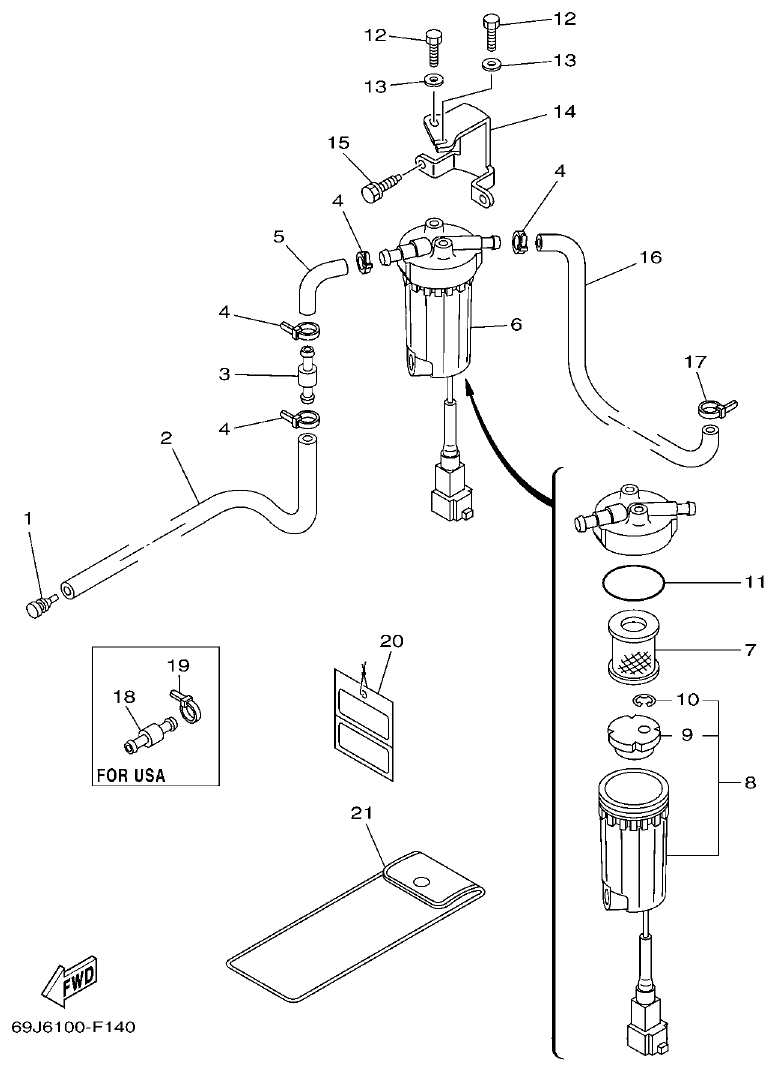

Fig. 14 — FUEL 1
27 items
· 3 available products
Fig. 15 — FUEL 2
5 items
· 2 available products

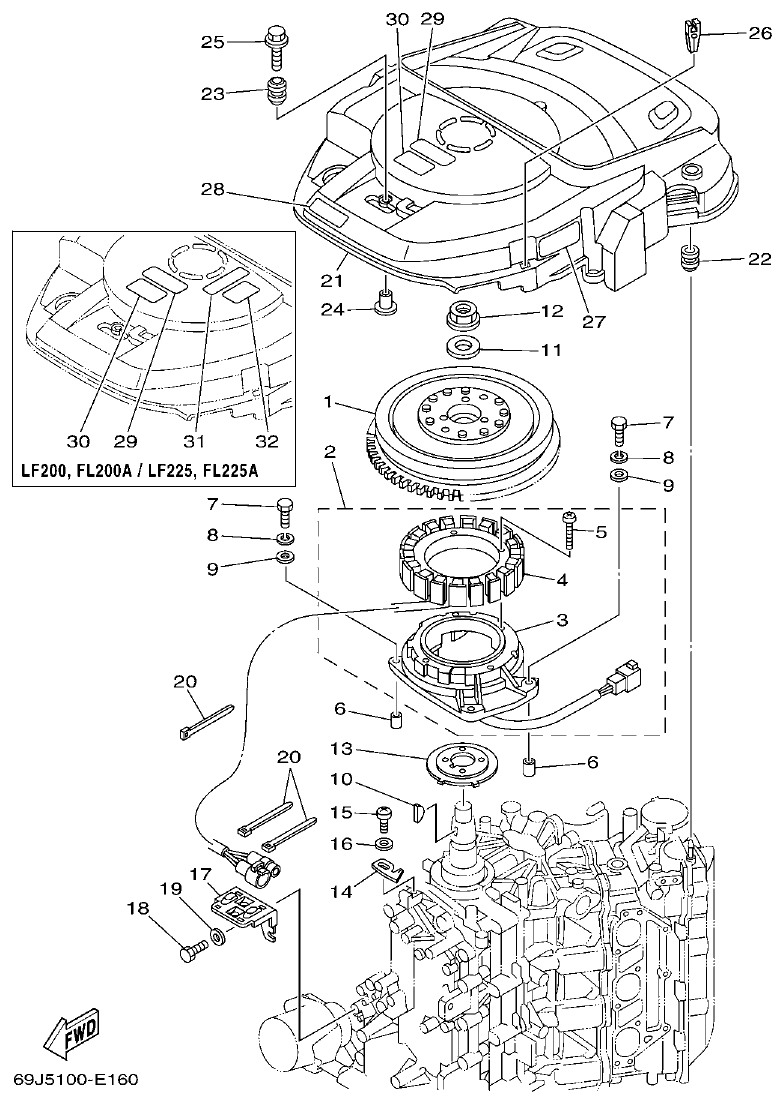

Fig. 16 — GENERATOR
34 items

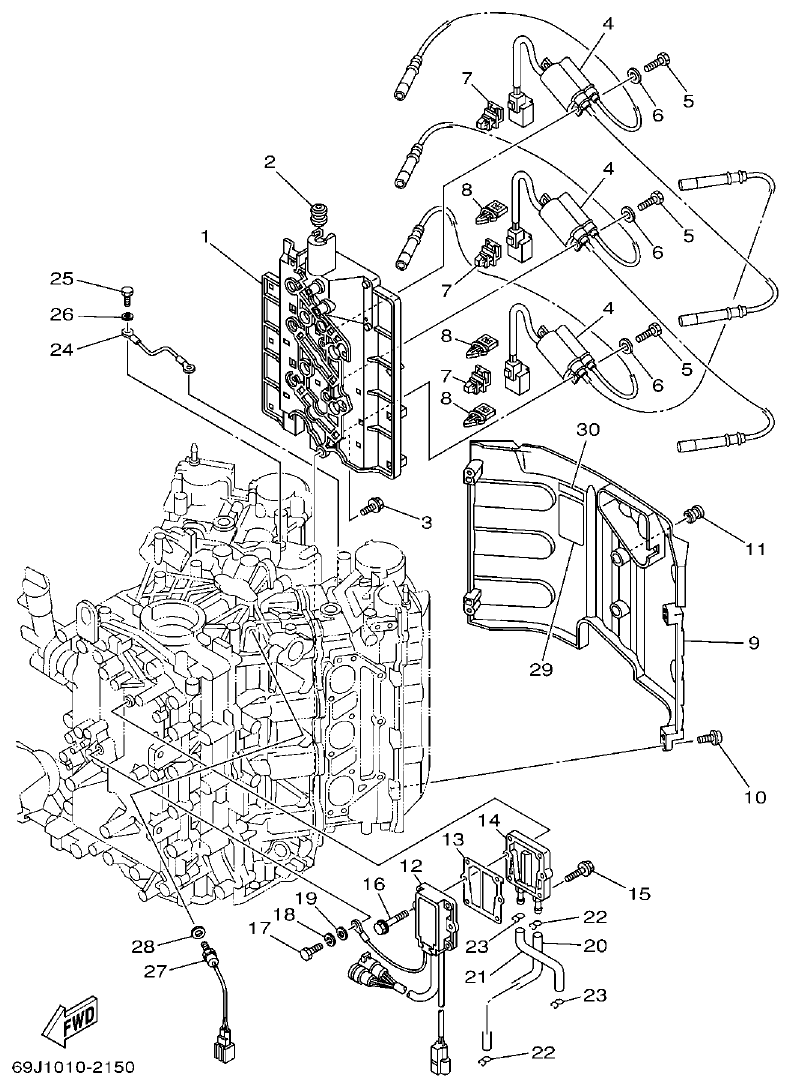

Fig. 17 — ELECTRICAL 1
32 items
· 1 available products

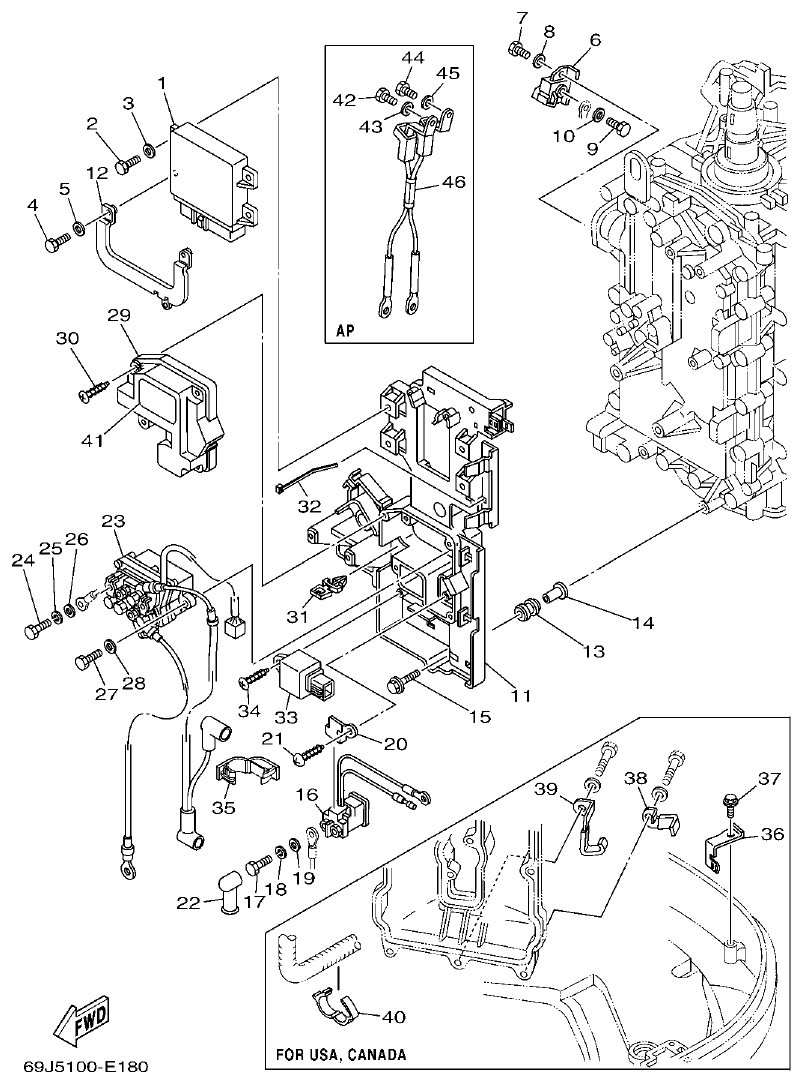

Fig. 18 — ELECTRICAL 2
49 items
· 2 available products

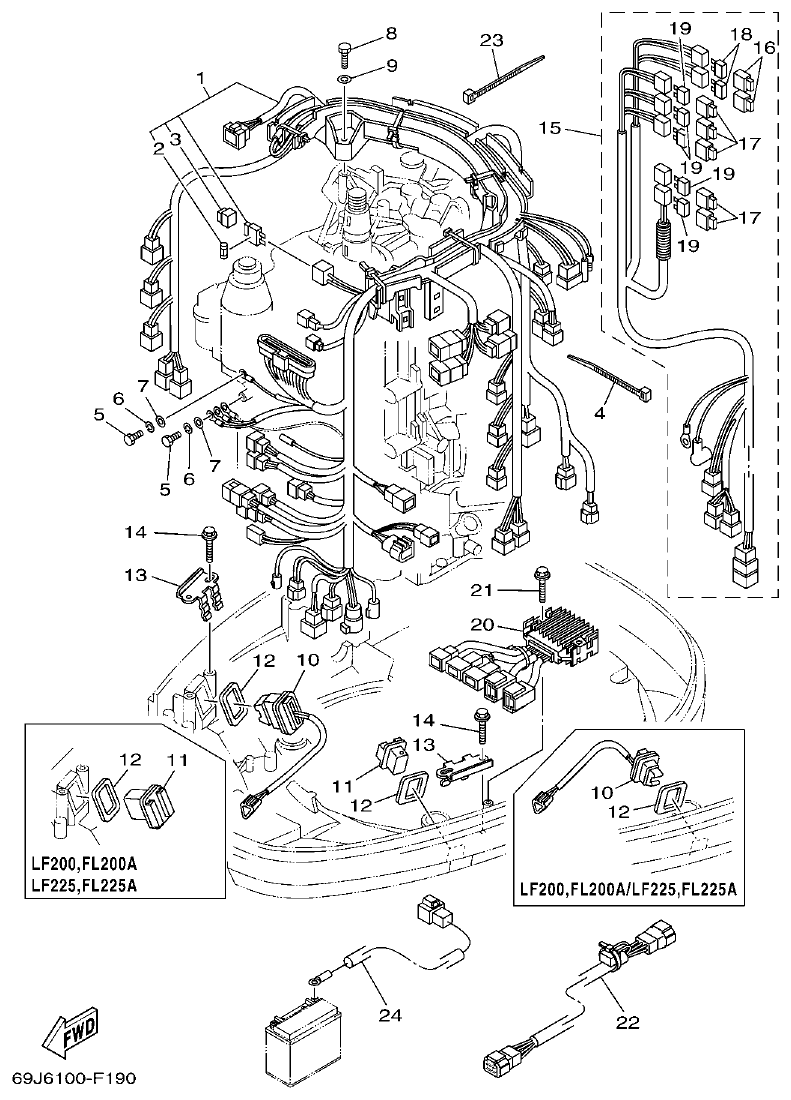

Fig. 19 — ELECTRICAL 3
25 items
· 1 available products

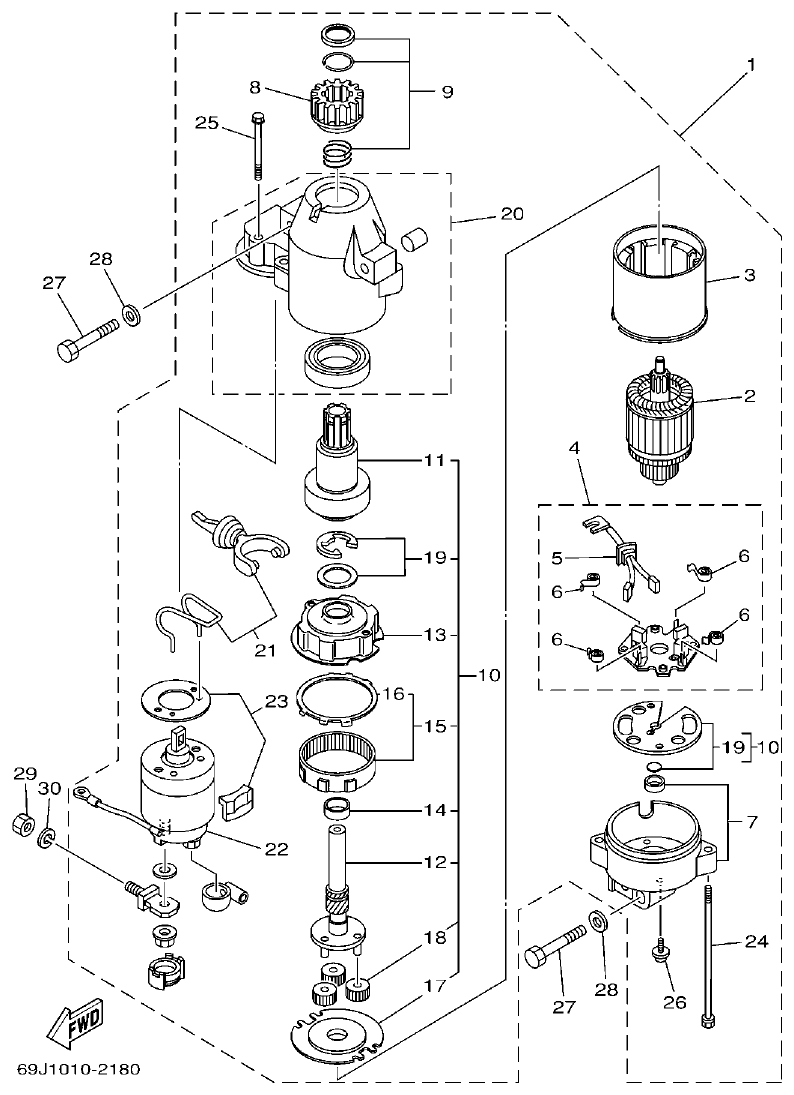

Fig. 20 — STARTING MOTOR
30 items
· 2 available products

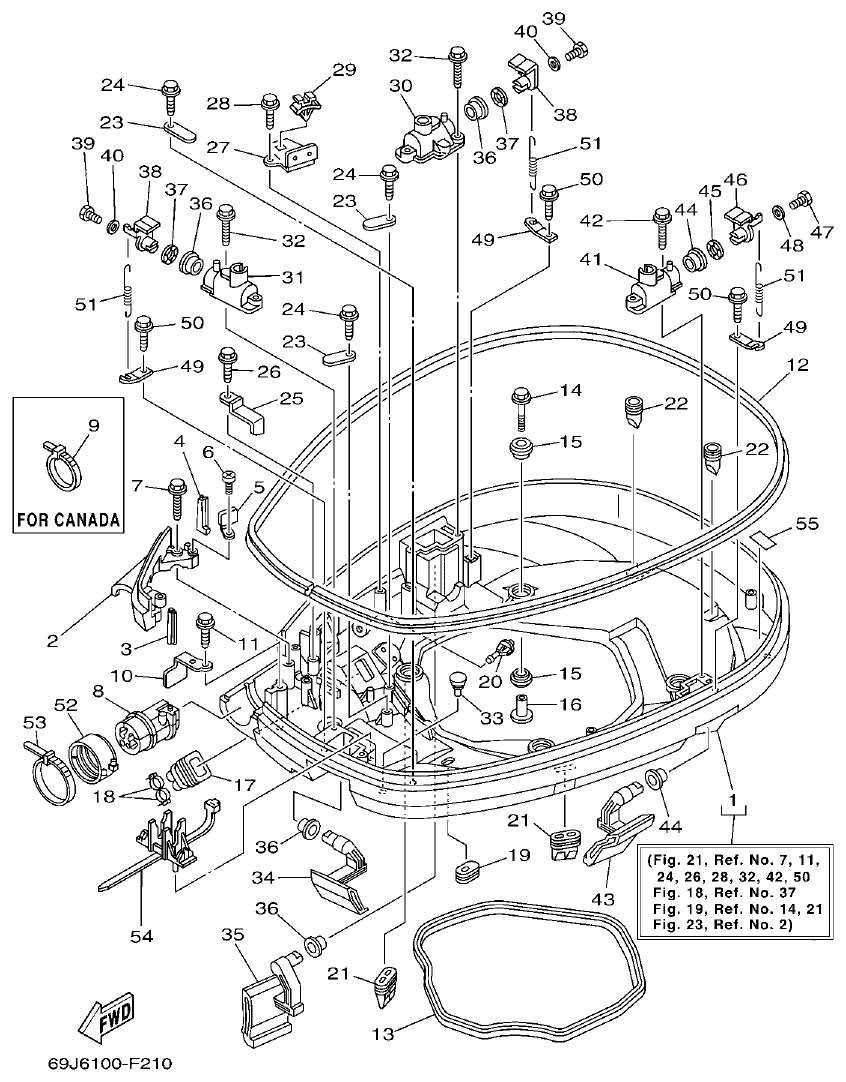

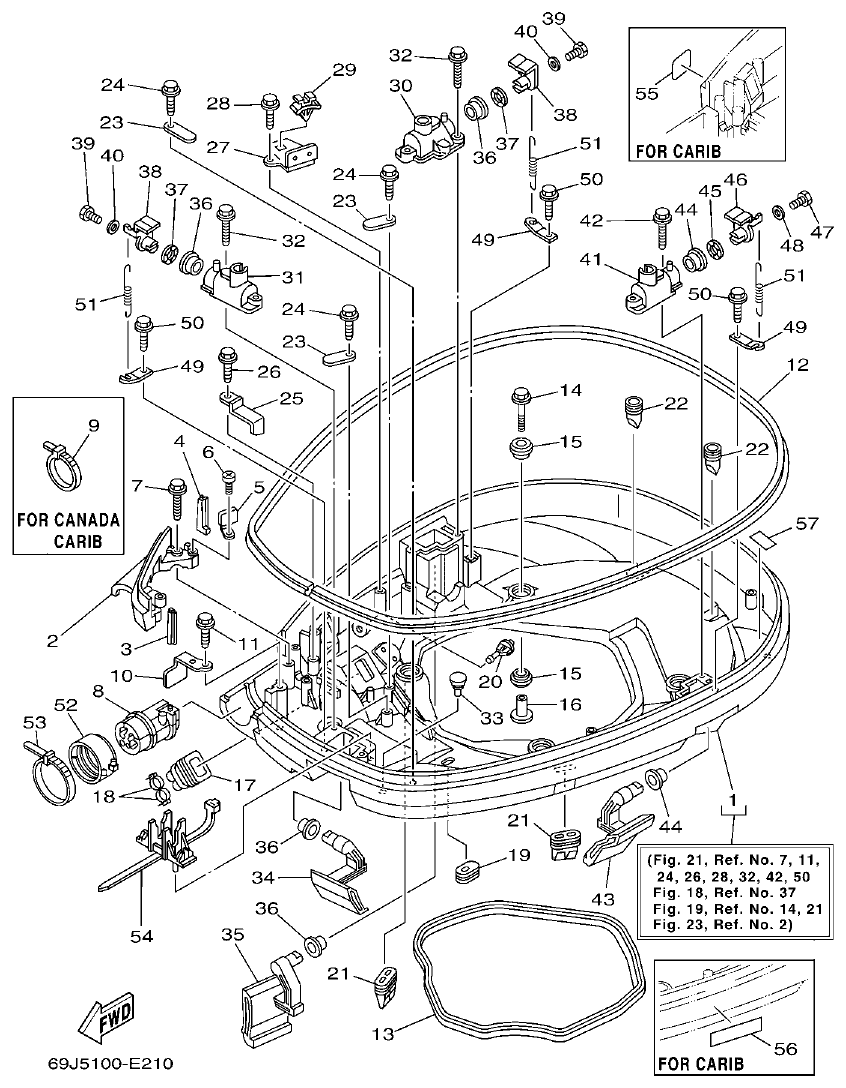

Fig. 21 — BOTTOM COWLING 1
57 items
· 4 available products

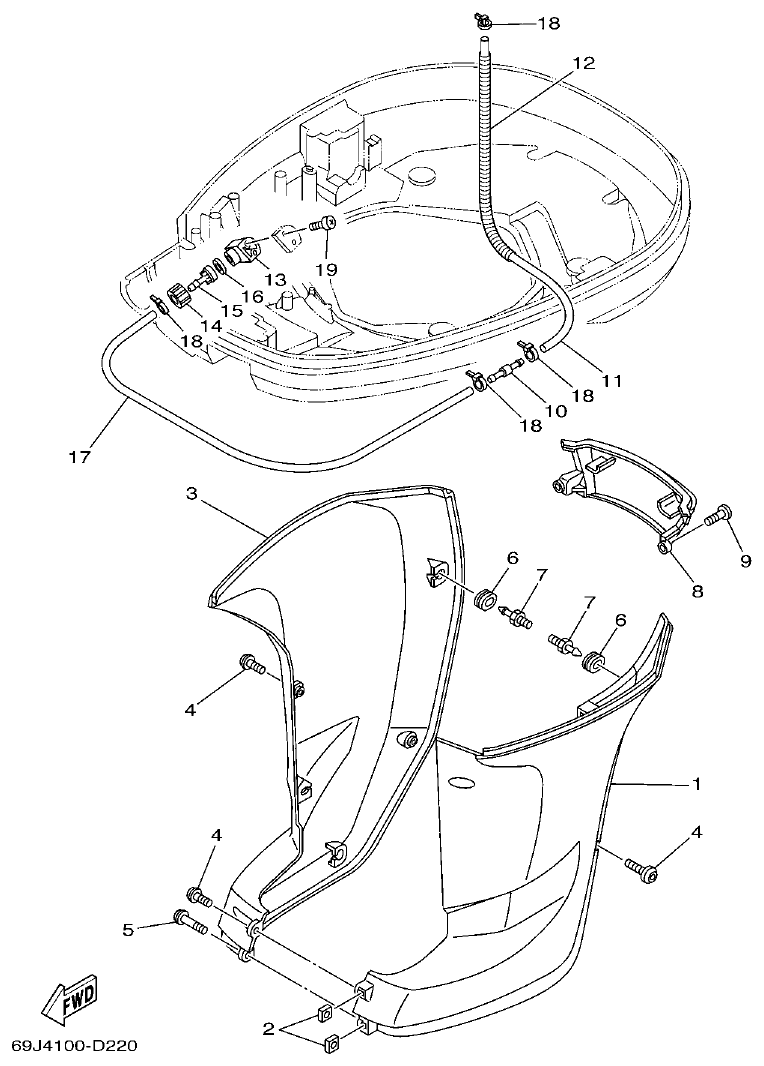

Fig. 22 — BOTTOM COWLING 2
19 items
· 4 available products

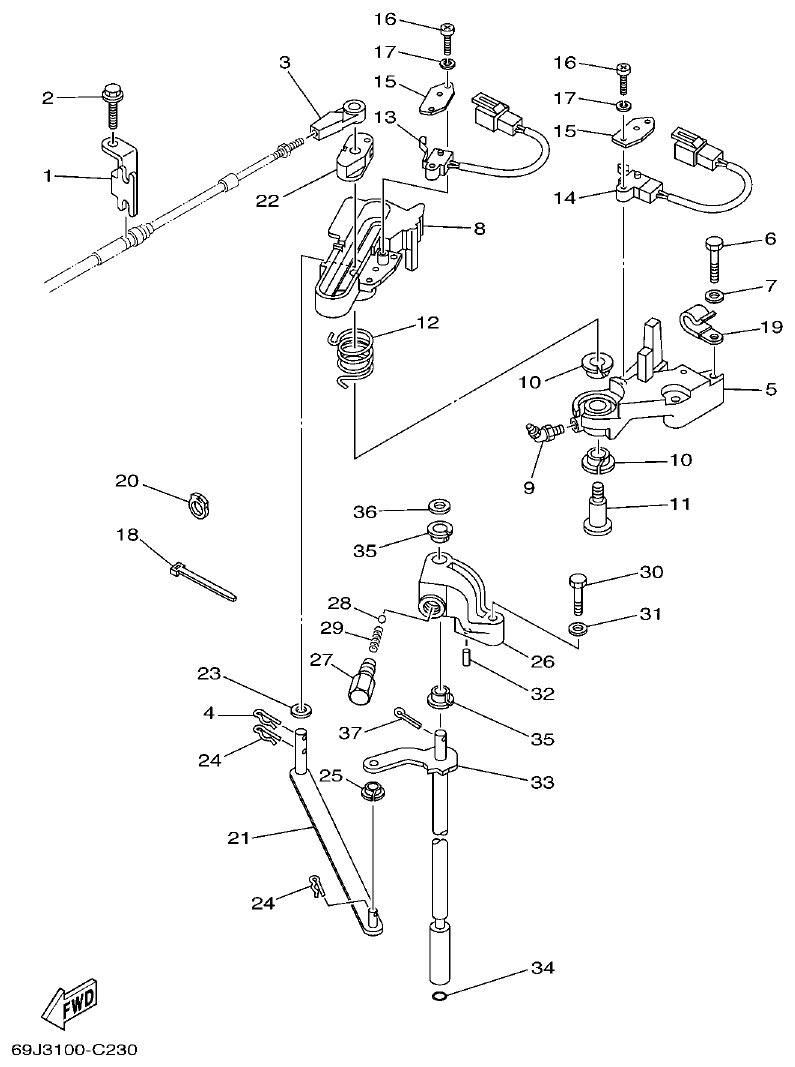

Fig. 23 — CONTROL 1
38 items
· 6 available products

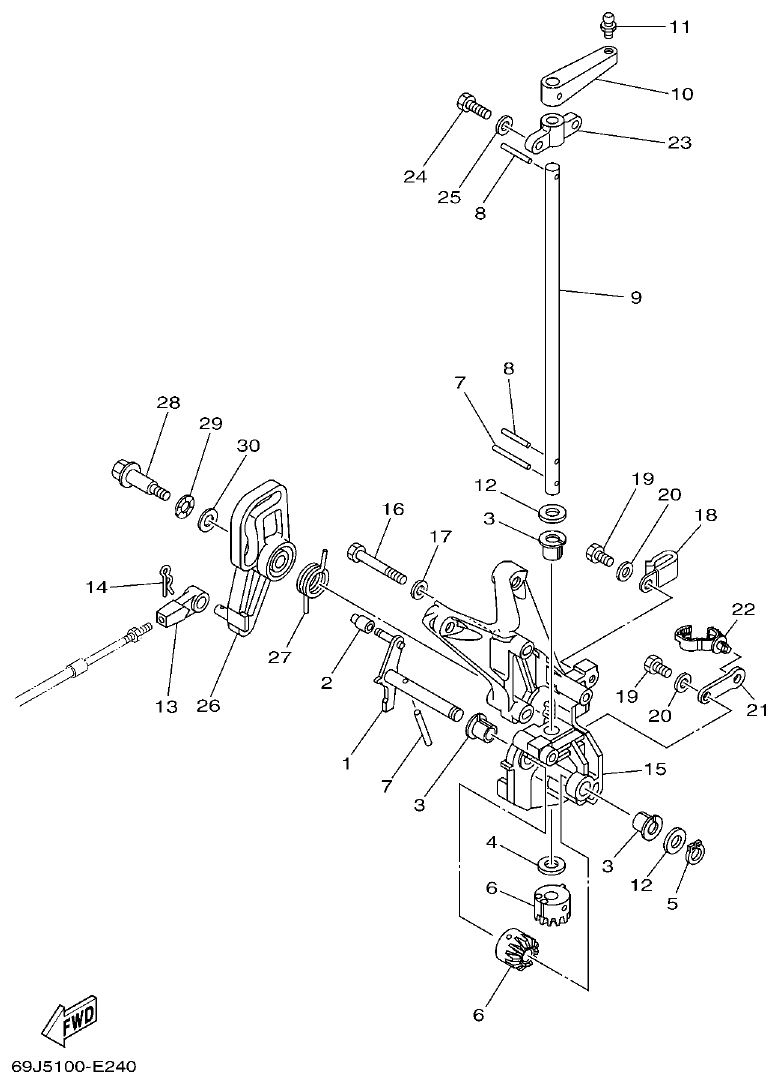

Fig. 24 — CONTROL 2
30 items
· 1 available products

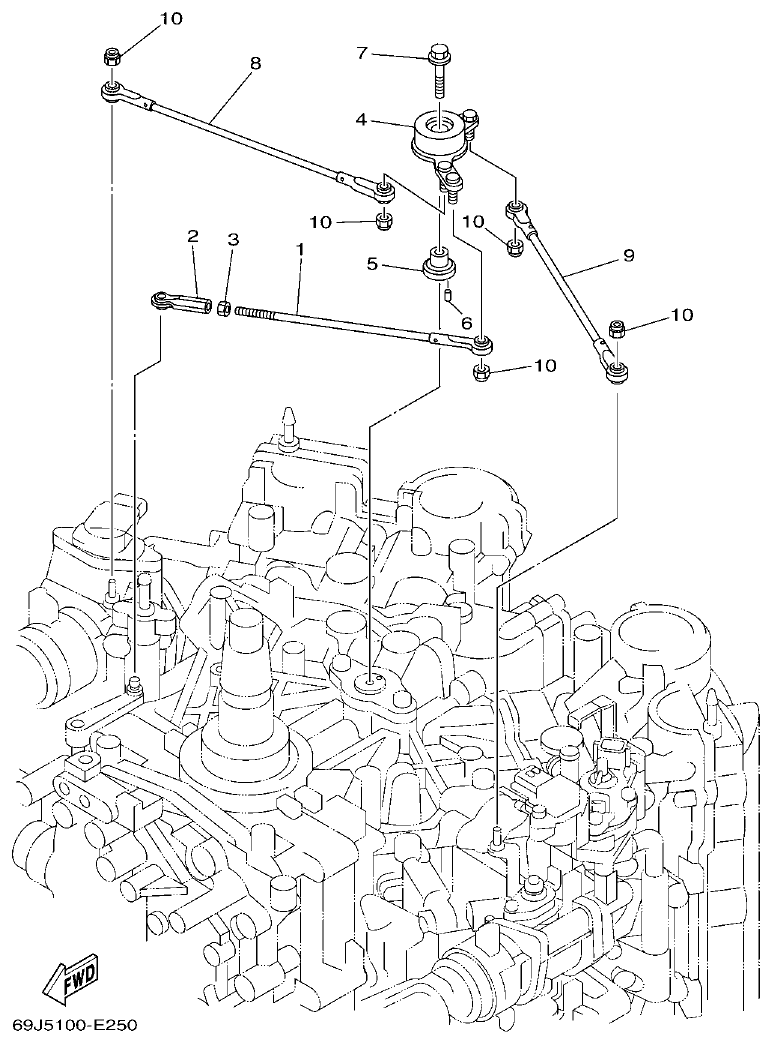

Fig. 25 — CONTROL 3
10 items
· 1 available products

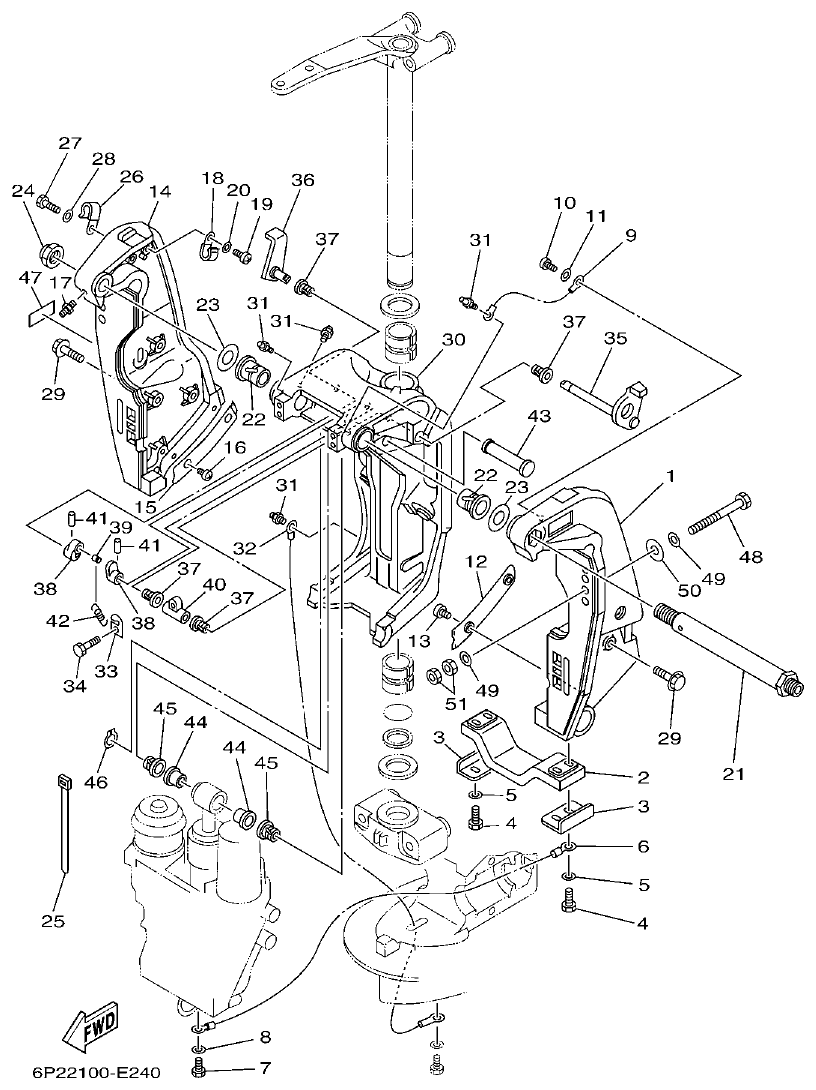

Fig. 26 — BRACKET 1
52 items
· 8 available products

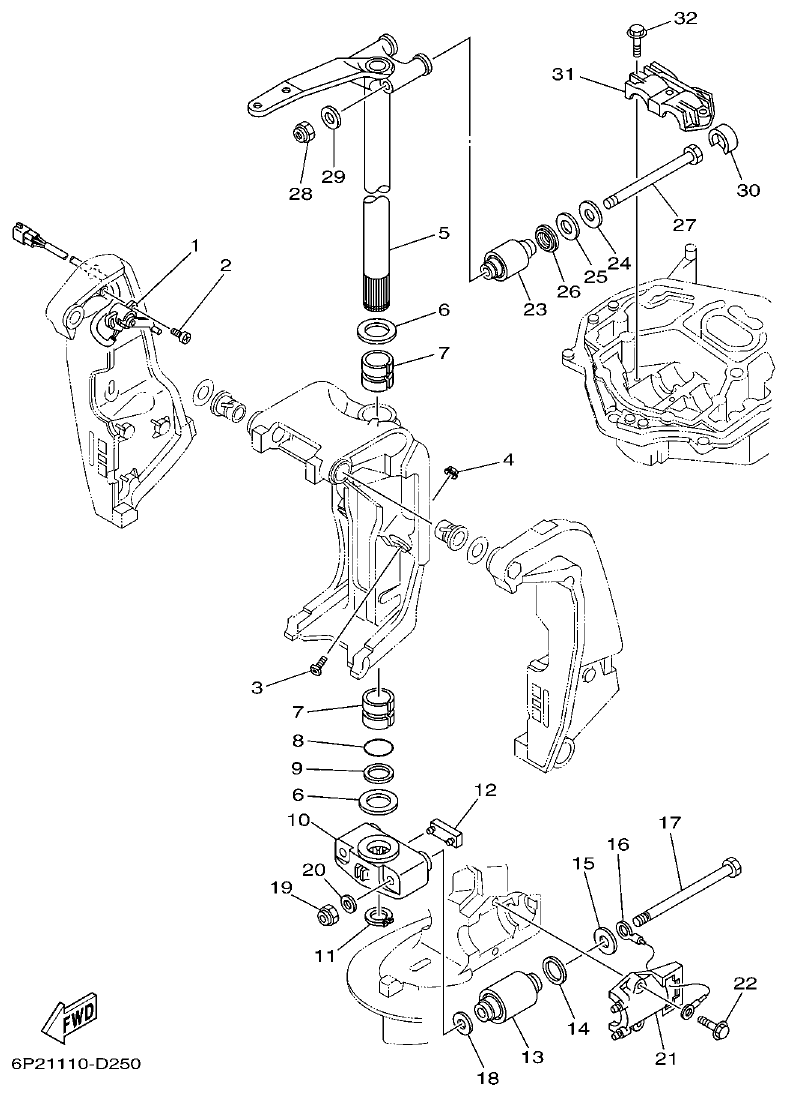

Fig. 27 — BRACKET 2
34 items
· 5 available products

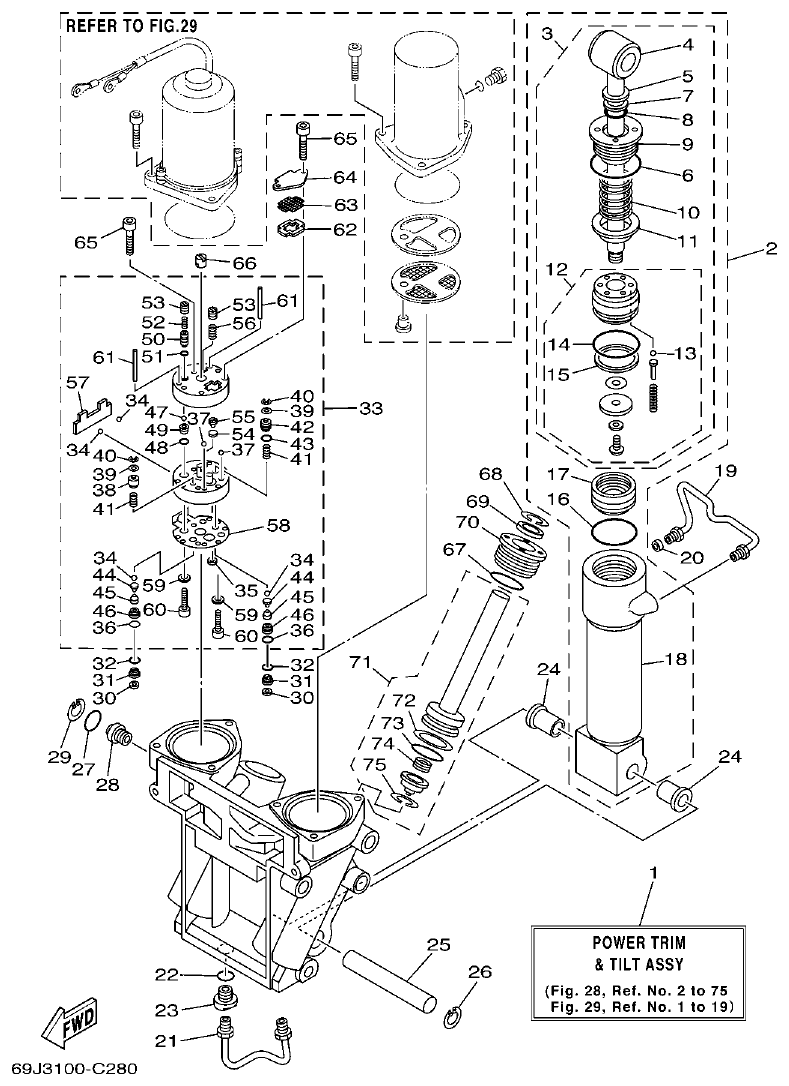

Fig. 28 — POWER TRIM & TILT ASSY 1
75 items
· 21 available products

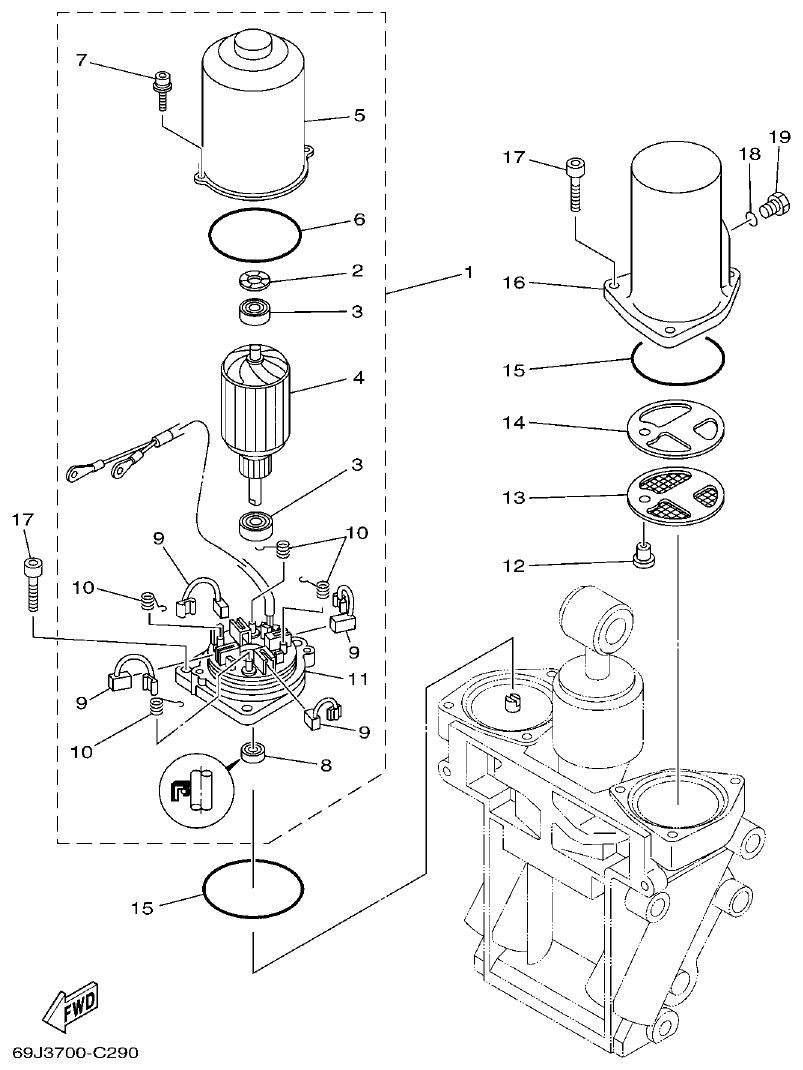

Fig. 29 — POWER TRIM & TILT ASSY 2
19 items
· 11 available products

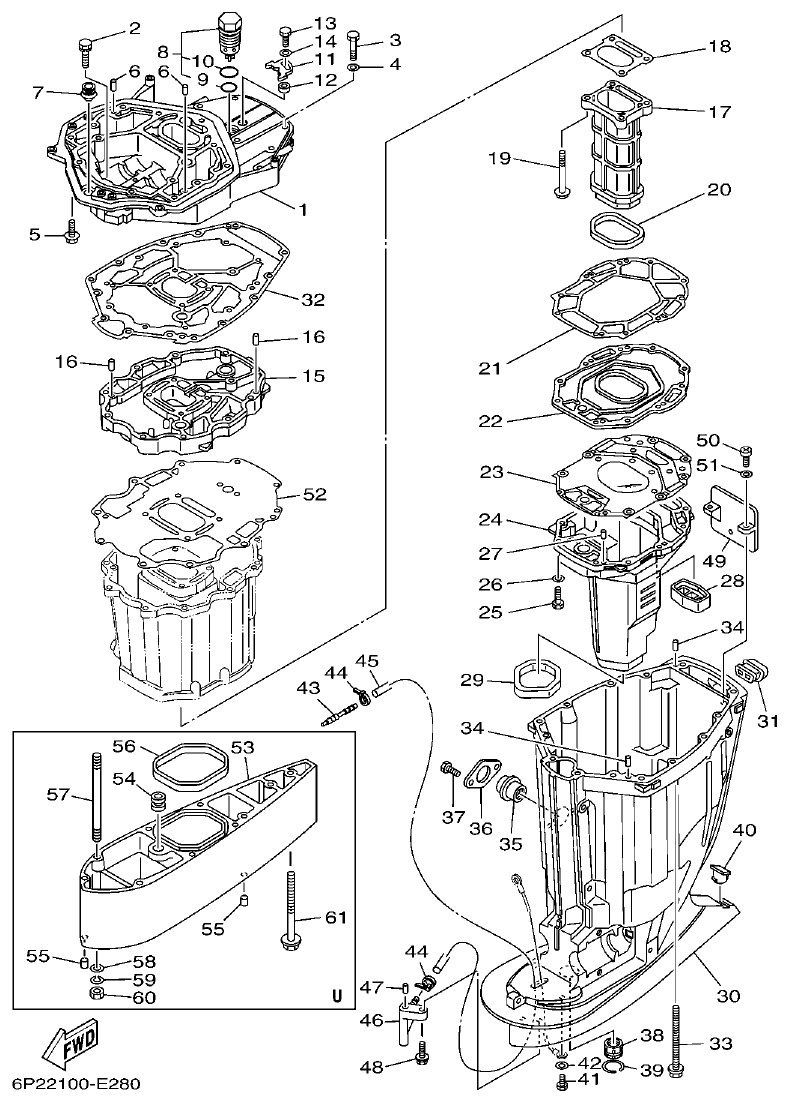

Fig. 30 — UPPER CASING
62 items
· 10 available products

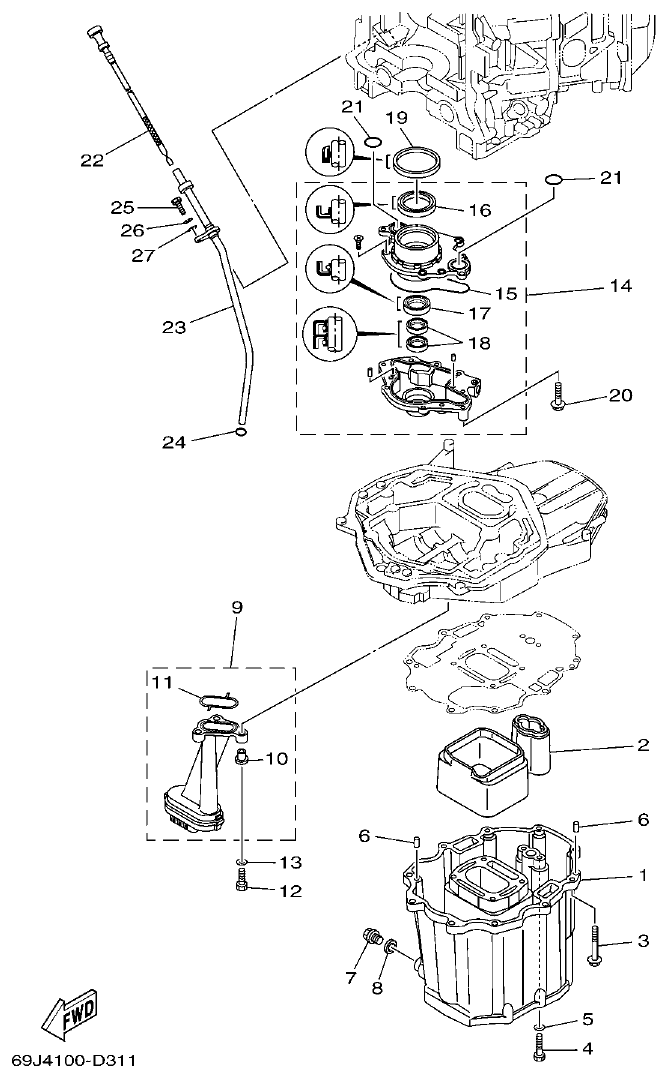

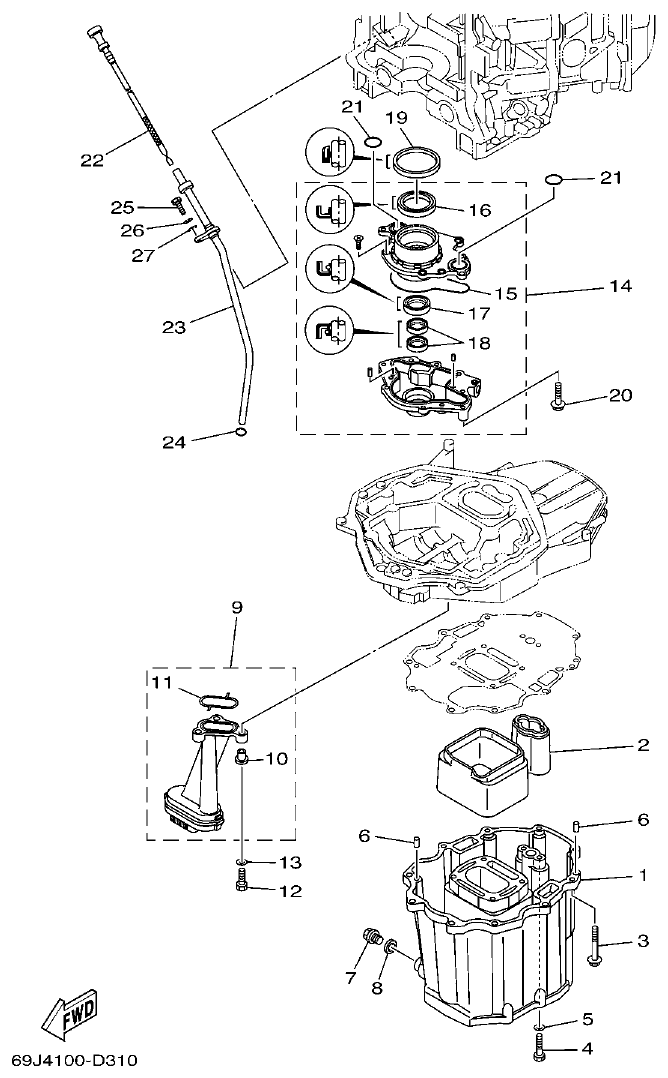

Fig. 31 — OIL PAN
27 items
· 5 available products

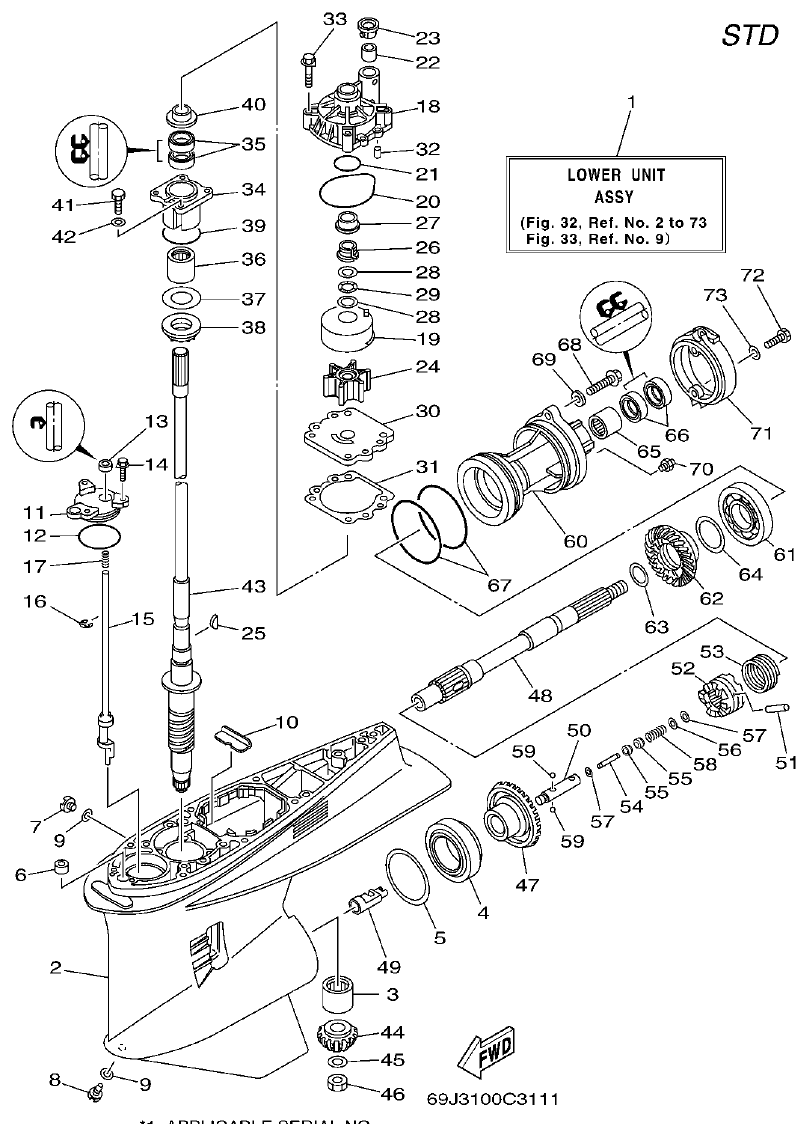

Fig. 32 — LOWER CASING & DRIVE 1
96 items
· 42 available products

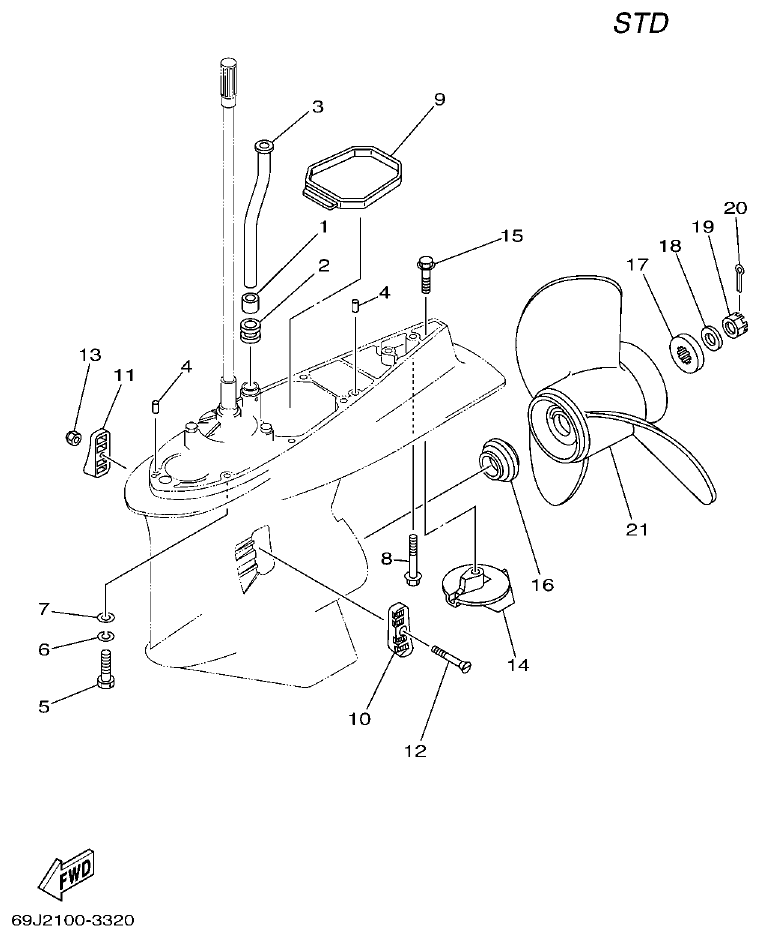

Fig. 33 — LOWER CASING & DRIVE 2
35 items
· 6 available products

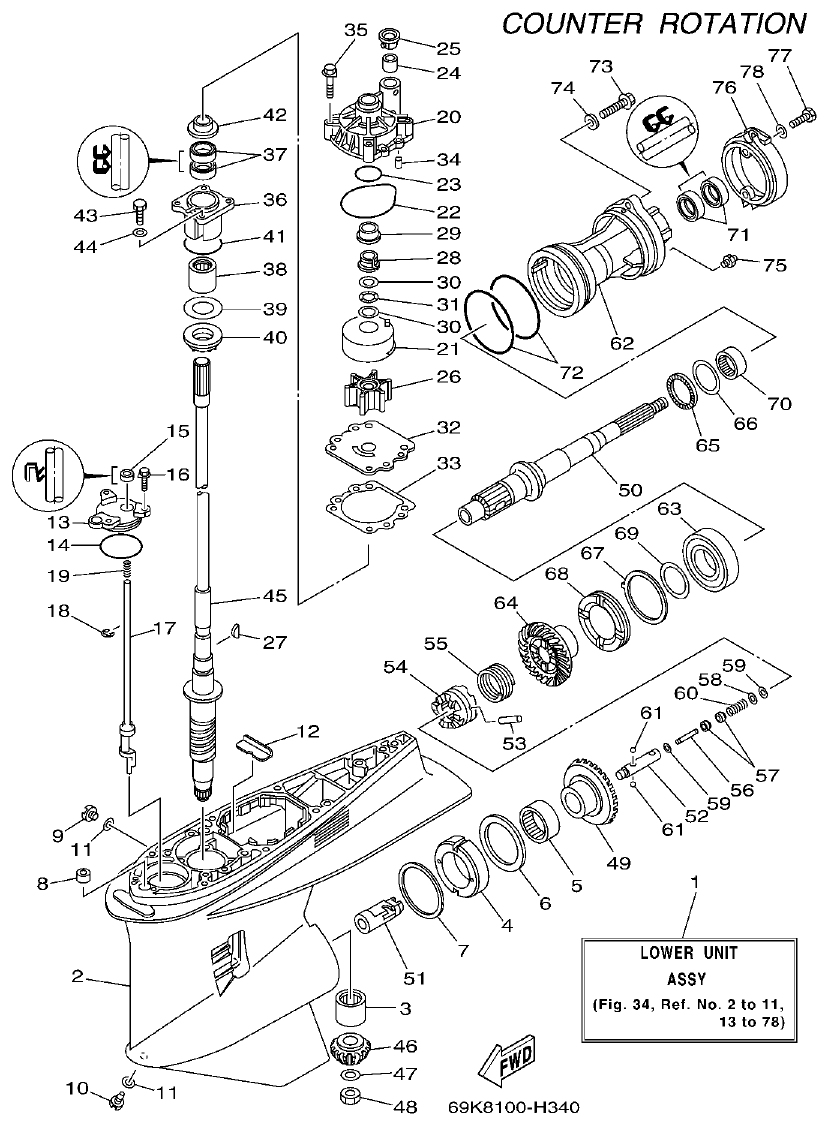

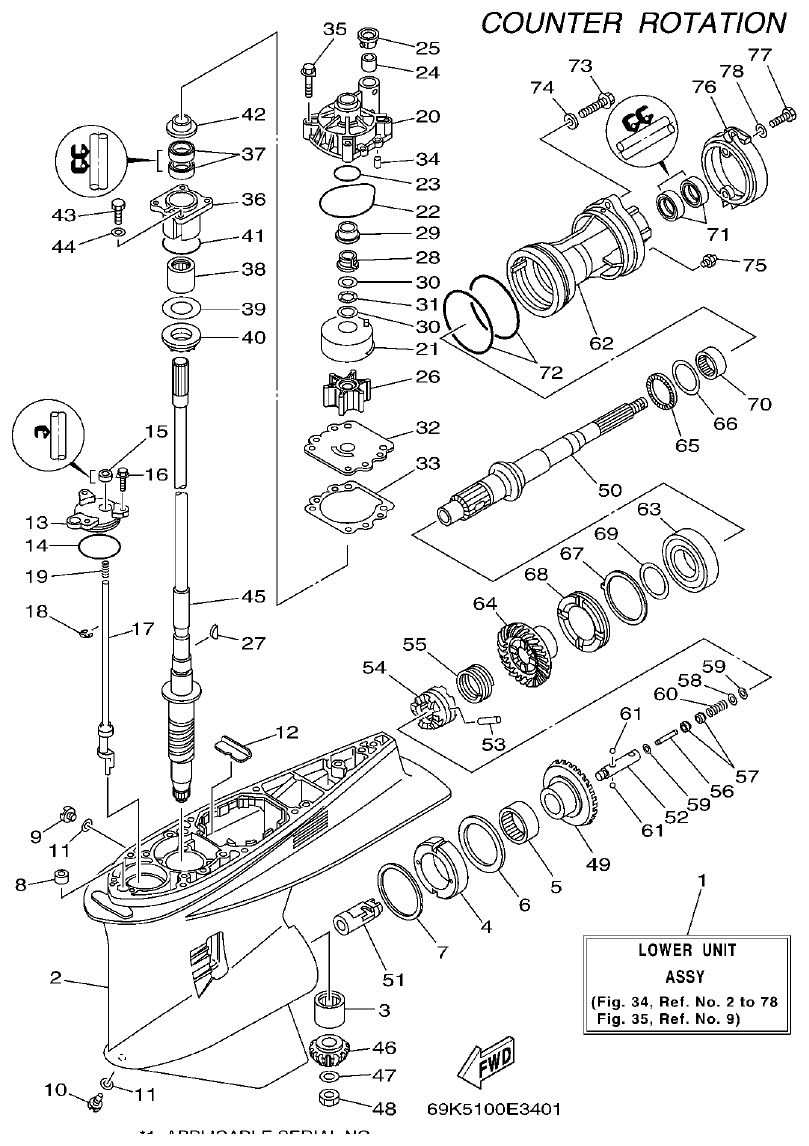

Fig. 34 — LOWER CASING & DRIVE 3
107 items
· 47 available products

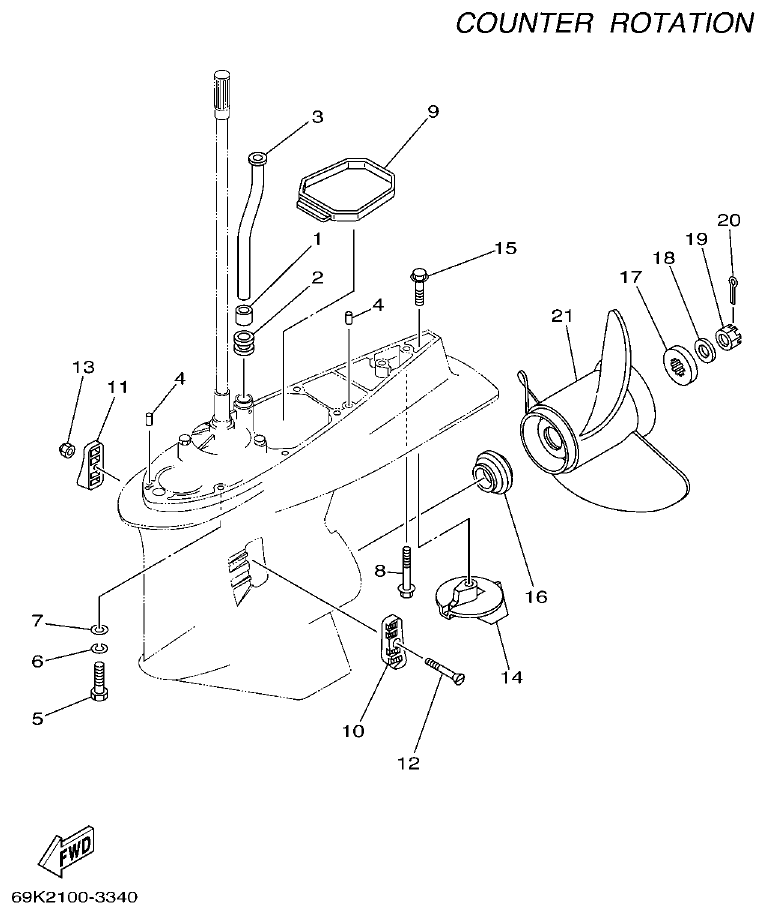

Fig. 35 — LOWER CASING & DRIVE 4
34 items
· 5 available products

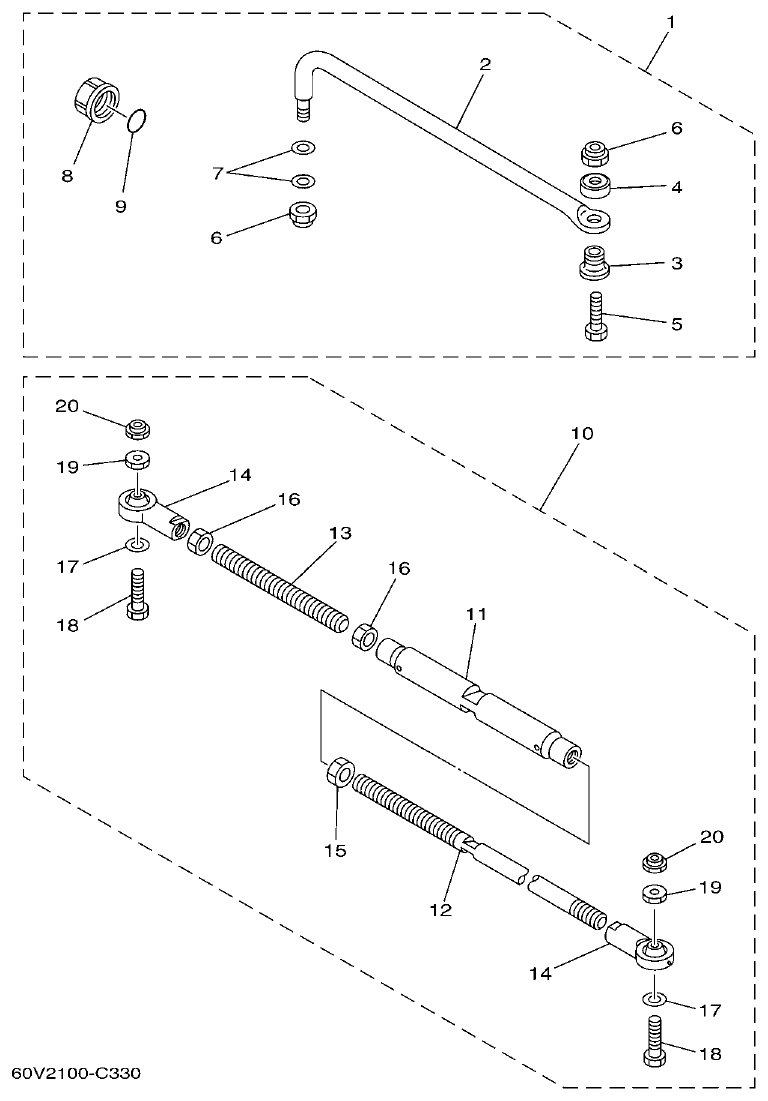

Fig. 36 — STEERING GUIDE
20 items
· 3 available products

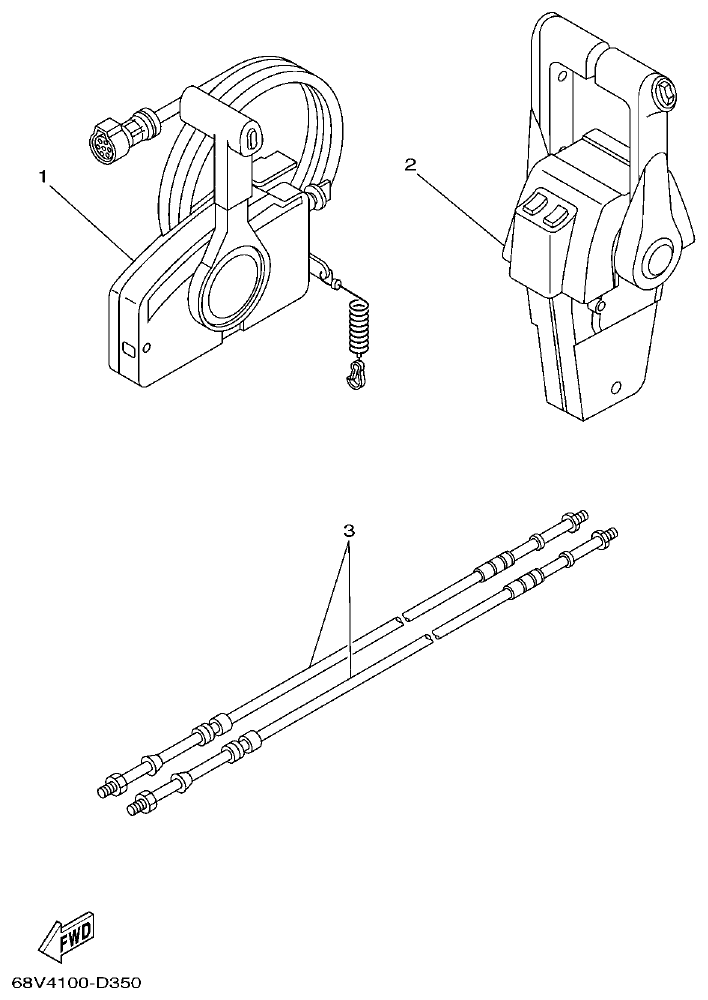

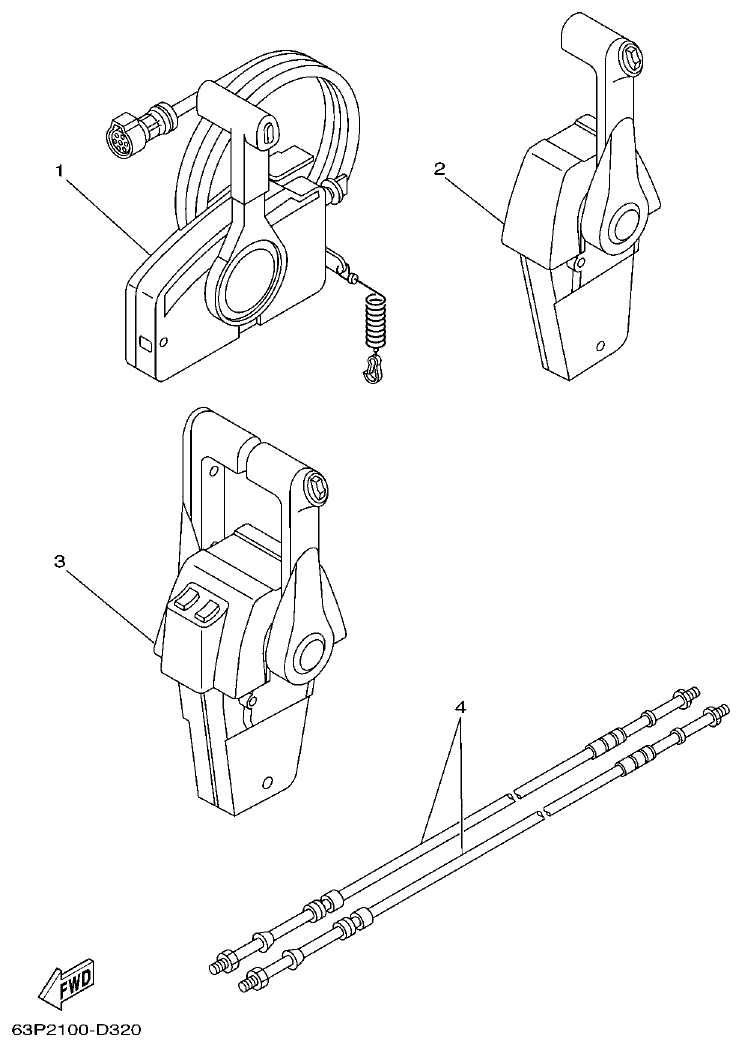

Fig. 37 — REMOTE CONTROL BOX
8 items

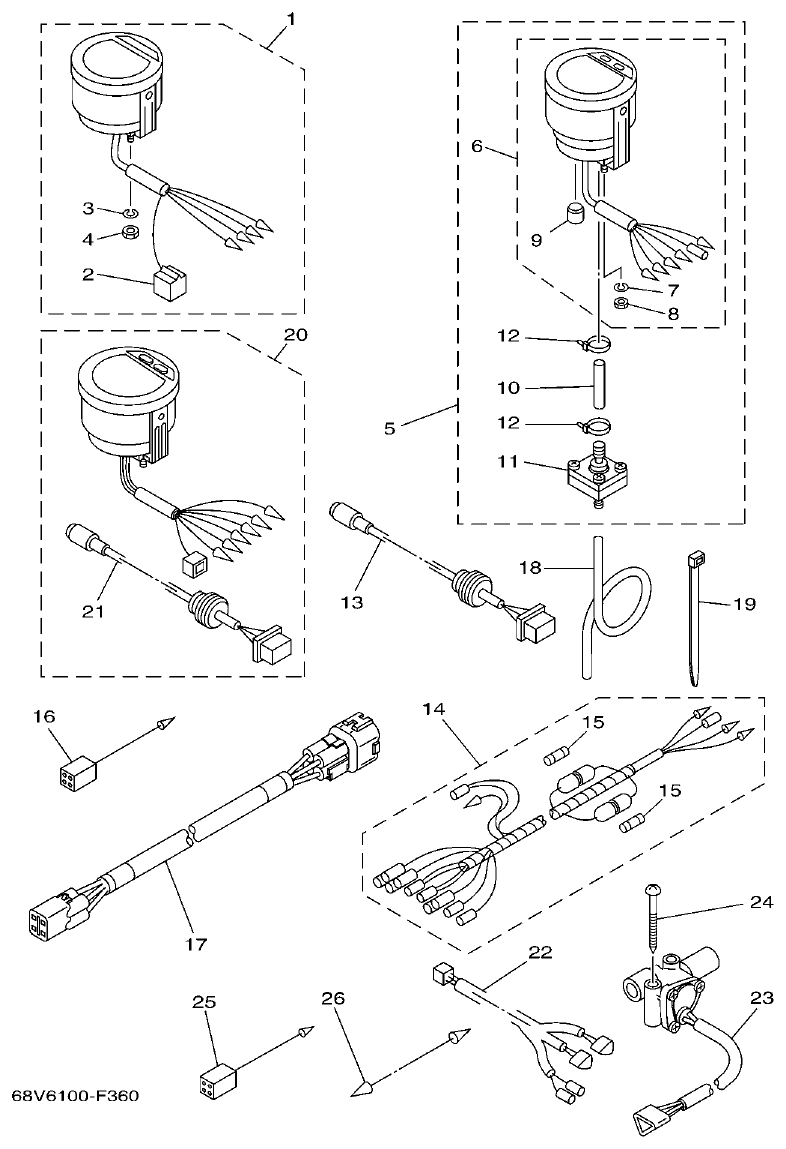

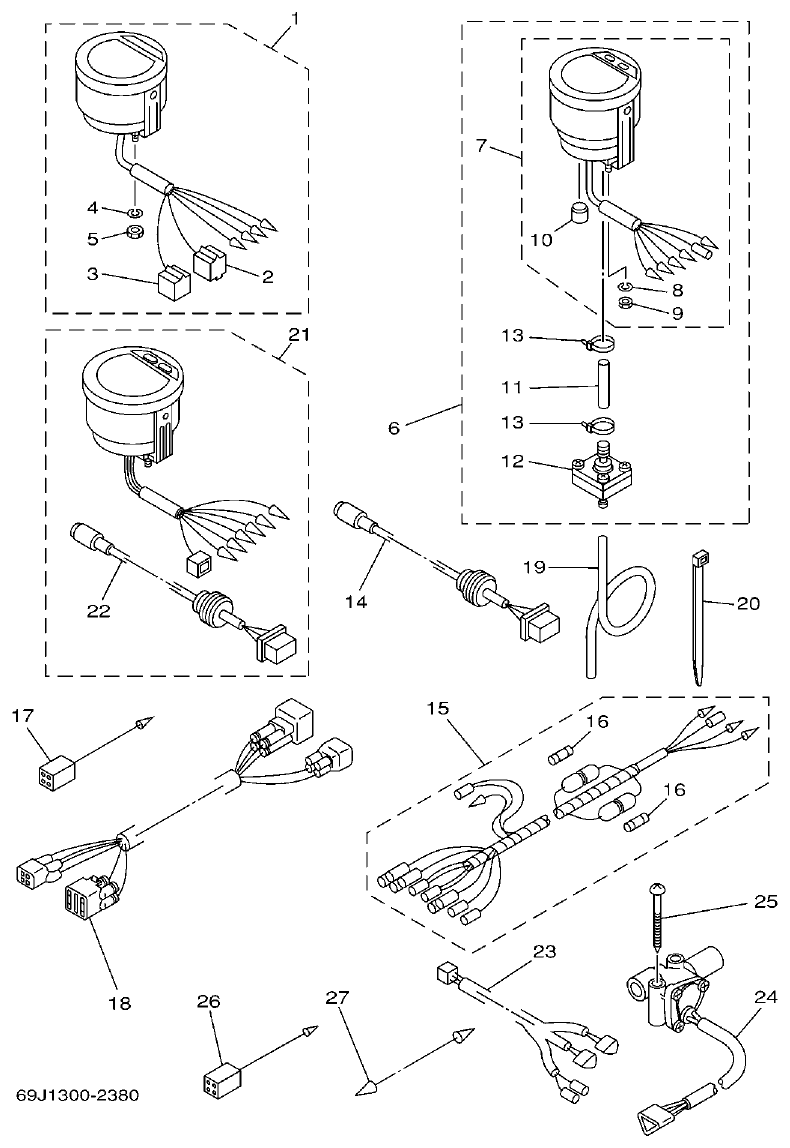

Fig. 38 — METER
30 items
· 2 available products

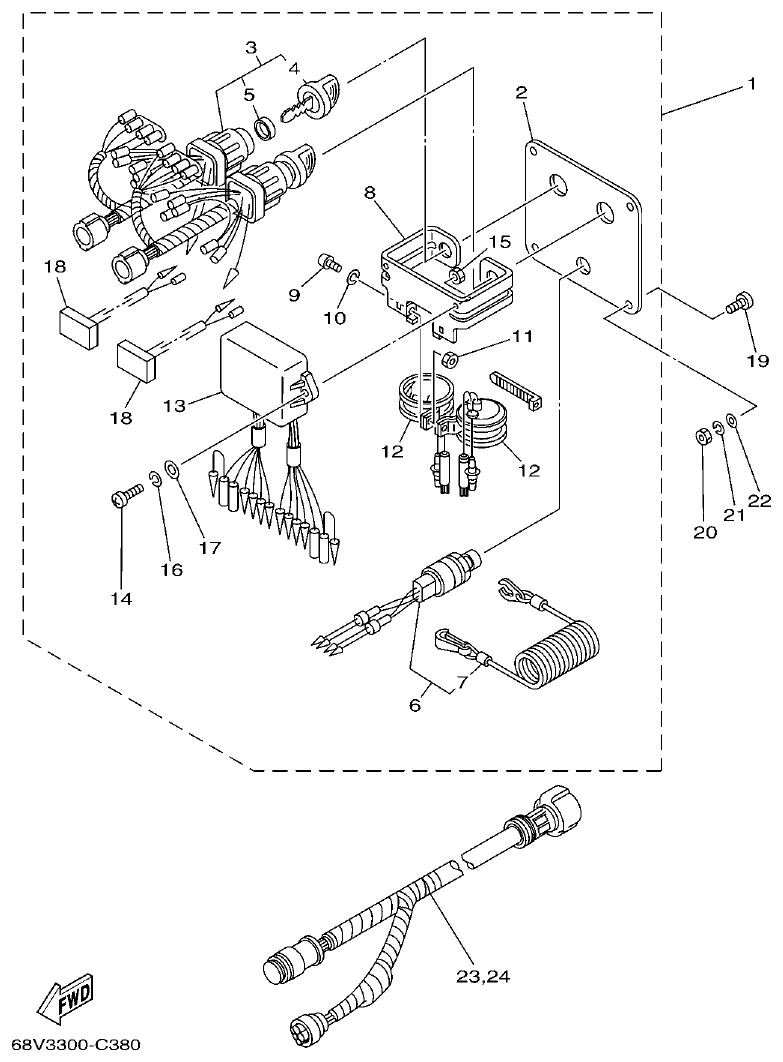

Fig. 39 — SWITCH & PANEL 1
24 items
· 2 available products

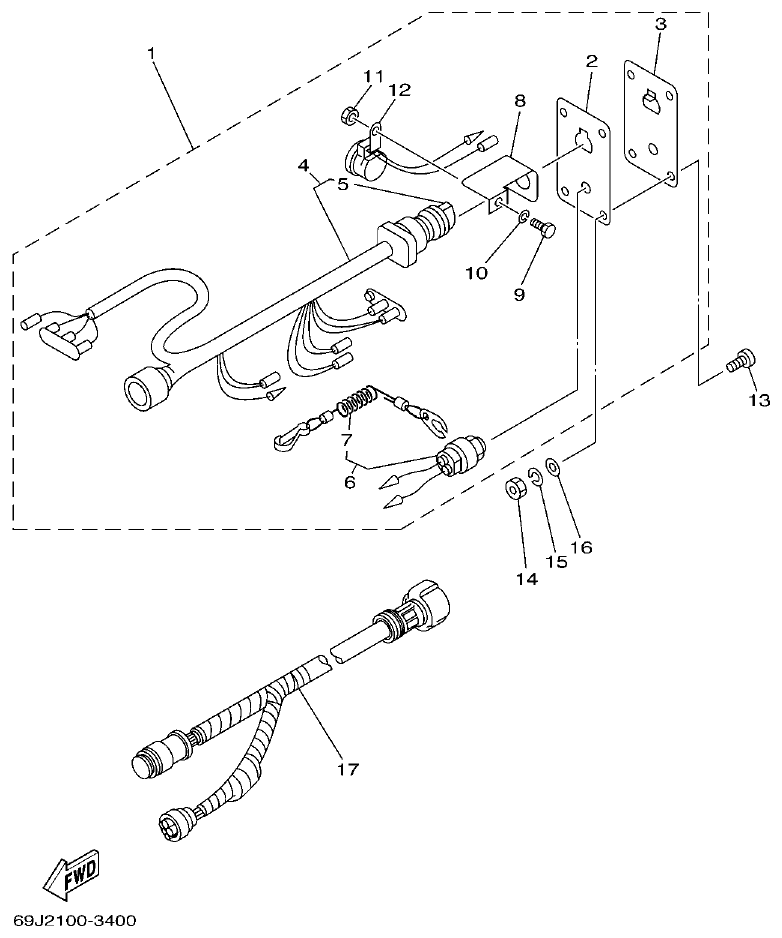

Fig. 40 — SWITCH & PANEL 2
17 items
· 1 available products

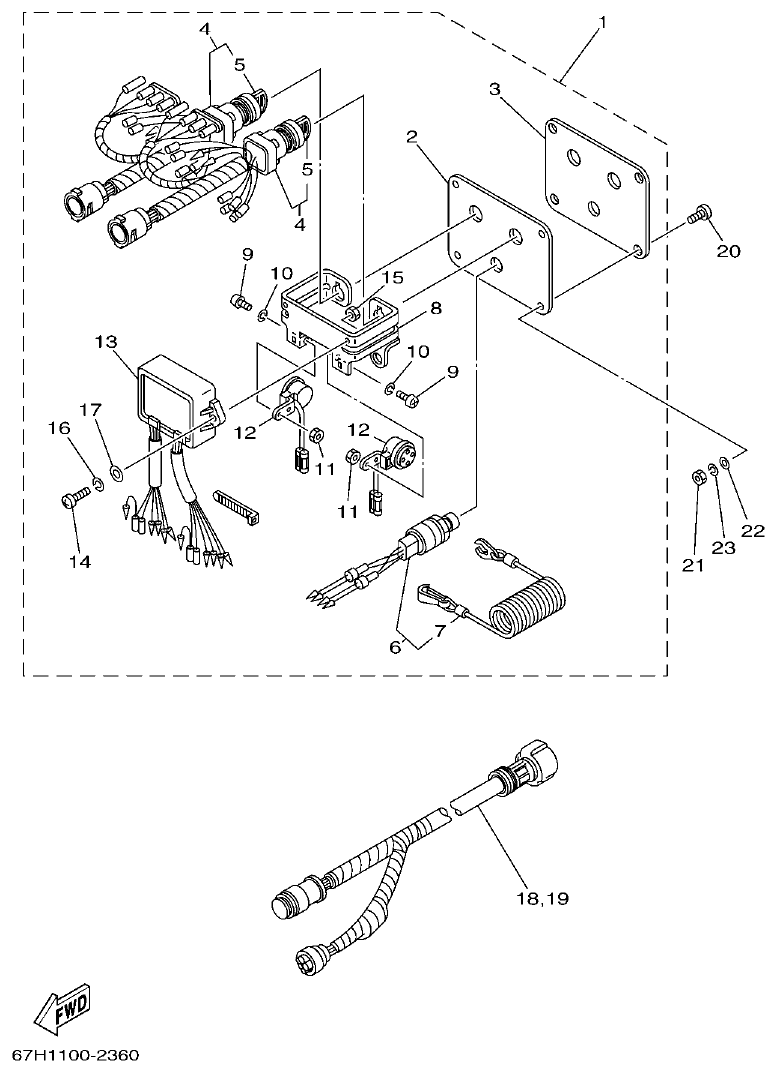

Fig. 41 — SWITCH & PANEL 3
23 items
· 1 available products

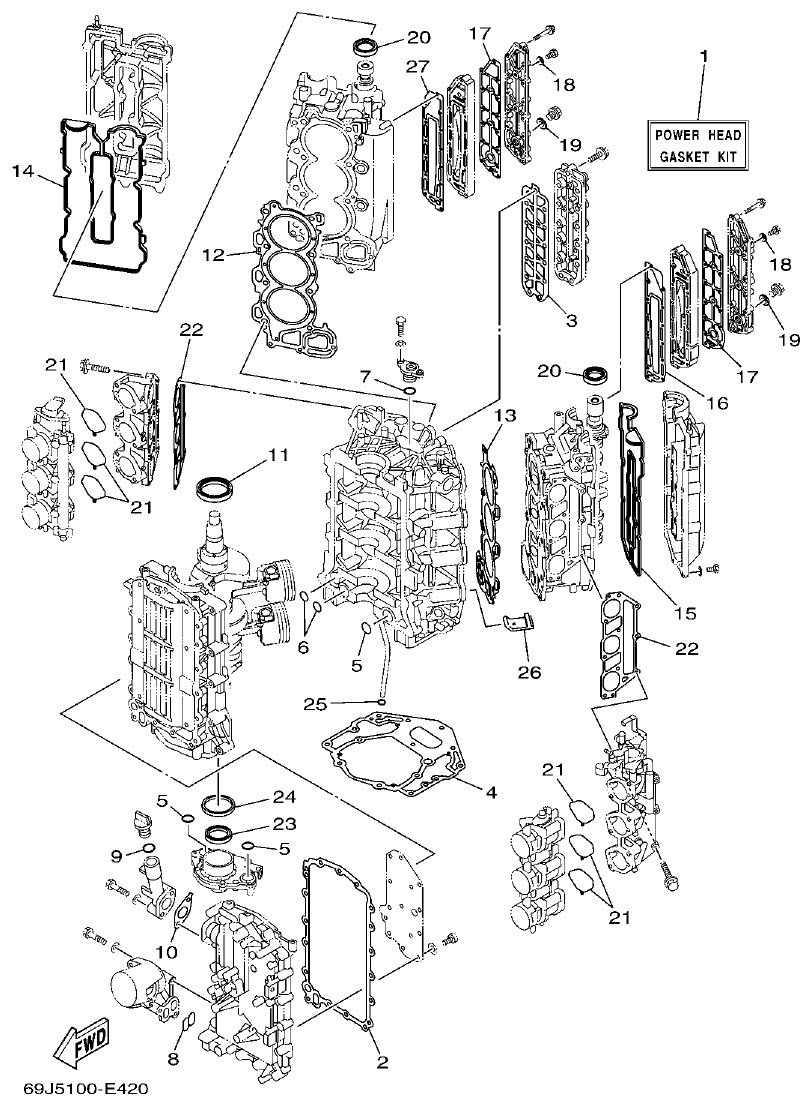

Fig. 42 — REPAIR KIT 1
27 items
· 10 available products

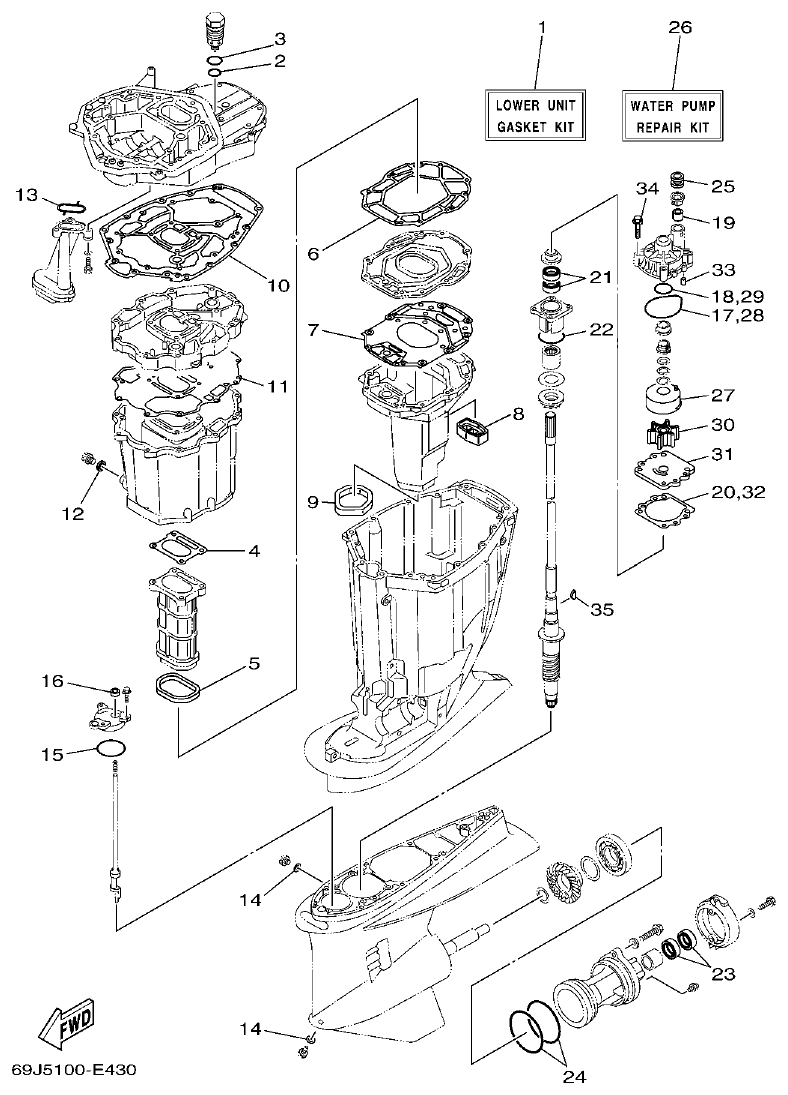

Fig. 43 — REPAIR KIT 2
35 items
· 9 available products
 2017_de/images/fig-1-top-cowling.png)
Fig. 1 — TOP COWLING
28 items
· 1 available products

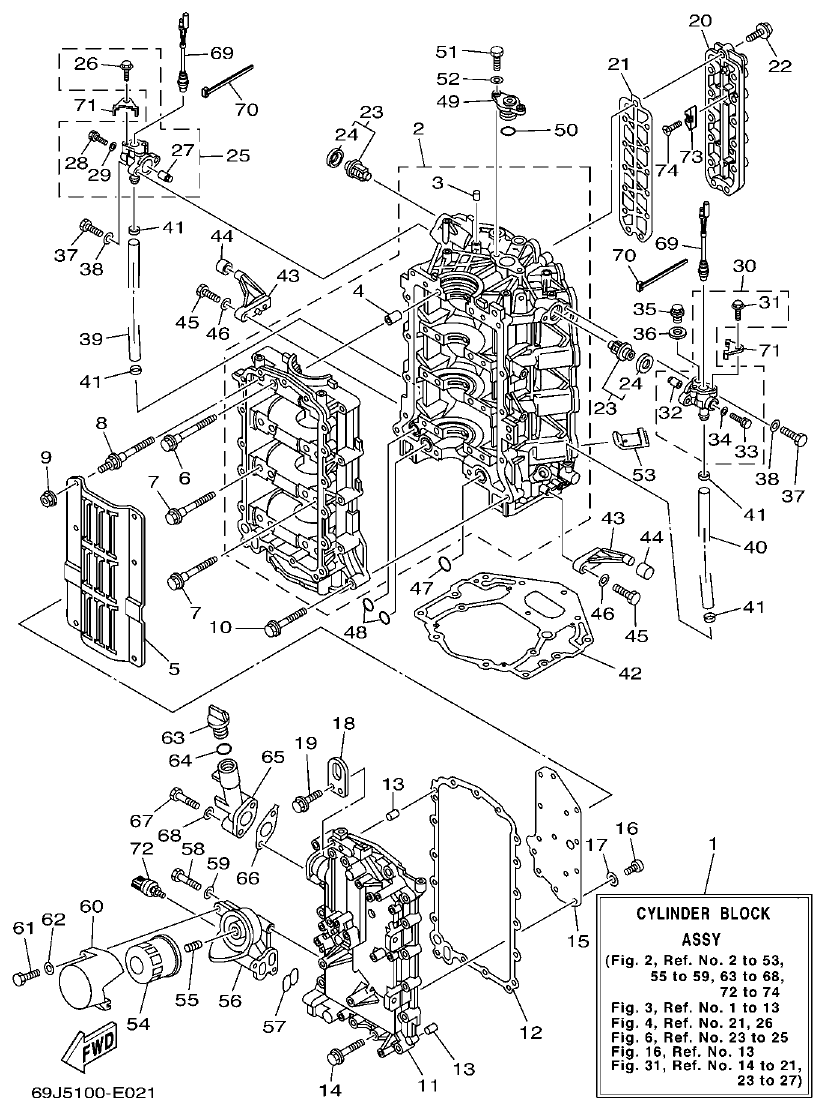

 2017_de/images/fig-2-cylinder-crankcase-1.png)
Fig. 2 — CYLINDER & CRANKCASE 1
74 items
· 7 available products

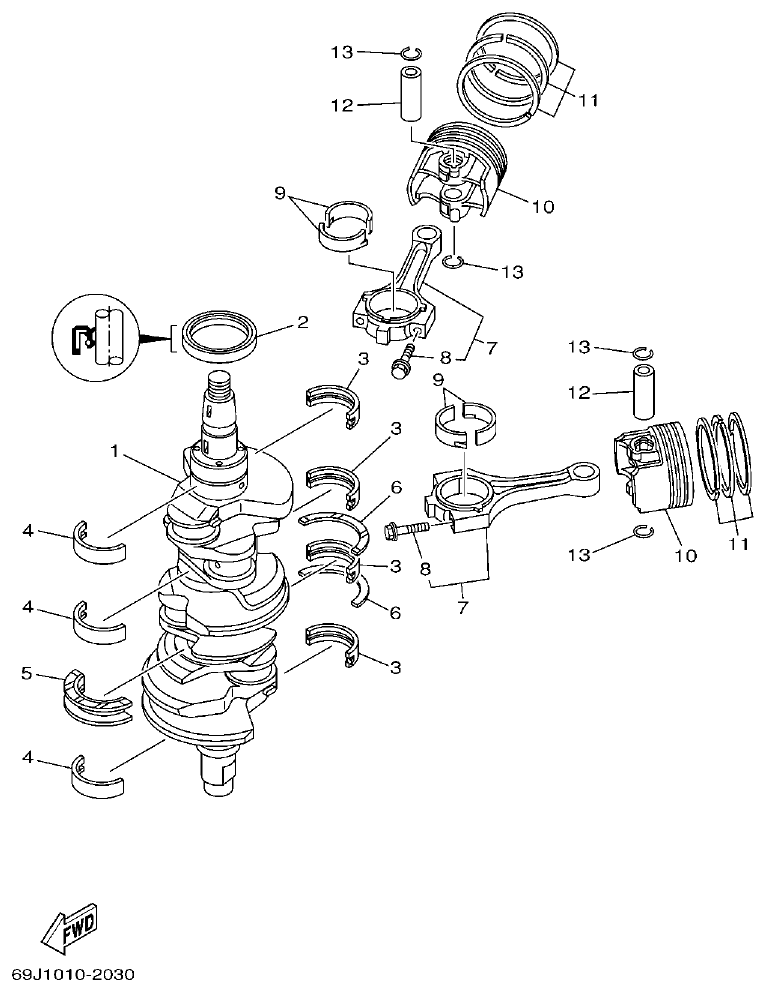

 2017_de/images/fig-3-crankshaft-piston.png)
Fig. 3 — CRANKSHAFT & PISTON
23 items
· 12 available products
 2017_de/images/fig-4-cylinder-crankcase-2.png)
Fig. 4 — CYLINDER & CRANKCASE 2
42 items
· 6 available products
 2017_de/images/fig-5-cylinder-crankcase-3.png)
Fig. 5 — CYLINDER & CRANKCASE 3
24 items
· 5 available products
 2017_de/images/fig-6-valve.png)
Fig. 6 — VALVE
57 items
· 18 available products
 2017_de/images/fig-7-intake-1.png)
Fig. 7 — INTAKE 1
34 items
· 3 available products
 2017_de/images/fig-8-intake-2.png)
Fig. 8 — INTAKE 2
23 items
· 1 available products

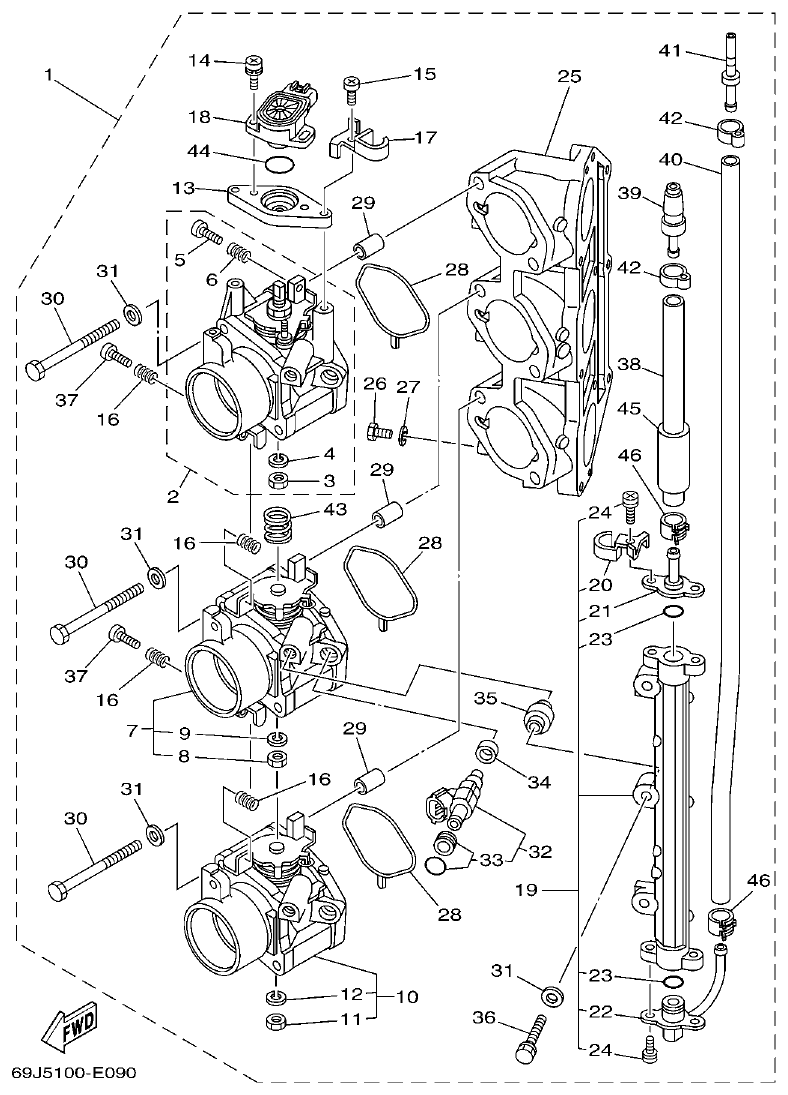

 2017_de/images/fig-9-throttle-body-assy-1.png)
Fig. 9 — THROTTLE BODY ASSY 1
51 items
· 6 available products
 2017_de/images/fig-10-throttle-body-assy-2.png)
Fig. 10 — THROTTLE BODY ASSY 2
39 items
· 5 available products

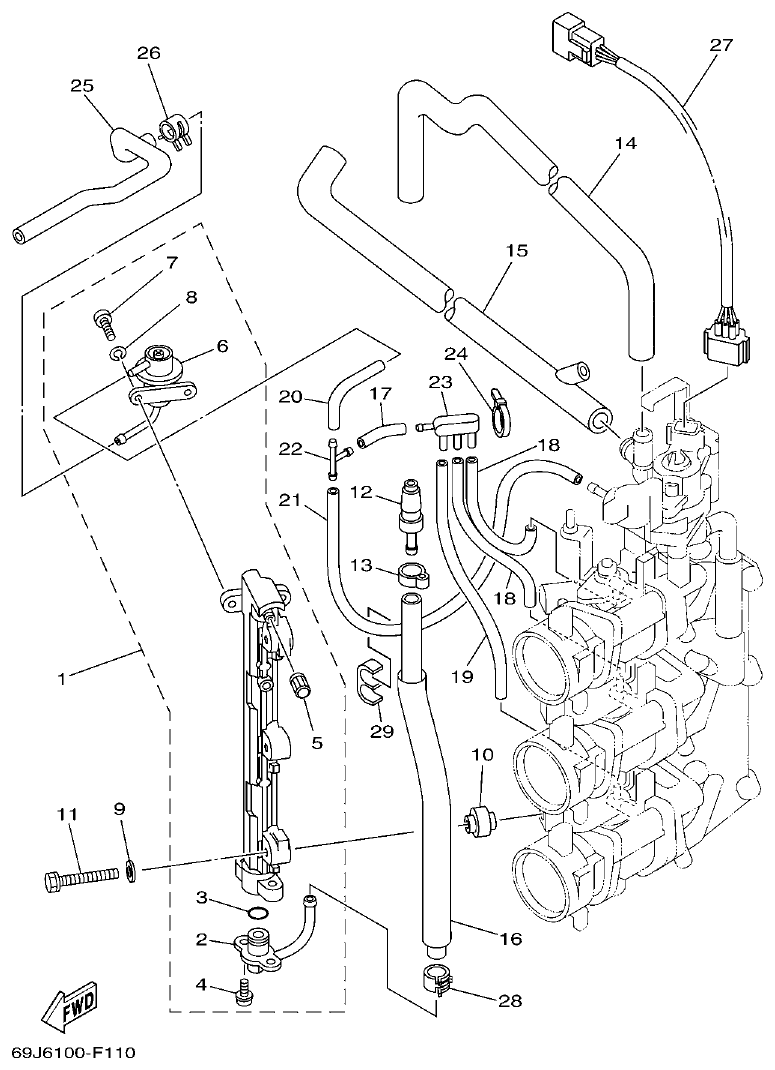

 2017_de/images/fig-11-throttle-body-assy-3.png)
Fig. 11 — THROTTLE BODY ASSY 3
29 items
· 4 available products
 2017_de/images/fig-12-fuel-injection-pump-1.png)
Fig. 12 — FUEL INJECTION PUMP 1
44 items
· 3 available products
 2017_de/images/fig-13-fuel-injection-pump-2.png)
Fig. 13 — FUEL INJECTION PUMP 2
24 items
· 2 available products

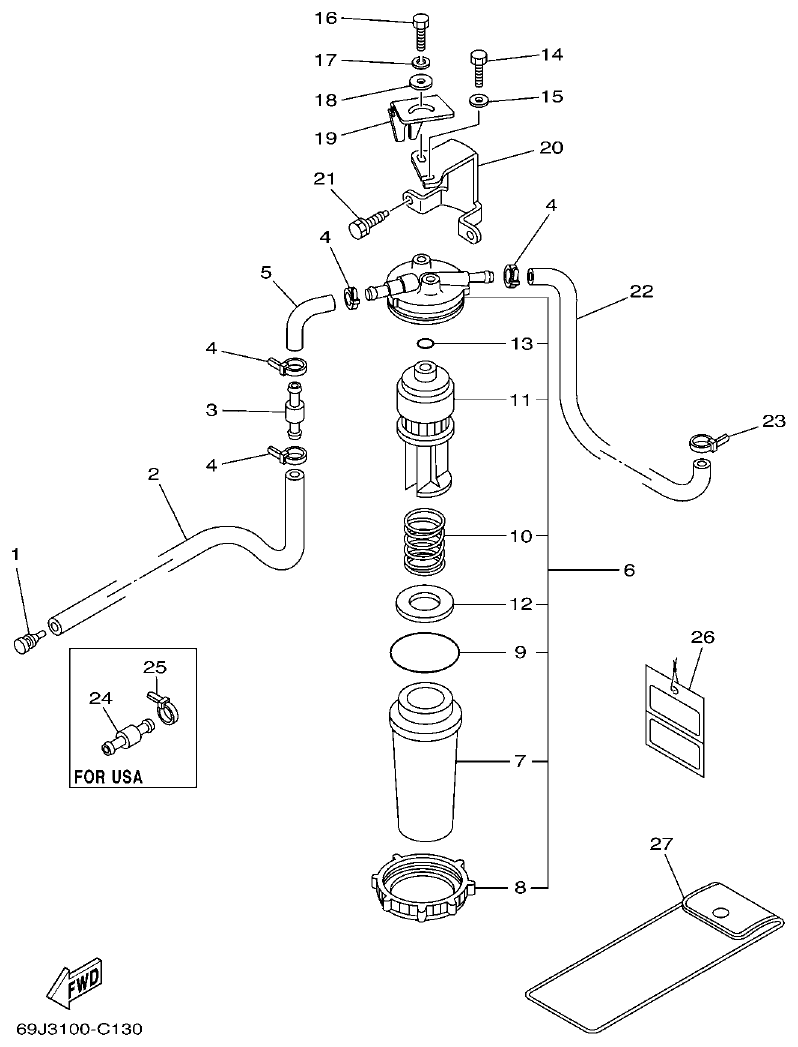

 2017_de/images/fig-14-fuel-1.png)
Fig. 14 — FUEL 1
21 items
· 2 available products

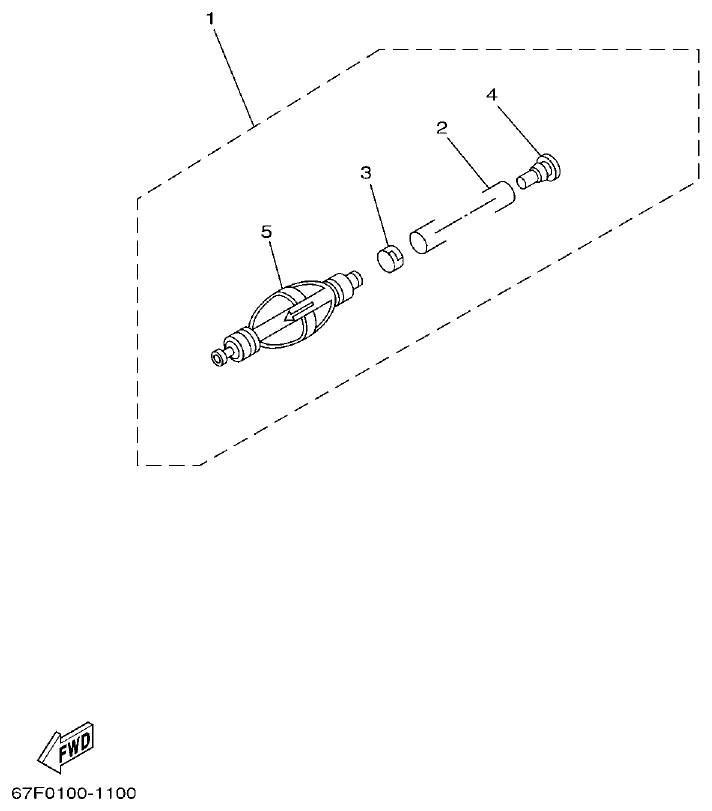

 2017_de/images/fig-15-fuel-2.png)
Fig. 15 — FUEL 2
5 items
· 2 available products
 2017_de/images/fig-16-generator.png)
Fig. 16 — GENERATOR
33 items
 2017_de/images/fig-17-electrical-1.png)
Fig. 17 — ELECTRICAL 1
31 items
· 1 available products
 2017_de/images/fig-18-electrical-2.png)
Fig. 18 — ELECTRICAL 2
47 items
· 2 available products
 2017_de/images/fig-19-electrical-3.png)
Fig. 19 — ELECTRICAL 3
24 items
· 1 available products
 2017_de/images/fig-20-starting-motor.png)
Fig. 20 — STARTING MOTOR
30 items
· 2 available products
 2017_de/images/fig-21-bottom-cowling-1.png)
Fig. 21 — BOTTOM COWLING 1
55 items
· 4 available products
 2017_de/images/fig-22-bottom-cowling-2.png)
Fig. 22 — BOTTOM COWLING 2
19 items
· 4 available products
 2017_de/images/fig-23-control-1.png)
Fig. 23 — CONTROL 1
38 items
· 6 available products
 2017_de/images/fig-24-control-2.png)
Fig. 24 — CONTROL 2
30 items
· 1 available products
 2017_de/images/fig-25-control-3.png)
Fig. 25 — CONTROL 3
10 items
· 1 available products
 2017_de/images/fig-26-bracket-1.png)
Fig. 26 — BRACKET 1
52 items
· 8 available products

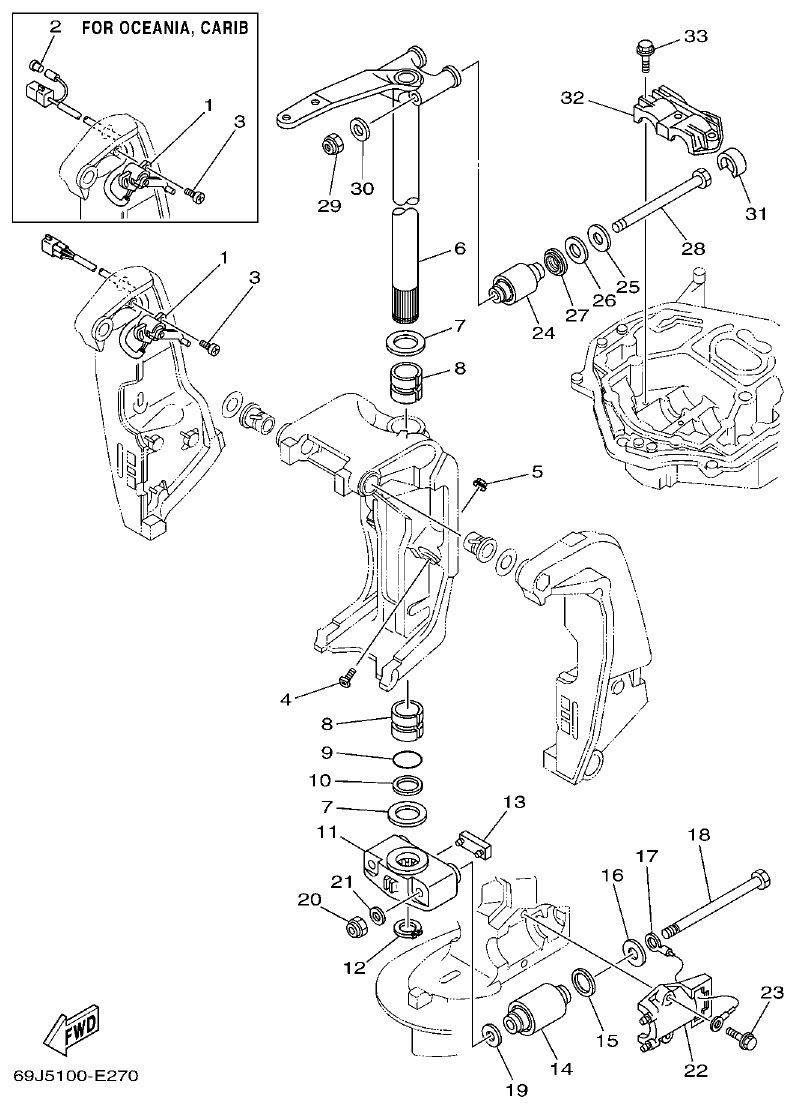

 2017_de/images/fig-27-bracket-2.png)
Fig. 27 — BRACKET 2
32 items
· 5 available products
 2017_de/images/fig-28-power-trim-tilt-assy-1.png)
Fig. 28 — POWER TRIM & TILT ASSY 1
75 items
· 21 available products
 2017_de/images/fig-29-power-trim-tilt-assy-2.png)
Fig. 29 — POWER TRIM & TILT ASSY 2
19 items
· 11 available products
 2017_de/images/fig-30-upper-casing.png)
Fig. 30 — UPPER CASING
62 items
· 10 available products
 2017_de/images/fig-31-oil-pan.png)
Fig. 31 — OIL PAN
27 items
· 5 available products

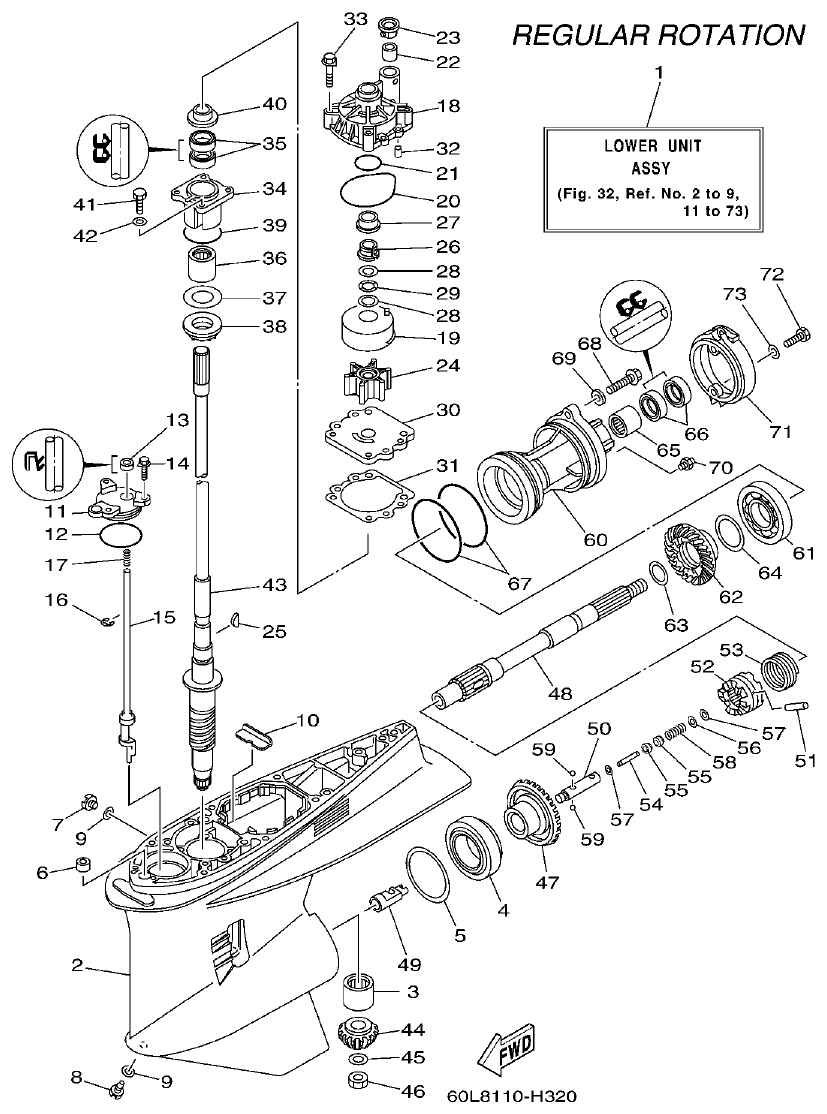

 2017_de/images/fig-32-lower-casing-drive-1.png)
