Yamaha F200FET, FL200FET Parts Catalog

Yamaha F200FET, FL200FET Outboard parts and diagrams

Yamaha F200FET, FL200FET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, CYLINDER & CRANKCASE 4, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

330 linked store products are available across 52 catalog sections. 1555 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha F200FET, FL200FET SCHEDULED SERVICE PARTS parts diagram

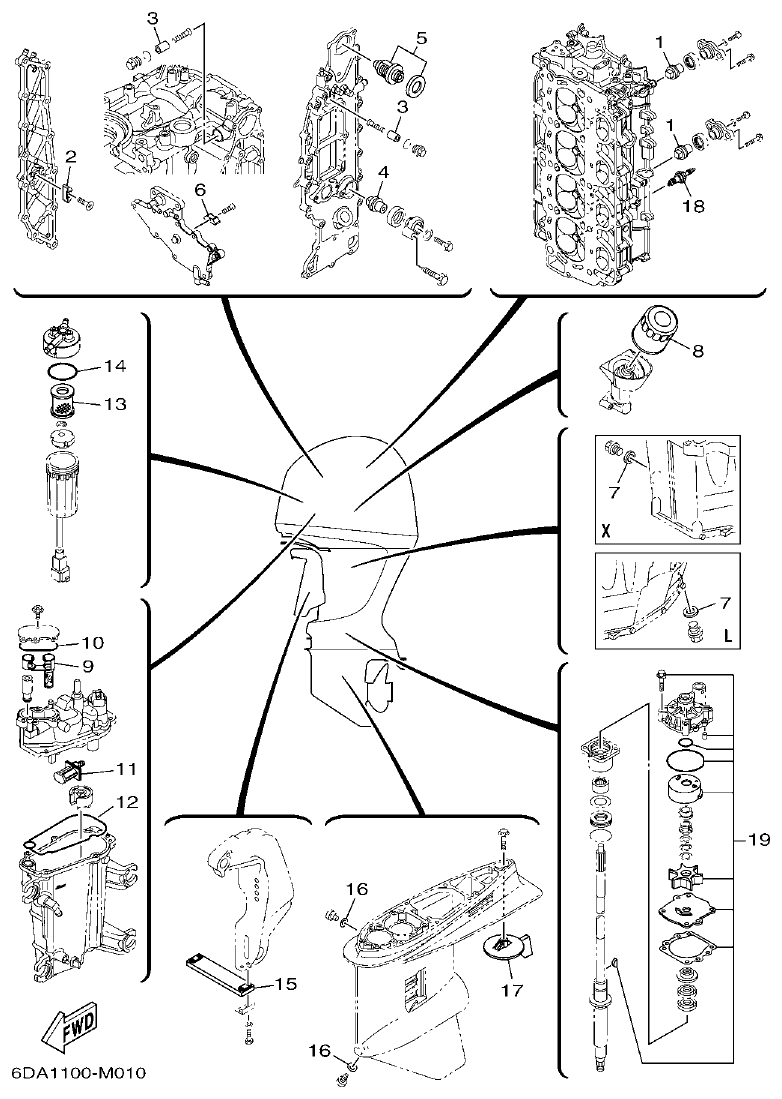

Fig. 1 — SCHEDULED SERVICE PARTS
20 items · 15 available products
Yamaha F200FET, FL200FET TOP COWLING parts diagram

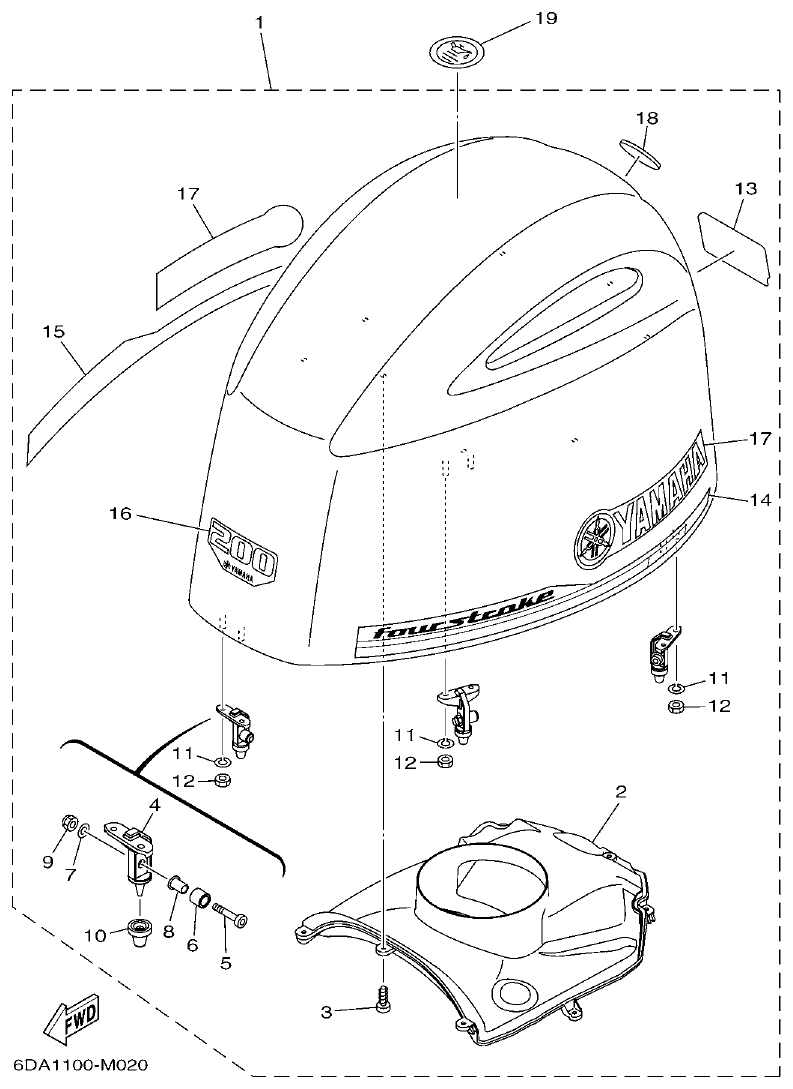

Fig. 2 — TOP COWLING
19 items · 1 available products
Yamaha F200FET, FL200FET CYLINDER & CRANKCASE 1 parts diagram

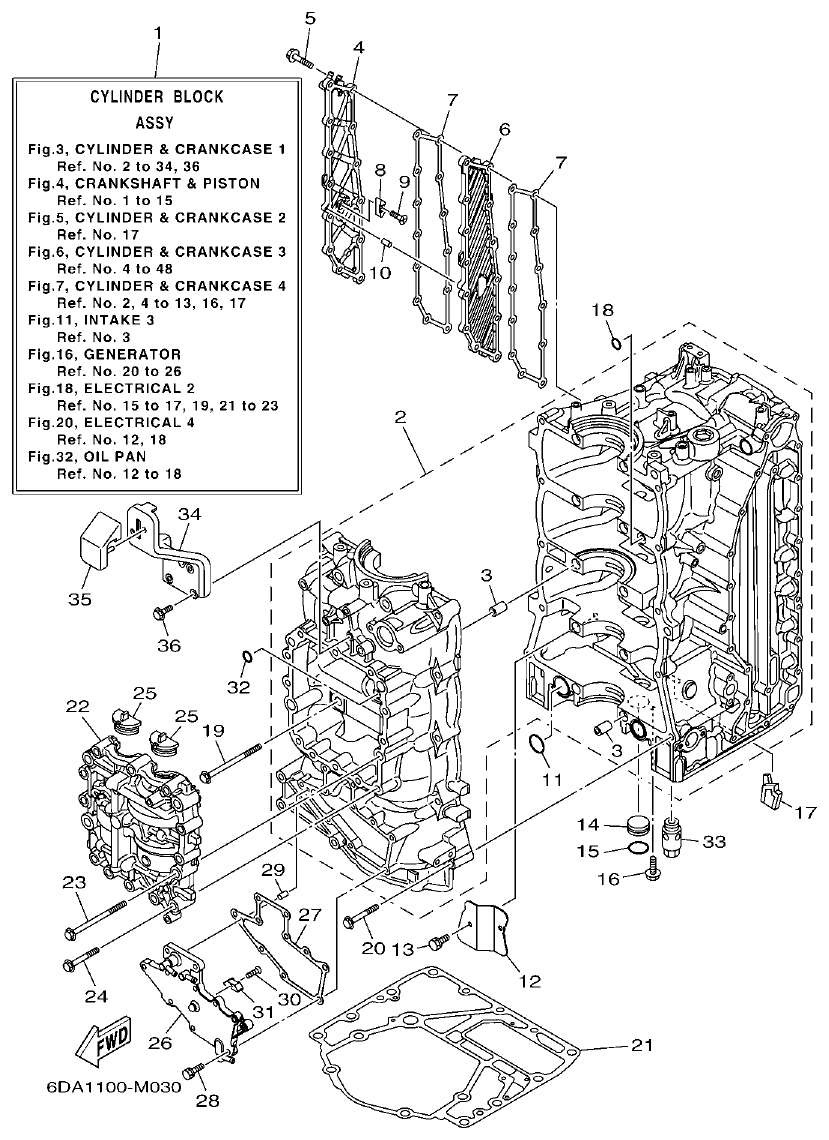

Fig. 3 — CYLINDER & CRANKCASE 1
36 items · 3 available products

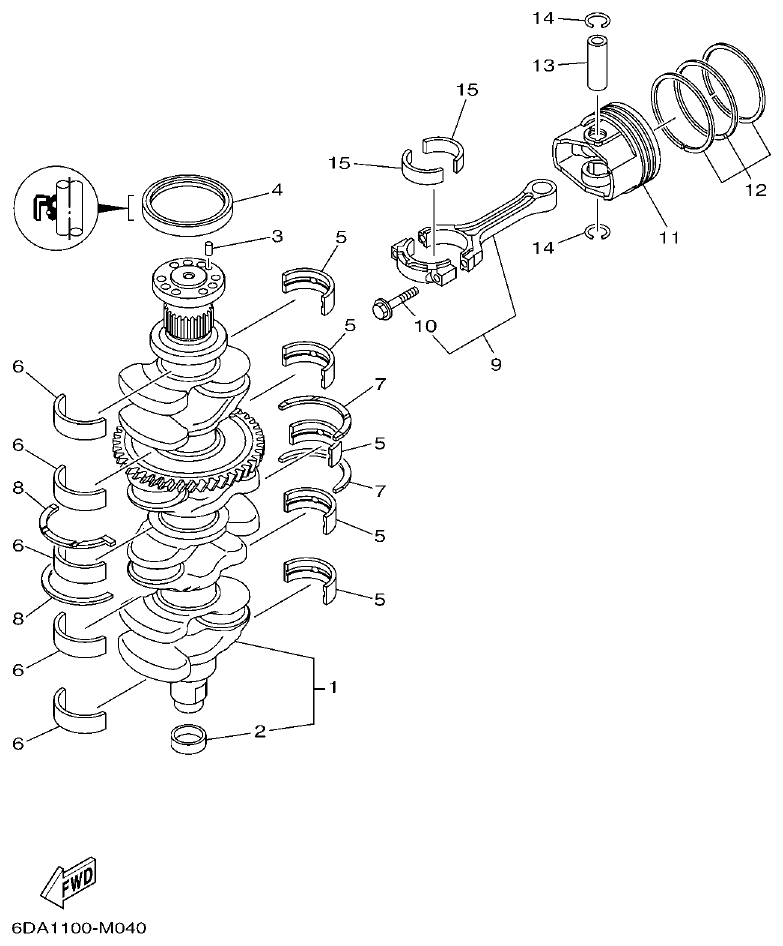

Yamaha F200FET, FL200FET CRANKSHAFT & PISTON parts diagram
Fig. 4 — CRANKSHAFT & PISTON
21 items · 10 available products

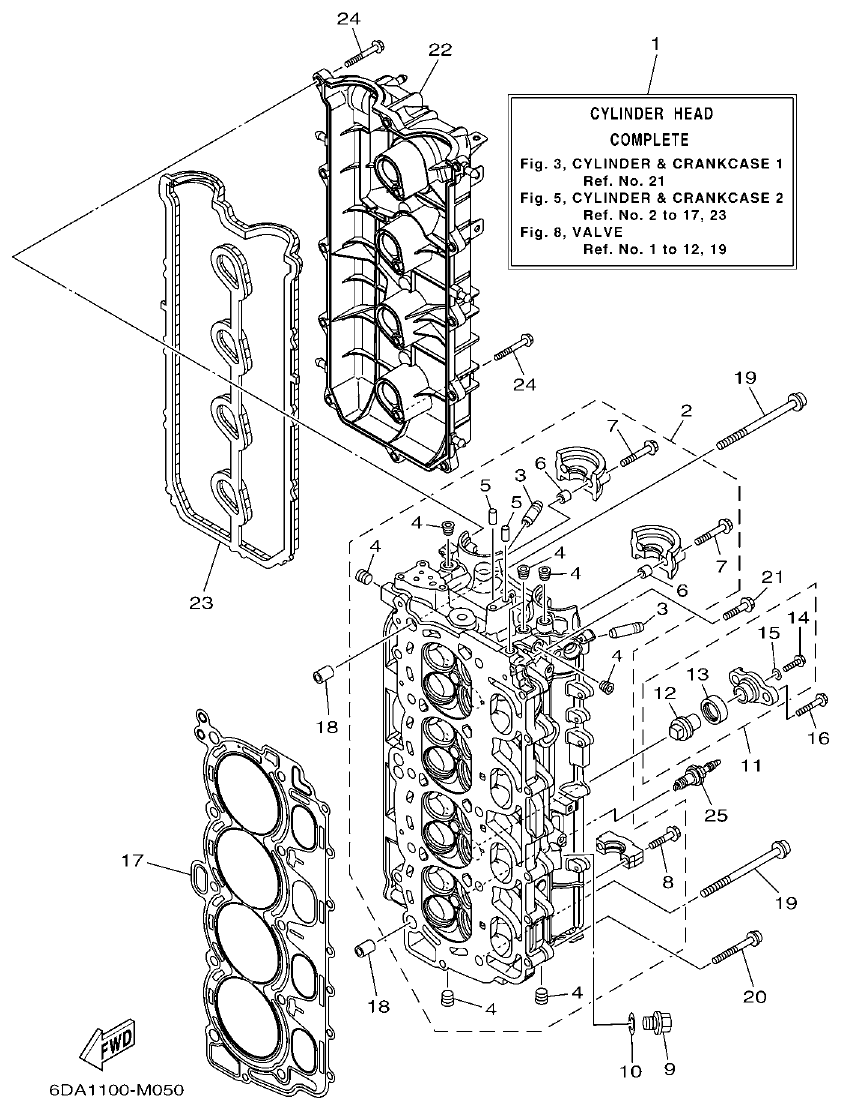

Yamaha F200FET, FL200FET CYLINDER & CRANKCASE 2 parts diagram
Fig. 5 — CYLINDER & CRANKCASE 2
25 items · 3 available products

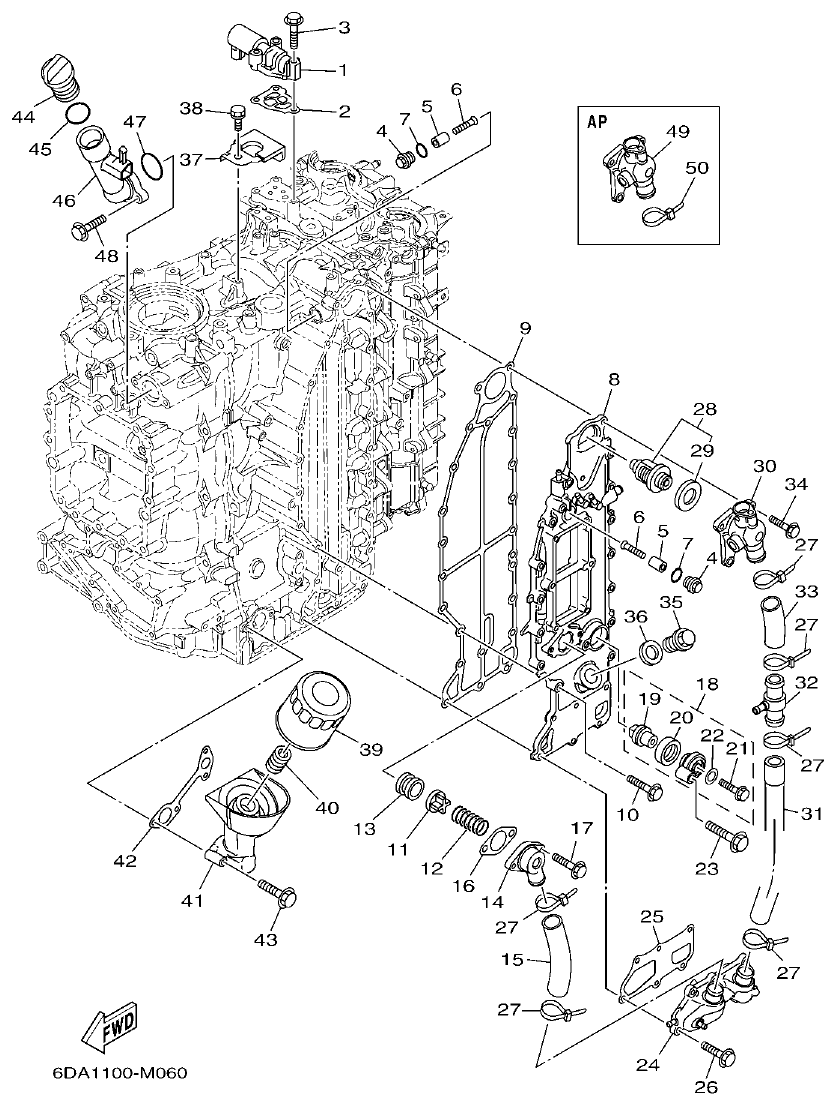

Yamaha F200FET, FL200FET CYLINDER & CRANKCASE 3 parts diagram
Fig. 6 — CYLINDER & CRANKCASE 3
50 items · 9 available products
Yamaha F200FET, FL200FET CYLINDER & CRANKCASE 4 parts diagram

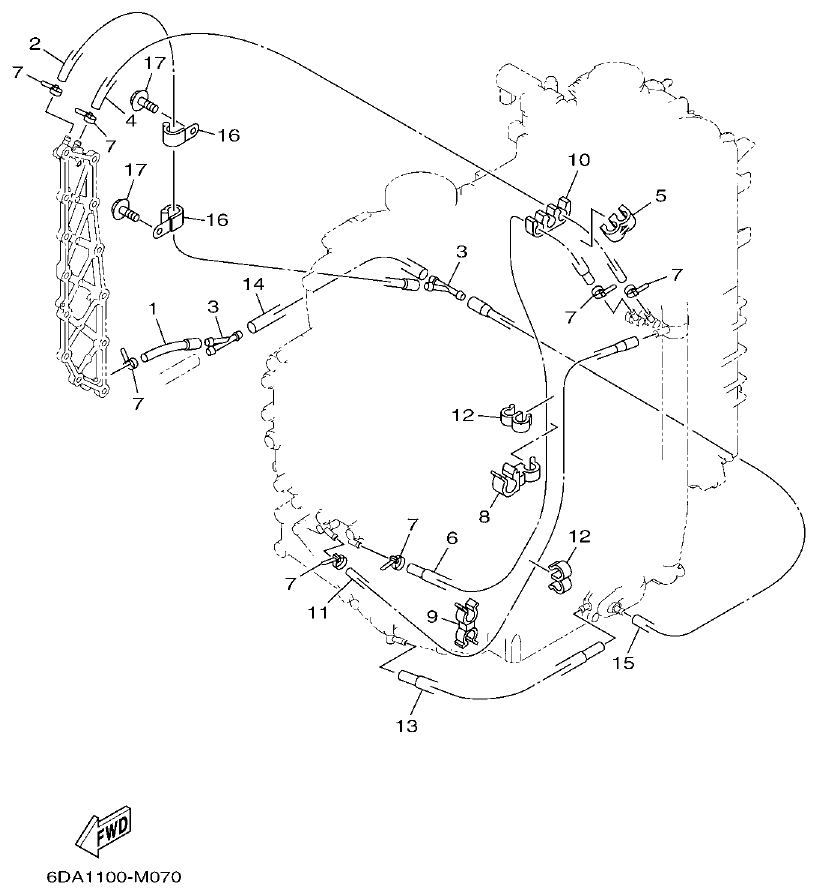

Fig. 7 — CYLINDER & CRANKCASE 4
17 items
Yamaha F200FET, FL200FET VALVE parts diagram

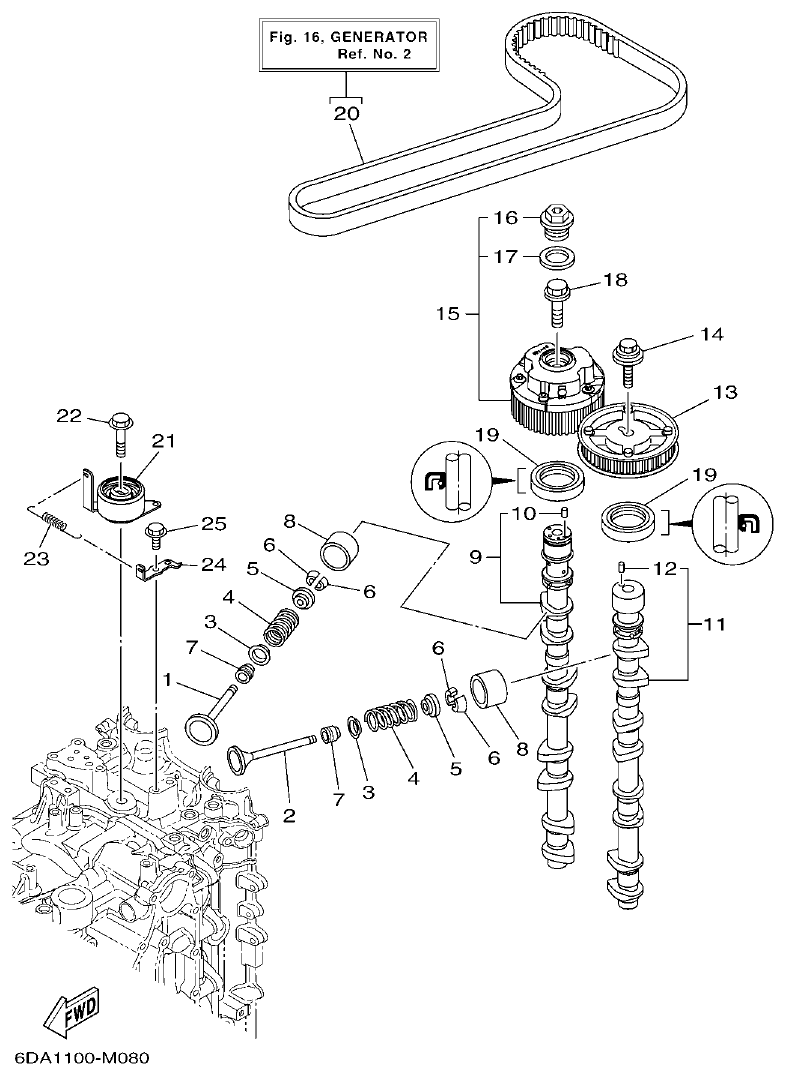

Fig. 8 — VALVE
59 items · 36 available products
Yamaha F200FET, FL200FET INTAKE 1 parts diagram

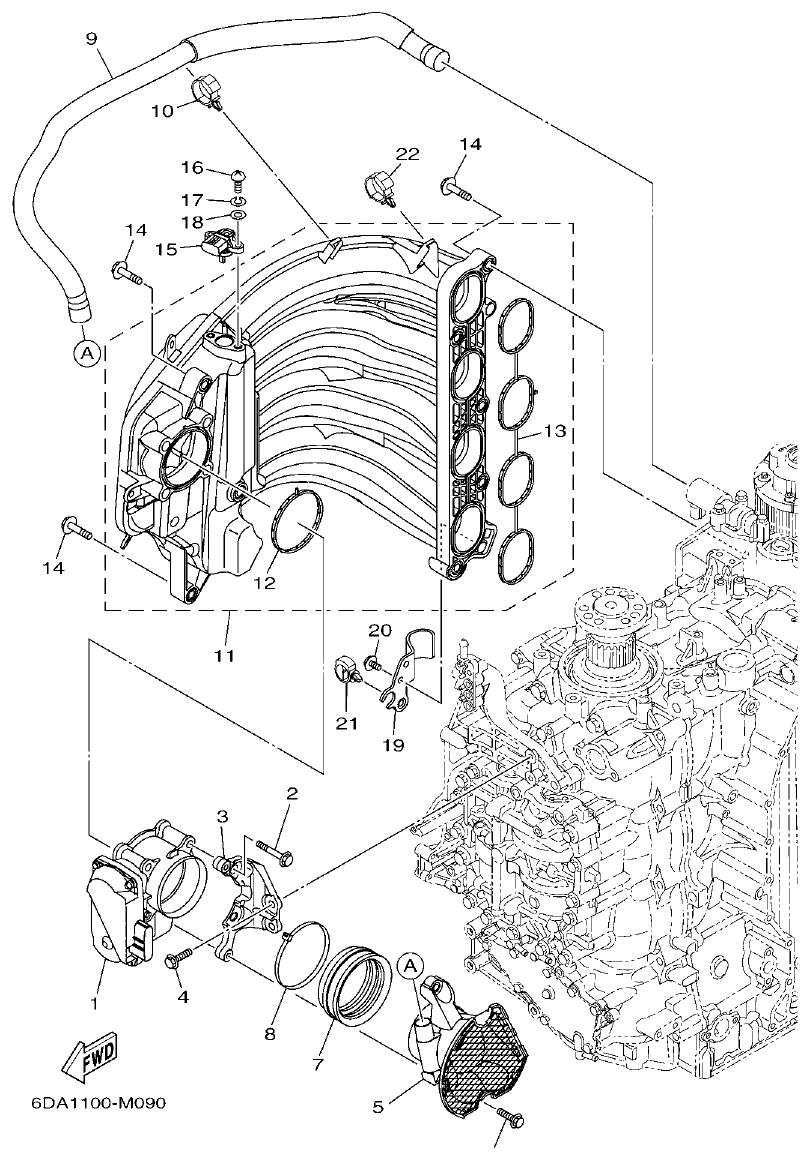

Fig. 9 — INTAKE 1
22 items · 1 available products
Yamaha F200FET, FL200FET INTAKE 2 parts diagram

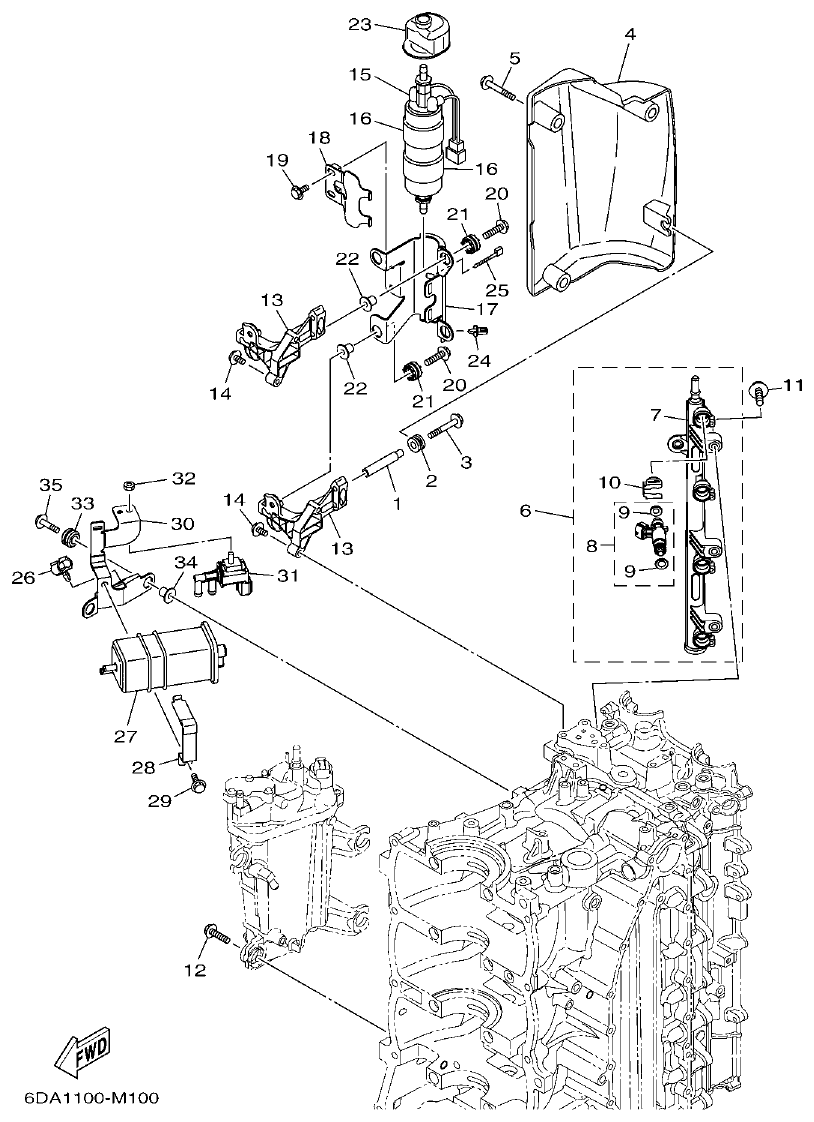

Fig. 10 — INTAKE 2
35 items · 4 available products
Yamaha F200FET, FL200FET INTAKE 3 parts diagram

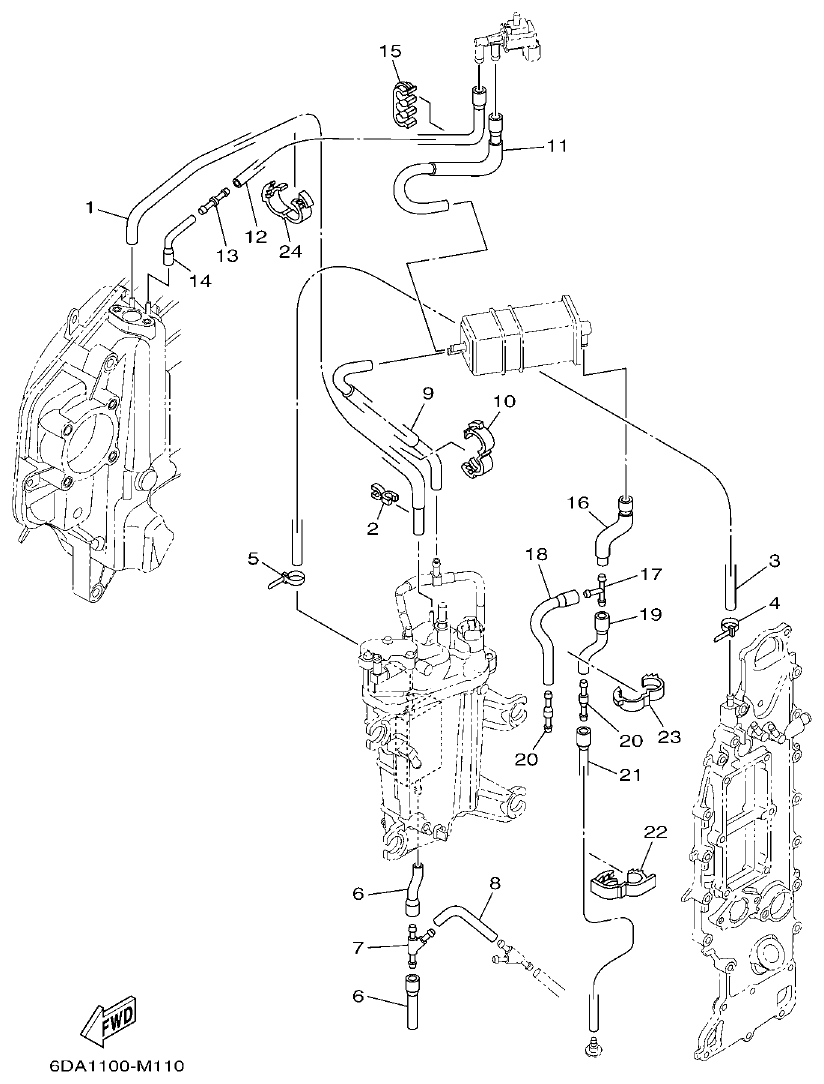

Fig. 11 — INTAKE 3
24 items · 2 available products
Yamaha F200FET, FL200FET FUEL INJECTION PUMP 1 parts diagram

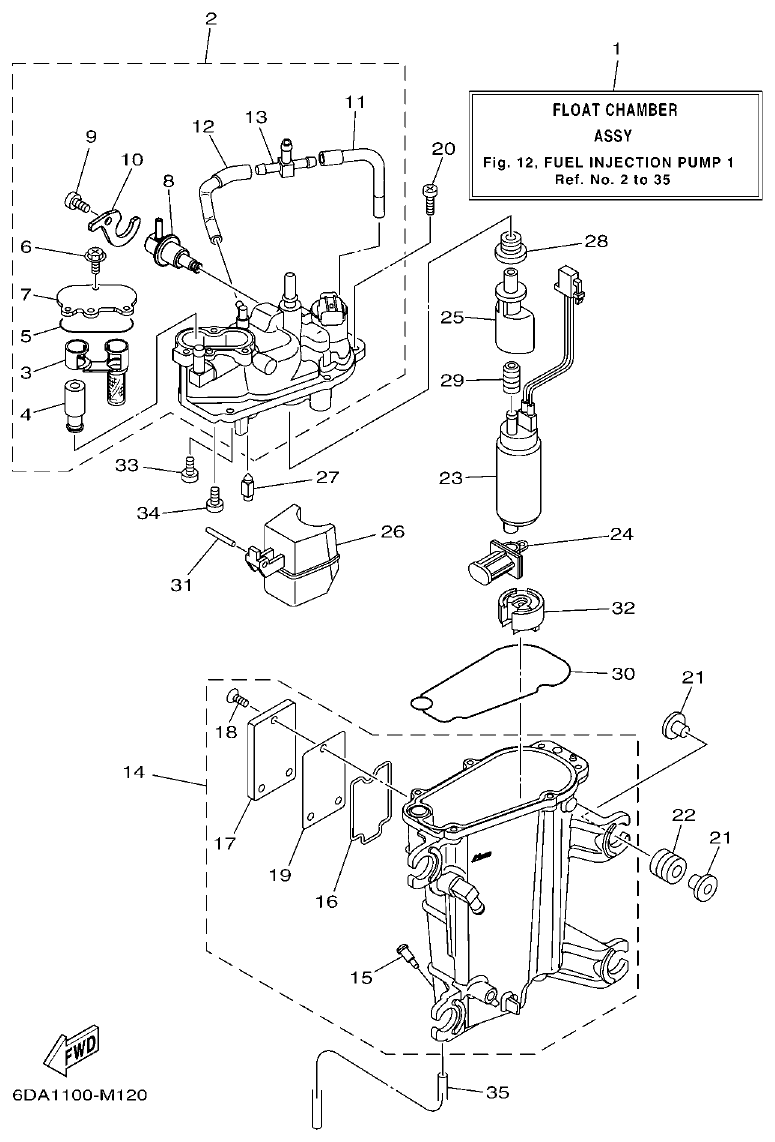

Fig. 12 — FUEL INJECTION PUMP 1
35 items · 14 available products
Yamaha F200FET, FL200FET FUEL INJECTION PUMP 2 parts diagram

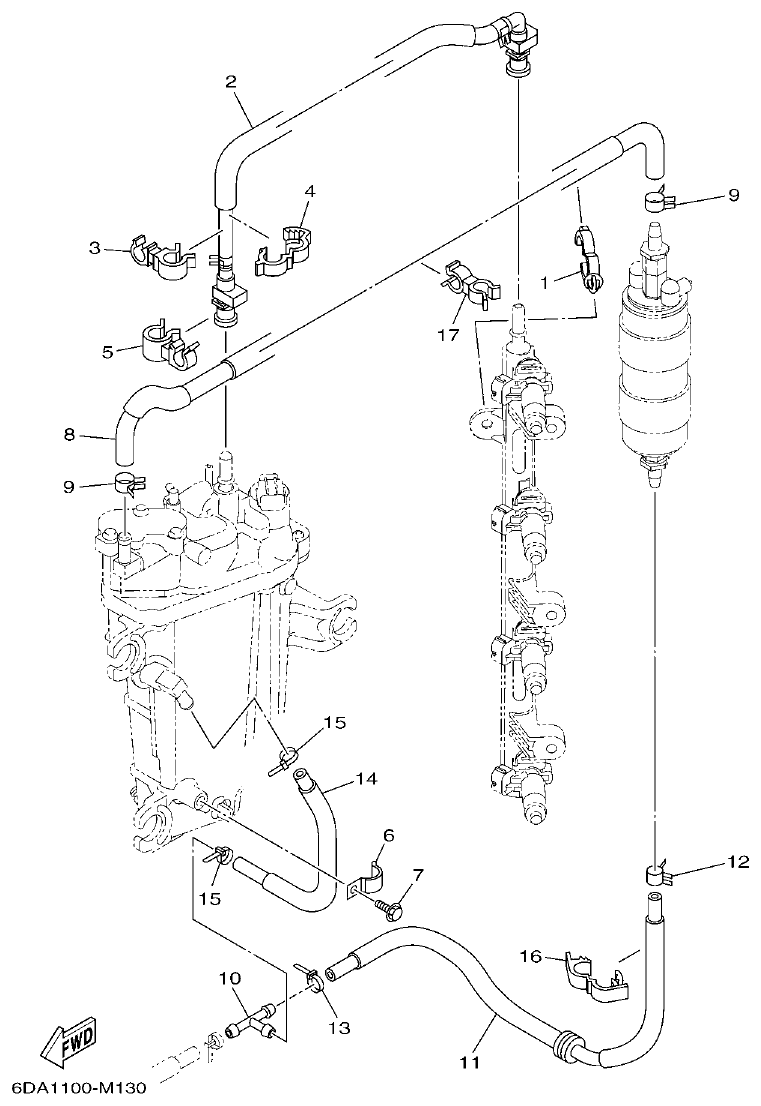

Fig. 13 — FUEL INJECTION PUMP 2
19 items
Yamaha F200FET, FL200FET FUEL 1 parts diagram

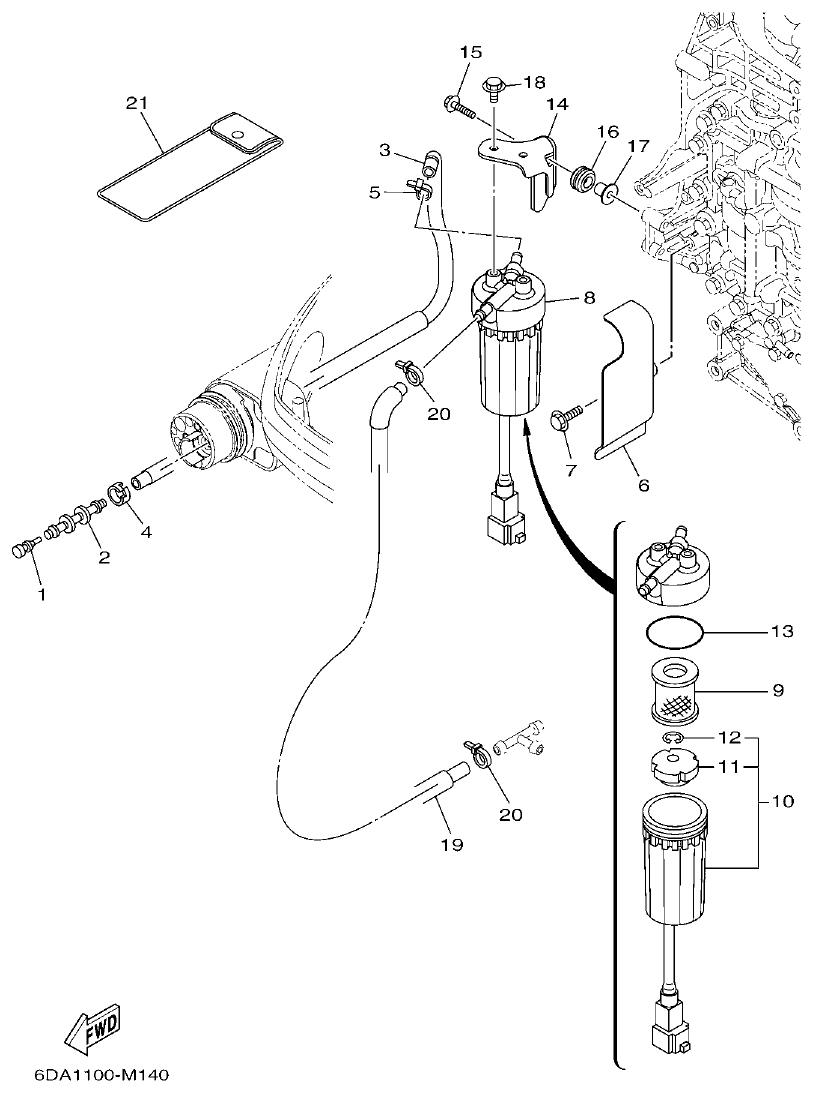

Fig. 14 — FUEL 1
23 items · 4 available products

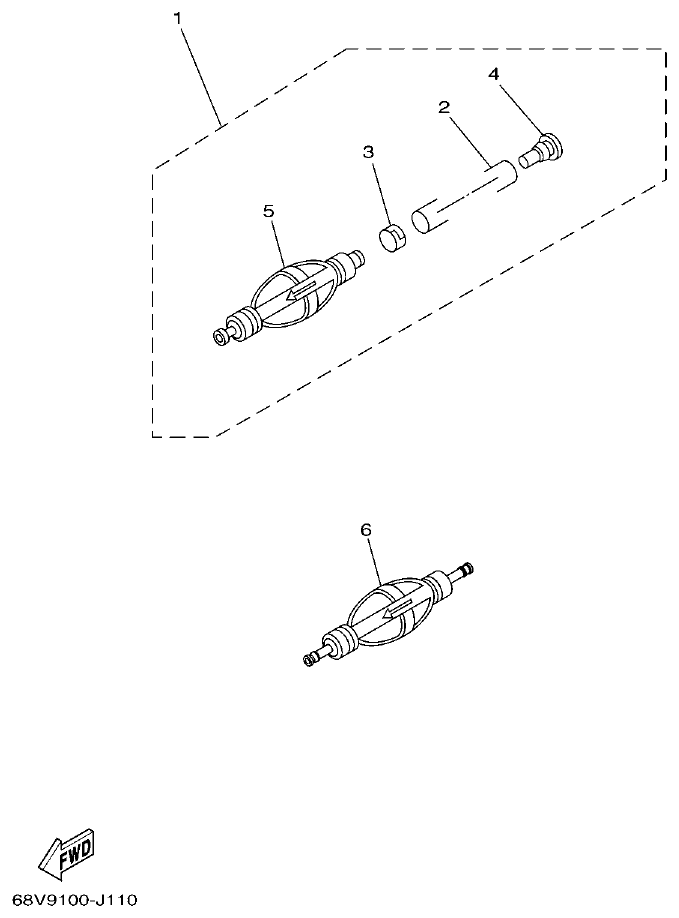

Yamaha F200FET, FL200FET FUEL 2 parts diagram
Fig. 15 — FUEL 2
6 items · 3 available products

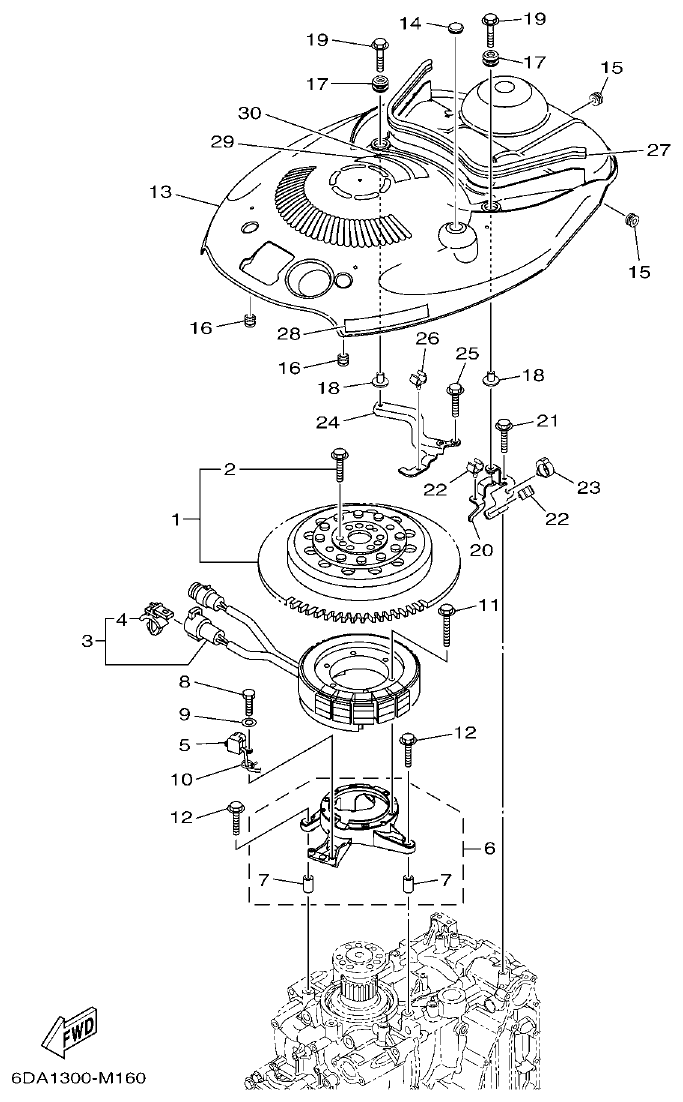

Yamaha F200FET, FL200FET GENERATOR parts diagram
Fig. 16 — GENERATOR
30 items · 2 available products

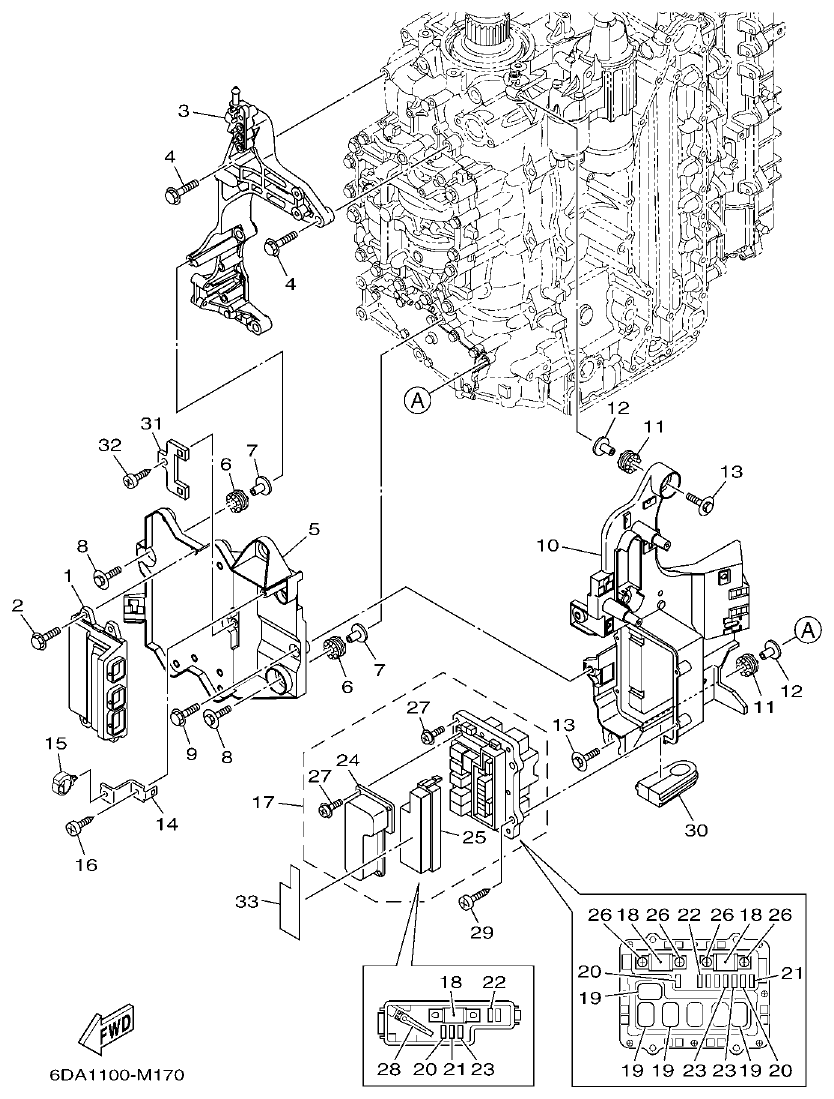

Yamaha F200FET, FL200FET ELECTRICAL 1 parts diagram
Fig. 17 — ELECTRICAL 1
33 items · 5 available products

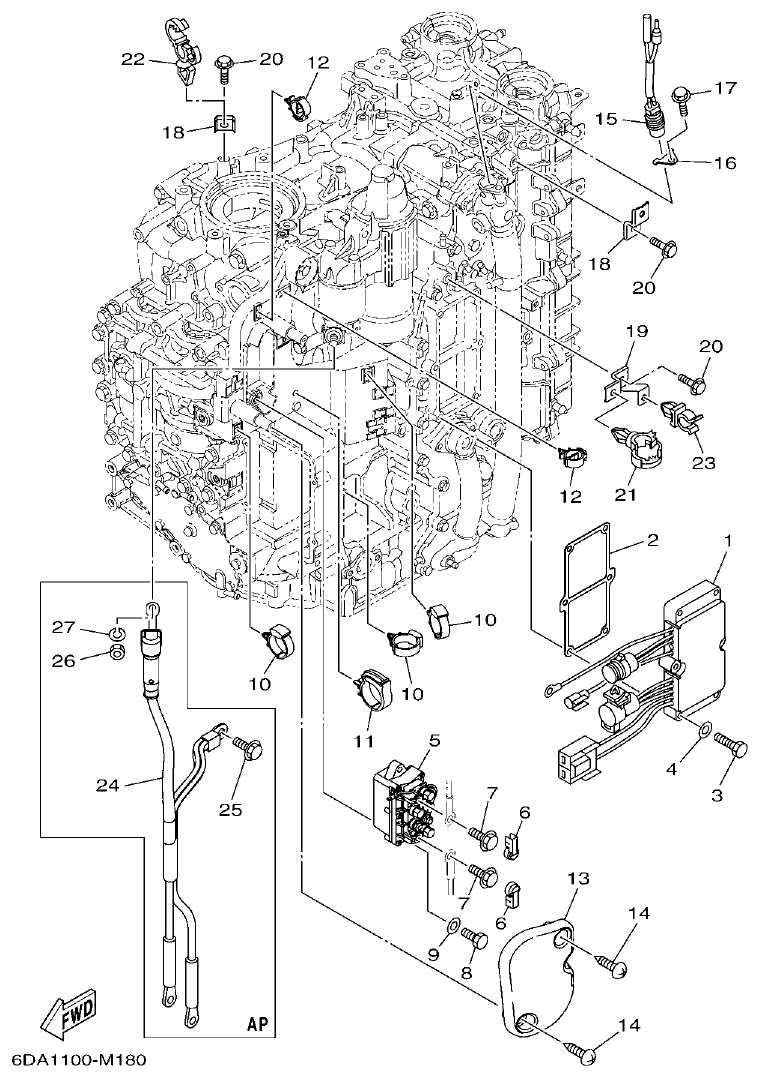

Yamaha F200FET, FL200FET ELECTRICAL 2 parts diagram
Fig. 18 — ELECTRICAL 2
27 items · 2 available products
Yamaha F200FET, FL200FET ELECTRICAL 3 parts diagram

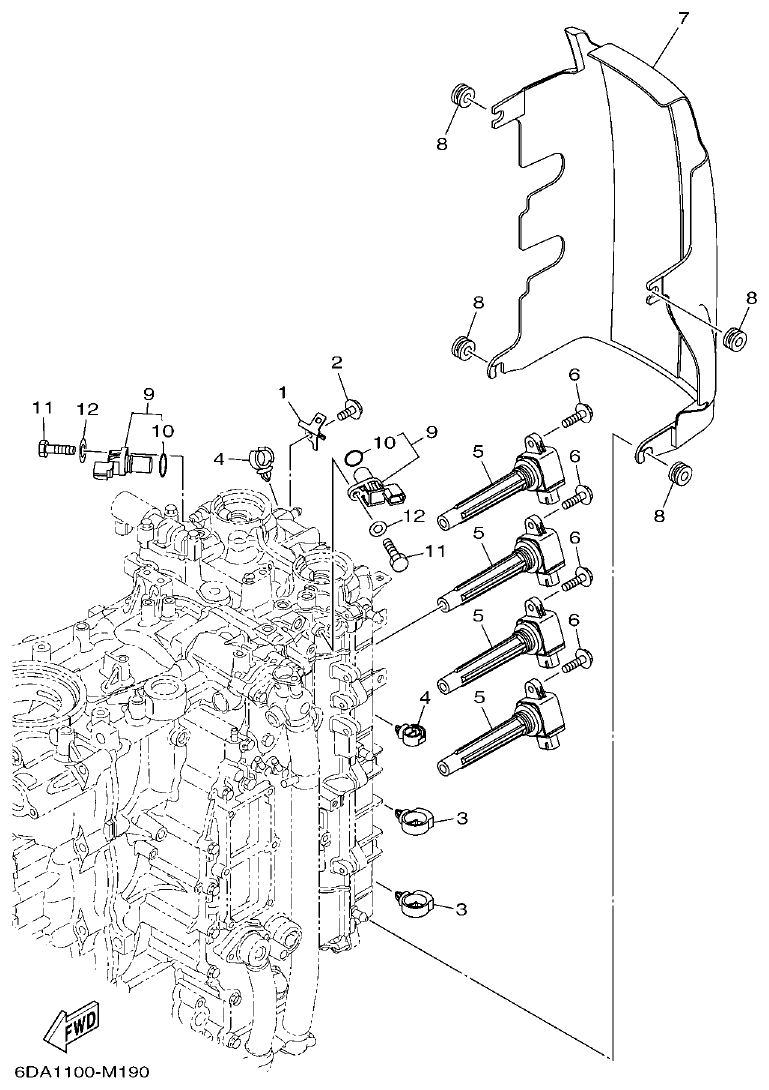

Fig. 19 — ELECTRICAL 3
12 items · 1 available products

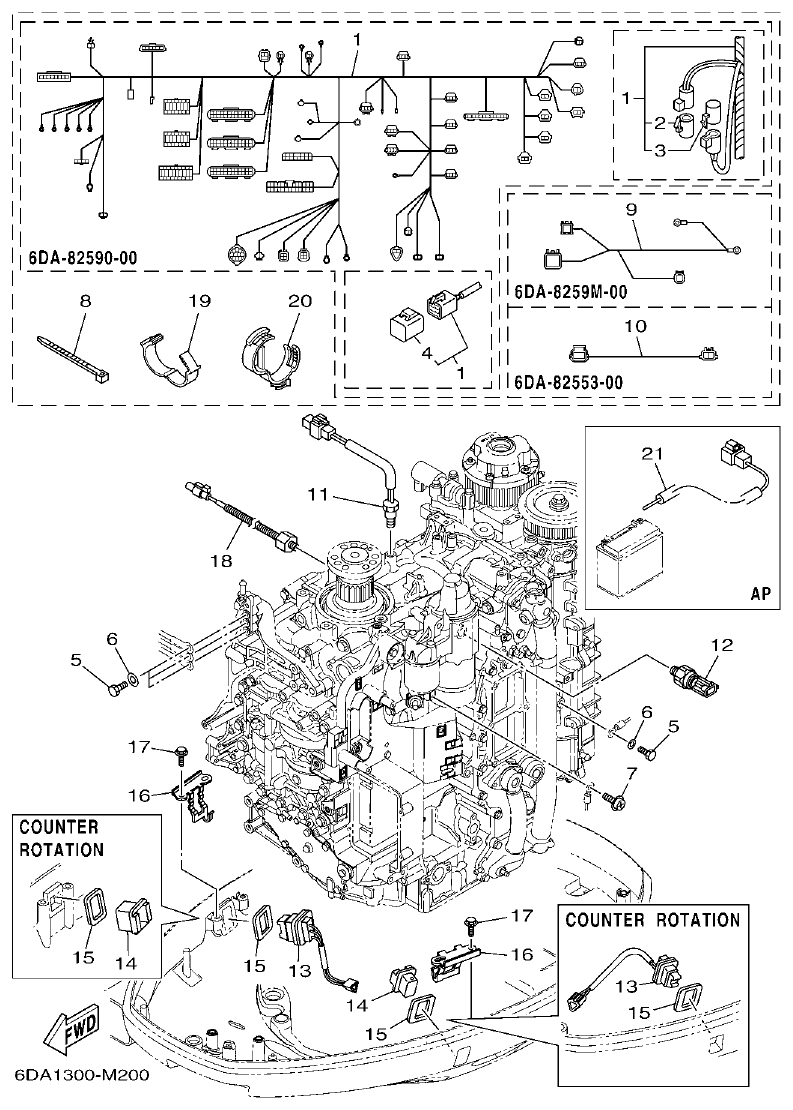

Yamaha F200FET, FL200FET ELECTRICAL 4 parts diagram
Fig. 20 — ELECTRICAL 4
21 items · 1 available products
Yamaha F200FET, FL200FET ELECTRICAL 5 parts diagram

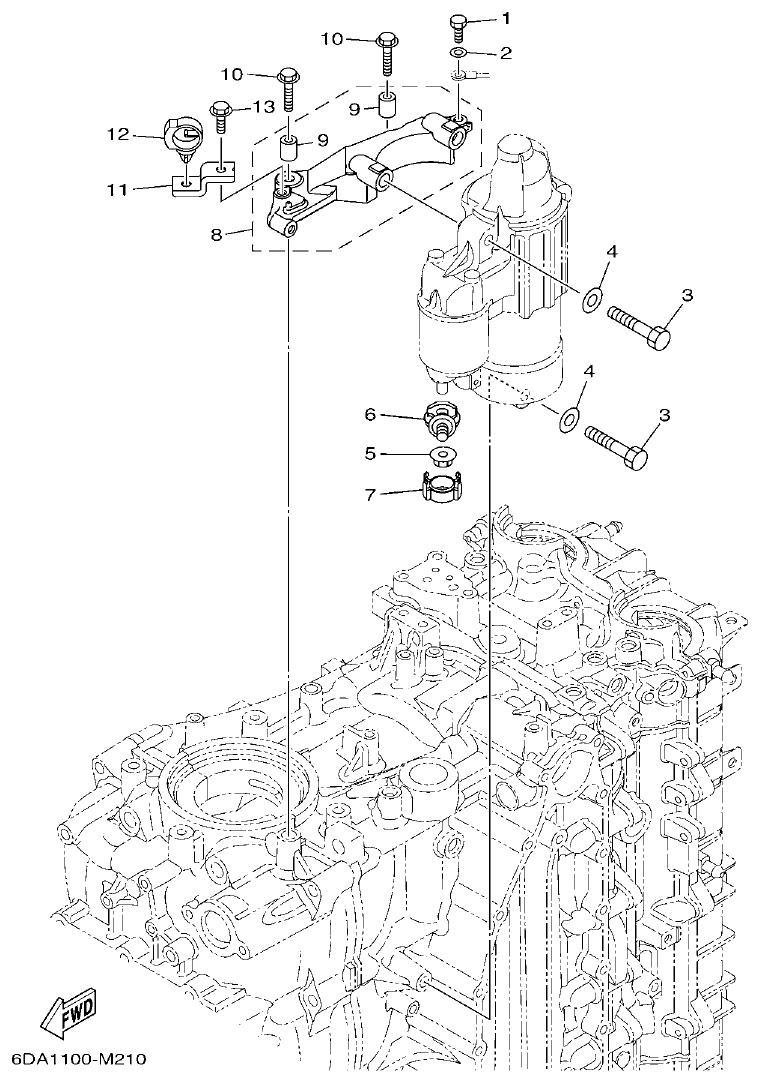

Fig. 21 — ELECTRICAL 5
13 items · 1 available products
Yamaha F200FET, FL200FET STARTING MOTOR parts diagram

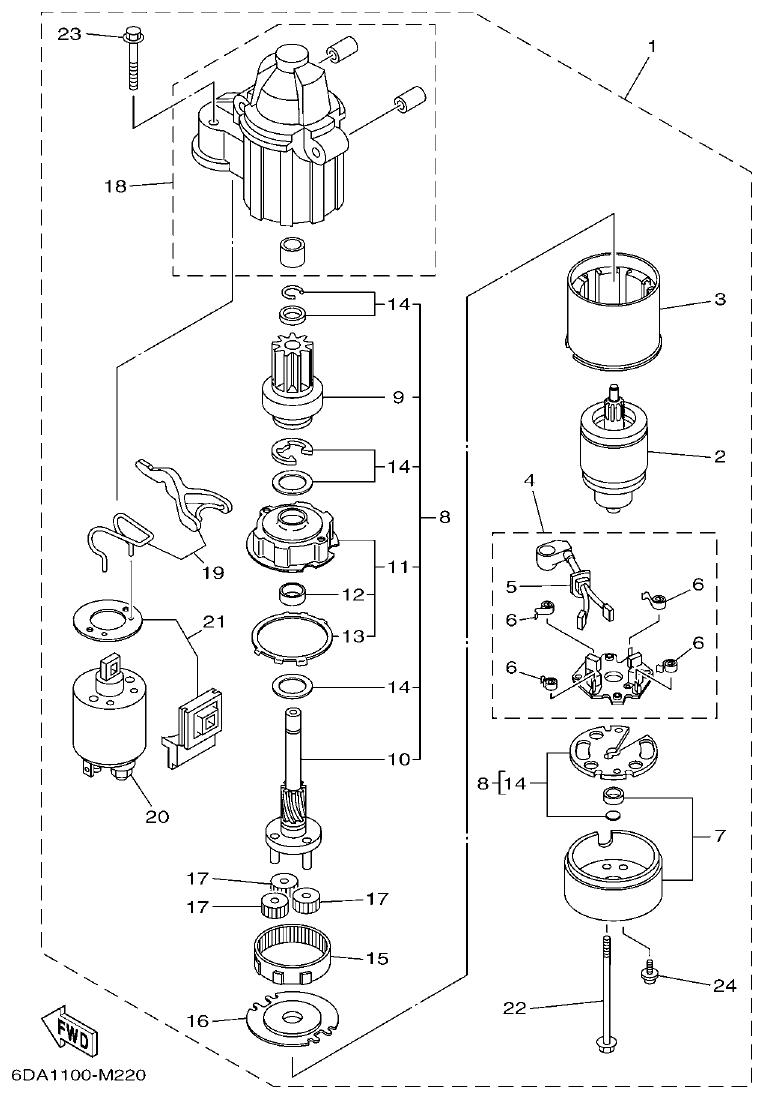

Fig. 22 — STARTING MOTOR
24 items · 3 available products
Yamaha F200FET, FL200FET BOTTOM COWLING 1 parts diagram

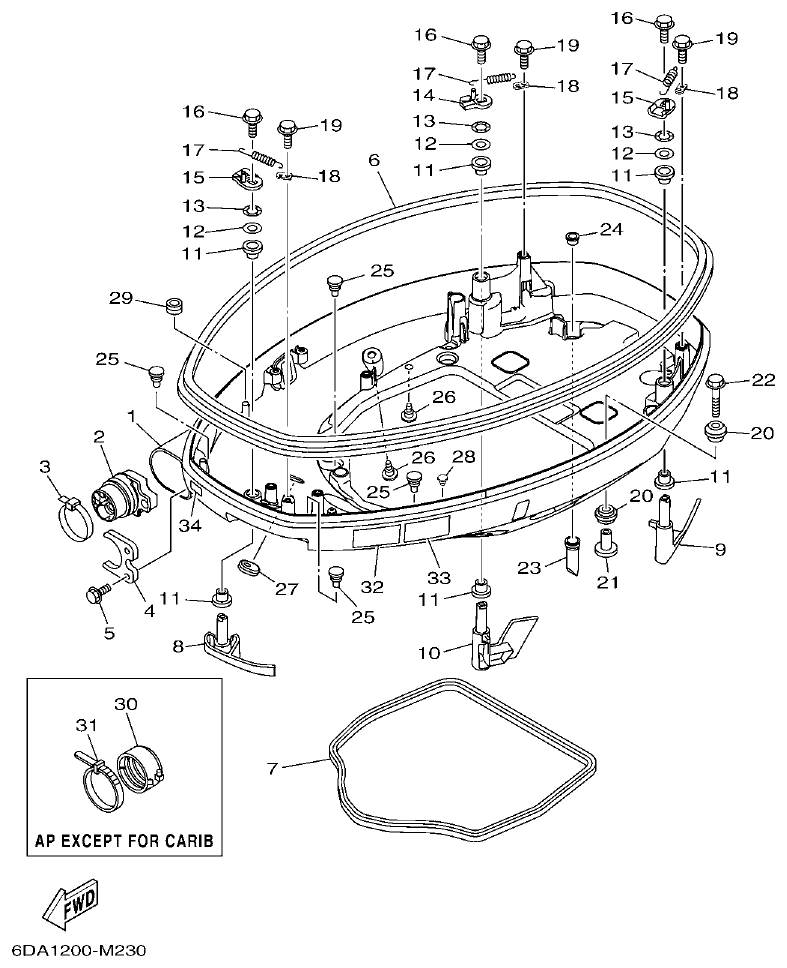

Fig. 23 — BOTTOM COWLING 1
34 items · 6 available products

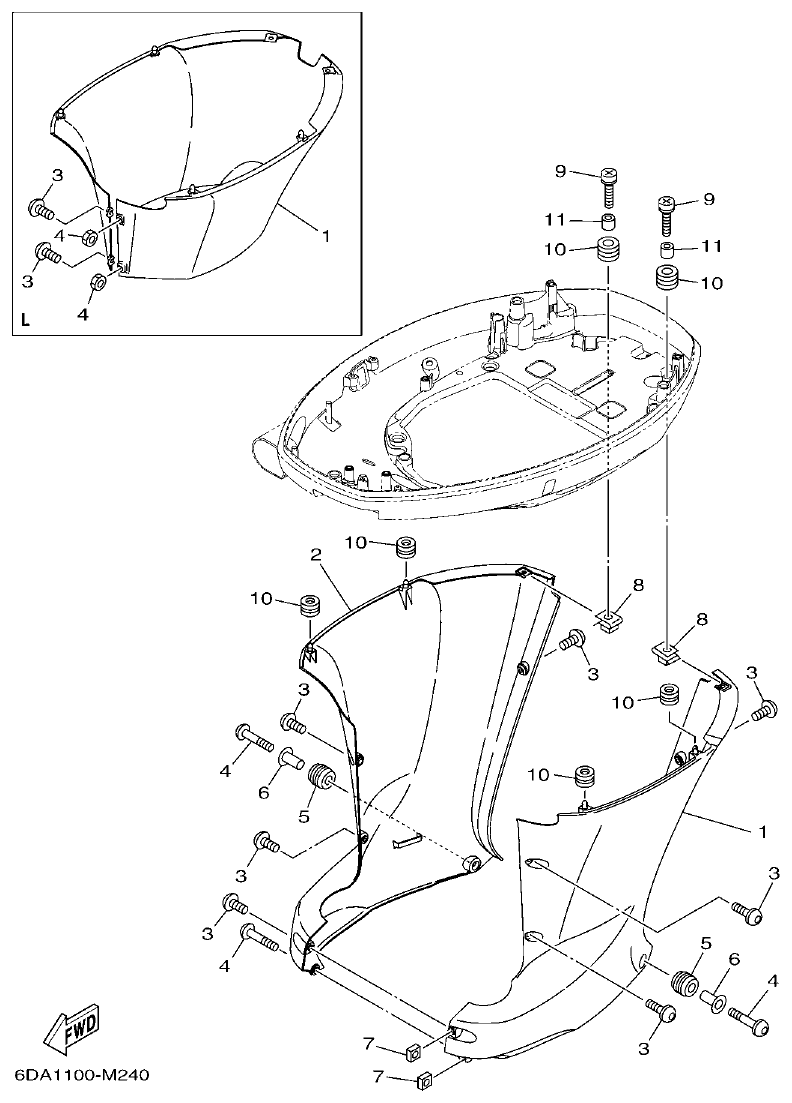

Yamaha F200FET, FL200FET BOTTOM COWLING 2 parts diagram
Fig. 24 — BOTTOM COWLING 2
14 items
Yamaha F200FET, FL200FET BOTTOM COWLING 3 parts diagram

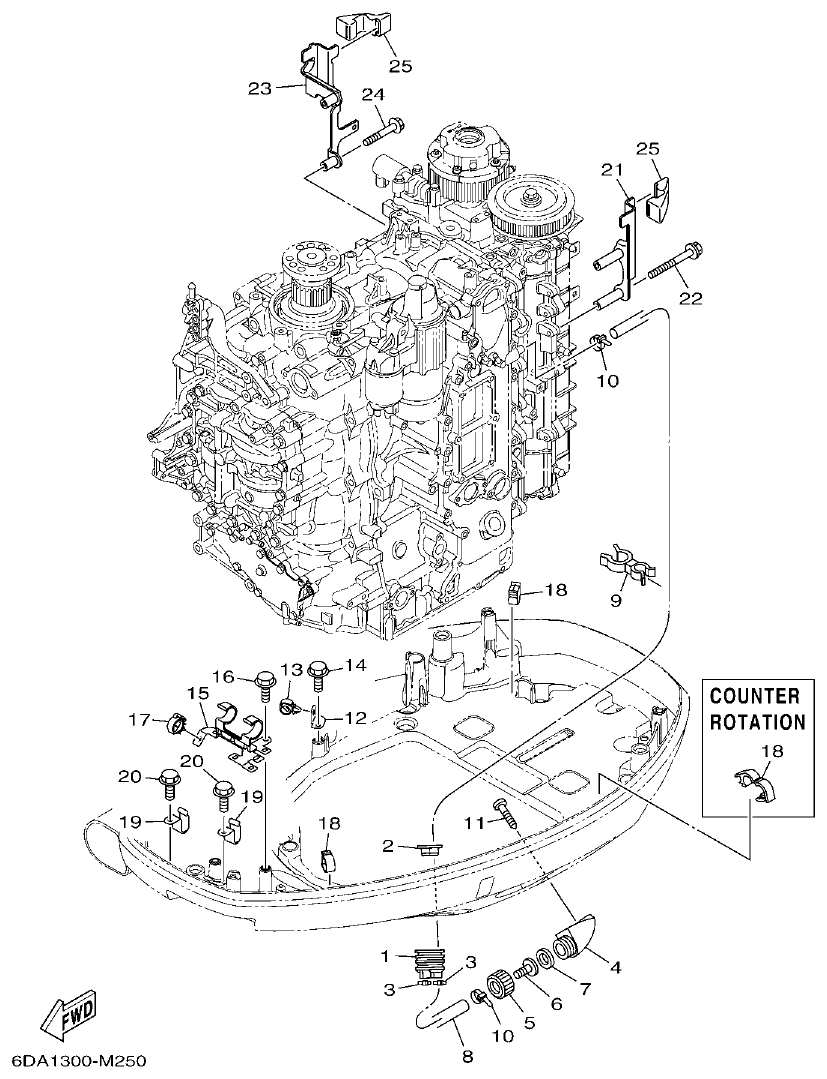

Fig. 25 — BOTTOM COWLING 3
26 items · 4 available products
Yamaha F200FET, FL200FET CONTROL parts diagram

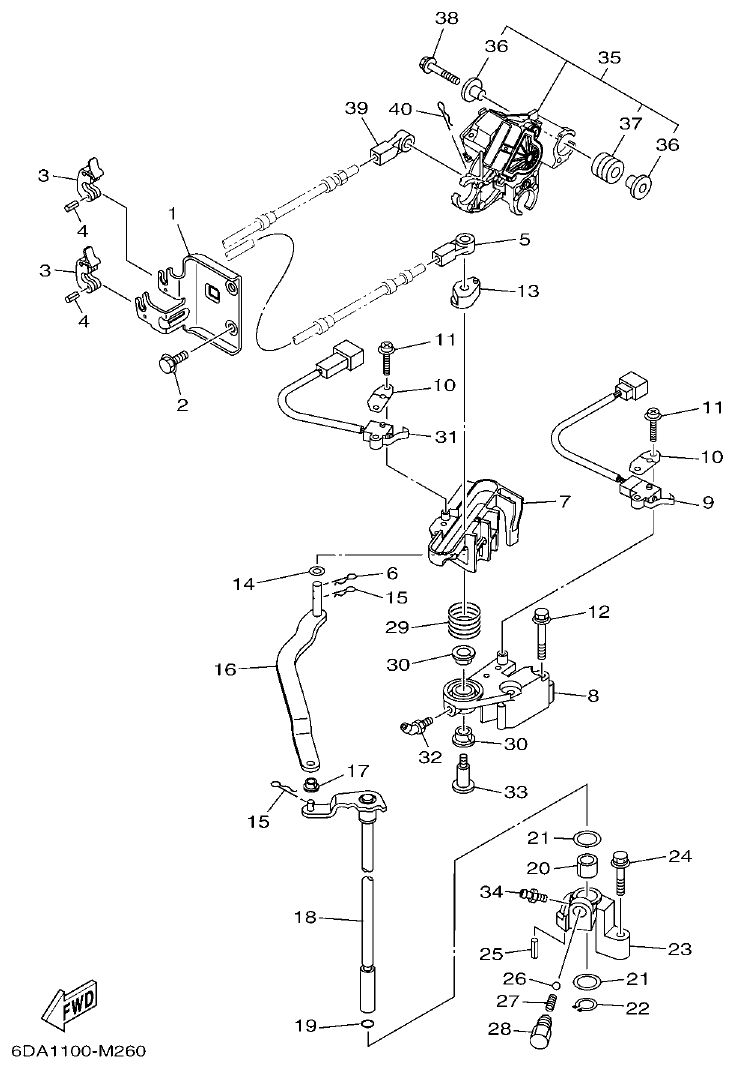

Fig. 26 — CONTROL
41 items · 5 available products

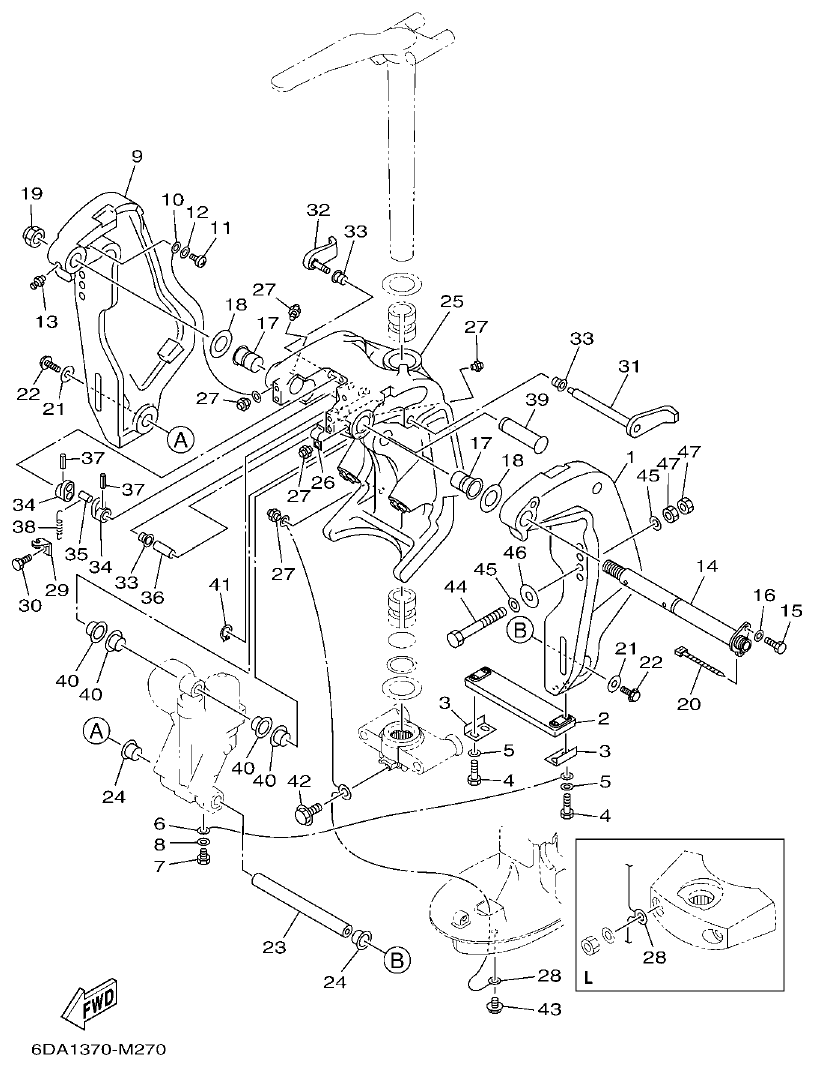

Yamaha F200FET, FL200FET BRACKET 1 parts diagram
Fig. 27 — BRACKET 1
49 items · 9 available products

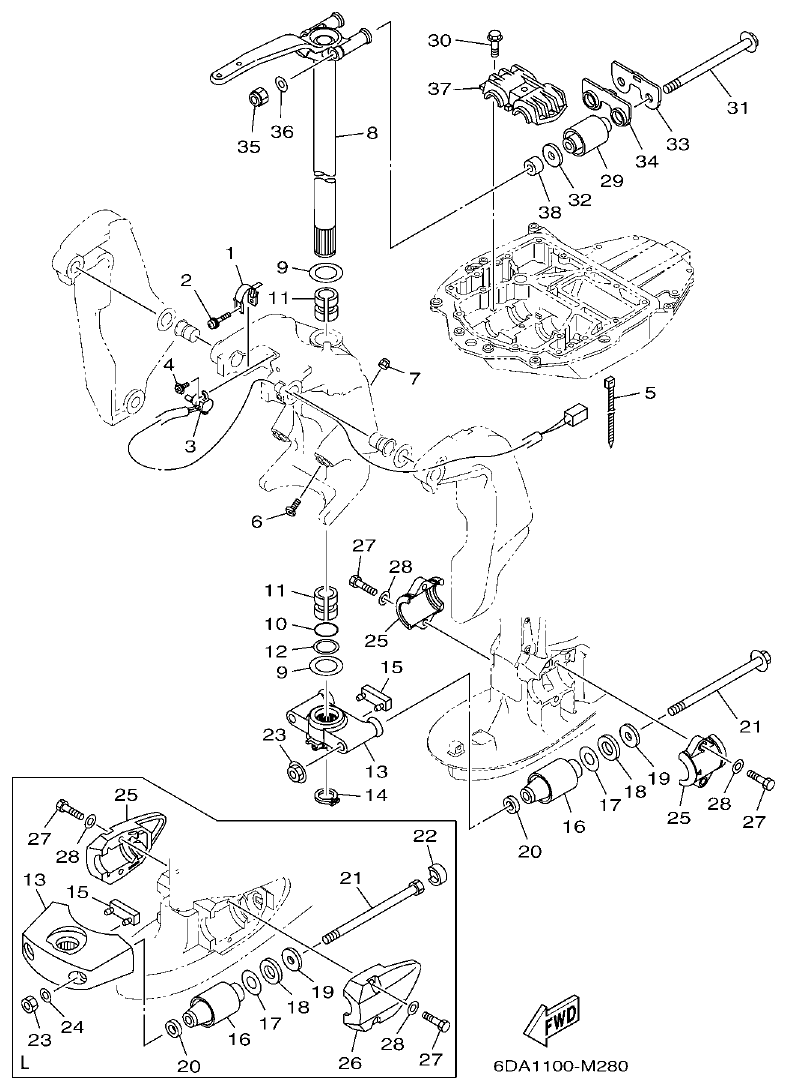

Yamaha F200FET, FL200FET BRACKET 2 parts diagram
Fig. 28 — BRACKET 2
45 items · 4 available products
Yamaha F200FET, FL200FET POWER TRIM & TILT ASSY 1 parts diagram

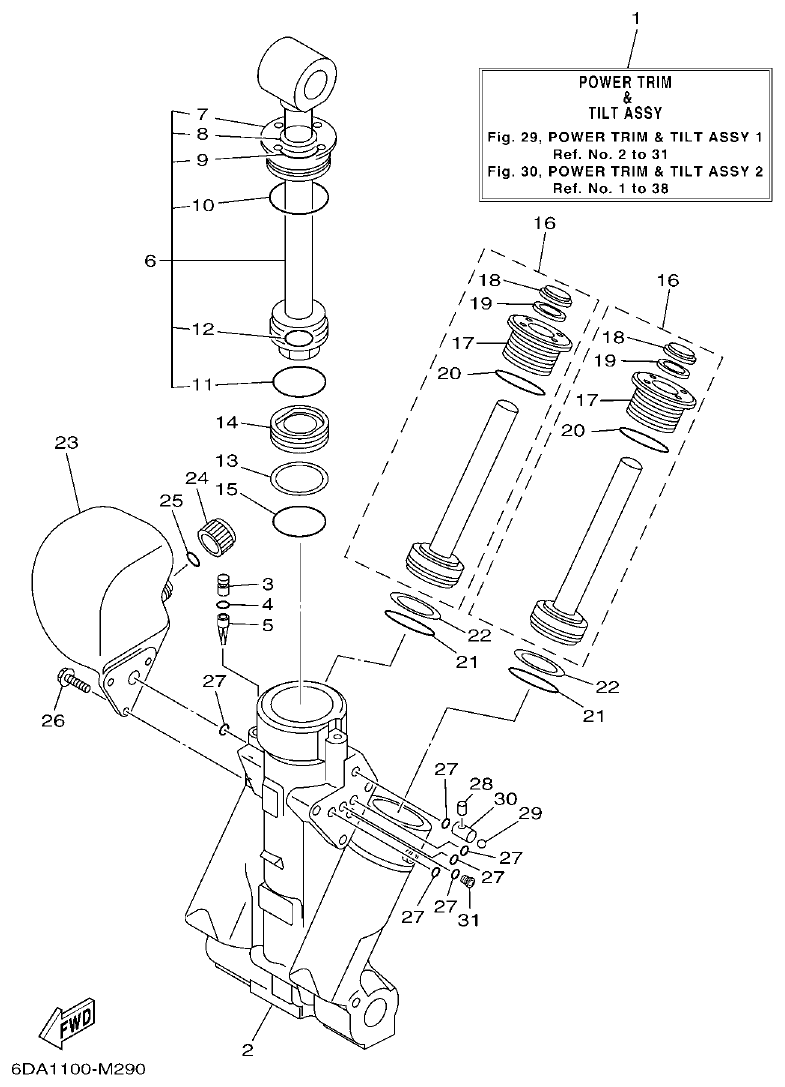

Fig. 29 — POWER TRIM & TILT ASSY 1
31 items · 12 available products

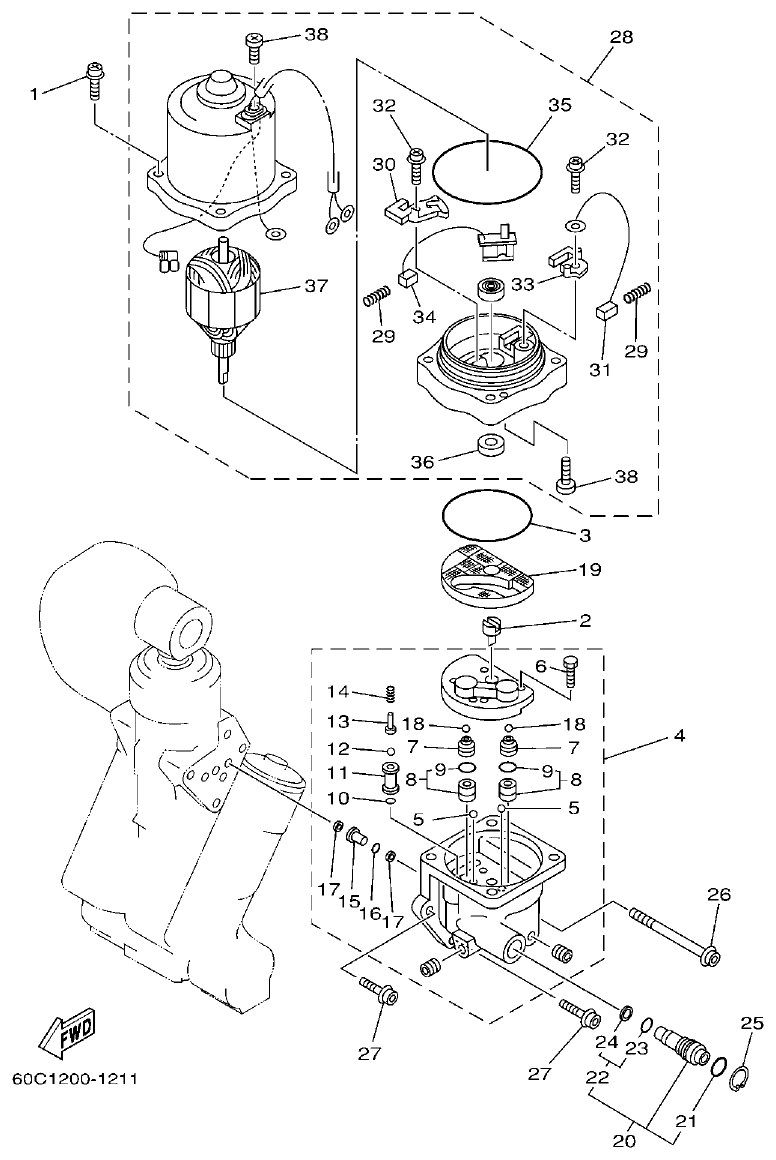

Yamaha F200FET, FL200FET POWER TRIM & TILT ASSY 2 parts diagram
Fig. 30 — POWER TRIM & TILT ASSY 2
38 items · 14 available products
Yamaha F200FET, FL200FET UPPER CASING parts diagram

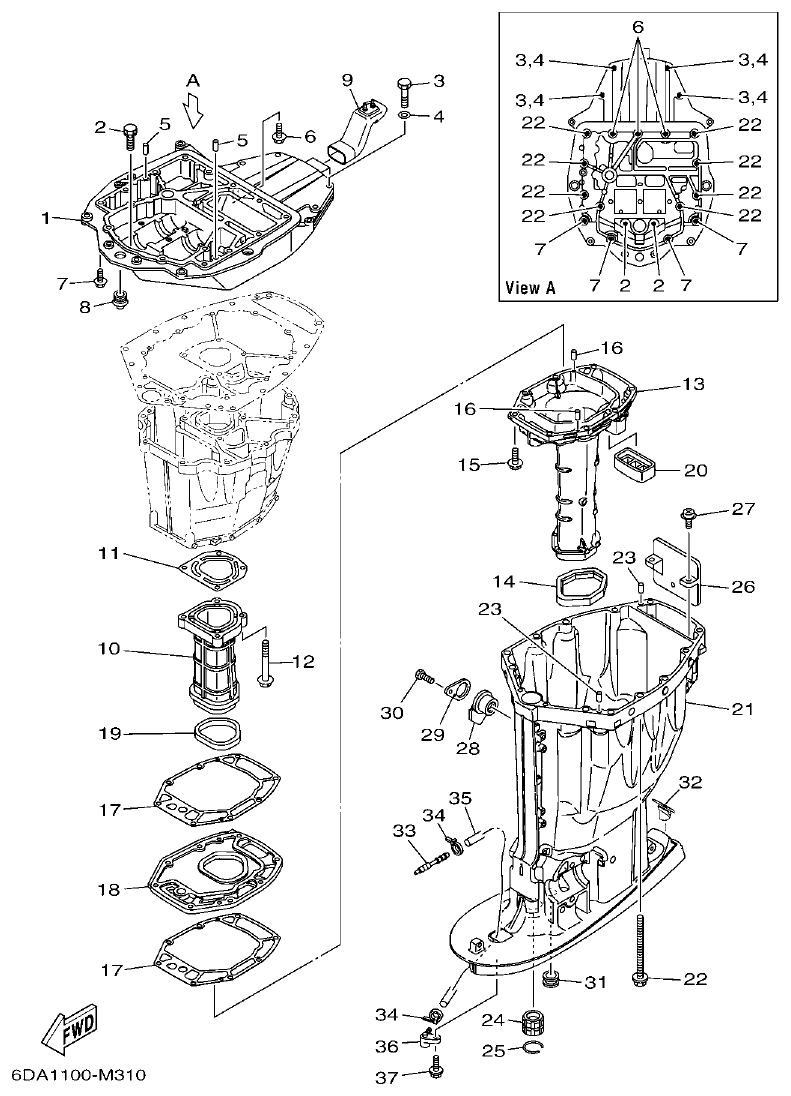

Fig. 31 — UPPER CASING
43 items · 5 available products
Yamaha F200FET, FL200FET OIL PAN parts diagram

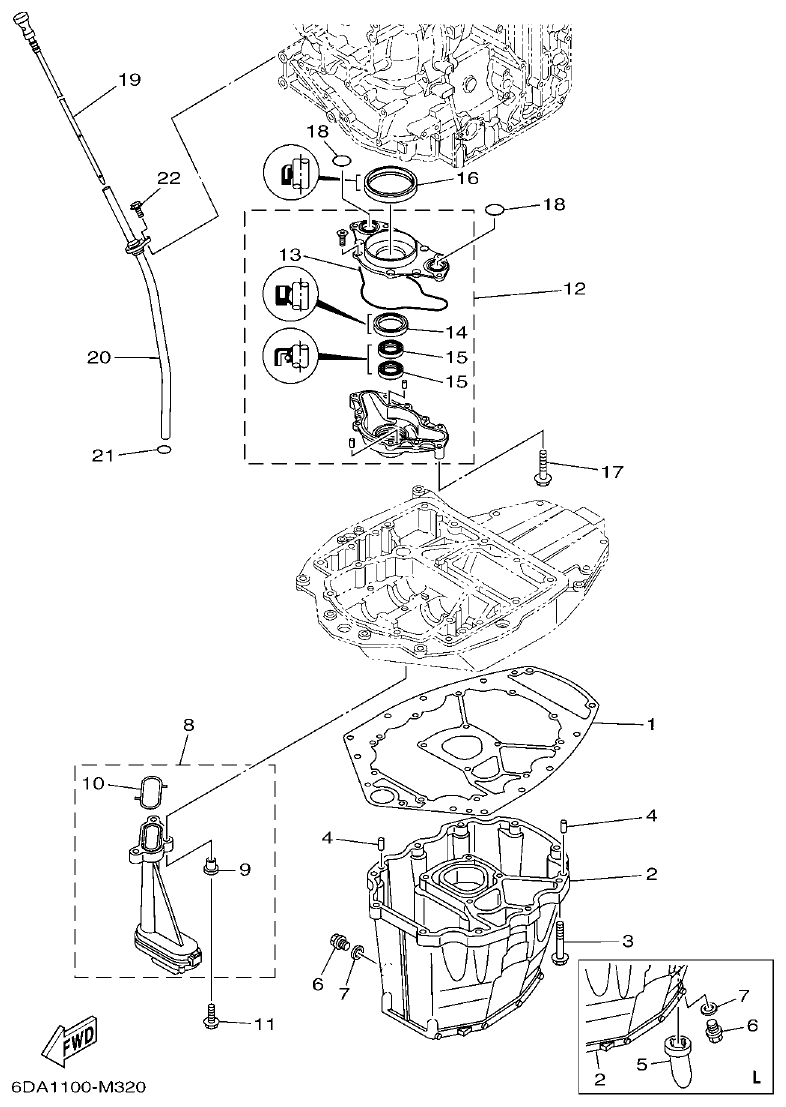

Fig. 32 — OIL PAN
23 items · 5 available products
Yamaha F200FET, FL200FET LOWER CASING & DRIVE 1 parts diagram

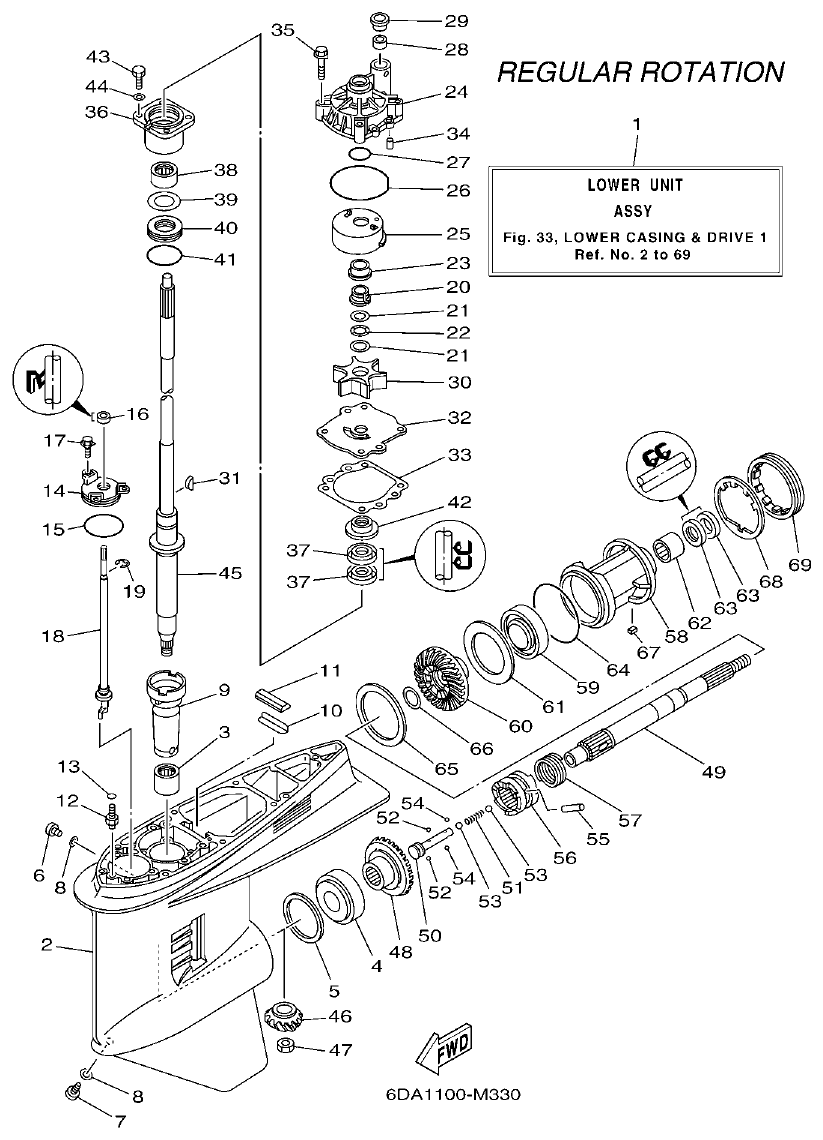

Fig. 33 — LOWER CASING & DRIVE 1
89 items · 42 available products

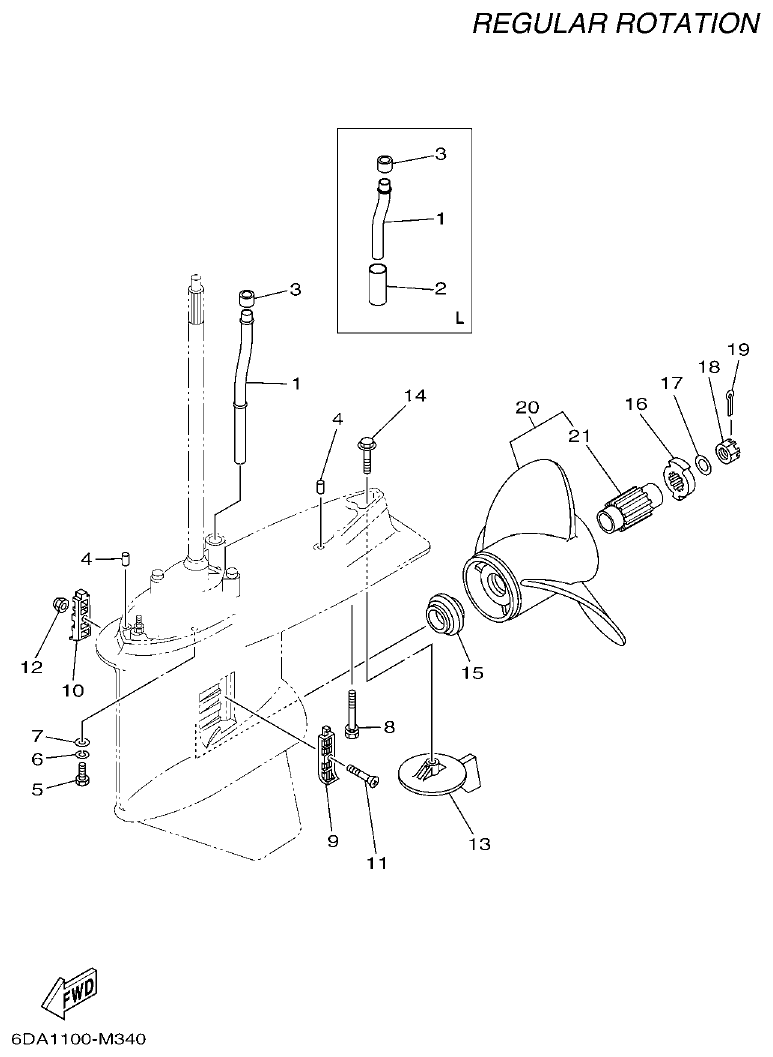

Yamaha F200FET, FL200FET LOWER CASING & DRIVE 2 parts diagram
Fig. 34 — LOWER CASING & DRIVE 2
26 items · 6 available products
Yamaha F200FET, FL200FET LOWER CASING & DRIVE 3 parts diagram

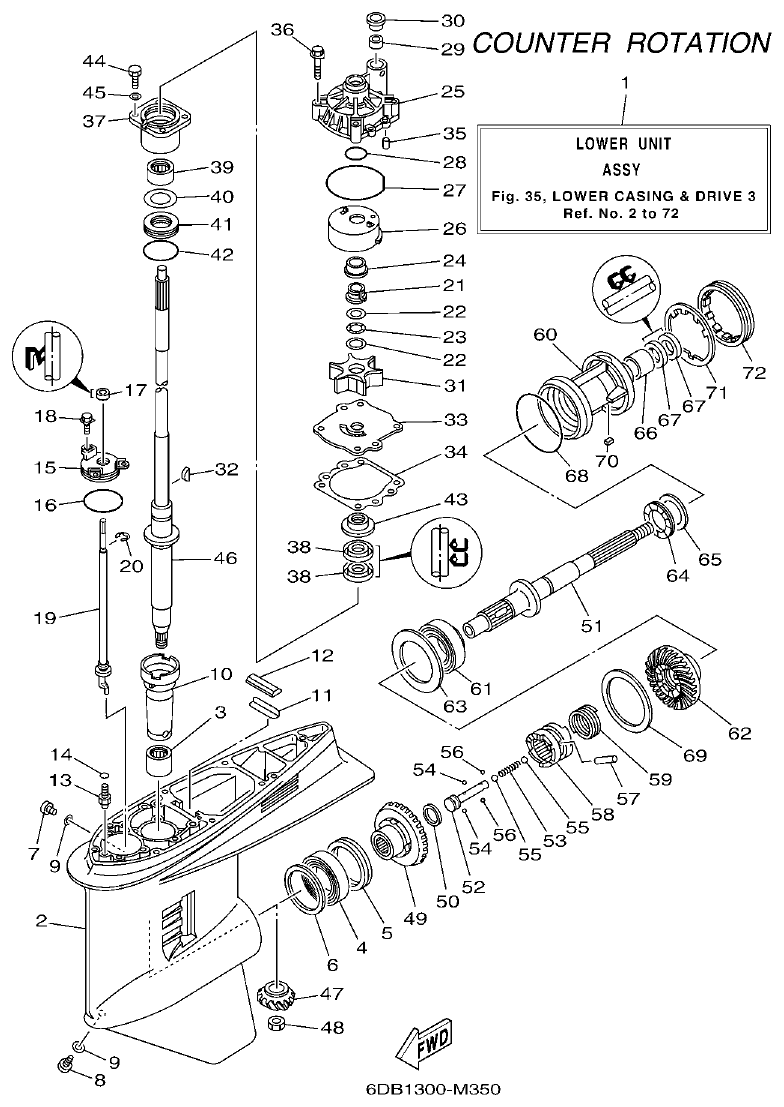

Fig. 35 — LOWER CASING & DRIVE 3
96 items · 48 available products
Yamaha F200FET, FL200FET LOWER CASING & DRIVE 4 parts diagram

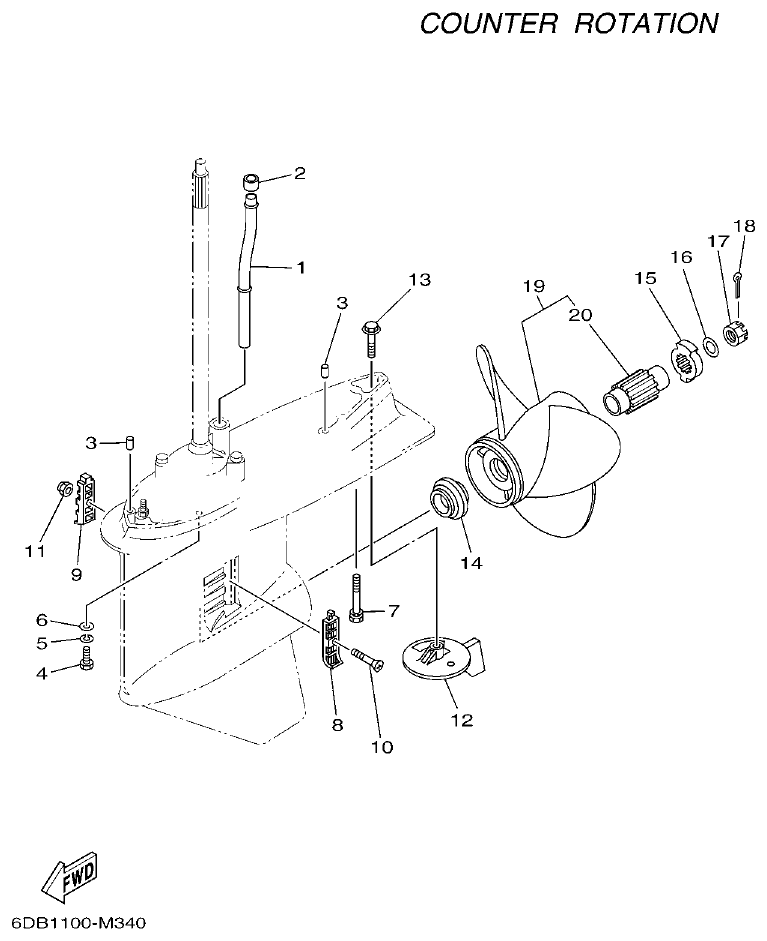

Fig. 36 — LOWER CASING & DRIVE 4
24 items · 6 available products
Yamaha F200FET, FL200FET STEERING GUIDE parts diagram

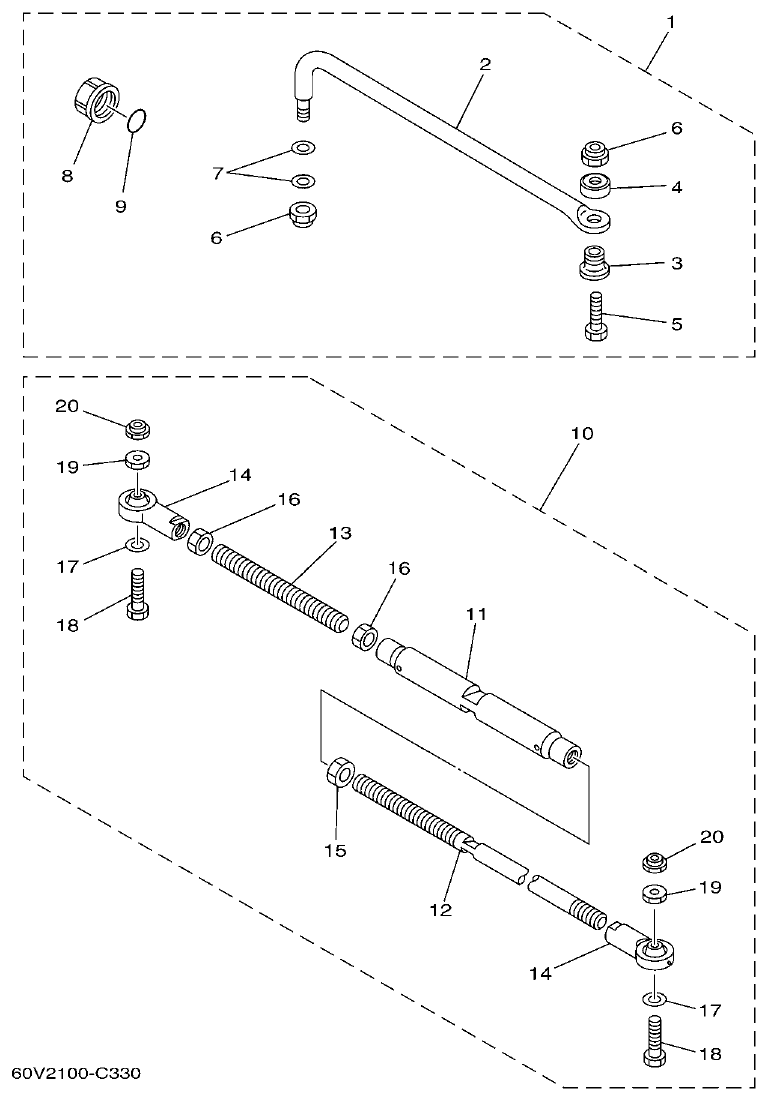

Fig. 37 — STEERING GUIDE
20 items · 3 available products

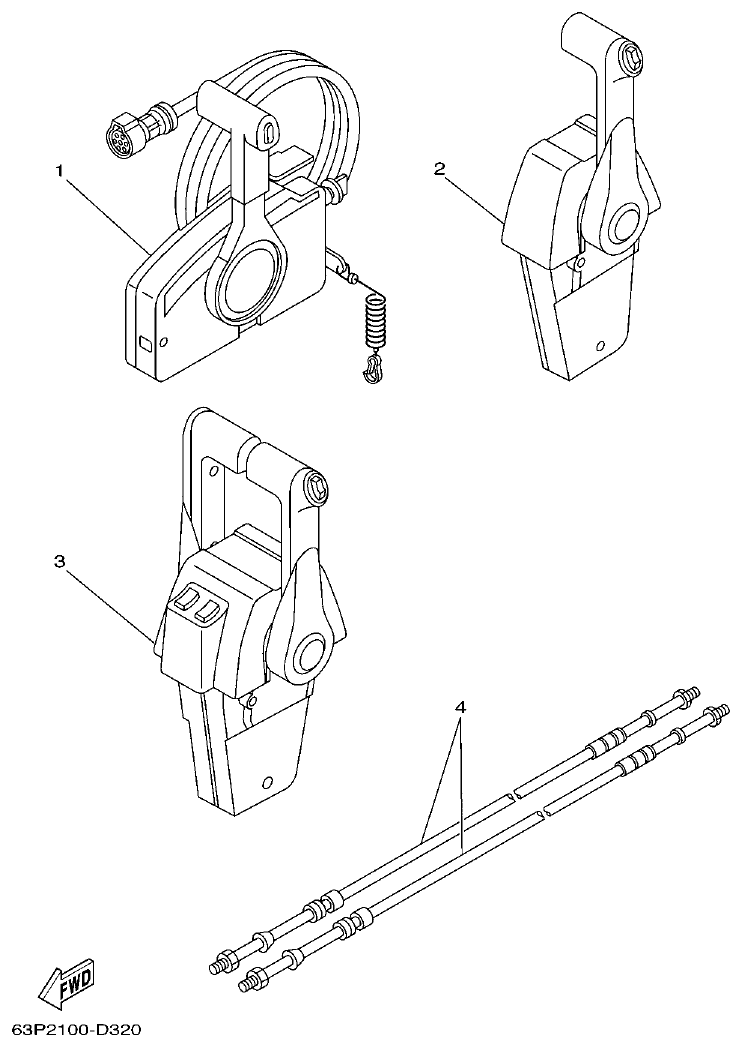

Yamaha F200FET, FL200FET REMOTE CONTROL BOX parts diagram
Fig. 38 — REMOTE CONTROL BOX
8 items
Yamaha F200FET, FL200FET REMOTE CONTROL ASSY 1 parts diagram

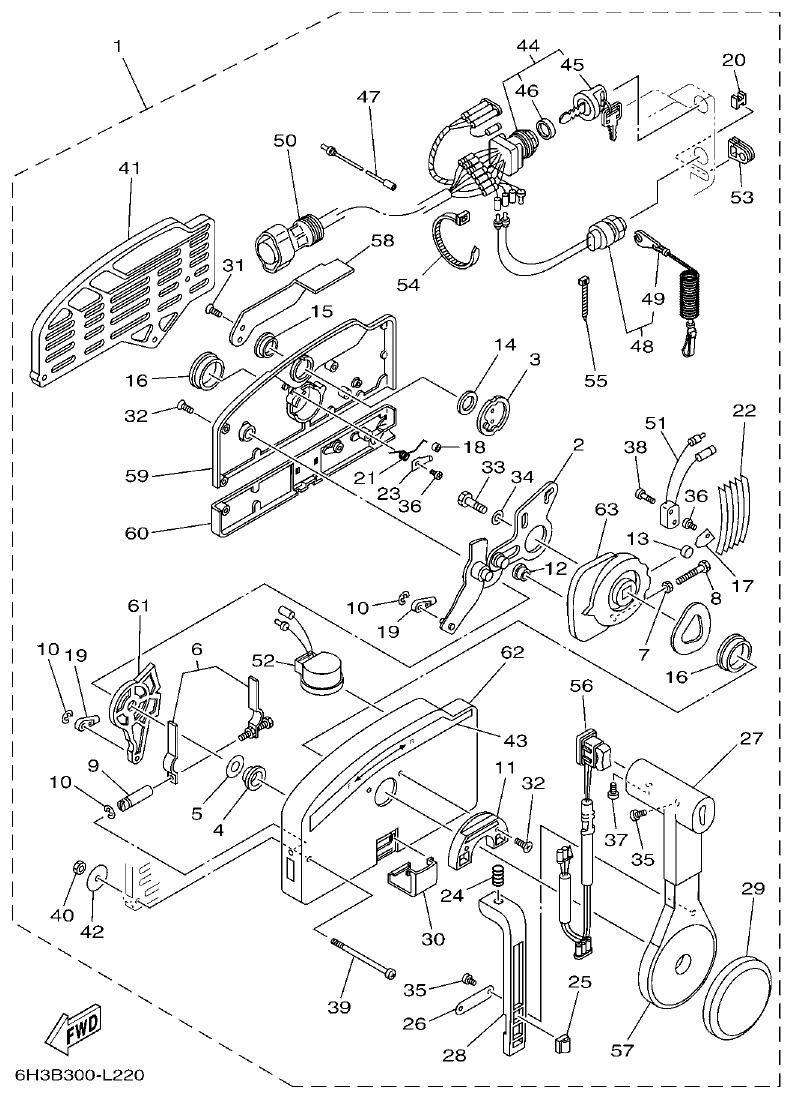

Fig. 39 — REMOTE CONTROL ASSY 1
63 items · 11 available products
Yamaha F200FET, FL200FET REMOTE CONTROL ASSY 2 parts diagram

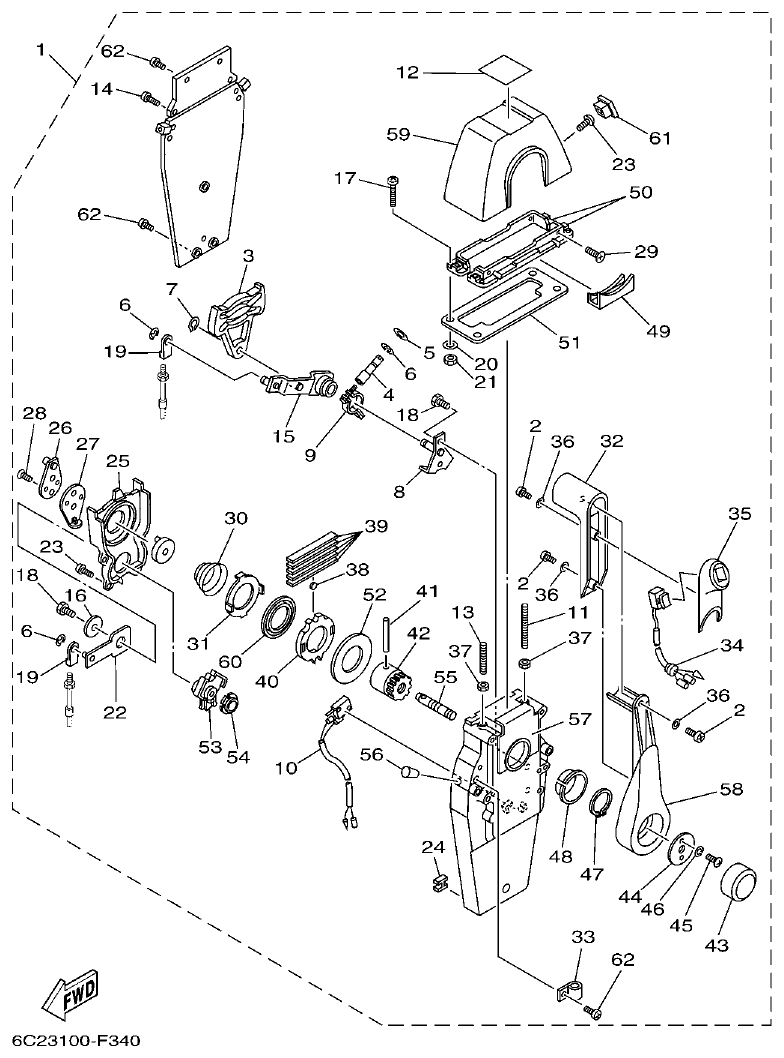

Fig. 40 — REMOTE CONTROL ASSY 2
62 items · 1 available products

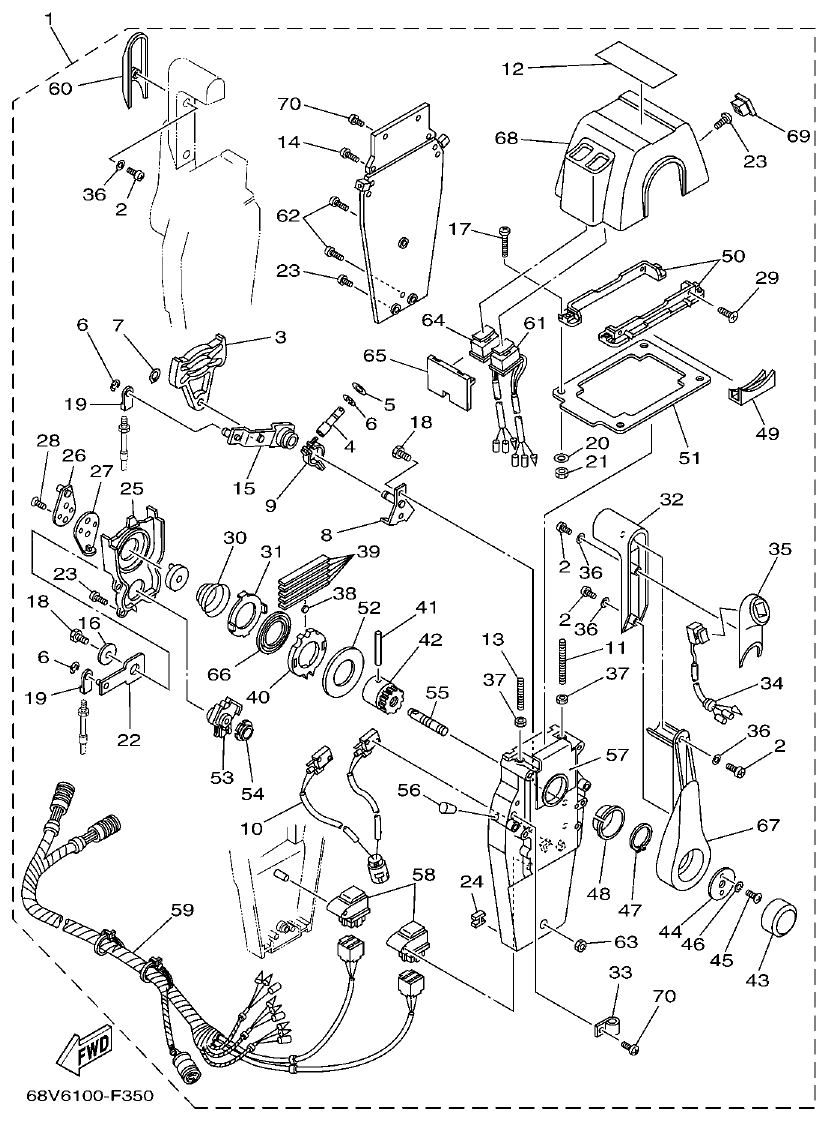

Yamaha F200FET, FL200FET REMOTE CONTROL ASSY 3 parts diagram
Fig. 41 — REMOTE CONTROL ASSY 3
70 items · 2 available products
Yamaha F200FET, FL200FET METER parts diagram

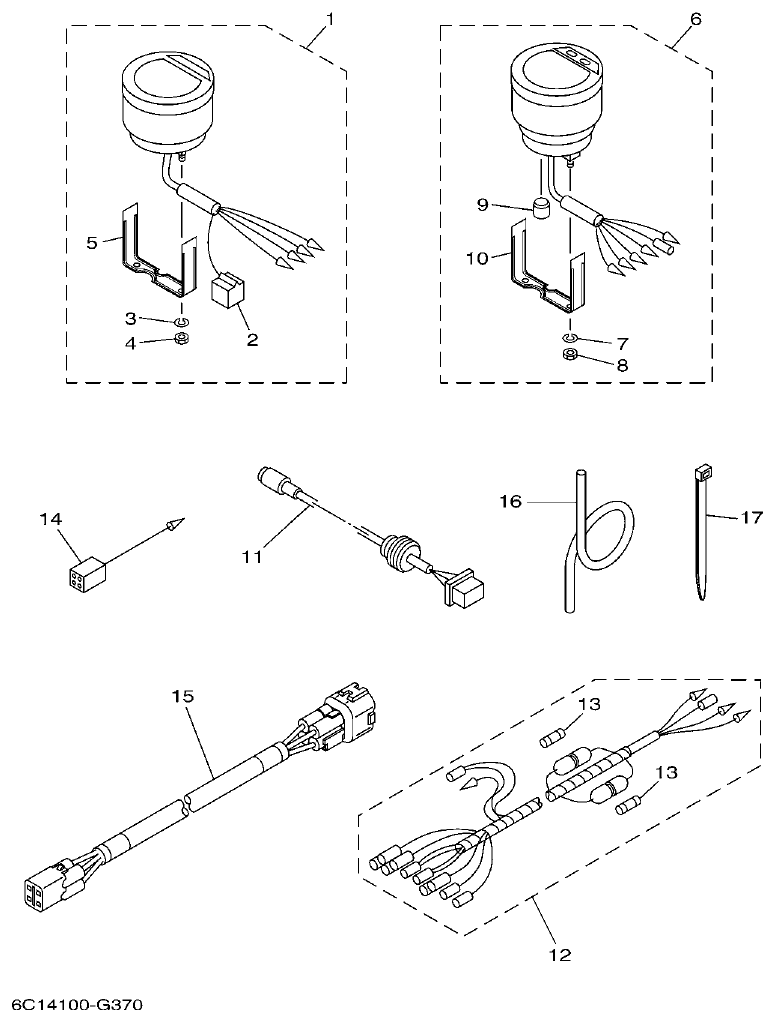

Fig. 42 — METER
20 items · 1 available products

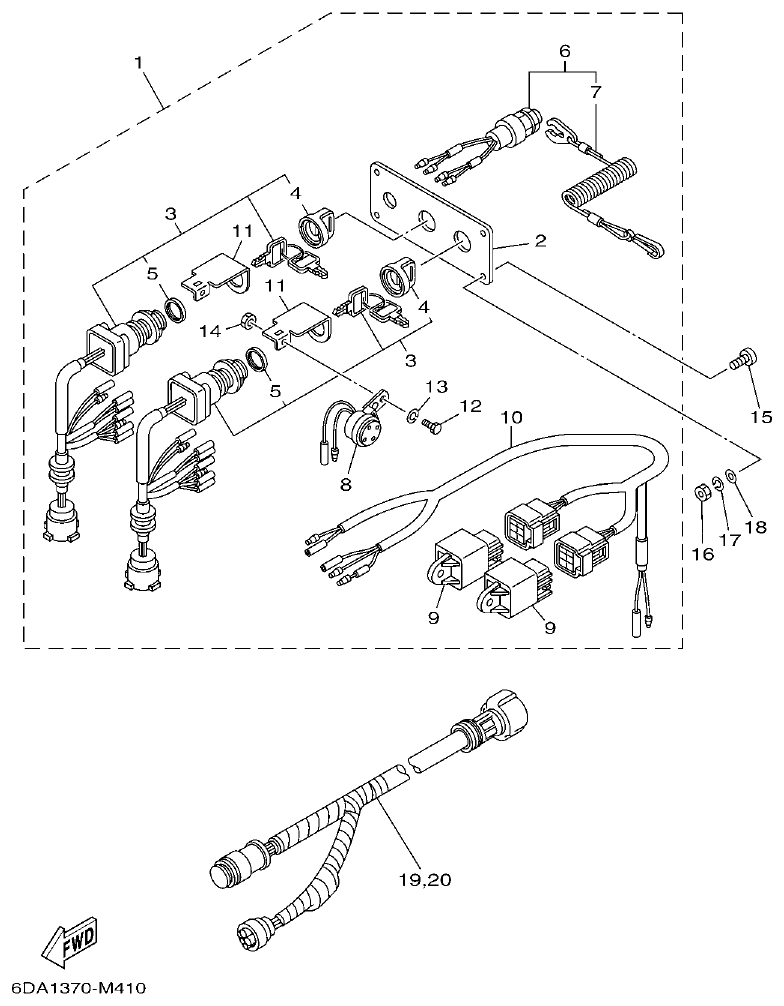

Yamaha F200FET, FL200FET SWITCH & PANEL 1 parts diagram

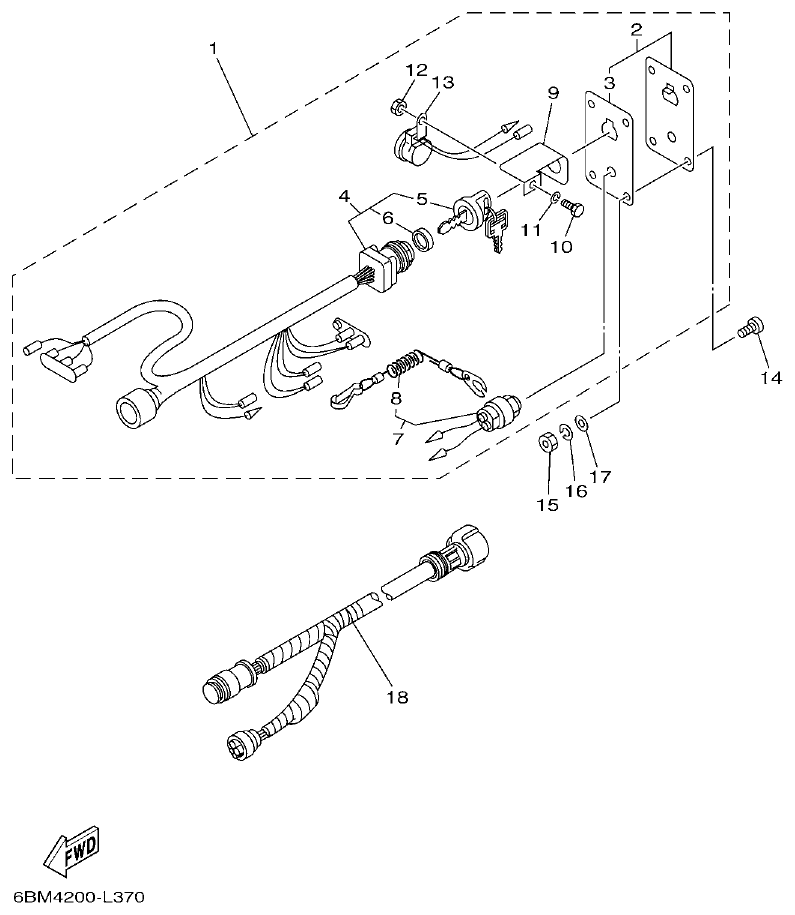

Fig. 43 — SWITCH & PANEL 1
18 items · 2 available products

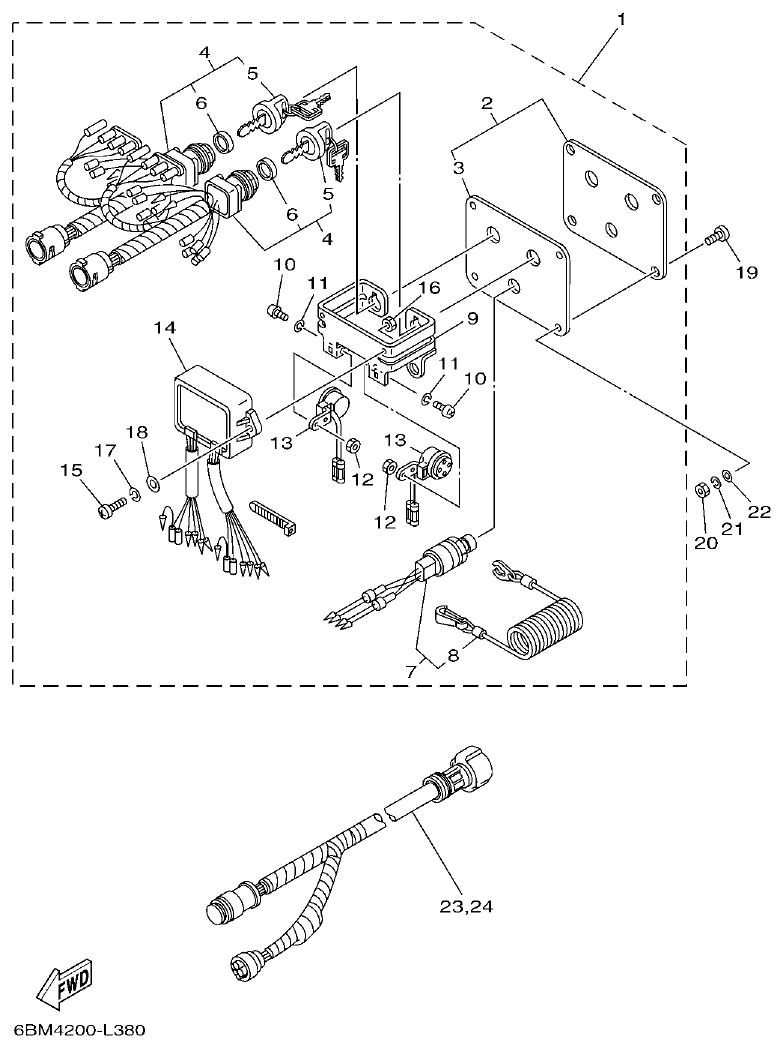

Yamaha F200FET, FL200FET SWITCH & PANEL 2 parts diagram
Fig. 44 — SWITCH & PANEL 2
24 items · 1 available products
Yamaha F200FET, FL200FET SWITCH & PANEL 3 parts diagram
Fig. 45 — SWITCH & PANEL 3
20 items · 2 available products

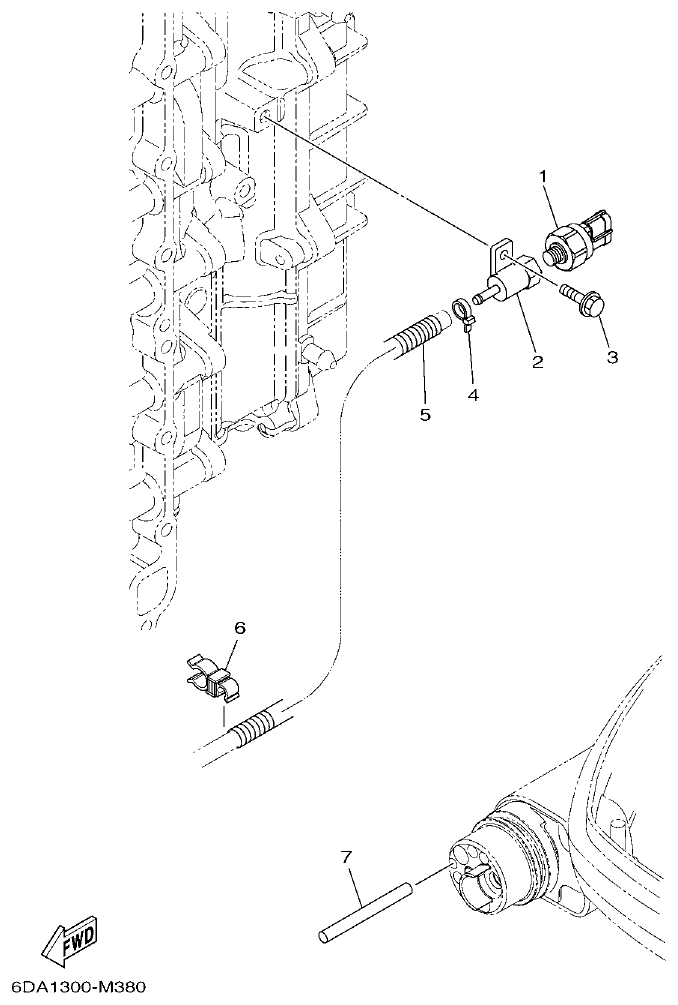

Yamaha F200FET, FL200FET OPTIONAL PARTS 1 parts diagram
Fig. 46 — OPTIONAL PARTS 1
7 items

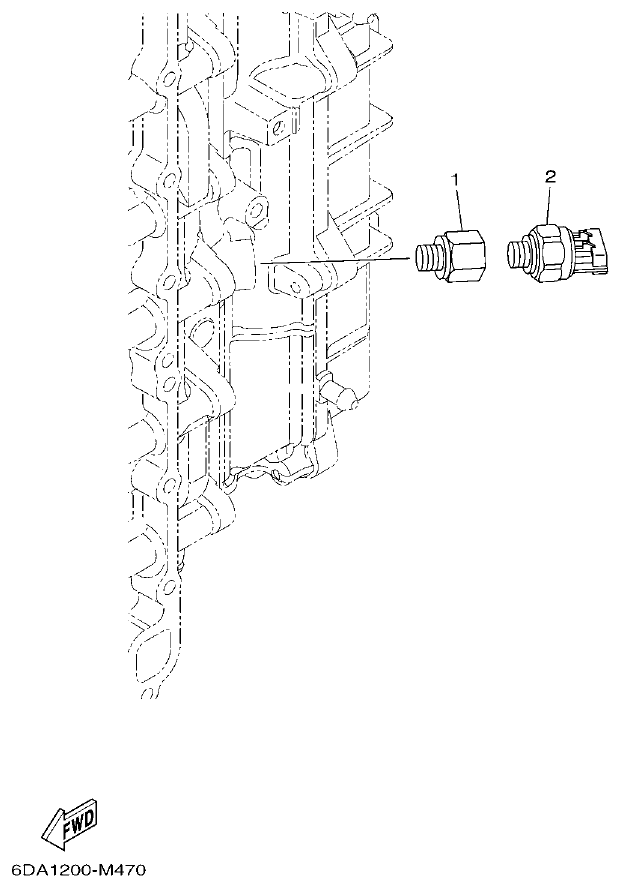

Yamaha F200FET, FL200FET OPTIONAL PARTS 2 parts diagram
Fig. 47 — OPTIONAL PARTS 2
2 items
Yamaha F200FET, FL200FET OPTIONAL PARTS 3 parts diagram
Fig. 48 — OPTIONAL PARTS 3
16 items · 6 available products
Yamaha F200FET, FL200FET OPTIONAL PARTS 4 parts diagram

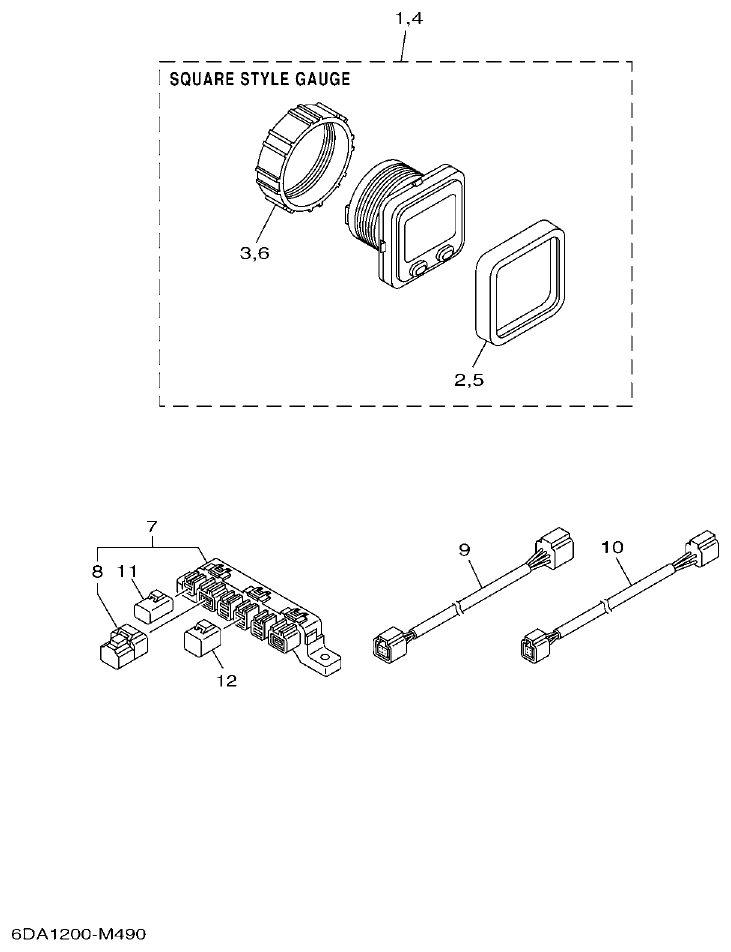

Fig. 49 — OPTIONAL PARTS 4
13 items · 5 available products
Yamaha F200FET, FL200FET OPTIONAL PARTS 5 parts diagram

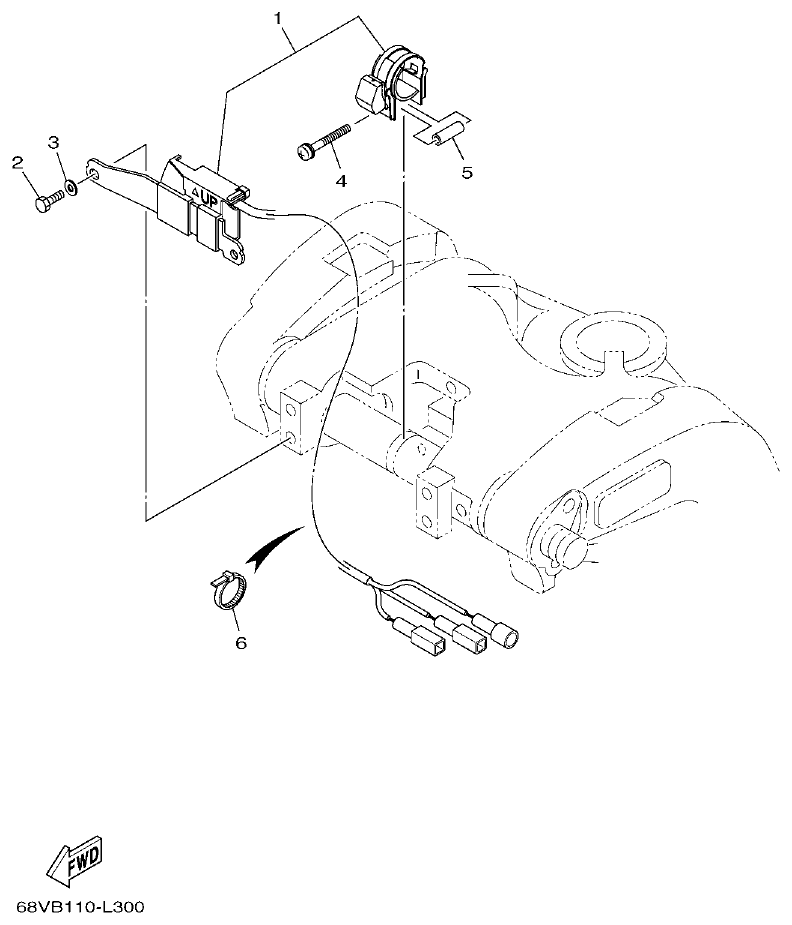

Fig. 50 — OPTIONAL PARTS 5
6 items
Yamaha F200FET, FL200FET REPAIR KIT 1 parts diagram

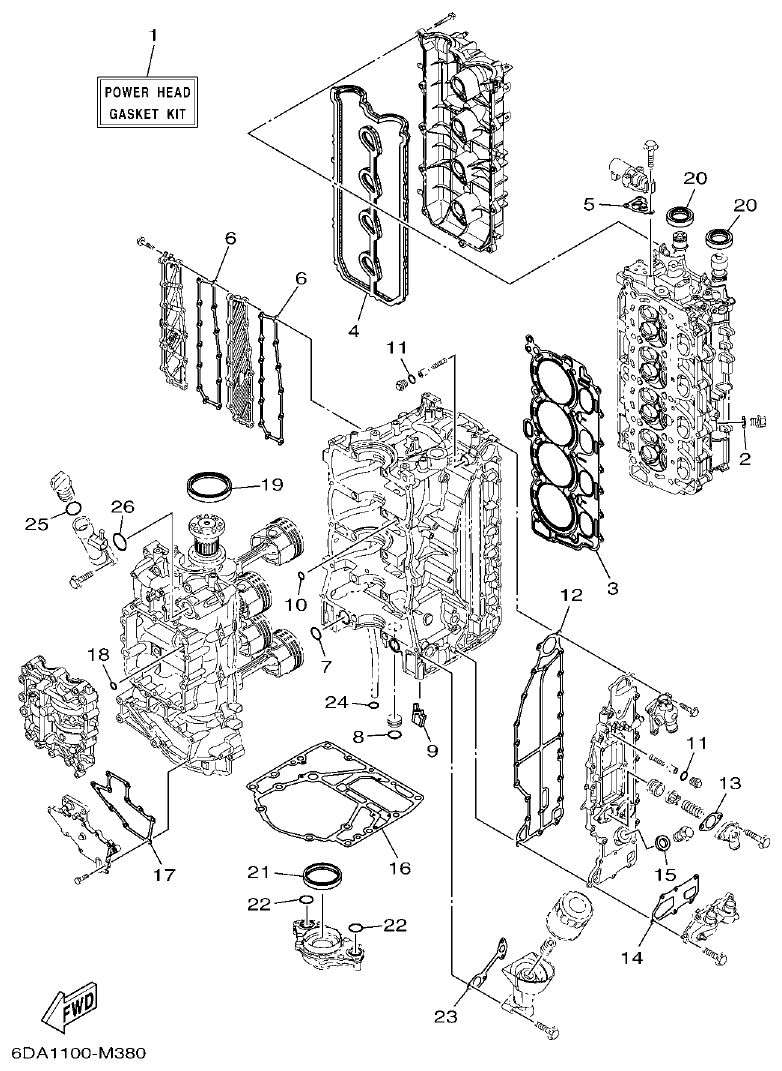

Fig. 51 — REPAIR KIT 1
26 items · 3 available products
Yamaha F200FET, FL200FET REPAIR KIT 2 parts diagram

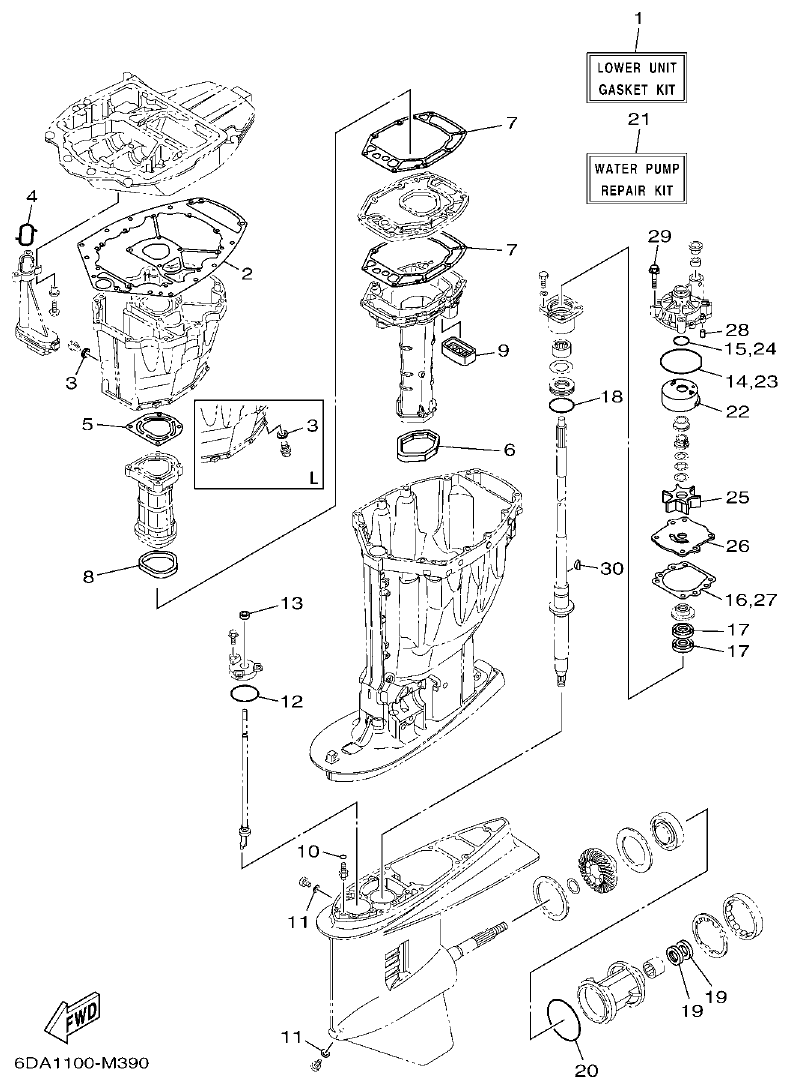

Fig. 52 — REPAIR KIT 2
30 items · 7 available products
