Yamaha F25A Parts Catalog

Browse 37 catalog sections for Yamaha F25A. Open a section to view the parts diagram, reference numbers and available products.

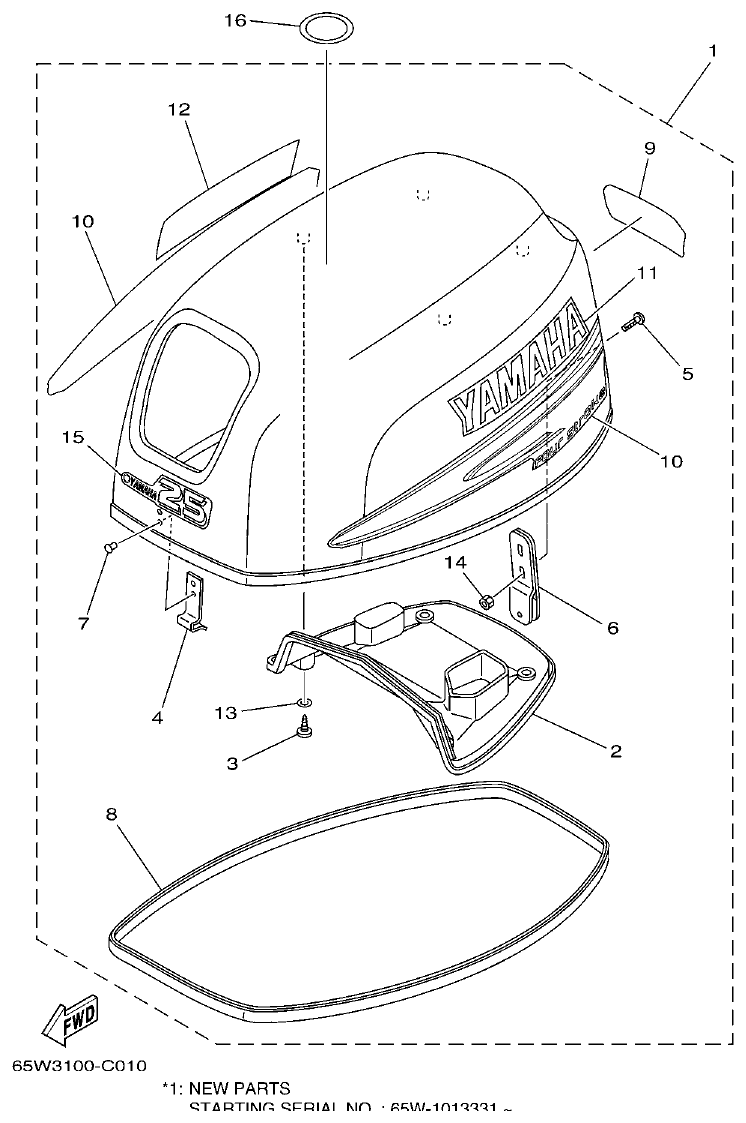

Yamaha F25A TOP COWLING parts diagram
Fig. 1 — TOP COWLING
19 items

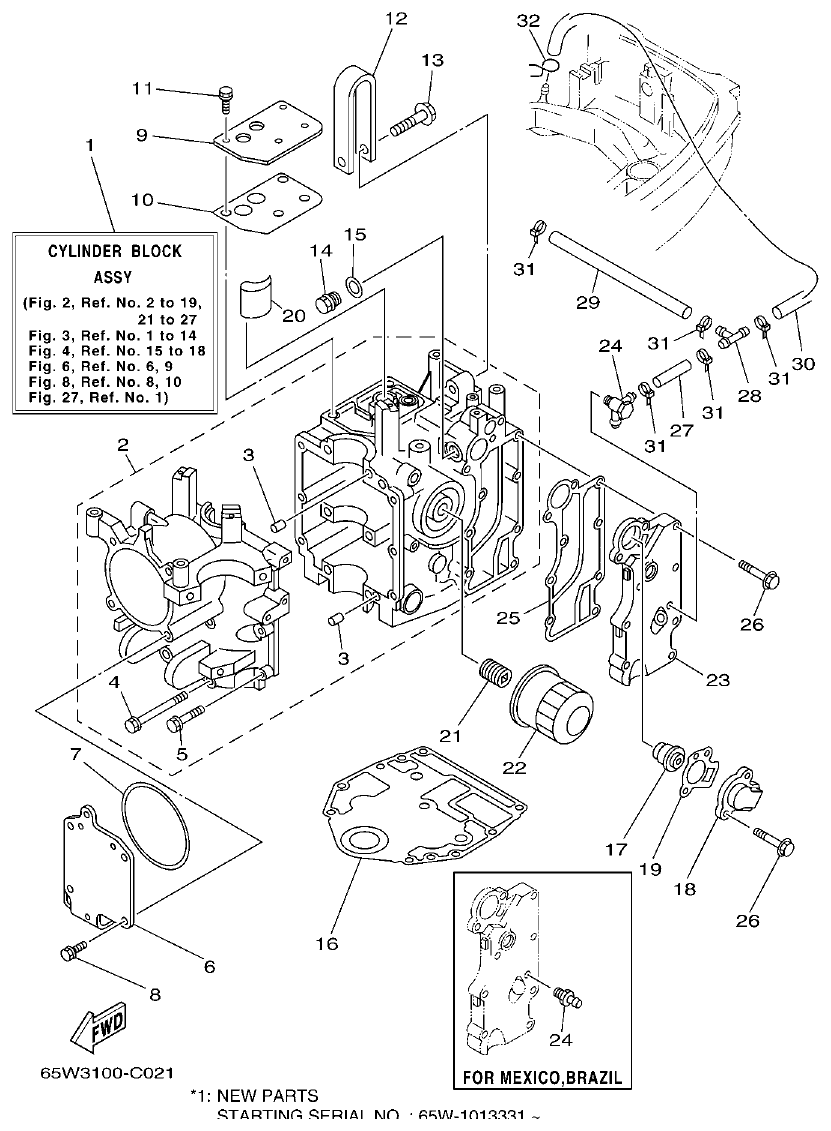

Yamaha F25A CYLINDER & CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER & CRANKCASE 1
34 items · 4 available products
Yamaha F25A CRANKSHAFT & PISTON parts diagram

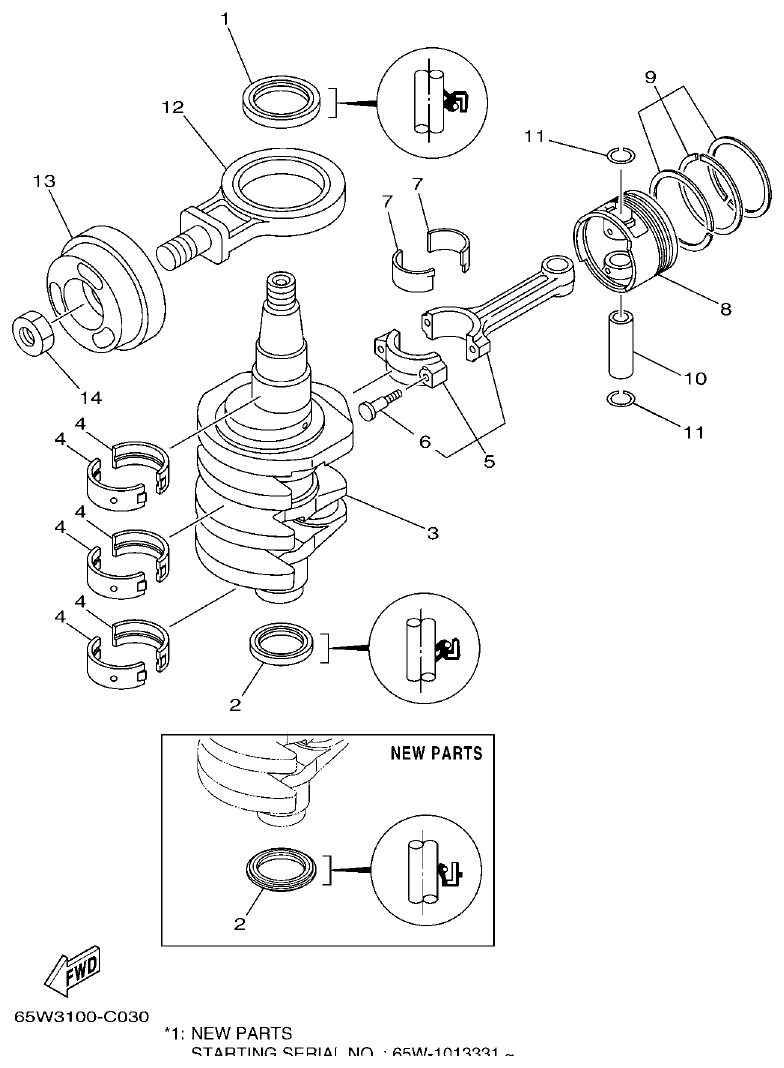

Fig. 3 — CRANKSHAFT & PISTON
27 items · 7 available products
Yamaha F25A CYLINDER & CRANKCASE 2 parts diagram
Fig. 4 — CYLINDER & CRANKCASE 2
30 items · 3 available products

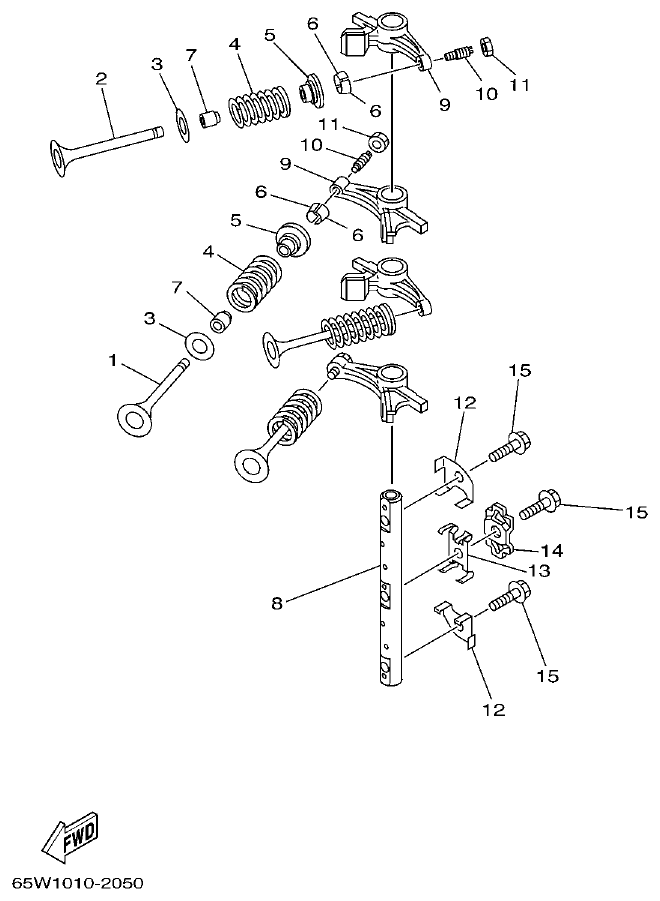

Yamaha F25A VALVE parts diagram
Fig. 5 — VALVE
15 items · 3 available products

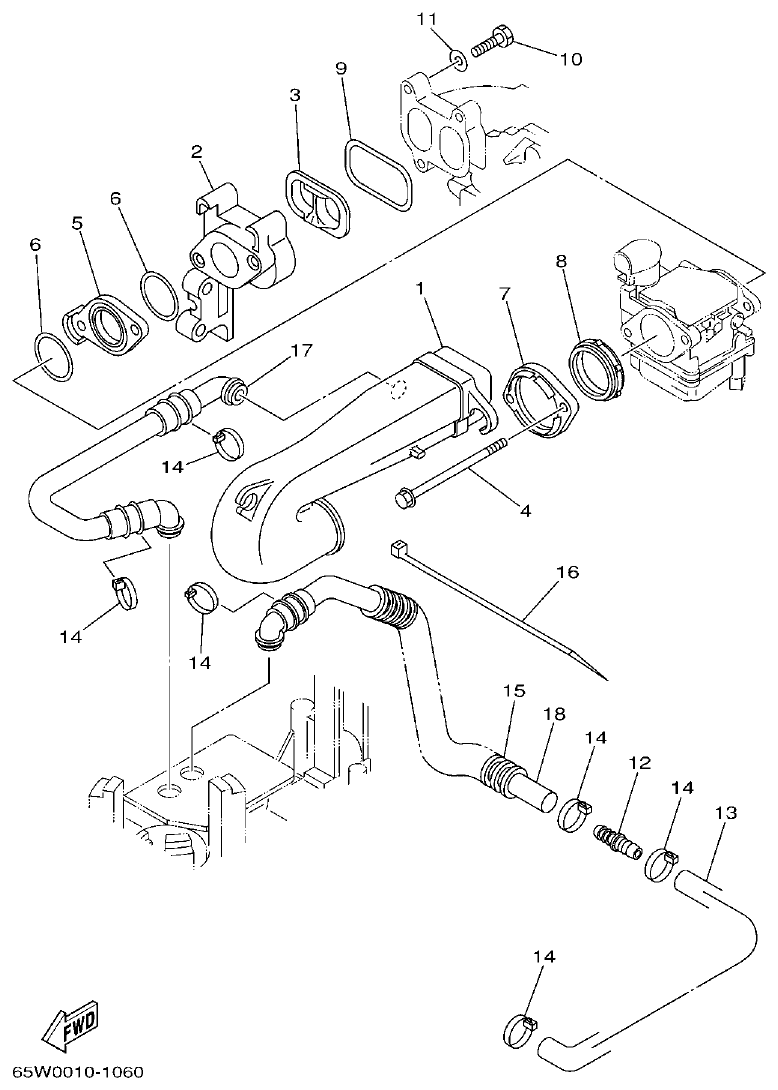

Yamaha F25A INTAKE parts diagram
Fig. 6 — INTAKE
18 items

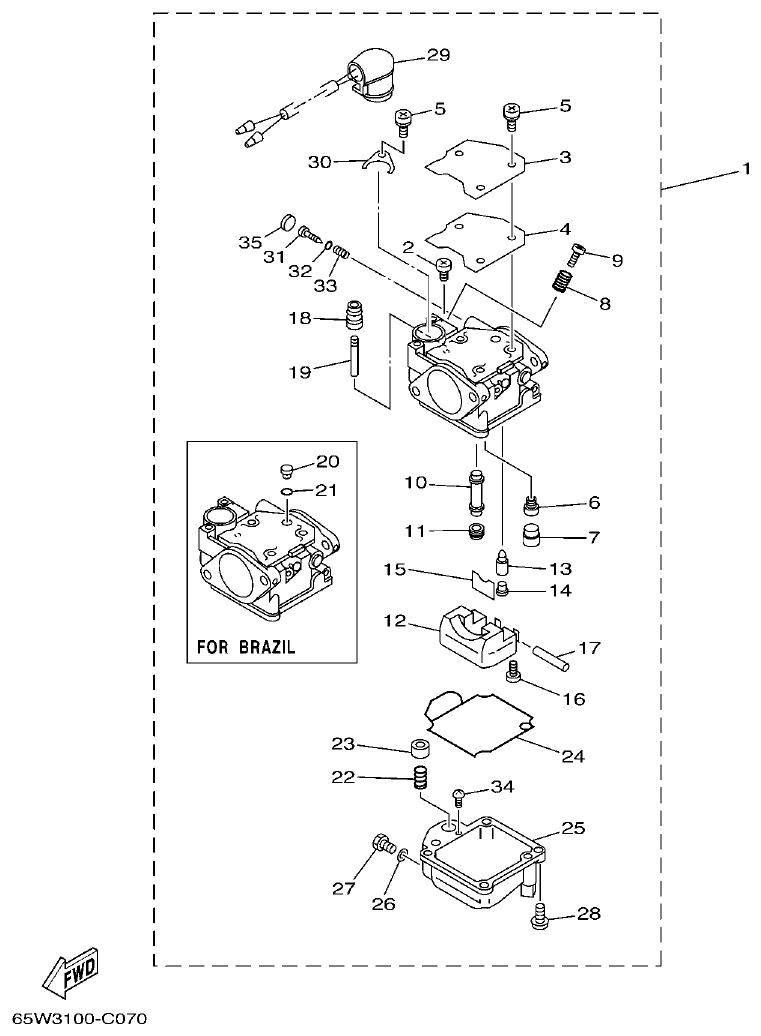

Yamaha F25A CARBURETOR parts diagram
Fig. 7 — CARBURETOR
44 items · 4 available products
Yamaha F25A OIL PUMP parts diagram

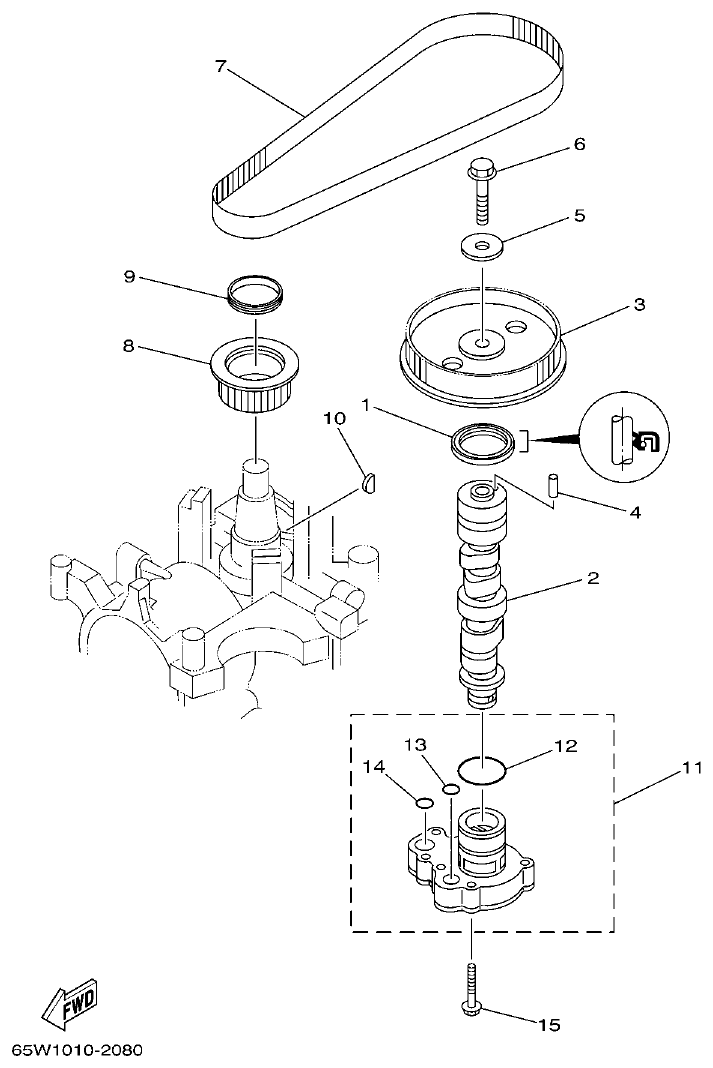

Fig. 8 — OIL PUMP
16 items · 2 available products

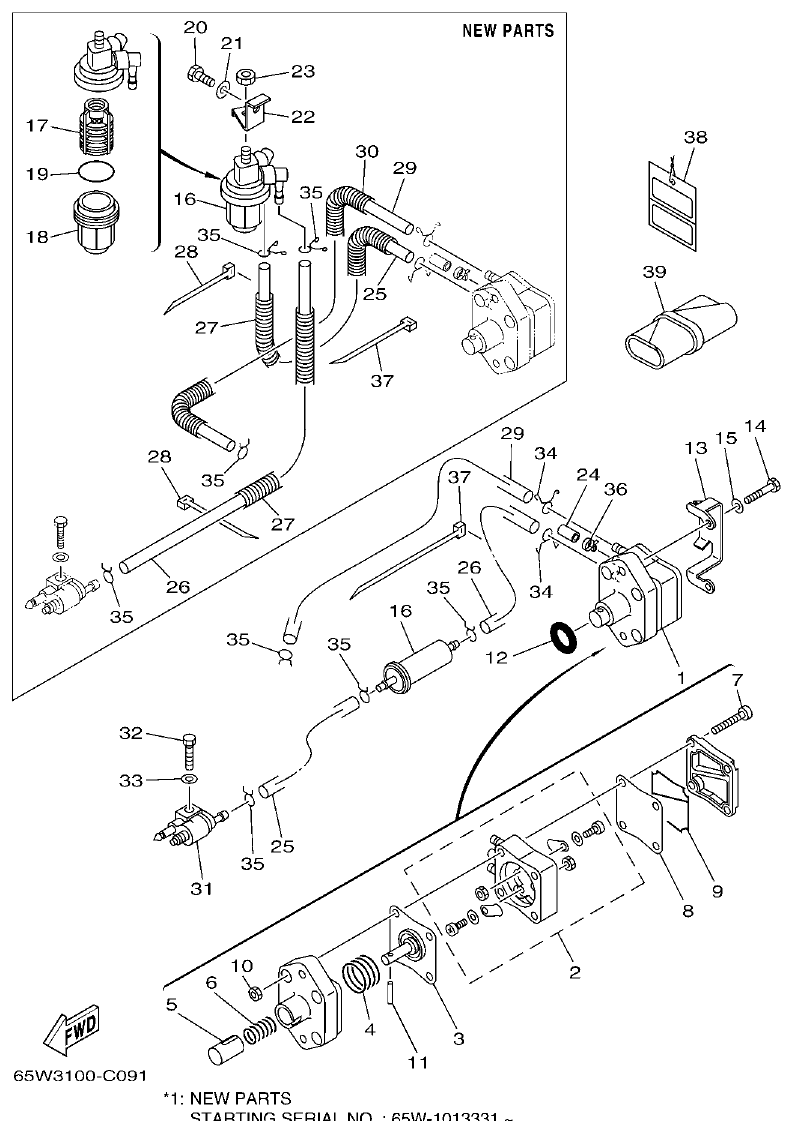

Yamaha F25A FUEL 1 parts diagram
Fig. 9 — FUEL 1
44 items · 3 available products

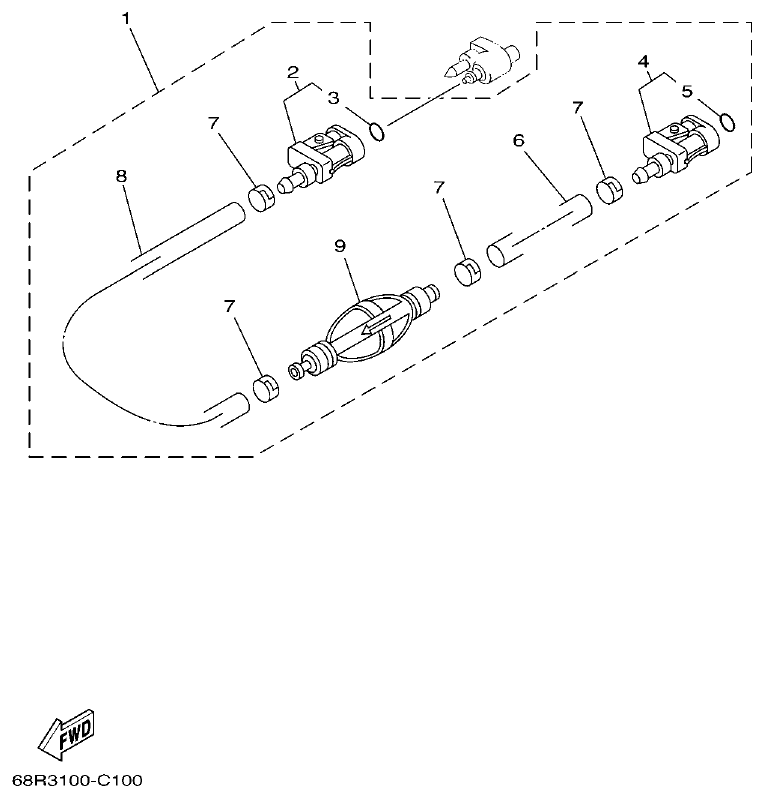

Yamaha F25A FUEL 2 parts diagram
Fig. 10 — FUEL 2
9 items · 2 available products
Yamaha F25A STARTER parts diagram

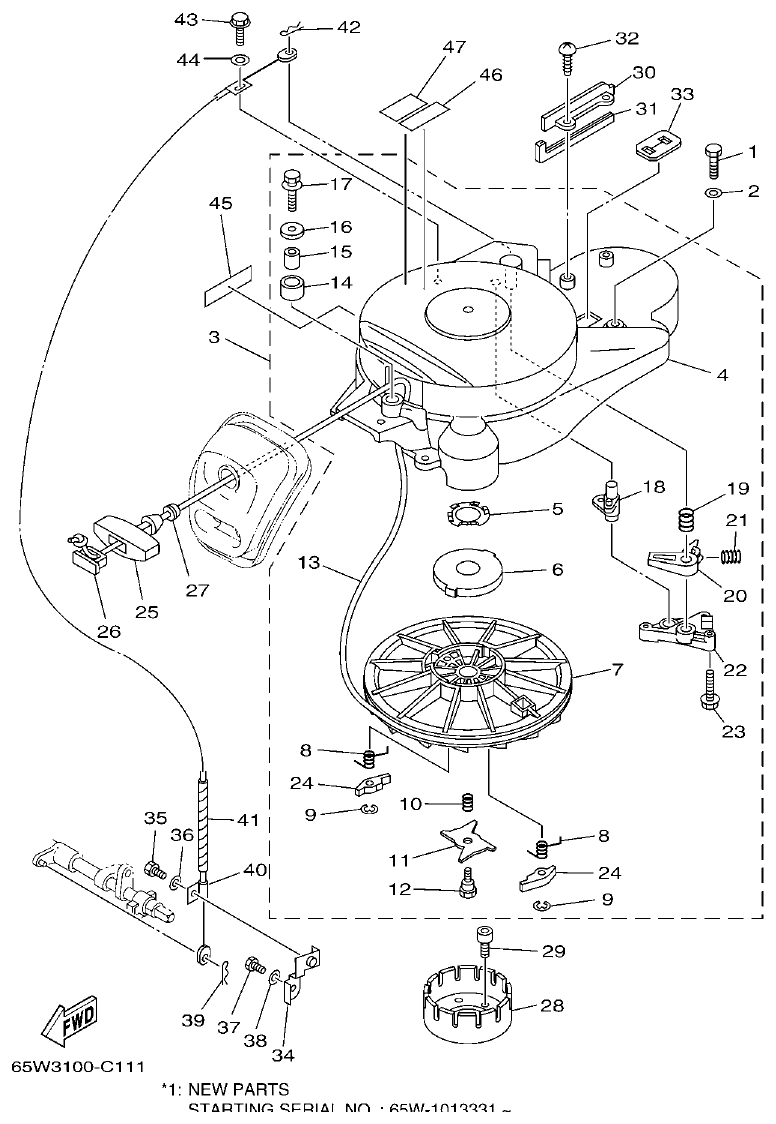

Fig. 11 — STARTER
52 items · 1 available products
Yamaha F25A GENERATOR parts diagram

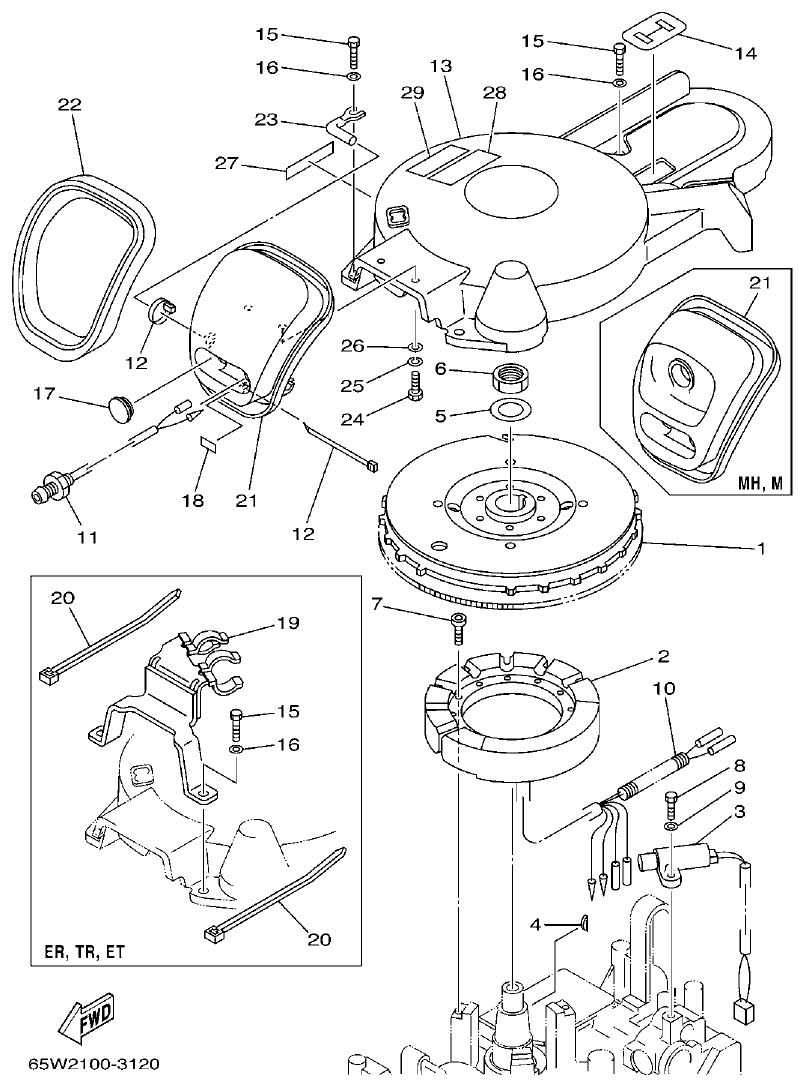

Fig. 12 — GENERATOR
34 items
Yamaha F25A ELECTRICAL 1 parts diagram

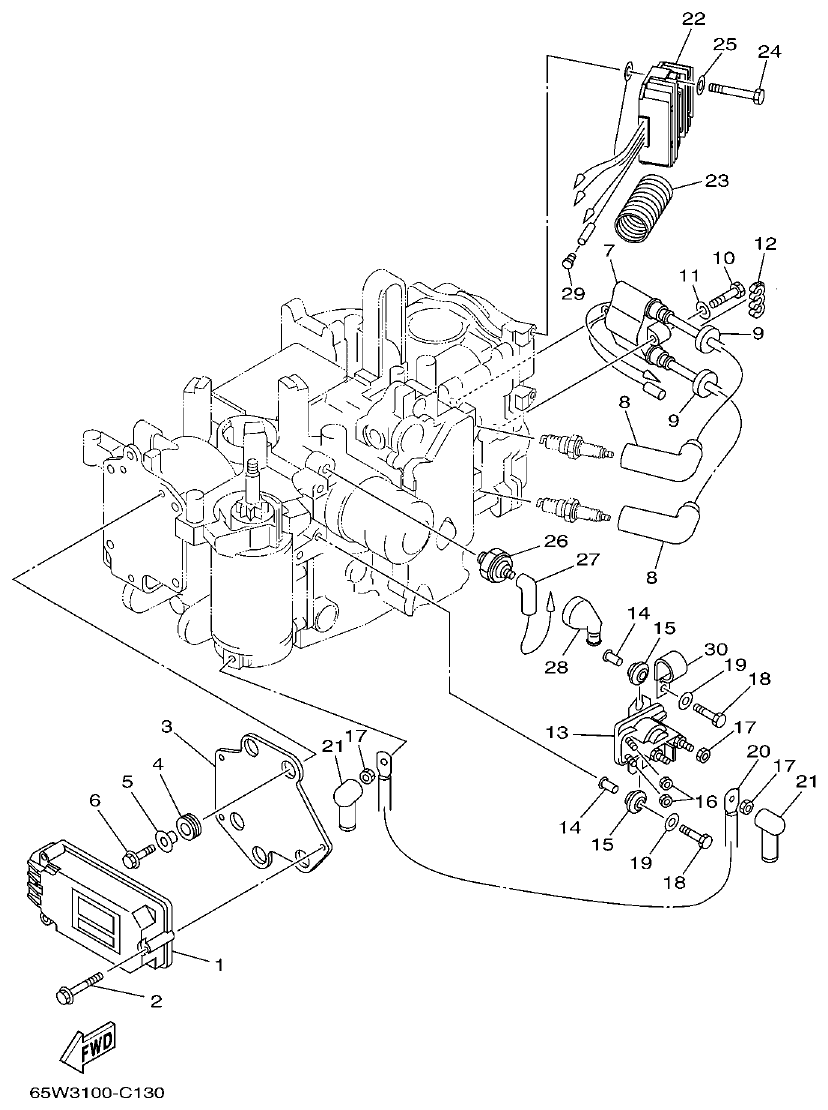

Fig. 13 — ELECTRICAL 1
32 items · 2 available products

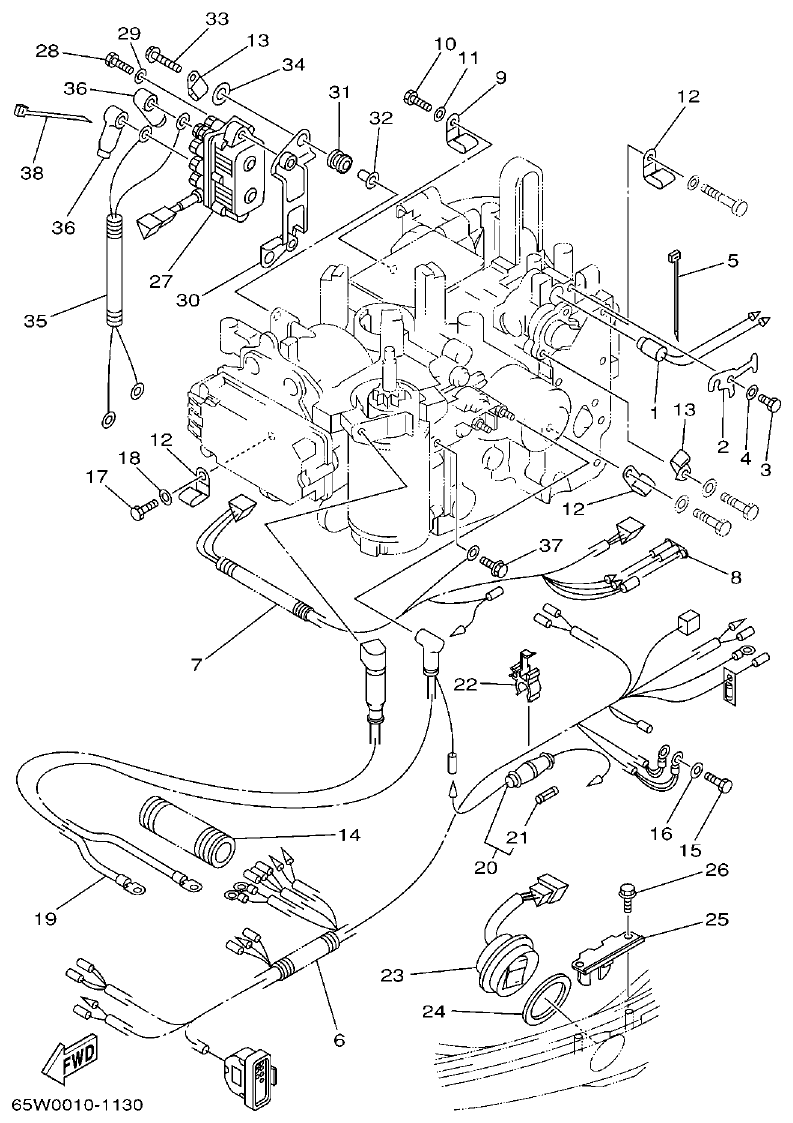

Yamaha F25A ELECTRICAL 2 parts diagram
Fig. 14 — ELECTRICAL 2
44 items · 1 available products

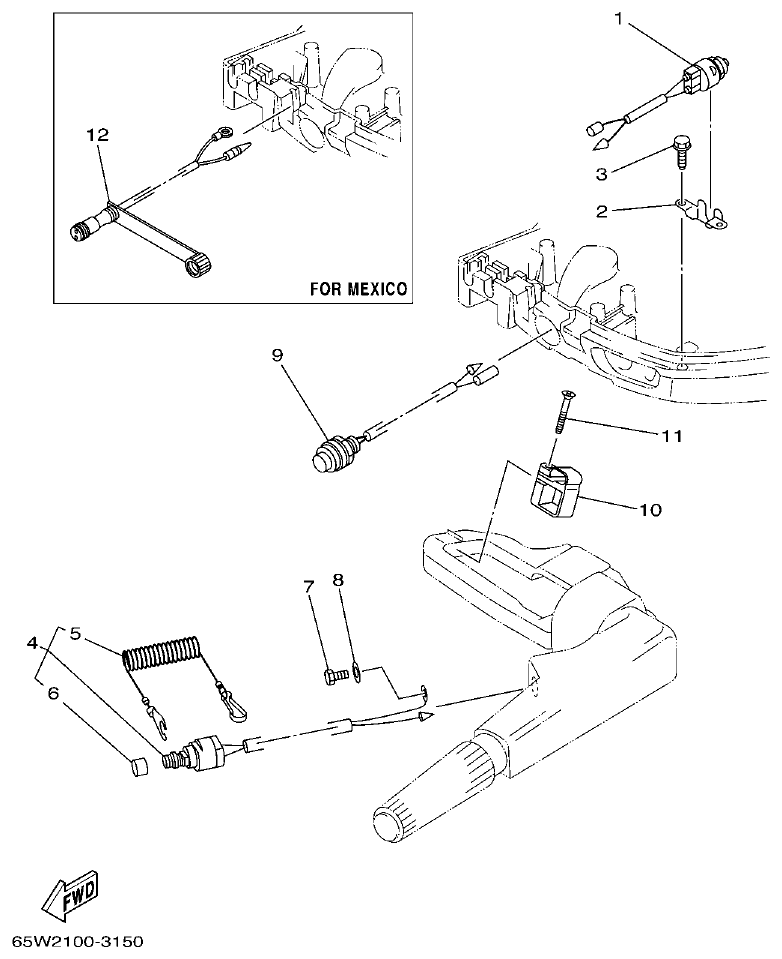

Yamaha F25A ELECTRICAL 3 parts diagram
Fig. 15 — ELECTRICAL 3
12 items · 3 available products
Yamaha F25A STARTING MOTOR parts diagram
Fig. 16 — STARTING MOTOR
15 items

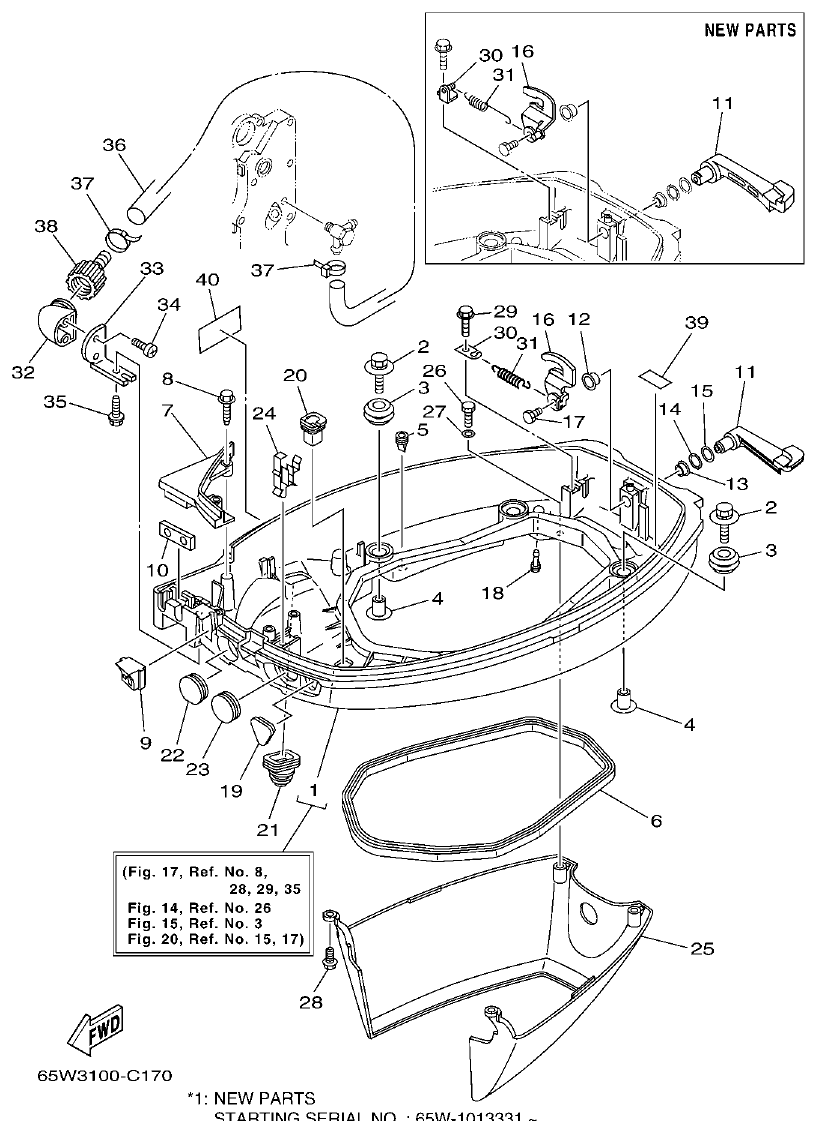

Yamaha F25A BOTTOM COWLING parts diagram
Fig. 17 — BOTTOM COWLING
56 items · 1 available products
Yamaha F25A STEERING parts diagram

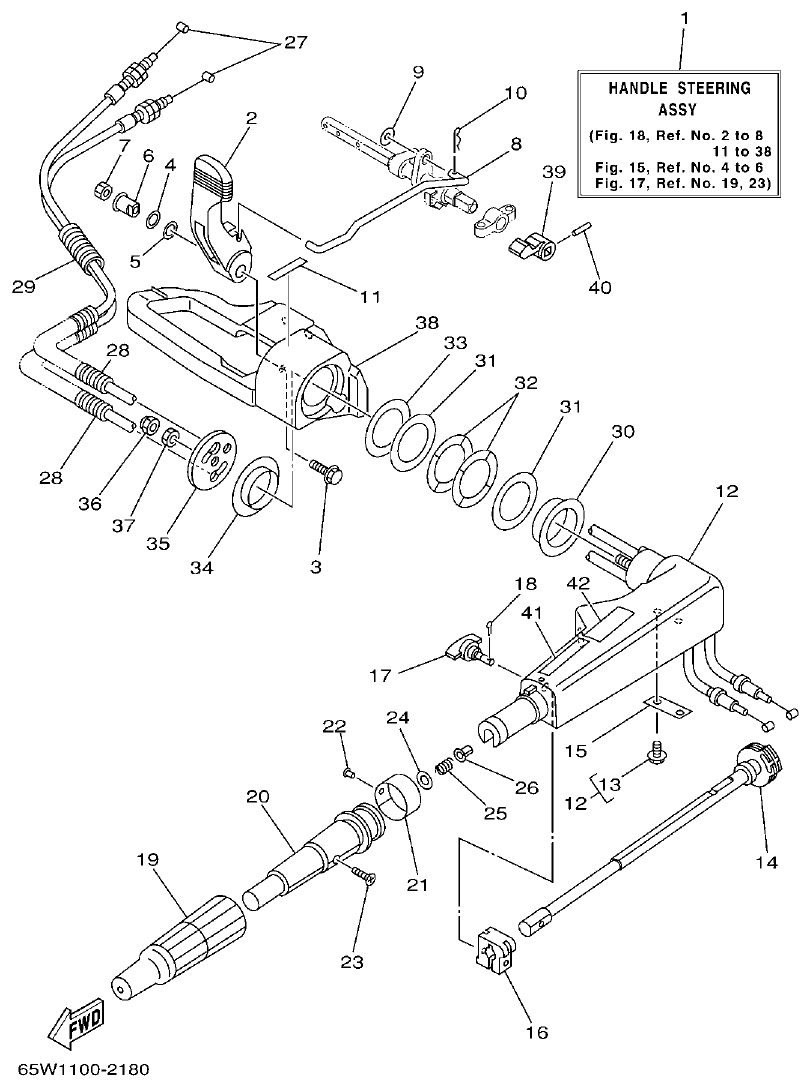

Fig. 18 — STEERING
42 items · 2 available products

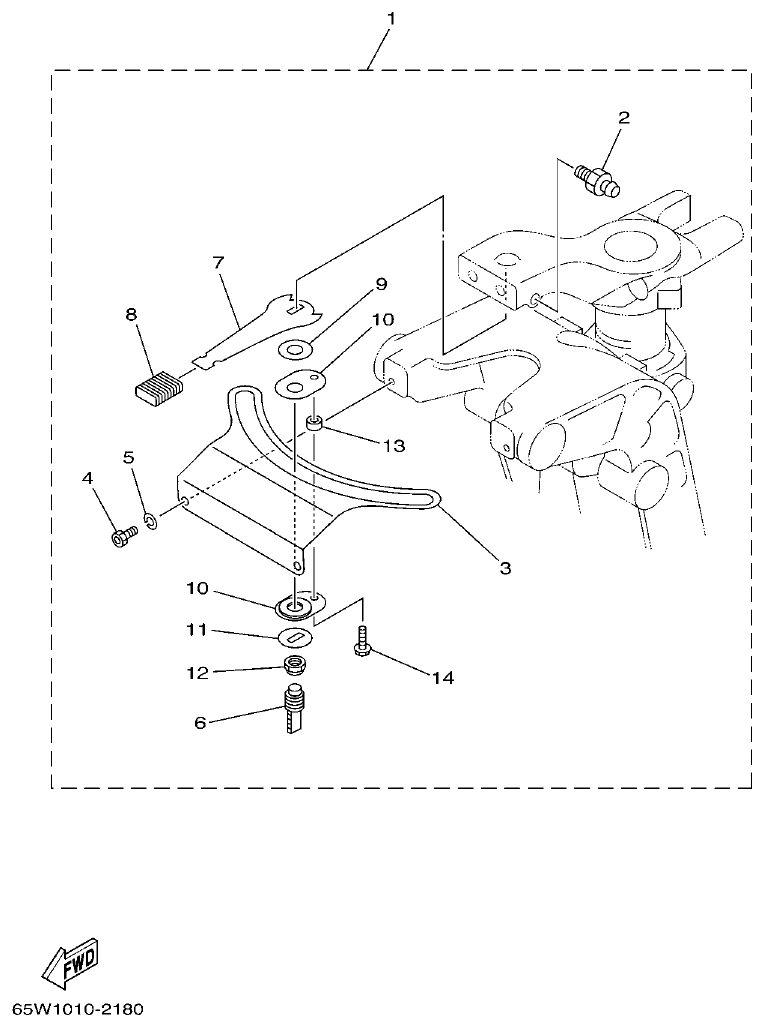

Yamaha F25A STEERING FRICTION parts diagram
Fig. 19 — STEERING FRICTION
14 items

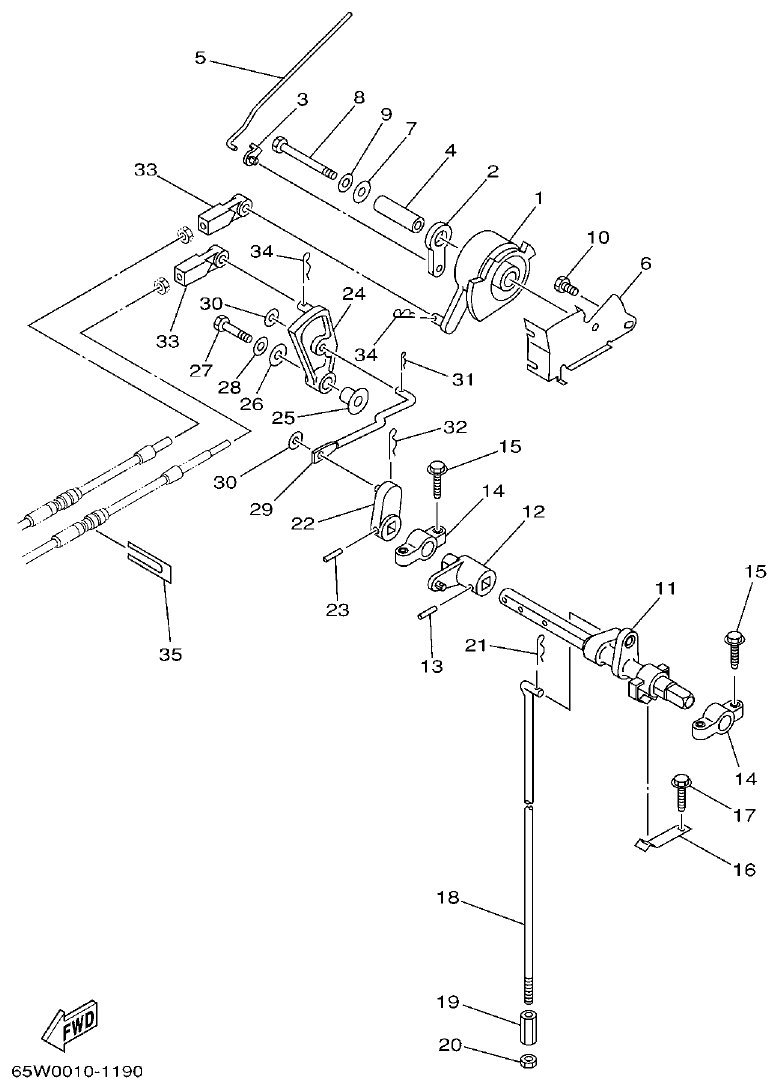

Yamaha F25A CONTROL parts diagram
Fig. 20 — CONTROL
36 items · 3 available products
Yamaha F25A REMO CON ATTACHMENT parts diagram

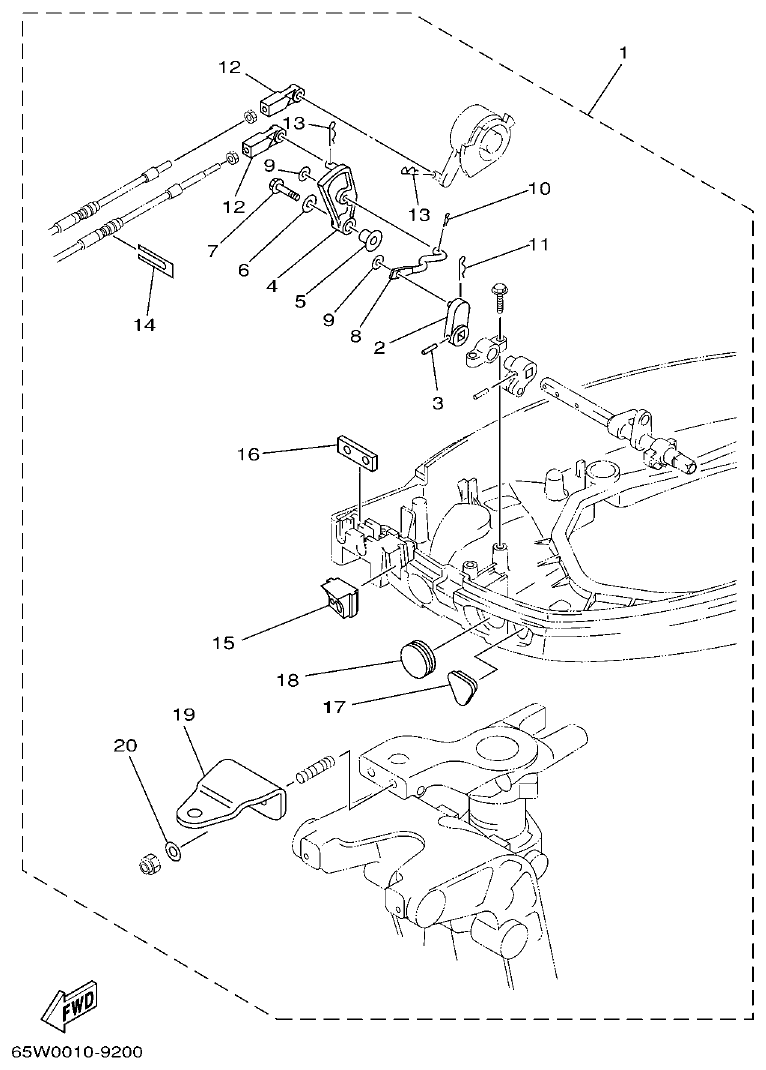

Fig. 21 — REMO CON ATTACHMENT
20 items · 1 available products

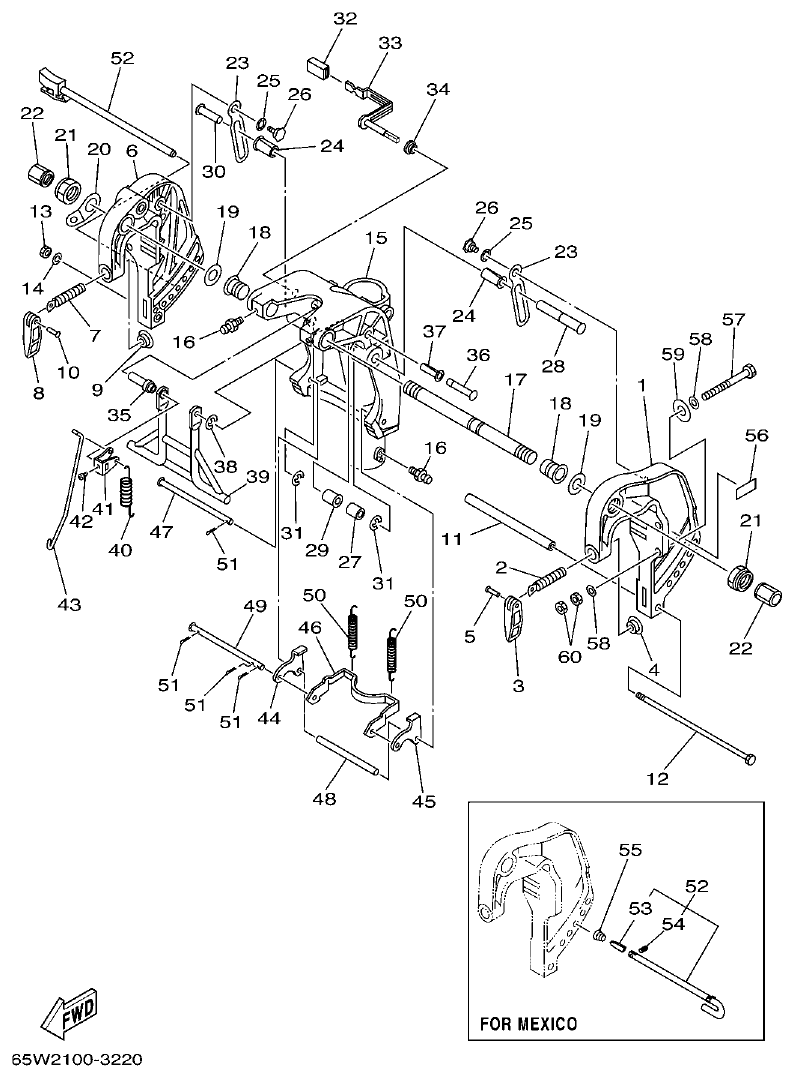

Yamaha F25A BRACKET 1 parts diagram
Fig. 22 — BRACKET 1
63 items · 3 available products
Yamaha F25A BRACKET 2 parts diagram
Fig. 23 — BRACKET 2
38 items · 4 available products

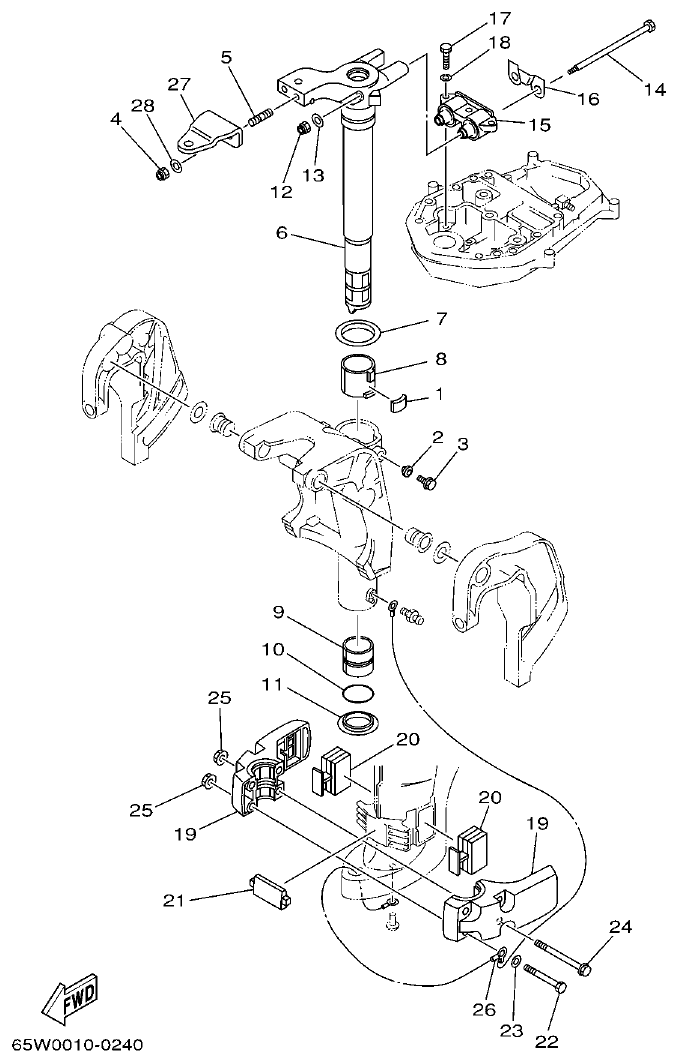

Yamaha F25A BRACKET 3 parts diagram
Fig. 24 — BRACKET 3
29 items

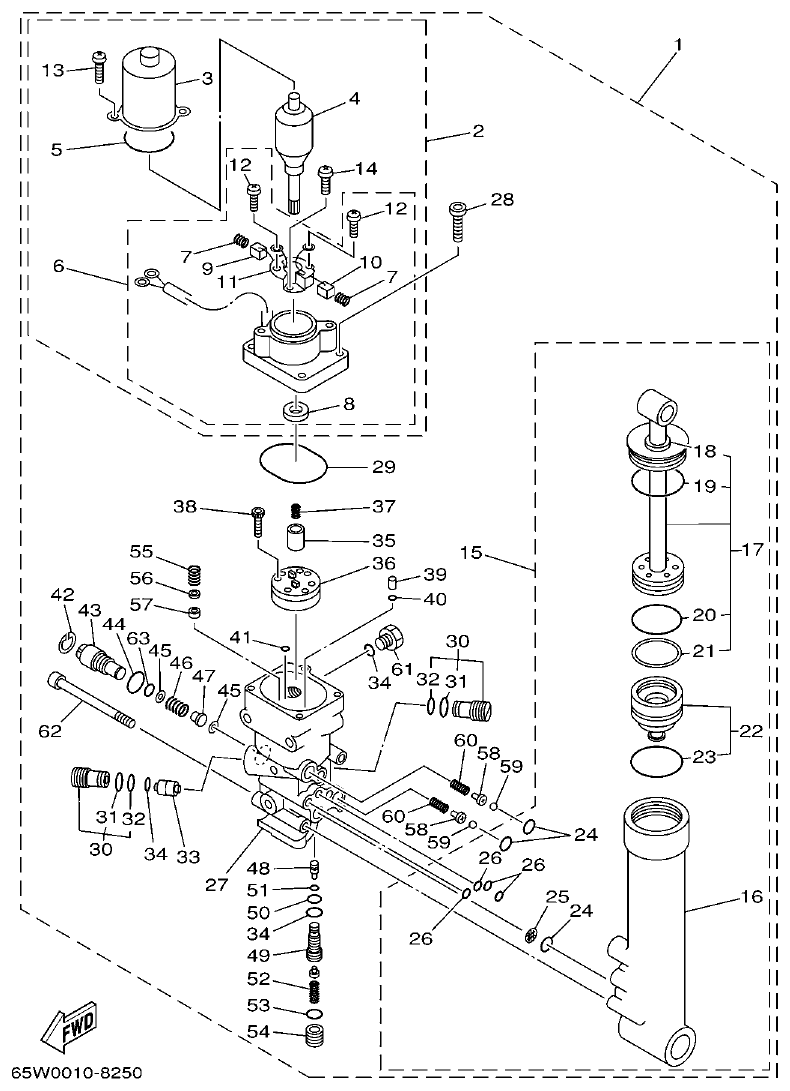

Yamaha F25A POWER TRIM & TILT ASSY parts diagram
Fig. 25 — POWER TRIM & TILT ASSY
63 items · 8 available products

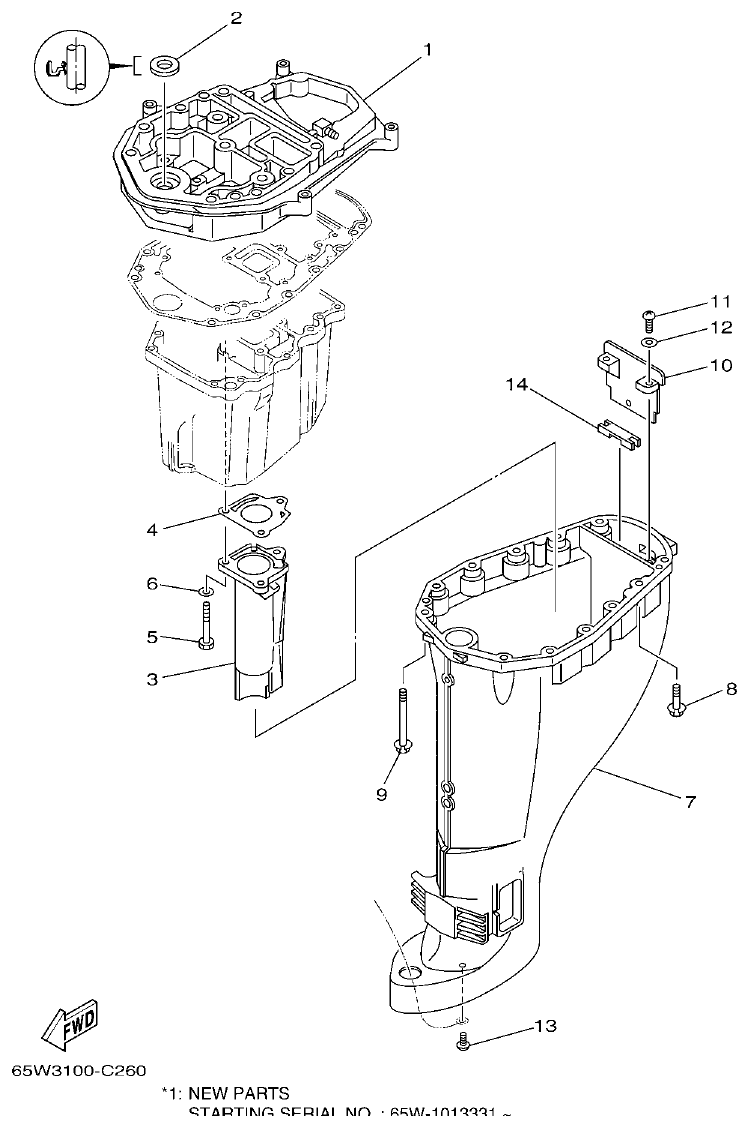

Yamaha F25A UPPER CASING parts diagram
Fig. 26 — UPPER CASING
17 items

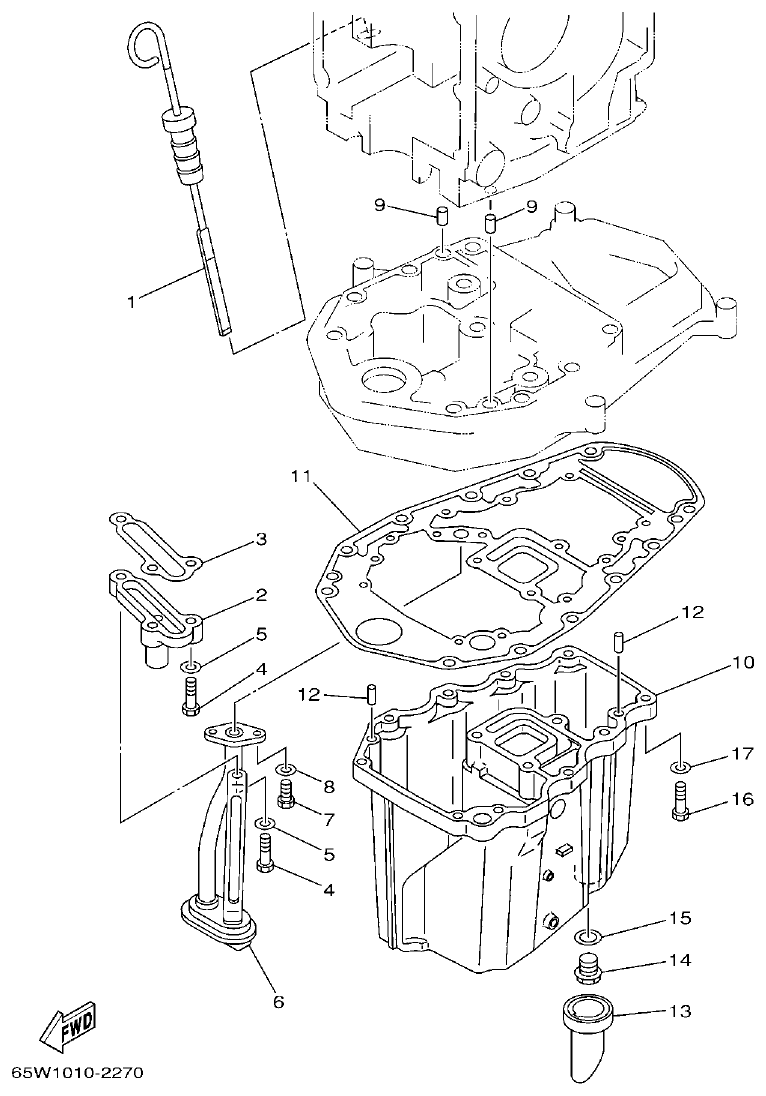

Yamaha F25A OIL PAN parts diagram
Fig. 27 — OIL PAN
17 items

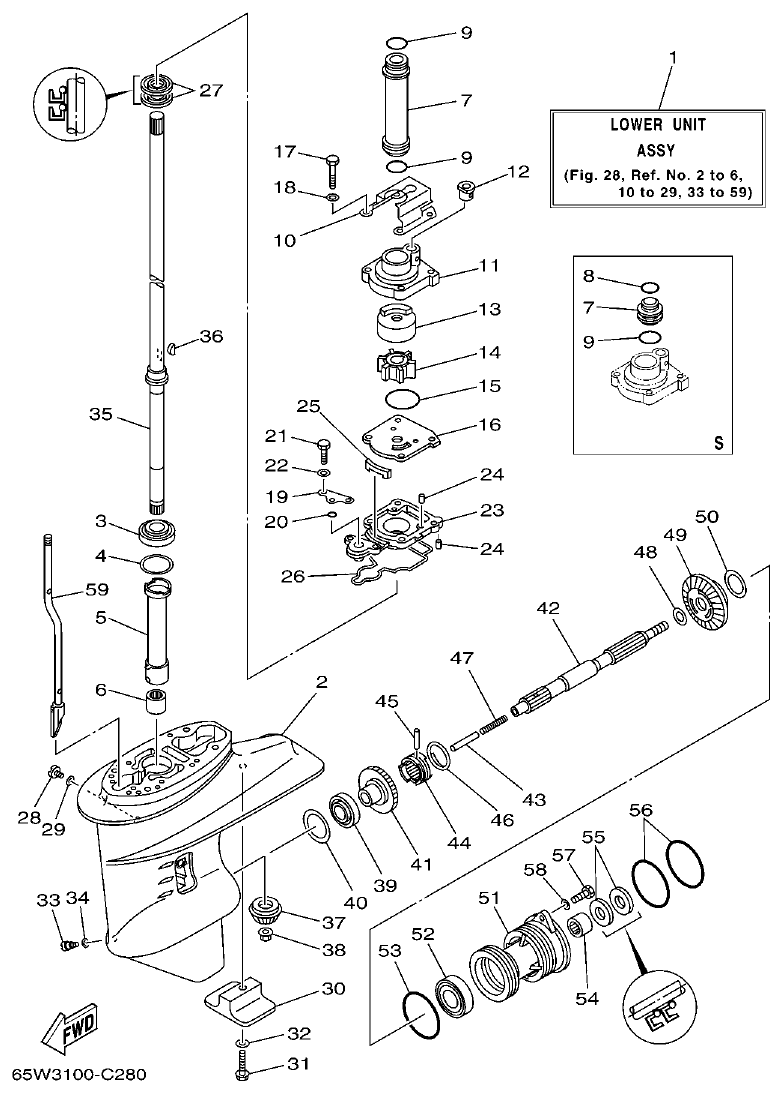

Yamaha F25A LOWER CASING & DRIVE 1 parts diagram
Fig. 28 — LOWER CASING & DRIVE 1
78 items · 17 available products

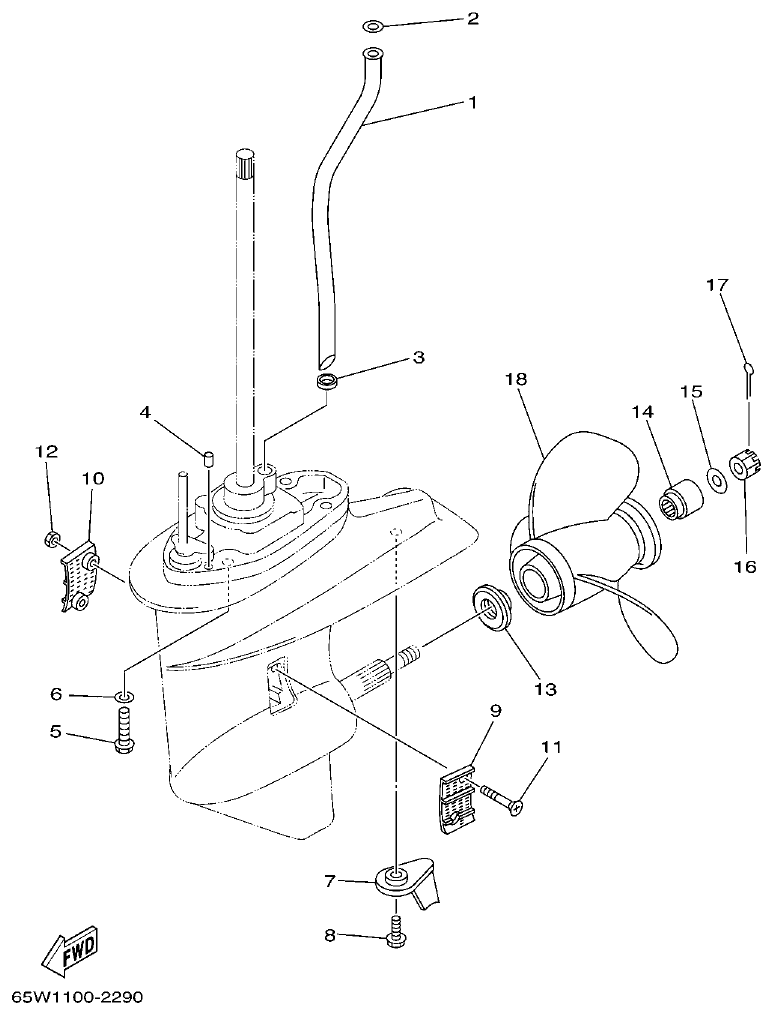

Yamaha F25A LOWER CASING & DRIVE 2 parts diagram
Fig. 29 — LOWER CASING & DRIVE 2
27 items · 5 available products

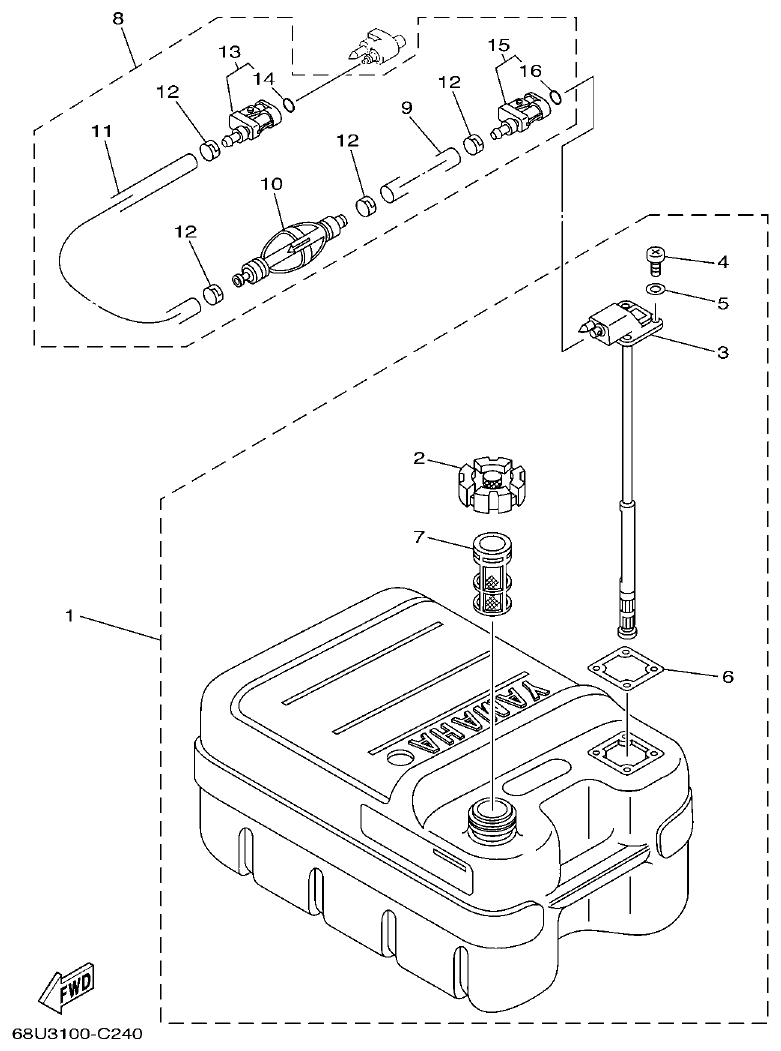

Yamaha F25A FUEL TANK parts diagram
Fig. 30 — FUEL TANK
20 items · 3 available products

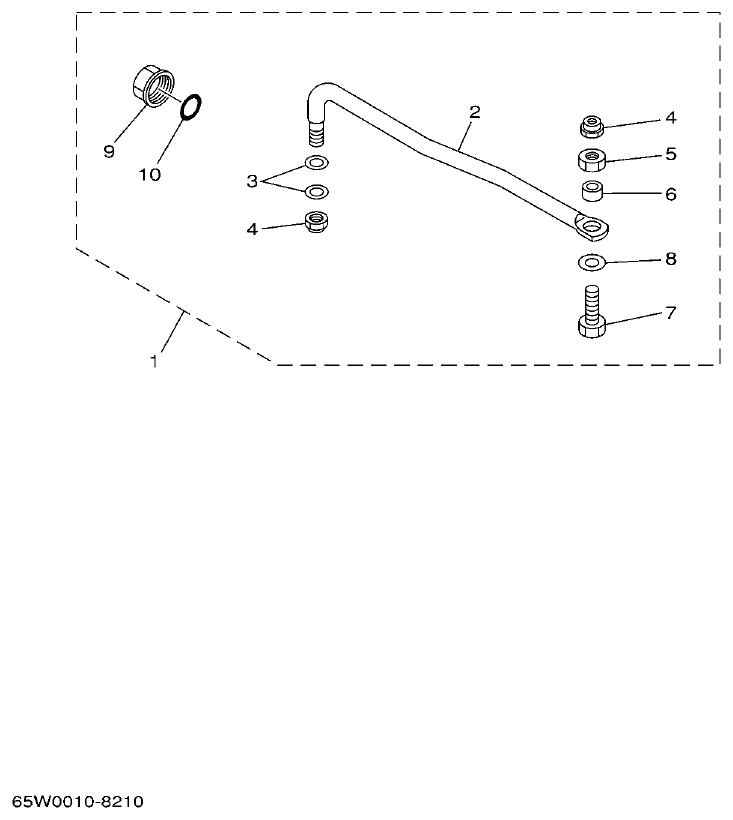

Yamaha F25A STEERING GUIDE parts diagram
Fig. 31 — STEERING GUIDE
10 items · 1 available products

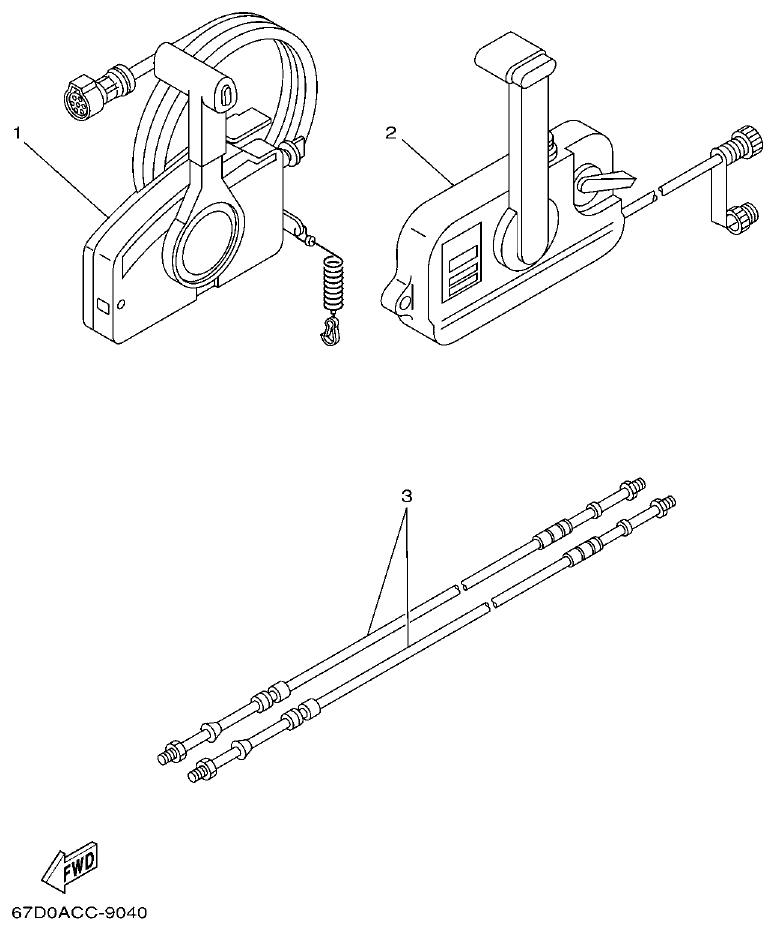

Yamaha F25A REMOTE CONTROL BOX parts diagram
Fig. 32 — REMOTE CONTROL BOX
7 items

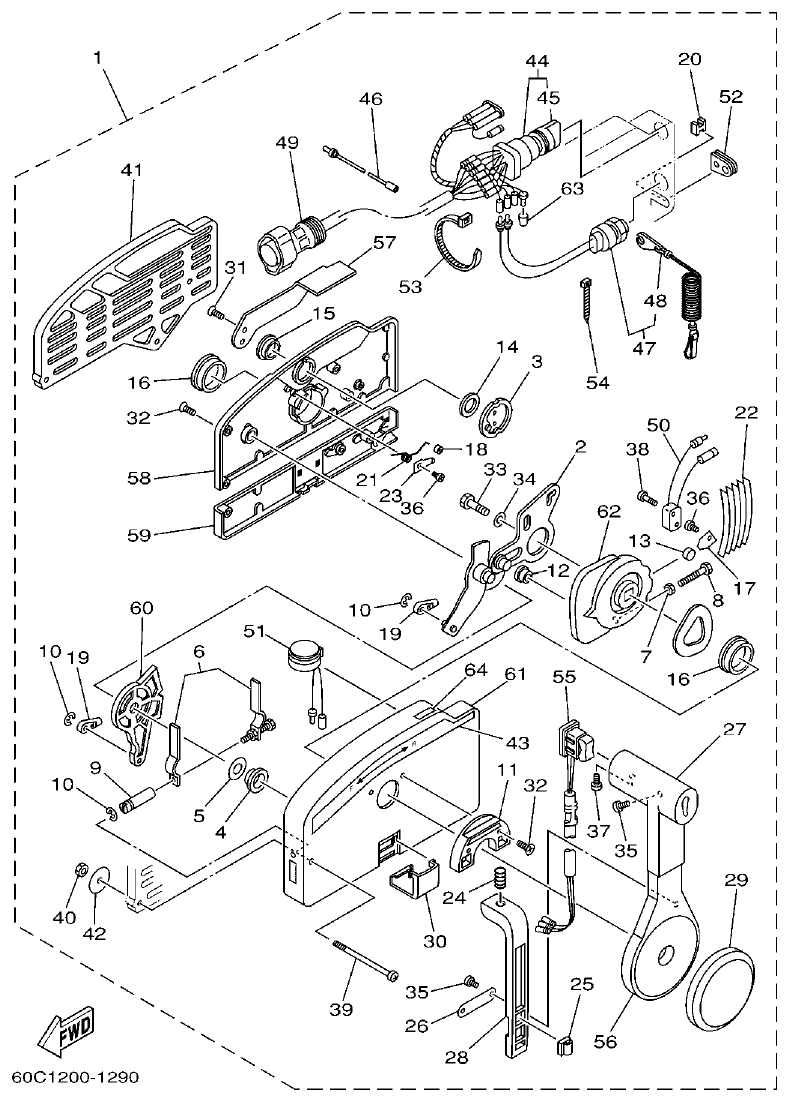

Yamaha F25A REMOTE CONTROL ASSY 1 parts diagram
Fig. 33 — REMOTE CONTROL ASSY 1
67 items · 11 available products

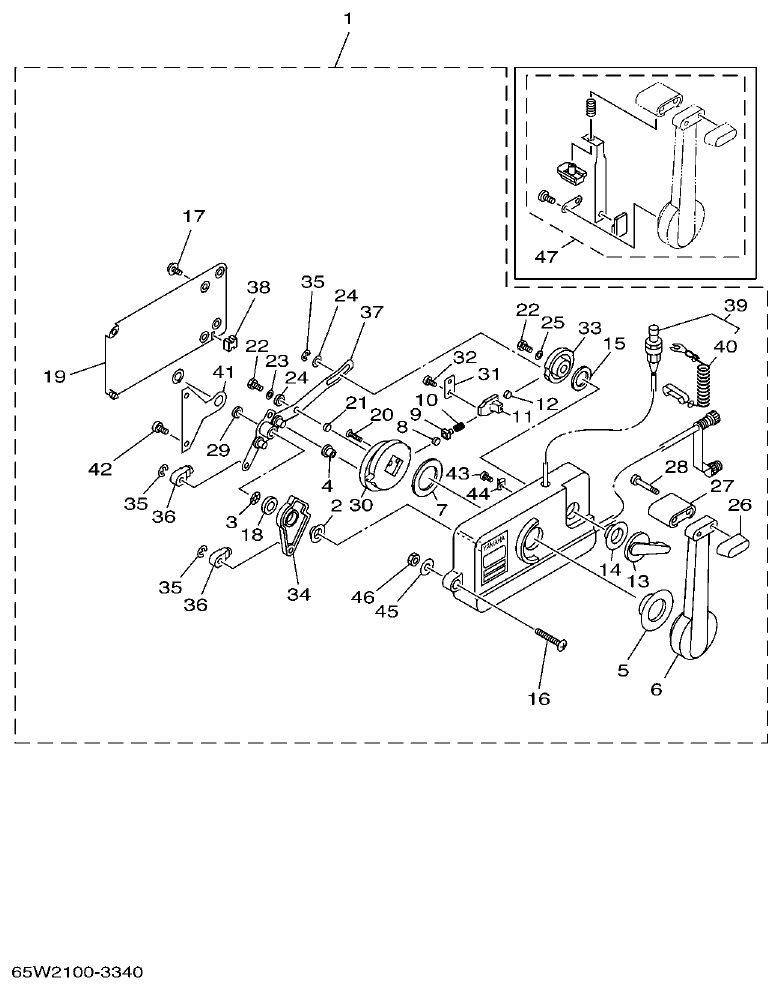

Yamaha F25A REMOTE CONTROL ASSY 2 parts diagram
Fig. 34 — REMOTE CONTROL ASSY 2
47 items · 2 available products

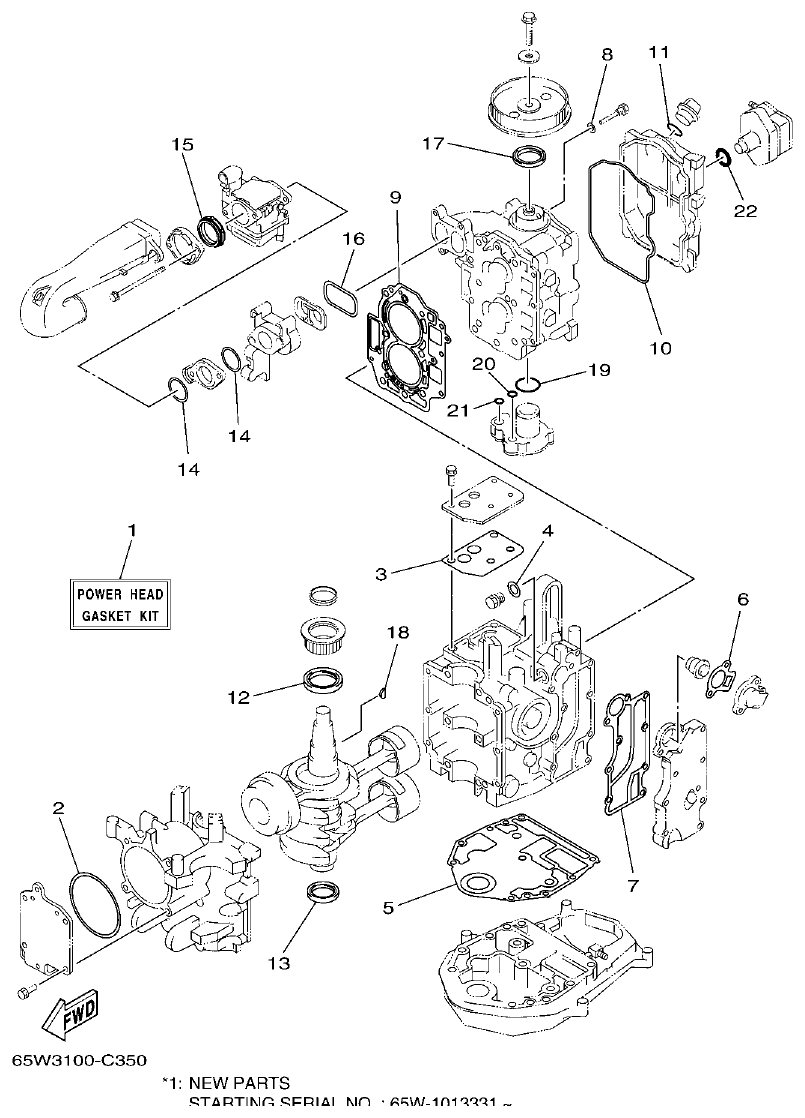

Yamaha F25A REPAIR KIT 1 parts diagram
Fig. 35 — REPAIR KIT 1
26 items · 2 available products
Yamaha F25A REPAIR KIT 2 parts diagram

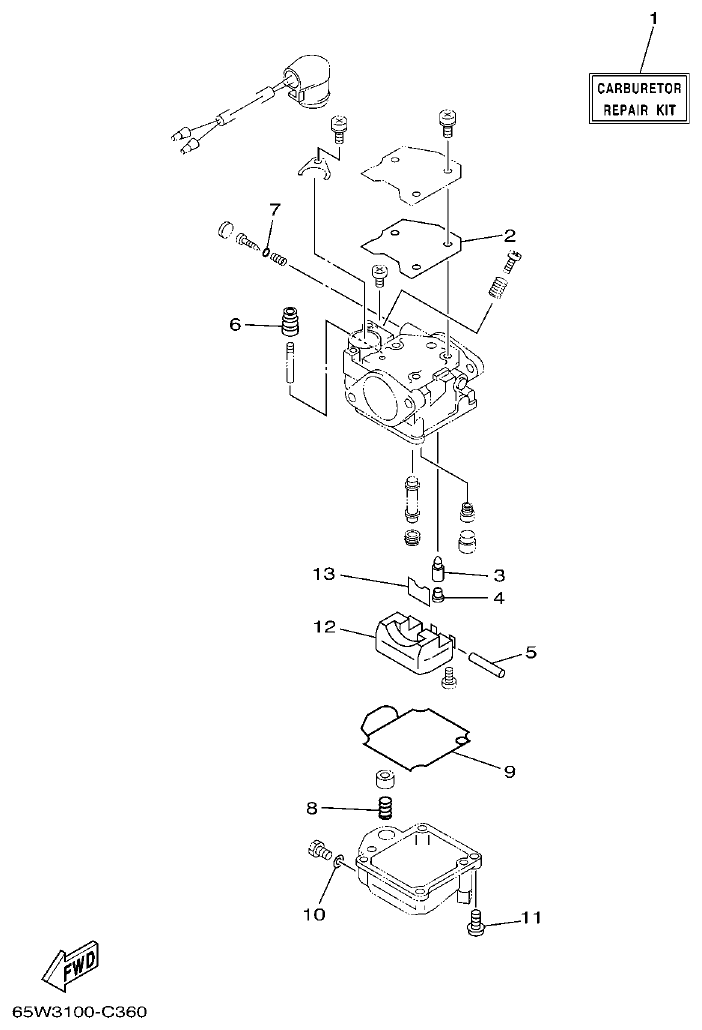

Fig. 36 — REPAIR KIT 2
13 items · 2 available products

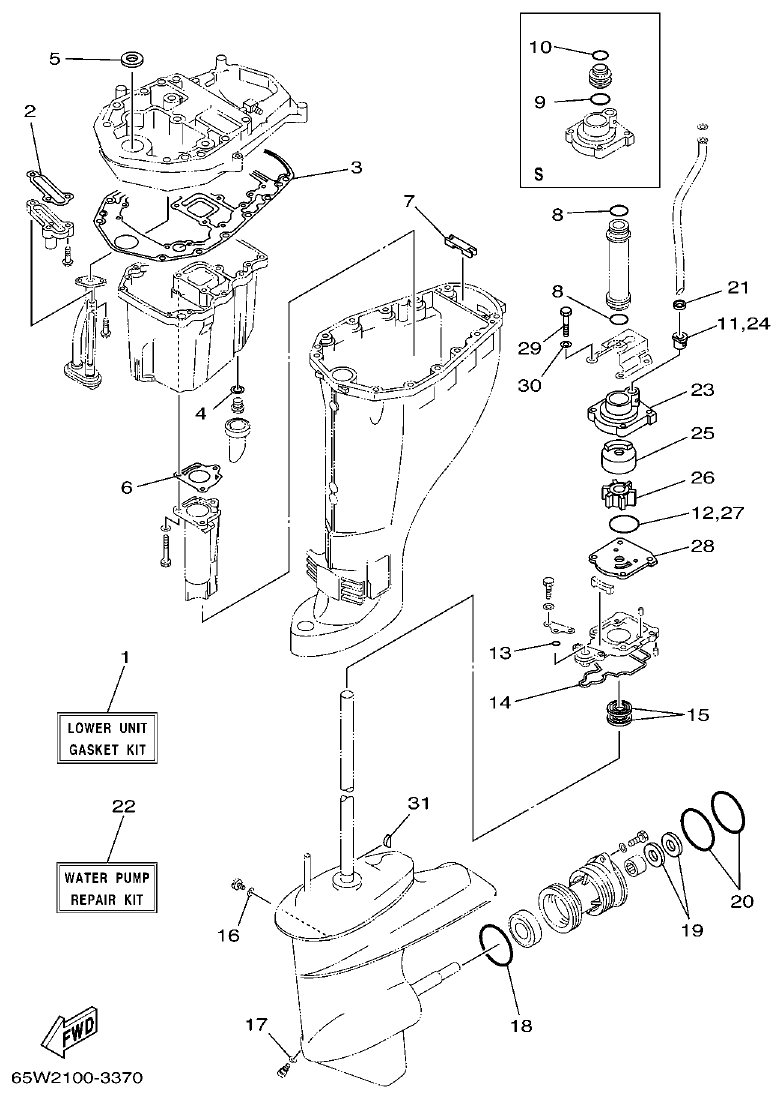

Yamaha F25A REPAIR KIT 3 parts diagram
Fig. 37 — REPAIR KIT 3
31 items · 5 available products
