Yamaha F300DET, FL300DET Parts Catalog
Yamaha F300DET, FL300DET Outboard parts and diagrams
Yamaha F300DET, FL300DET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, CYLINDER & CRANKCASE 4, VALVE, INTAKE 1, INTAKE 2, THROTTLE BODY ASSY 1, THROTTLE BODY ASSY 2, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
953 linked store products are available across 106 catalog sections. 2934 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
Fig. 1 — SCHEDULED SERVICE PARTS
20 items
· 17 available products
Fig. 2 — TOP COWLING
23 items
· 8 available products

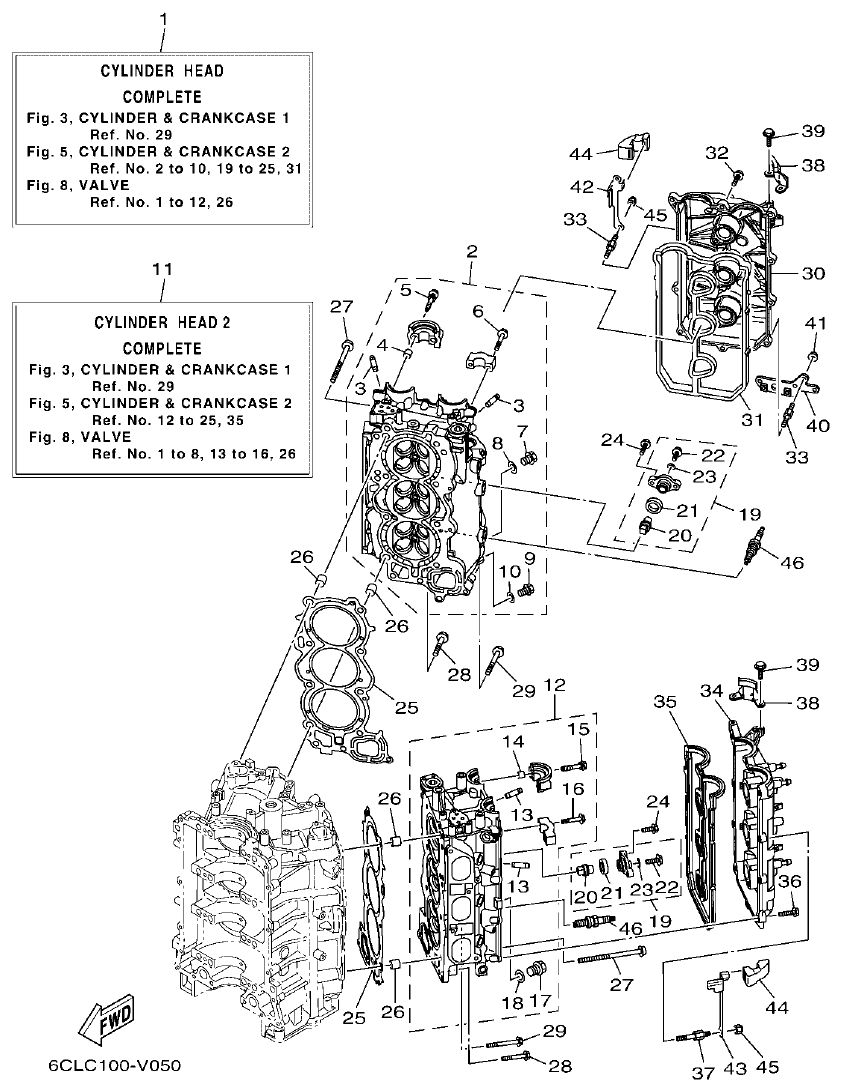

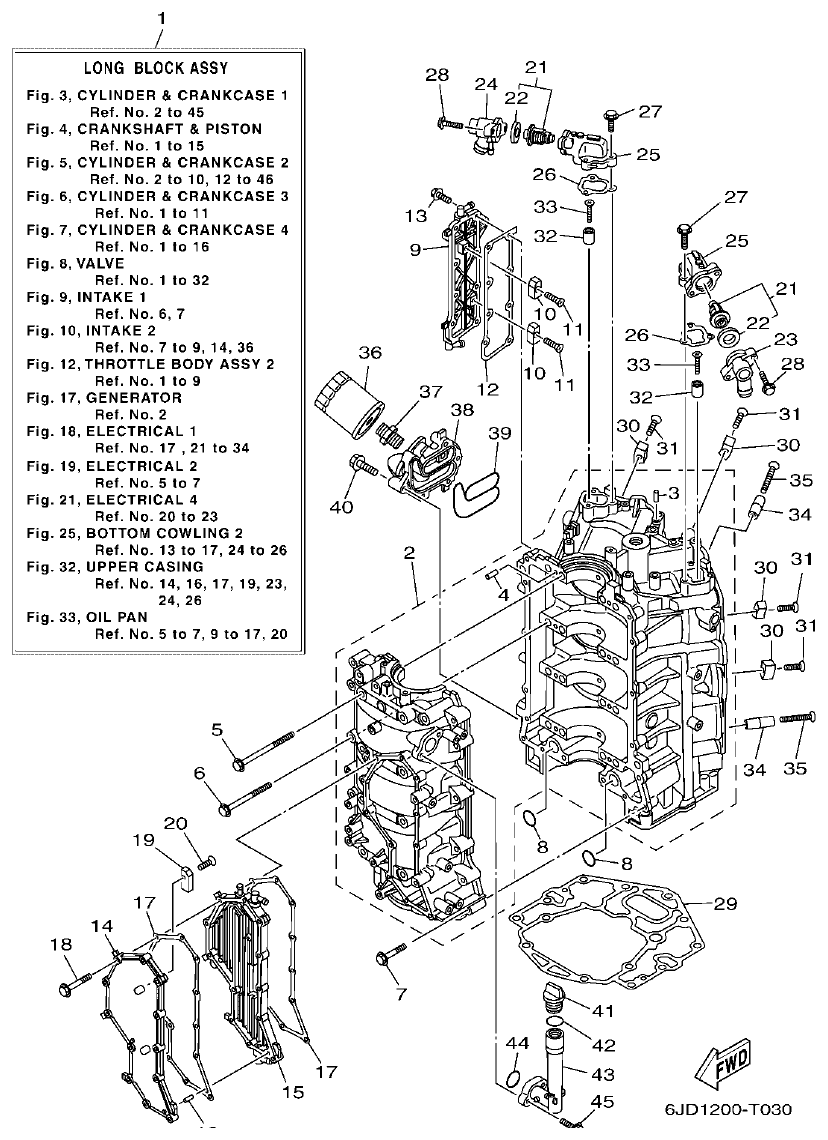

Fig. 3 — CYLINDER & CRANKCASE 1
45 items
· 12 available products
Fig. 4 — CRANKSHAFT & PISTON
25 items
· 23 available products
Fig. 5 — CYLINDER & CRANKCASE 2
46 items
· 11 available products
Fig. 6 — CYLINDER & CRANKCASE 3
11 items
· 2 available products
Fig. 7 — CYLINDER & CRANKCASE 4
17 items
· 2 available products

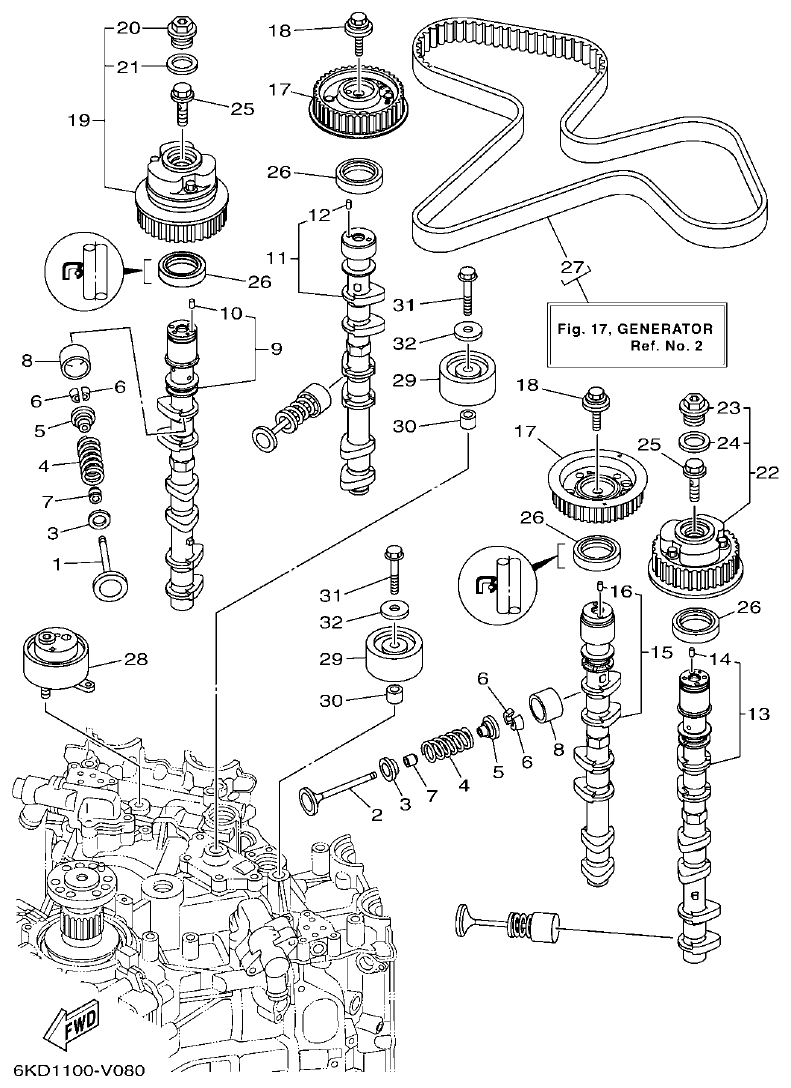

Fig. 8 — VALVE
66 items
· 40 available products
Fig. 9 — INTAKE 1
22 items
· 3 available products
Fig. 10 — INTAKE 2
36 items
· 3 available products
Fig. 11 — THROTTLE BODY ASSY 1
9 items
· 1 available products
Fig. 12 — THROTTLE BODY ASSY 2
9 items
· 2 available products

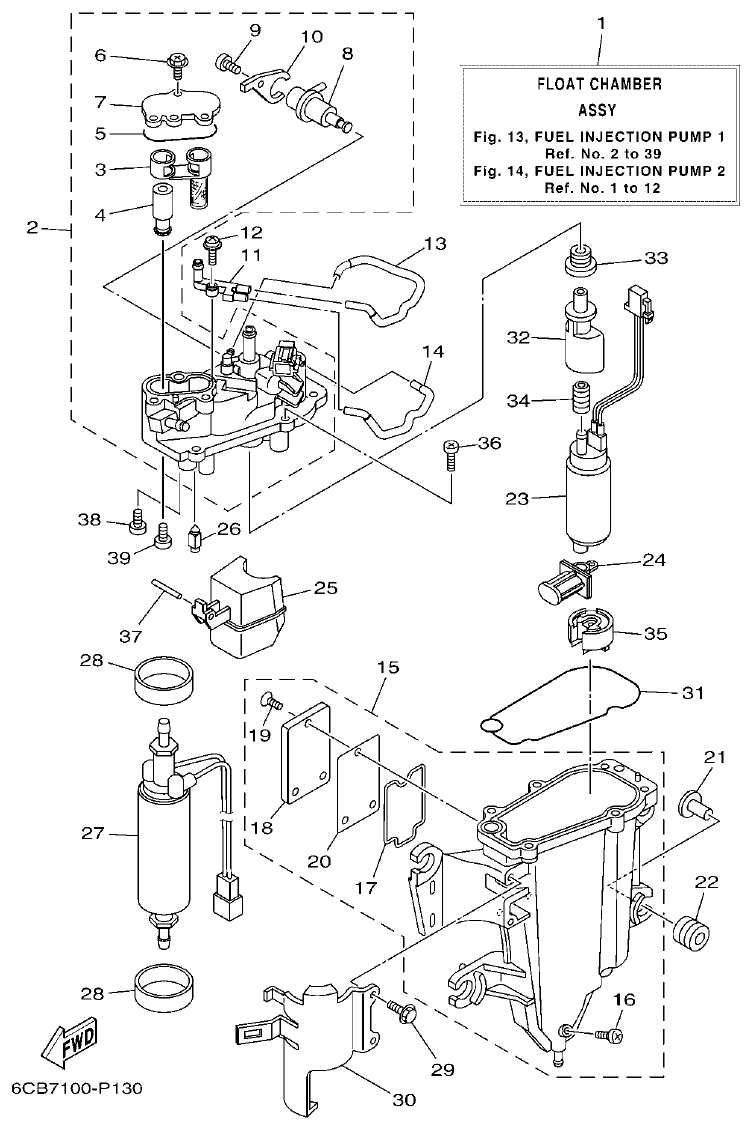

Fig. 13 — FUEL INJECTION PUMP 1
46 items
· 13 available products
Fig. 14 — FUEL INJECTION PUMP 2
16 items
· 2 available products
Fig. 15 — FUEL 1
24 items
· 5 available products
Fig. 16 — FUEL 2
6 items
· 2 available products
Fig. 17 — GENERATOR
21 items
· 4 available products

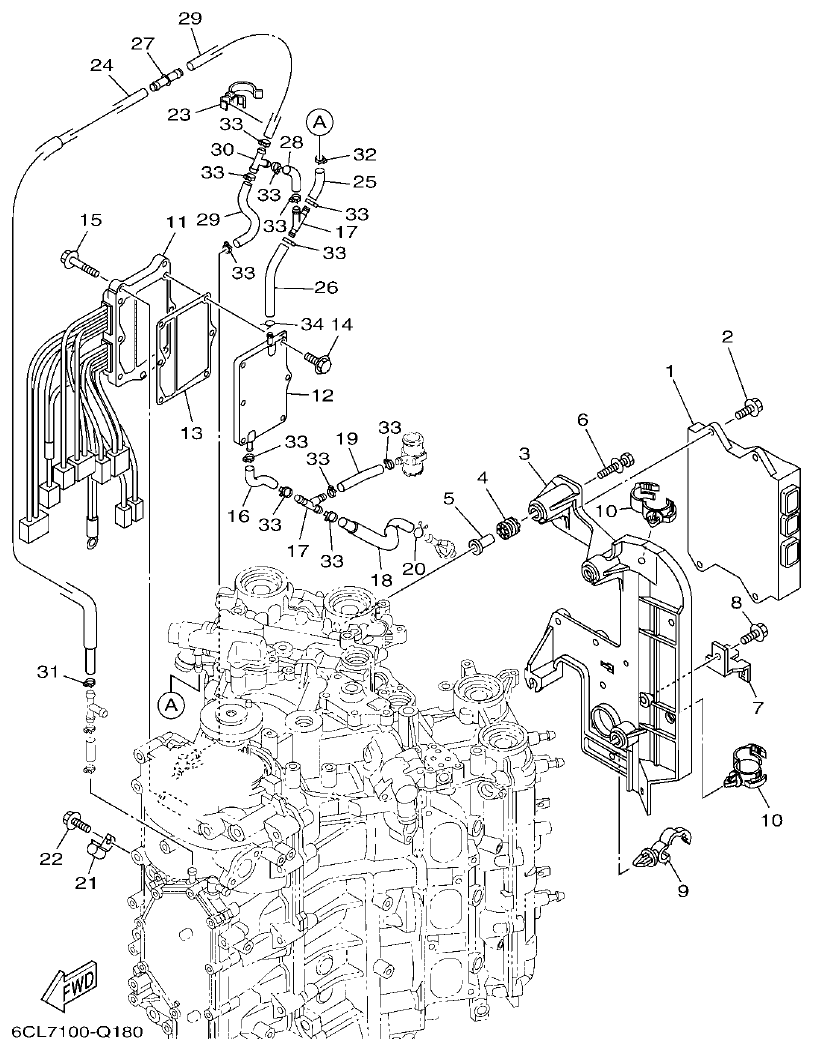

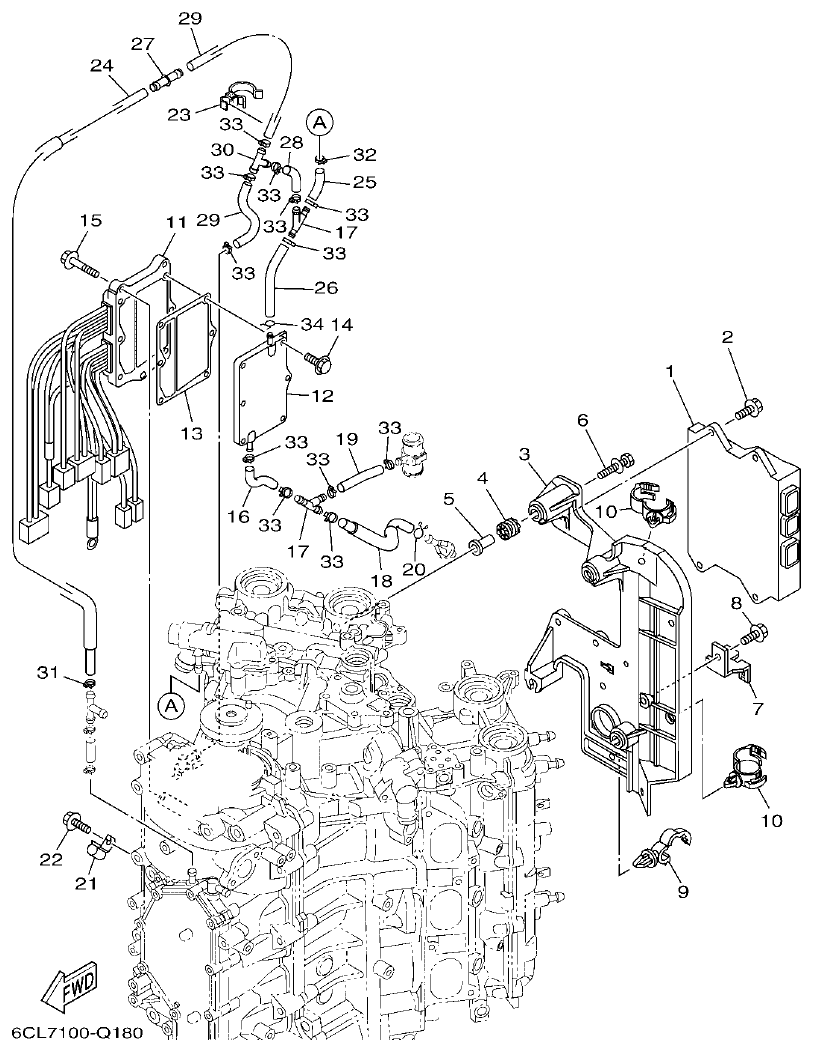

Fig. 18 — ELECTRICAL 1
35 items
· 4 available products
Fig. 19 — ELECTRICAL 2
7 items
· 1 available products

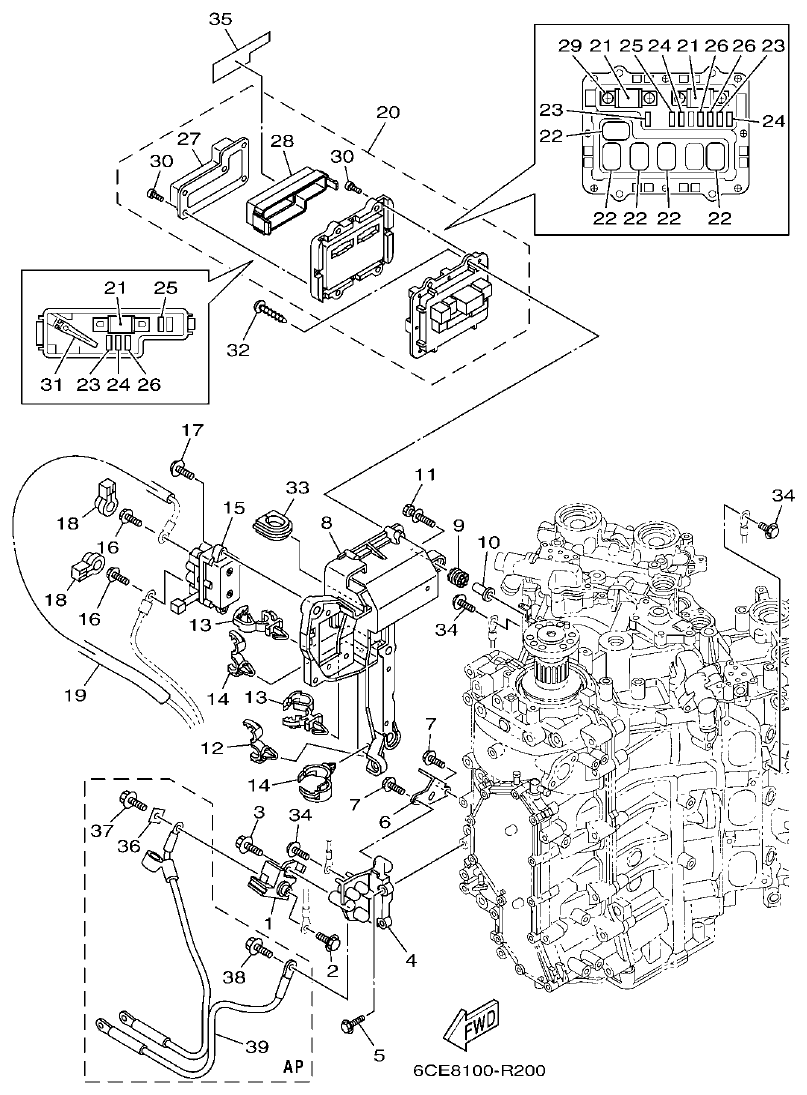

Fig. 20 — ELECTRICAL 3
39 items
· 7 available products
Fig. 21 — ELECTRICAL 4
36 items
· 5 available products
Fig. 22 — ELECTRICAL 5
13 items
· 3 available products
Fig. 23 — STARTING MOTOR
24 items
· 5 available products
Fig. 24 — BOTTOM COWLING 1
37 items
· 9 available products
Fig. 25 — BOTTOM COWLING 2
35 items
· 8 available products
Fig. 26 — BOTTOM COWLING 3
15 items
Fig. 27 — CONTROL
28 items
· 3 available products
Fig. 28 — BRACKET 1
51 items
· 10 available products
Fig. 29 — BRACKET 2
35 items
· 12 available products
Fig. 30 — POWER TRIM & TILT ASSY 1
84 items
· 32 available products
Fig. 31 — POWER TRIM & TILT ASSY 2
12 items
· 5 available products

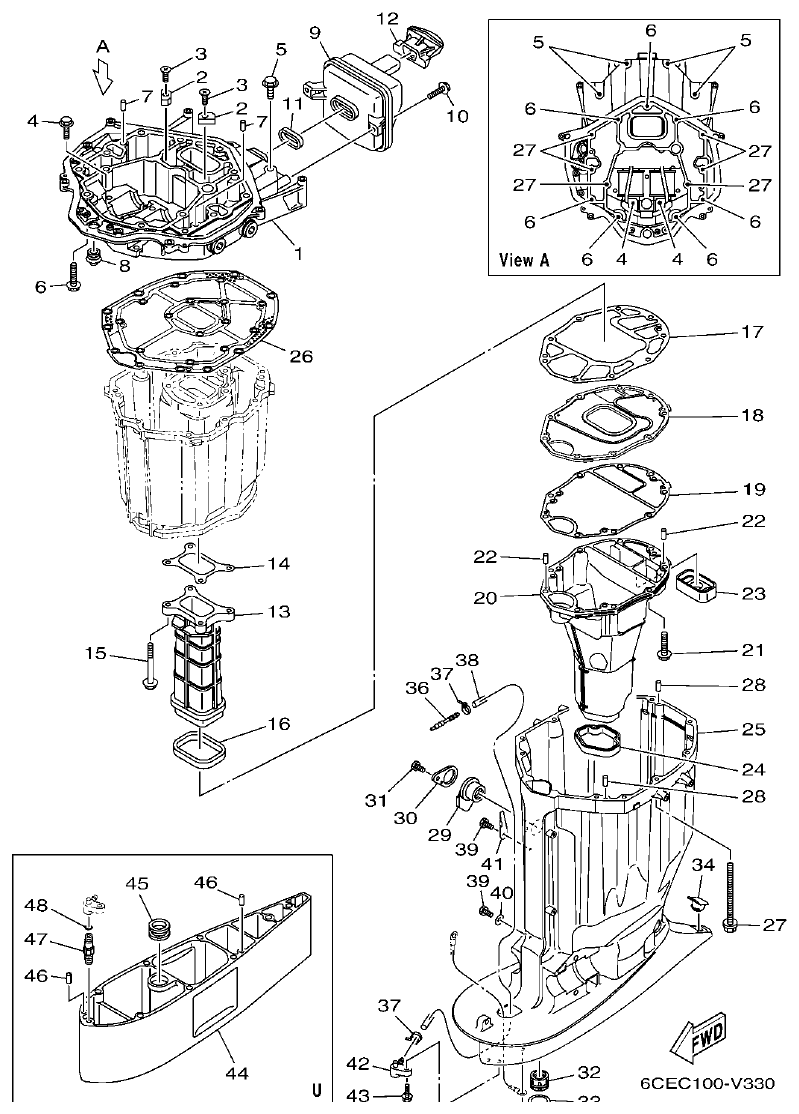

Fig. 32 — UPPER CASING
48 items
· 19 available products
Fig. 33 — OIL PAN
21 items
· 9 available products
Fig. 34 — LOWER CASING & DRIVE 1
100 items
· 51 available products
Fig. 35 — LOWER CASING & DRIVE 2
41 items
· 21 available products
Fig. 36 — LOWER CASING & DRIVE 3
106 items
· 57 available products
Fig. 37 — LOWER CASING & DRIVE 4
41 items
· 20 available products

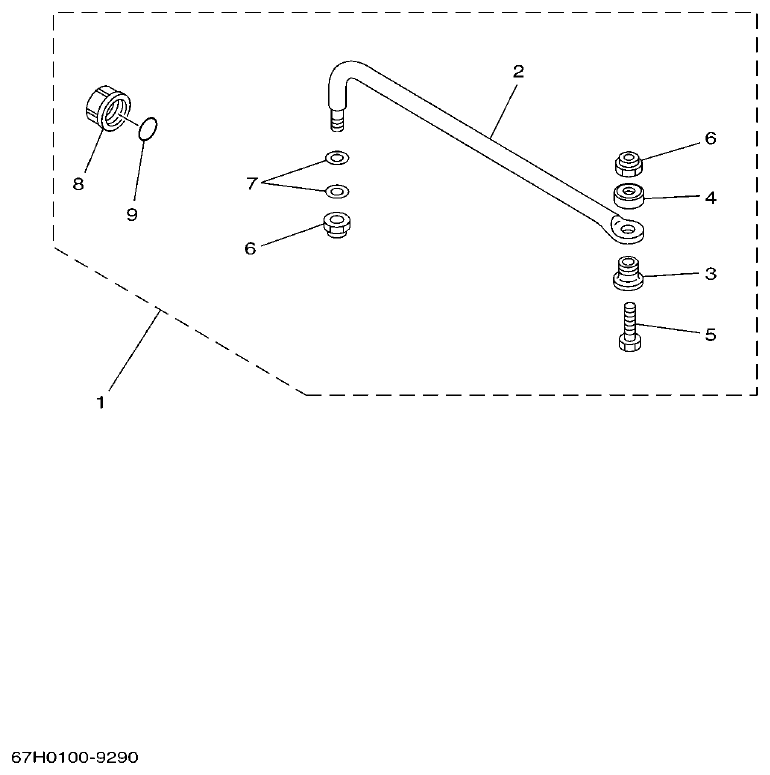

Fig. 38 — STEERING GUIDE ATTACHMENT 1
9 items
· 2 available products

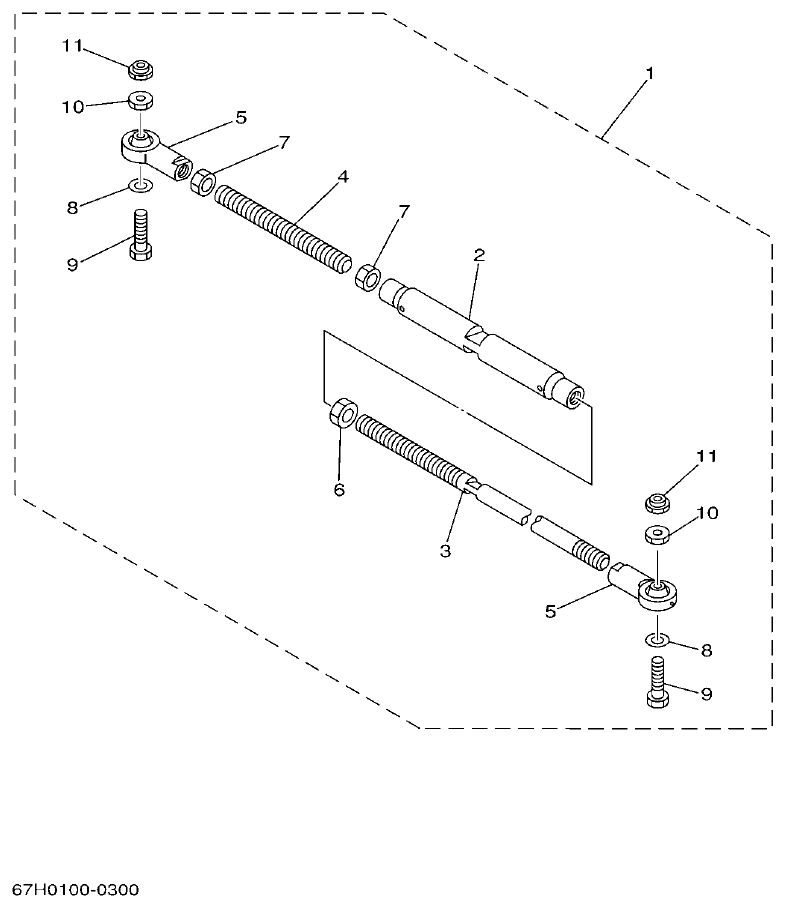

Fig. 39 — STEERING GUIDE ATTACHMENT 2
11 items
· 2 available products
Fig. 40 — DEC 1 (SINGLE)
13 items
Fig. 41 — DEC 2 (SINGLE)
10 items
· 1 available products

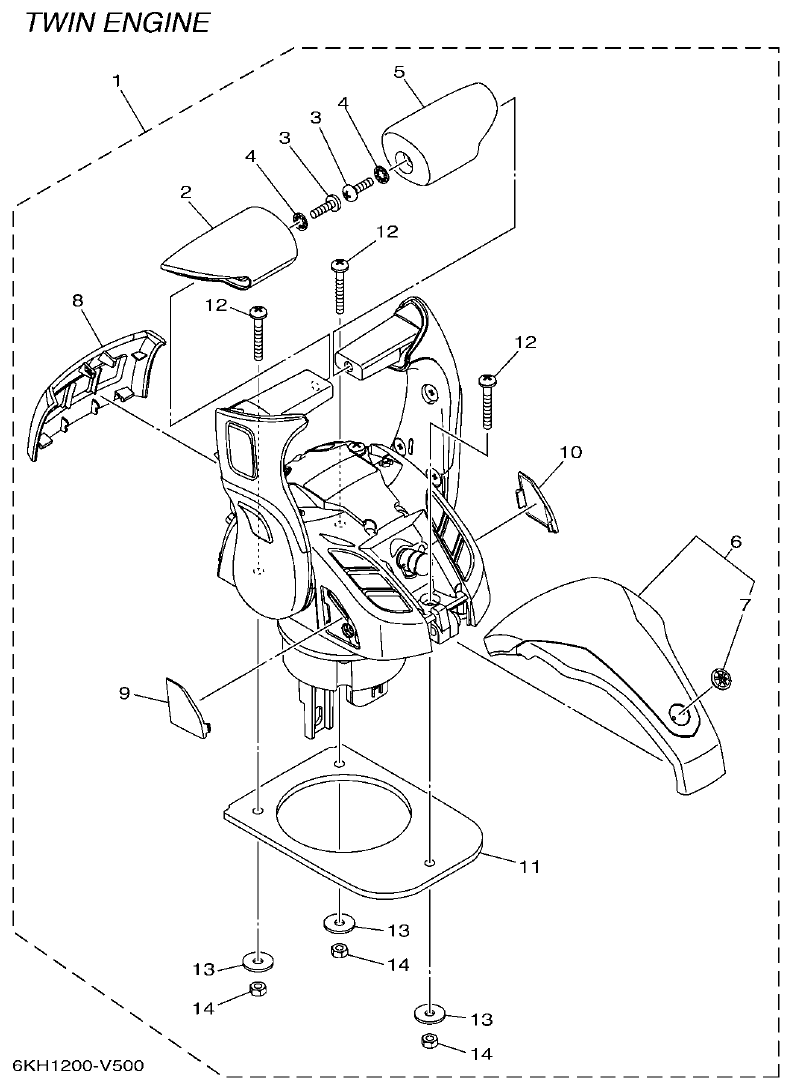

Fig. 42 — DEC 3 (TWIN)
15 items
Fig. 43 — DEC 4 (TWIN)
12 items
· 1 available products
Fig. 44 — OPTIONAL PARTS 1
20 items
· 1 available products
Fig. 45 — OPTIONAL PARTS 2
6 items
Fig. 46 — OPTIONAL PARTS 3
10 items
· 6 available products
Fig. 47 — OPTIONAL PARTS 4
9 items
Fig. 48 — OPTIONAL PARTS 5
20 items
Fig. 49 — OPTIONAL PARTS 6
4 items
Fig. 50 — OPTIONAL PARTS 7

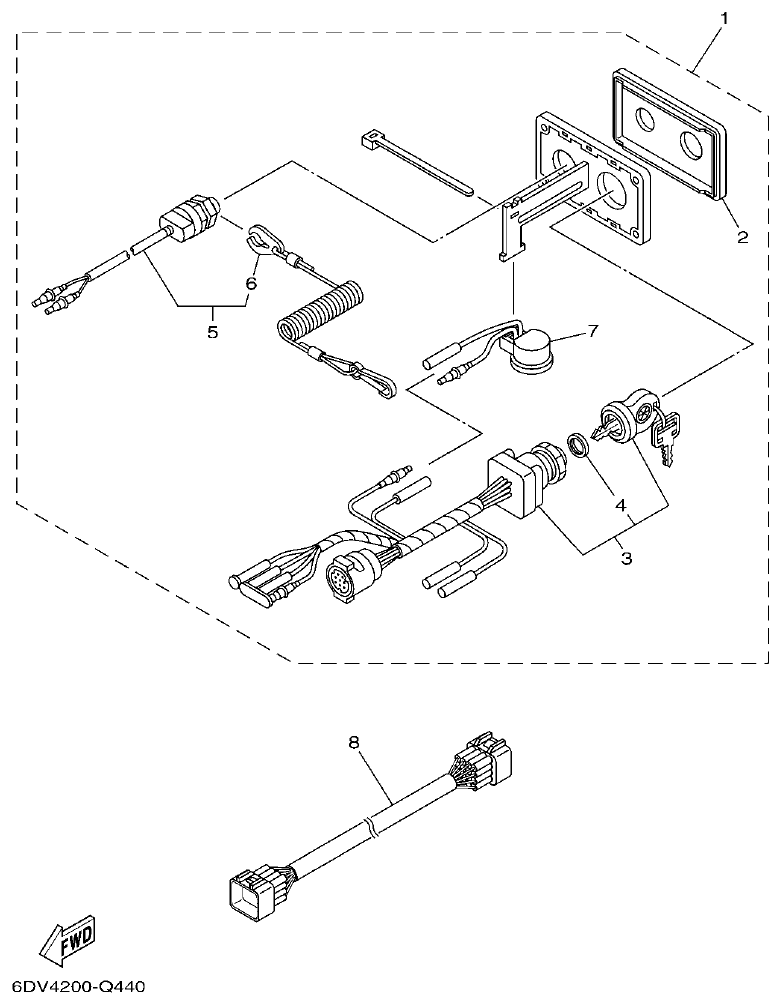

8 items
· 3 available products
Fig. 51 — OPTIONAL PARTS 8
14 items
· 4 available products

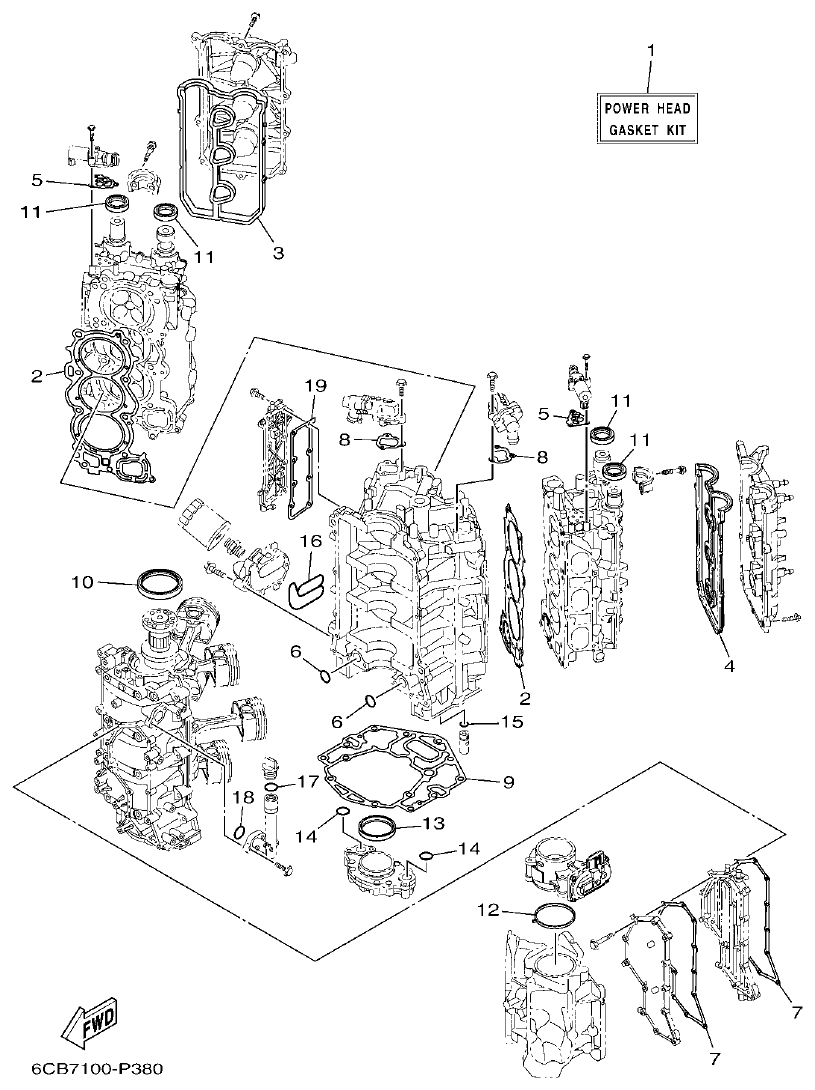

Fig. 52 — REPAIR KIT 1
19 items
· 11 available products

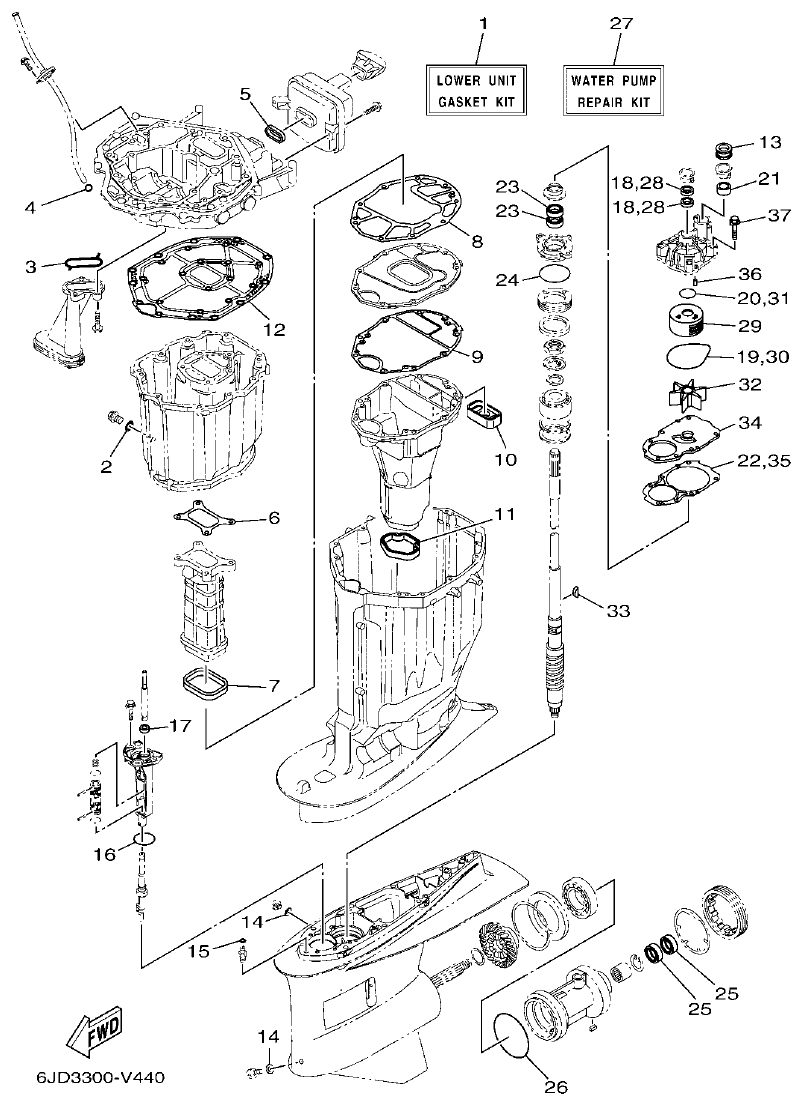

Fig. 53 — REPAIR KIT 2
37 items
· 15 available products

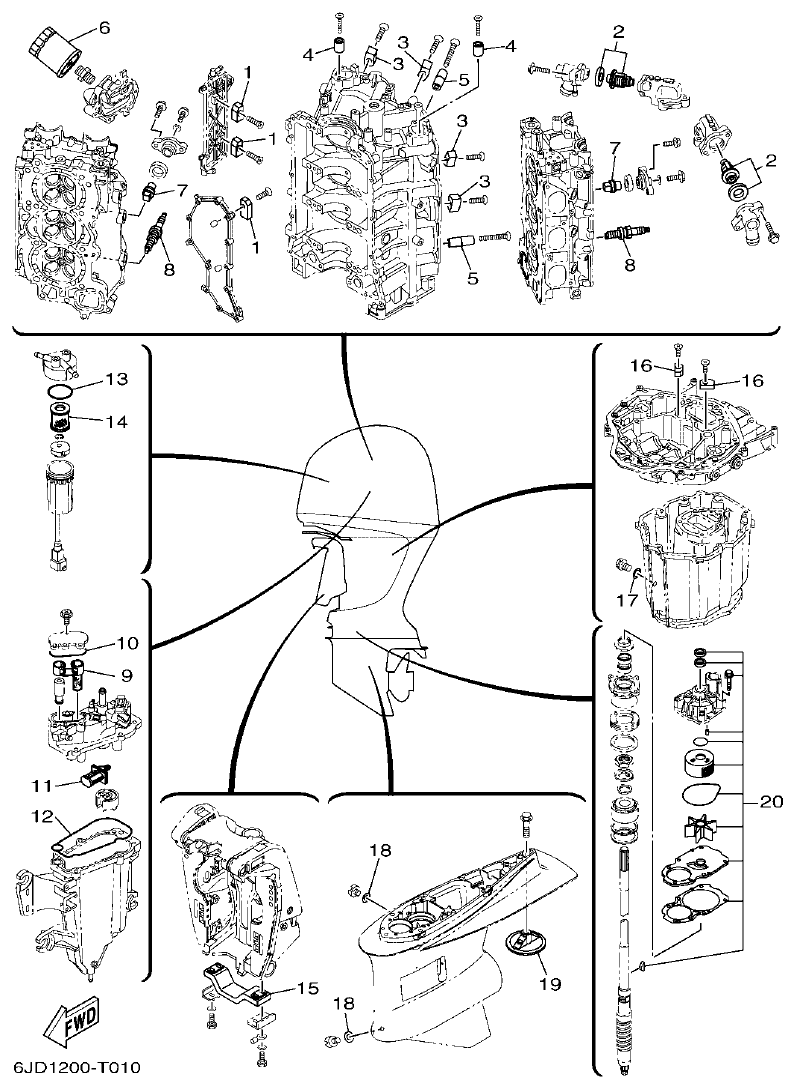

/images/fig-1-scheduled-service-parts.png)
Fig. 1 — SCHEDULED SERVICE PARTS
20 items
· 17 available products

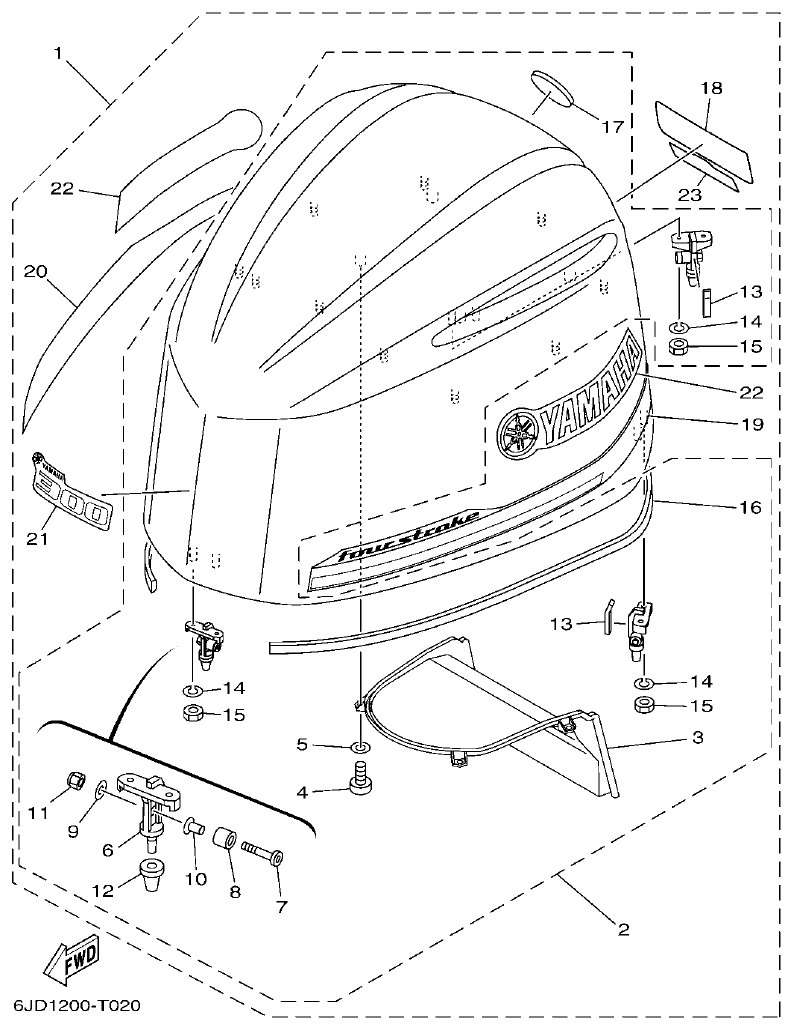

/images/fig-2-top-cowling.png)
Fig. 2 — TOP COWLING
23 items
· 8 available products
/images/fig-3-cylinder-crankcase-1.png)
Fig. 3 — CYLINDER & CRANKCASE 1
45 items
· 12 available products

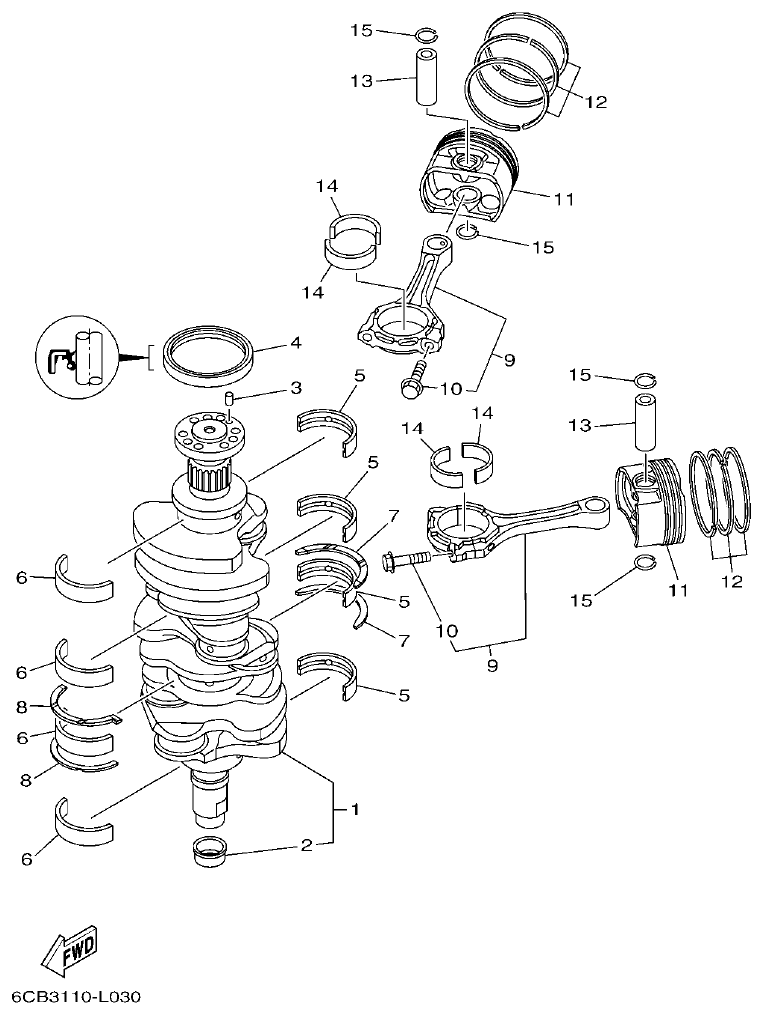

/images/fig-4-crankshaft-piston.png)
Fig. 4 — CRANKSHAFT & PISTON
25 items
· 23 available products
/images/fig-5-cylinder-crankcase-2.png)
Fig. 5 — CYLINDER & CRANKCASE 2
46 items
· 11 available products

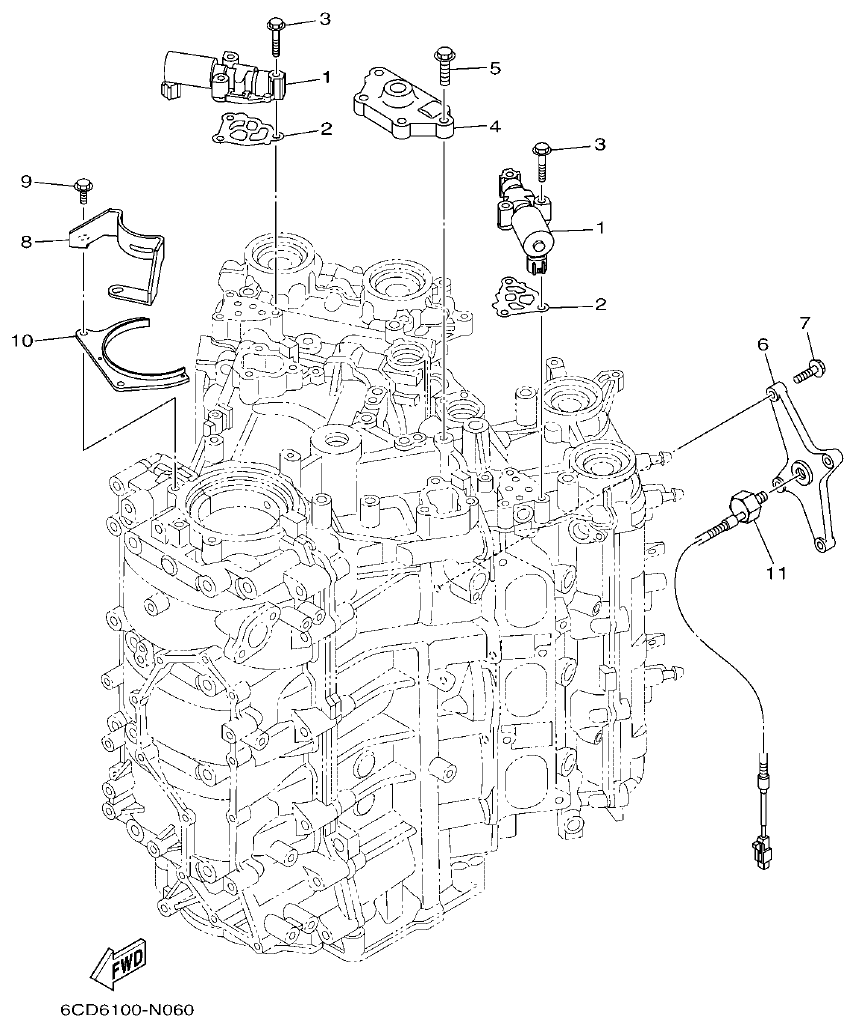

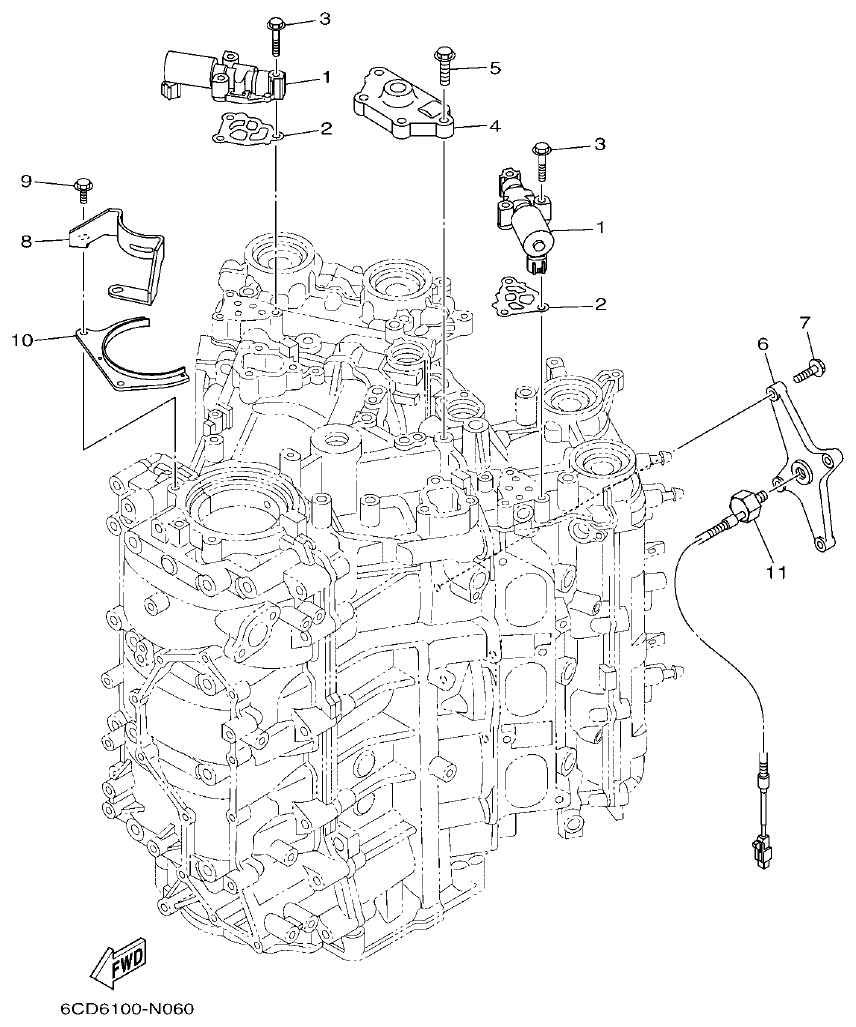

/images/fig-6-cylinder-crankcase-3.png)
Fig. 6 — CYLINDER & CRANKCASE 3
11 items
· 2 available products

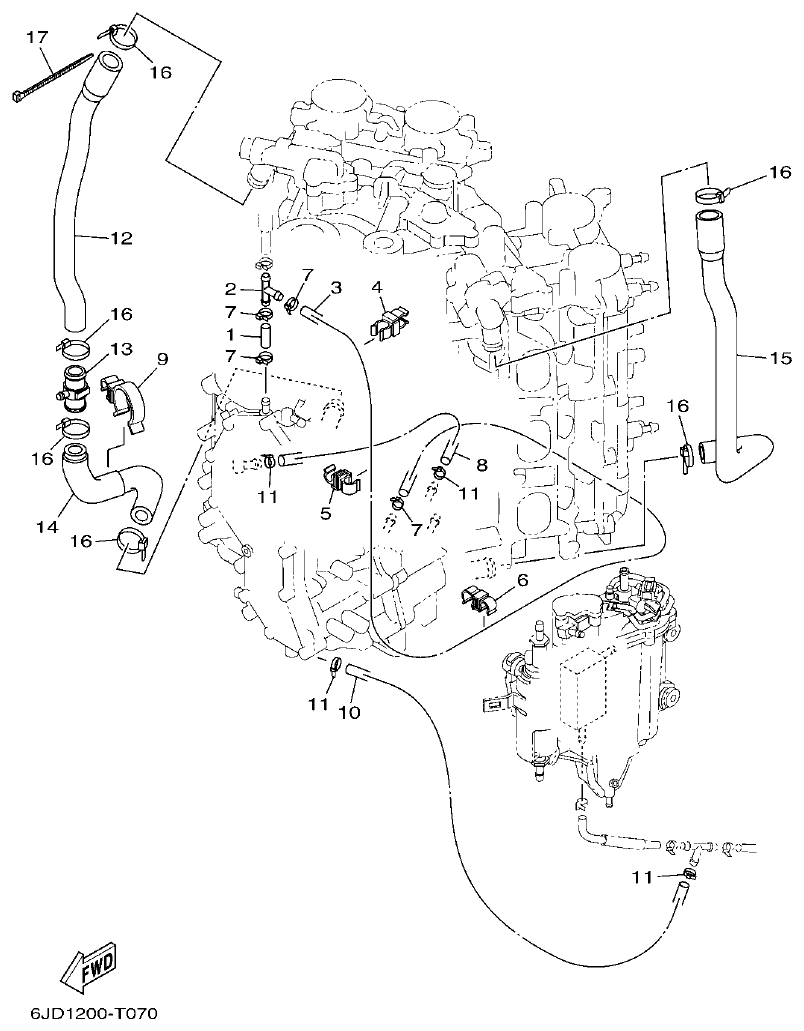

/images/fig-7-cylinder-crankcase-4.png)
Fig. 7 — CYLINDER & CRANKCASE 4
17 items
· 2 available products
/images/fig-8-valve.png)
Fig. 8 — VALVE
66 items
· 40 available products

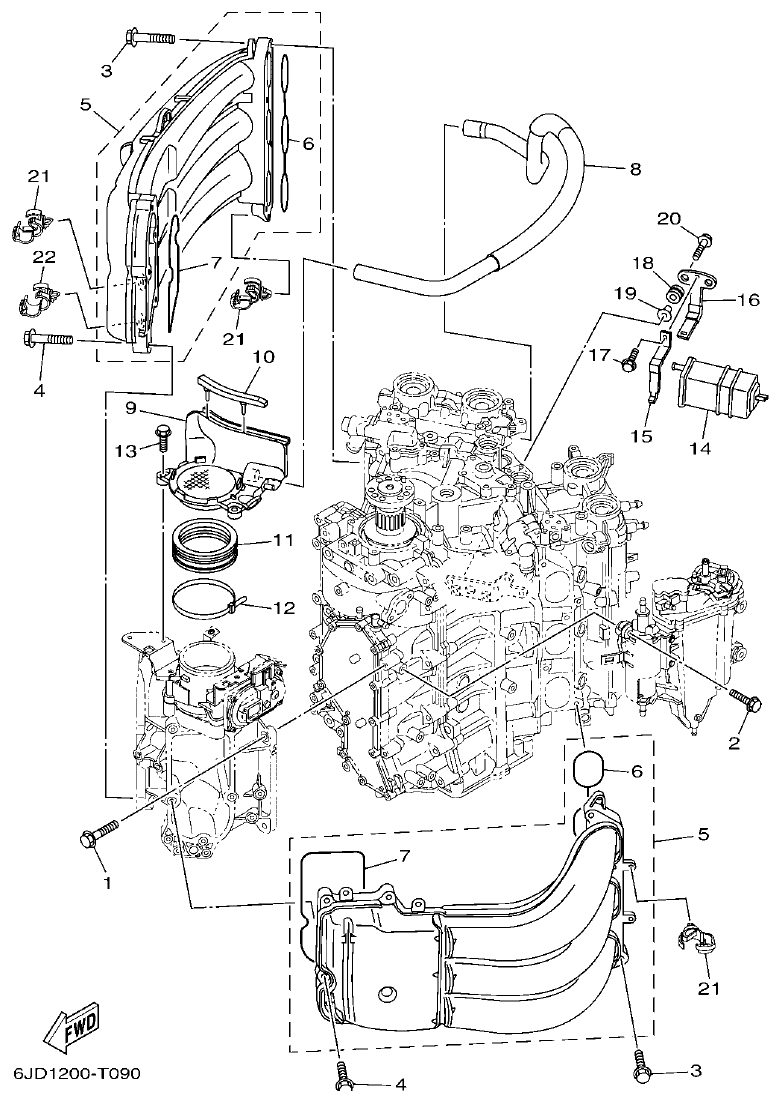

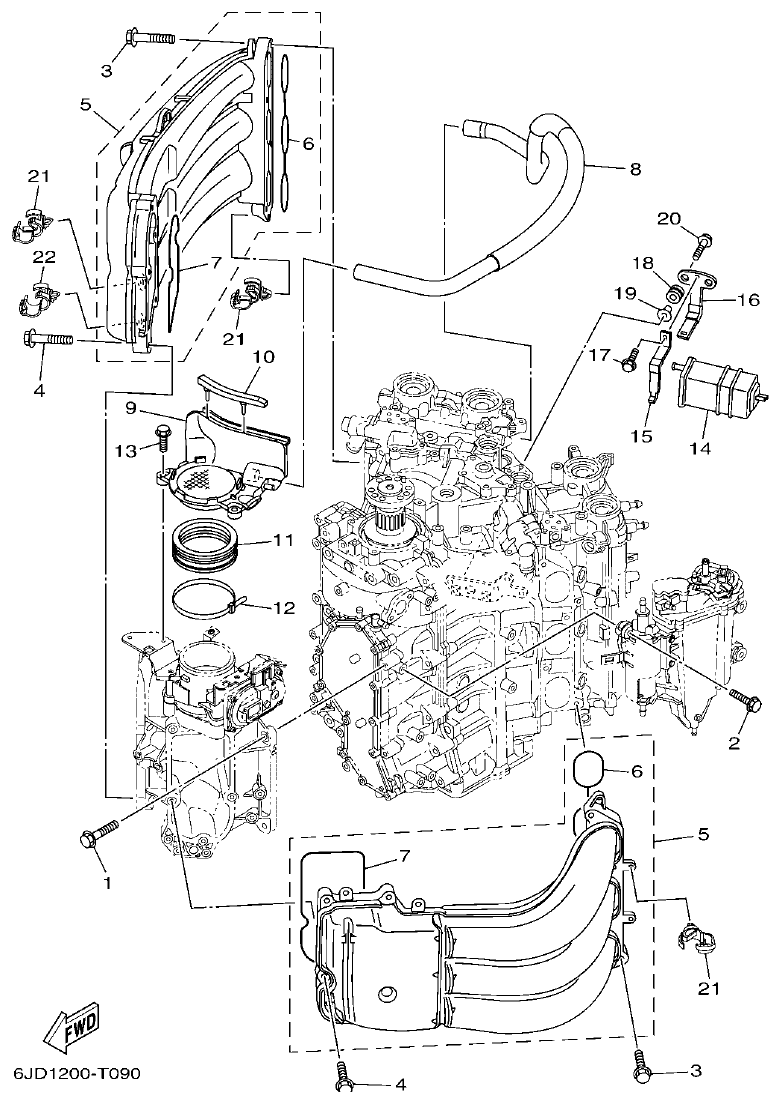

/images/fig-9-intake-1.png)
Fig. 9 — INTAKE 1
22 items
· 3 available products
/images/fig-10-intake-2.png)

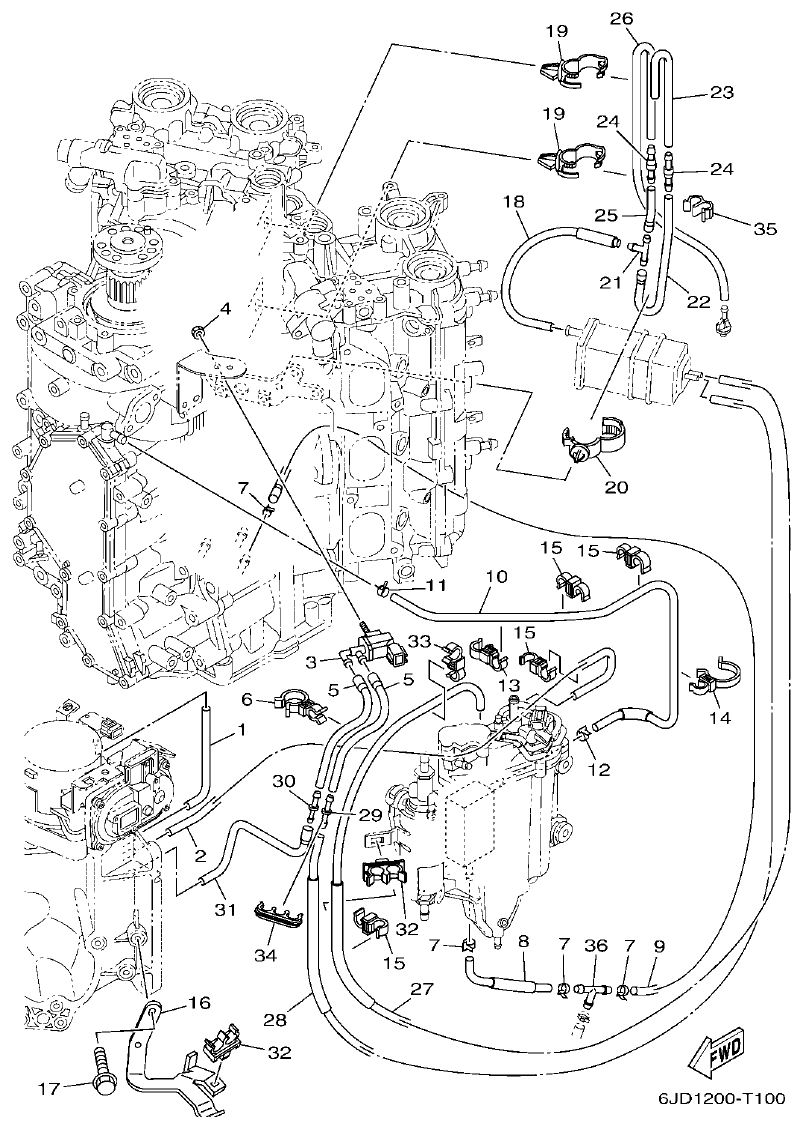

Fig. 10 — INTAKE 2
36 items
· 3 available products
/images/fig-11-throttle-body-assy-1.png)

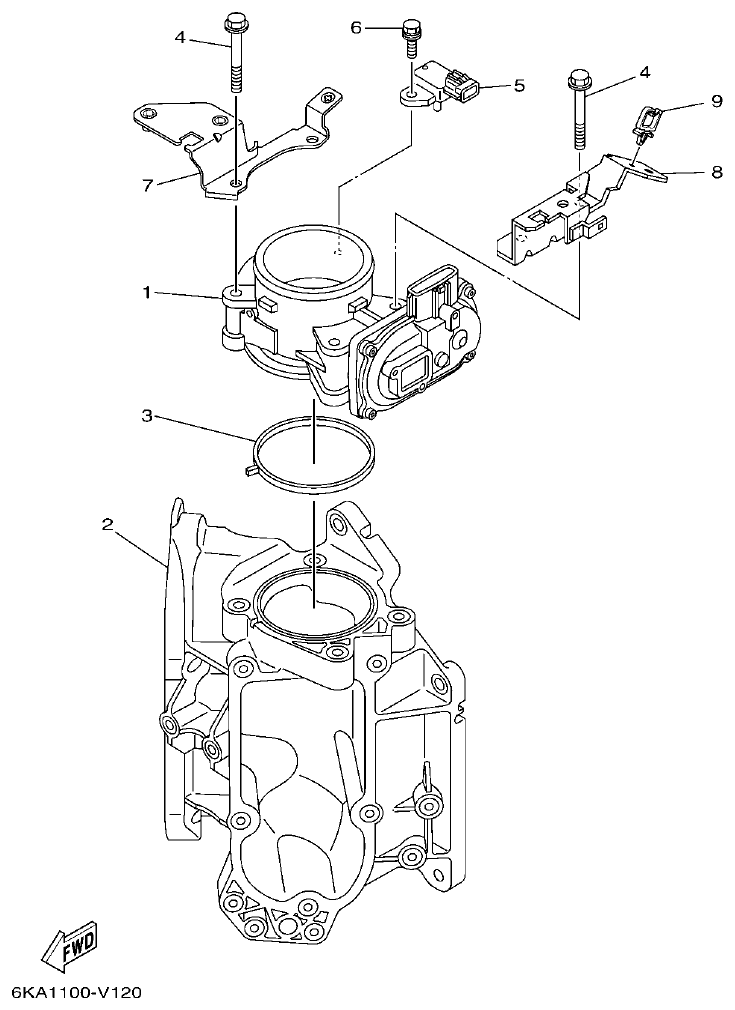

Fig. 11 — THROTTLE BODY ASSY 1
9 items
· 1 available products

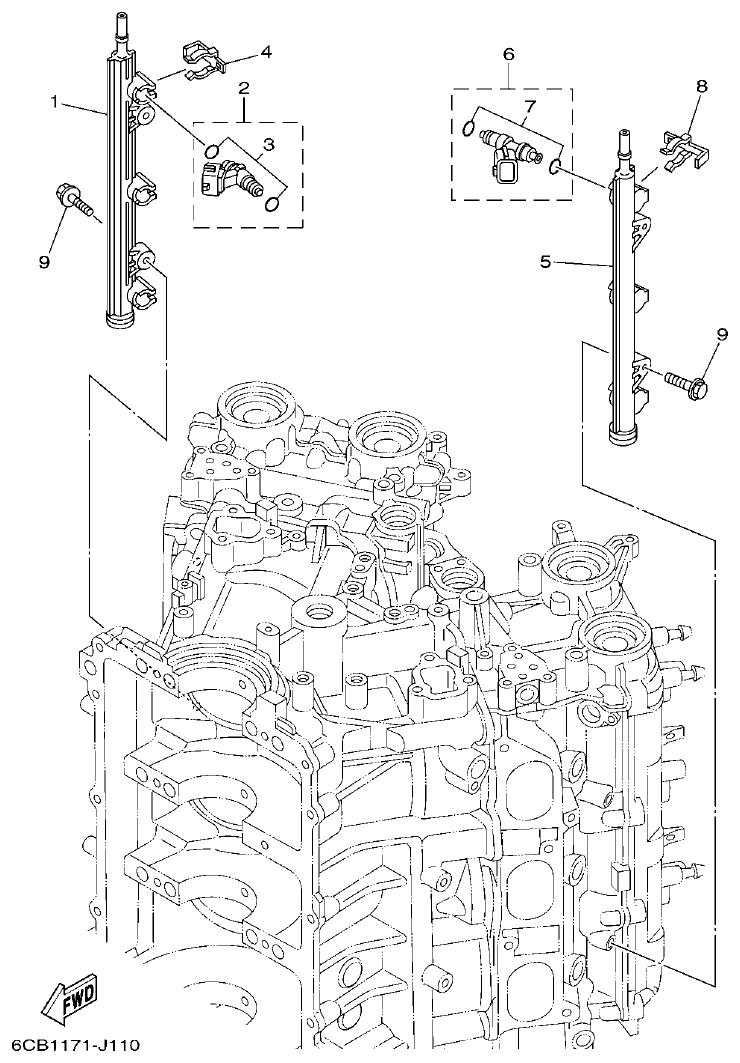

/images/fig-12-throttle-body-assy-2.png)
Fig. 12 — THROTTLE BODY ASSY 2
9 items
· 2 available products
/images/fig-13-fuel-injection-pump-1.png)
Fig. 13 — FUEL INJECTION PUMP 1
46 items
· 13 available products
/images/fig-14-fuel-injection-pump-2.png)

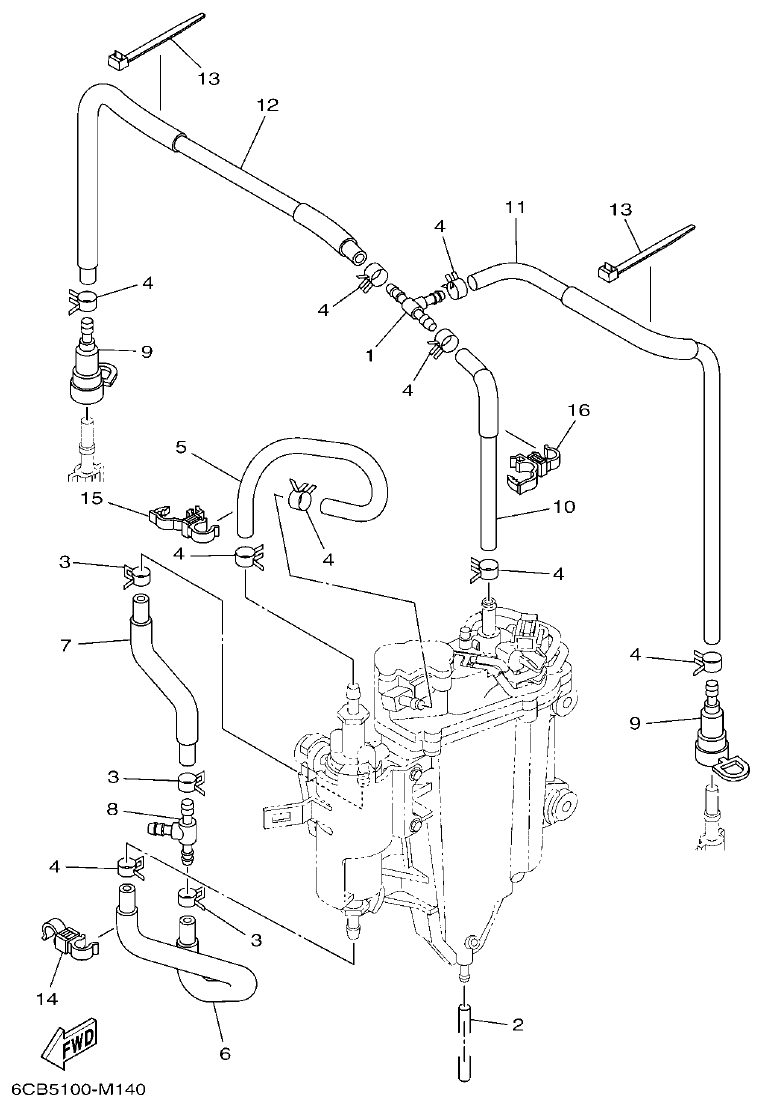

Fig. 14 — FUEL INJECTION PUMP 2
16 items
· 2 available products

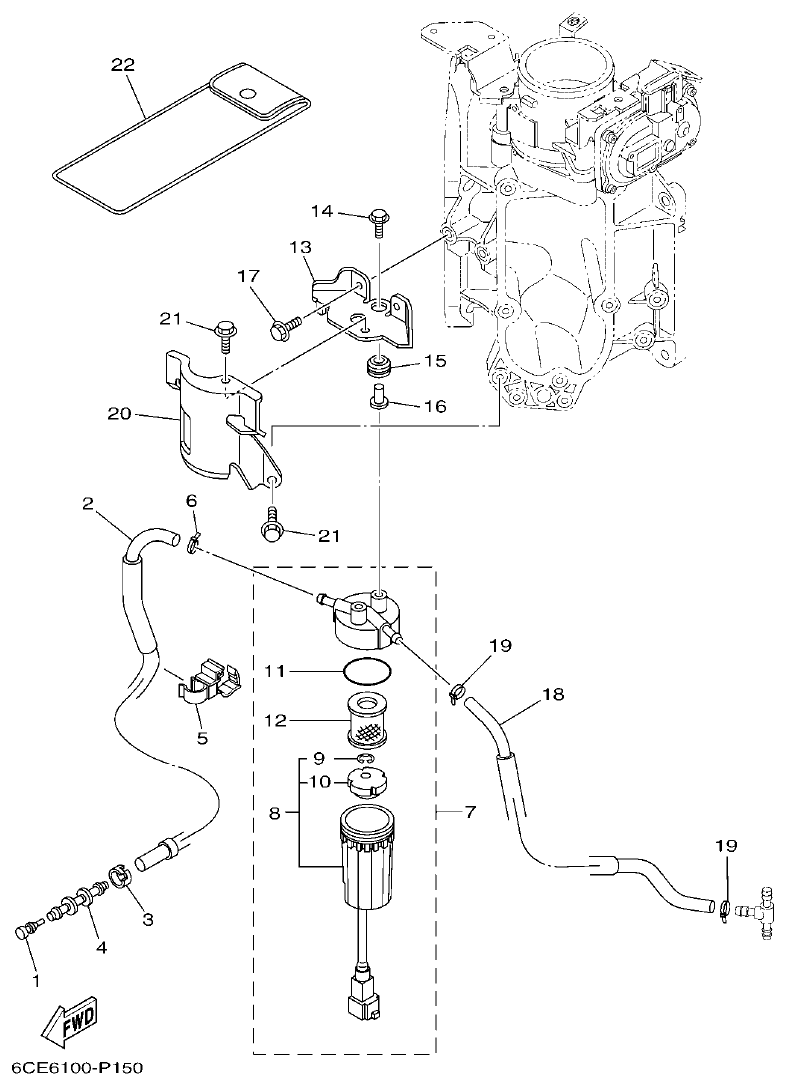

/images/fig-15-fuel-1.png)

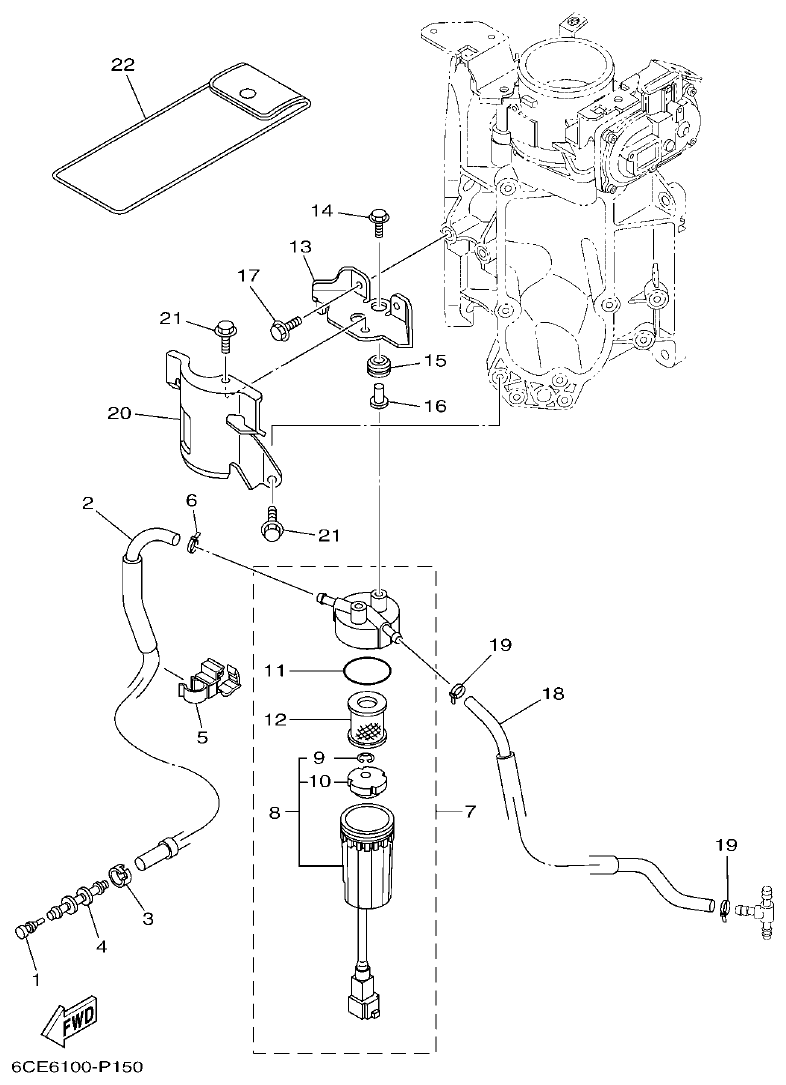

Fig. 15 — FUEL 1
24 items
· 5 available products

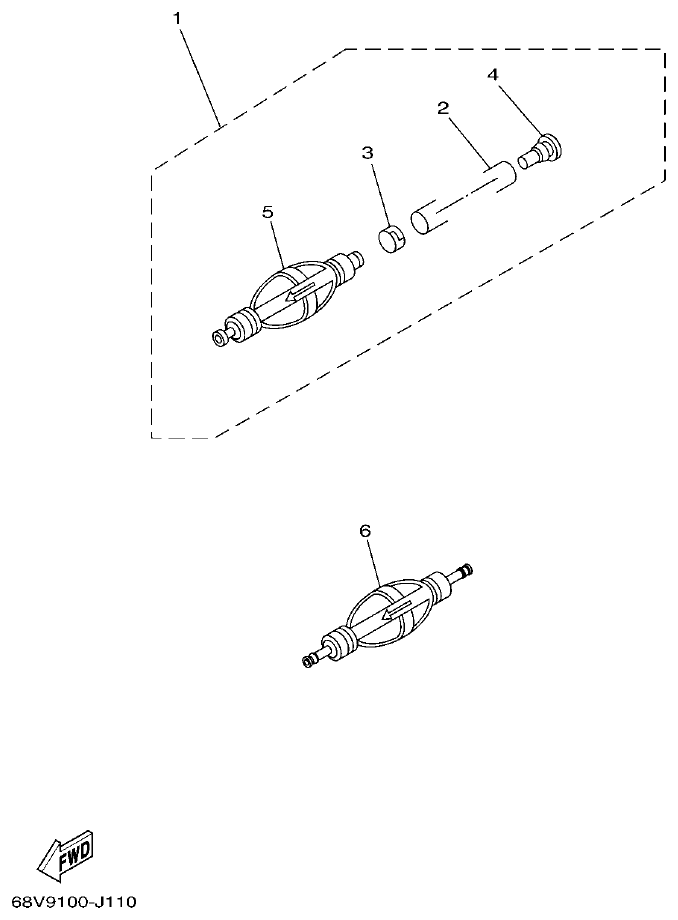

/images/fig-16-fuel-2.png)
Fig. 16 — FUEL 2
6 items
· 2 available products
/images/fig-17-generator.png)

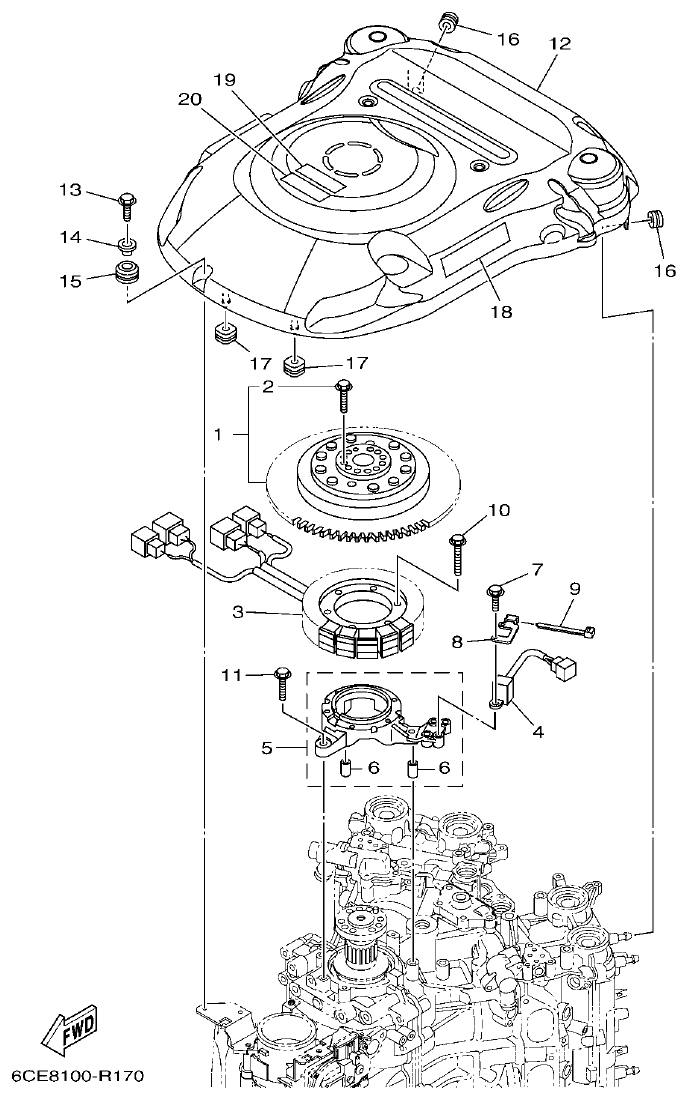

Fig. 17 — GENERATOR
21 items
· 4 available products
/images/fig-18-electrical-1.png)
Fig. 18 — ELECTRICAL 1
35 items
· 4 available products
/images/fig-19-electrical-2.png)

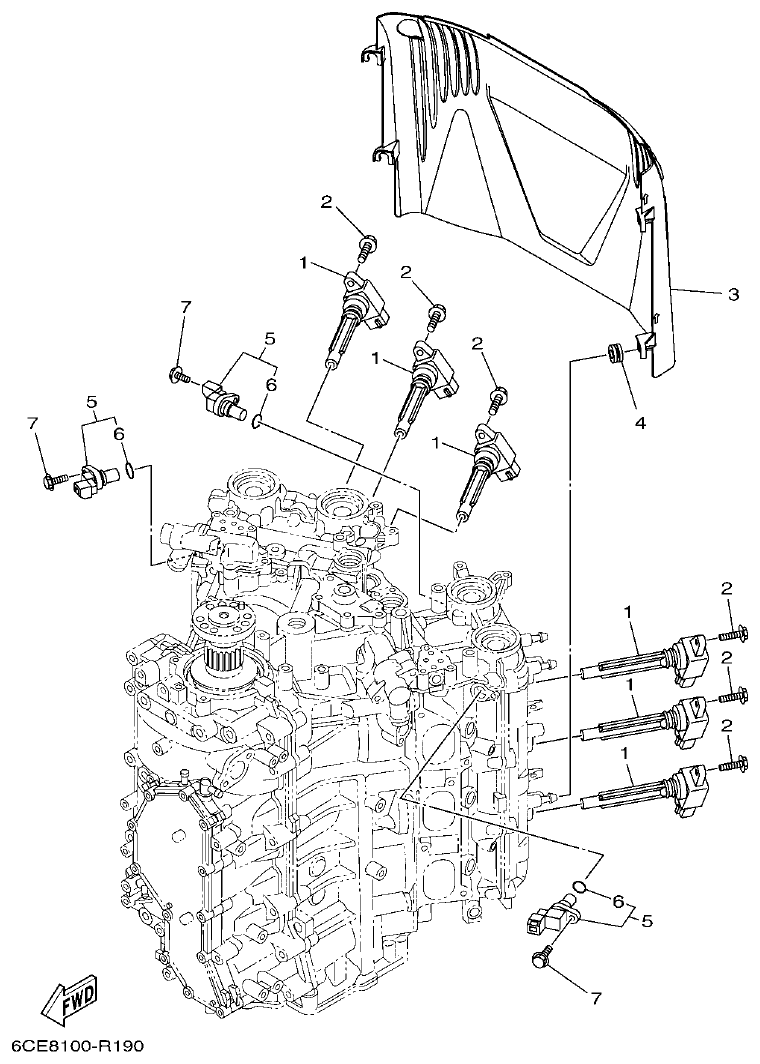

Fig. 19 — ELECTRICAL 2
7 items
· 1 available products
/images/fig-20-electrical-3.png)
Fig. 20 — ELECTRICAL 3
39 items
· 7 available products

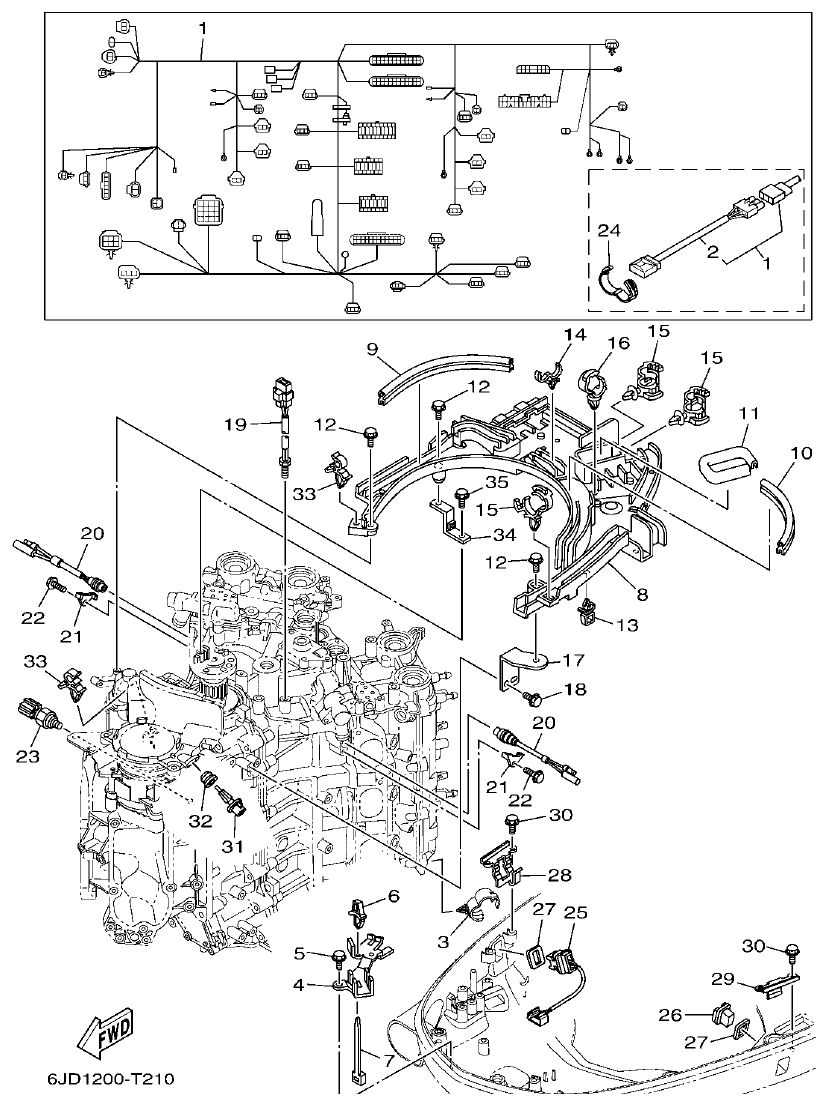

/images/fig-21-electrical-4.png)

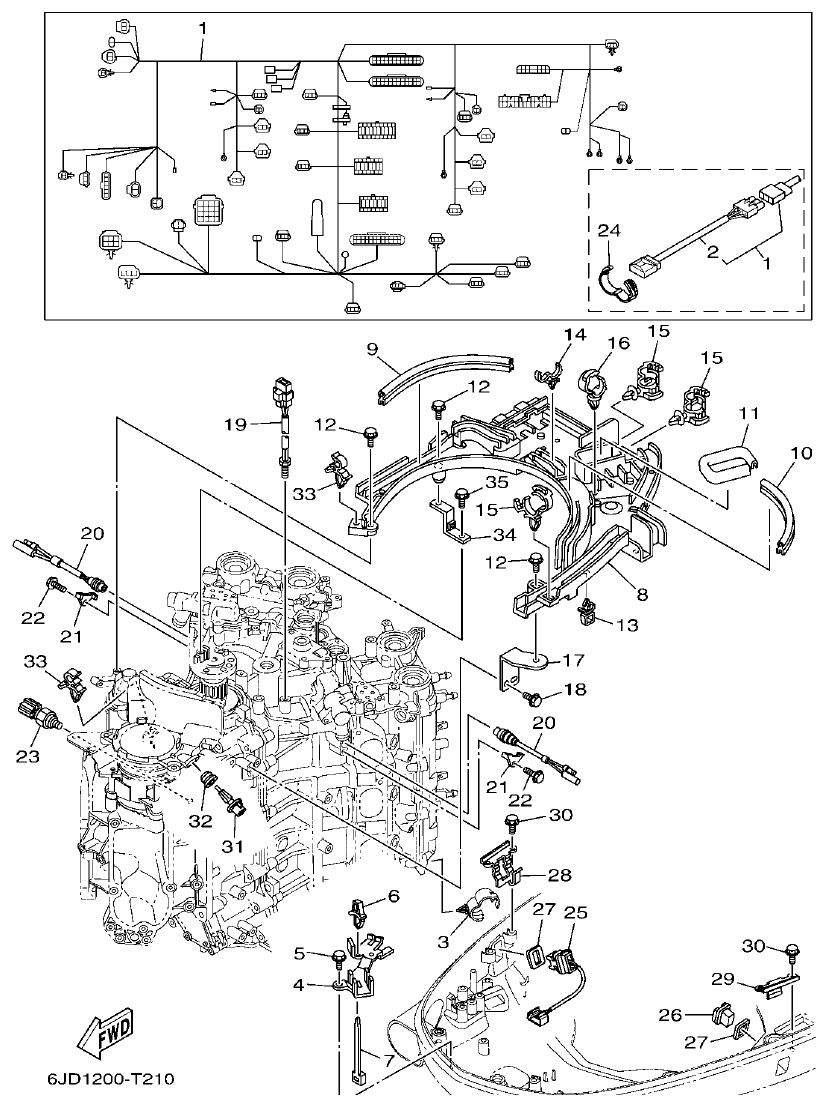

Fig. 21 — ELECTRICAL 4
36 items
· 5 available products

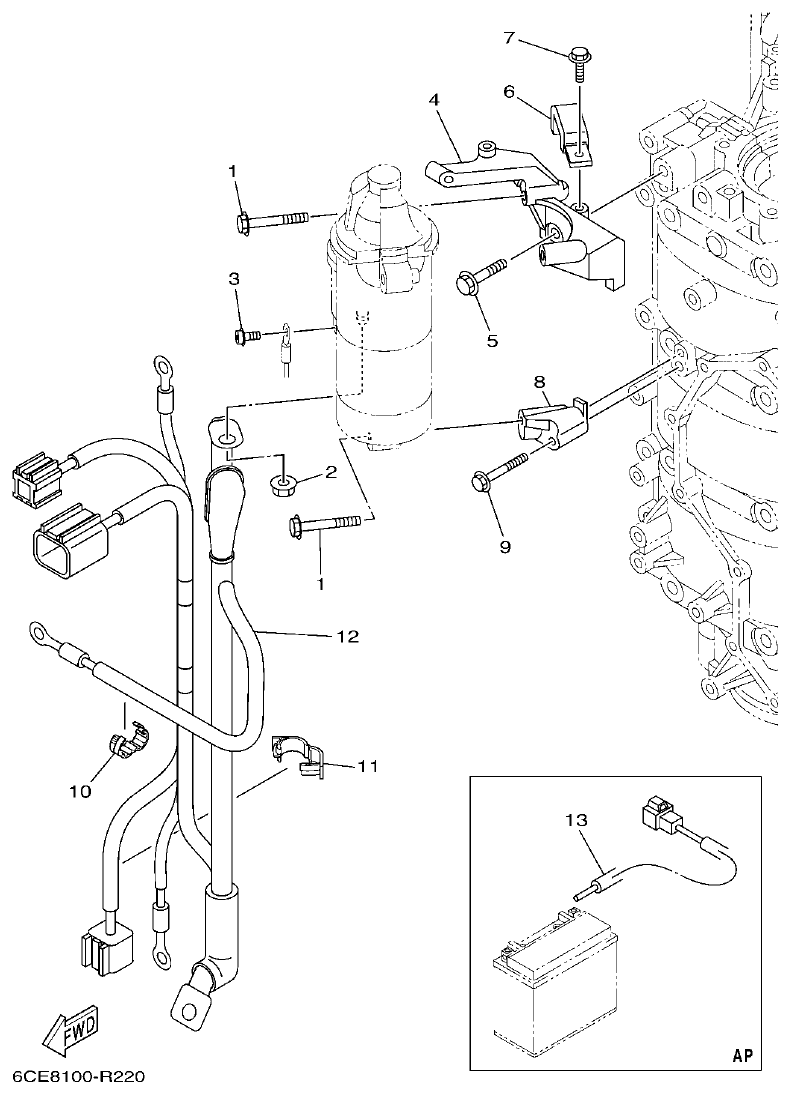

/images/fig-22-electrical-5.png)
Fig. 22 — ELECTRICAL 5
13 items
· 3 available products

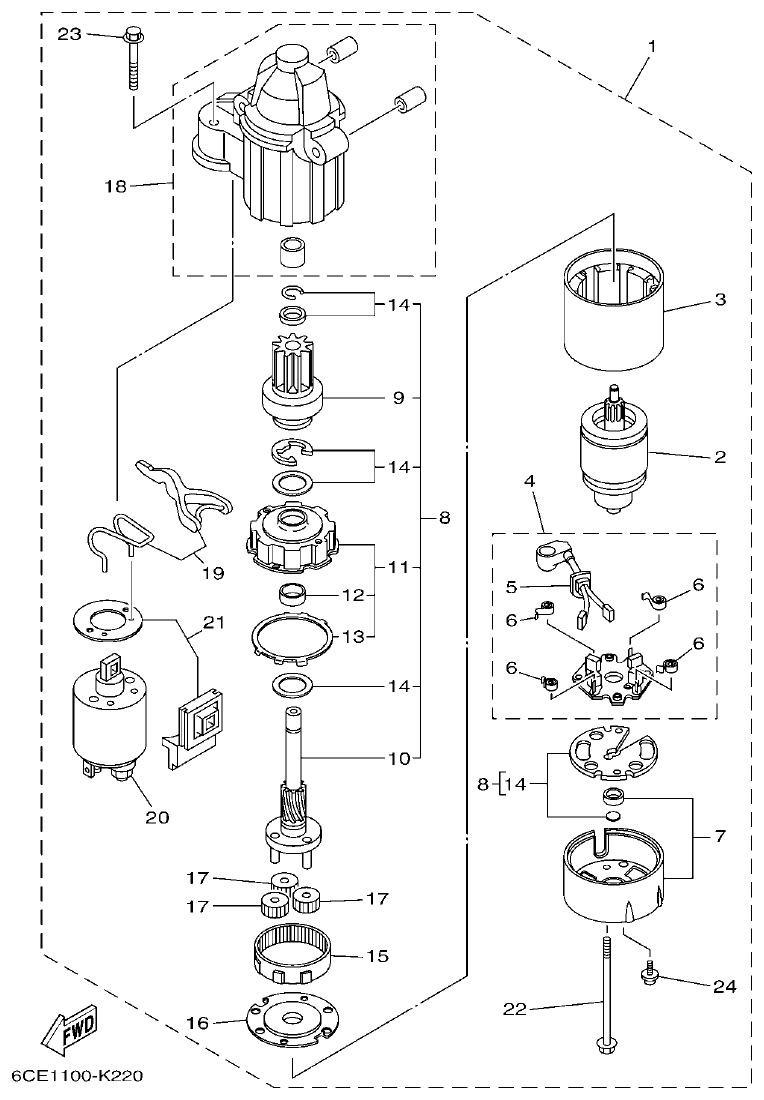

/images/fig-23-starting-motor.png)

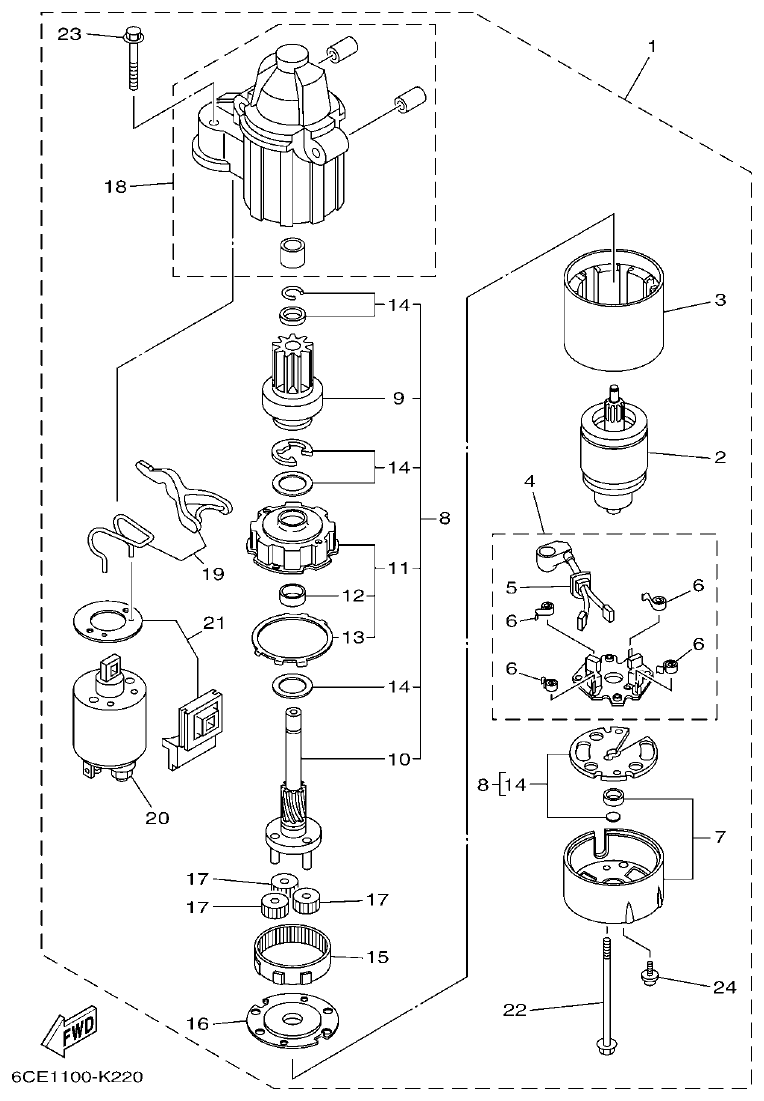

Fig. 23 — STARTING MOTOR
24 items
· 5 available products

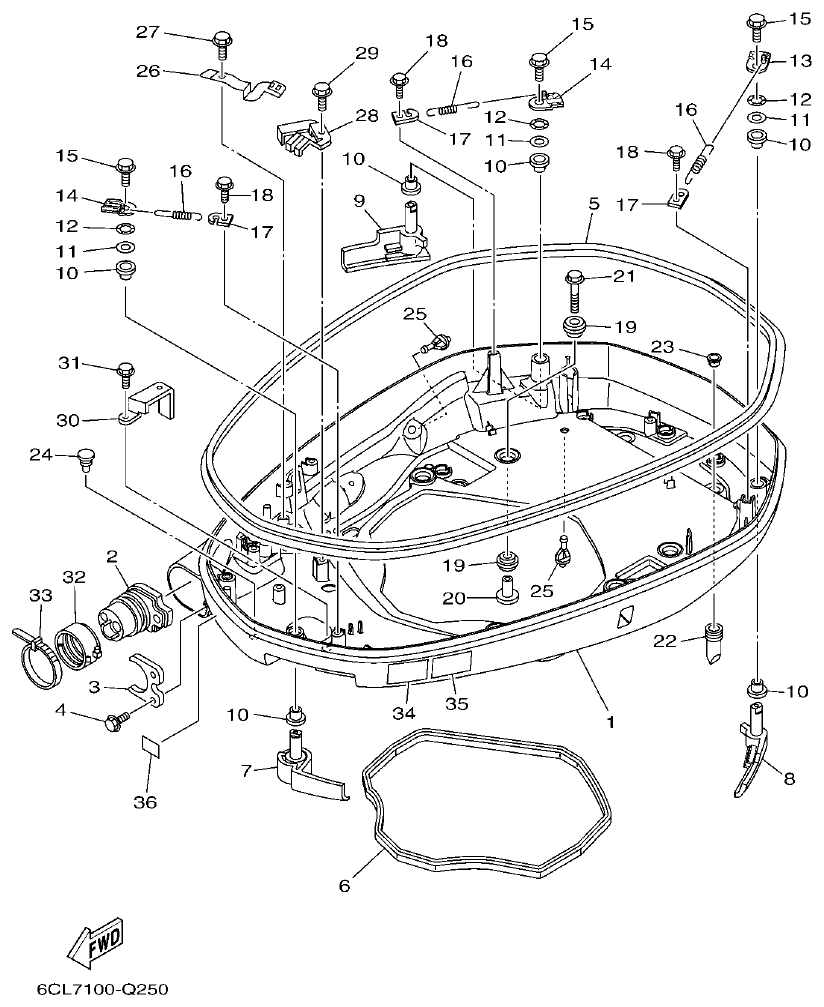

/images/fig-24-bottom-cowling-1.png)
Fig. 24 — BOTTOM COWLING 1
37 items
· 9 available products
/images/fig-25-bottom-cowling-2.png)

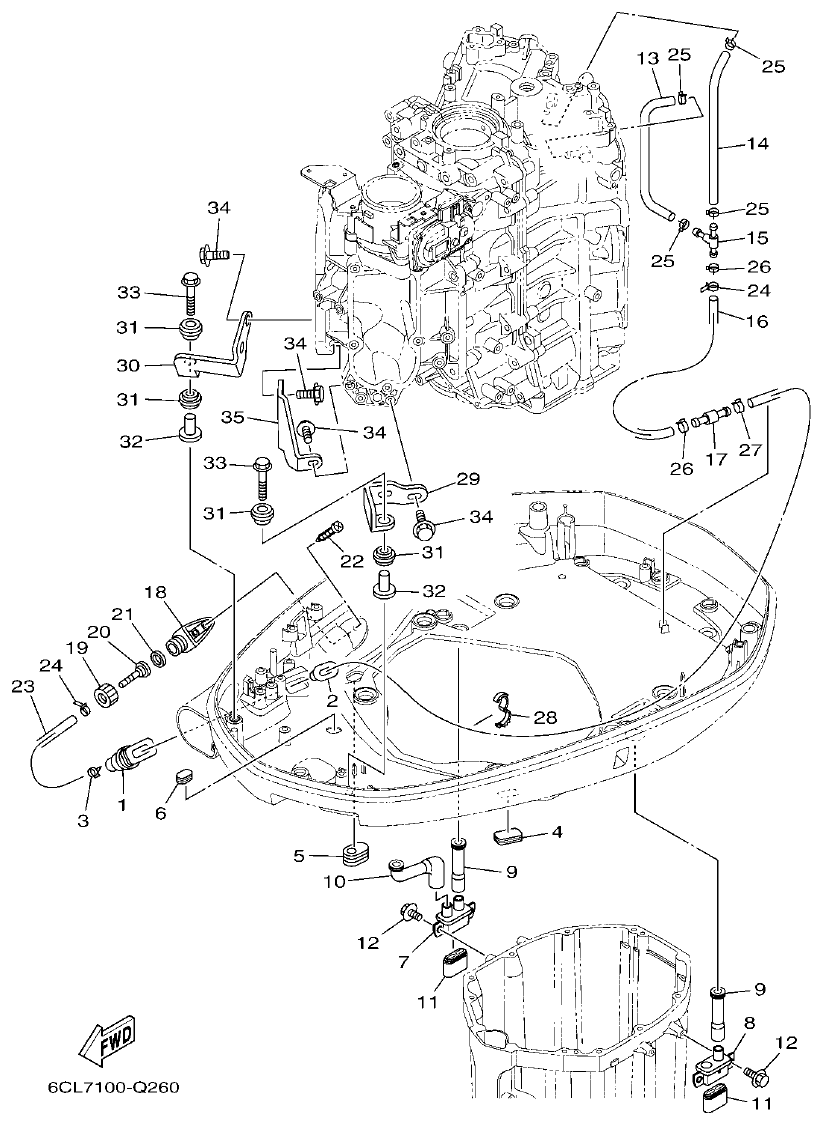

Fig. 25 — BOTTOM COWLING 2
35 items
· 8 available products
/images/fig-26-bottom-cowling-3.png)

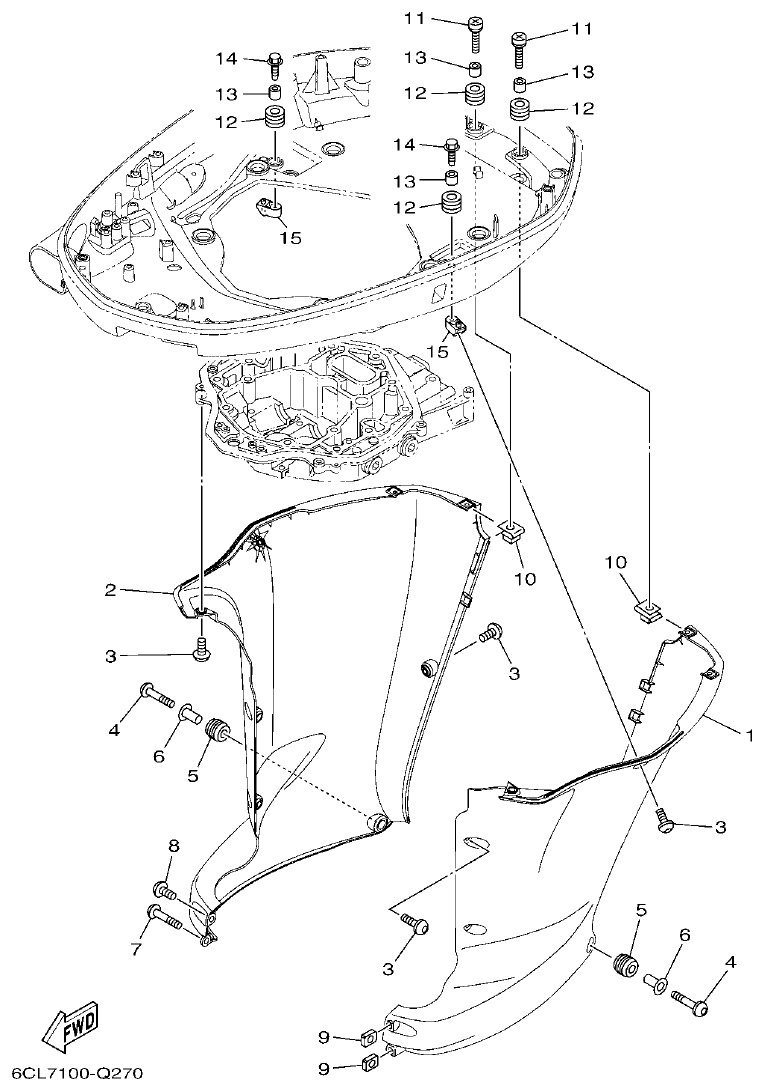

Fig. 26 — BOTTOM COWLING 3
15 items

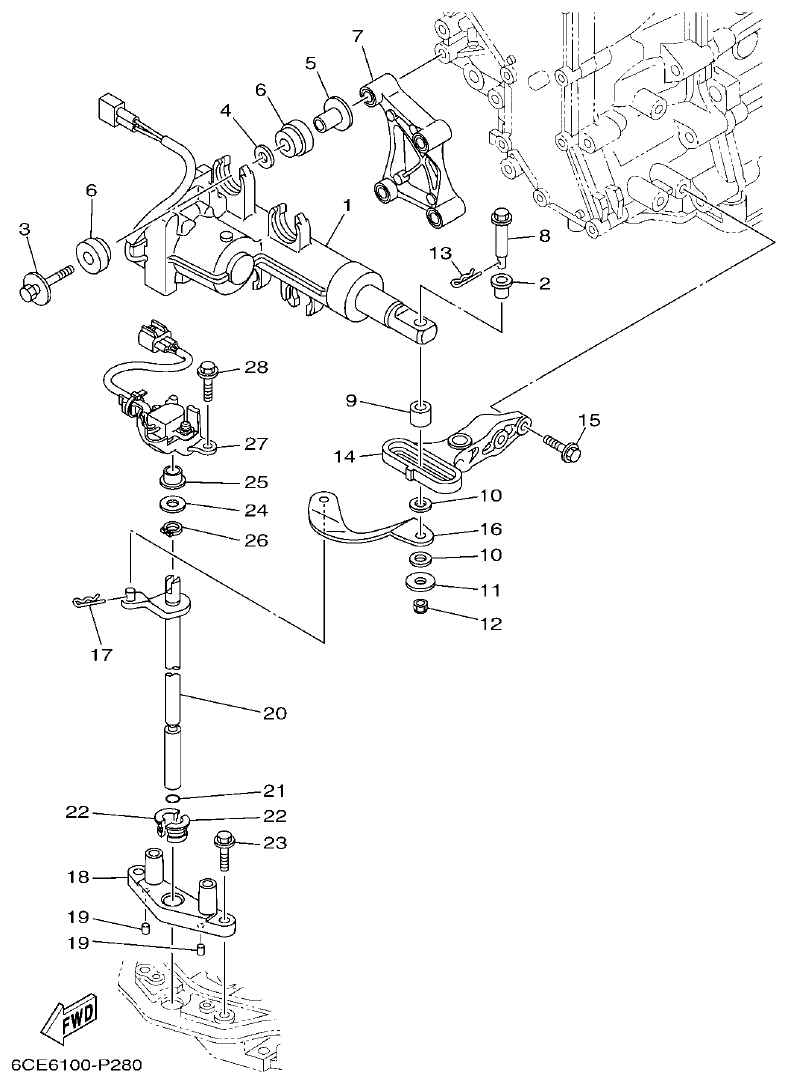

/images/fig-27-control.png)
Fig. 27 — CONTROL
28 items
· 2 available products

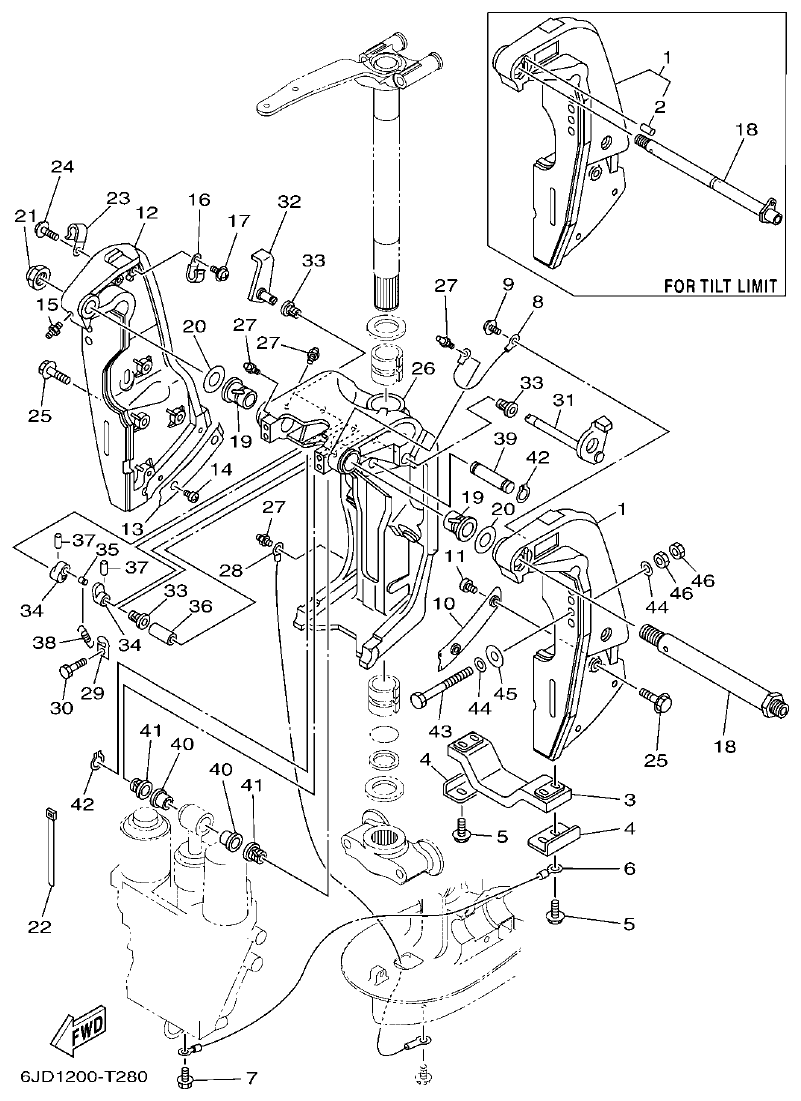

/images/fig-28-bracket-1.png)
Fig. 28 — BRACKET 1
51 items
· 10 available products

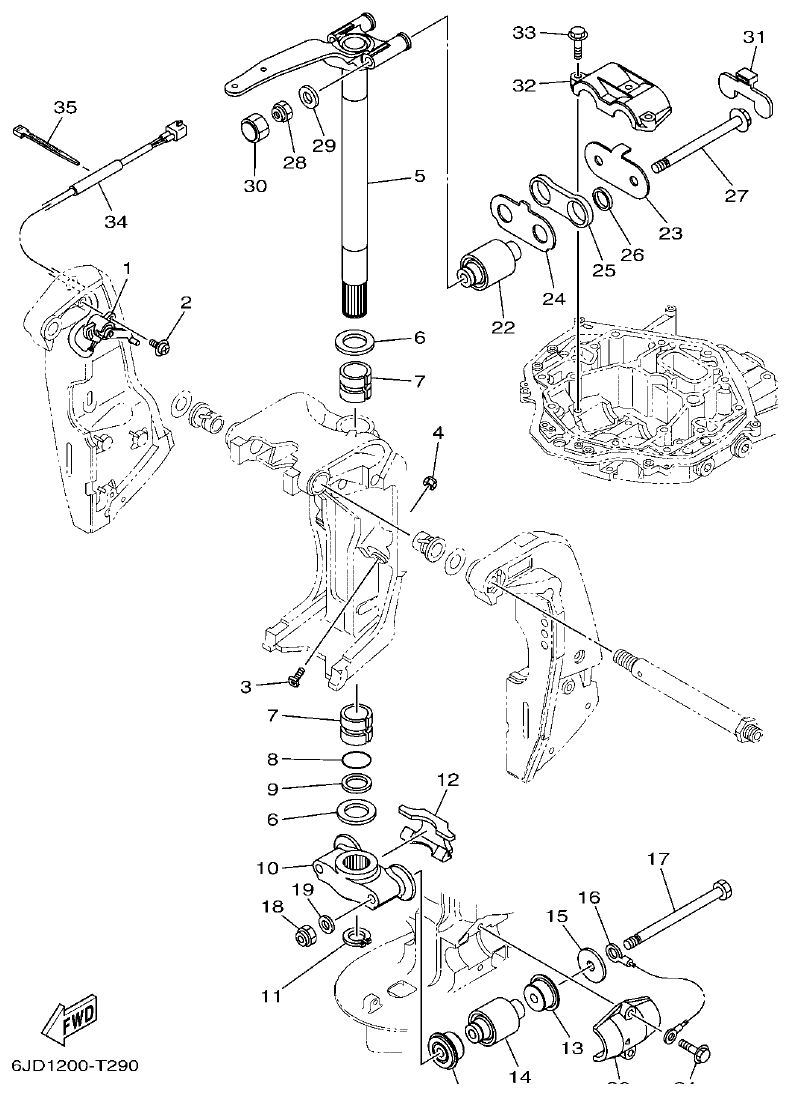

/images/fig-29-bracket-2.png)
Fig. 29 — BRACKET 2
35 items
· 12 available products

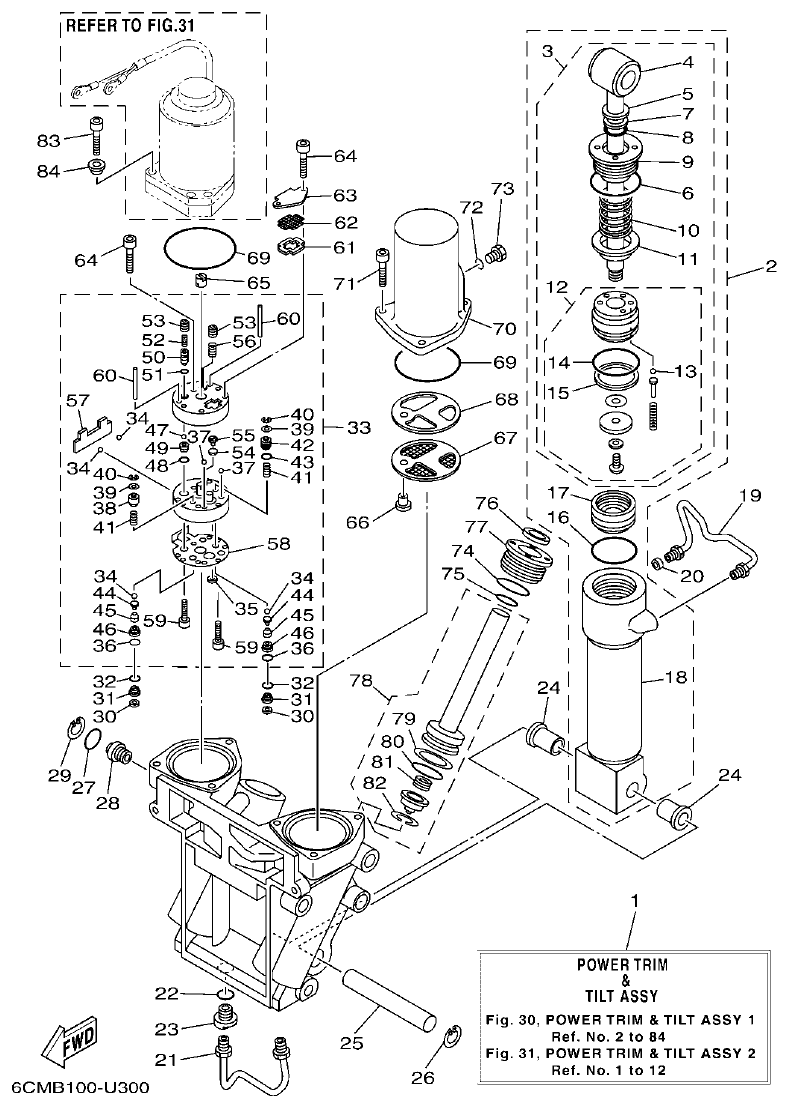

/images/fig-30-power-trim-tilt-assy-1.png)
Fig. 30 — POWER TRIM & TILT ASSY 1
84 items
· 32 available products

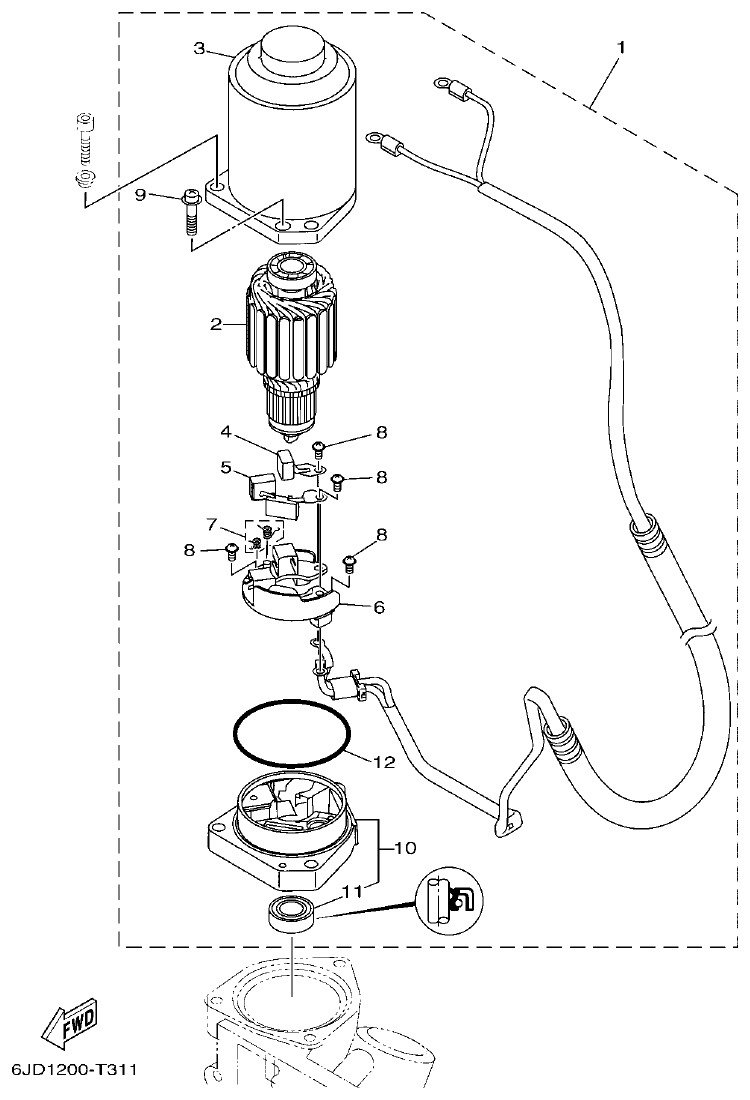

/images/fig-31-power-trim-tilt-assy-2.png)
Fig. 31 — POWER TRIM & TILT ASSY 2
12 items
· 5 available products
/images/fig-32-upper-casing.png)
Fig. 32 — UPPER CASING
48 items
· 19 available products

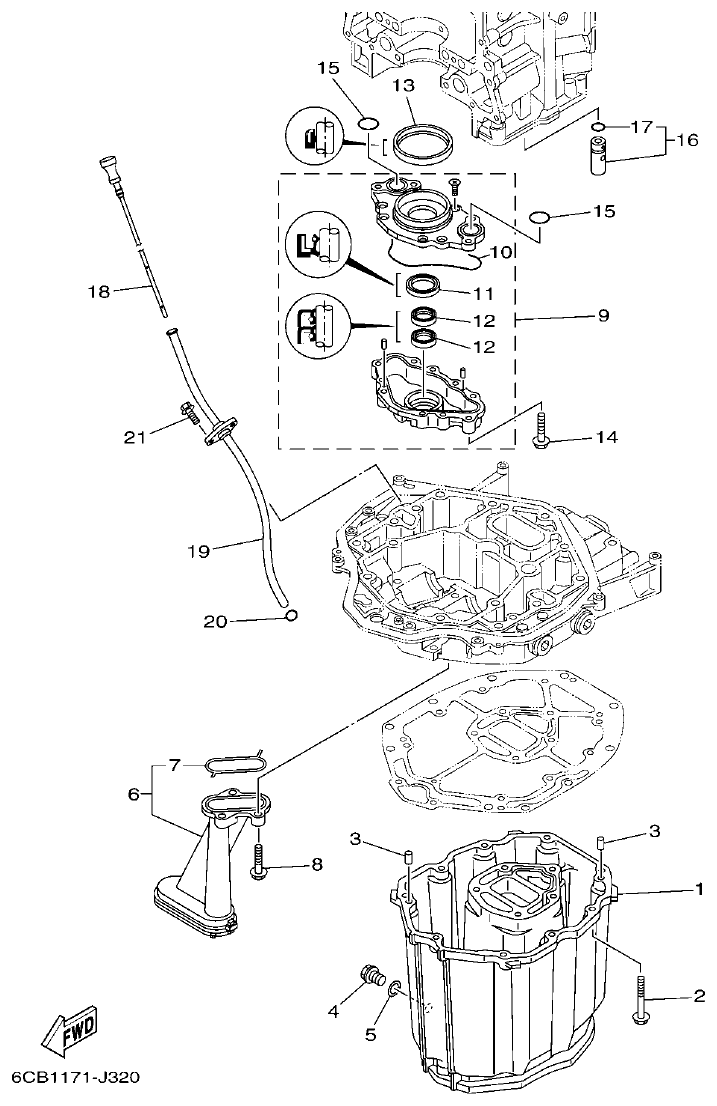

/images/fig-33-oil-pan.png)
Fig. 33 — OIL PAN
21 items
· 9 available products

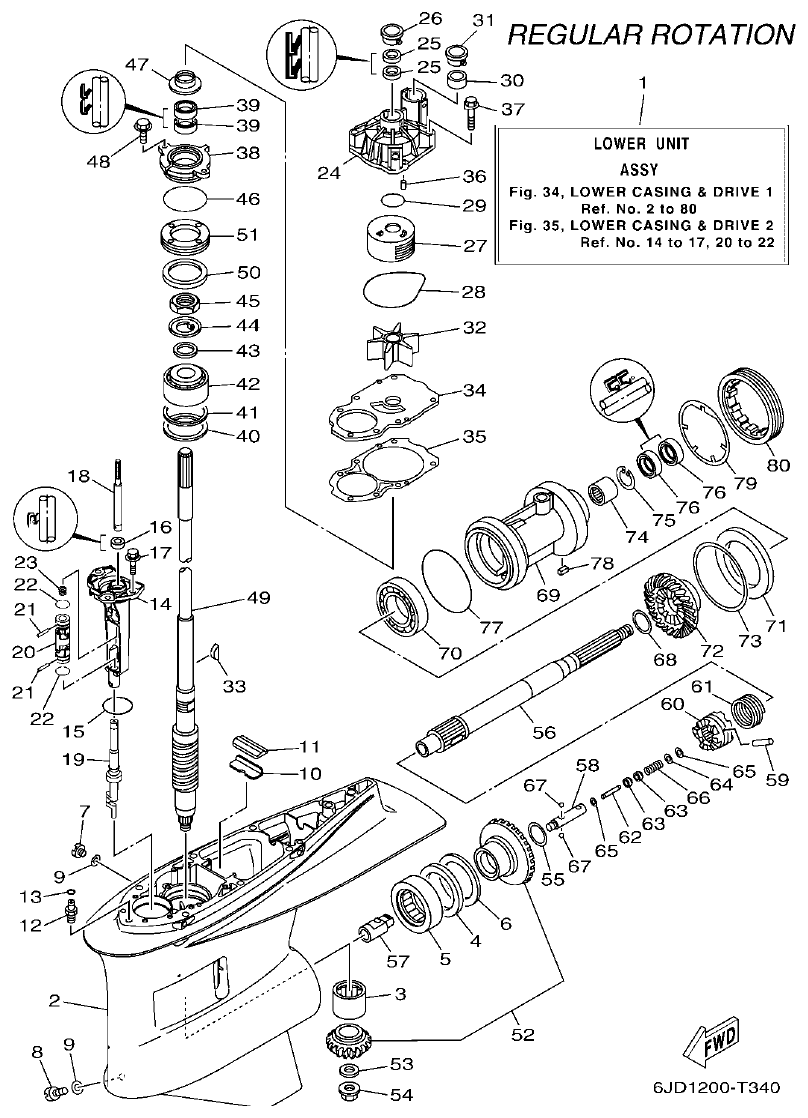

/images/fig-34-lower-casing-drive-1.png)
Fig. 34 — LOWER CASING & DRIVE 1
100 items
· 51 available products
/images/fig-35-lower-casing-drive-2.png)
Fig. 35 — LOWER CASING & DRIVE 2
41 items
· 21 available products

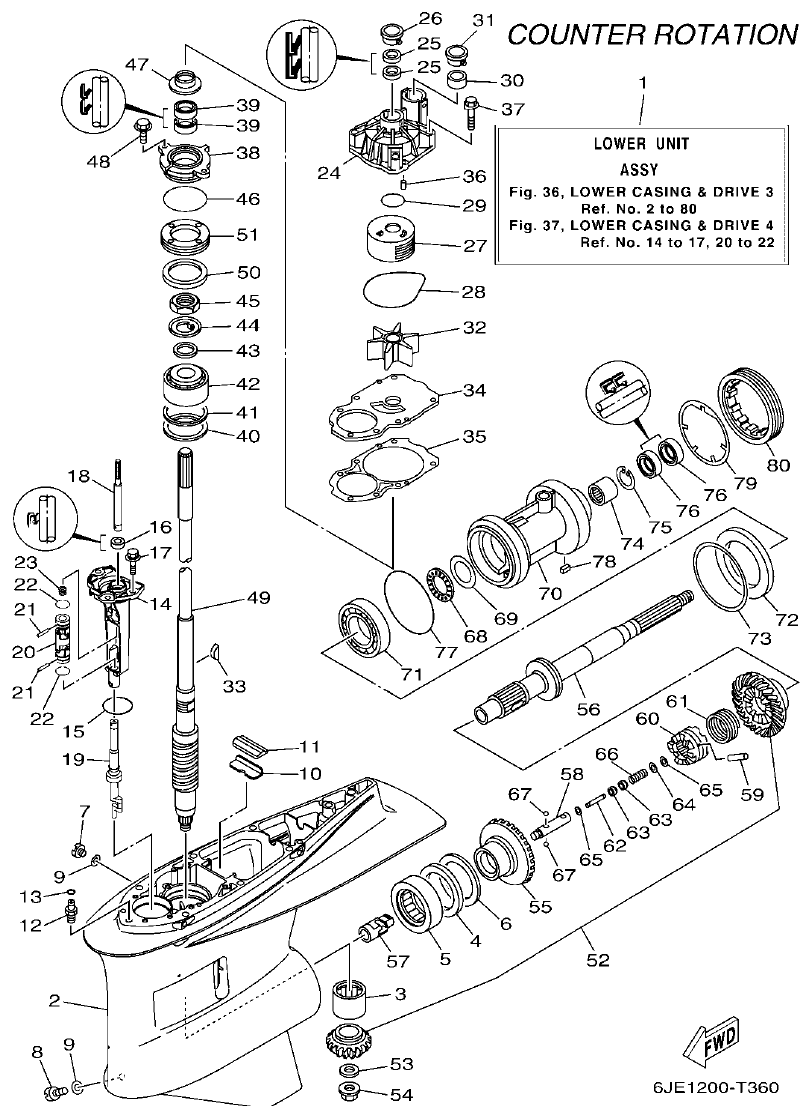

/images/fig-36-lower-casing-drive-3.png)
Fig. 36 — LOWER CASING & DRIVE 3
106 items
· 57 available products

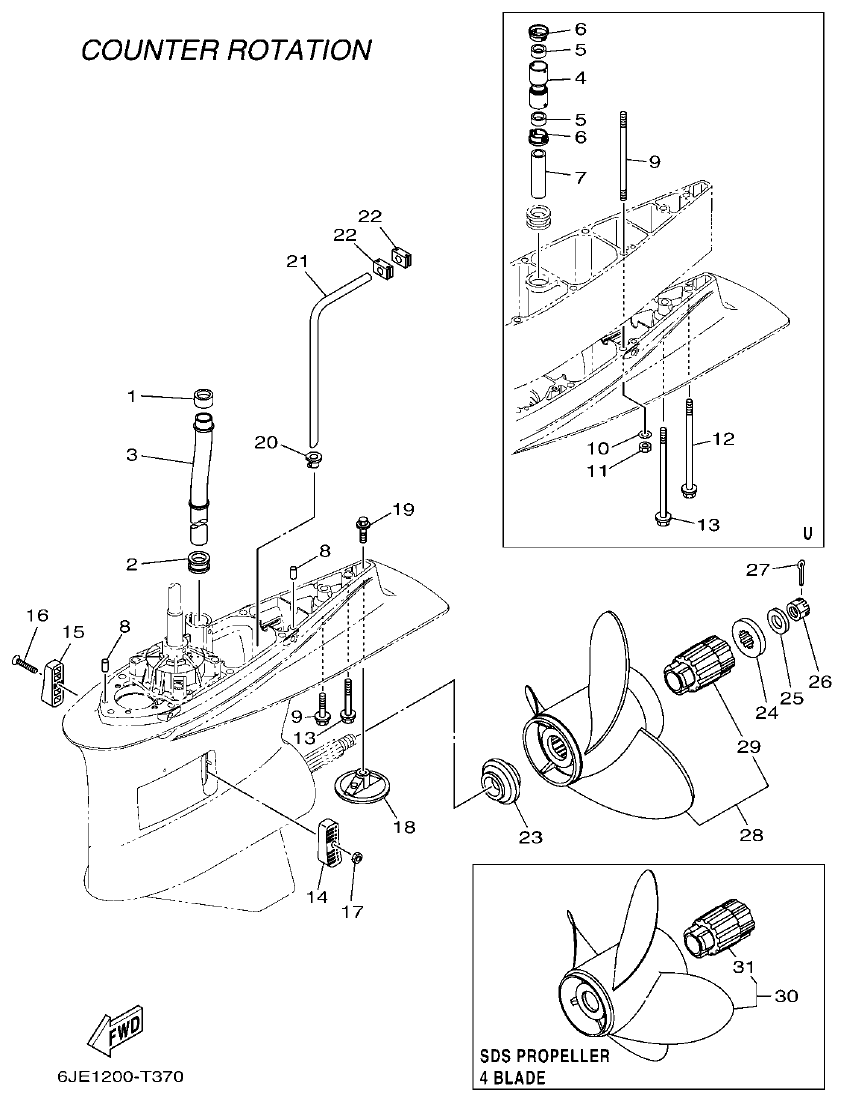

/images/fig-37-lower-casing-drive-4.png)
Fig. 37 — LOWER CASING & DRIVE 4
41 items
· 20 available products
/images/fig-38-steering-guide-attachment-1.png)
Fig. 38 — STEERING GUIDE ATTACHMENT 1
9 items
· 2 available products
/images/fig-39-steering-guide-attachment-2.png)

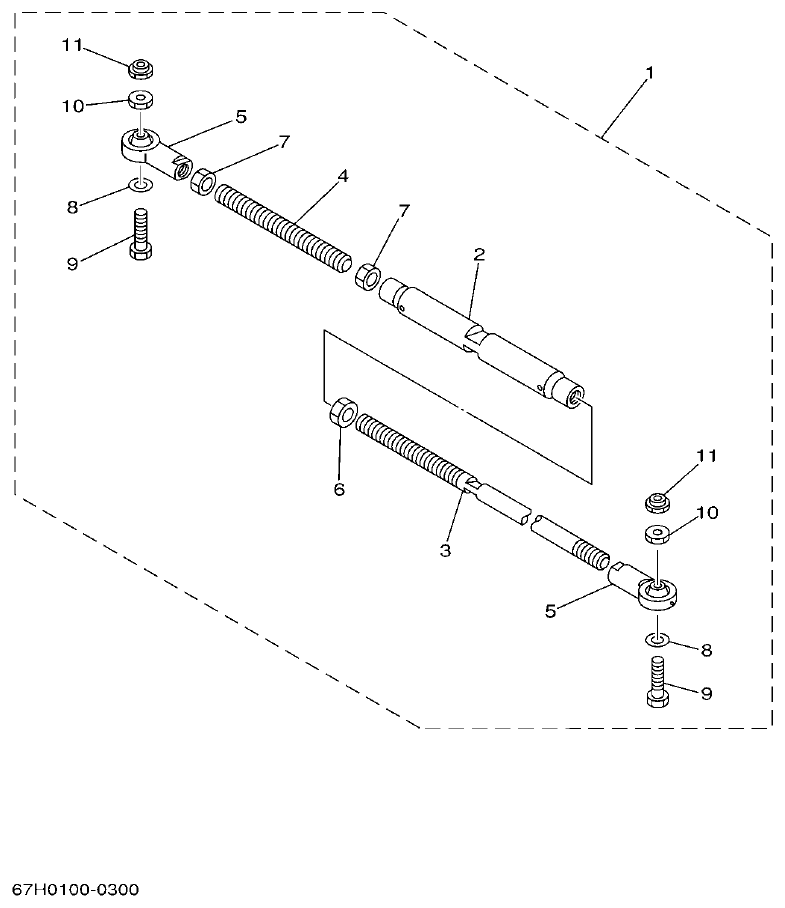

Fig. 39 — STEERING GUIDE ATTACHMENT 2
11 items
· 2 available products
/images/fig-40-dec-1-single.png)

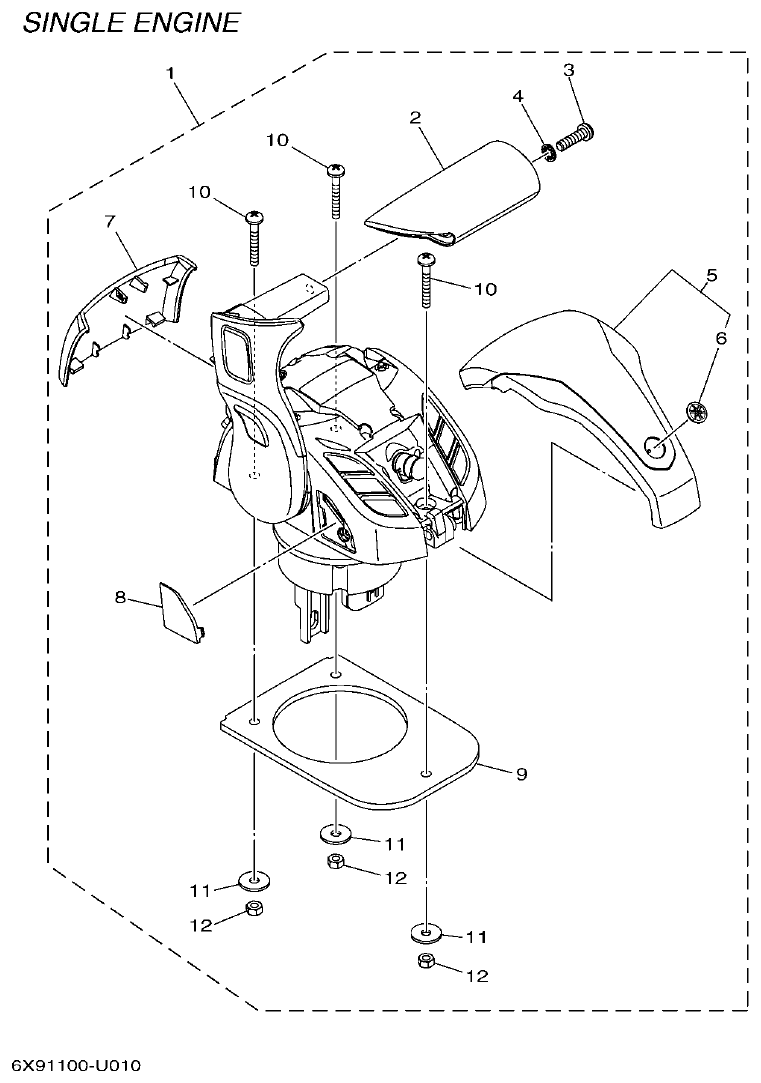

Fig. 40 — DEC 1 (SINGLE)
13 items

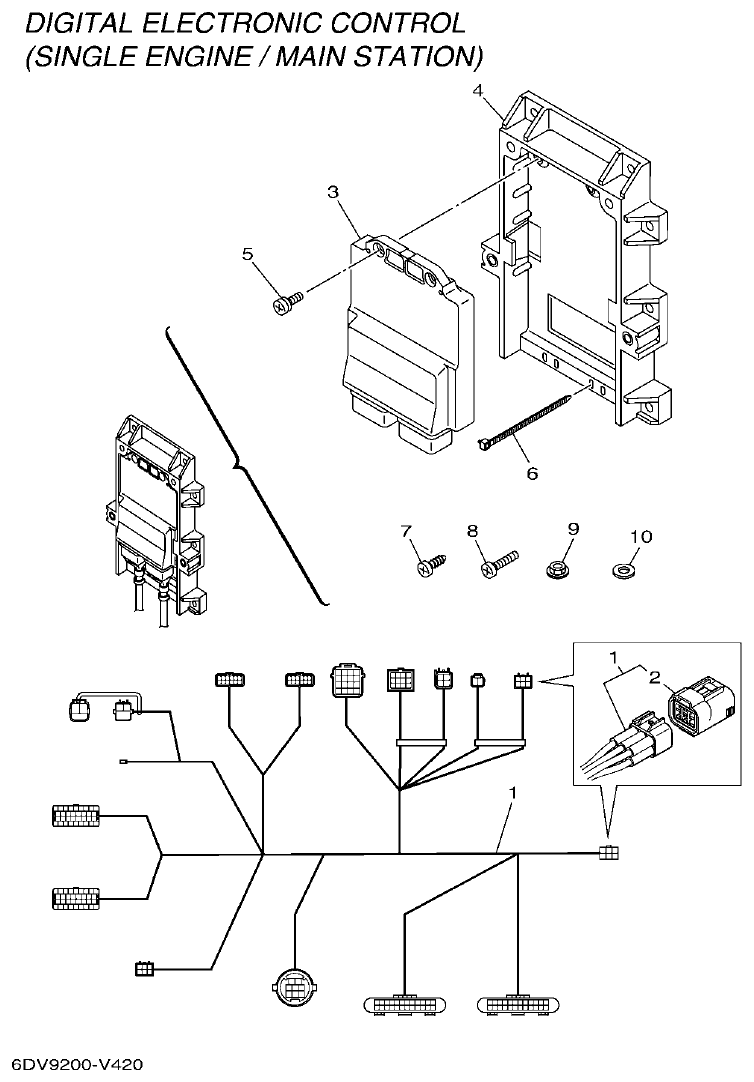

/images/fig-41-dec-2-single.png)
Fig. 41 — DEC 2 (SINGLE)
10 items
· 1 available products
/images/fig-42-dec-3-twin.png)
Fig. 42 — DEC 3 (TWIN)
15 items

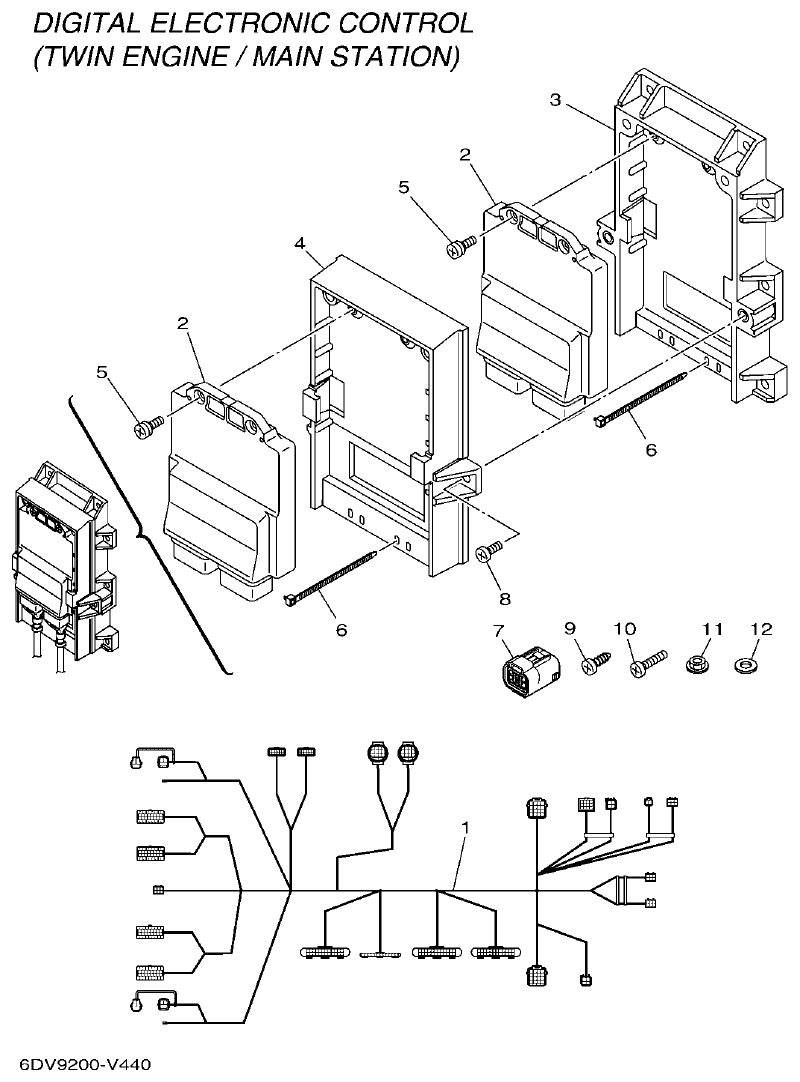

/images/fig-43-dec-4-twin.png)
Fig. 43 — DEC 4 (TWIN)
12 items
· 1 available products

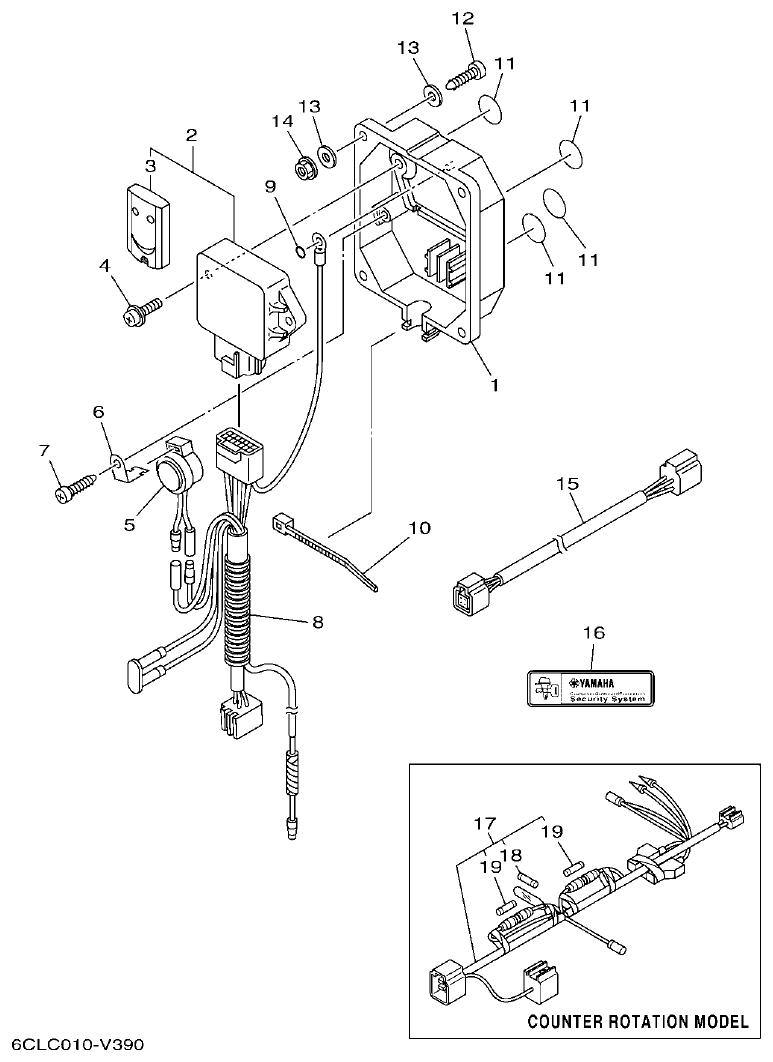

/images/fig-44-optional-parts-1.png)
Fig. 44 — OPTIONAL PARTS 1
20 items
· 1 available products
/images/fig-45-optional-parts-2.png)

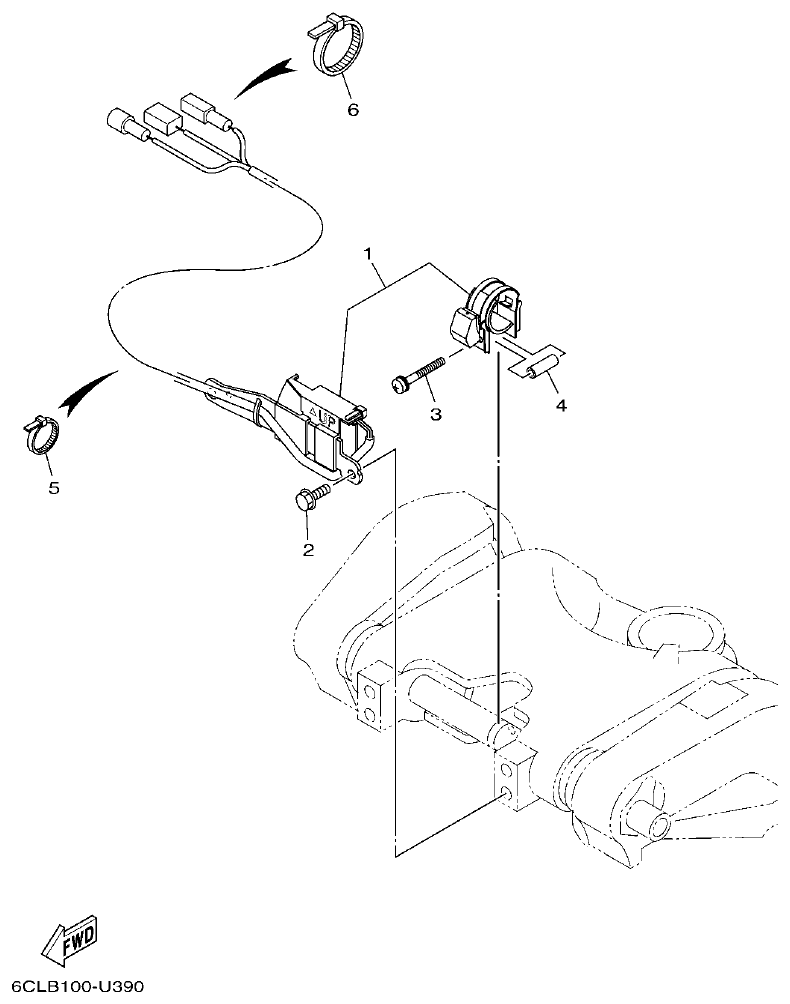

Fig. 45 — OPTIONAL PARTS 2
6 items

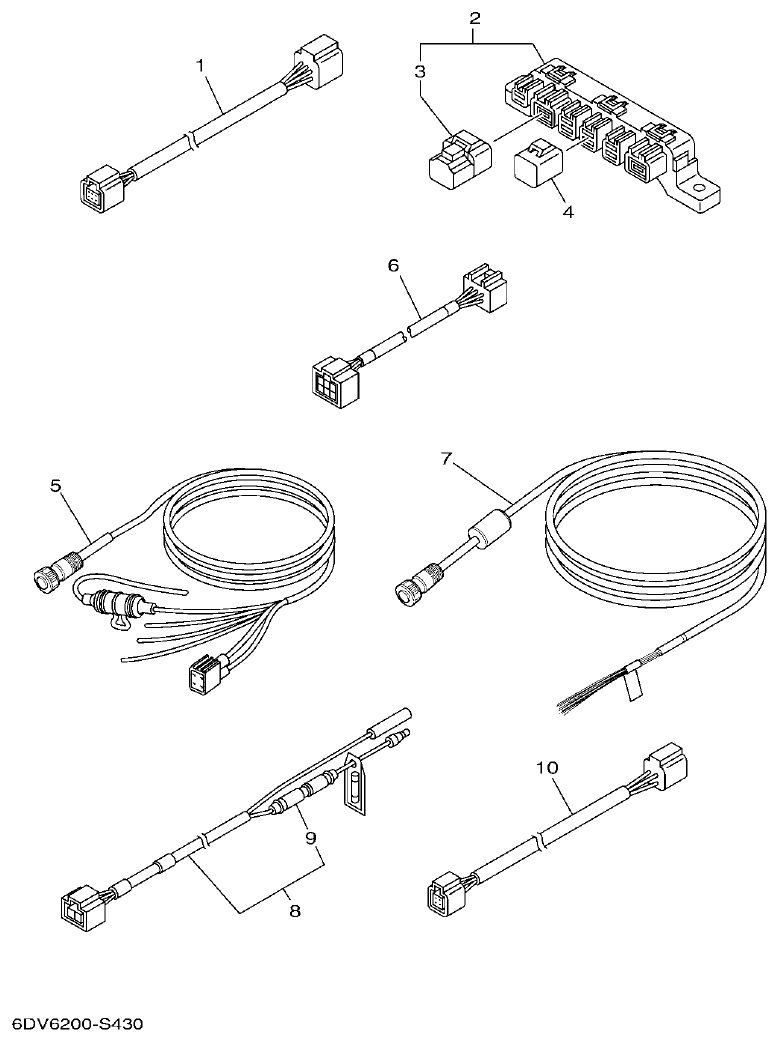

/images/fig-46-optional-parts-3.png)
Fig. 46 — OPTIONAL PARTS 3
10 items
· 6 available products

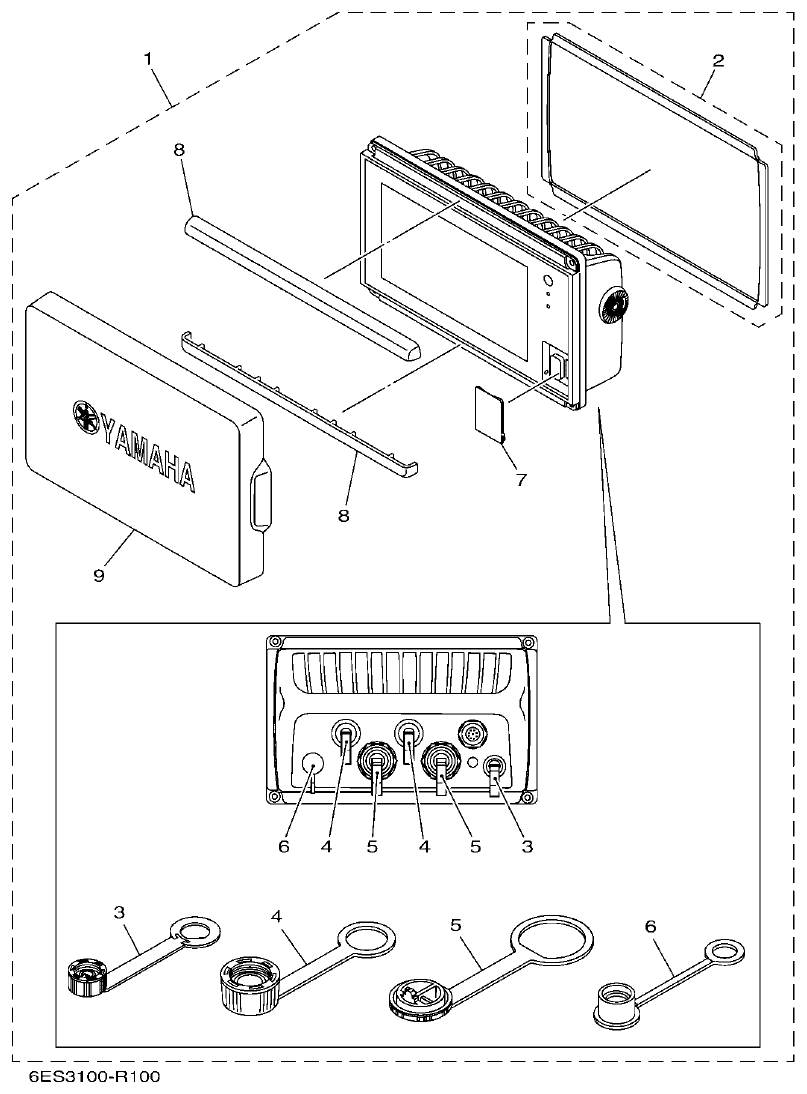

/images/fig-47-optional-parts-4.png)
Fig. 47 — OPTIONAL PARTS 4
9 items

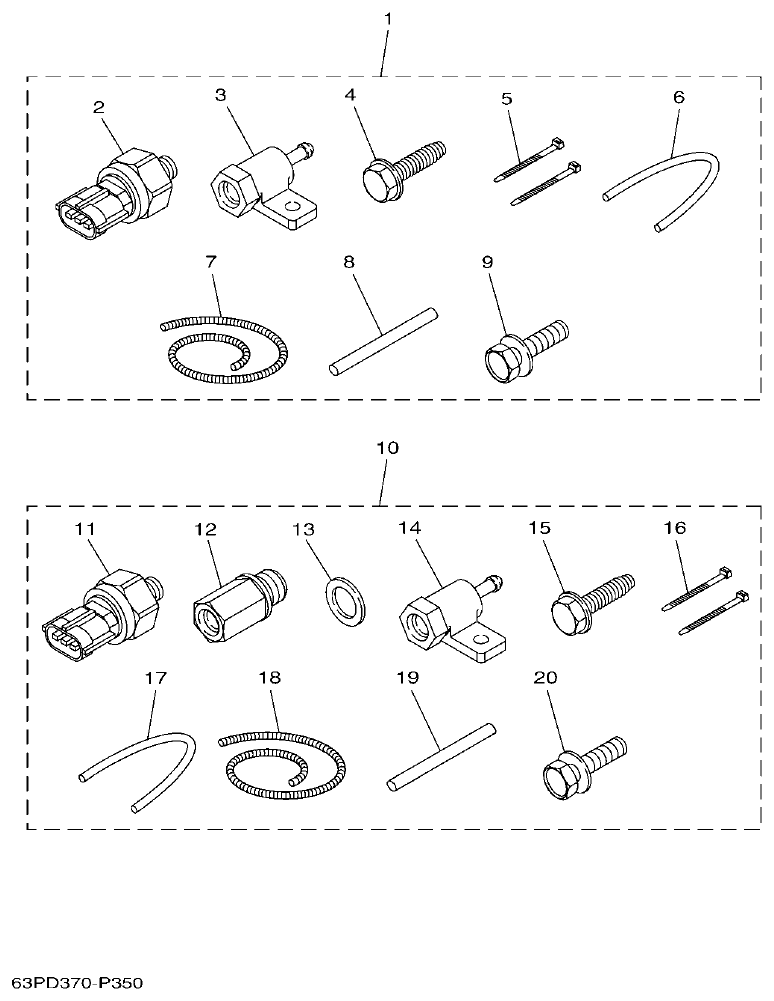

/images/fig-48-optional-parts-5.png)
Fig. 48 — OPTIONAL PARTS 5
20 items

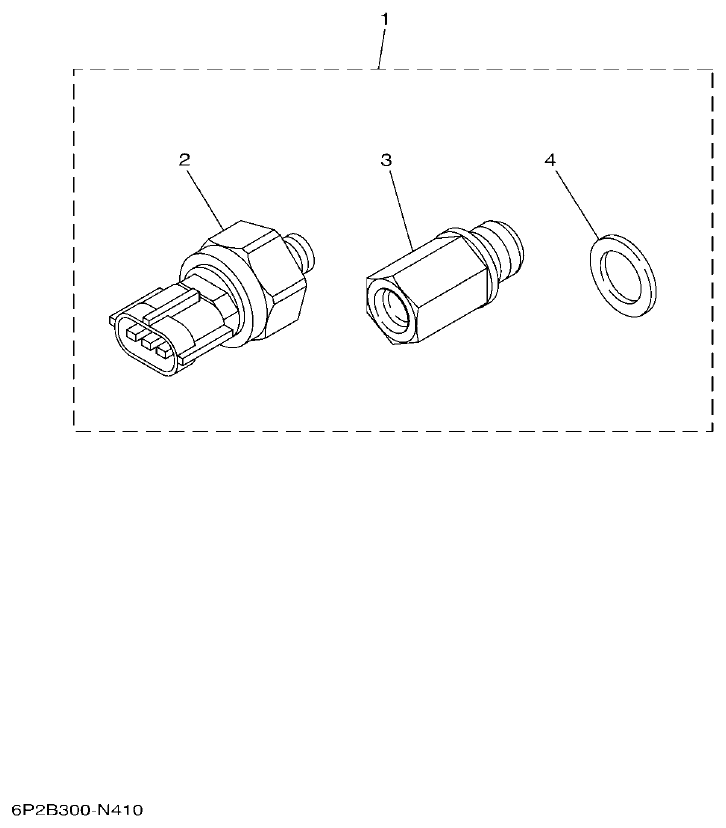

/images/fig-49-optional-parts-6.png)
Fig. 49 — OPTIONAL PARTS 6
4 items
/images/fig-50-optional-parts-7.png)
Fig. 50 — OPTIONAL PARTS 7
8 items
· 3 available products

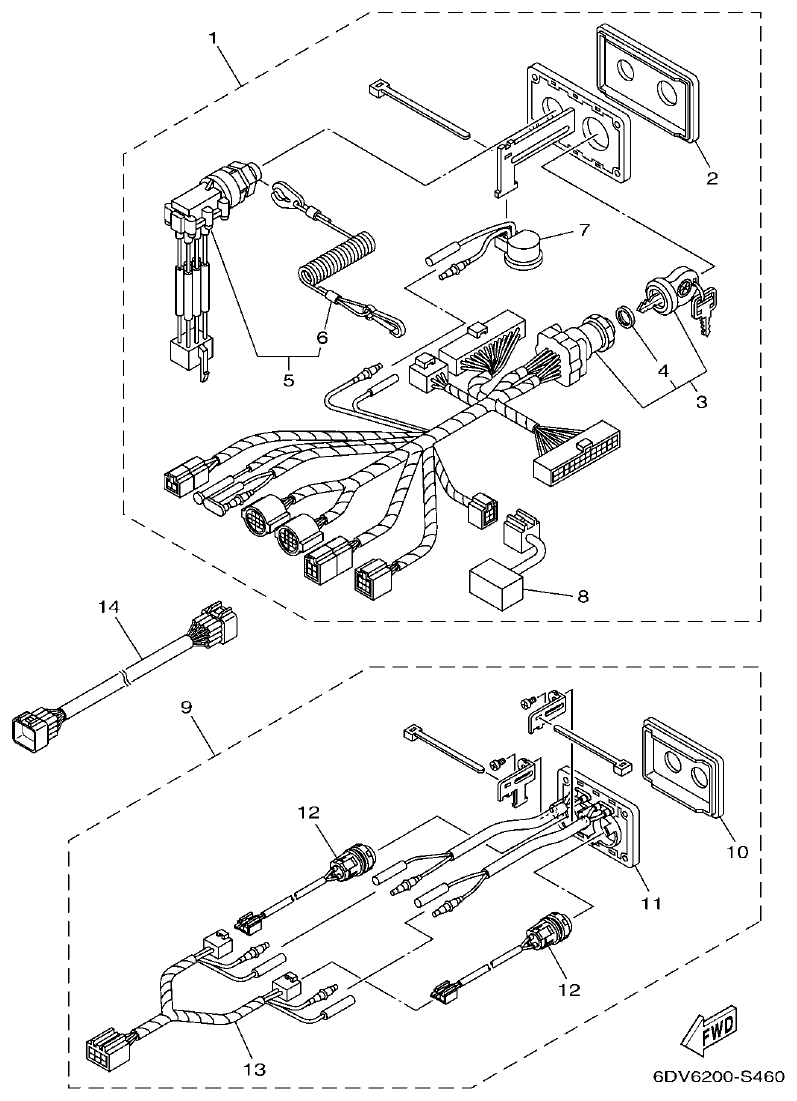

/images/fig-51-optional-parts-8.png)
Fig. 51 — OPTIONAL PARTS 8
14 items
· 4 available products

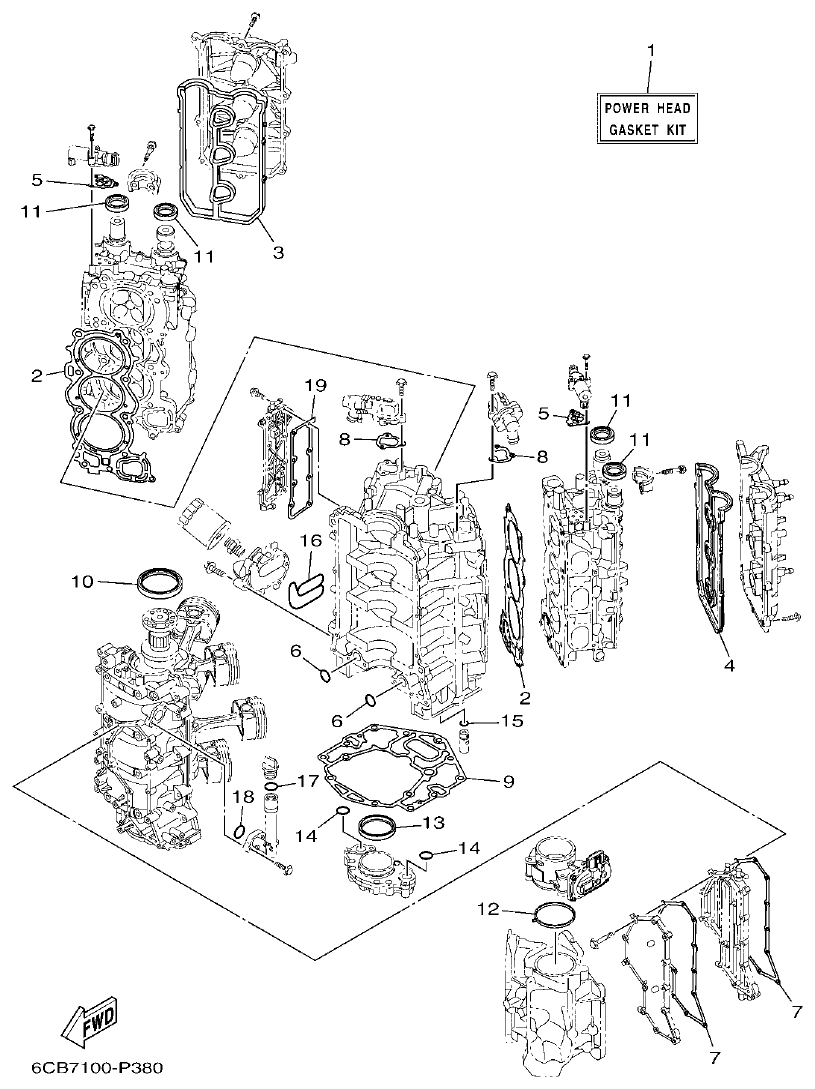

/images/fig-52-repair-kit-1.png)
