Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR Parts Catalog

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR Outboard parts and diagrams

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, ELECTRICAL 4, STARTING MOTOR. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

170 linked store products are available across 36 catalog sections. 1223 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR TOP COWLING parts diagram

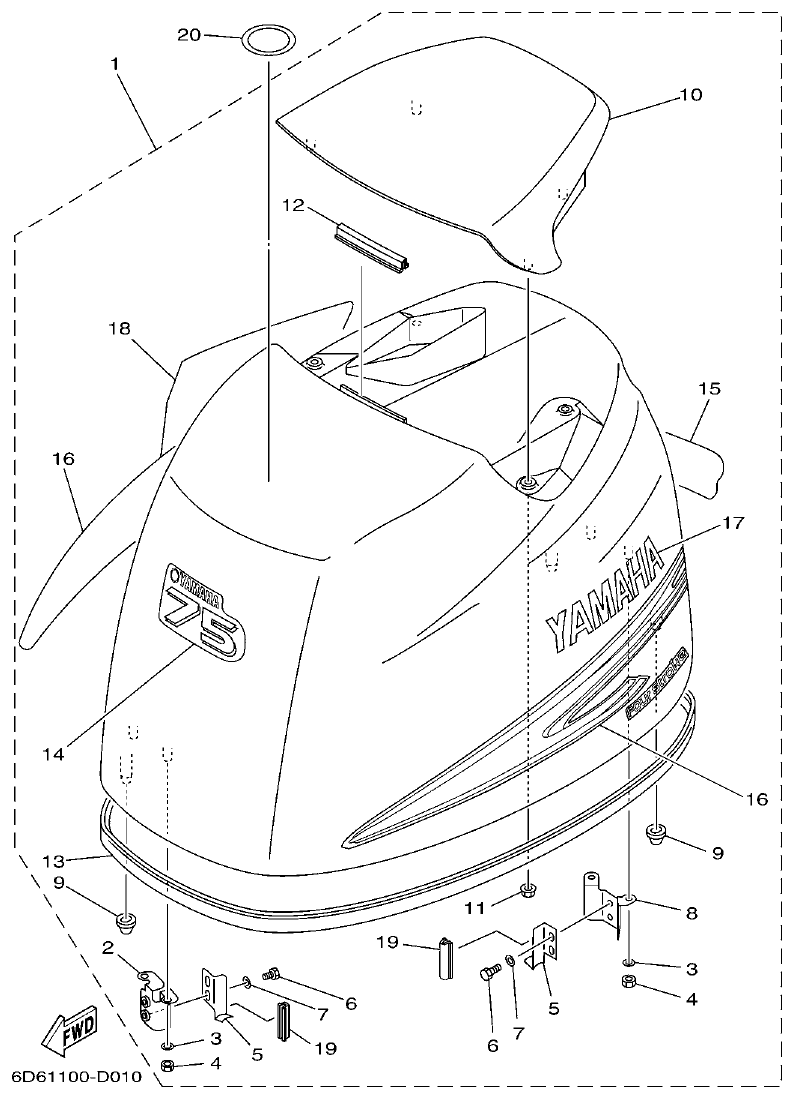

Fig. 1 — TOP COWLING
32 items

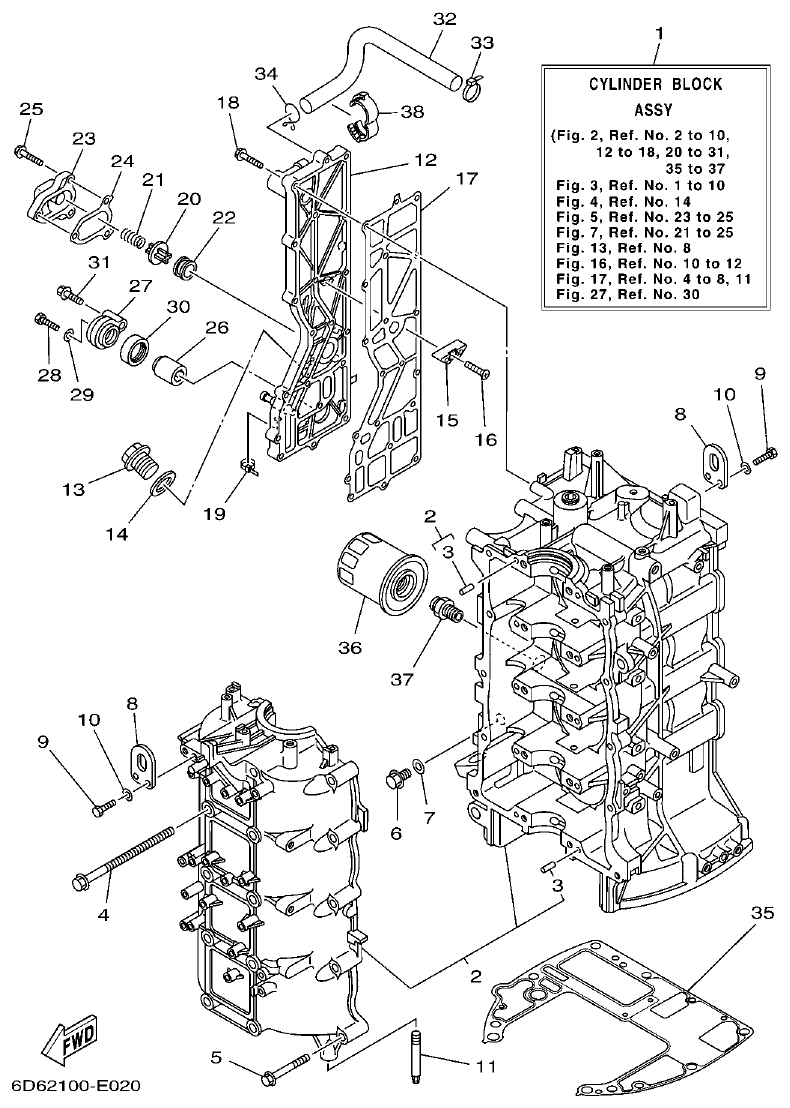

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR CYLINDER & CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER & CRANKCASE 1
38 items · 6 available products

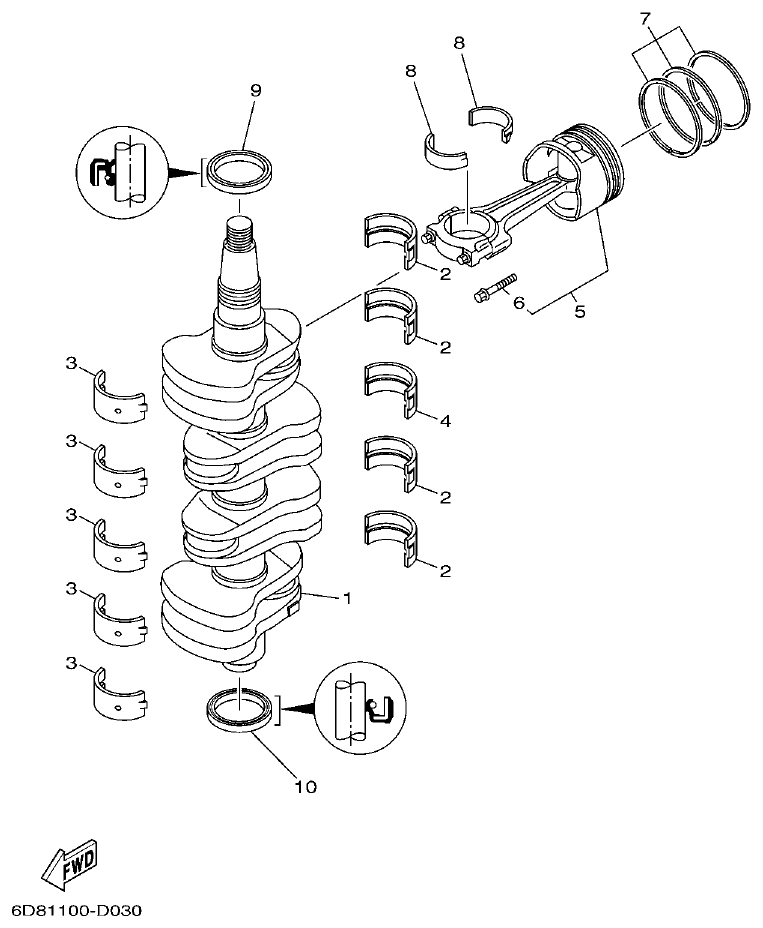

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
22 items · 14 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR CYLINDER & CRANKCASE 2 parts diagram

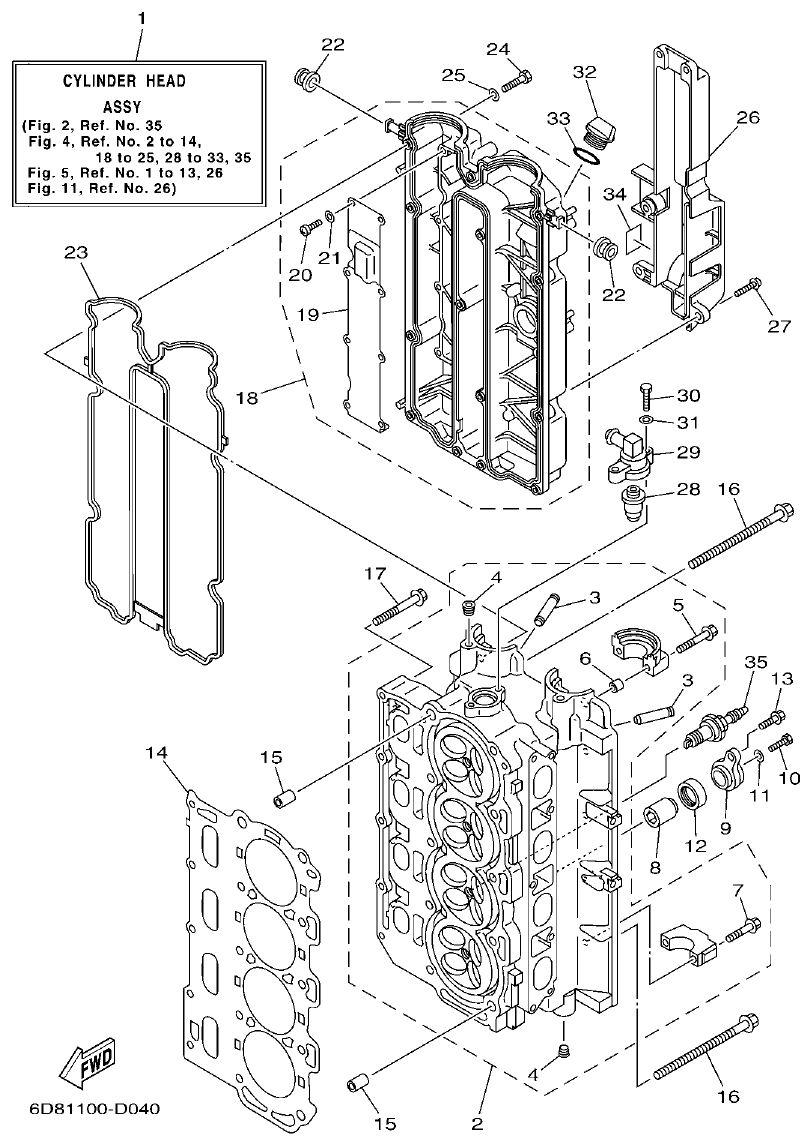

Fig. 4 — CYLINDER & CRANKCASE 2
37 items · 5 available products

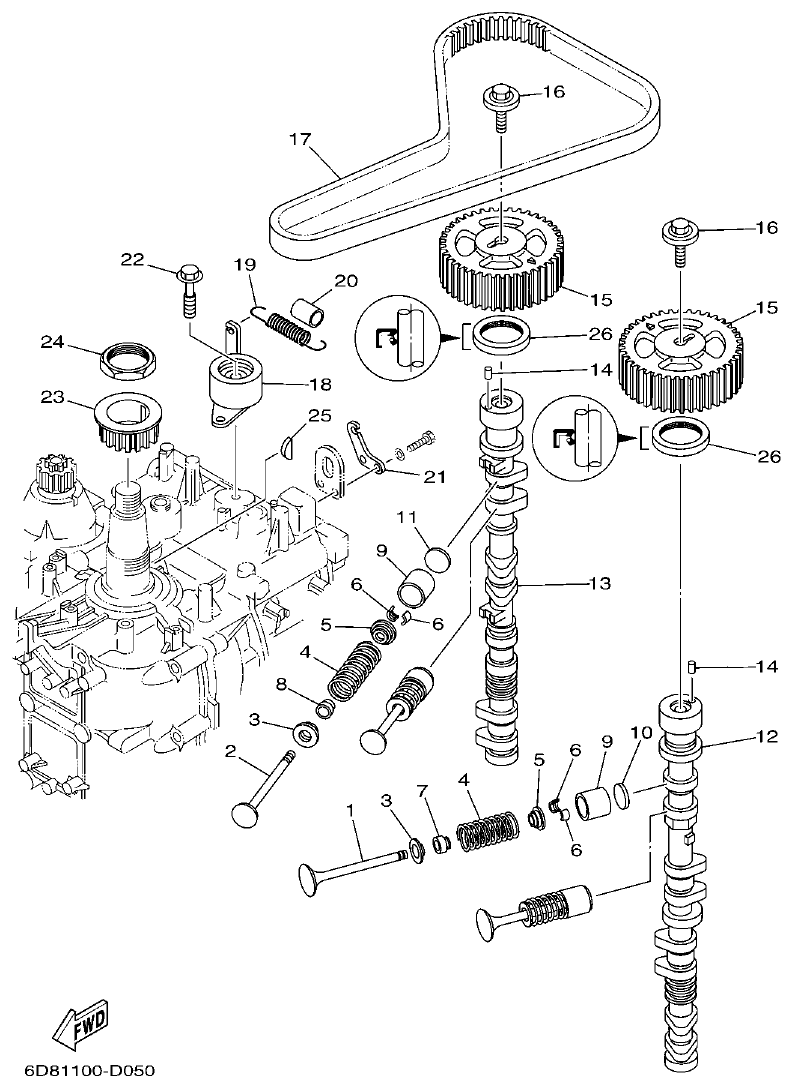

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR VALVE parts diagram
Fig. 5 — VALVE
78 items · 10 available products

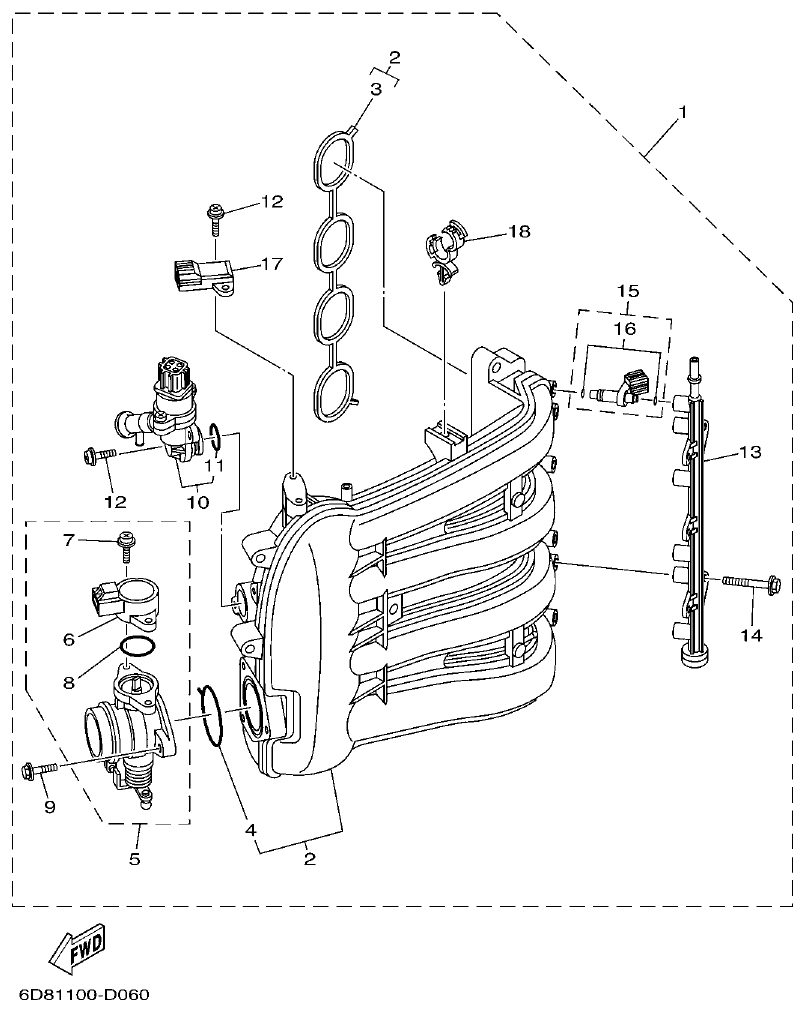

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR INTAKE 1 parts diagram
Fig. 6 — INTAKE 1
18 items · 2 available products

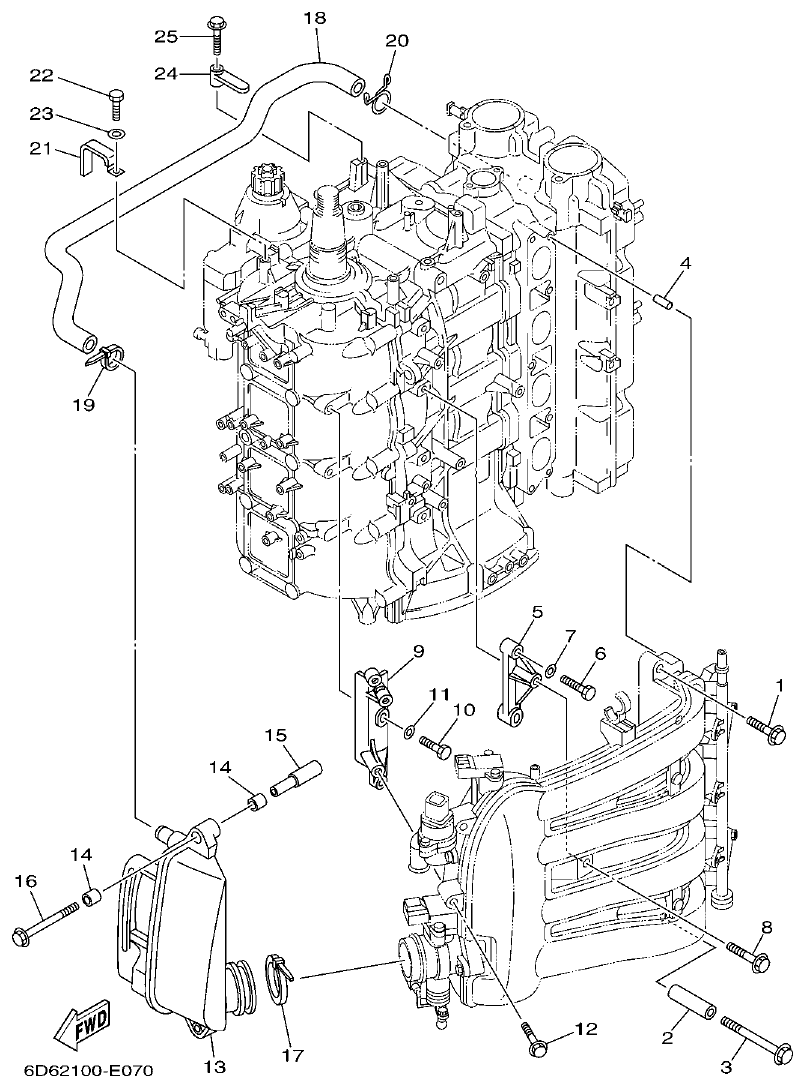

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR INTAKE 2 parts diagram
Fig. 7 — INTAKE 2
27 items

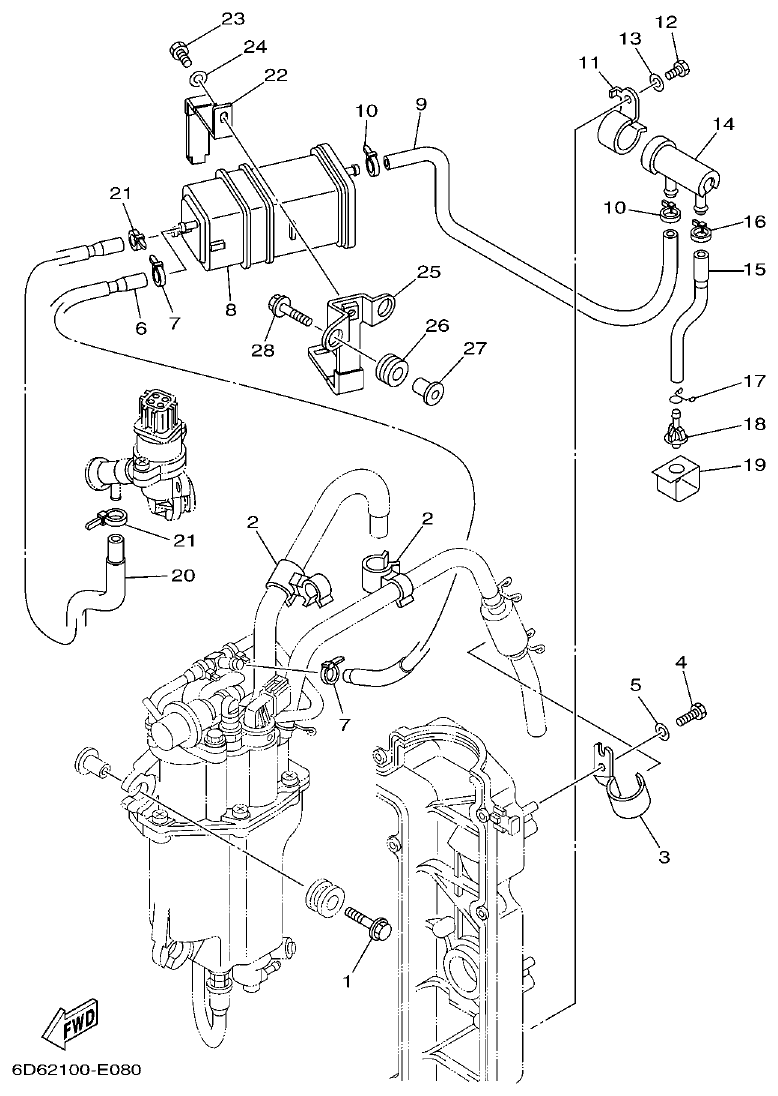

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR INTAKE 3 parts diagram
Fig. 8 — INTAKE 3
28 items · 1 available products

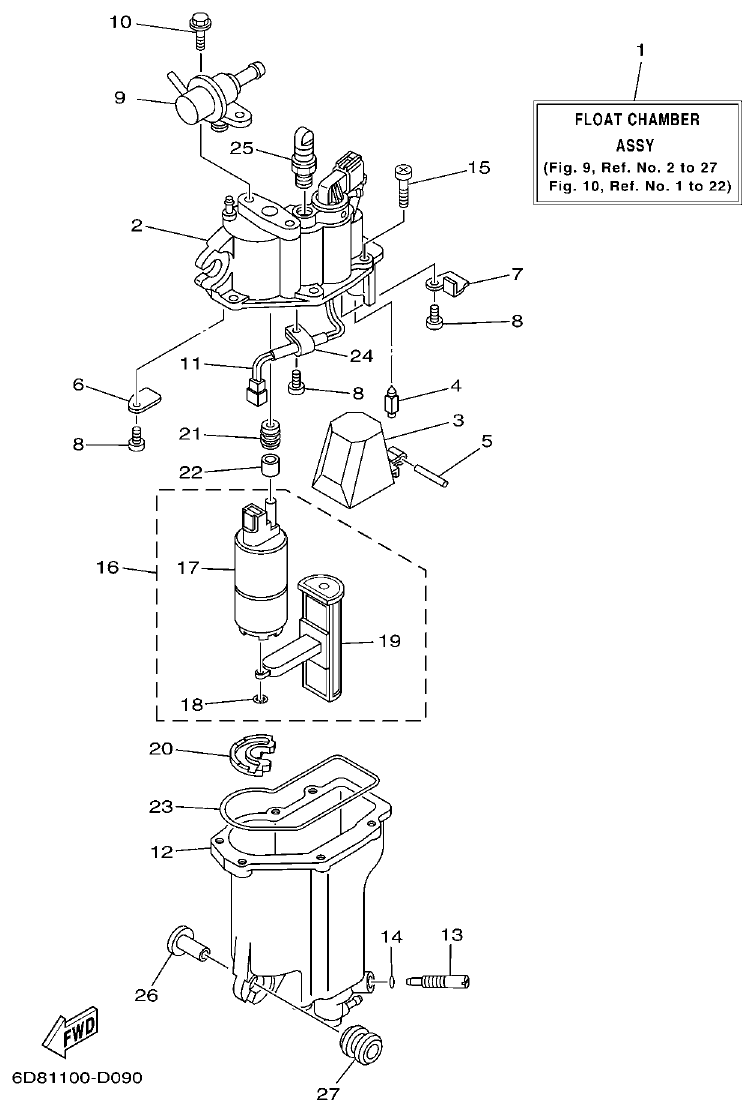

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR FUEL INJECTION PUMP 1 parts diagram

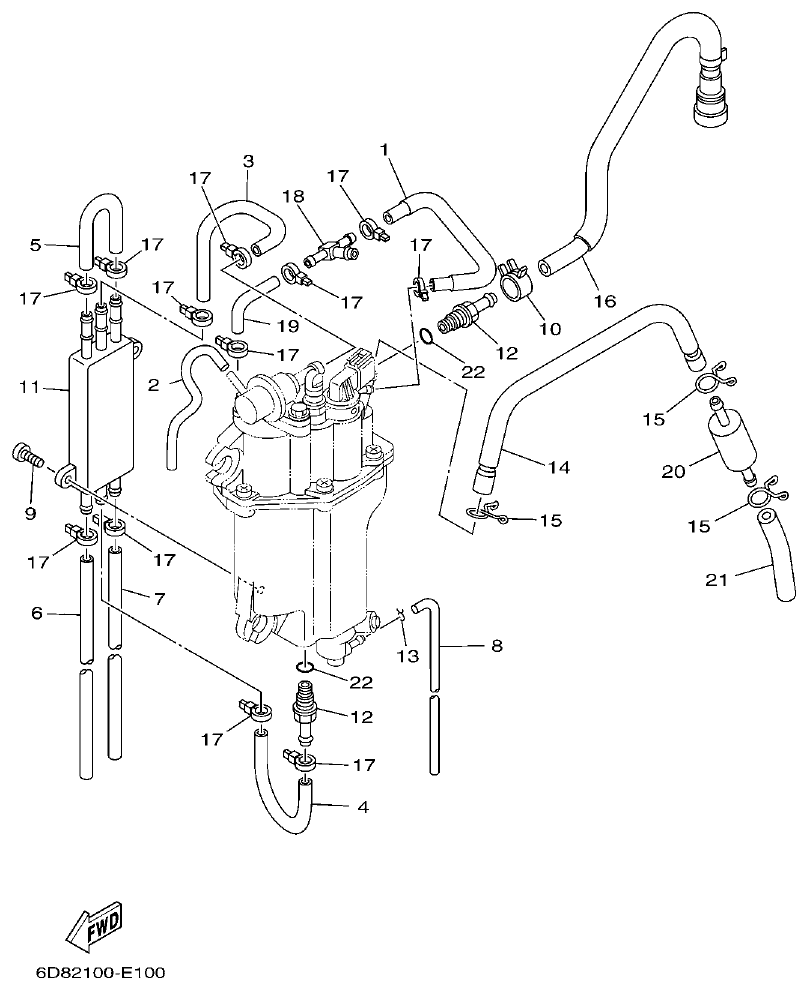

Fig. 9 — FUEL INJECTION PUMP 1
27 items · 6 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR FUEL INJECTION PUMP 2 parts diagram
Fig. 10 — FUEL INJECTION PUMP 2
22 items

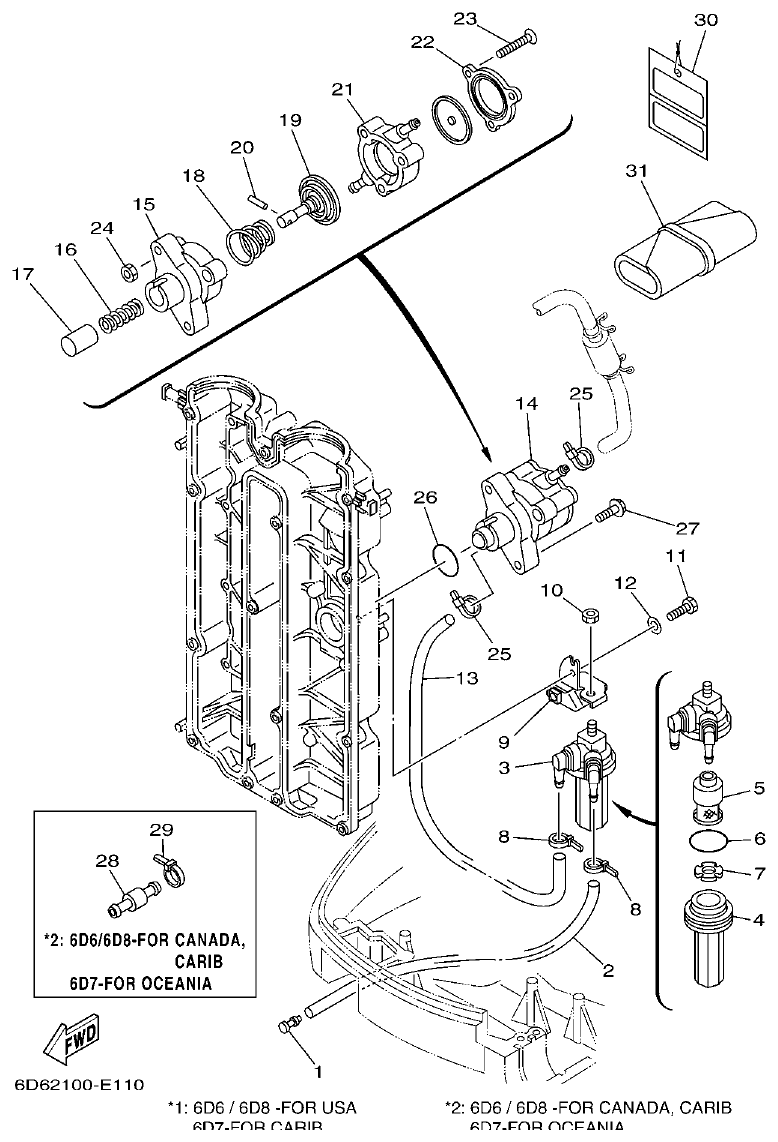

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR FUEL 1 parts diagram
Fig. 11 — FUEL 1
32 items · 4 available products

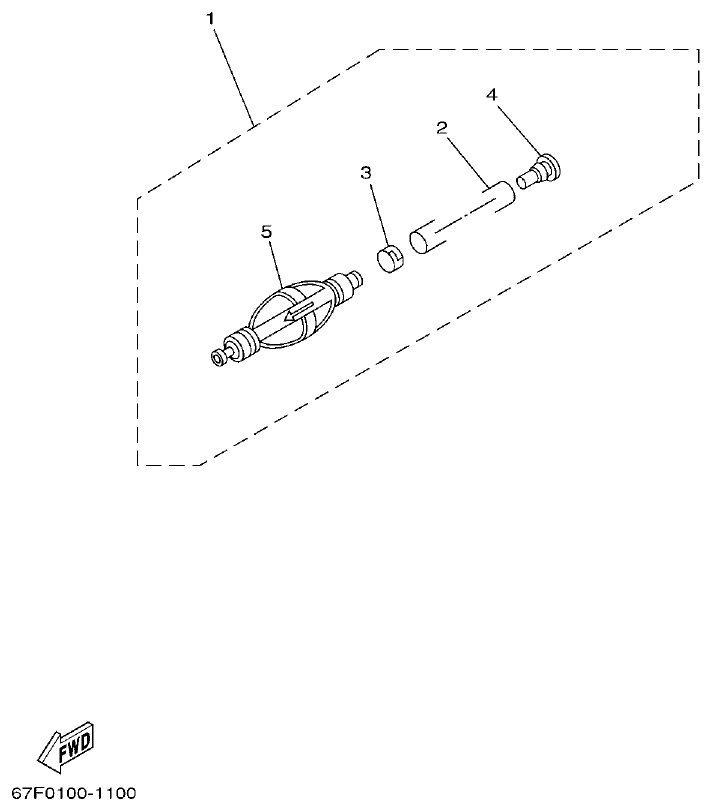

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR FUEL 2 parts diagram
Fig. 12 — FUEL 2
5 items · 2 available products

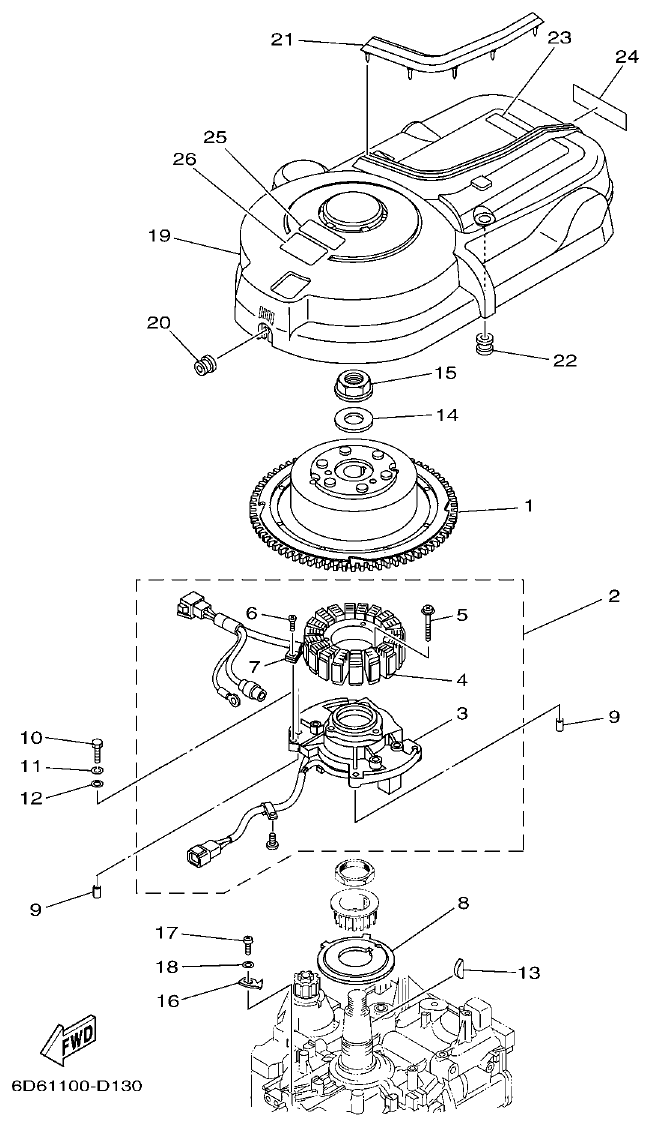

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR GENERATOR parts diagram
Fig. 13 — GENERATOR
30 items

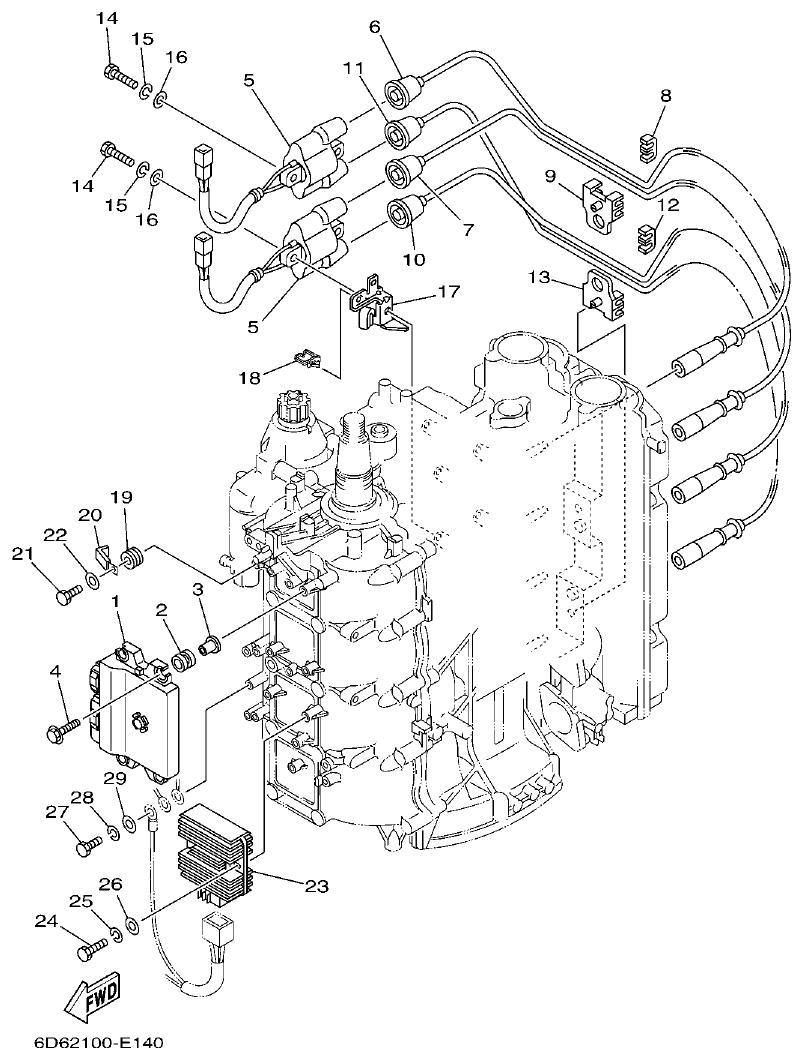

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR ELECTRICAL 1 parts diagram
Fig. 14 — ELECTRICAL 1
32 items · 1 available products

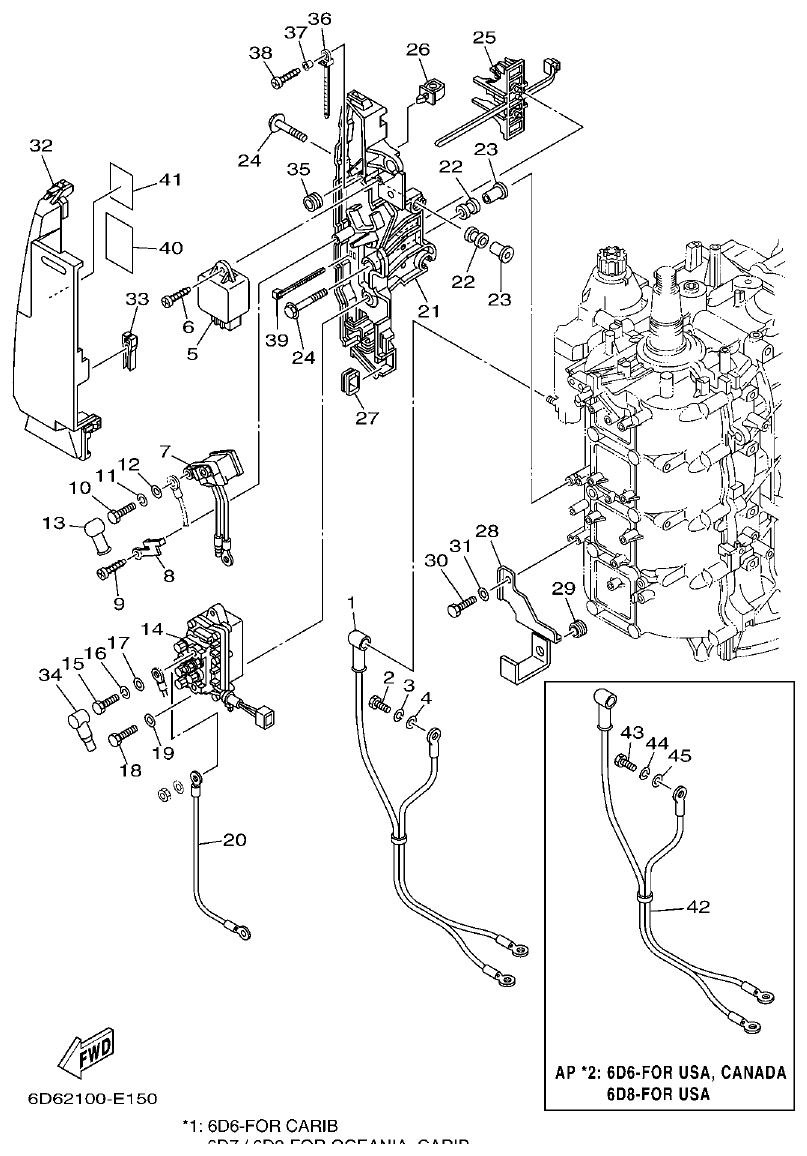

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR ELECTRICAL 2 parts diagram
Fig. 15 — ELECTRICAL 2
45 items · 3 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR ELECTRICAL 3 parts diagram
Fig. 16 — ELECTRICAL 3
28 items · 1 available products

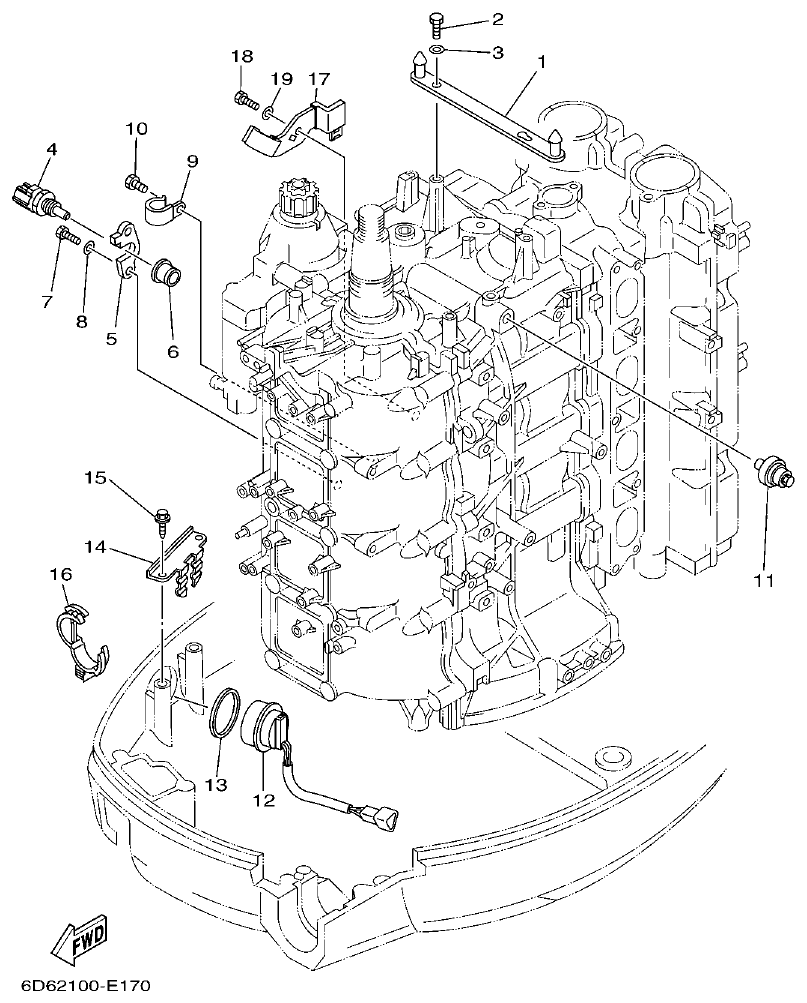

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR ELECTRICAL 4 parts diagram
Fig. 17 — ELECTRICAL 4
19 items · 2 available products

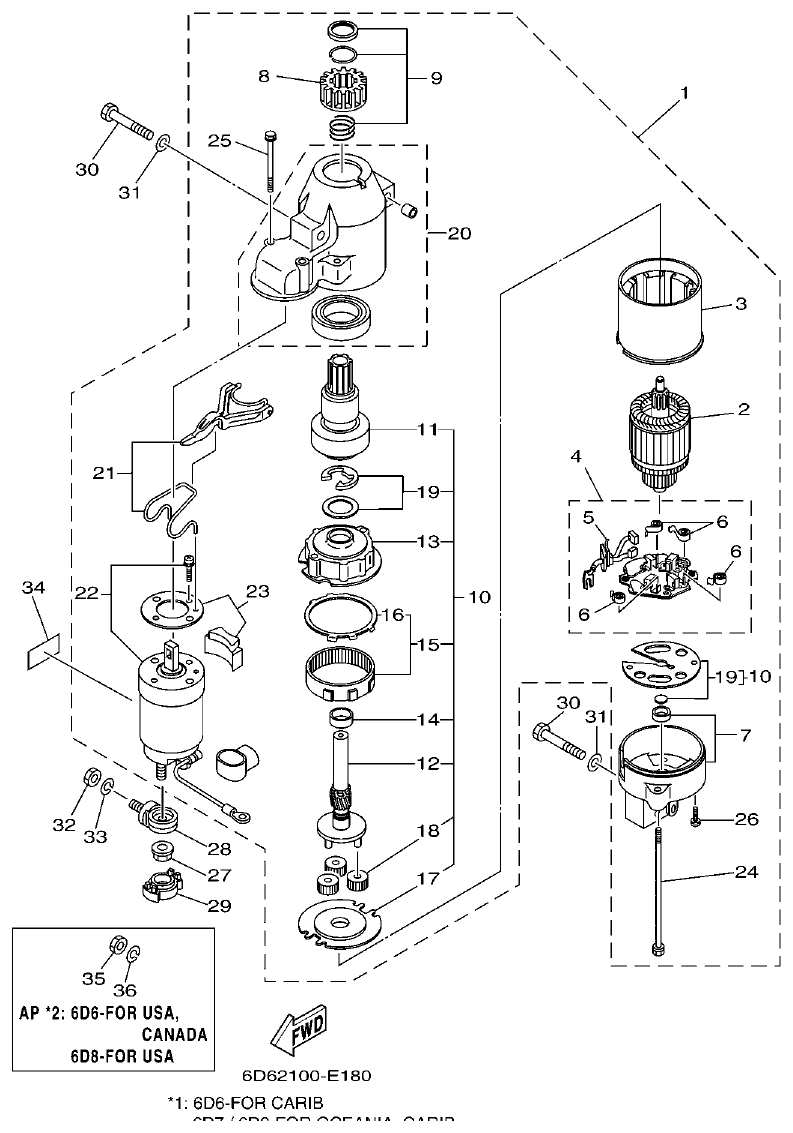

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR STARTING MOTOR parts diagram
Fig. 18 — STARTING MOTOR
36 items · 4 available products

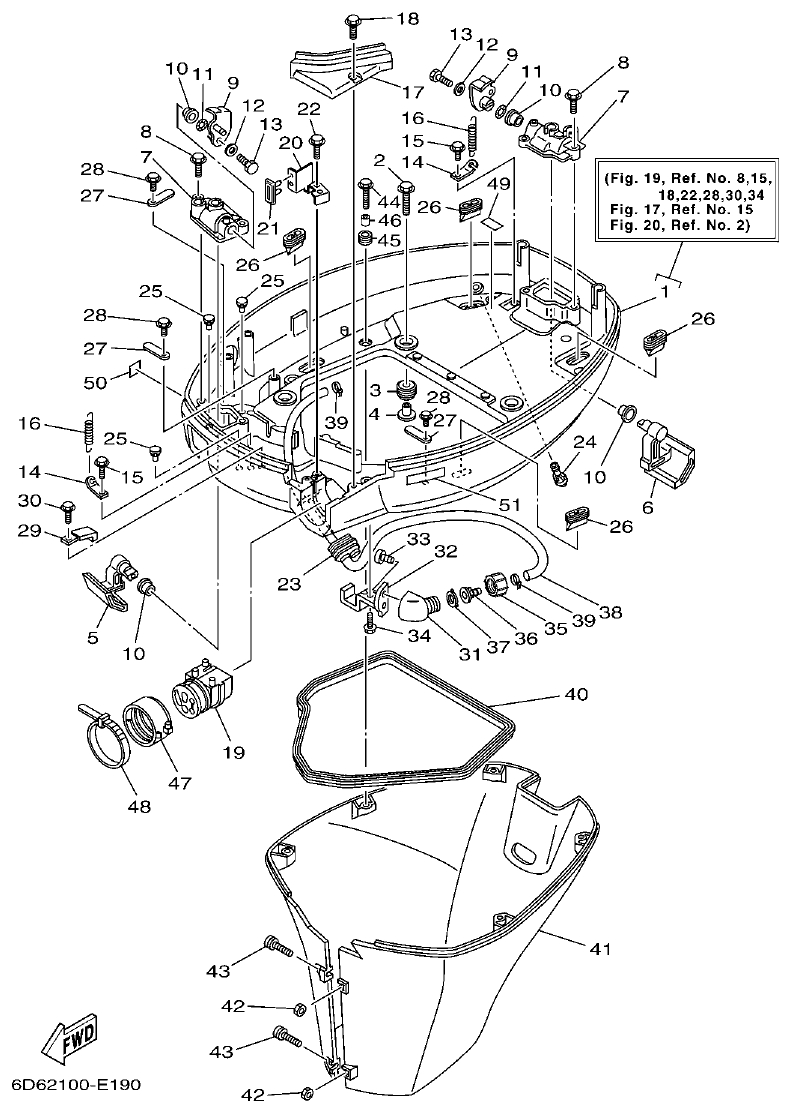

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR BOTTOM COWLING parts diagram
Fig. 19 — BOTTOM COWLING
51 items · 6 available products

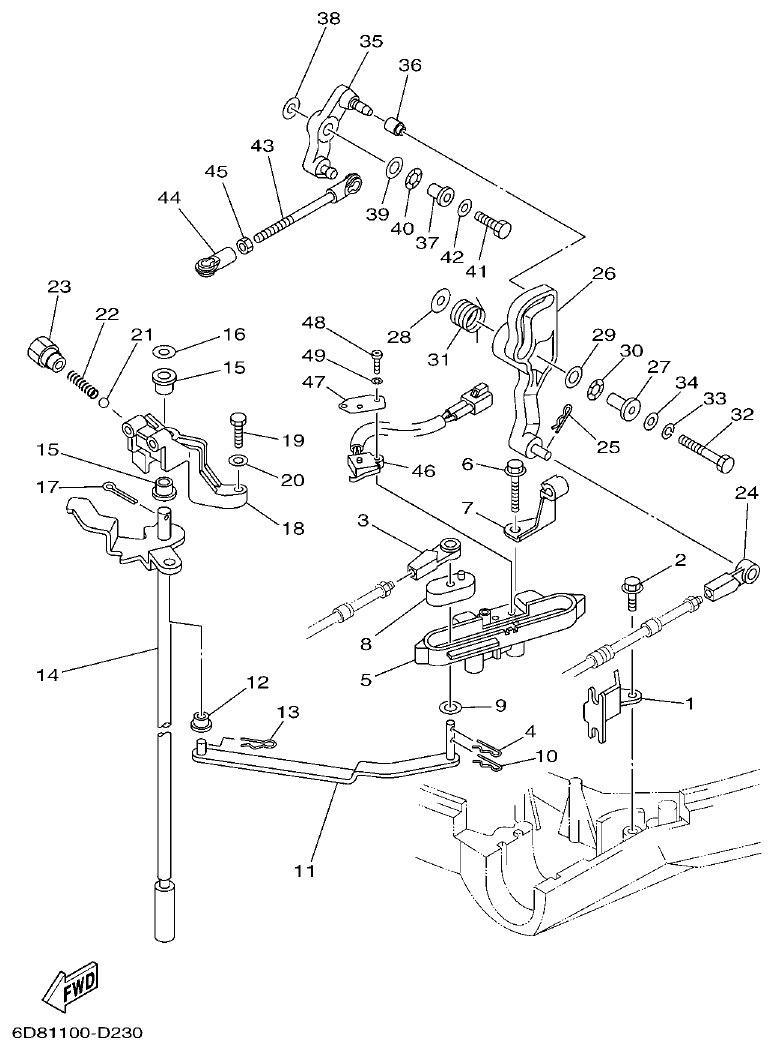

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR CONTROL parts diagram
Fig. 20 — CONTROL
50 items · 3 available products

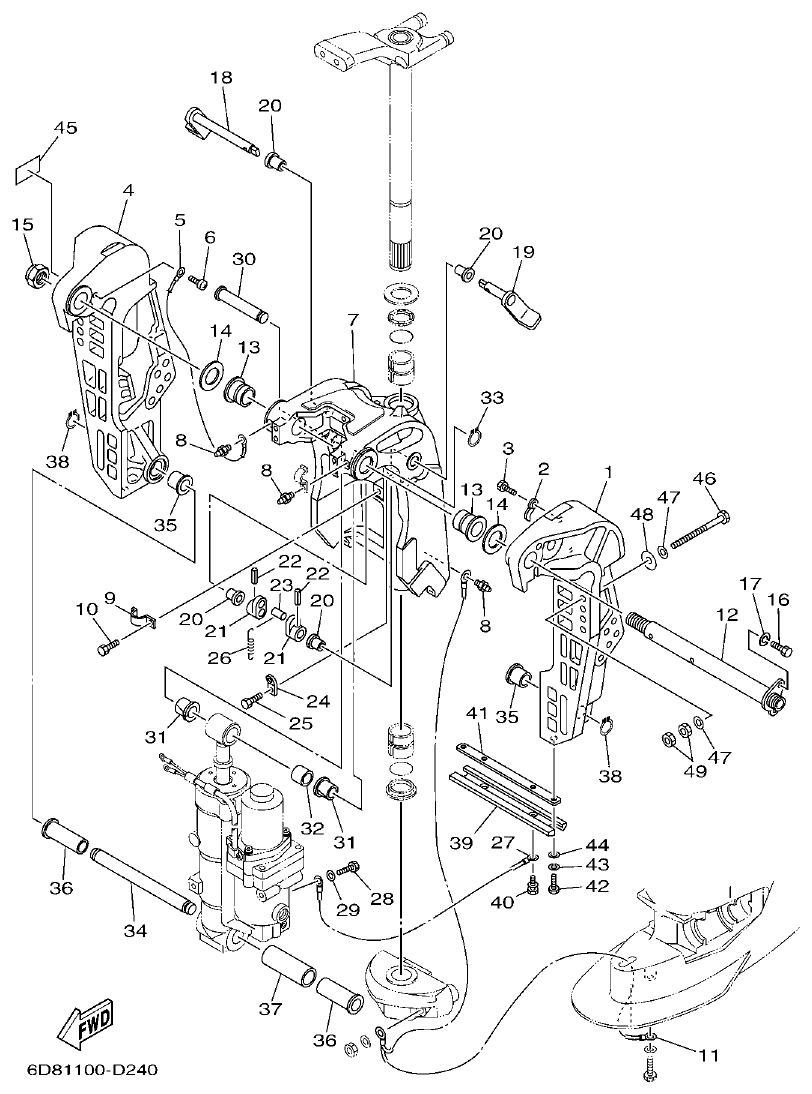

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR BRACKET 1 parts diagram
Fig. 21 — BRACKET 1
49 items · 5 available products

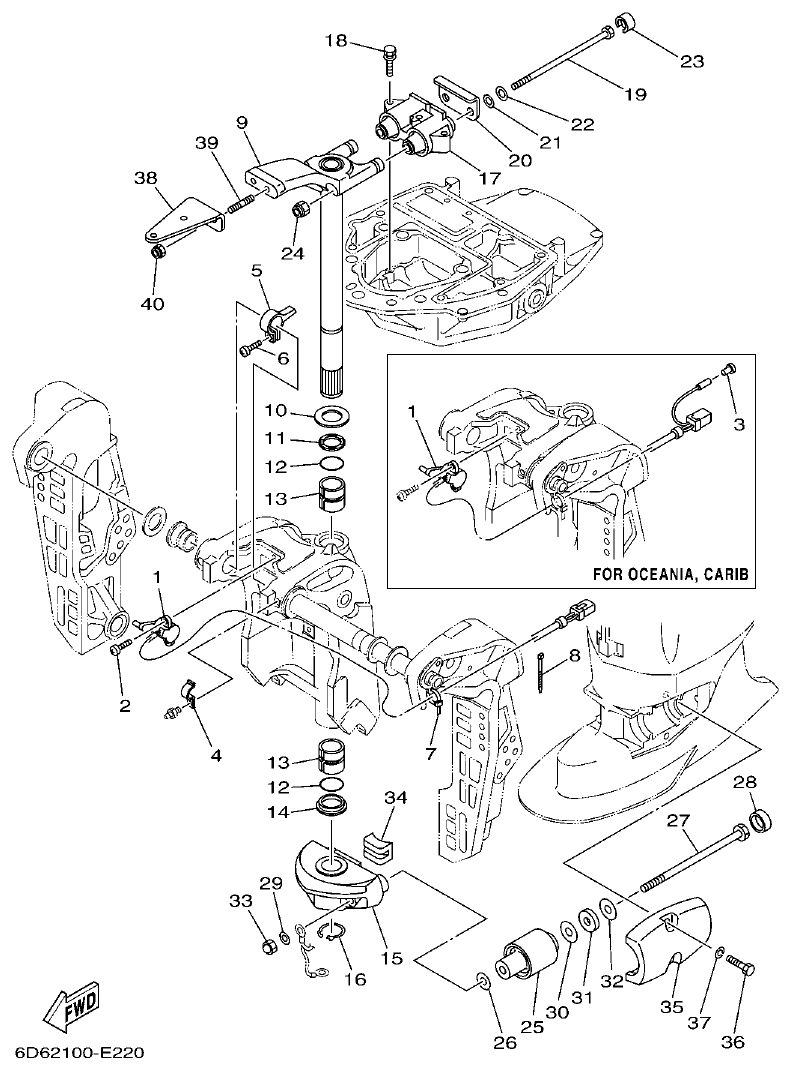

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR BRACKET 2 parts diagram
Fig. 22 — BRACKET 2
41 items
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR OPTIONAL PARTS parts diagram

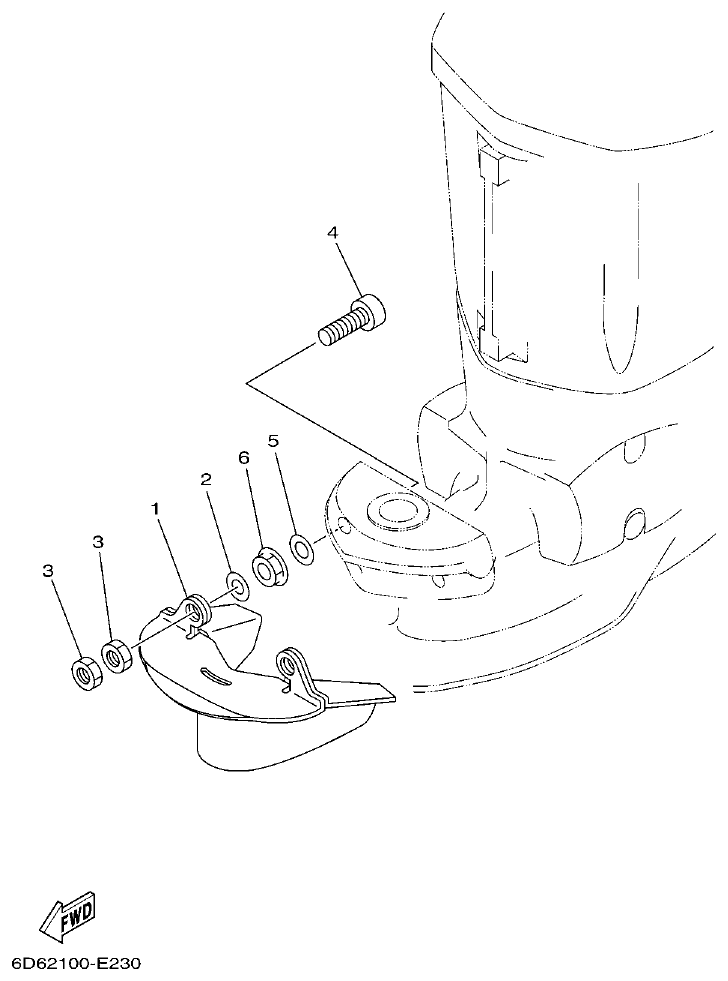

Fig. 23 — OPTIONAL PARTS
6 items
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR POWER TRIM & TILT ASSY 1 parts diagram

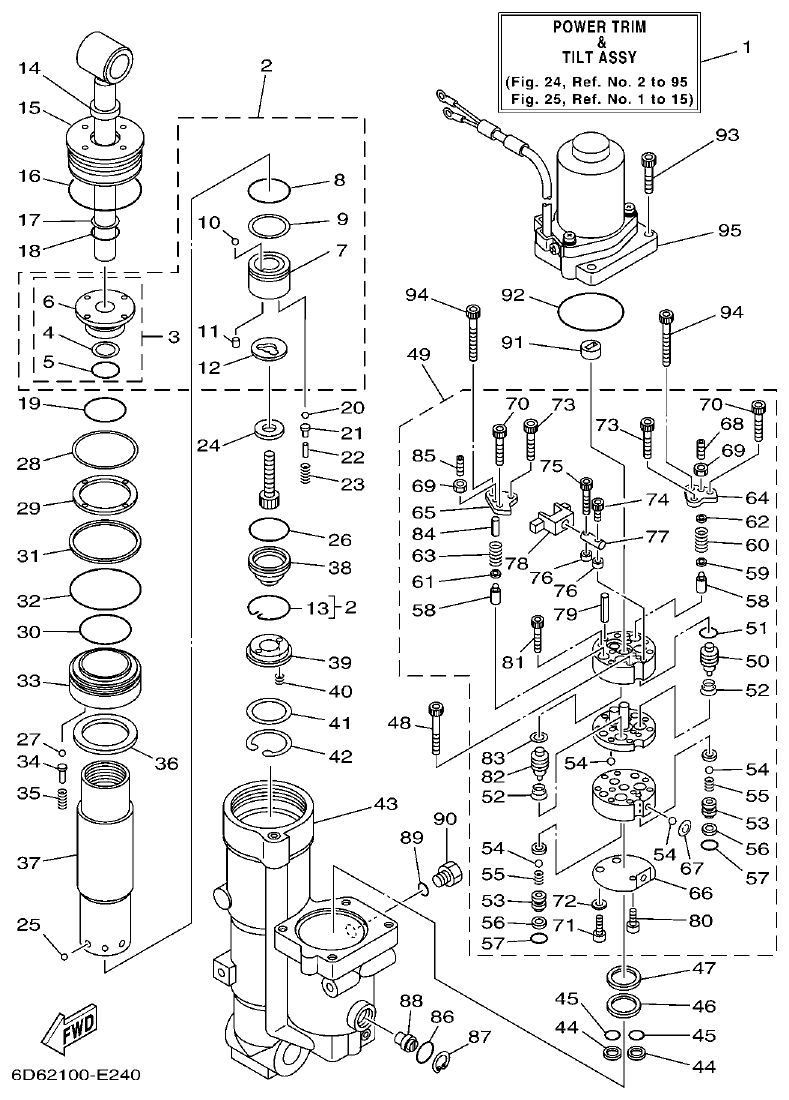

Fig. 24 — POWER TRIM & TILT ASSY 1
95 items · 6 available products

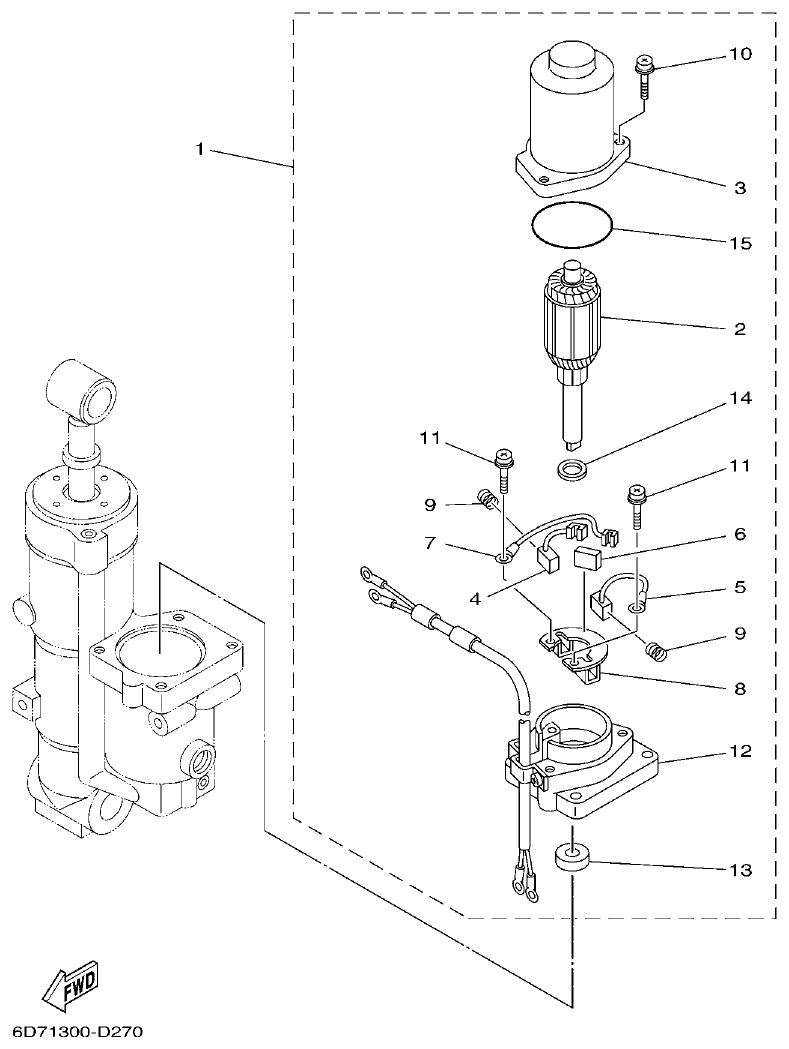

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR POWER TRIM & TILT ASSY 2 parts diagram
Fig. 25 — POWER TRIM & TILT ASSY 2
15 items · 2 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR UPPER CASING parts diagram

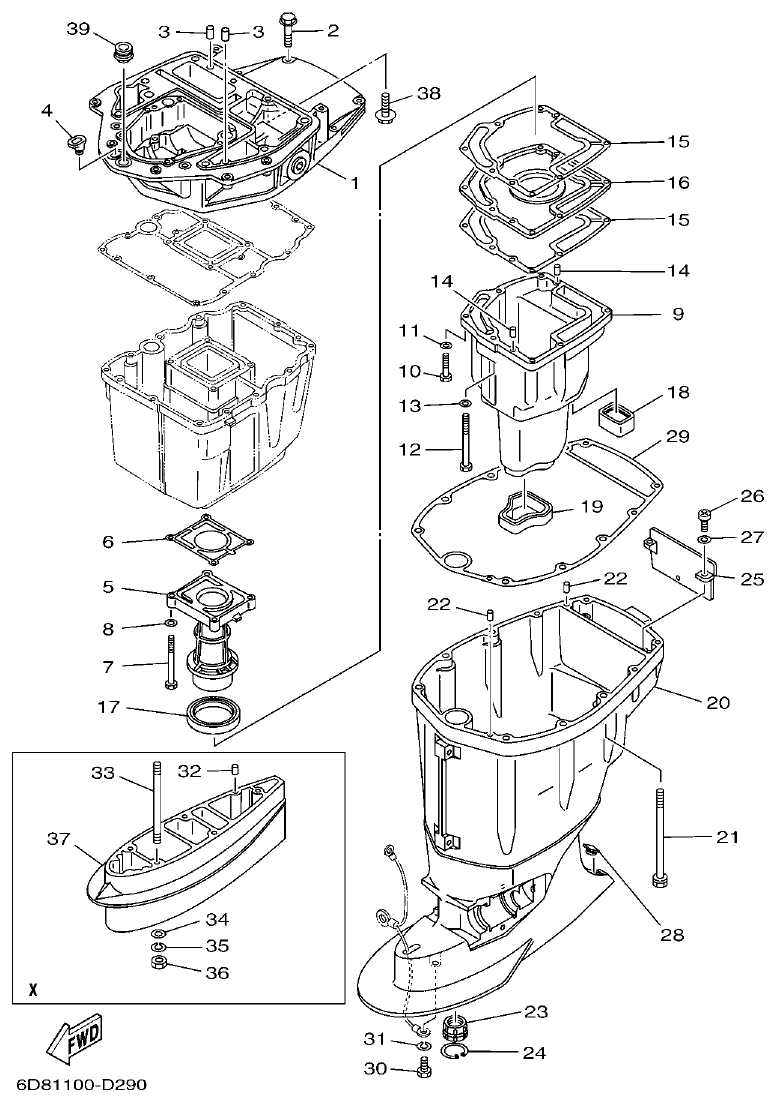

Fig. 26 — UPPER CASING
39 items · 4 available products

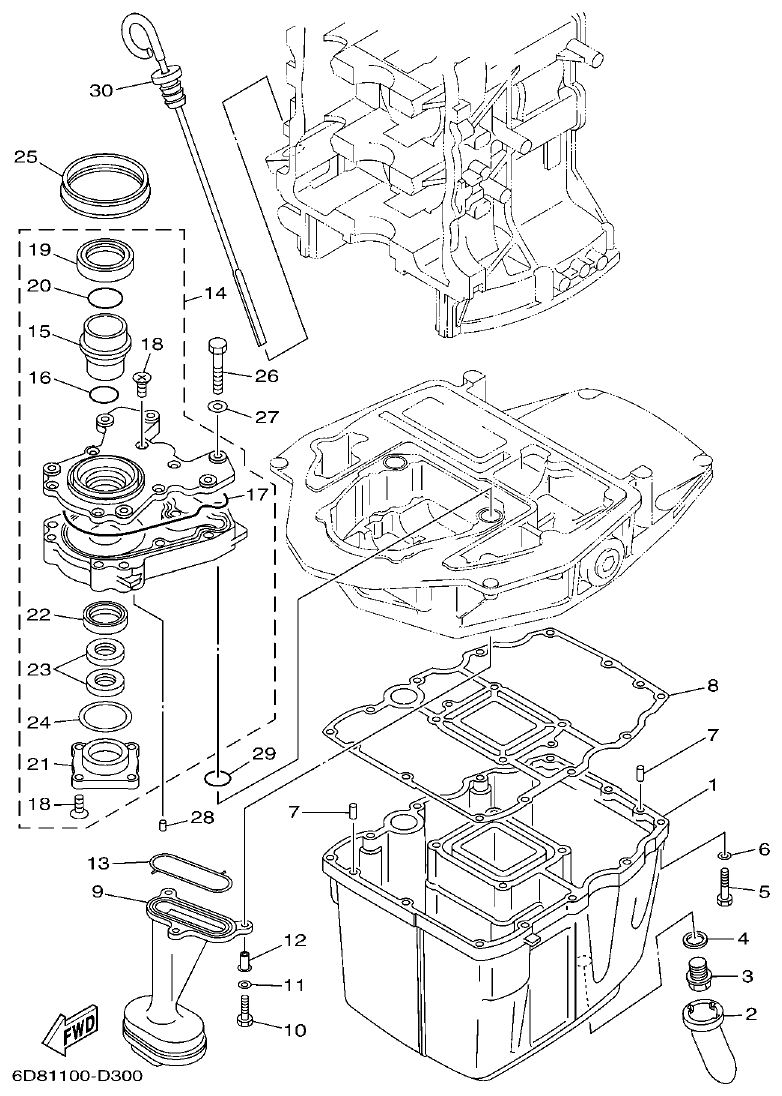

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR OIL PAN parts diagram
Fig. 27 — OIL PAN
30 items · 13 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR LOWER CASING & DRIVE 1 parts diagram

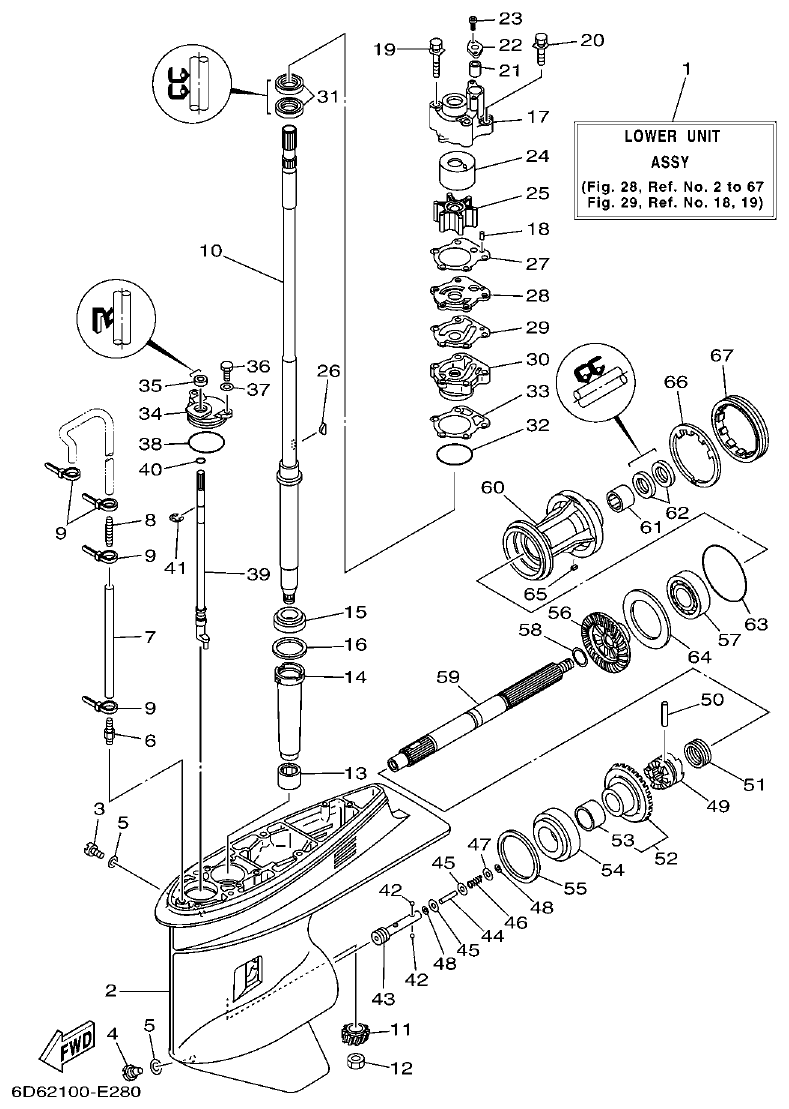

Fig. 28 — LOWER CASING & DRIVE 1
82 items · 24 available products

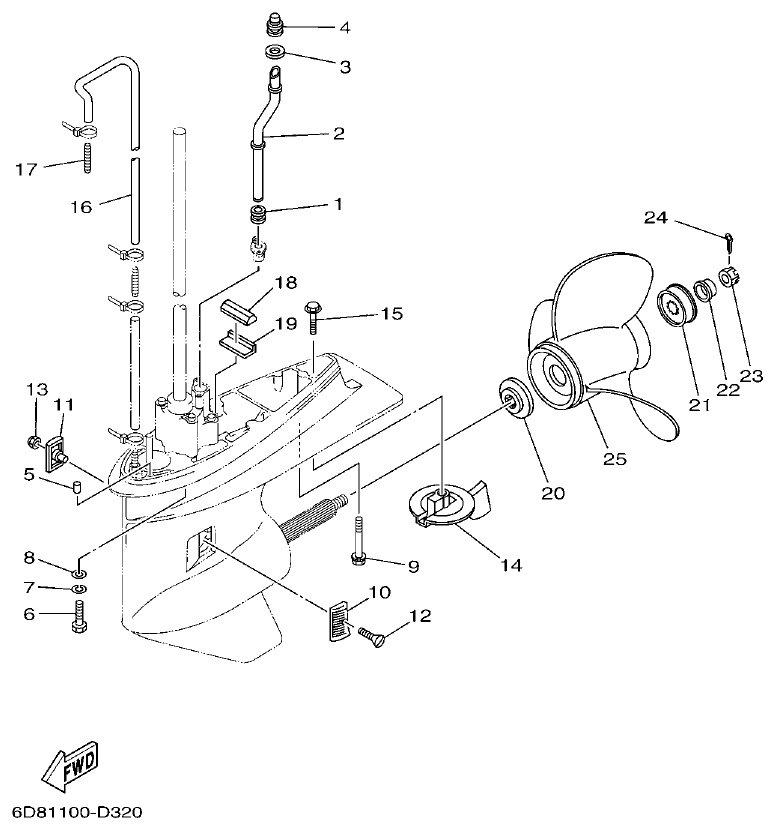

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR LOWER CASING & DRIVE 2 parts diagram
Fig. 29 — LOWER CASING & DRIVE 2
41 items · 11 available products

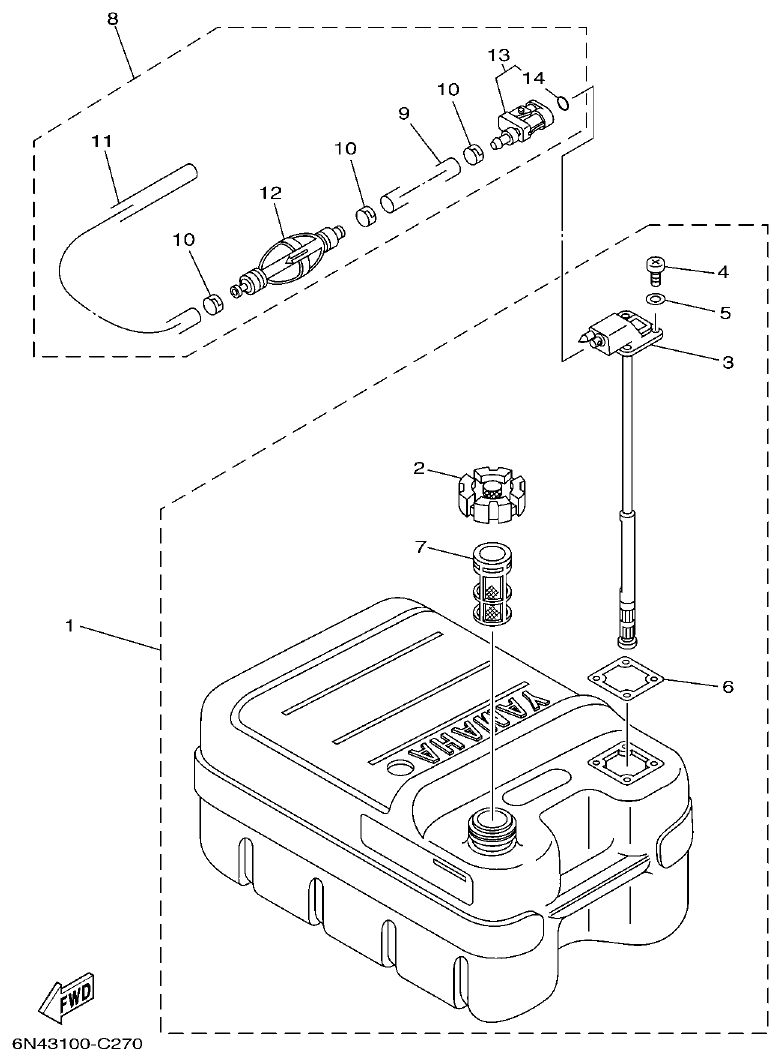

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR FUEL TANK parts diagram
Fig. 30 — FUEL TANK
14 items · 5 available products

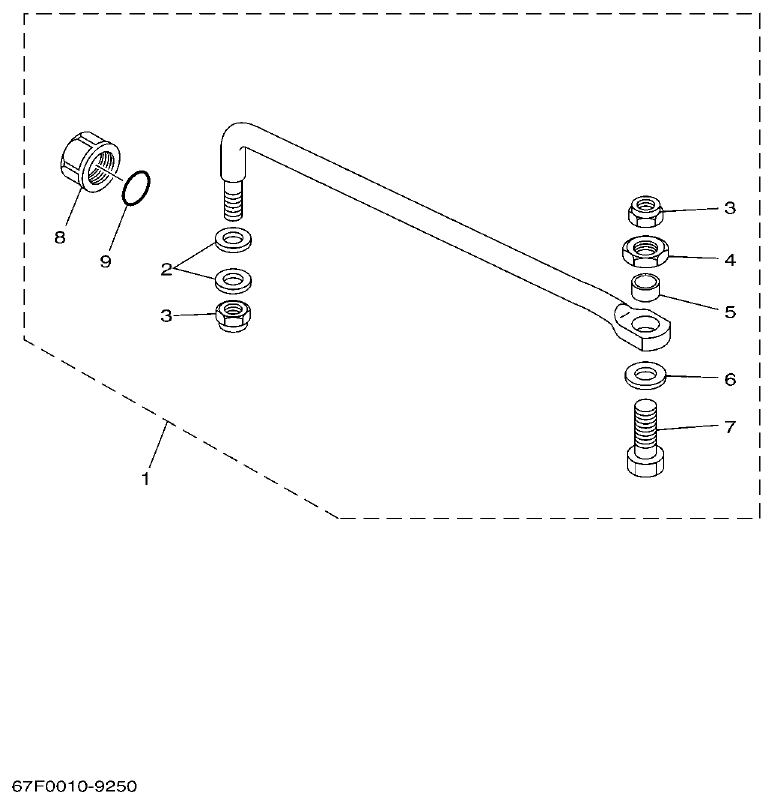

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR STEERING GUIDE parts diagram
Fig. 31 — STEERING GUIDE
9 items
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR REMOTE CONTROL BOX parts diagram
Fig. 32 — REMOTE CONTROL BOX
8 items · 1 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR REMOTE CONTROL ASSY parts diagram
Fig. 33 — REMOTE CONTROL ASSY
68 items · 12 available products

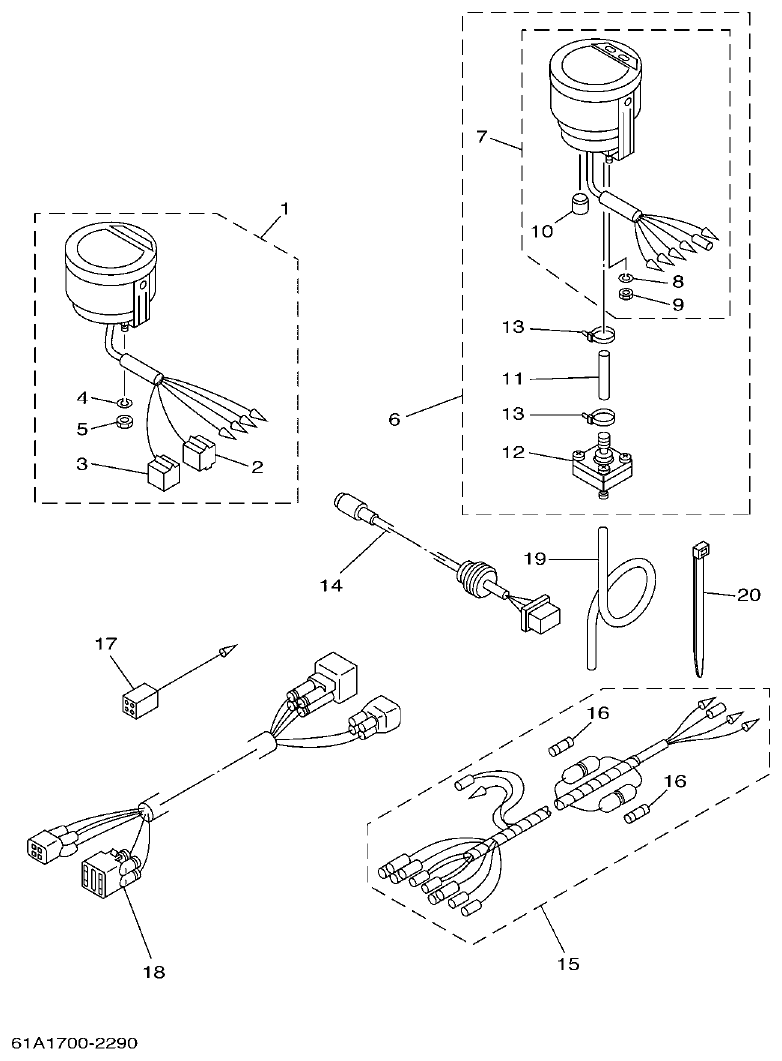

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR METER parts diagram
Fig. 34 — METER
23 items · 1 available products

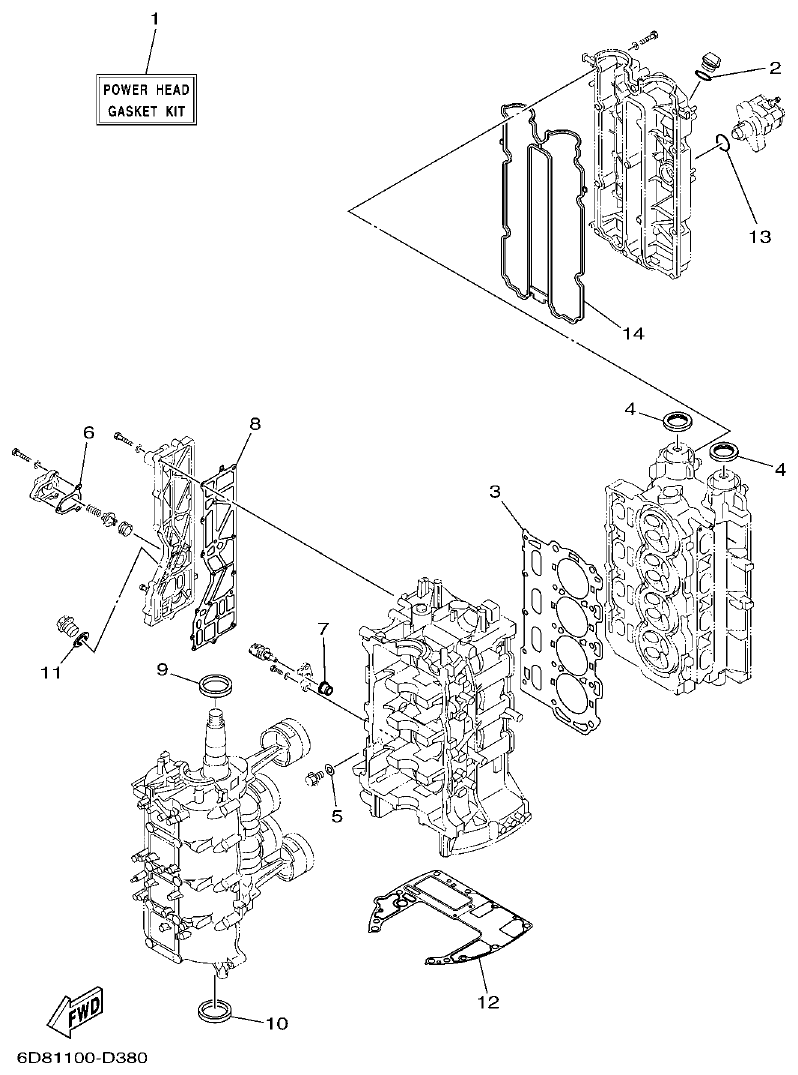

Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR REPAIR KIT 1 parts diagram
Fig. 35 — REPAIR KIT 1
14 items · 3 available products
Yamaha F75BET, F80BET, F90BET, F100DET, F75TR, F90TR REPAIR KIT 2 parts diagram

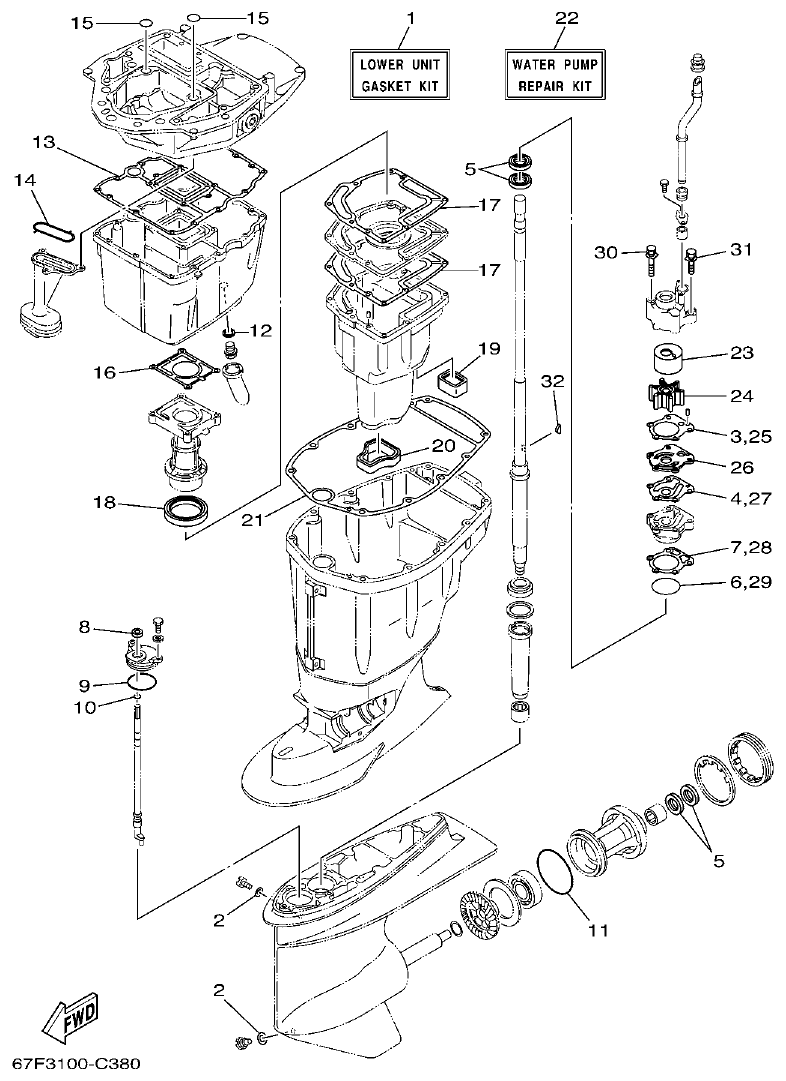

Fig. 36 — REPAIR KIT 2
32 items · 13 available products
