Yamaha F80BET, F100DET Parts Catalog
Yamaha F80BET, F100DET Outboard parts and diagrams
Yamaha F80BET, F100DET outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, FUEL INJECTION PUMP 1, FUEL INJECTION PUMP 2, FUEL, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, ELECTRICAL 4, STARTING MOTOR, BOTTOM COWLING. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
498 linked store products are available across 101 catalog sections. 3282 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
/images/fig-1-top-cowling.png)

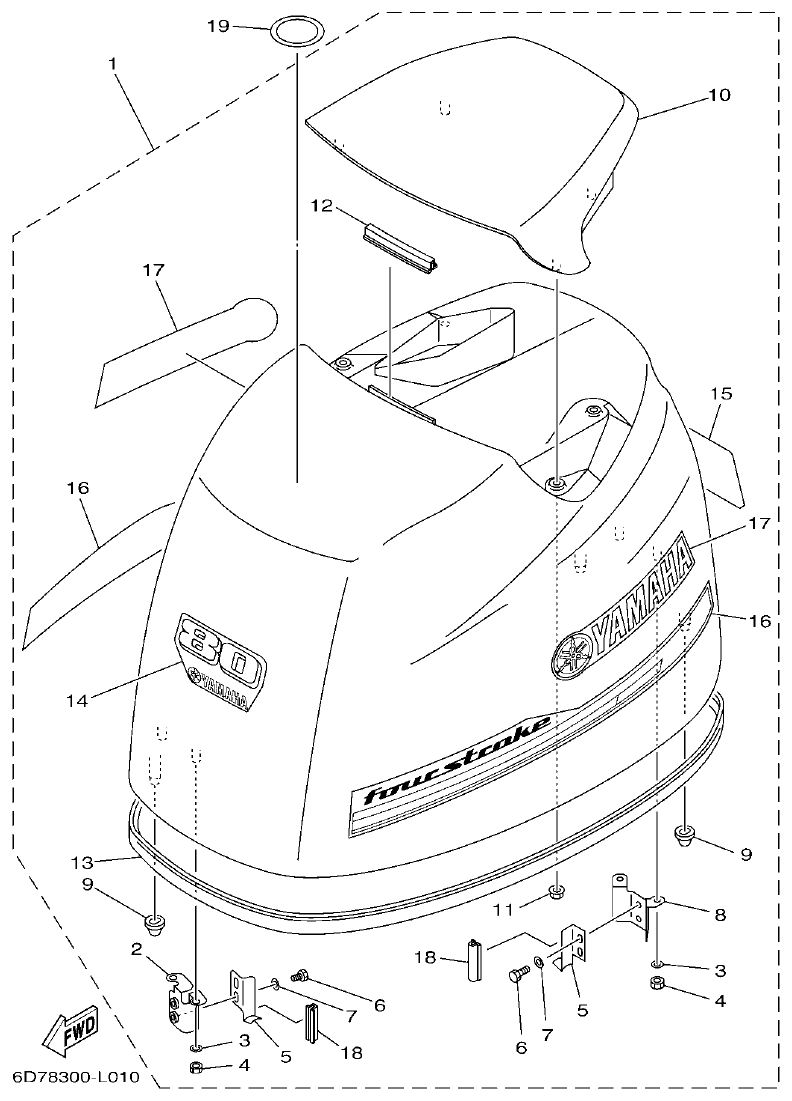

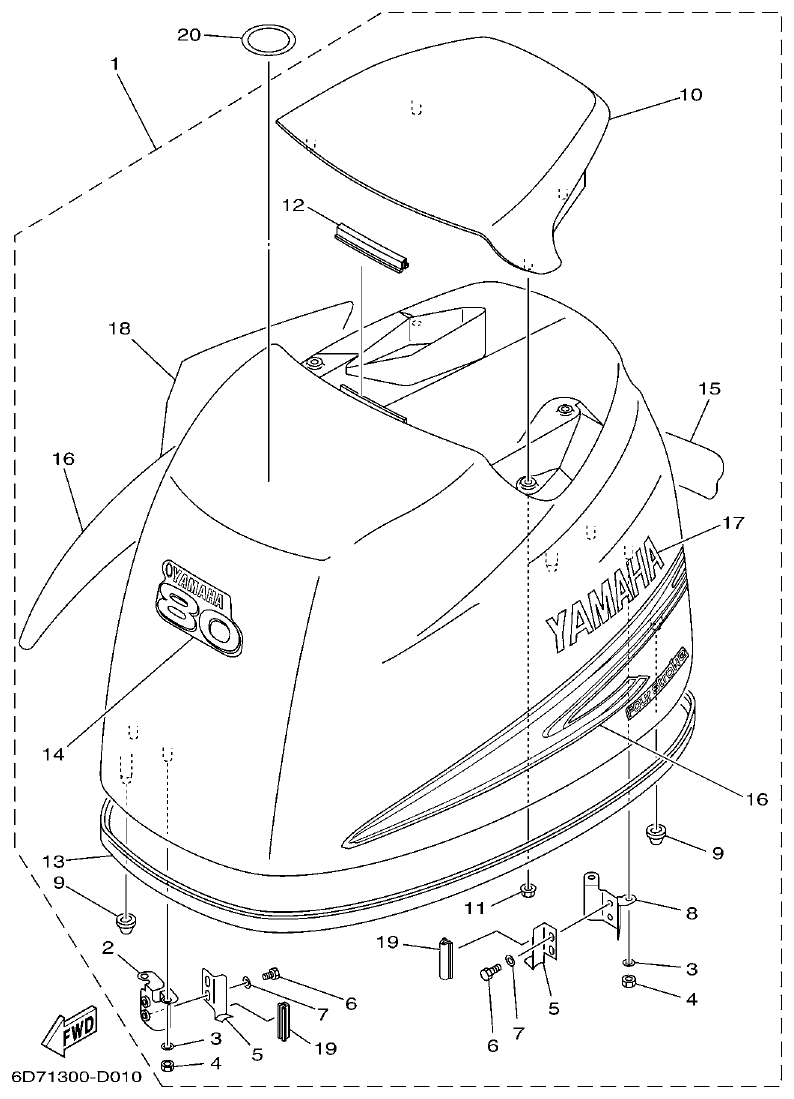

Fig. 1 — TOP COWLING
22 items
· 1 available products

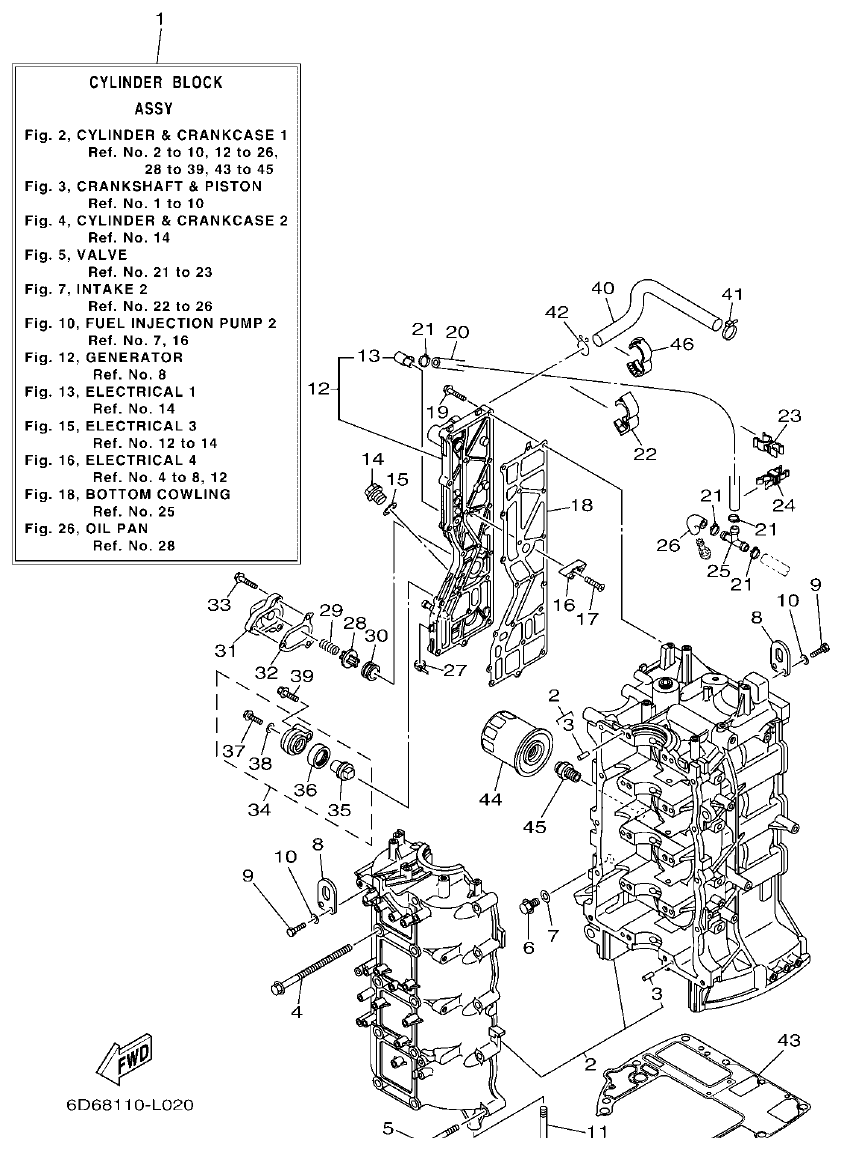

/images/fig-2-cylinder-crankcase-1.png)
Fig. 2 — CYLINDER & CRANKCASE 1
46 items
· 9 available products
/images/fig-3-crankshaft-piston.png)

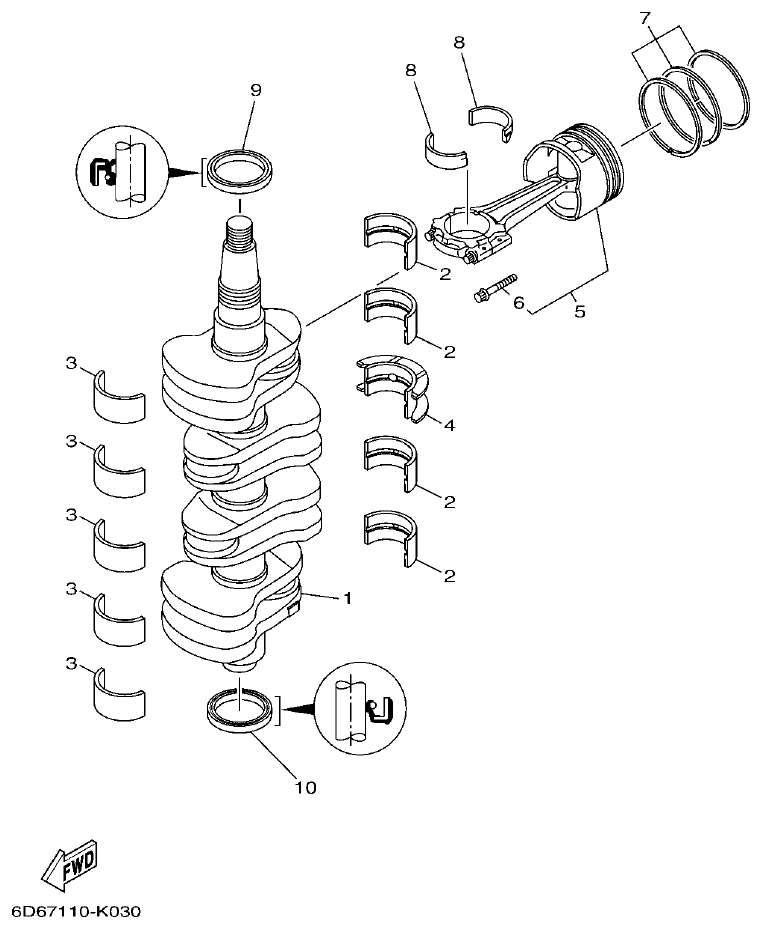

Fig. 3 — CRANKSHAFT & PISTON
22 items
· 13 available products

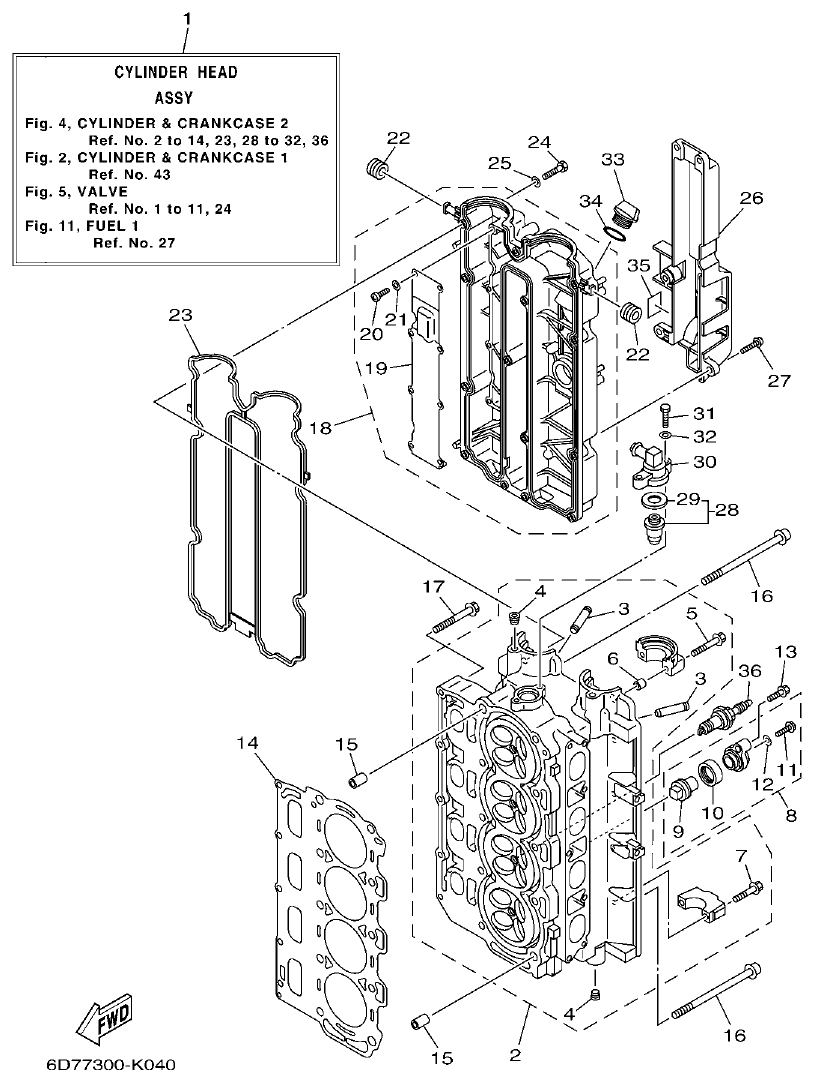

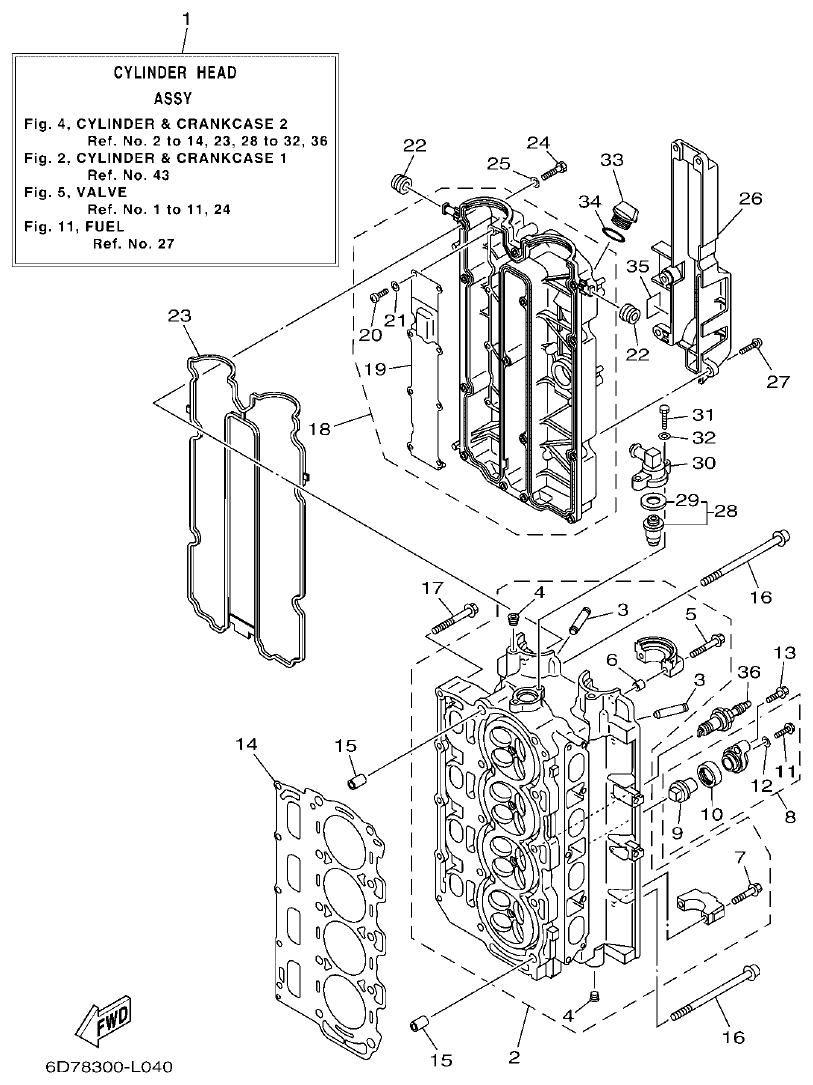

/images/fig-4-cylinder-crankcase-2.png)
Fig. 4 — CYLINDER & CRANKCASE 2
38 items
· 6 available products
/images/fig-5-valve.png)

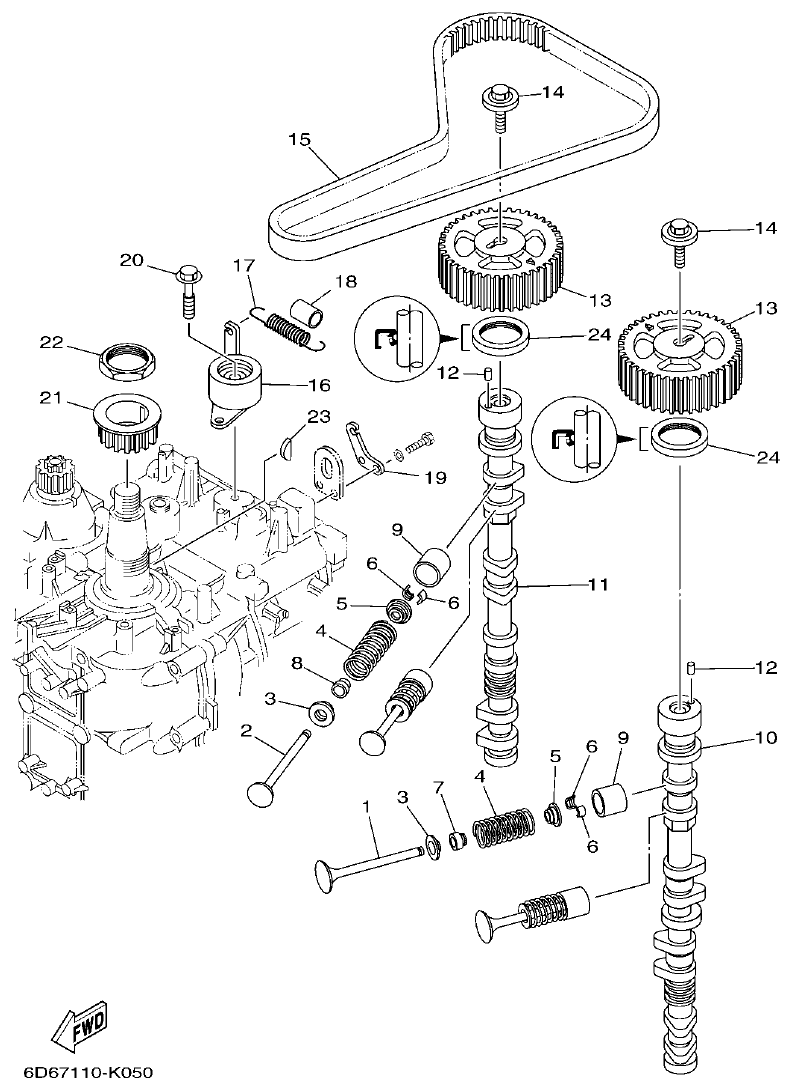

Fig. 5 — VALVE
53 items
· 9 available products

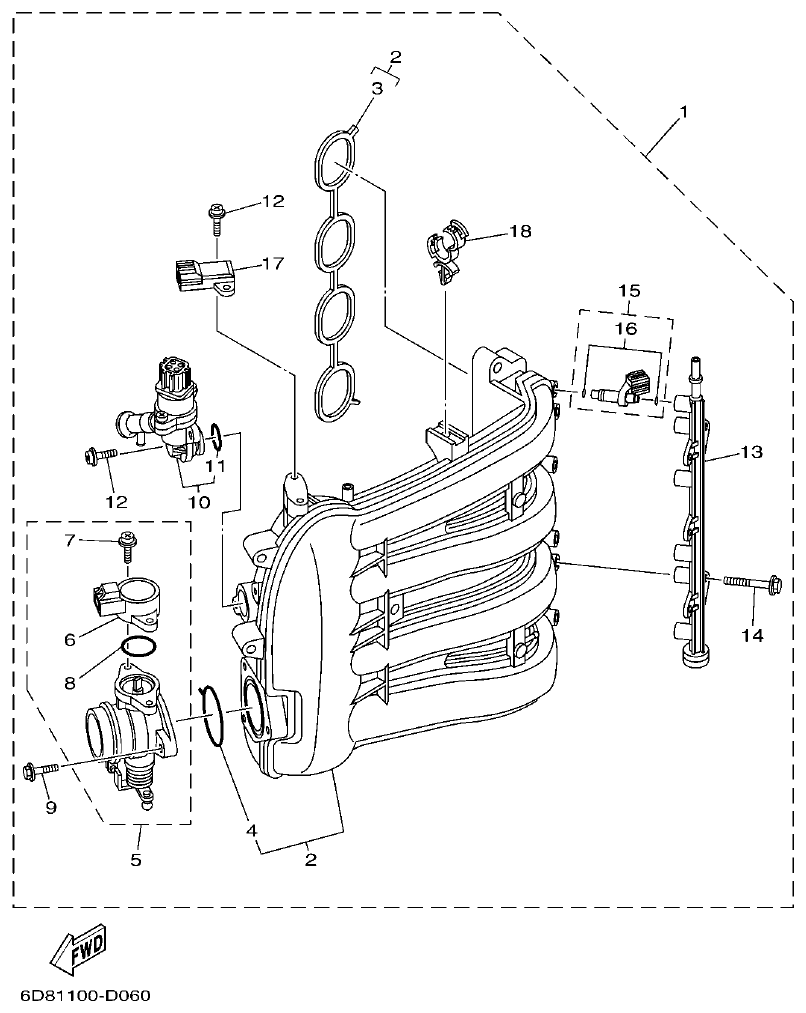

/images/fig-6-intake-1.png)
Fig. 6 — INTAKE 1
18 items
· 2 available products

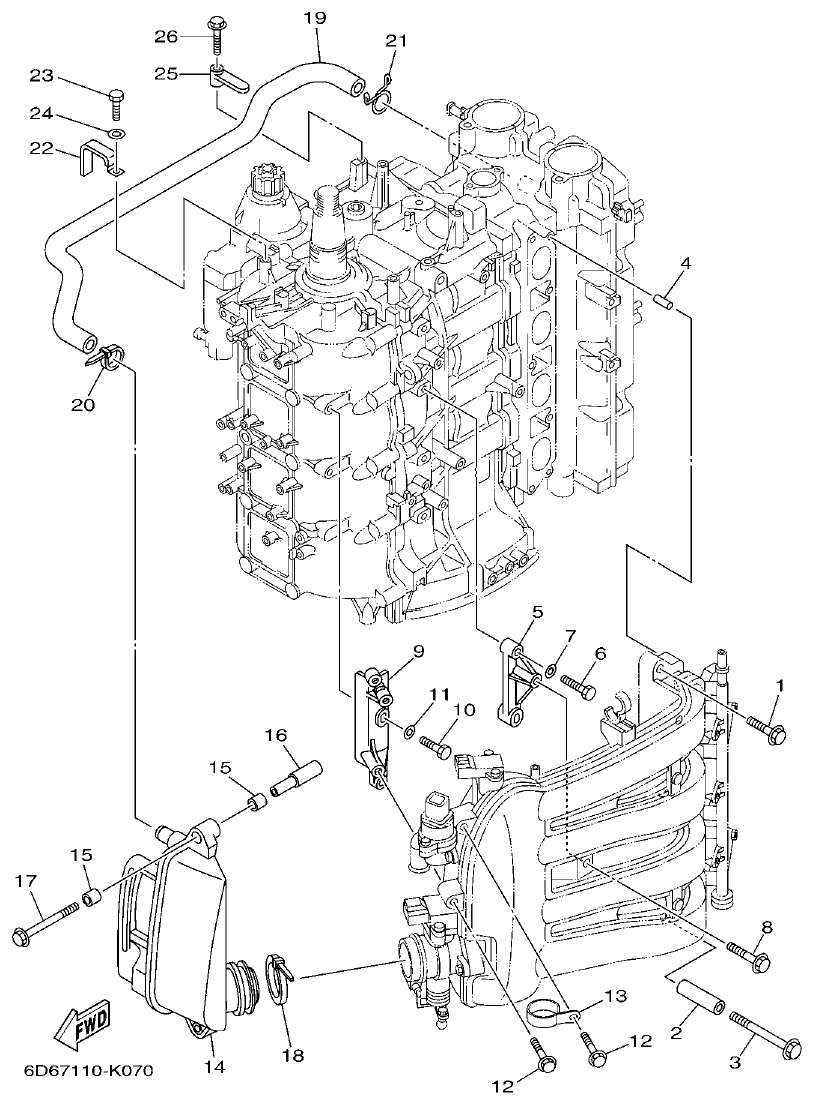

/images/fig-7-intake-2.png)

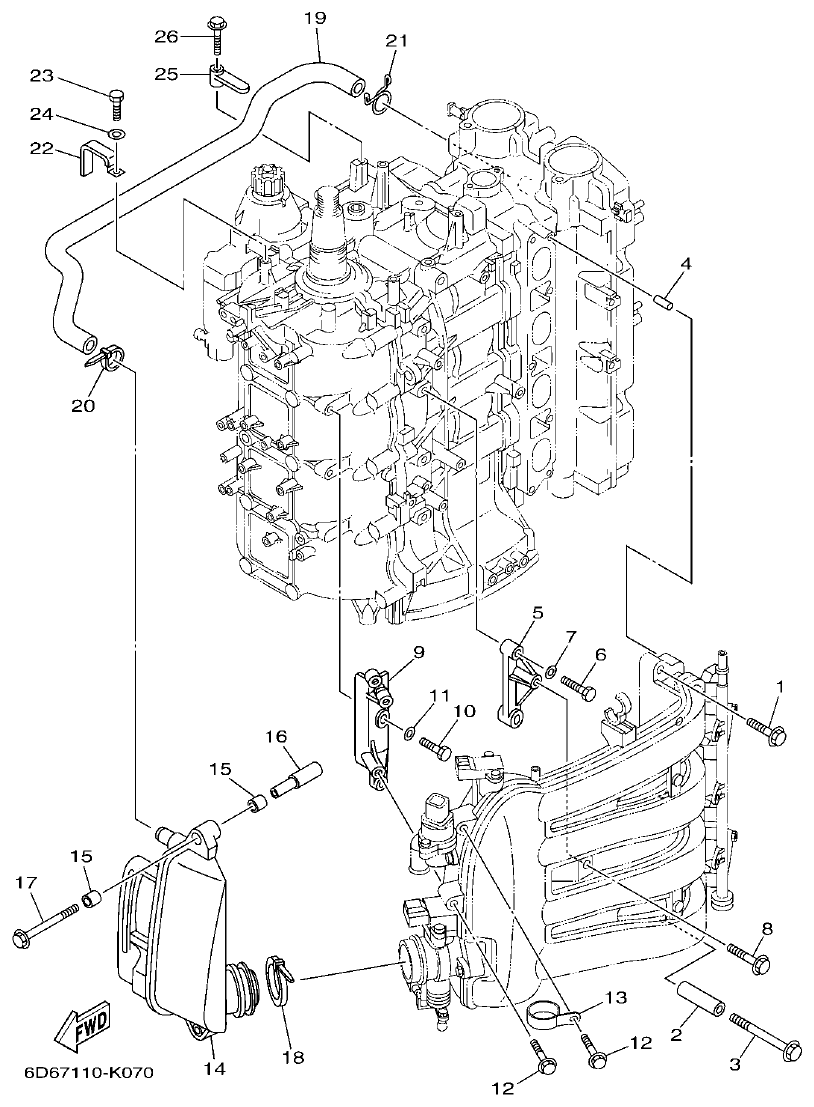

Fig. 7 — INTAKE 2
27 items

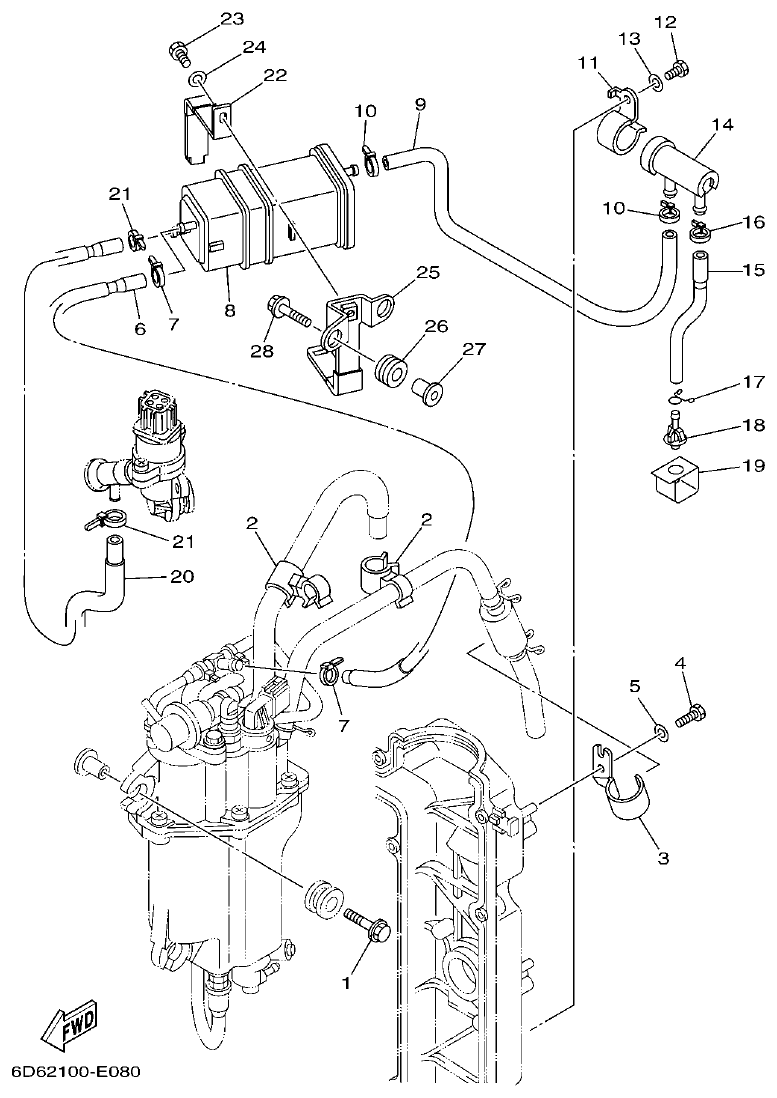

/images/fig-8-intake-3.png)

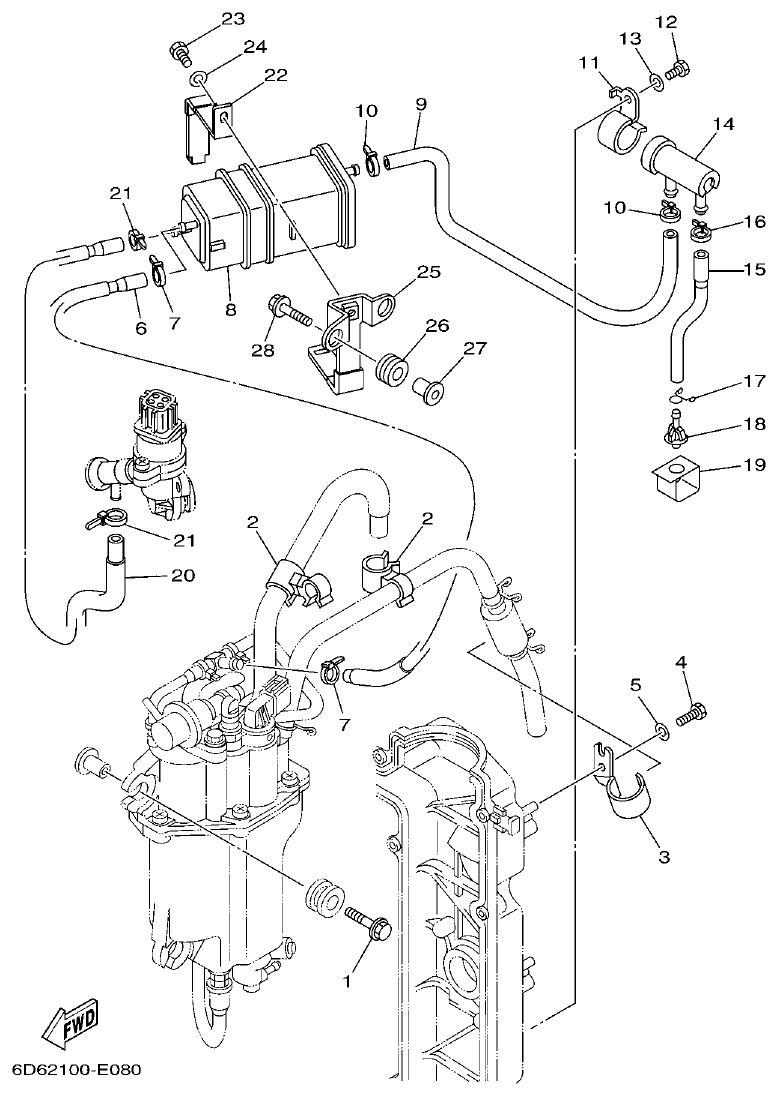

Fig. 8 — INTAKE 3
28 items
· 1 available products

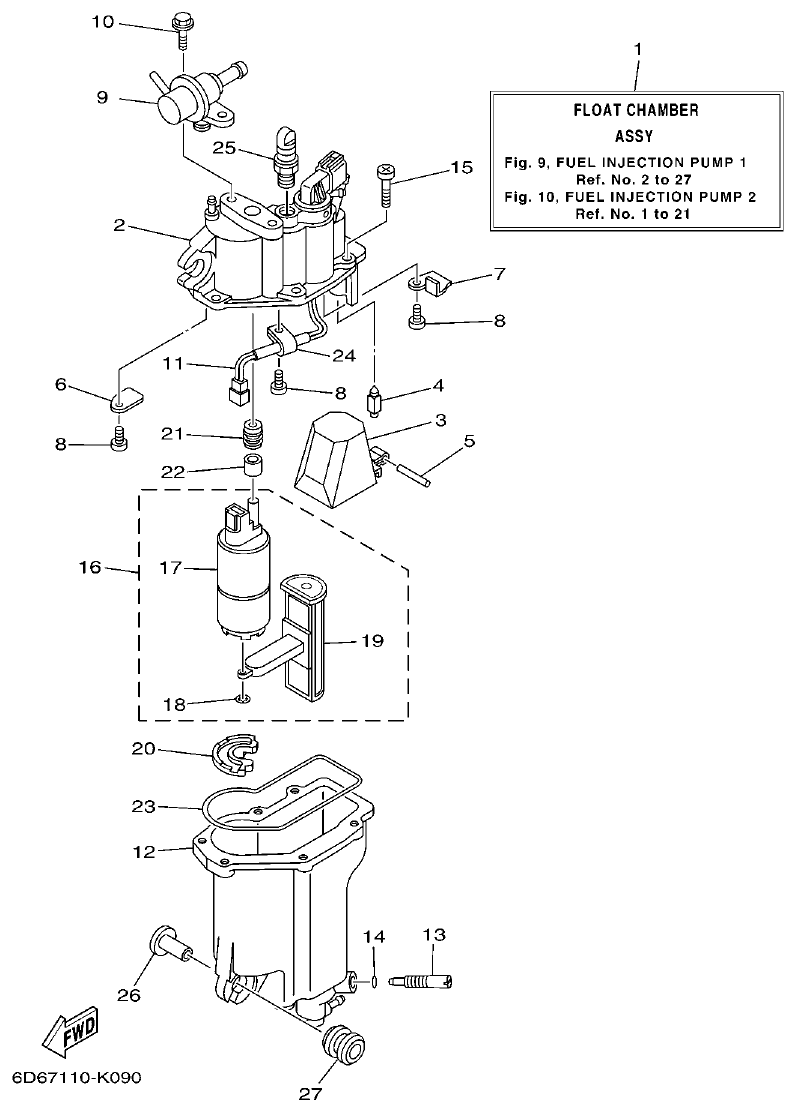

/images/fig-9-fuel-injection-pump-1.png)

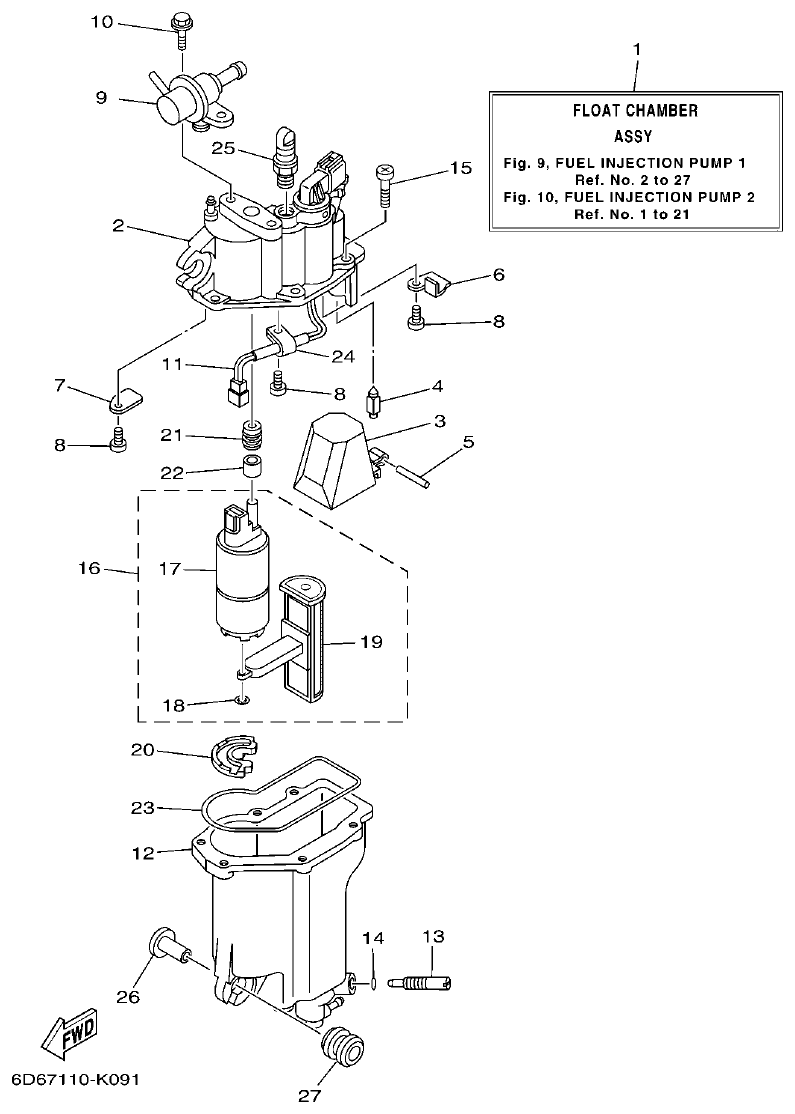

Fig. 9 — FUEL INJECTION PUMP 1
27 items
· 8 available products
/images/fig-10-fuel-injection-pump-2.png)

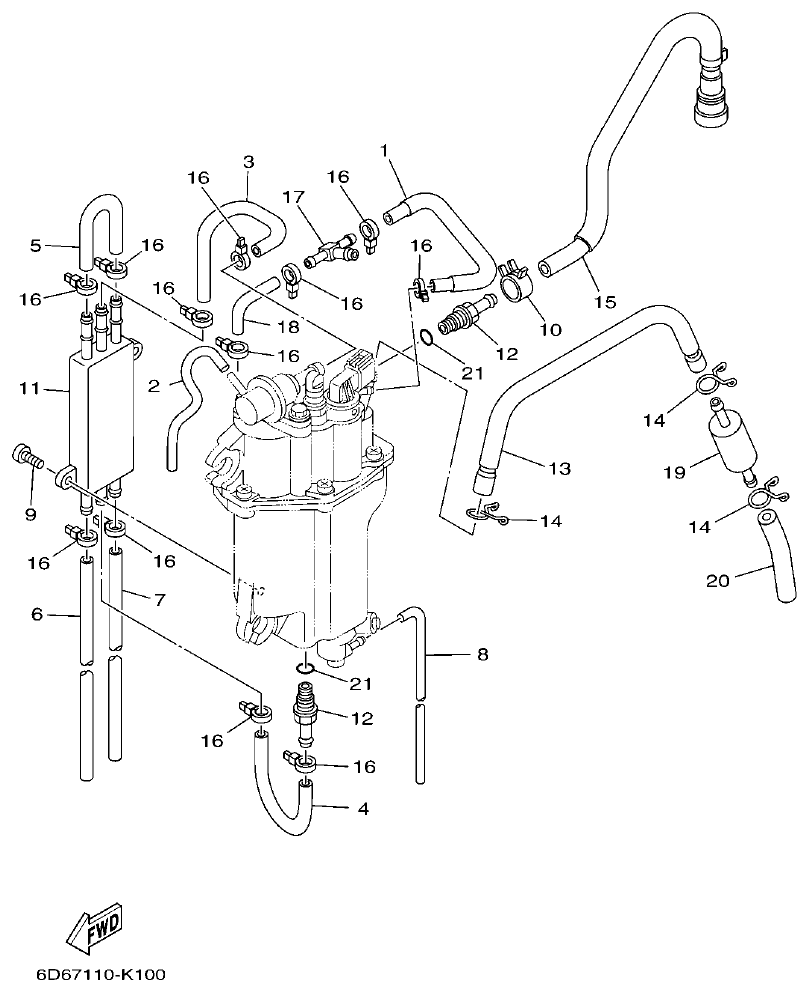

Fig. 10 — FUEL INJECTION PUMP 2
21 items
/images/fig-11-fuel.png)

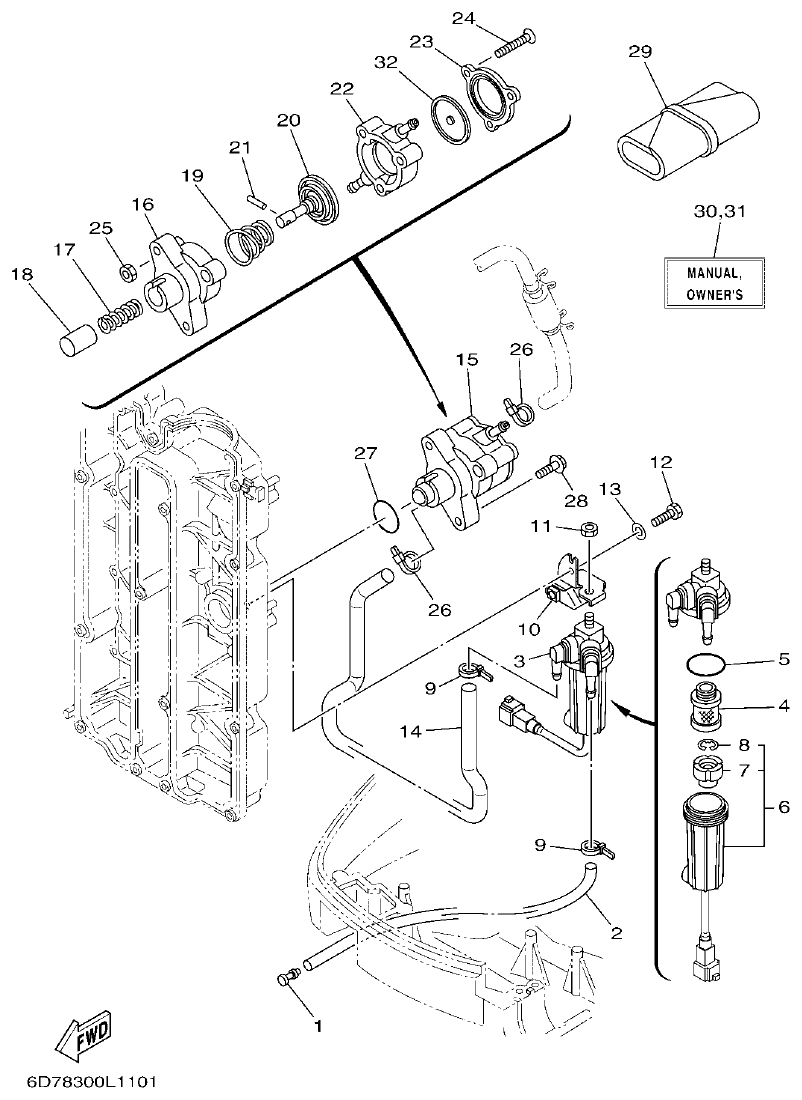

Fig. 11 — FUEL
42 items
· 6 available products

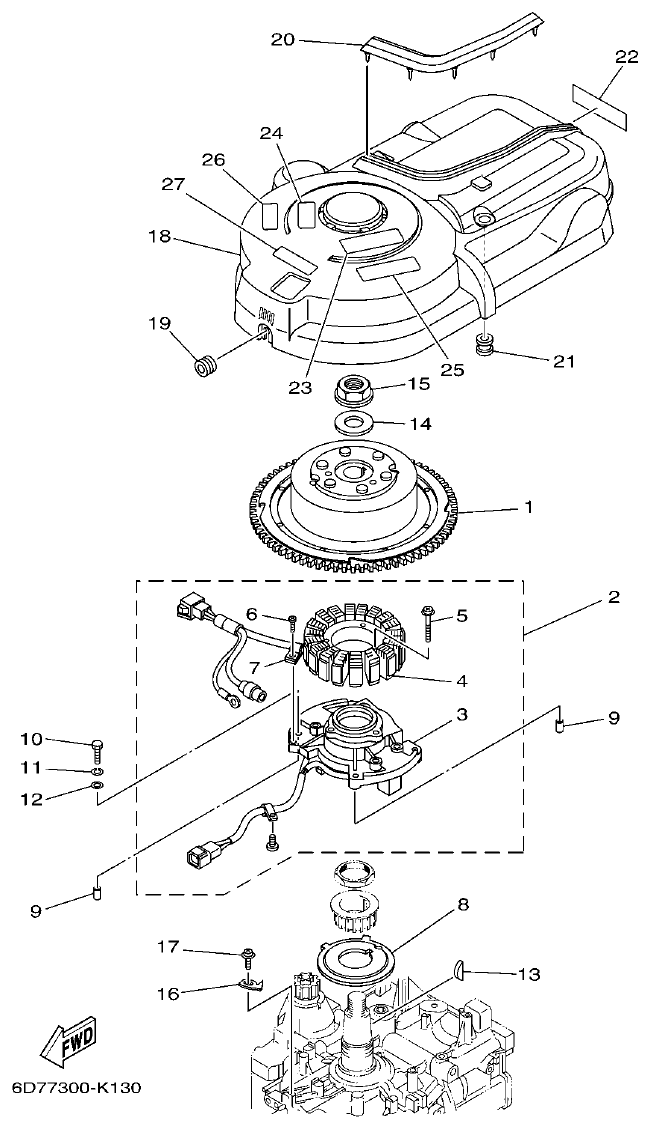

/images/fig-12-generator.png)

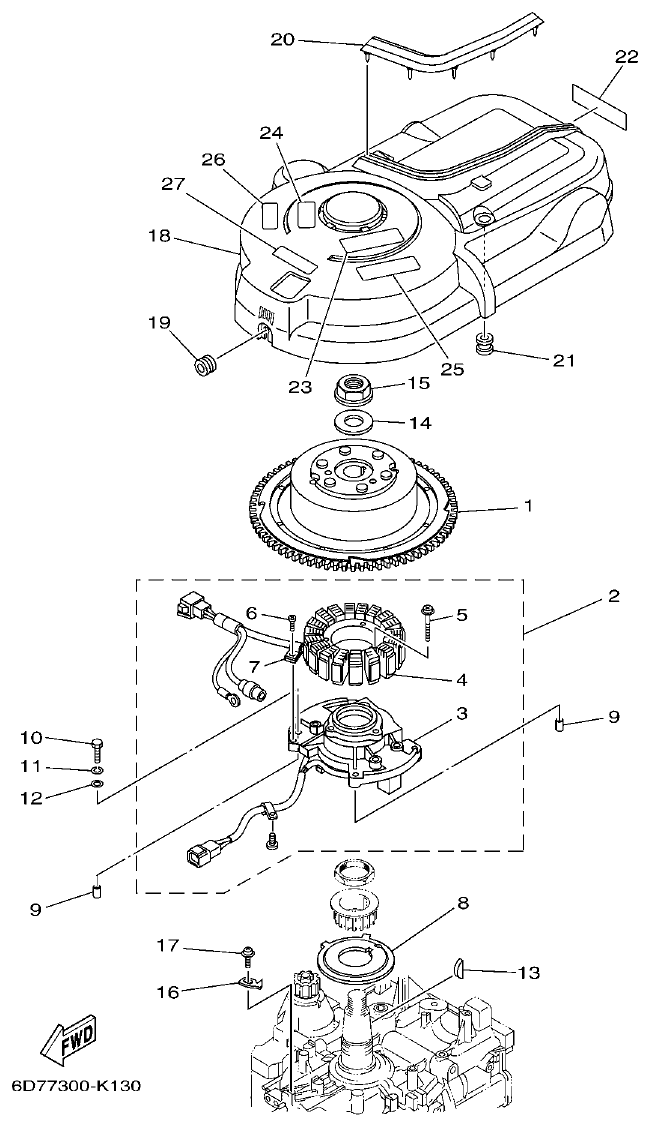

Fig. 12 — GENERATOR
27 items
/images/fig-13-electrical-1.png)

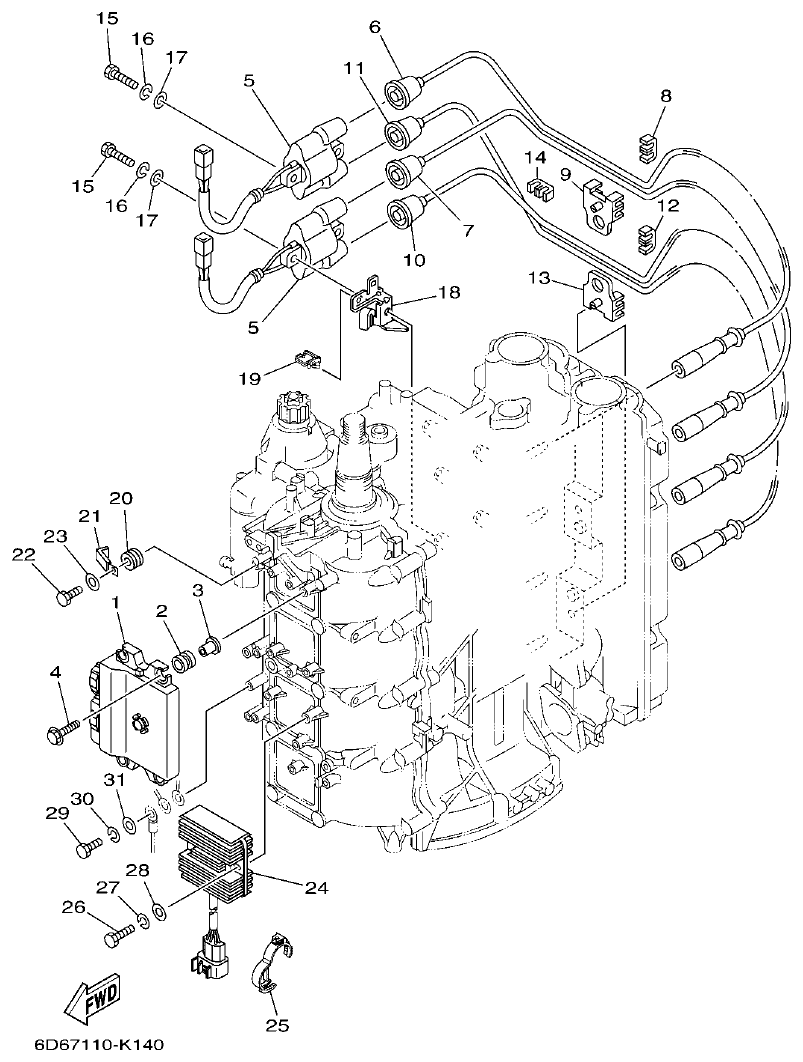

Fig. 13 — ELECTRICAL 1
32 items
· 1 available products

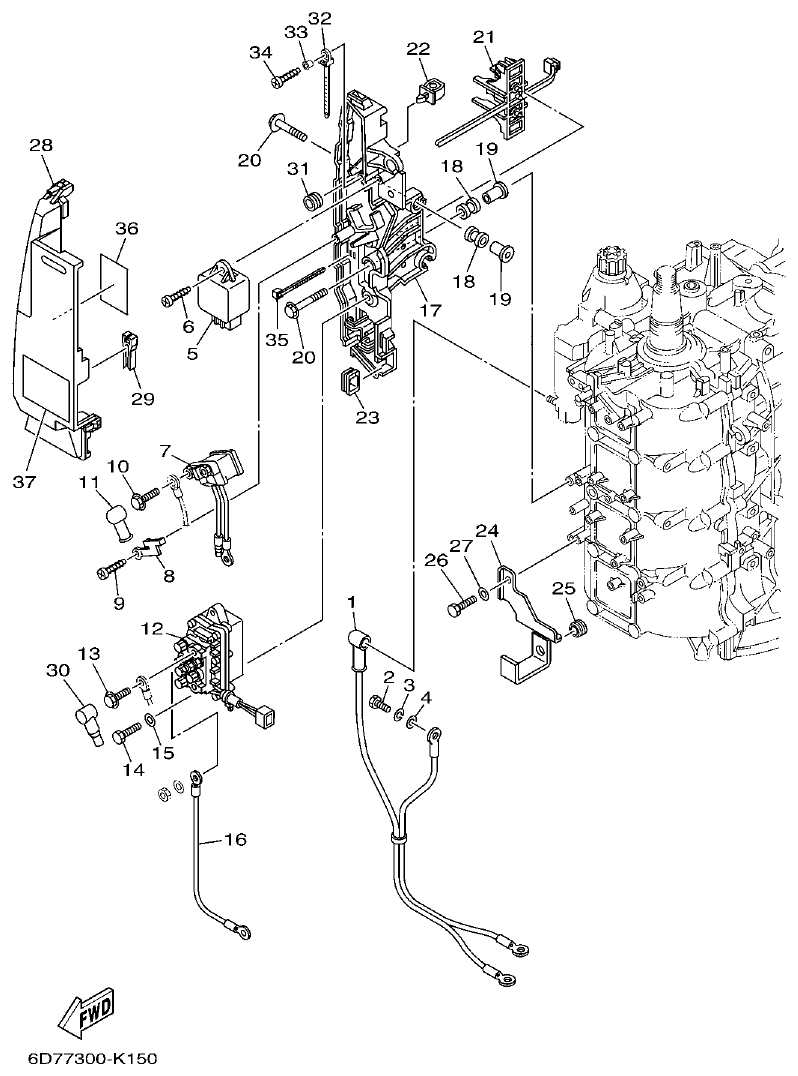

/images/fig-14-electrical-2.png)

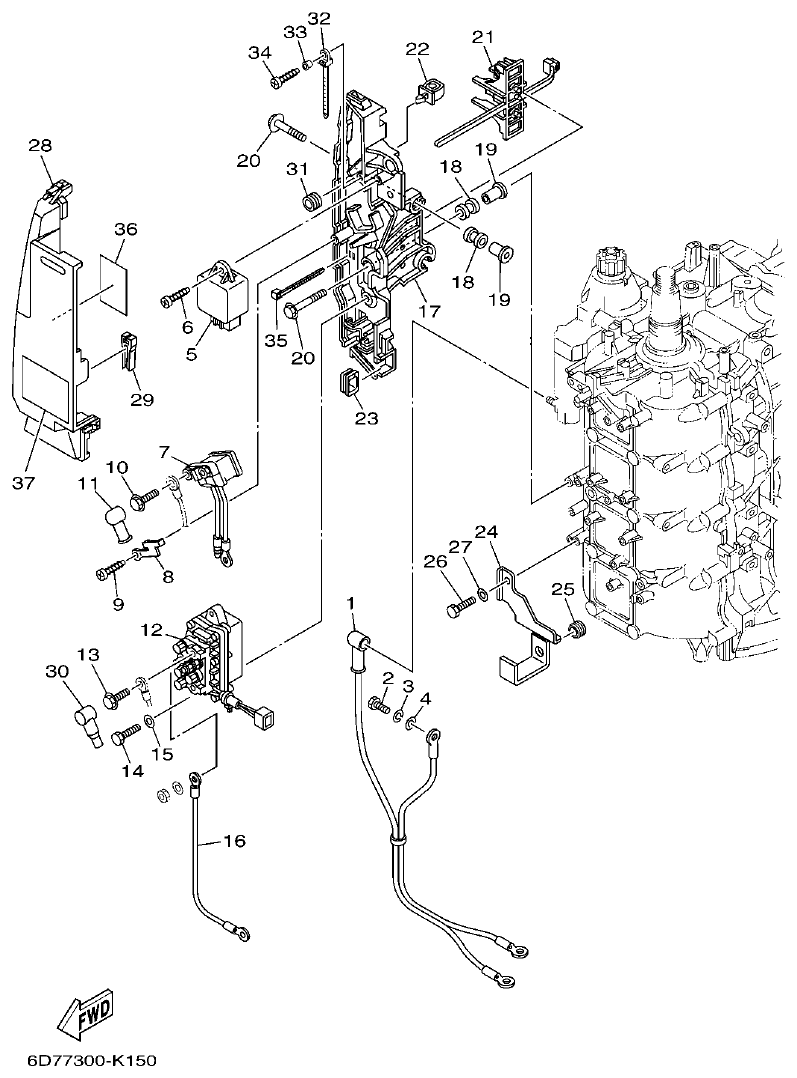

Fig. 14 — ELECTRICAL 2
37 items
· 3 available products

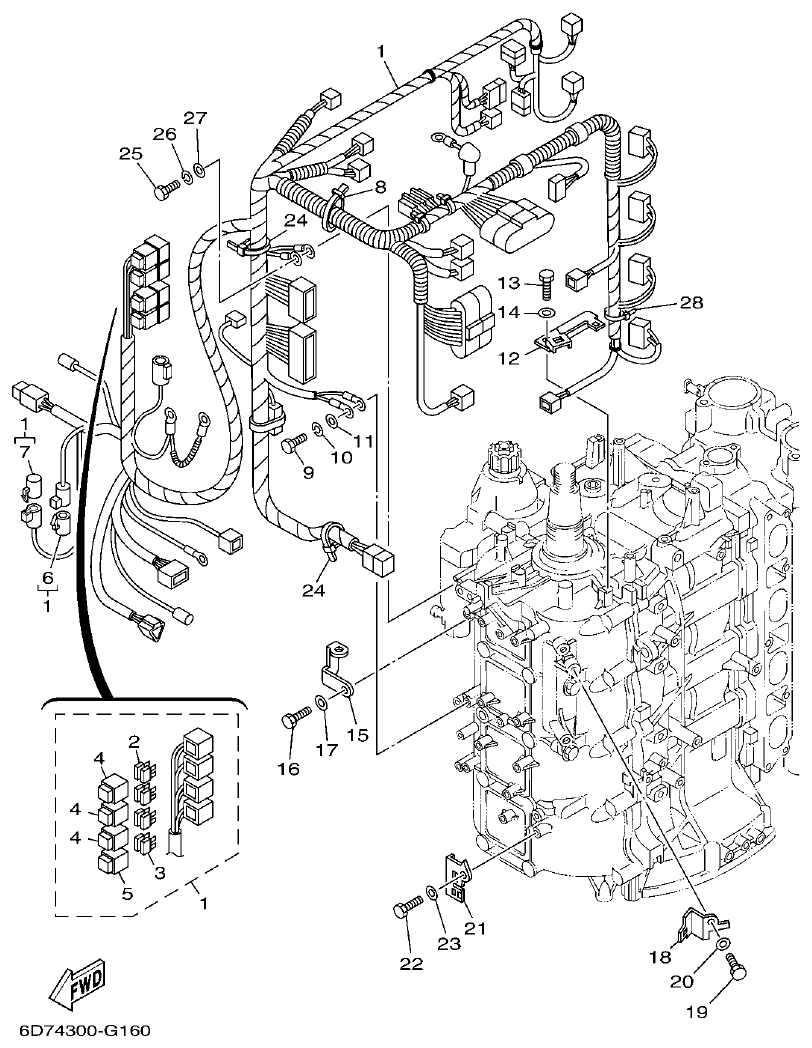

/images/fig-15-electrical-3.png)
Fig. 15 — ELECTRICAL 3
28 items
/images/fig-16-electrical-4.png)

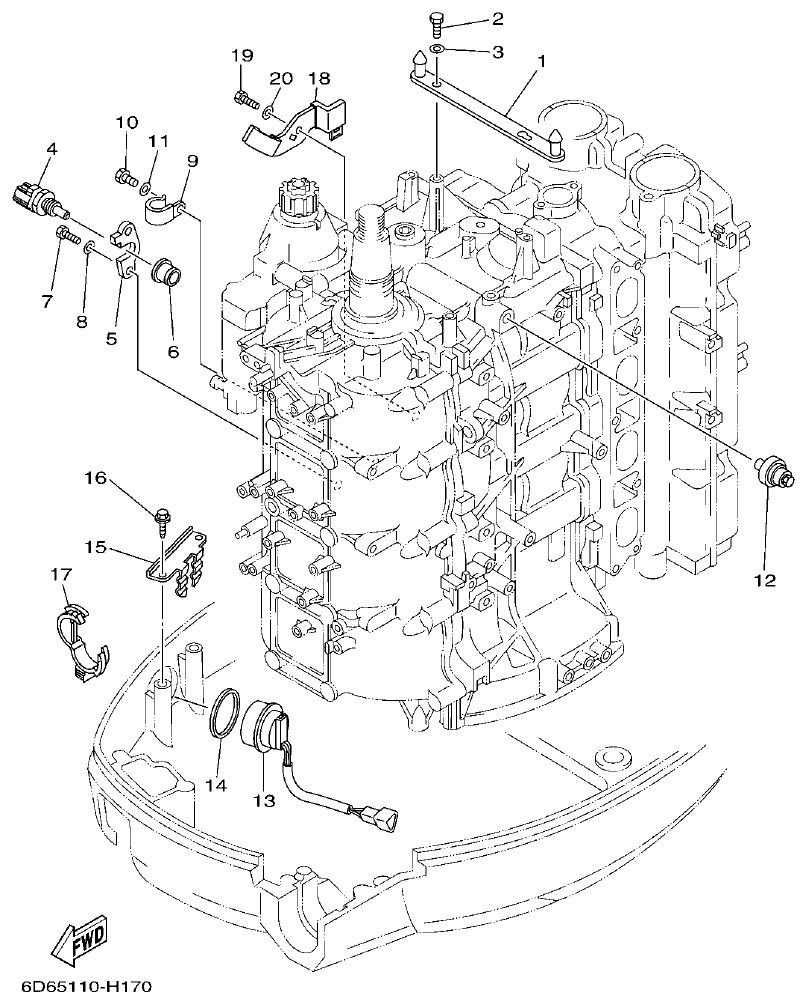

Fig. 16 — ELECTRICAL 4
20 items
· 2 available products

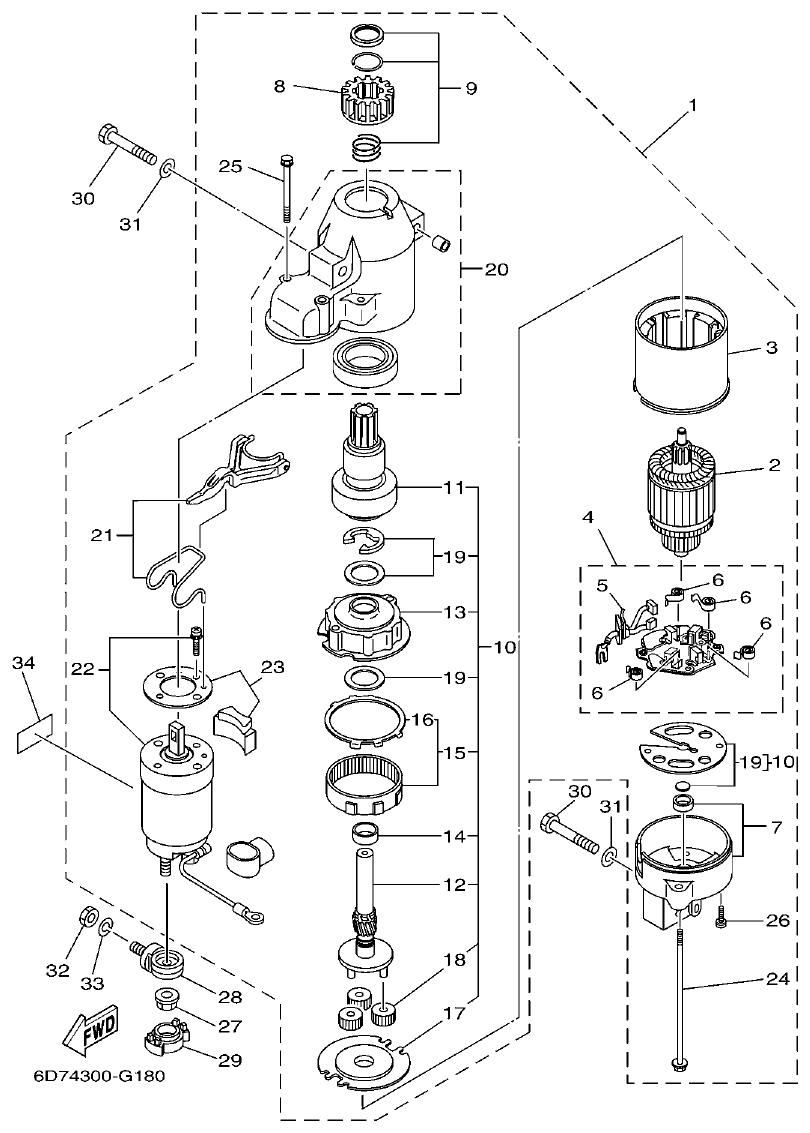

/images/fig-17-starting-motor.png)

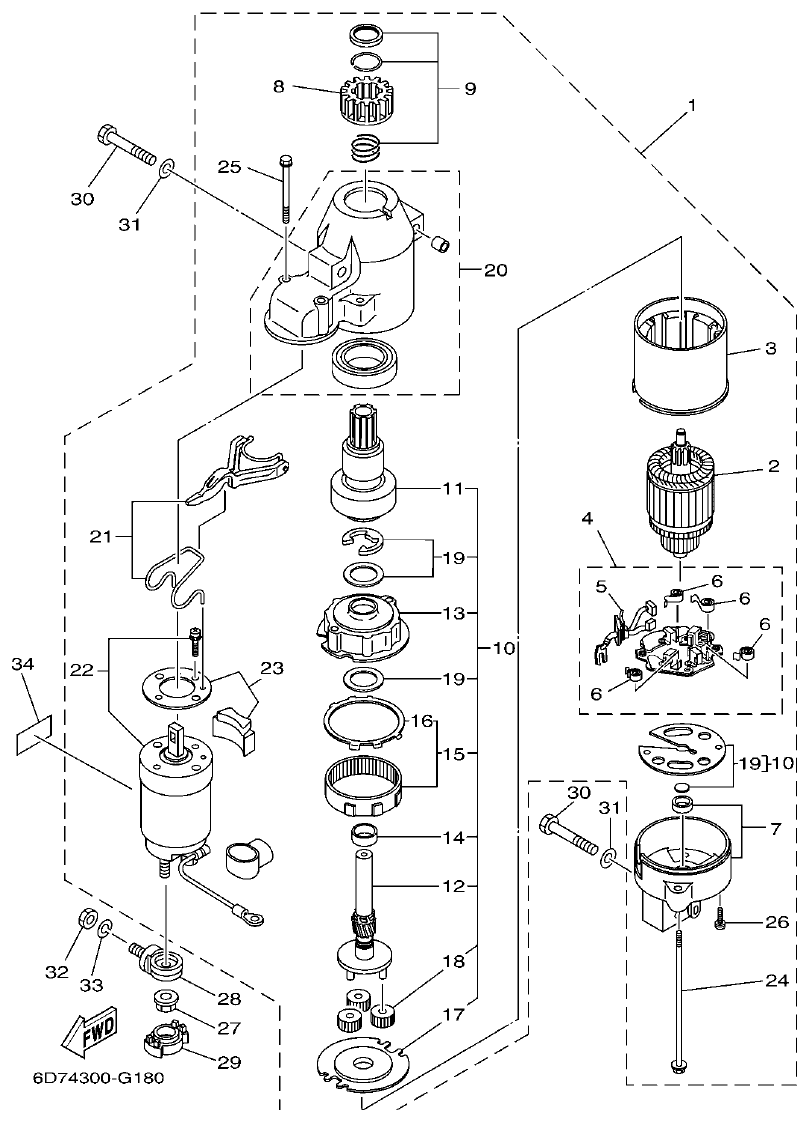

Fig. 17 — STARTING MOTOR
34 items
· 5 available products

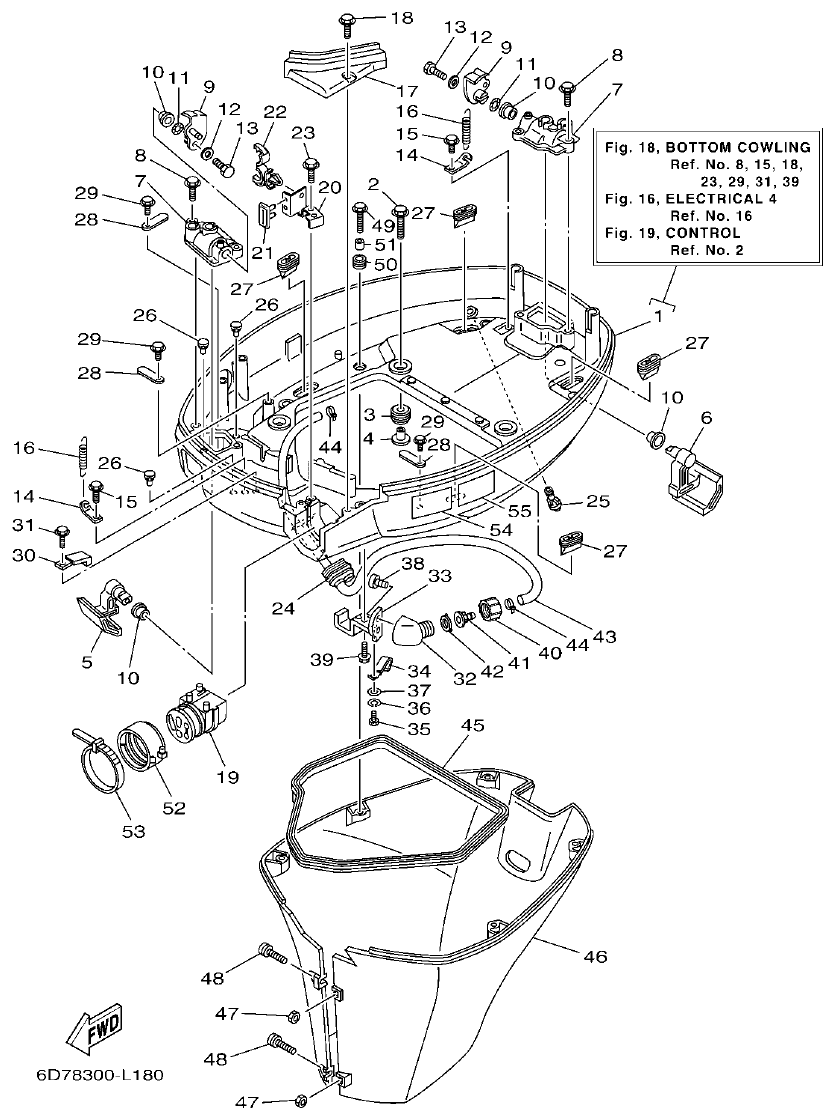

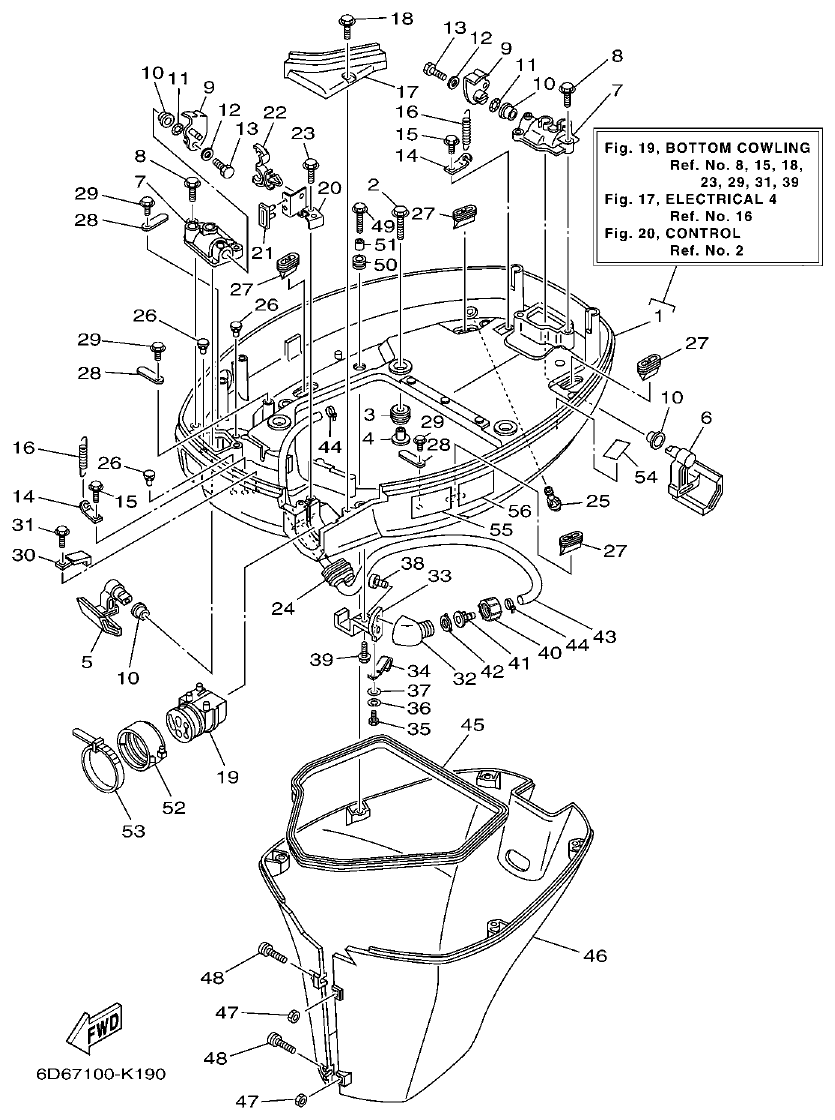

/images/fig-18-bottom-cowling.png)
Fig. 18 — BOTTOM COWLING
55 items
· 7 available products

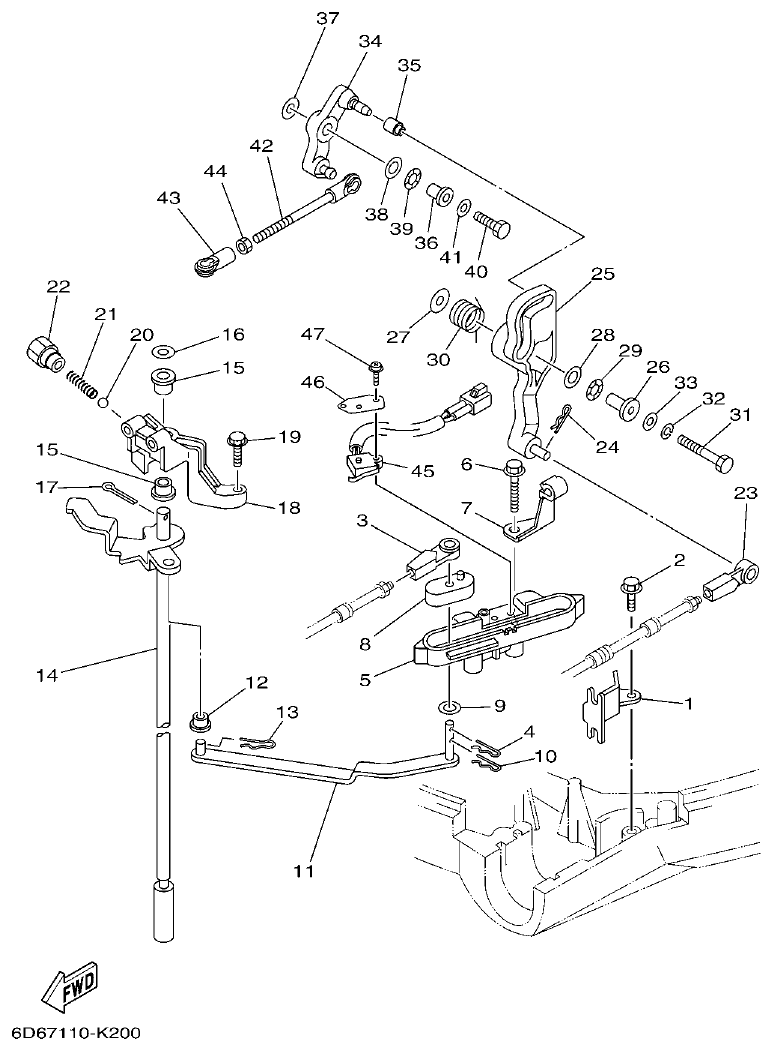

/images/fig-19-control.png)

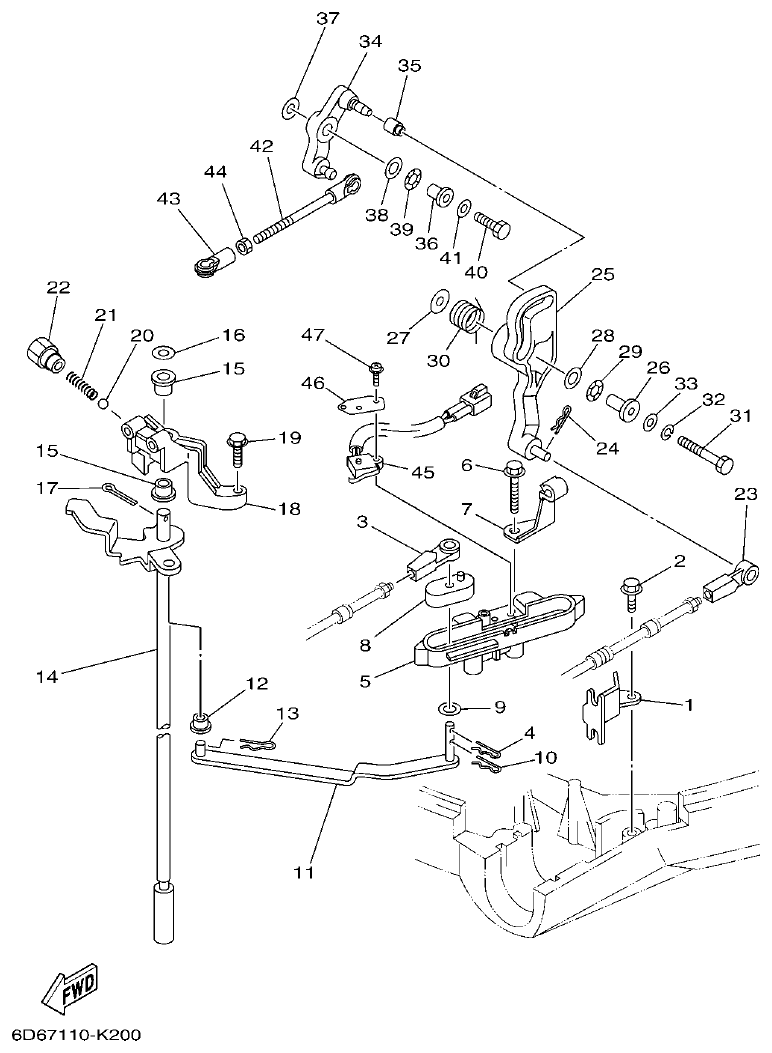

Fig. 19 — CONTROL
48 items
· 3 available products

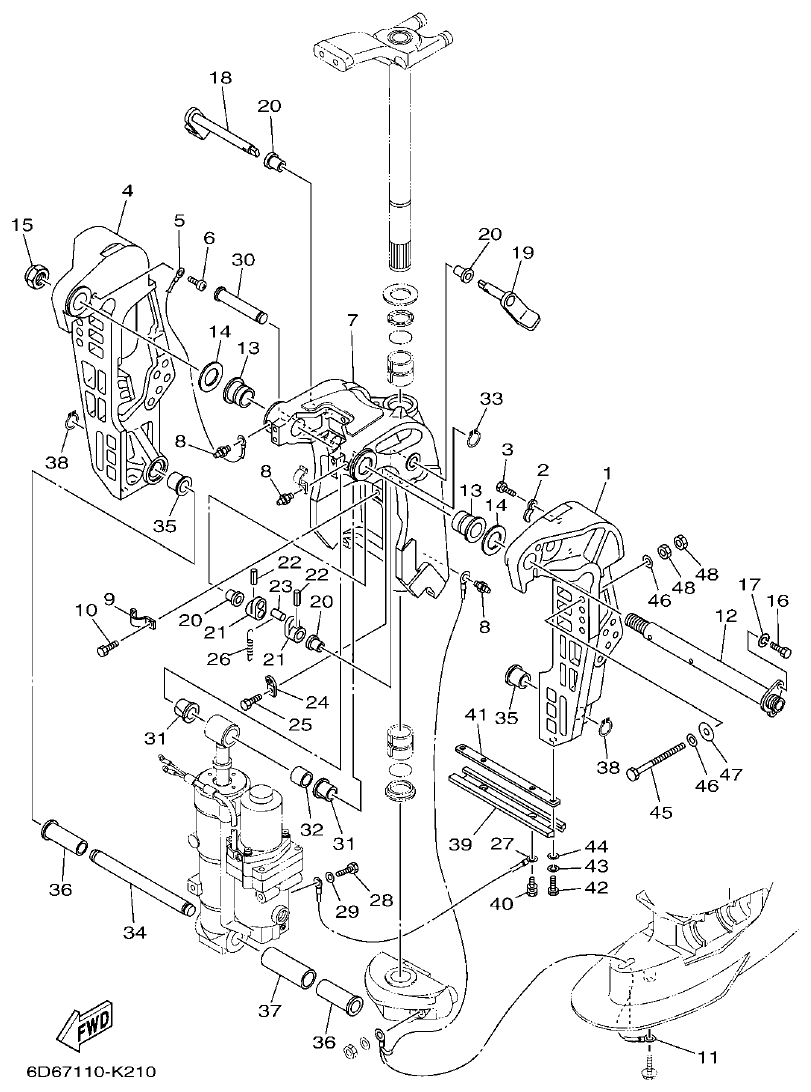

/images/fig-20-bracket-1.png)
Fig. 20 — BRACKET 1
48 items
· 5 available products

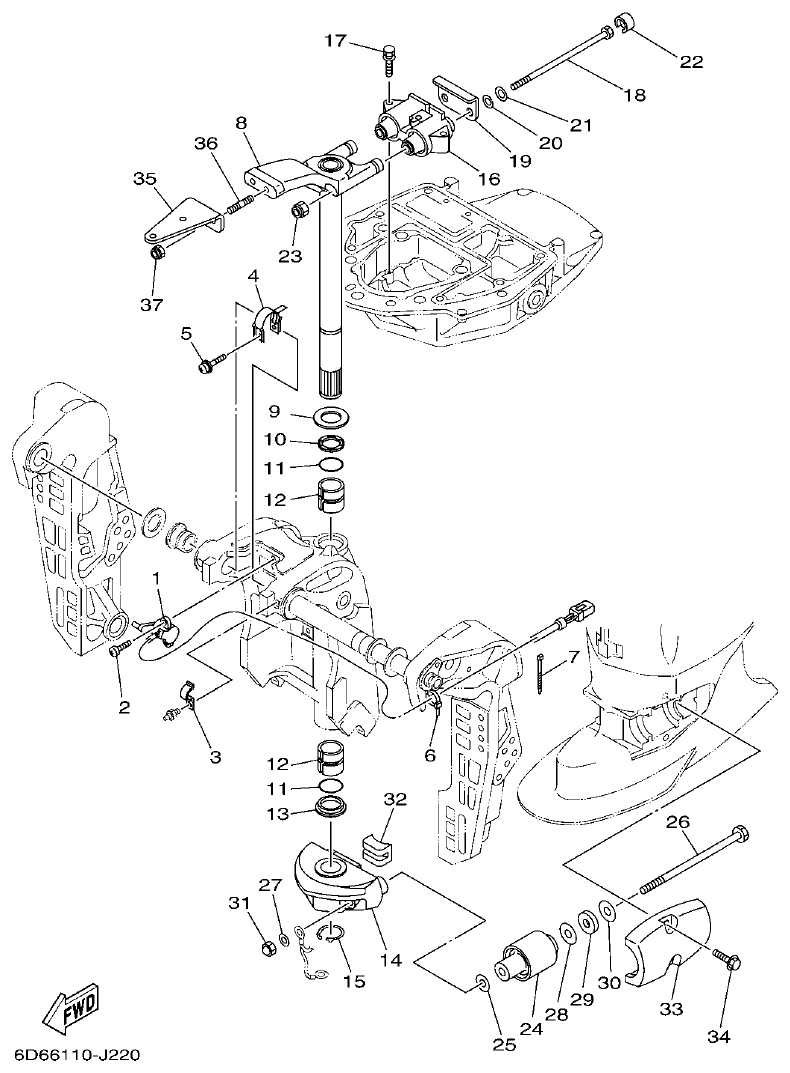

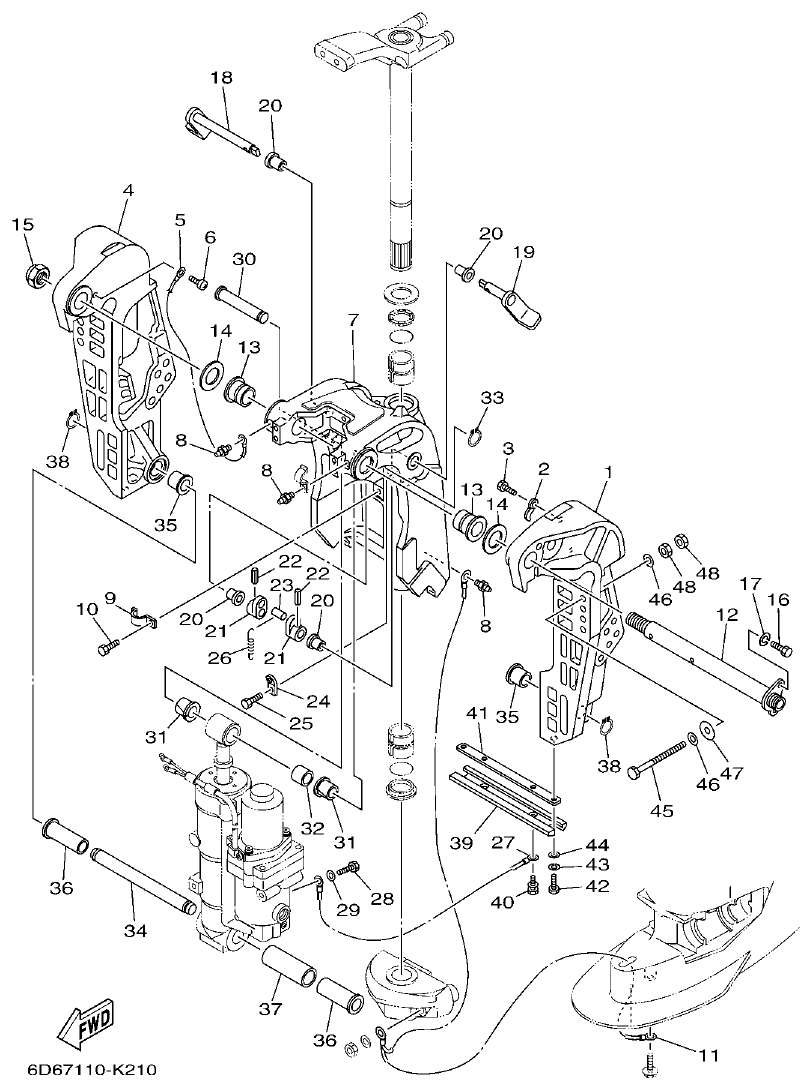

/images/fig-21-bracket-2.png)

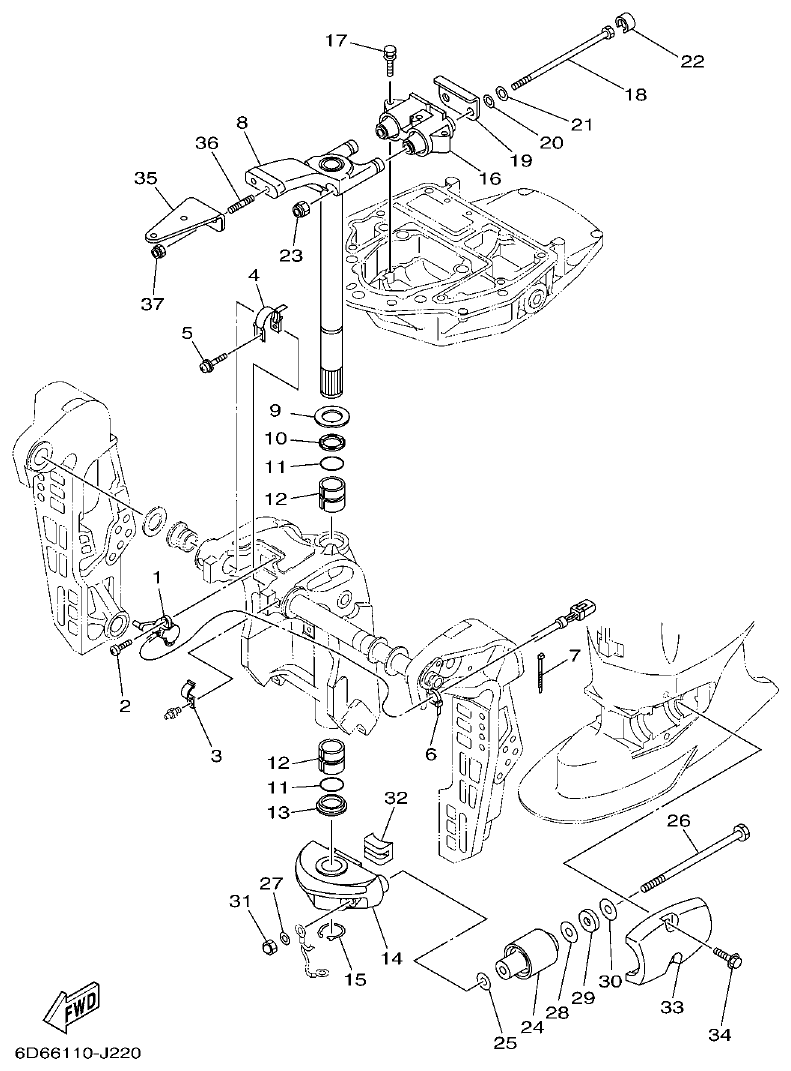

Fig. 21 — BRACKET 2
37 items
· 1 available products

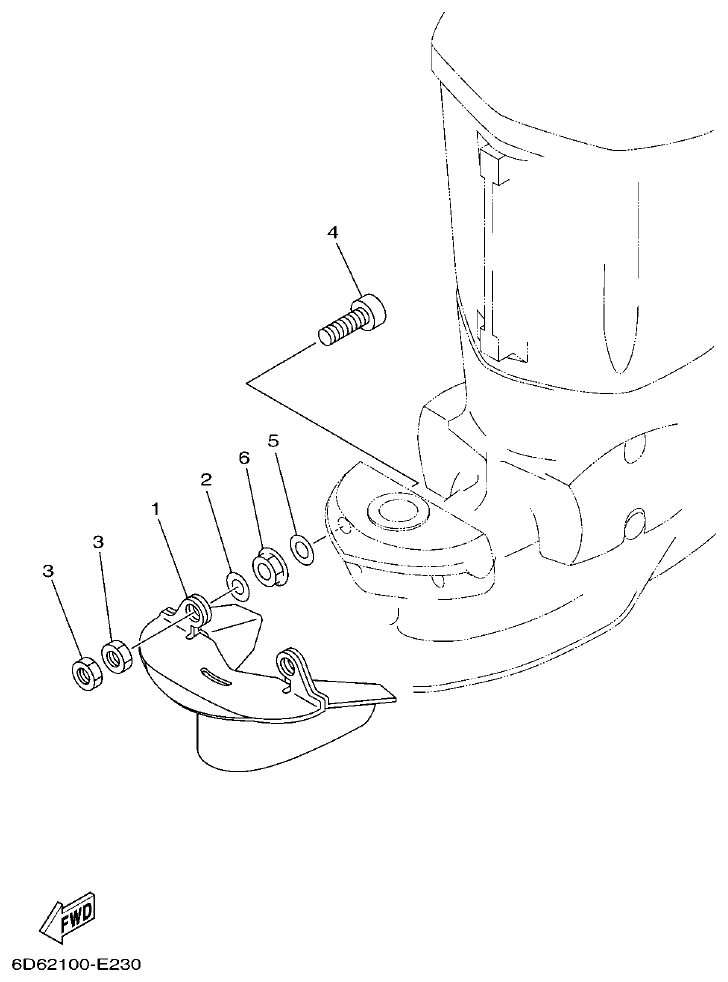

/images/fig-22-optional-parts-1.png)
Fig. 22 — OPTIONAL PARTS 1
6 items

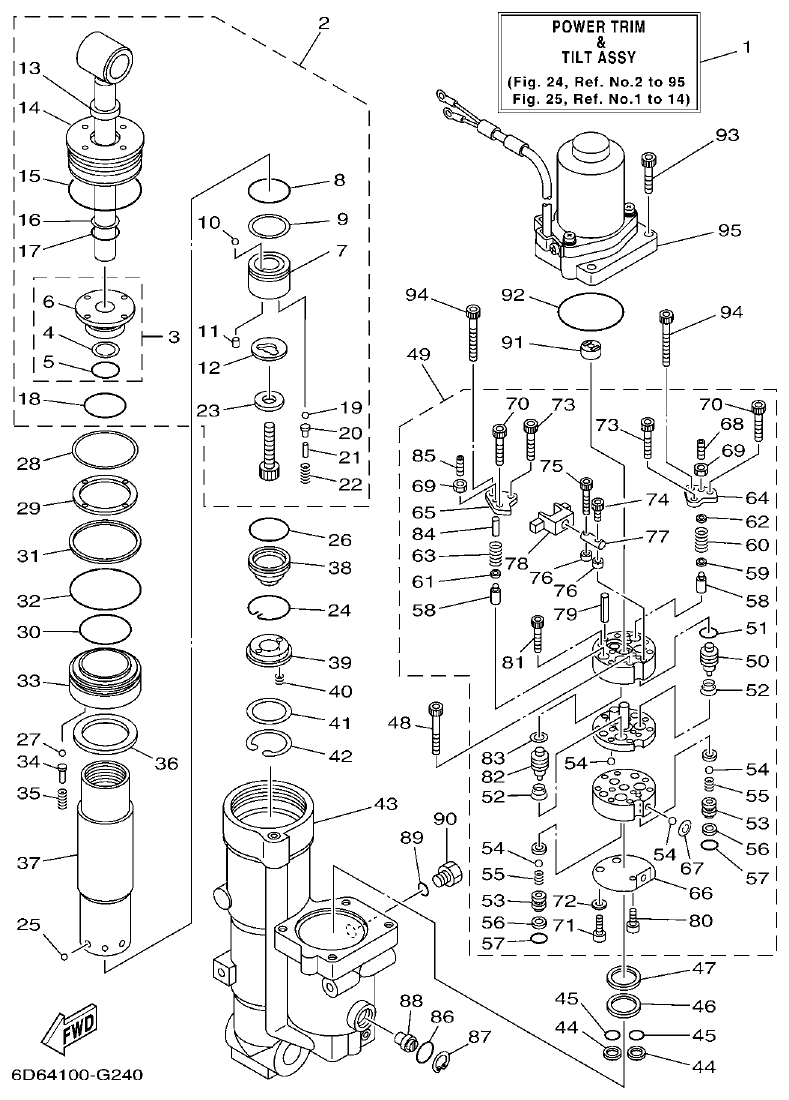

/images/fig-23-power-trim-tilt-assy-1.png)

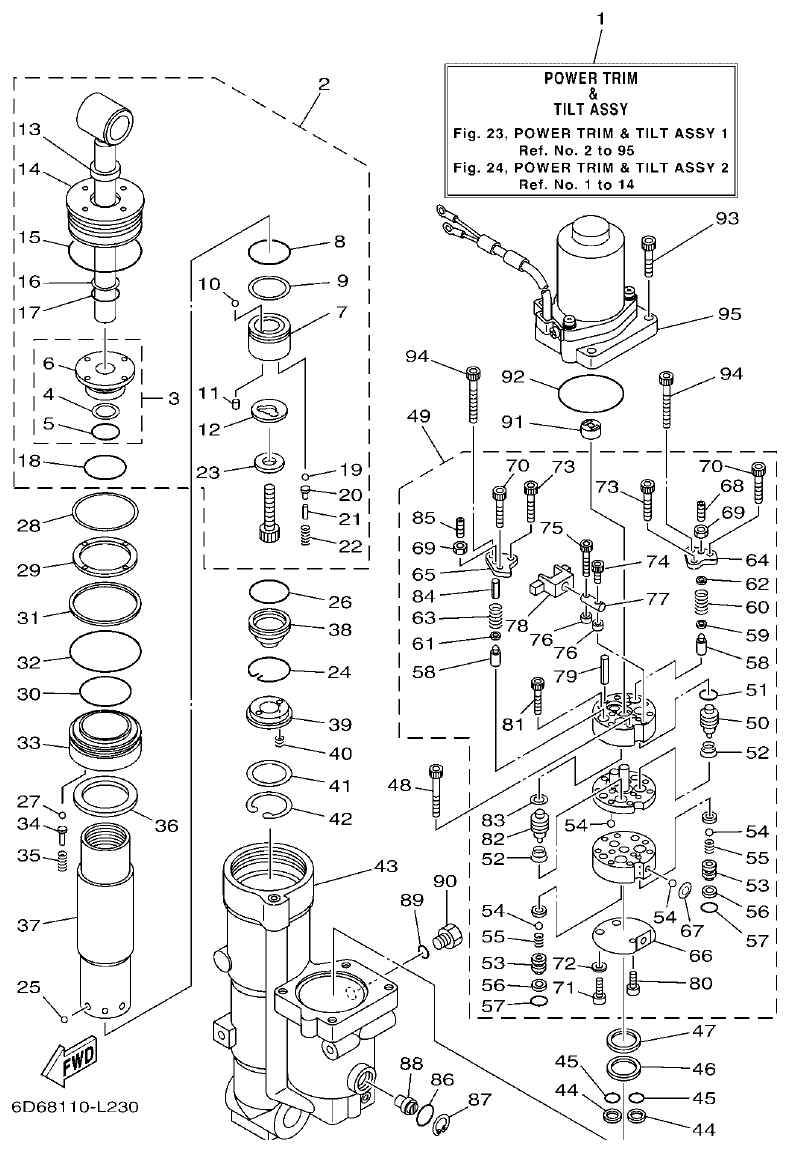

Fig. 23 — POWER TRIM & TILT ASSY 1
95 items
· 7 available products

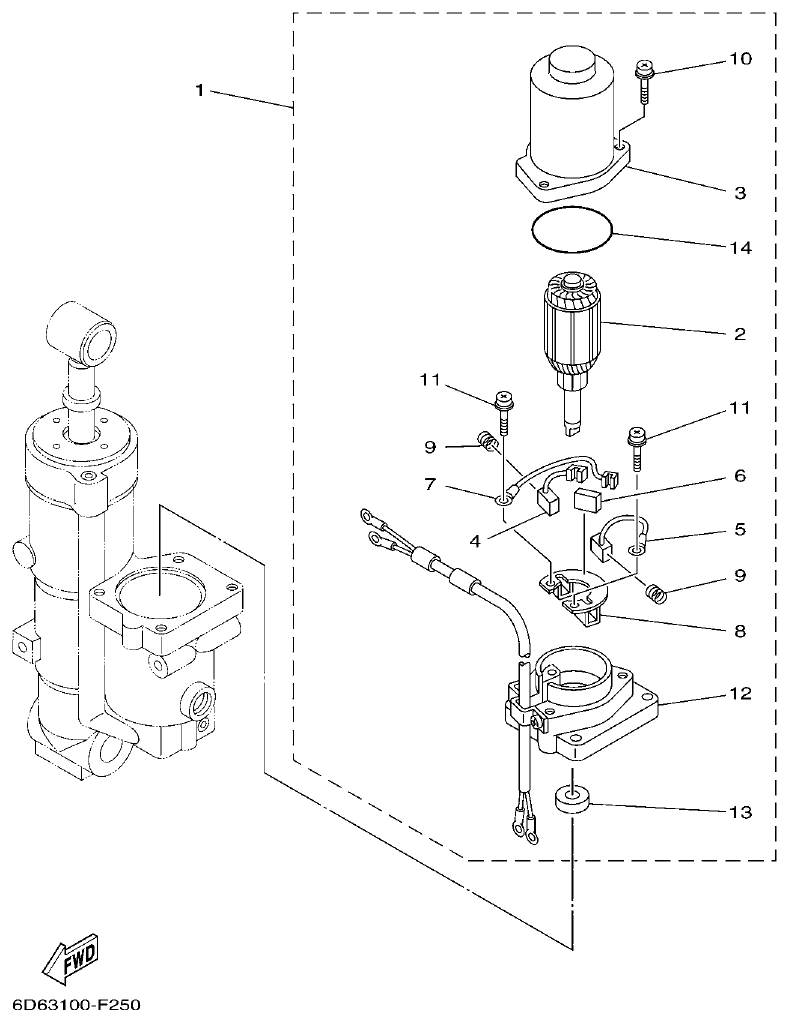

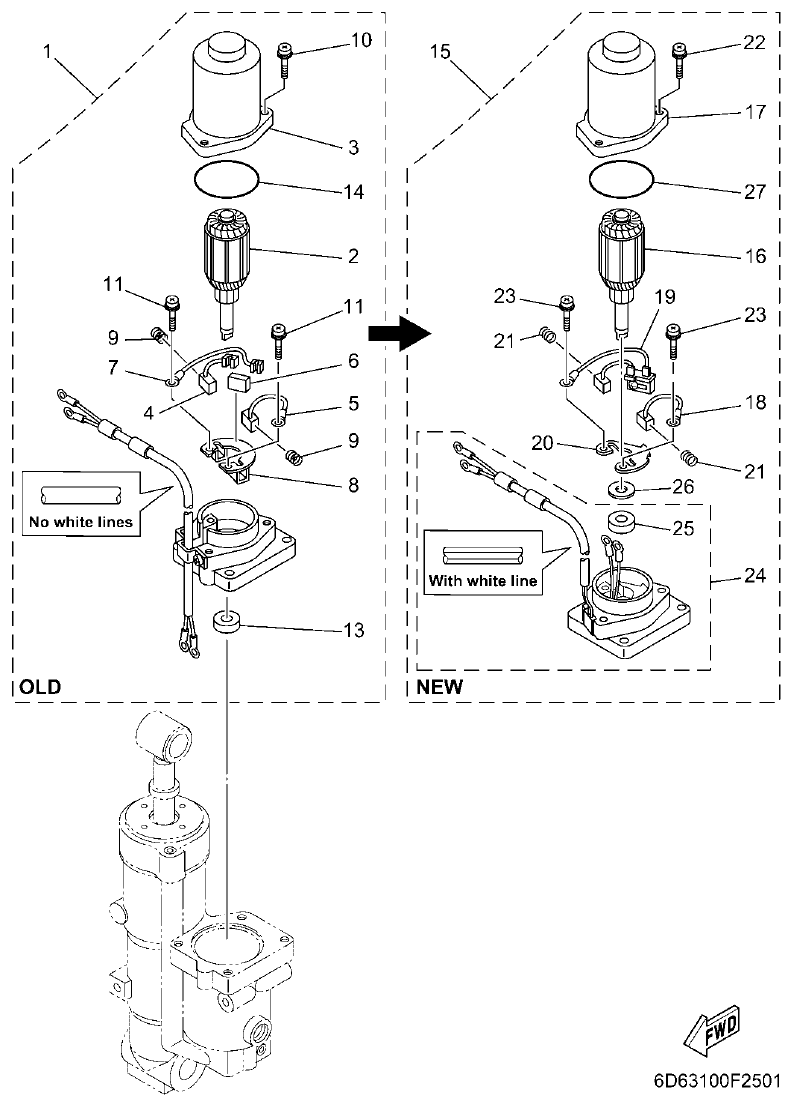

/images/fig-24-power-trim-tilt-assy-2.png)
Fig. 24 — POWER TRIM & TILT ASSY 2
26 items
· 4 available products

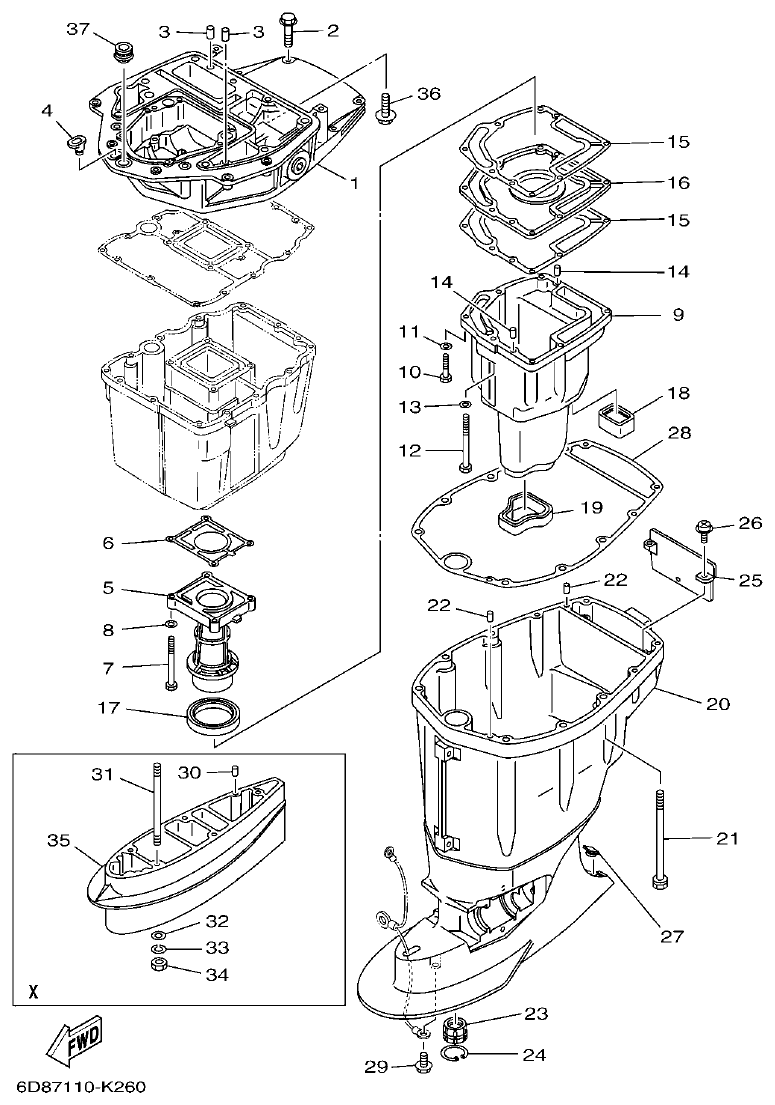

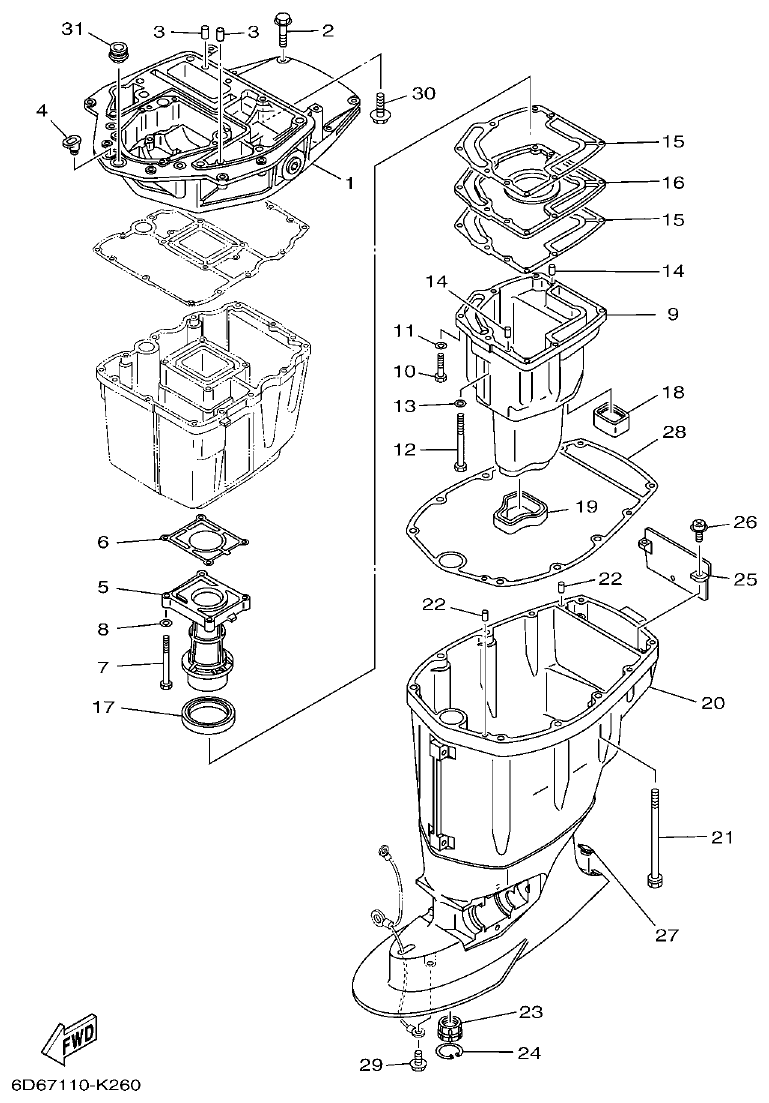

/images/fig-25-upper-casing.png)
Fig. 25 — UPPER CASING
37 items
· 5 available products
/images/fig-26-oil-pan.png)

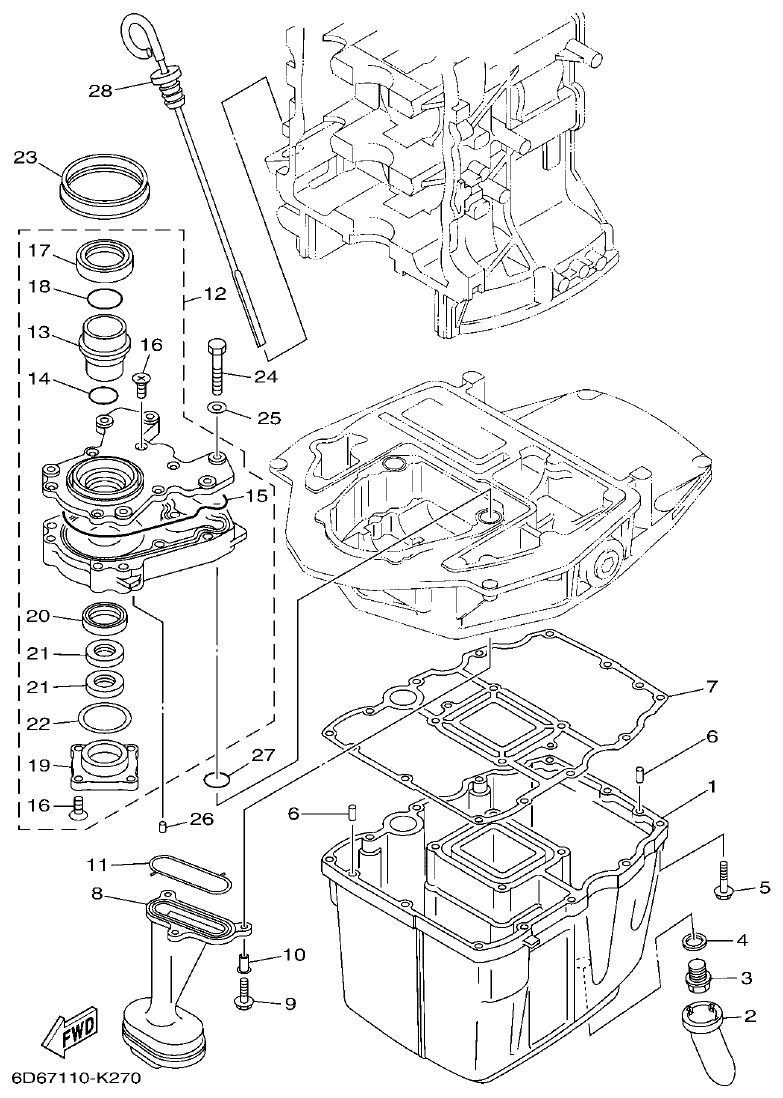

Fig. 26 — OIL PAN
28 items
· 13 available products
/images/fig-27-lower-casing-drive-1.png)

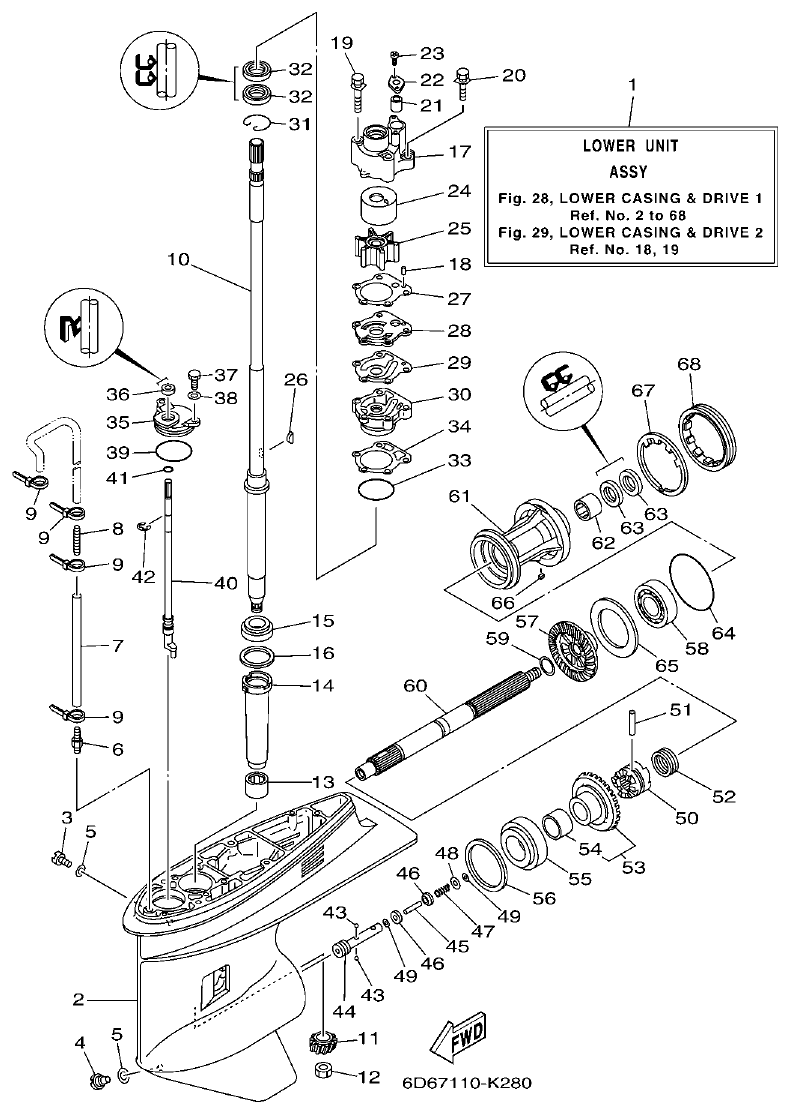

Fig. 27 — LOWER CASING & DRIVE 1
88 items
· 26 available products

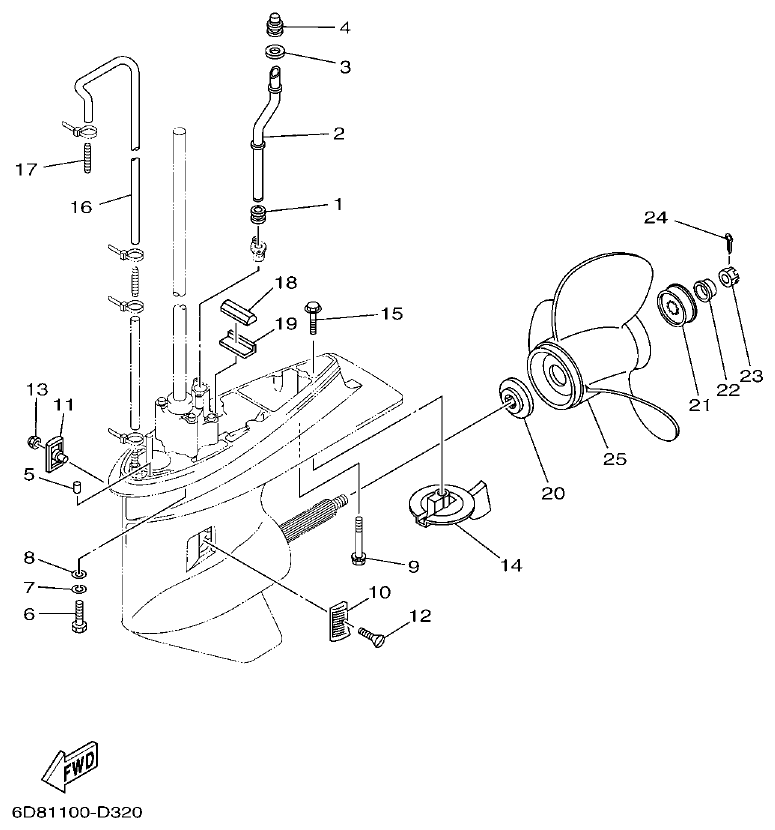

/images/fig-28-lower-casing-drive-2.png)

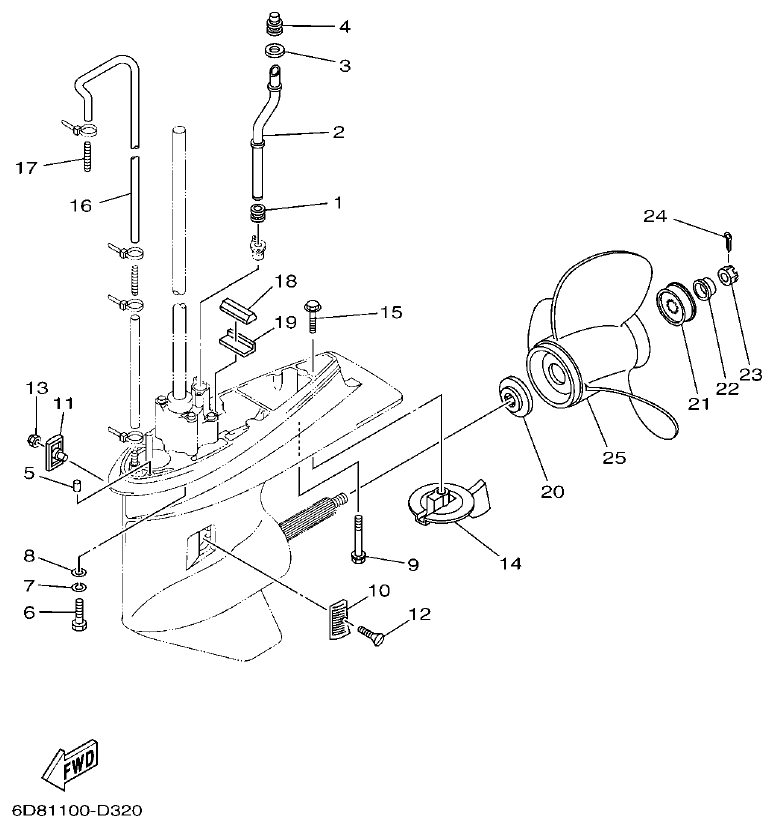

Fig. 28 — LOWER CASING & DRIVE 2
42 items
· 20 available products

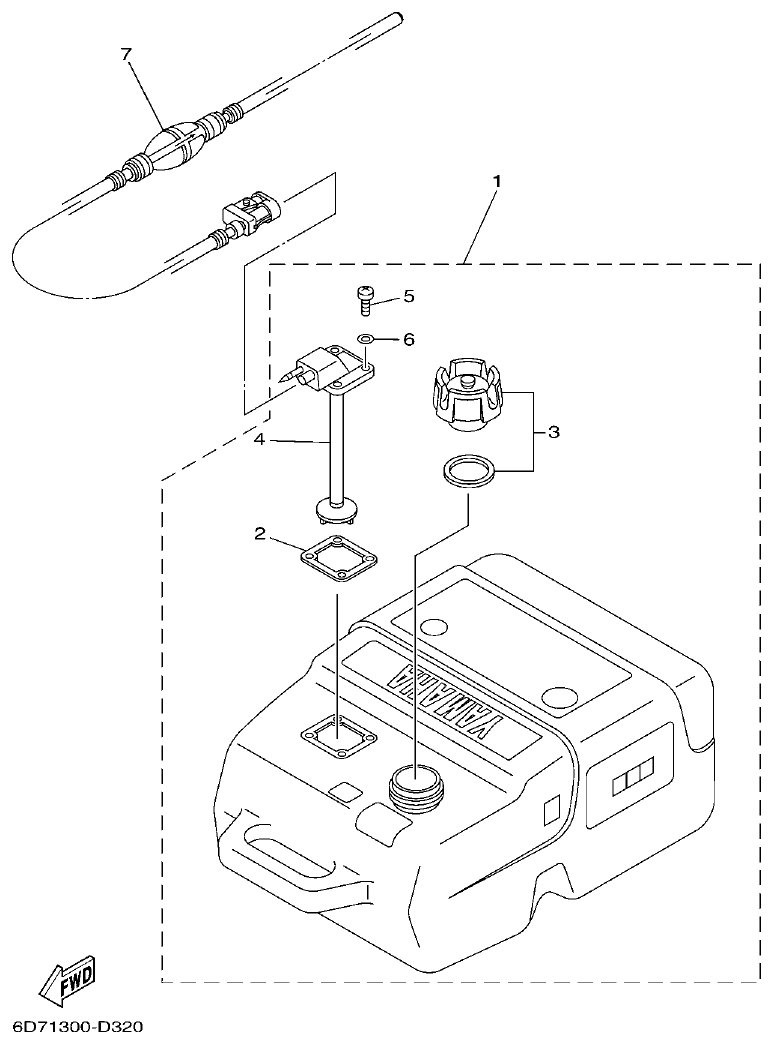

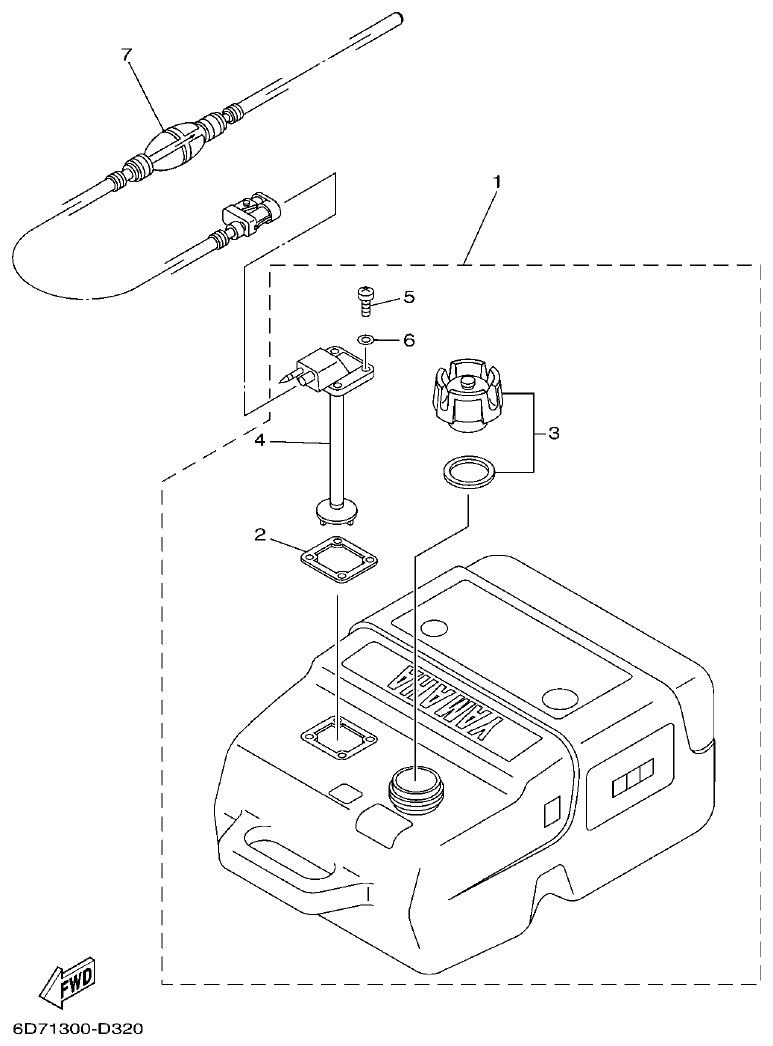

/images/fig-29-fuel-tank.png)
Fig. 29 — FUEL TANK
7 items
/images/fig-30-steering-guide.png)

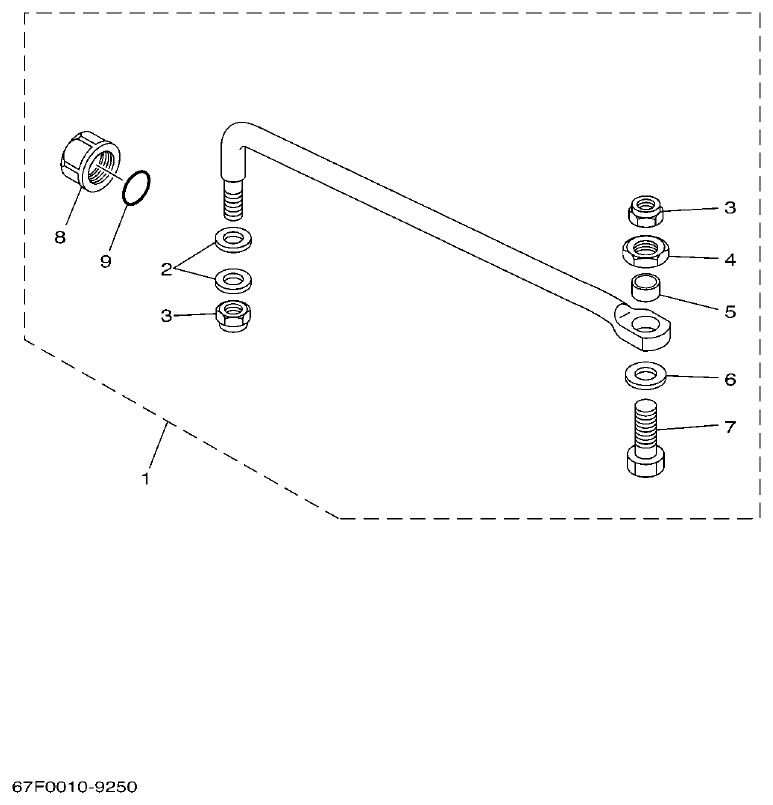

Fig. 30 — STEERING GUIDE
9 items
/images/fig-31-optional-parts-2.png)

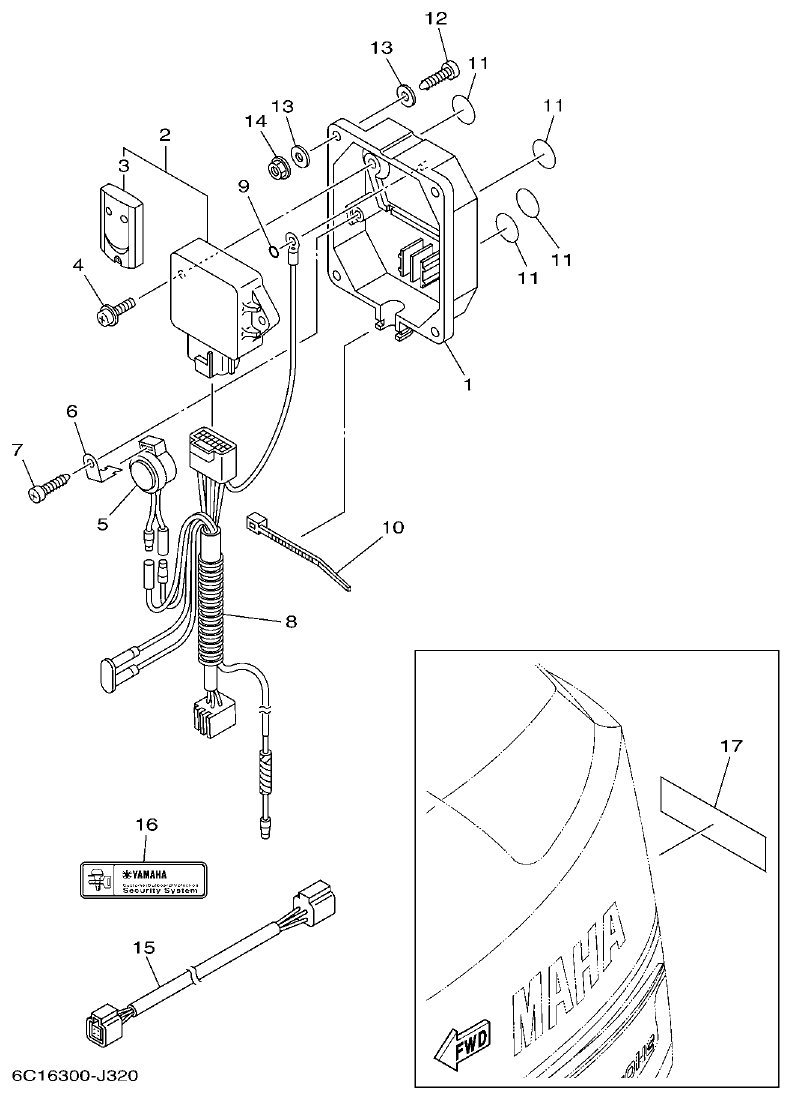

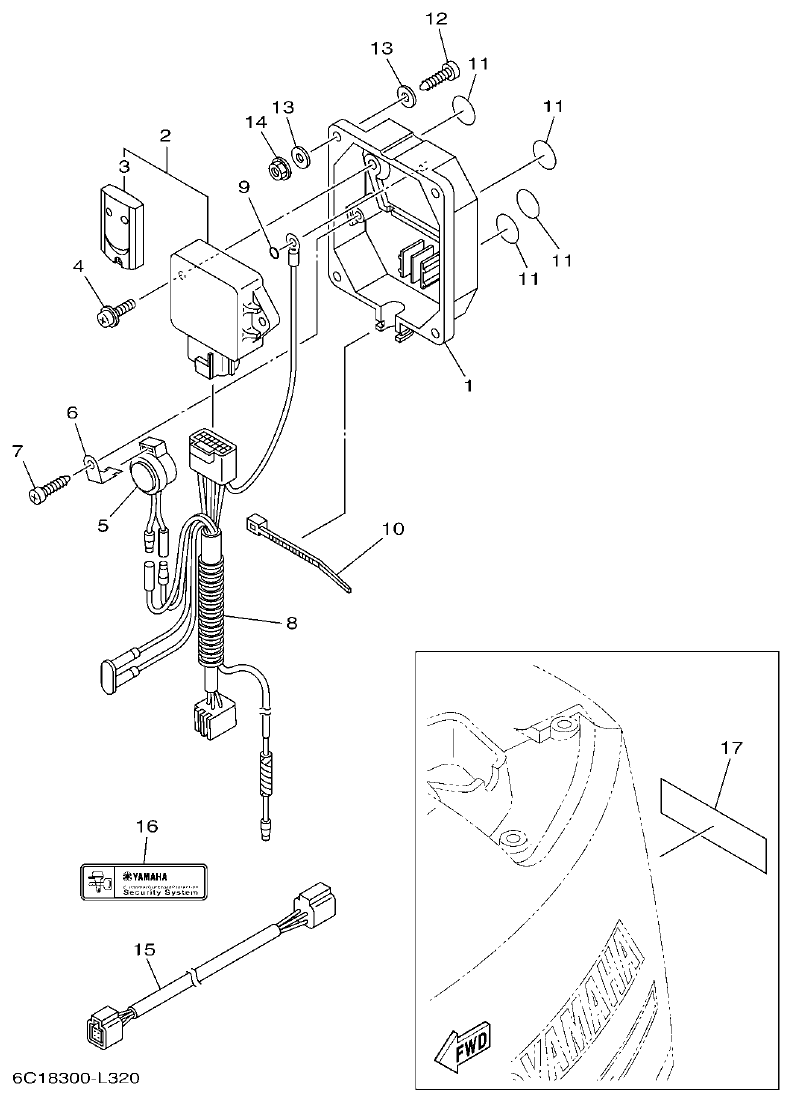

Fig. 31 — OPTIONAL PARTS 2
18 items
· 1 available products

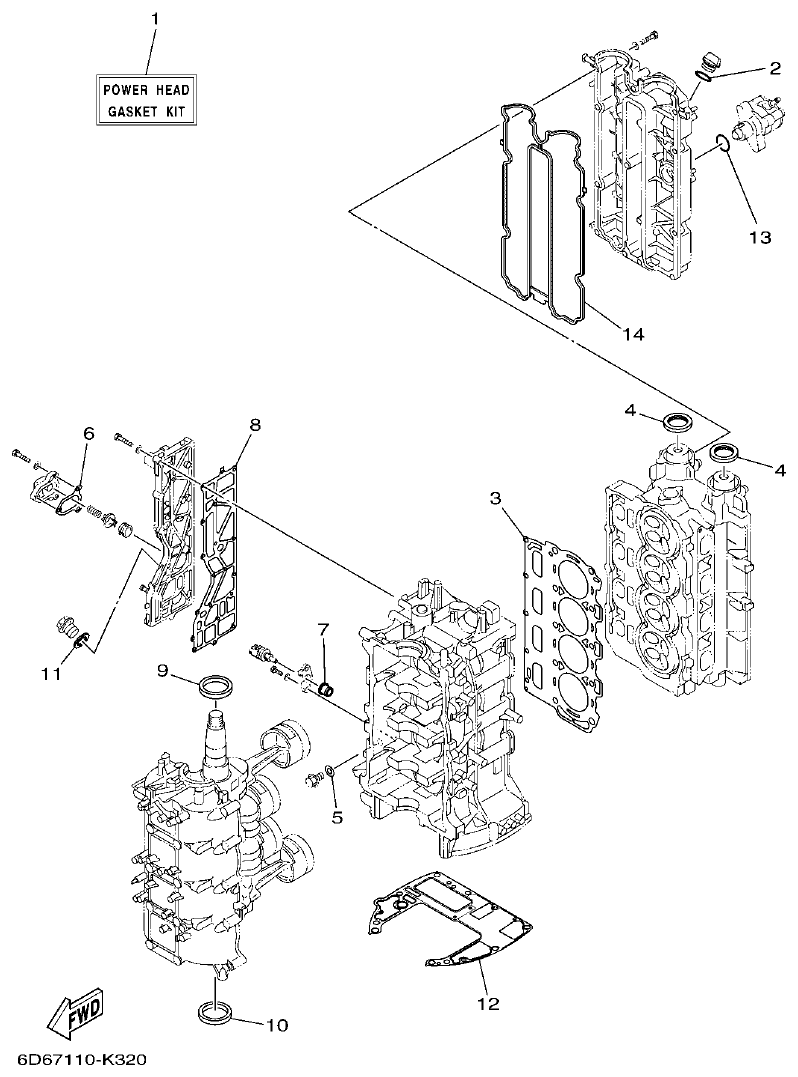

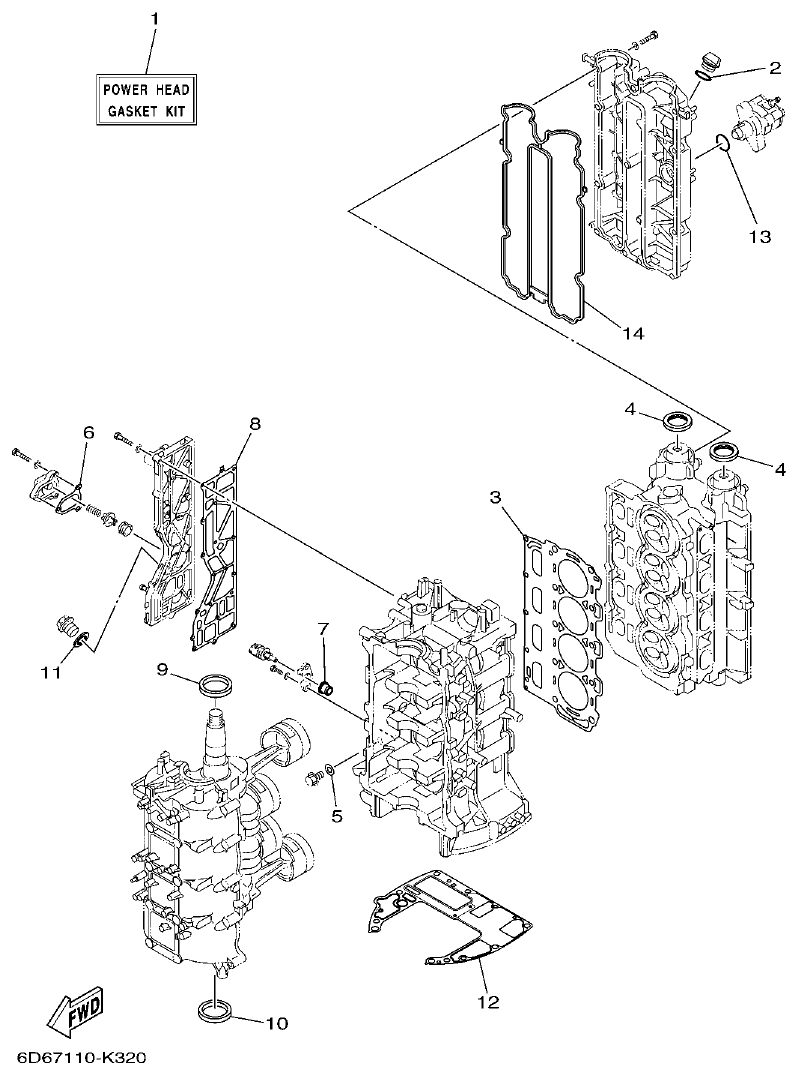

/images/fig-32-repair-kit-1.png)
Fig. 32 — REPAIR KIT 1
14 items
· 5 available products

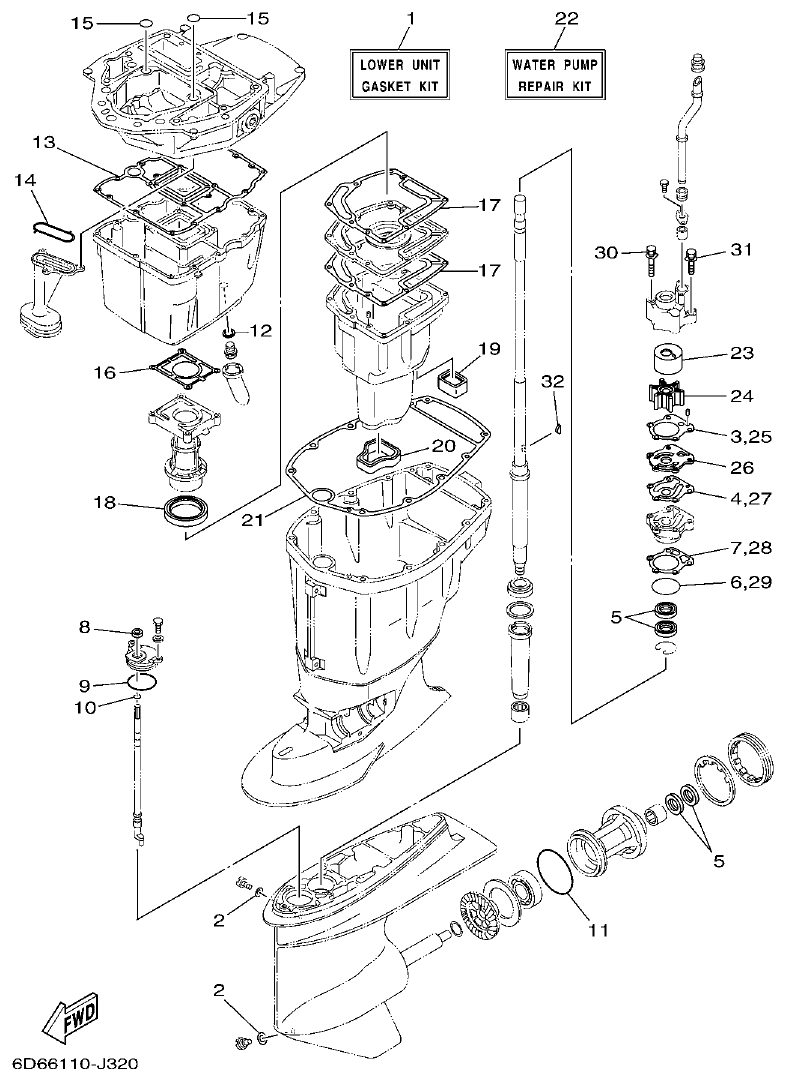

/images/fig-33-repair-kit-2.png)

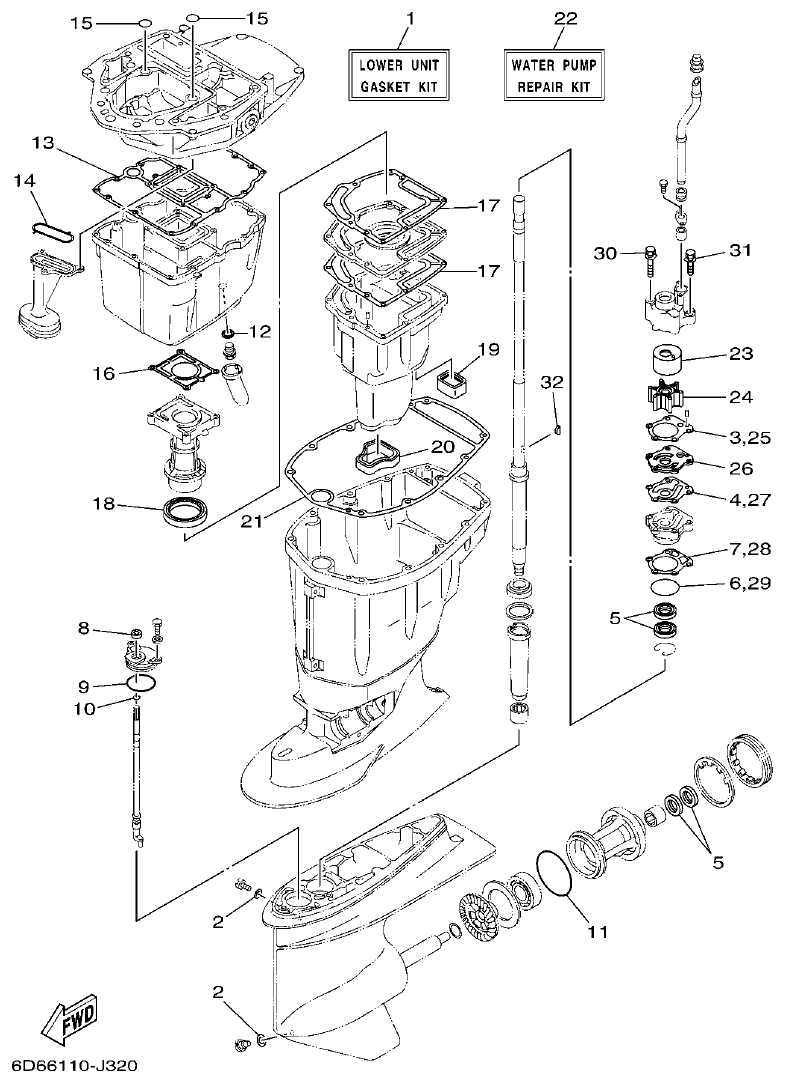

Fig. 33 — REPAIR KIT 2
32 items
· 13 available products
Fig. 1 — TOP COWLING
23 items

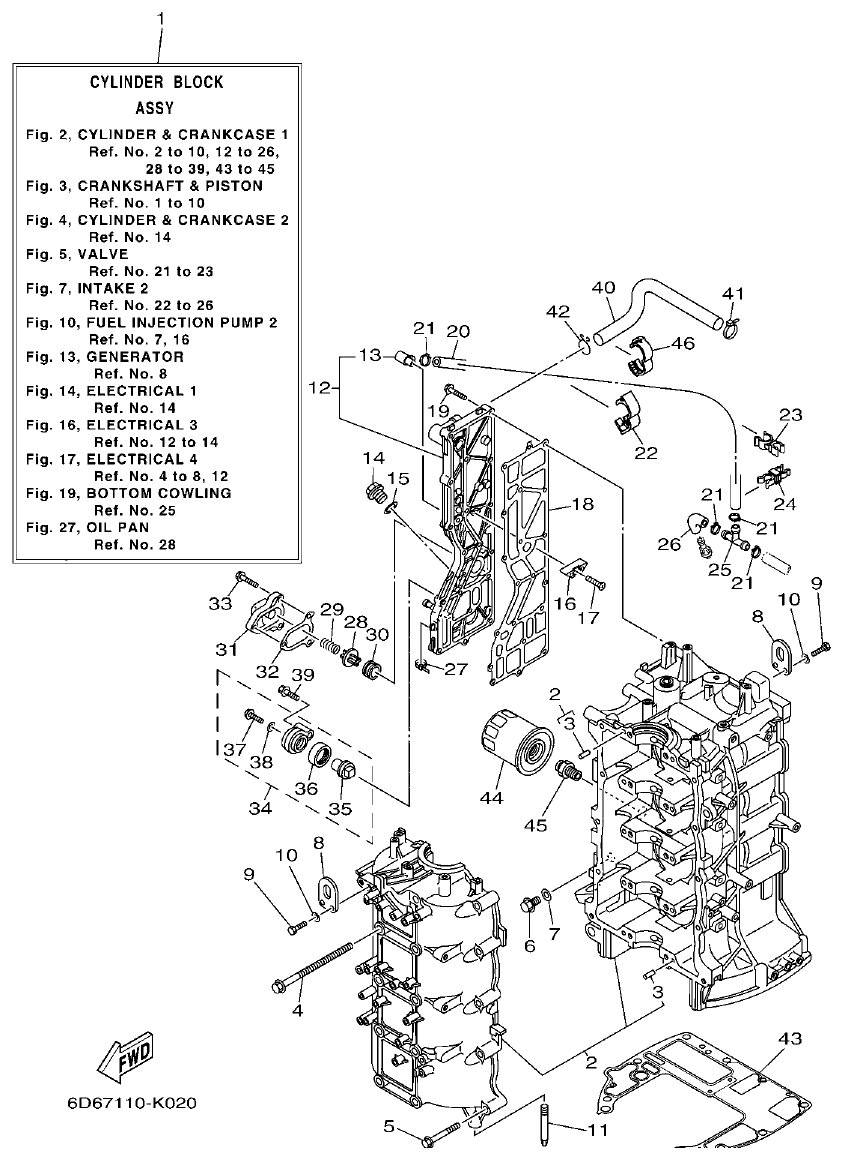

Fig. 2 — CYLINDER & CRANKCASE 1
46 items
· 9 available products
Fig. 3 — CRANKSHAFT & PISTON
22 items
· 13 available products
Fig. 4 — CYLINDER & CRANKCASE 2
38 items
· 6 available products
Fig. 5 — VALVE
53 items
· 9 available products
Fig. 6 — INTAKE 1
18 items
· 2 available products
Fig. 7 — INTAKE 2
27 items
Fig. 8 — INTAKE 3
28 items
· 1 available products
Fig. 9 — FUEL INJECTION PUMP 1
27 items
· 6 available products
Fig. 10 — FUEL INJECTION PUMP 2
21 items

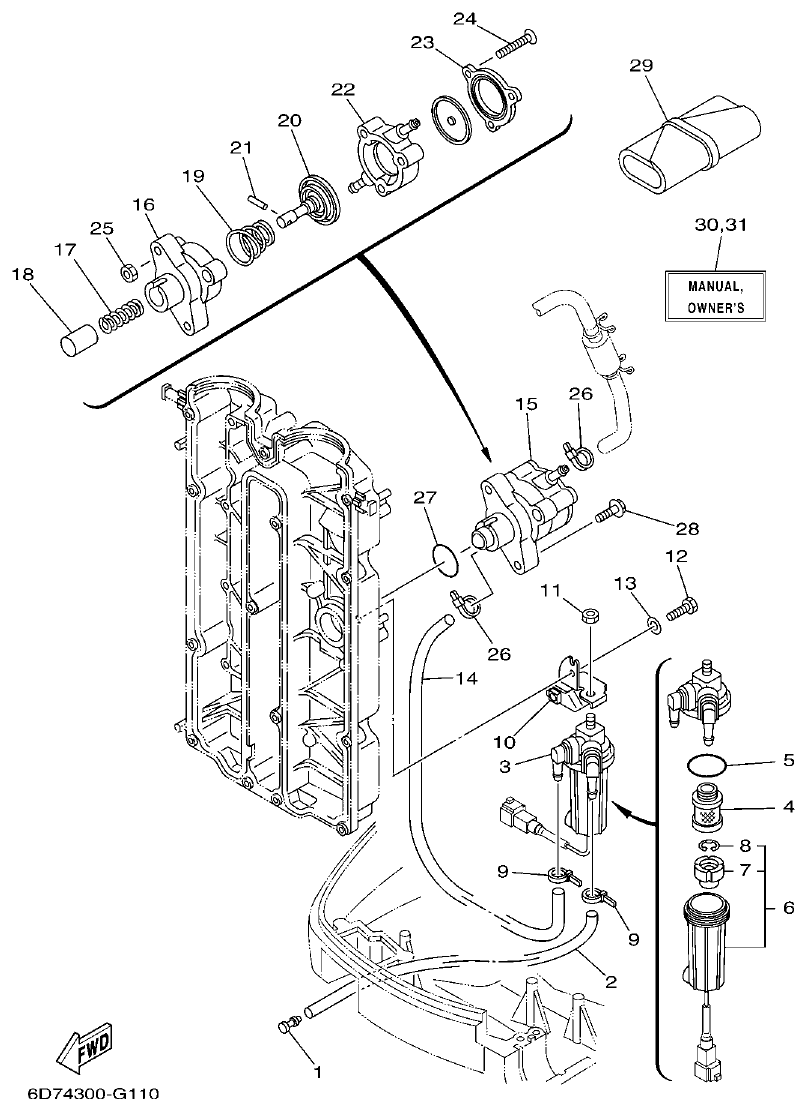

Fig. 11 — FUEL 1
41 items
· 5 available products

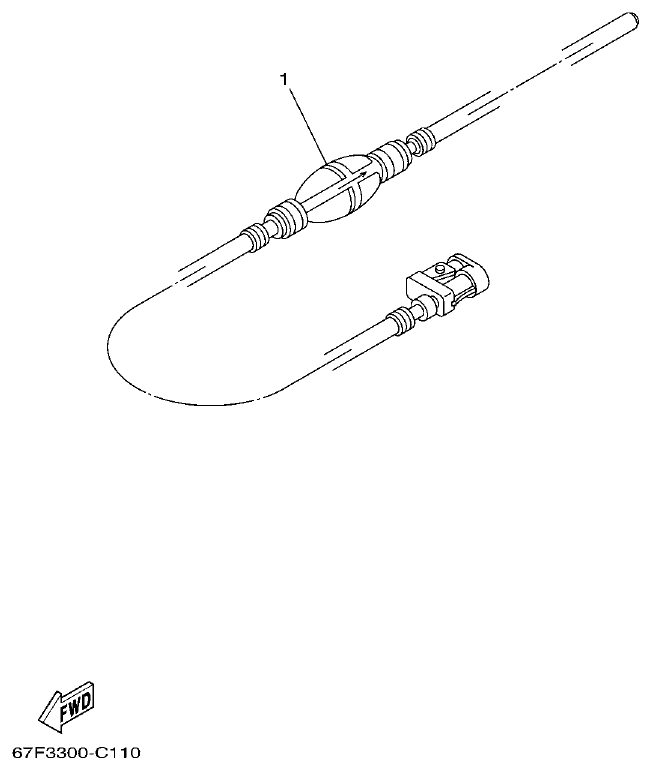

Fig. 12 — FUEL 2
1 items
Fig. 13 — GENERATOR
27 items
Fig. 14 — ELECTRICAL 1
32 items
· 1 available products
Fig. 15 — ELECTRICAL 2
37 items
· 3 available products
Fig. 16 — ELECTRICAL 3
28 items
Fig. 17 — ELECTRICAL 4
20 items
· 2 available products
Fig. 18 — STARTING MOTOR
34 items
· 5 available products
Fig. 19 — BOTTOM COWLING
56 items
· 7 available products
Fig. 20 — CONTROL
47 items
· 3 available products
Fig. 21 — BRACKET 1
48 items
· 5 available products
Fig. 22 — BRACKET 2
37 items
· 1 available products

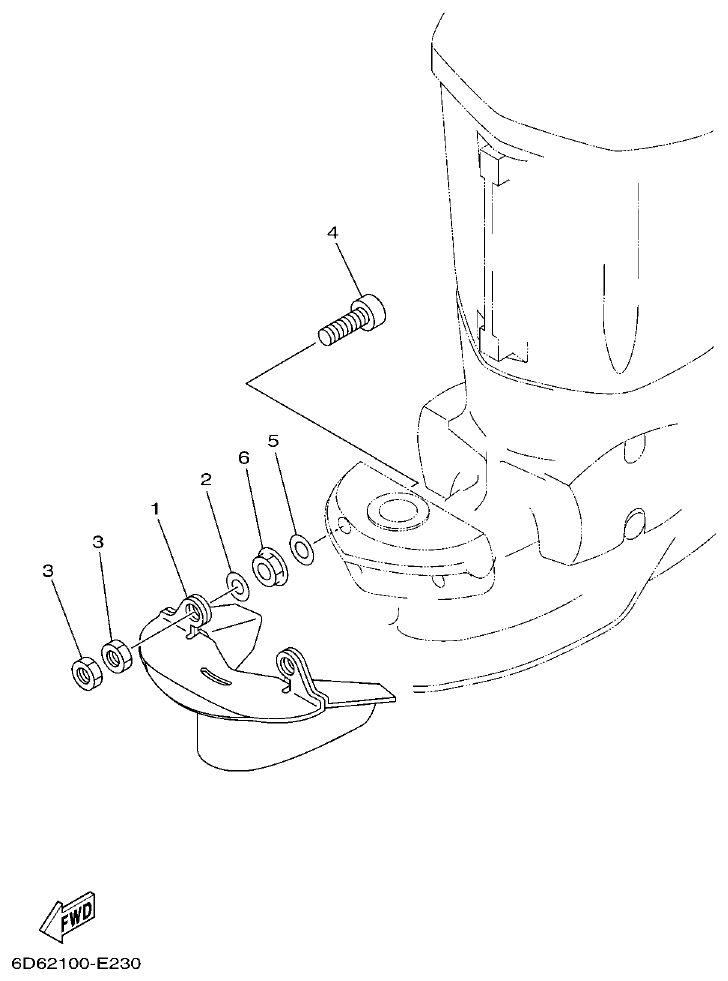

Fig. 23 — OPTIONAL PARTS 1
