Yamaha LZ200NETO Parts Catalog

Yamaha LZ200NETO Outboard parts and diagrams

Yamaha LZ200NETO outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE 1, CRANKSHAFT. PISTON, CYLINDER. CRANKCASE 2, FUEL PUMP DRIVE GEAR, VAPOR SEPARATOR 1, VAPOR SEPARATOR 2, FUEL INJECTION PUMP, FUEL INJECTION NOZZLE, INTAKE, OIL PUMP, OIL TANK, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

190 linked store products are available across 42 catalog sections. 1594 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha LZ200NETO TOP COWLING parts diagram

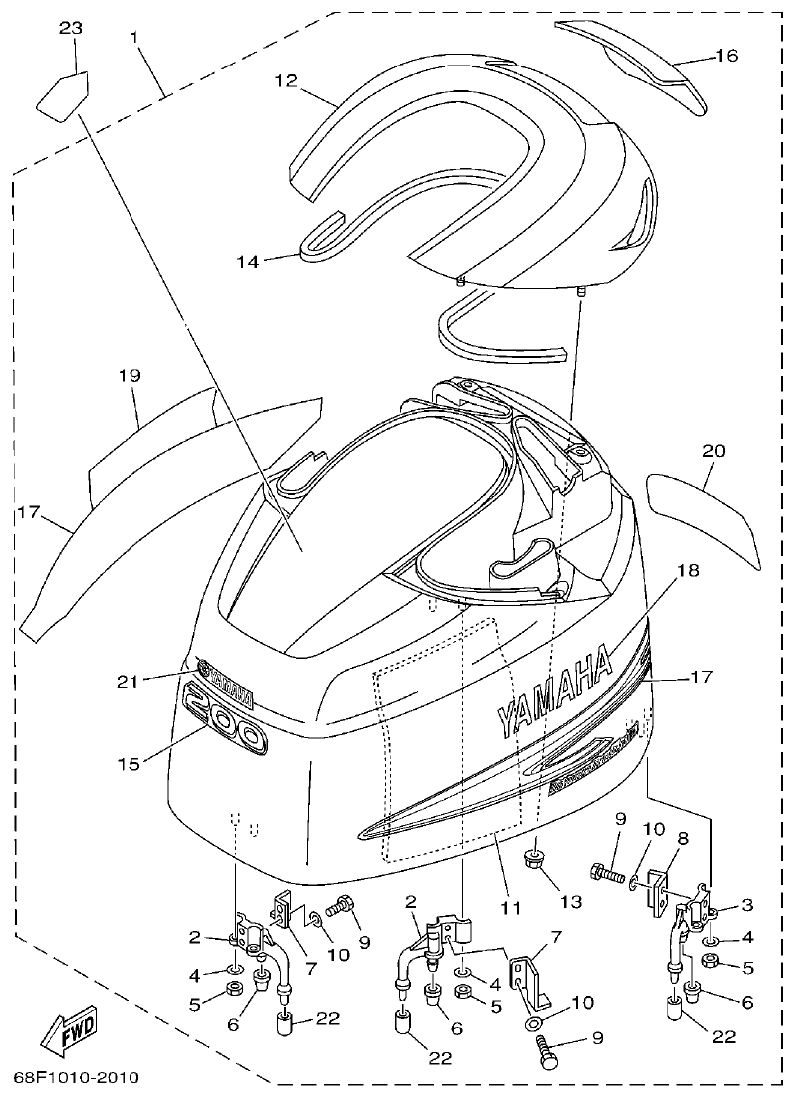

Fig. 1 — TOP COWLING
23 items
Yamaha LZ200NETO CYLINDER. CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER. CRANKCASE 1
38 items · 5 available products
Yamaha LZ200NETO CRANKSHAFT. PISTON parts diagram

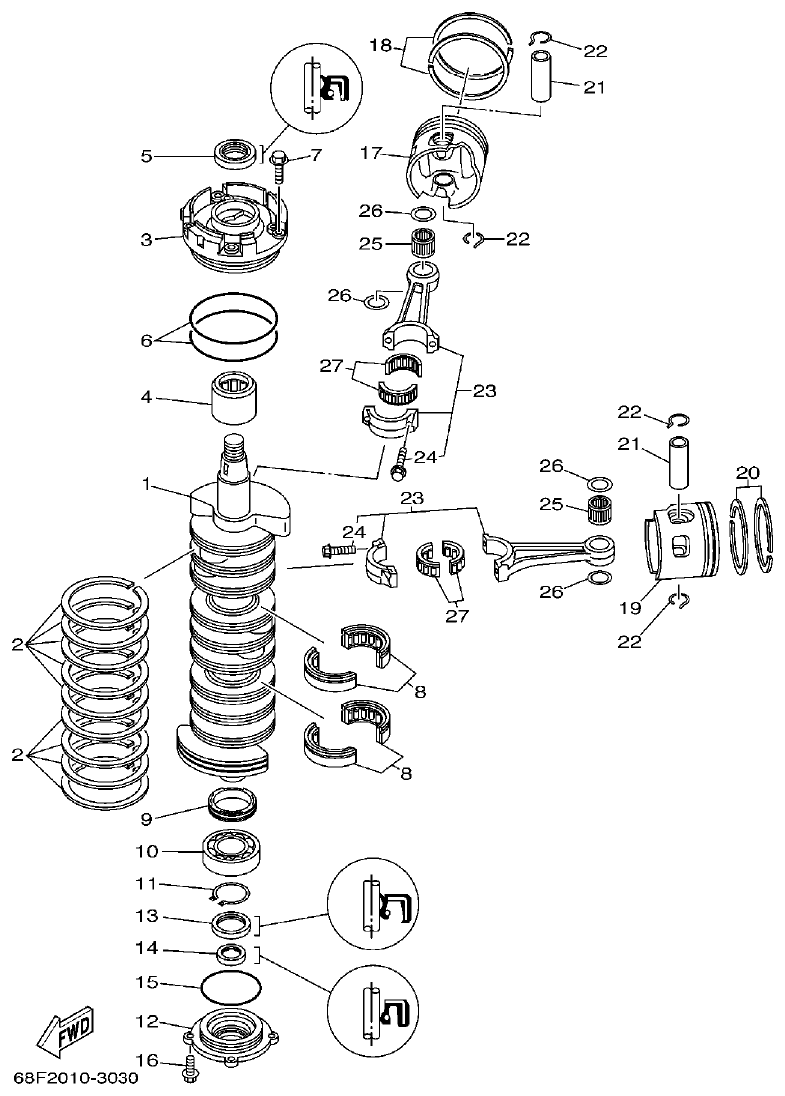

Fig. 3 — CRANKSHAFT. PISTON
36 items · 5 available products
Yamaha LZ200NETO CYLINDER. CRANKCASE 2 parts diagram

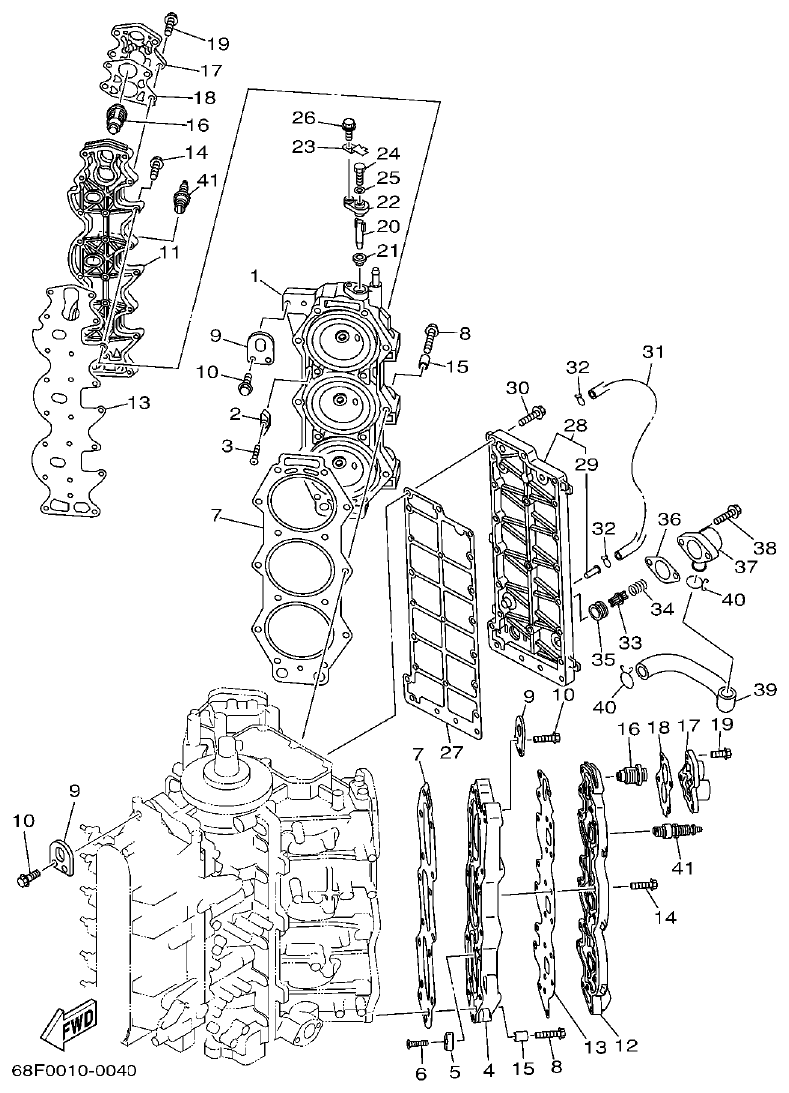

Fig. 4 — CYLINDER. CRANKCASE 2
41 items · 8 available products

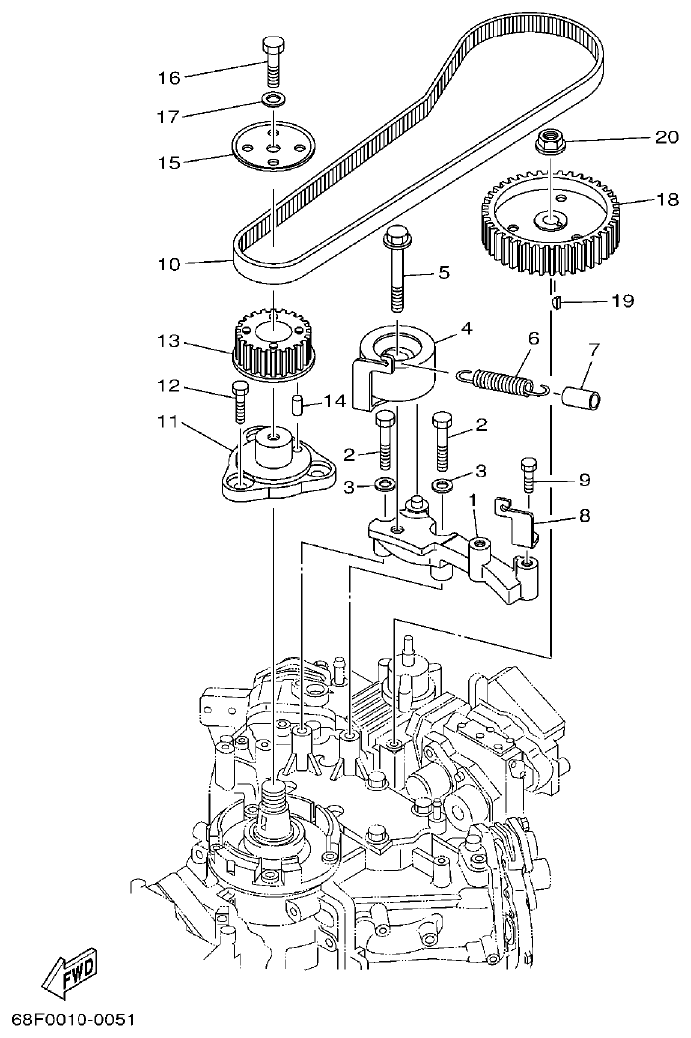

Yamaha LZ200NETO FUEL PUMP DRIVE GEAR parts diagram
Fig. 5 — FUEL PUMP DRIVE GEAR
20 items

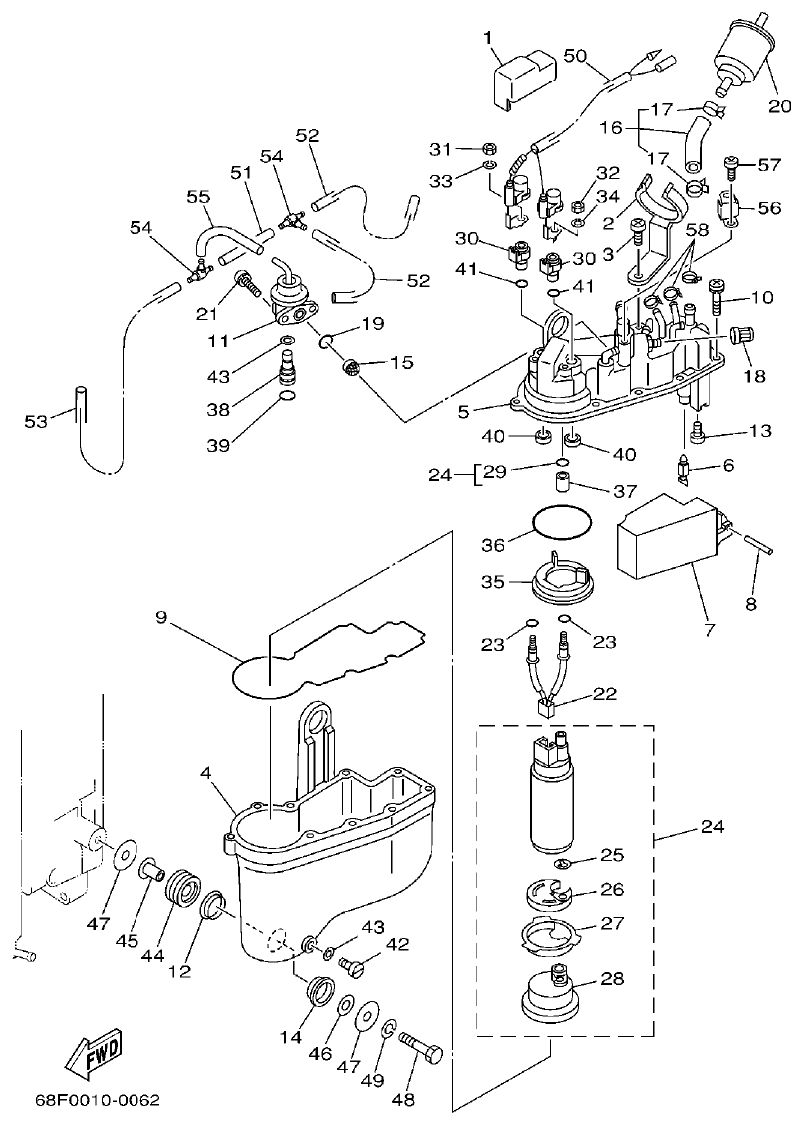

Yamaha LZ200NETO VAPOR SEPARATOR 1 parts diagram
Fig. 6 — VAPOR SEPARATOR 1
58 items

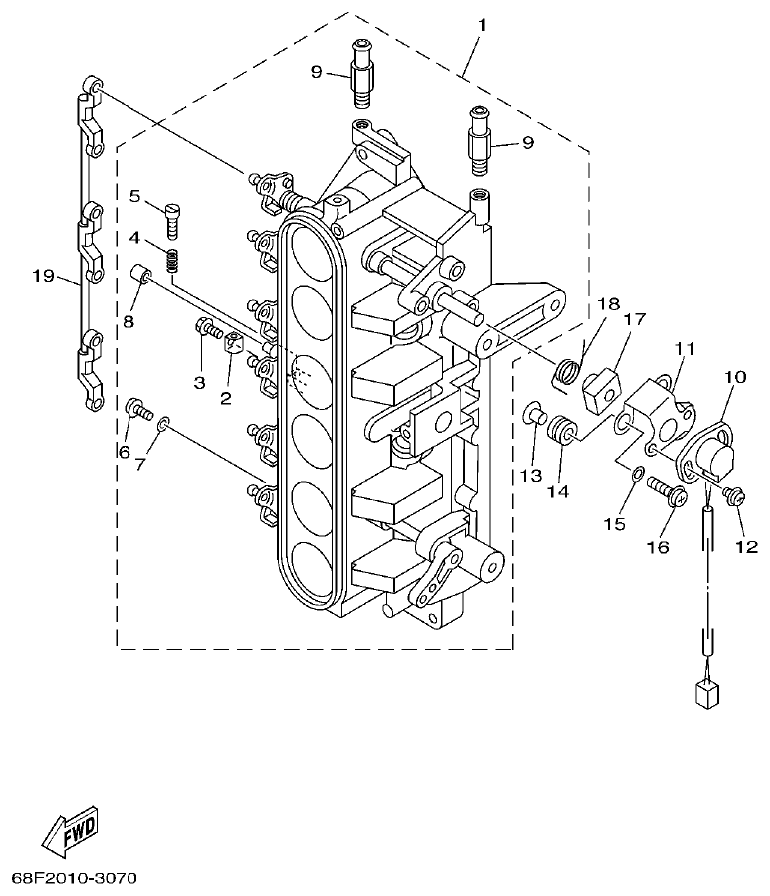

Yamaha LZ200NETO VAPOR SEPARATOR 2 parts diagram
Fig. 7 — VAPOR SEPARATOR 2
19 items · 1 available products
Yamaha LZ200NETO FUEL INJECTION PUMP parts diagram

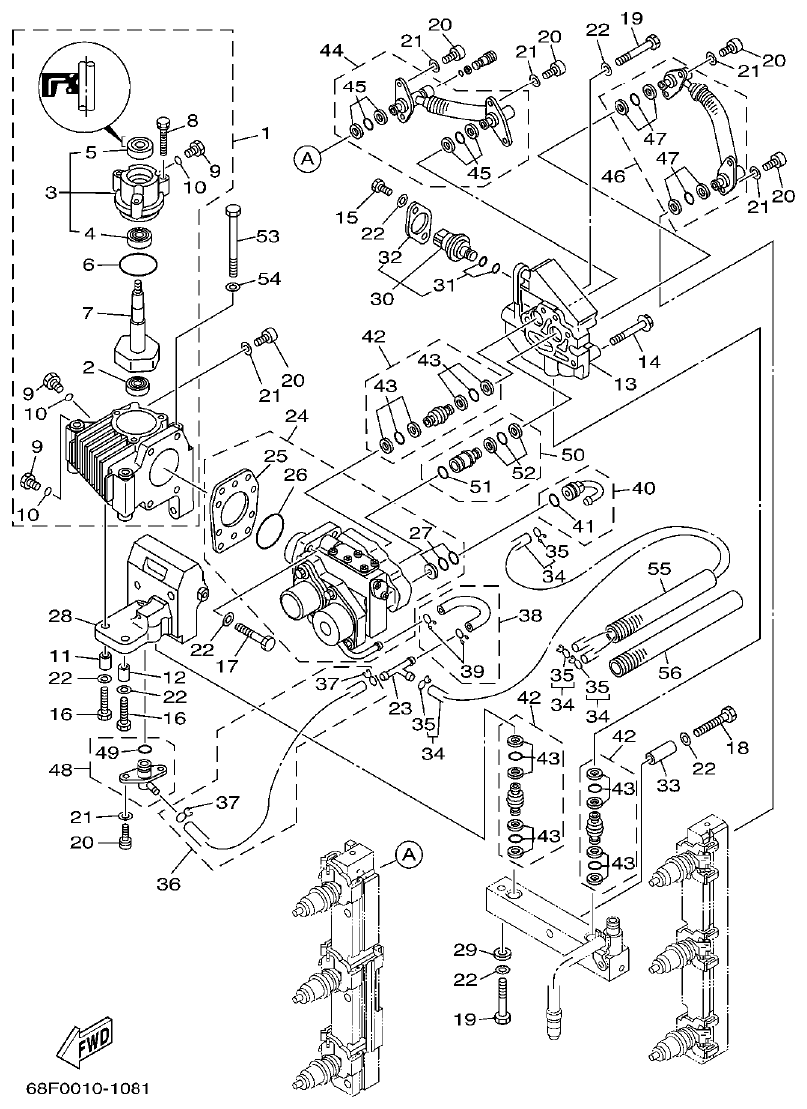

Fig. 8 — FUEL INJECTION PUMP
56 items · 1 available products

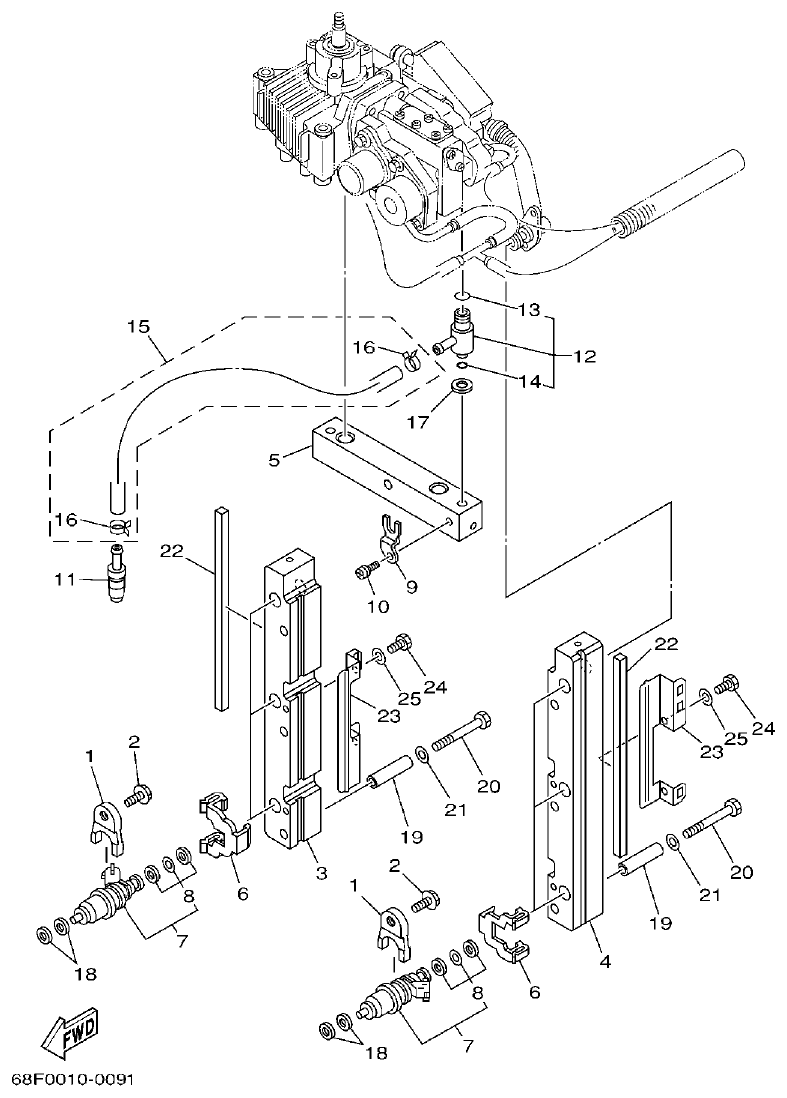

Yamaha LZ200NETO FUEL INJECTION NOZZLE parts diagram
Fig. 9 — FUEL INJECTION NOZZLE
25 items
Yamaha LZ200NETO INTAKE parts diagram

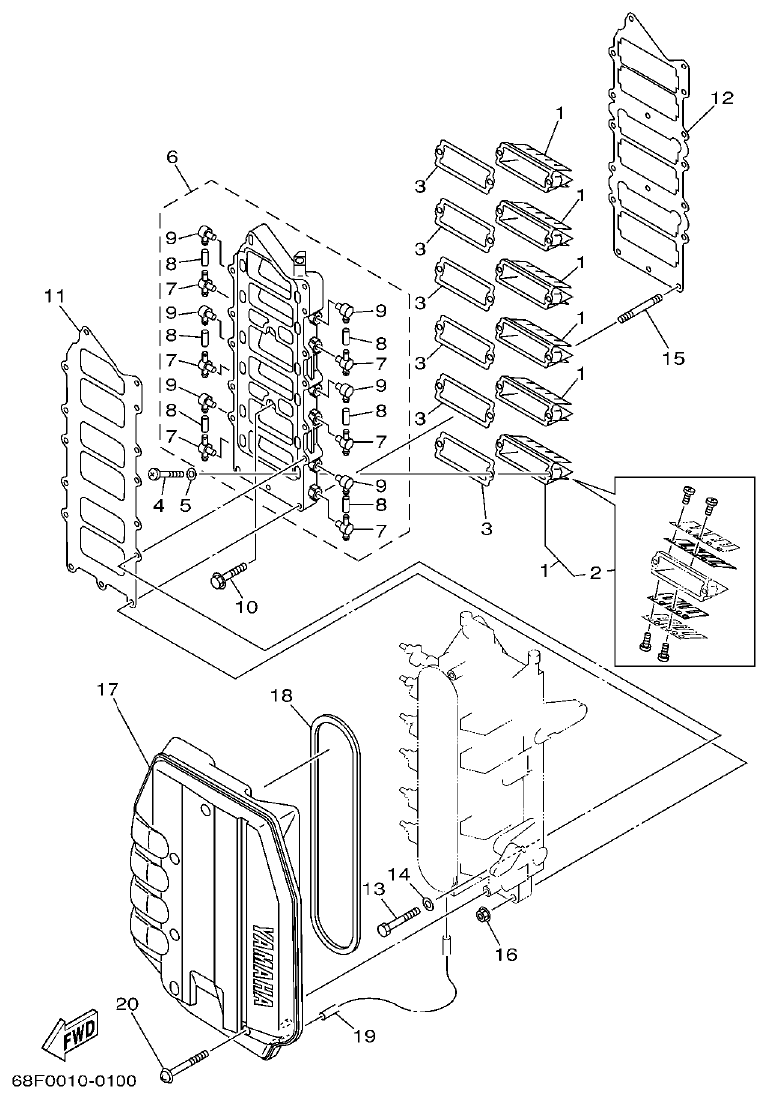

Fig. 10 — INTAKE
20 items · 1 available products
Yamaha LZ200NETO OIL PUMP parts diagram

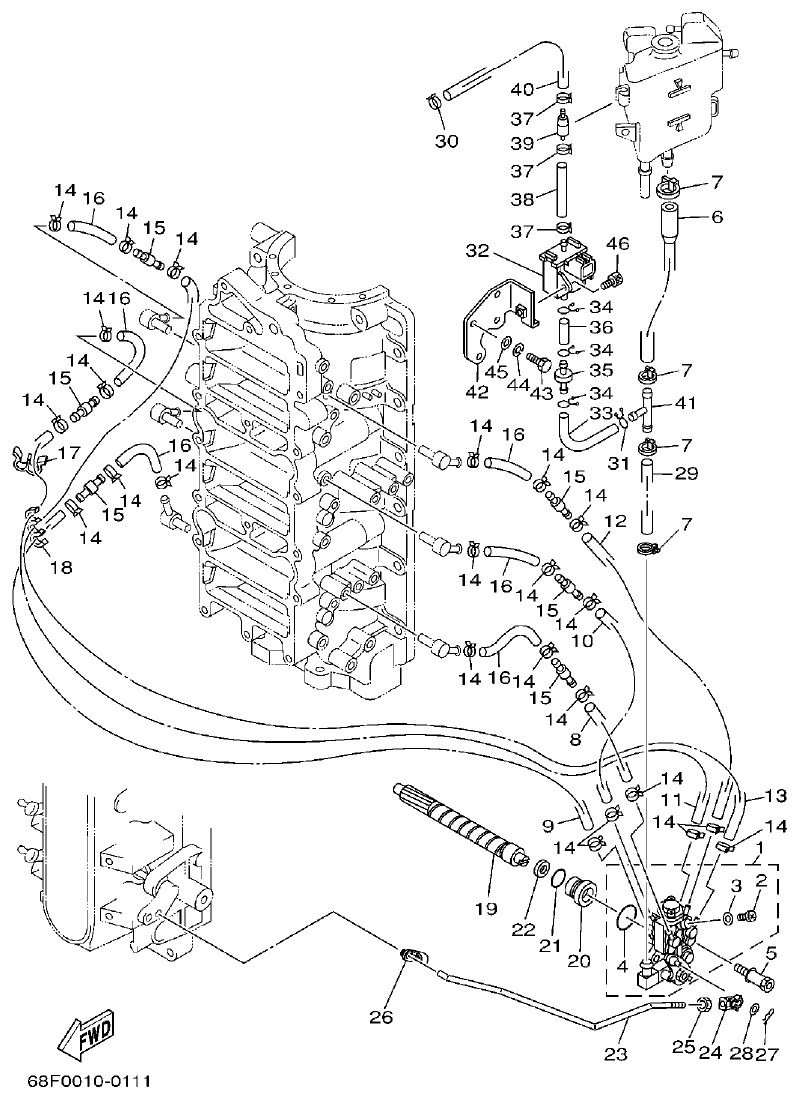

Fig. 11 — OIL PUMP
46 items · 2 available products
Yamaha LZ200NETO OIL TANK parts diagram

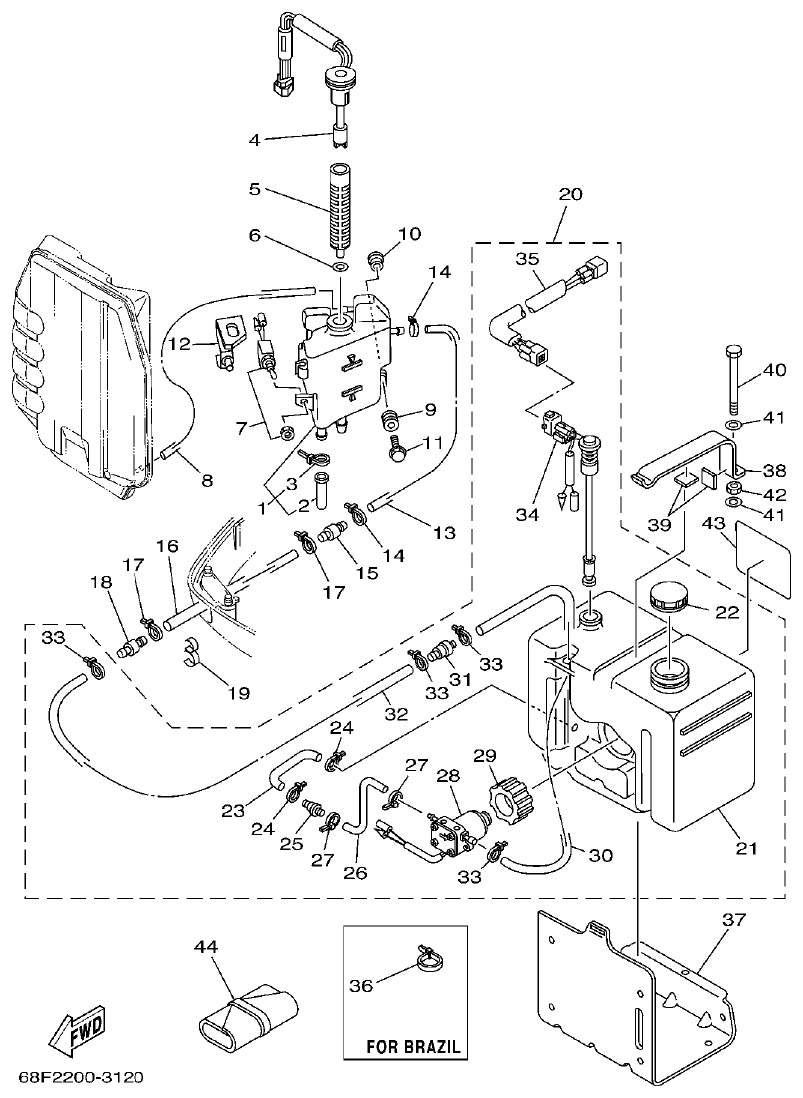

Fig. 12 — OIL TANK
49 items · 2 available products
Yamaha LZ200NETO FUEL 1 parts diagram

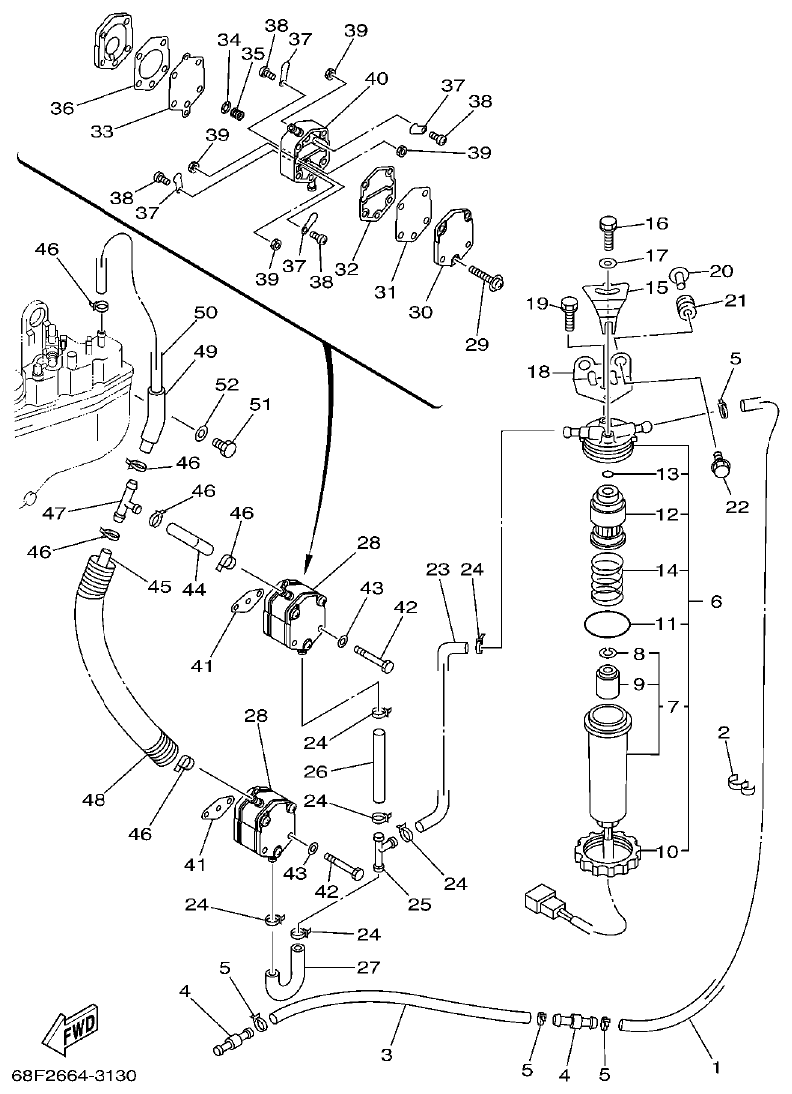

Fig. 13 — FUEL 1
53 items · 7 available products
Yamaha LZ200NETO FUEL 2 parts diagram

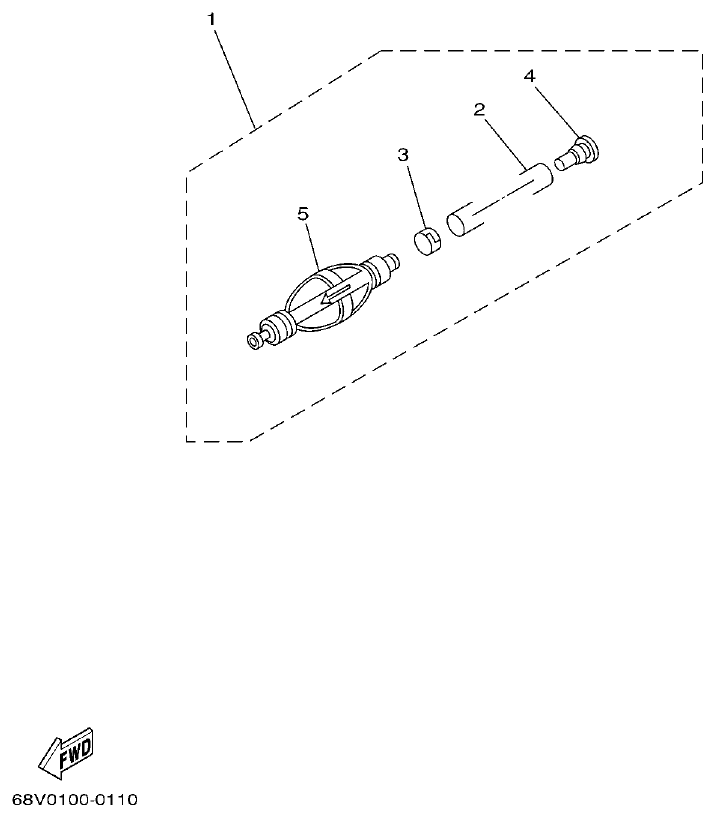

Fig. 14 — FUEL 2
5 items · 2 available products
Yamaha LZ200NETO GENERATOR parts diagram

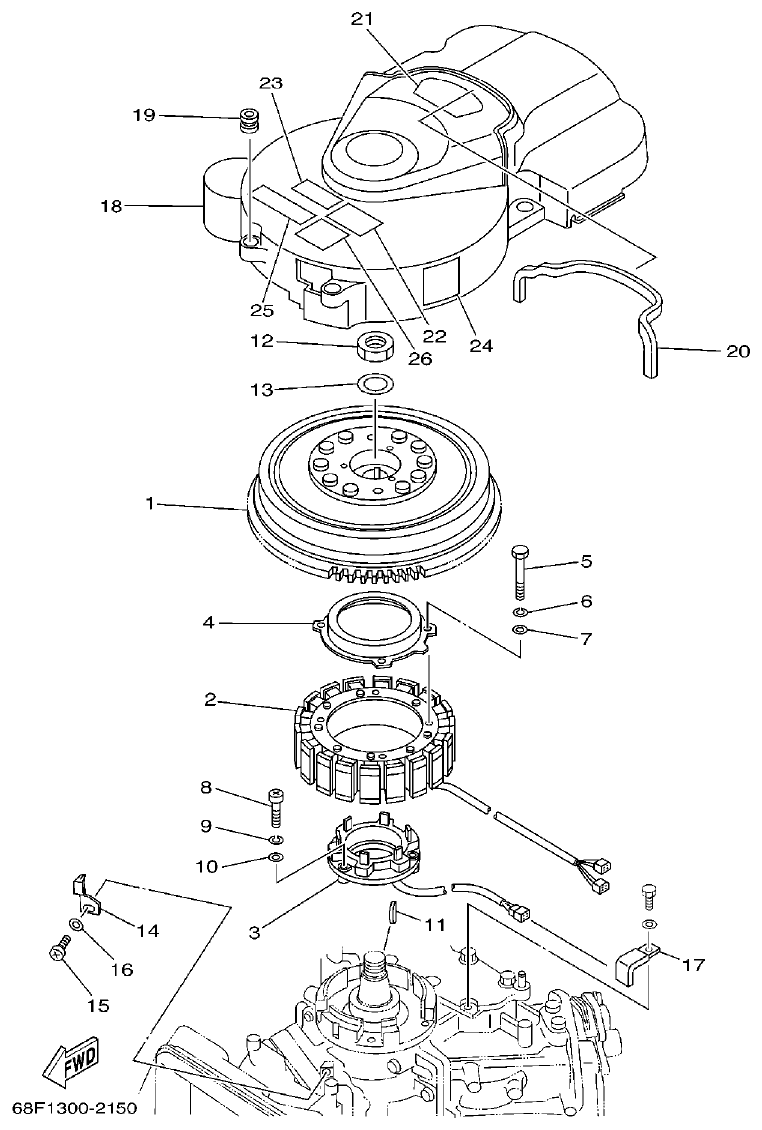

Fig. 15 — GENERATOR
26 items

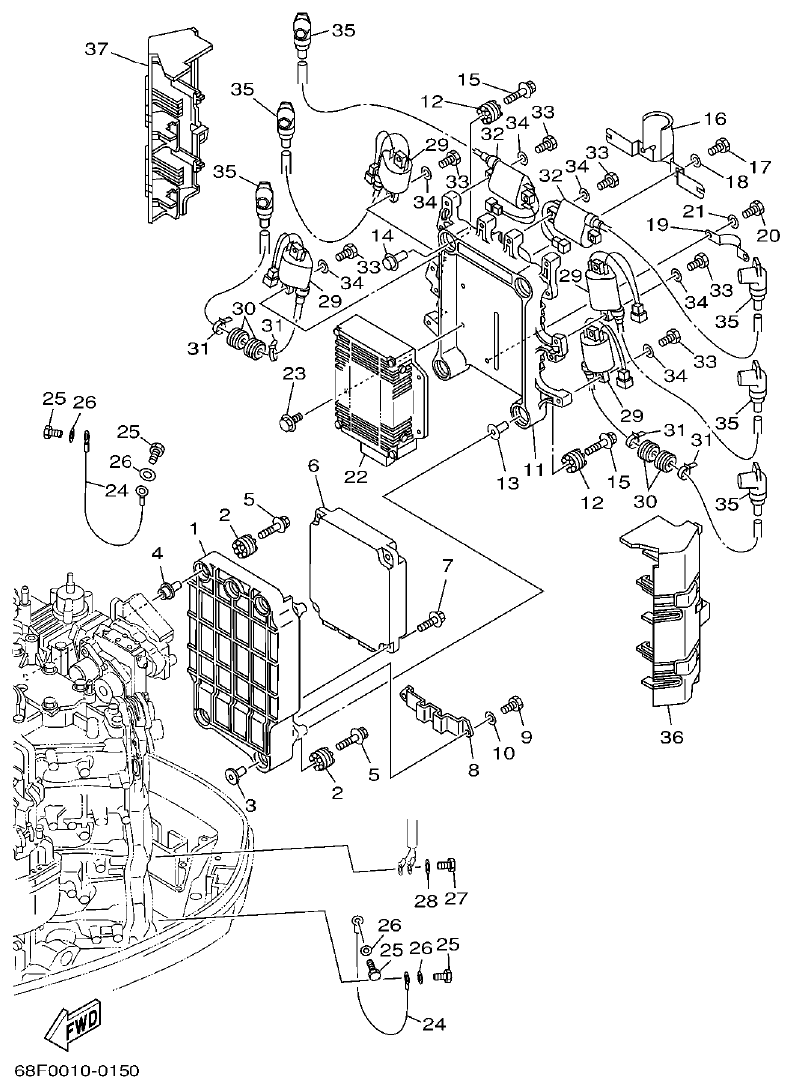

Yamaha LZ200NETO ELECTRICAL 1 parts diagram
Fig. 16 — ELECTRICAL 1
40 items · 1 available products

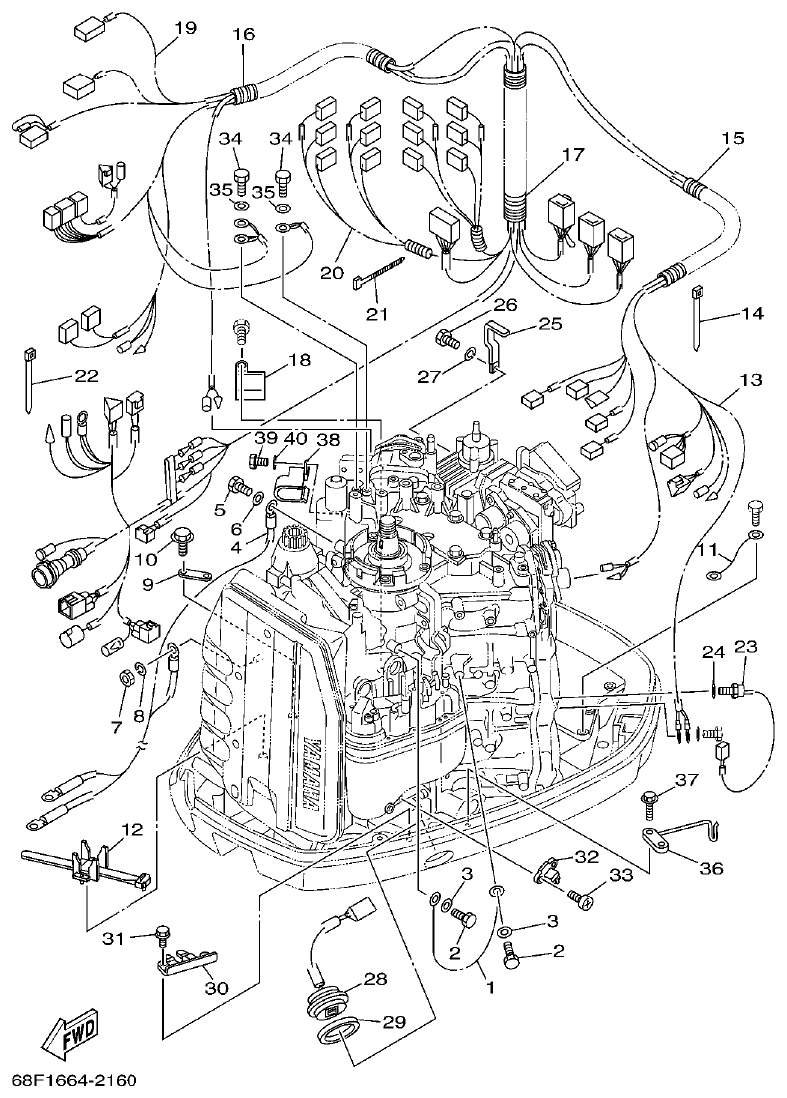

Yamaha LZ200NETO ELECTRICAL 2 parts diagram
Fig. 17 — ELECTRICAL 2
42 items · 2 available products

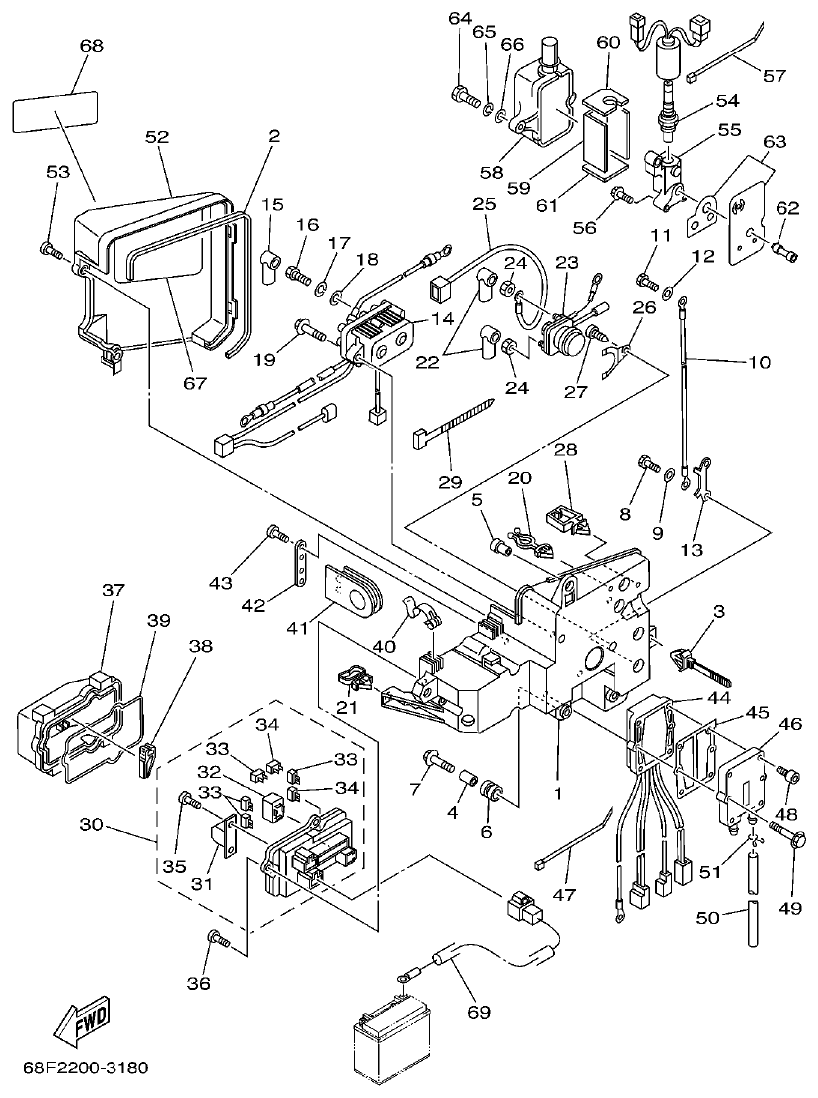

Yamaha LZ200NETO ELECTRICAL 3 parts diagram
Fig. 18 — ELECTRICAL 3
69 items · 5 available products

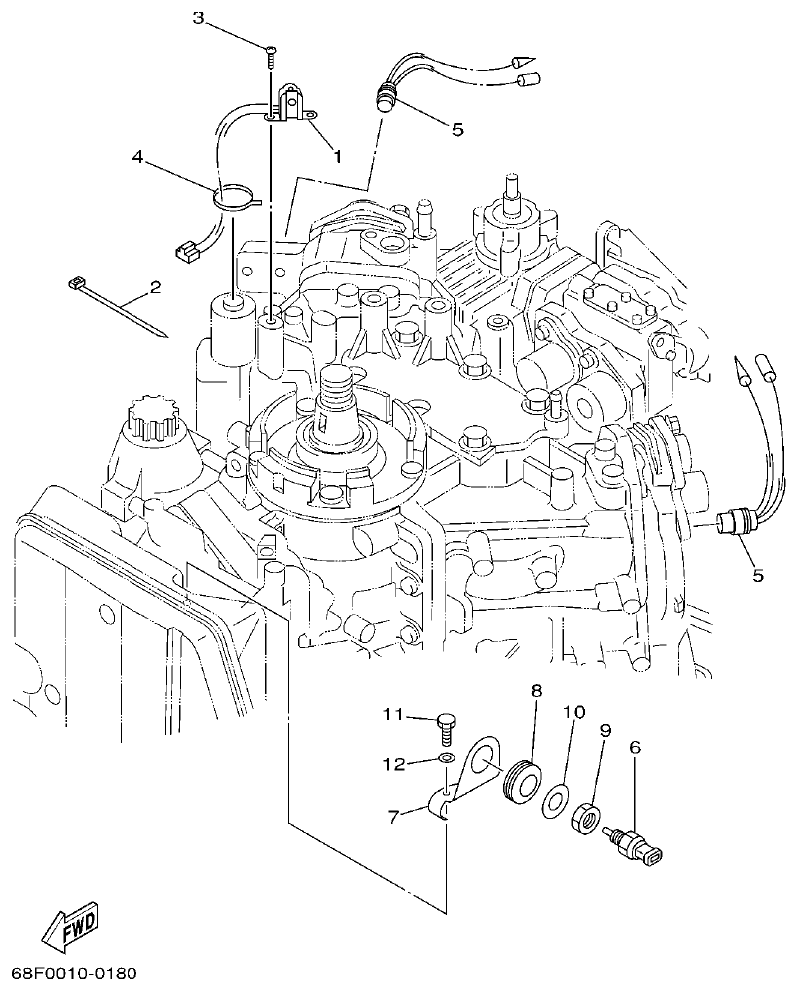

Yamaha LZ200NETO ELECTRICAL 4 parts diagram
Fig. 19 — ELECTRICAL 4
12 items · 2 available products

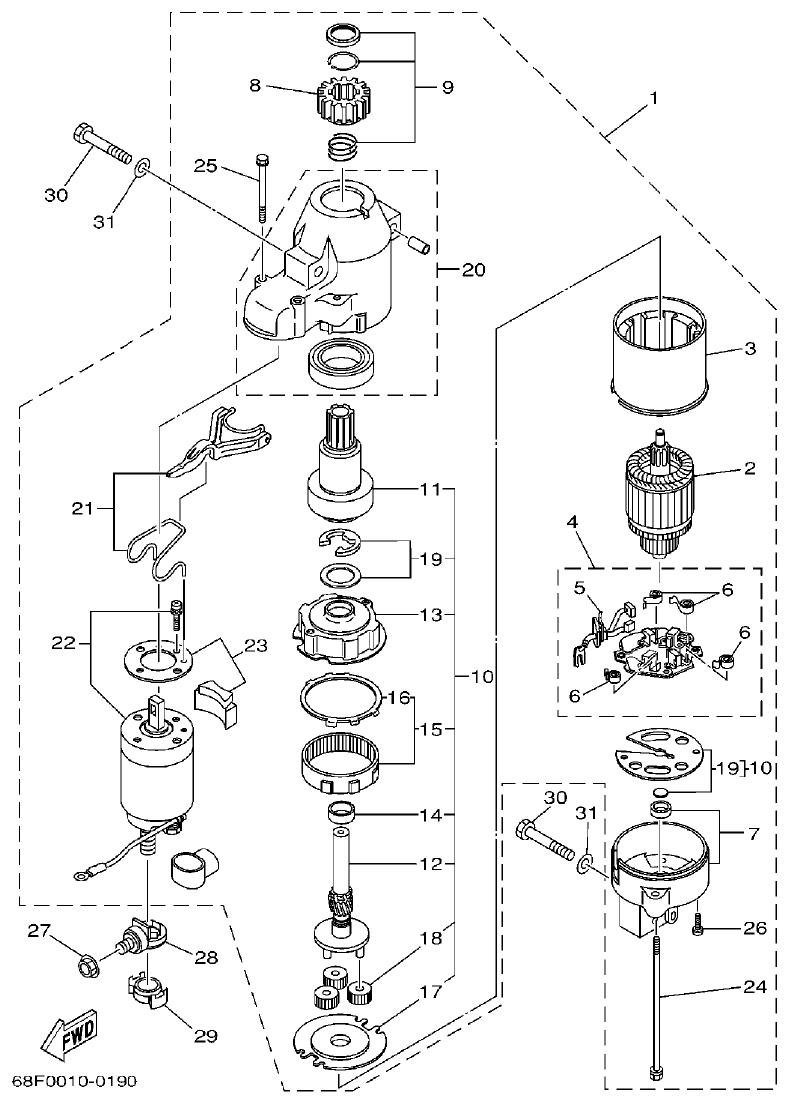

Yamaha LZ200NETO STARTING MOTOR parts diagram
Fig. 20 — STARTING MOTOR
31 items · 3 available products
Yamaha LZ200NETO BOTTOM COWLING parts diagram

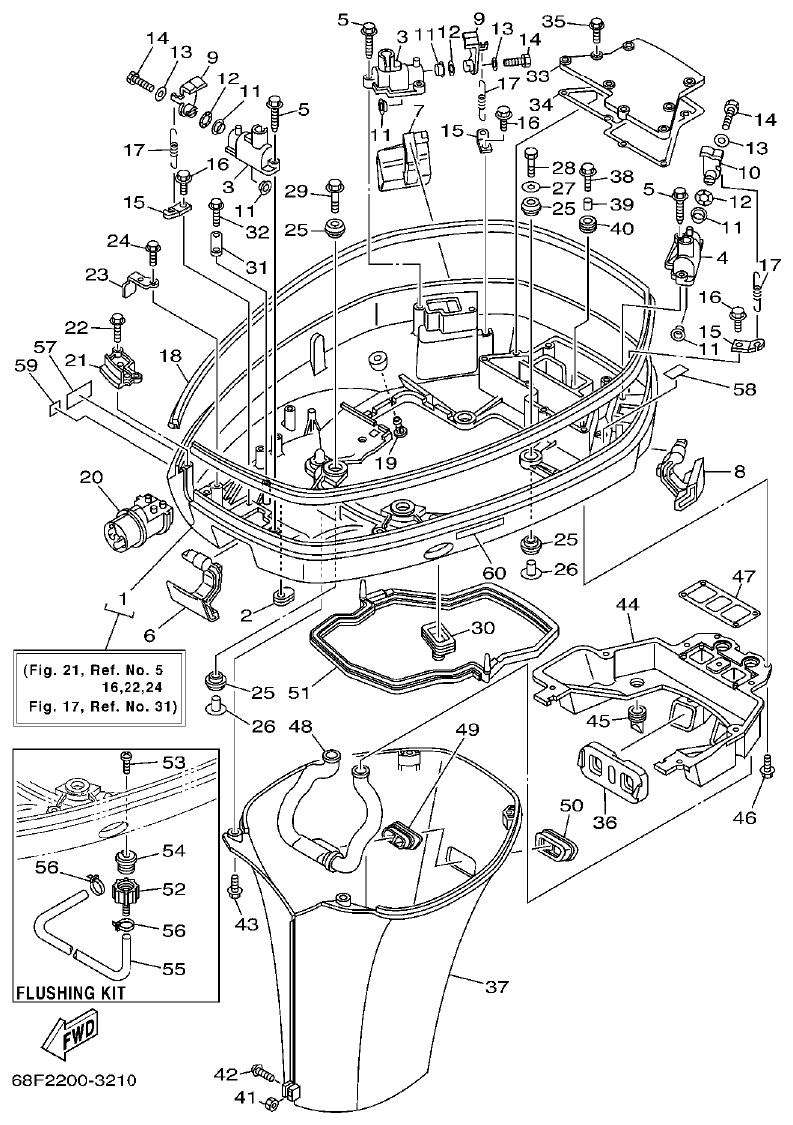

Fig. 21 — BOTTOM COWLING
63 items · 3 available products
Yamaha LZ200NETO CONTROL parts diagram

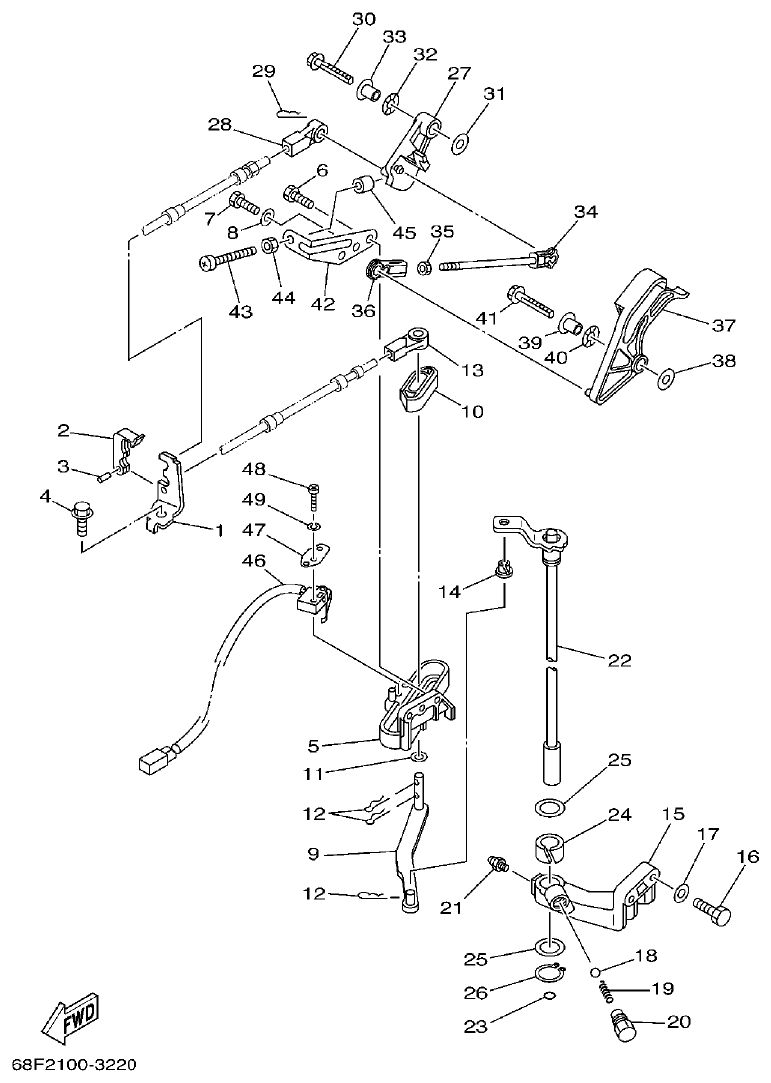

Fig. 22 — CONTROL
50 items · 4 available products
Yamaha LZ200NETO BRACKET 1 parts diagram

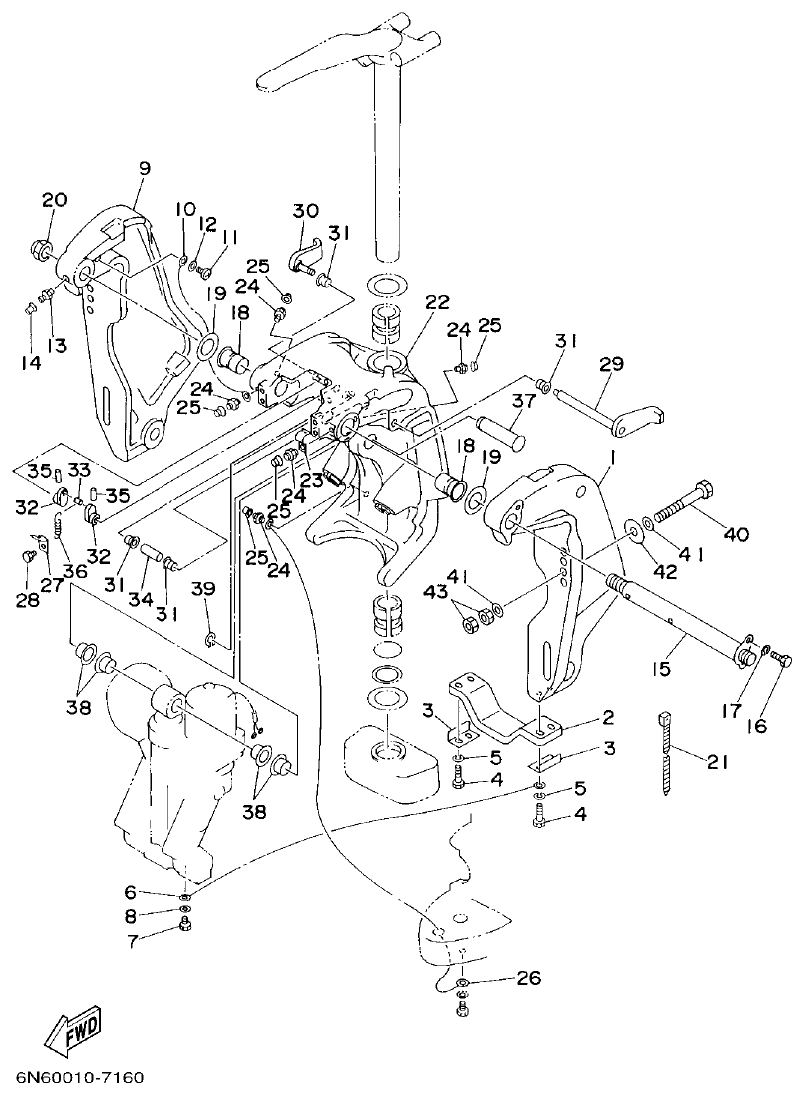

Fig. 23 — BRACKET 1
45 items · 10 available products
Yamaha LZ200NETO BRACKET 2 parts diagram
Fig. 24 — BRACKET 2
42 items · 2 available products
Yamaha LZ200NETO POWER TRIM & TILT ASSY 1 parts diagram

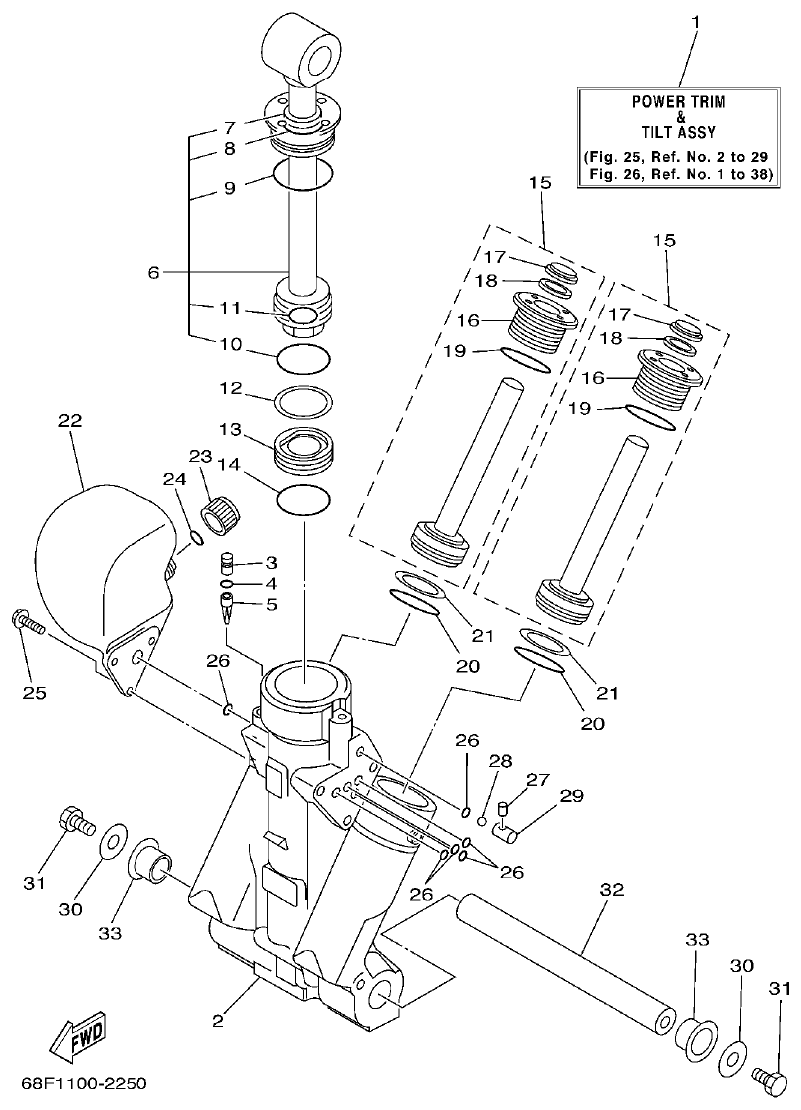

Fig. 25 — POWER TRIM & TILT ASSY 1
33 items · 8 available products

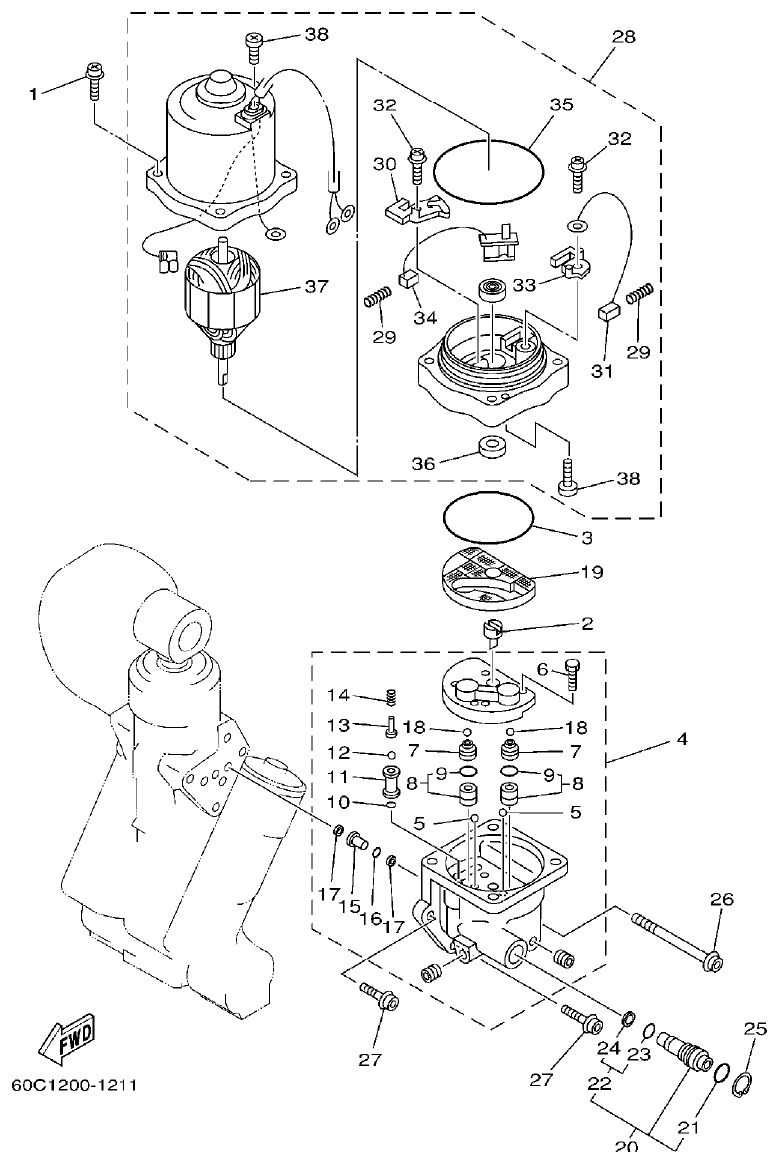

Yamaha LZ200NETO POWER TRIM & TILT ASSY 2 parts diagram
Fig. 26 — POWER TRIM & TILT ASSY 2
38 items · 9 available products

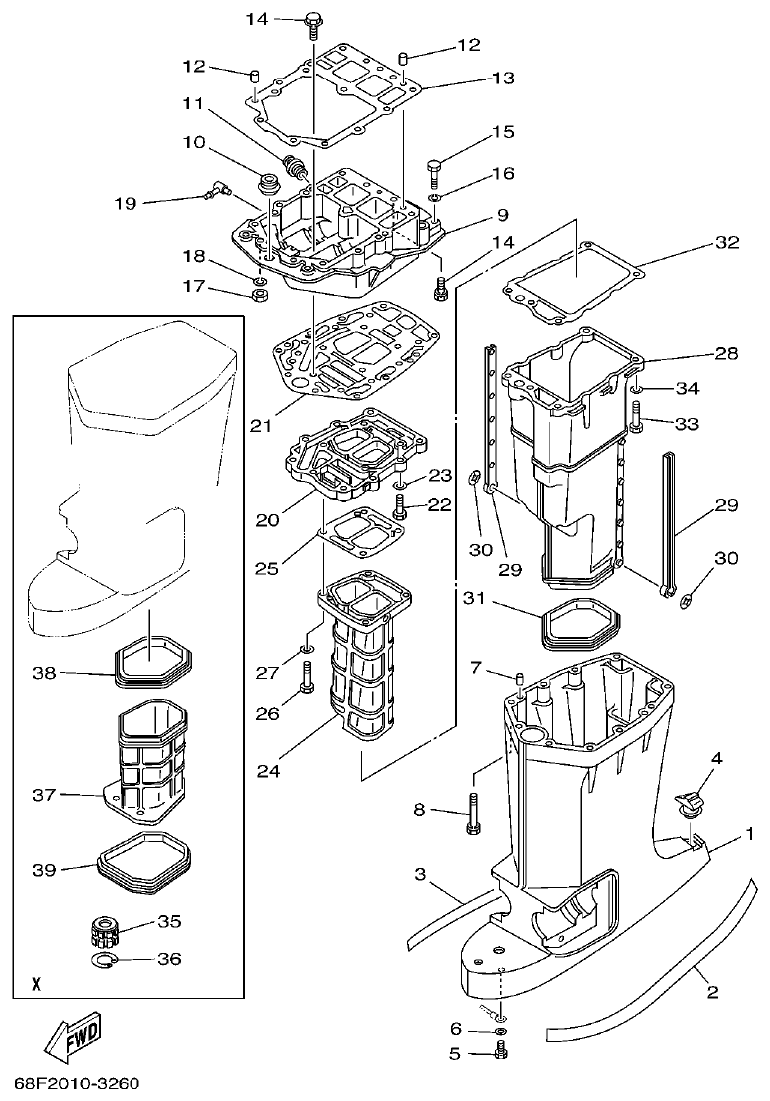

Yamaha LZ200NETO UPPER CASING parts diagram
Fig. 27 — UPPER CASING
44 items · 11 available products

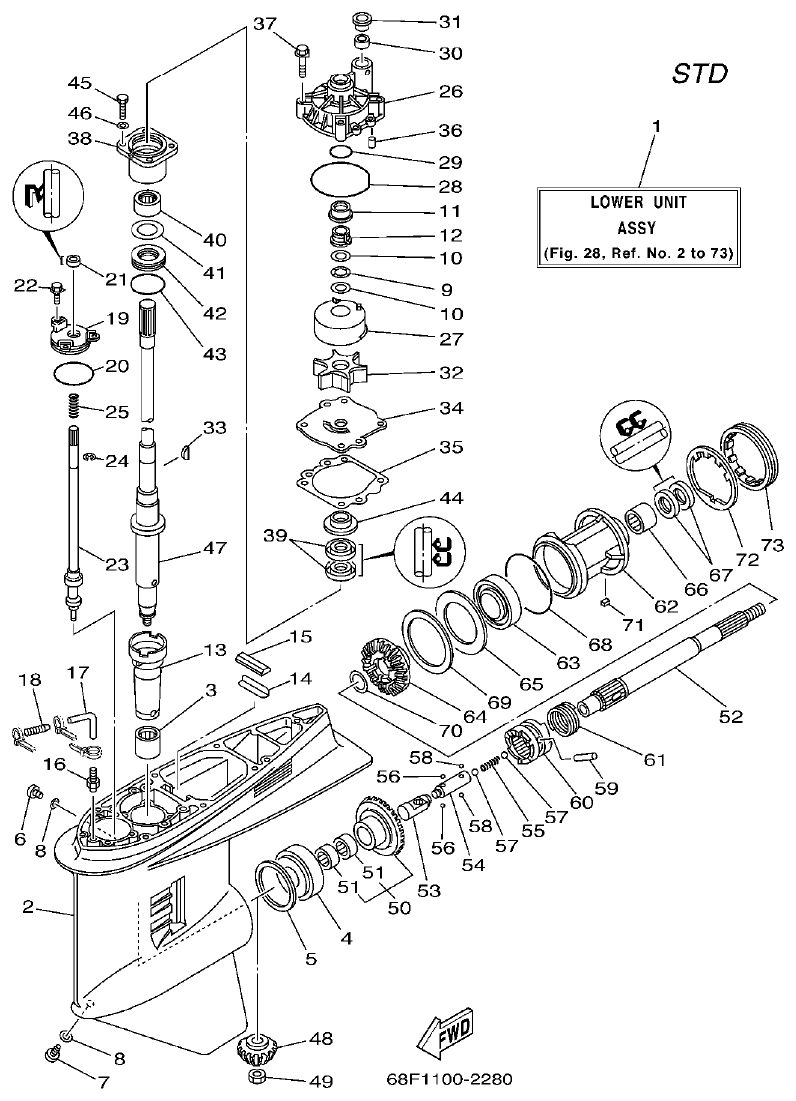

Yamaha LZ200NETO LOWER CASING. DRIVE 1 parts diagram
Fig. 28 — LOWER CASING. DRIVE 1
95 items · 22 available products
Yamaha LZ200NETO LOWER CASING. DRIVE 2 parts diagram

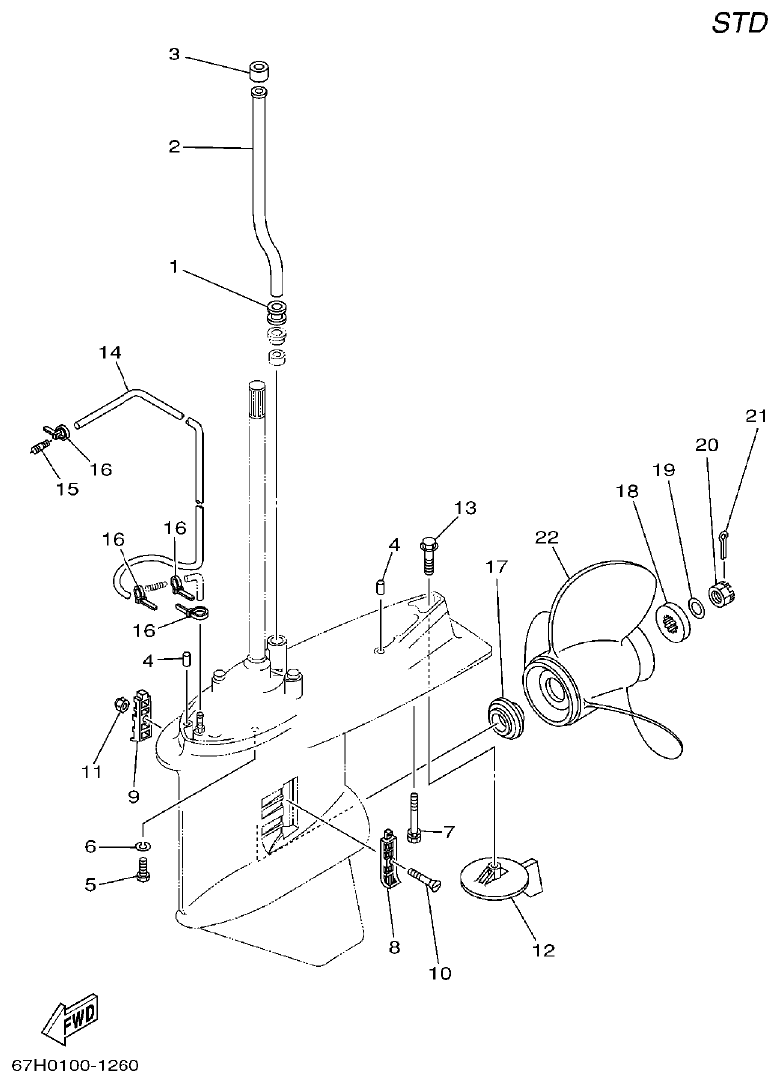

Fig. 29 — LOWER CASING. DRIVE 2
40 items · 8 available products
Yamaha LZ200NETO LOWER CASING. DRIVE 3 parts diagram

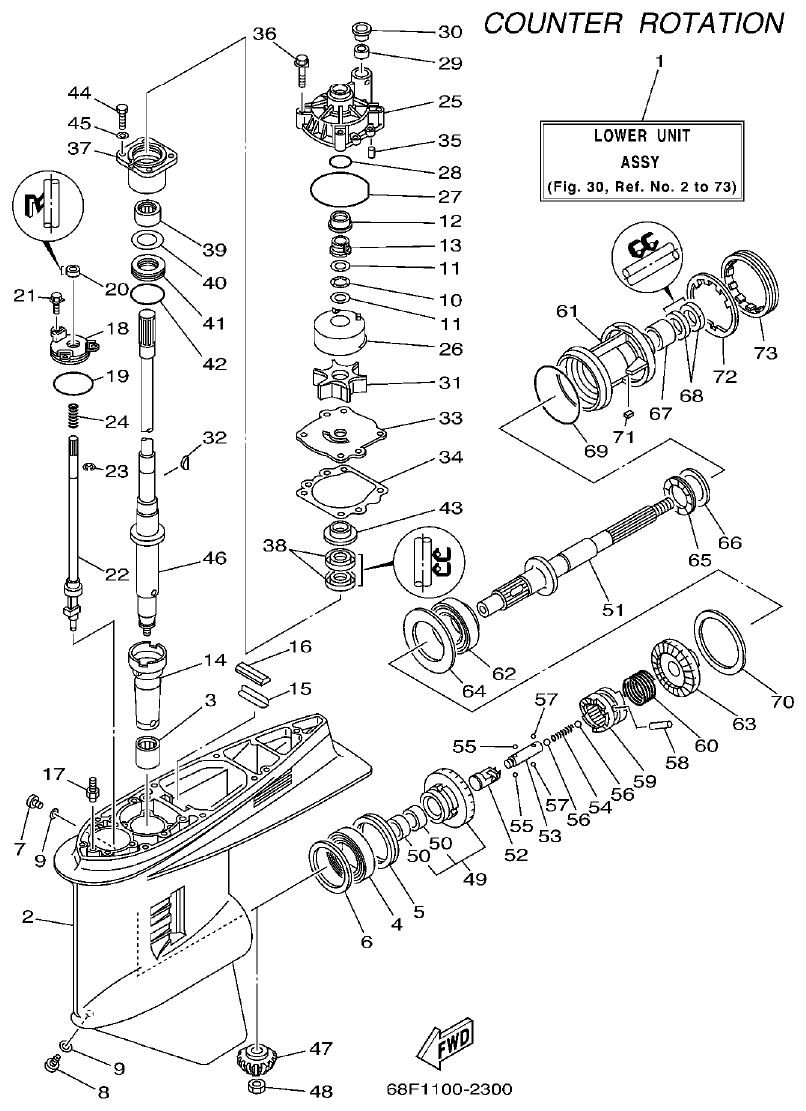

Fig. 30 — LOWER CASING. DRIVE 3
97 items · 21 available products
Yamaha LZ200NETO LOWER CASING. DRIVE 4 parts diagram

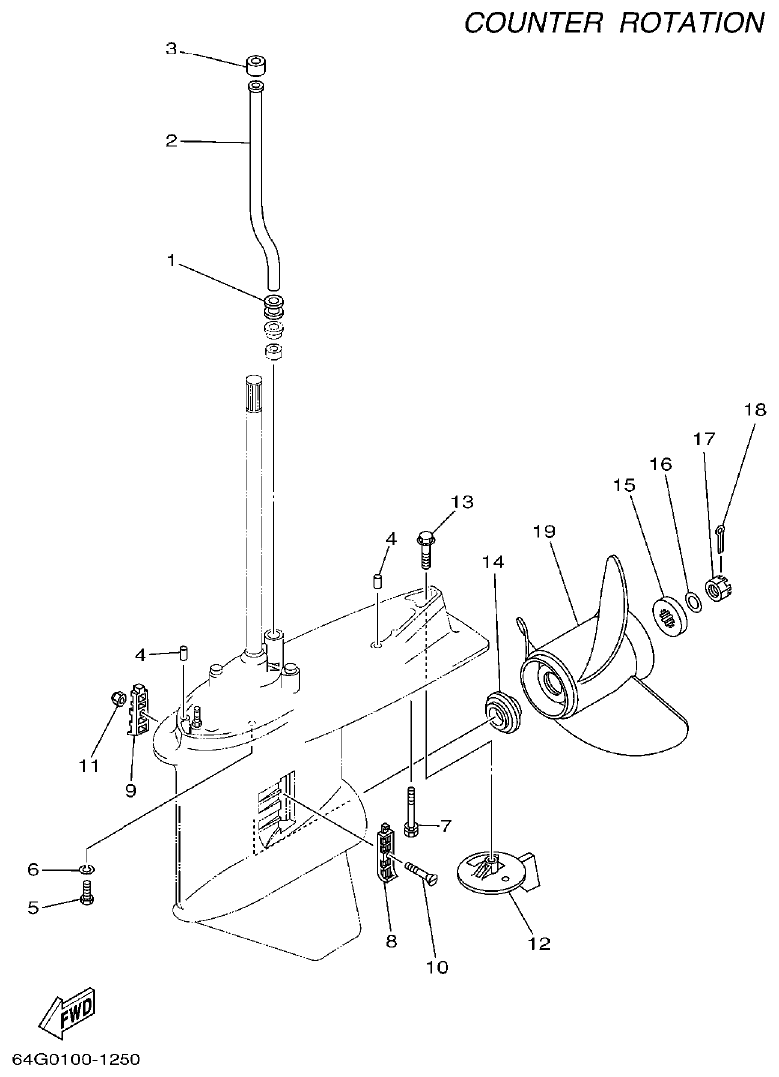

Fig. 31 — LOWER CASING. DRIVE 4
27 items · 6 available products

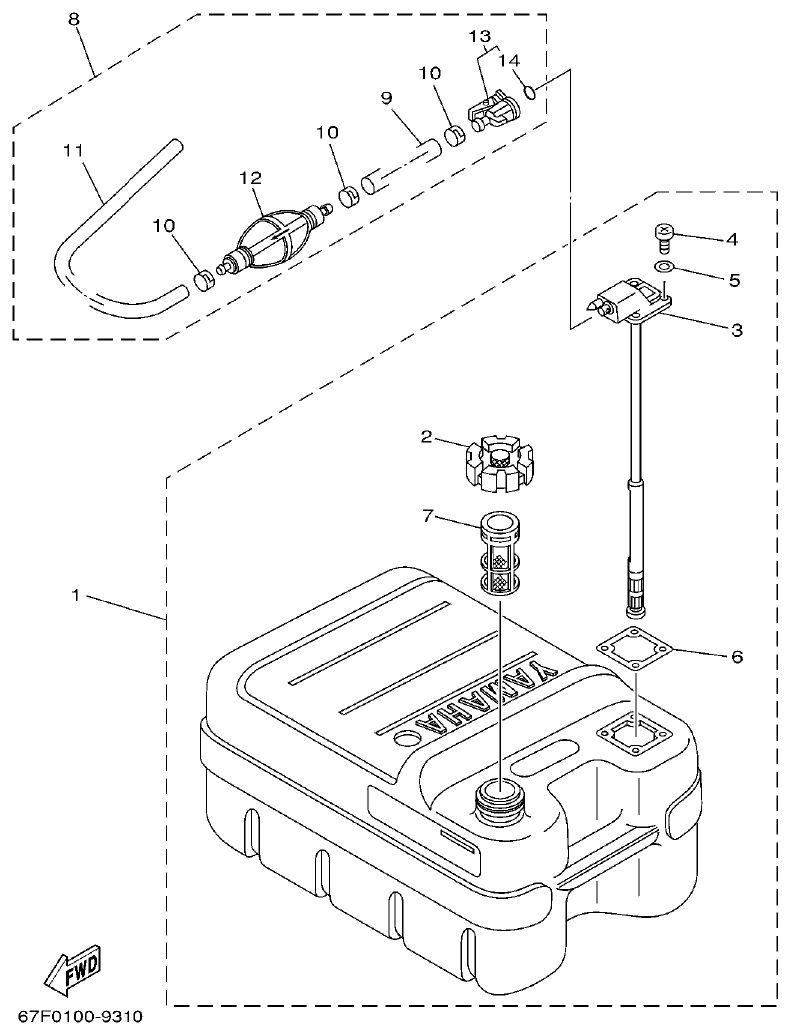

Yamaha LZ200NETO FUEL TANK parts diagram
Fig. 32 — FUEL TANK
14 items · 3 available products
Yamaha LZ200NETO STEERING GUIDE ATTACHMENT 1 parts diagram

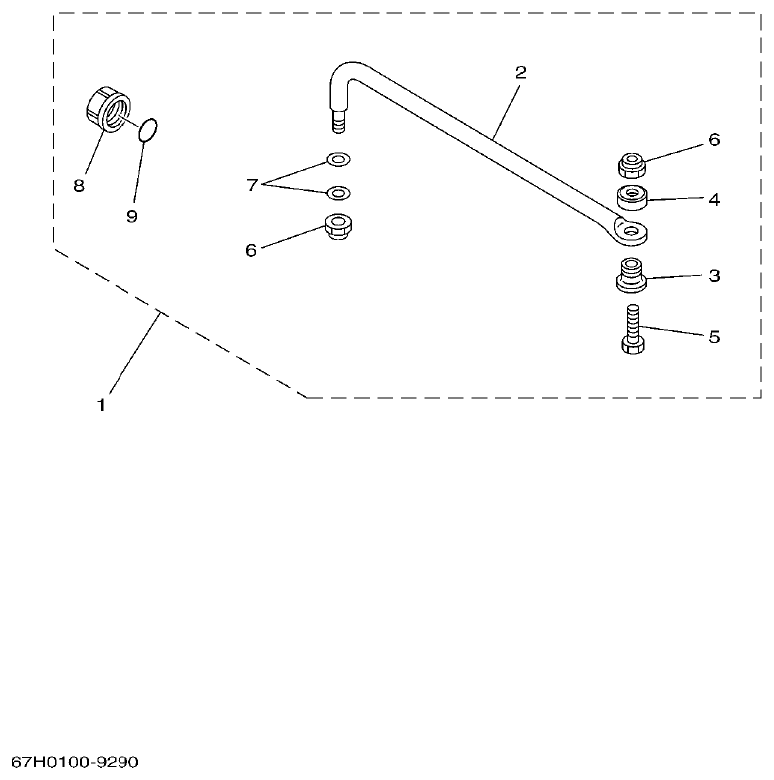

Fig. 33 — STEERING GUIDE ATTACHMENT 1
9 items · 2 available products

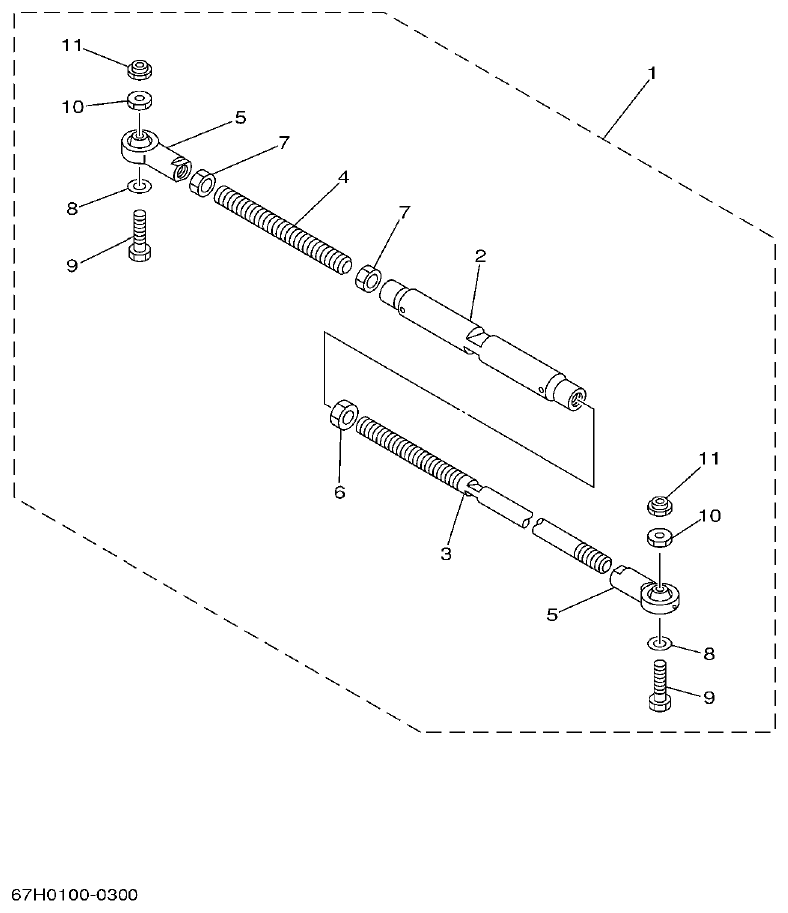

Yamaha LZ200NETO STEERING GUIDE ATTACHMENT 2 parts diagram
Fig. 34 — STEERING GUIDE ATTACHMENT 2
11 items · 1 available products
Yamaha LZ200NETO REMOTE CONTROL BOX parts diagram

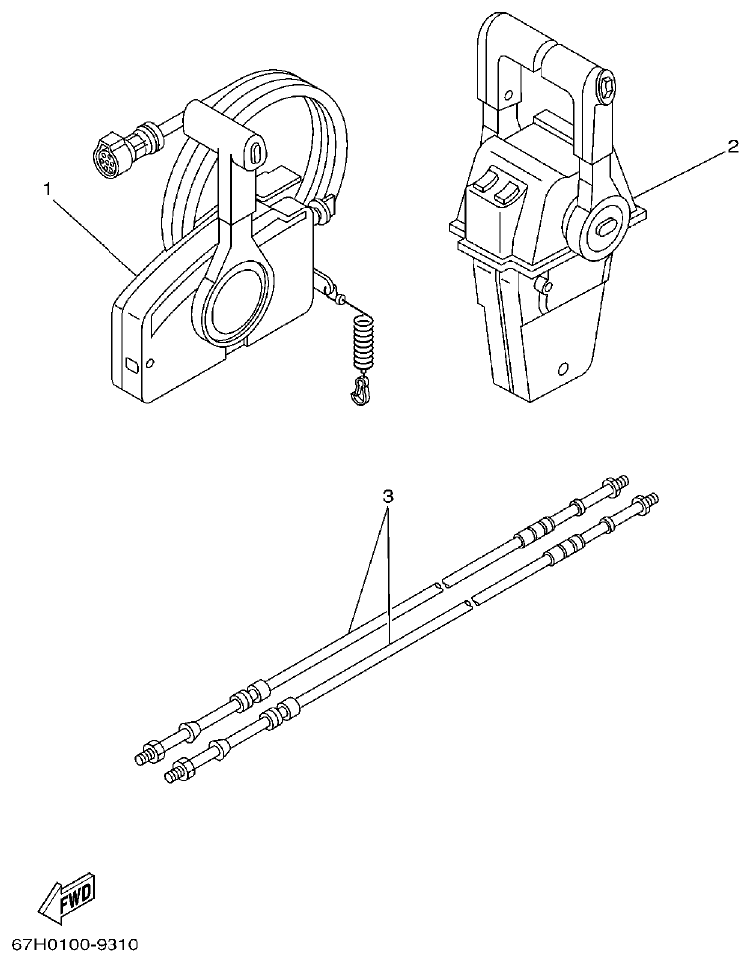

Fig. 35 — REMOTE CONTROL BOX
4 items
Yamaha LZ200NETO REMOTE CONTROL ASSY 1 parts diagram

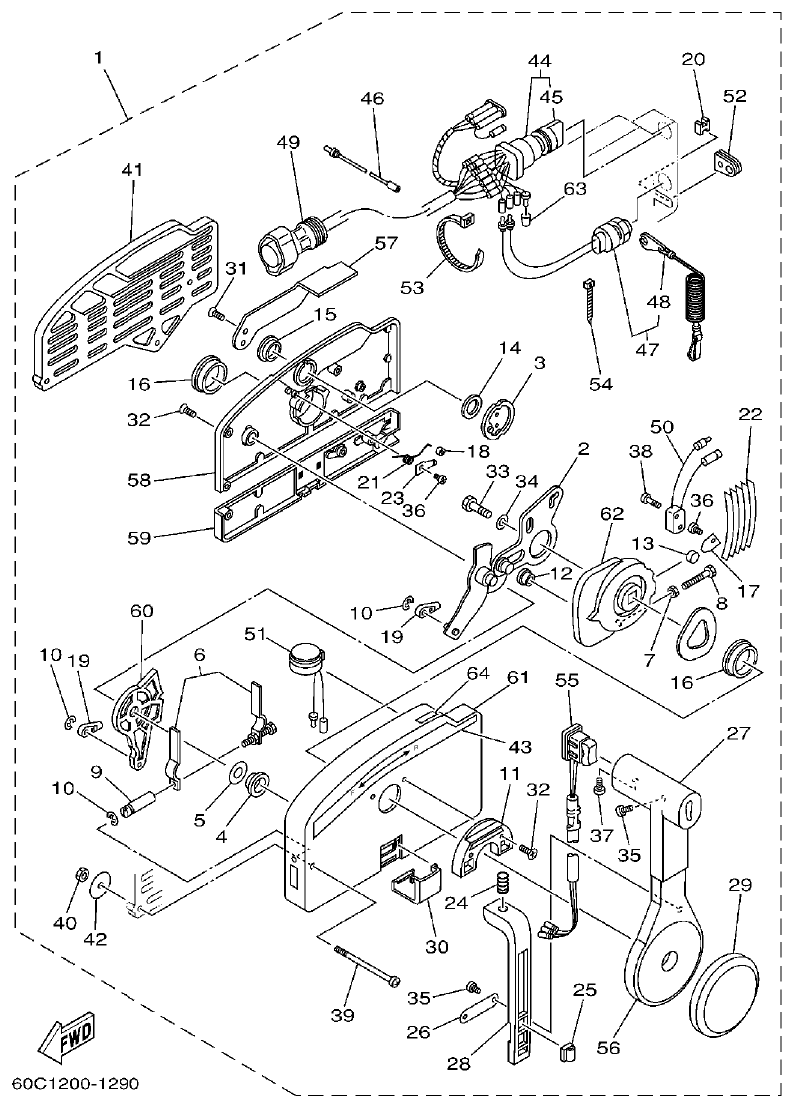

Fig. 36 — REMOTE CONTROL ASSY 1
70 items · 12 available products
Yamaha LZ200NETO REMOTE CONTROL ASSY 2 parts diagram
Fig. 37 — REMOTE CONTROL ASSY 2
78 items · 2 available products
Yamaha LZ200NETO METER parts diagram

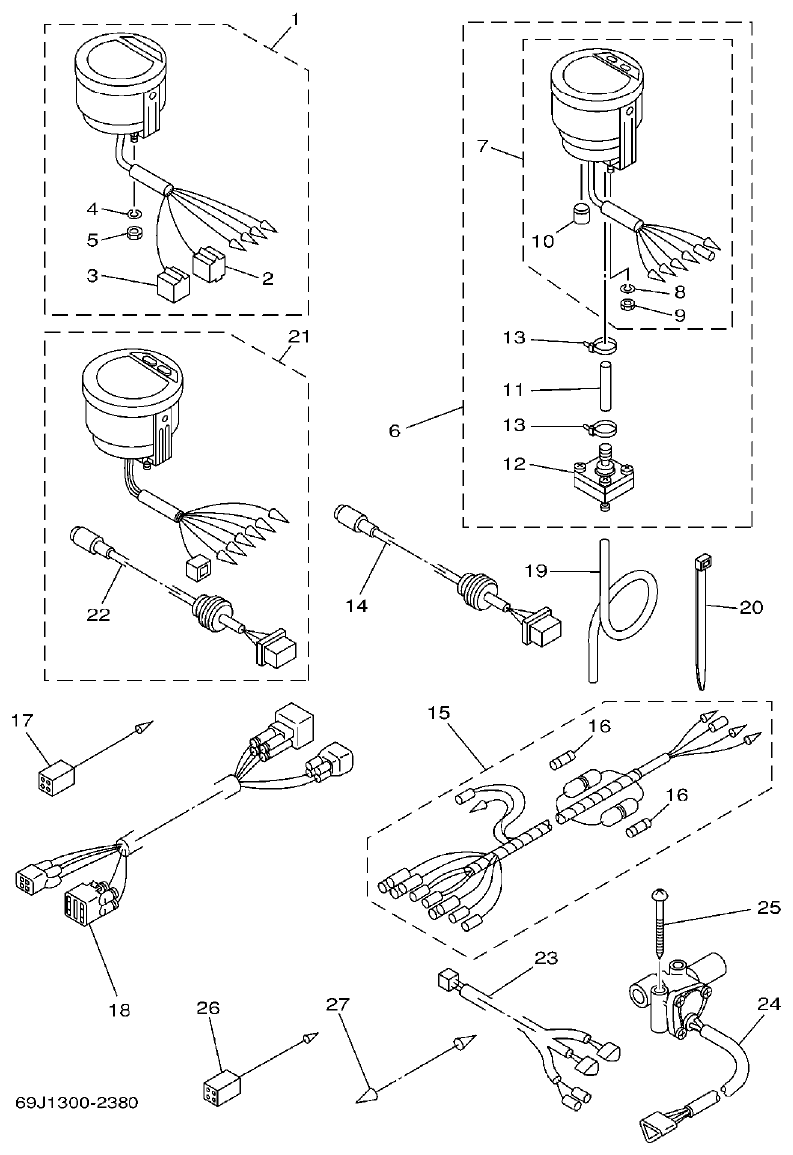

Fig. 38 — METER
31 items · 2 available products
Yamaha LZ200NETO SWITCH. PANEL 1 parts diagram

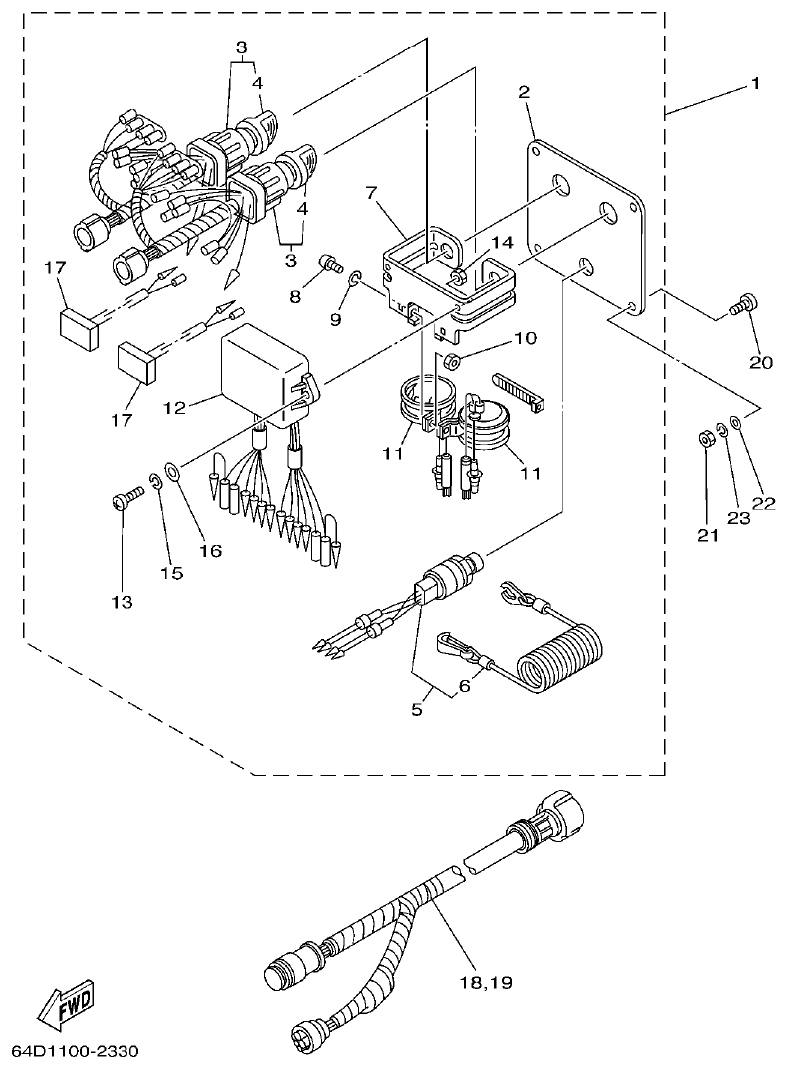

Fig. 39 — SWITCH. PANEL 1
23 items · 2 available products

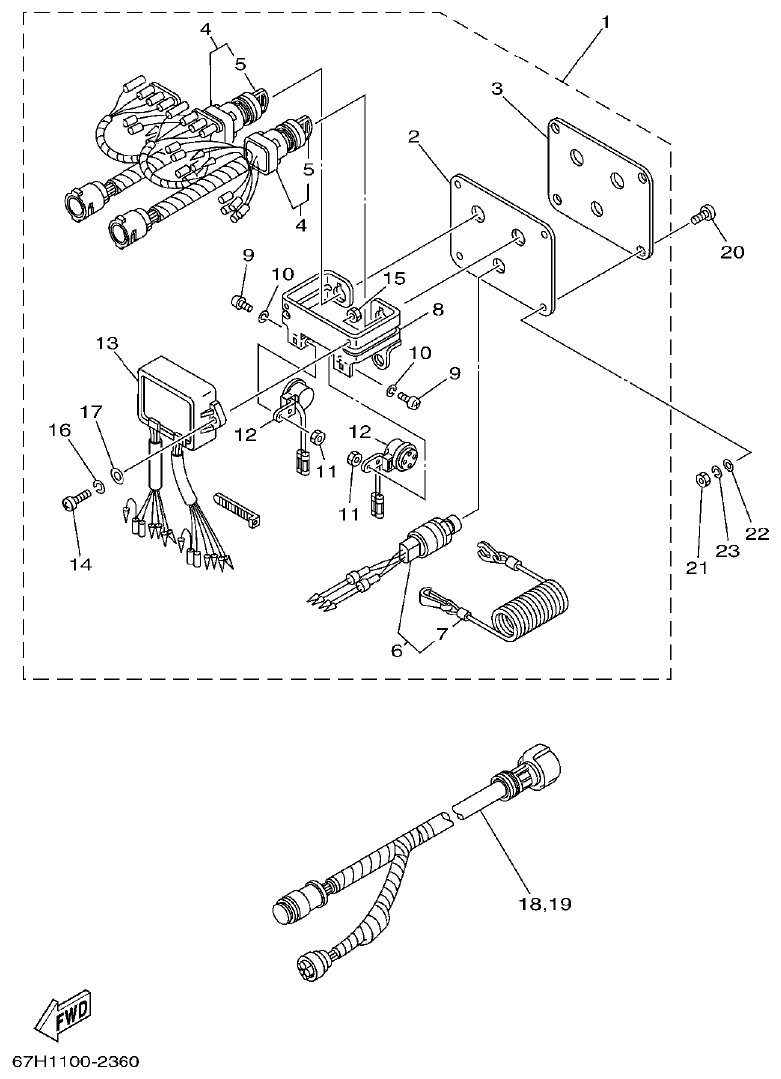

Yamaha LZ200NETO SWITCH. PANEL 2 parts diagram
Fig. 40 — SWITCH. PANEL 2
23 items · 1 available products
Yamaha LZ200NETO REPAIR KIT 1 parts diagram

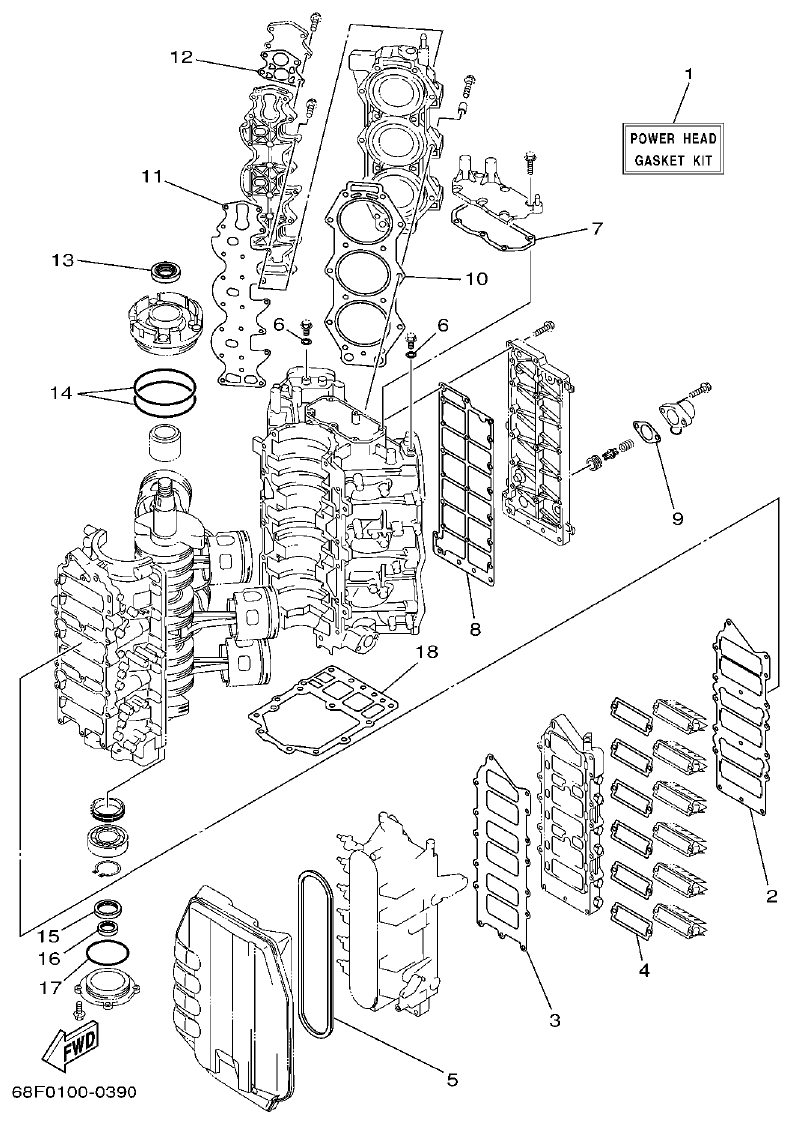

Fig. 41 — REPAIR KIT 1
18 items · 3 available products
Yamaha LZ200NETO REPAIR KIT 2 parts diagram

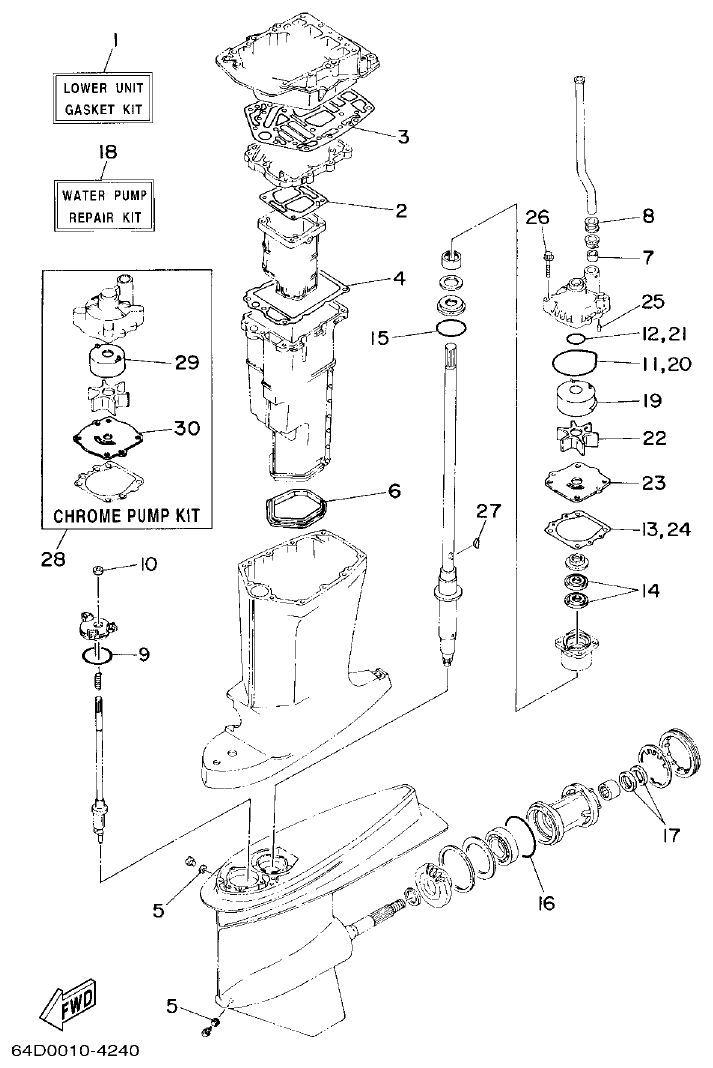

Fig. 42 — REPAIR KIT 2
