Yamaha XF425NSA2, XF425NSA7 Parts Catalog

Yamaha XF425NSA2, XF425NSA7 Outboard parts and diagrams

Yamaha XF425NSA2, XF425NSA7 outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING 1, TOP COWLING 2, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, CYLINDER & CRANKCASE 3, CYLINDER & CRANKCASE 4, VALVE 1, VALVE 2, INTAKE, THROTTLE BODY ASSY, OIL PUMP, EXHAUST 1, EXHAUST 2, VAPOR SEPARATOR, FUEL 1, FUEL 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

216 linked store products are available across 52 catalog sections. 1572 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

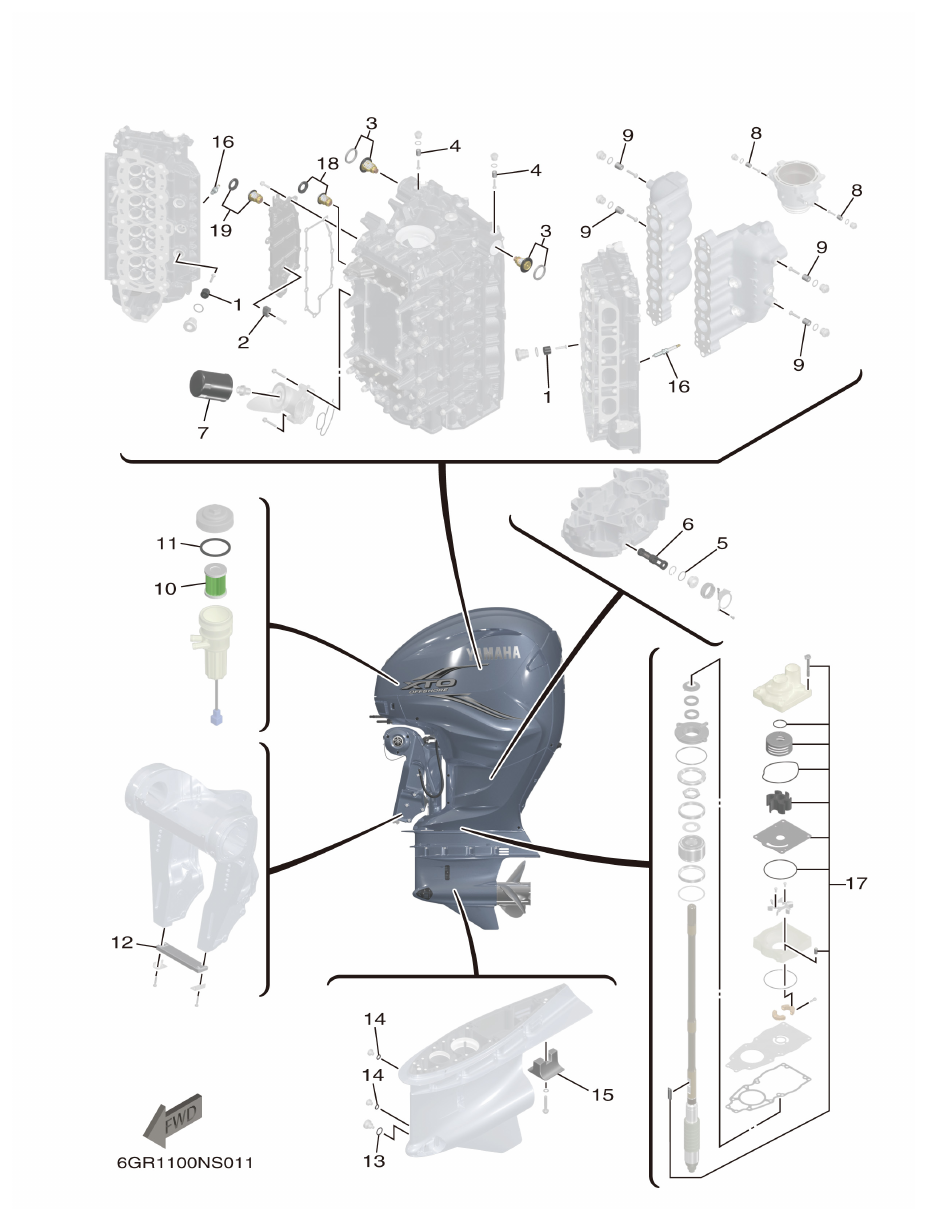

Yamaha XF425NSA2, XF425NSA7 SCHEDULED SERVICE PARTS parts diagram
Fig. 1 — SCHEDULED SERVICE PARTS
19 items · 12 available products

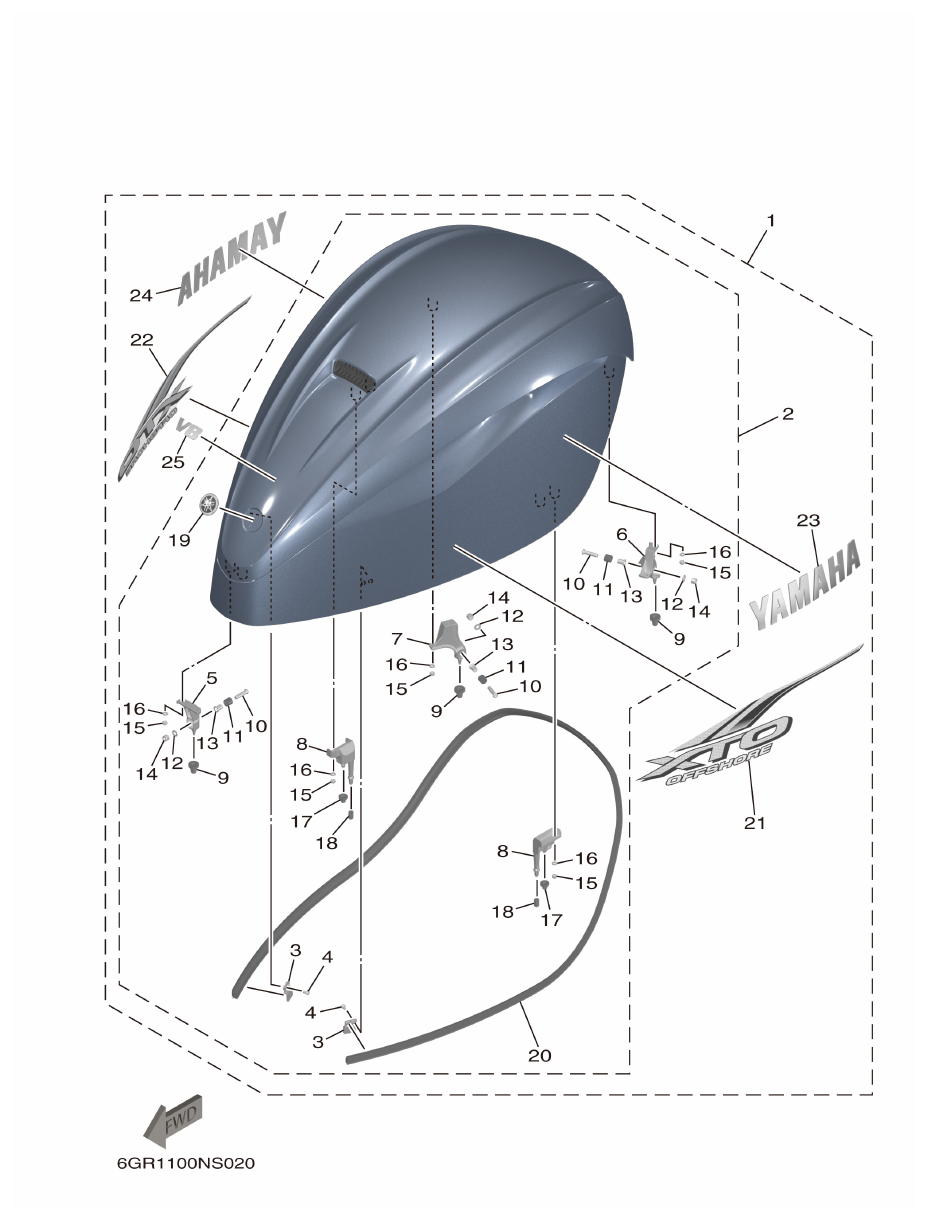

Yamaha XF425NSA2, XF425NSA7 TOP COWLING 1 parts diagram
Fig. 2 — TOP COWLING 1
27 items · 1 available products

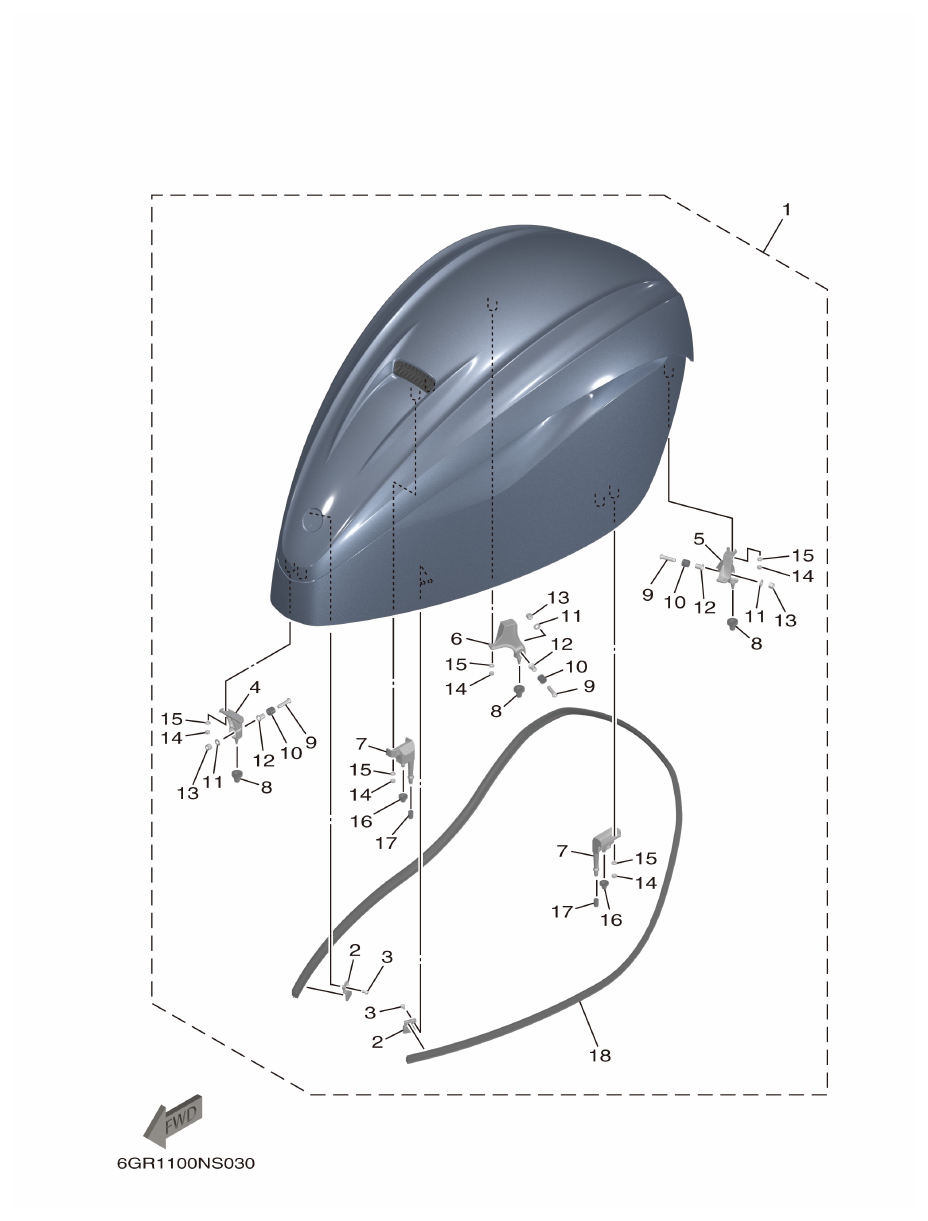

Yamaha XF425NSA2, XF425NSA7 TOP COWLING 2 parts diagram
Fig. 3 — TOP COWLING 2
18 items

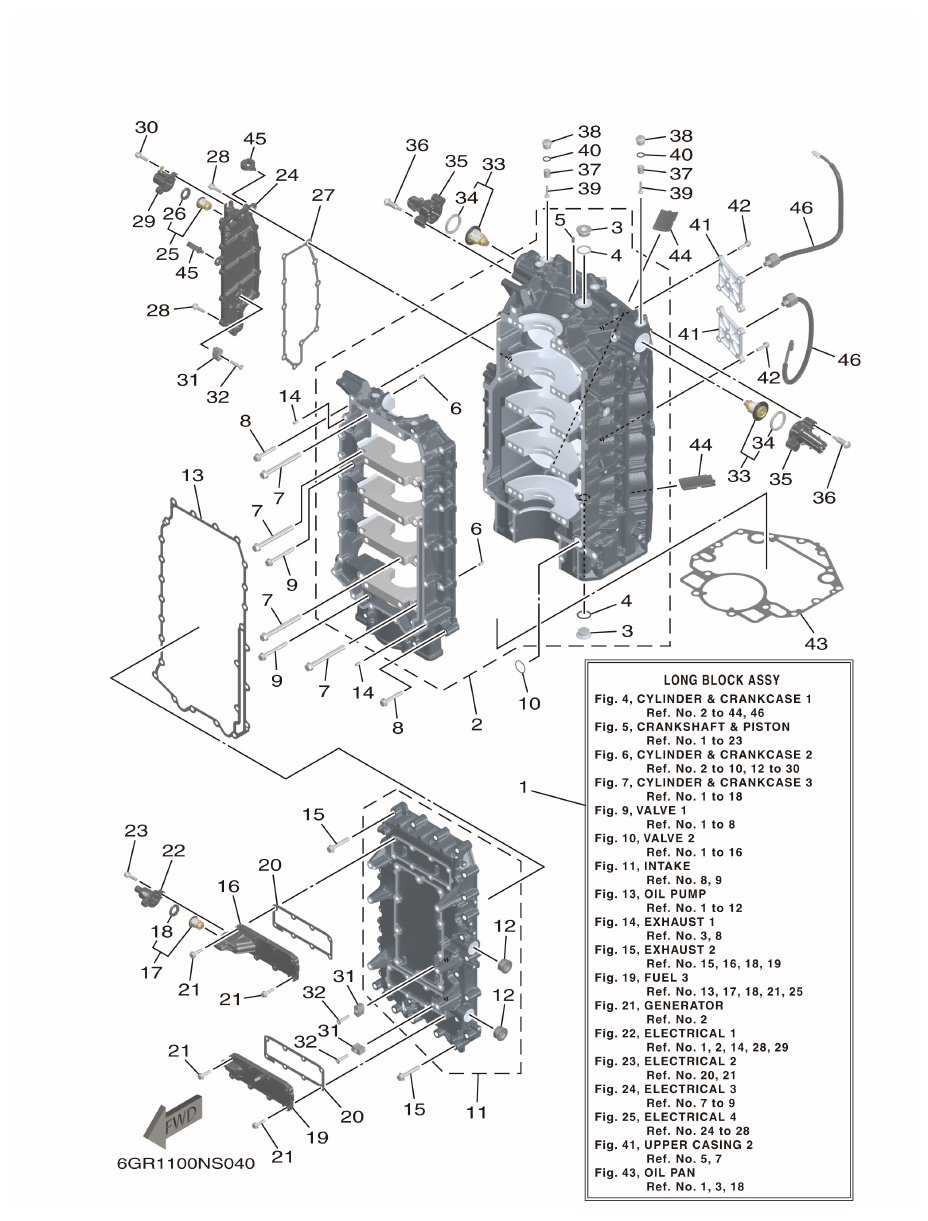

Yamaha XF425NSA2, XF425NSA7 CYLINDER & CRANKCASE 1 parts diagram
Fig. 4 — CYLINDER & CRANKCASE 1
46 items · 10 available products

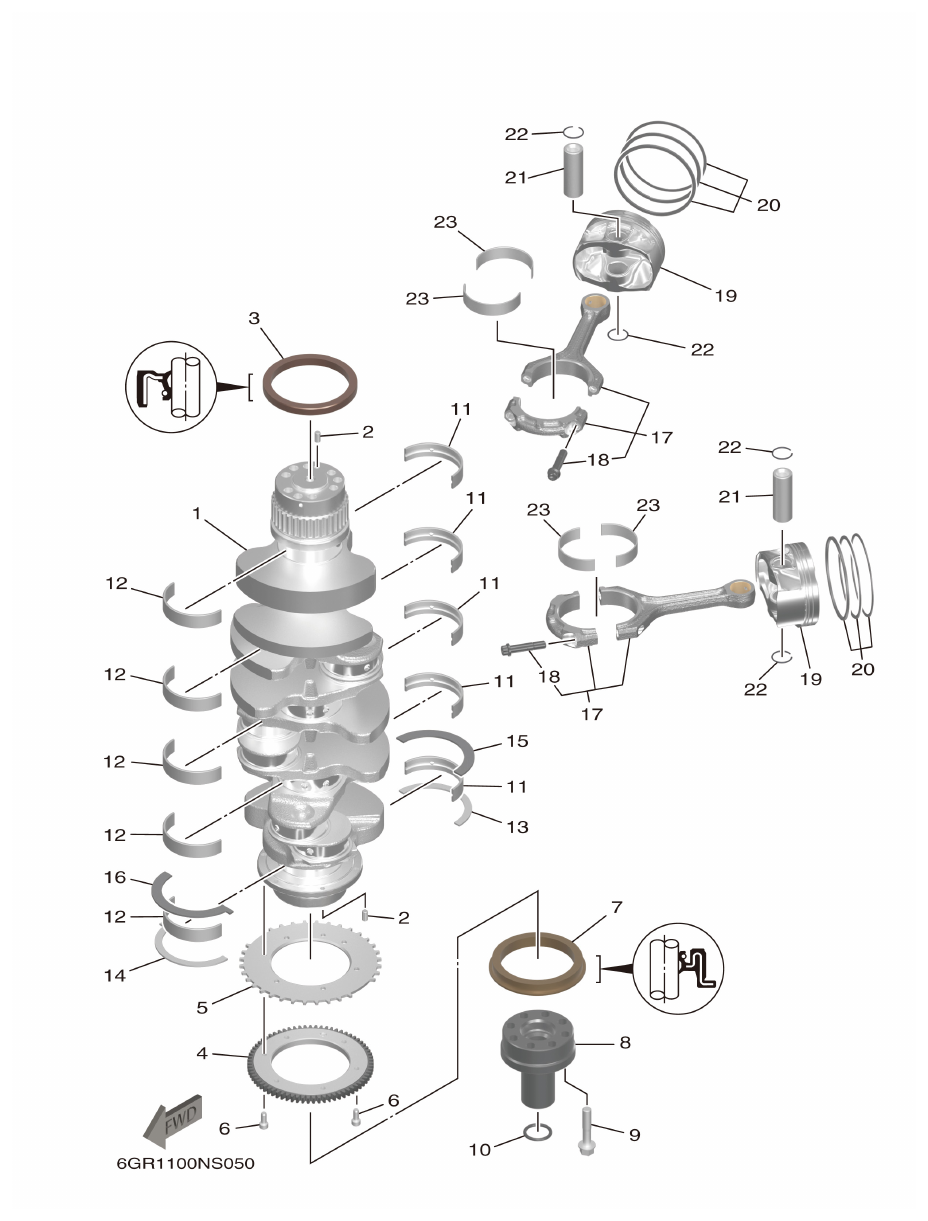

Yamaha XF425NSA2, XF425NSA7 CRANKSHAFT & PISTON parts diagram
Fig. 5 — CRANKSHAFT & PISTON
31 items · 15 available products

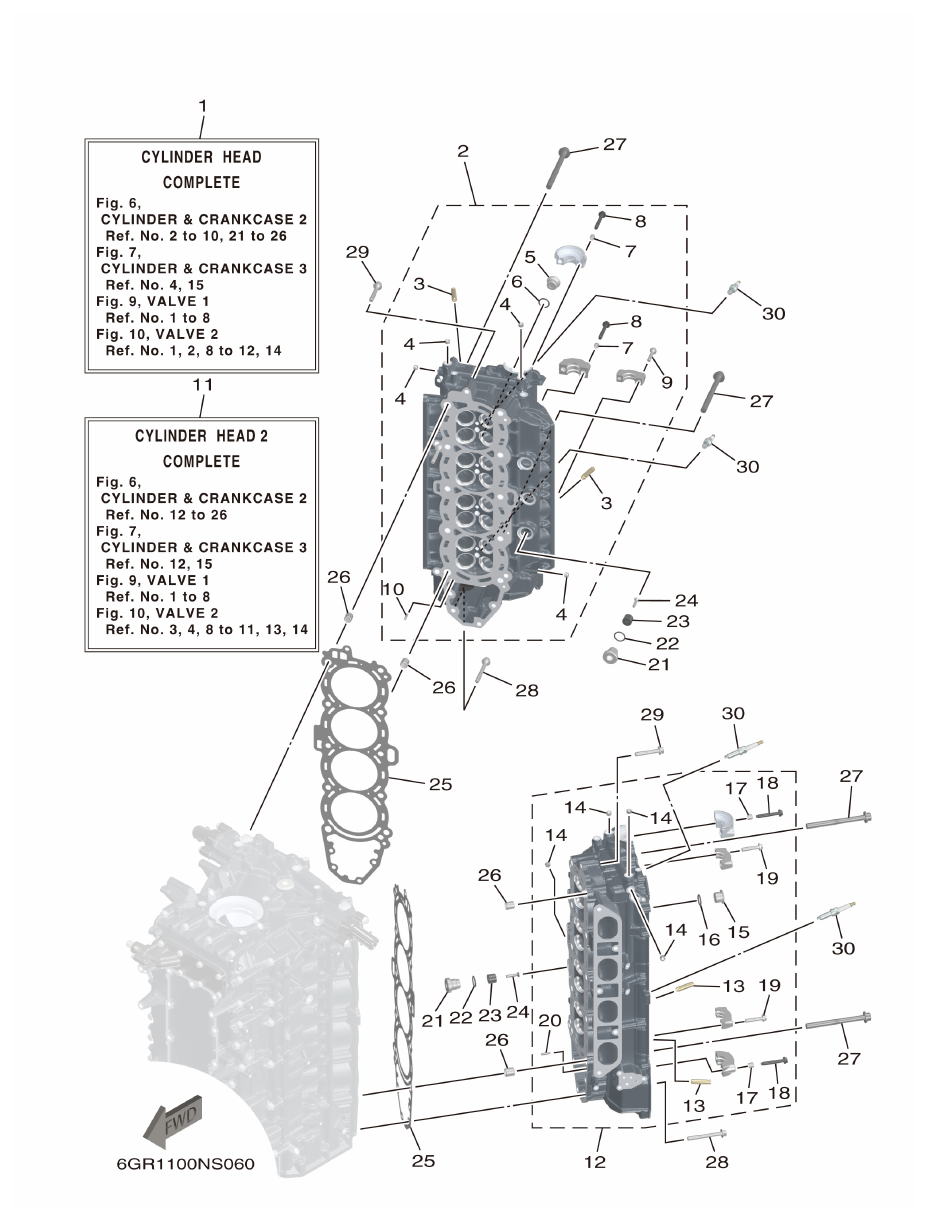

Yamaha XF425NSA2, XF425NSA7 CYLINDER & CRANKCASE 2 parts diagram
Fig. 6 — CYLINDER & CRANKCASE 2
30 items · 1 available products

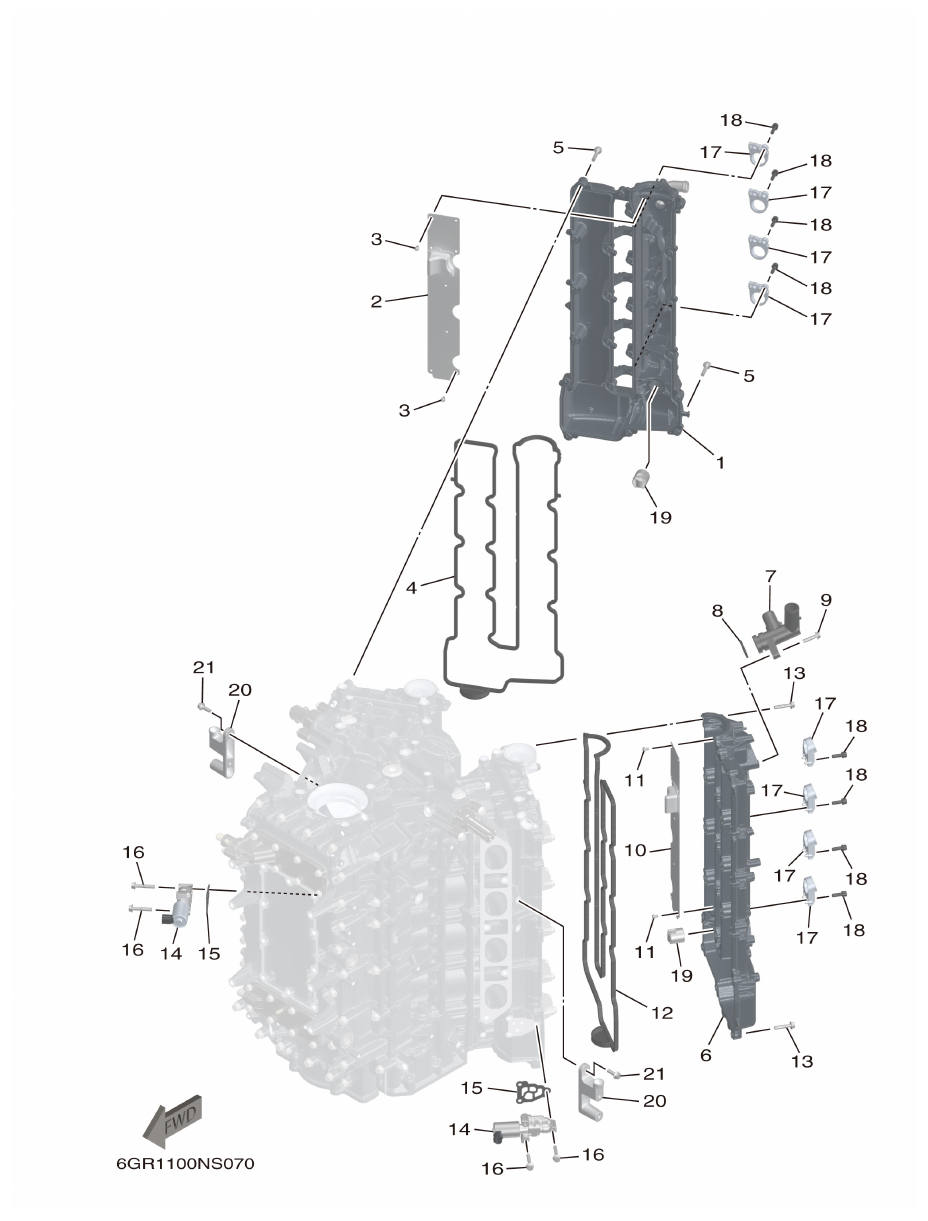

Yamaha XF425NSA2, XF425NSA7 CYLINDER & CRANKCASE 3 parts diagram
Fig. 7 — CYLINDER & CRANKCASE 3
21 items · 1 available products

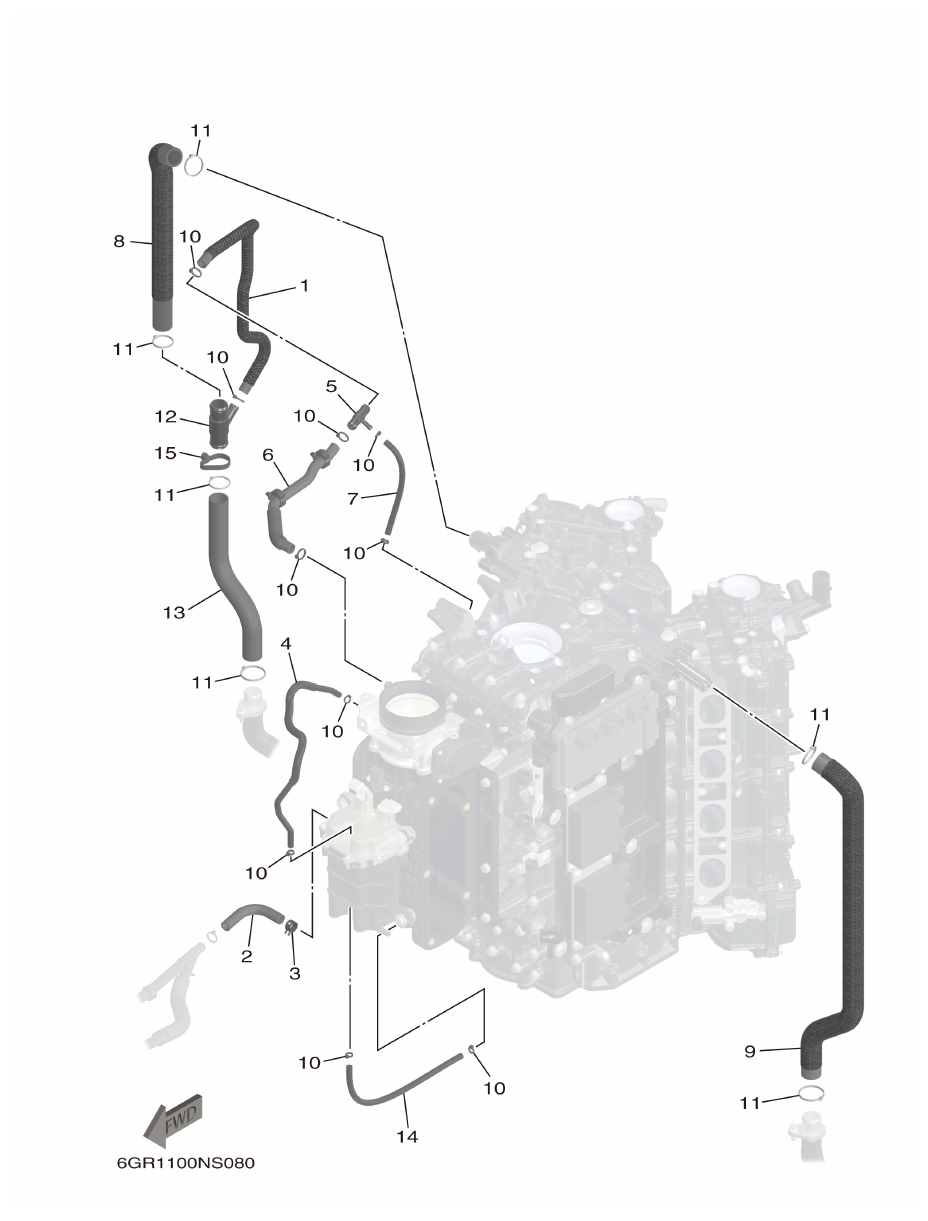

Yamaha XF425NSA2, XF425NSA7 CYLINDER & CRANKCASE 4 parts diagram
Fig. 8 — CYLINDER & CRANKCASE 4
15 items

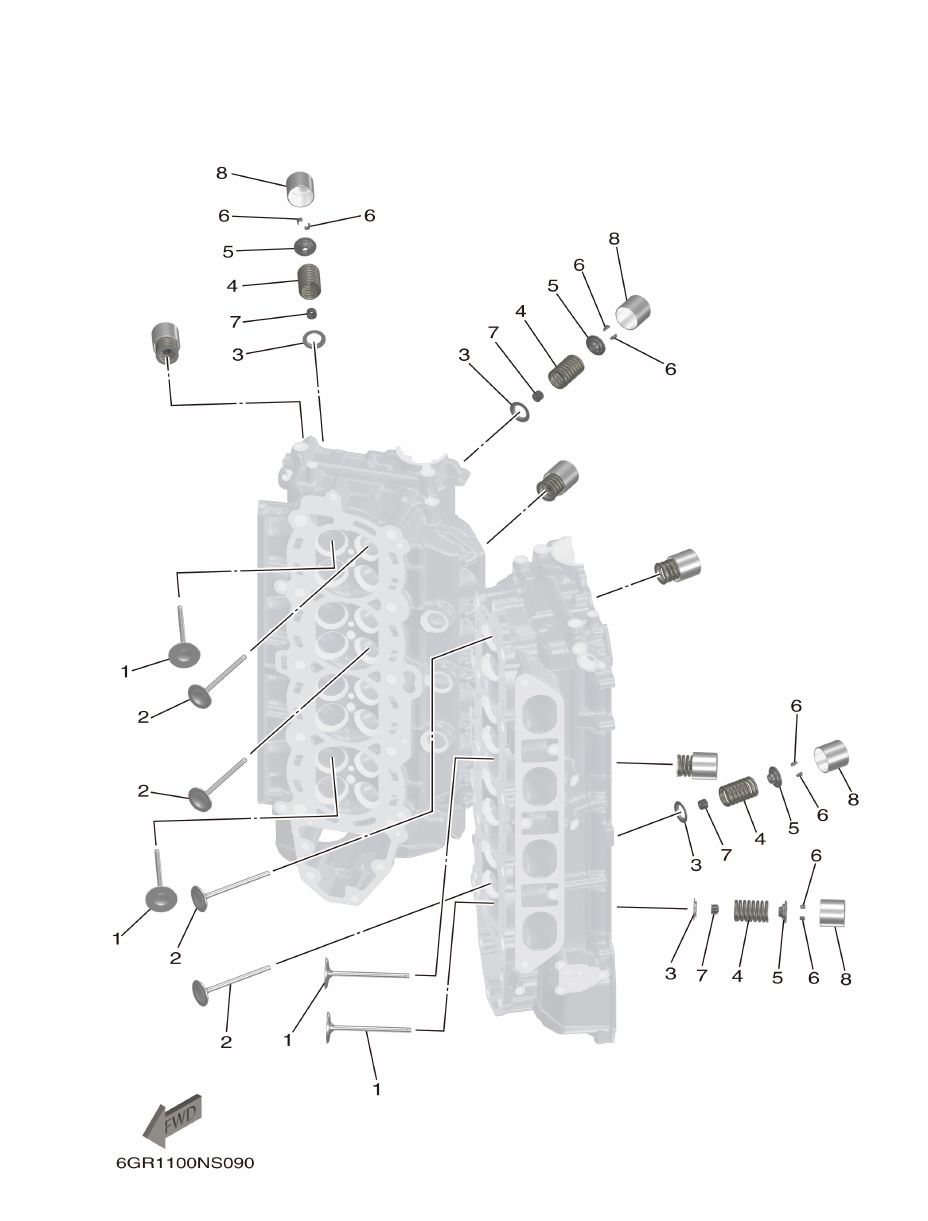

Yamaha XF425NSA2, XF425NSA7 VALVE 1 parts diagram
Fig. 9 — VALVE 1
41 items · 7 available products

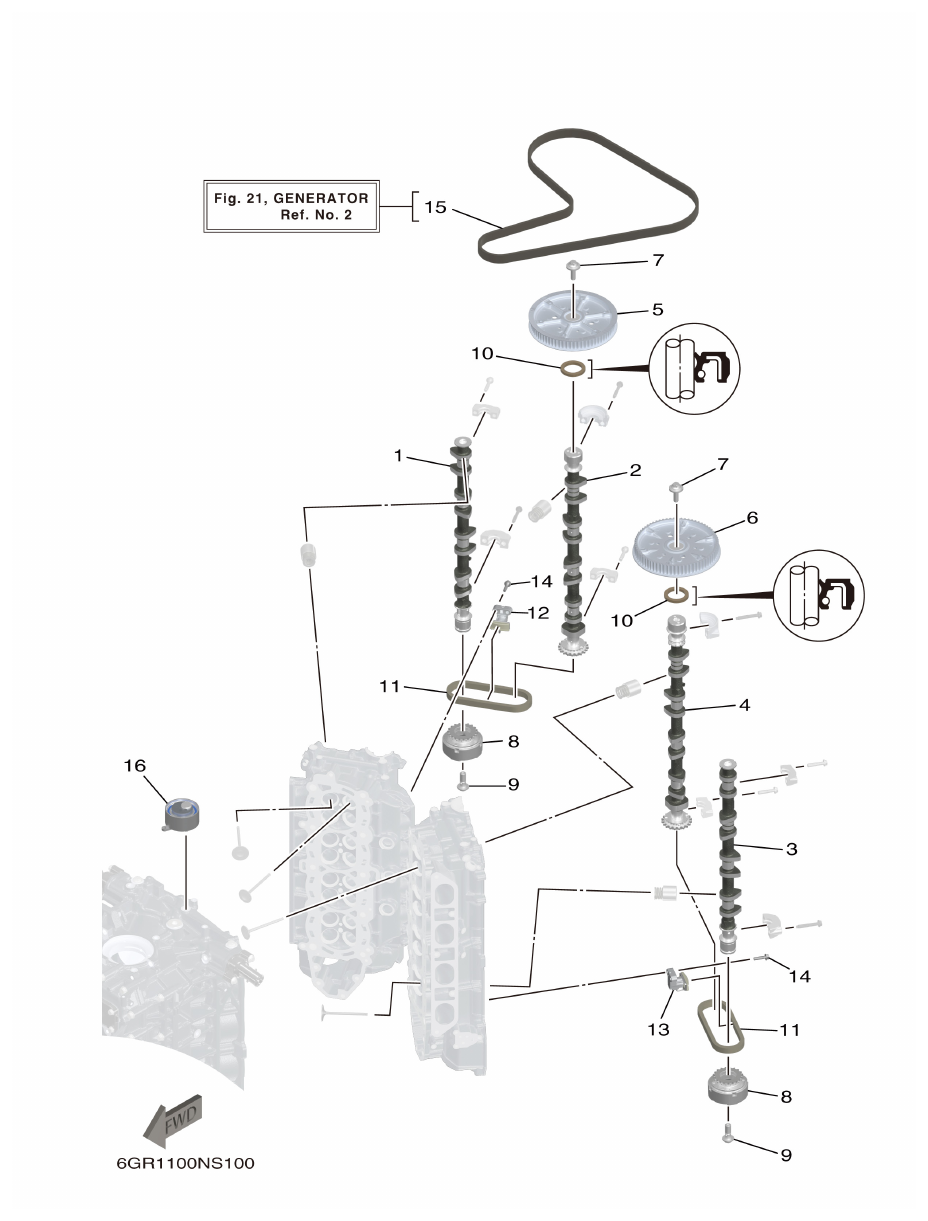

Yamaha XF425NSA2, XF425NSA7 VALVE 2 parts diagram
Fig. 10 — VALVE 2
16 items · 3 available products

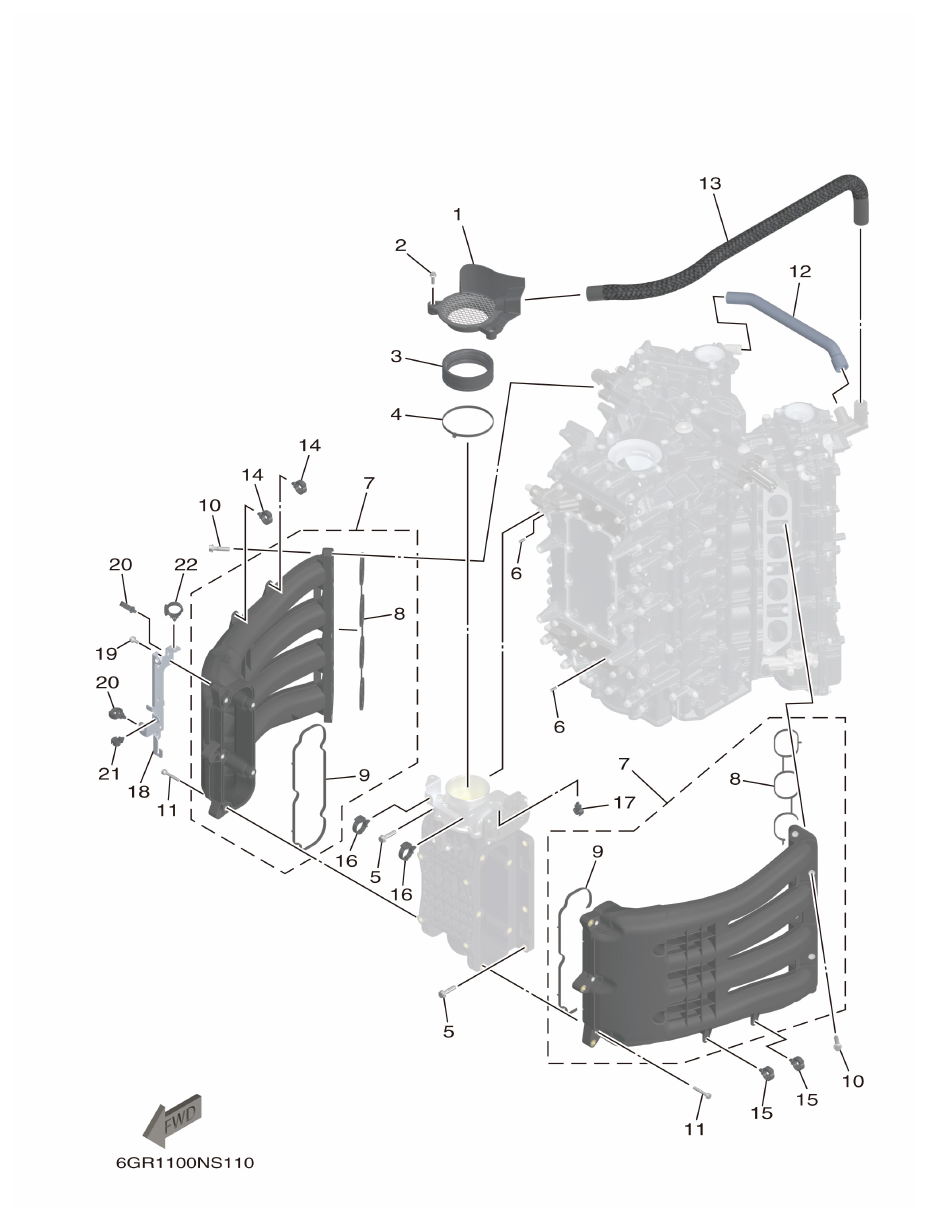

Yamaha XF425NSA2, XF425NSA7 INTAKE parts diagram
Fig. 11 — INTAKE
22 items

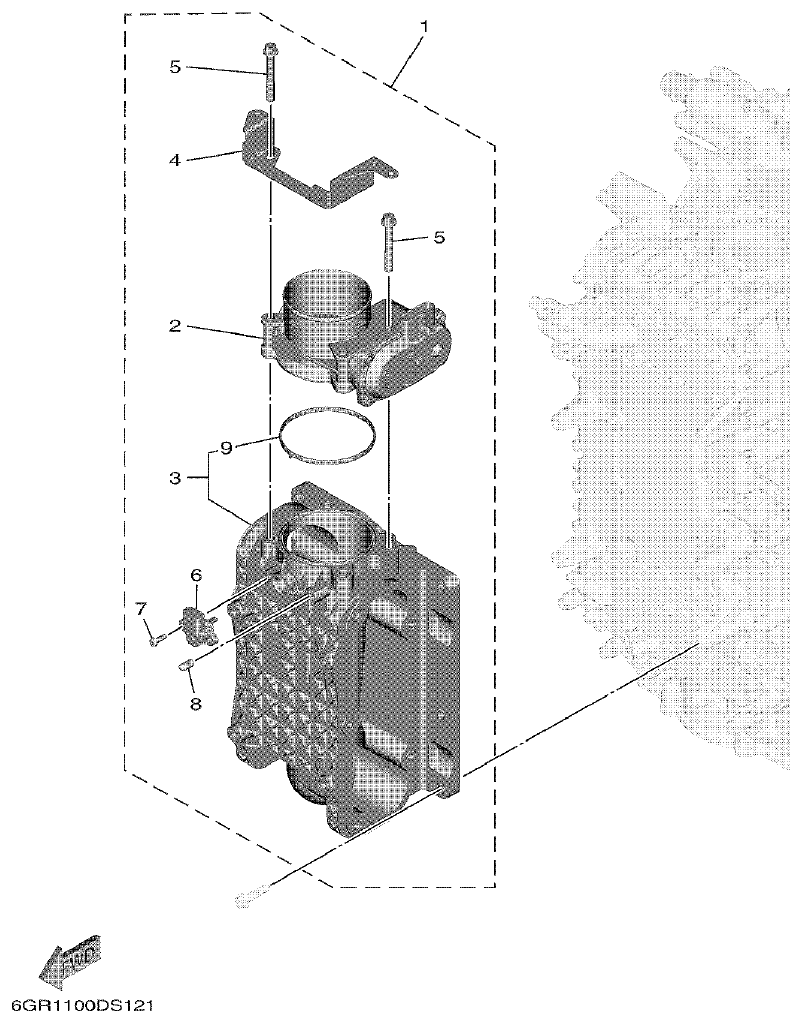

Yamaha XF425NSA2, XF425NSA7 THROTTLE BODY ASSY parts diagram
Fig. 12 — THROTTLE BODY ASSY
9 items · 1 available products

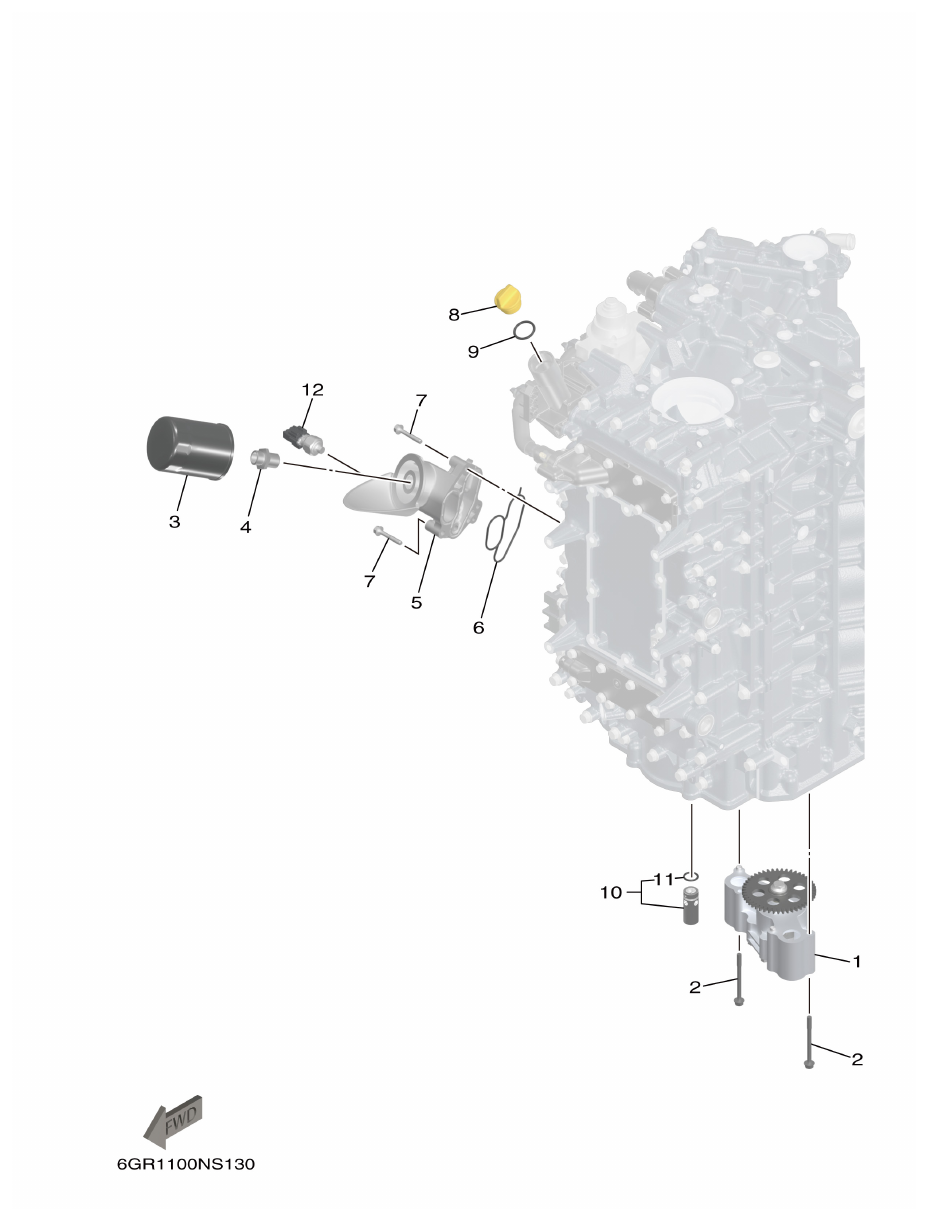

Yamaha XF425NSA2, XF425NSA7 OIL PUMP parts diagram
Fig. 13 — OIL PUMP
12 items · 2 available products
Yamaha XF425NSA2, XF425NSA7 EXHAUST 1 parts diagram
Fig. 14 — EXHAUST 1
14 items · 2 available products

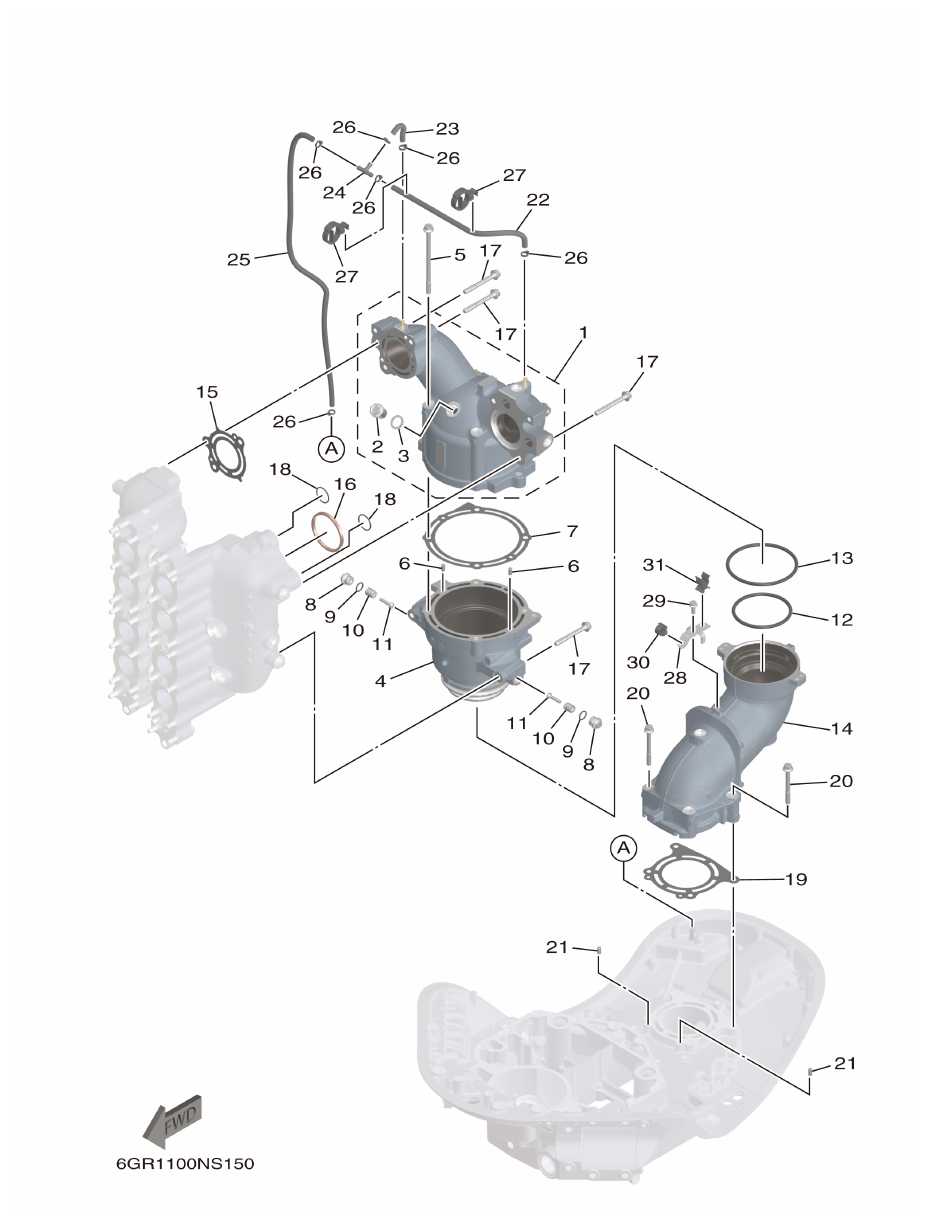

Yamaha XF425NSA2, XF425NSA7 EXHAUST 2 parts diagram
Fig. 15 — EXHAUST 2
31 items · 6 available products

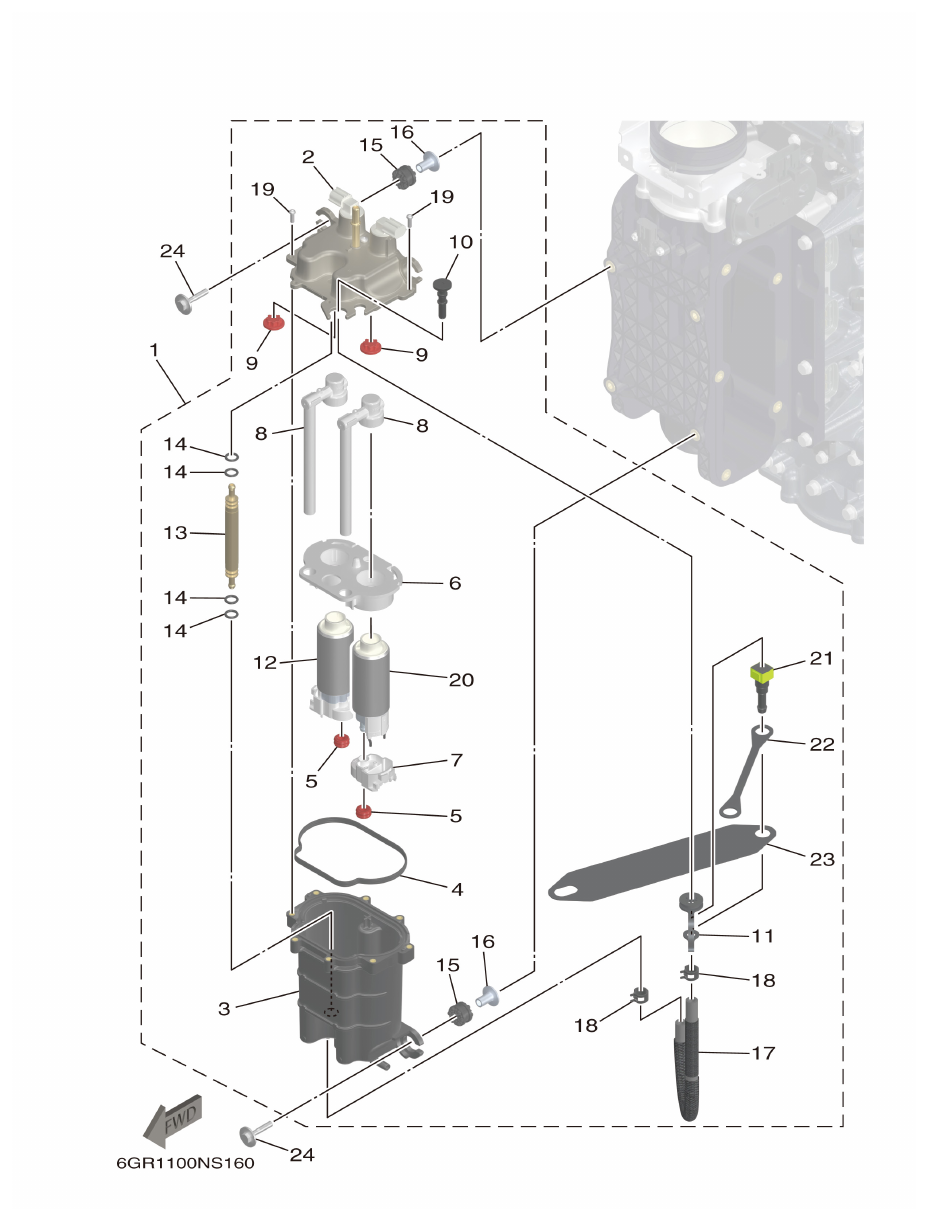

Yamaha XF425NSA2, XF425NSA7 VAPOR SEPARATOR parts diagram
Fig. 16 — VAPOR SEPARATOR
24 items · 3 available products

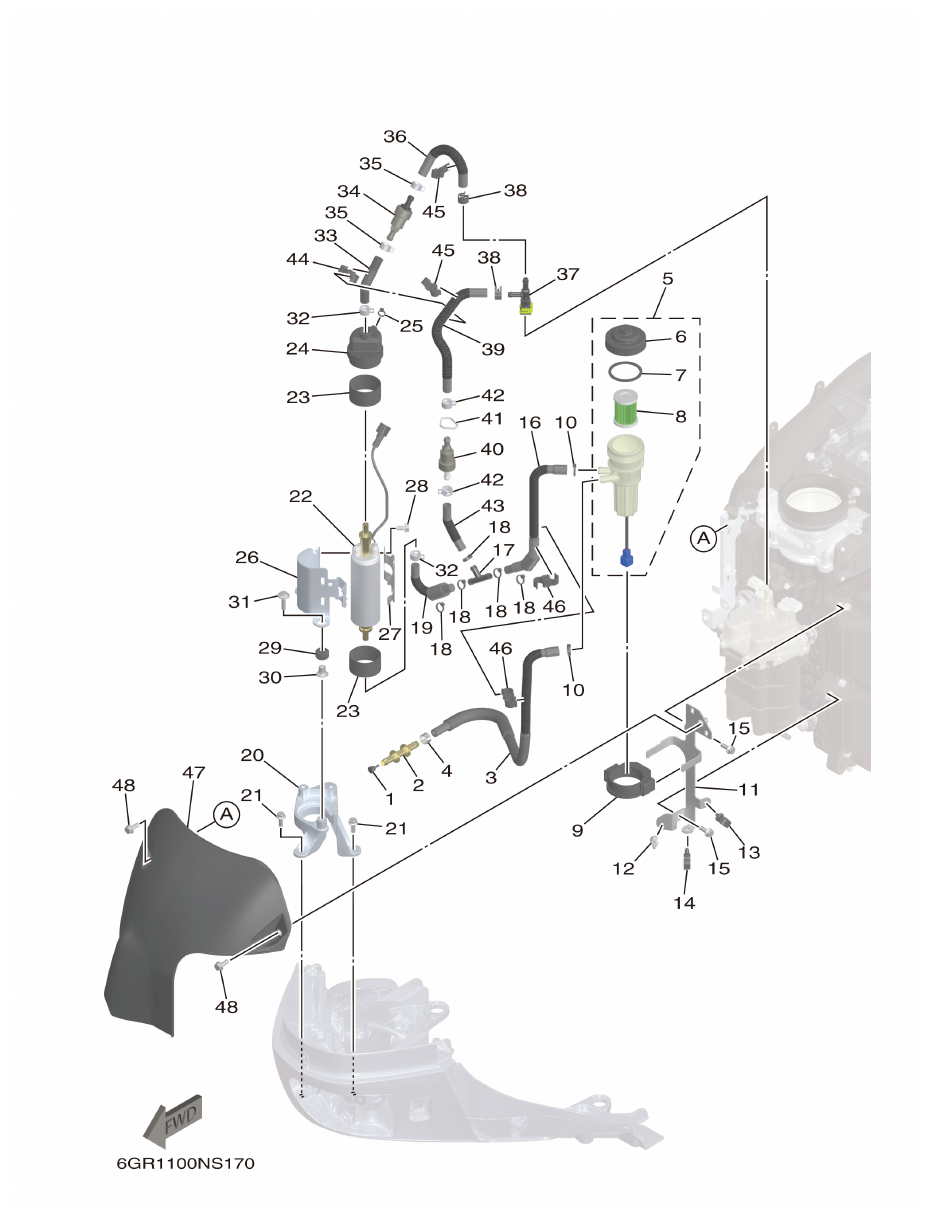

Yamaha XF425NSA2, XF425NSA7 FUEL 1 parts diagram
Fig. 17 — FUEL 1
48 items · 4 available products

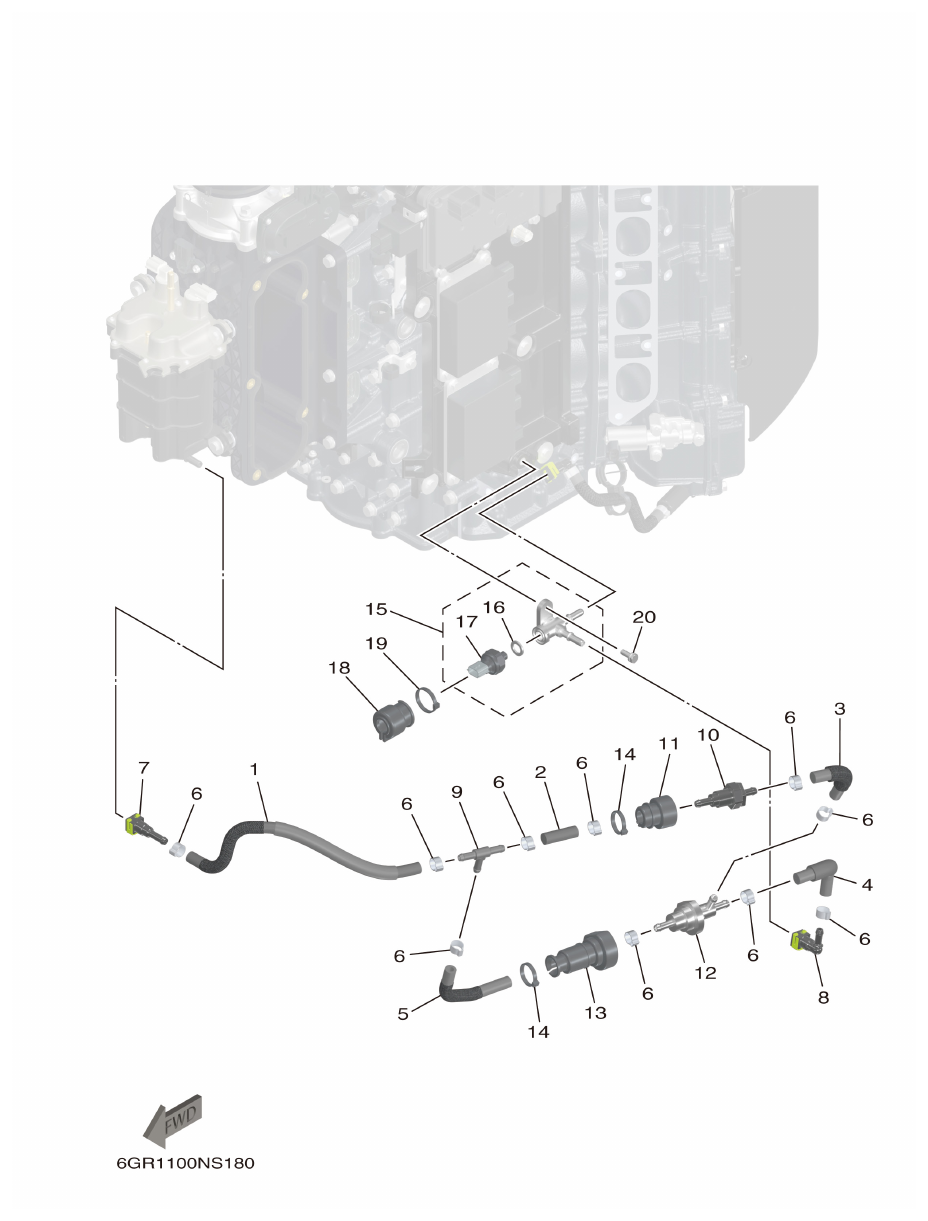

Yamaha XF425NSA2, XF425NSA7 FUEL 2 parts diagram
Fig. 18 — FUEL 2
20 items

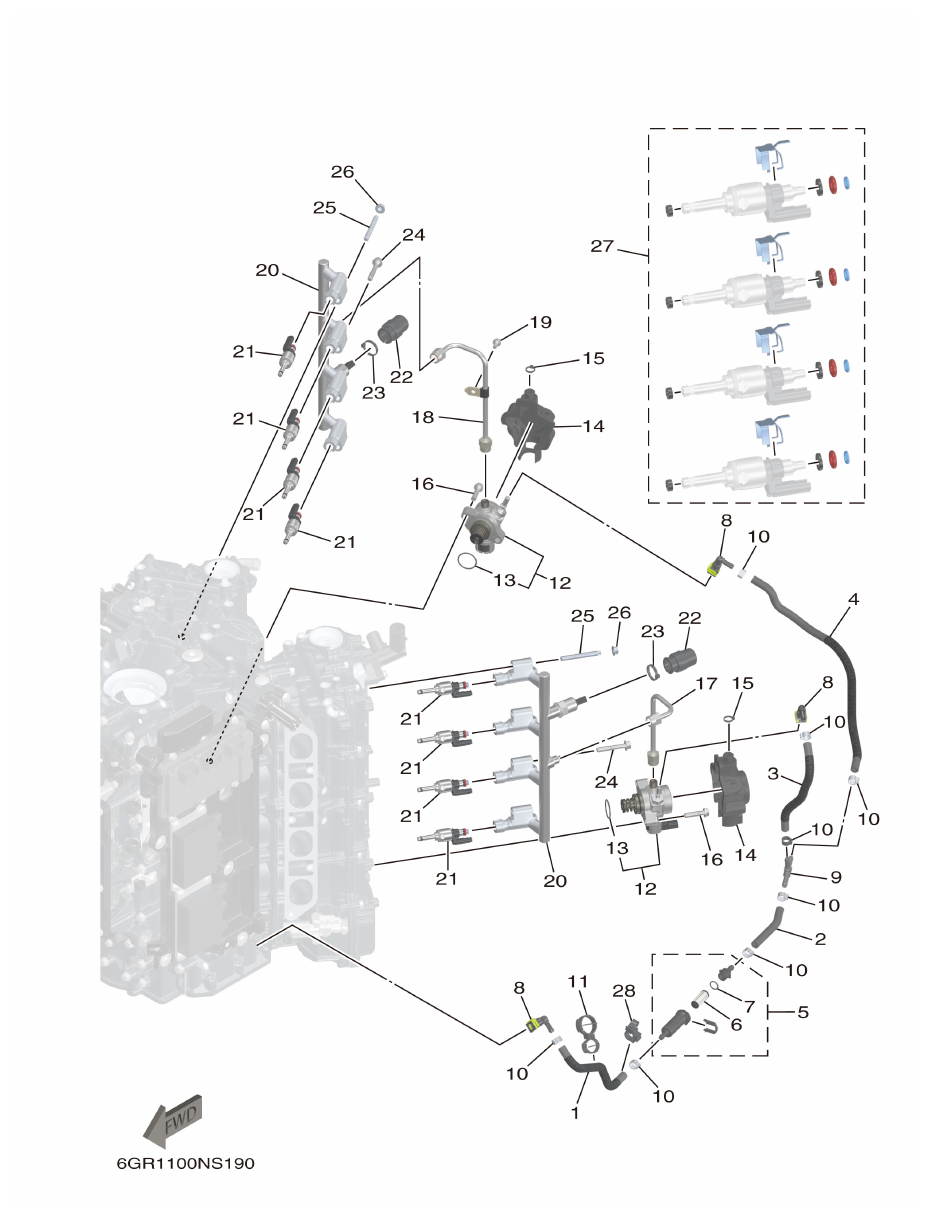

Yamaha XF425NSA2, XF425NSA7 FUEL 3 parts diagram
Fig. 19 — FUEL 3
28 items · 6 available products

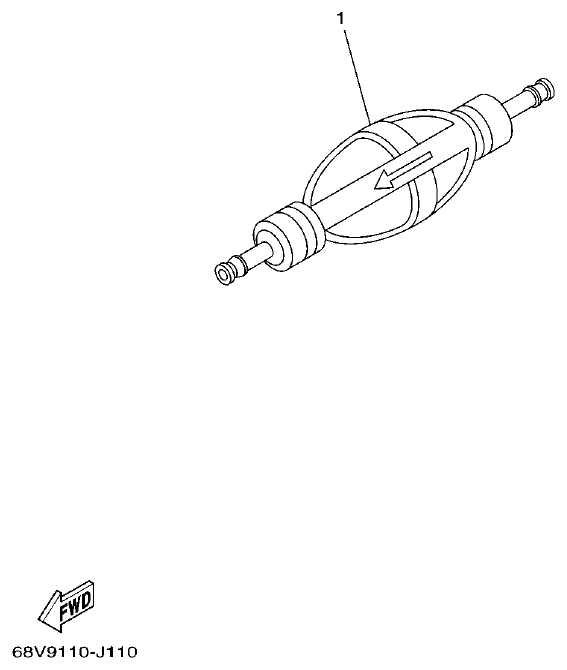

Yamaha XF425NSA2, XF425NSA7 FUEL 4 parts diagram
Fig. 20 — FUEL 4
1 items · 1 available products

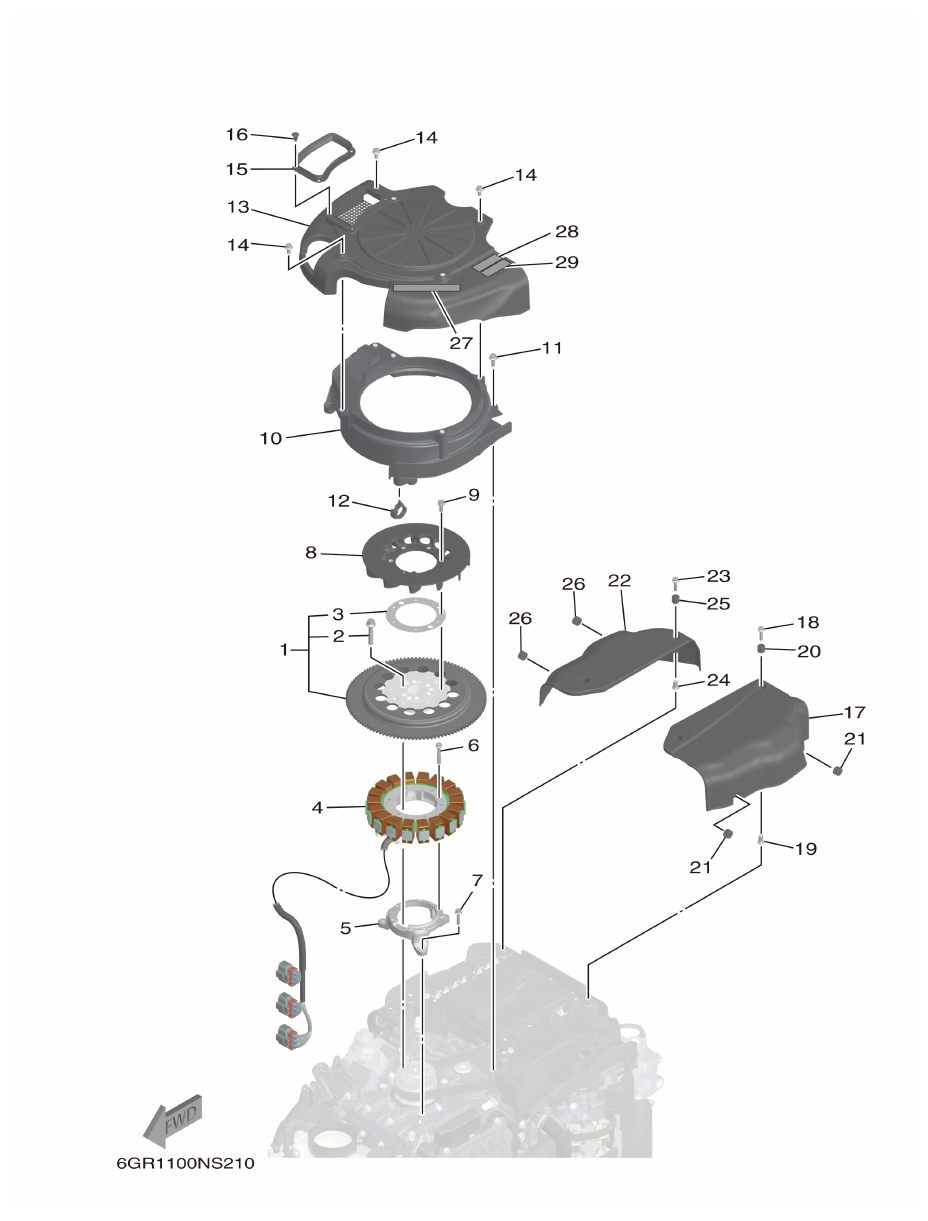

Yamaha XF425NSA2, XF425NSA7 GENERATOR parts diagram
Fig. 21 — GENERATOR
29 items · 2 available products

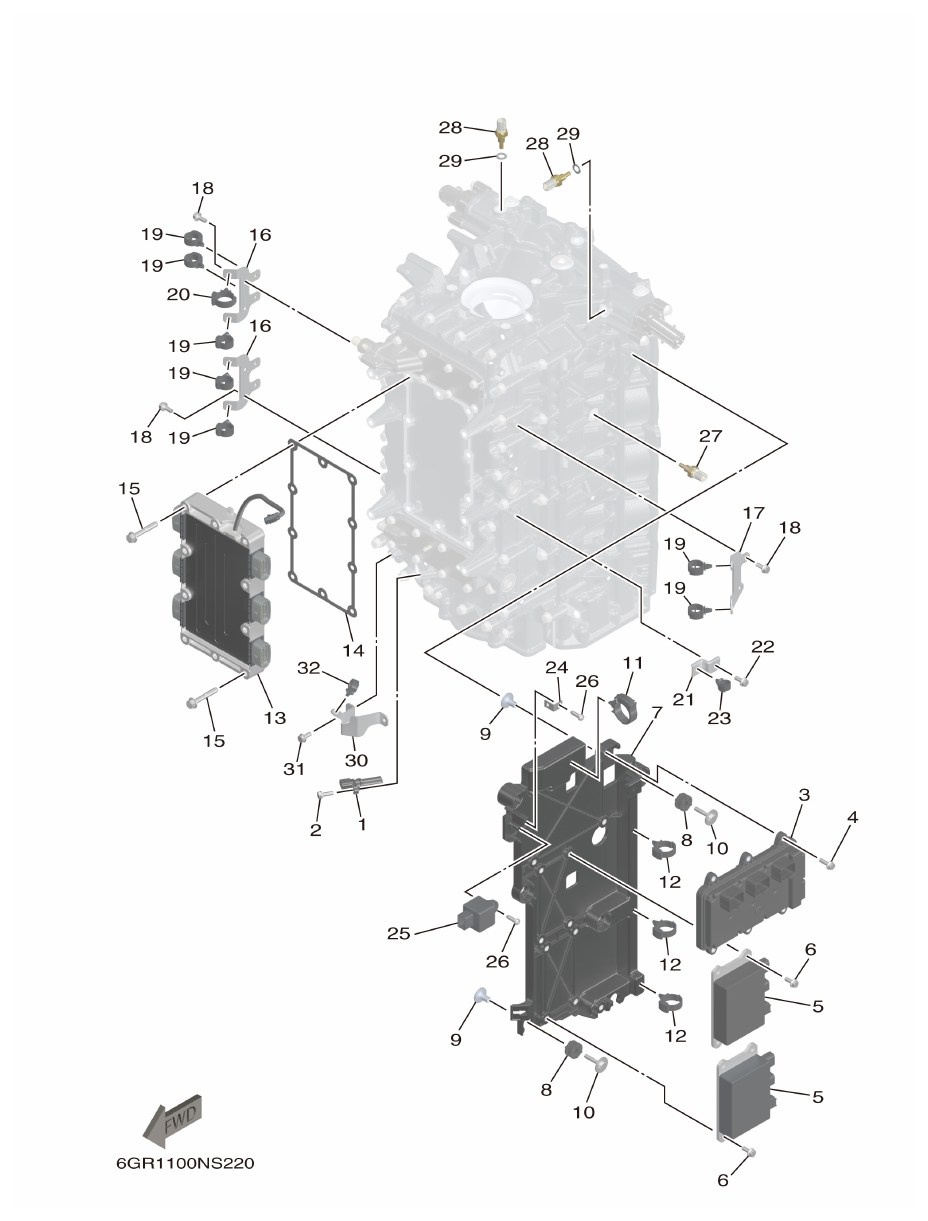

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 1 parts diagram
Fig. 22 — ELECTRICAL 1
32 items · 3 available products

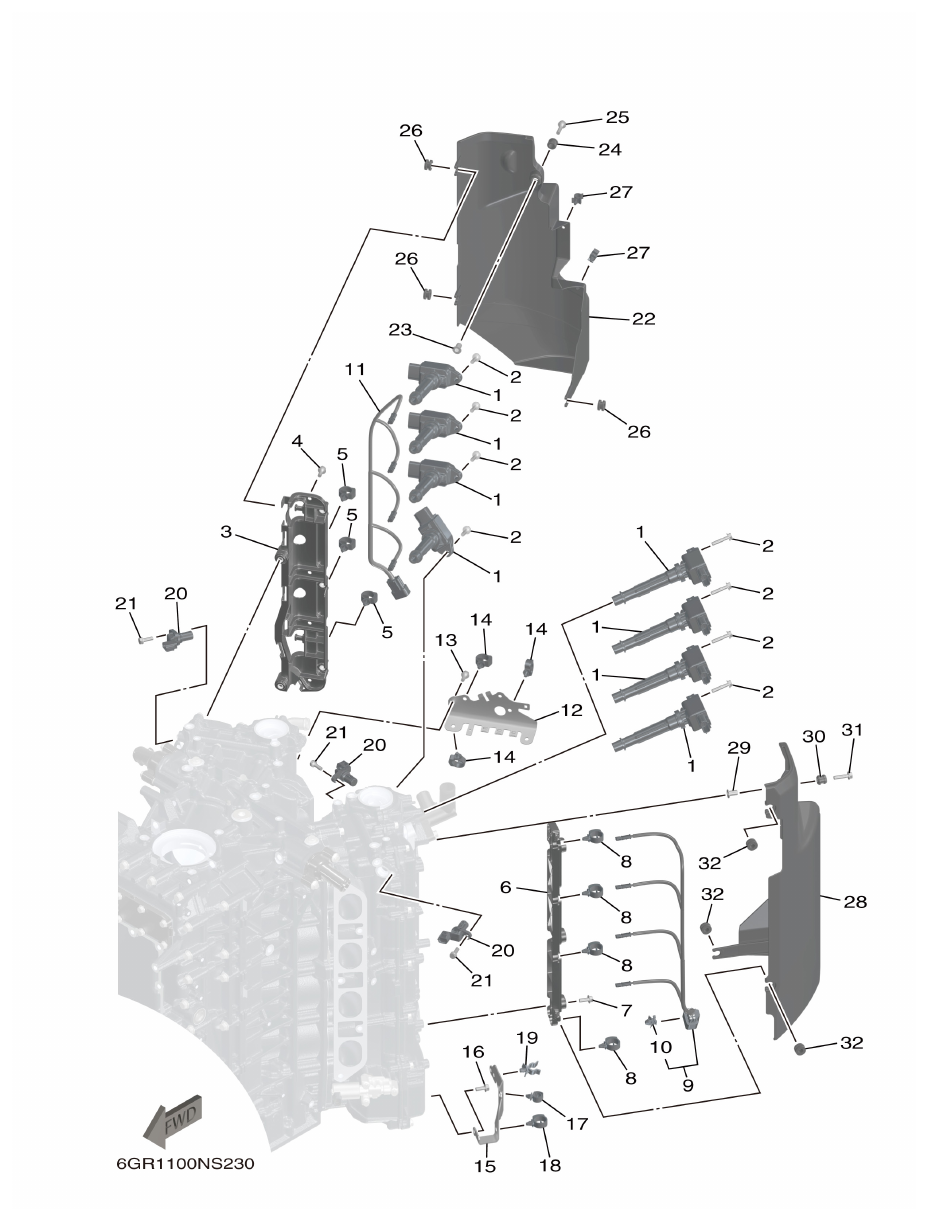

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 2 parts diagram
Fig. 23 — ELECTRICAL 2
32 items · 1 available products

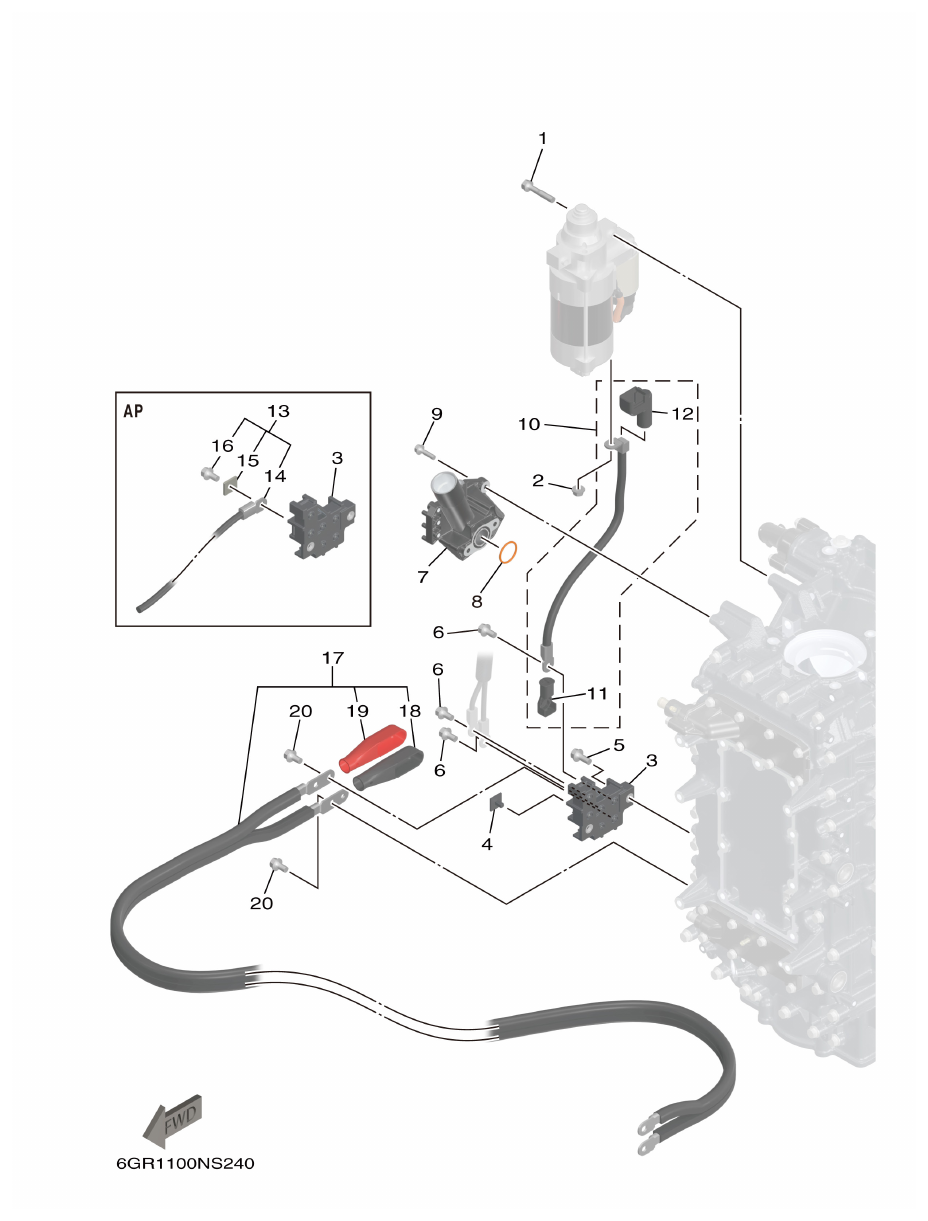

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 3 parts diagram
Fig. 24 — ELECTRICAL 3
20 items

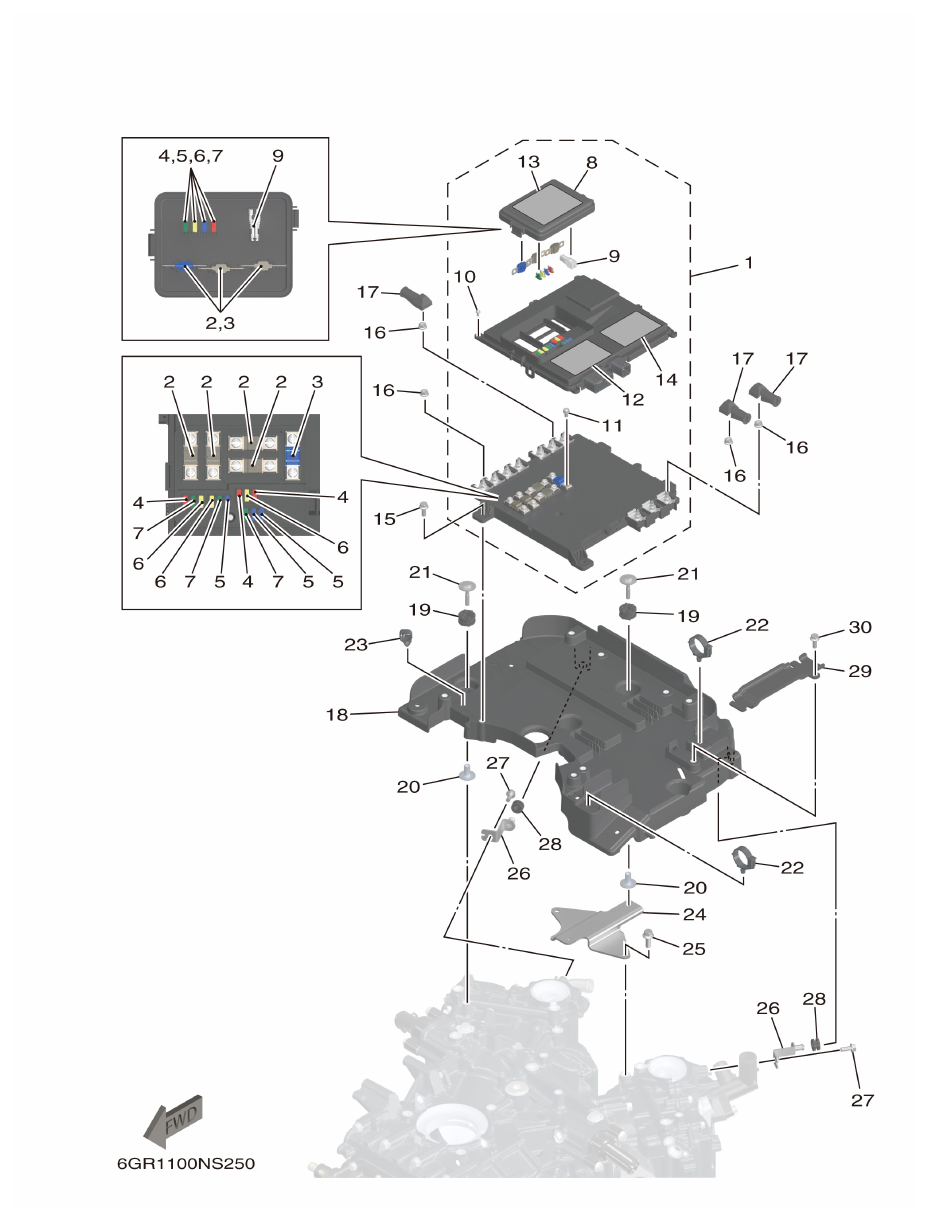

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 4 parts diagram
Fig. 25 — ELECTRICAL 4
30 items · 5 available products

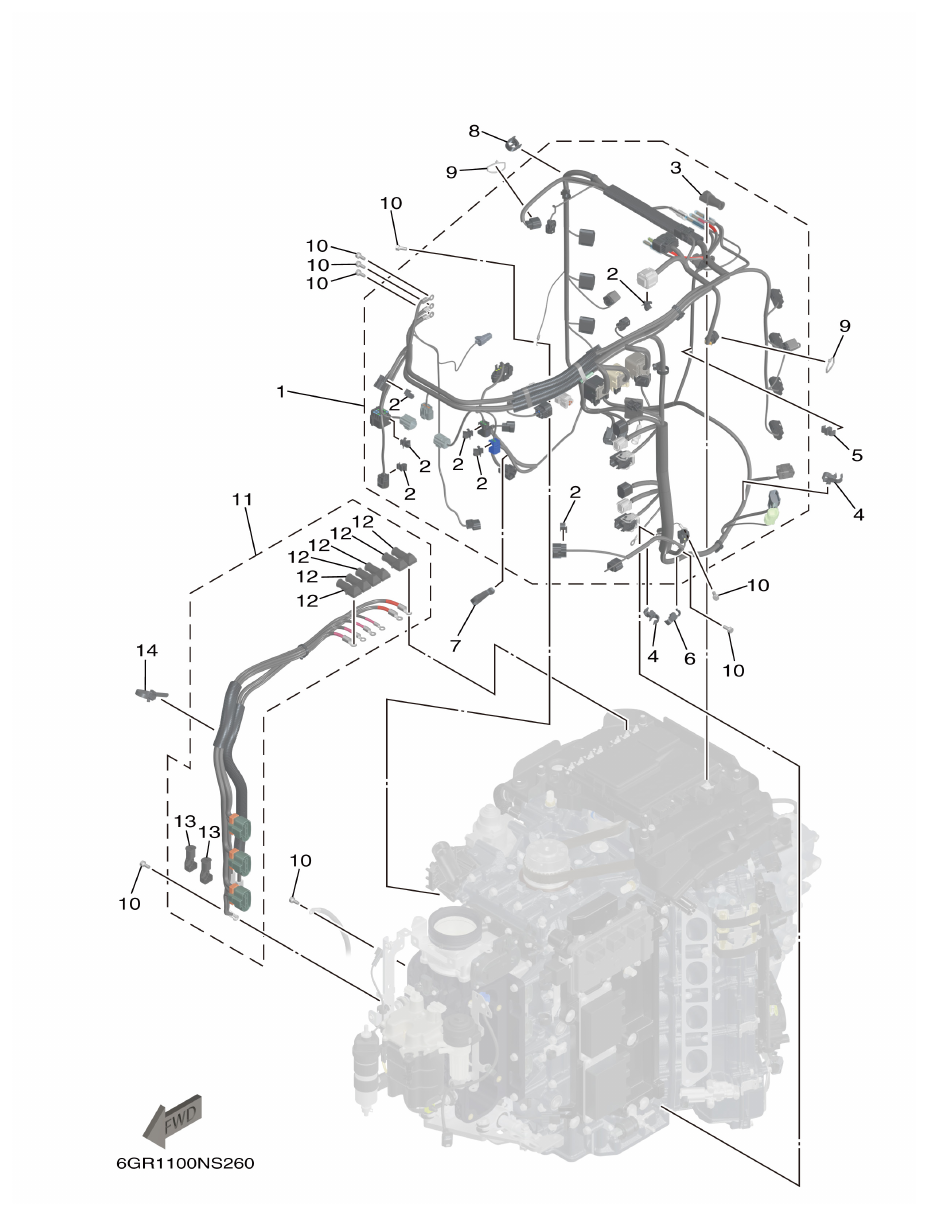

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 5 parts diagram
Fig. 26 — ELECTRICAL 5
14 items

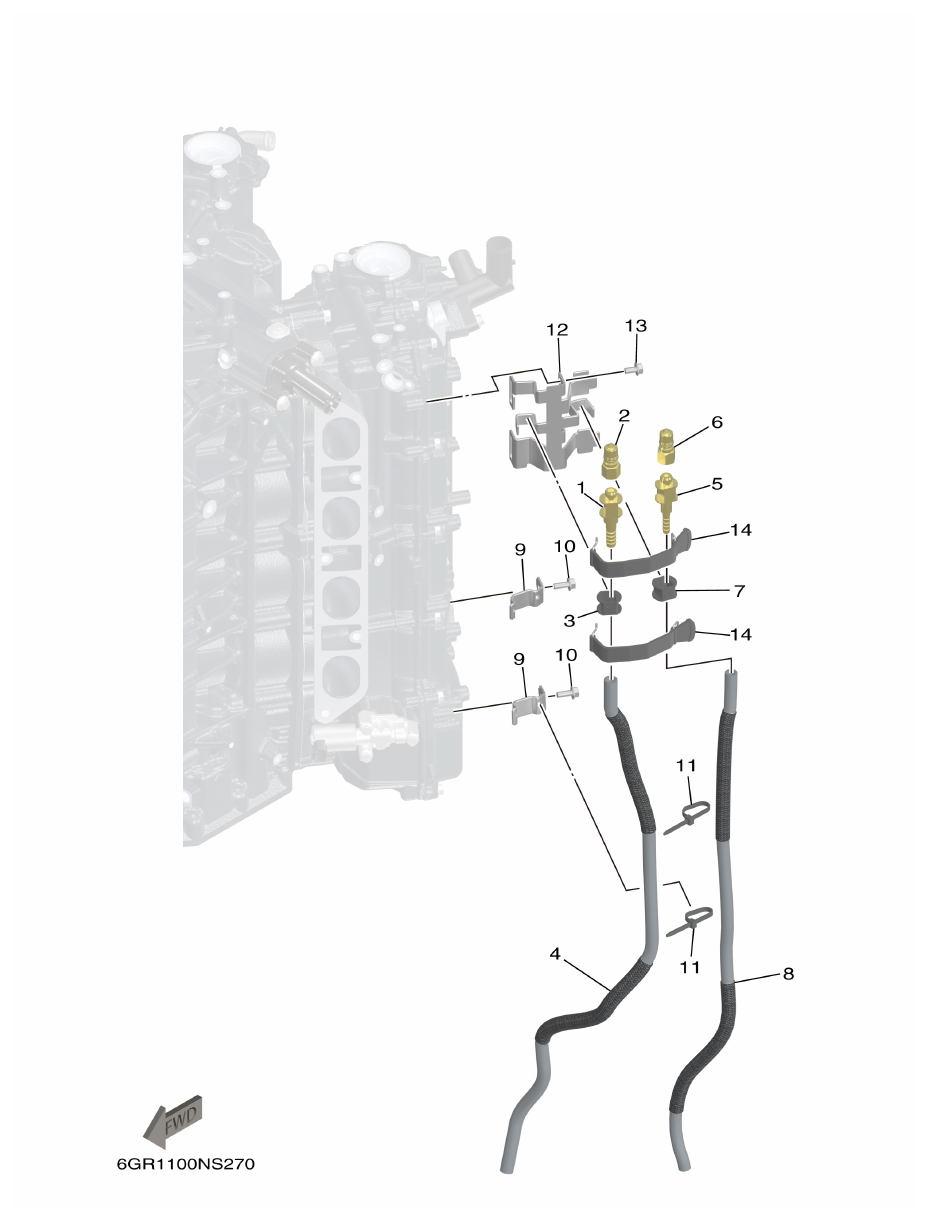

Yamaha XF425NSA2, XF425NSA7 ELECTRICAL 6 parts diagram
Fig. 27 — ELECTRICAL 6
14 items

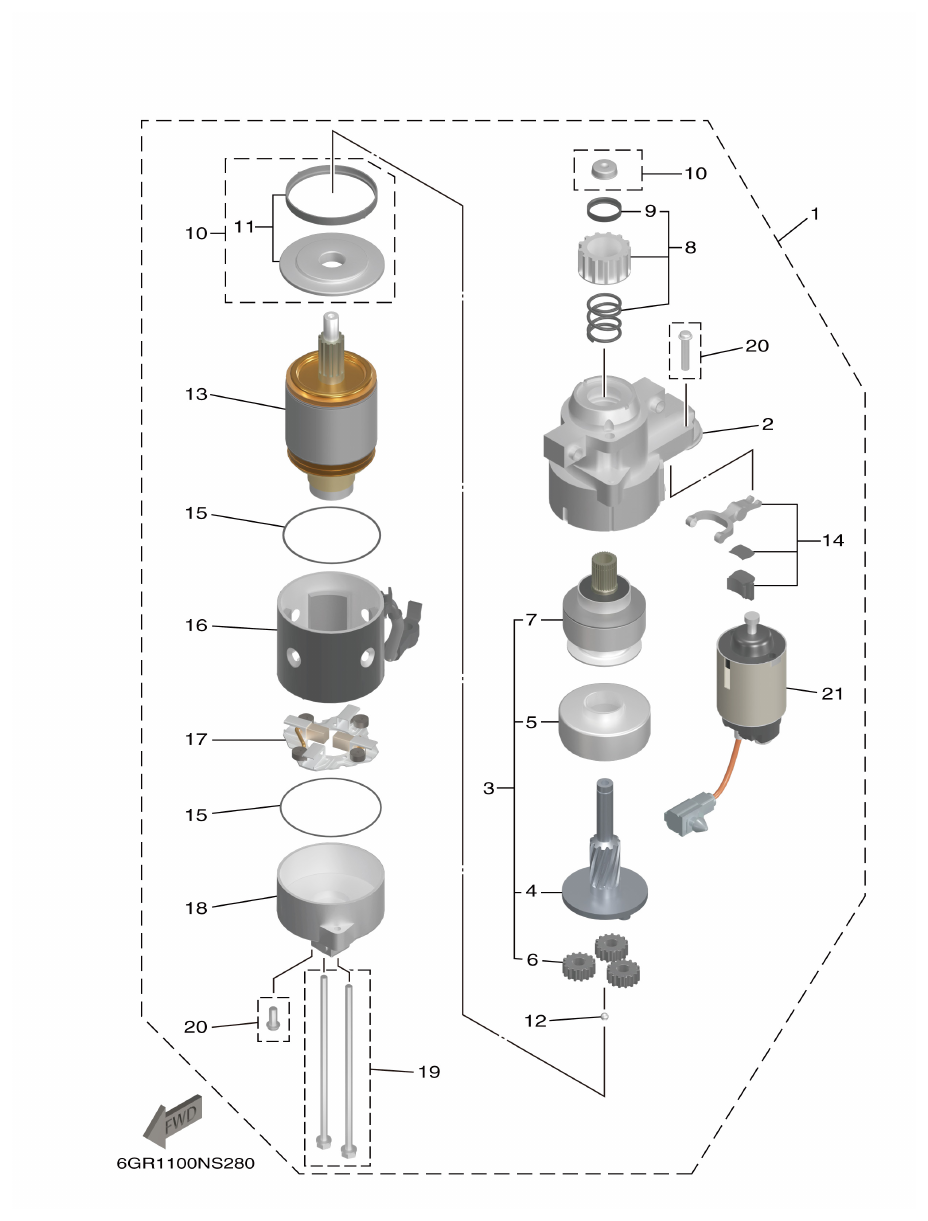

Yamaha XF425NSA2, XF425NSA7 STARTING MOTOR parts diagram
Fig. 28 — STARTING MOTOR
21 items · 3 available products

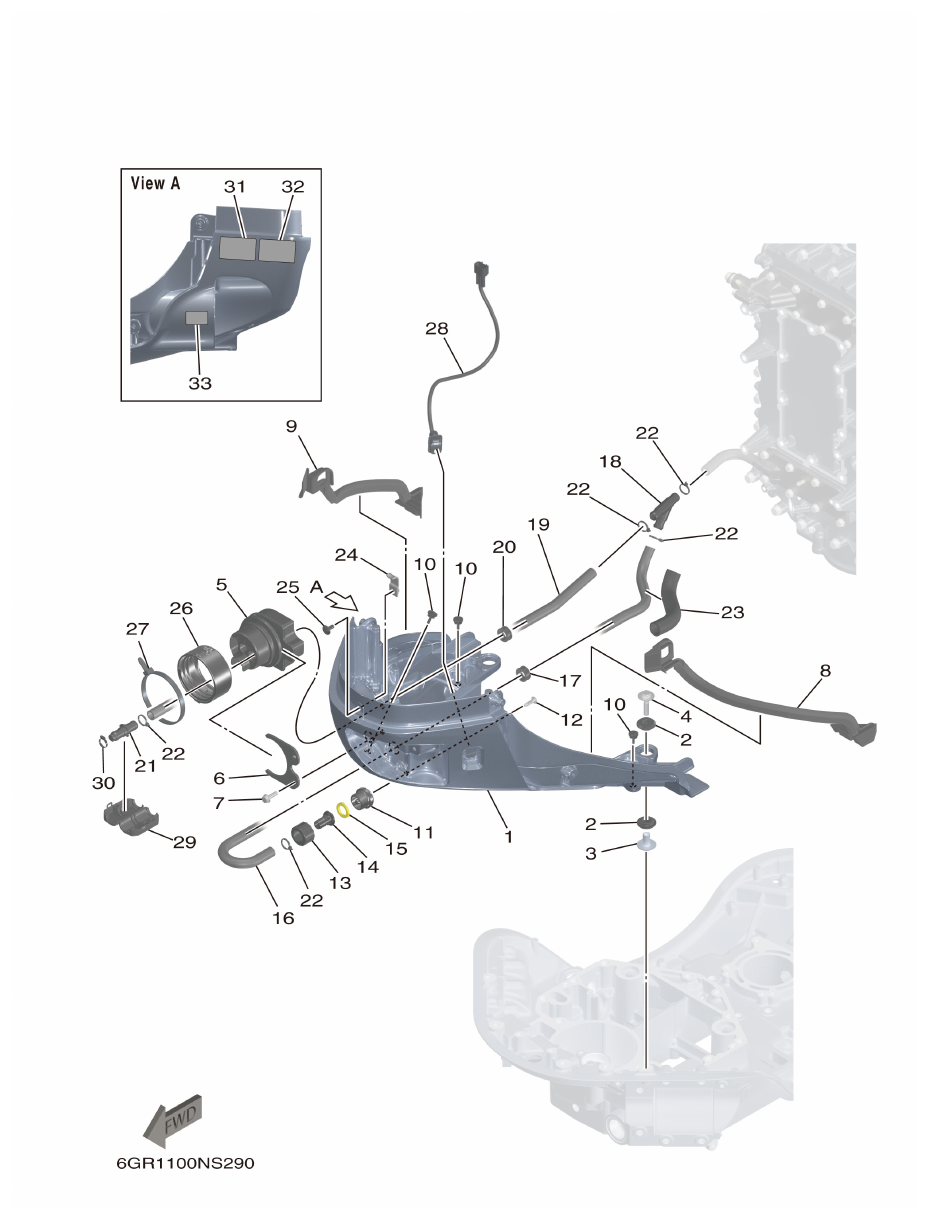

Yamaha XF425NSA2, XF425NSA7 BOTTOM COWLING 1 parts diagram
Fig. 29 — BOTTOM COWLING 1
34 items · 7 available products

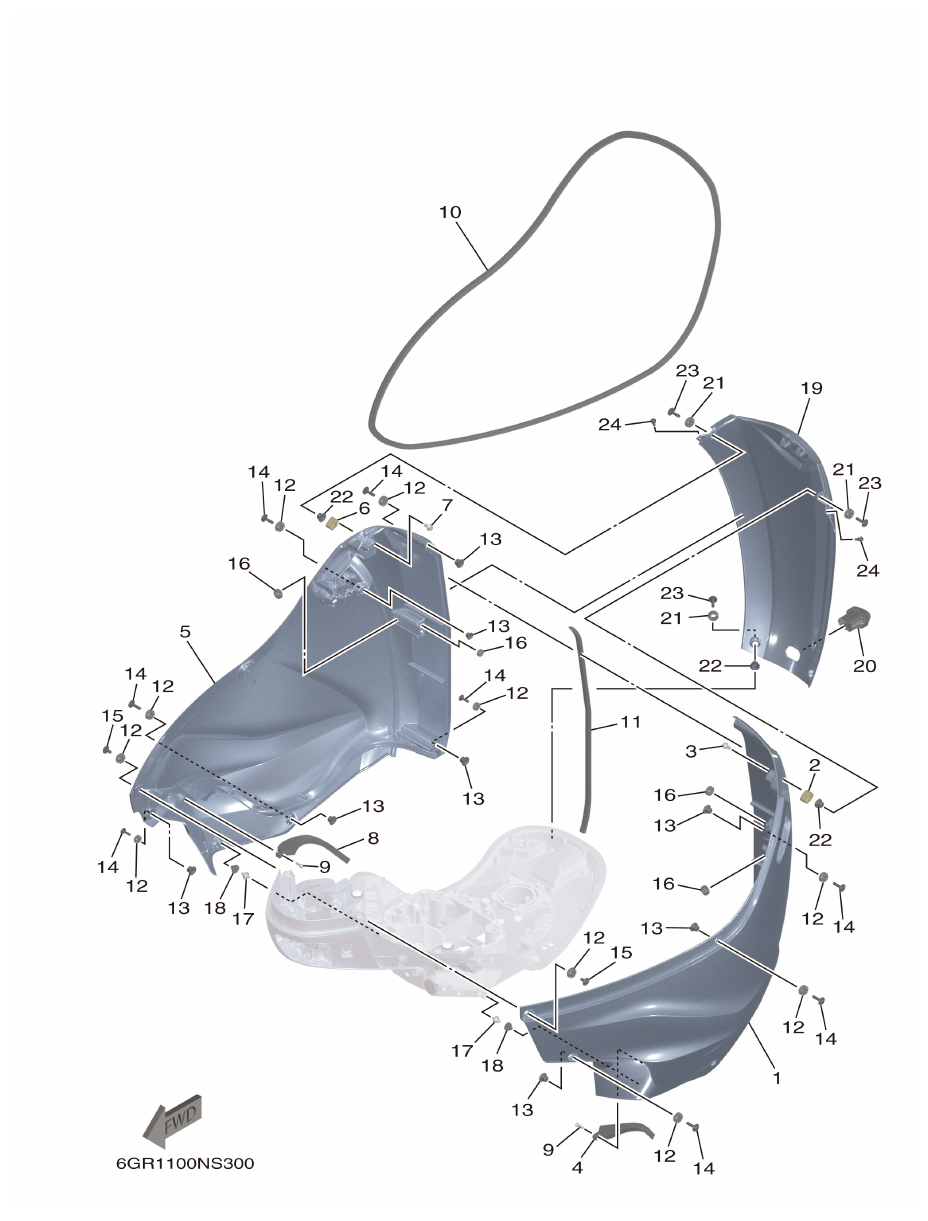

Yamaha XF425NSA2, XF425NSA7 BOTTOM COWLING 2 parts diagram
Fig. 30 — BOTTOM COWLING 2
30 items

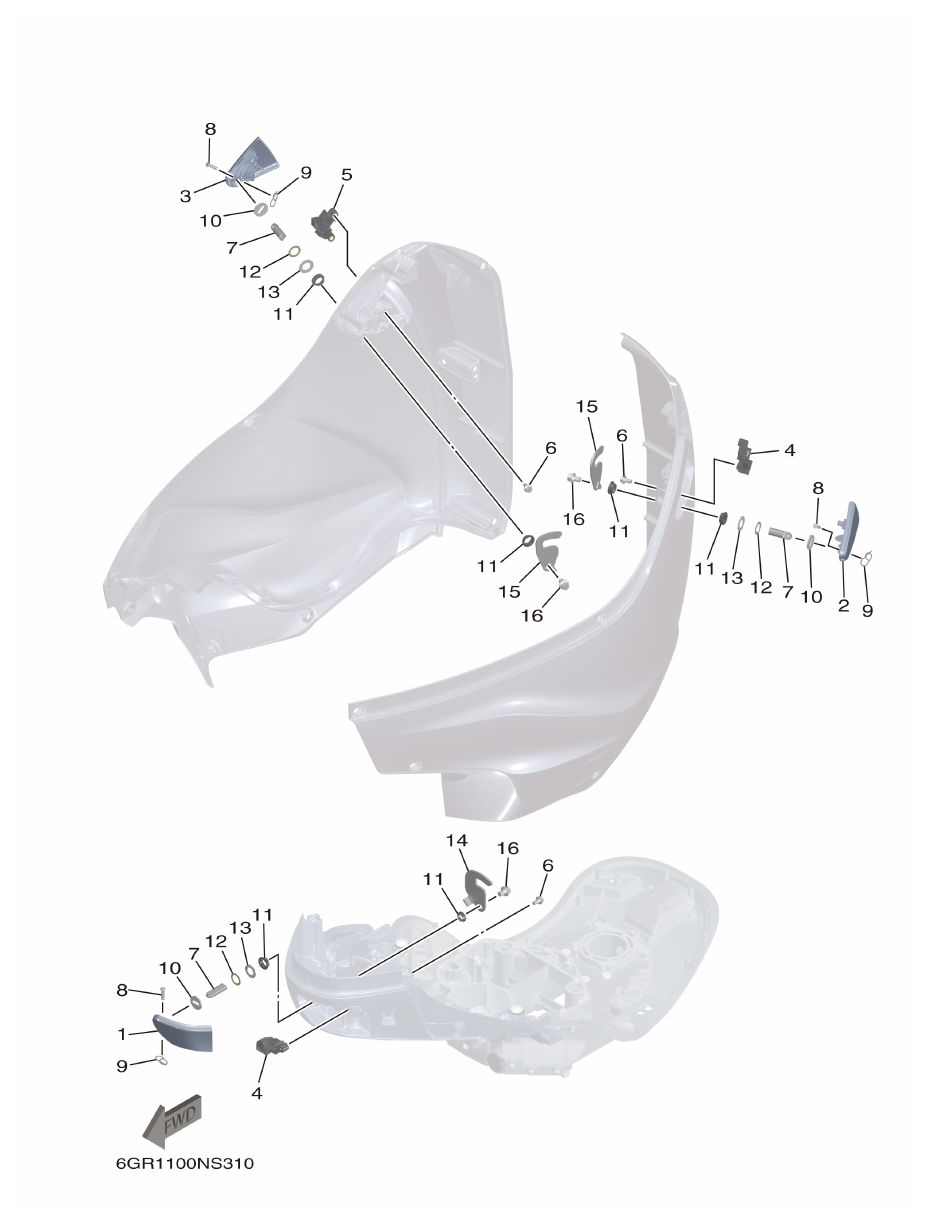

Yamaha XF425NSA2, XF425NSA7 BOTTOM COWLING 3 parts diagram
Fig. 31 — BOTTOM COWLING 3
22 items · 5 available products

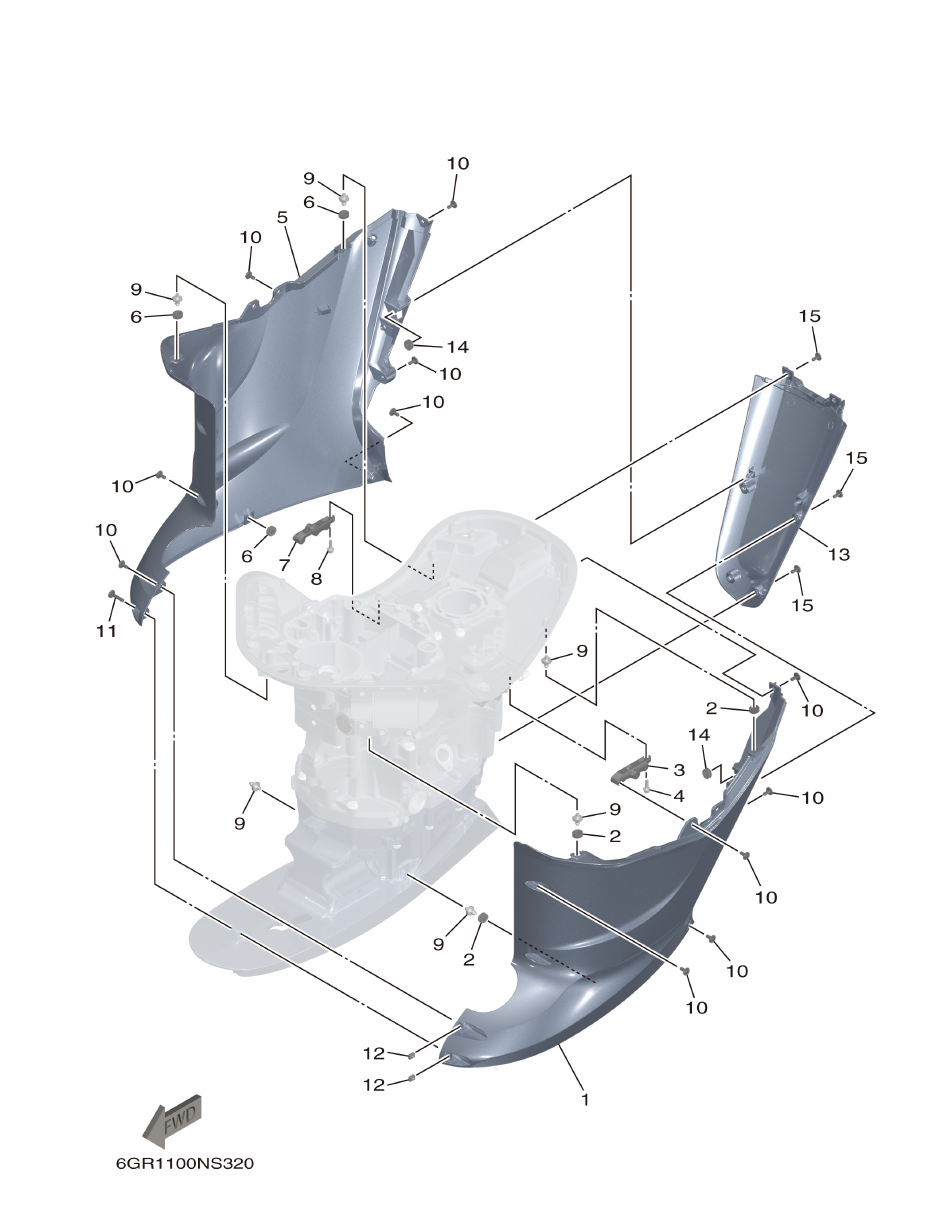

Yamaha XF425NSA2, XF425NSA7 BOTTOM COWLING 4 parts diagram
Fig. 32 — BOTTOM COWLING 4
21 items

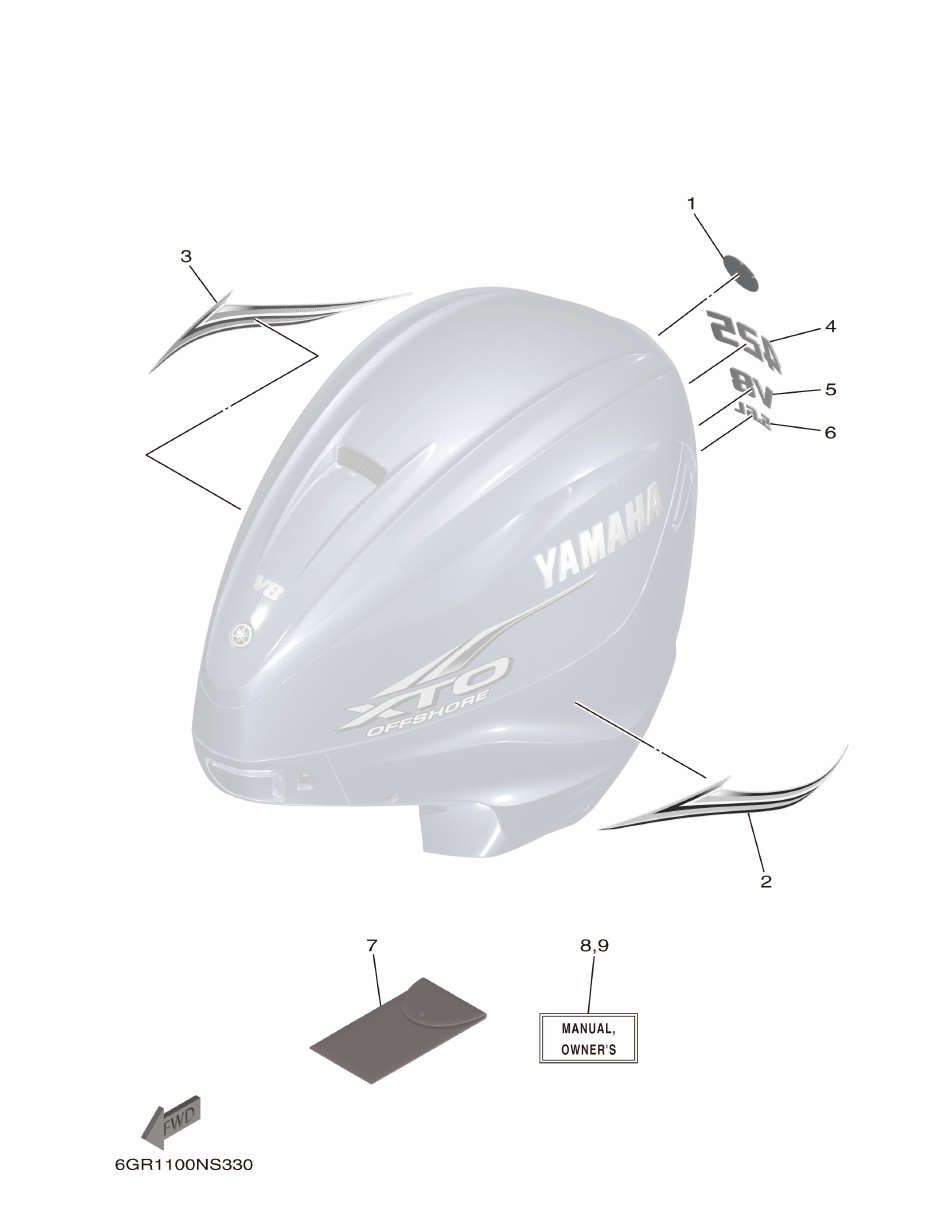

Yamaha XF425NSA2, XF425NSA7 GRAPHIC & TOOL parts diagram
Fig. 33 — GRAPHIC & TOOL
19 items

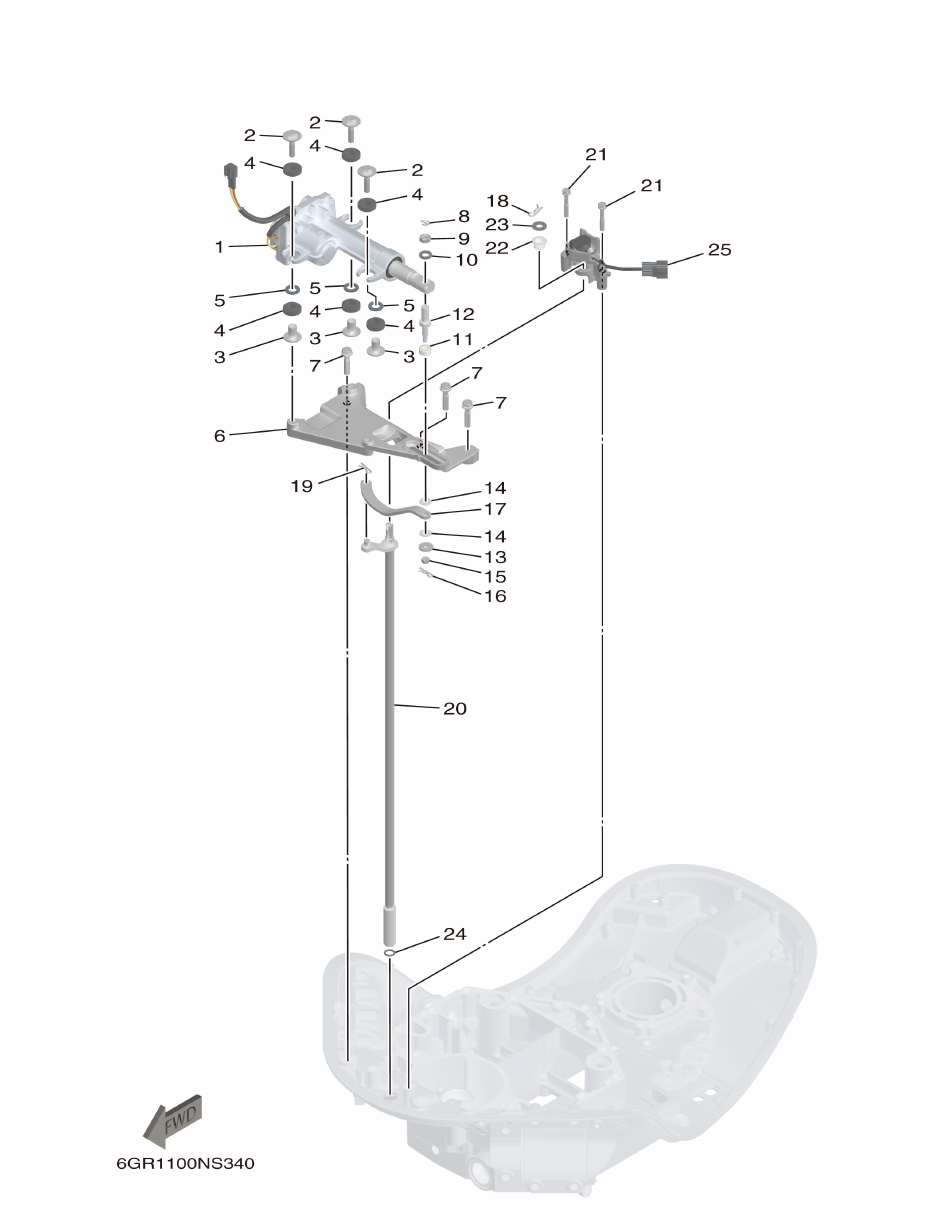

Yamaha XF425NSA2, XF425NSA7 CONTROL parts diagram
Fig. 34 — CONTROL
25 items

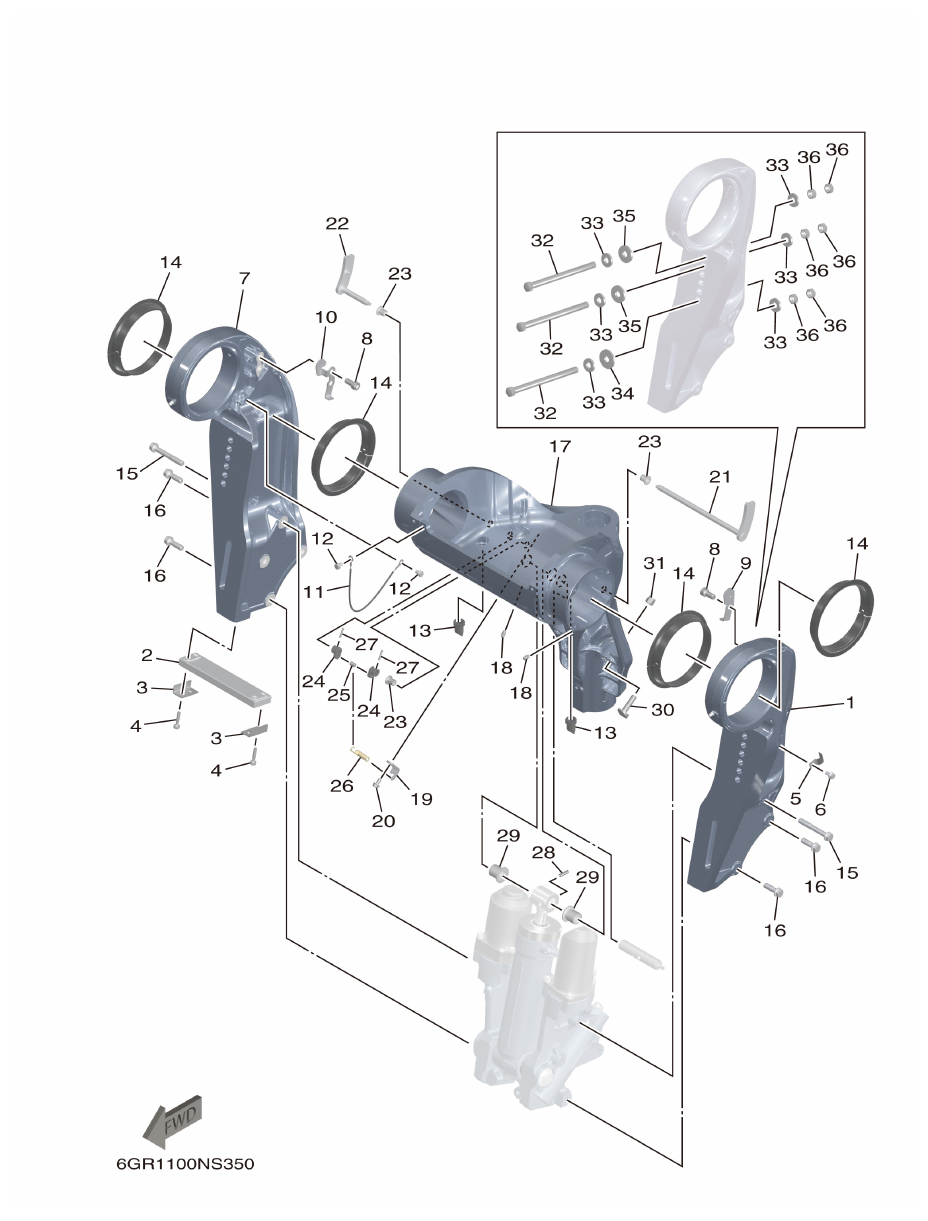

Yamaha XF425NSA2, XF425NSA7 BRACKET 1 parts diagram
Fig. 35 — BRACKET 1
46 items · 8 available products

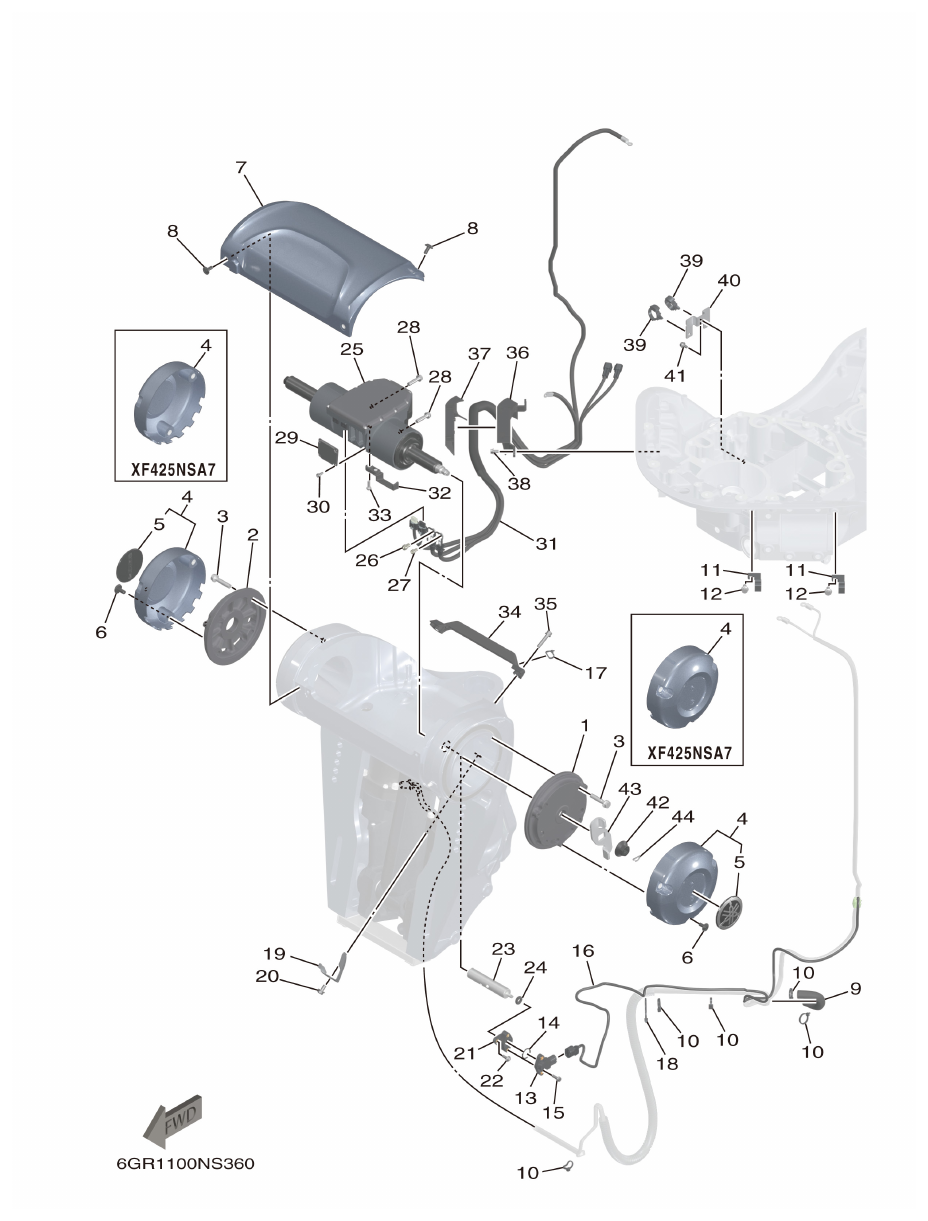

Yamaha XF425NSA2, XF425NSA7 BRACKET 2 parts diagram
Fig. 36 — BRACKET 2
48 items · 5 available products

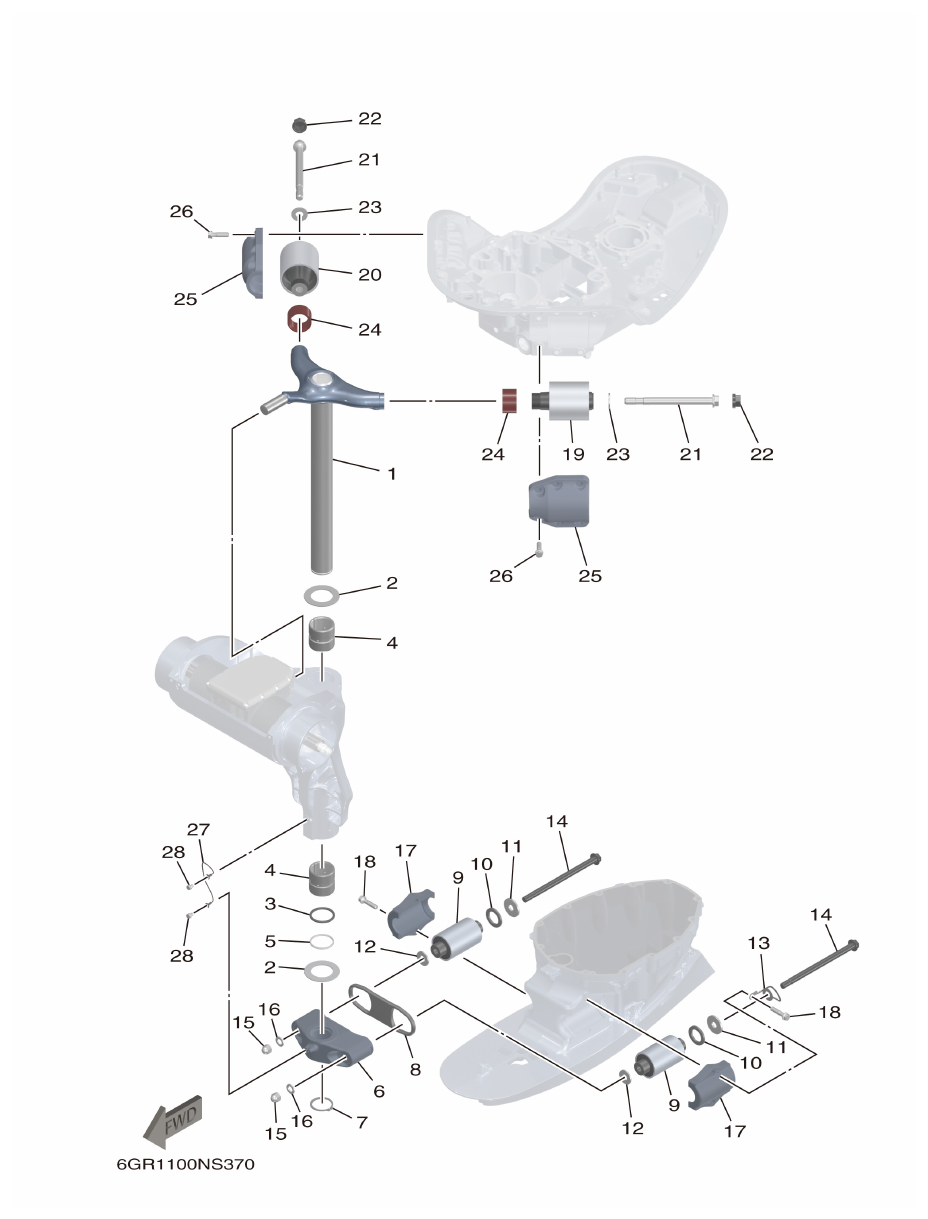

Yamaha XF425NSA2, XF425NSA7 BRACKET 3 parts diagram
Fig. 37 — BRACKET 3
28 items · 2 available products

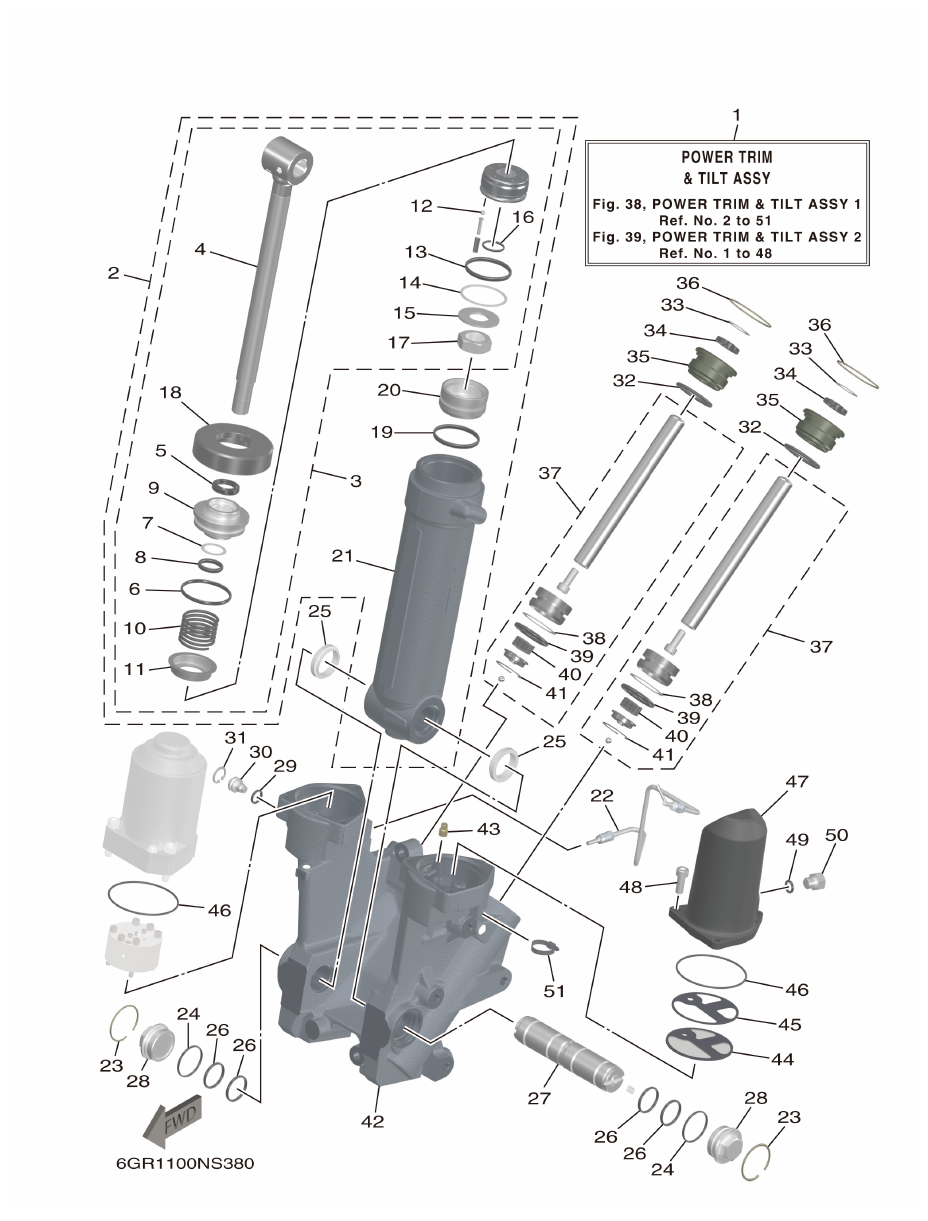

Yamaha XF425NSA2, XF425NSA7 POWER TRIM & TILT ASSY 1 parts diagram
Fig. 38 — POWER TRIM & TILT ASSY 1
51 items · 13 available products

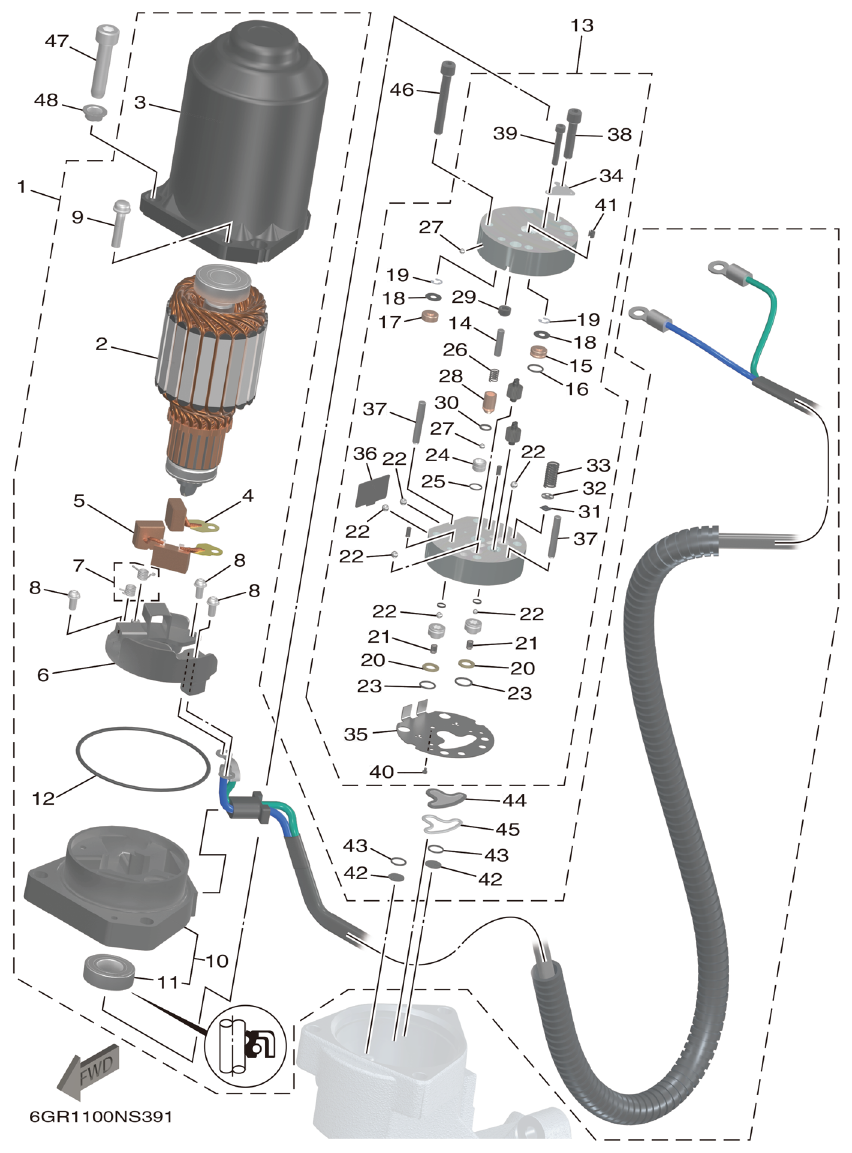

Yamaha XF425NSA2, XF425NSA7 POWER TRIM & TILT ASSY 2 parts diagram
Fig. 39 — POWER TRIM & TILT ASSY 2
48 items · 8 available products

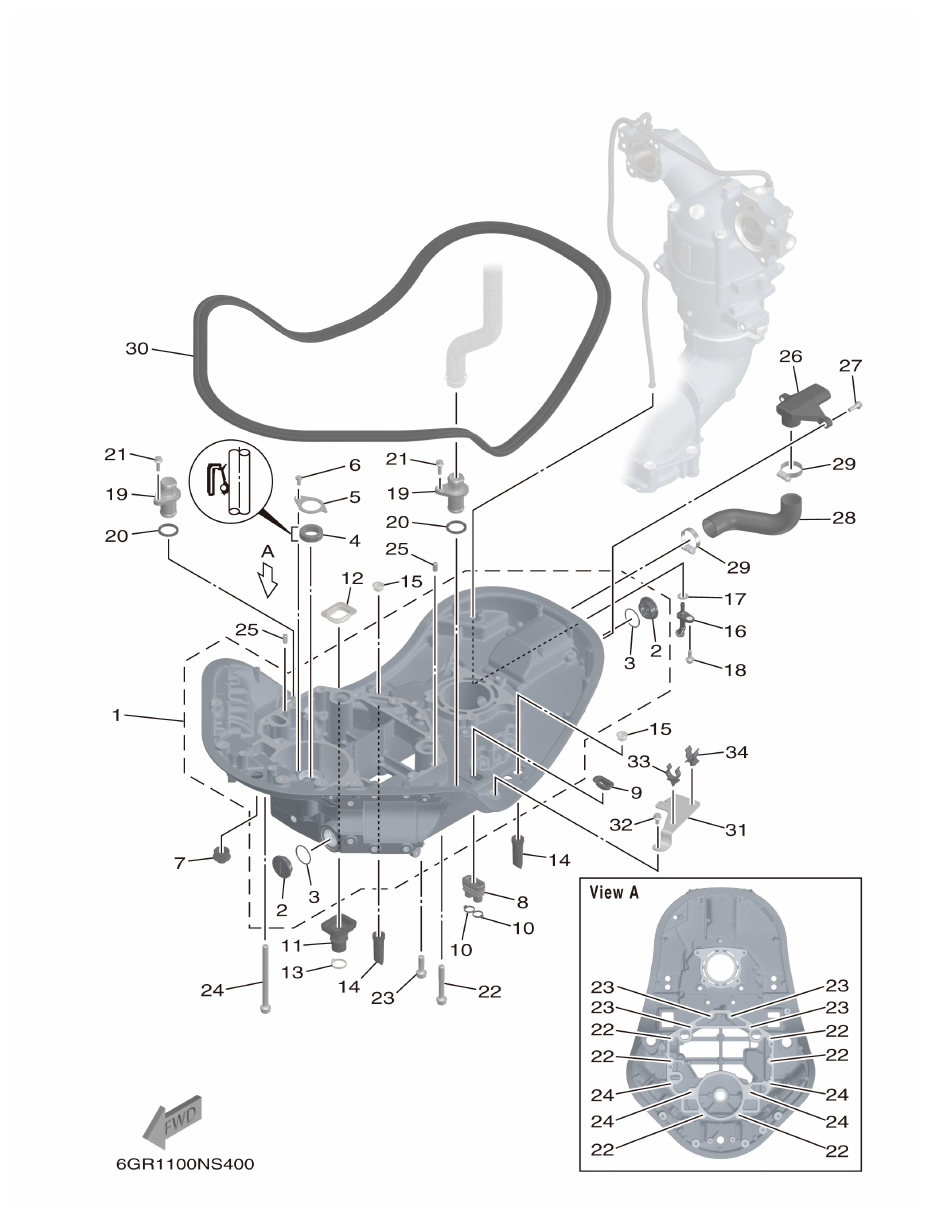

Yamaha XF425NSA2, XF425NSA7 UPPER CASING 1 parts diagram
Fig. 40 — UPPER CASING 1
34 items · 2 available products

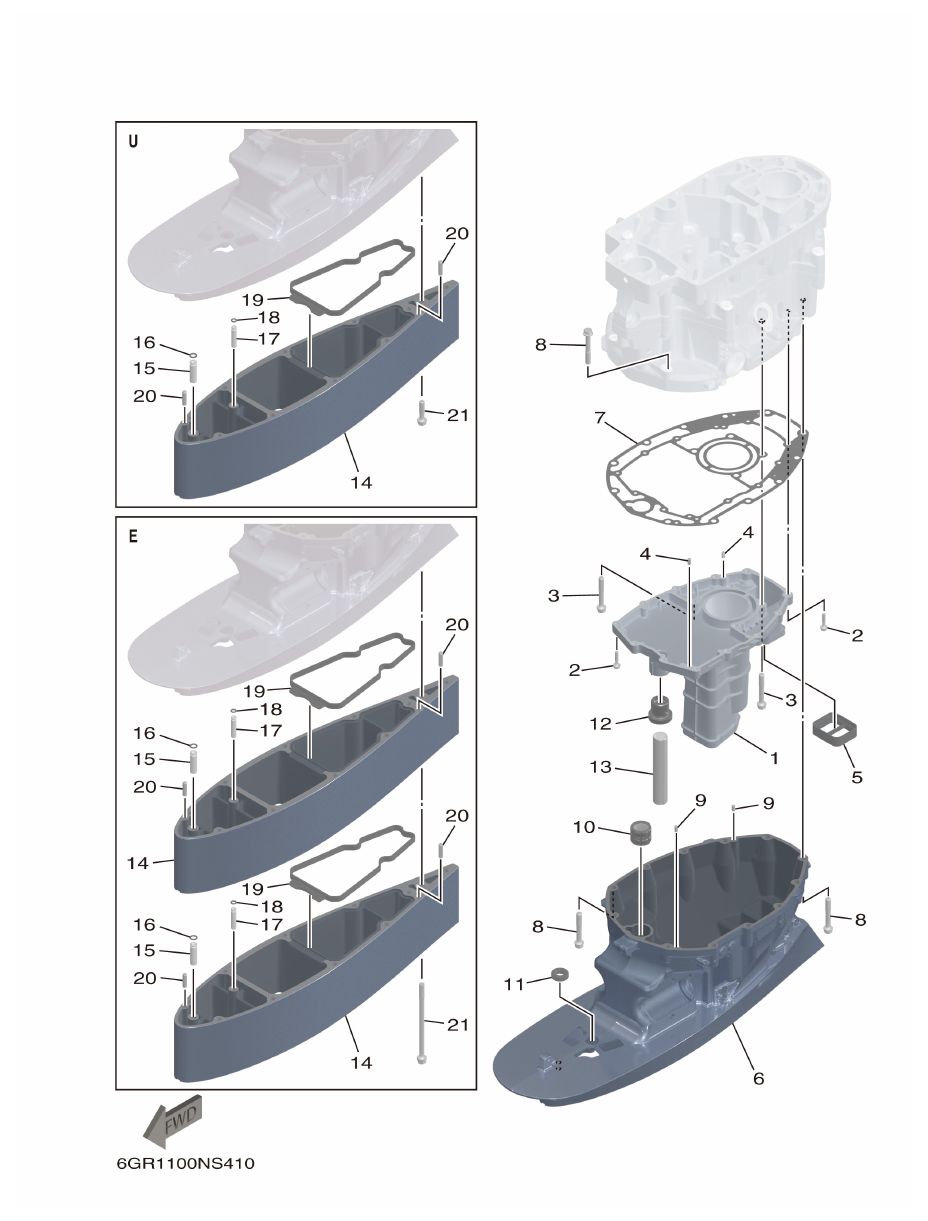

Yamaha XF425NSA2, XF425NSA7 UPPER CASING 2 parts diagram
Fig. 41 — UPPER CASING 2
34 items · 4 available products

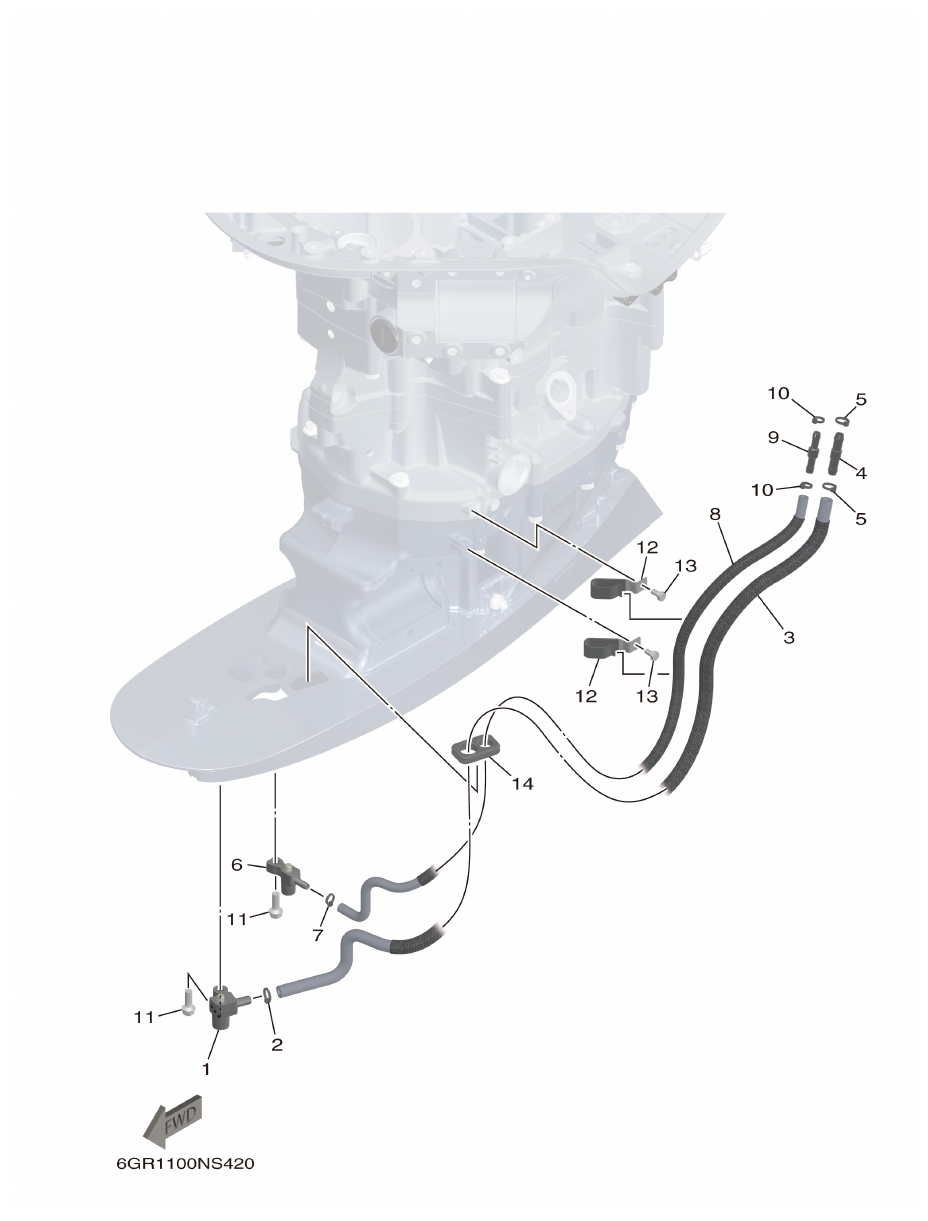

Yamaha XF425NSA2, XF425NSA7 UPPER CASING 3 parts diagram
Fig. 42 — UPPER CASING 3
14 items

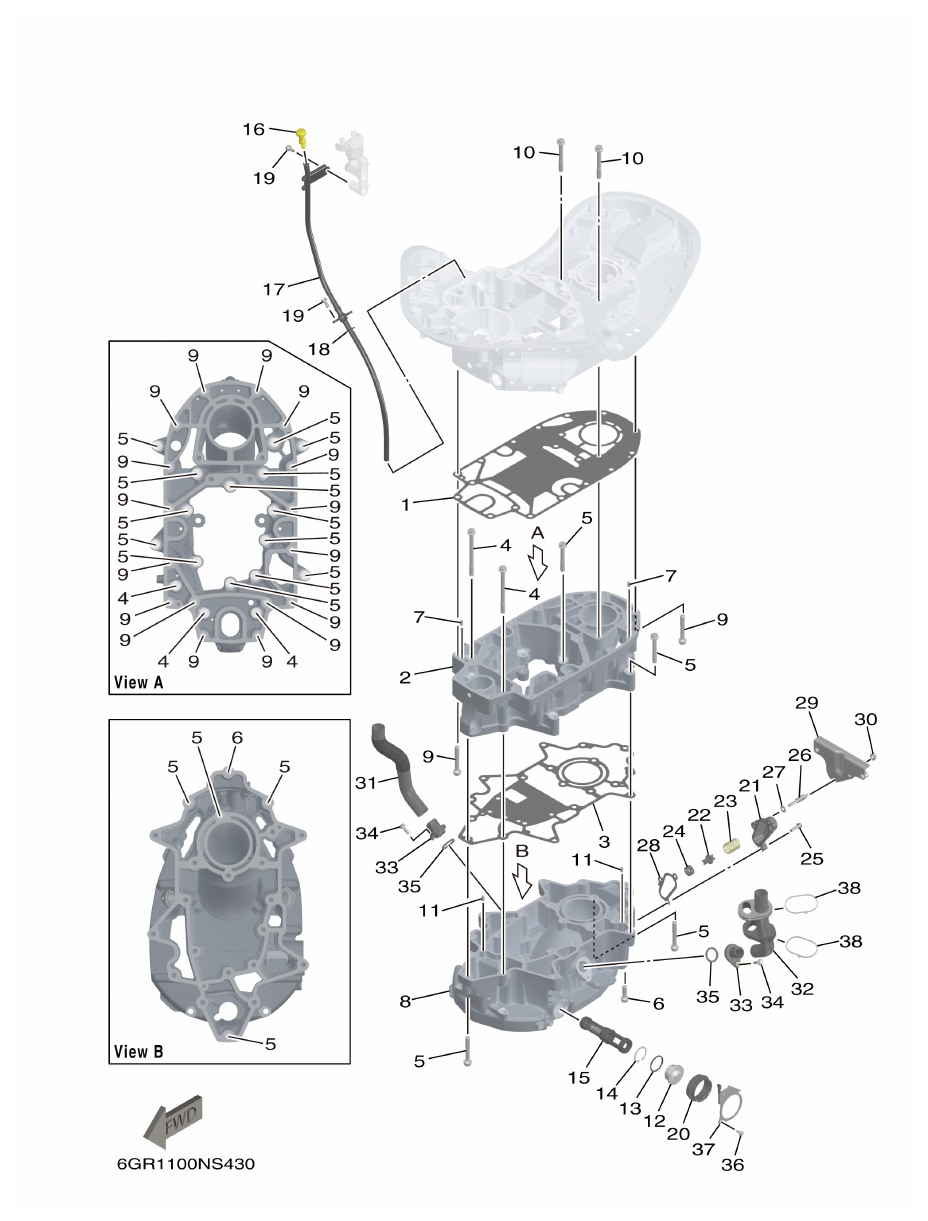

Yamaha XF425NSA2, XF425NSA7 OIL PAN parts diagram
Fig. 43 — OIL PAN
38 items · 2 available products
Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 1 parts diagram
Fig. 44 — LOWER CASING & DRIVE 1
67 items · 16 available products

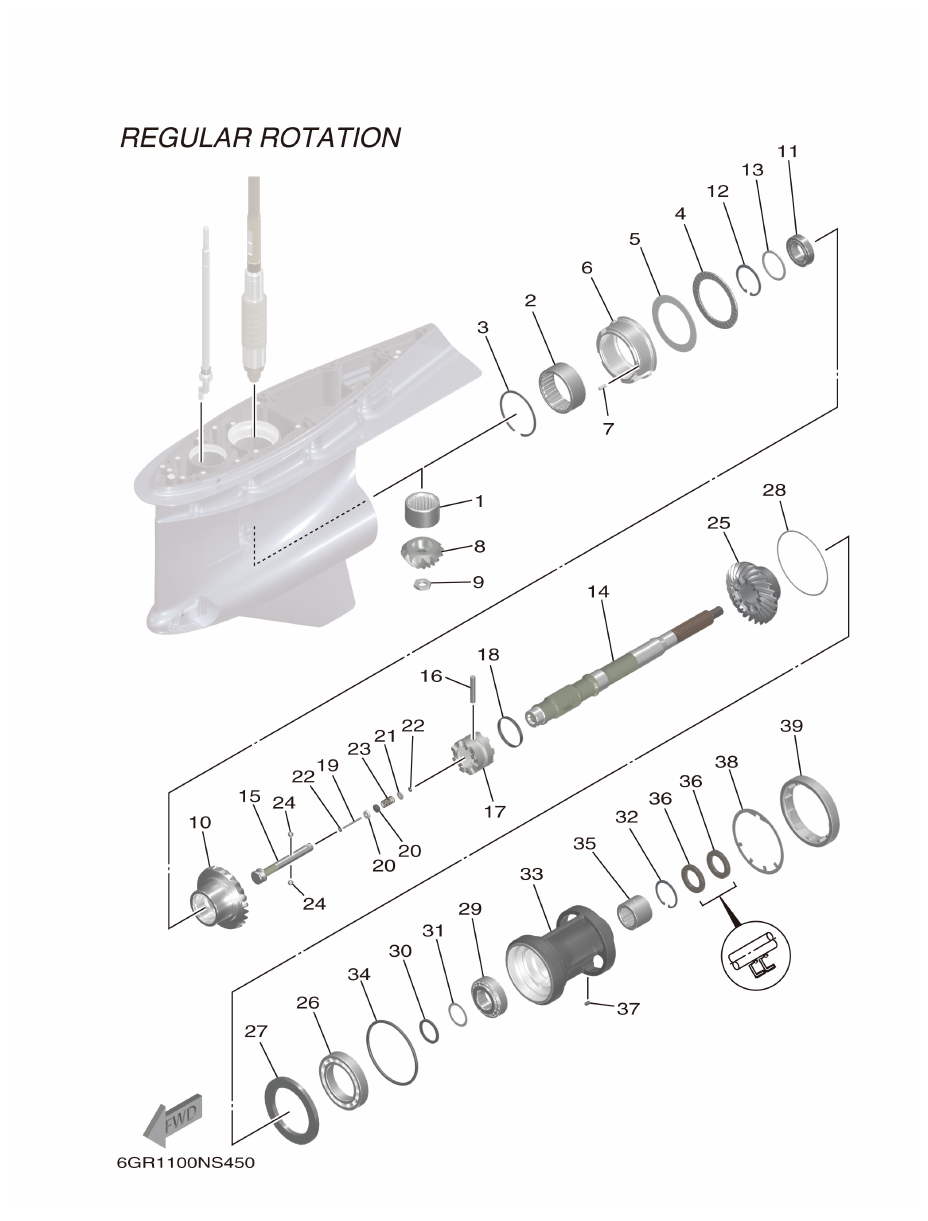

Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 2 parts diagram
Fig. 45 — LOWER CASING & DRIVE 2
59 items · 5 available products

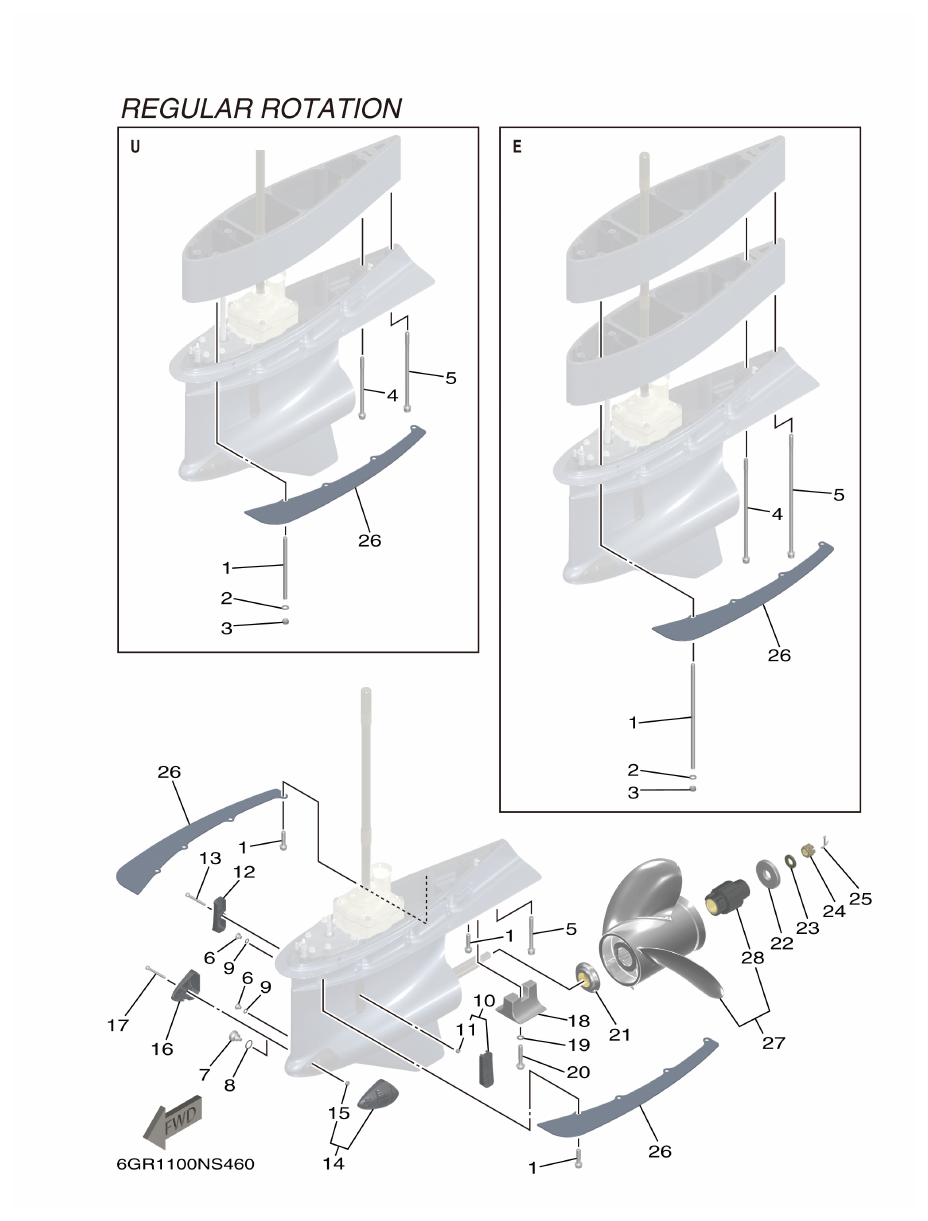

Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 3 parts diagram
Fig. 46 — LOWER CASING & DRIVE 3
42 items · 6 available products

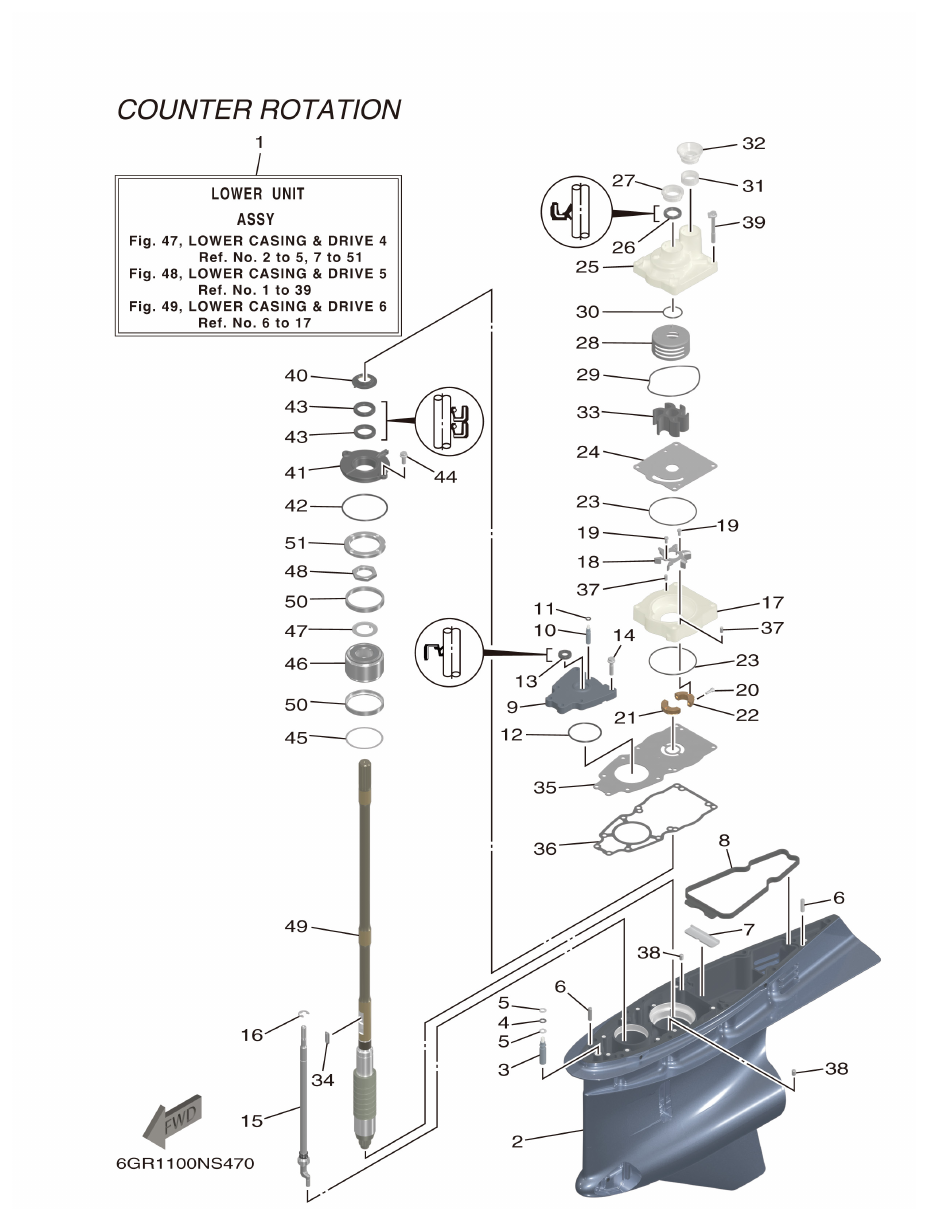

Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 4 parts diagram
Fig. 47 — LOWER CASING & DRIVE 4
67 items · 19 available products

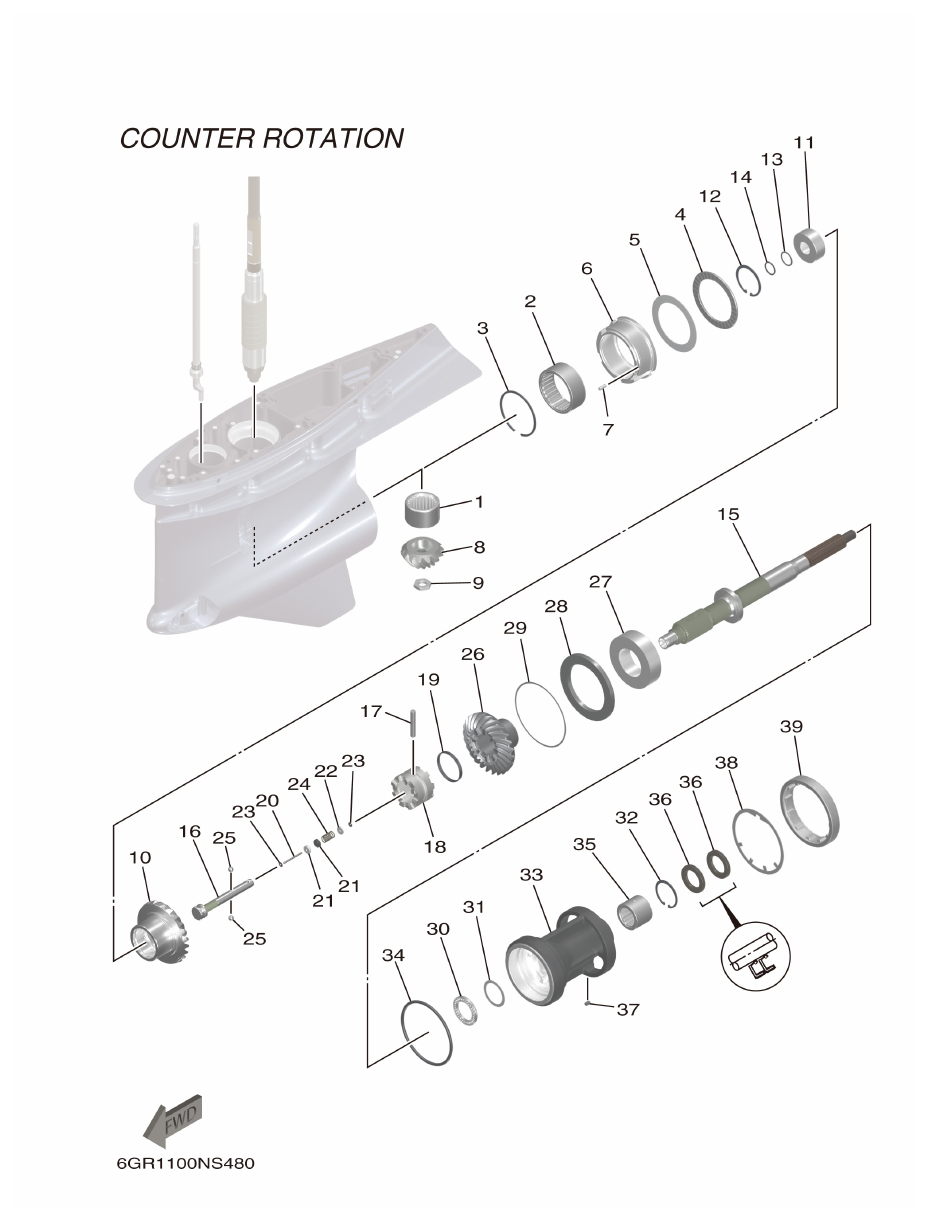

Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 5 parts diagram
Fig. 48 — LOWER CASING & DRIVE 5
58 items · 13 available products

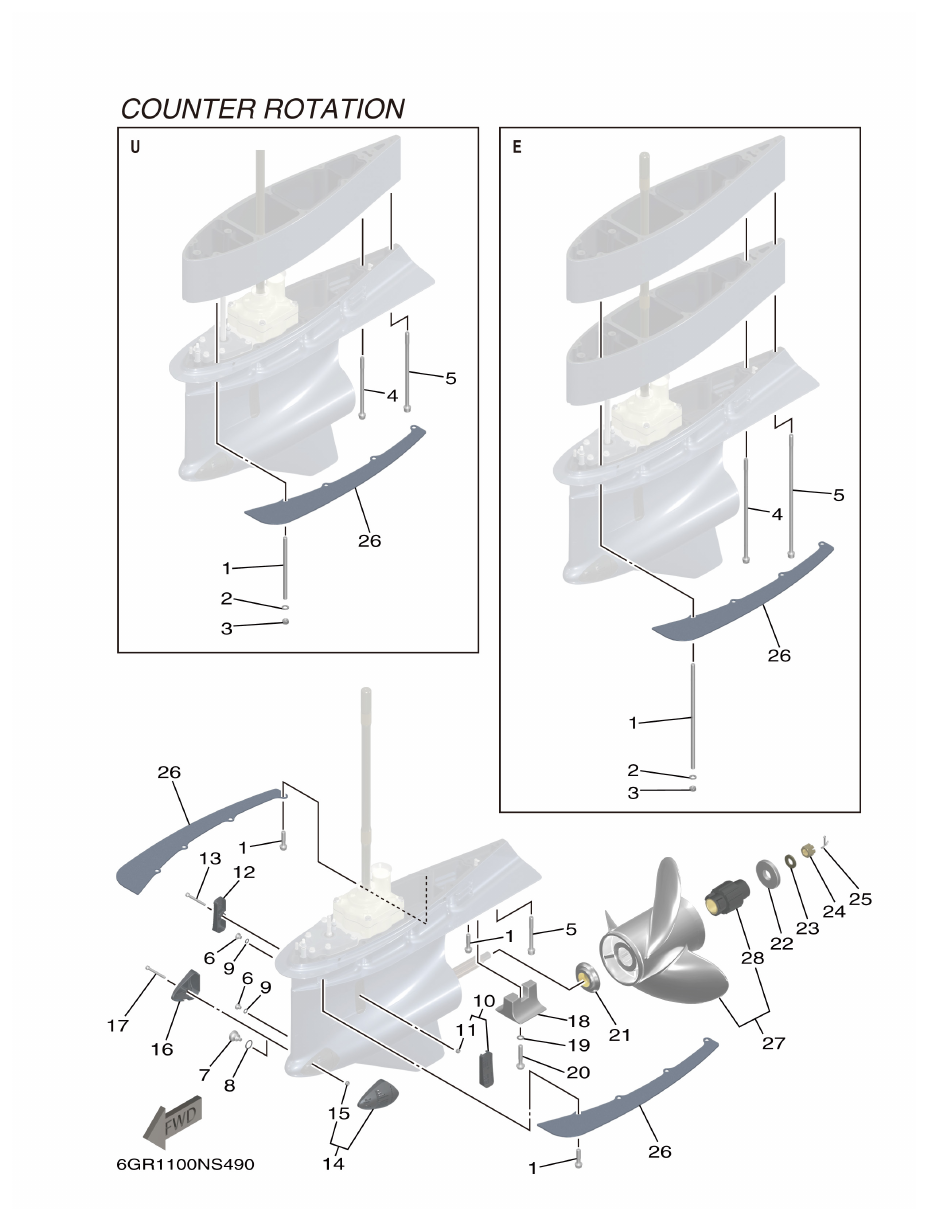

Yamaha XF425NSA2, XF425NSA7 LOWER CASING & DRIVE 6 parts diagram
Fig. 49 — LOWER CASING & DRIVE 6
42 items · 5 available products

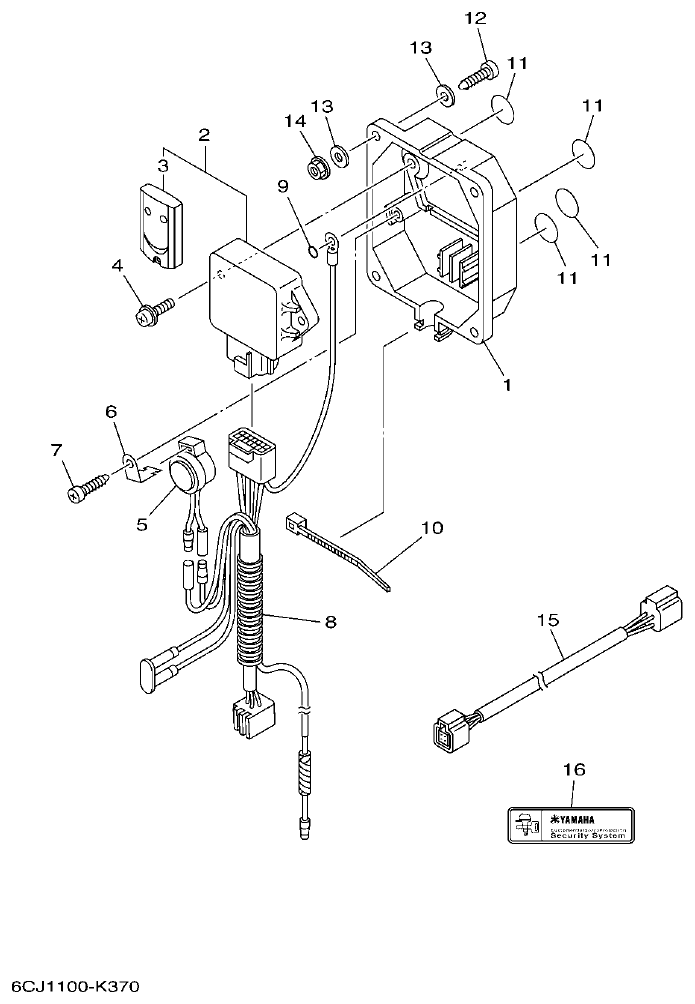

Yamaha XF425NSA2, XF425NSA7 OPTIONAL PARTS parts diagram
Fig. 50 — OPTIONAL PARTS
19 items · 1 available products

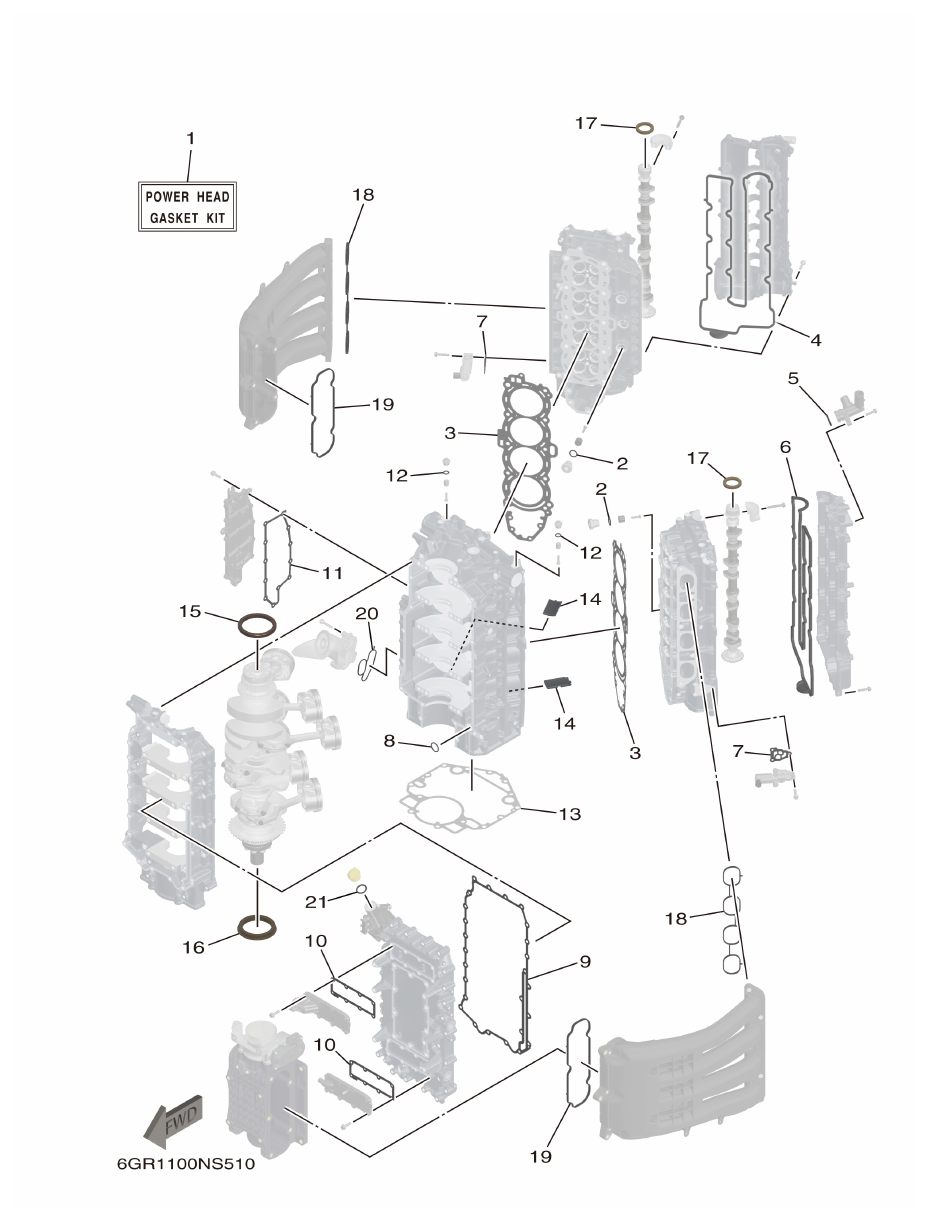

Yamaha XF425NSA2, XF425NSA7 REPAIR KIT 1 parts diagram
Fig. 51 — REPAIR KIT 1
21 items · 2 available products

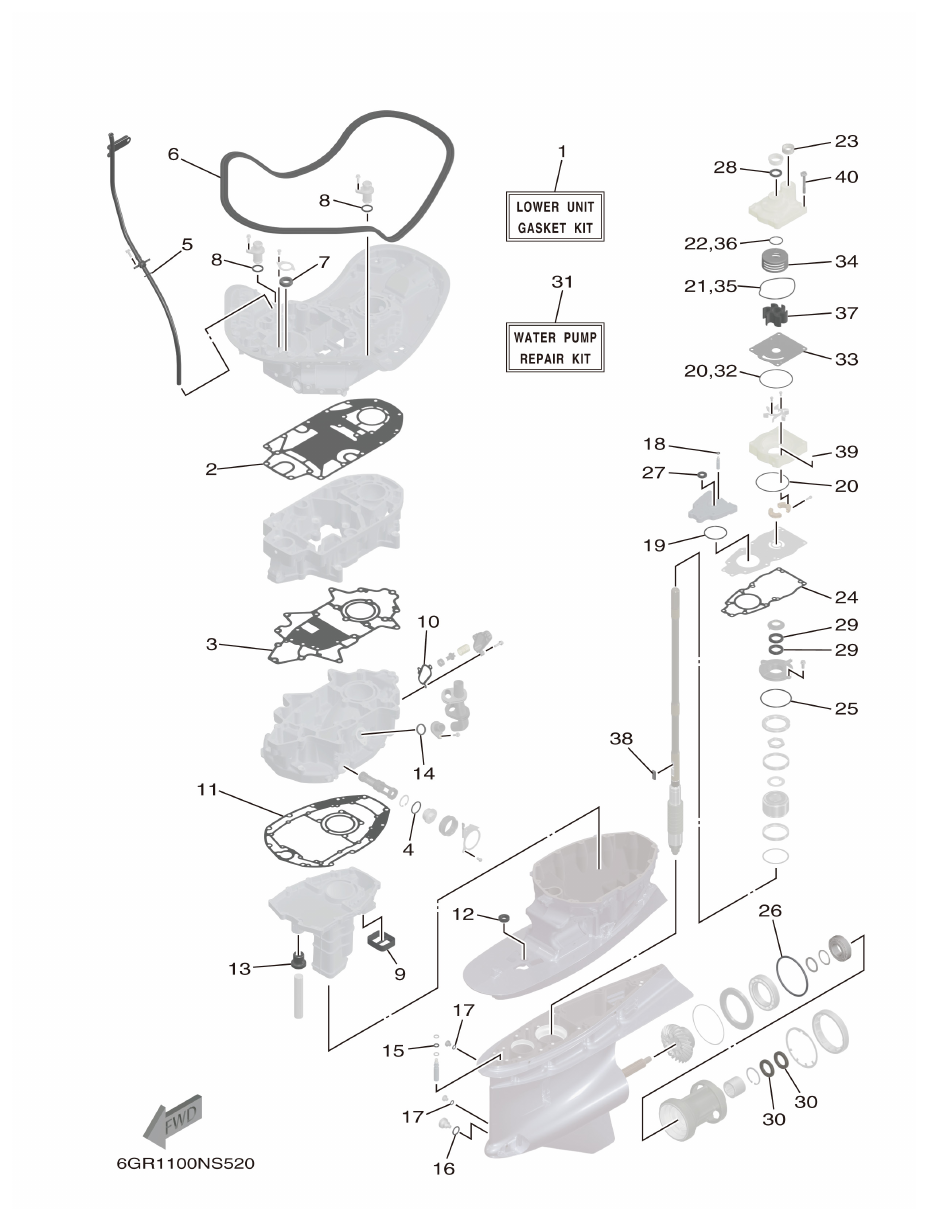

Yamaha XF425NSA2, XF425NSA7 REPAIR KIT 2 parts diagram
Fig. 52 — REPAIR KIT 2
40 items · 4 available products
