Yamaha YP30G-Q9CC Parts Catalog

Yamaha YP30G-Q9CC Pump parts and diagrams

Yamaha YP30G-Q9CC pump parts catalog includes CYLINDER HEAD, CRANKSHAFT & PISTON, GOVERNOR, CAMSHAFT & VALVE, AIR SHROUD & FAN, INTAKE, CARBURETOR 1, CARBURETOR 2, EXHAUST, CRANKCASE, FUEL TANK, GENERATOR 1, ELECTRICAL 2, WATER PUMP 1 (YP20G:USA/CAN), WATER PUMP 2 (YP20G:EUR/OTH/CHN), WATER PUMP 3 (YP30G:USA/CAN), WATER PUMP 4 (YP30G:EUR/OTH/CHN). Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

This catalog is available as a reference parts list; contact Marmoom Marine to confirm price and availability. 341 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha YP30G-Q9CC CYLINDER HEAD parts diagram

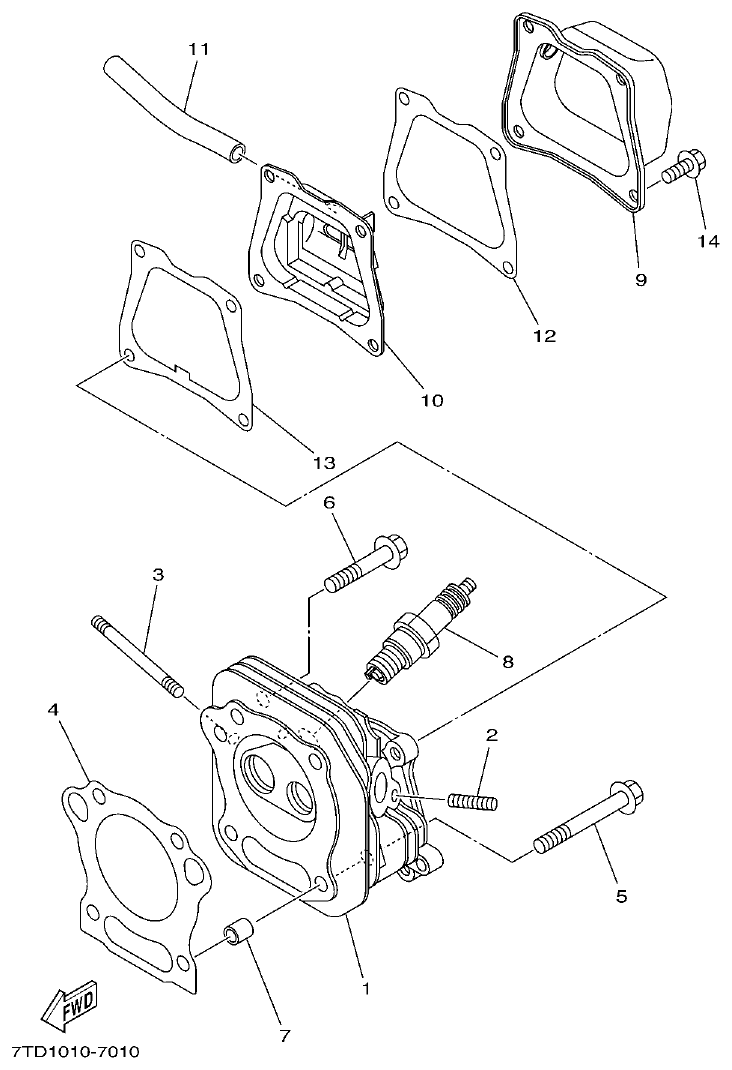

Fig. 1 — CYLINDER HEAD
16 items
Yamaha YP30G-Q9CC CRANKSHAFT & PISTON parts diagram

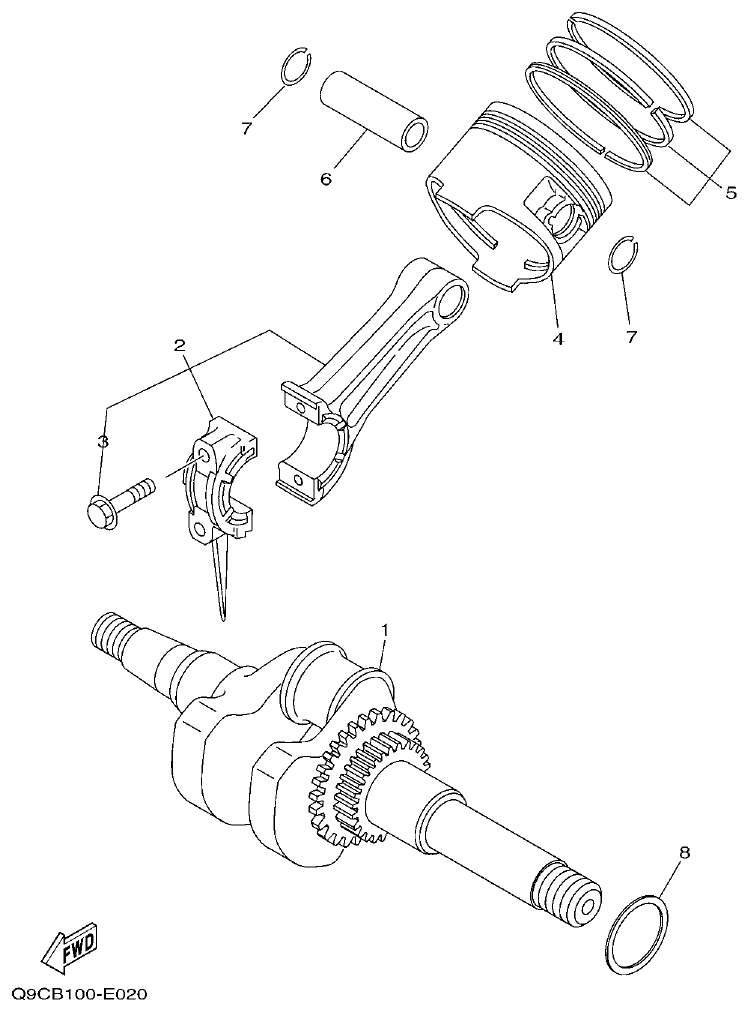

Fig. 2 — CRANKSHAFT & PISTON
22 items
Yamaha YP30G-Q9CC GOVERNOR parts diagram

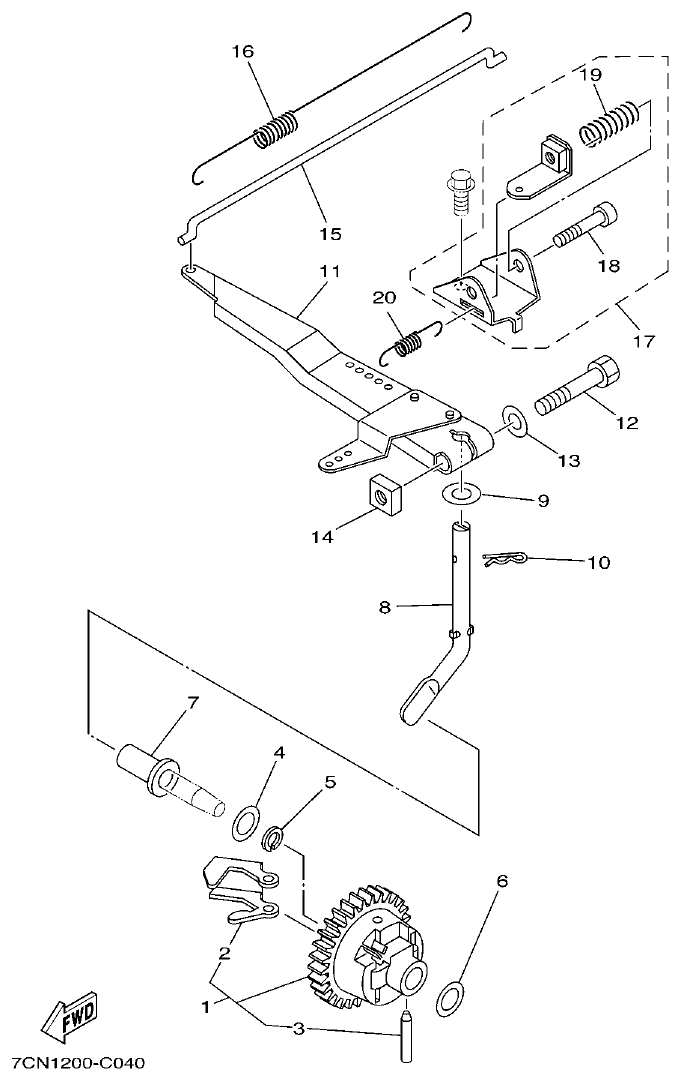

Fig. 3 — GOVERNOR
20 items
Yamaha YP30G-Q9CC CAMSHAFT & VALVE parts diagram

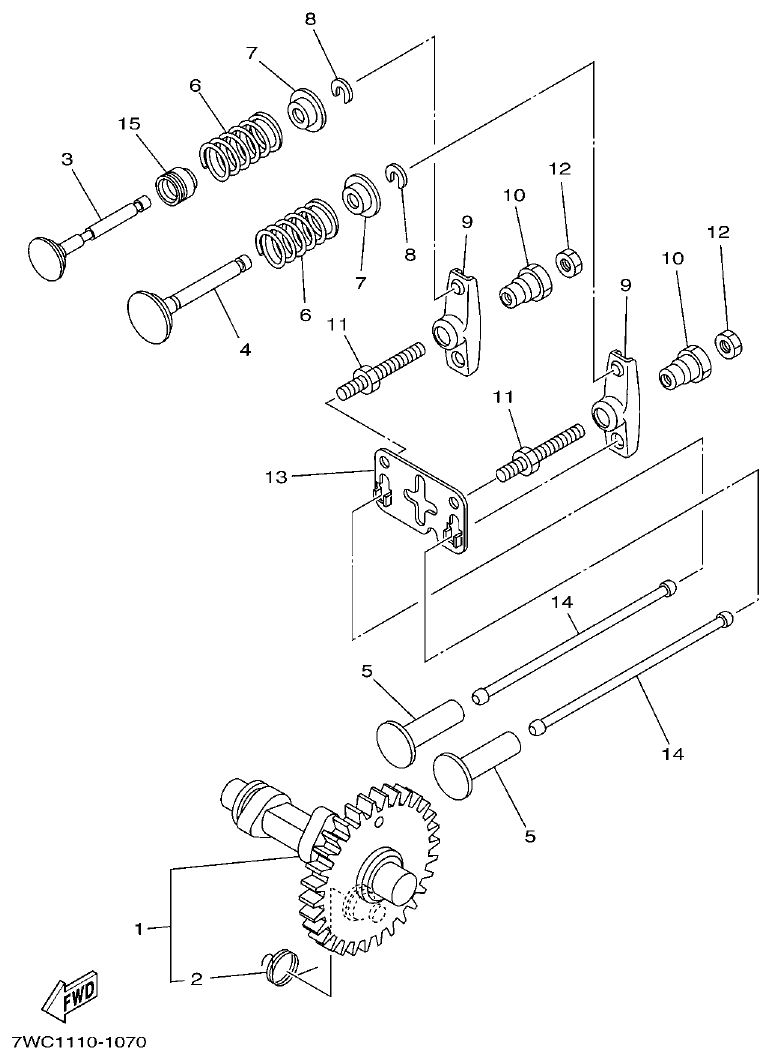

Fig. 4 — CAMSHAFT & VALVE
18 items
Yamaha YP30G-Q9CC AIR SHROUD & FAN parts diagram

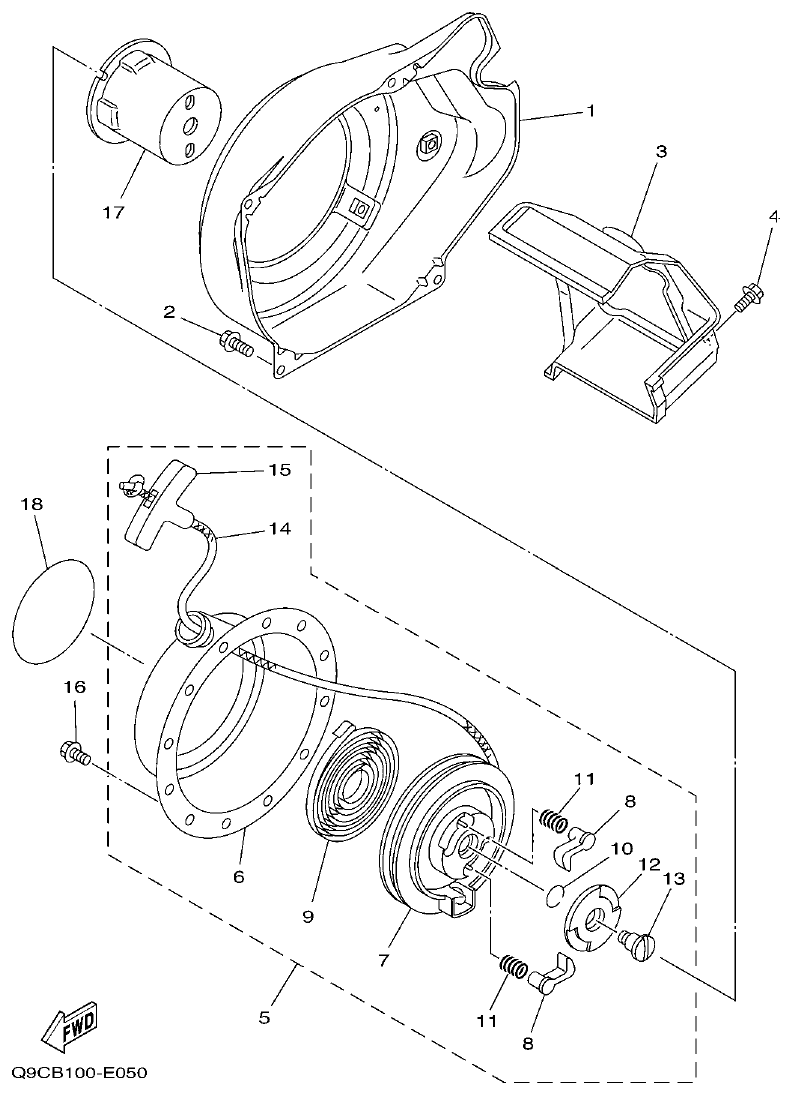

Fig. 5 — AIR SHROUD & FAN
19 items
Yamaha YP30G-Q9CC INTAKE parts diagram

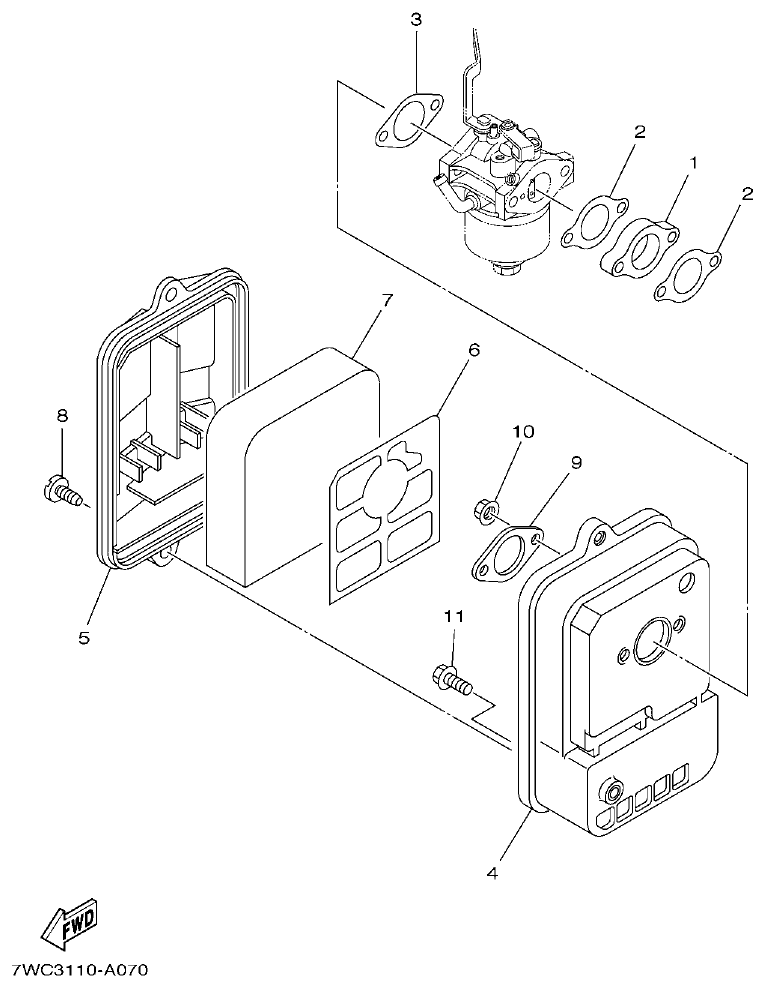

Fig. 6 — INTAKE
13 items
Yamaha YP30G-Q9CC CARBURETOR 1 parts diagram
Fig. 7 — CARBURETOR 1
21 items
Yamaha YP30G-Q9CC CARBURETOR 2 parts diagram

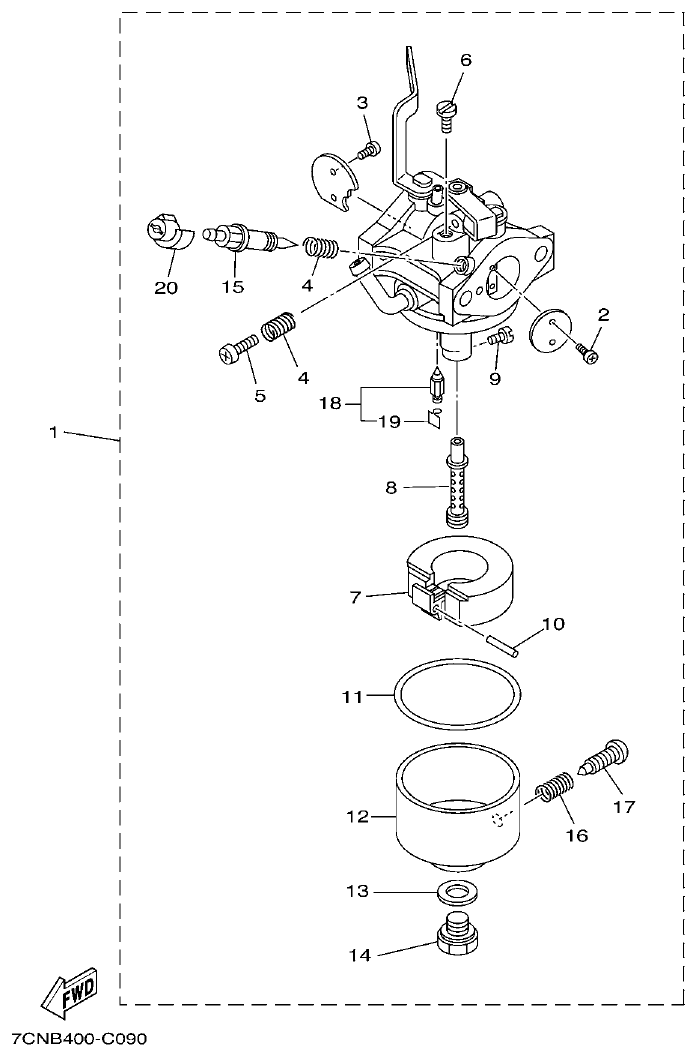

Fig. 8 — CARBURETOR 2
20 items
Yamaha YP30G-Q9CC EXHAUST parts diagram
Fig. 9 — EXHAUST
13 items
Yamaha YP30G-Q9CC CRANKCASE parts diagram

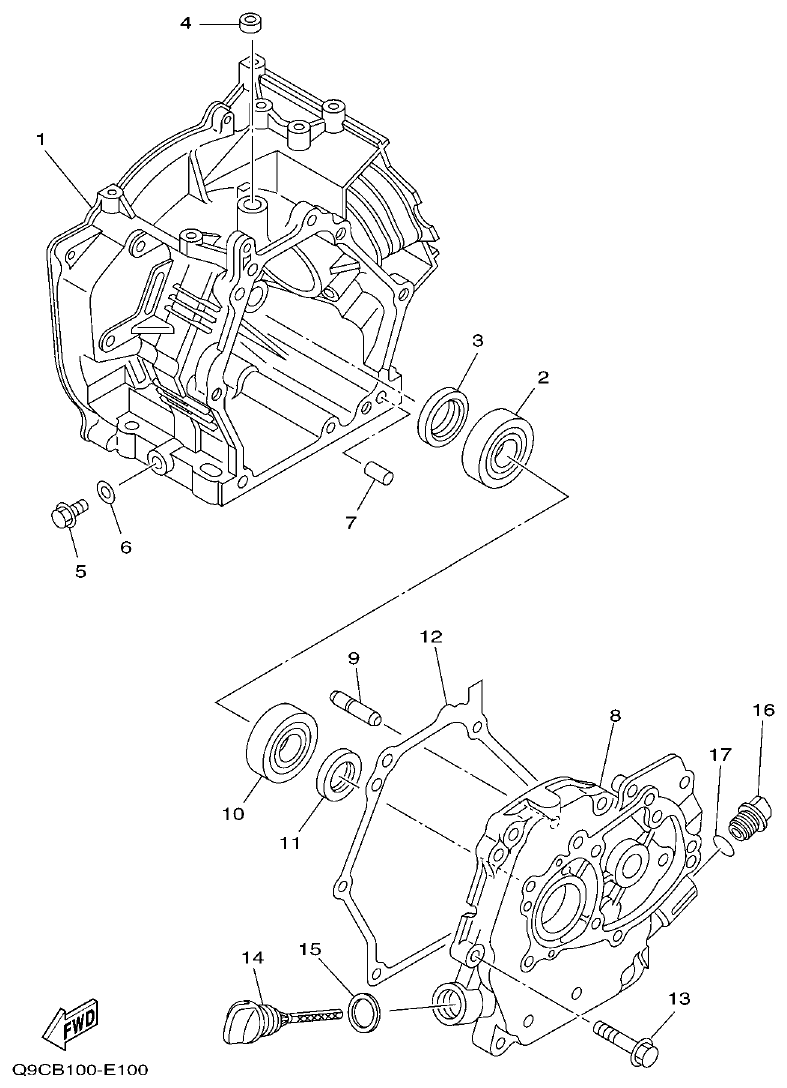

Fig. 10 — CRANKCASE
18 items
Yamaha YP30G-Q9CC FUEL TANK parts diagram

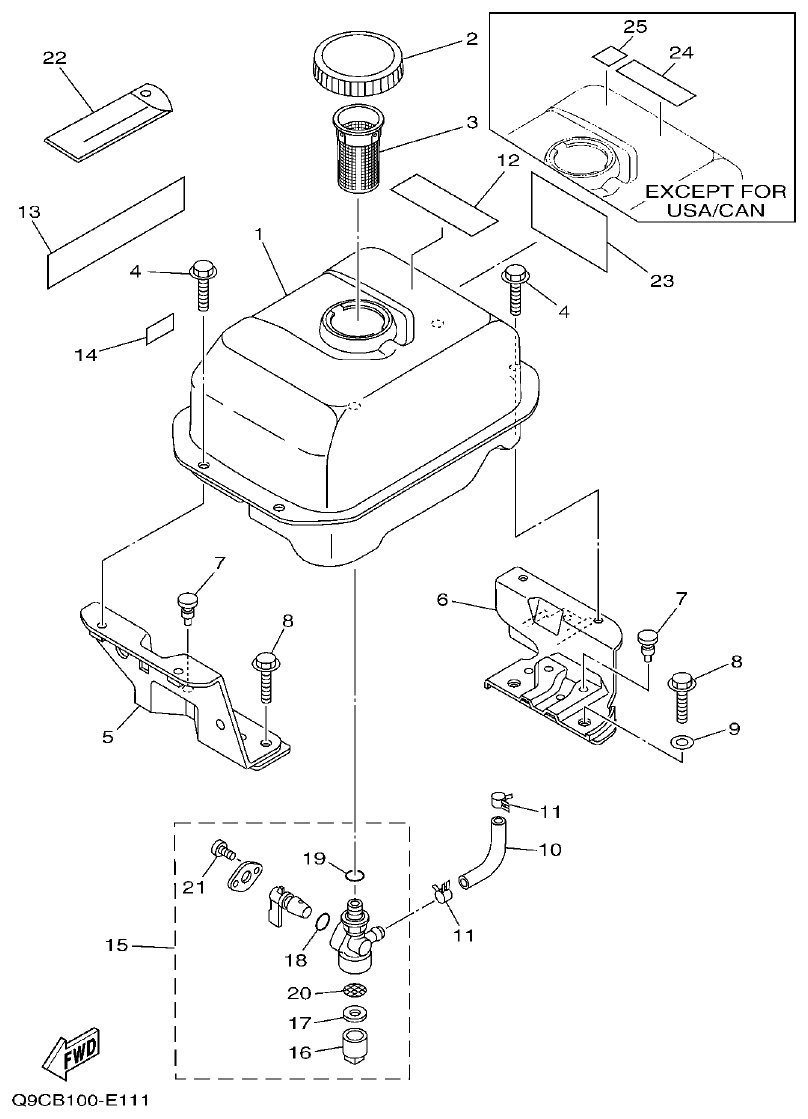

Fig. 11 — FUEL TANK
27 items
Yamaha YP30G-Q9CC GENERATOR 1 parts diagram

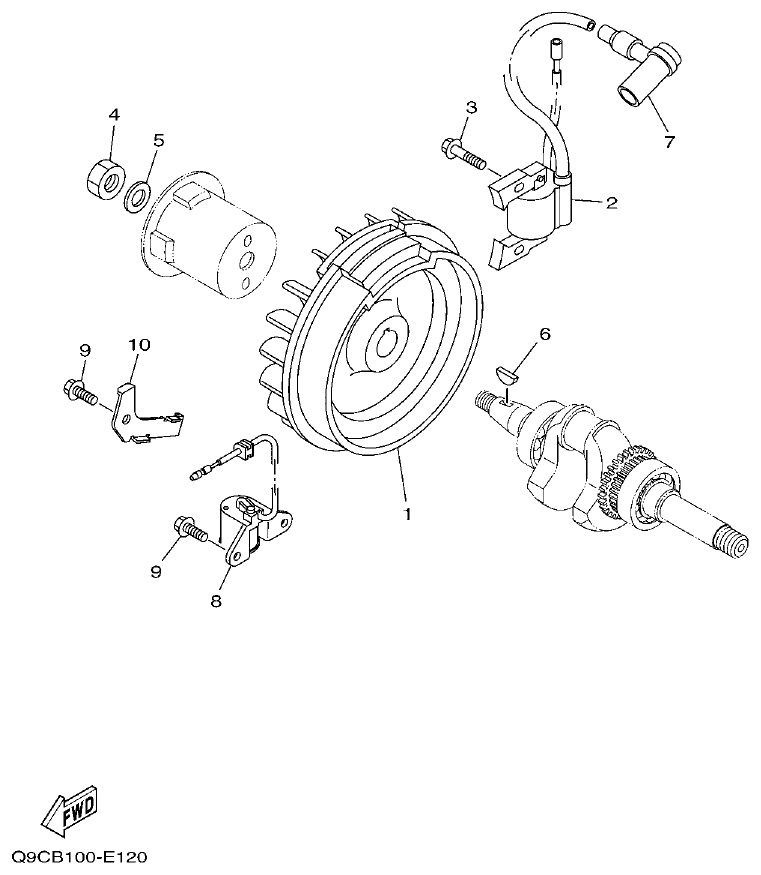

Fig. 12 — GENERATOR 1
10 items
Yamaha YP30G-Q9CC ELECTRICAL 2 parts diagram

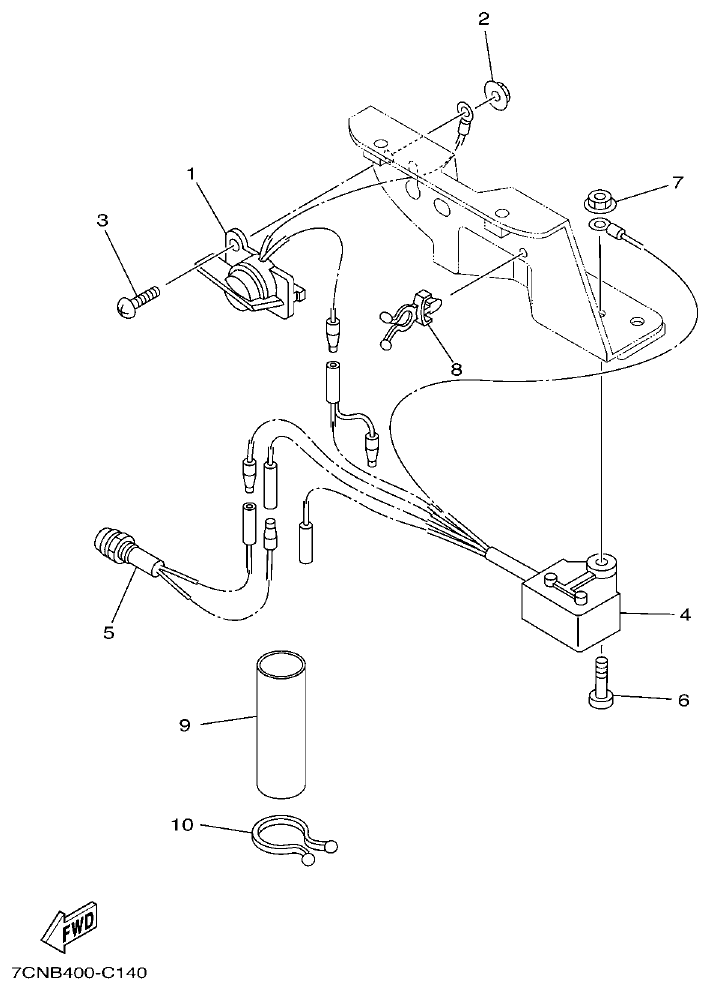

Fig. 13 — ELECTRICAL 2
10 items
Yamaha YP30G-Q9CC WATER PUMP 1 (YP20G:USA/CAN) parts diagram
Fig. 14 — WATER PUMP 1 (YP20G:USA/CAN)
25 items
Yamaha YP30G-Q9CC WATER PUMP 2 (YP20G:EUR/OTH/CHN) parts diagram

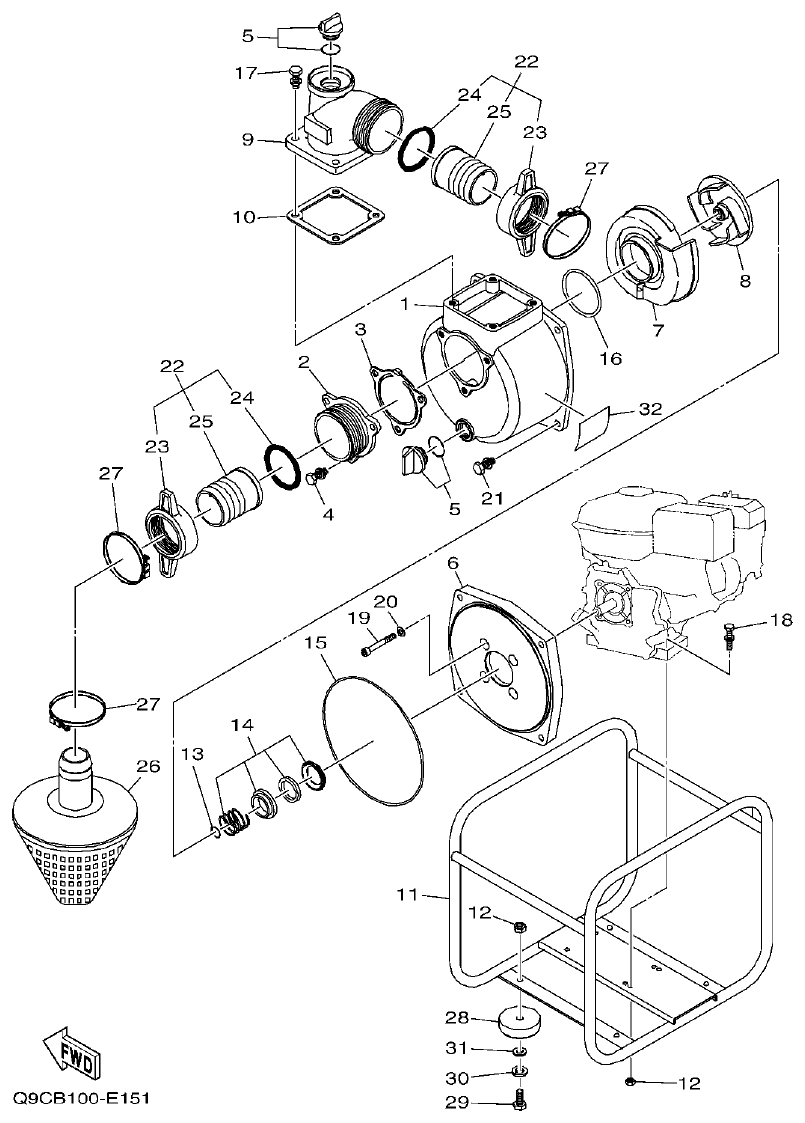

Fig. 15 — WATER PUMP 2 (YP20G:EUR/OTH/CHN)
32 items
Yamaha YP30G-Q9CC WATER PUMP 3 (YP30G:USA/CAN) parts diagram

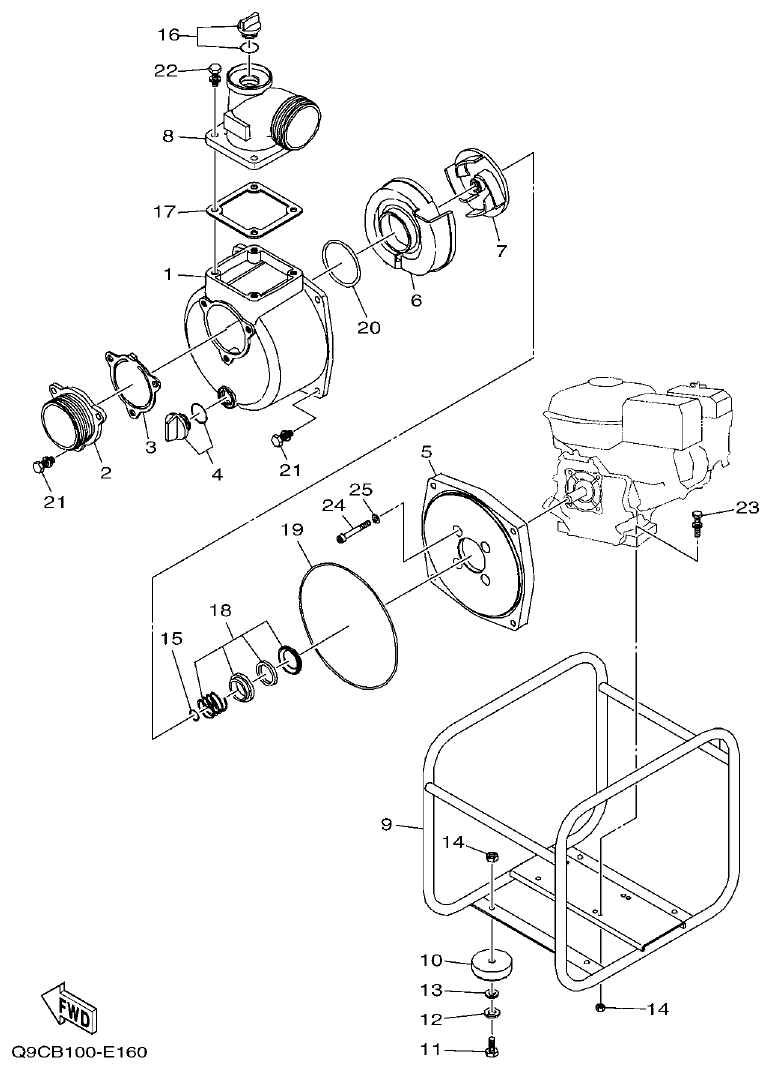

Fig. 16 — WATER PUMP 3 (YP30G:USA/CAN)
25 items
Yamaha YP30G-Q9CC WATER PUMP 4 (YP30G:EUR/OTH/CHN) parts diagram
Fig. 17 — WATER PUMP 4 (YP30G:EUR/OTH/CHN)
32 items
