Yamaha F1KW Parts Catalog
Yamaha F1KW Water Vehicle parts and diagrams
Yamaha F1KW water vehicle parts catalog includes CYLINDER, CRANKCASE, CRANKSHAFT & PISTON, VALVE, INTAKE, INTAKE 2, OIL PUMP, OIL COOLER, EXHAUST 1, EXHAUST 2, JET UNIT 1, JET UNIT 2, GENERATOR, STARTING MOTOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, ENGINE HATCH 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
130 linked store products are available across 34 catalog sections. 876 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
_decrypted/images/fig-1-cylinder.png)

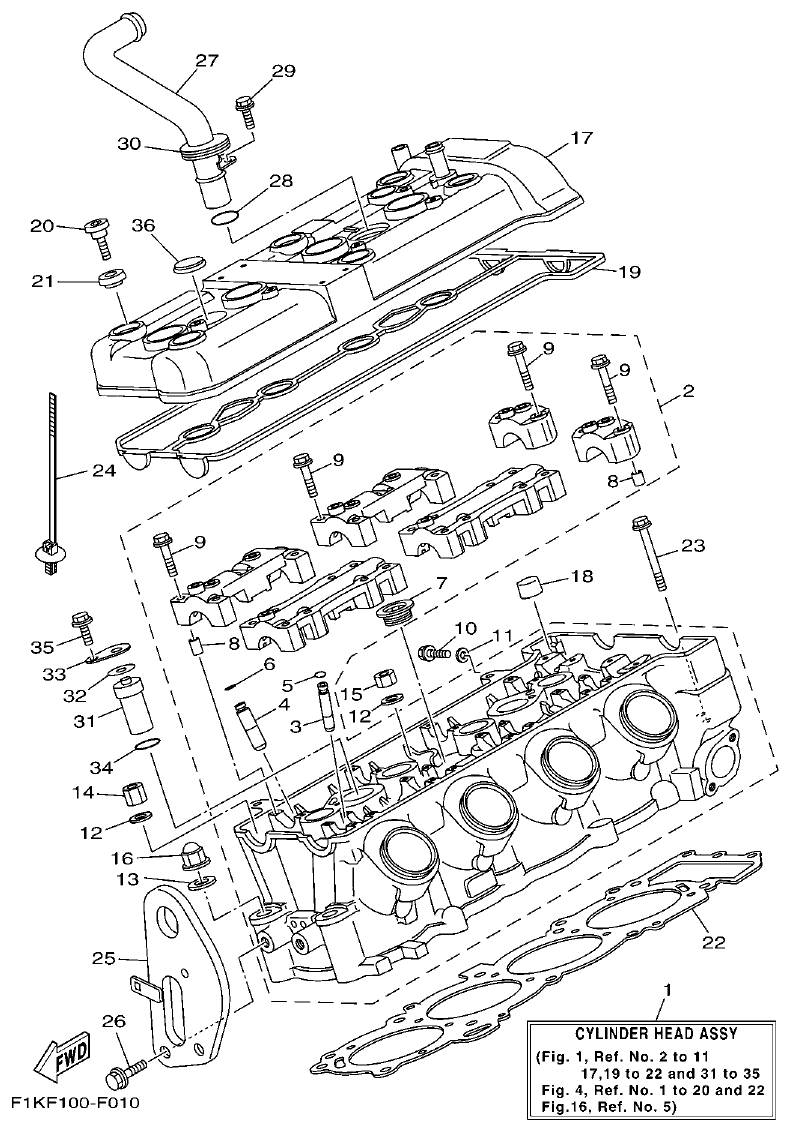

Fig. 1 — CYLINDER
36 items
· 4 available products
_decrypted/images/fig-2-crankcase.png)

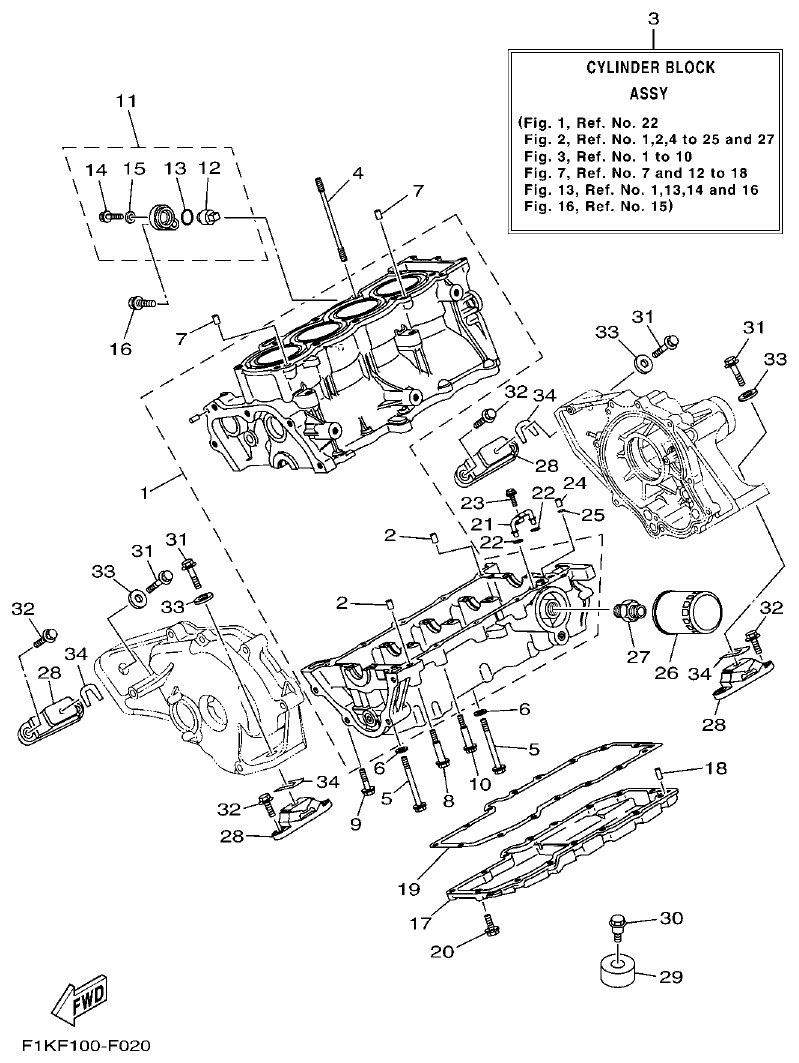

Fig. 2 — CRANKCASE
40 items
· 4 available products
_decrypted/images/fig-3-crankshaft-piston.png)

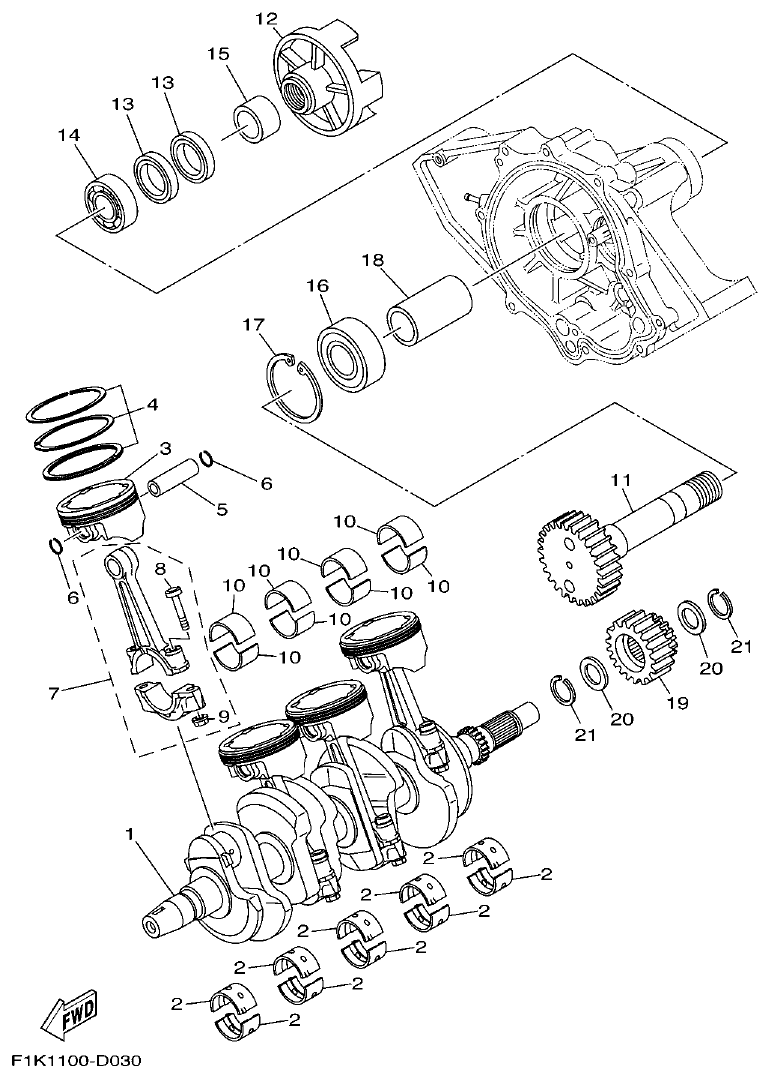

Fig. 3 — CRANKSHAFT & PISTON
28 items
· 13 available products

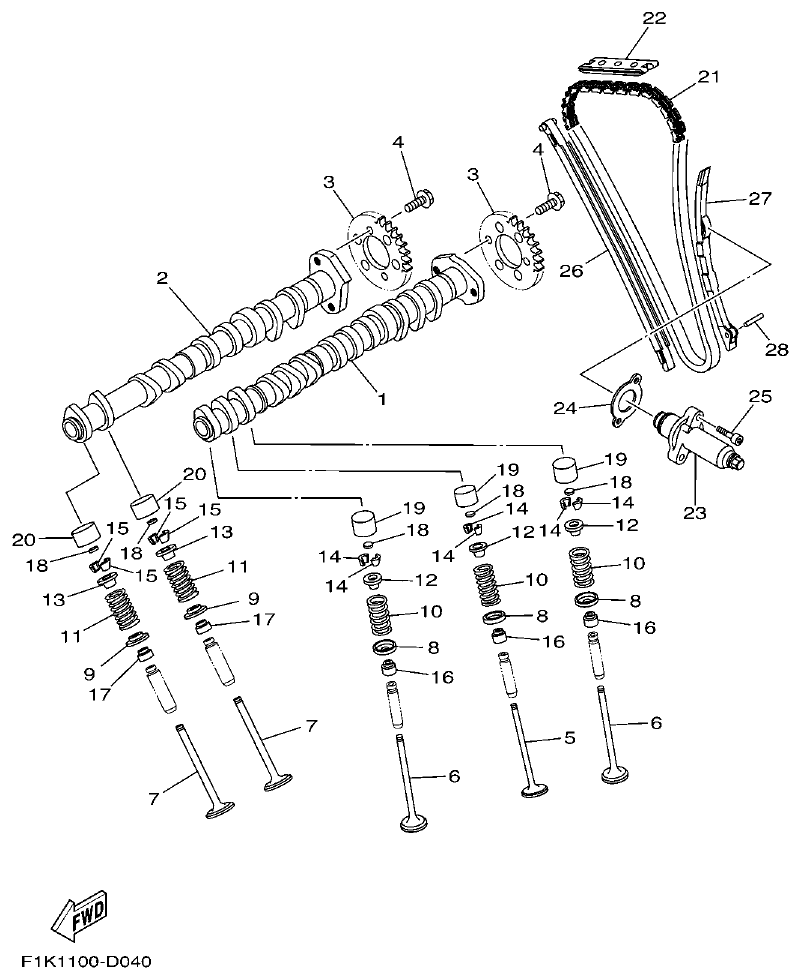

_decrypted/images/fig-4-valve.png)
Fig. 4 — VALVE
52 items
· 28 available products

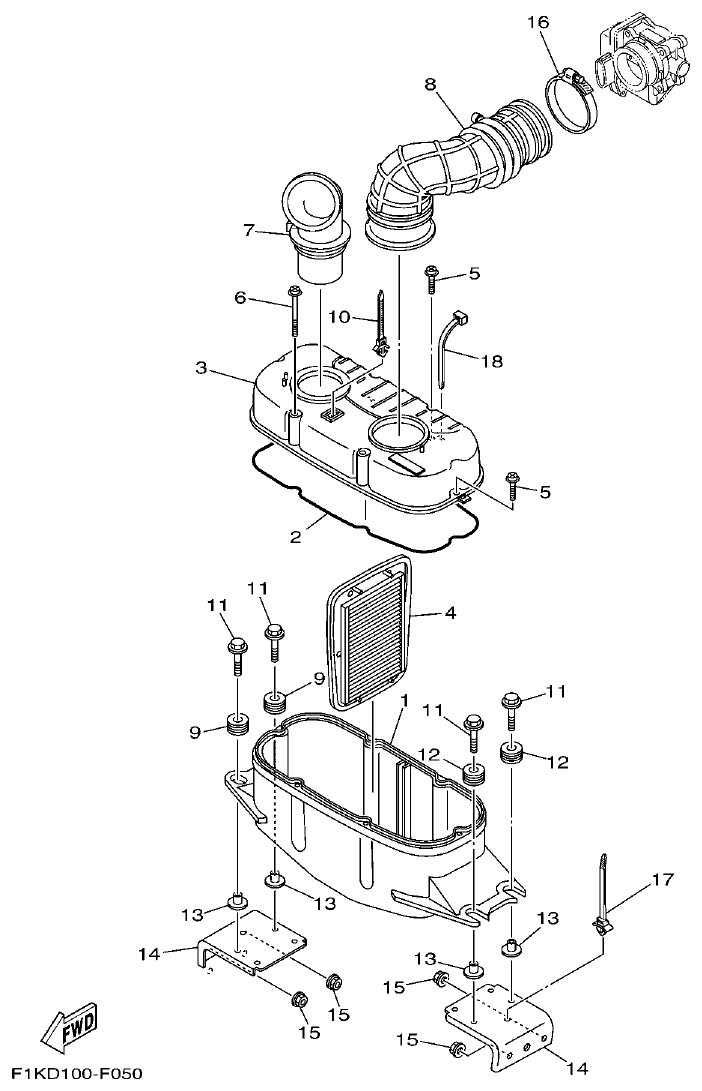

_decrypted/images/fig-5-intake.png)
Fig. 5 — INTAKE
18 items
· 1 available products

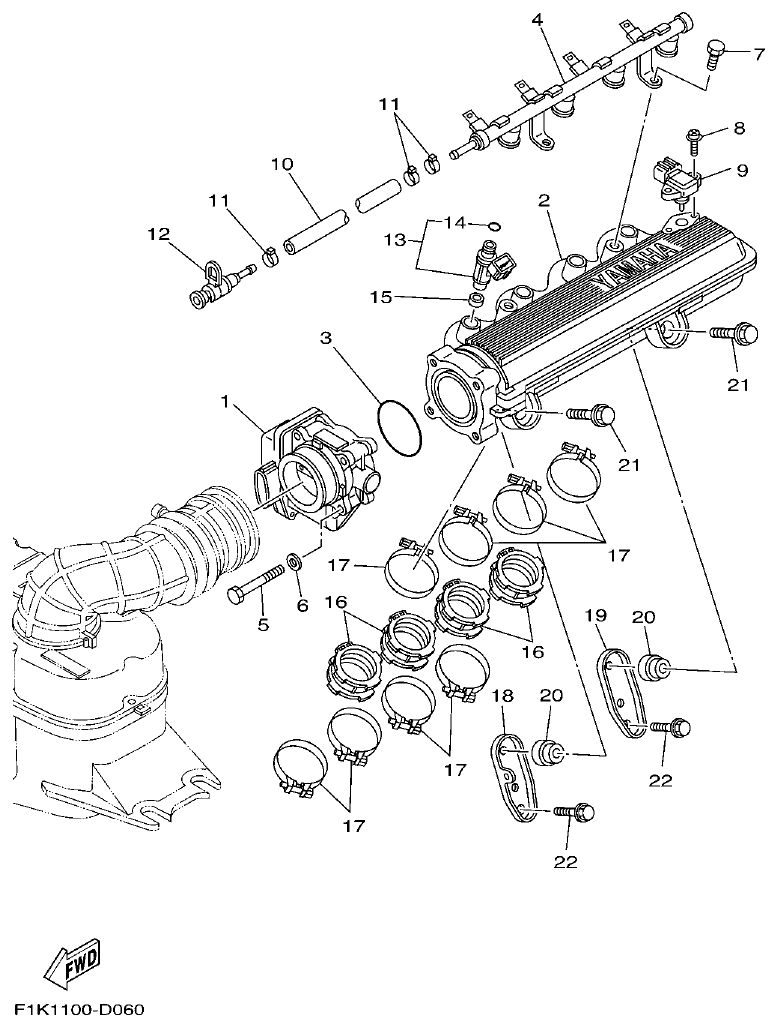

_decrypted/images/fig-6-intake-2.png)
Fig. 6 — INTAKE 2
22 items
· 4 available products

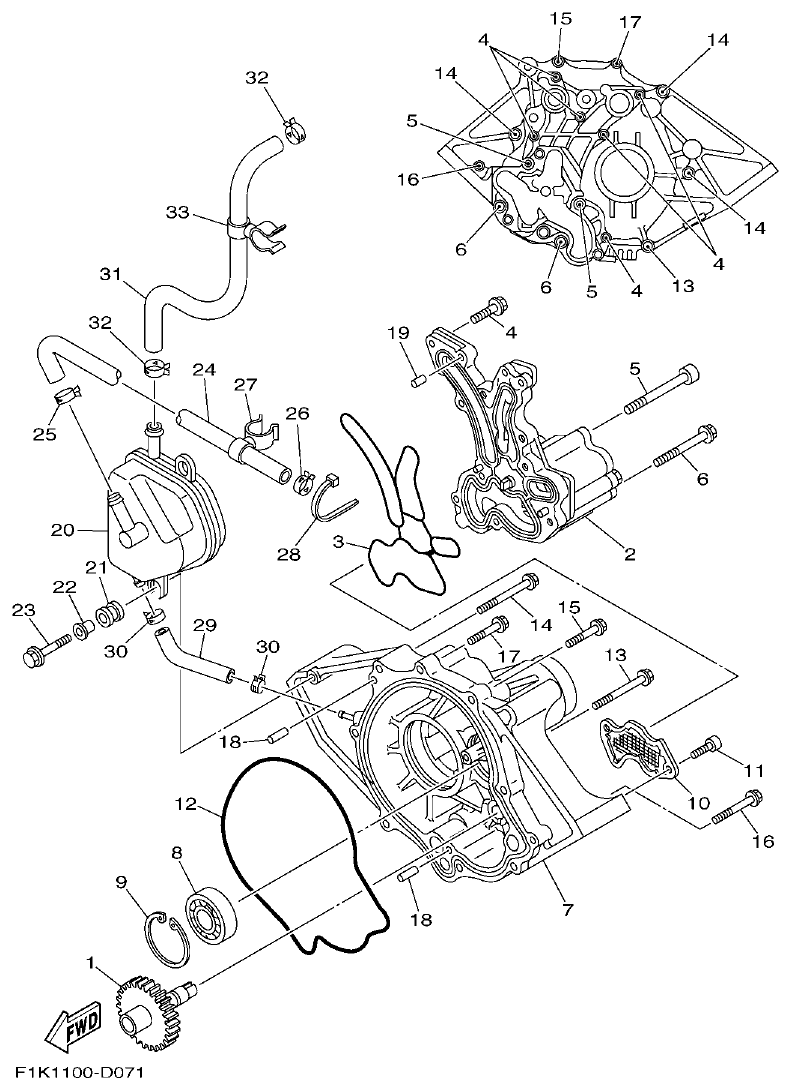

_decrypted/images/fig-7-oil-pump.png)
Fig. 7 — OIL PUMP
33 items
· 2 available products

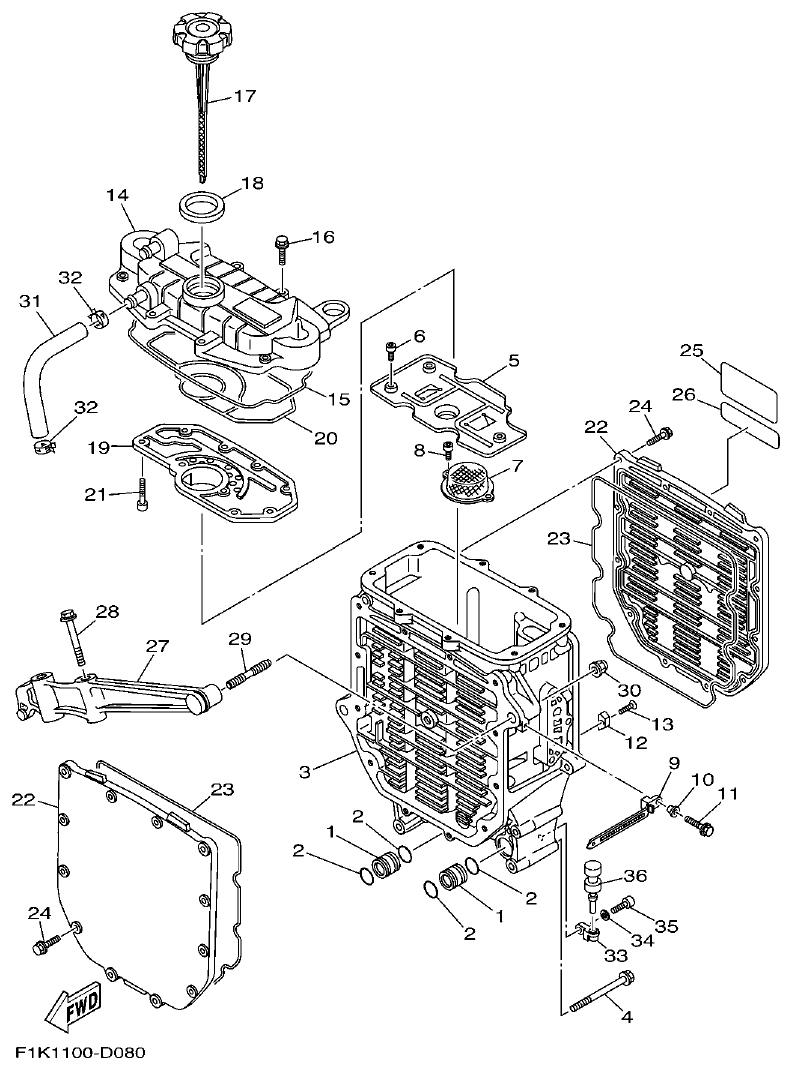

_decrypted/images/fig-8-oil-cooler.png)
Fig. 8 — OIL COOLER
36 items
· 2 available products

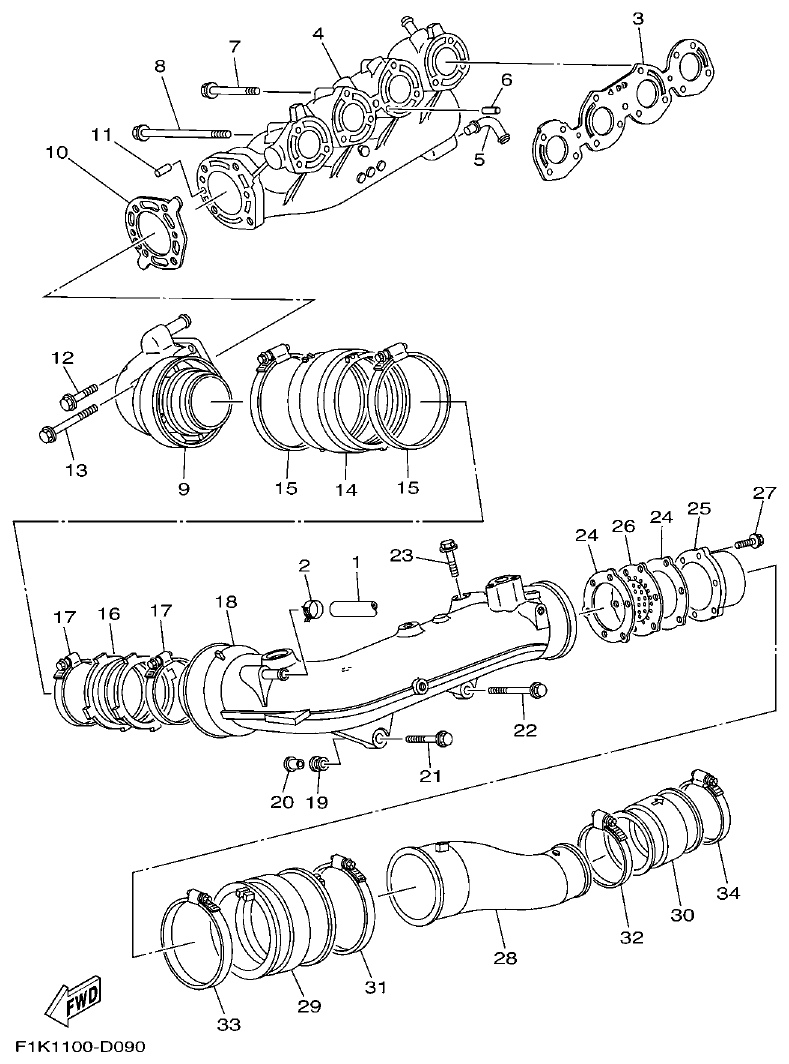

_decrypted/images/fig-9-exhaust-1.png)
Fig. 9 — EXHAUST 1
34 items
· 2 available products
_decrypted/images/fig-10-exhaust-2.png)

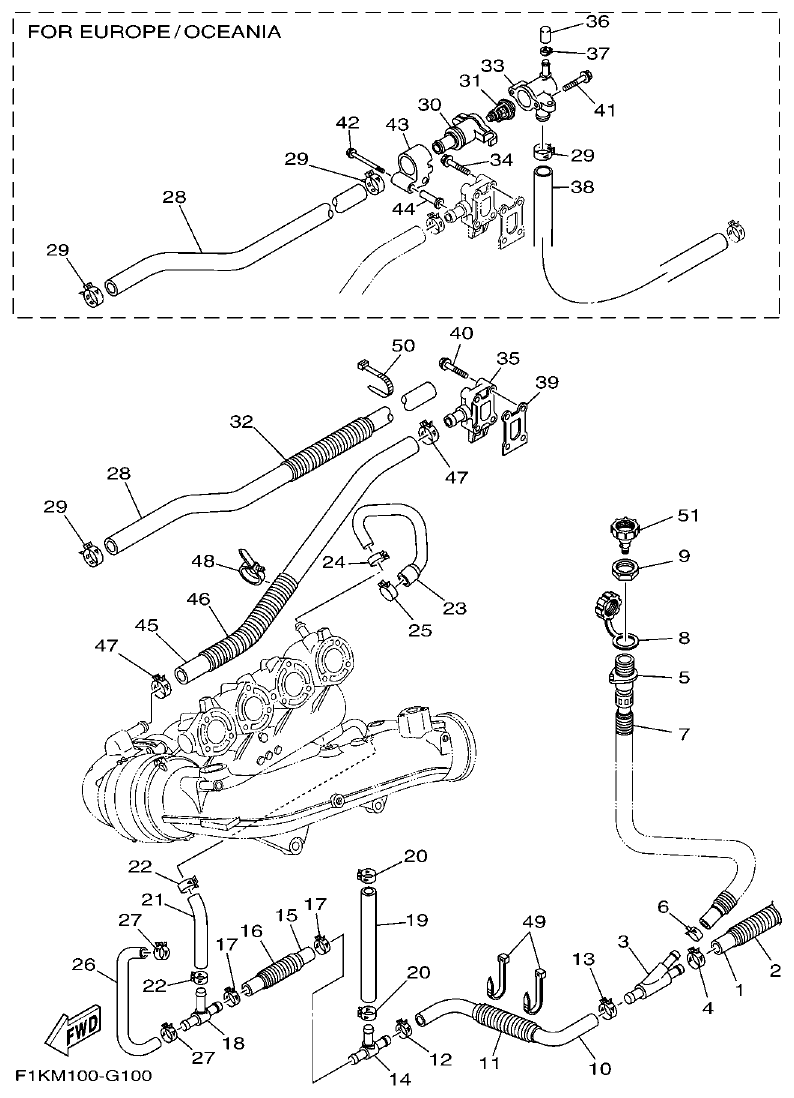

Fig. 10 — EXHAUST 2
54 items
· 7 available products

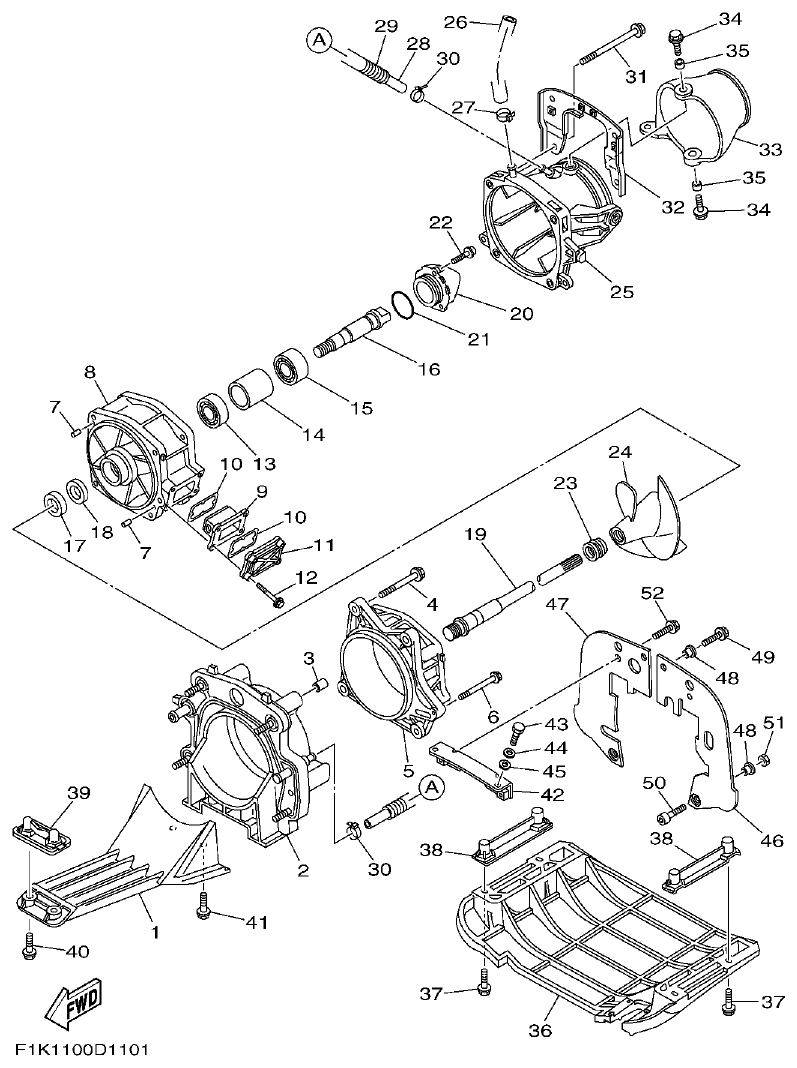

_decrypted/images/fig-11-jet-unit-1.png)
Fig. 11 — JET UNIT 1
52 items
· 6 available products

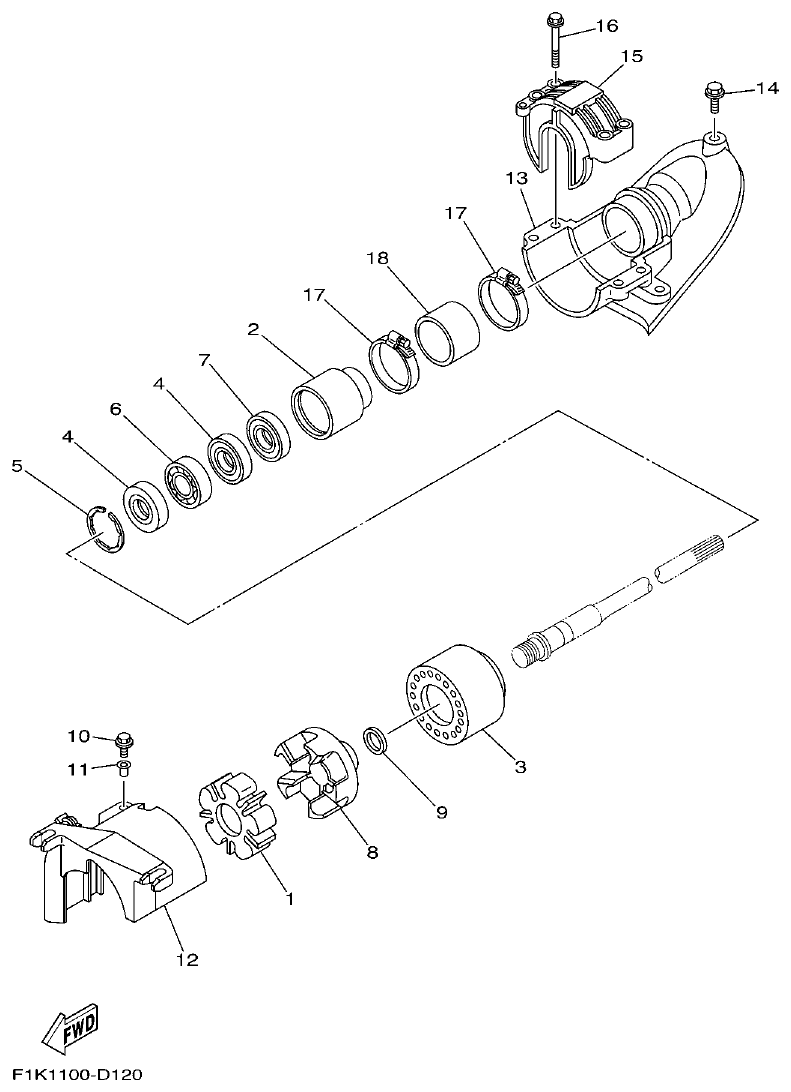

_decrypted/images/fig-12-jet-unit-2.png)
Fig. 12 — JET UNIT 2
18 items
· 1 available products
_decrypted/images/fig-13-generator.png)

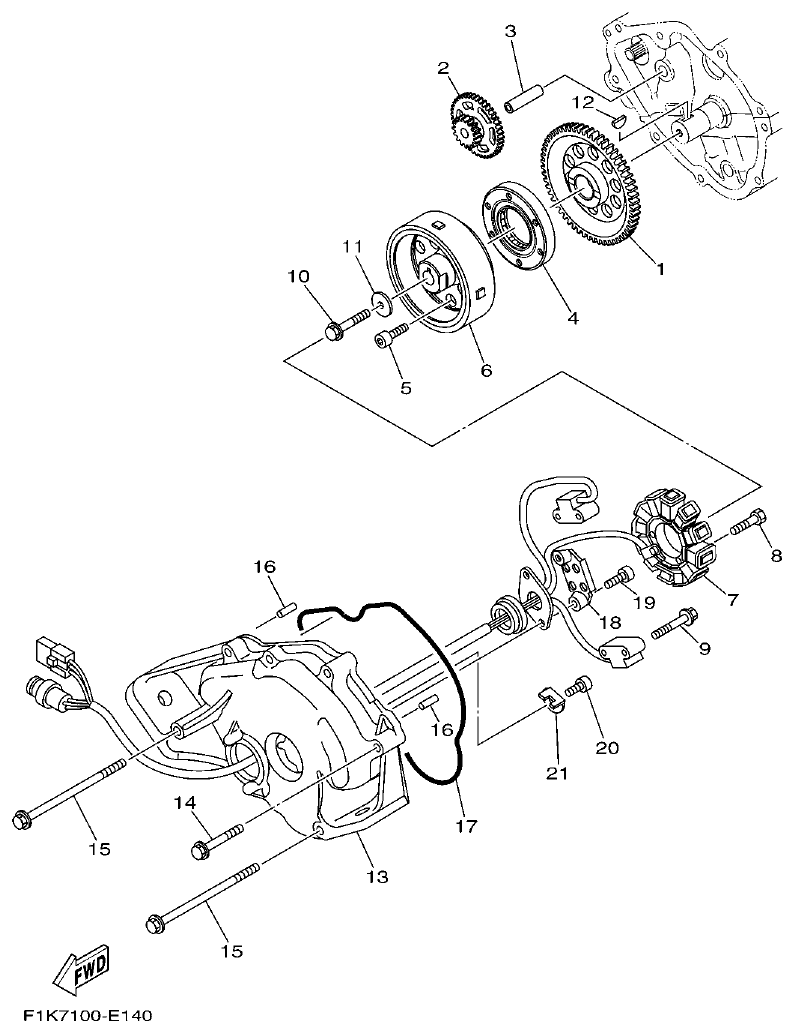

Fig. 13 — GENERATOR
21 items

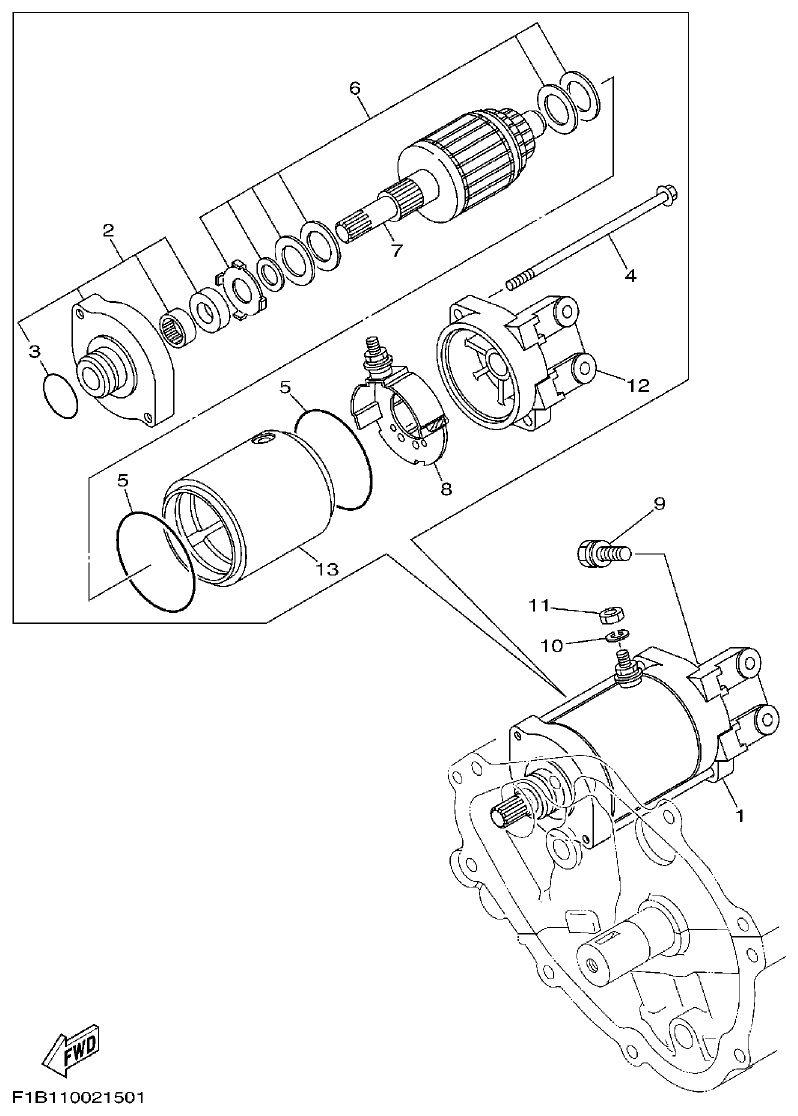

_decrypted/images/fig-14-starting-motor.png)
Fig. 14 — STARTING MOTOR
13 items
· 3 available products
_decrypted/images/fig-15-electrical-1.png)

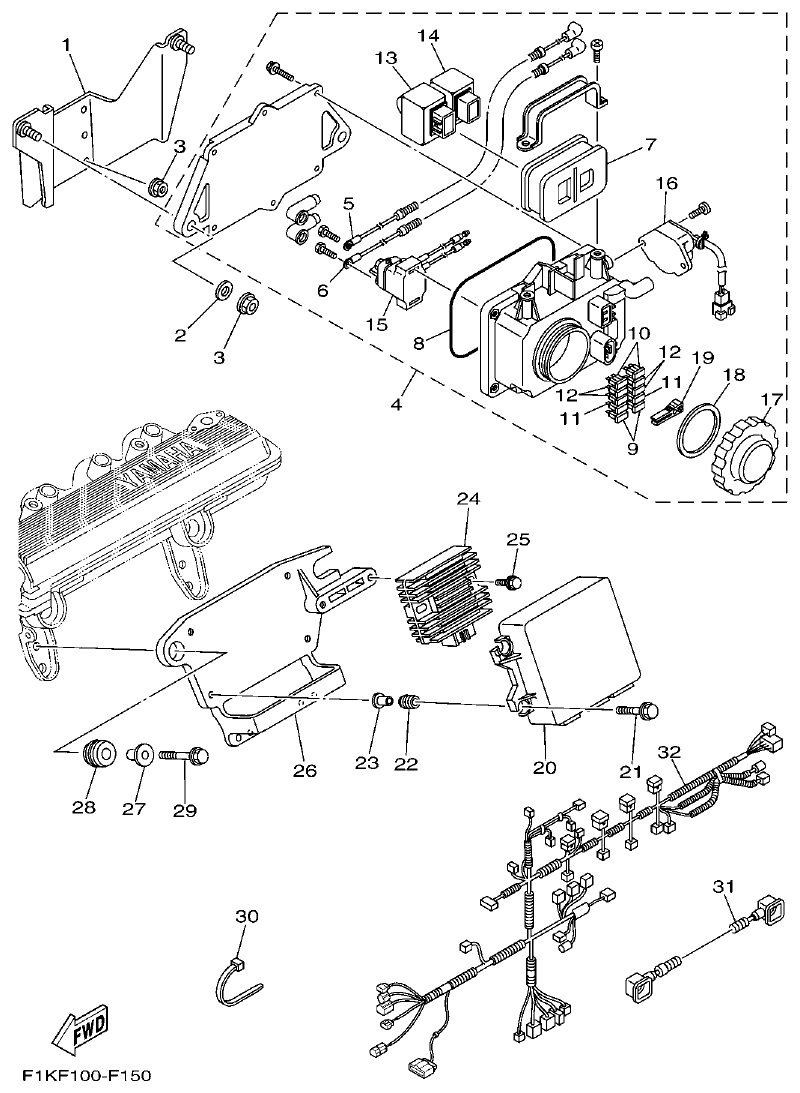

Fig. 15 — ELECTRICAL 1
33 items
· 6 available products

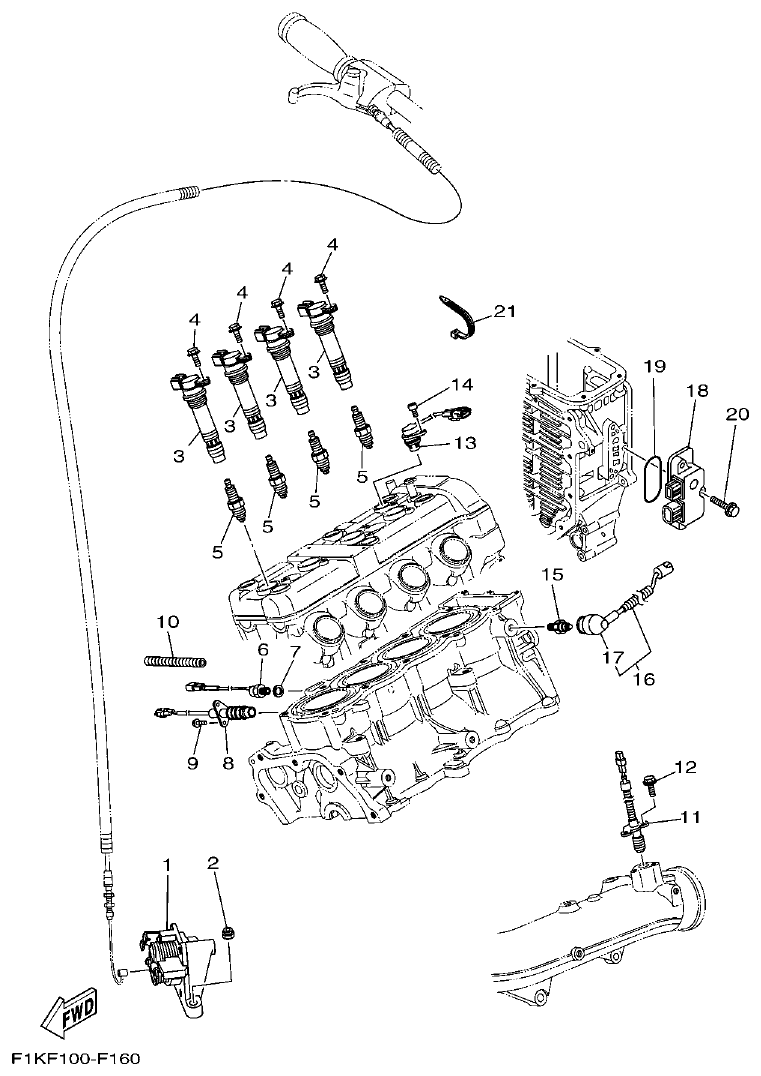

_decrypted/images/fig-16-electrical-2.png)
Fig. 16 — ELECTRICAL 2
22 items
· 2 available products

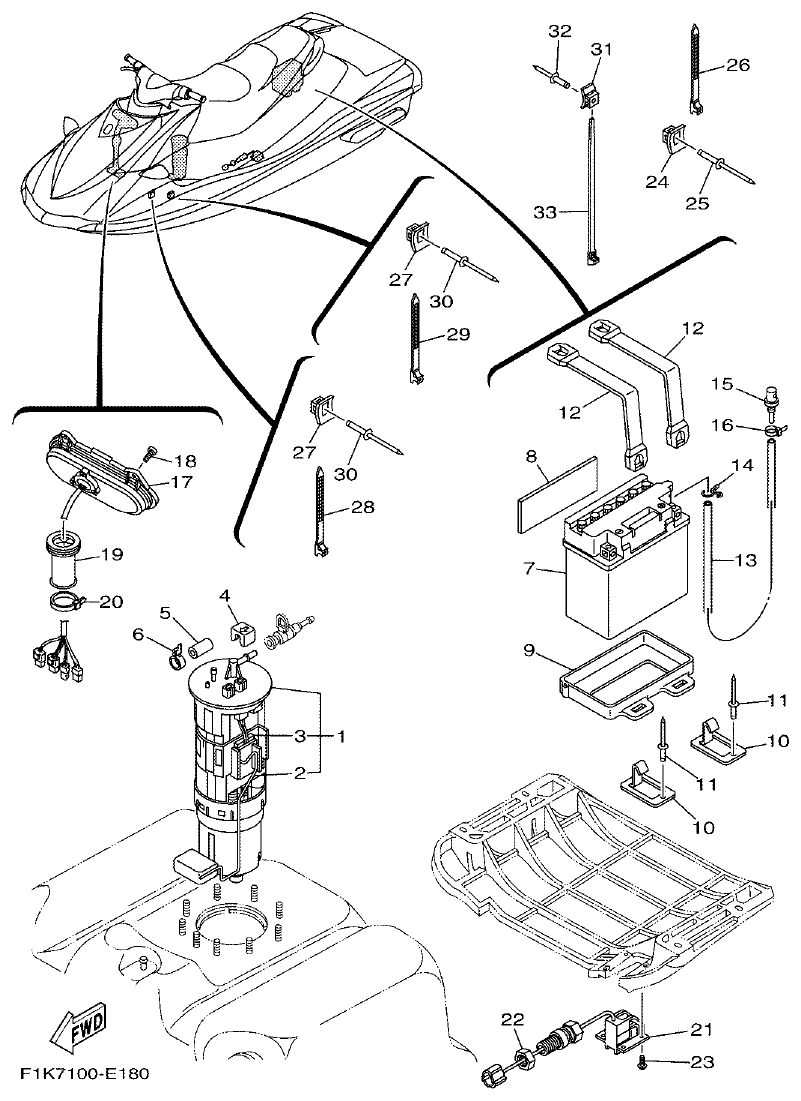

_decrypted/images/fig-17-electrical-3.png)
Fig. 17 — ELECTRICAL 3
33 items
· 1 available products

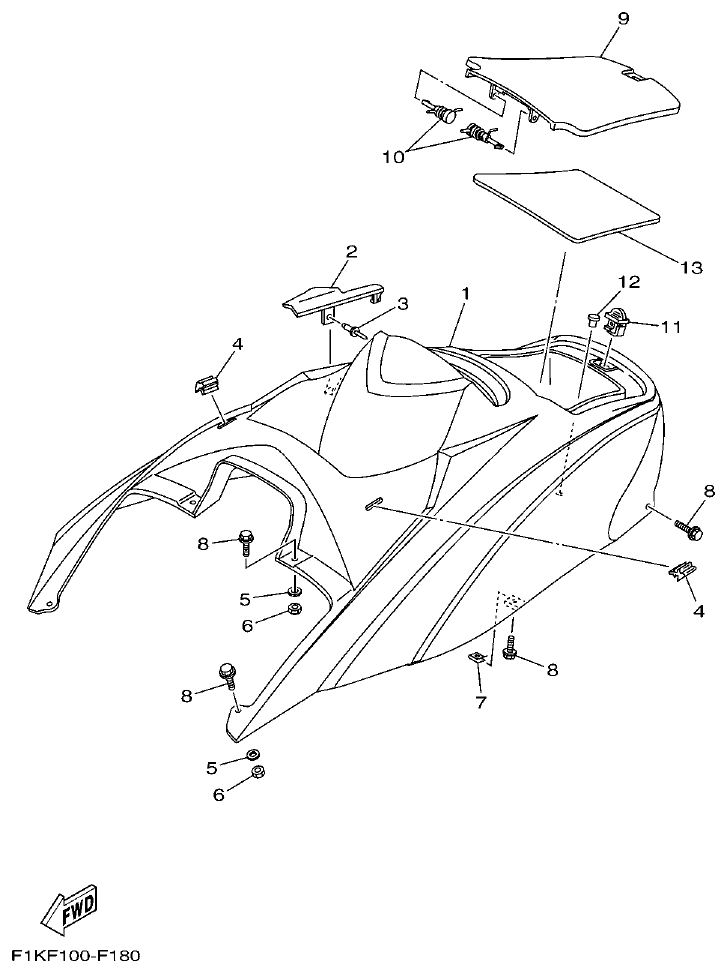

_decrypted/images/fig-18-engine-hatch-1.png)
Fig. 18 — ENGINE HATCH 1
14 items
· 1 available products

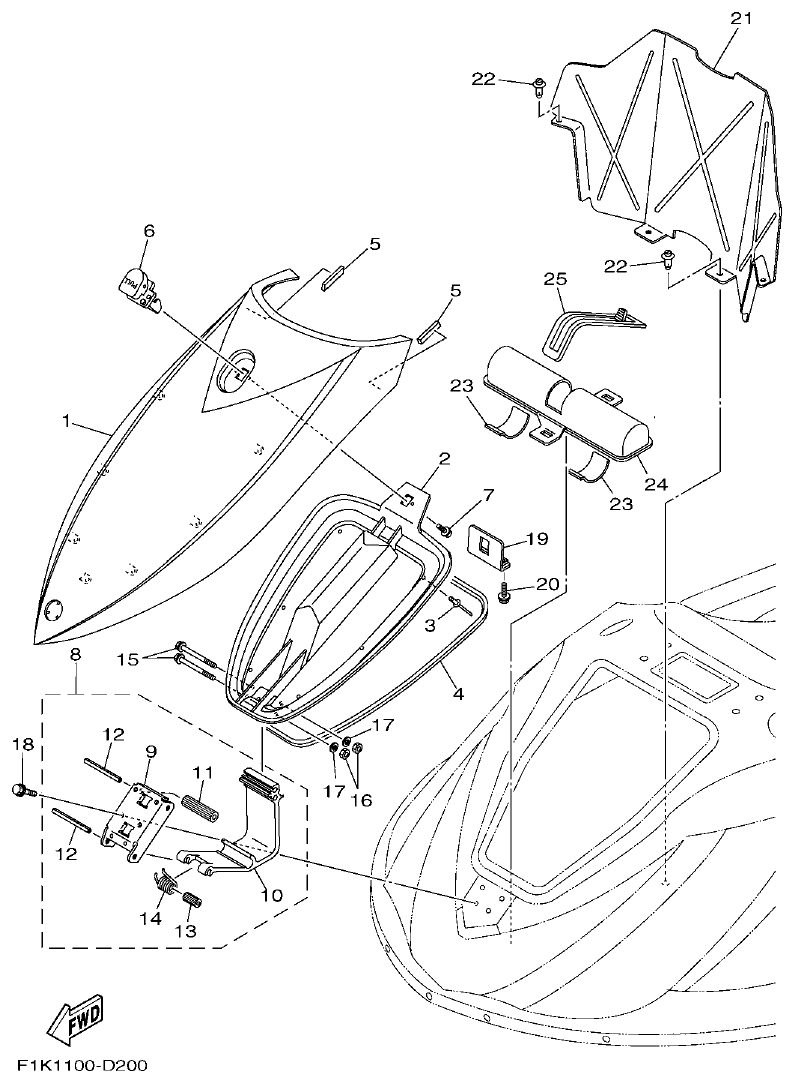

_decrypted/images/fig-19-engine-hatch-2.png)
Fig. 19 — ENGINE HATCH 2
26 items
· 3 available products

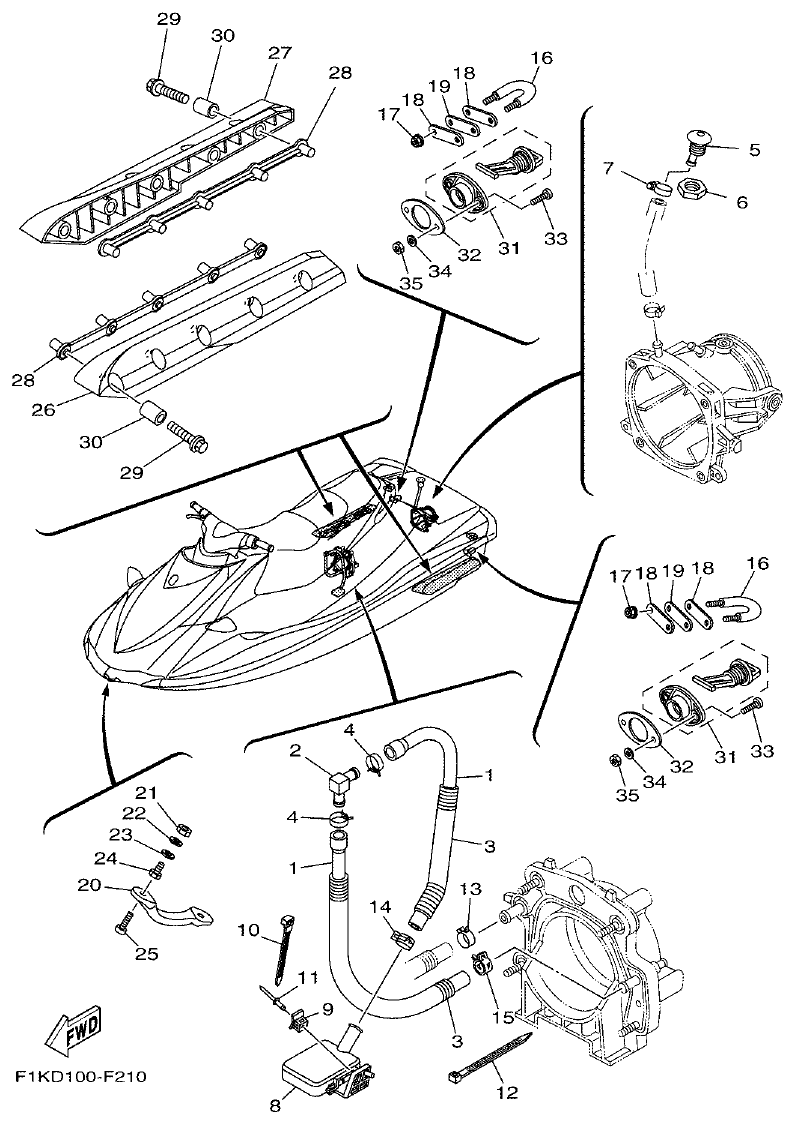

_decrypted/images/fig-20-hull-deck.png)
Fig. 20 — HULL & DECK
36 items
· 5 available products

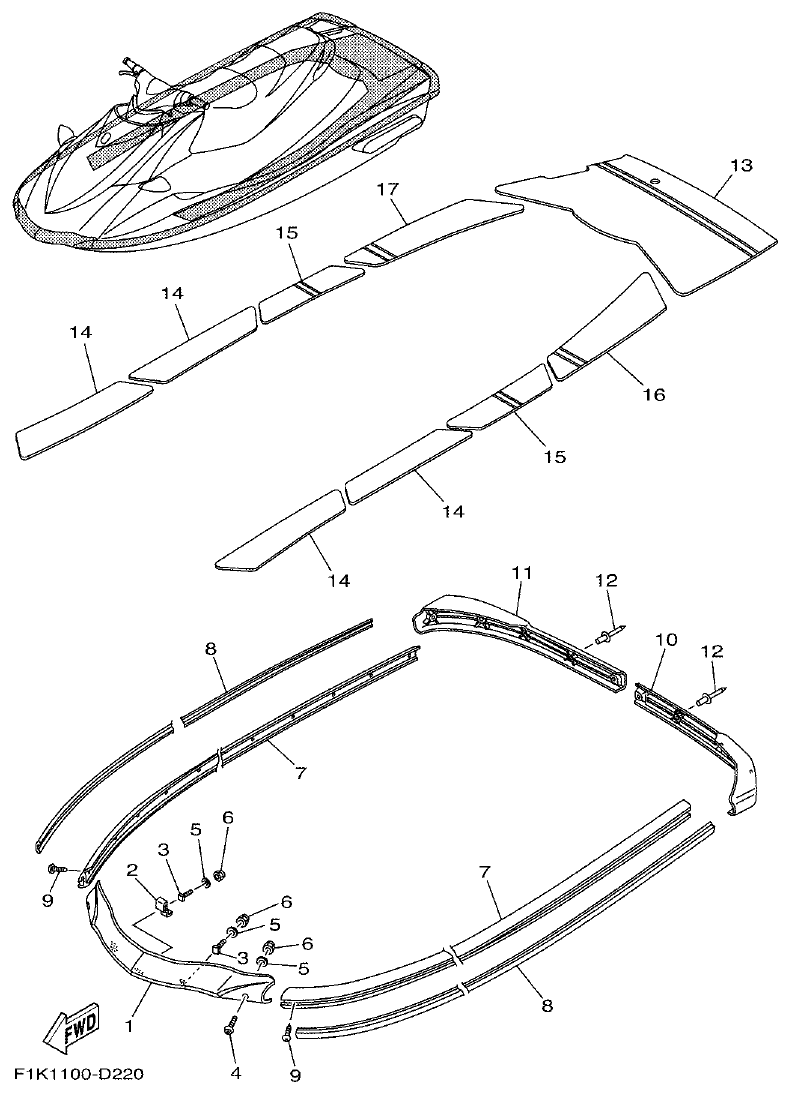

_decrypted/images/fig-21-gunwale-mat.png)
Fig. 21 — GUNWALE & MAT
18 items
· 4 available products

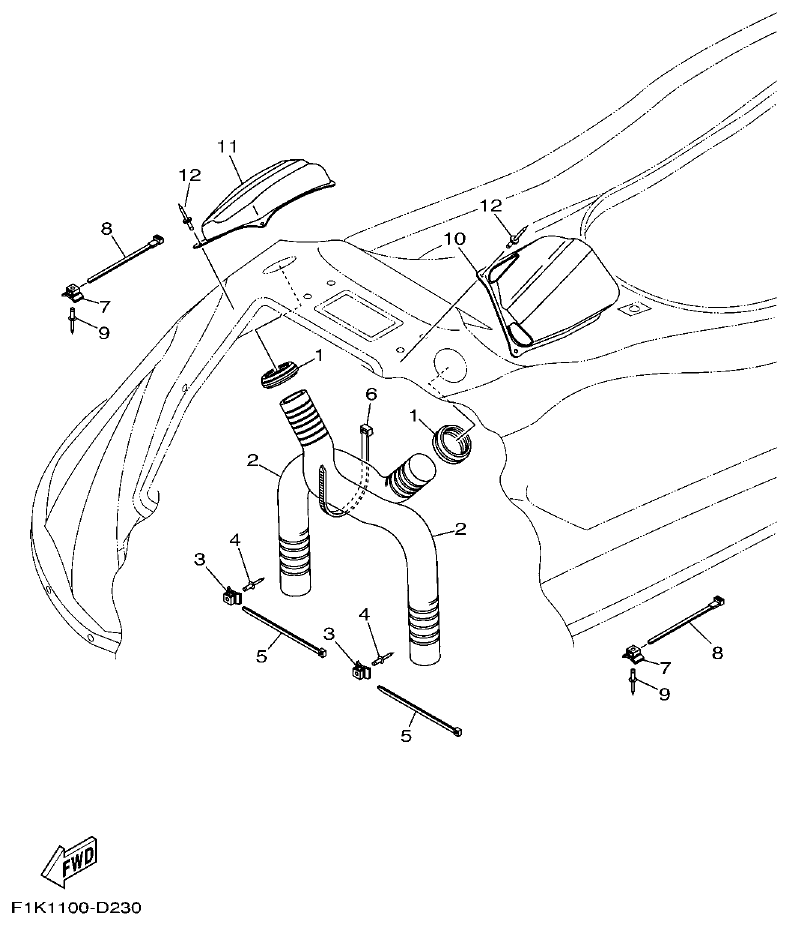

_decrypted/images/fig-22-ventilation.png)
Fig. 22 — VENTILATION
12 items

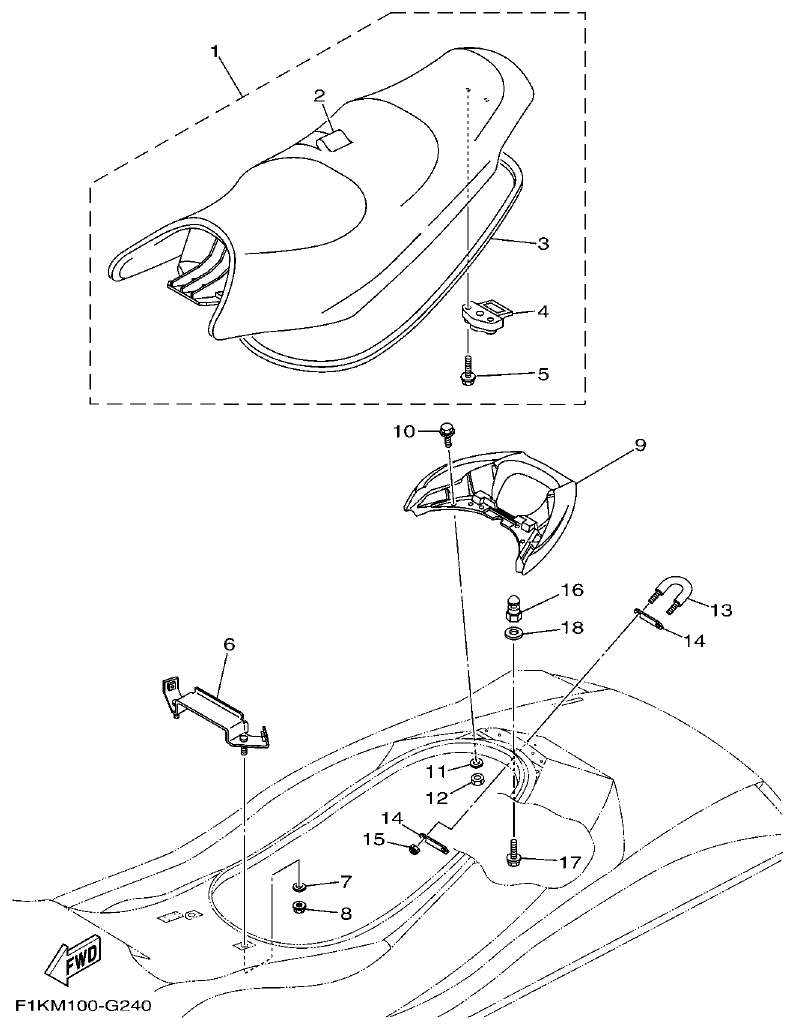

_decrypted/images/fig-23-seat-under-locker.png)
Fig. 23 — SEAT & UNDER LOCKER
20 items
· 1 available products

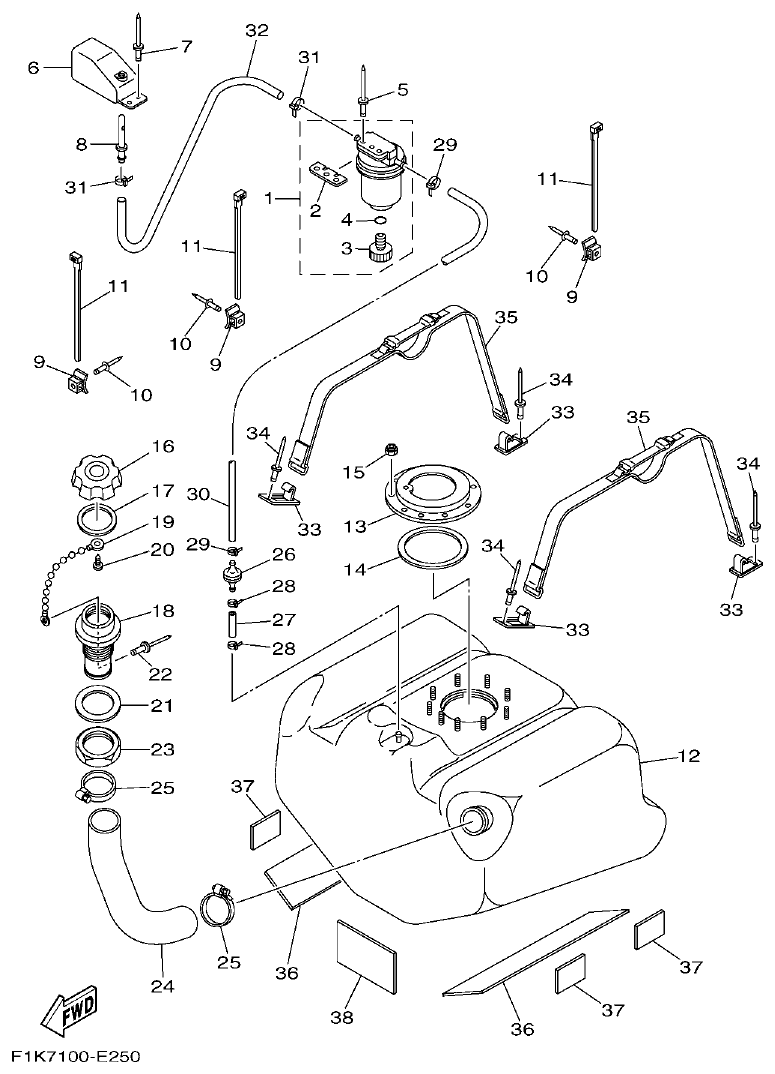

_decrypted/images/fig-24-fuel-tank.png)
Fig. 24 — FUEL TANK
38 items
· 8 available products

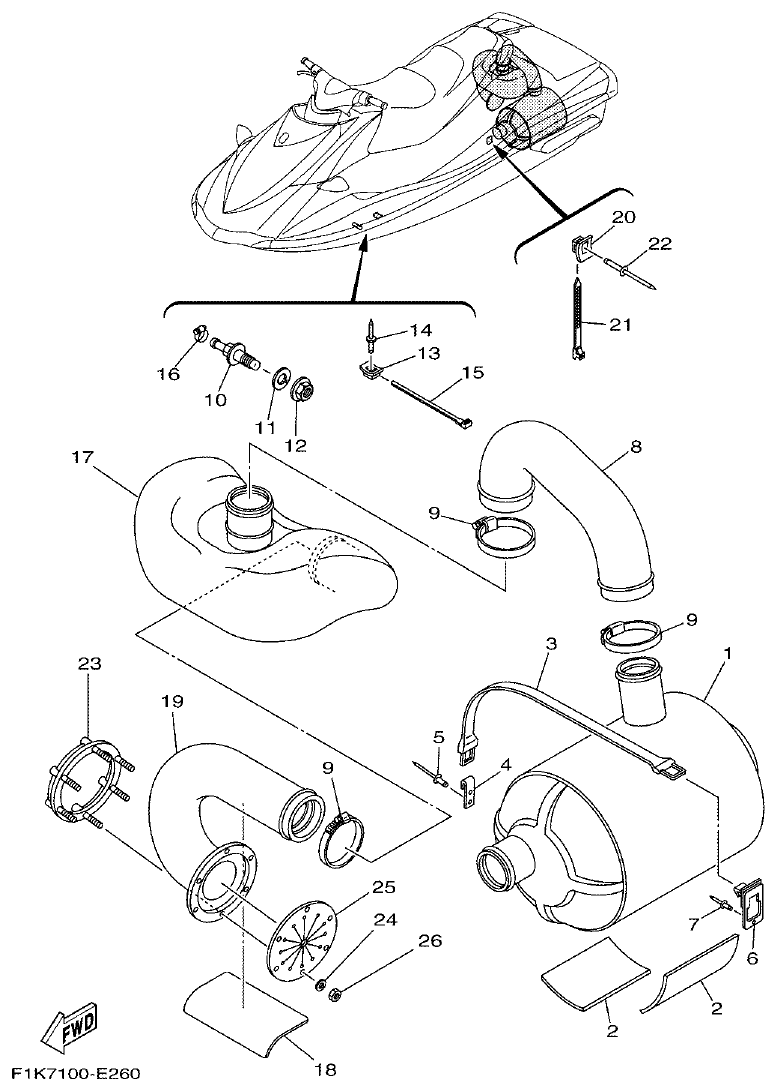

_decrypted/images/fig-25-exhaust-3.png)
Fig. 25 — EXHAUST 3
26 items
· 2 available products

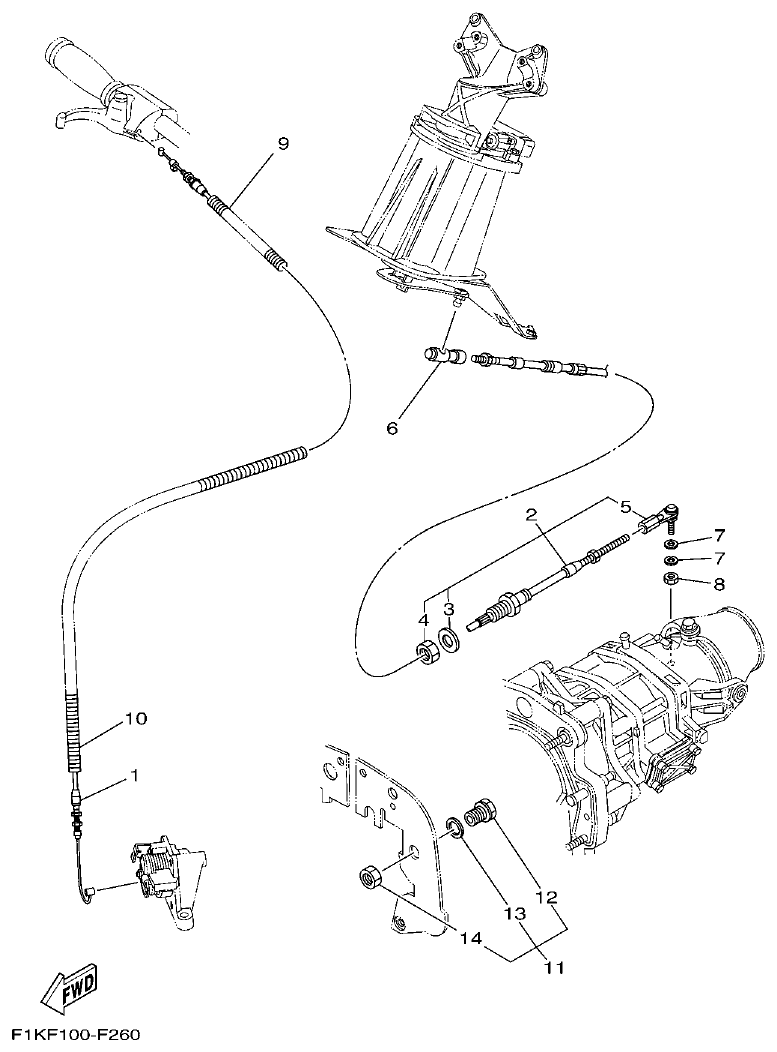

_decrypted/images/fig-26-control-cable.png)
Fig. 26 — CONTROL CABLE
14 items
· 1 available products

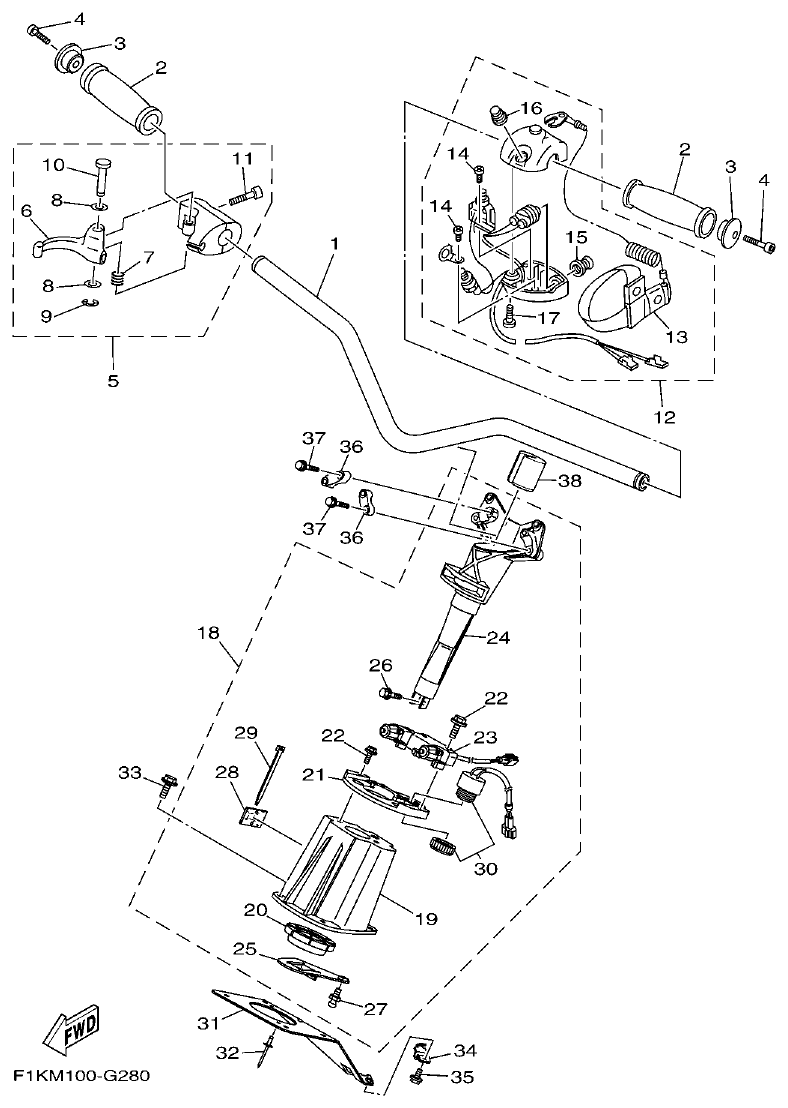

_decrypted/images/fig-27-steering-1.png)
Fig. 27 — STEERING 1
38 items
· 9 available products

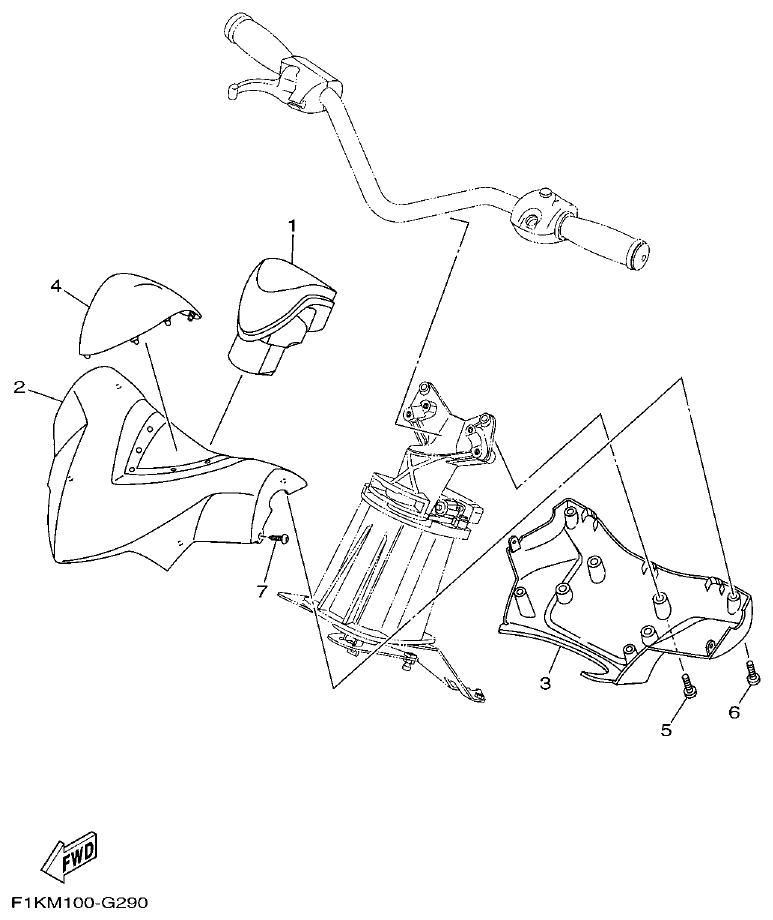

_decrypted/images/fig-28-steering-2.png)
Fig. 28 — STEERING 2
7 items
· 1 available products

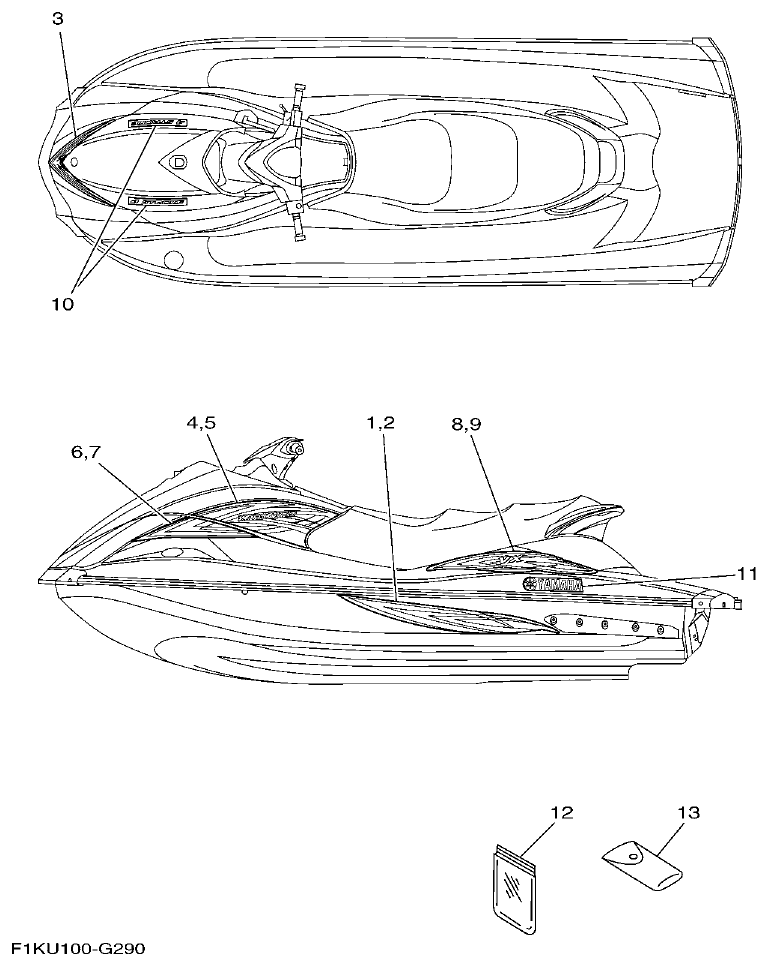

_decrypted/images/fig-29-graphics.png)
Fig. 29 — GRAPHICS
20 items
_decrypted/images/fig-30-important-labels.png)
Fig. 30 — IMPORTANT LABELS
10 items
_decrypted/images/fig-31-important-labels-2.png)

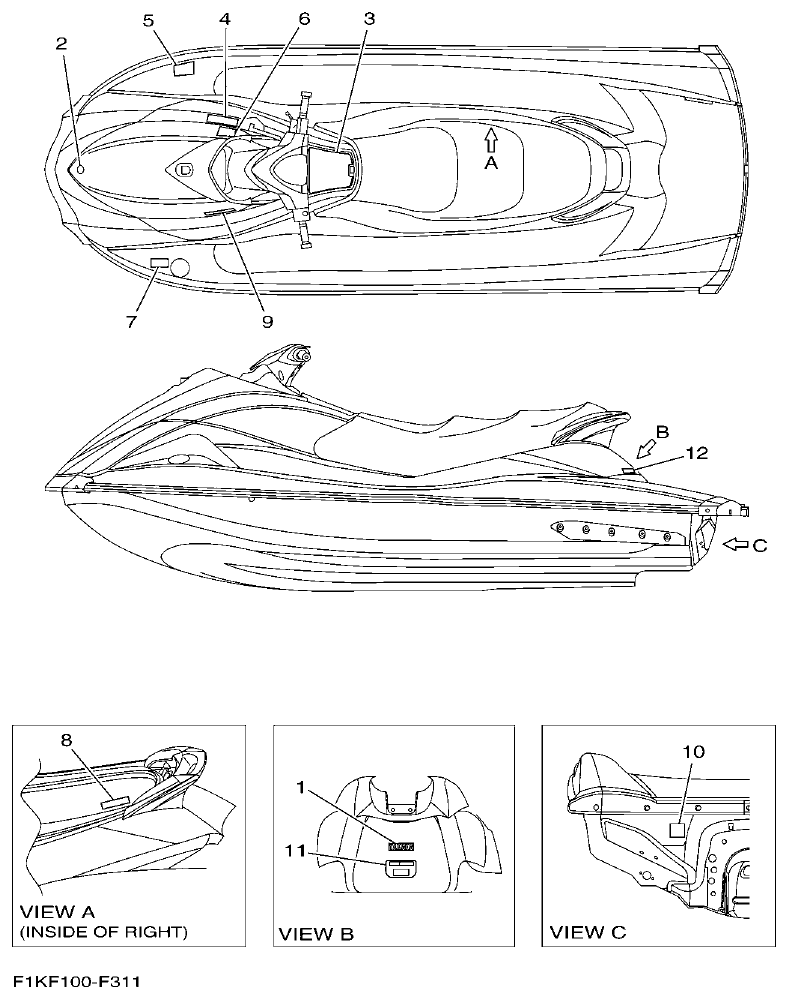

Fig. 31 — IMPORTANT LABELS 2
12 items

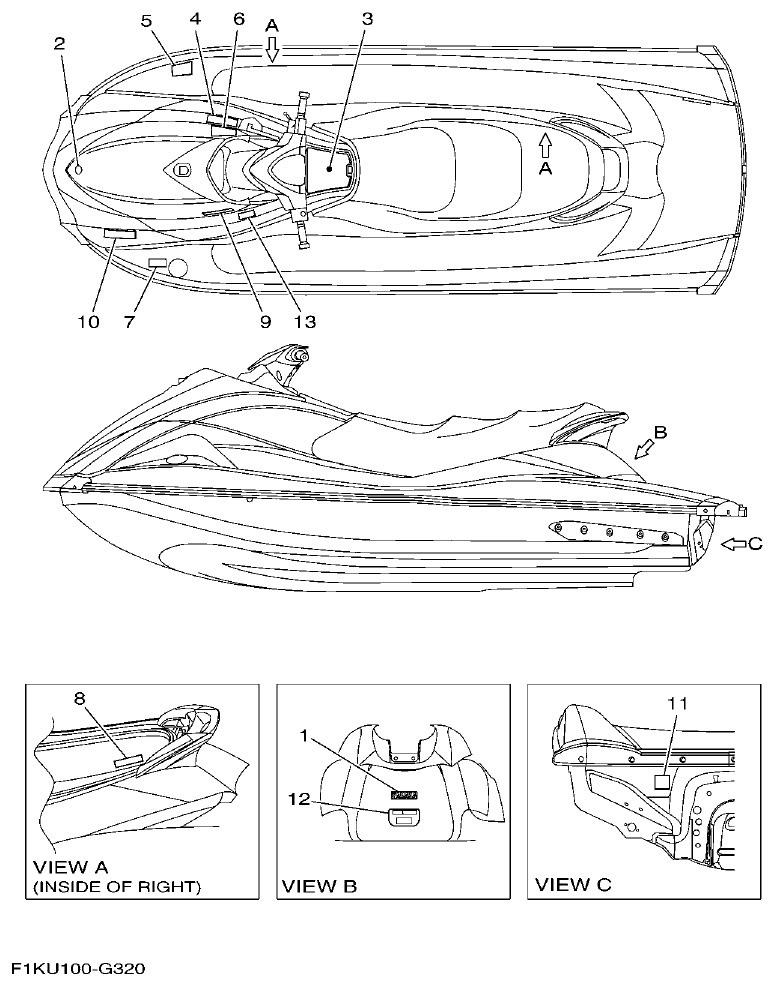

_decrypted/images/fig-32-important-labels-3.png)
Fig. 32 — IMPORTANT LABELS 3
13 items
_decrypted/images/fig-33-important-labels-4.png)

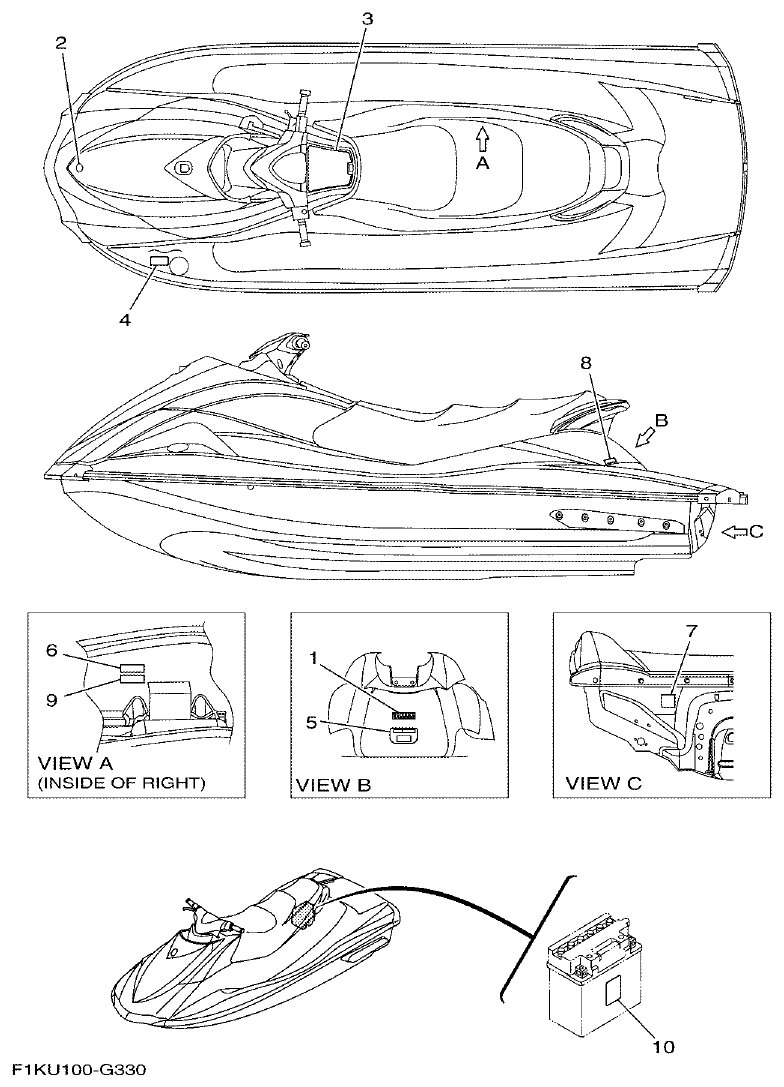

Fig. 33 — IMPORTANT LABELS 4
10 items

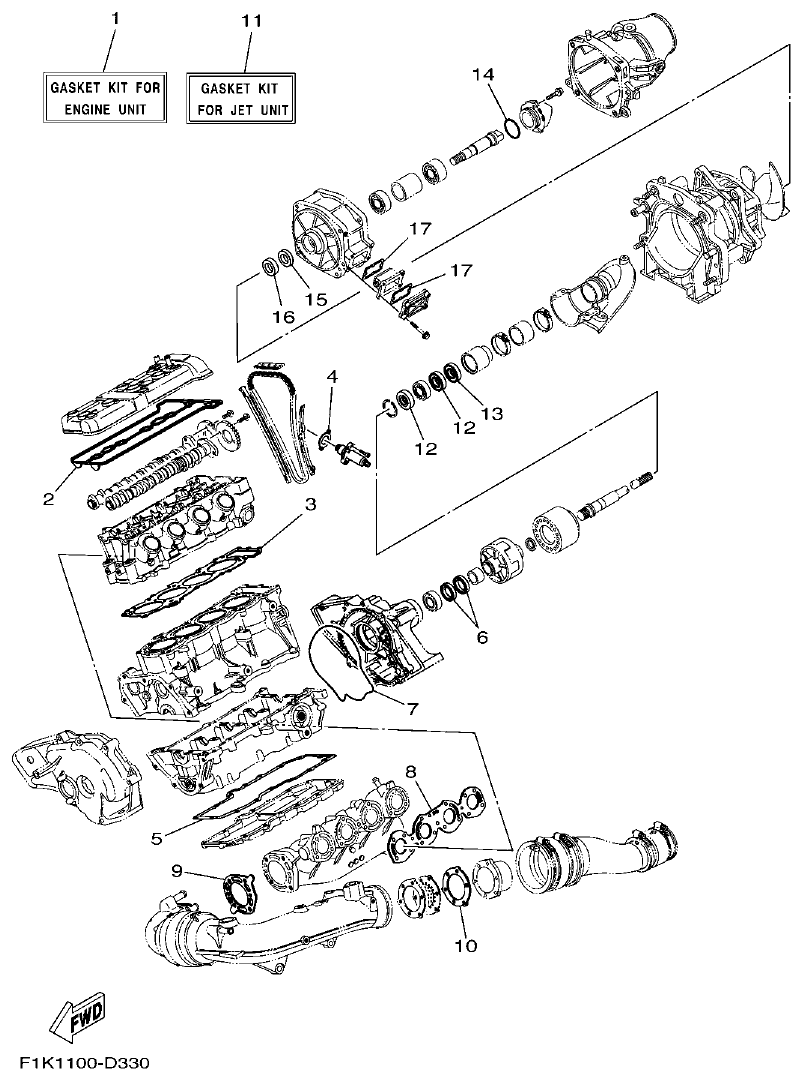

_decrypted/images/fig-34-repair-kit-1.png)
Fig. 34 — REPAIR KIT 1
17 items
· 9 available products
