Yamaha F1WM (Model code: 1187) Parts Catalog

Yamaha F1WM CYLINDER 1 parts diagram
Fig. 1 — CYLINDER 1
10 items · 3 catalog-linked products

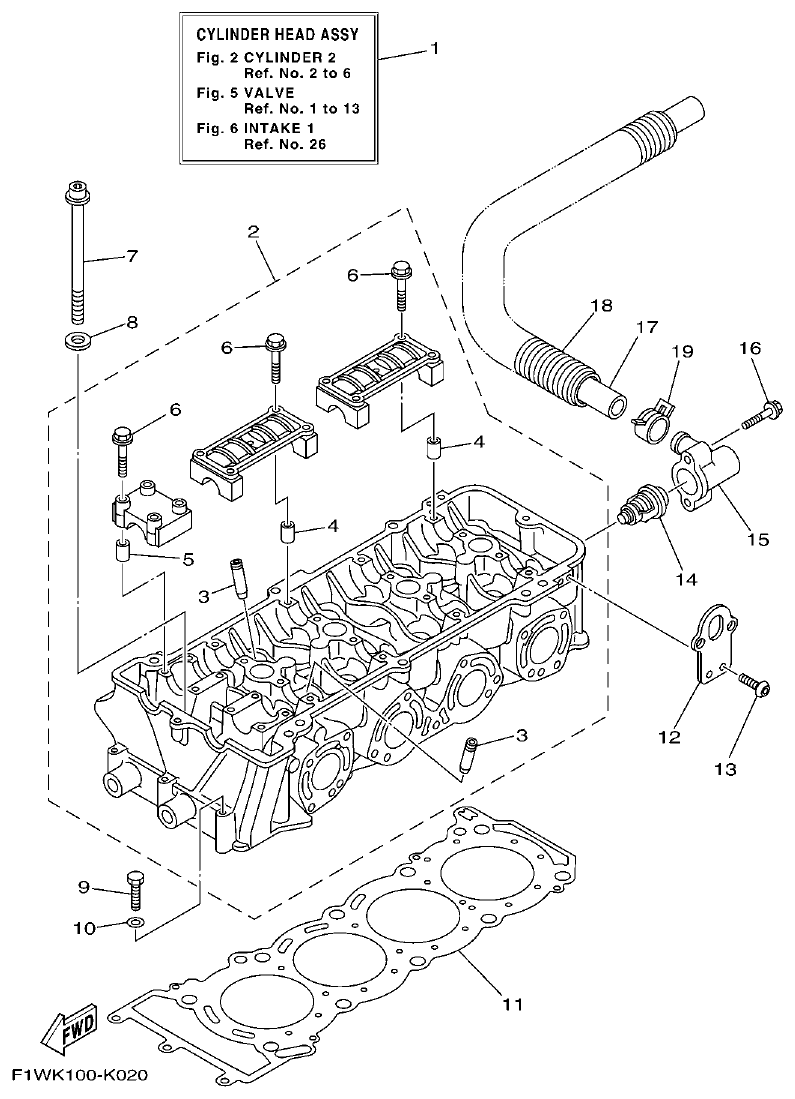

Yamaha F1WM CYLINDER 2 parts diagram
Fig. 2 — CYLINDER 2
19 items · 4 catalog-linked products

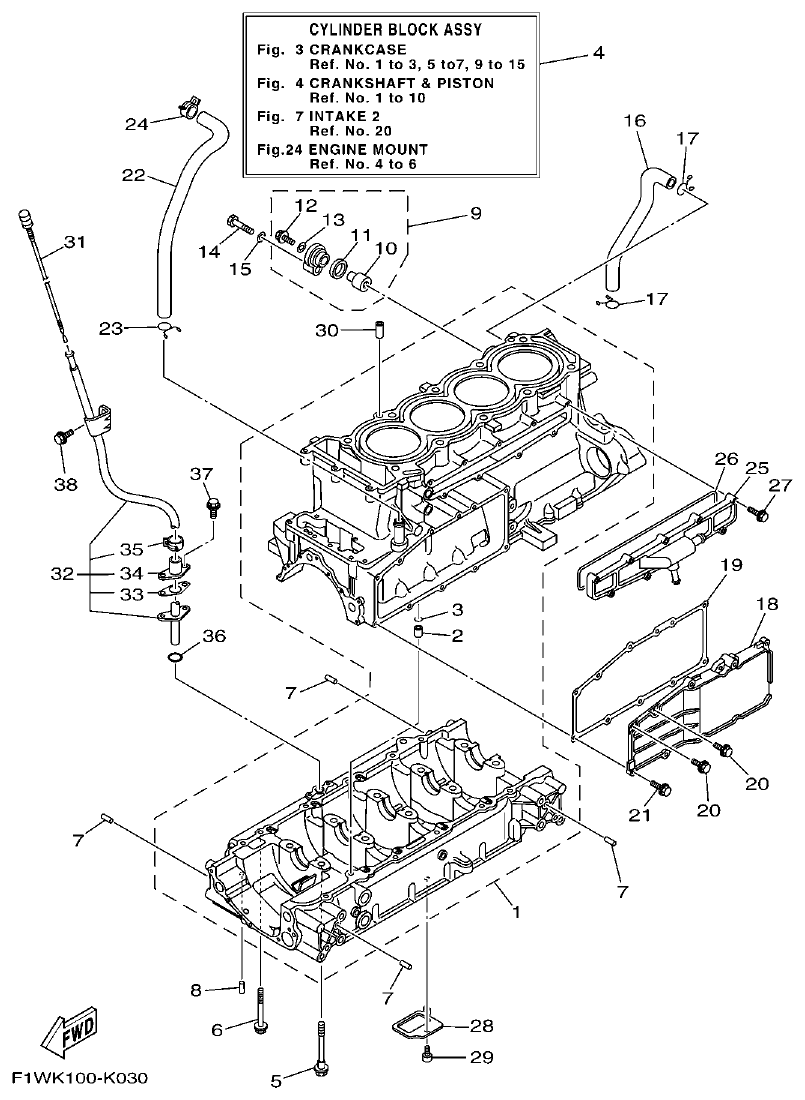

Yamaha F1WM CRANKCASE parts diagram
Fig. 3 — CRANKCASE
38 items · 4 catalog-linked products

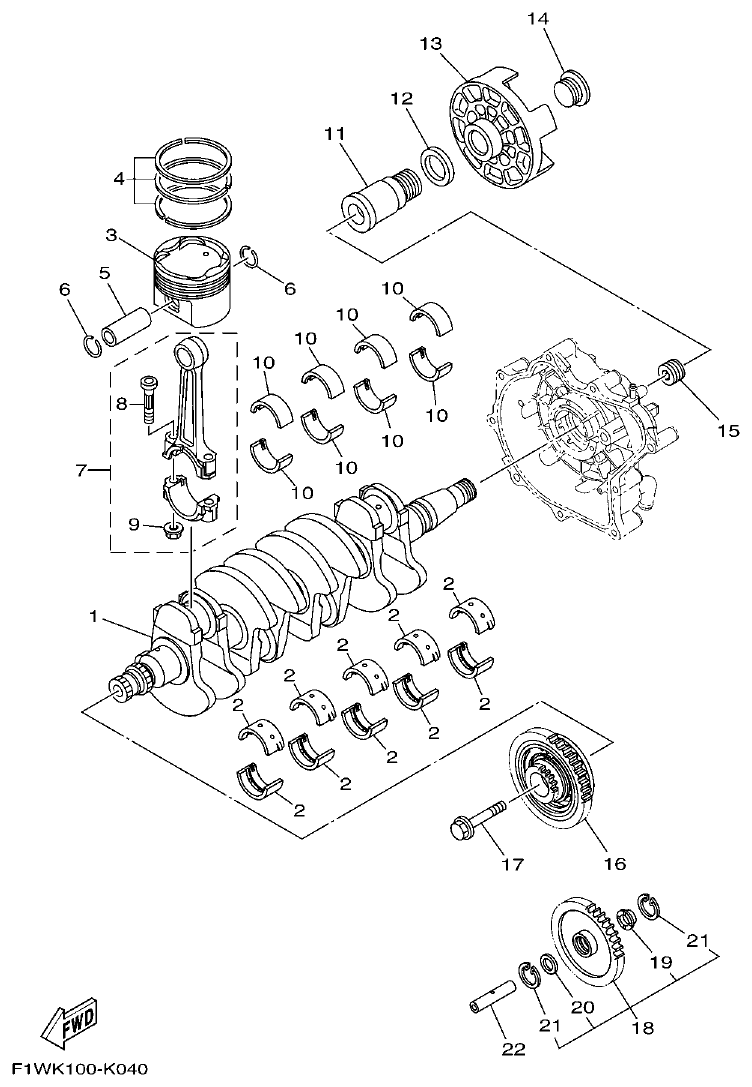

Yamaha F1WM CRANKSHAFT & PISTON parts diagram
Fig. 4 — CRANKSHAFT & PISTON
29 items · 20 catalog-linked products

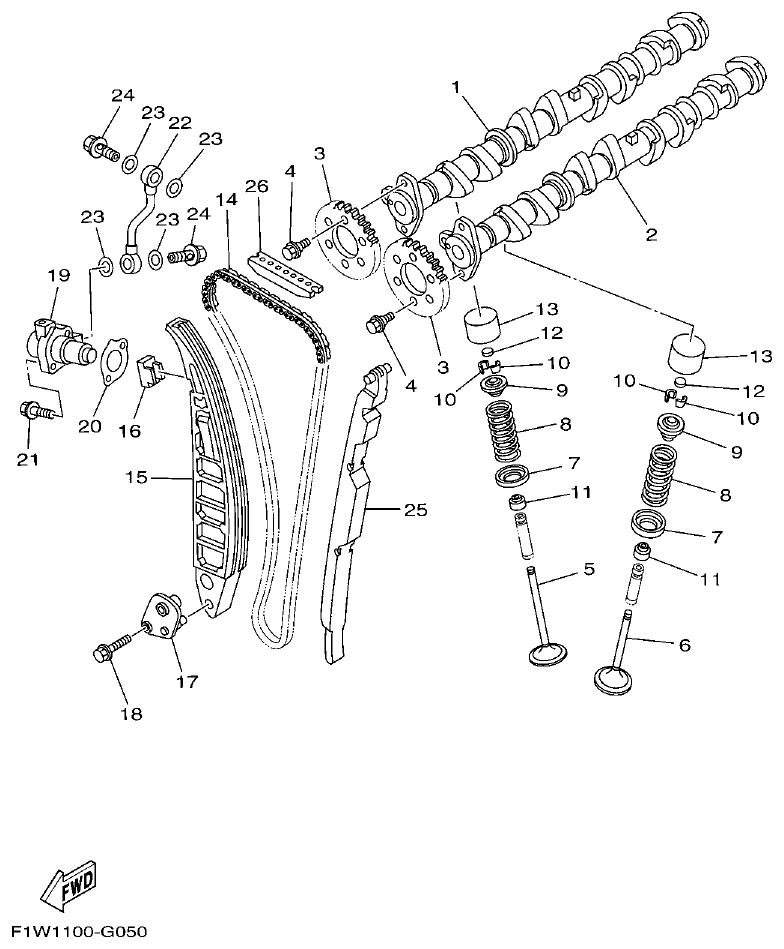

Yamaha F1WM VALVE parts diagram
Fig. 5 — VALVE
48 items · 33 catalog-linked products

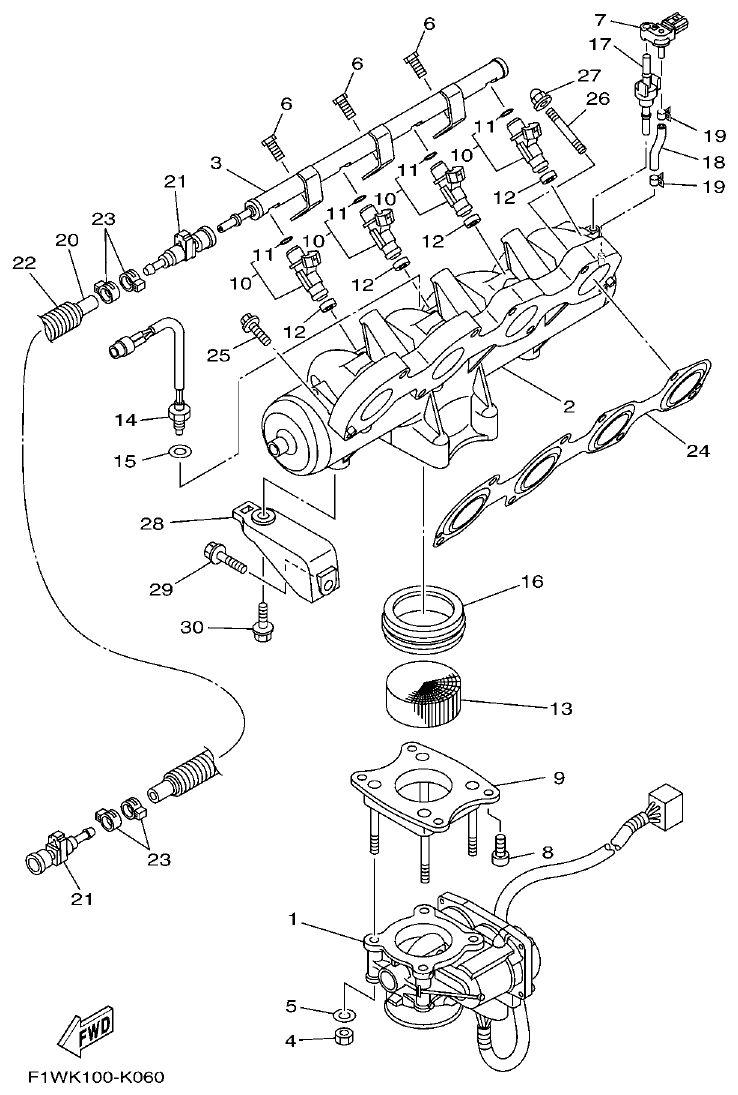

Yamaha F1WM INTAKE 1 parts diagram
Fig. 6 — INTAKE 1
30 items · 11 catalog-linked products

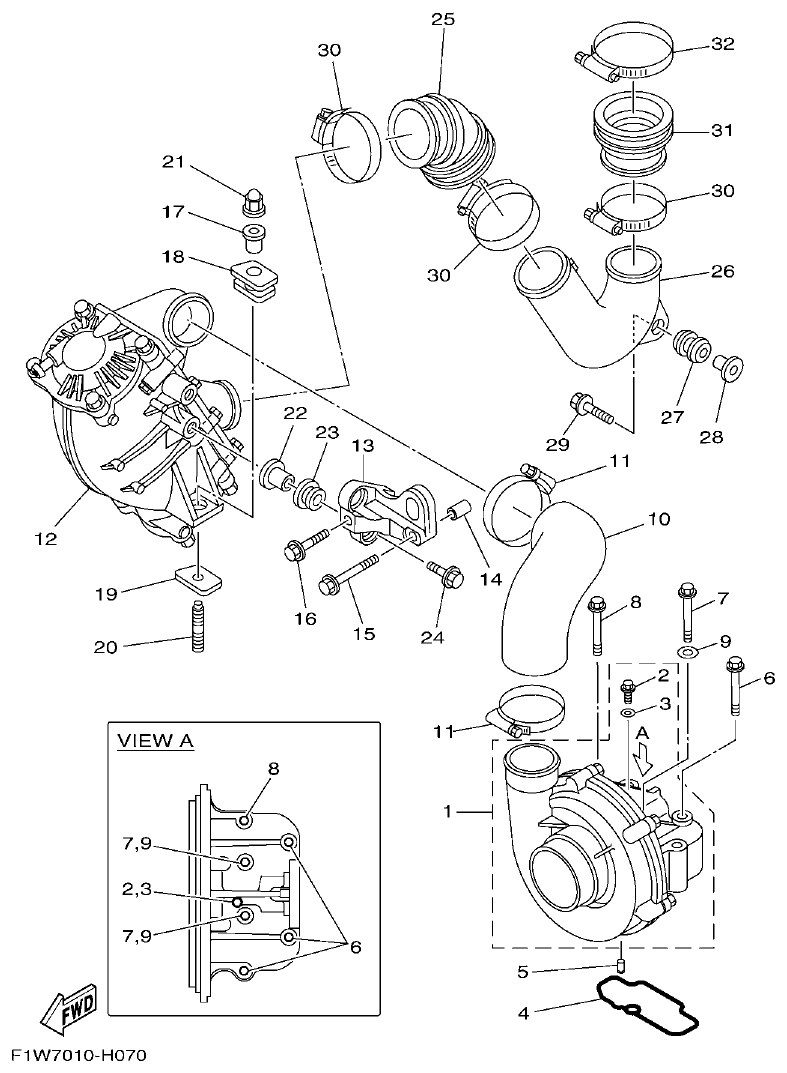

Yamaha F1WM INTAKE 2 parts diagram
Fig. 7 — INTAKE 2
32 items · 2 catalog-linked products

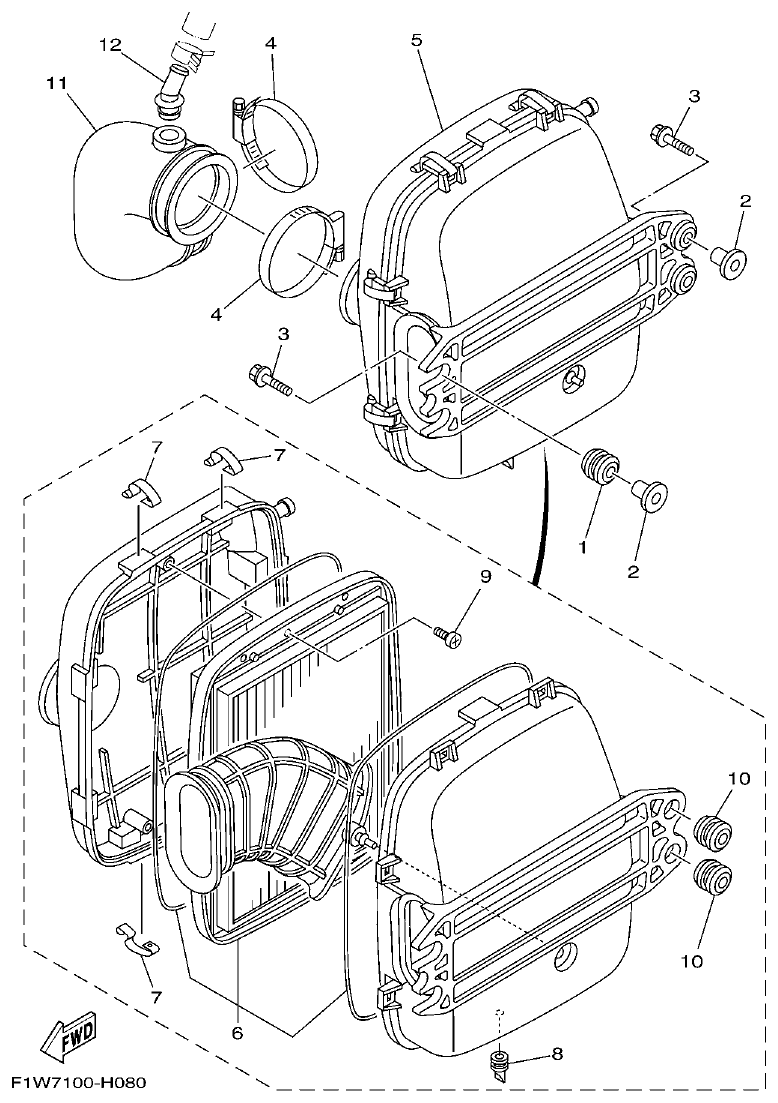

Yamaha F1WM INTAKE 3 parts diagram
Fig. 8 — INTAKE 3
12 items

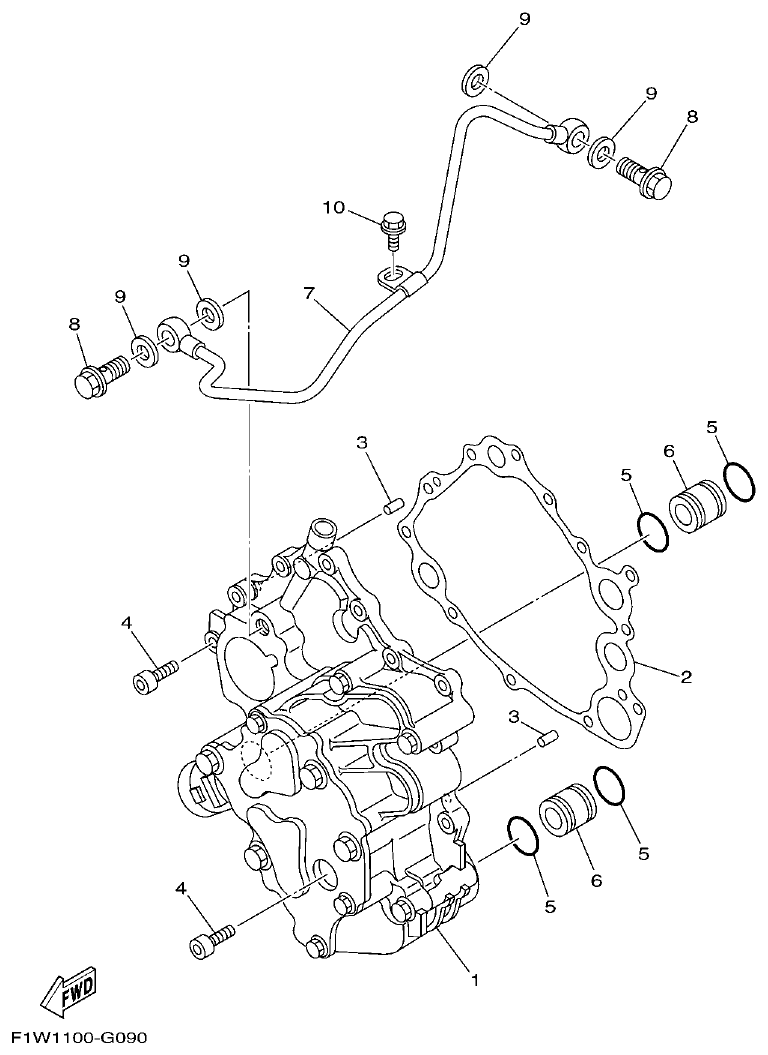

Yamaha F1WM OIL PUMP parts diagram
Fig. 9 — OIL PUMP
10 items · 2 catalog-linked products

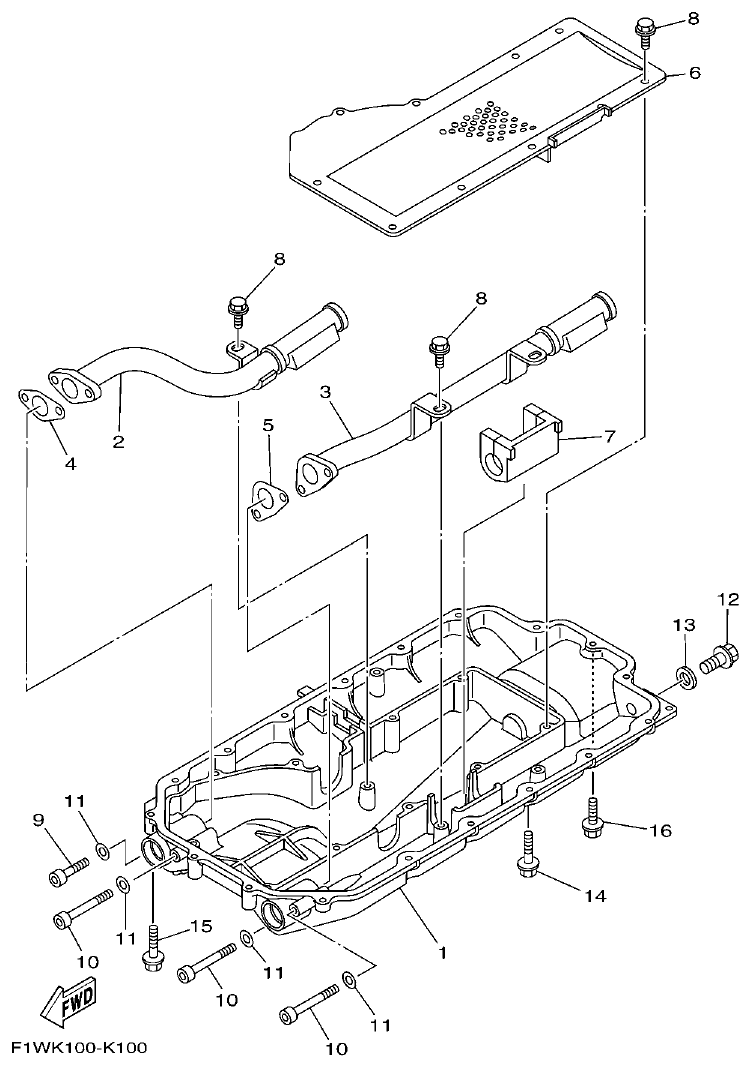

Yamaha F1WM OIL PAN parts diagram
Fig. 10 — OIL PAN
16 items · 2 catalog-linked products

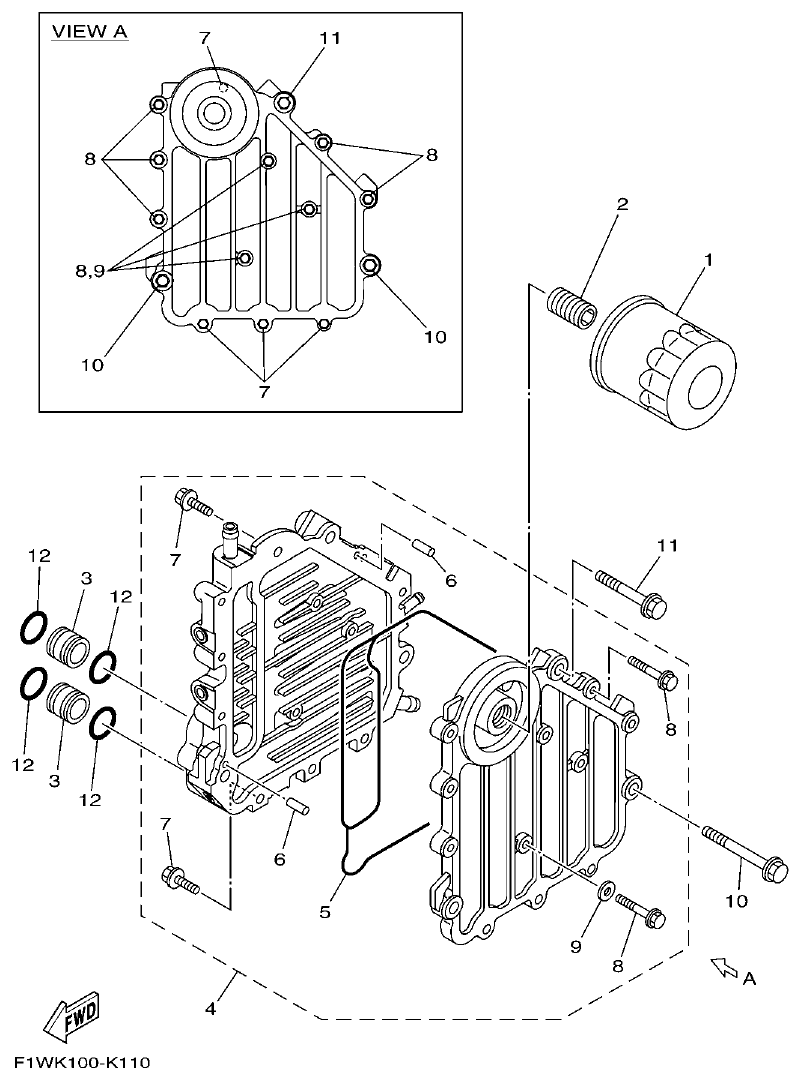

Yamaha F1WM OIL COOLER parts diagram
Fig. 11 — OIL COOLER
12 items · 2 catalog-linked products

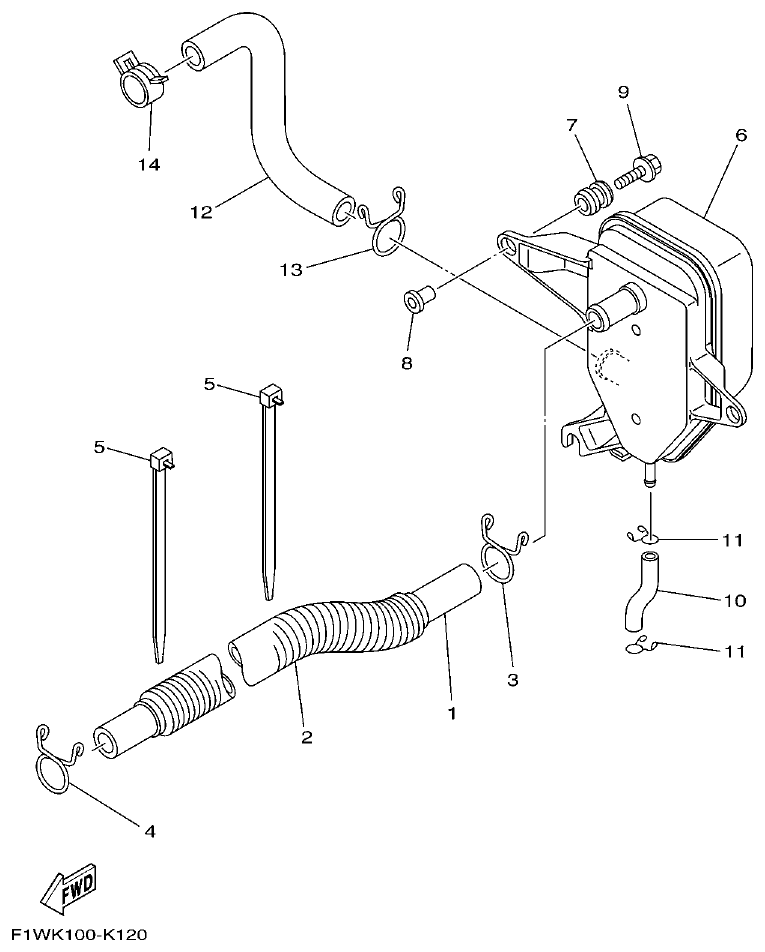

Yamaha F1WM BREATHER OIL parts diagram
Fig. 12 — BREATHER OIL
14 items

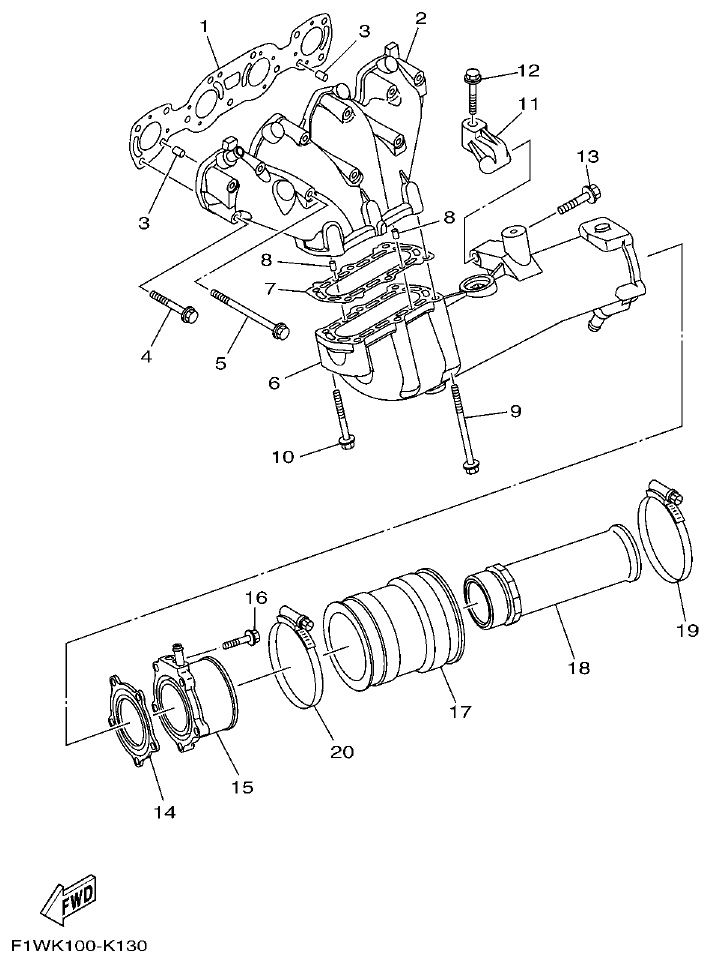

Yamaha F1WM EXHAUST 1 parts diagram
Fig. 13 — EXHAUST 1
20 items · 3 catalog-linked products

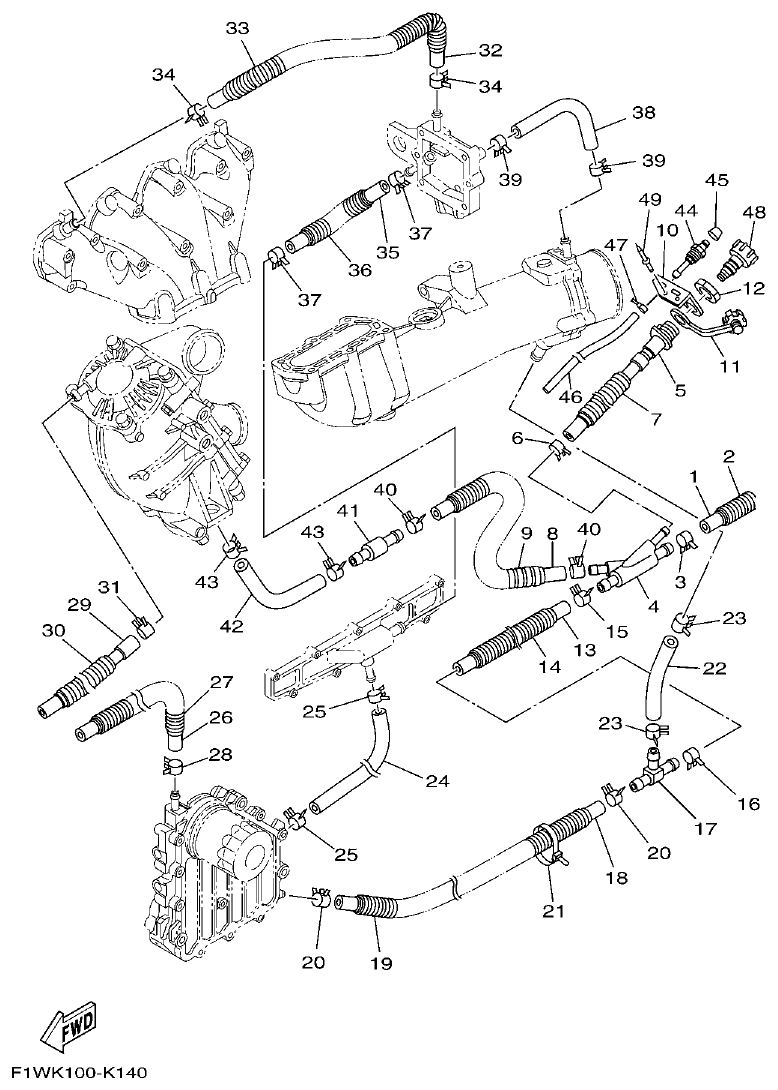

Yamaha F1WM EXHAUST 2 parts diagram
Fig. 14 — EXHAUST 2
49 items · 5 catalog-linked products

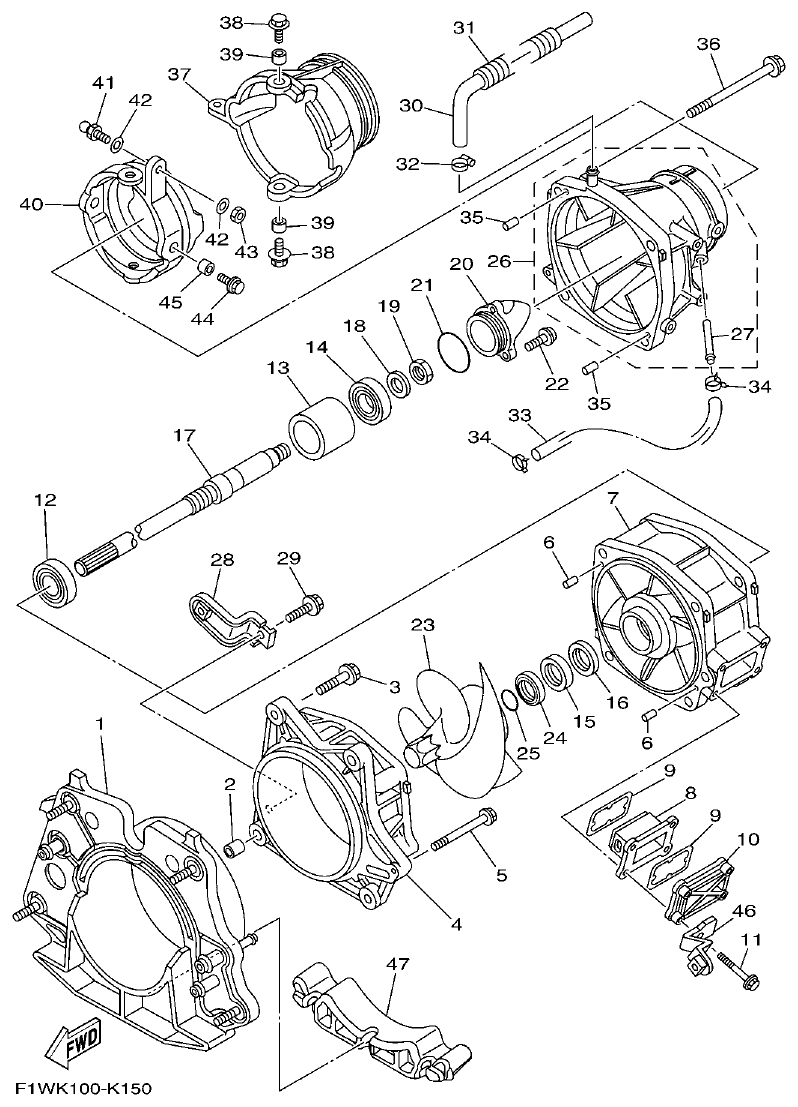

Yamaha F1WM JET UNIT 1 parts diagram
Fig. 15 — JET UNIT 1
47 items · 7 catalog-linked products

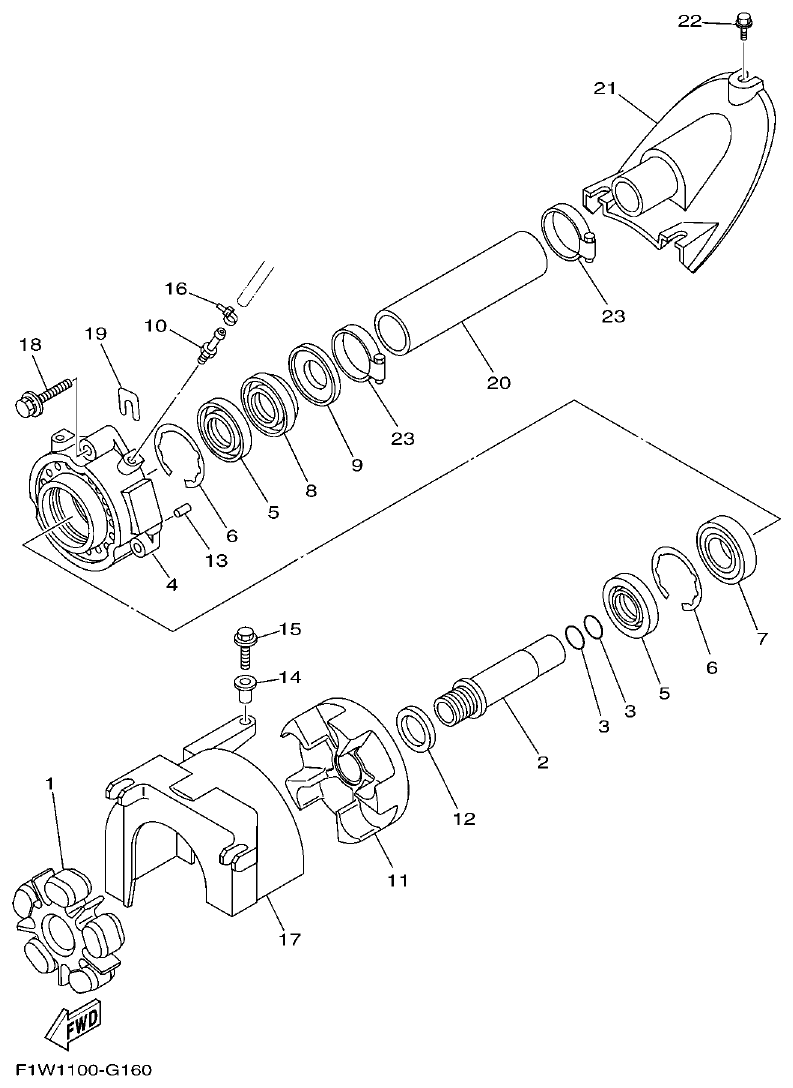

Yamaha F1WM JET UNIT 2 parts diagram
Fig. 16 — JET UNIT 2
23 items · 5 catalog-linked products

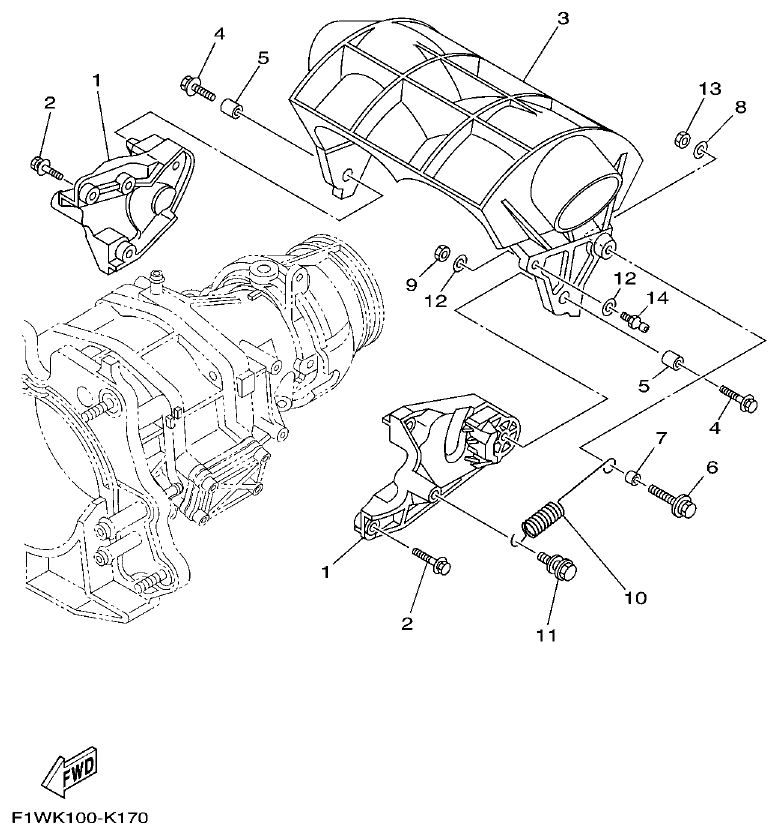

Yamaha F1WM JET UNIT 3 parts diagram
Fig. 17 — JET UNIT 3
14 items · 1 catalog-linked products

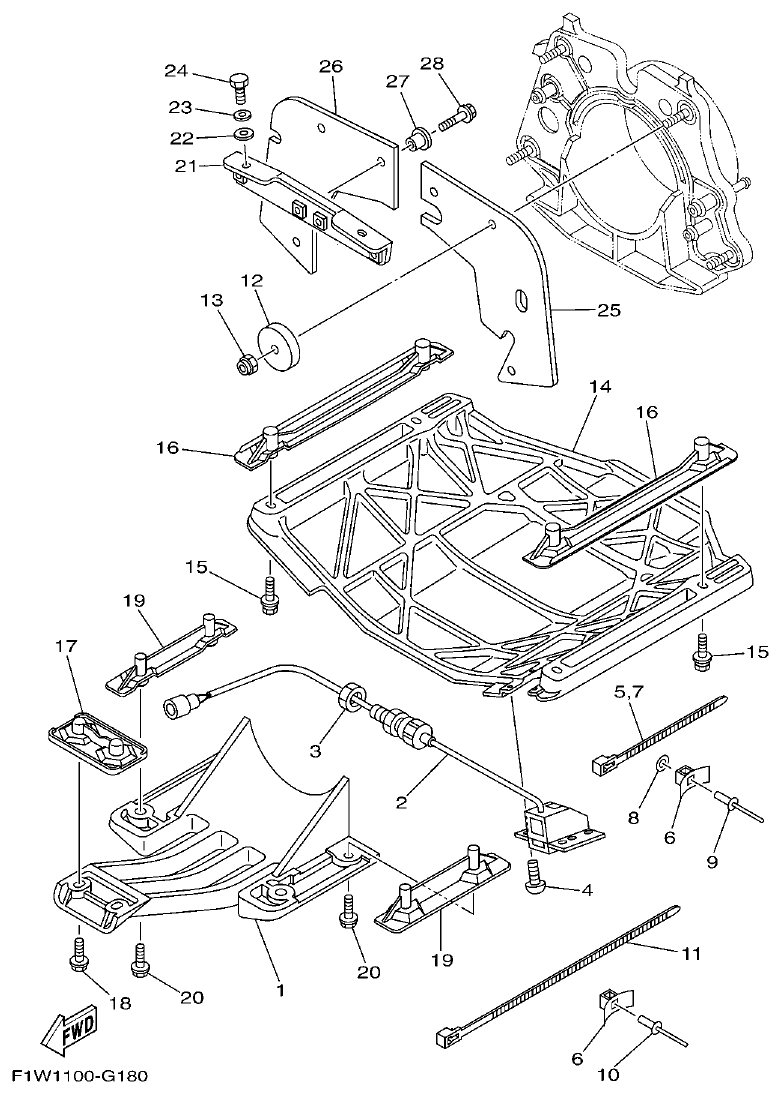

Yamaha F1WM JET UNIT 4 parts diagram
Fig. 18 — JET UNIT 4
28 items · 2 catalog-linked products

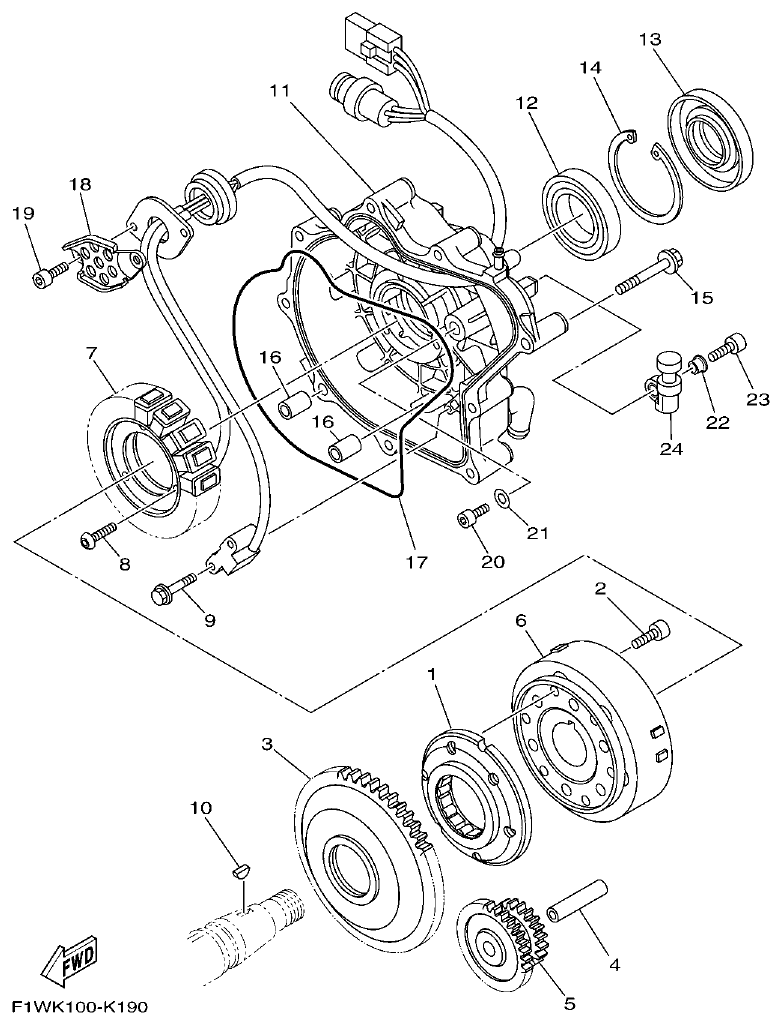

Yamaha F1WM GENERATOR parts diagram
Fig. 19 — GENERATOR
24 items · 7 catalog-linked products

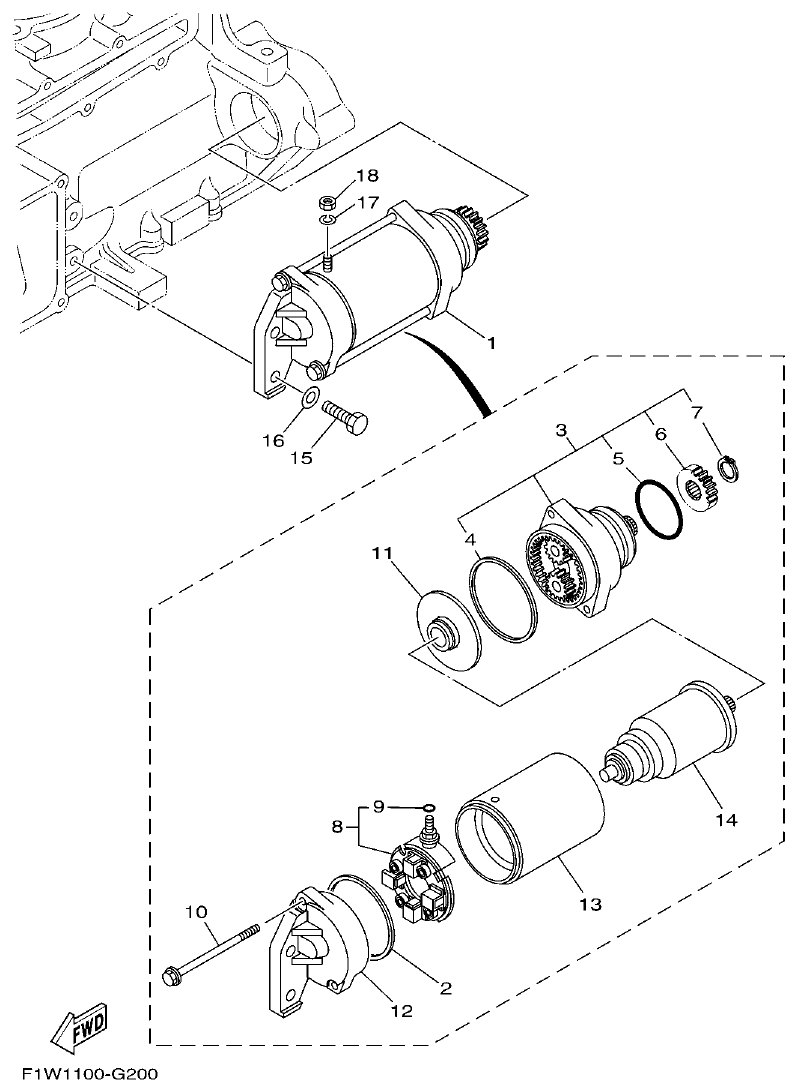

Yamaha F1WM STARTING MOTOR parts diagram
Fig. 20 — STARTING MOTOR
18 items · 6 catalog-linked products

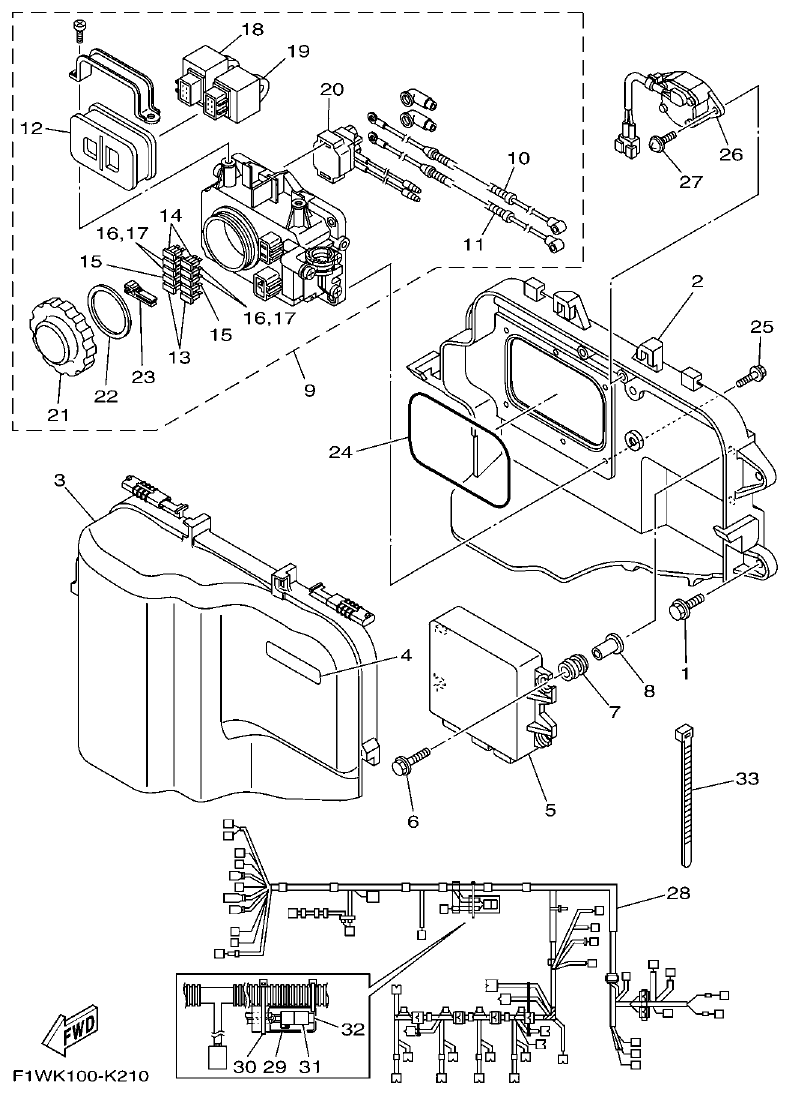

Yamaha F1WM ELECTRICAL 1 parts diagram
Fig. 21 — ELECTRICAL 1
34 items · 7 catalog-linked products

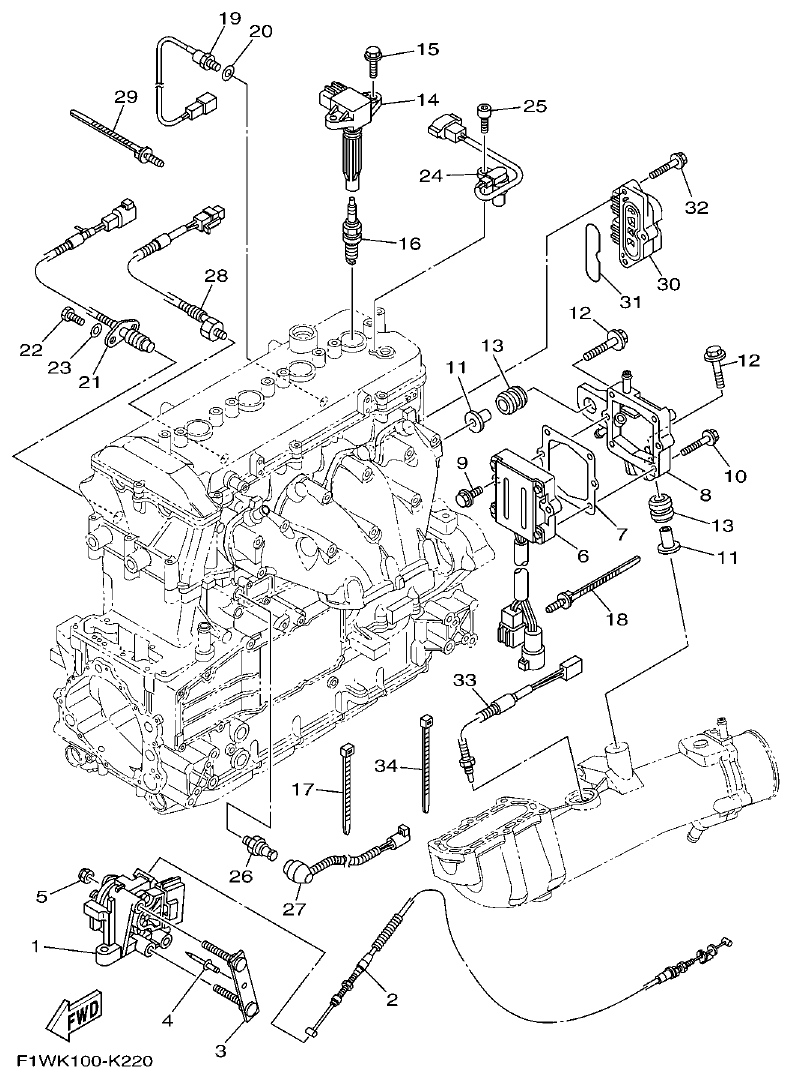

Yamaha F1WM ELECTRICAL 2 parts diagram
Fig. 22 — ELECTRICAL 2
34 items · 6 catalog-linked products

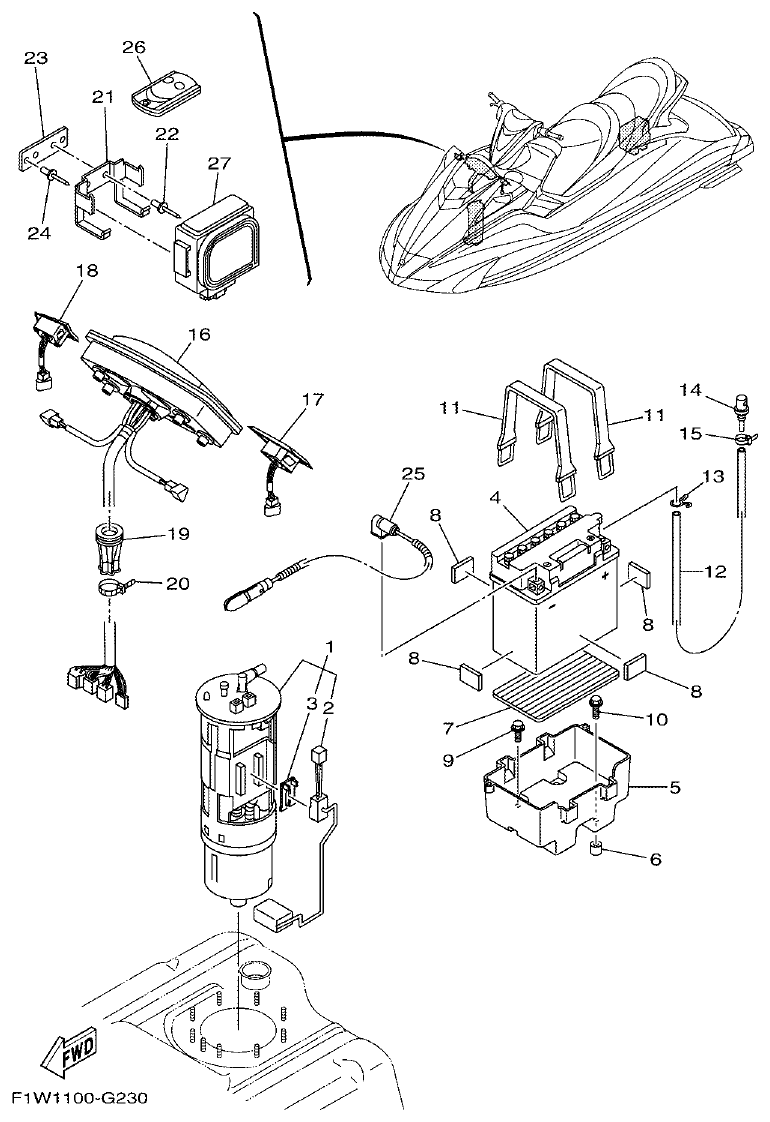

Yamaha F1WM ELECTRICAL 3 parts diagram
Fig. 23 — ELECTRICAL 3
29 items · 3 catalog-linked products

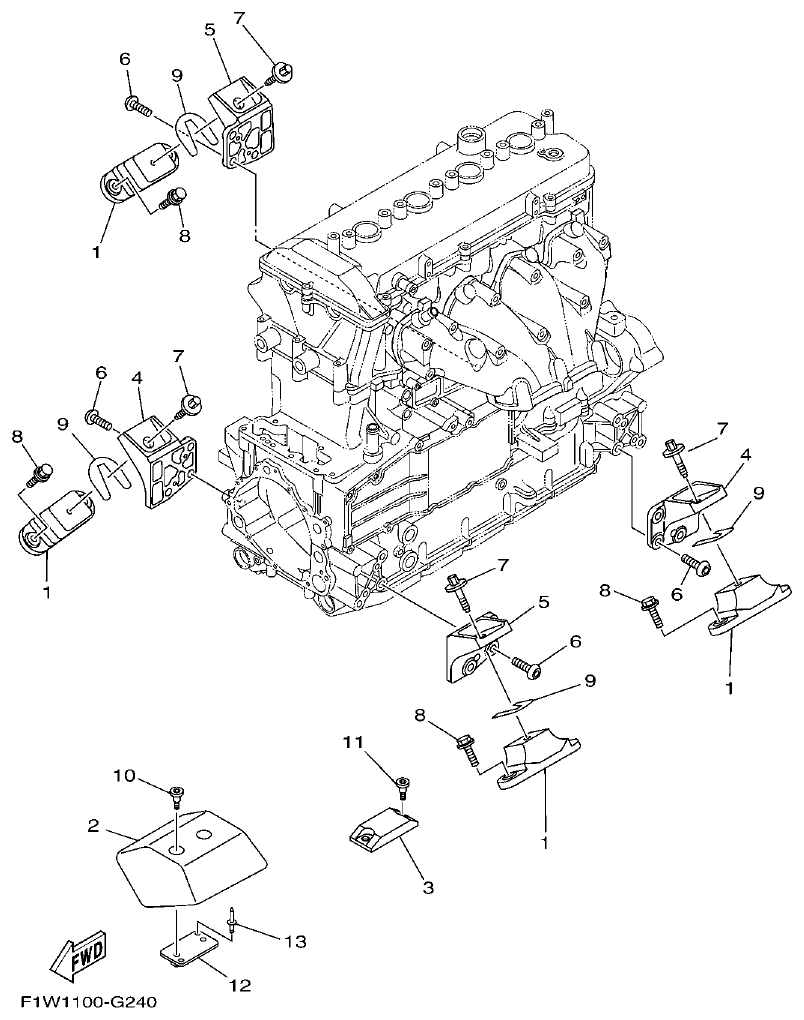

Yamaha F1WM ENGINE MOUNT parts diagram
Fig. 24 — ENGINE MOUNT
17 items

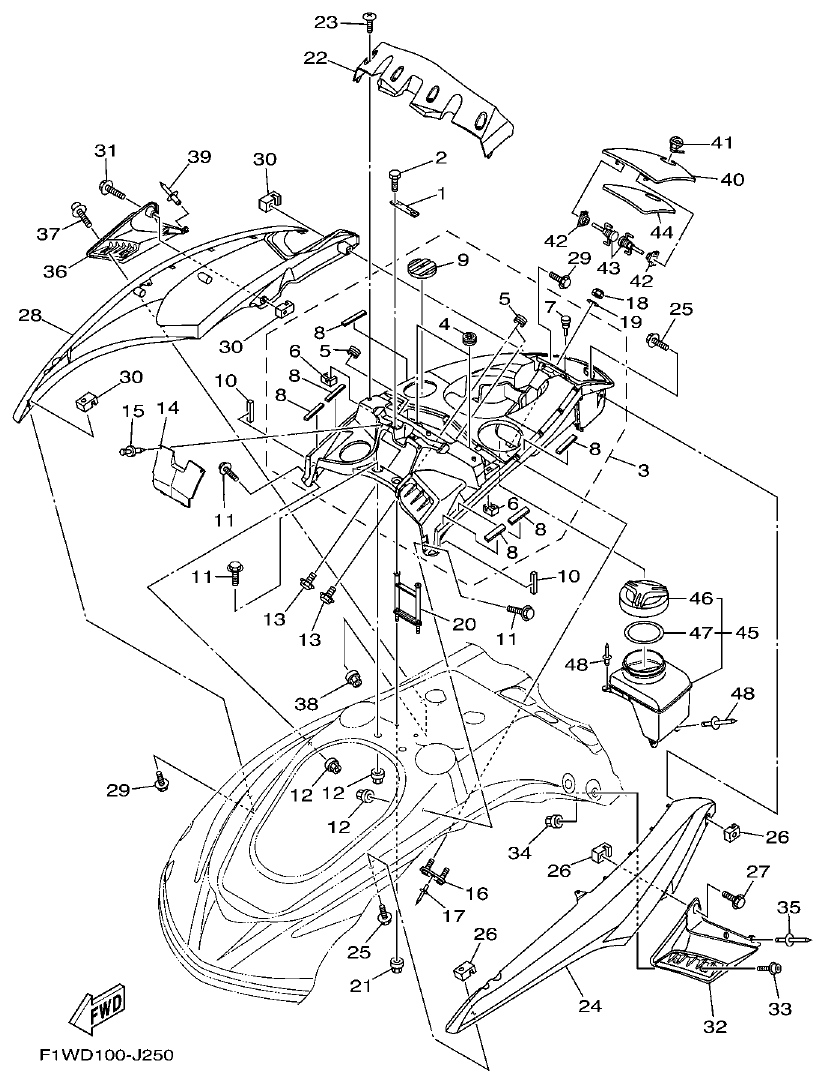

Yamaha F1WM ENGINE HATCH 1 parts diagram
Fig. 25 — ENGINE HATCH 1
52 items · 4 catalog-linked products

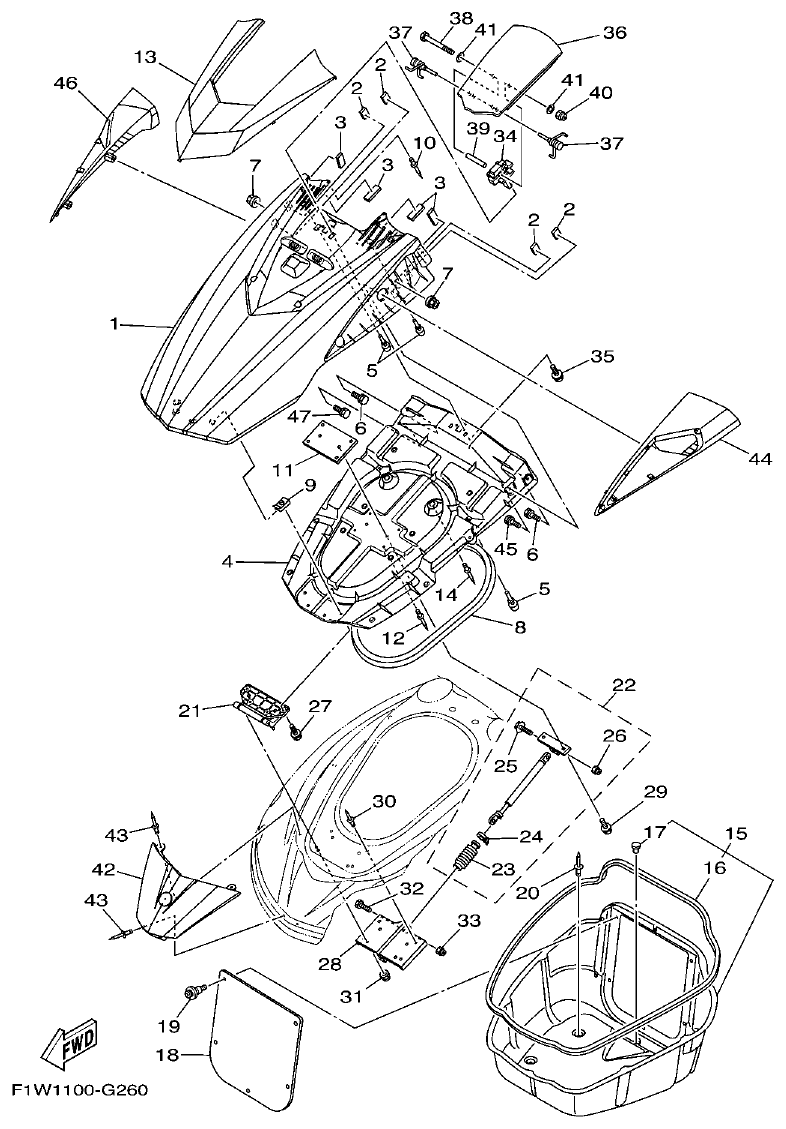

Yamaha F1WM ENGINE HATCH 2 parts diagram
Fig. 26 — ENGINE HATCH 2
53 items · 4 catalog-linked products

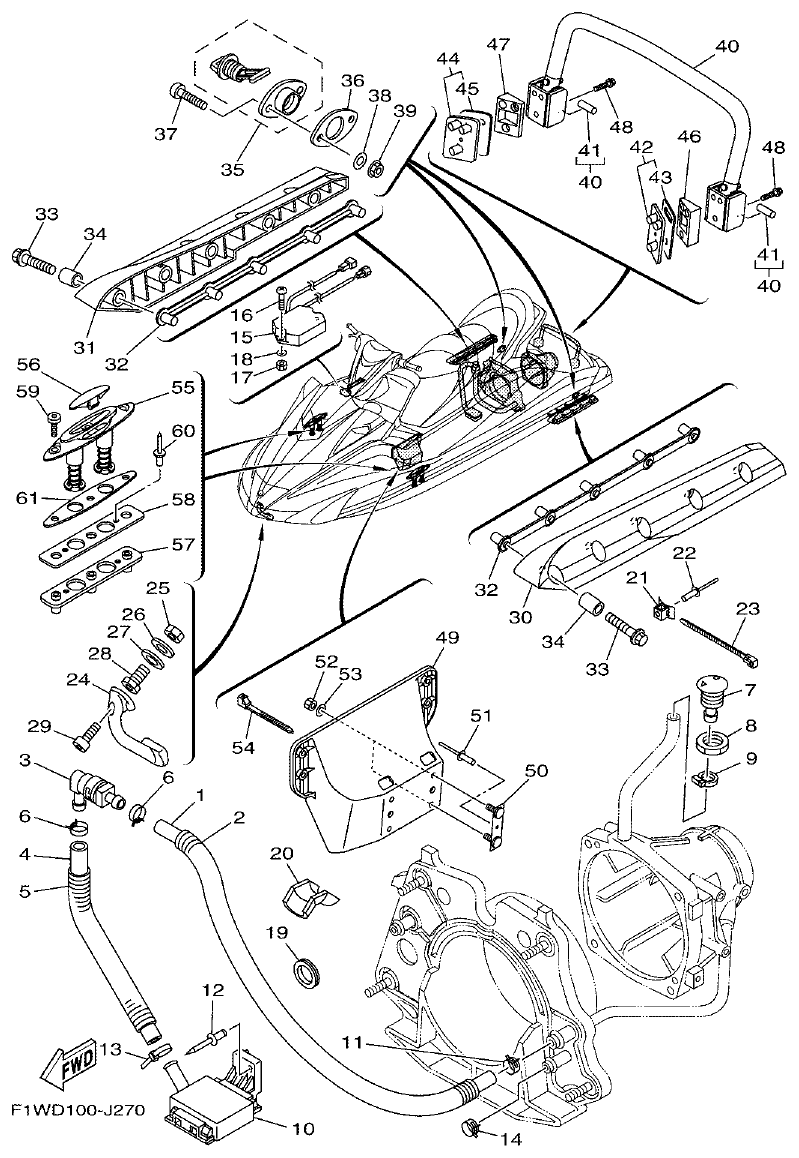

Yamaha F1WM HULL & DECK parts diagram
Fig. 27 — HULL & DECK
61 items · 8 catalog-linked products

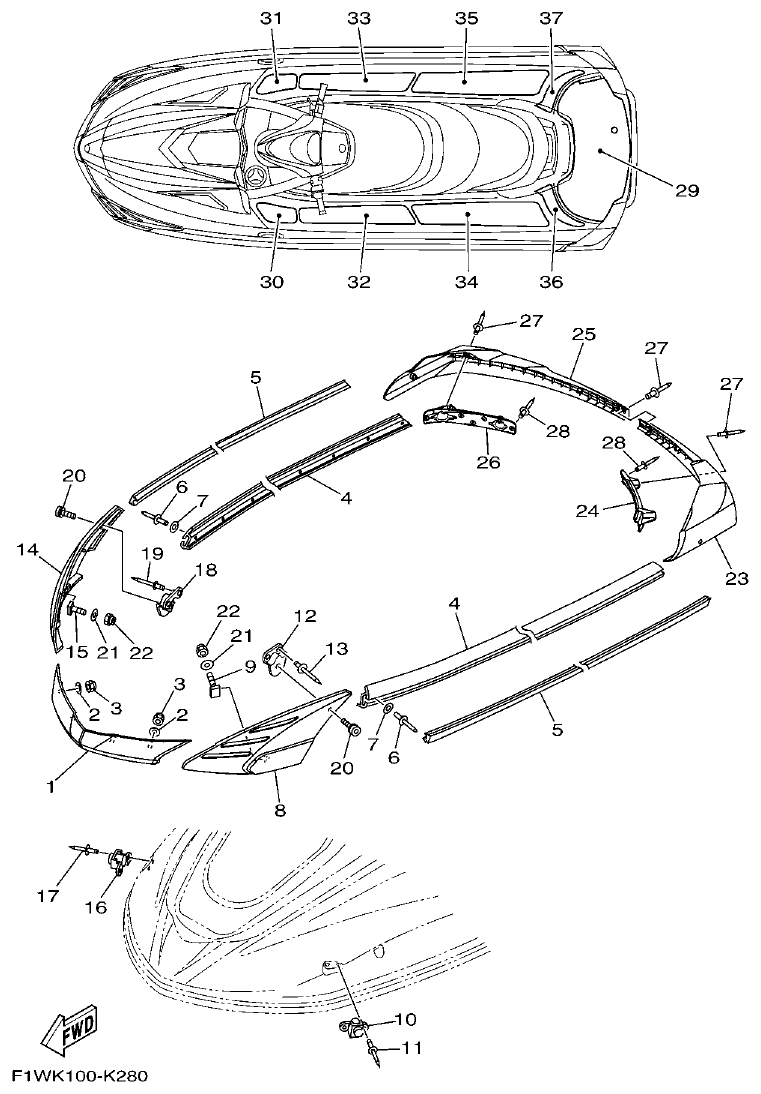

Yamaha F1WM GUNWALE & MAT parts diagram
Fig. 28 — GUNWALE & MAT
52 items · 8 catalog-linked products

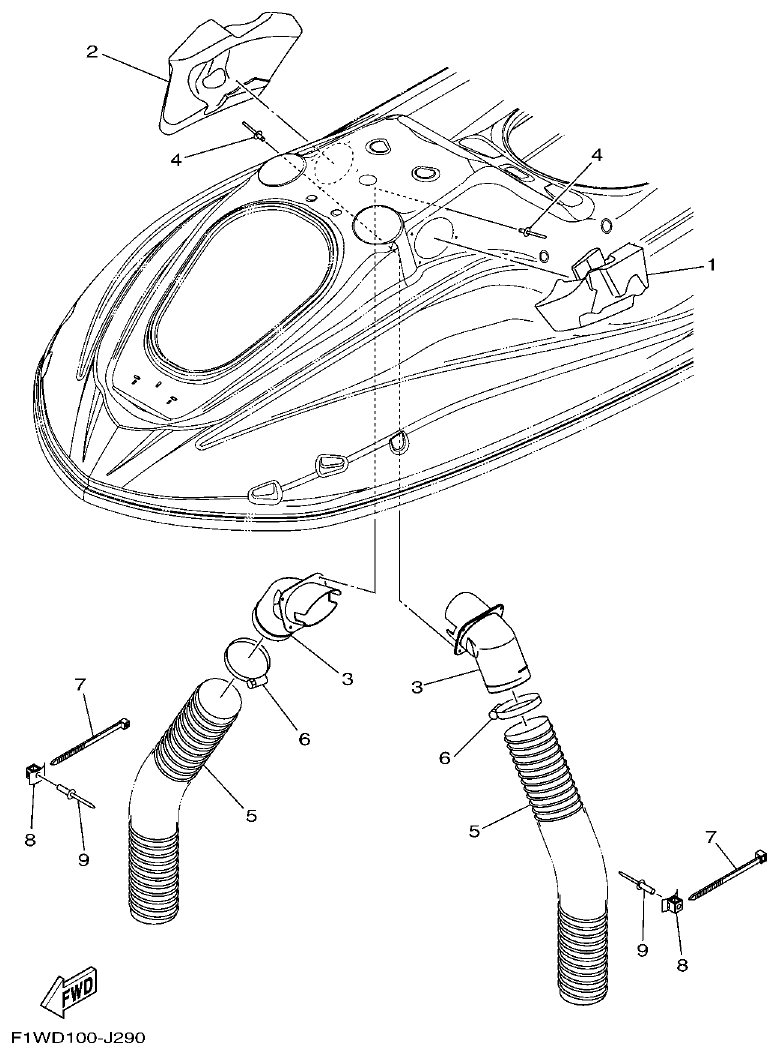

Yamaha F1WM VENTILATION parts diagram
Fig. 29 — VENTILATION
9 items

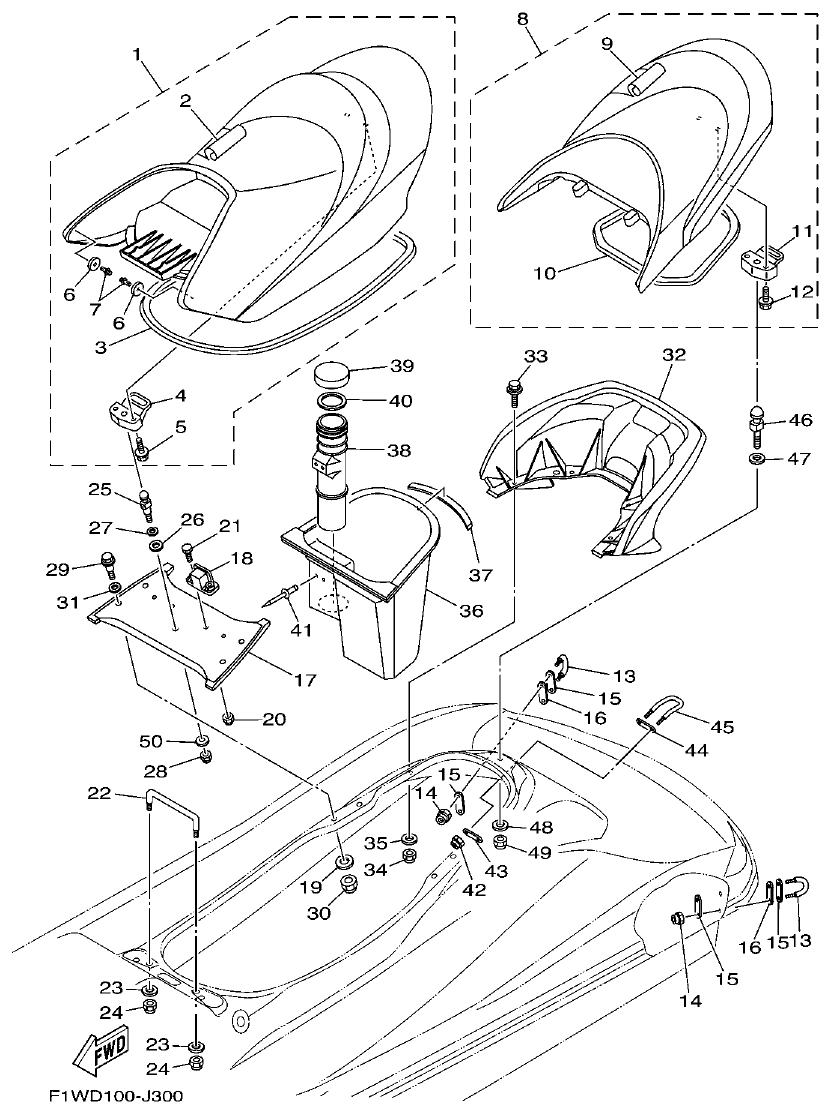

Yamaha F1WM SEAT & UNDER LOCKER parts diagram
Fig. 30 — SEAT & UNDER LOCKER
54 items · 3 catalog-linked products

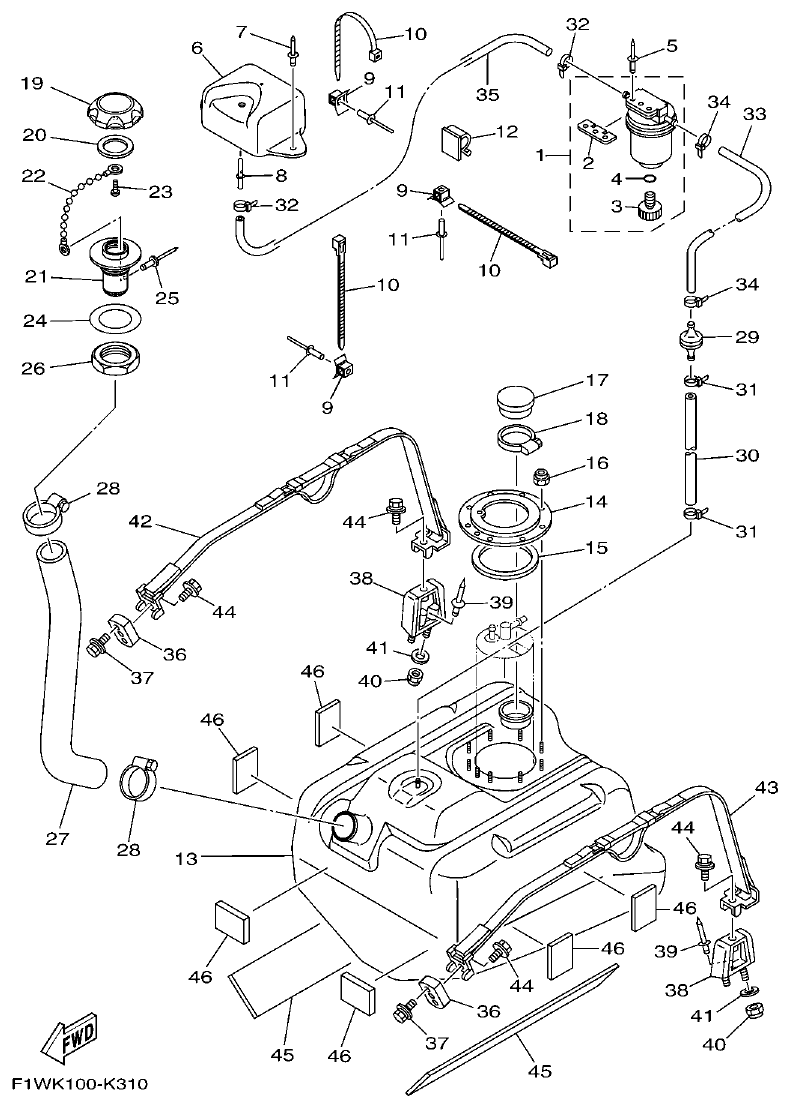

Yamaha F1WM FUEL TANK parts diagram
Fig. 31 — FUEL TANK
47 items · 8 catalog-linked products

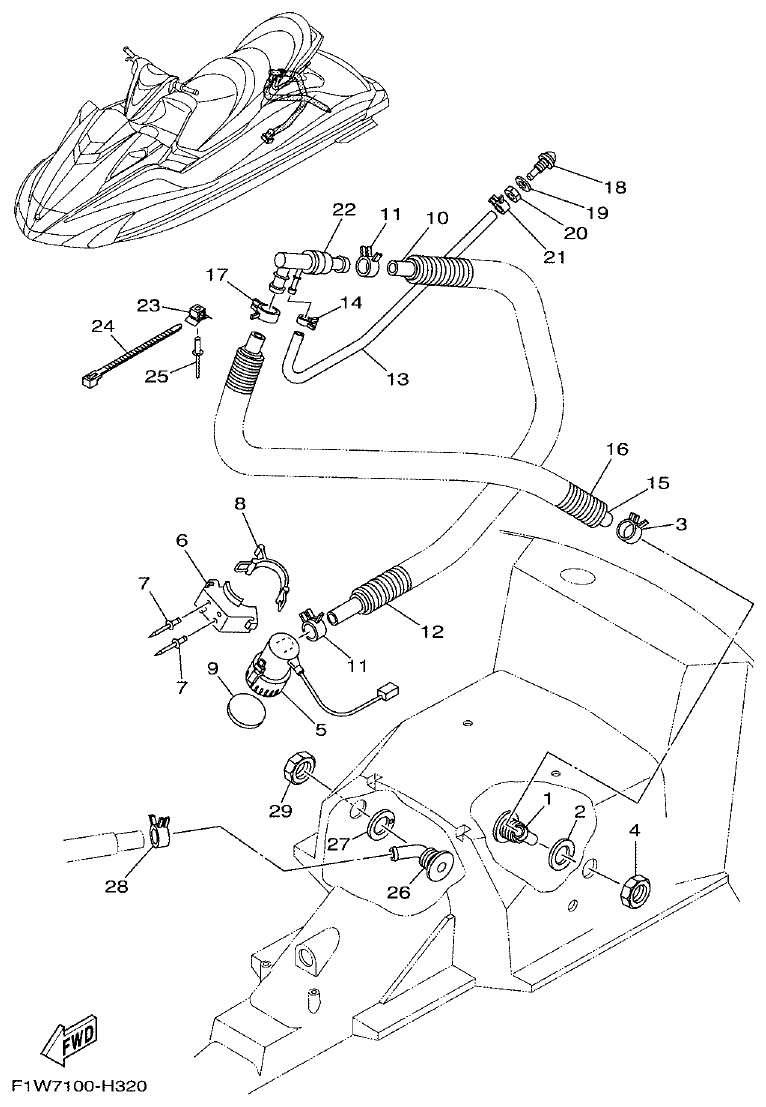

Yamaha F1WM BILGE PUMP parts diagram
Fig. 32 — BILGE PUMP
29 items

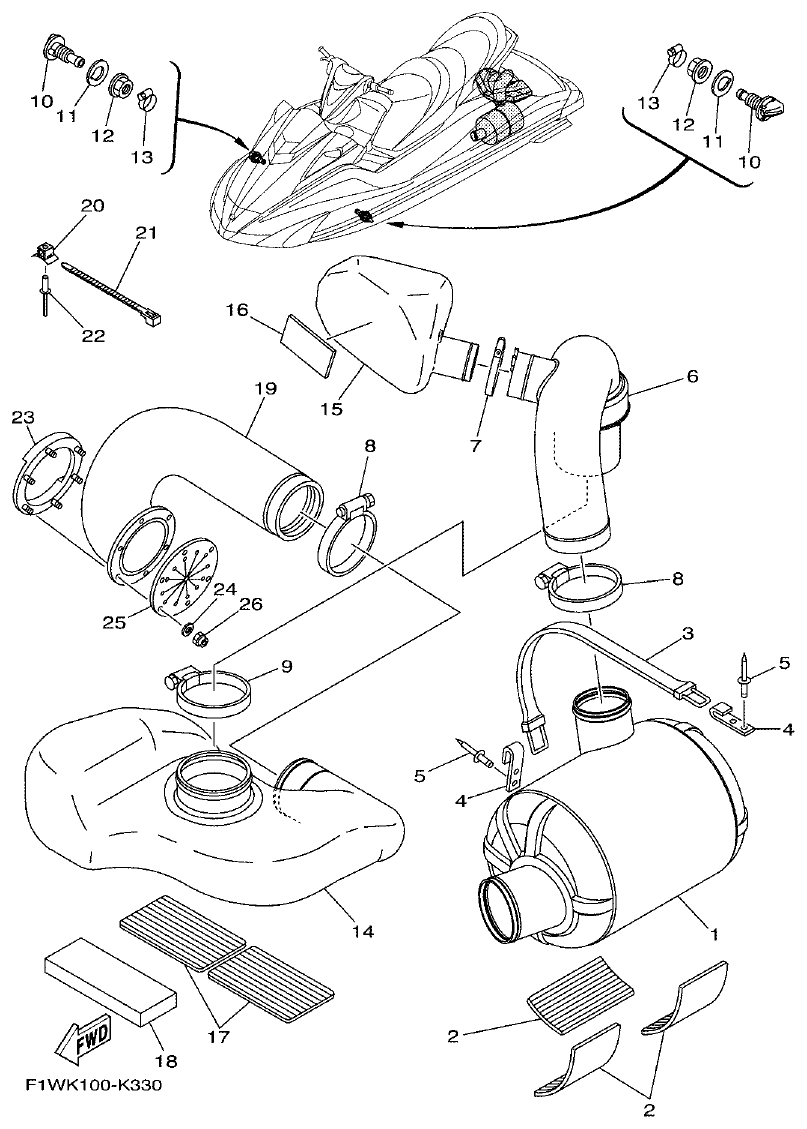

Yamaha F1WM EXHAUST 3 parts diagram
Fig. 33 — EXHAUST 3
26 items · 3 catalog-linked products

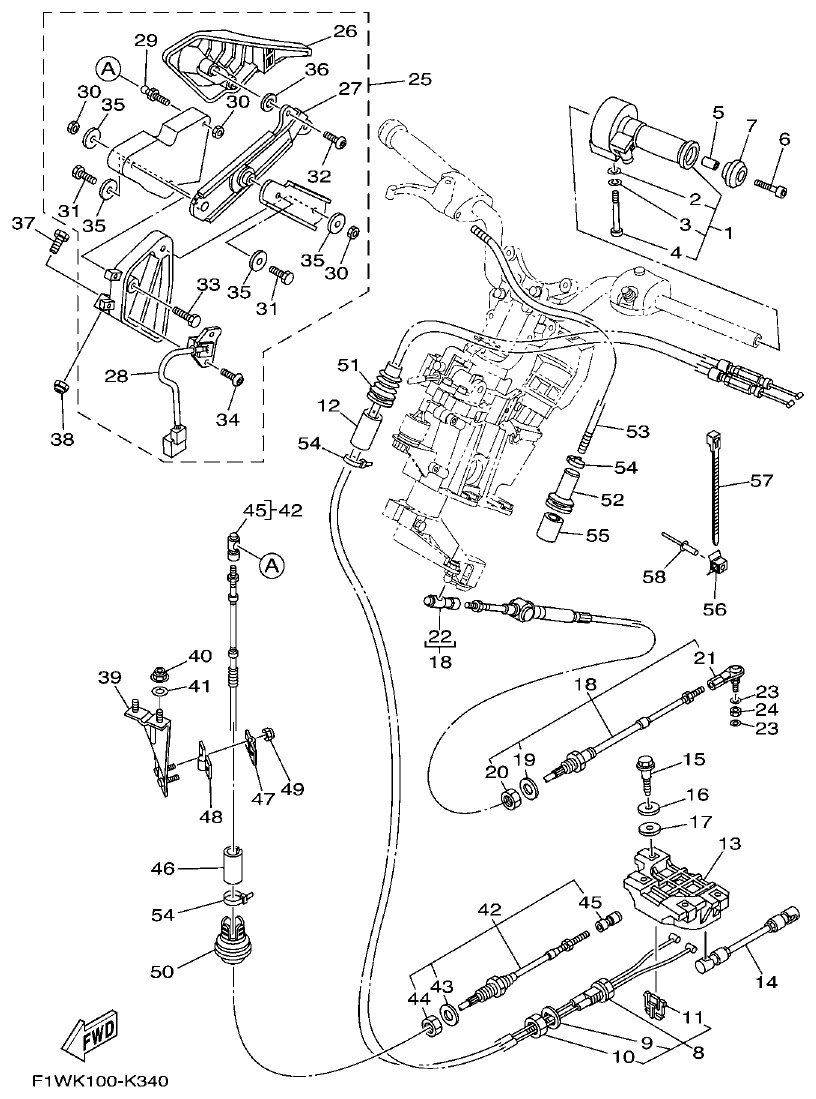

Yamaha F1WM CONTROL CABLE parts diagram
Fig. 34 — CONTROL CABLE
58 items · 7 catalog-linked products

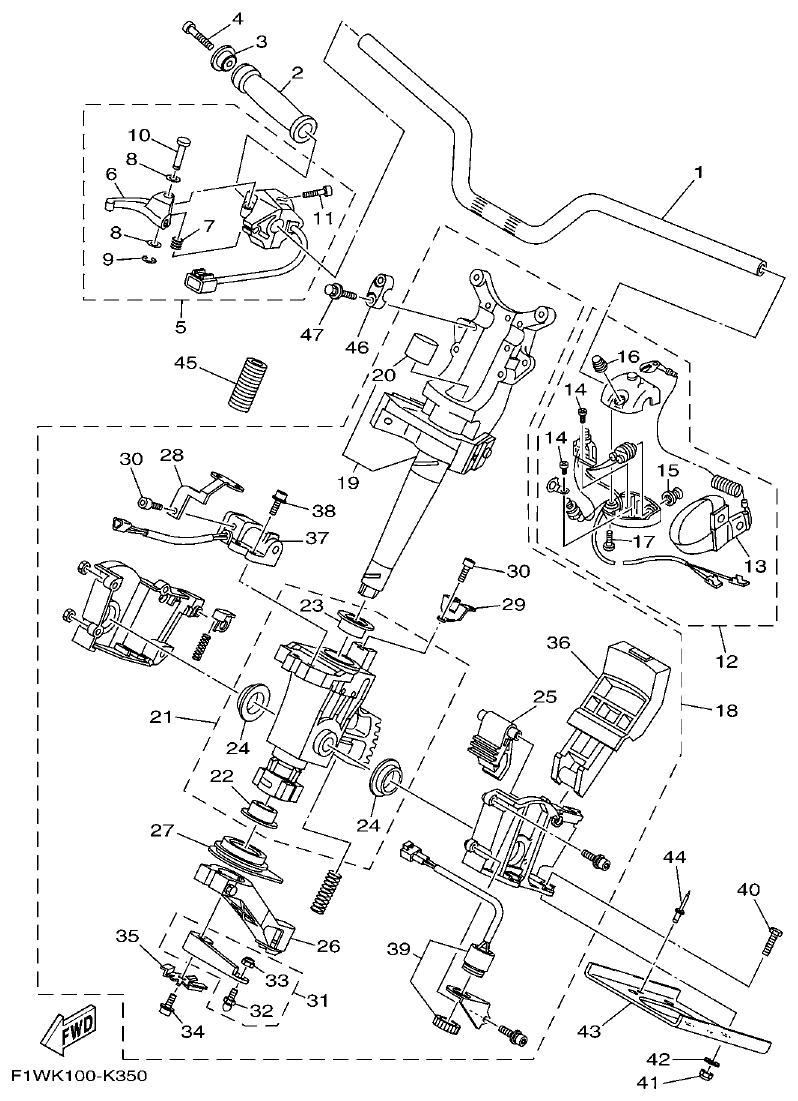

Yamaha F1WM STEERING 1 parts diagram
Fig. 35 — STEERING 1
47 items · 7 catalog-linked products

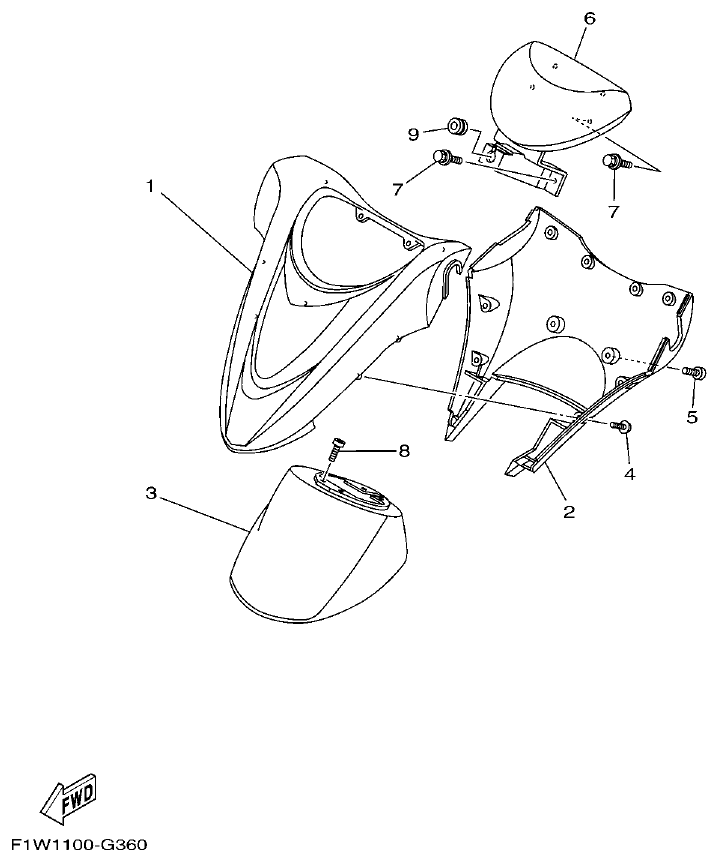

Yamaha F1WM STEERING 2 parts diagram
Fig. 36 — STEERING 2
12 items

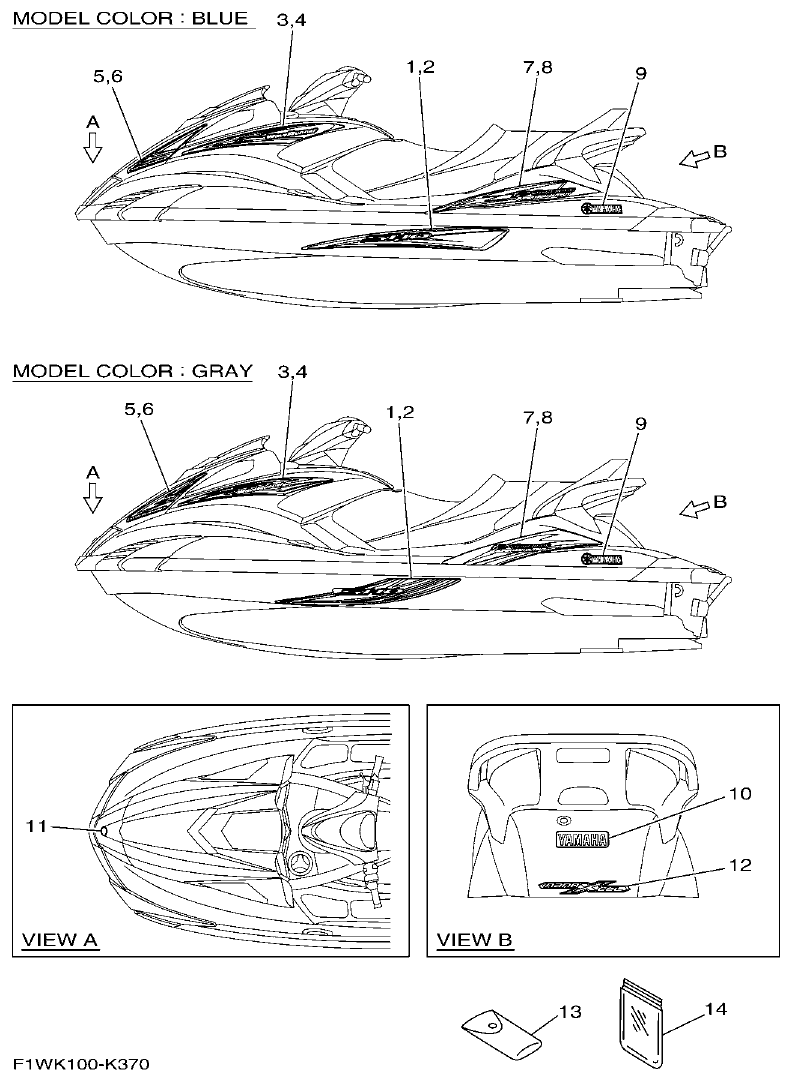

Yamaha F1WM GRAPHICS parts diagram
Fig. 37 — GRAPHICS
24 items

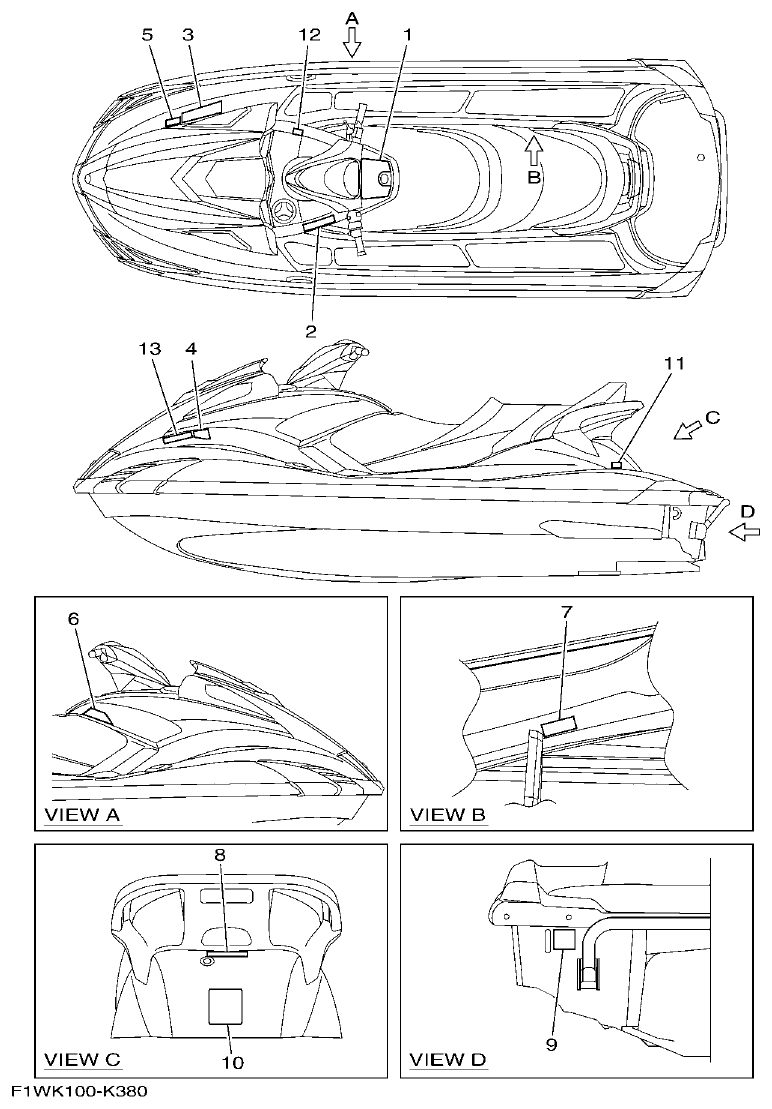

Yamaha F1WM IMPORTANT LABELS parts diagram
Fig. 38 — IMPORTANT LABELS
13 items · 2 catalog-linked products

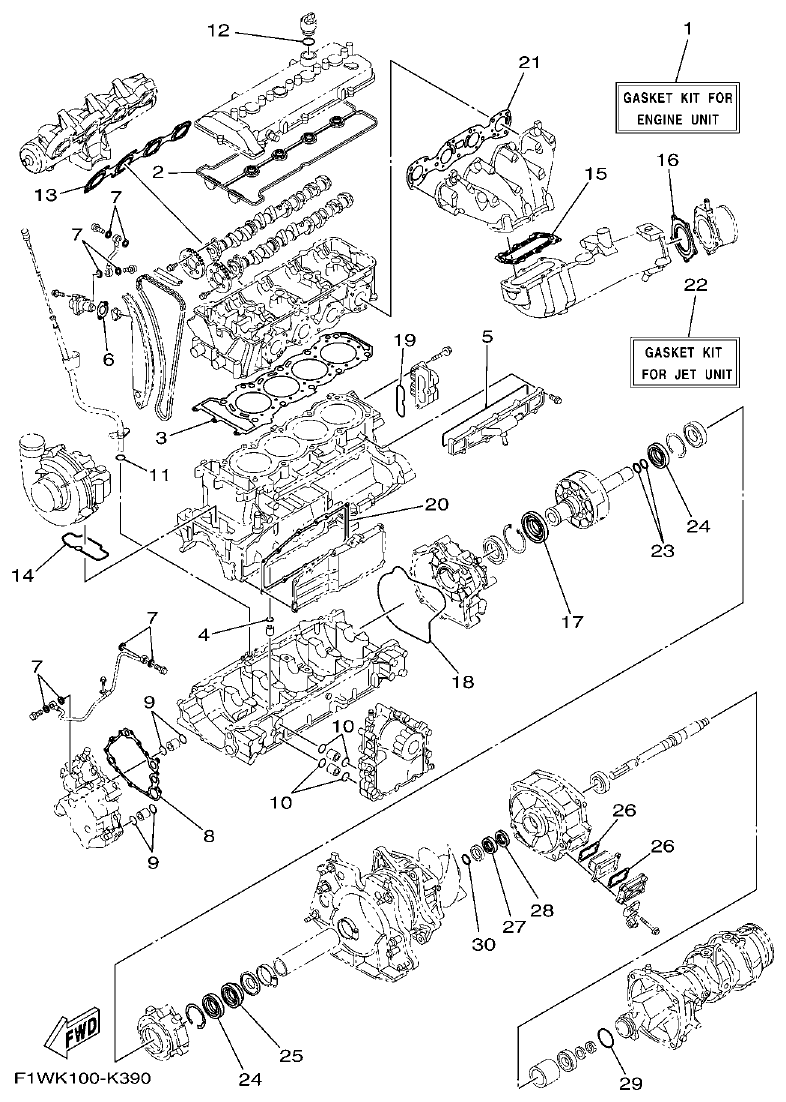

Yamaha F1WM REPAIR KIT 1 parts diagram
Fig. 39 — REPAIR KIT 1
30 items · 12 catalog-linked products

Yamaha F1WM (Model code: 1187) Water Vehicle parts and diagrams

Yamaha F1WM water vehicle parts catalog includes CYLINDER 1, CYLINDER 2, CRANKCASE, CRANKSHAFT & PISTON, VALVE, INTAKE 1, INTAKE 2, INTAKE 3, OIL PUMP, OIL PAN, OIL COOLER, BREATHER OIL, EXHAUST 1, EXHAUST 2, JET UNIT 1, JET UNIT 2, JET UNIT 3, JET UNIT 4. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

201 linked store products are available across 39 catalog sections. 1174 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
