Yamaha VX1050 Parts Catalog

Browse 34 catalog sections for Yamaha VX1050. Open a section to view the parts diagram, reference numbers and available products.

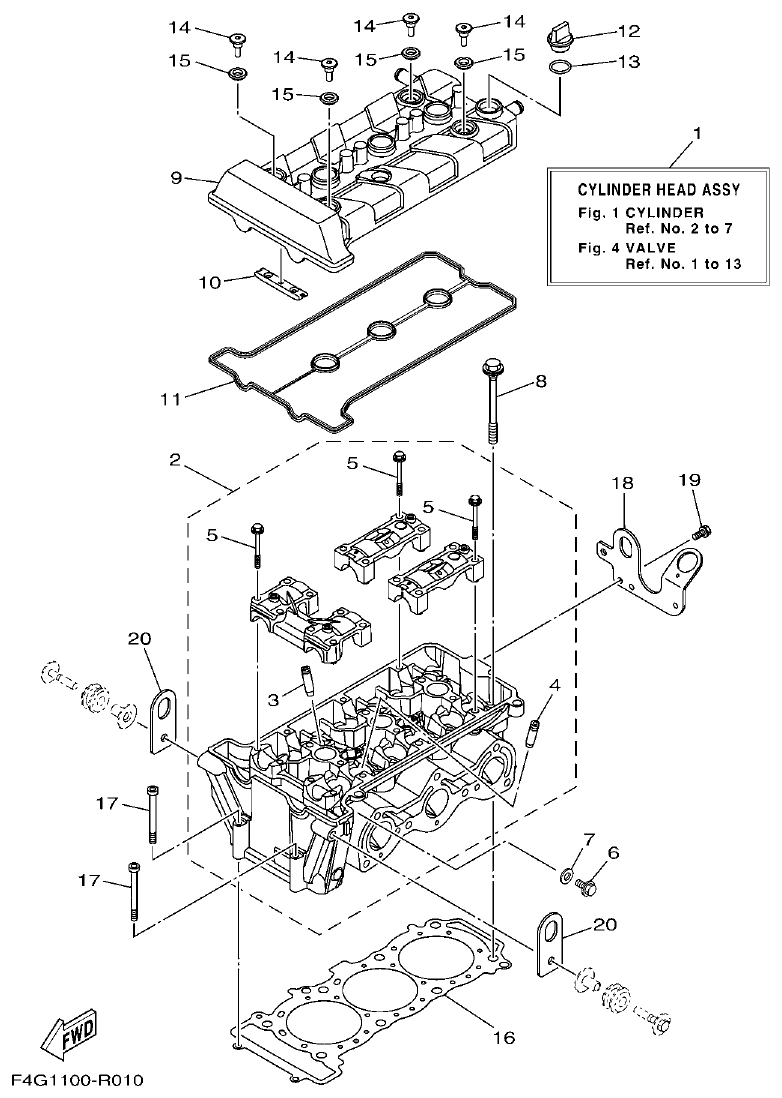

Yamaha VX1050 CYLINDER parts diagram
Fig. 1 — CYLINDER
20 items · 7 available products
Yamaha VX1050 CRANKCASE parts diagram
Fig. 2 — CRANKCASE
31 items · 4 available products

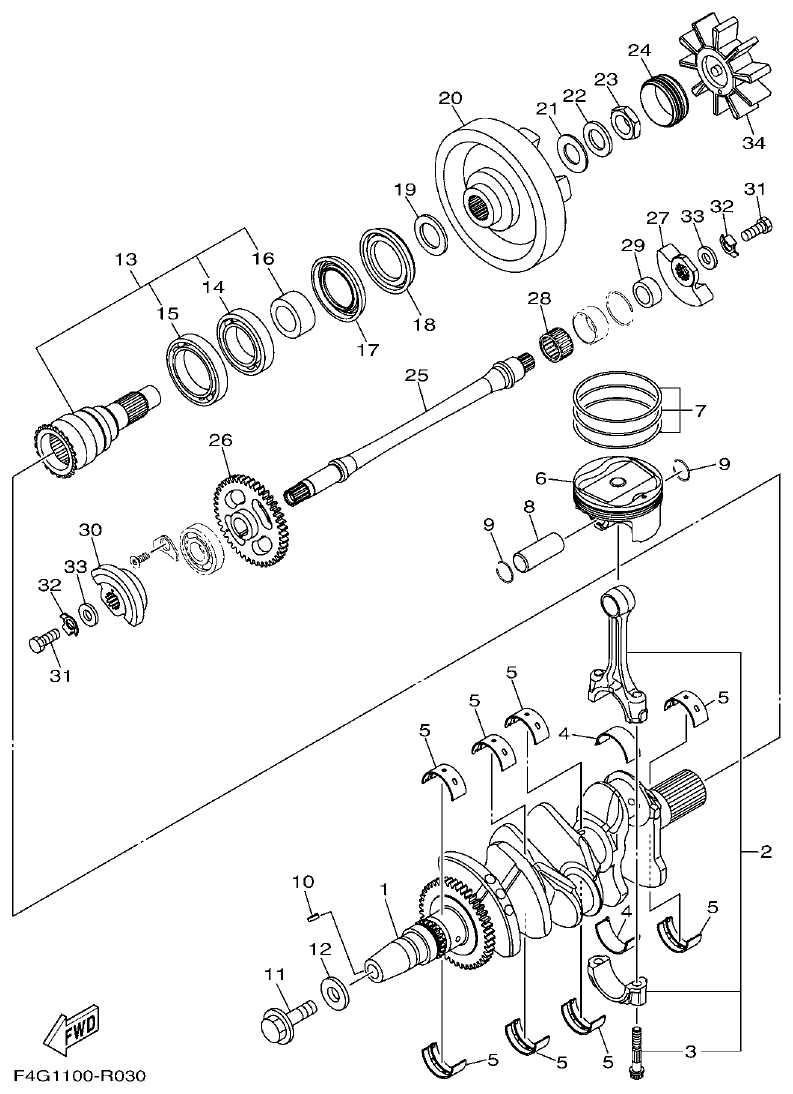

Yamaha VX1050 CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
45 items · 25 available products

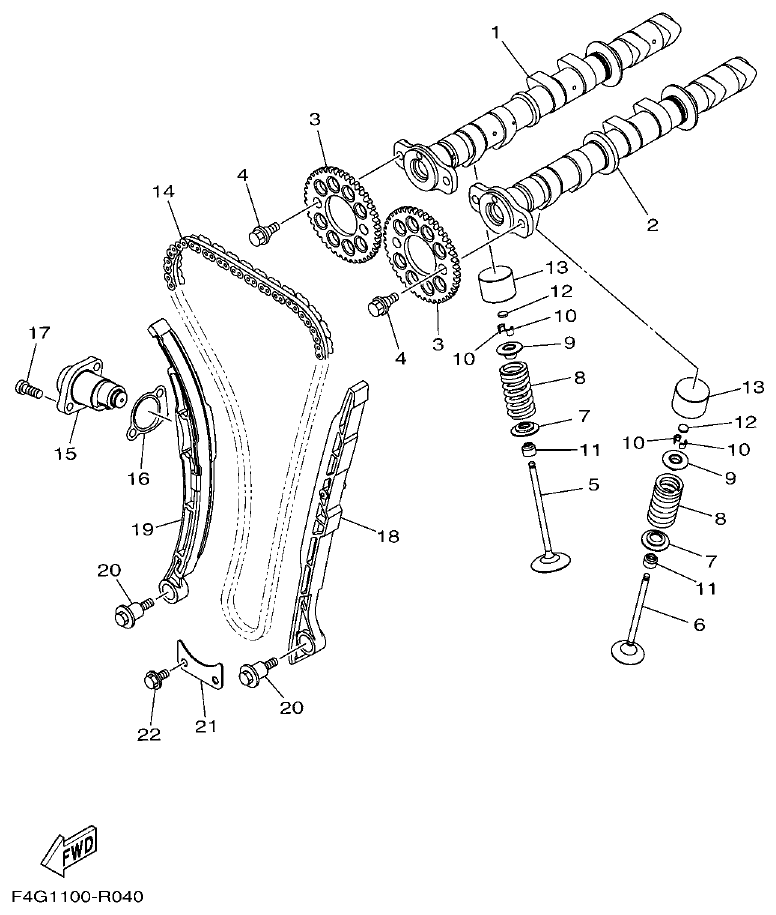

Yamaha VX1050 VALVE parts diagram
Fig. 4 — VALVE
46 items · 28 available products

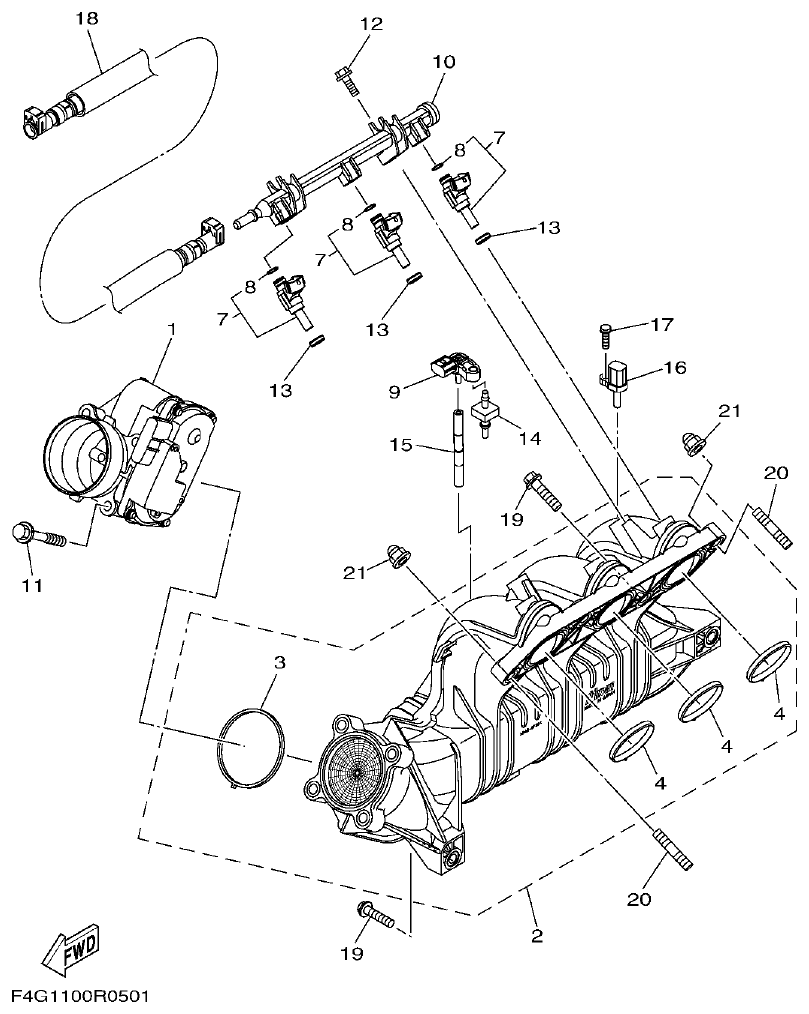

Yamaha VX1050 INTAKE parts diagram
Fig. 5 — INTAKE
19 items · 9 available products
Yamaha VX1050 INTAKE 2 parts diagram

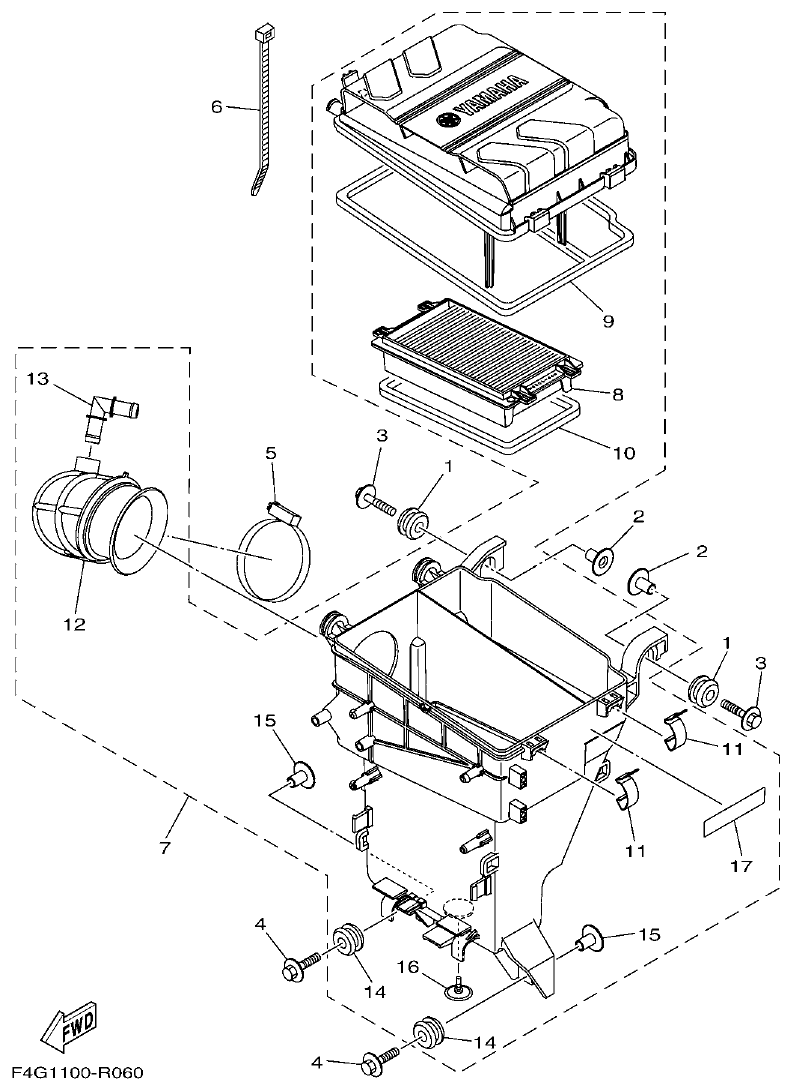

Fig. 6 — INTAKE 2
17 items · 3 available products

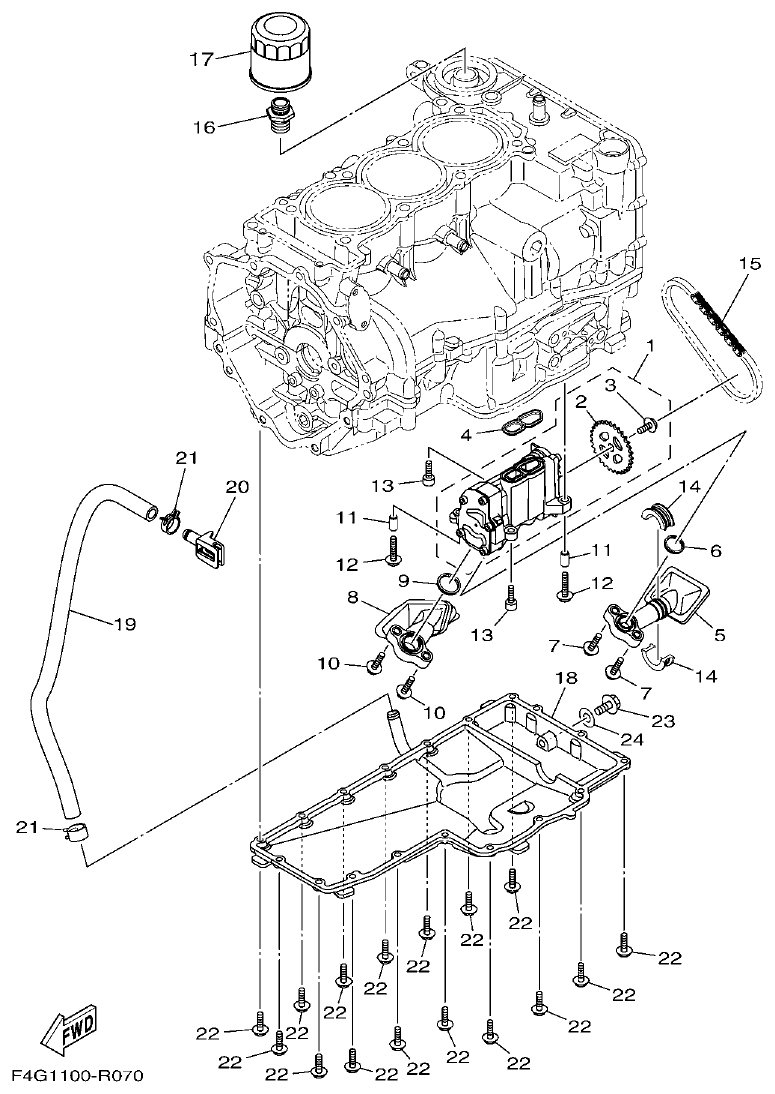

Yamaha VX1050 OIL PUMP parts diagram
Fig. 7 — OIL PUMP
24 items · 4 available products
Yamaha VX1050 OIL COOLER parts diagram

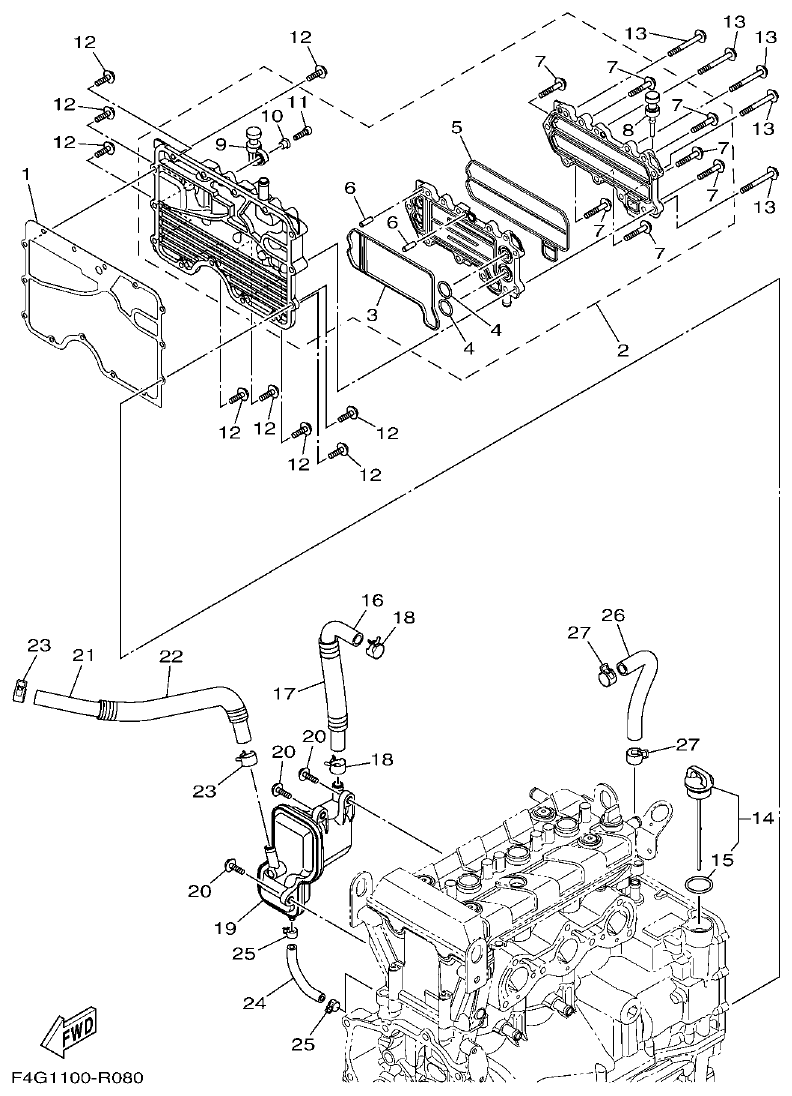

Fig. 8 — OIL COOLER
27 items · 1 available products

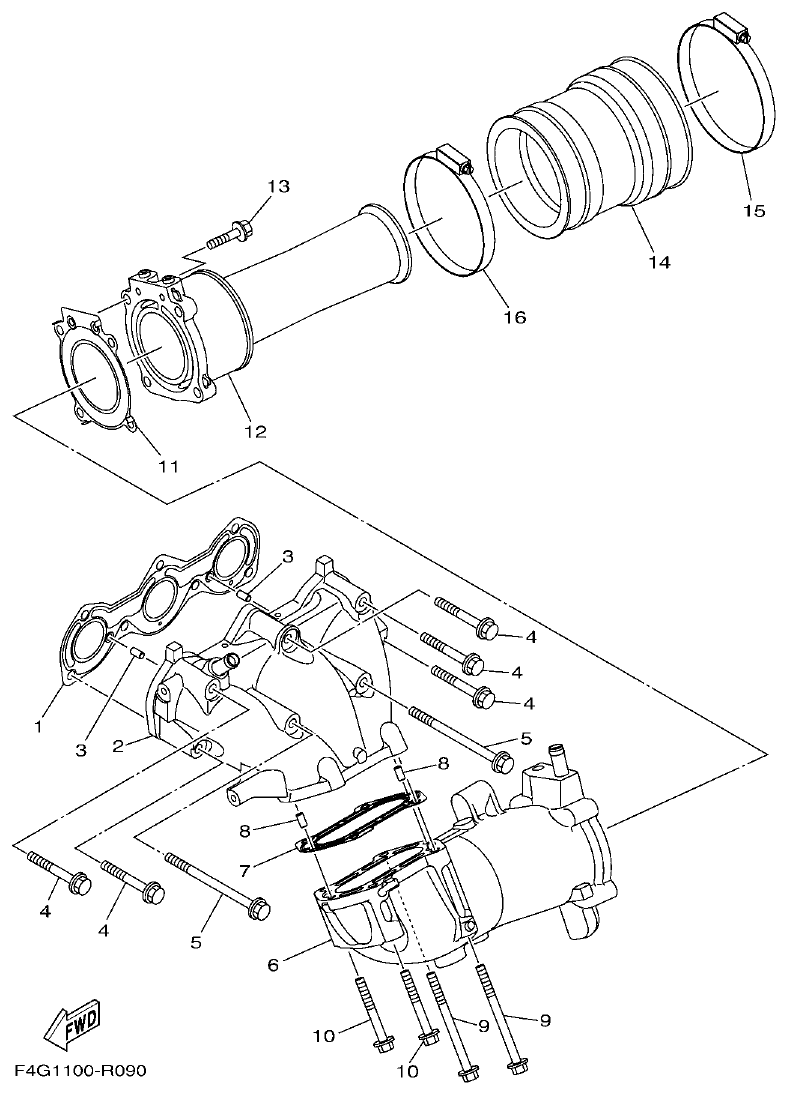

Yamaha VX1050 EXHAUST 1 parts diagram
Fig. 9 — EXHAUST 1
16 items · 2 available products

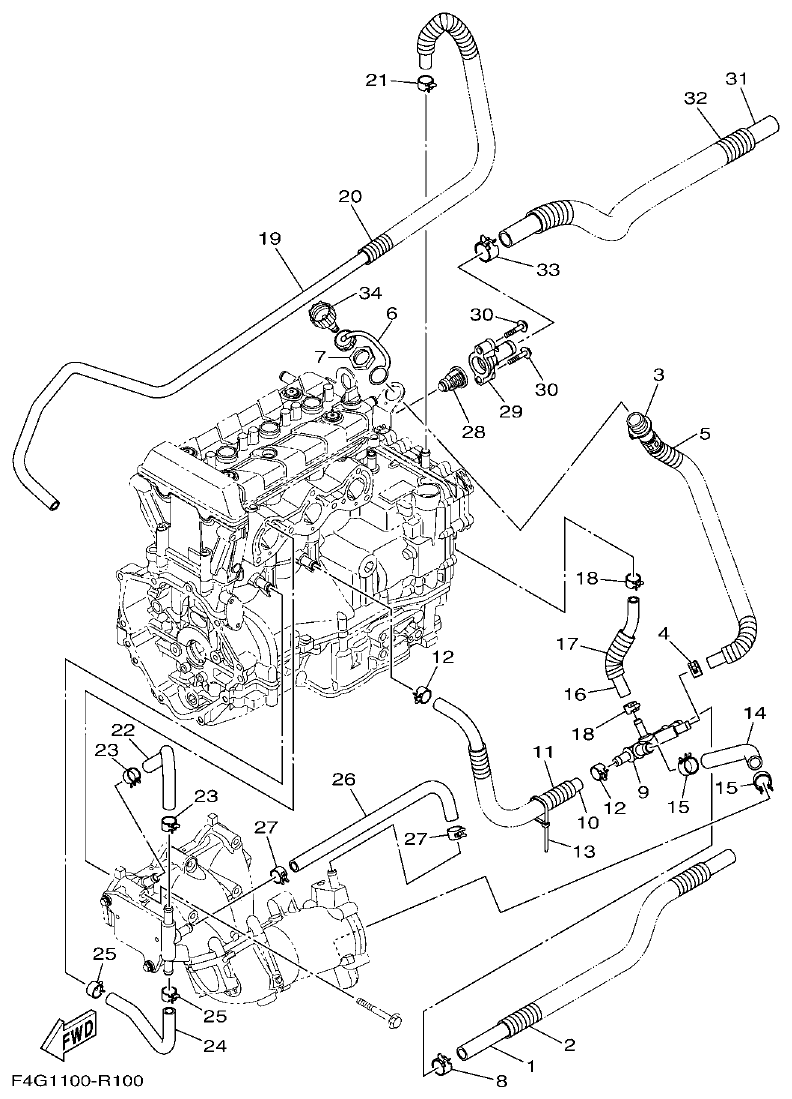

Yamaha VX1050 EXHAUST 2 parts diagram
Fig. 10 — EXHAUST 2
34 items · 4 available products

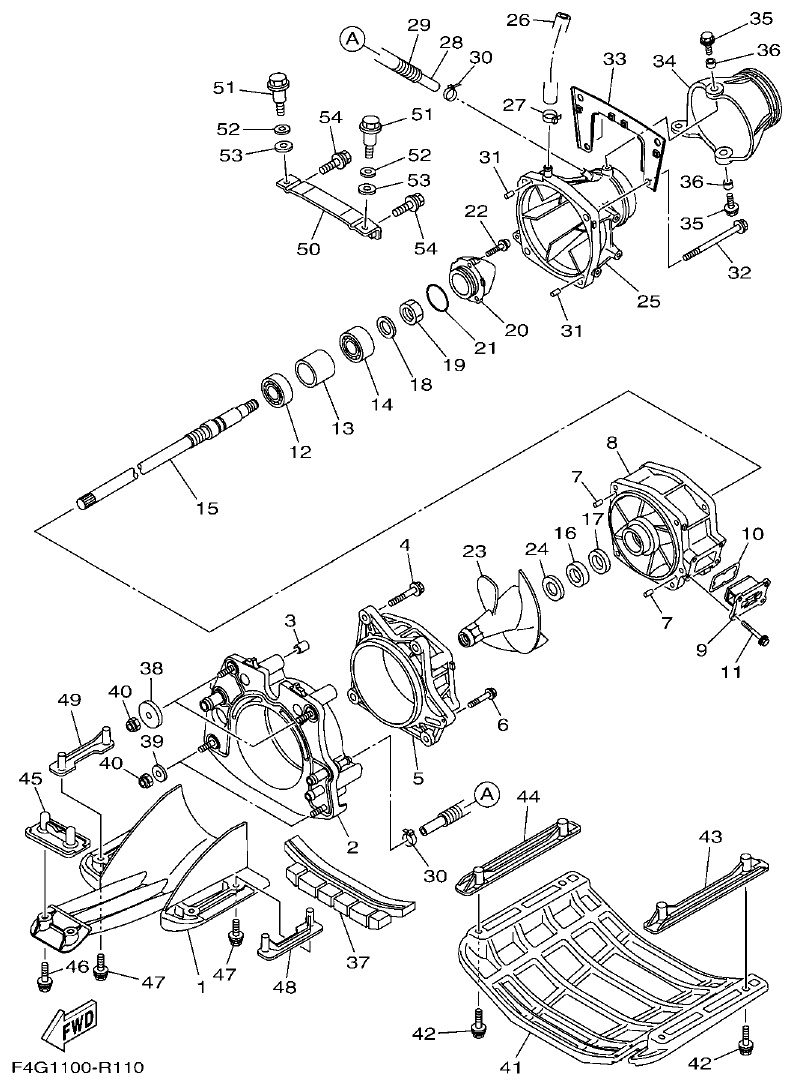

Yamaha VX1050 JET UNIT 1 parts diagram
Fig. 11 — JET UNIT 1
54 items · 8 available products
Yamaha VX1050 JET UNIT 2 parts diagram

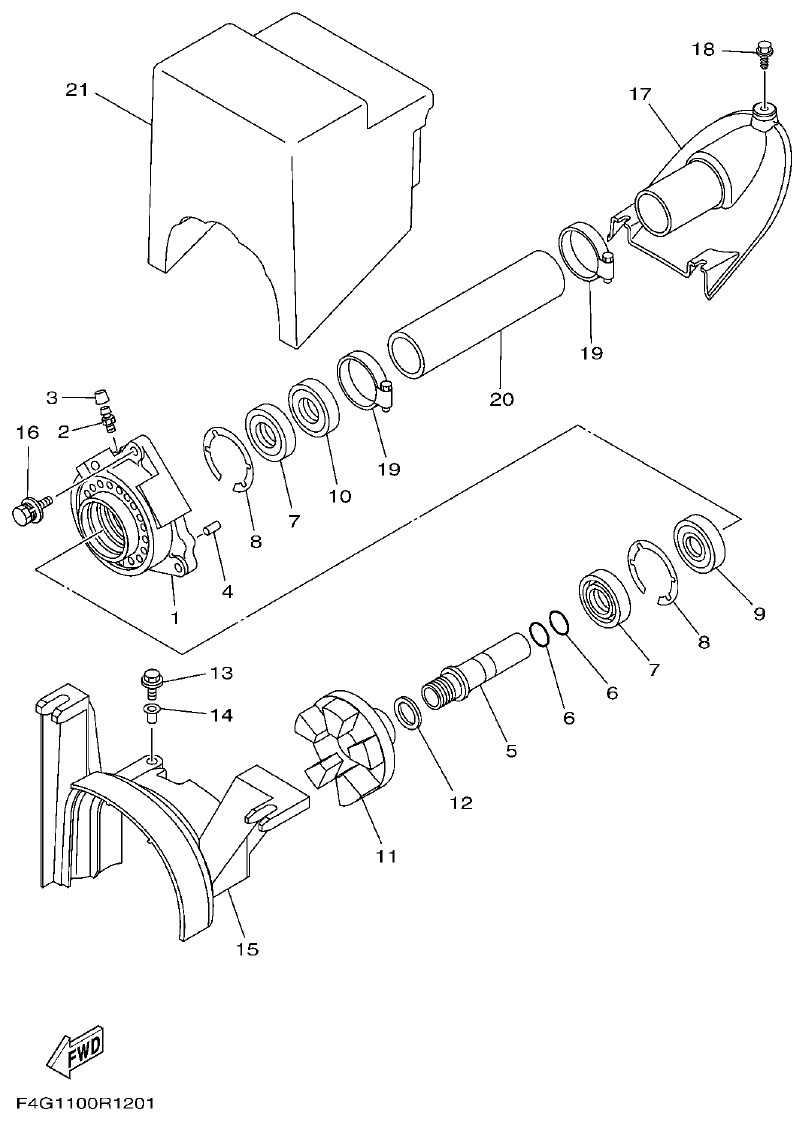

Fig. 12 — JET UNIT 2
21 items · 5 available products

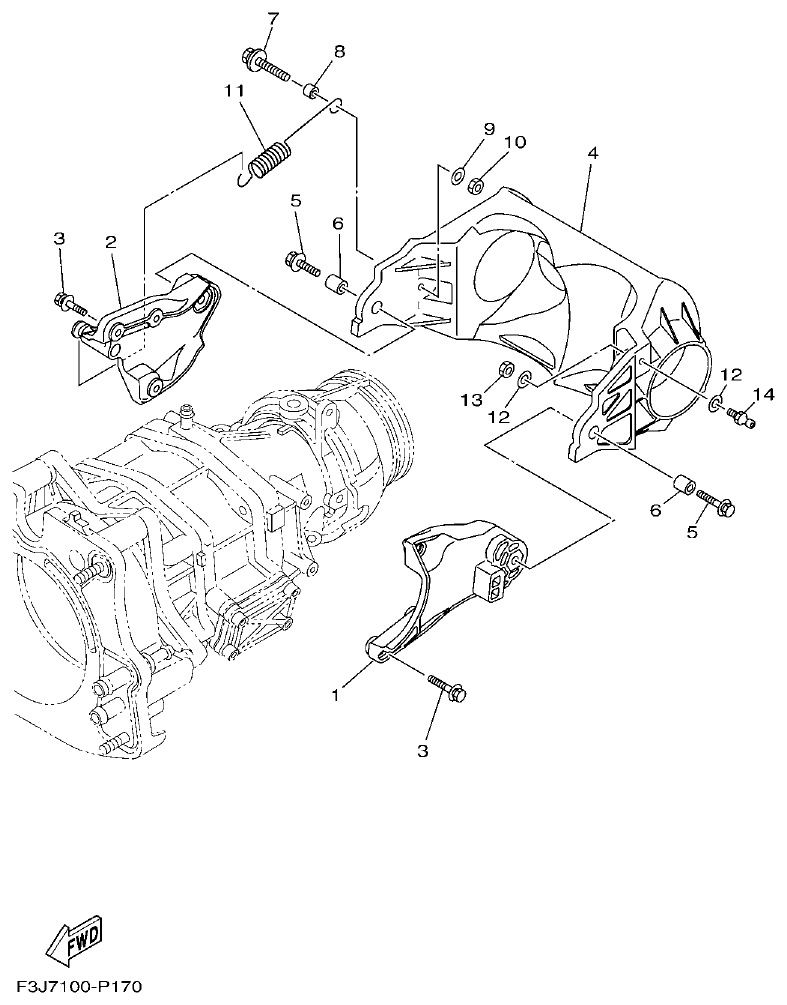

Yamaha VX1050 JET UNIT 3 parts diagram
Fig. 13 — JET UNIT 3
14 items · 1 available products

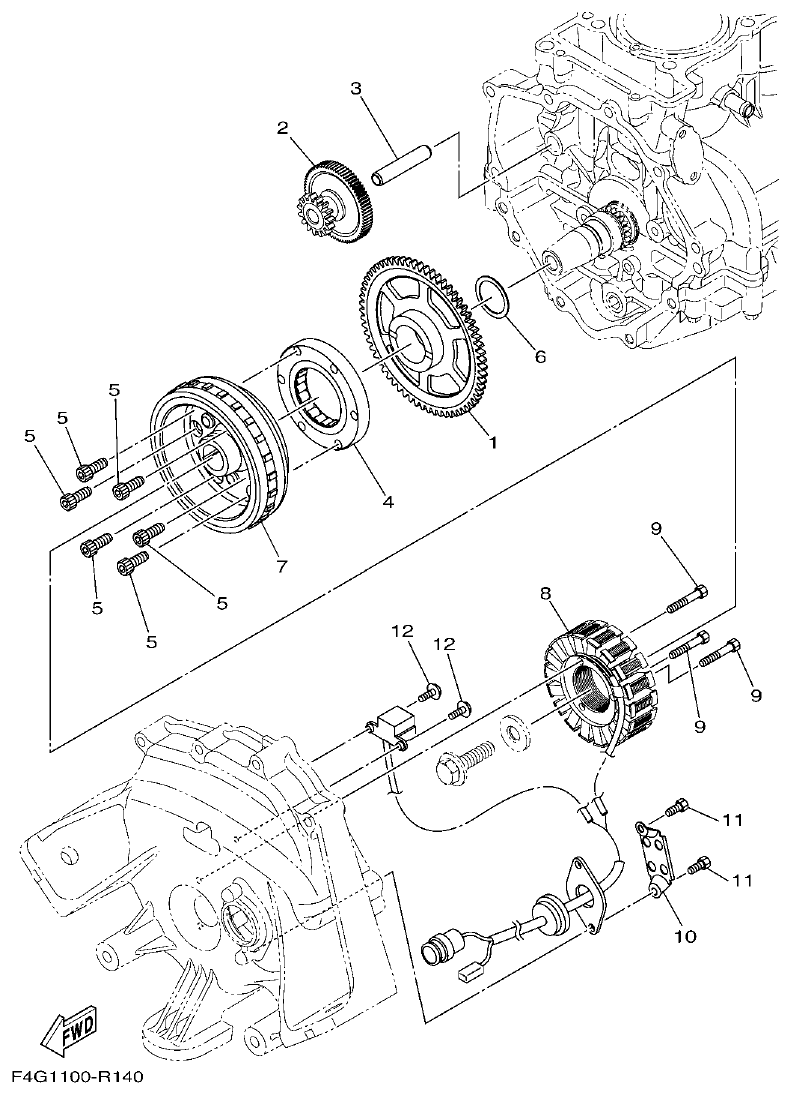

Yamaha VX1050 GENERATOR parts diagram
Fig. 14 — GENERATOR
12 items · 5 available products

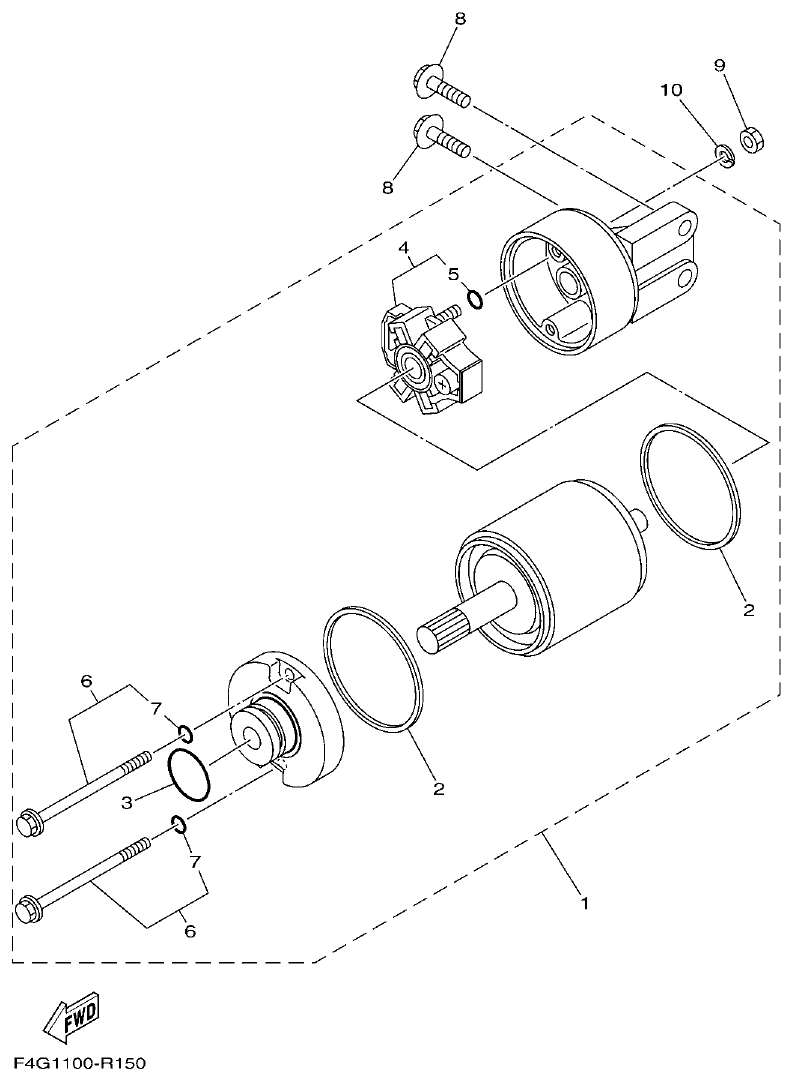

Yamaha VX1050 STARTING MOTOR parts diagram
Fig. 15 — STARTING MOTOR
10 items · 4 available products

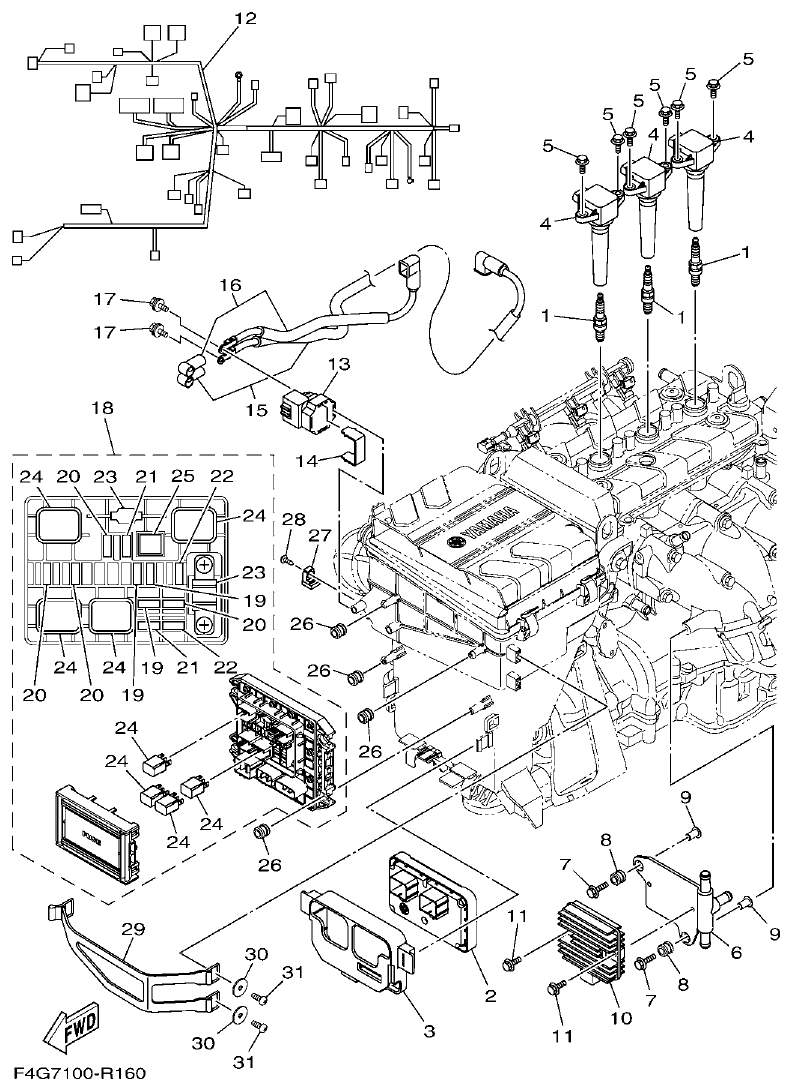

Yamaha VX1050 ELECTRICAL 1 parts diagram
Fig. 16 — ELECTRICAL 1
31 items · 6 available products
Yamaha VX1050 ELECTRICAL 2 parts diagram

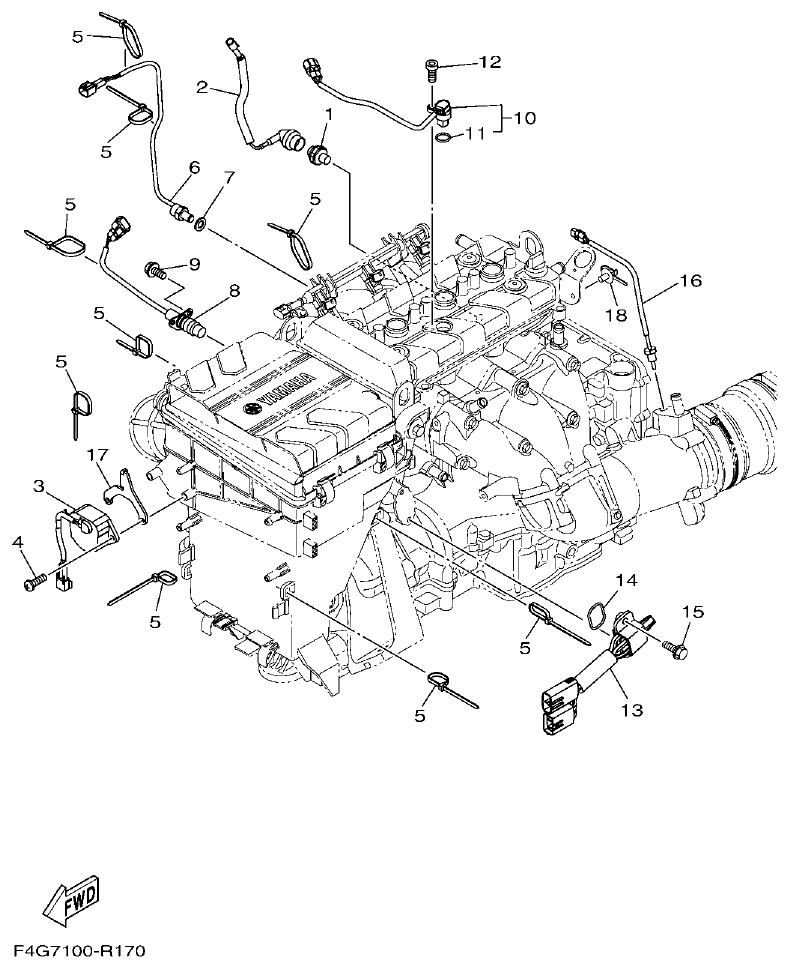

Fig. 17 — ELECTRICAL 2
18 items · 4 available products

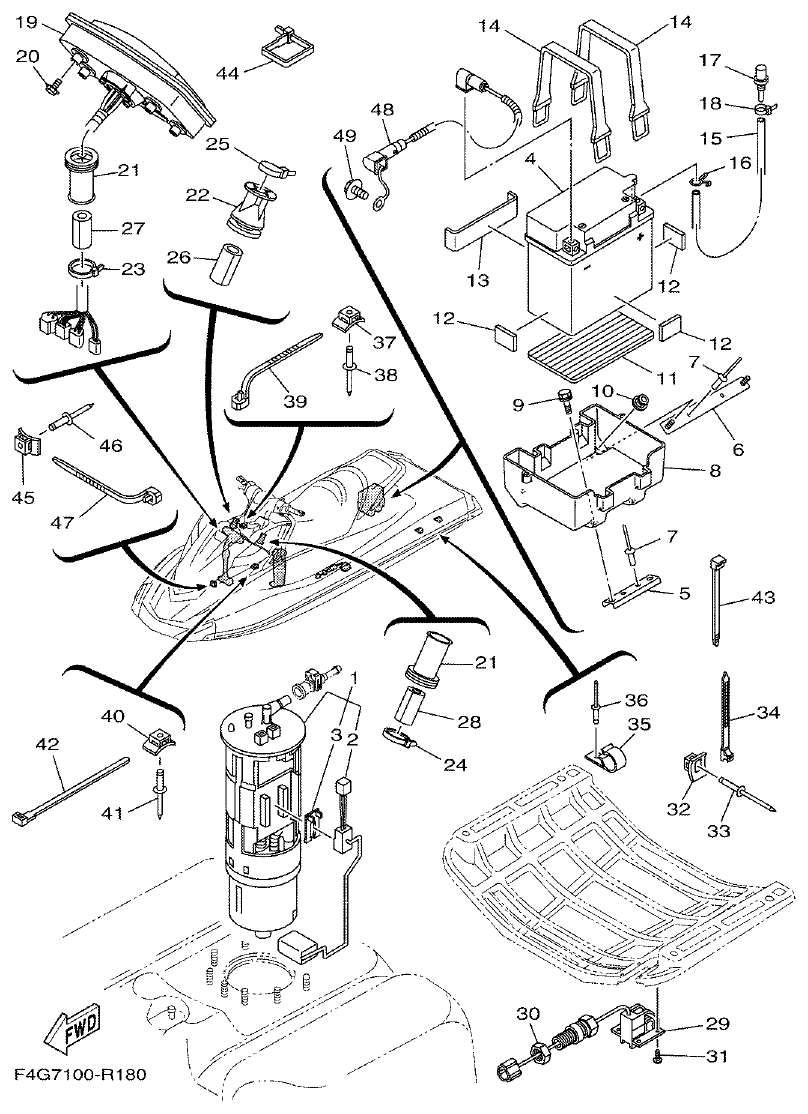

Yamaha VX1050 ELECTRICAL 3 parts diagram
Fig. 18 — ELECTRICAL 3
49 items · 5 available products
Yamaha VX1050 ENGINE MOUNT parts diagram

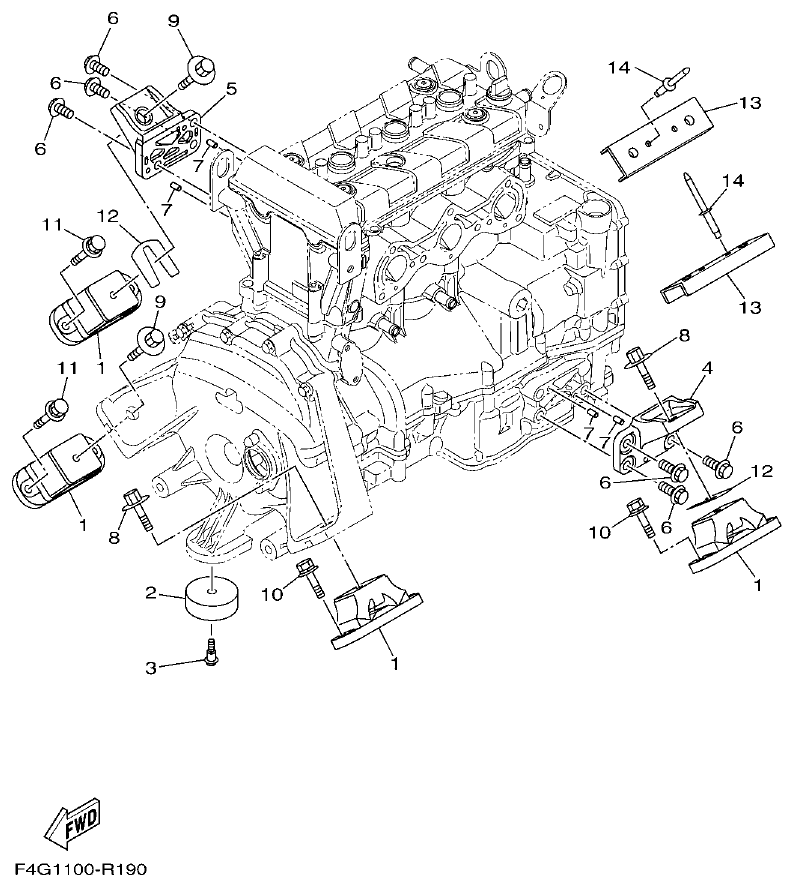

Fig. 19 — ENGINE MOUNT
18 items · 2 available products

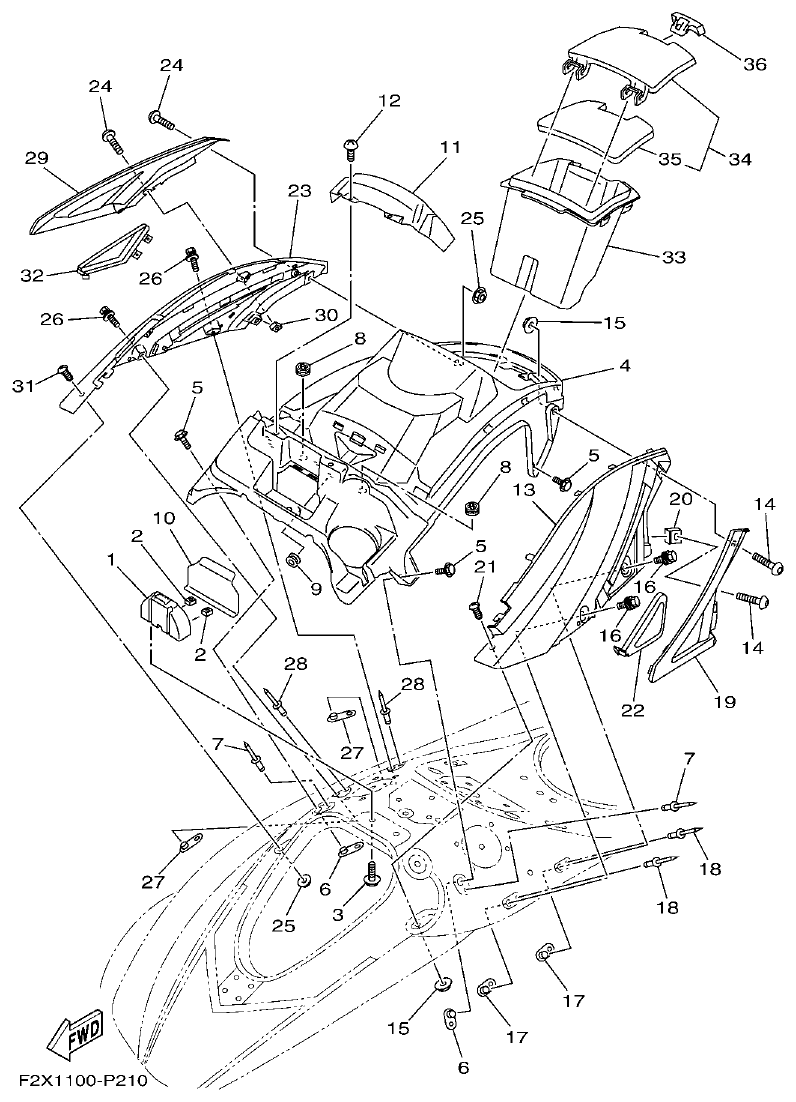

Yamaha VX1050 ENGINE HATCH 1 parts diagram
Fig. 20 — ENGINE HATCH 1
36 items · 7 available products

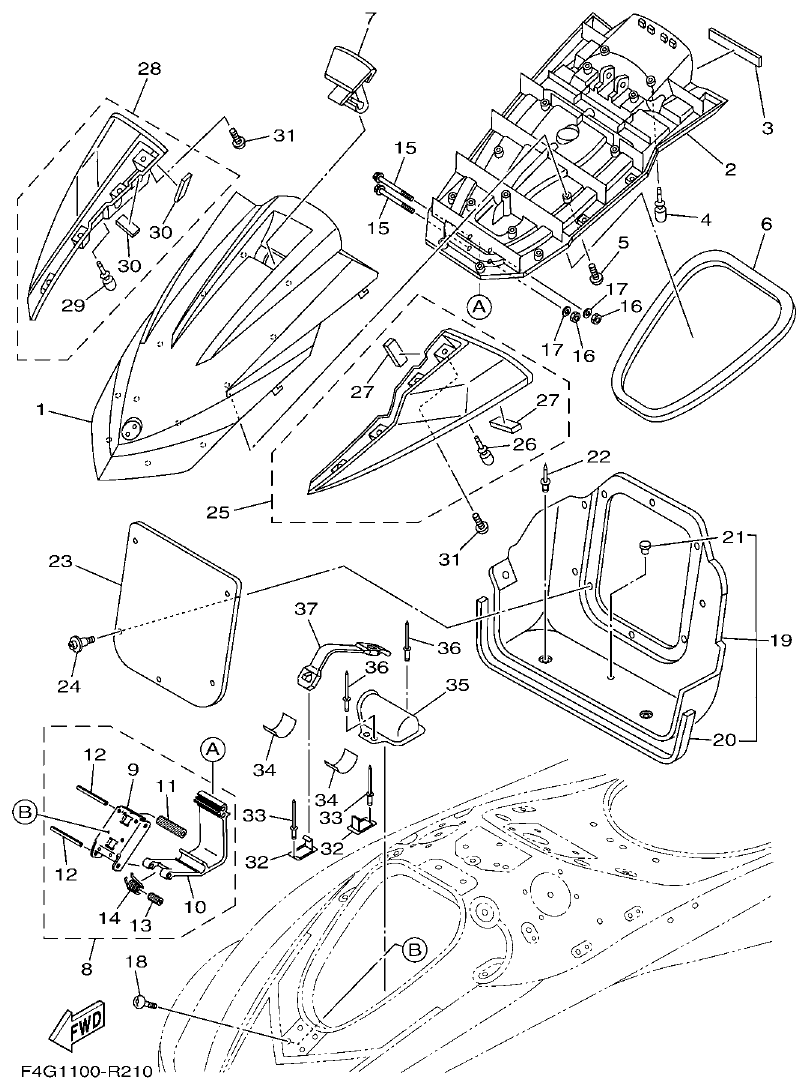

Yamaha VX1050 ENGINE HATCH 2 parts diagram
Fig. 21 — ENGINE HATCH 2
37 items · 12 available products

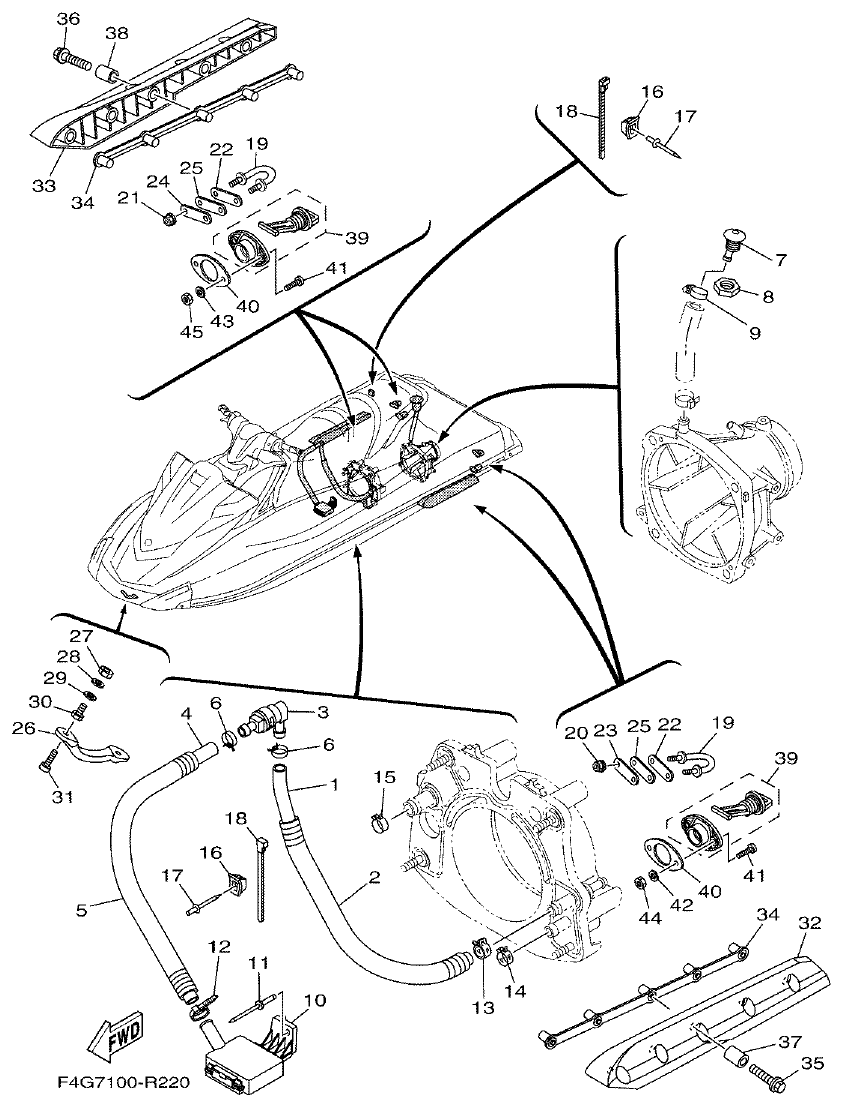

Yamaha VX1050 HULL & DECK parts diagram
Fig. 22 — HULL & DECK
45 items · 9 available products

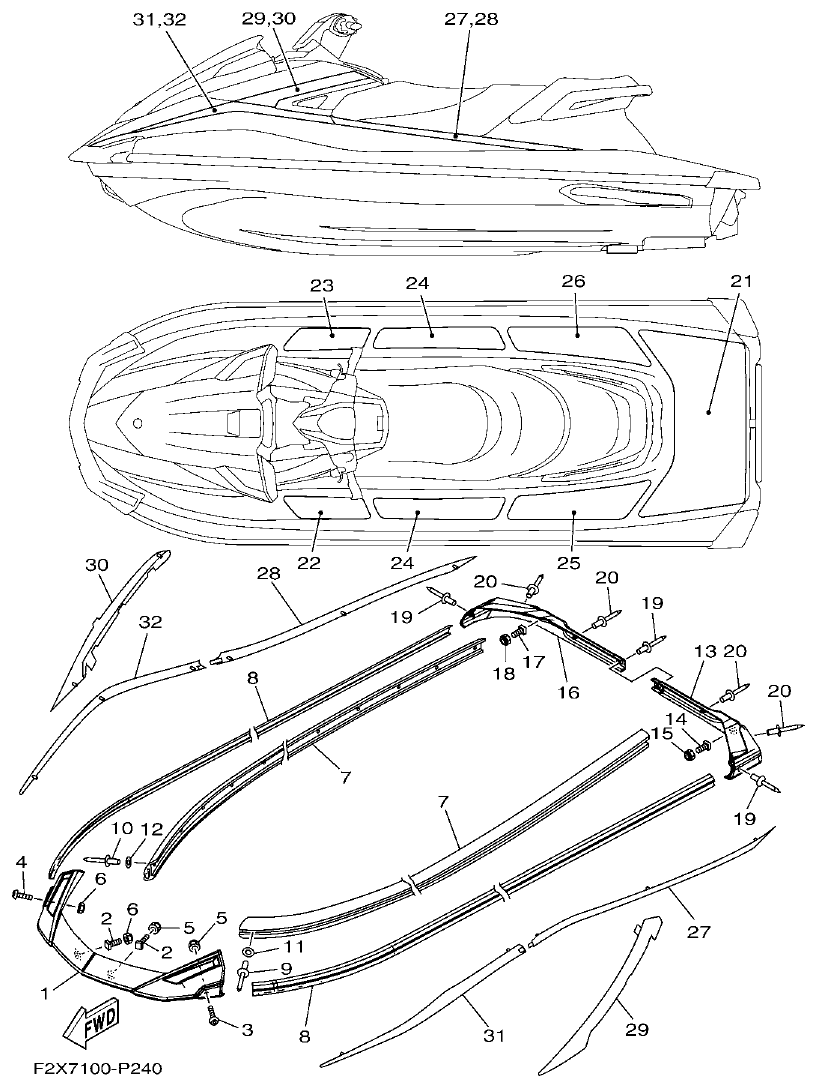

Yamaha VX1050 GUNWALE & MAT parts diagram
Fig. 23 — GUNWALE & MAT
32 items · 6 available products

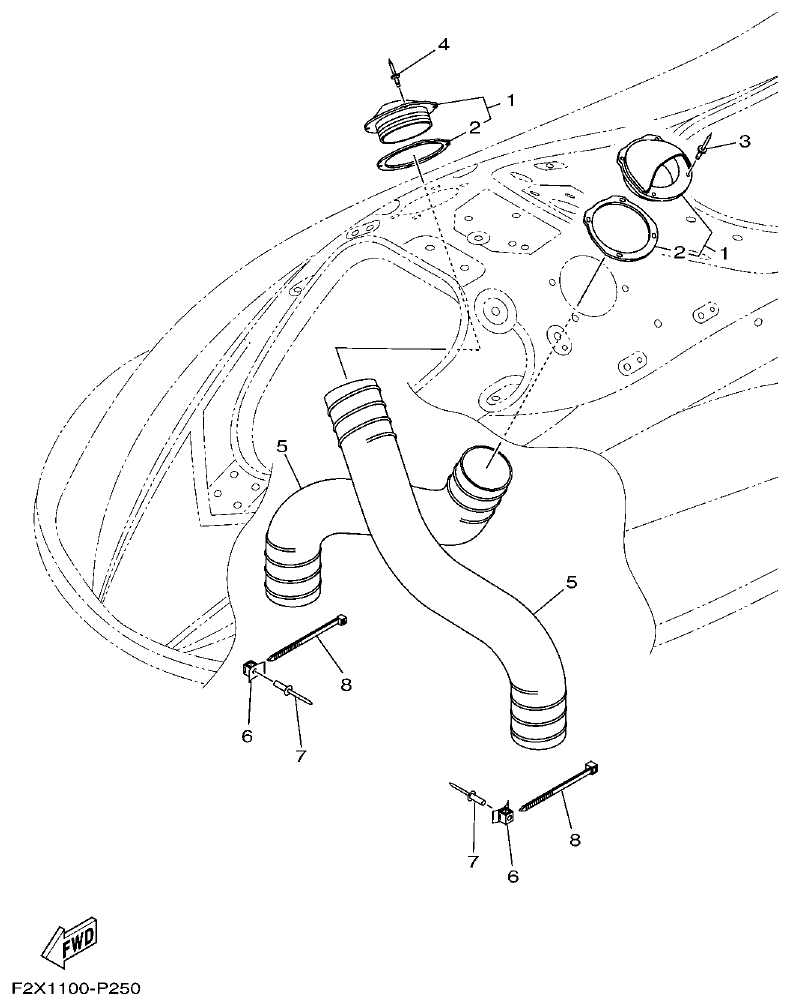

Yamaha VX1050 VENTILATION parts diagram
Fig. 24 — VENTILATION
8 items · 1 available products
Yamaha VX1050 SEAT & UNDER LOCKER parts diagram

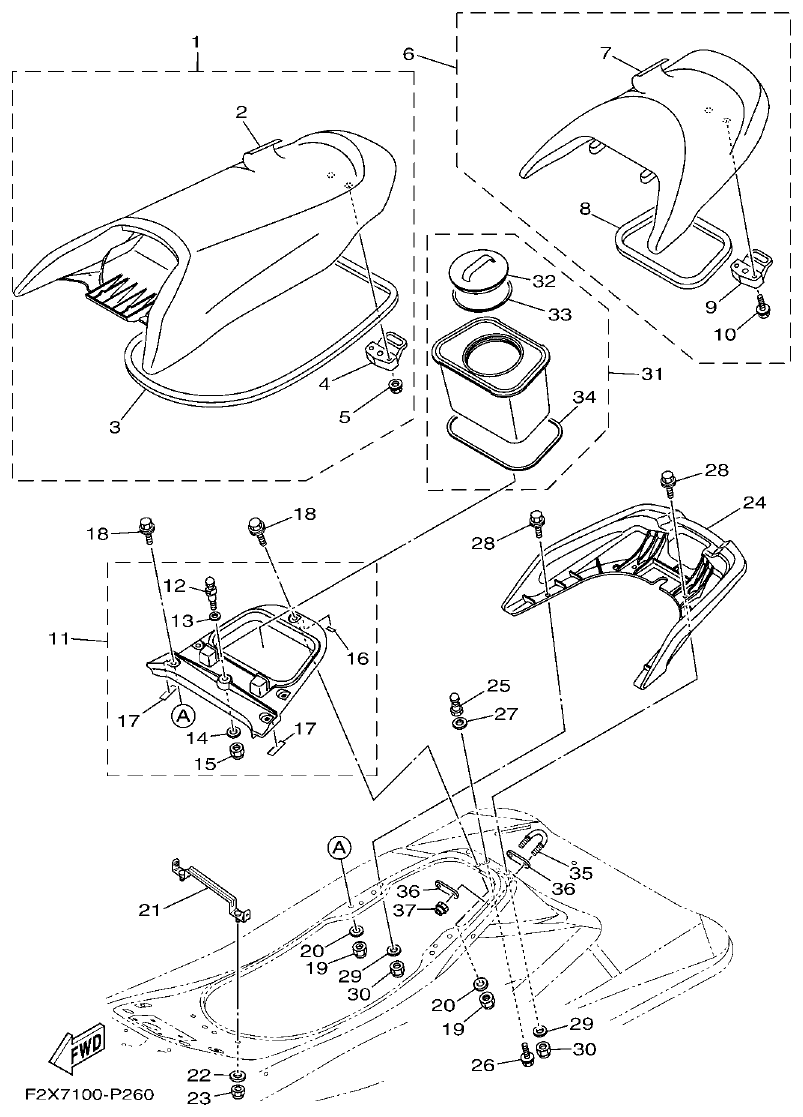

Fig. 25 — SEAT & UNDER LOCKER
37 items · 6 available products

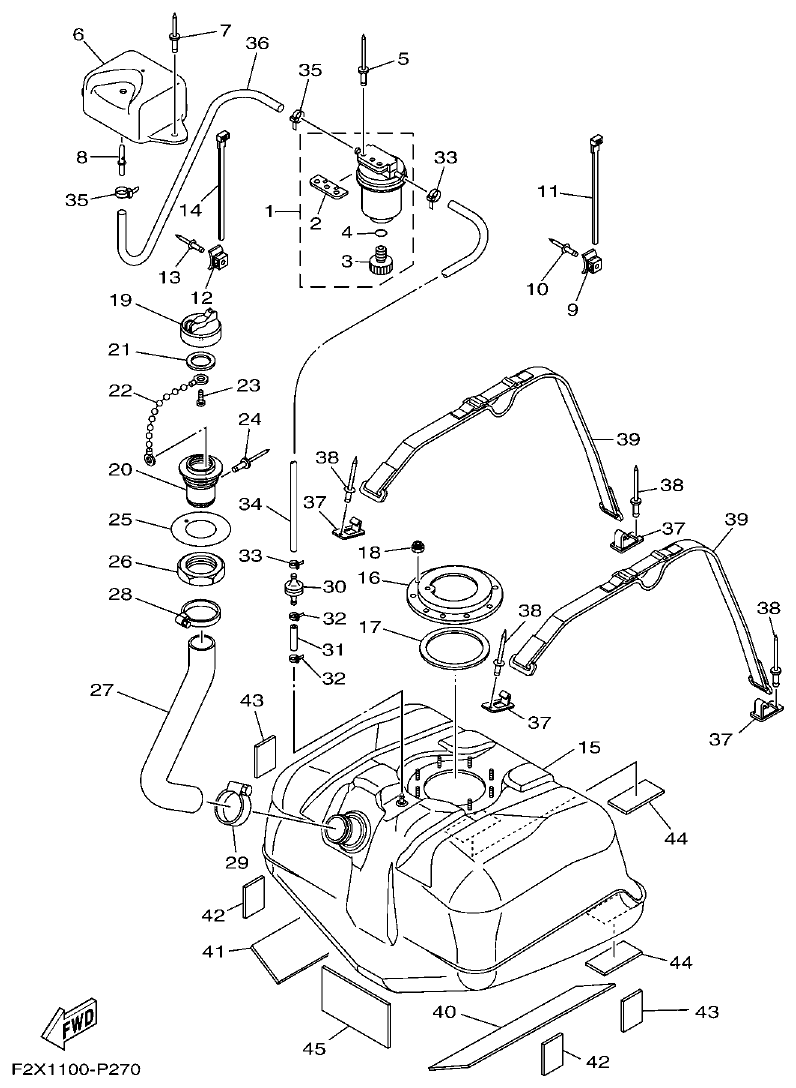

Yamaha VX1050 FUEL TANK parts diagram
Fig. 26 — FUEL TANK
45 items · 8 available products

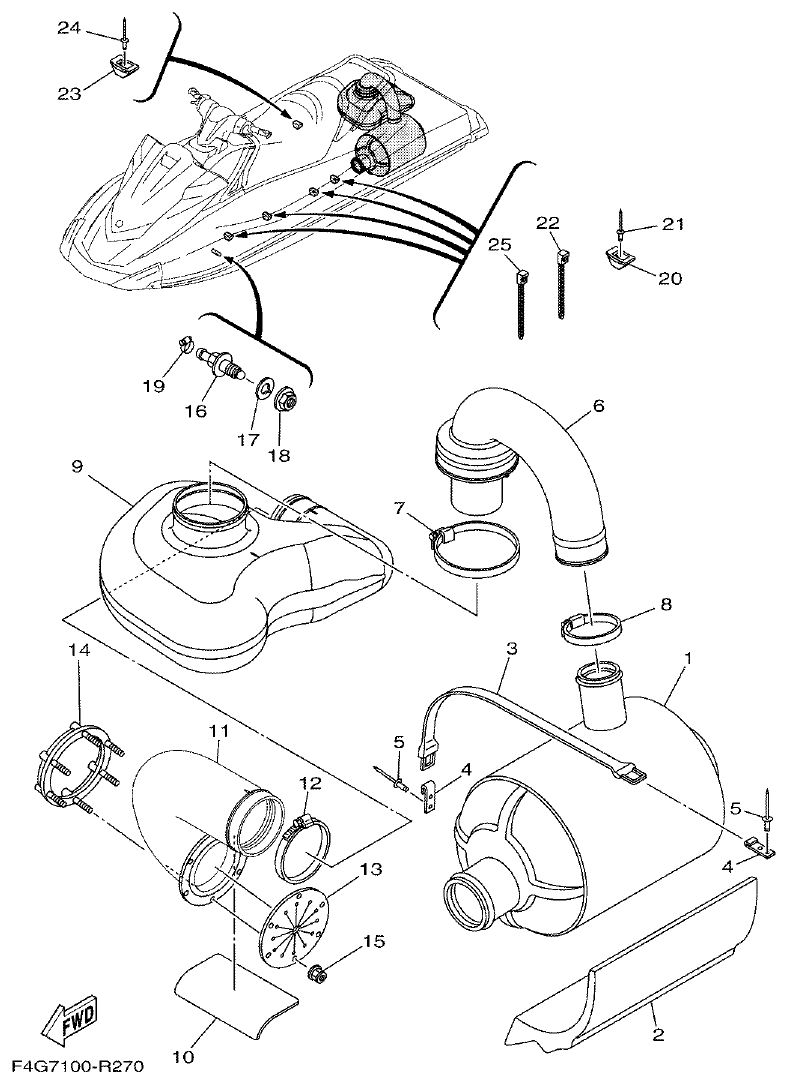

Yamaha VX1050 EXHAUST 3 parts diagram
Fig. 27 — EXHAUST 3
25 items · 8 available products
Yamaha VX1050 CONTROL CABLE parts diagram

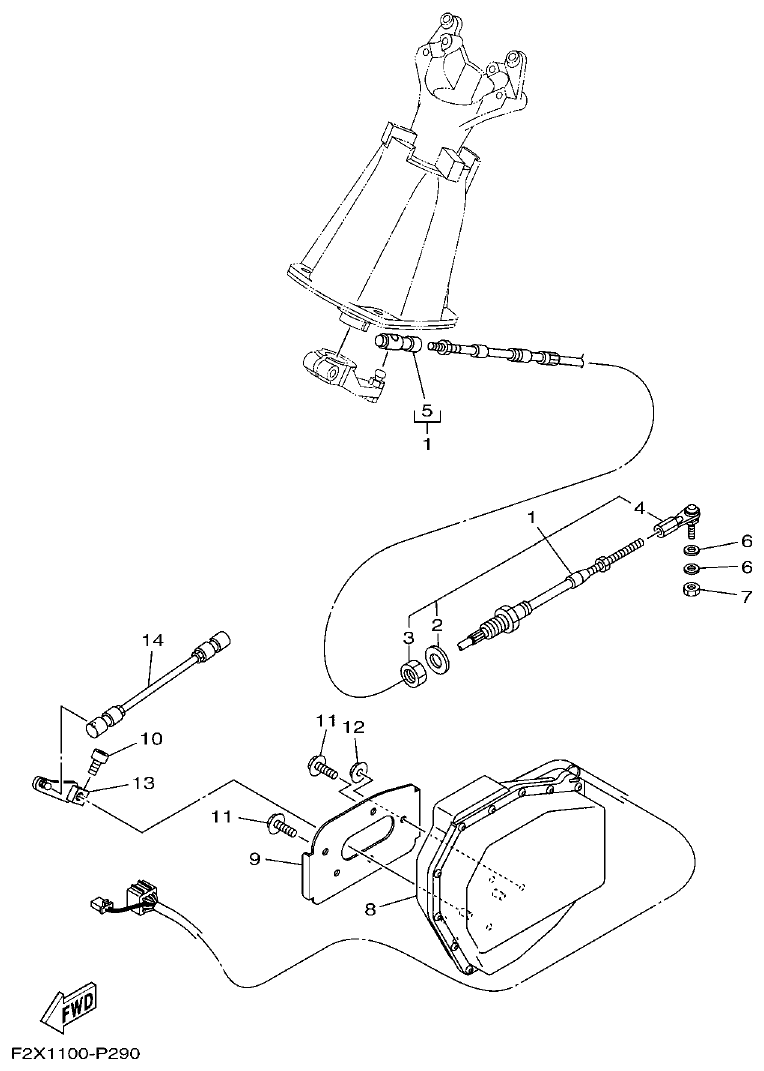

Fig. 28 — CONTROL CABLE
14 items · 3 available products

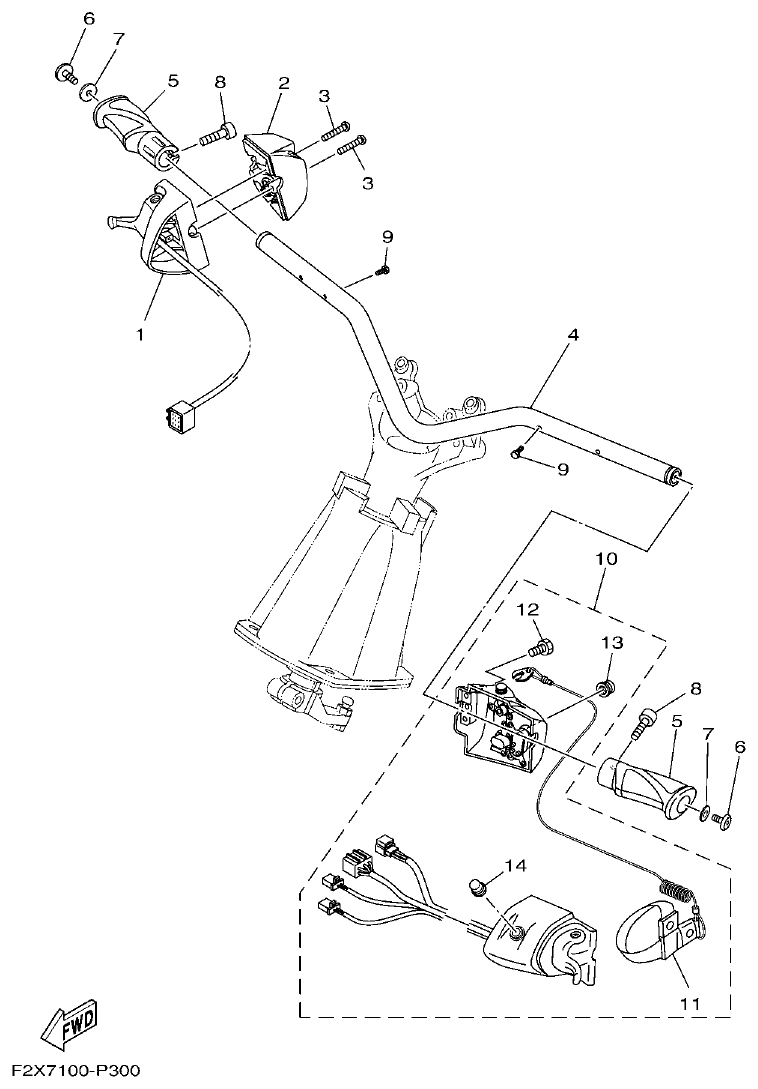

Yamaha VX1050 STEERING 1 parts diagram
Fig. 29 — STEERING 1
14 items · 4 available products

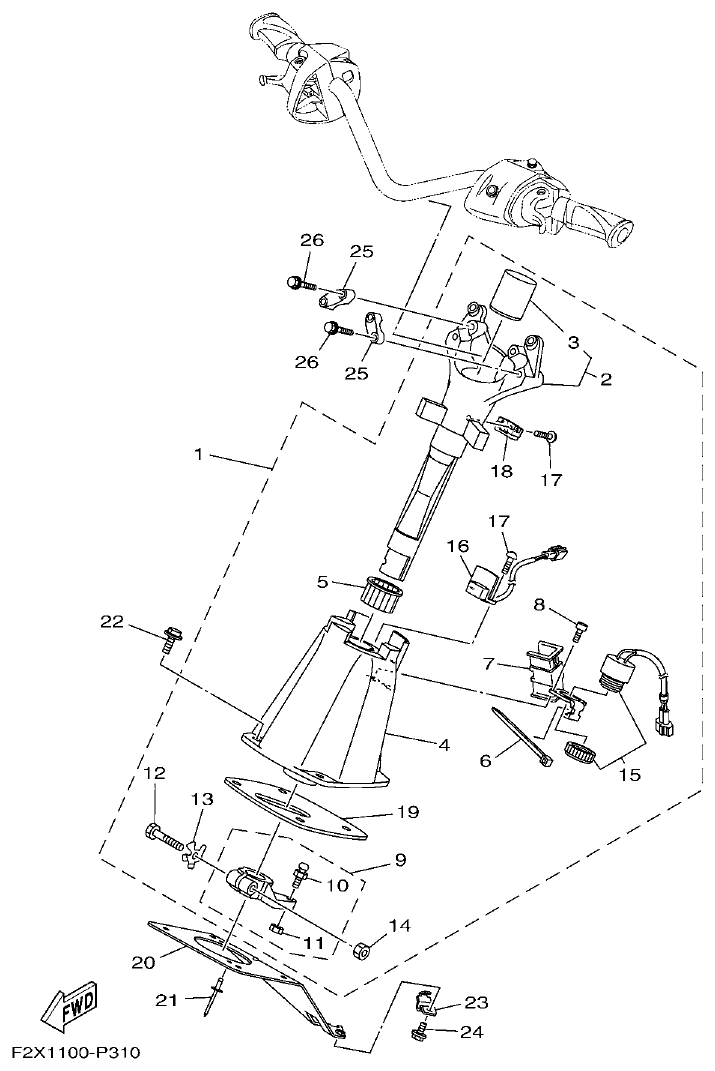

Yamaha VX1050 STEERING 2 parts diagram
Fig. 30 — STEERING 2
26 items · 6 available products

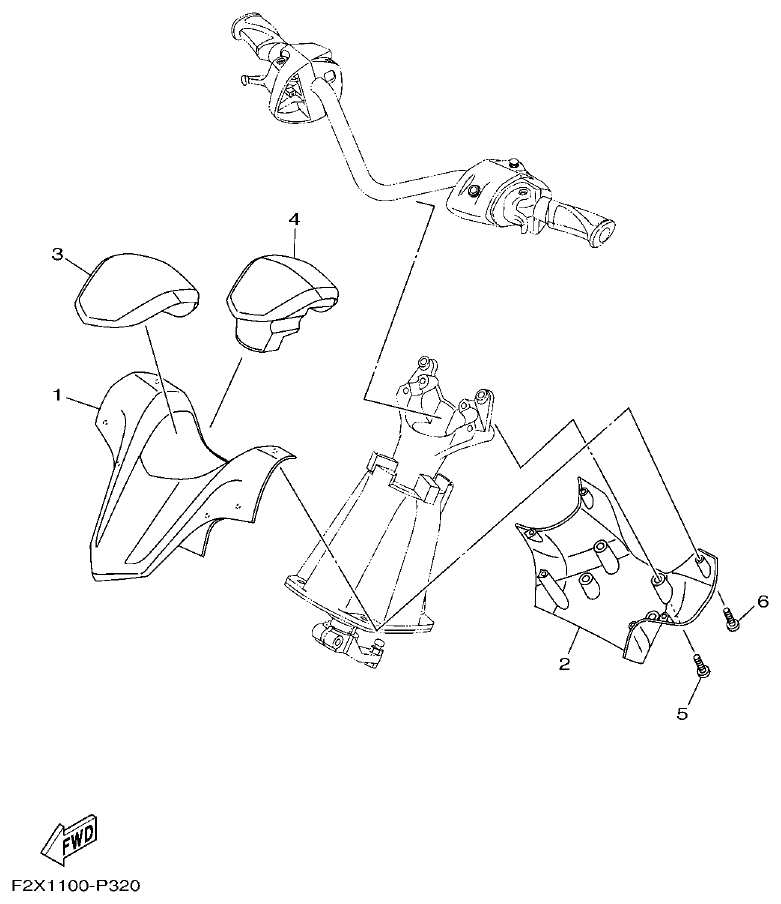

Yamaha VX1050 STEERING 3 parts diagram
Fig. 31 — STEERING 3
6 items

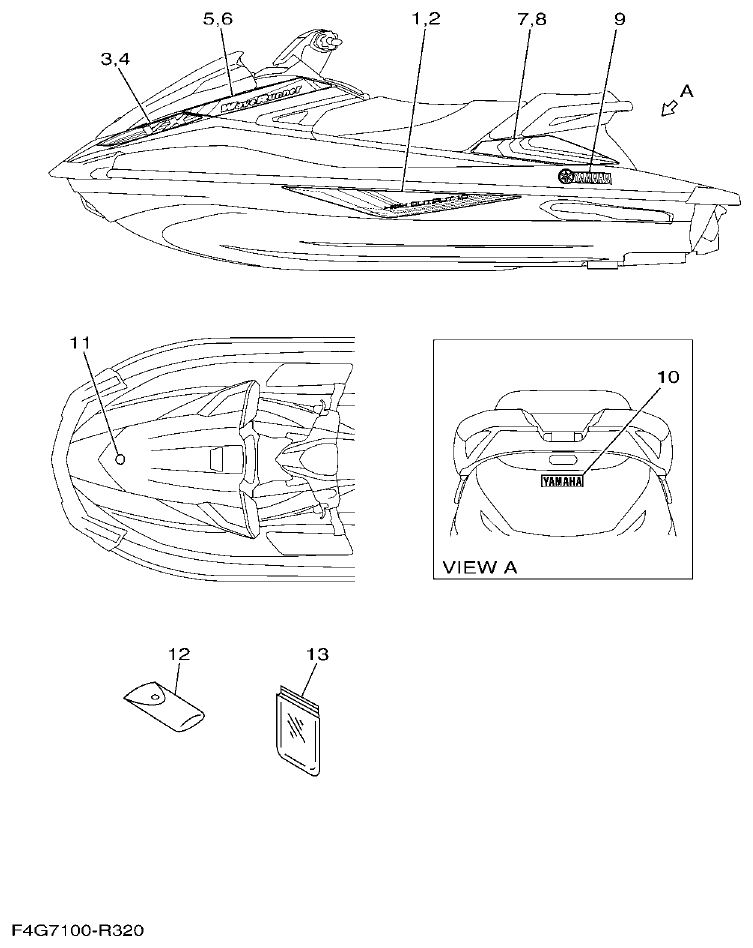

Yamaha VX1050 GRAPHICS parts diagram
Fig. 32 — GRAPHICS
13 items · 2 available products

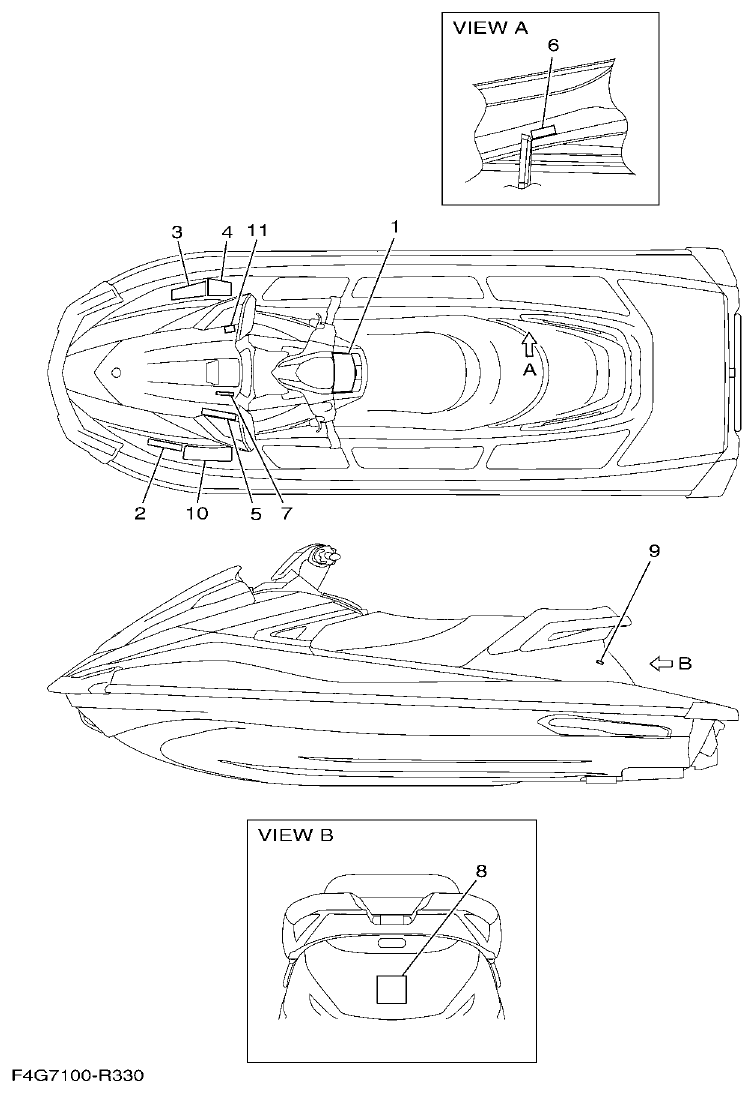

Yamaha VX1050 IMPORTANT LABELS parts diagram
Fig. 33 — IMPORTANT LABELS
11 items · 1 available products
Yamaha VX1050 REPAIR KIT 1 parts diagram

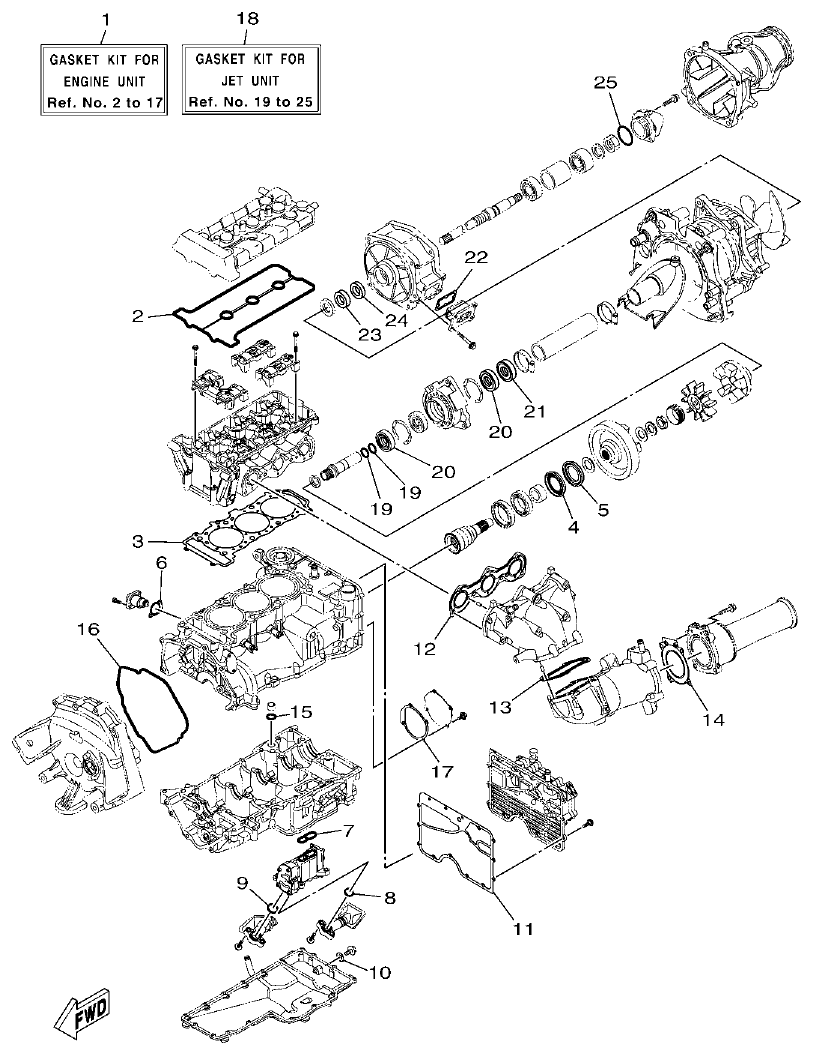

Fig. 34 — REPAIR KIT 1
25 items · 10 available products
