Yamaha VX18002011(2) Parts Catalog

Yamaha VX18002011(2) CYLINDER 1 parts diagram

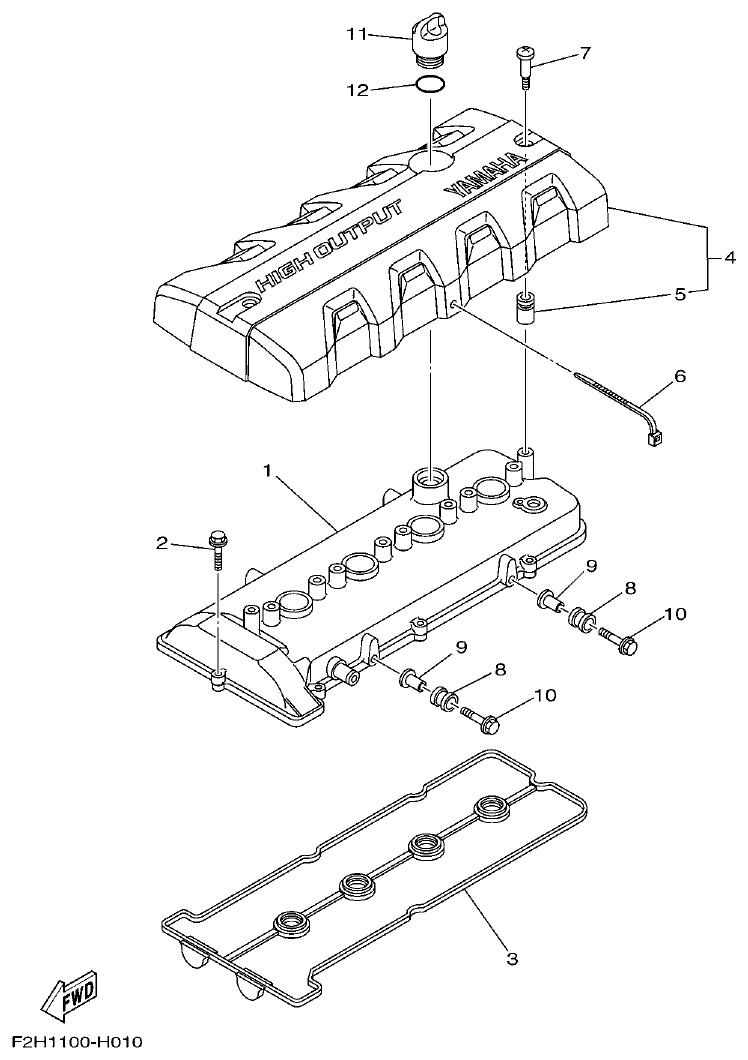

Fig. 1 — CYLINDER 1
12 items · 4 catalog-linked products

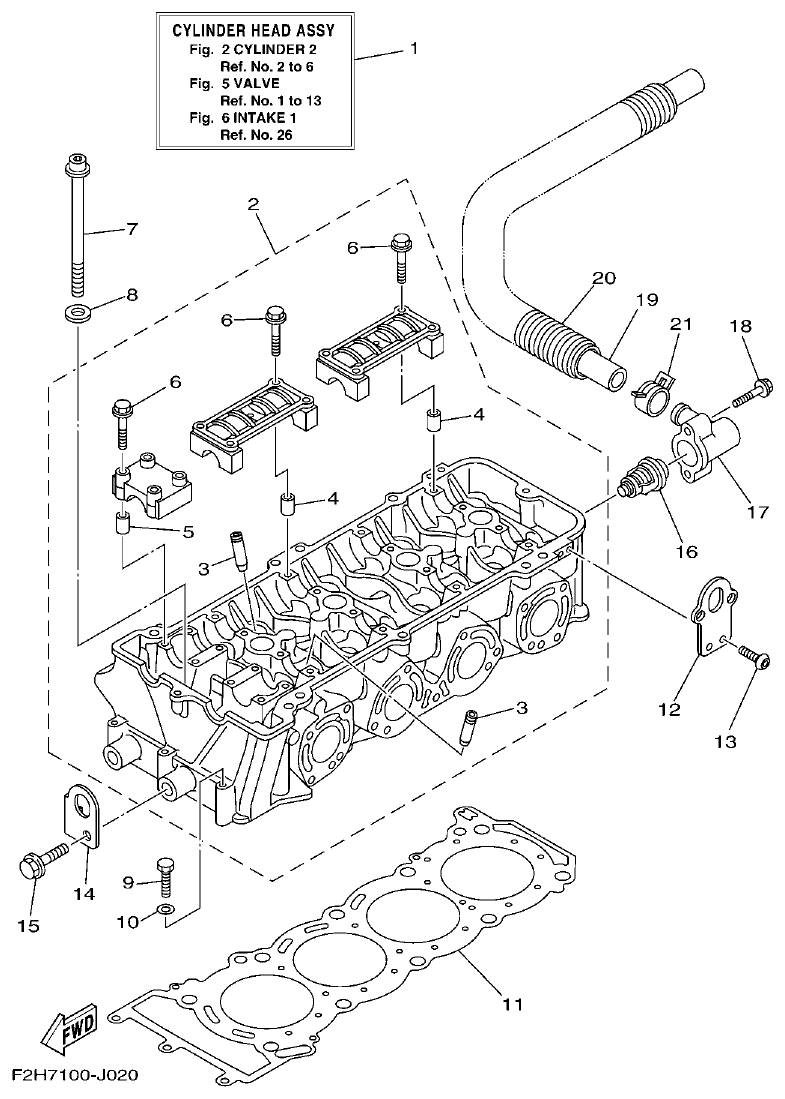

Yamaha VX18002011(2) CYLINDER 2 parts diagram
Fig. 2 — CYLINDER 2
21 items · 4 catalog-linked products

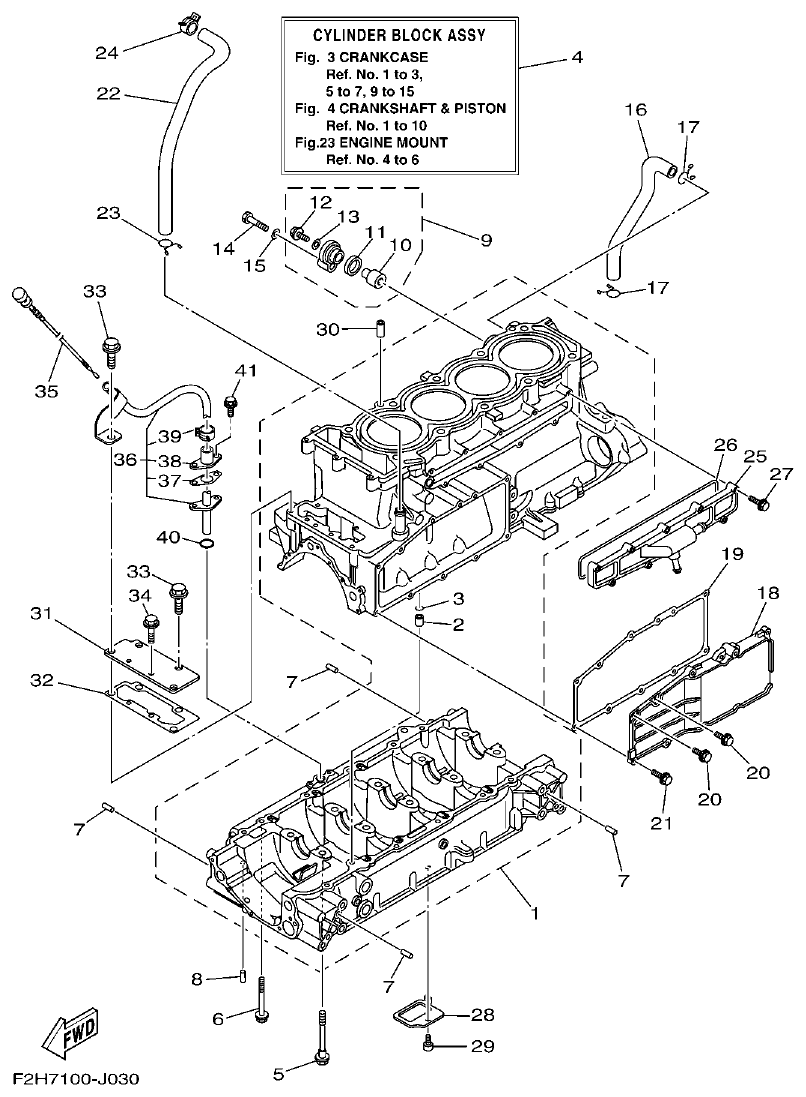

Yamaha VX18002011(2) CRANKCASE parts diagram
Fig. 3 — CRANKCASE
41 items · 7 catalog-linked products

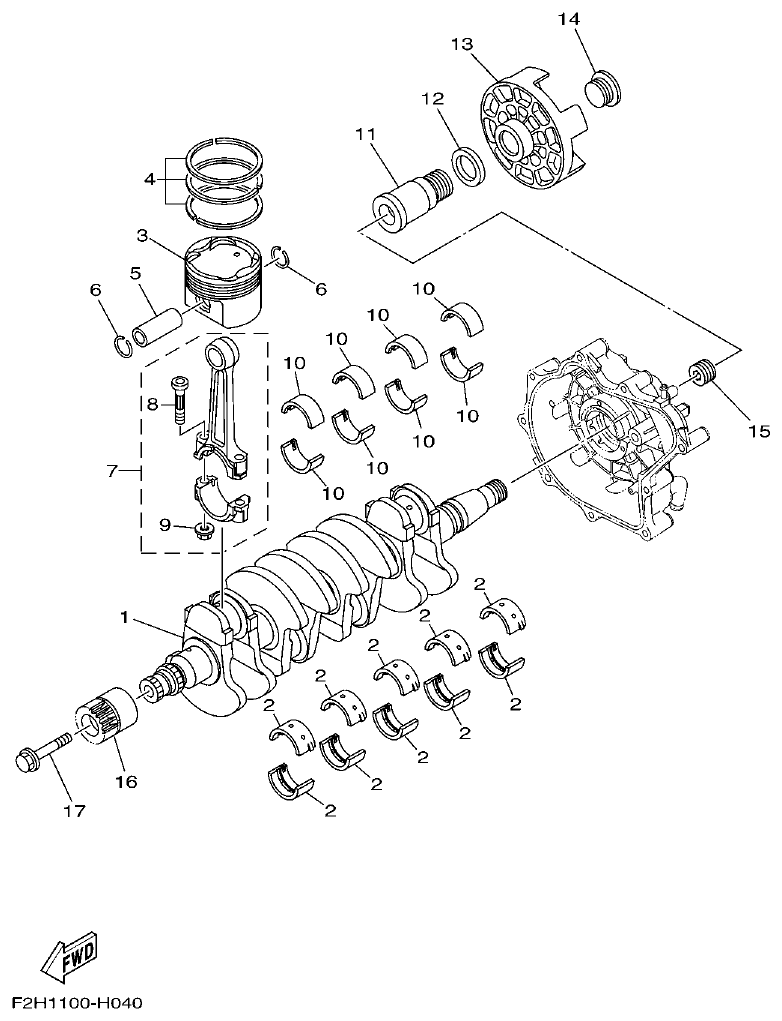

Yamaha VX18002011(2) CRANKSHAFT & PISTON parts diagram
Fig. 4 — CRANKSHAFT & PISTON
24 items · 19 catalog-linked products

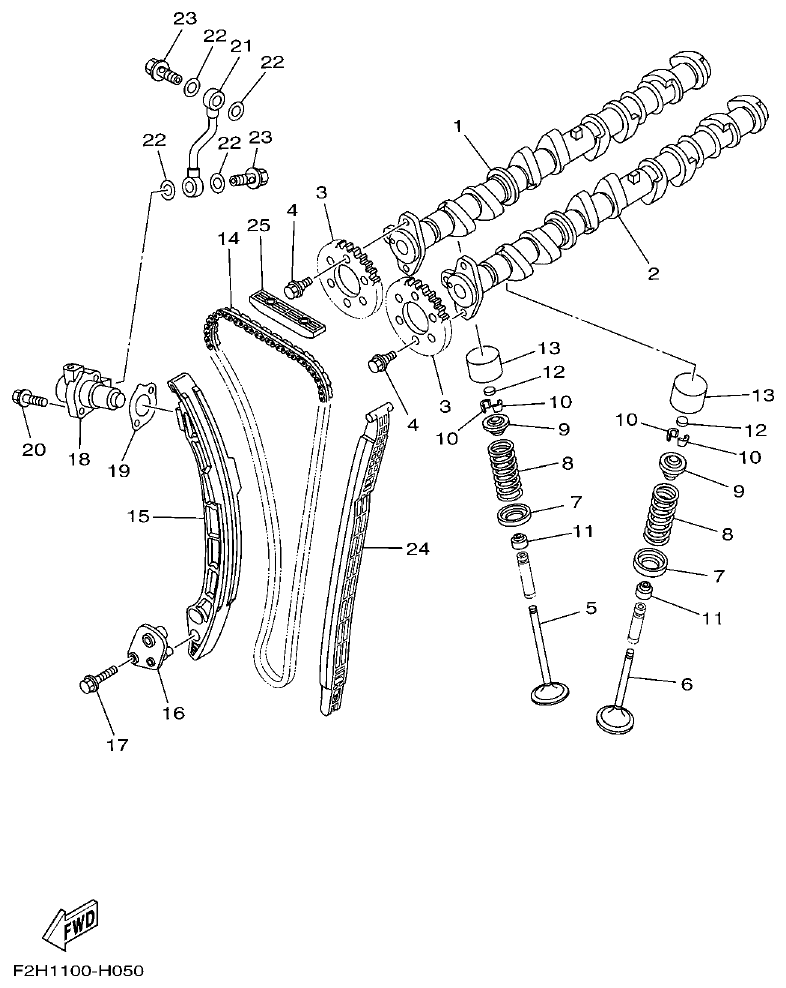

Yamaha VX18002011(2) VALVE parts diagram
Fig. 5 — VALVE
47 items · 35 catalog-linked products

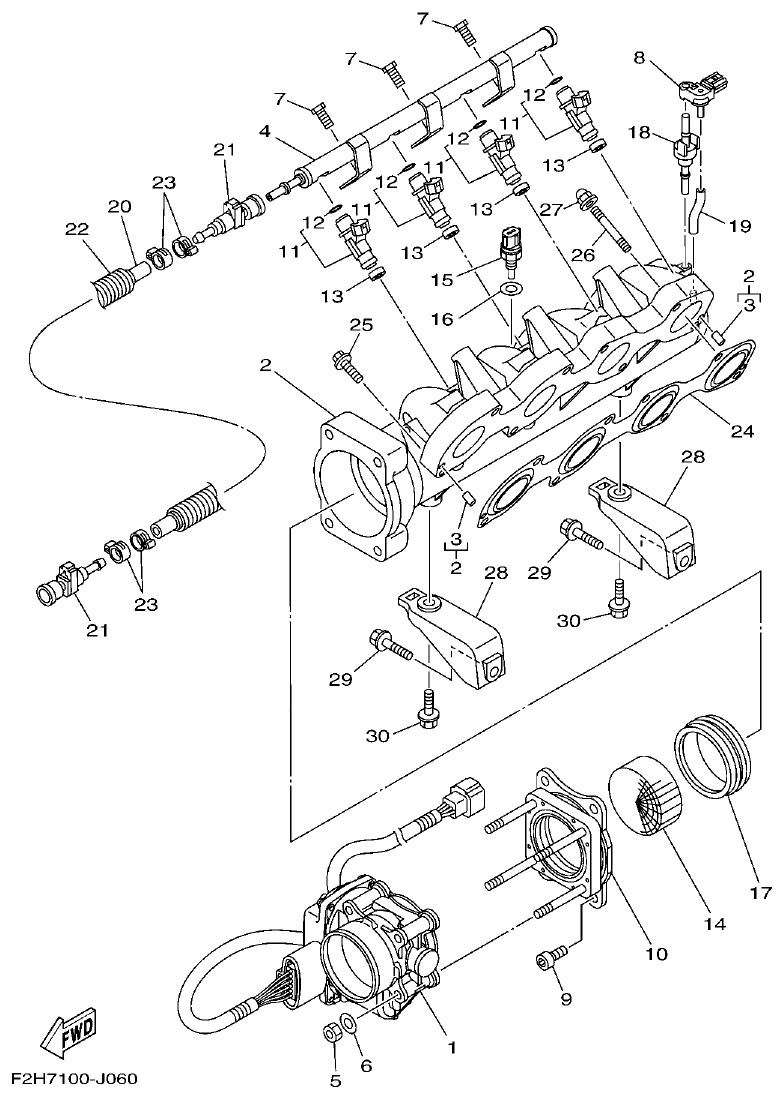

Yamaha VX18002011(2) INTAKE 1 parts diagram
Fig. 6 — INTAKE 1
30 items · 12 catalog-linked products
Yamaha VX18002011(2) INTAKE 2 parts diagram

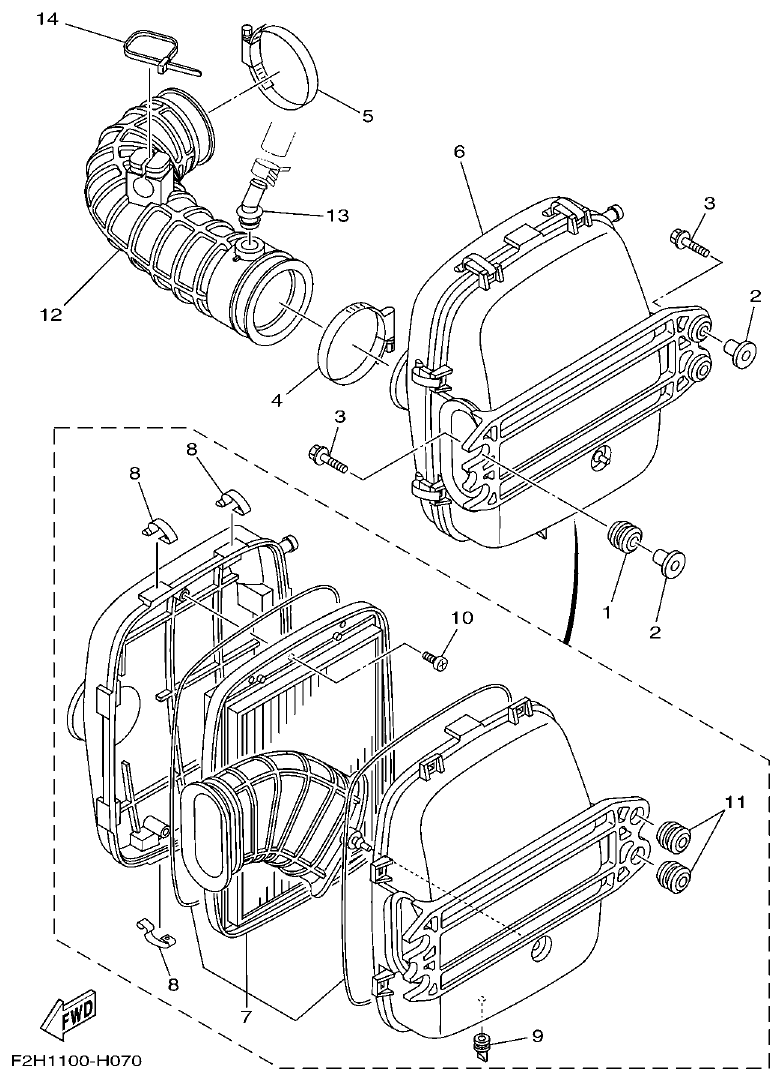

Fig. 7 — INTAKE 2
14 items

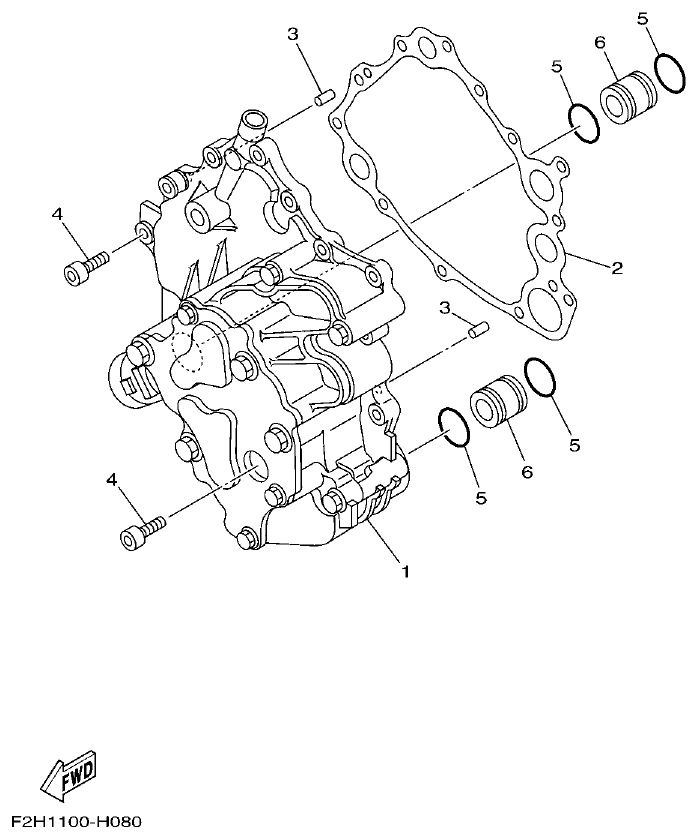

Yamaha VX18002011(2) OIL PUMP parts diagram
Fig. 8 — OIL PUMP
6 items · 1 catalog-linked products

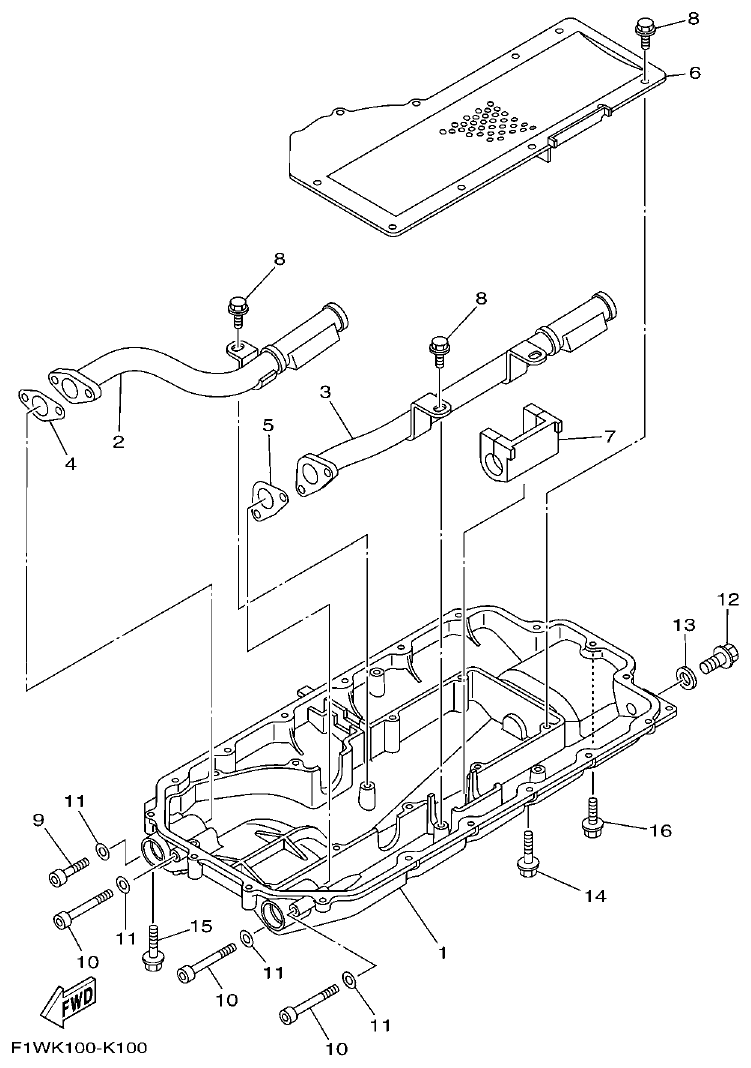

Yamaha VX18002011(2) OIL PAN parts diagram
Fig. 9 — OIL PAN
16 items · 2 catalog-linked products

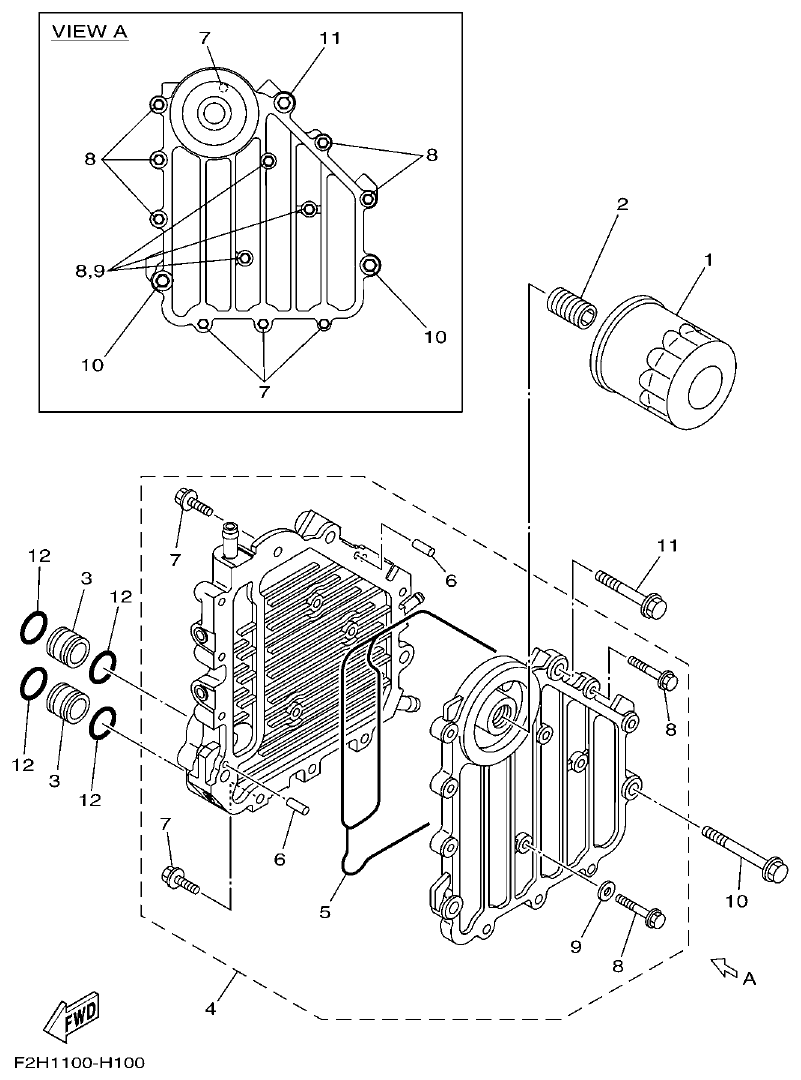

Yamaha VX18002011(2) OIL COOLER parts diagram
Fig. 10 — OIL COOLER
12 items · 2 catalog-linked products

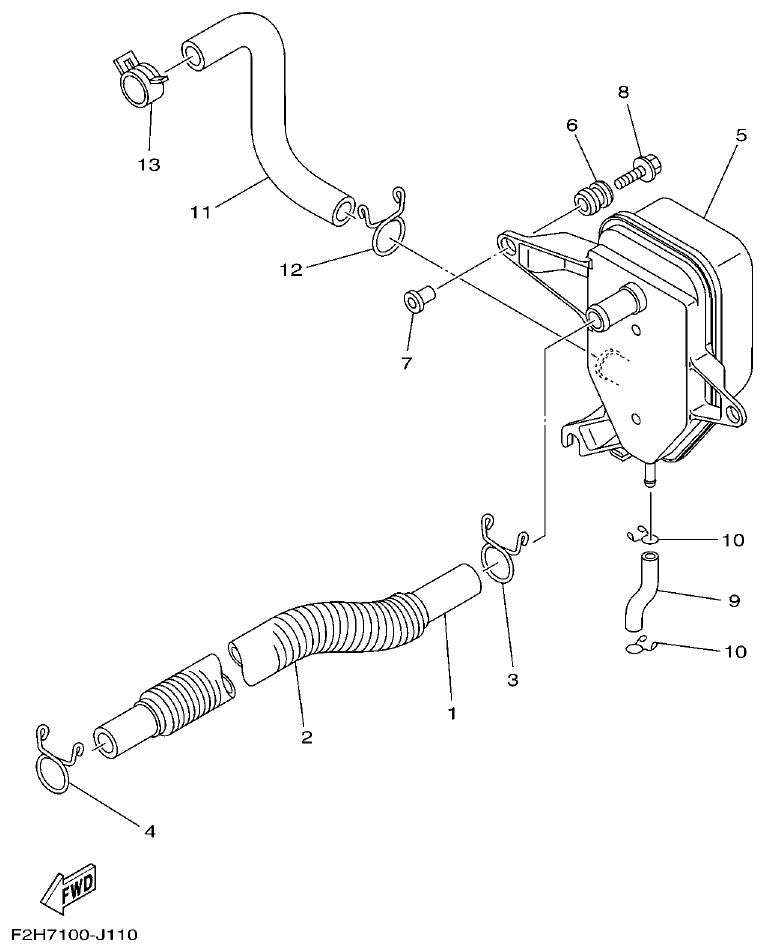

Yamaha VX18002011(2) BREATHER OIL parts diagram
Fig. 11 — BREATHER OIL
13 items

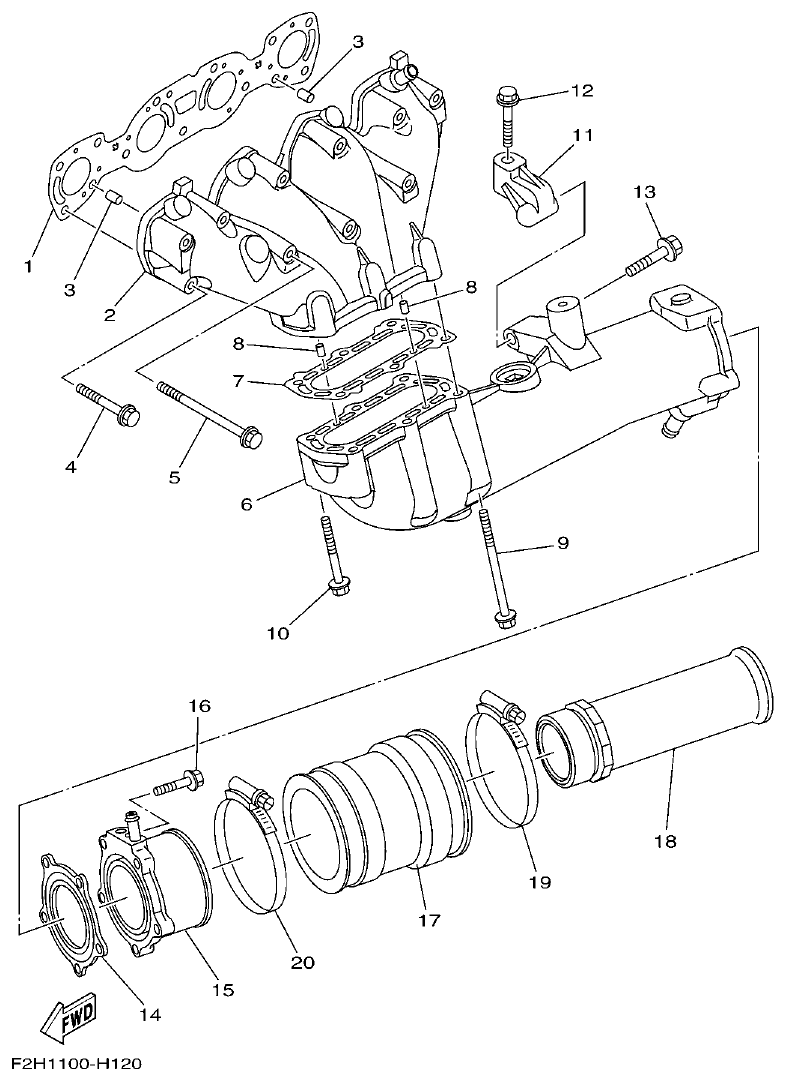

Yamaha VX18002011(2) EXHAUST 1 parts diagram
Fig. 12 — EXHAUST 1
20 items · 3 catalog-linked products

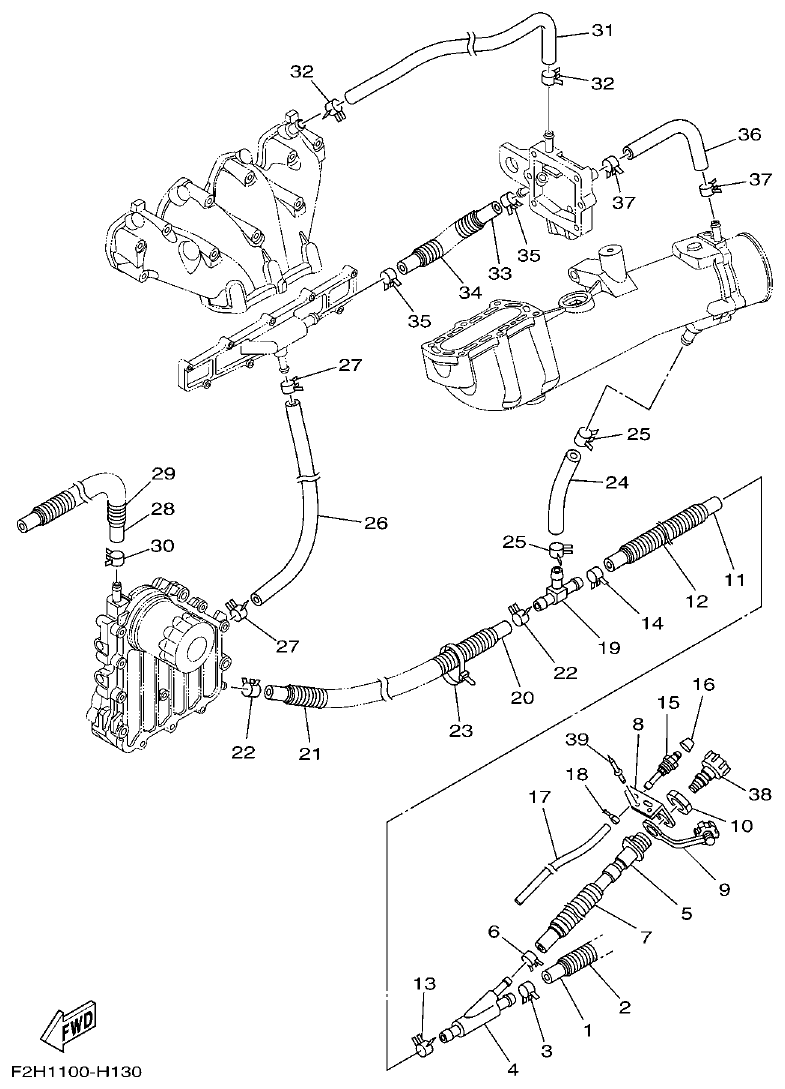

Yamaha VX18002011(2) EXHAUST 2 parts diagram
Fig. 13 — EXHAUST 2
39 items · 6 catalog-linked products

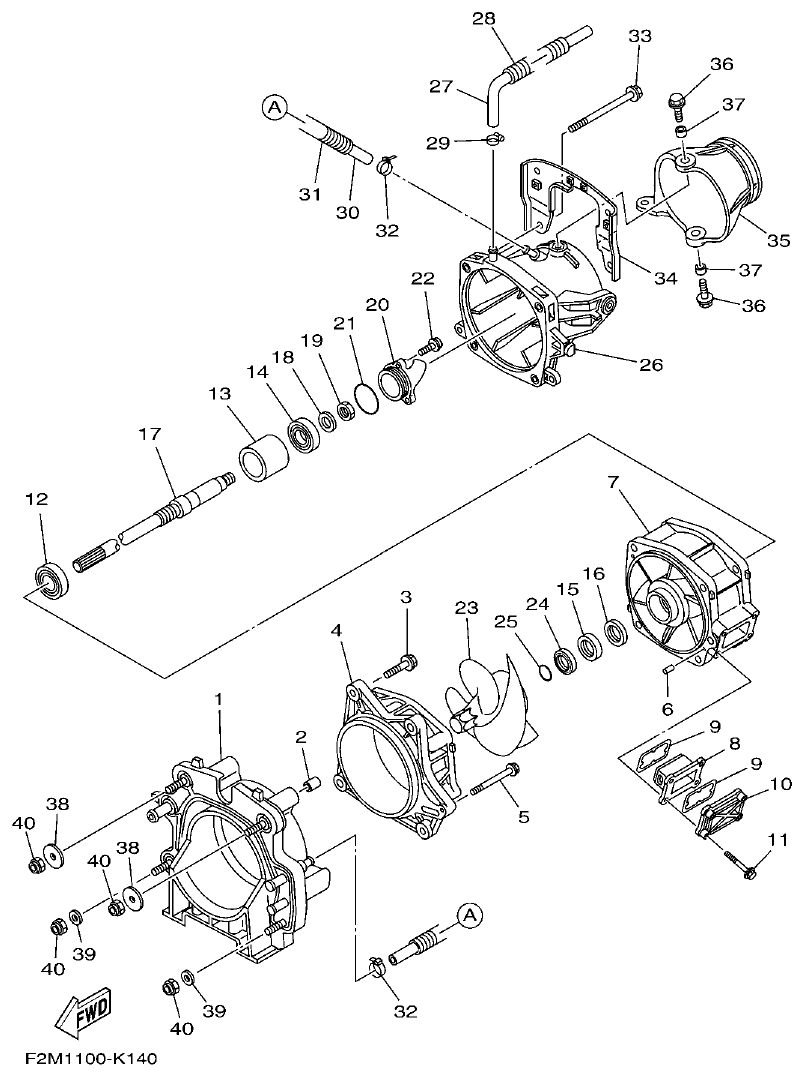

Yamaha VX18002011(2) JET UNIT 1 parts diagram
Fig. 14 — JET UNIT 1
40 items · 3 catalog-linked products

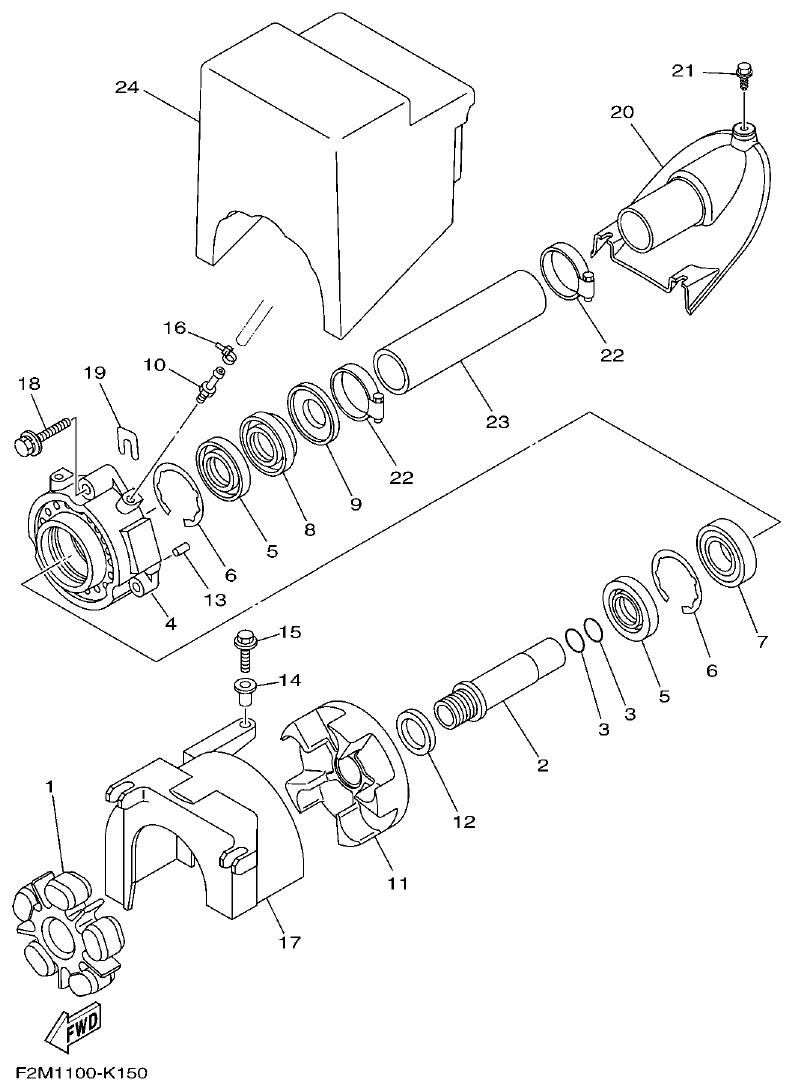

Yamaha VX18002011(2) JET UNIT 2 parts diagram
Fig. 15 — JET UNIT 2
24 items · 6 catalog-linked products
Yamaha VX18002011(2) JET UNIT 3 parts diagram

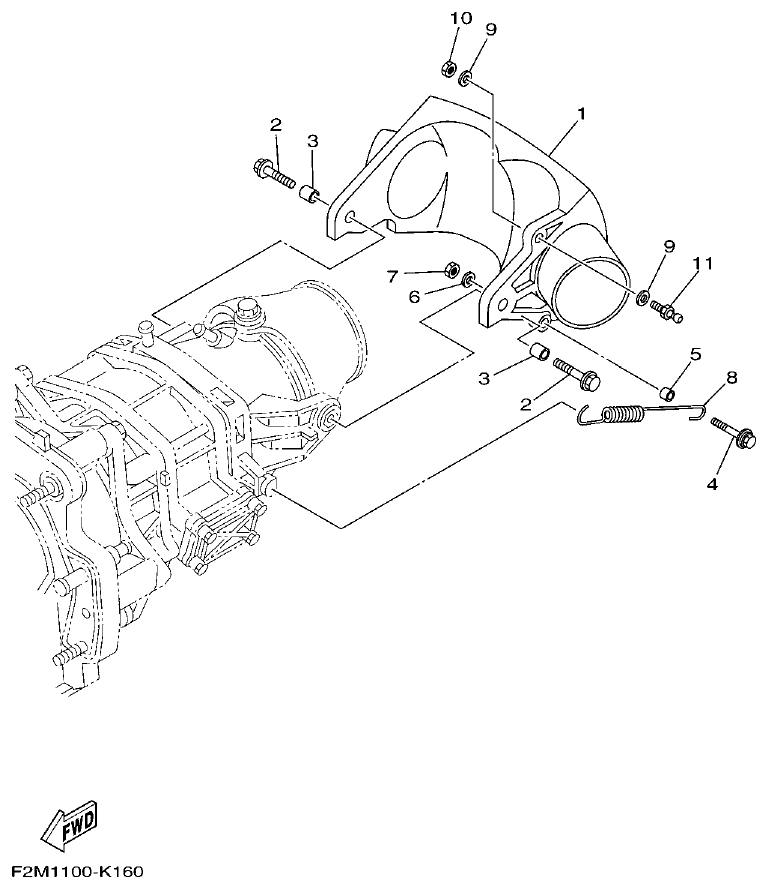

Fig. 16 — JET UNIT 3
11 items · 1 catalog-linked products

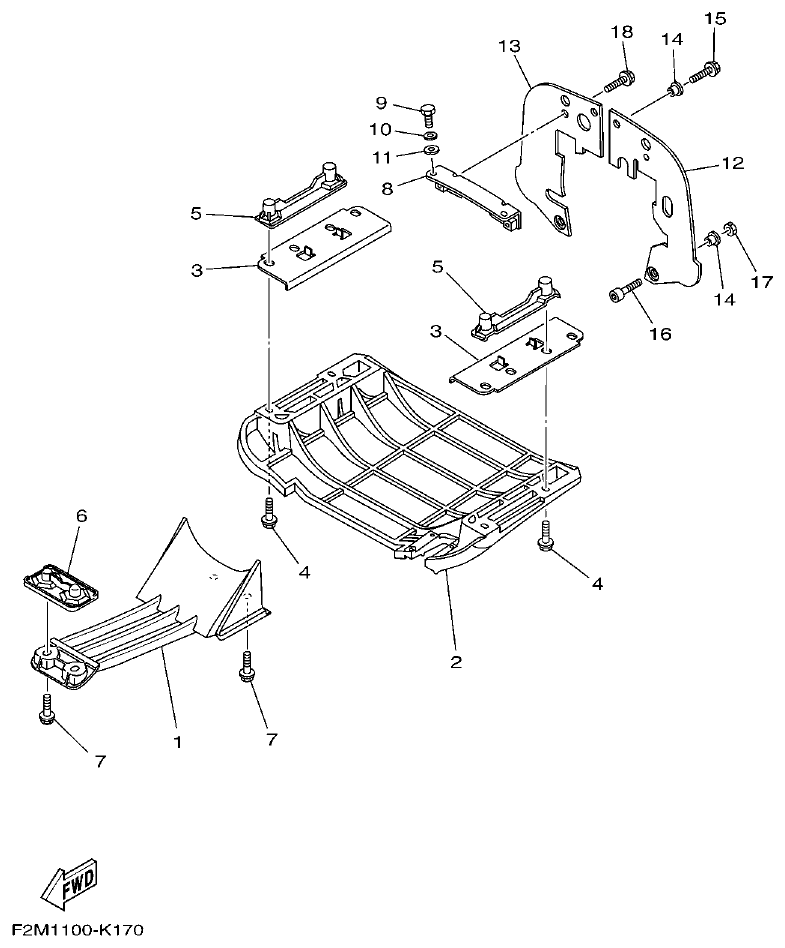

Yamaha VX18002011(2) JET UNIT 4 parts diagram
Fig. 17 — JET UNIT 4
18 items

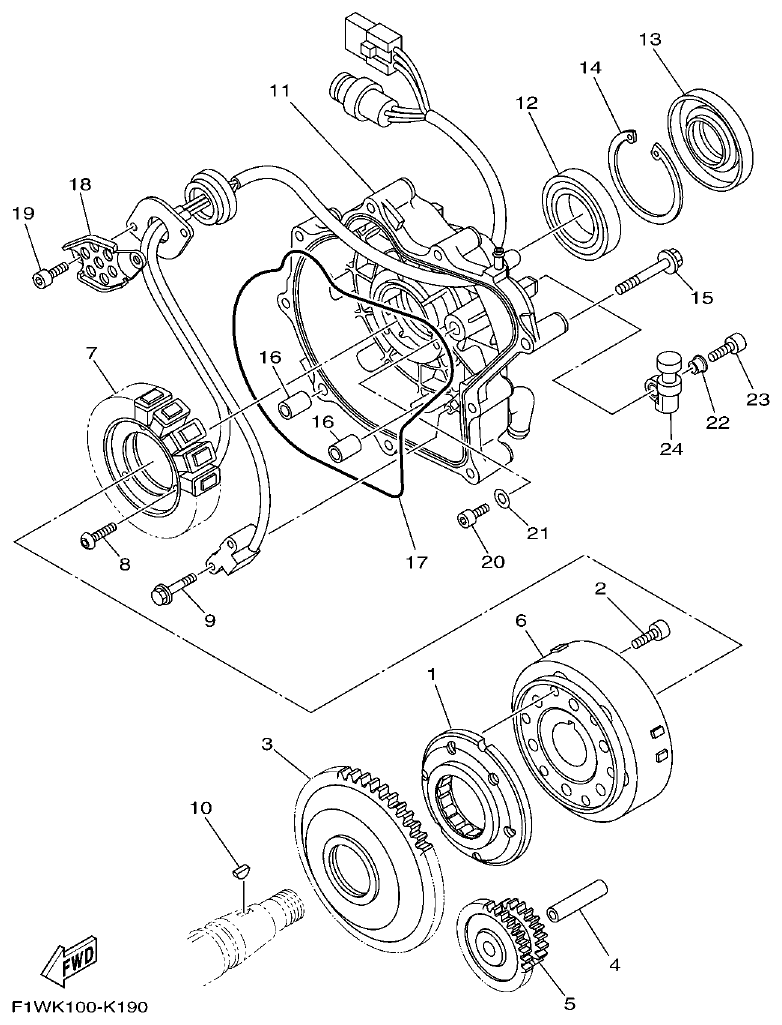

Yamaha VX18002011(2) GENERATOR parts diagram
Fig. 18 — GENERATOR
24 items · 7 catalog-linked products

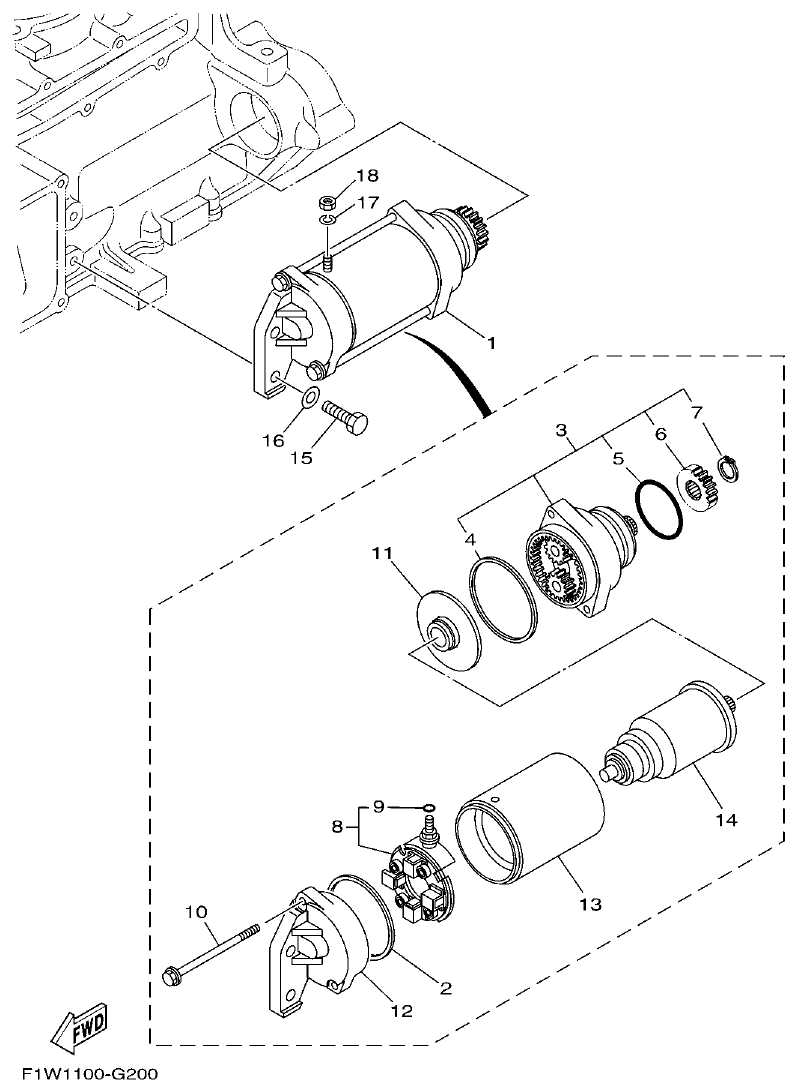

Yamaha VX18002011(2) STARTING MOTOR parts diagram
Fig. 19 — STARTING MOTOR
18 items · 6 catalog-linked products

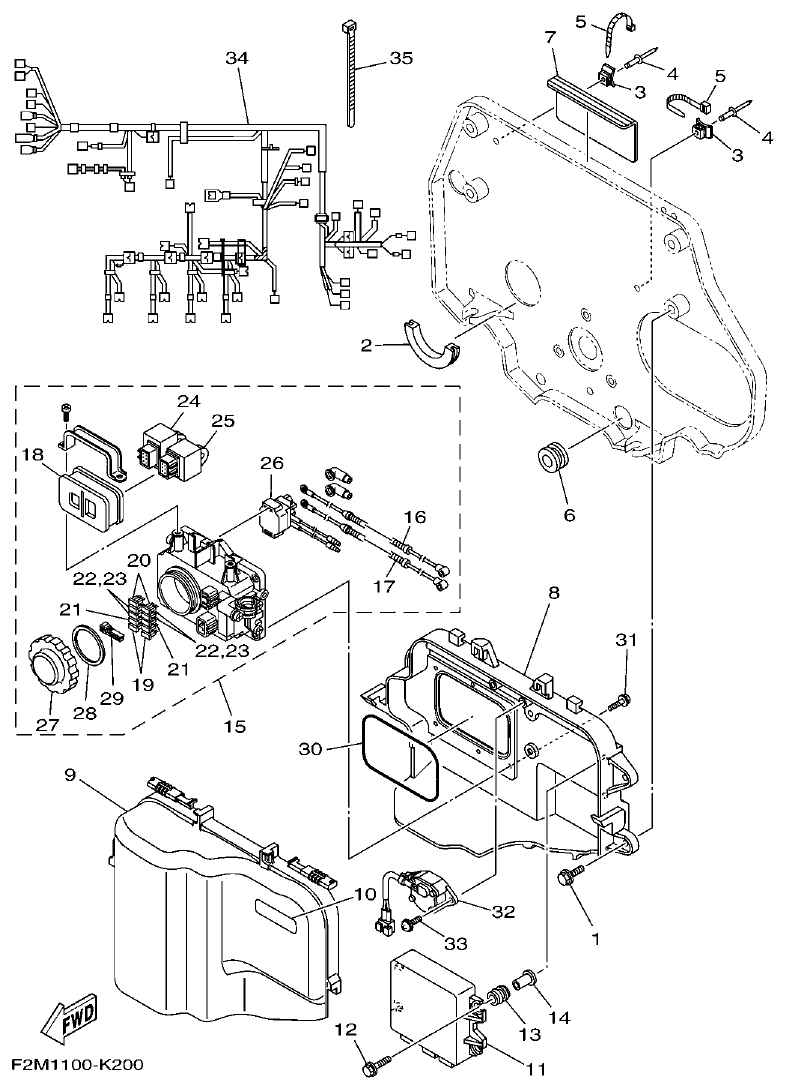

Yamaha VX18002011(2) ELECTRICAL 1 parts diagram

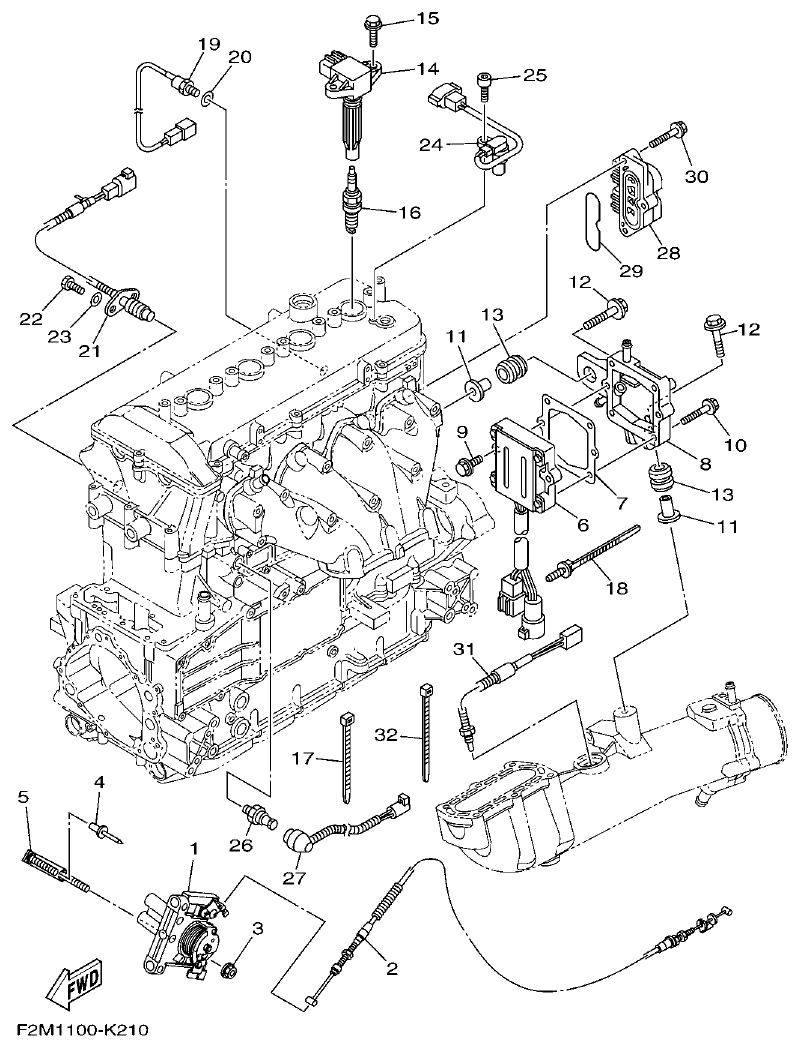

Fig. 20 — ELECTRICAL 1
35 items · 8 catalog-linked products
Yamaha VX18002011(2) ELECTRICAL 2 parts diagram
Fig. 21 — ELECTRICAL 2
32 items · 6 catalog-linked products

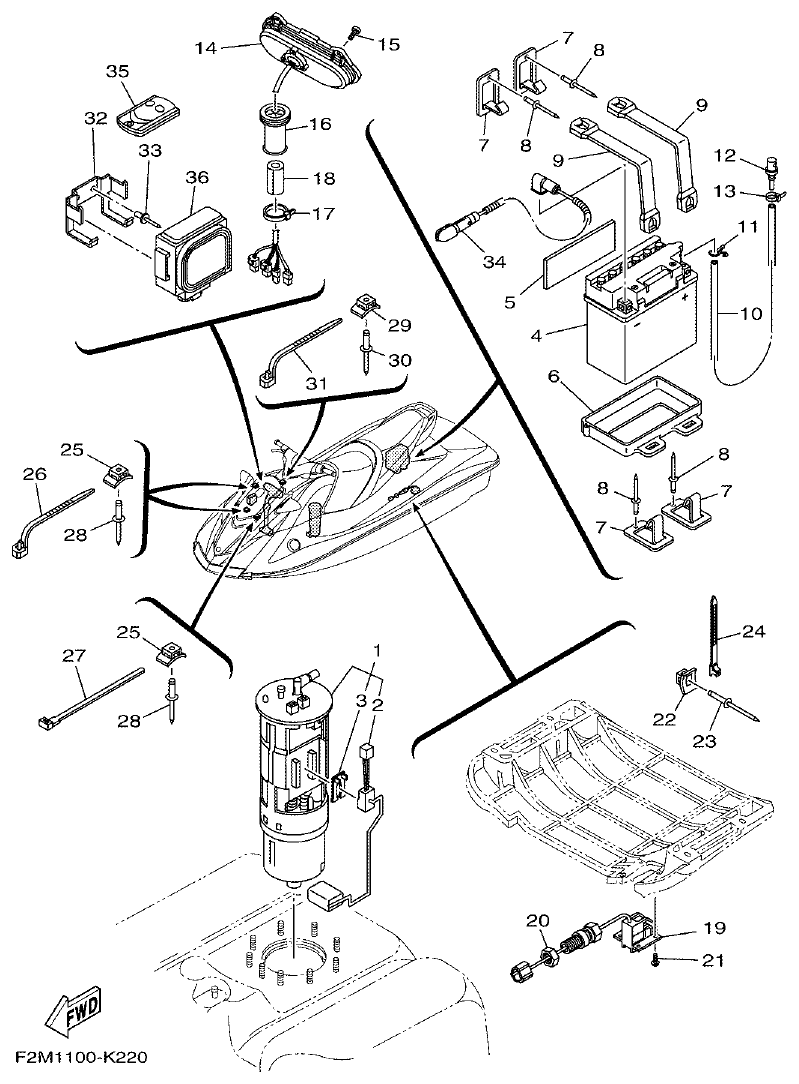

Yamaha VX18002011(2) ELECTRICAL 3 parts diagram
Fig. 22 — ELECTRICAL 3
36 items · 3 catalog-linked products

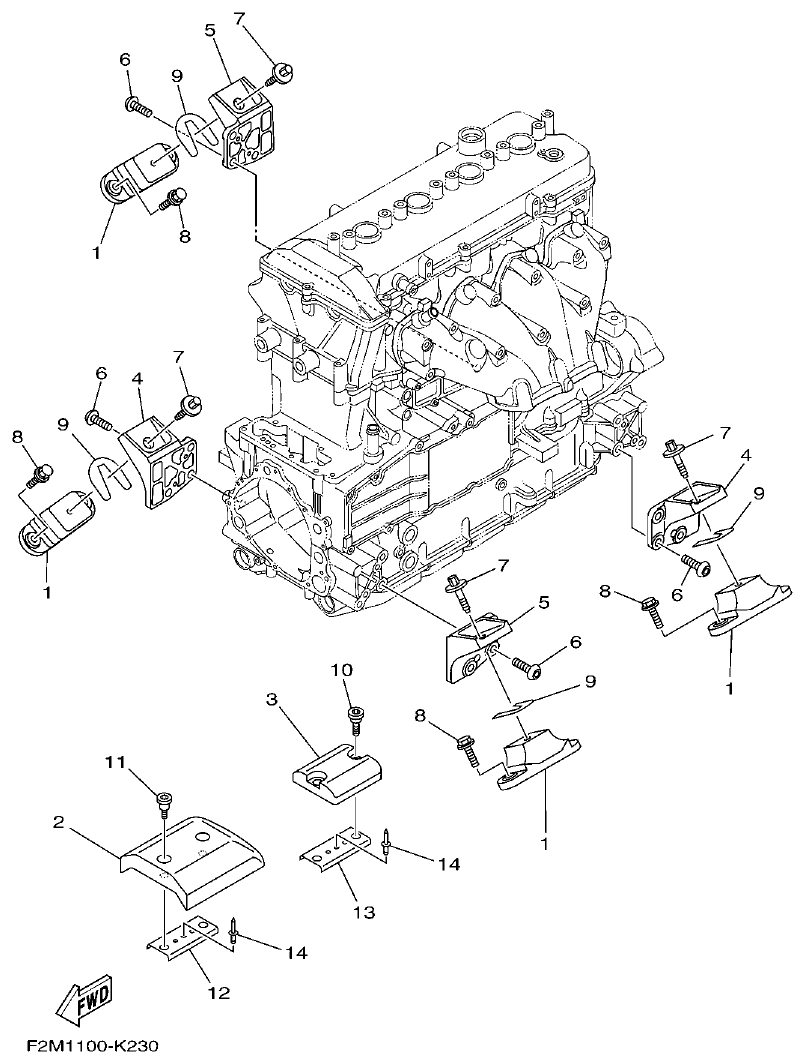

Yamaha VX18002011(2) ENGINE MOUNT parts diagram
Fig. 23 — ENGINE MOUNT
18 items

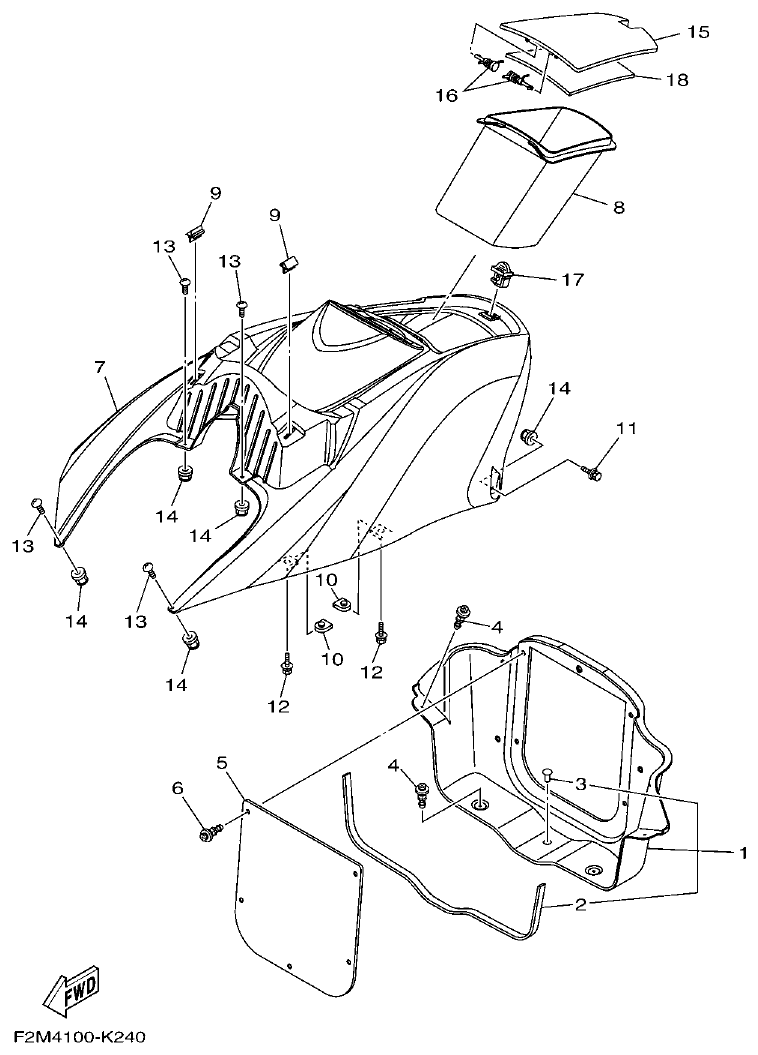

Yamaha VX18002011(2) ENGINE HATCH 1 parts diagram
Fig. 24 — ENGINE HATCH 1
18 items · 4 catalog-linked products

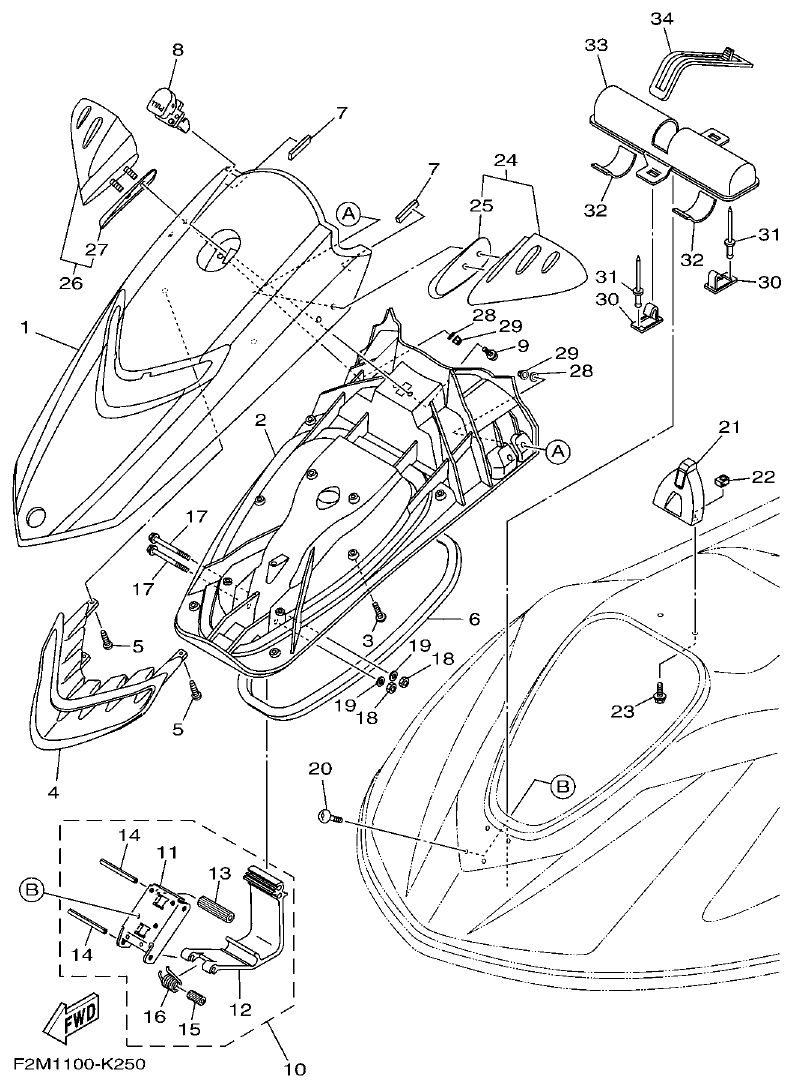

Yamaha VX18002011(2) ENGINE HATCH 2 parts diagram
Fig. 25 — ENGINE HATCH 2
34 items · 6 catalog-linked products

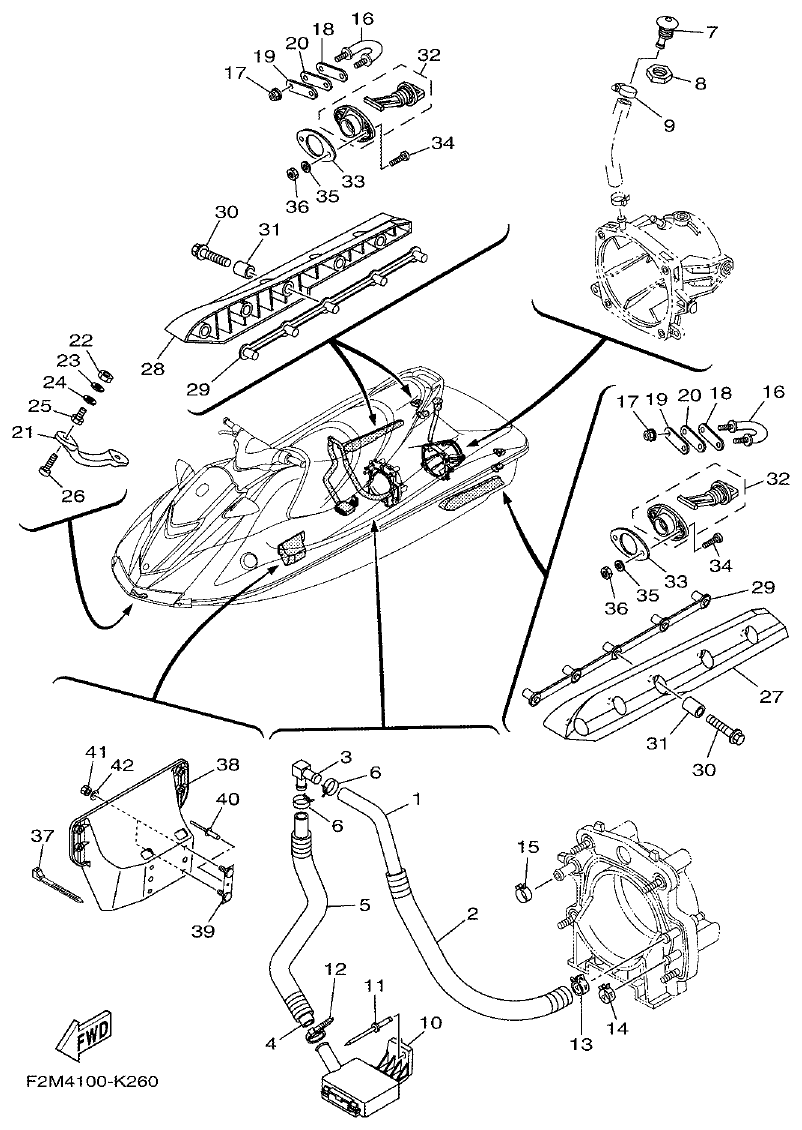

Yamaha VX18002011(2) HULL & DECK parts diagram
Fig. 26 — HULL & DECK
42 items · 7 catalog-linked products
Yamaha VX18002011(2) GUNWALE & MAT parts diagram

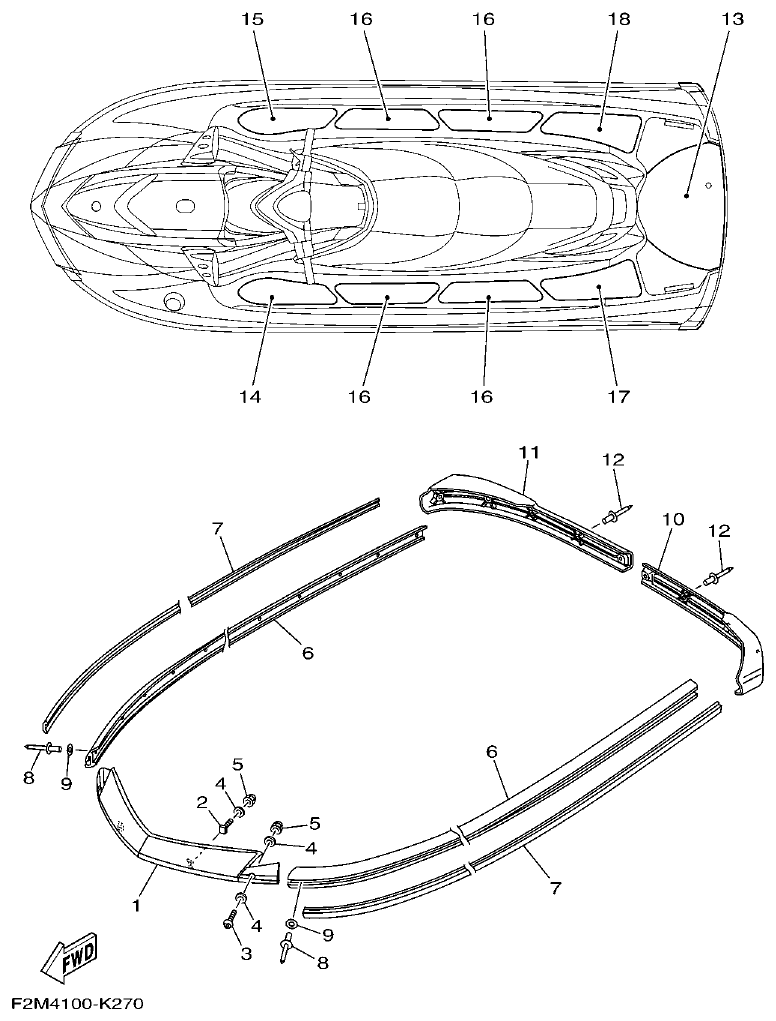

Fig. 27 — GUNWALE & MAT
18 items · 3 catalog-linked products

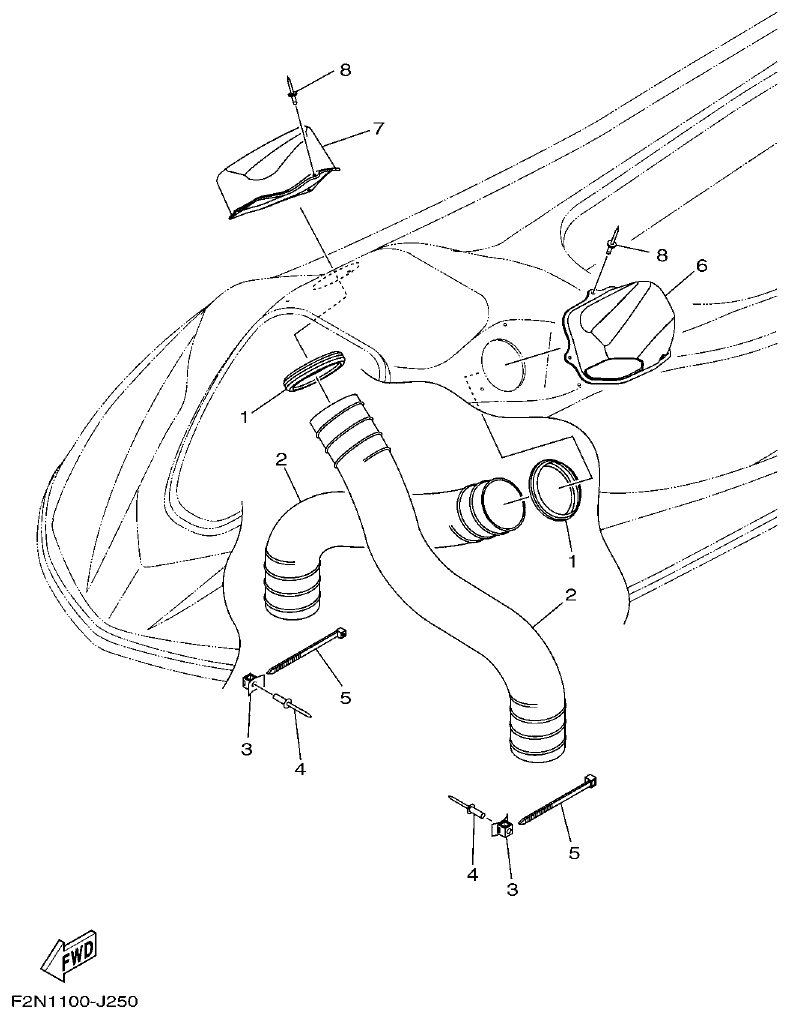

Yamaha VX18002011(2) VENTILATION parts diagram
Fig. 28 — VENTILATION
8 items
Yamaha VX18002011(2) SEAT & UNDER LOCKER parts diagram

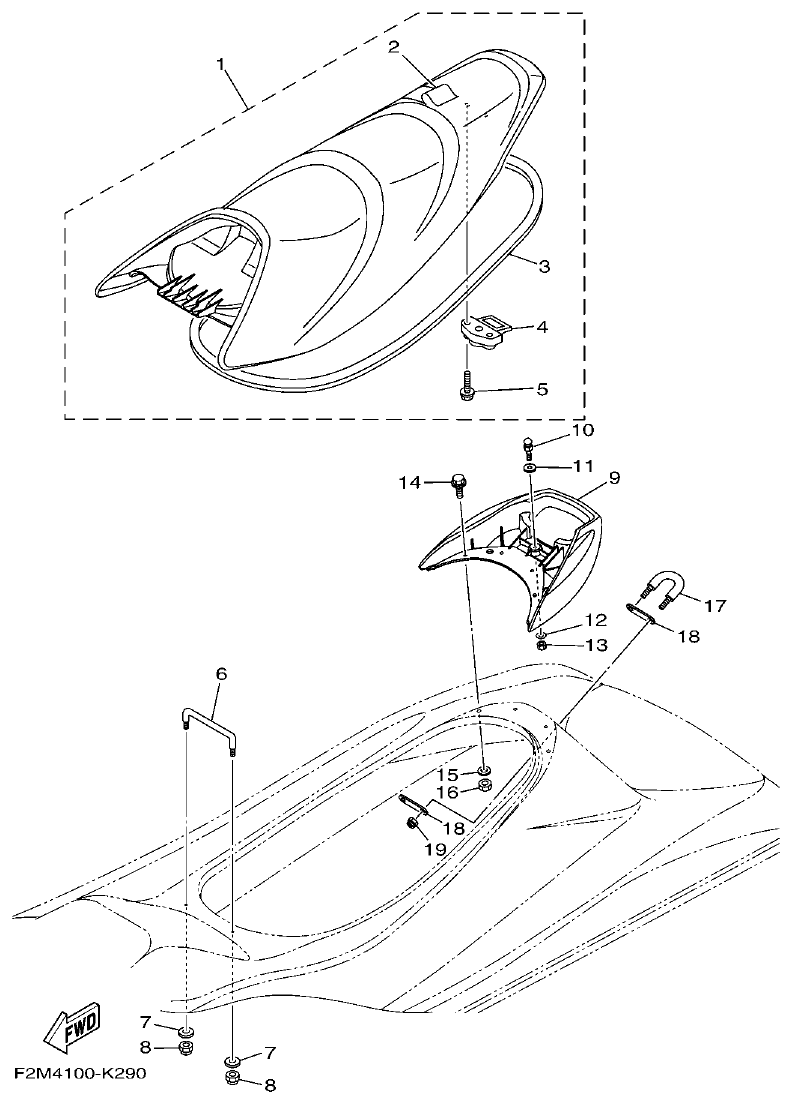

Fig. 29 — SEAT & UNDER LOCKER
19 items · 2 catalog-linked products
Yamaha VX18002011(2) FUEL TANK parts diagram

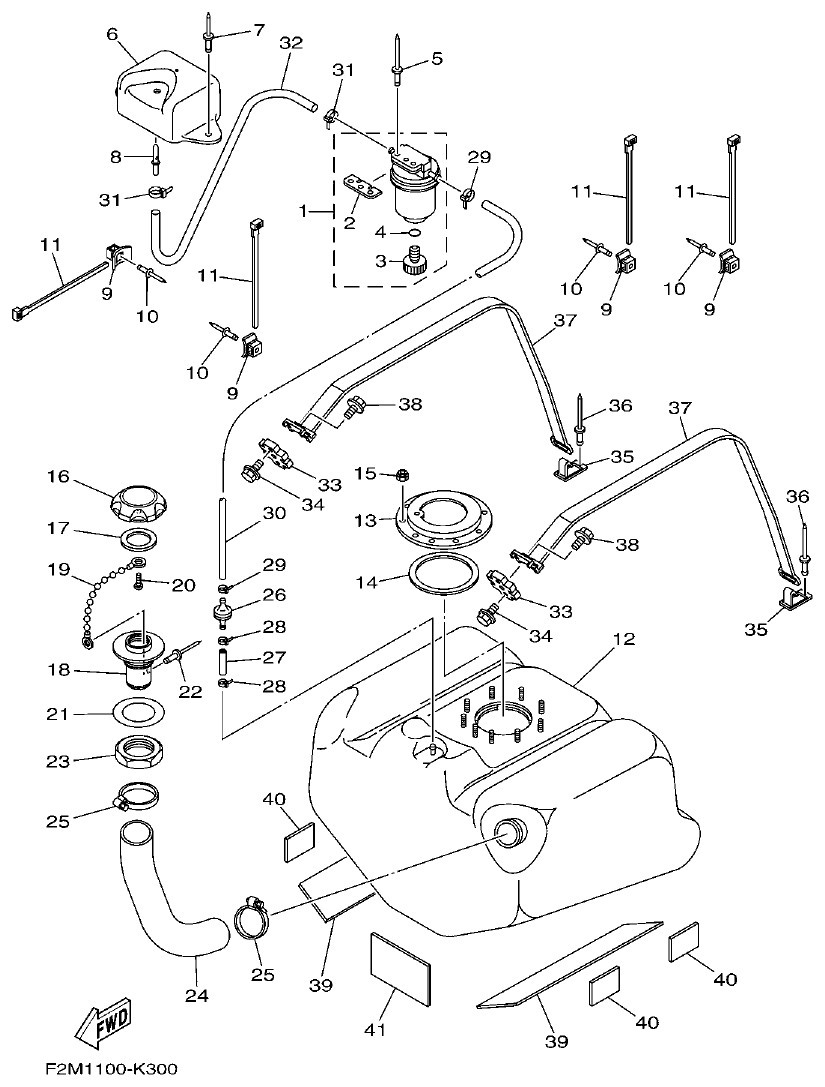

Fig. 30 — FUEL TANK
41 items · 10 catalog-linked products
Yamaha VX18002011(2) EXHAUST 3 parts diagram

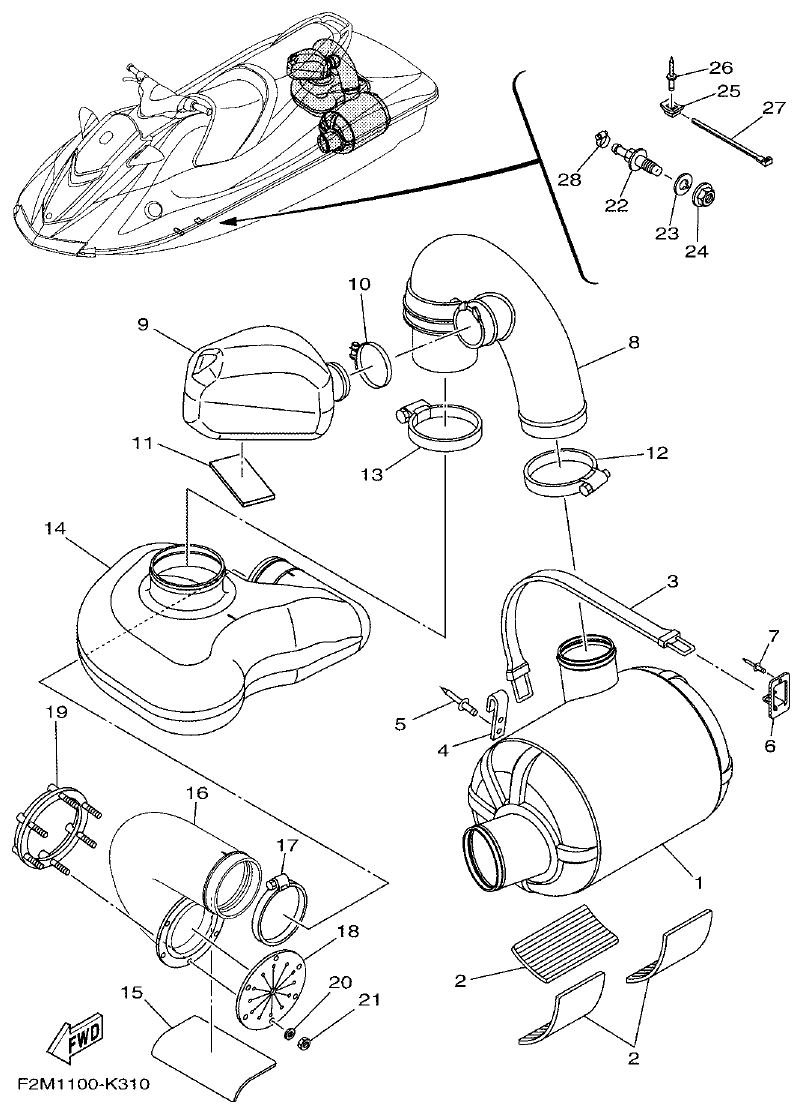

Fig. 31 — EXHAUST 3
28 items · 4 catalog-linked products

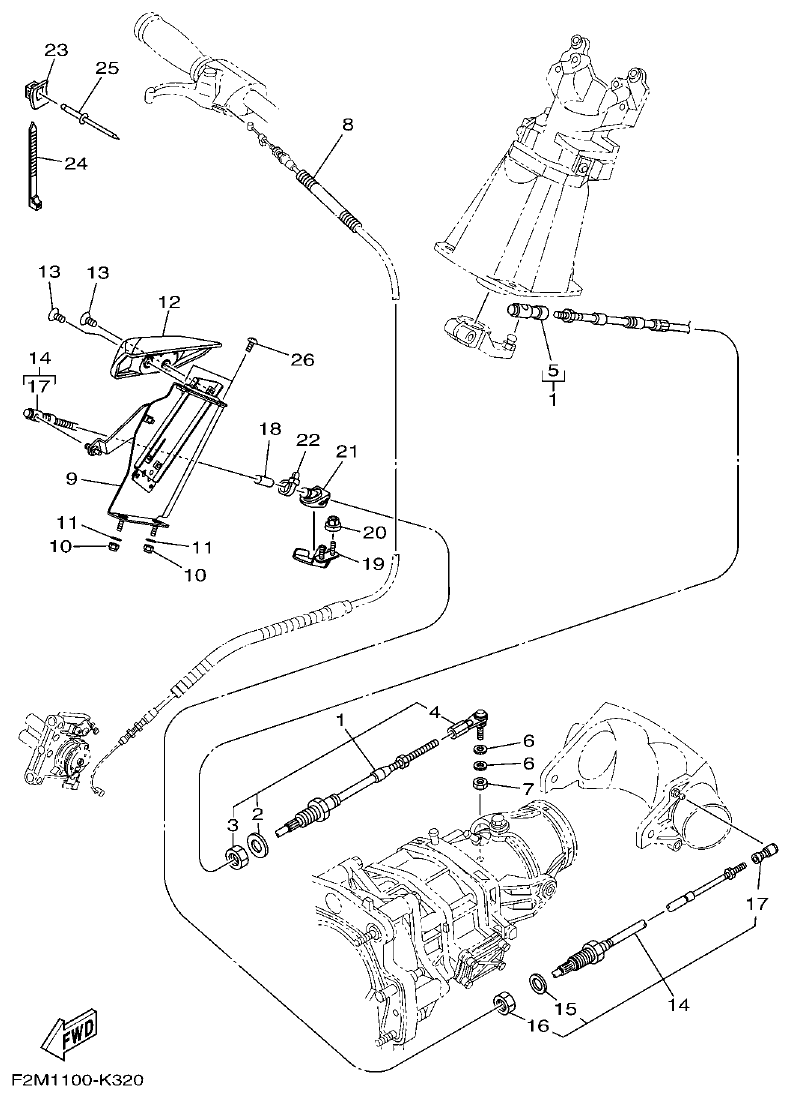

Yamaha VX18002011(2) CONTROL CABLE parts diagram
Fig. 32 — CONTROL CABLE
26 items · 4 catalog-linked products

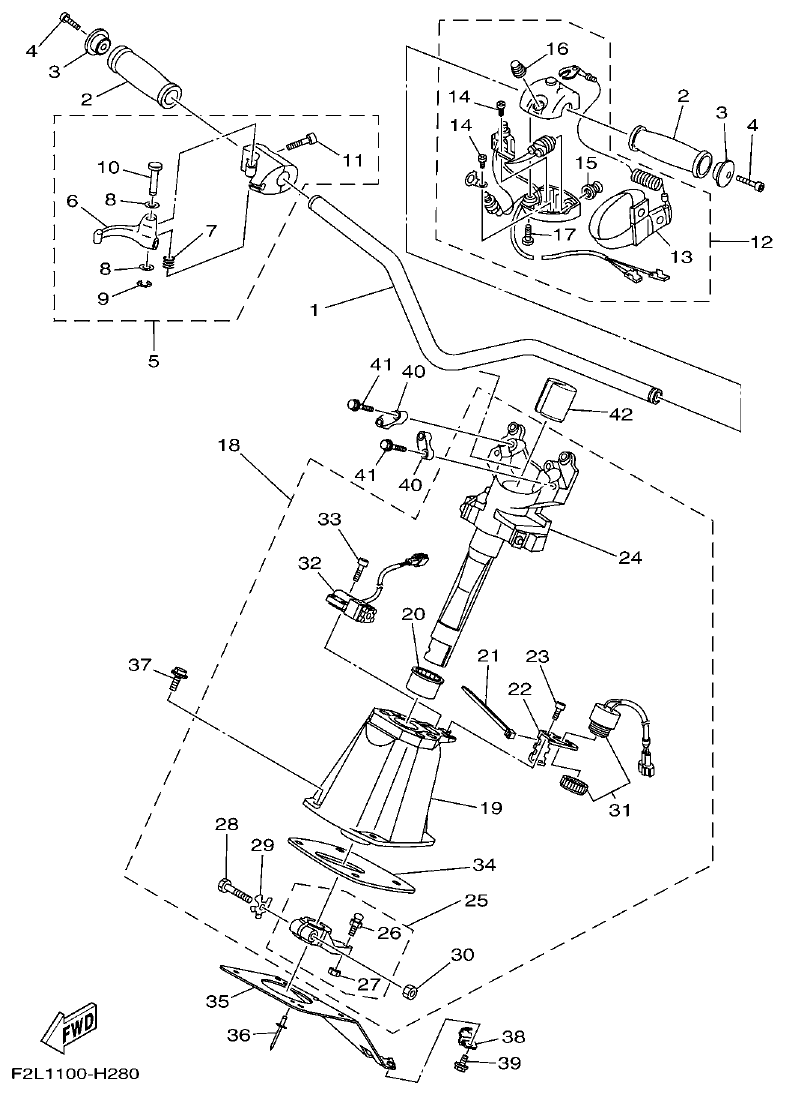

Yamaha VX18002011(2) STEERING 1 parts diagram
Fig. 33 — STEERING 1
42 items · 12 catalog-linked products

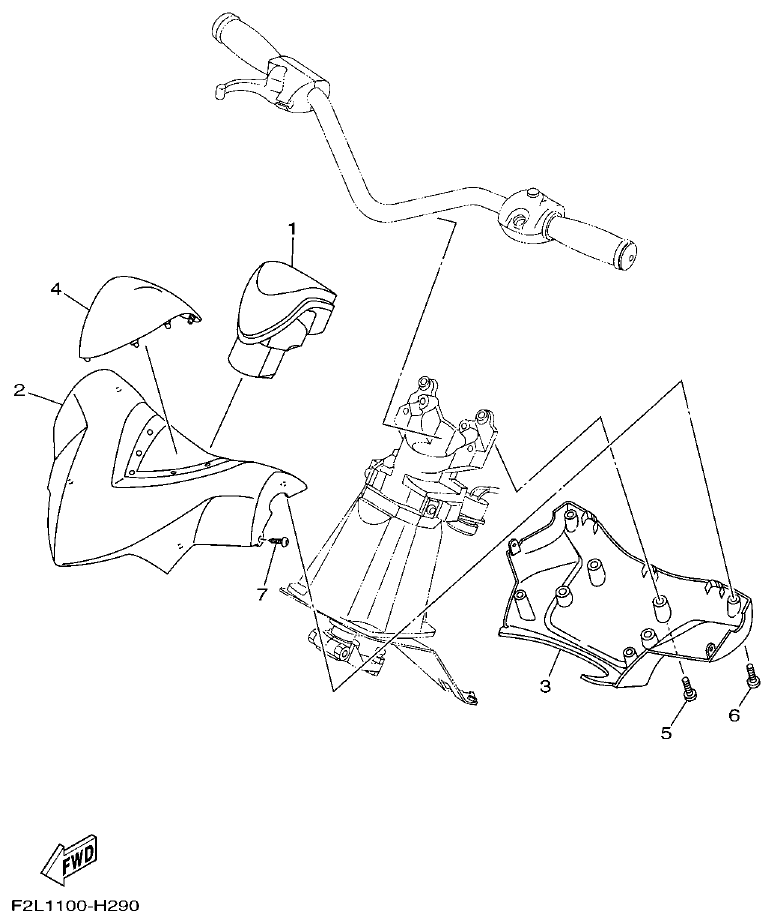

Yamaha VX18002011(2) STEERING 2 parts diagram
Fig. 34 — STEERING 2
7 items · 1 catalog-linked products

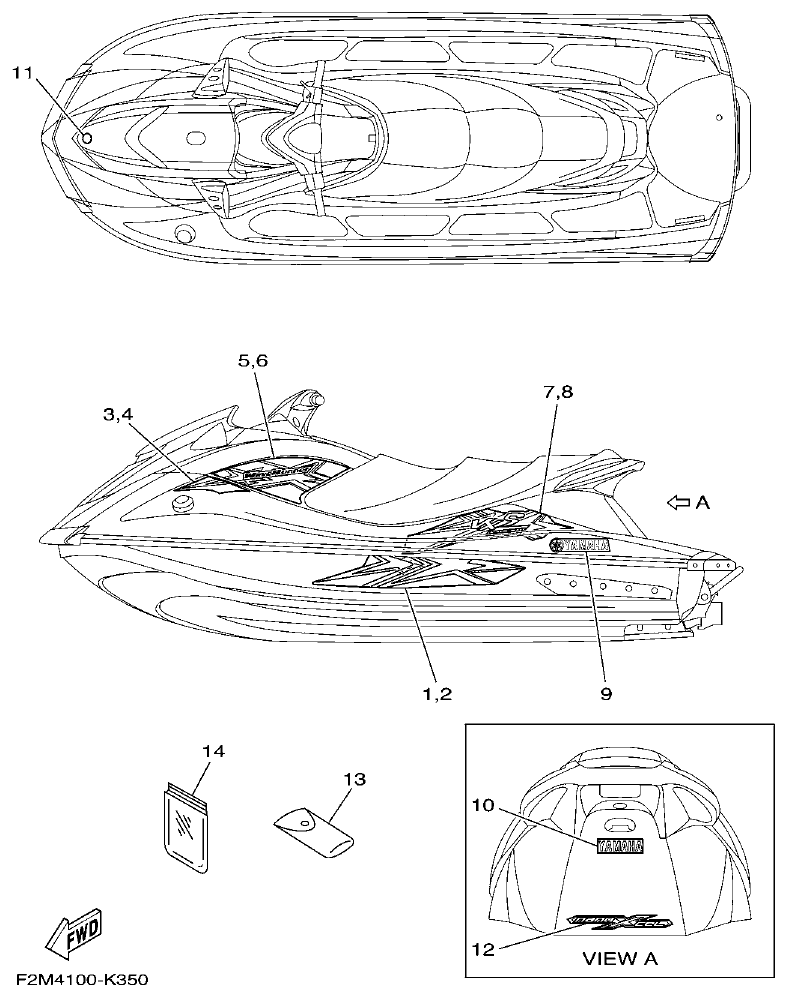

Yamaha VX18002011(2) GRAPHICS parts diagram
Fig. 35 — GRAPHICS
14 items · 2 catalog-linked products

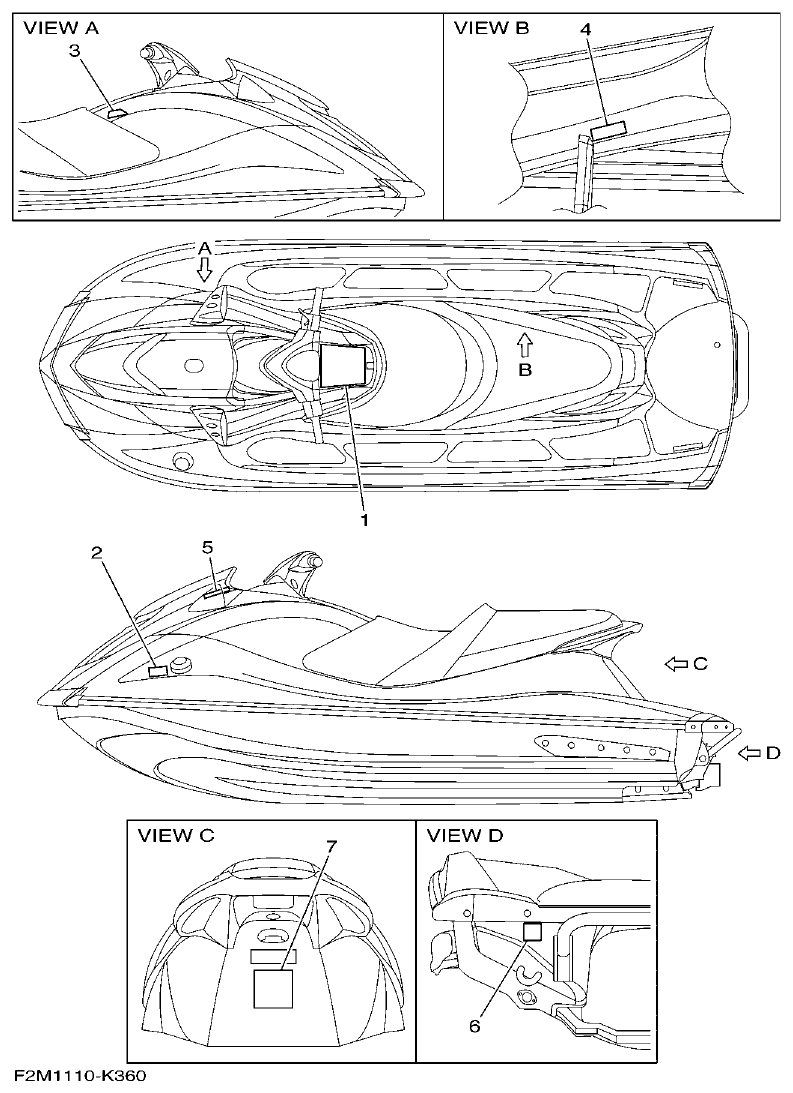

Yamaha VX18002011(2) IMPORTANT LABELS parts diagram
Fig. 36 — IMPORTANT LABELS
7 items

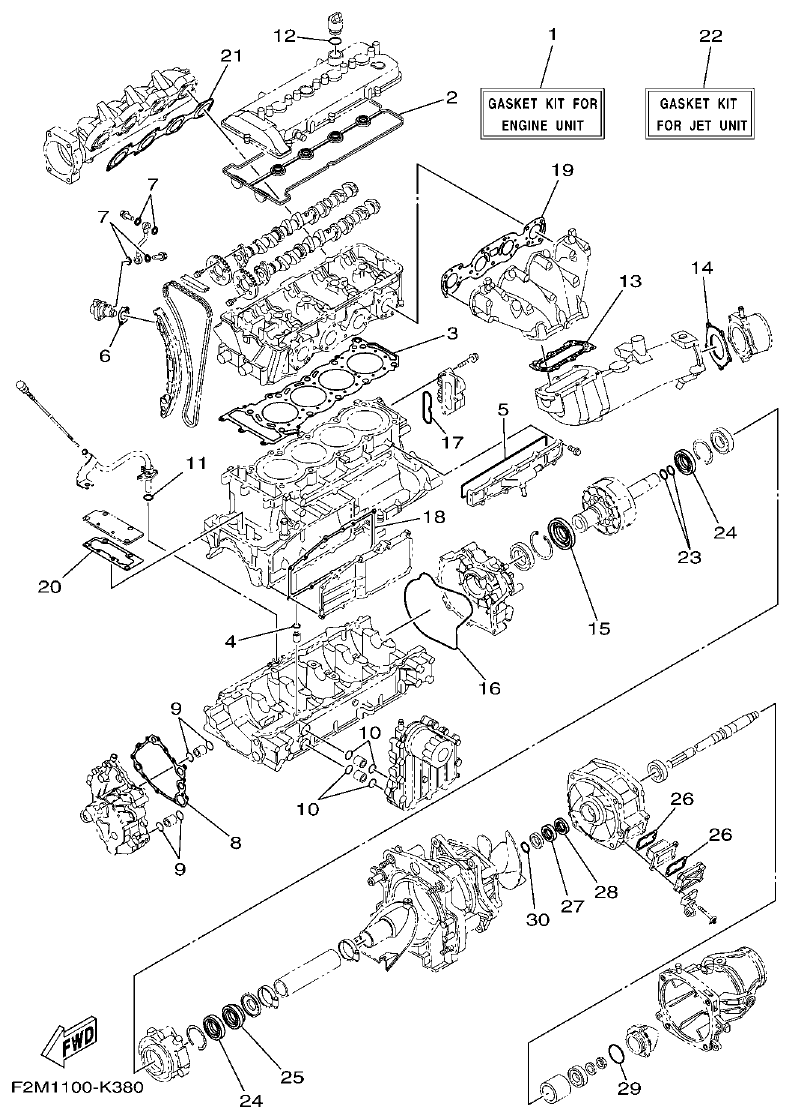

Yamaha VX18002011(2) REPAIR KIT 1 parts diagram
Fig. 37 — REPAIR KIT 1
30 items · 14 catalog-linked products

Yamaha VX18002011(2) Water Vehicle parts and diagrams

Yamaha VX18002011(2) water vehicle parts catalog includes CYLINDER 1, CYLINDER 2, CRANKCASE, CRANKSHAFT & PISTON, VALVE, INTAKE 1, INTAKE 2, OIL PUMP, OIL PAN, OIL COOLER, BREATHER OIL, EXHAUST 1, EXHAUST 2, JET UNIT 1, JET UNIT 2, JET UNIT 3, JET UNIT 4, GENERATOR. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

204 linked store products are available across 37 catalog sections. 885 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
