Yamaha VX18002019F4E7(F6G Parts Catalog
Yamaha VX18002019F4E7(F6G Water Vehicle parts and diagrams
Yamaha VX18002019F4E7(F6G water vehicle parts catalog includes CYLINDER 1, CYLINDER 2, CRANKCASE, CRANKSHAFT & PISTON, VALVE, INTAKE 1, INTAKE 2, OIL PUMP, OIL PAN, OIL COOLER, BREATHER OIL, EXHAUST 1, EXHAUST 2, JET UNIT 1, JET UNIT 2, JET UNIT 3, JET UNIT 4, GENERATOR. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.
247 linked store products are available across 38 catalog sections. 974 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
/images/fig-1-cylinder-1.png)

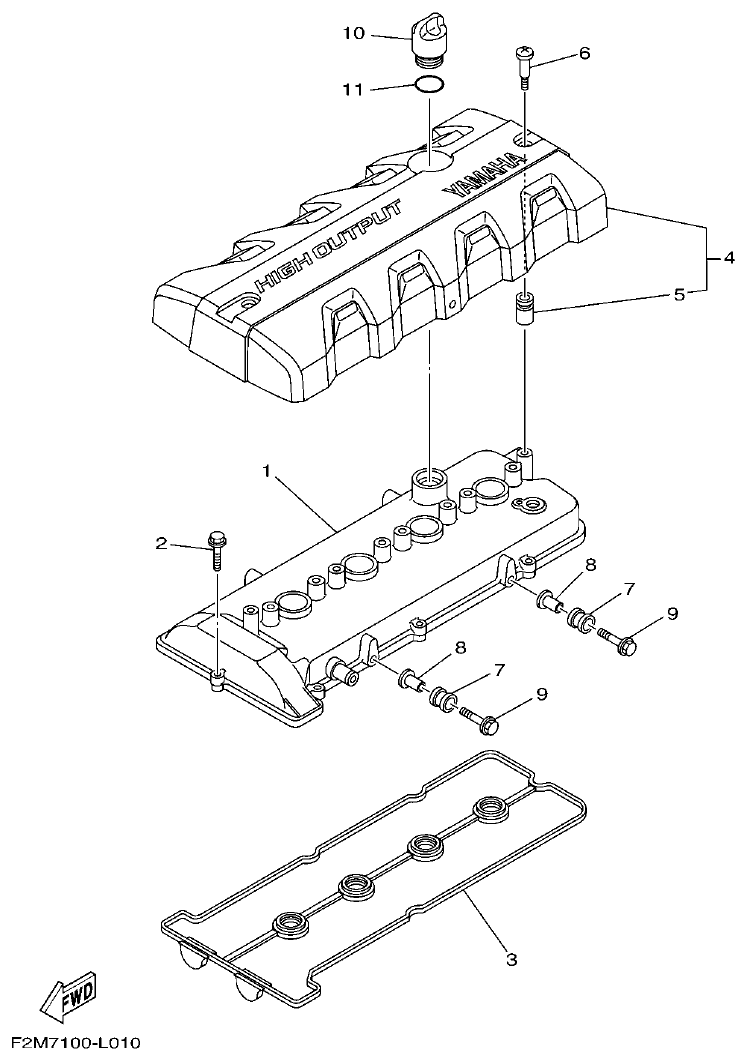

Fig. 1 — CYLINDER 1
11 items
· 5 available products

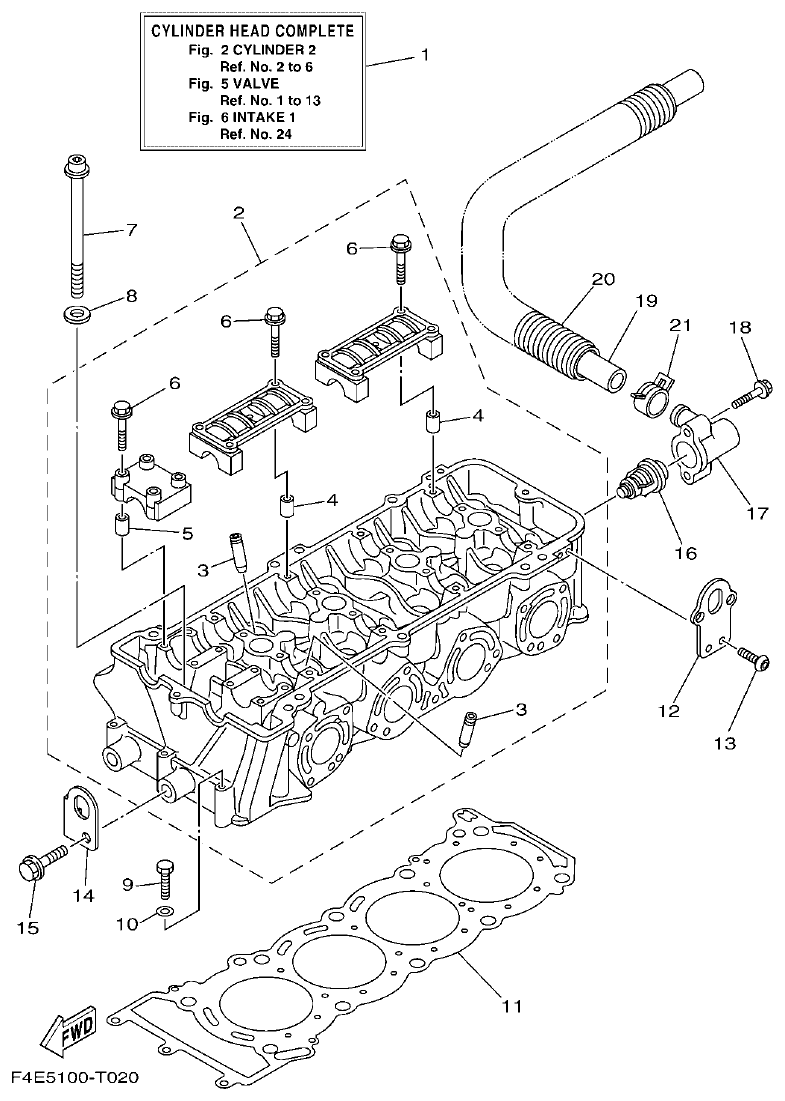

/images/fig-2-cylinder-2.png)
Fig. 2 — CYLINDER 2
21 items
· 4 available products

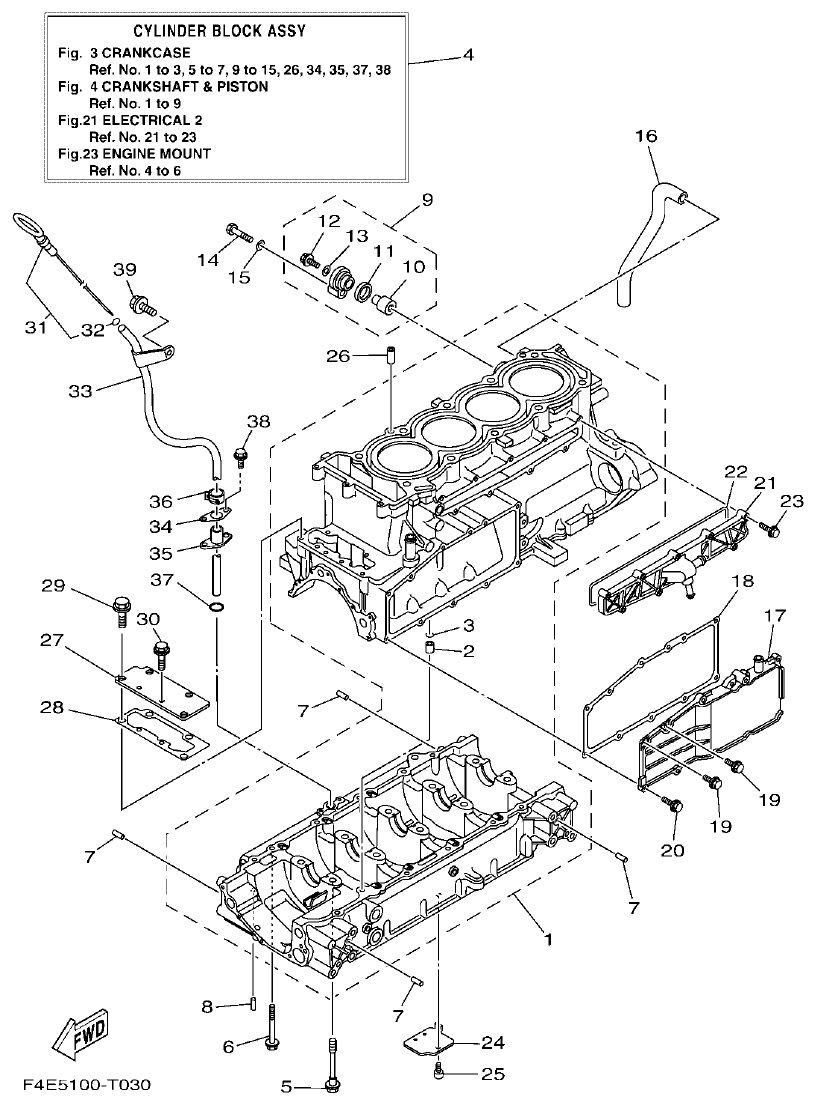

/images/fig-3-crankcase.png)
Fig. 3 — CRANKCASE
39 items
· 9 available products

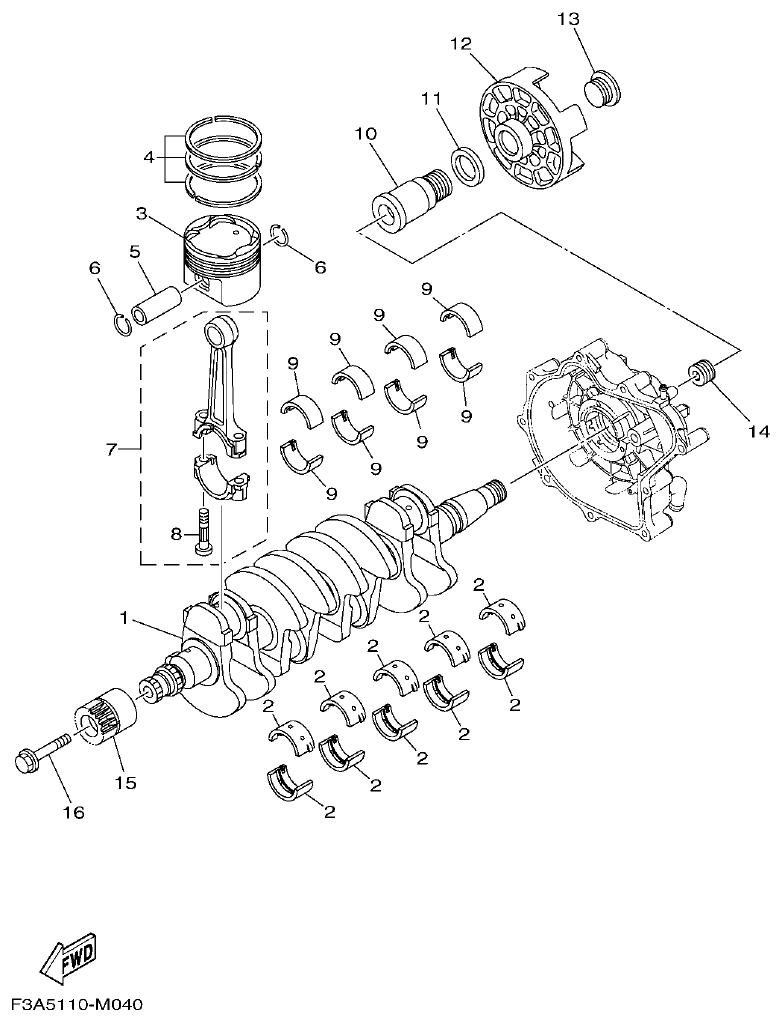

/images/fig-4-crankshaft-piston.png)
Fig. 4 — CRANKSHAFT & PISTON
23 items
· 18 available products

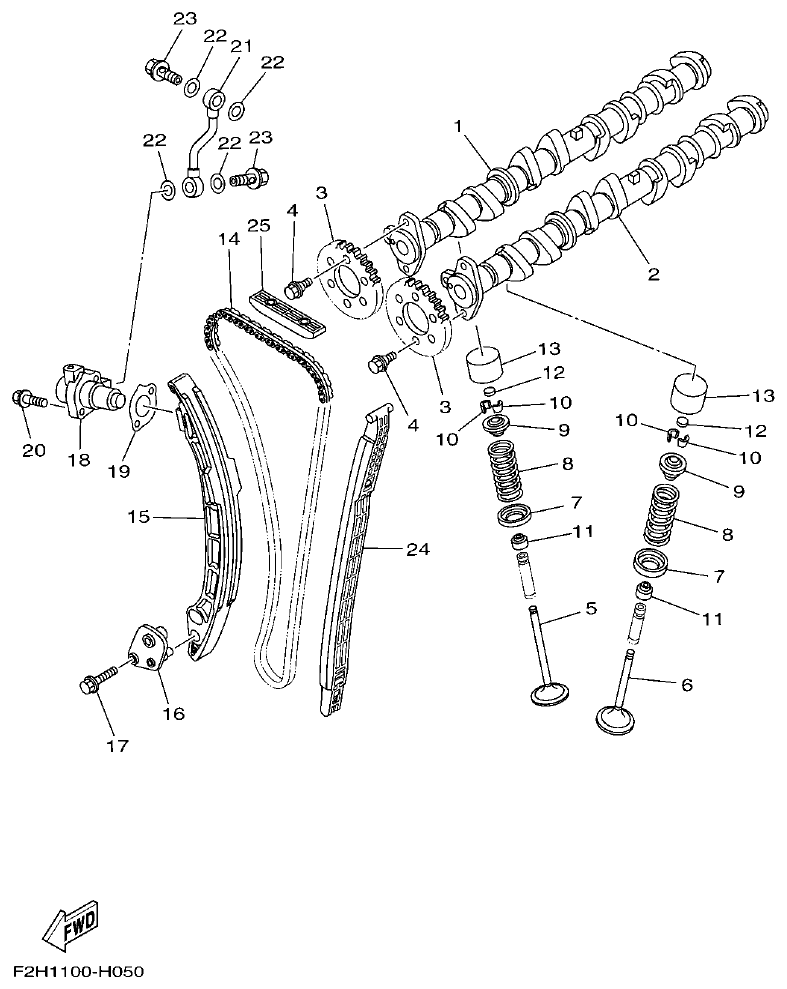

/images/fig-5-valve.png)
Fig. 5 — VALVE
47 items
· 37 available products

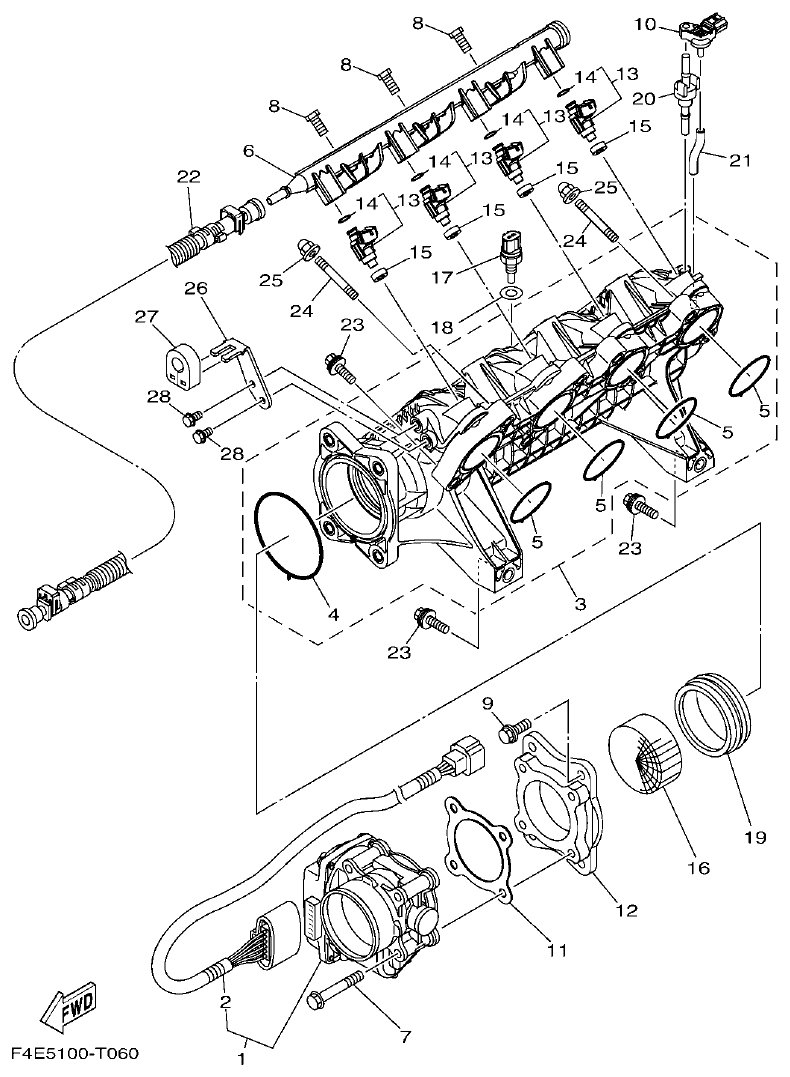

/images/fig-6-intake-1.png)
Fig. 6 — INTAKE 1
28 items
· 12 available products

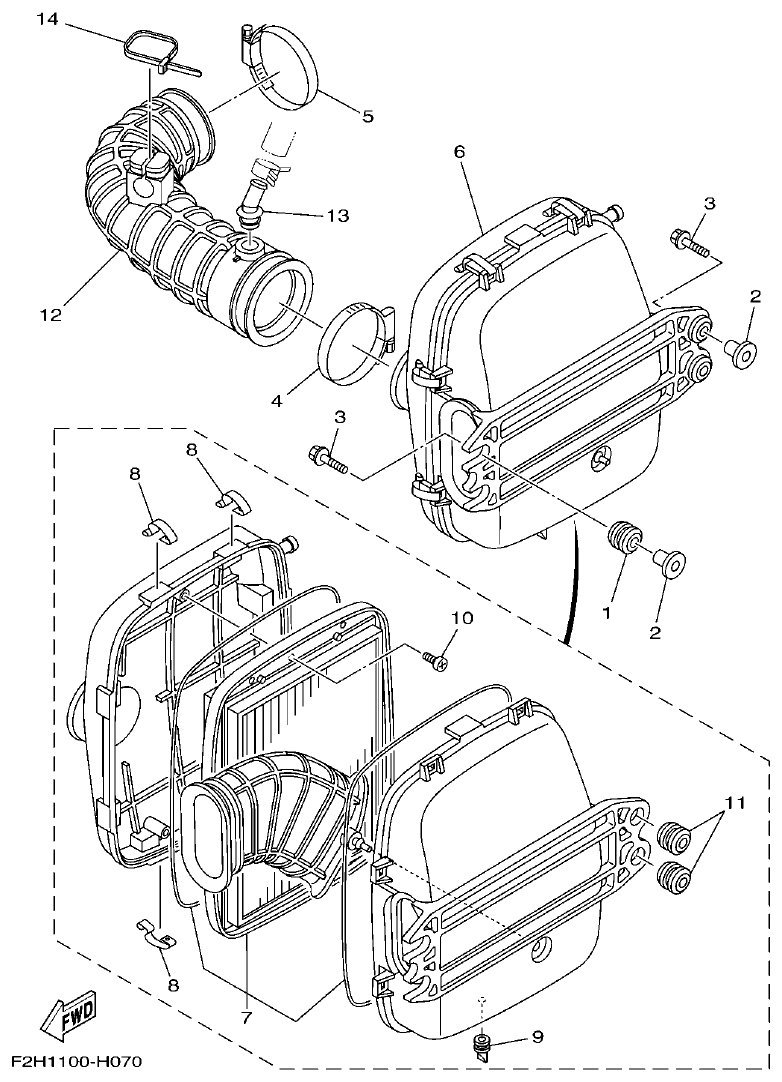

/images/fig-7-intake-2.png)
Fig. 7 — INTAKE 2
14 items

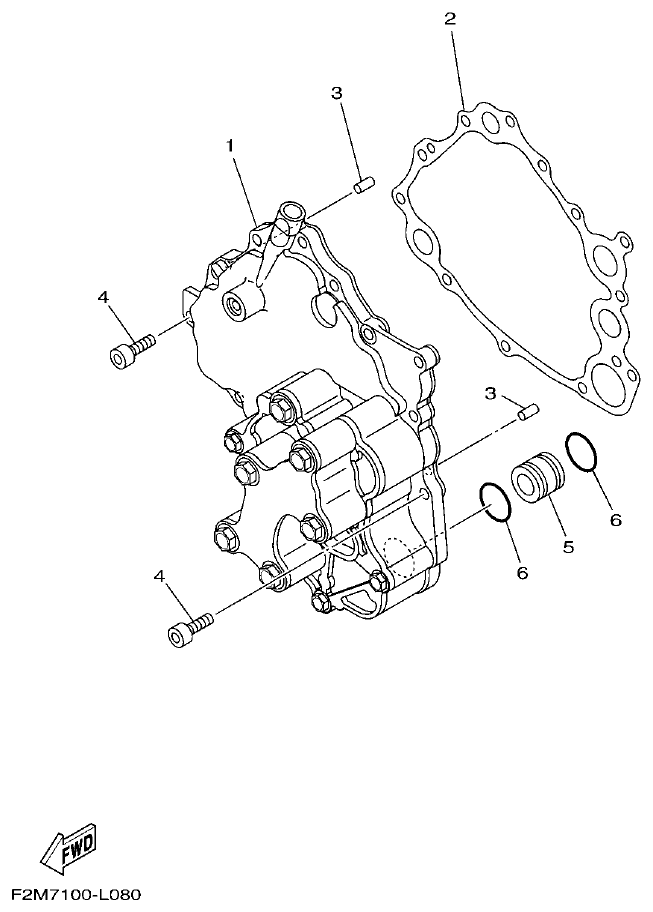

/images/fig-8-oil-pump.png)
Fig. 8 — OIL PUMP
6 items
· 3 available products

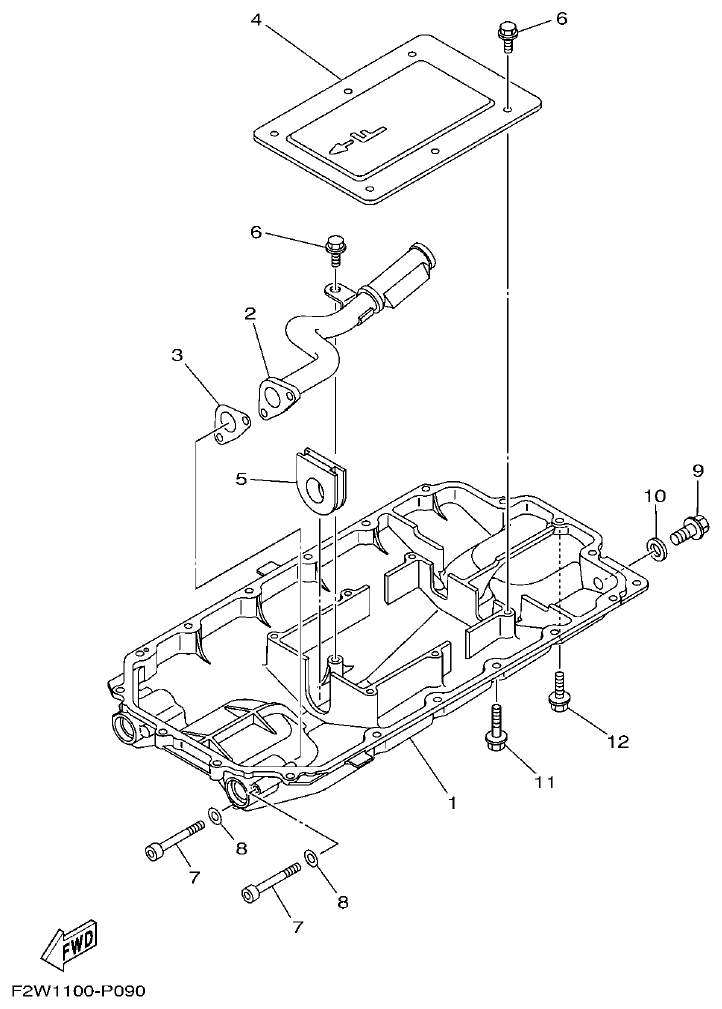

/images/fig-9-oil-pan.png)
Fig. 9 — OIL PAN
12 items
· 1 available products

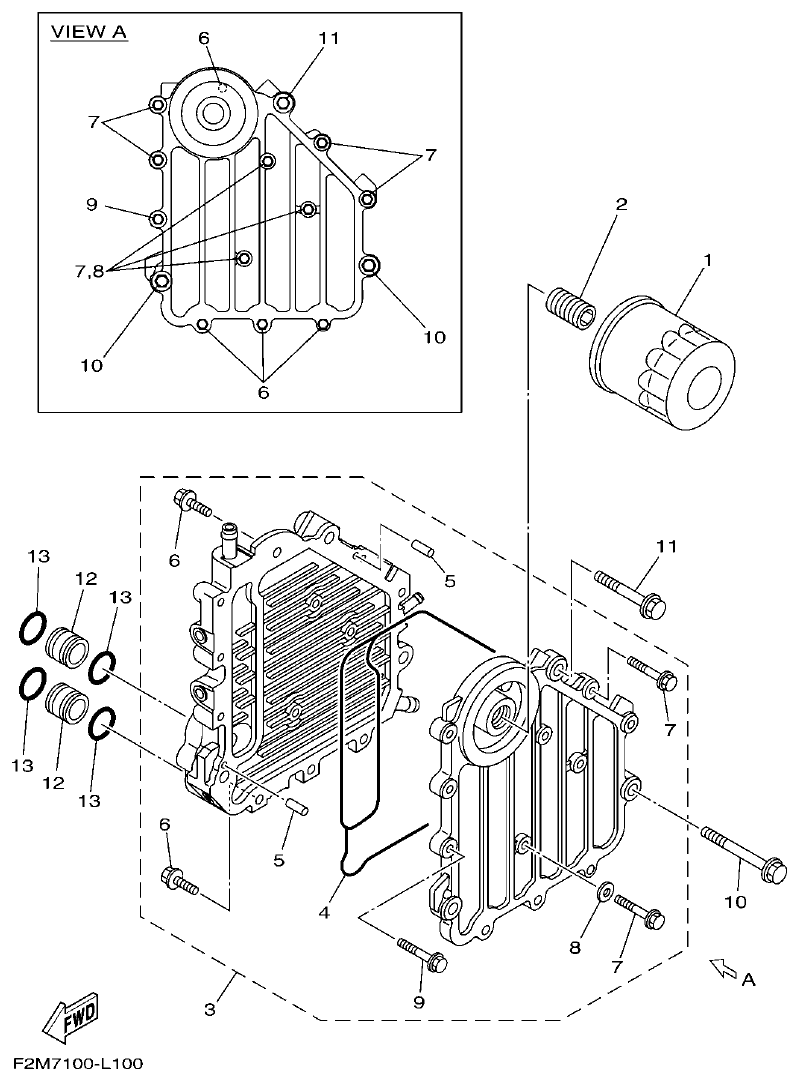

/images/fig-10-oil-cooler.png)
Fig. 10 — OIL COOLER
13 items
· 3 available products

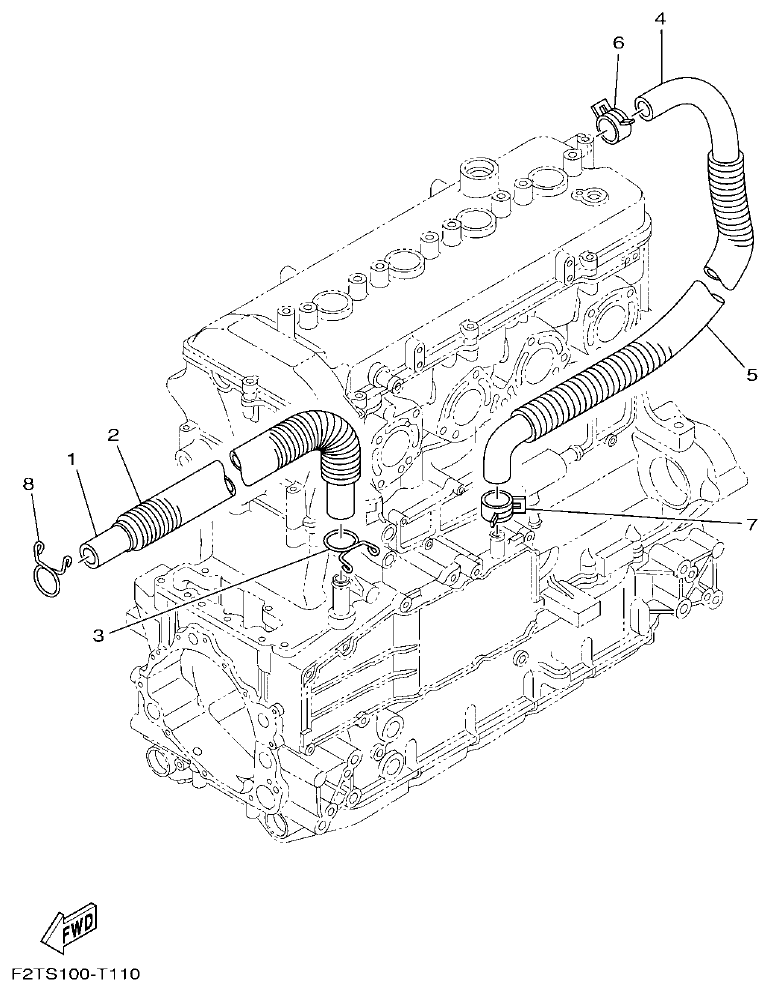

/images/fig-11-breather-oil.png)
Fig. 11 — BREATHER OIL
8 items
· 1 available products
/images/fig-12-exhaust-1.png)

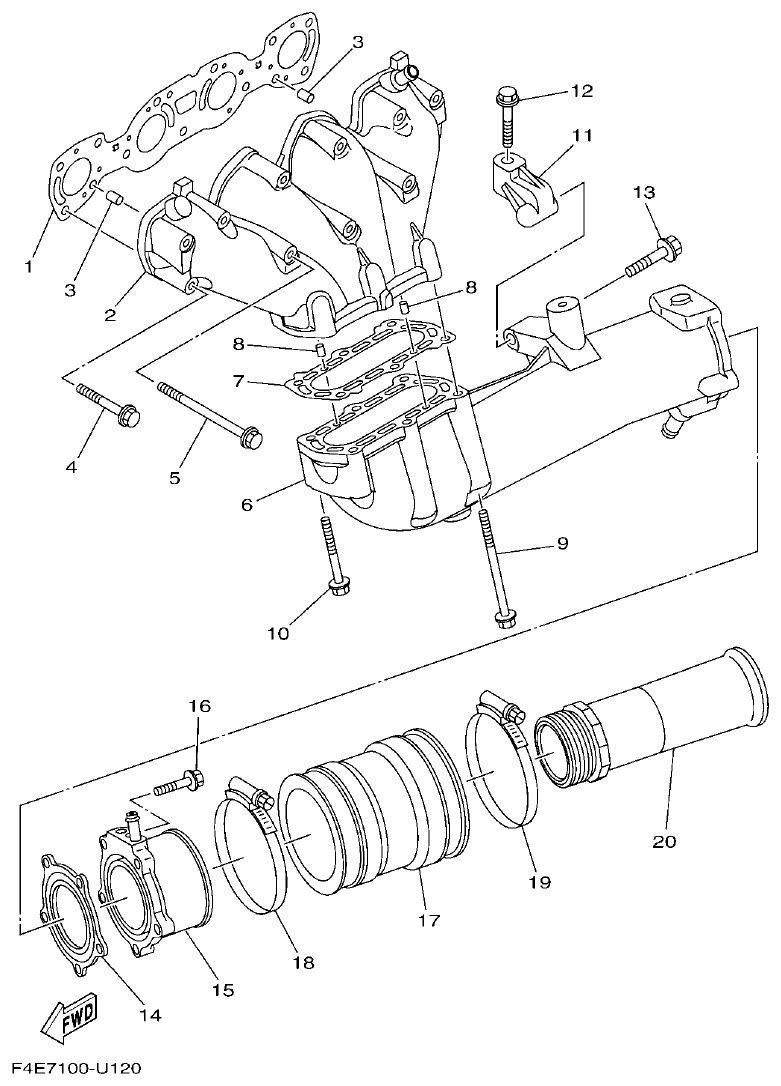

Fig. 12 — EXHAUST 1
20 items
· 4 available products

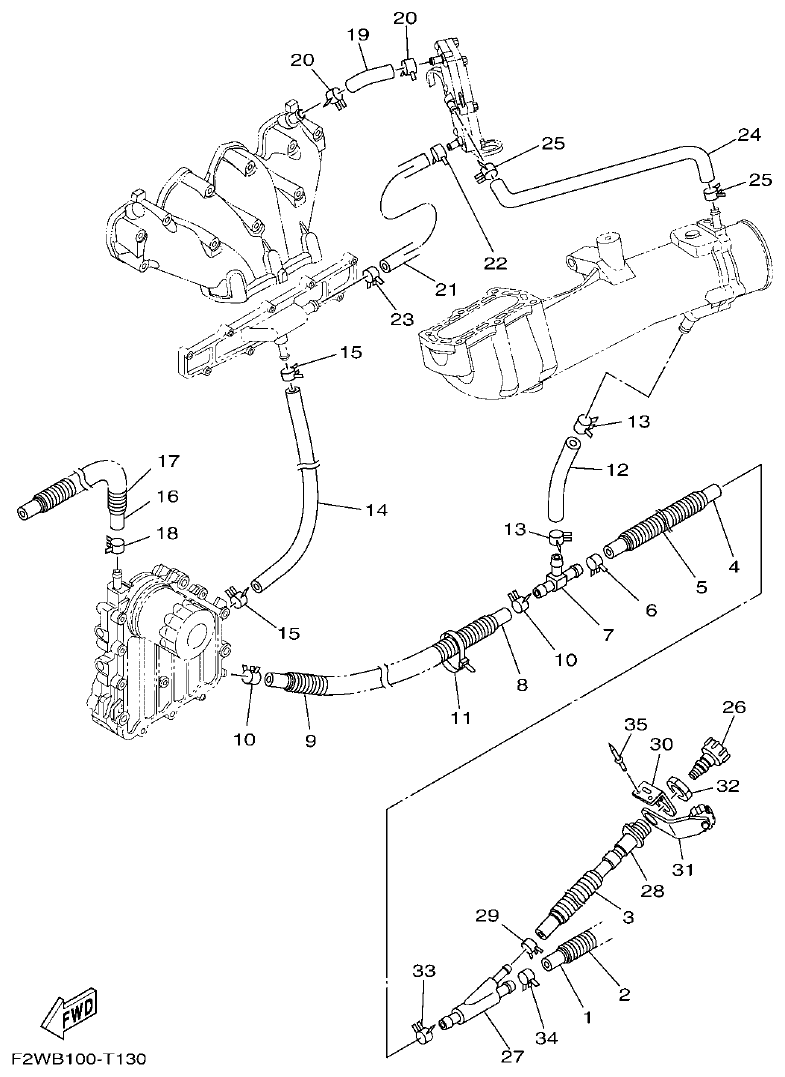

/images/fig-13-exhaust-2.png)
Fig. 13 — EXHAUST 2
35 items
· 7 available products
/images/fig-14-jet-unit-1.png)

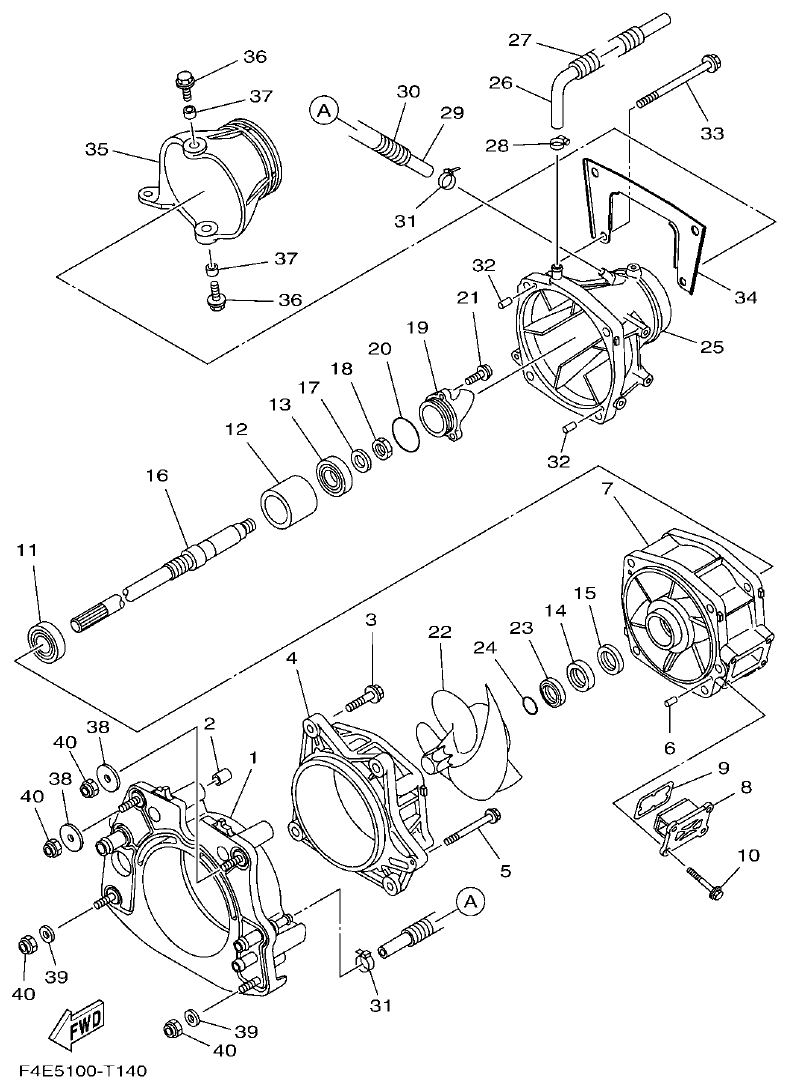

Fig. 14 — JET UNIT 1
40 items
· 7 available products
/images/fig-15-jet-unit-2.png)

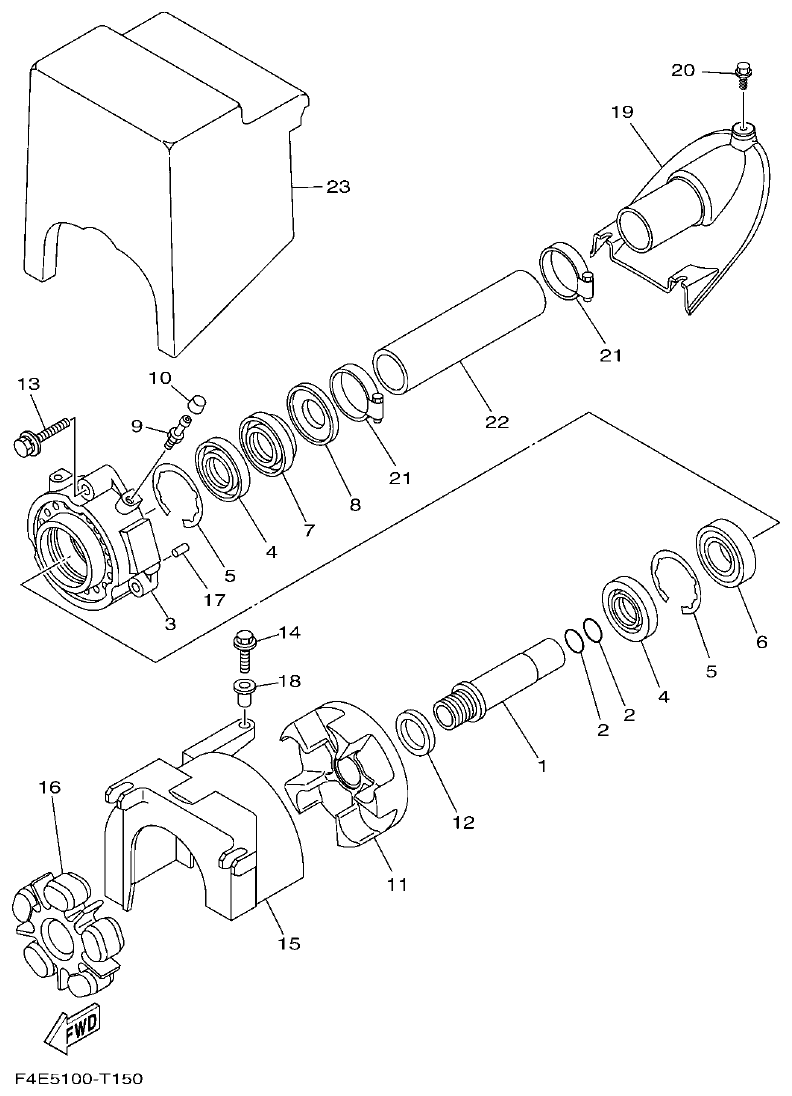

Fig. 15 — JET UNIT 2
23 items
· 8 available products

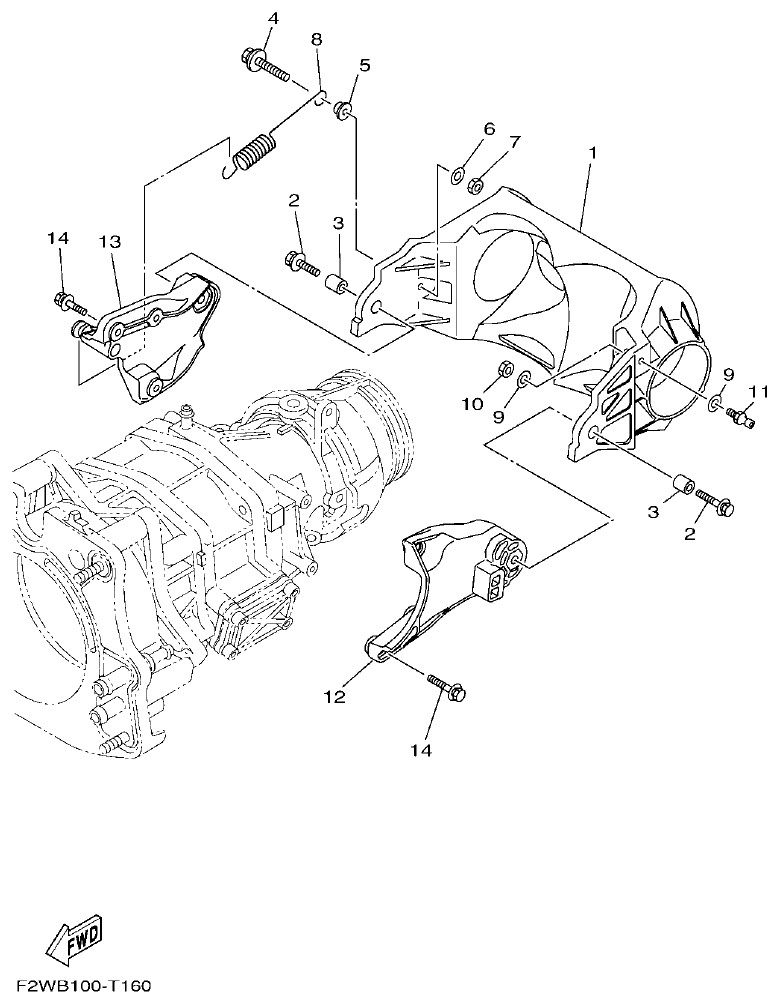

/images/fig-16-jet-unit-3.png)
Fig. 16 — JET UNIT 3
14 items
· 5 available products
/images/fig-17-jet-unit-4.png)

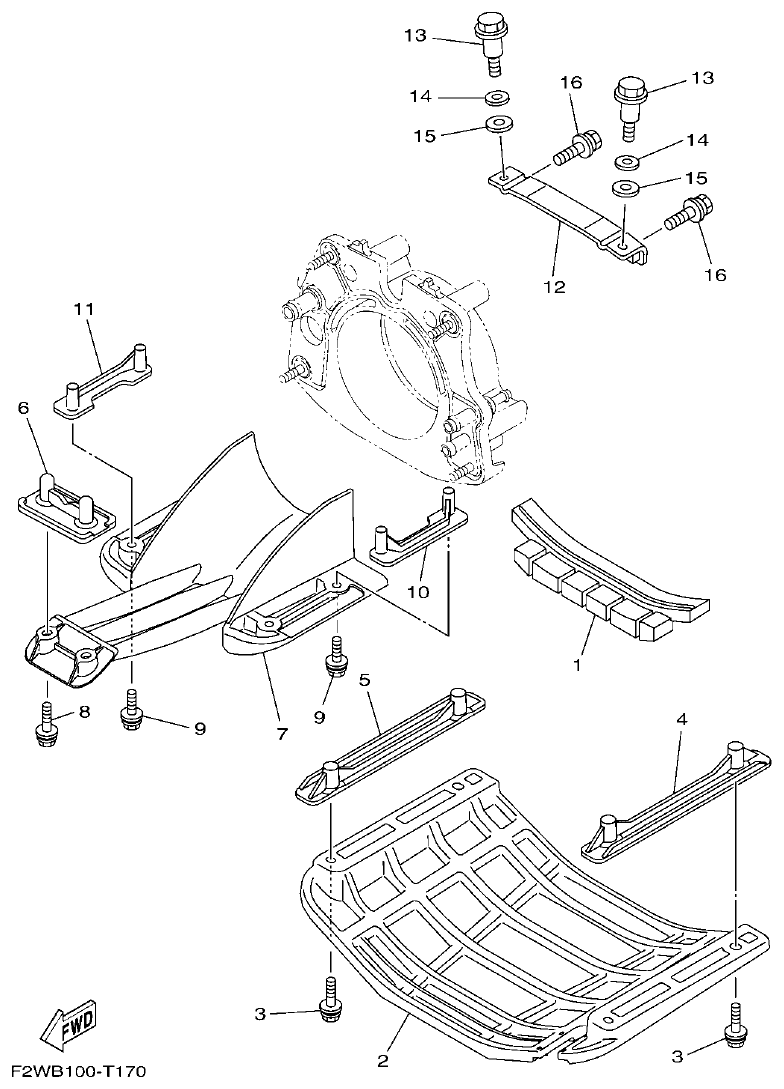

Fig. 17 — JET UNIT 4
16 items
· 3 available products

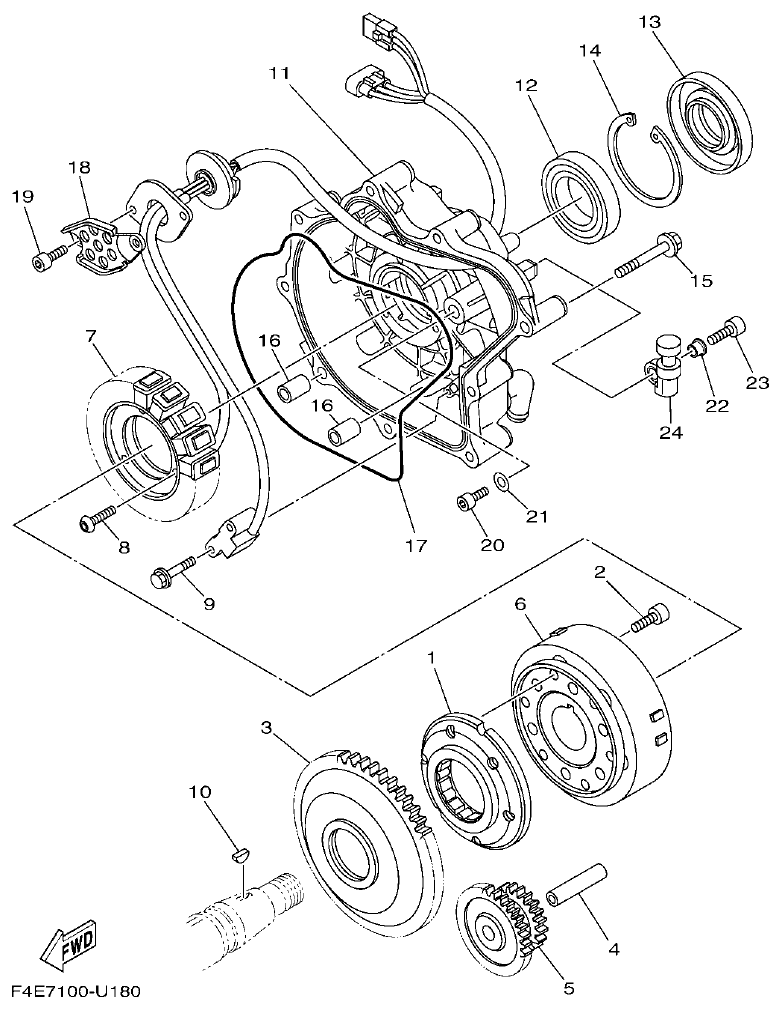

/images/fig-18-generator.png)
Fig. 18 — GENERATOR
24 items
· 7 available products

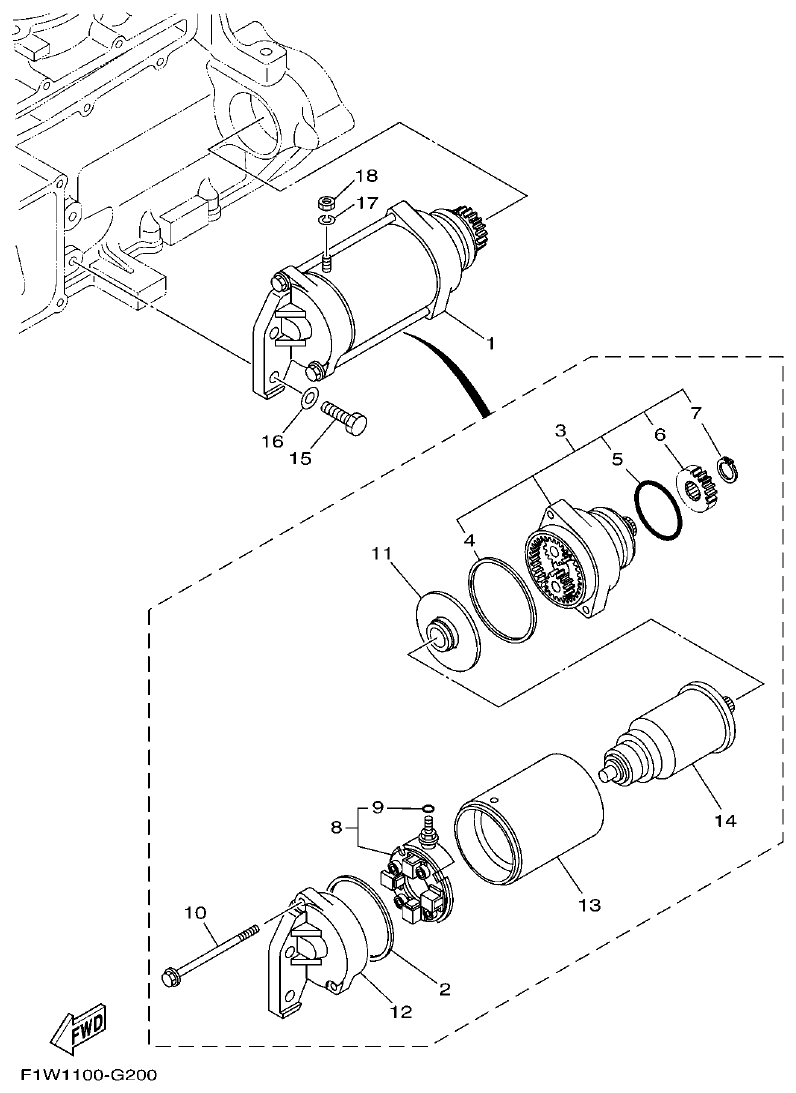

/images/fig-19-starting-motor.png)
Fig. 19 — STARTING MOTOR
18 items
· 6 available products

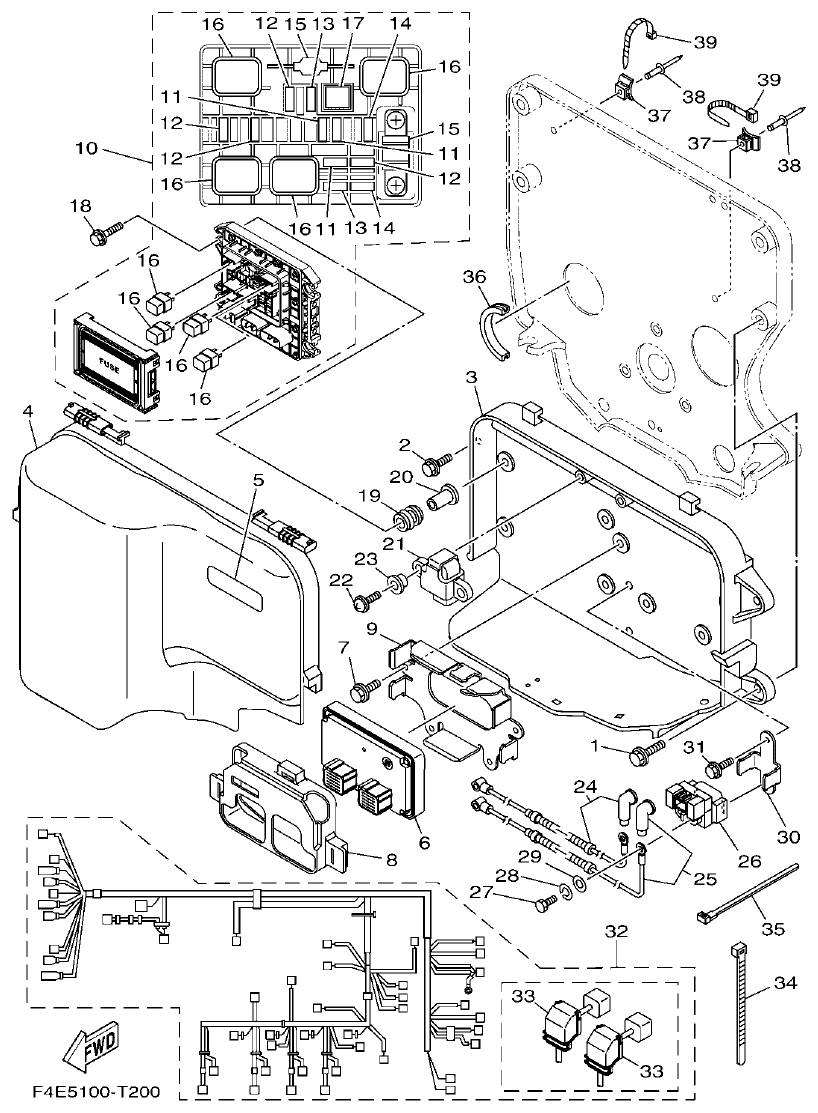

/images/fig-20-electrical-1.png)
Fig. 20 — ELECTRICAL 1
39 items
· 9 available products

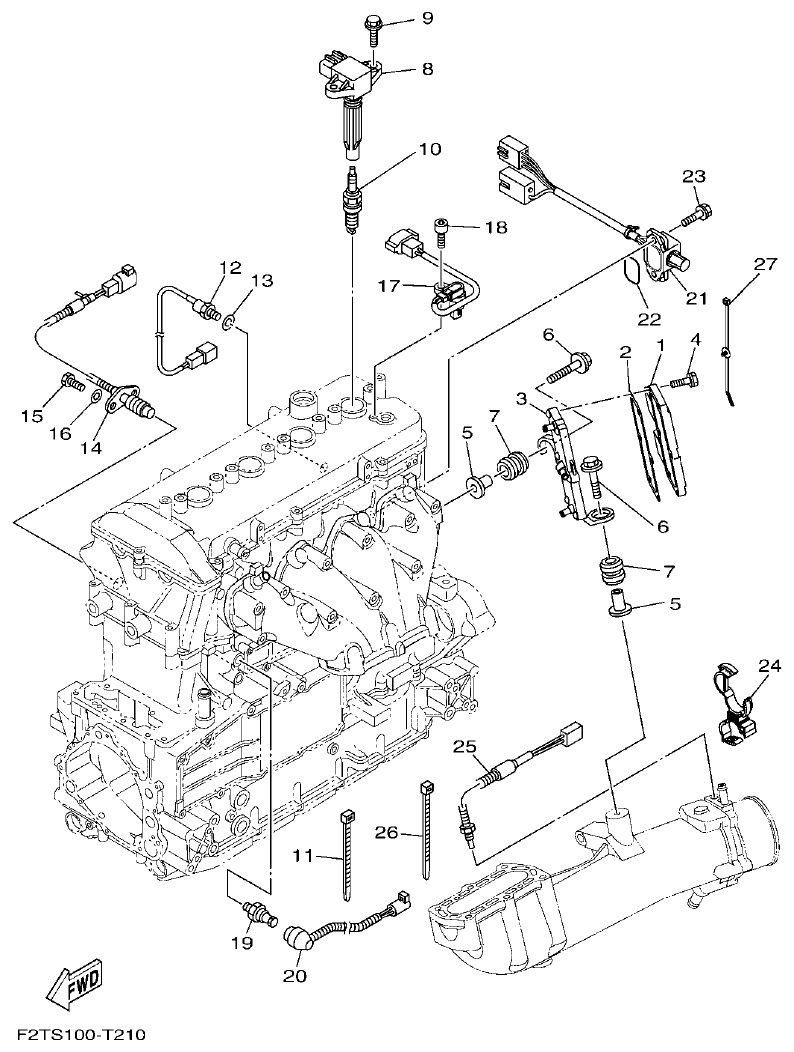

/images/fig-21-electrical-2.png)
Fig. 21 — ELECTRICAL 2
27 items
· 3 available products

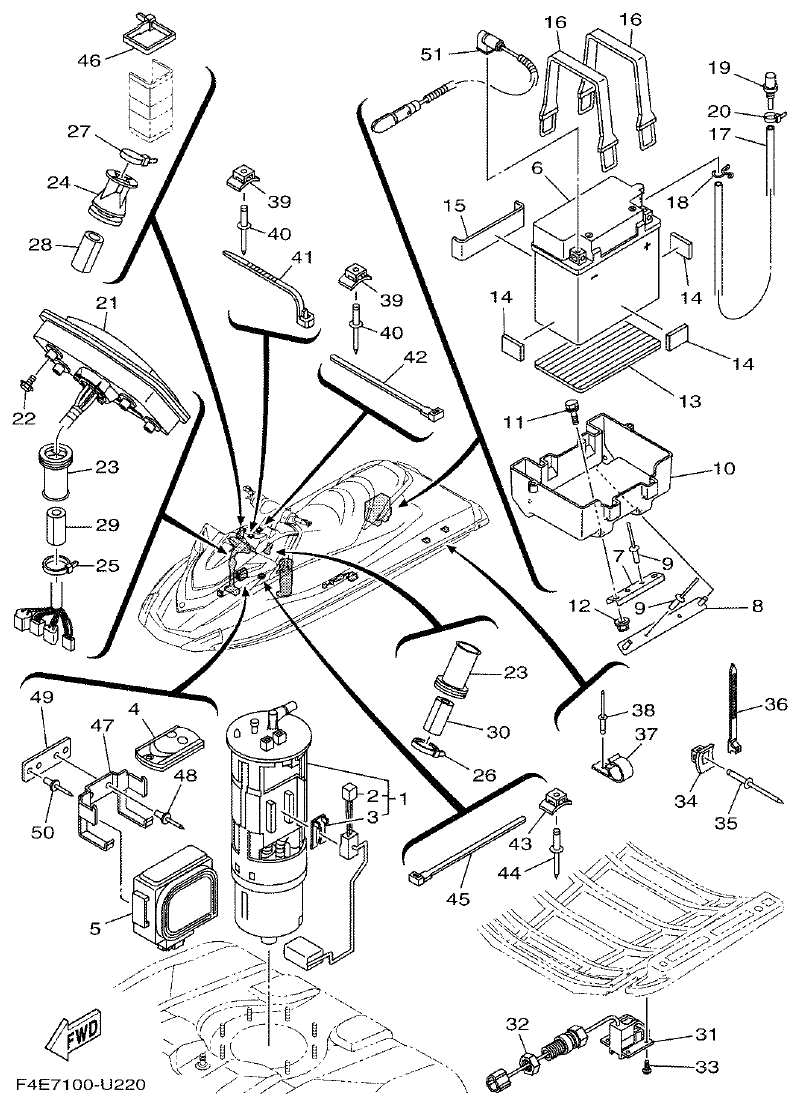

/images/fig-22-electrical-3.png)
Fig. 22 — ELECTRICAL 3
53 items
· 6 available products

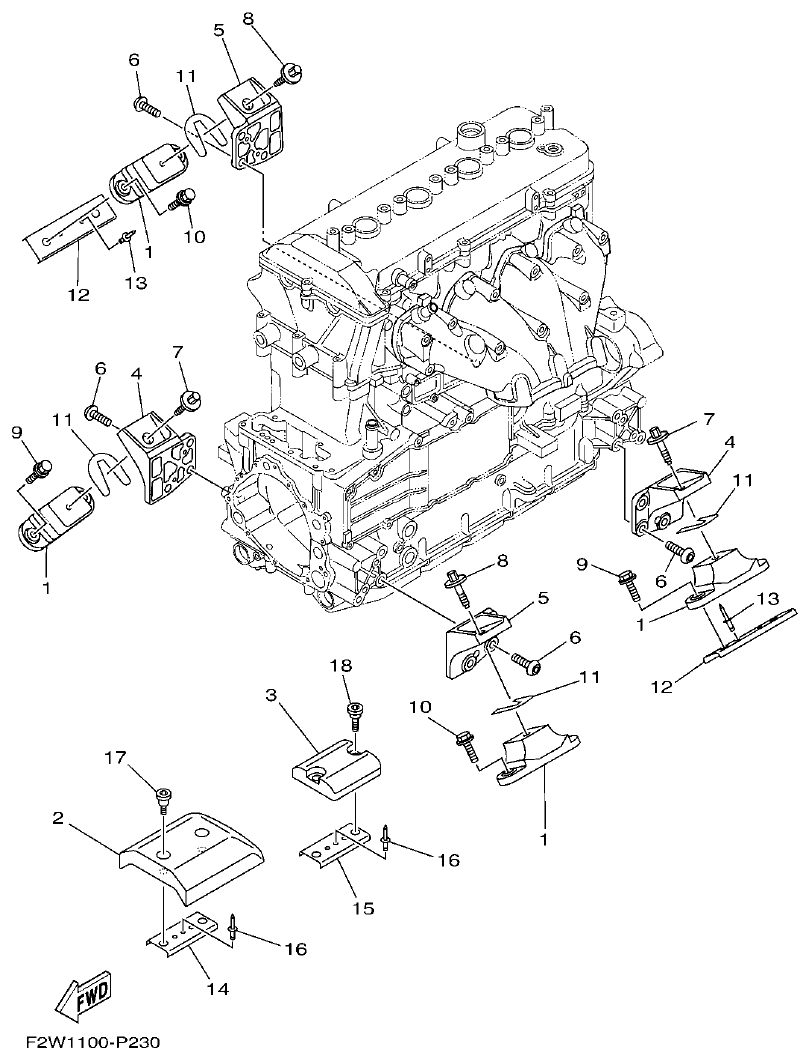

/images/fig-23-engine-mount.png)
Fig. 23 — ENGINE MOUNT
22 items
· 1 available products
/images/fig-24-engine-hatch-1.png)

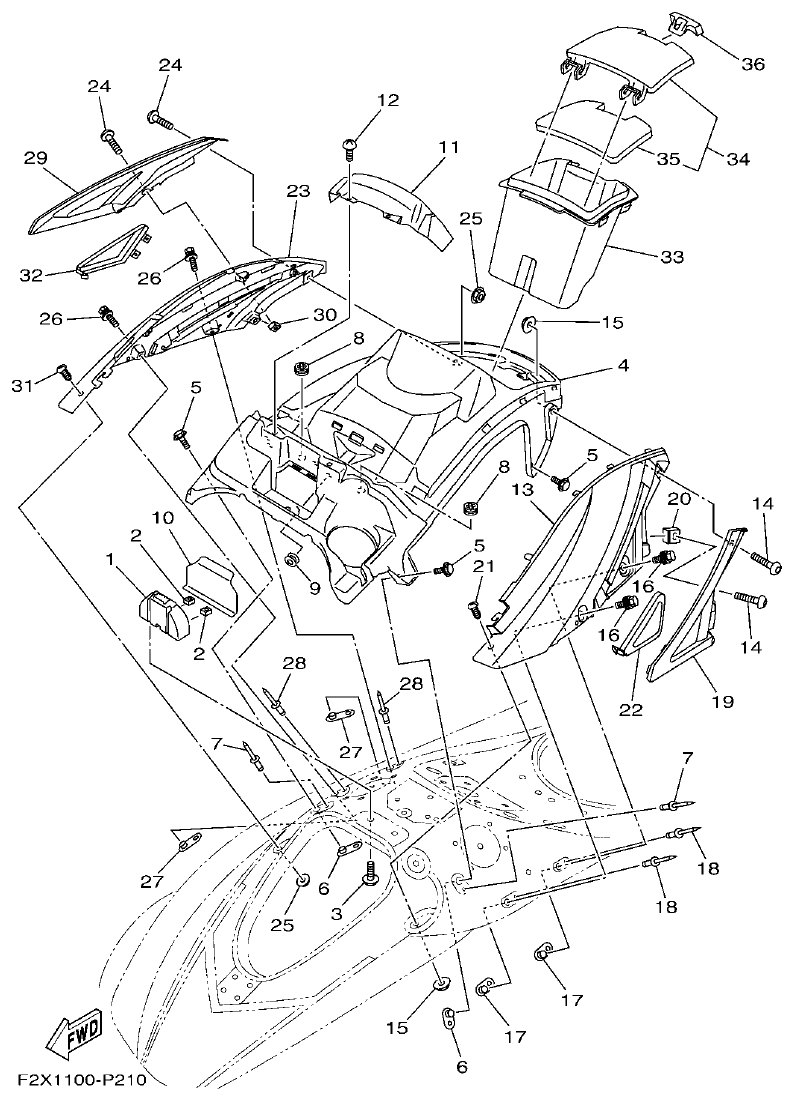

Fig. 24 — ENGINE HATCH 1
42 items
· 7 available products

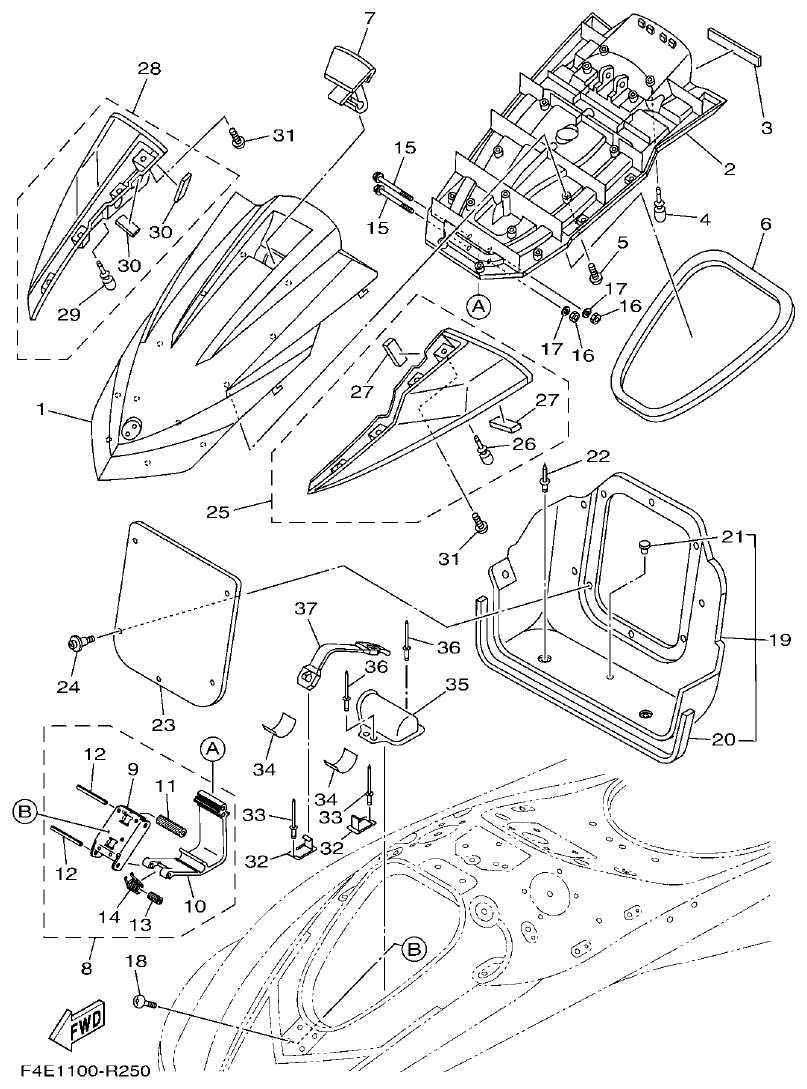

/images/fig-25-engine-hatch-2.png)
Fig. 25 — ENGINE HATCH 2
40 items
· 13 available products

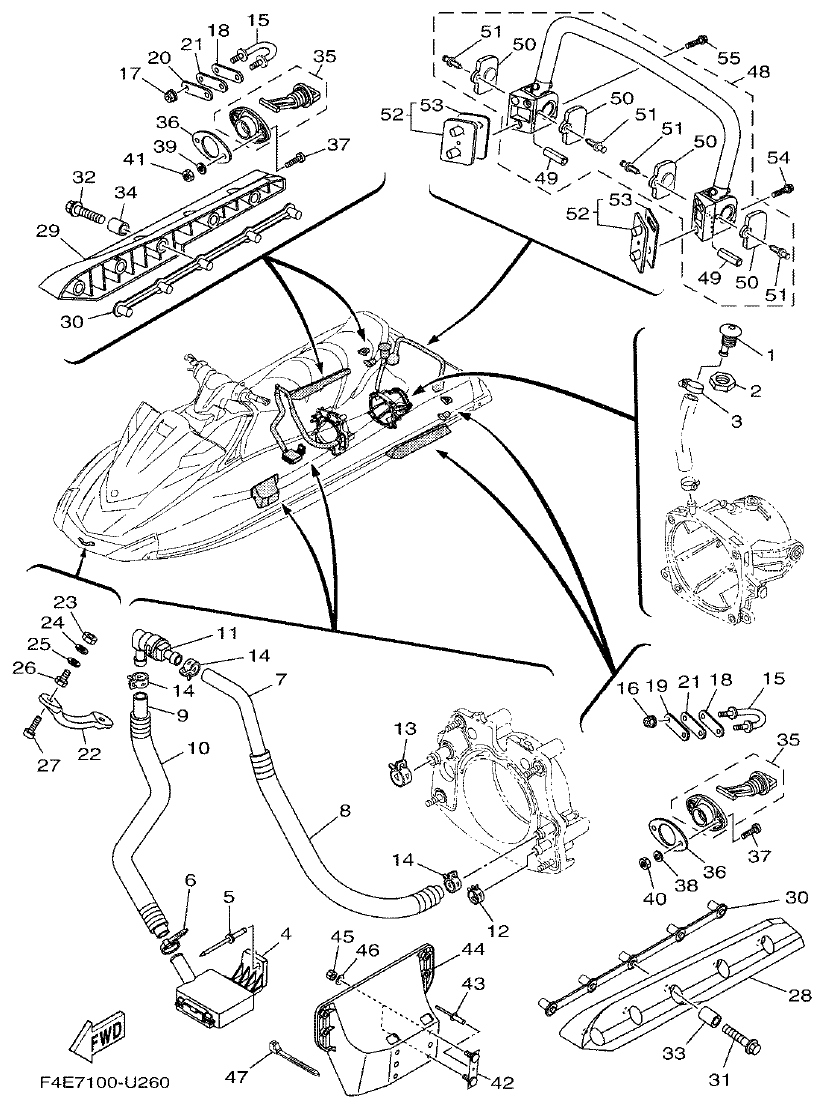

/images/fig-26-hull-deck.png)
Fig. 26 — HULL & DECK
55 items
· 10 available products

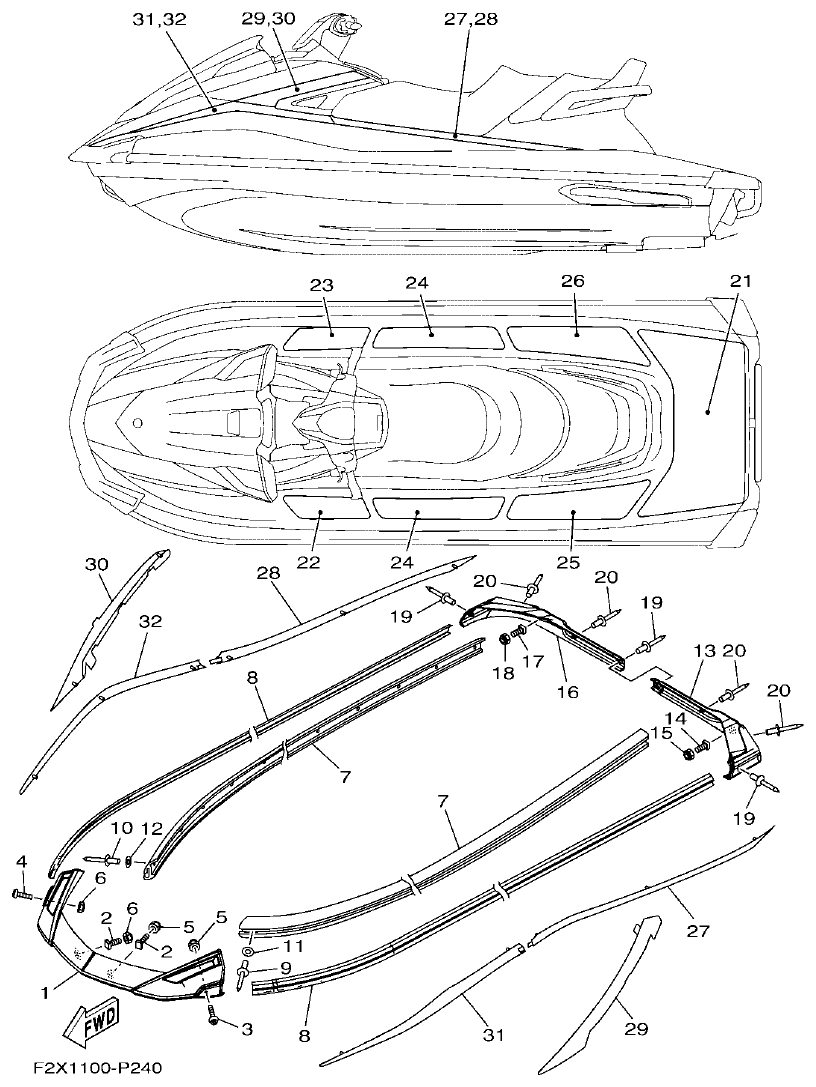

/images/fig-27-gunwale-mat.png)
Fig. 27 — GUNWALE & MAT
39 items
· 9 available products

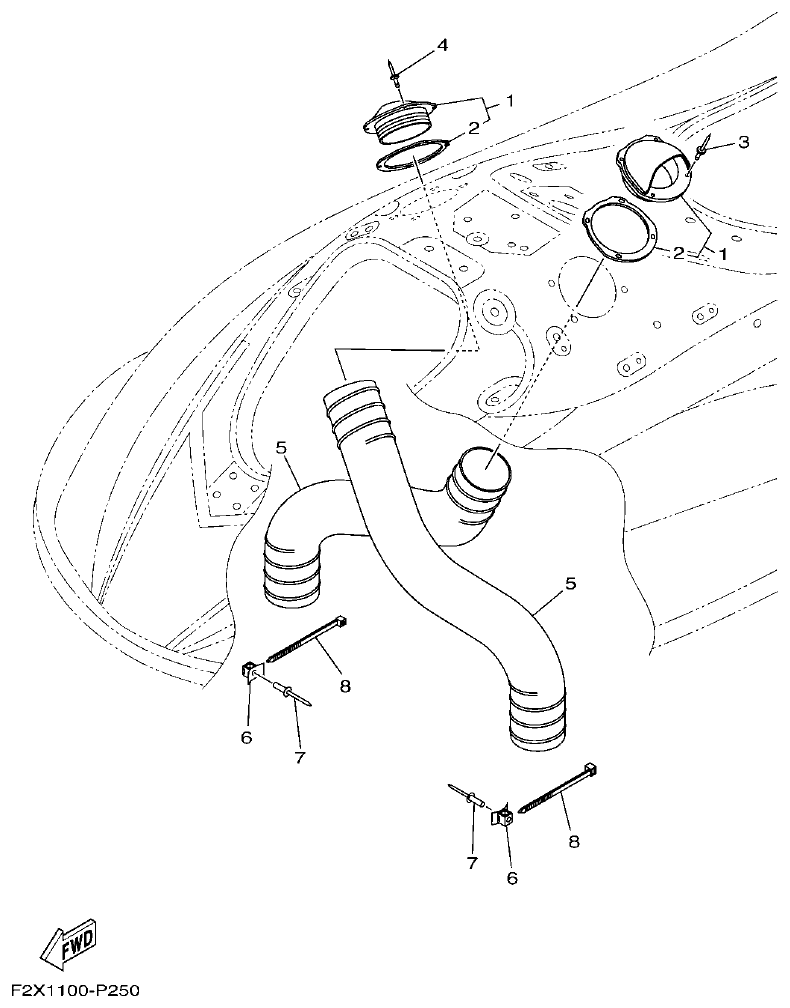

/images/fig-28-ventilation.png)
Fig. 28 — VENTILATION
8 items
· 1 available products

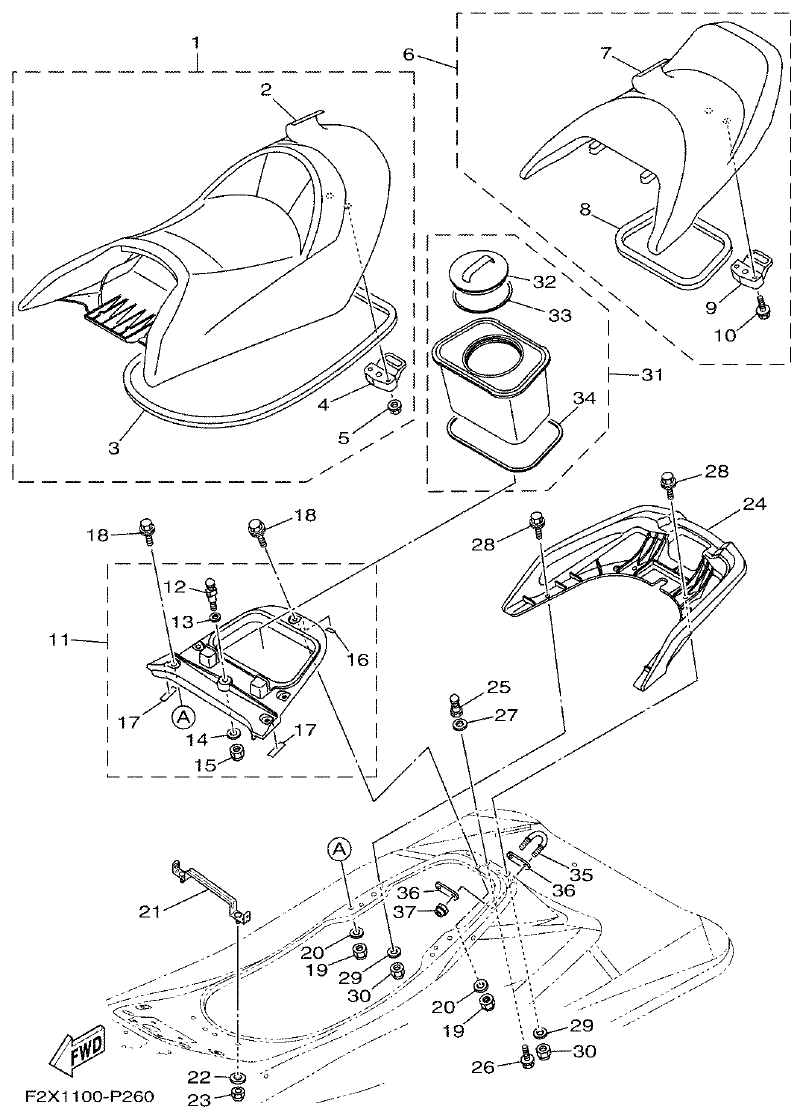

/images/fig-29-seat-under-locker.png)
Fig. 29 — SEAT & UNDER LOCKER
37 items
· 6 available products

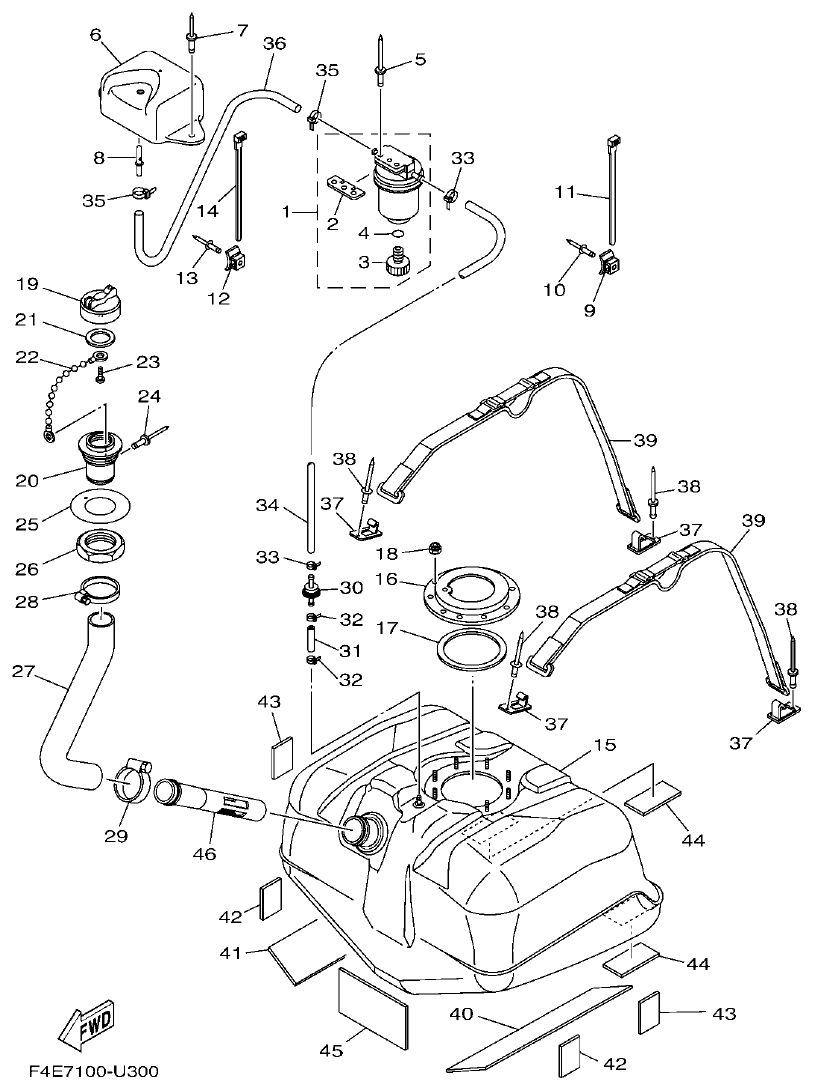

/images/fig-30-fuel-tank.png)
Fig. 30 — FUEL TANK
46 items
· 7 available products

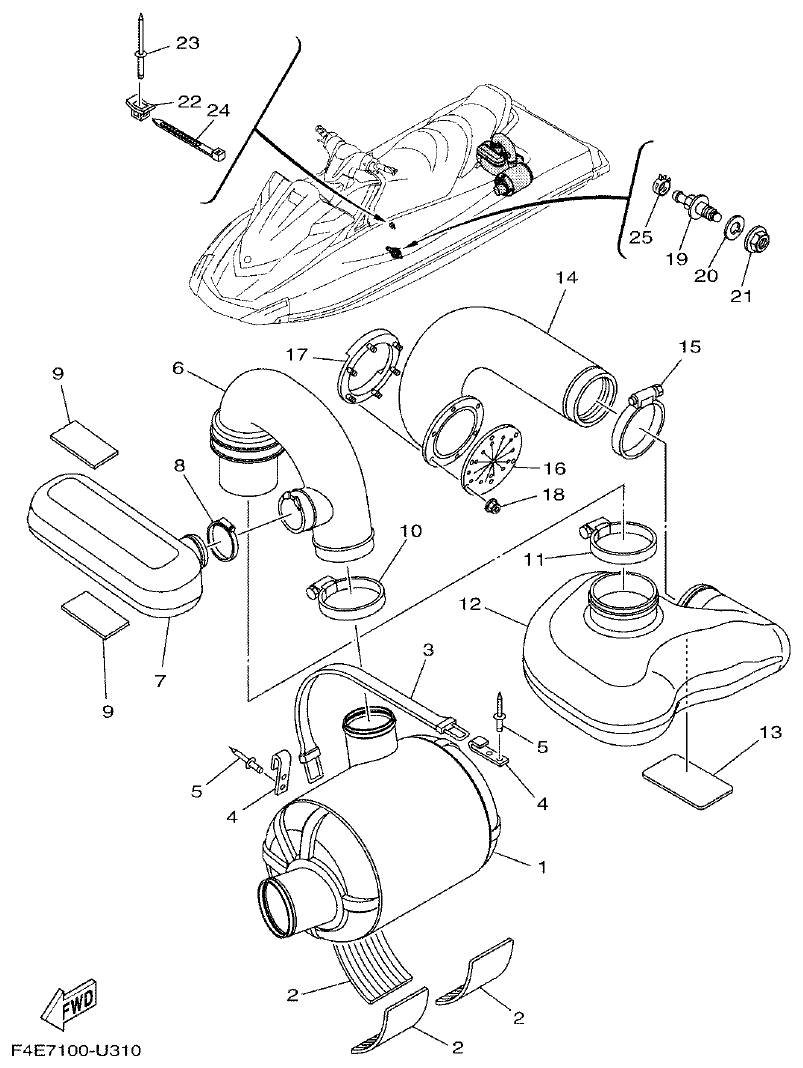

/images/fig-31-exhaust-3.png)
Fig. 31 — EXHAUST 3
25 items
· 8 available products

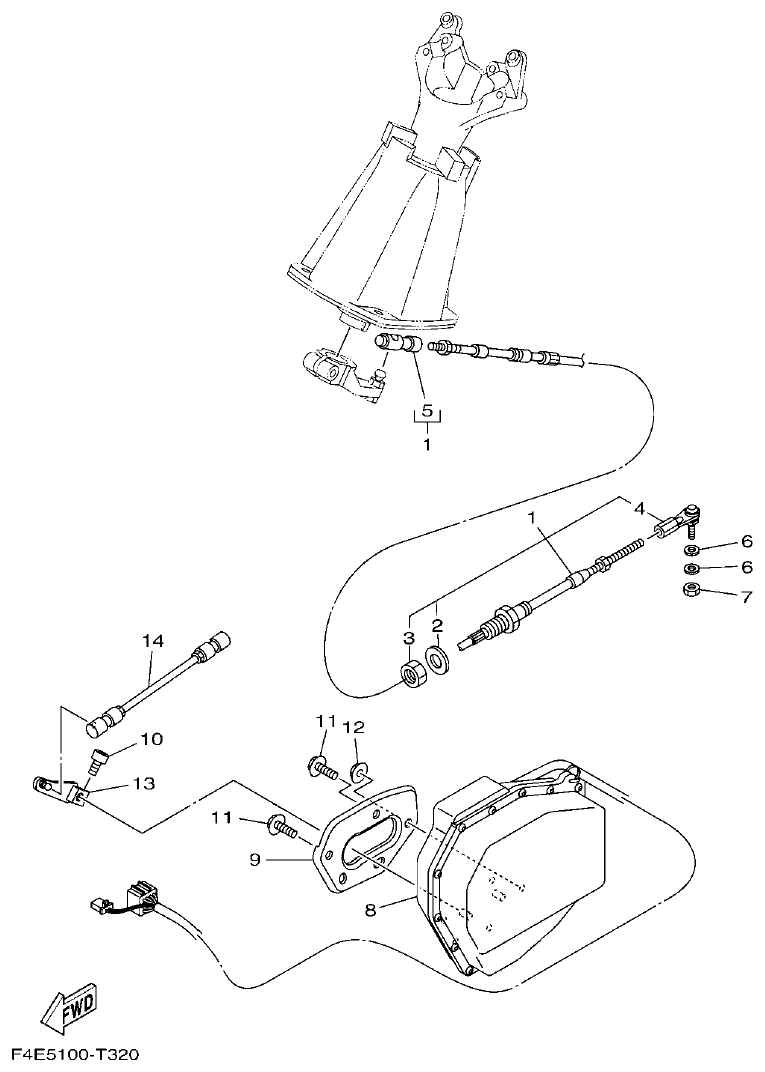

/images/fig-32-control-cable.png)
Fig. 32 — CONTROL CABLE
15 items
· 4 available products

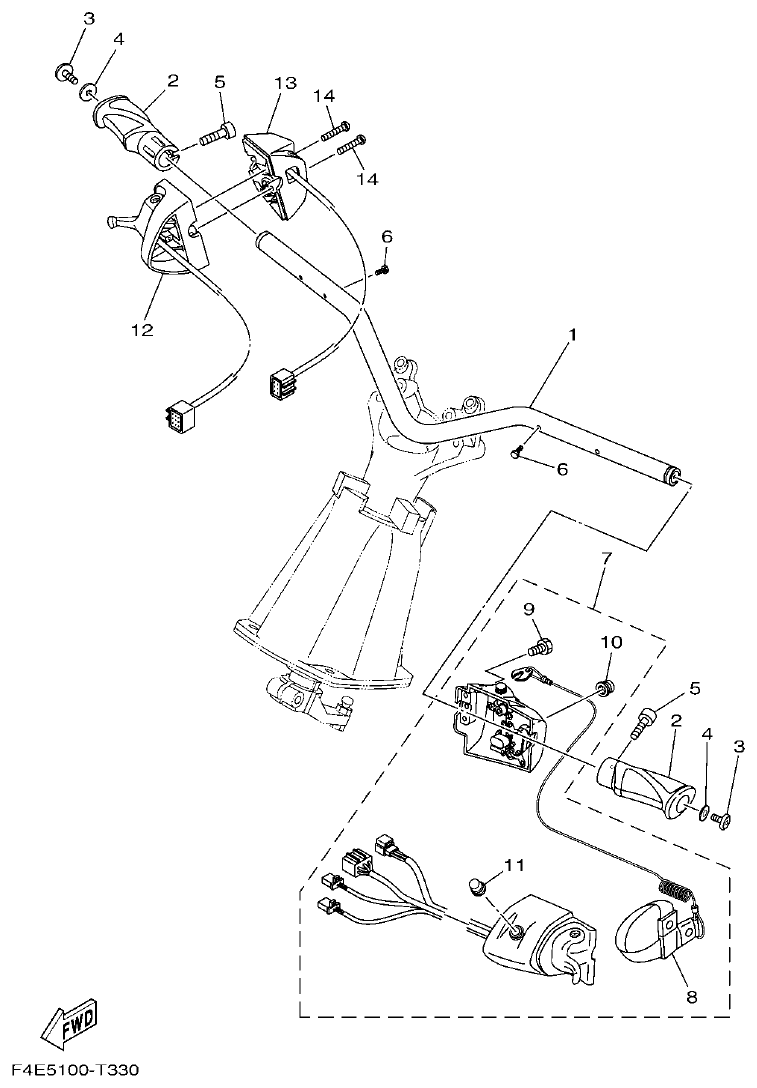

/images/fig-33-steering-1.png)
Fig. 33 — STEERING 1
14 items
· 3 available products

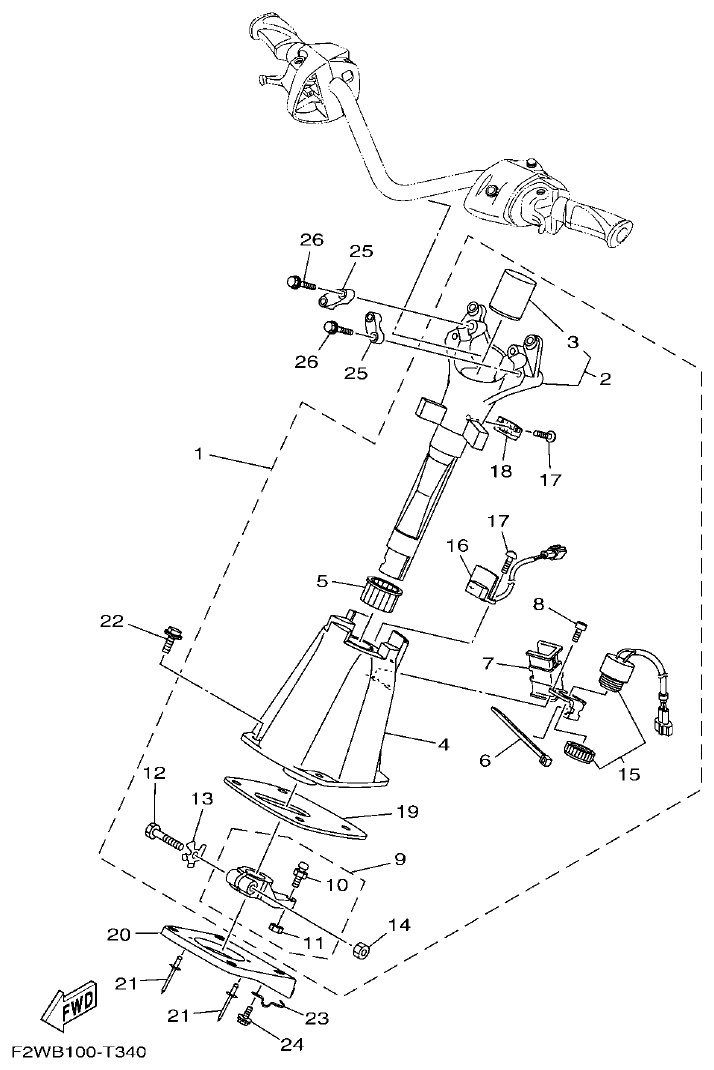

/images/fig-34-steering-2.png)
Fig. 34 — STEERING 2
26 items
· 6 available products
/images/fig-35-steering-3.png)

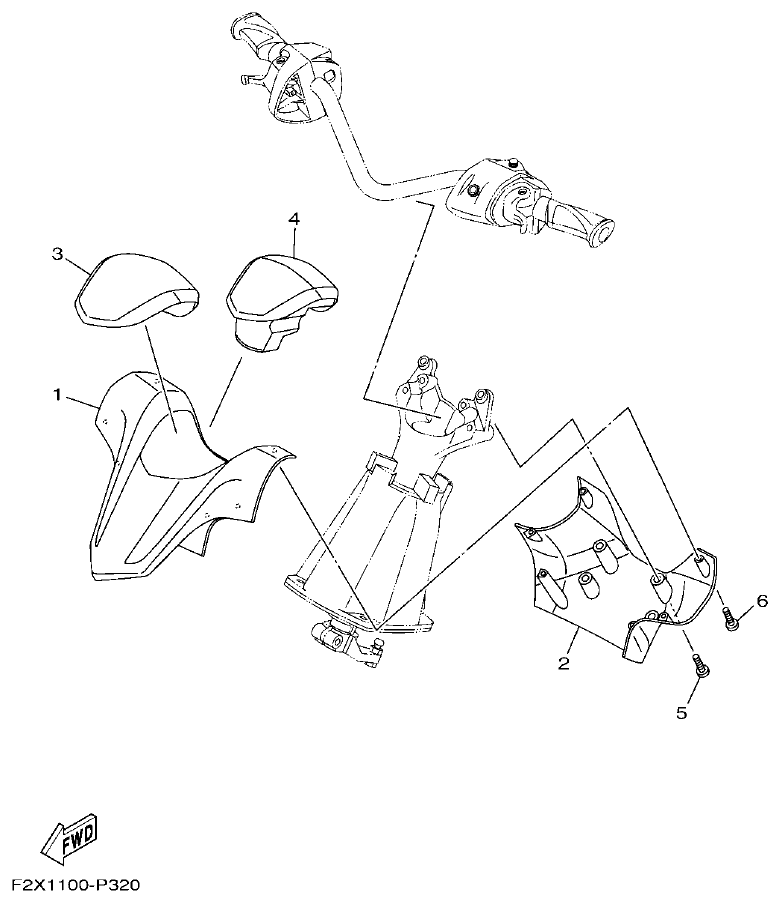

Fig. 35 — STEERING 3
7 items
/images/fig-36-graphics.png)

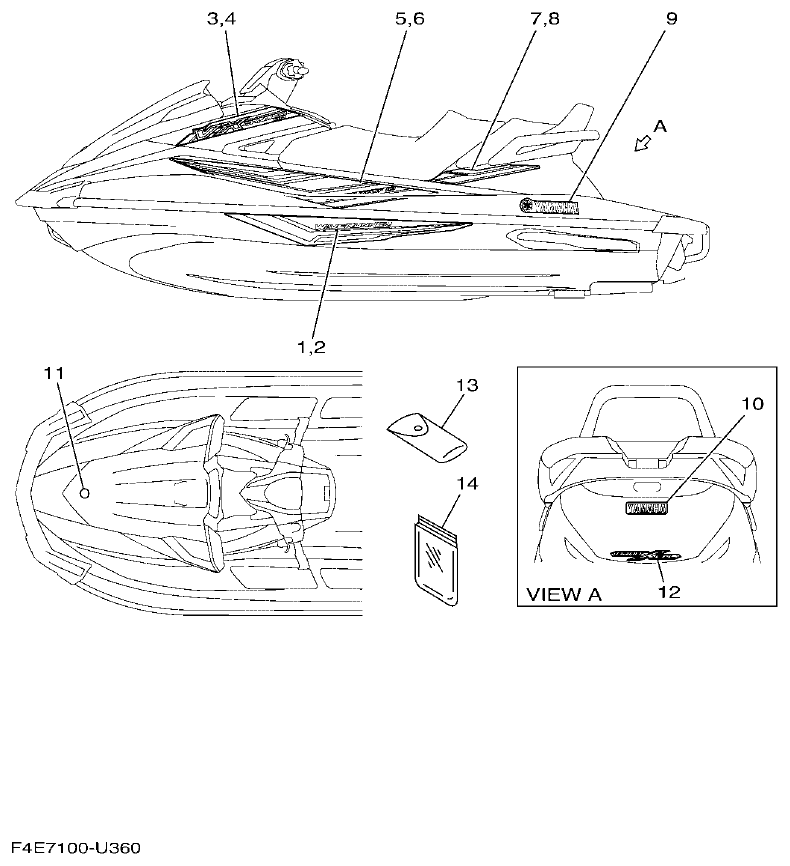

Fig. 36 — GRAPHICS
24 items
· 1 available products

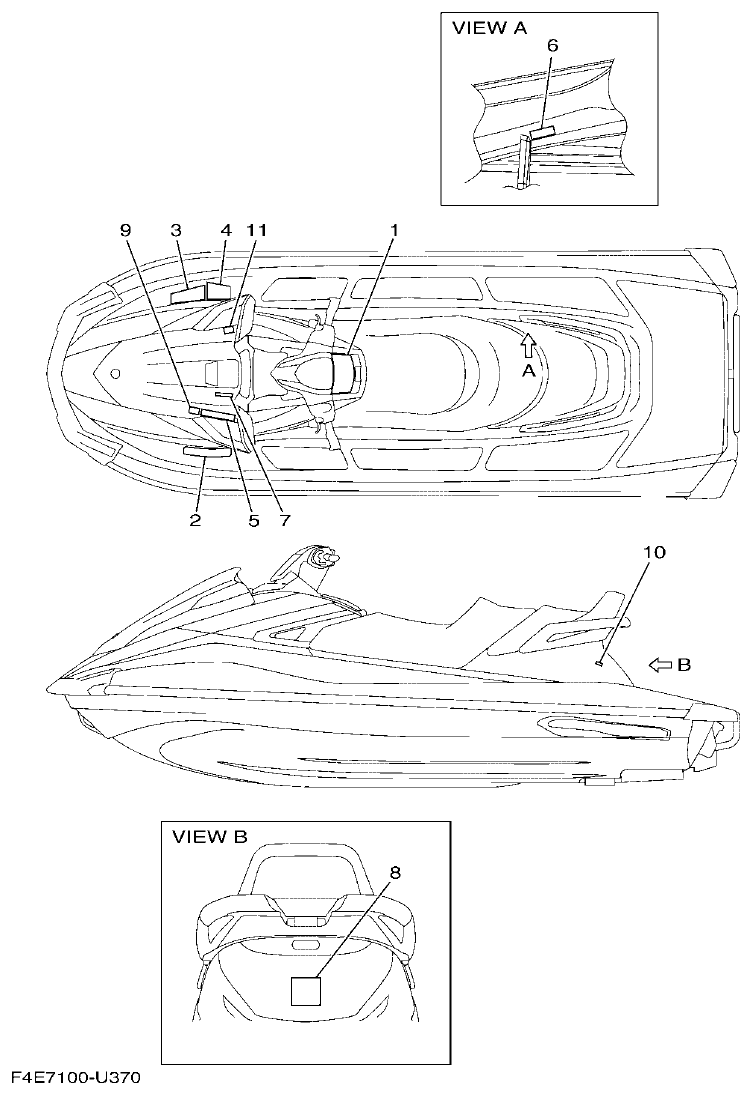

/images/fig-37-important-labels.png)
Fig. 37 — IMPORTANT LABELS
14 items
· 1 available products

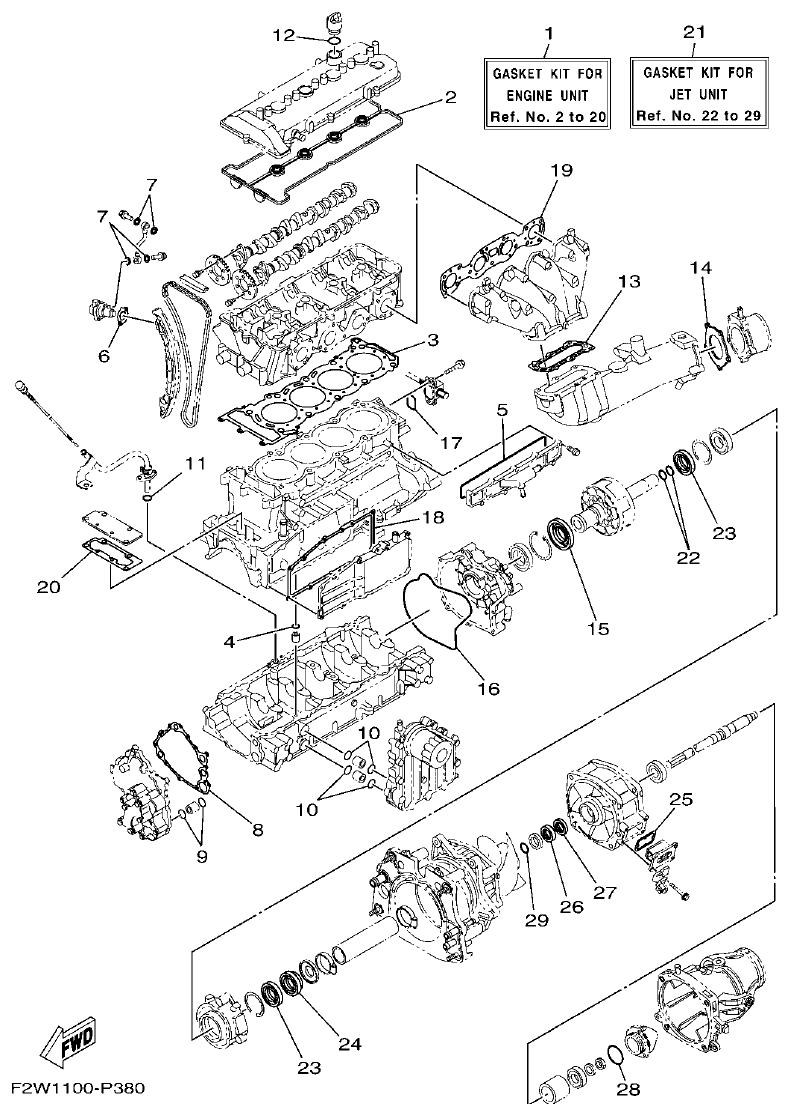

/images/fig-38-repair-kit-1.png)
Fig. 38 — REPAIR KIT 1
29 items
· 12 available products
