Yamaha VX700-K-F2V1-2011(OMNMARKET-PUREWHITE) Parts Catalog
Browse 29 catalog sections for Yamaha VX700-K-F2V1-2011(OMNMARKET-PUREWHITE). Open a section to view the parts diagram, reference numbers and available products.

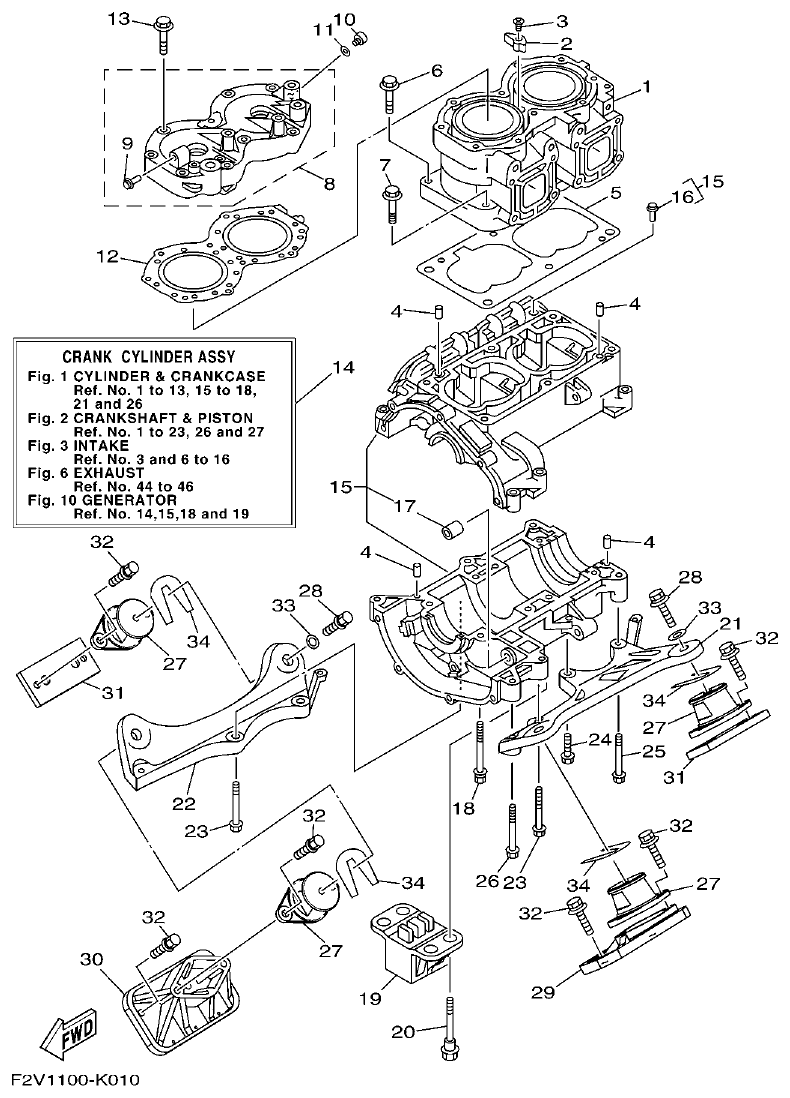

_decrypted/images/fig-1-cylinder-crankcase.png)
Fig. 1 — CYLINDER & CRANKCASE
21 items
· 8 available products

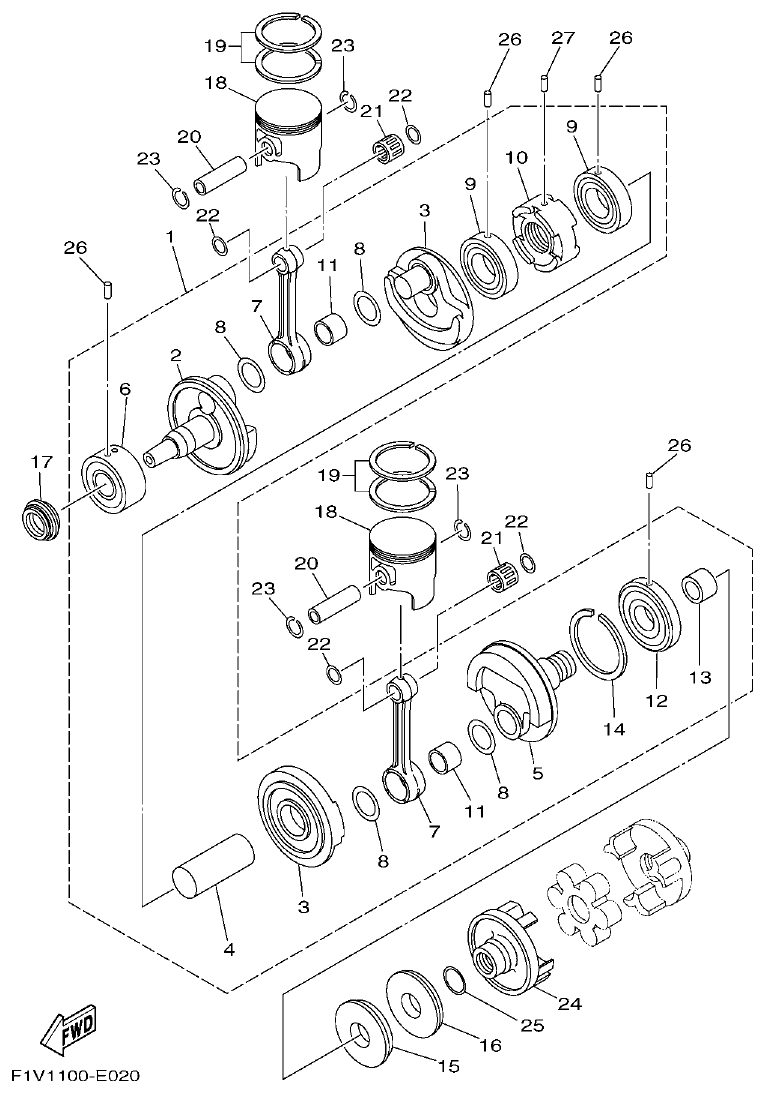

_decrypted/images/fig-2-crankshaft-piston.png)
Fig. 2 — CRANKSHAFT & PISTON
18 items
· 13 available products
_decrypted/images/fig-3-intake.png)

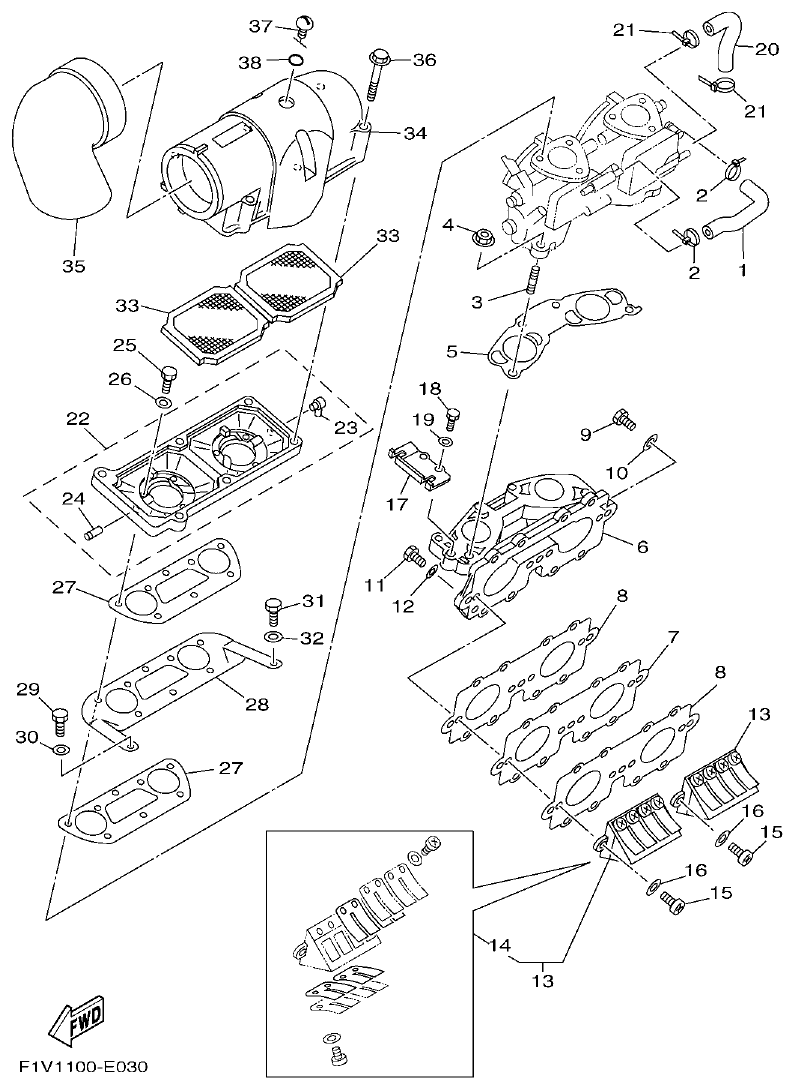

Fig. 3 — INTAKE
18 items
· 9 available products

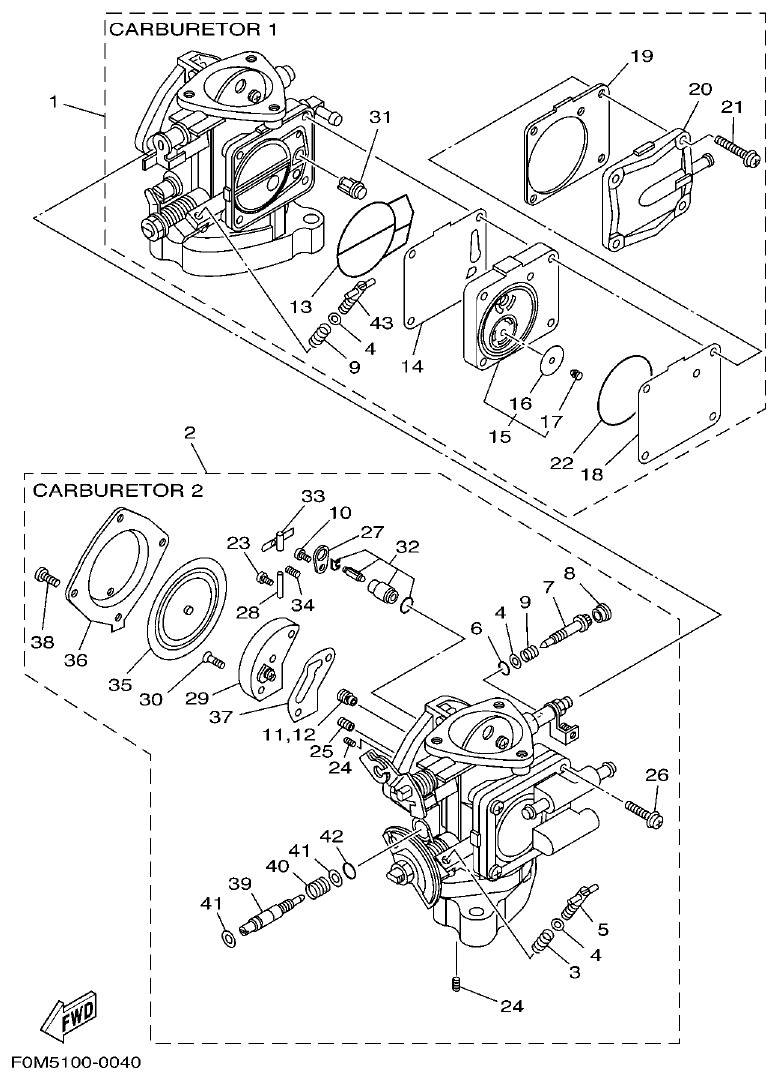

_decrypted/images/fig-4-carburetor.png)
Fig. 4 — CARBURETOR
41 items
· 19 available products
_decrypted/images/fig-5-oil-pump.png)

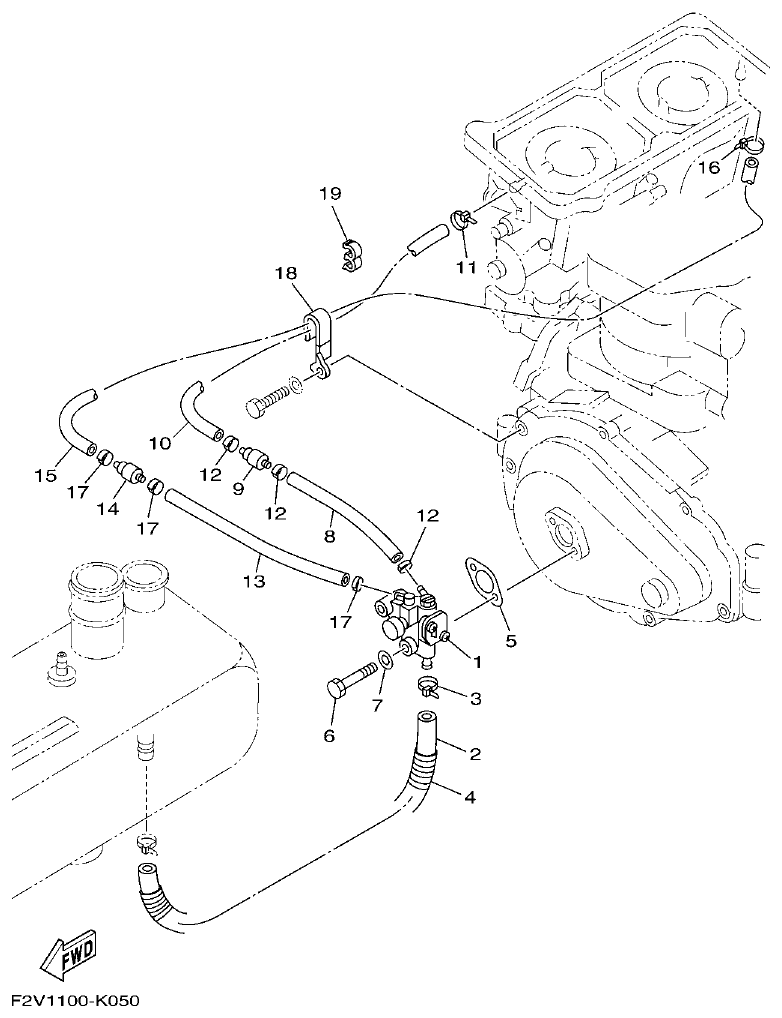

Fig. 5 — OIL PUMP
4 items
· 2 available products

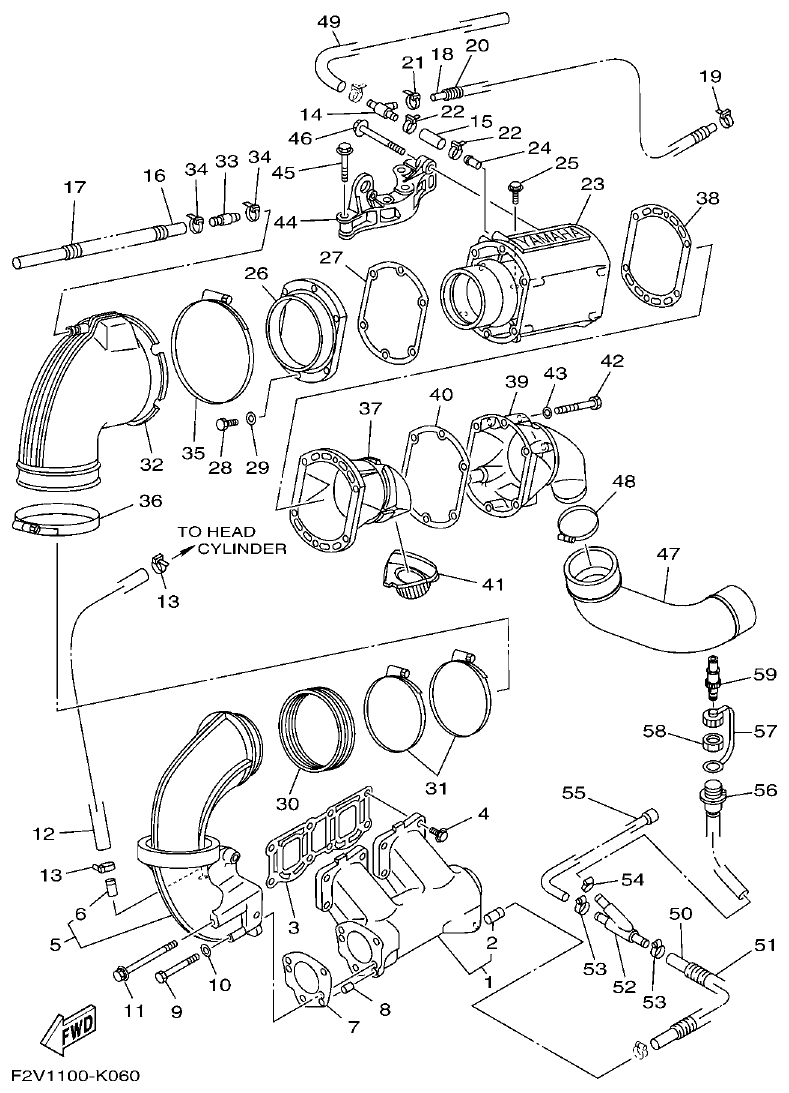

_decrypted/images/fig-6-exhaust-1.png)
Fig. 6 — EXHAUST 1
27 items
· 11 available products

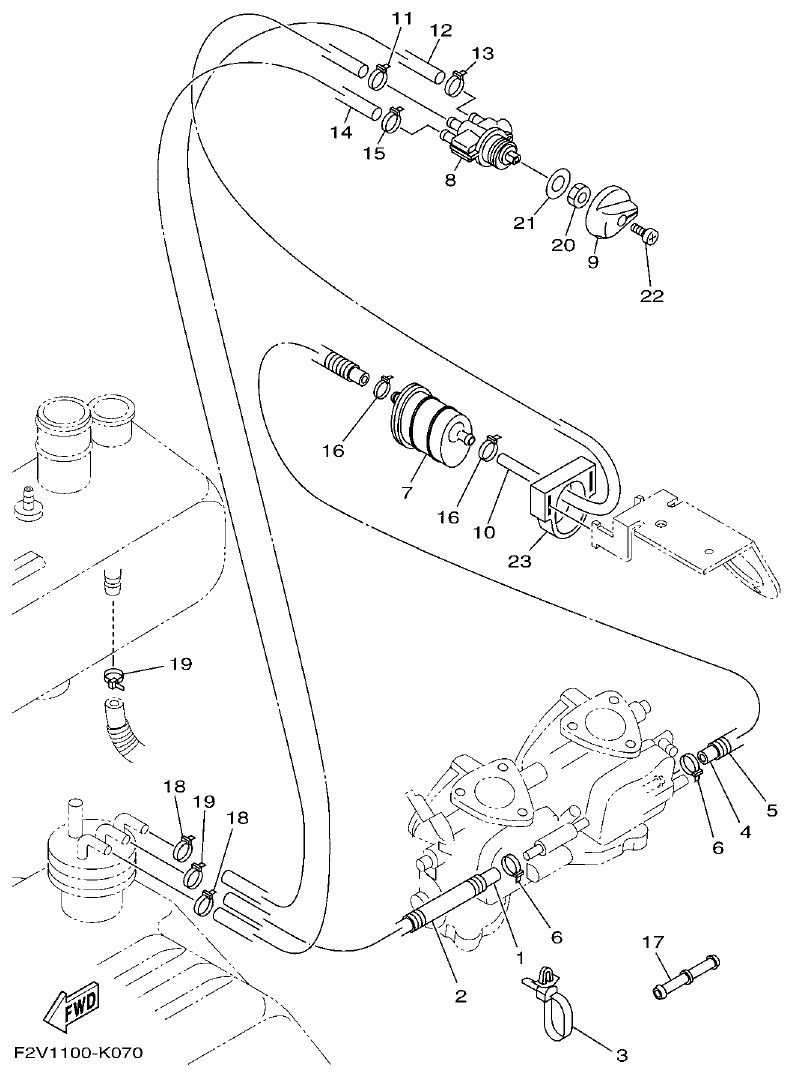

_decrypted/images/fig-7-fuel.png)
Fig. 7 — FUEL
7 items
· 1 available products

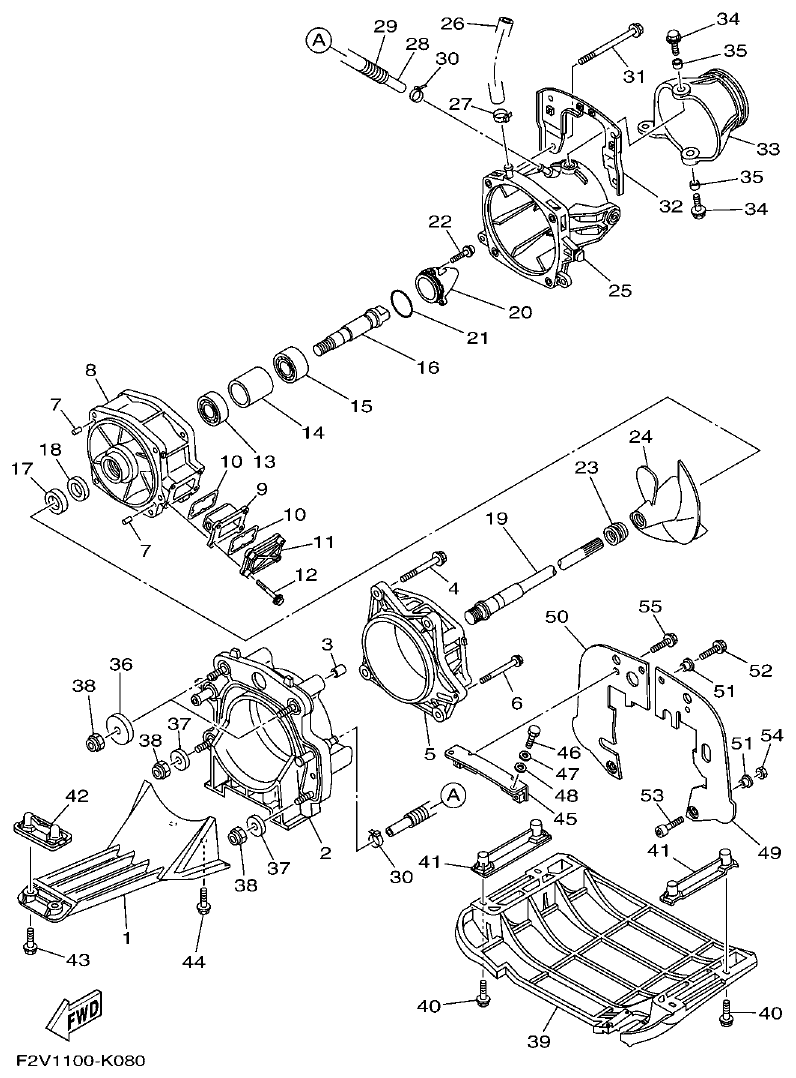

_decrypted/images/fig-8-jet-unit-1.png)
Fig. 8 — JET UNIT 1
23 items
· 8 available products

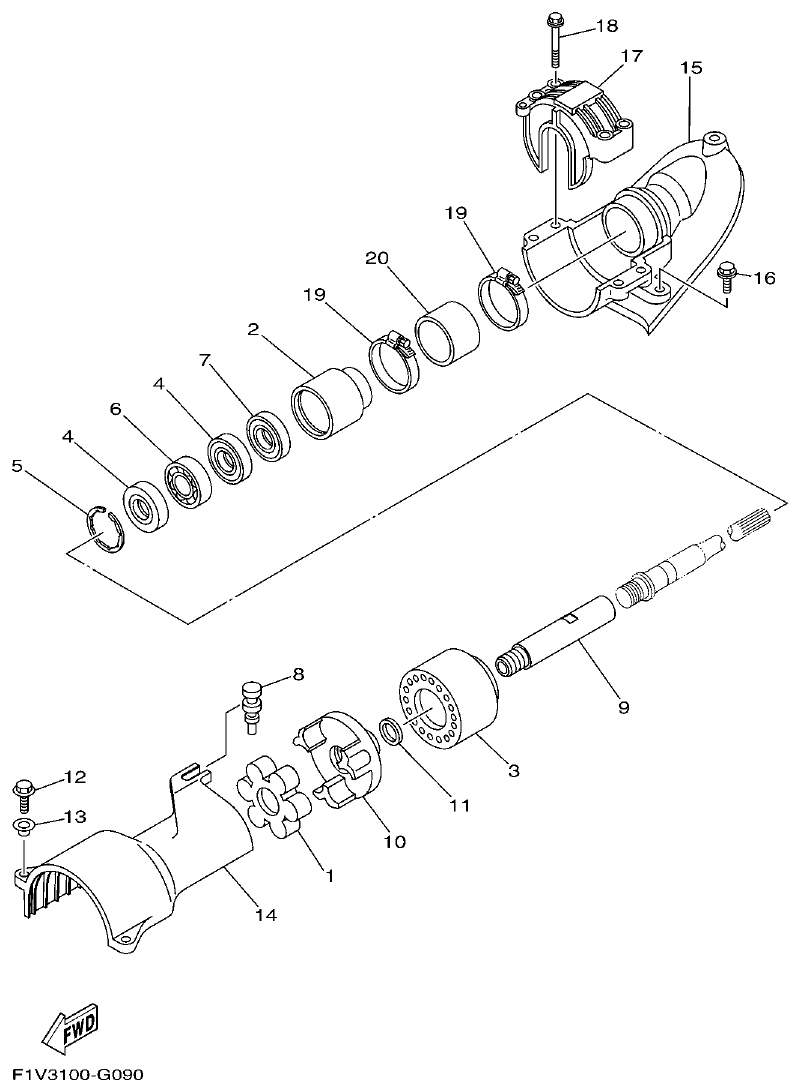

_decrypted/images/fig-9-jet-unit-2.png)
Fig. 9 — JET UNIT 2
9 items
· 4 available products
_decrypted/images/fig-10-generator.png)

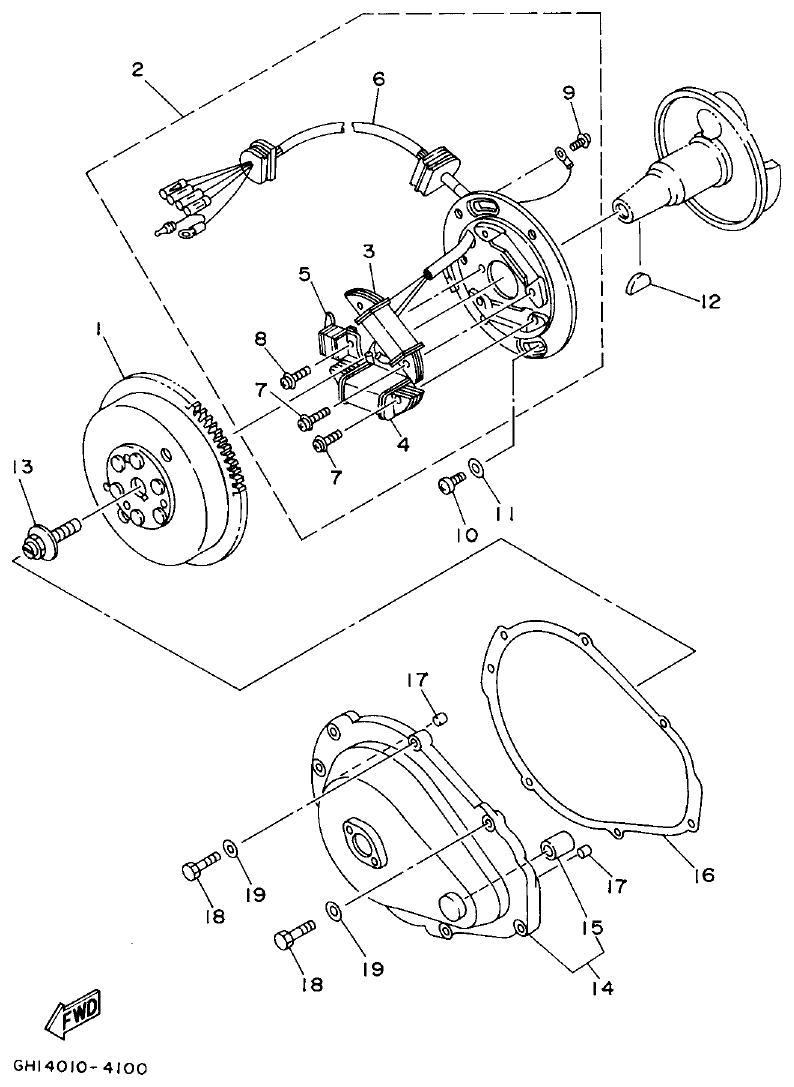

Fig. 10 — GENERATOR
8 items
· 5 available products

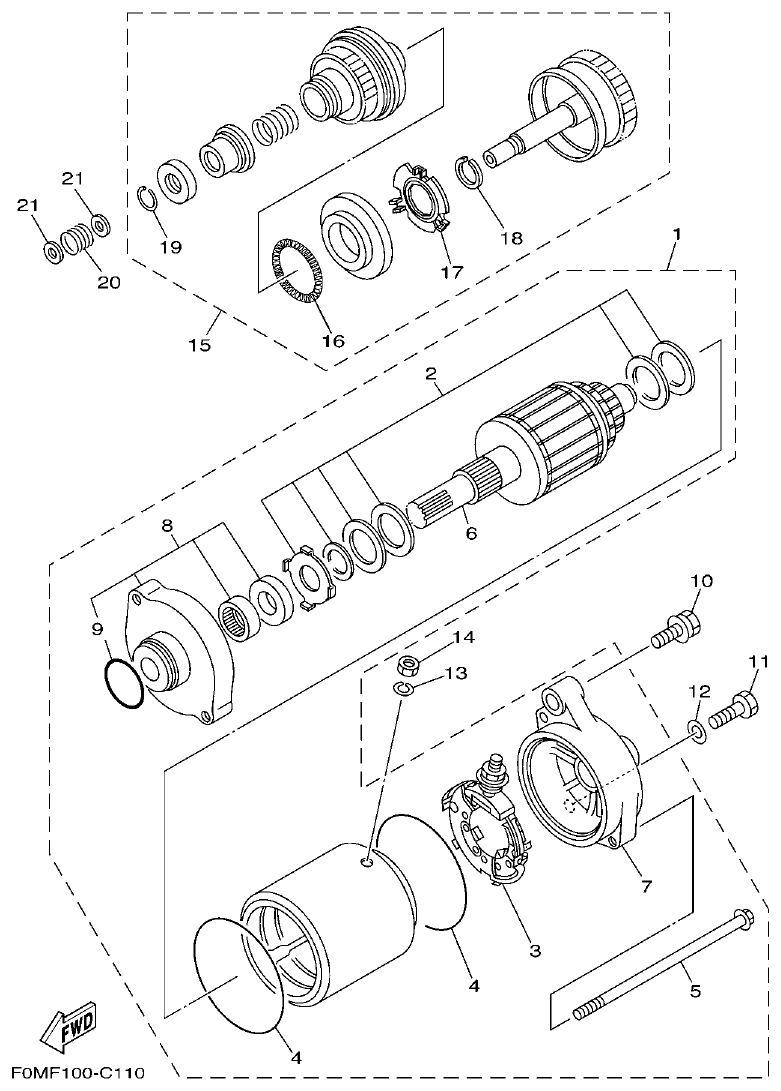

_decrypted/images/fig-11-starting-motor.png)
Fig. 11 — STARTING MOTOR
12 items
· 7 available products
_decrypted/images/fig-12-electrical-1.png)

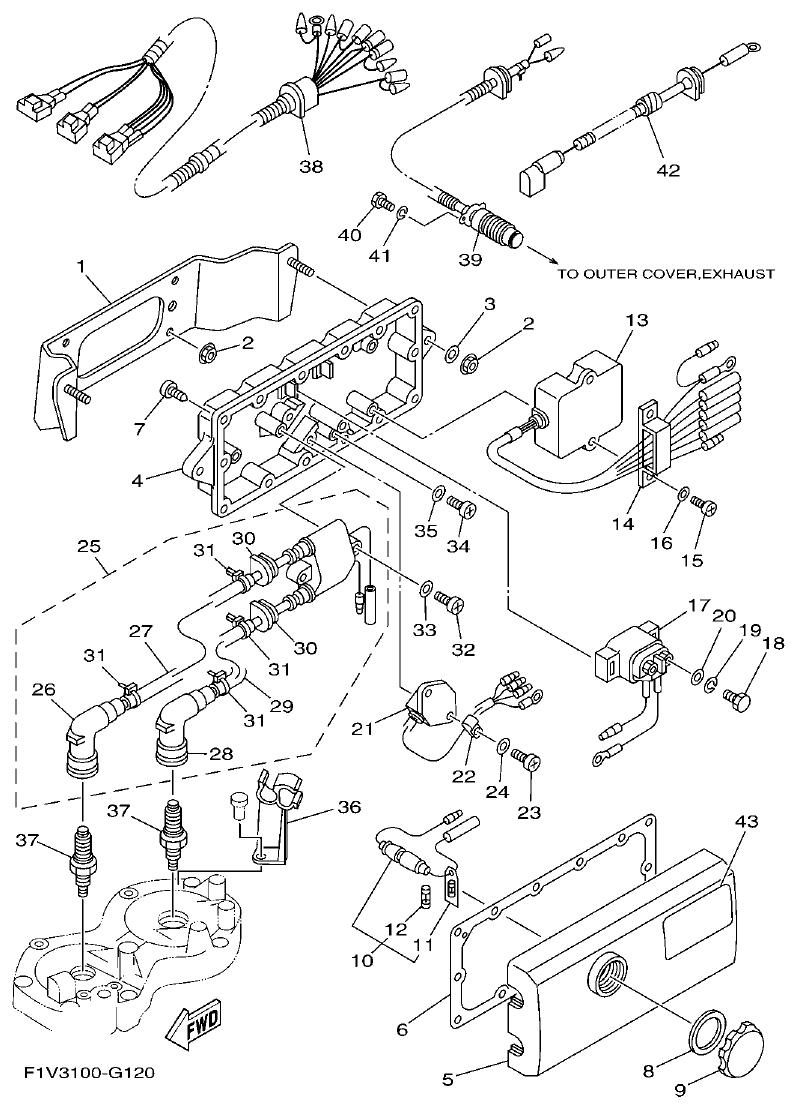

Fig. 12 — ELECTRICAL 1
22 items
· 9 available products
_decrypted/images/fig-13-electrical-2.png)

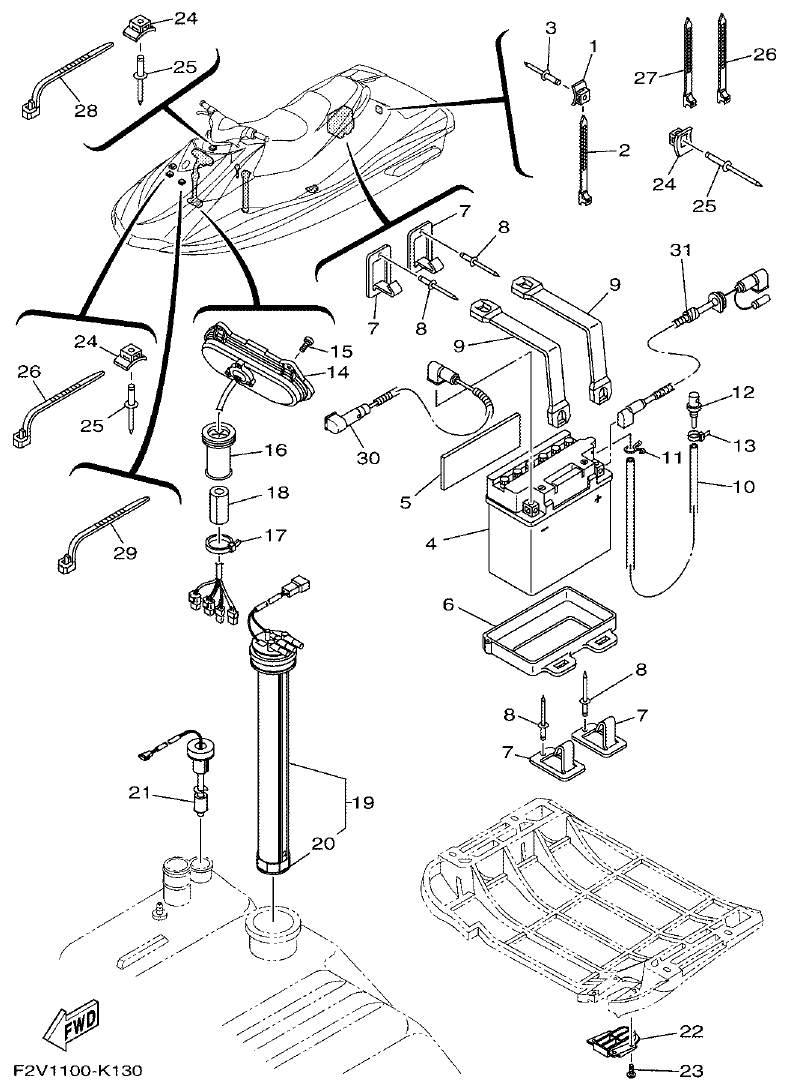

Fig. 13 — ELECTRICAL 2
18 items
· 4 available products

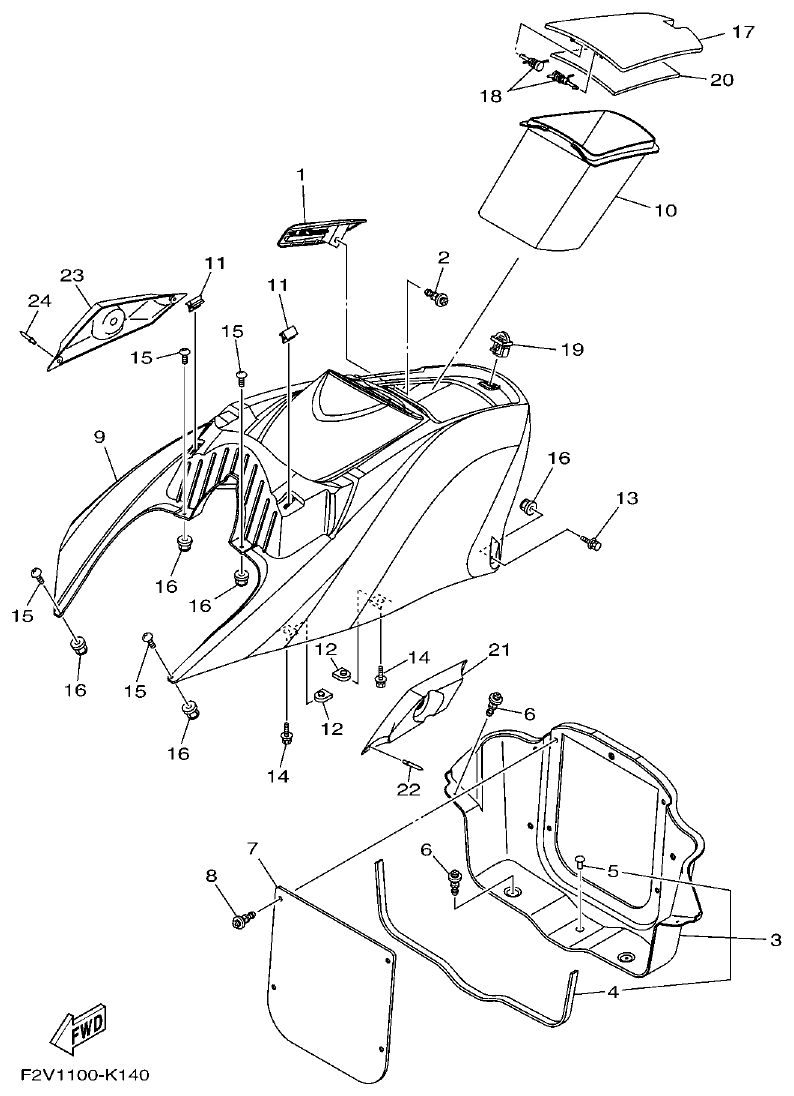

_decrypted/images/fig-14-engine-hatch-1.png)
Fig. 14 — ENGINE HATCH 1
15 items
· 4 available products

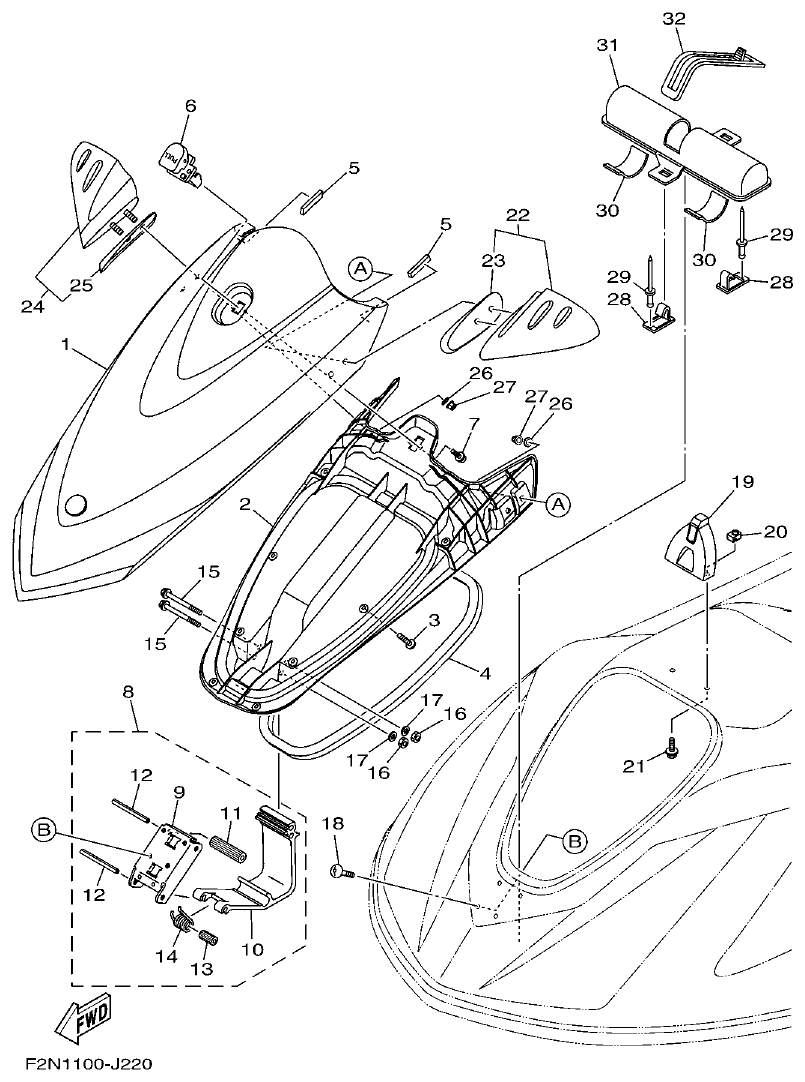

_decrypted/images/fig-15-engine-hatch-2.png)
Fig. 15 — ENGINE HATCH 2
23 items
· 7 available products

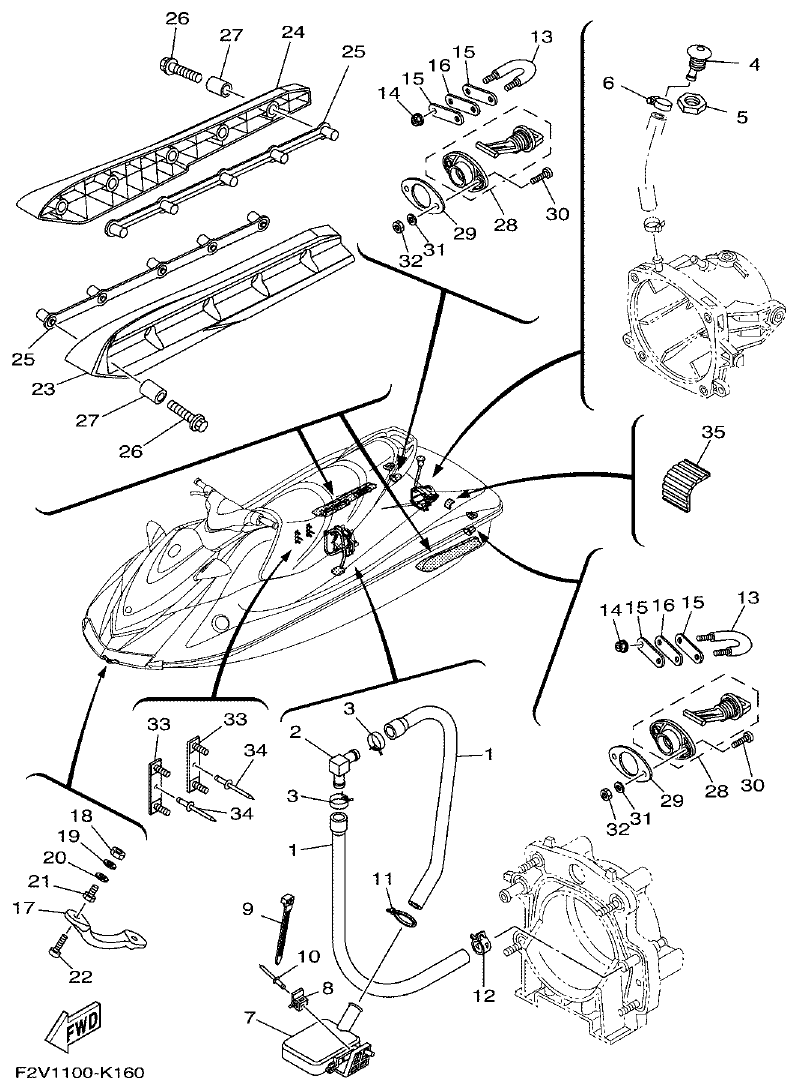

_decrypted/images/fig-16-hull-deck.png)
Fig. 16 — HULL & DECK
19 items
· 6 available products

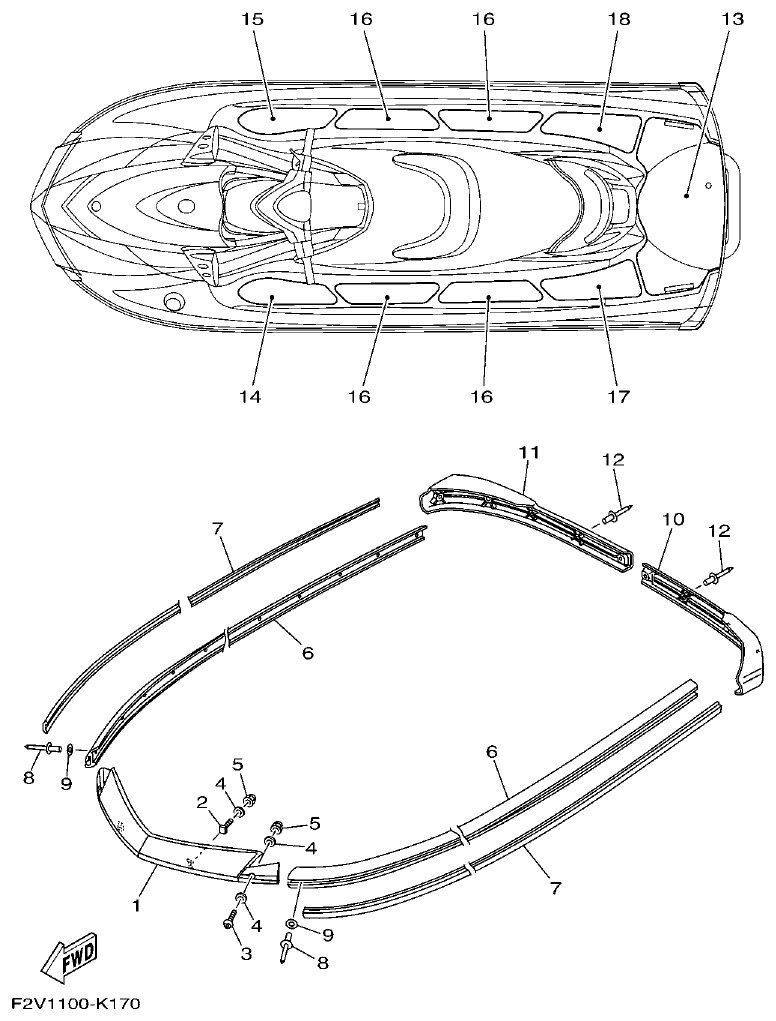

_decrypted/images/fig-17-gunwale-mat.png)
Fig. 17 — GUNWALE & MAT
12 items
· 4 available products
_decrypted/images/fig-18-ventilation.png)

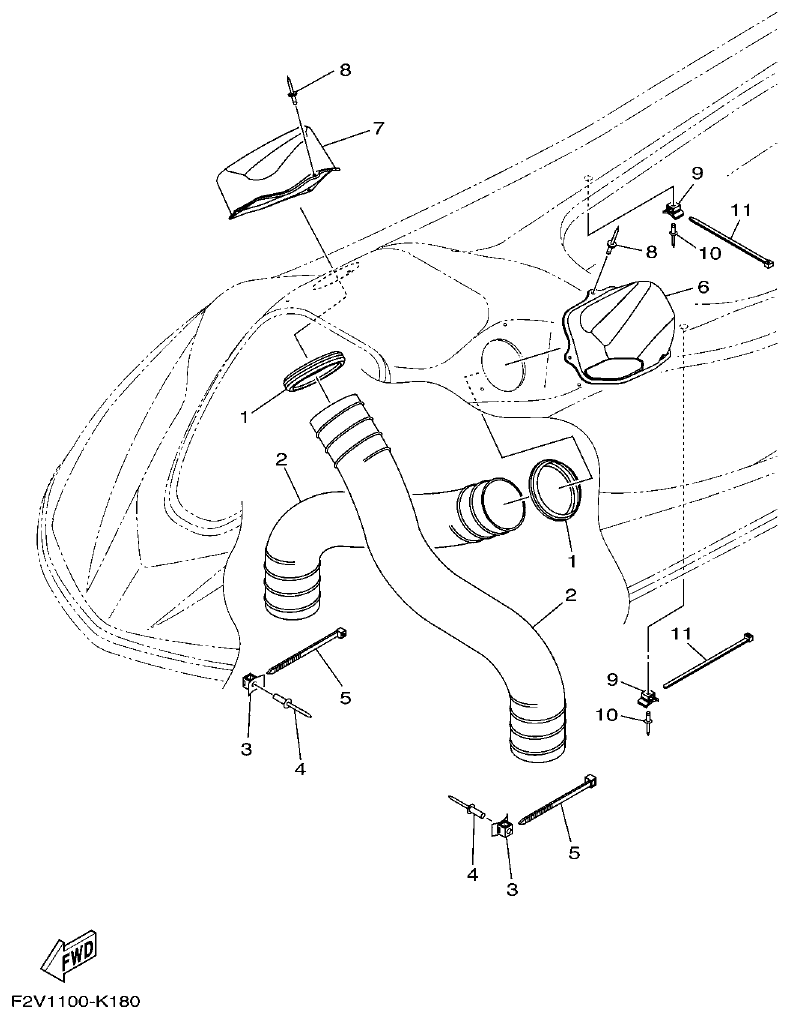

Fig. 18 — VENTILATION
6 items

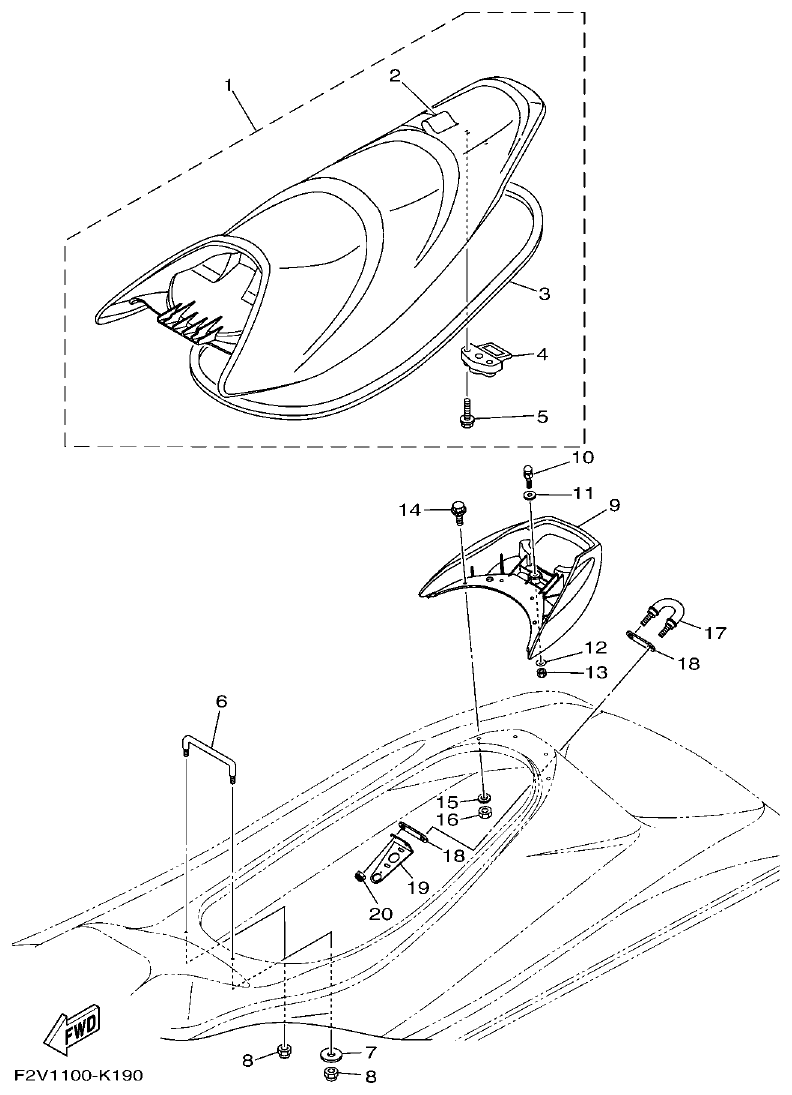

_decrypted/images/fig-19-seat-under-locker.png)
Fig. 19 — SEAT & UNDER LOCKER
10 items
· 2 available products

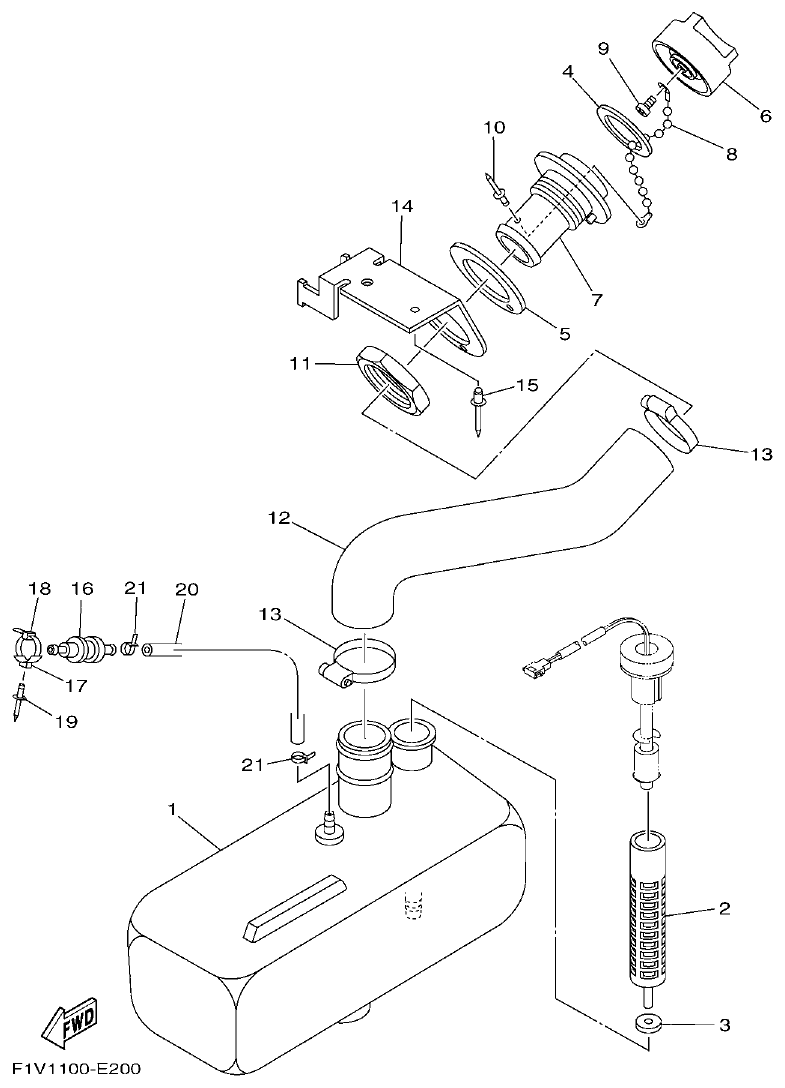

_decrypted/images/fig-20-oil-tank.png)
Fig. 20 — OIL TANK
14 items
_decrypted/images/fig-21-fuel-tank.png)

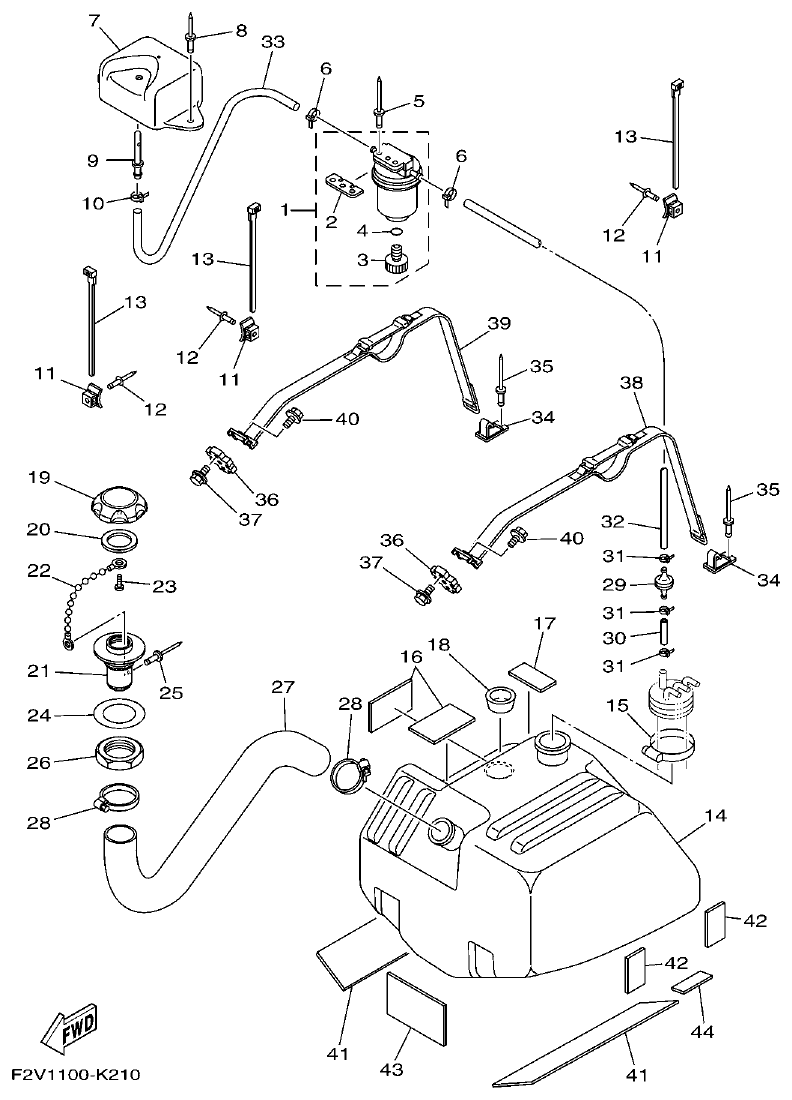

Fig. 21 — FUEL TANK
30 items
· 9 available products

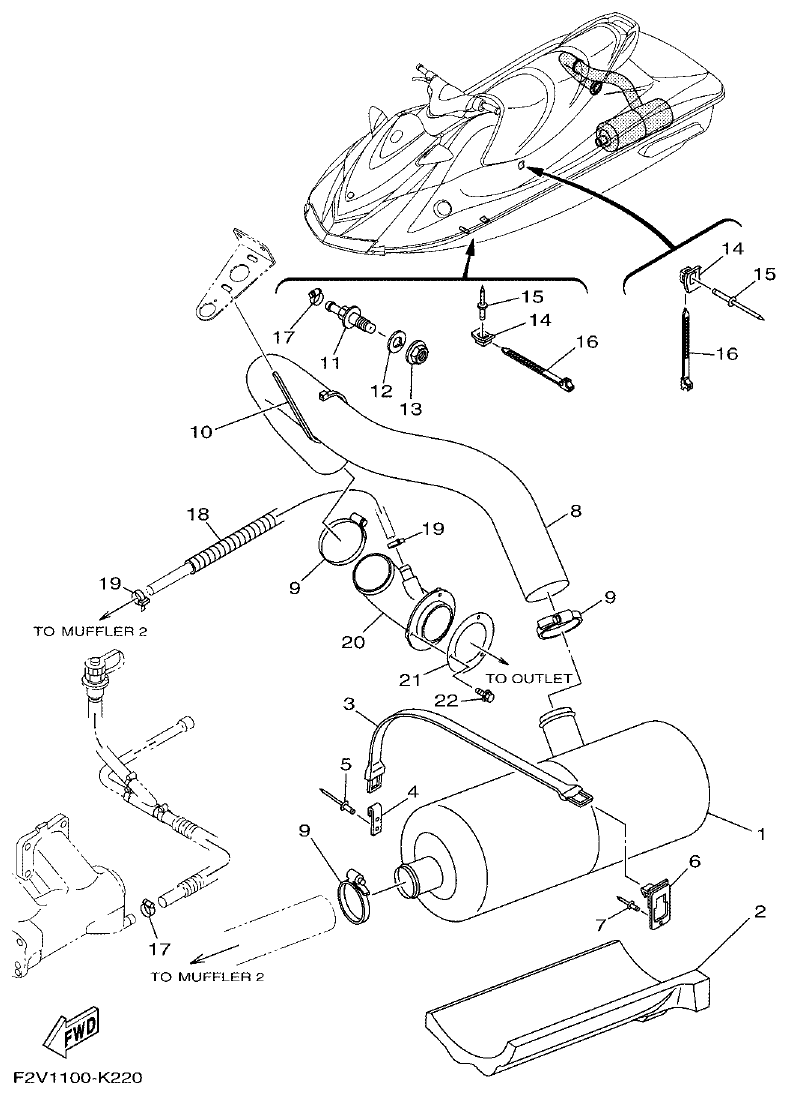

_decrypted/images/fig-22-exhaust-2.png)
Fig. 22 — EXHAUST 2
12 items
· 2 available products
_decrypted/images/fig-23-control-cable.png)

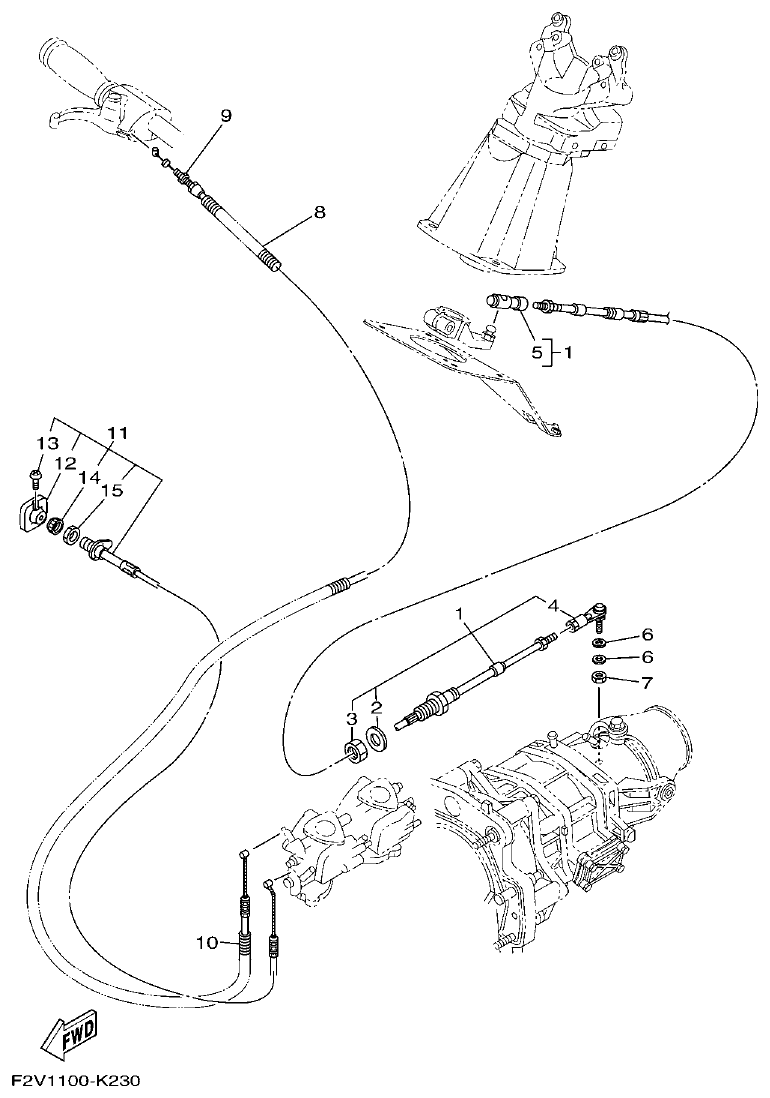

Fig. 23 — CONTROL CABLE
10 items
· 4 available products

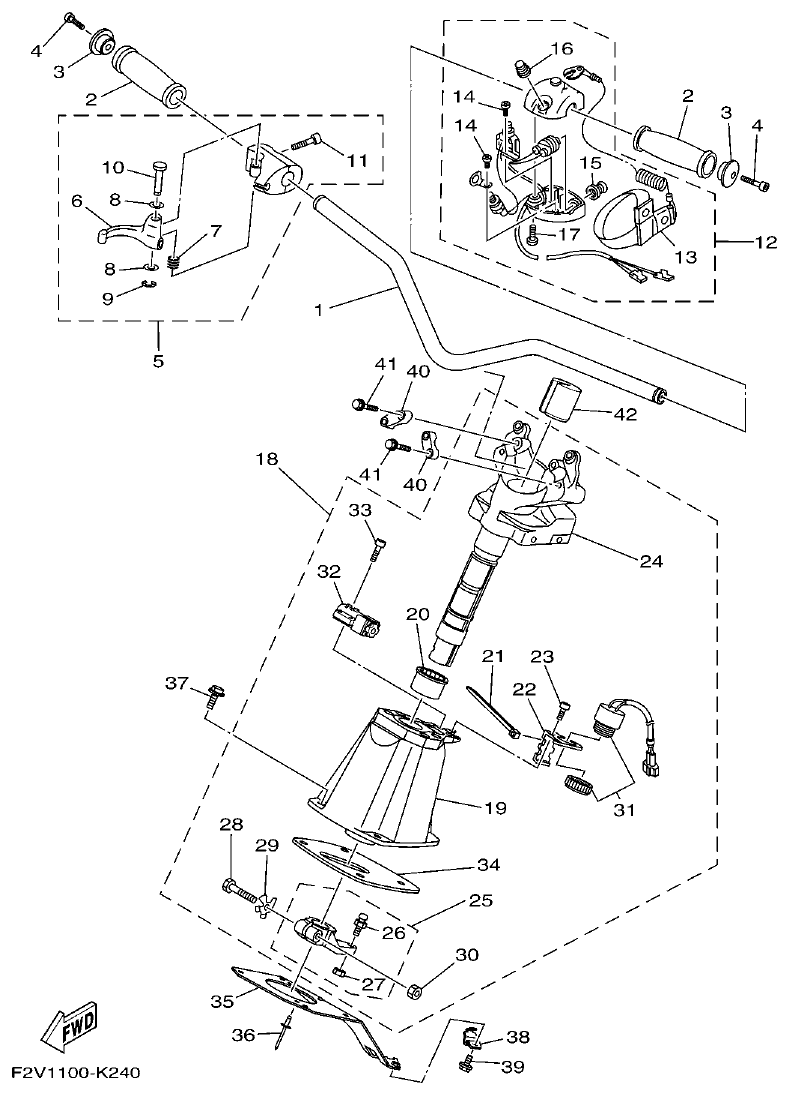

_decrypted/images/fig-24-steering-1.png)
Fig. 24 — STEERING 1
33 items
· 12 available products

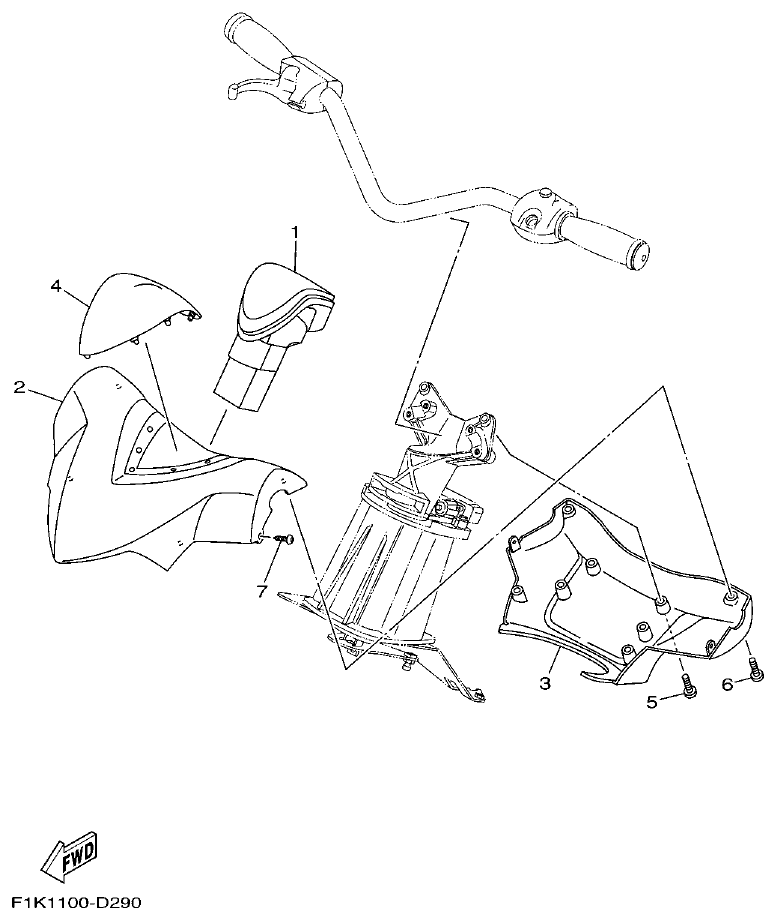

_decrypted/images/fig-25-steering-2.png)
Fig. 25 — STEERING 2
4 items
· 1 available products

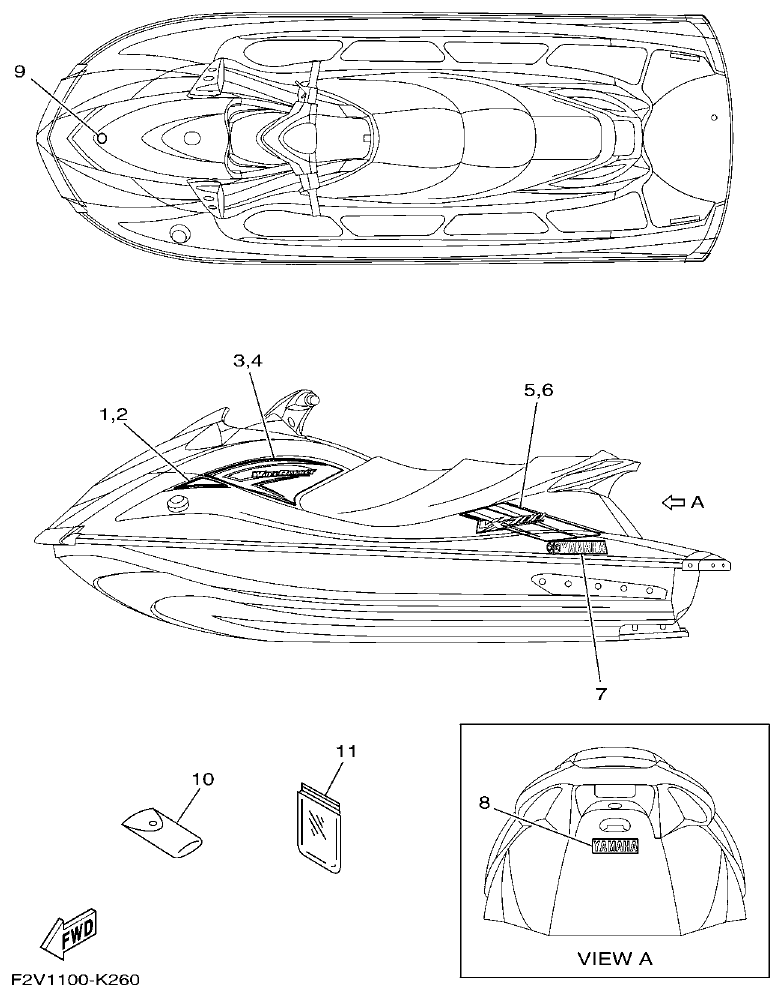

_decrypted/images/fig-26-graphics.png)
Fig. 26 — GRAPHICS
11 items

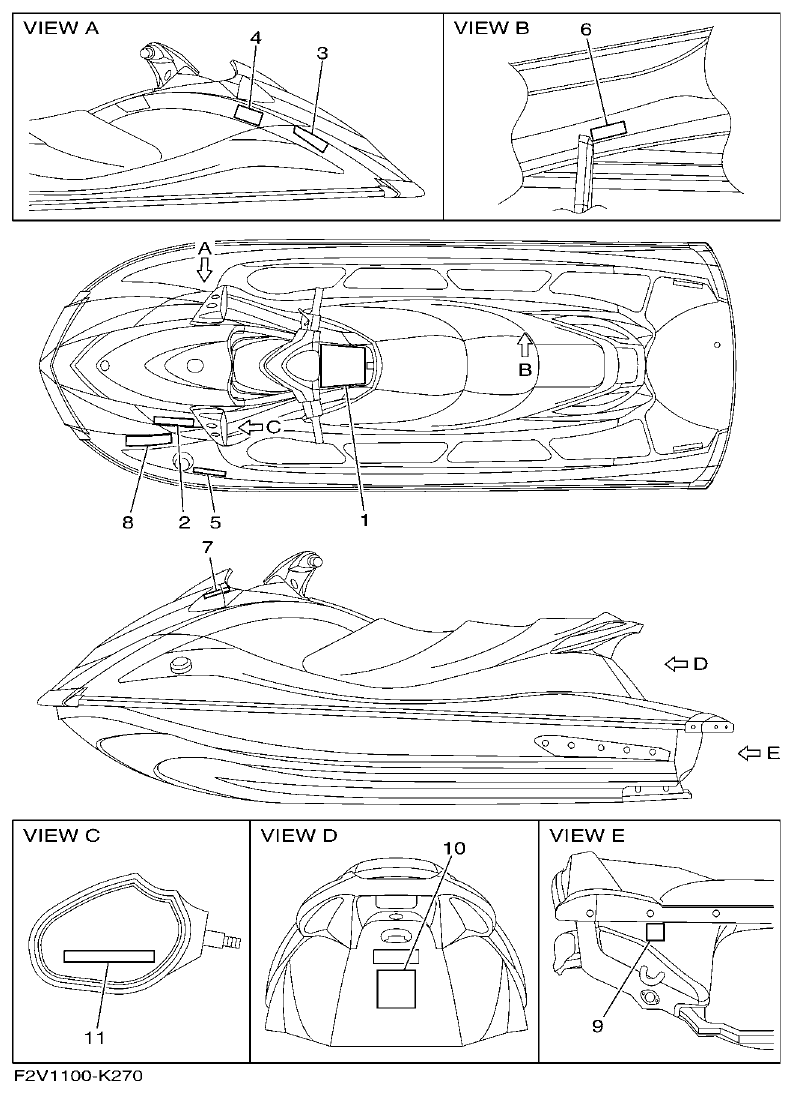

_decrypted/images/fig-27-important-labels.png)
Fig. 27 — IMPORTANT LABELS
11 items
· 1 available products

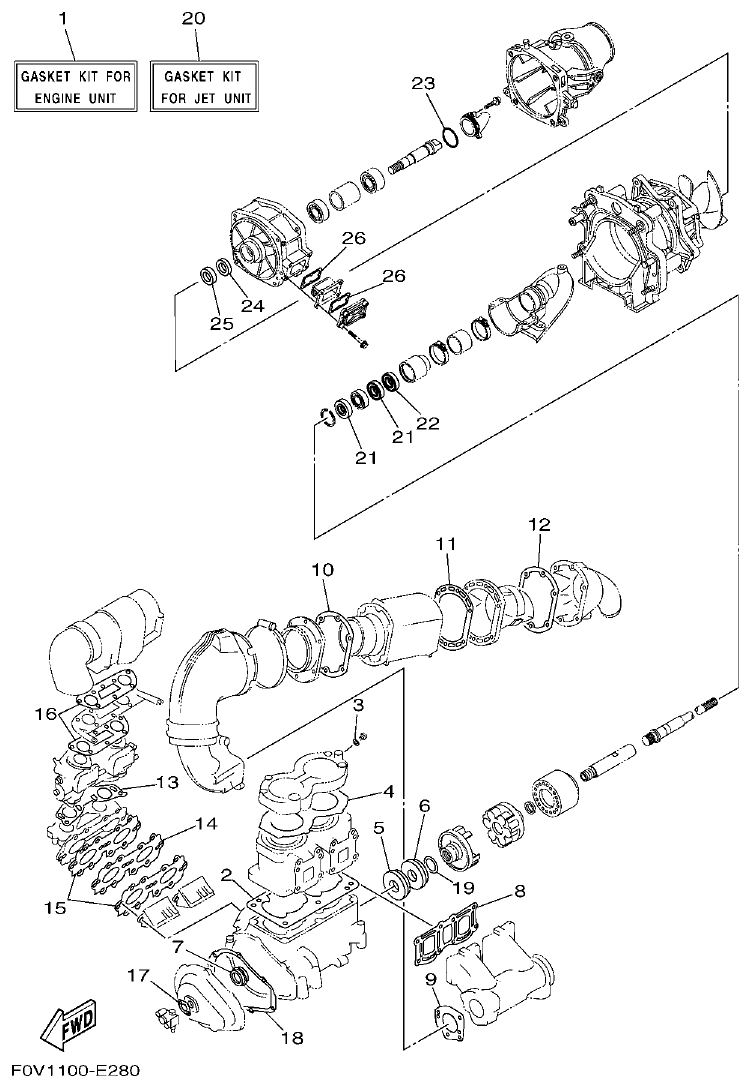

_decrypted/images/fig-28-repair-kit-1.png)
Fig. 28 — REPAIR KIT 1
17 items
· 12 available products

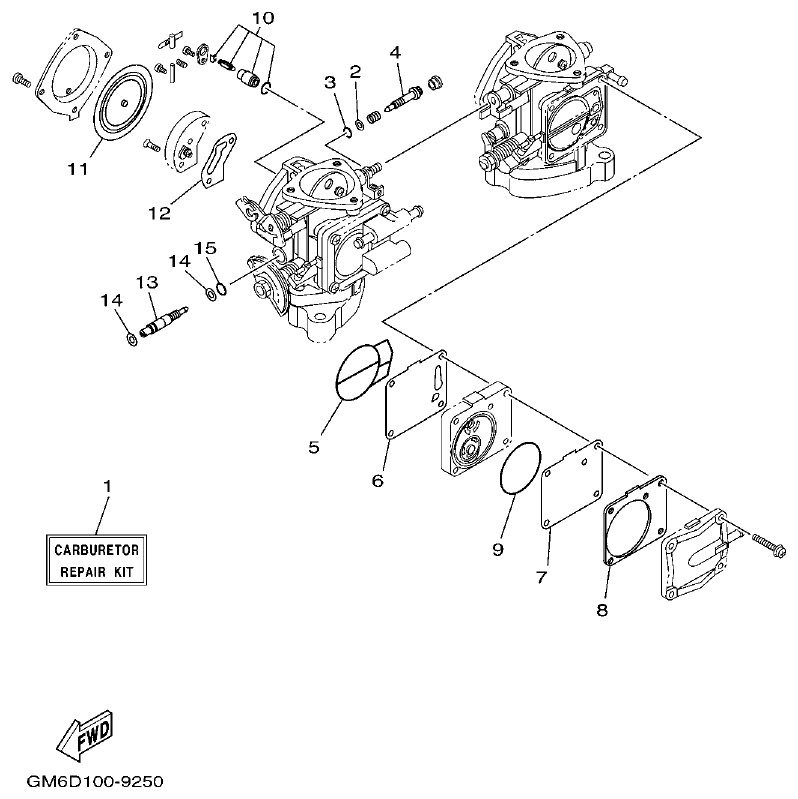

_decrypted/images/fig-29-repair-kit-2.png)
Fig. 29 — REPAIR KIT 2
15 items
· 13 available products
