HK6324A-3 Dometic(Seastar) Hydraulic Steering Kit 24

Product Description

SeaStar(Dometic) HK6324A-3 Hydraulic Marine Outboard Steering Kit

The SeaStar Outboard steering kit (HK6324A3) is unmatched in comfort and control for use on single and dual non-power assisted outboard engines up to 350HP (700 combined HP for counter-rotating duals) that have ABYC standard engine tilt tube. Hose comes standard with brass fittings, stainless steel fittings optional above, ideal for salt water applications. This option is only available with us.

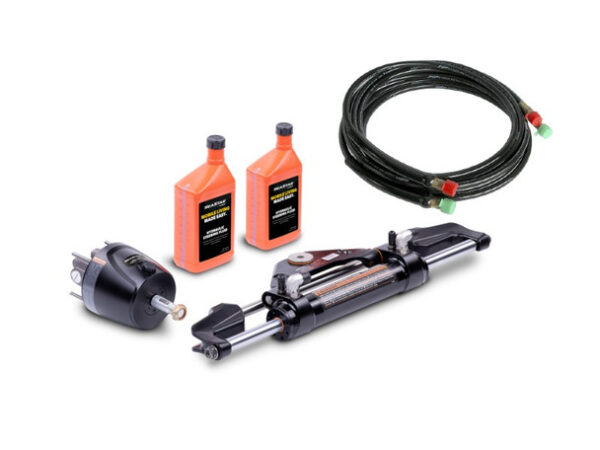

Includes:

• HH5271-3 Helm
• HC5345-3 Cylinder
• 2 Quarts Oil
• HO5124 Hose, 24ft x 2 (comes standard with brass fittings)

Features:

• Unmatched low friction hydraulic steering system.
• 5 turns lock-to-lock for single cylinder use.
• The HH5271-3 front mount helm pump only needs a 3" cutout in the dash
• Standard 3/4" Taper shaft on the helm pump
• Can be upgraded to dual station and/or dual outboards
• For boats that reach speeds up to 60MPH.

Specs:

• Suitable for boats that travel up to speeds of 60MPH
• Helm Pump: 1.7 cubic inches
• Stainless Steel shaft
• 1000 PSI rating for helm and cylinder
• Cylinder: 8.3 cubic inches
