Product Details

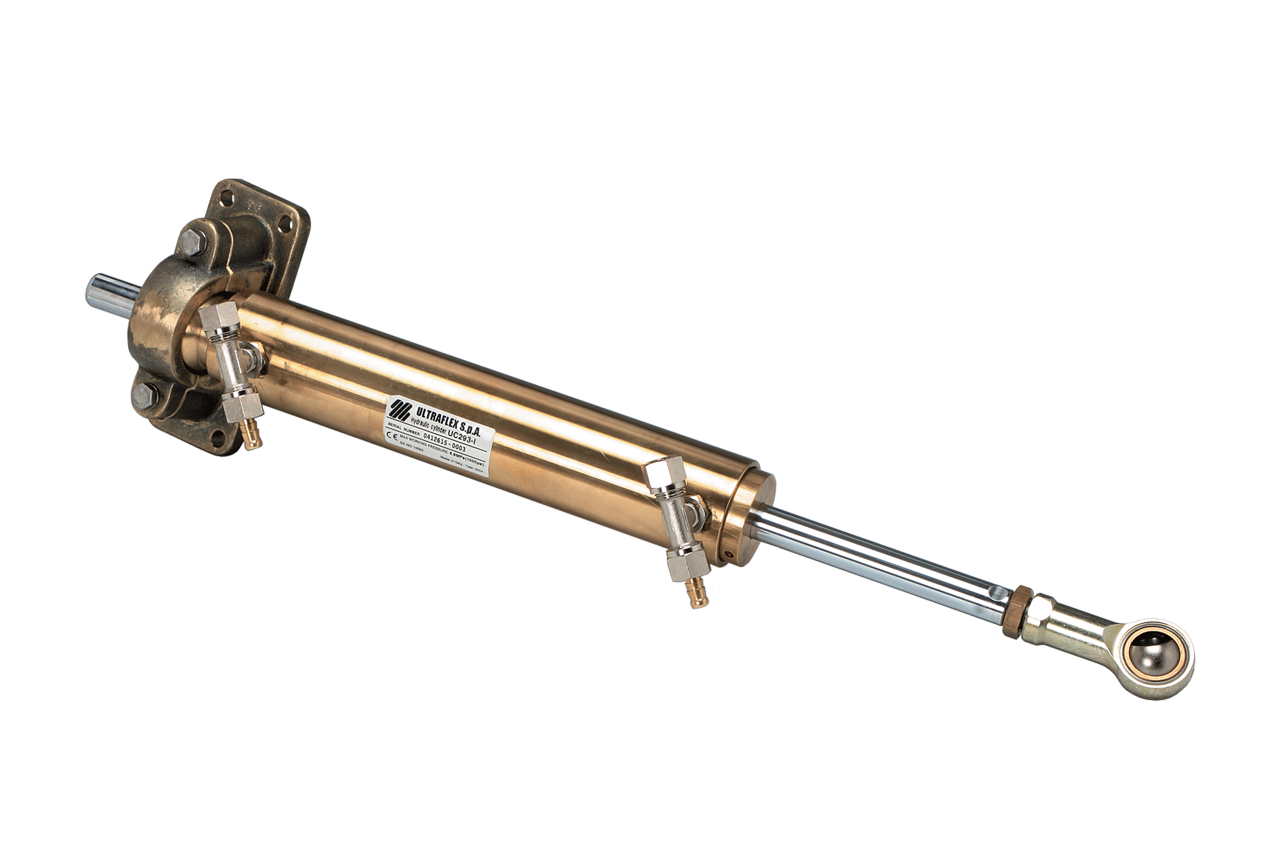

Ultraflex 40810p Ultraflex HD Hydraulic Cylinder Inboard (377.2cc)
Ultraflex HD Hydraulic Cylinder Inboard (377.2cc)
Brand: Ultraflex
New genuine Ultraflex part
Price
3,880.00 AED
AED
Availability
Stock 1 (Ask)
Product Description
UC378-I 40810P Inboard cylinder Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa Volume 378 cc - 22.94 cu.in Torque 187,6 kgm (16347 lbs.in) Output force 1155 kg (2545 lbs) Internal diameter 50 mm (1.97") Stroke 228 mm (9") Fittings for high pressure flexible hose 3/8" (9,5 mm)
| UC378-I | 40810P | Inboard cylinder |
Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa
| Volume | 378 cc - 22.94 cu.in |
| Torque | 187,6 kgm (16347 lbs.in) |
| Output force | 1155 kg (2545 lbs) |
| Internal diameter | 50 mm (1.97") |
| Stroke | 228 mm (9") |
| Fittings for high pressure flexible hose | 3/8" (9,5 mm) |
