bf2.3d6

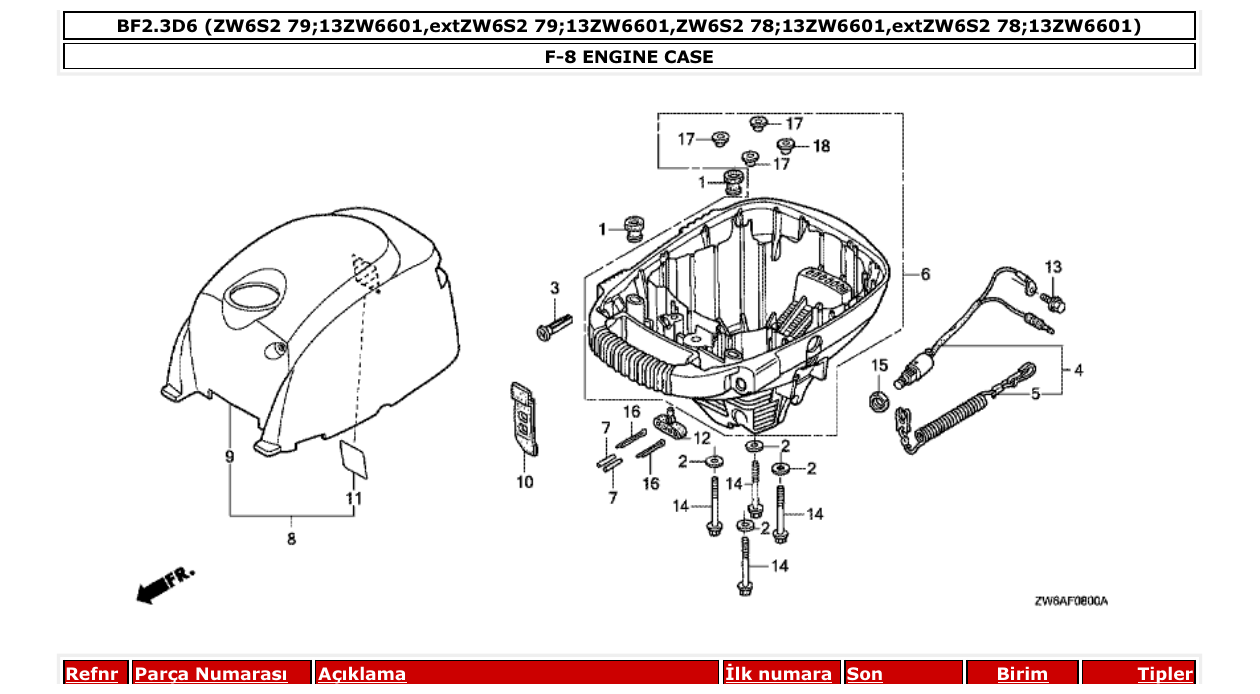

Section F-8: ENGINE CASE (v2)
Model code: BF2-3D6
Parts list
Section F-8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
17514ZV0000
RUBBER, TANK MOUNTING (C)
|
2 | |
| 2 |
17936921000
WASHER, PIVOT
|
4 | |
| 3 |
17951ZG1000
KNOB, CHOKE
|
1 | |
| 4 |
35180ZW6003
SWITCH ASSY., EMERGENCY STOP
|
1 | |
| 4 |
35180ZW6013
SWITCH ASSY., EMERGENCY STOP
|
1 | |
| 5 |
36182ZV4650
CORD COMP., EMERGENCY
|
1 | |
| 5 |
36182ZV4651
CORD COMP., EMERGENCY
|
1 | |
| 6 |
40100ZW6030
CASE COMP., ENGINE UNDER
|
1 | |
| 6 |
40100ZW6040
CASE COMP., ENGINE UNDER
|
1 | |
| 7 |
58131ZV0000
PIN, SHEAR
|
2 | |
| 8 |
63100ZW6010ZA
COVER COMP., ENGINE *NH282MU *
|
1 | |
| 8 |
63100ZW6000ZA
COVER COMP., ENGINE *NH282MU *
|
1 | |
| 9 |
63101ZW6020ZA
COVER, ENGINE *NH282MU *
|
1 | |
| 9 |
63101ZW6030ZA
COVER, ENGINE *NH282MU *
|
1 | |
| 10 |
63103ZV0000
BELT, ENGINE COVER
|
1 |
Price:
55.49 AED
In stock
(2)
|
| 11 |
63113ZW6000
SEAL, PROTECTION
|
1 | |
| 12 |
88111ZV0000
HOLDER, PARTS
|
1 | |
| 13 |
90019ZW4000
BOLT, FLANGE, 5X10
|
1 | |
| 14 |
90103ZW6000
BOLT, FLANGE, 6X60
|
4 | |
| 15 |
90302921000
NUT, HEX., 16MM
|
1 | |
| 16 |
90757ZV0000
PIN, SPLIT, 3MM
|
2 | |
| 17 |
91551ZW6000
COLLAR, 6X4
|
3 | |
| 18 |
91552ZW6000
COLLAR, ENGINE UNDER CASE BF2.3D6 (ZW6S2 79;13ZW6601,extZW6S2 79;13ZW6601,ZW6S2 78;13ZW6601,extZW6S2 78;13ZW6601)
|
1 |
