Section FOP-3: BRACKET KIT (v2)
Model code: BF9-9AX
Section FOP-3 — BRACKET KIT

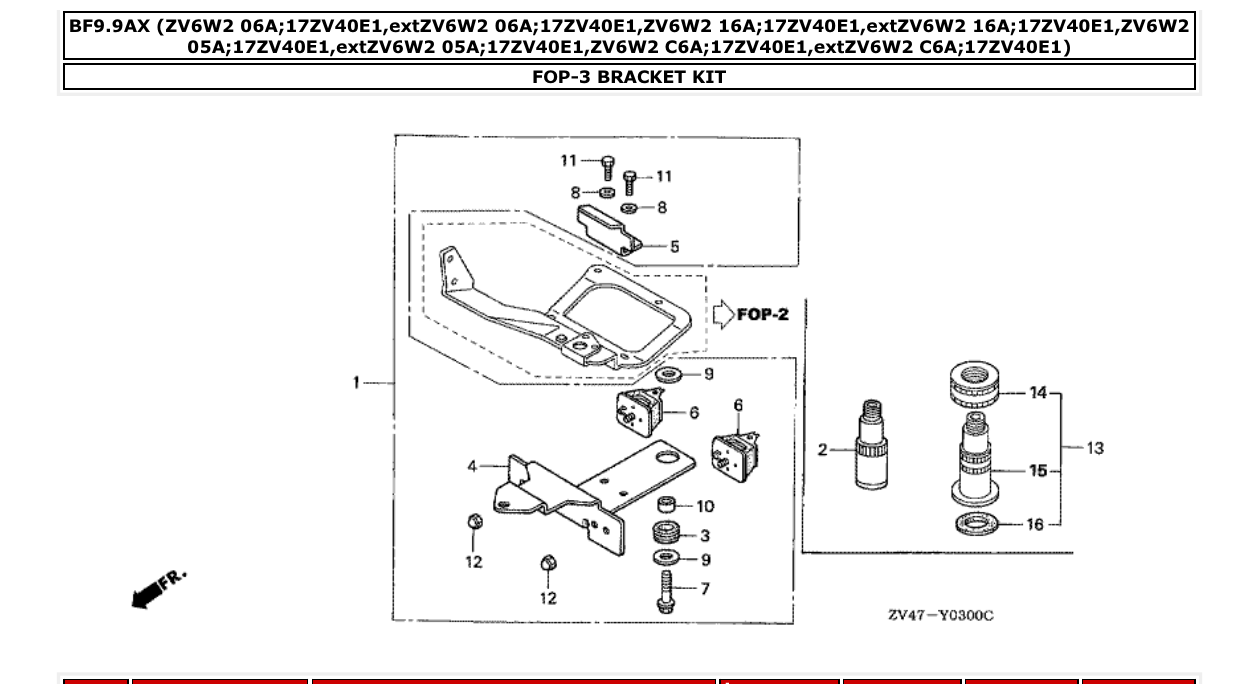

Diagram for section FOP-3: BRACKET KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06530ZV4910
BRACKET KIT, REMOTE CONTROL XDS
|
1 | Ask on WhatsApp |
| 2 |
19271ZV1000
JOINT, WATER HOSE XDS
|
1 | Ask on WhatsApp |
| 3 |
50329HA7670
RUBBER, BATTERY BOX MOUNTING XDS
|
1 | Ask on WhatsApp |
| 4 |
53234ZV4910
PLATE, STEERING XDS
|
1 | Ask on WhatsApp |
| 5 |
53235ZV4910
PLATE, BRACKET STOP XDS
|
1 | Ask on WhatsApp |
| 6 |
68326ZA8000
RUBBER, MOUNTING XDS
|
2 | Ask on WhatsApp |
| 7 |
90105ZV0000
BOLT, FLANGE, 8X40 XDS
|
1 | Ask on WhatsApp |
| 8 |
90504921010
WASHER, PLAIN, 6MM XDS
|
2 | Ask on WhatsApp |
| 9 |
90508ZV4000
WASHER, PLAIN, 8MM XDS
|
2 | Ask on WhatsApp |
| 10 |
91553ZV4000
COLLAR, STEERING XDS
|
1 | Ask on WhatsApp |
| 11 |
92101060164J
BOLT, HEX., 6X16 XDS
|
2 | Ask on WhatsApp |
| 12 |
94021060200S
NUT, CAP, 6MM XDS
|
2 | Ask on WhatsApp |
