Section E-7: CRANKSHAFT/PISTON (v2)
Model code: BF9-9AX
Section E-7 — CRANKSHAFT/PISTON

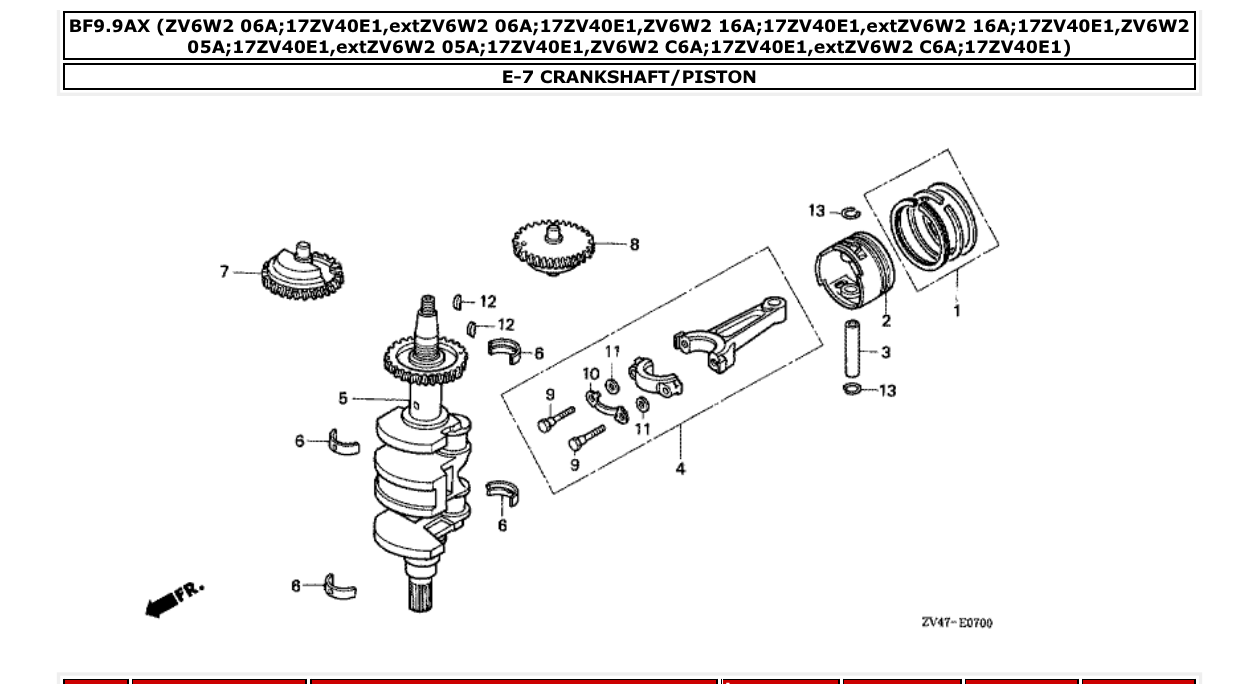

Diagram for section E-7: CRANKSHAFT/PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010ZV4004
RING SET, PISTON (STD.) XDS
|
2 | Ask on WhatsApp |
| 2 |
13101ZV4010
PISTON XDS
|
2 | Ask on WhatsApp |
| 3 |
13111ZV4000
PIN, PISTON XDS
|
2 | Ask on WhatsApp |
| 4 |
13200ZV4010
ROD ASSY., CONNECTING XDS
|
2 | Ask on WhatsApp |
| 5 |
13310ZV4650
CRANKSHAFT COMP. XDS
|
1 | Ask on WhatsApp |
| 6 |
13324ZA0003
BEARING, CRANKSHAFT (YELLOW) XDS
|
4 | Ask on WhatsApp |
| 6 |
13325ZA0003
BEARING, CRANKSHAFT (RED) XDS
|
4 | Ask on WhatsApp |
| 6 |
13323ZA0003
BEARING, CRANKSHAFT (GREEN) XDS
|
4 | Ask on WhatsApp |
| 6 |
13322ZA0003
BEARING, CRANKSHAFT (BROWN) XDS
|
4 | Ask on WhatsApp |
| 6 |
13321ZA0003
BEARING, CRANKSHAFT (BLACK) XDS
|
4 | Ask on WhatsApp |
| 7 |
13351ZV4000
WEIGHT A, BALANCER XDS
|
1 | Ask on WhatsApp |
| 8 |
13356ZV4000
WEIGHT B, BALANCER XDS
|
1 | Ask on WhatsApp |
| 9 |
90002ZV4000
BOLT, CONNECTING ROD XDS
|
4 | Ask on WhatsApp |
| 10 |
90452ZV4000
WASHER, TONGUED XDS
|
2 | Ask on WhatsApp |
| 11 |
90565ZV4000
WASHER, PLAIN, 7MM XDS
|
4 | Ask on WhatsApp |
| 12 |
90741ZV4000
KEY, SPECIAL, 16X15 XDS
|
2 | Ask on WhatsApp |
| 13 |
9460114000
CLIP, PISTON PIN, 14MM XDS
|
4 | Ask on WhatsApp |
