BFT250A
Section E-1: 18 (v2)

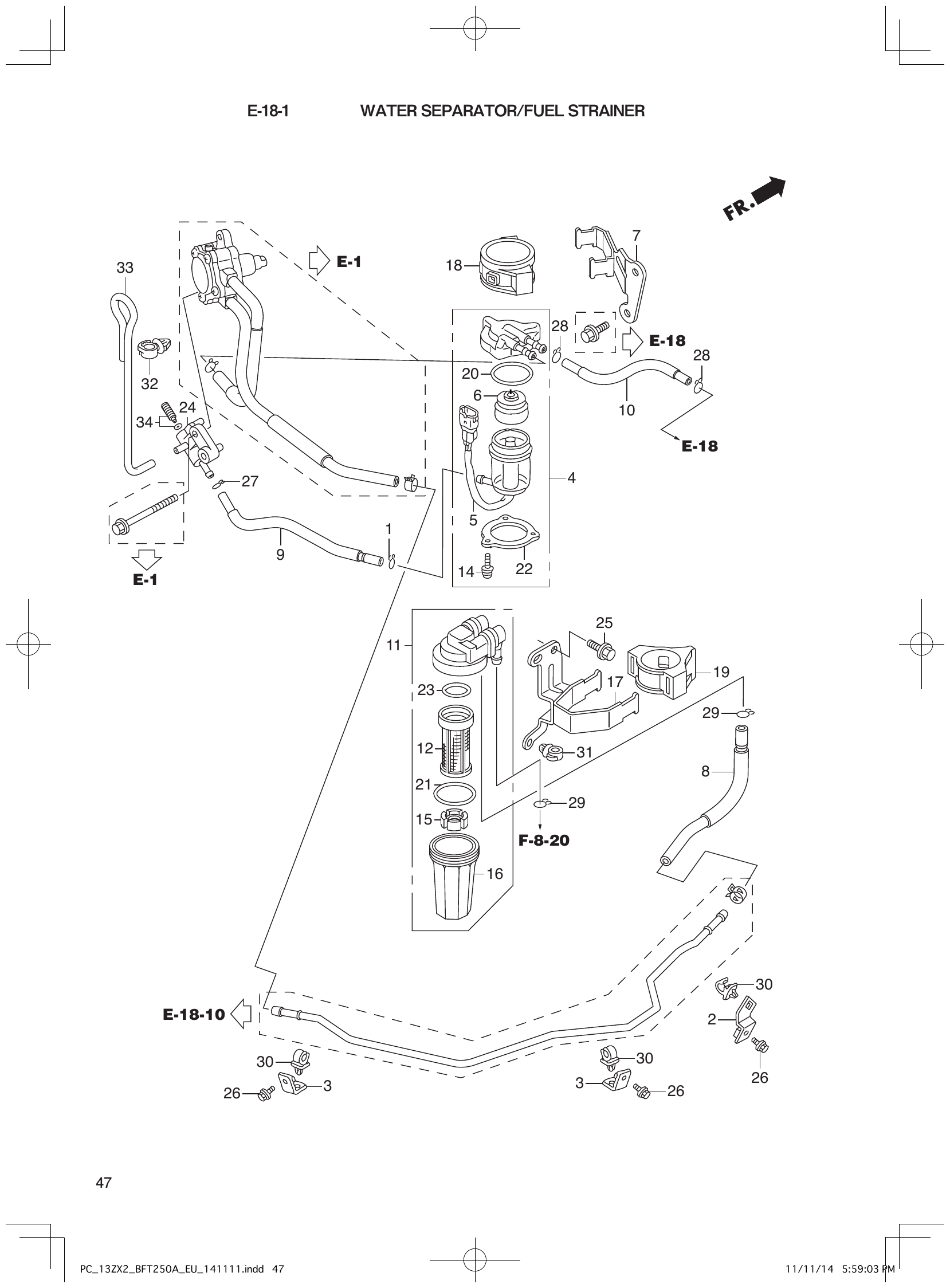

Diagram for section E-1: 18.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| E-18-1 |
HZV0-90604-000
CLIP,�TUBE(B12)
|
2 | Ask on WhatsApp |
| E-18-1 |
HZY3-16918-003
O-RING
|
1 | Ask on WhatsApp |
| E-18-1 |
HZZ5-16918-003
O-RING
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16919-003
PLATE
|
1 | Ask on WhatsApp |
| E-18-1 |
HZZ5-16919-003
O-RING
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16940-003
COCK�ASSY.,�FUEL�DRAIN
|
1 | Ask on WhatsApp |
| E-18-1 |
HZW9-90014-000
BOLT,�FLANGE,�6X10
|
2 | Ask on WhatsApp |
| E-18-1 |
HZY3-90056-000
BOLT,�FLANGE,�6X12
|
3 | Ask on WhatsApp |
| E-18-1 |
H921-90602-000
CLIP,�TUBE(B8)
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16753-000
STAY,�FUEL�PIPE�A
|
1 | Ask on WhatsApp |
| E-18-1 |
HZV4-90605-000
CLIP,�TUBE(B12.5)
|
2 | Ask on WhatsApp |
| E-18-1 |
HKG4-90659-000
CLAMP,�WIRE,�8MM
|
3 | Ask on WhatsApp |
| E-18-1 |
HSA0-90683-003
CLIP,�WIRE�HARNESS,�25MM
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-90683-003
CLIP,�WIRE�HARNESS
|
1 | Ask on WhatsApp |
| E-18-1 |
HCO-95003-05035-31
TUBE,�VINYL,�3.5X6.5X350
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16024-003
SCREW�SET,�DRAIN
|
1 | Ask on WhatsApp |
| E-18-1 |
HGHB-16163-600
CLIP,�TUBE
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16915-010
SUSPENSION,�STRAINER
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16754-000
STAY,�FUEL�PIPE�B
|
2 | Ask on WhatsApp |
| E-18-1 |
HZX2-16800-003
SEPARATOR�ASSY.,�WATER
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16805-003
CUP�SET,�WATER�SEPARATOR
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16807-003
BUFFER,�PLATE
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16814-000
STAY,�WATER�SEPARATOR
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16860-000
TUBE�COMP.�B,�FUEL
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16880-000
TUBE�COMP.�D,�FUEL
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16900-003
STRAINER�ASSY.,�FUEL
|
1 | Ask on WhatsApp |
| E-18-1 |
HZZ5-16901-003
FILTER
|
1 | Ask on WhatsApp |
| E-18-1 |
HZY3-16904-003
SCREW,�PAN,�5X12
|
3 | Ask on WhatsApp |
| E-18-1 |
HZZ5-16906-003
FLOAT
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16912-003
CUP
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16914-000
STAY,�FUEL�STRAINER
|
1 | Ask on WhatsApp |
| E-18-1 |
HZZ5-16915-000
SUSPENSION,�STRAINER
|
1 | Ask on WhatsApp |
| E-18-1 |
HZX2-16890-000
TUBE�COMP.�E,�FUEL
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-17724-010
HOSE�B,�PRESSURE�REGULATOR�
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-19258-010
TUBE,�WATER�IN.
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-19259-000
TUBE,�WATER�OUTLET
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY6-36135-003
VALVE,�CHECK
|
1 | Ask on WhatsApp |
| E-18-10 |
HZW5-90601-030
CLAMP,�TUBE(D10.7)
|
4 | Ask on WhatsApp |
| E-18-10 |
HZW5-90602-030
CLAMP,�TUBE(D12)
|
1 | Ask on WhatsApp |
| E-18-10 |
HMB1-90655-921
CLIP,�WIRE
|
1 | Ask on WhatsApp |
| E-18-10 |
HSL0-91592-A51
CLAMP,�FUEL�TUBE
|
1 | Ask on WhatsApp |
| E-18-10 |
HCO-95001-35055-40
TUBE,�FUEL,�3.5X55
|
1 | Ask on WhatsApp |
| E-18-10 |
HCO-95003-05060-31
TUBE,�VINYL,�3.5X6.5X600
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-90601-030
CLAMP,�TUBE(D10.5)
|
4 | Ask on WhatsApp |
| E-18-10 |
HZY6-19269-000
T-JOINT
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-17721-000
JOINT,�FUEL�RETURN
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-17723-A01
HOSE�A,�PRESSURE�REGULATOR�
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-16196-A00
TUBE,�CHECK�VALVE
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-16197-000
TUBE�A,�AIR�VENT
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-16198-A00
TUBE�B,�AIR�VENT
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-16199-A00
TUBE�COMP.,�AIR�VENT
|
1 | Ask on WhatsApp |
| E-18-10 |
HZY3-16751-000
PIPE,�FUEL
|
1 | Ask on WhatsApp |
| E-18-10 |
HZW5-16915-000
SUSPENSION,�STRAINER
|
1 | Ask on WhatsApp |
| E-18-10 |
HVM0-16965-771
CLAMP,�HOSE
|
2 | Ask on WhatsApp |
| E-18-10 |
HZY3-16193-A00
CLAMP,�CHECK�VALVE
|
1 | Ask on WhatsApp |
| E-18-10 |
HKY7-17450-740
CLIP,�TUBE
|
2 | Ask on WhatsApp |
| E-18-10 |
H759-16911-003
STRAINER,�FUEL�PUMP
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31630-003
GENERATOR�ASSY.,�A.C.
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31631-003
ROTOR�ASSY.
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31637-000
STAY,�A.C.�GENERATOR
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31639-003
END�COVER,�RR.
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31694-003
BUSH,�INSULATION
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31710-003
RECTIFIER�ASSY.
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-31750-003
REGULATOR�ASSY.
|
1 | Ask on WhatsApp |
| E-19 |
HZX2-90002-000
BOLT,�FLANGE,�10X90
|
1 | Ask on WhatsApp |
| E-19 |
HZW5-90011-010
BOLT,�SPECIAL�ADJUSTER
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-90017-000
BOLT,�FLANGE,�6X16
|
1 | Ask on WhatsApp |
| E-19 |
HZY3-90055-000
BOLT,�TENSIONER
|
1 | Ask on WhatsApp |
| E-19 |
HZW5-90203-010
NUT,�FLANGE,�8MM
|
1 | Ask on WhatsApp |
| E-19 |
HPD1-90231-014
NUT-WASHER,�5MM
|
7 | Ask on WhatsApp |
| E-19 |
HCO-94001-06080-0S
NUT,�HEX.,�6MM
|
1 | Ask on WhatsApp |
| E-19 |
HP13-31148-003
SCREW,�WAVE�WASHER
|
4 | Ask on WhatsApp |
| E-19 |
HPR7-31105-A01
HOLDER�ASSY.,�BRUSH
|
1 | Ask on WhatsApp |
| E-19 |
HPT0-31111-003
BEARING,�RR.�GENERATOR
|
1 | Ask on WhatsApp |
| E-19 |
HPT0-31114-013
BEARING,�FR.�GENERATOR
|
1 | Ask on WhatsApp |
| E-19 |
HPT0-31118-003
BUSH,�INSULATION
|
4 | Ask on WhatsApp |
| E-19 |
HPD1-31138-004
COVER,�BEARING
|
1 | Ask on WhatsApp |
| E-19 |
HP13-31141-003
PULLEY
|
1 | Ask on WhatsApp |
| E-19 |
HPD1-31145-004
BOLT,�STUD,�6X68
|
4 | Ask on WhatsApp |
| E-19 |
HPT0-31146-003
SCREW
|
4 | Ask on WhatsApp |
| E-19 |
HP13-31147-003
SCREW
|
1 | Ask on WhatsApp |
| E-19 |
HPT0-31147-003
SCREW-WASHER
|
3 | Ask on WhatsApp |
| E-19 |
HPT0-31148-003
SCREW,�WAVE�WASHER
|
2 | Ask on WhatsApp |
| E-19 |
HPD1-31142-004
NUT,�PULLEY�LOCK
|
1 | Ask on WhatsApp |
| E-20 |
HCO-9807B-5617C
PLUG,�SPARK(IZFR6K-11E)
|
6 | Ask on WhatsApp |
| E-20 |
HZV5-91553-010
COLLAR,�C.D.I.�UNIT�CASE
|
6 | Ask on WhatsApp |
| E-20 |
HZY9-90105-000
BOLT-WASHER,�6X27
|
6 | Ask on WhatsApp |
| E-20 |
HZX2-31916-003
PLUG,�SPARK(ZFR6K-11E)
|
6 | Ask on WhatsApp |
| E-20 |
HZX2-30520-003
COIL�COMP.,�PLUG�HOLE
|
6 | Ask on WhatsApp |
| E-20 |
HZY9-30419-003
GROMMET,�ELECTRONIC�PARTS�CASE
|
6 | Ask on WhatsApp |
| E-20-10 |
HZX2-34750-023
CONTROL�UNIT,�ELECTRONIC
|
1 | Ask on WhatsApp |
| E-20-10 |
HZV5-91553-010
COLLAR,�C.D.I.�UNIT�CASE
|
8 | Ask on WhatsApp |
| E-20-10 |
HSA0-90683-003
CLIP,�WIRE�HARNESS,�25MM
|
1 | Ask on WhatsApp |
| E-20-10 |
HZW5-90018-000
BOLT,�FLANGE,�6X20
|
2 | Ask on WhatsApp |
| E-20-10 |
HZW9-90014-000
BOLT,�FLANGE,�6X10
|
5 | Ask on WhatsApp |
| E-20-10 |
HZW2-90003-000
BOLT-WASHER,�6X27(CT200)
|
8 | Ask on WhatsApp |
| E-20-10 |
HZY3-34754-C00
BRACKET,�ECU
|
1 | Ask on WhatsApp |
| E-20-10 |
HZX2-30416-000
CASE,�ELECTRONIC�PARTS
|
1 | Ask on WhatsApp |
| E-20-10 |
HZZ3-32101-000
BRACKET,�A.C.�GENERATOR�FUSE
|
5 | Ask on WhatsApp |
| E-20-10 |
HZY9-30419-003
GROMMET,�ELECTRONIC�PARTS�CASE
|
4 | Ask on WhatsApp |
| E-20-10 |
HZY9-38553-003
GROMMET,�RELAY�BRACKET
|
4 | Ask on WhatsApp |
| E-21 |
HZY3-31241-003
SWITCH�ASSY.,�MAGNET
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31250-003
LEVER�SET
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31242-003
SHAFT�ASSY.,�CLUTCH
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31243-003
SHAFT�ASSY.,�CLUTCH
|
1 | Ask on WhatsApp |
| E-21 |
HP5A-31243-005
BOLT�A,�THROUGH
|
2 | Ask on WhatsApp |
| E-21 |
HZY3-31246-003
SHAFT�ASSY.,�GEAR
|
1 | Ask on WhatsApp |
| E-21 |
HZY9-31246-H01
SHAFT�ASSY.,�GEAR
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31247-003
GEAR�ASSY.,�INTERNAL
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31249-003
RPACKING
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-90002-000
BOLT,�FLANGE,�10X90
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-90003-000
BOLT,�FLANGE,�10X110
|
1 | Ask on WhatsApp |
| E-21 |
HZW1-90106-004
SCREW,�PAN,�6X22(SPECIAL)
|
2 | Ask on WhatsApp |
| E-21 |
HZY9-31226-H01
SCREW,�PAN,�6X22
|
2 | Ask on WhatsApp |
| E-21 |
HZW1-90107-004
SCREW,�PAN,�5X8
|
2 | Ask on WhatsApp |
| E-21 |
HZY3-91303-000
O-RING,�59.4X3.1
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31251-003
GEAR�ASSY.,INTERNAL
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31236-003
BRACKET,�RR.
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31200-003
MOTOR�ASSY.,�STARTER
|
1 | Ask on WhatsApp |
| E-21 |
HP5A-31201-005
ROTOR�COMP.
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31207-003
CLUTCH�COMP.,�OVERRUNNING
|
1 | Ask on WhatsApp |
| E-21 |
HZY9-31207-H01
CLUTCH�COMP.,�OVERRUNNING
|
1 | Ask on WhatsApp |
| E-21 |
HPY3-31215-004
GEAR�ASSY.,�PLANETARY
|
3 | Ask on WhatsApp |
| E-21 |
HZY3-31216-003
YOKE�COMP.
|
1 | Ask on WhatsApp |
| E-21 |
HPY3-31218-004
BALL,�STEEL
|
1 | Ask on WhatsApp |
| E-21 |
HZW1-31226-004
BRUSH�SET
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31226-003
BRUSH�SET
|
1 | Ask on WhatsApp |
| E-21 |
HZW1-31229-004
STOPPER�SET,�SLEEVE
|
1 | Ask on WhatsApp |
| E-21 |
HZY9-31229-H01
STOPPER�SET,�SLEEVE
|
1 | Ask on WhatsApp |
| E-21 |
HZW1-31231-004
HOLDER�COMP.,�BRUSH
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31232-003
HOLDER�COMP.,�BRUSH
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31235-003
BRACKET,�FR.
|
1 | Ask on WhatsApp |
| E-21 |
HZY3-31240-003
SWITCH�ASSY.,�MAGNET
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-90508-000
WASHER,�PLAIN,�6MM
|
1 | Ask on WhatsApp |
| F-2 |
HZV7-90508-000
WASHER
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-90017-000
BOLT,�FLANGE,�6X16
|
1 | Ask on WhatsApp |
| F-2 |
HZV4-90506-000
WASHER,�PLAIN,�6MM
|
1 | Ask on WhatsApp |
| F-2 |
H958-90428-000
WASHER�B,�THRUST,�14MM
|
1 | Ask on WhatsApp |
| F-2 |
HHA0-90402-000
WASHER,�THRUST,�14MM
|
1 | Ask on WhatsApp |
| F-2 |
HZV5-90302-003
NUT,�HEX.,�20MM
|
1 | Ask on WhatsApp |
| F-2 |
HZV4-90127-000
BOLT,�HEX.,�6X16
|
1 | Ask on WhatsApp |
| F-2 |
HZW9-90102-000
BOLT,�FLANGE,�6X12
|
1 | Ask on WhatsApp |
| F-2 |
HZX2-90101-C00
BOLT-WASHER,�6X16
|
3 | Ask on WhatsApp |
| F-2 |
HZW5-90023-000
BOLT,�FLANGE,�6X11
|
2 | Ask on WhatsApp |
| F-2 |
HZV4-90512-000
WASHER,�PLAIN,�6MM
|
1 | Ask on WhatsApp |
| F-2 |
HSD2-90705-931
PIN,�SNAP,�6MM
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-90751-000
PIN,�LINK
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-91152-003
RING,�INNER(15X20X23)
|
1 | Ask on WhatsApp |
| F-2 |
HZW5-91251-003
OIL�SEAL,�14X26X6
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-91255-003
SEAL,�WATER(14X26X8)
|
1 | Ask on WhatsApp |
| F-2 |
HPF0-91302-003
O-RING,�26.9X2.4(NOK)
|
1 | Ask on WhatsApp |
| F-2 |
HS0A-91541-003
CLIP,�HARNESS�BAND(BLACK)
|
1 | Ask on WhatsApp |
| F-2 |
HCO-94540-04029
E-RING,�4MM
|
2 | Ask on WhatsApp |
| F-2 |
HCO-94540-12029
E-RING,�12MM
|
2 | Ask on WhatsApp |
| F-2 |
HZY3-24612-010
ARM,�SHIFT
|
1 | Ask on WhatsApp |
| F-2 |
HS0X-46392-A01
CLIP,�BRAKE�PIPE
|
1 | Ask on WhatsApp |
| F-2 |
HKN5-17224-670
WASHER,�AIR�CLEANER�COVER
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-17877-000
PLATE,�REMOTE�CONTROL�CABLE
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-17931-000
ARM,�THROTTLE
|
1 | Ask on WhatsApp |
| F-2 |
H921-17936-000
WASHER,�PIVOT
|
2 | Ask on WhatsApp |
| F-2 |
HZW1-24210-010
SPRING�COMP.,�CLICK
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24221-000
SPRING,�CLICK�ASSIST
|
1 | Ask on WhatsApp |
| F-2 |
HZW1-24327-000
RING,�STOPPER
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24610-A00
SHAFT�COMP.,�SHIFT(A)
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24613-000
ROD,�LINK
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24617-000
COLLAR,�SHIFT�SLIDER
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24619-000
PLATE,�LOCK
|
2 | Ask on WhatsApp |
| F-2 |
HZY3-24620-000
SHAFT�COMP.,�SHIFT(B)
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24623-000
BUSH,�SHIFT�ARM
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-24628-000
BRACKET,�SHIFT�LINK
|
1 | Ask on WhatsApp |
| F-2 |
HZW1-24629-000
HOLDER,�SEAL
|
1 | Ask on WhatsApp |
| F-2 |
HZX2-35470-013
SWITCH�ASSY.,�NEUTRAL
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-35476-010
BRACKET,�NEUTRAL�SWITCH
|
1 | Ask on WhatsApp |
| F-2 |
HZY3-35477-000
COVER,�NEUTRAL�SWITCH
|
1 | Ask on WhatsApp |
| F-2 |
HZW9-90011-000
BOLT,�FLANGE,�6X14(CT200)
|
2 | Ask on WhatsApp |
| F-2 |
HZY3-24618-000
PIVOT,�SHIFT
|
2 | Ask on WhatsApp |
| F-3 |
HZX2-90107-C00
BOLT-WASHER,�10X47
|
6 | Ask on WhatsApp |
| F-3 |
HZY3-90120-000
BOLT,�DRAIN�PLUG
|
1 | Ask on WhatsApp |
| F-3 |
HZY3-90124-000
BOLT,�STUD,�12X40
|
1 | Ask on WhatsApp |
| F-3 |
HZY1-90205-000
NUT,�SELF-LOCK,�6MM
|
1 | Ask on WhatsApp |
| F-3 |
HZV4-90302-000
NUT,�SELF-LOCK,�5MM
|
1 | Ask on WhatsApp |
| F-3 |
HZW1-90308-003
NUT,�SELF-LOCK,�12MM
|
1 | Ask on WhatsApp |
| F-3 |
HZV5-90559-000
WASHER,�PLAIN,�12MM
|
1 | Ask on WhatsApp |
| F-3 |
HZV5-90756-000
DOWEL�PIN,�6X10
|
2 | Ask on WhatsApp |
| F-3 |
HZW4-91301-003
O-RING,�6.9X1.45
|
2 | Ask on WhatsApp |
| F-3 |
HCO-92101-06055-4J
BOLT,�HEX.,�6X55
|
1 | Ask on WhatsApp |
| F-3 |
HZZ0-90101-000
SCREW,�FLAT,�5X55
|
1 | Ask on WhatsApp |
| F-3 |
HZY6-90103-000
BOLT-WASHER,�10X32
|
1 | Ask on WhatsApp |
| F-3 |
HZW1-19286-B00
PLATE,�RUBBER�SETTING
|
1 | Ask on WhatsApp |
| F-3 |
HZX2-41101-C01ZC
CASE,�GEAR
|
1 | Ask on WhatsApp |
| F-3 |
HZW1-41102-B00
GROMMET,�GEAR�CASE
|
1 | Ask on WhatsApp |
| F-3 |
HZY3-41104-C01
SCREEN,�R.�WATER
|
1 | Ask on WhatsApp |
| F-3 |
HZY3-41105-C01
SCREEN,�L.�WATER
|
1 | Ask on WhatsApp |
| F-3 |
HZX2-41107-C00ZC
TAB,�TRIM
|
1 | Ask on WhatsApp |
| F-3 |
HZW1-41109-B00
METAL�COMP.,�ANODE
|
2 | Ask on WhatsApp |
| F-3 |
HZW9-90101-003
BOLT,�OIL�CHECK
|
1 | Ask on WhatsApp |
| F-3-10 |
HZX2-41100-C11ZC
CASE�ASSY.,�GEAR(XL)
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90302-000
NUT,�SELF-LOCK,�14MM
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-63756-C00
GROMMET,�L.�IDLE�PORT
|
1 | Ask on WhatsApp |
| F-3-20 |
H921-90302-000
NUT,�HEX.,�16MM
|
1 | Ask on WhatsApp |
| F-3-20 |
HCO-93500-06025-4J
SCREW,�PAN,�6X25
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90132-000
BOLT,�SPECIAL,�6X37
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-90129-A00
BOLT,�SPECIAL,�6X12
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-90122-000
BOLT,�HEX.,�12X50
|
11 | Ask on WhatsApp |
| F-3-20 |
HZY3-90113-C00
BOLT,�SPECIAL,�6X22
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90111-000
BOLT,�SPECIAL,�6X17
|
26 | Ask on WhatsApp |
| F-3-20 |
HZV5-90110-000
SCREW,�SPECIAL,�6X35
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90102-A00
BOLT,�HEX.,�10X35
|
6 | Ask on WhatsApp |
| F-3-20 |
HZX2-90102-C00
BOLT-WASHER,�6X25
|
2 | Ask on WhatsApp |
| F-3-20 |
HZV5-82873-003
GROMMET,�WATER�CHECK
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90105-010
BOLT,�HEX.,�14X180
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-90503-610
WASHER,�30MM
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90511-000
WASHER,�PLAIN,�14MM
|
2 | Ask on WhatsApp |
| F-3-20 |
HZV5-90559-000
WASHER,�PLAIN,�12MM
|
11 | Ask on WhatsApp |
| F-3-20 |
HZV5-90563-000
WASHER,�PLAIN,�10MM
|
6 | Ask on WhatsApp |
| F-3-20 |
HZV4-90605-000
CLIP,�TUBE(B12.5)
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-90652-000
CIRCLIP,�INTERNAL,�43
|
1 | Ask on WhatsApp |
| F-3-20 |
HSA0-90683-003
CLIP,�WIRE�HARNESS,�25MM
|
1 | Ask on WhatsApp |
| F-3-20 |
HZV5-90756-000
DOWEL�PIN,�6X10
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-91451-000
TUBE,�WATER�JOINT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY6-91553-000
COLLAR,�DISTANCE,�6.5X9X5
|
1 | Ask on WhatsApp |
| F-3-20 |
HZV5-91563-000
COLLAR,�DISTANCE,�6X10.5X25
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-91651-003
PLUG,�HOLE,�5MM
|
1 | Ask on WhatsApp |
| F-3-20 |
HCO-95011-63000
RUBBER�C,�STAND�STOPPER
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-63736-A12ZC
COVER,�L.�LOWER�MOUNTING
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-19270-000
NUT,�WATER�MOUTH
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-19271-000
JOINT,�WATER�HOSE
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-19272-000
SEAT,�WATER�MOUTH
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-19289-000
CAP,�WATER�JOINT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-35640-013
SWITCH�ASSY.,�POWER�TILT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-35645-000
STAY,�POWER�TILT�SWITCH
|
1 | Ask on WhatsApp |
| F-3-20 |
HZV5-40107-000
GROMMET,�UNDER�CASE(C)
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40114-010
GROMMET,�POWER�TILT�SWITCH
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40151-000ZC
COVER,�FR.�SEPARATE
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40201-612ZC
CASE,�EXTENSION
|
1 | Ask on WhatsApp |
| F-3-20 |
HZW1-40209-000
RUBBER,�DRAIN�PLUG
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40210-610
BUSH�COMP.,�VERTICAL�SHAFT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40212-611ZC
COVER,�DRAIN�PLUG(XL)
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40225-010
SEAL,�R.�IDOL�PORT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63728-000
SEAL�C,�UNDER�COVER
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63751-C00
GROMMET,�R.�IDLE�PORT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63731-A12ZC
COVER,�R.�LOWER�MOUNTING
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63722-010ZC
CAP,�UNDER�COVER
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-40226-010
SEAL,�L.�IDOL�PORT
|
1 | Ask on WhatsApp |
| F-3-20 |
HZX2-63719-C00
SEAL�B,�COVER�UNDER
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63718-000
SEAL�A,�COVER�UNDER
|
1 | Ask on WhatsApp |
| F-3-20 |
HZX2-63715-C00ZB
COVER�COMP.,�L.�UNDER�ENGINE
|
1 | Ask on WhatsApp |
| F-3-20 |
HZX2-63710-C00ZB
COVER�COMP.,�R.�UNDER�ENGINE
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-63347-C00
COVER,�PLUG�MAINTENANCE
|
1 | Ask on WhatsApp |
| F-3-20 |
HZY3-50157-010
STOPPER,�LOWER�MOUNT
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-50155-000
MOUNT�COMP.,�LOWER�RUBBER
|
2 | Ask on WhatsApp |
| F-3-20 |
HZY3-50111-020
HOUSING,�LOWER�MOUNTING
|
2 | Ask on WhatsApp |
| F-4 |
H723-90472-000
WASHER,�PLAIN,�12MM
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90518-C00
SHIM�A,�GEAR(0.10)
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90519-C00
SHIM�B,�GEAR(0.15)
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90520-C00
SHIM�C,�GEAR(0.30)
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90521-C00
SHIM�D,�GEAR(0.50)
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-90752-003
KEY,�WOODRUFF
|
1 | Ask on WhatsApp |
| F-4 |
HZV5-90756-000
DOWEL�PIN,�6X10
|
2 | Ask on WhatsApp |
| F-4 |
HZX2-91053-C01
BEARING,�NEEDLE,�30.5X47X37
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-91056-C01
BEARING,�TAPER�ROLLER,
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-91251-C01
SEAL,�WATER,�26X42X7
|
2 | Ask on WhatsApp |
| F-4 |
HMJ0-91308-003
O-RING
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-91356-003
O-RING,�WATER�PUMP
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-91358-C00
O-RING,�WATER�PUMP�HOUSING
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-91359-C00
O-RING,�65.4X2.4
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-91551-000
COLLAR,�DISTANCE
|
4 | Ask on WhatsApp |
| F-4 |
HCO-94540-10019
E-RING,�10MM
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-06192-C00
PUMP�KIT,�IMPELLER
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-06193-C00
PUMP�KIT,�IMPELLER
|
1 | Ask on WhatsApp |
| F-4 |
HCO-94520-47000
CIRCLIP,�INTERNAL,�47MM
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-91254-003
SEAL,�WATER,�12X21X6
|
2 | Ask on WhatsApp |
| F-4 |
HZX2-90301-C00
NUT,�LOCK,�68MM
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90303-C00
NUT,�HEX.,�18MM
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19210-003
IMPELLER,�PUMP
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19221-010
HOUSING,�IMPELLER
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19223-000
LINER,�PUMP
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19231-000
COVER,�IMPELLER
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-19234-C00
GASKET�B,�IMPELLER
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-19241-C00
HOUSING,�WATER�PUMP
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19251-611
TUBE,�WATER(XL)
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-19253-000
RING,�WATER�TUBE�SEAL
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-24310-C00
ROD�COMP.,�SHIFT
|
1 | Ask on WhatsApp |
| F-4 |
HZY6-24320-610
ROD�COMP.�A,�SHIFT(XL)
|
1 | Ask on WhatsApp |
| F-4 |
HZW1-24343-B02
HOLDER,�SHIFT�ROD
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-40204-000
GROMMET,�EXTENSION�CASE
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-41112-C10
SHAFT,�VERTICAL(XL)
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-41116-000
SLINGER,�OIL
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-41131-C00
GEAR,�PINION
|
1 | Ask on WhatsApp |
| F-4 |
HZX2-90105-C00
BOLT,�WASHER,�8X60
|
4 | Ask on WhatsApp |
| F-4 |
HHW1-90215-671
BOLT,�FLANGE,�6X16
|
1 | Ask on WhatsApp |
| F-4 |
HZY3-24318-000
SPRING,�SHIFT�ROD
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-90651-C00
RING,�SETTING(39)
|
1 | Ask on WhatsApp |
| F-5 |
HZV5-90559-000
WASHER,�PLAIN,�12MM
|
2 | Ask on WhatsApp |
| F-5 |
HZY3-90551-000
SHIM�D,�THRUST(2.90)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90559-000
SHIM�L,�THRUST(2.55)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90558-000
SHIM�K,�THRUST(2.60)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90557-000
SHIM�Ј,�THRUST(2.65)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90556-000
SHIM�I,�THRUST(2.70)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90555-000
SHIM�H,�THRUST(3.10)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90554-000
SHIM�G,�THRUST(3.05)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90553-000
SHIM�F,�THRUST(3.00)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90552-000
SHIM�E,�THRUST(2.95)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90560-000
SHIM�M,�THRUST(2.50)
|
1 | Ask on WhatsApp |
| F-5 |
HZW1-90758-B00
PIN,�SPLIT,�4.0
|
1 | Ask on WhatsApp |
| F-5 |
HPT2-91005-N01
BEARING,�THRUST(F)
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-91051-C01
BEARING,�TAPER�ROLLER,
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-91055-C01
BEARING,�RADIAL�BALL,
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-91056-711
BEARING,�NEEDLE,�28X39X30
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-91057-003
BEARING,�NEEDLE,�32X42X30
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-91151-000
ROLLER,�3X13.8
|
1 | Ask on WhatsApp |
| F-5 |
HZZ3-91252-003
SEAL,�WATER,�30X45X7
|
2 | Ask on WhatsApp |
| F-5 |
HZX2-91351-C00
O-RING,�121X3.1
|
1 | Ask on WhatsApp |
| F-5 |
HCO-94510-15000
CIRCLIP,�EXTERNAL,�15MM
|
1 | Ask on WhatsApp |
| F-5 |
HCO-96211-07000
BALL,�STEEL,�#7(7/32)
|
2 | Ask on WhatsApp |
| F-5 |
HCO-96211-12000
BALL,�STEEL,�#12(3/8)
|
2 | Ask on WhatsApp |
| F-5 |
HZY3-90549-000
SHIM�B,�THRUST(2.80)
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90550-000
SHIM�C,�THRUST(2.85)
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-24101-C00
SHIFTER,�CLUTCH
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-24102-000
PIN,�SHIFTER,�8X50
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-24103-000
RING,�CROSS�PIN
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-24113-A01
SLIDER�COMP.,�SHIFT
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-24122-A01
SLIDER,�SHIFT
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-24123-000
SPRING,�SHIFT
|
2 | Ask on WhatsApp |
| F-5 |
HZY3-24124-310
PLATE,�SHIFT
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-41140-C00
GEAR�COMP.,�BEVEL(FORWARD)
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-41151-C00
GEAR,�BEVEL(REVERSE)(24T)
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-41161-C00
SHAFT,�PROPELLER
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-41201-C00ZC
HOLDER,�PROPELLER�SHAFT
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-41202-C00
HOLDER,�BEARING
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90123-000
BOLT,�HEX.,�12X45
|
2 | Ask on WhatsApp |
| F-5 |
HZW1-90301-B00
NUT,�CASTLE,�18MM
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90506-000
WASHER,�PROPELLER�THRUST
|
1 | Ask on WhatsApp |
| F-5 |
HZW5-90509-711
WASHER,�THRUST�BEARING
|
1 | Ask on WhatsApp |
| F-5 |
HZY3-90512-000
WASHER,�PROPELLER
|
1 | Ask on WhatsApp |
| F-5 |
HZX2-90528-C00
SHIM�A,�BEVEL(0.10)
|
2 | Ask on WhatsApp |
| F-5 |
HZX2-90529-C00
SHIM�B,�BEVEL(0.15)
|
2 | Ask on WhatsApp |
| F-5 |
HZX2-90530-C00
SHIM�C,�BEVEL(0.30)
|
2 | Ask on WhatsApp |
| F-5 |
HZX2-90531-C00
SHIM�D,�BEVEL(0.50)
|
2 | Ask on WhatsApp |
| F-5 |
HZY3-90548-000
SHIM�A,�THRUST(2.75)
|
1 | Ask on WhatsApp |
| F-6 |
332-70201-0
*�CLAMP
|
2 | Ask on WhatsApp |
| F-6 |
98AB-701600
*�HOSE
|
1 | Ask on WhatsApp |
| F-6 |
98AB-70-700
*�HOSE
|
1 | Ask on WhatsApp |
| F-6 |
3C7-70217-0
*�CLAMP
|
2 | Ask on WhatsApp |
| F-6 |
3C7-70224-1
*�JOINT�ASSY�(OUTLET)
|
1 | Ask on WhatsApp |
| F-6 |
3C7-70220-1
*�JOINT�ASSY�(INLET)
|
1 | Ask on WhatsApp |
| F-6 |
|
1 | Ask on WhatsApp |
| F-6 |
3T1-70200-1
PRIMER�BULB�ASSY
|
1 | Ask on WhatsApp |
| F-6 |
3C7-70211-1
*�PRIMER�BULB
|
1 | Ask on WhatsApp |
| F-7 |
HZX2-32100-010
HARNESS�ASSY.,�MAIN�WIRE
|
1 | Ask on WhatsApp |
| F-7 |
HZZ3-32127-000
SUSPENSION,�COUPLER
|
1 | Ask on WhatsApp |
| F-7 |
HZW9-90013-000
BOLT,�FLANGE,�6X12
|
2 | Ask on WhatsApp |
| F-7 |
HZY3-90653-003
CLIP,�WIRE�HARNESS
|
3 | Ask on WhatsApp |
| F-7 |
HS0A-91541-003
CLIP,�HARNESS�BAND(BLACK)
|
15 | Ask on WhatsApp |
| F-7-10 |
HZW9-90013-000
BOLT,�FLANGE,�6X12
|
4 | Ask on WhatsApp |
| F-7-10 |
HZV5-91553-010
COLLAR,�C.D.I.�UNIT�CASE
|
3 | Ask on WhatsApp |
| F-7-10 |
HZW9-90014-000
BOLT,�FLANGE,�6X10
|
2 | Ask on WhatsApp |
| F-7-10 |
HZY3-90107-000
BOLT,�FLANGE,�8X18
|
1 | Ask on WhatsApp |
| F-7-10 |
HZW1-90203-000
NUT-WASHER,�8MM
|
2 | Ask on WhatsApp |
| F-7-10 |
HZY3-90304-000
NUT-WASHER,�6MM
|
1 | Ask on WhatsApp |
| F-7-10 |
HZY3-90405-000
WASHER,�PLAIN,�8MM
|
1 | Ask on WhatsApp |
| F-7-10 |
HSB2-90620-003
BAND,�WIRE�HARNESS
|
1 | Ask on WhatsApp |
| F-7-10 |
H763-90681-A01
CLIP,�WIRE�HARNESS
|
1 | Ask on WhatsApp |
| F-7-10 |
HZX2-90683-003
CLIP,�WIRE�HARNESS
|
2 | Ask on WhatsApp |
| F-7-10 |
HZZ5-91501-000
COLLAR,�MOUNTING(6MM)
|
2 | Ask on WhatsApp |
| F-7-10 |
HS0A-91541-003
CLIP,�HARNESS�BAND(BLACK)
|
4 | Ask on WhatsApp |
| F-7-10 |
HZW1-90013-000
BOLT-WASHER,�6X25
|
2 | Ask on WhatsApp |
| F-7-10 |
HZW2-90003-000
BOLT-WASHER,�6X27(CT200)
|
3 | Ask on WhatsApp |
| F-7-10 |
HZX2-38552-000
CASE,�POWER�TILT�RELAY
|
1 | Ask on WhatsApp |
| F-7-10 |
HZW1-38551-000
GROMMET,�RELAY
|
2 | Ask on WhatsApp |
| F-7-10 |
HZX2-38550-003
RELAY�ASSY.,�POWER�TILT
|
1 | Ask on WhatsApp |
| F-7-10 |
HZX2-32435-000
CORD,�A.C.�GENERATOR
|
1 | Ask on WhatsApp |
| F-7-10 |
HZX2-32415-000
CABLE�ASSY.,�POWER�TILT�RELAY
|
1 | Ask on WhatsApp |
| F-7-10 |
HZY6-32414-640
COVER�B,�TERMINAL
|
1 | Ask on WhatsApp |
| F-7-10 |
HZX2-32414-300
COVER�B,�TERMINAL(L)
|
2 | Ask on WhatsApp |
| F-7-10 |
HZY3-32411-003
COVER,�STARTER�TERMINAL
|
1 | Ask on WhatsApp |
| F-7-10 |
HZX2-32410-000
CABLE�ASSY.,�STARTER
|
1 | Ask on WhatsApp |
| F-7-10 |
HZY9-32103-000
BRACKET�C,�COUPLER
|
2 | Ask on WhatsApp |
| F-7-10 |
HZY9-30419-003
GROMMET,�ELECTRONIC�PARTS�CASE
|
3 | Ask on WhatsApp |
