F115B’15
Section 27: BRACKET 2 (v2)
Model code: 6EK2
Section 27 — BRACKET 2

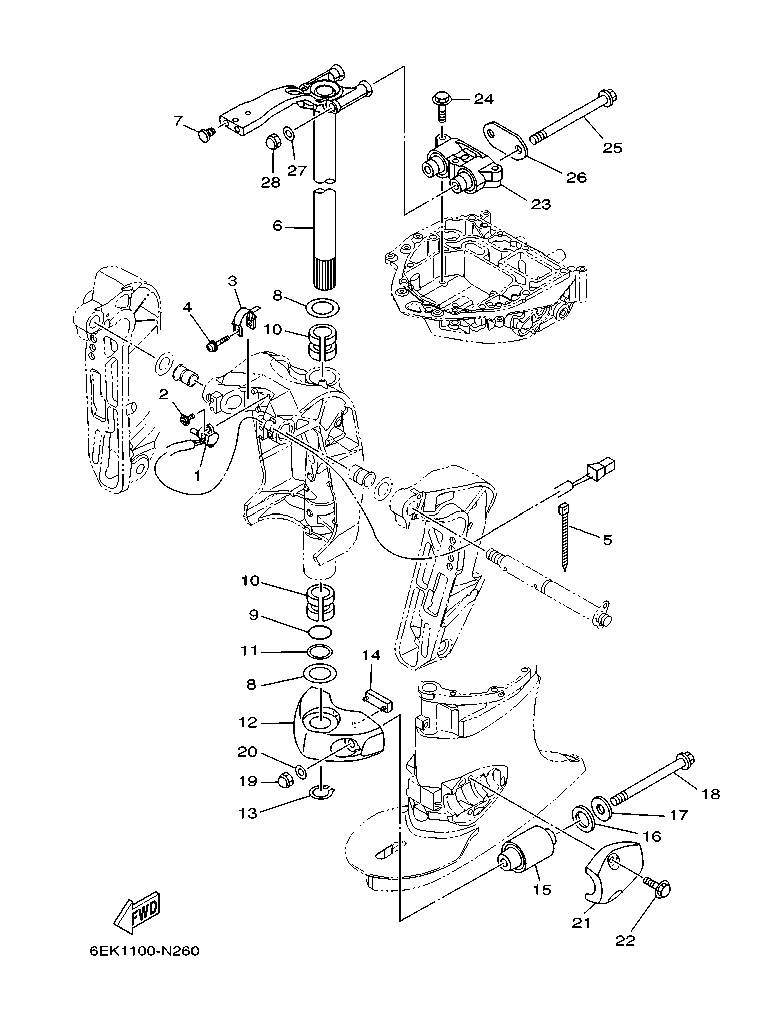

Diagram for section 27: BRACKET 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67H-83672-01
TRIM SENDER INCLINER RACCORD
|
1 | Ask on WhatsApp |
| 2 |
97985-06216
SCREW, WITH WASHER VIS, AVEC RONDELLE
|
2 |
Price:
2.98 AED
In stock
(6 pcs)
|
| 3 |
64E-43139-10
CAM, TRIM SENDER VILEBREQUIN TRUM
|
1 | Ask on WhatsApp |
| 4 |
90159-05059
SCREW, WITH WASHER VIS, AVEC RONDELLE
|
1 |
Price:
4.47 AED
In stock
(1 pcs)
|
| 5 |
90465-11M10
CLAMP BRIDE
|
2 | Ask on WhatsApp |
| 6 |
6EK-42510-00-8D
STEERING BRACKET ASSY
|
1 | Ask on WhatsApp |
| 6 |
6EK-42510-10-8D
STEERING BRACKET ASSY
|
1 | Ask on WhatsApp |
| 7 |
90338-08174
PLUG PLOT
|
2 | Ask on WhatsApp |
| 8 |
90201-38M60
WASHER, PLATE RONDELLE, PLATE
|
2 |
Price:
16.39 AED
In stock
(335 pcs)
|
| 9 |
93210-37MH7
O-RING
|
1 |
Price:
10.43 AED
In stock
(53 pcs)
|
| 10 |
90386-38M32
BUSH DOUILLE
|
2 | Ask on WhatsApp |
| 11 |
90202-40M47
WASHER, PLATE RONDELLE, PLATE
|
1 |
Price:
11.17 AED
In stock
(116 pcs)
|
| 12 |
6EK-44551-00-8D
HOUSING, LOWER MOUNT RUBBER 1 BOITIER, SILENT-BLOC INFERIEUR
|
1 | |
| 13 |
93410-37M04
CIRCLIP CLIPS
|
1 |
Price:
8.19 AED
In stock
(8 pcs)
|
| 14 |
61A-44575-00
DAMPER, LOWER MOUNT RUBBER SILENT-BLOC, INFERIEUR
|
1 | Ask on WhatsApp |
| 15 |
63P-44555-00
MOUNT DAMPER, LOWER SIDE SILENT-BLOC, INFERIEUR LATERAL
|
2 |
Price:
358.29 AED
In stock
(3 pcs)
|
| 16 |
90202-32M19
WASHER, PLATE RONDELLE, PLATE
|
2 |
Price:
11.17 AED
In stock
(38 pcs)
|
| 17 |
90201-16M55
WASHER, PLATE RONDELLE, PLATE
|
2 |
Price:
11.17 AED
In stock
(5 pcs)
|
| 18 |
90105-14013
BOLT, FLANGE BOULON
|
2 | Ask on WhatsApp |
| 19 |
90176-14002
NUT, CROWN ECROU BORGNE
|
2 | Ask on WhatsApp |
| 20 |
92995-14600
WASHER RONDELLE
|
2 | Ask on WhatsApp |
| 21 |
6EK-44553-00-8D
COVER, LOWER MOUNT COUVERCLE, SUSPENSION INFERIEU
|
2 | Ask on WhatsApp |
| 22 |
95875-10040
BOLT, FLANGE BOULON, A COLLERETTE
|
4 | Ask on WhatsApp |
| 23 |
6EK-44514-00
MOUNT DAMPER, UPPER SIDE SILENT-BLOC, SUPERIEUR LATERAL
|
1 | |
| 24 |
95875-10060
BOLT, FLANGE BOULON, A COLLERETTE
|
3 | Ask on WhatsApp |
| 25 |
90105-14007
BOLT, FLANGE BOULON
|
2 | Ask on WhatsApp |
| 26 |
6EK-44526-00
PLATE
|
1 | Ask on WhatsApp |
| 27 |
92995-14600
WASHER RONDELLE
|
2 | Ask on WhatsApp |
| 28 |
90176-14002
NUT, CROWN ECROU BORGNE
|
2 | Ask on WhatsApp |
