F115B’15

Section 17: ELECTRICAL 2 (v2)

Model code: 6EK2
Section 17 — ELECTRICAL 2

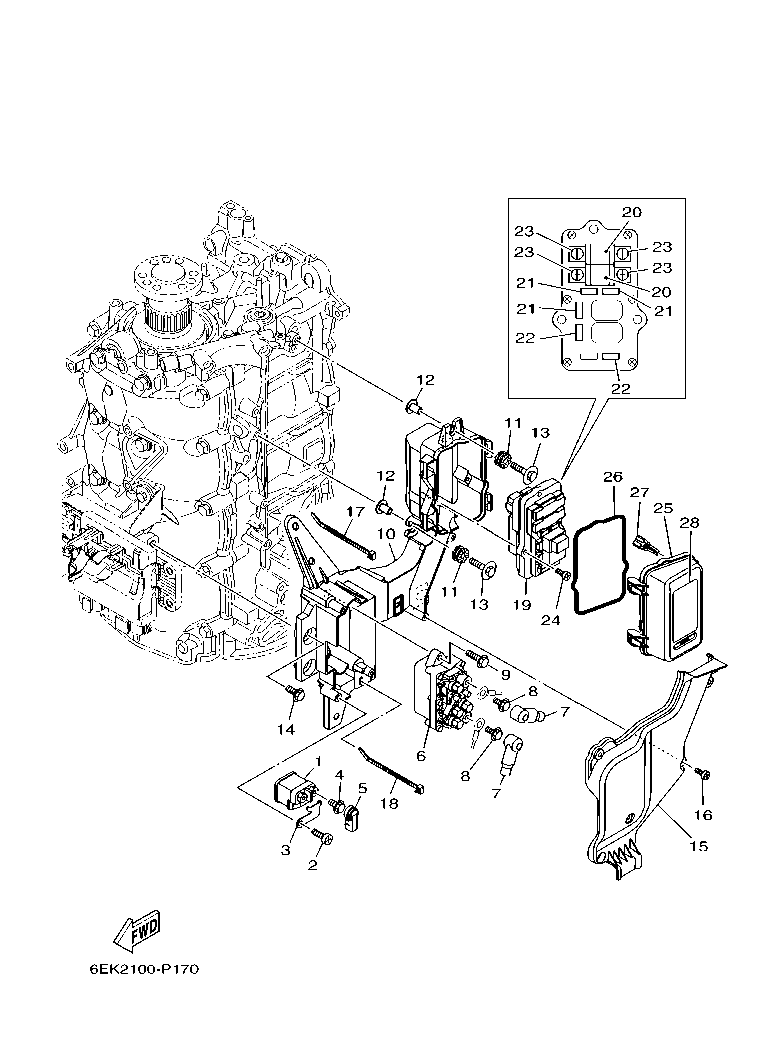

F115B’15 – section 17 ELECTRICAL 2 parts diagram

Diagram for section 17: ELECTRICAL 2.

Parts list for F115B’15 section 17 ELECTRICAL 2
Ref Part No. Qty Buy
1
68V-8194A-00
RELAY RELAIS
 1
Price: 184.73 AED
In stock (1 pcs)
2
97780-60620
SCREW, TAPPING VIS, TETE BOMBEE
 1 Ask on WhatsApp
3
68V-81953-00
STAY, RELAY SUPPORT, RELAIS
 1 Ask on WhatsApp
4
97595-06610
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
 2 Ask on WhatsApp
5
6P2-8183X-00
CAP, TERMINAL COUVERCLE, BORNE
 2 Ask on WhatsApp
6
63P-81950-00
RELAY ASSY RELAIS COMPLET
 1
Price: 861.83 AED
In stock (6 pcs)
7
682-82119-01
COVER, LEAD WIRE GARNITURE, FIL
 2 Ask on WhatsApp
8
97595-06610
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
 2 Ask on WhatsApp
9
97595-06520
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
 2 Ask on WhatsApp
10
6EK-81952-00
HOLDER, RELAY
 1 Ask on WhatsApp
11
64J-85516-00
SPACER ENTRETOISE
 4 Ask on WhatsApp
12
69M-42758-01
COLLAR ENTRETOISE
 4 Ask on WhatsApp
13
90119-06M56
BOLT, WITH WASHER BOULON, AVEC RONDELLE
 4 Ask on WhatsApp
14
95895-06016
BOLT, FLANGE BOULON
 2 Ask on WhatsApp
15
6EK-81942-00
COVER COUVERCLE
 1 Ask on WhatsApp
16
90169-05M00
SCREW, TRUSS HEAD TAPPING VIS, TETE FRAISEE
 4 Ask on WhatsApp
17
90465-13M18
CLAMP BRIDE
 2 Ask on WhatsApp
18
90465-13M18
CLAMP BRIDE
 1 Ask on WhatsApp
19
6EK-82170-02
FUSE BOX ASSY BOITE A FUSIBLES
 1 Ask on WhatsApp
20
63P-82151-00
.FUSE (50A) .FUSIBLE (50A)
 2 Ask on WhatsApp
21
67F-82151-00
.FUSE (20A) .FUSIBLE (20A)
 3 Ask on WhatsApp
22
67F-82151-10
.FUSE (30A) .FUSIBLE (30A)
 2 Ask on WhatsApp
23
68F-82846-00
.SCREW, PAN HEAD (M5) .VIS, TETE TRONCONIQUE (M5)
 4 Ask on WhatsApp
24
97780-50620
SCREW, TAPPING VIS, TETE BOMBEE
 3 Ask on WhatsApp
25
60V-85544-00
CASE BOITIER
 1 Ask on WhatsApp
26
68F-82176-00
DAMPER AMORTISSEUR
 1
Price: 11.17 AED
Out of stock
Ask on WhatsApp
27
67F-2812A-00
PULLER, FUSE
 1 Ask on WhatsApp
