F115B’15

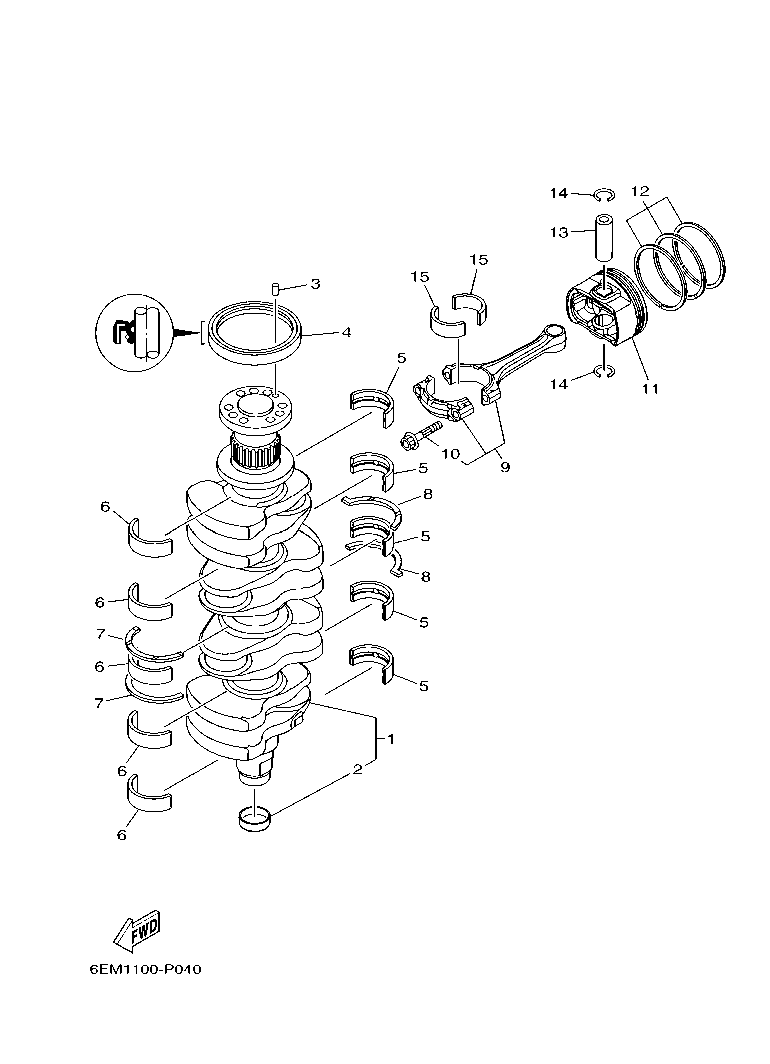

Section 4: CRANKSHAFT & PISTON (v2)
Model code: 6EK2
Parts list
Section 4
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6EK-11410-00
CRANKSHAFT VILEBREQUIN COMPLET
|
1 | |
| 2 |
6CB-11478-00
.COLLAR .COLLERETTE
|
1 | |
| 3 |
93606-12019
PIN, DOWEL GOUPILLE
|
1 | |
| 4 |
93102-85008
OIL SEAL JOINT SPY
|
1 | |
| 5 |
6EK-11416-00
PLANE BEARING, CRANKSHAFT 1
UR YELLOW
|
5 |
78.21 AED
Check price & stock on WhatsApp
|
| 5 |
6EK-11416-10
PLANE BEARING, CRANKSHAFT 1
UR GREEN
|
5 | |
| 5 |
6EK-11416-20
PLANE BEARING, CRANKSHAFT 1
UR BLUE
|
5 |
73.74 AED
Check price & stock on WhatsApp
|
| 5 |
6EK-11416-30
PLANE BEARING, CRANKSHAFT 1
UR RED
|
5 | |
| 5 |
6EK-11416-40
PLANE BEARING, CRANKSHAFT 1
UR BLACK
|
5 | |
| 6 |
6EK-11417-00
PLANE BEARING, CRANKSHAFT 2
UR YELLOW
|
5 |
81.94 AED
Check price & stock on WhatsApp
|
| 6 |
6EK-11417-10
PLANE BEARING, CRANKSHAFT 2
UR GREEN
|
5 |
71.51 AED
Check price & stock on WhatsApp
|
| 6 |
6EK-11417-20
PLANE BEARING, CRANKSHAFT 2
UR BLUE
|
5 |
73.74 AED
Check price & stock on WhatsApp
|
| 6 |
6EK-11417-30
PLANE BEARING, CRANKSHAFT 2
UR RED
|
5 | |
| 6 |
6EK-11417-40
PLANE BEARING, CRANKSHAFT 2
UR BLACK
|
5 | |
| 7 |
6EK-11426-01
BEARING, THRUST 1 ROULEMENT DE BUTEE 1
|
2 | |
| 8 |
6EK-11427-00
BEARING, THRUST 2 ROULEMENT DE BUTEE 2
|
2 |
25.33 AED
Check price & stock on WhatsApp
|
| 9 |
6EK-W1165-00
CONNECTING ROD ASSY BIELLE COMPLETTE
|
4 | |
| 10 |
K1C-A3275-00
.BOLT, CONNECTING ROD .BOULON, BIELLE
|
2 | |
| 11 |
6EK-11631-00-93
PISTON (STD) PISTON (STD)
|
4 | |
| 11 |
6EK-11635-00
PISTON (0.25MM O/S)
AP
|
4 | |
| 12 |
6EK-11603-00
PISTON RING SET (STD) JEU DE SEGMENTS (STD)
|
4 | |
| 12 |
6EK-11604-00
PISTON RING SET (0.25MM O/S)
AP
|
4 | |
| 13 |
6EK-11633-00
PIN, PISTON AXE, PISTON
|
4 | |
| 14 |
93450-19052
CIRCLIP CIRCLIP, TYPE S
|
8 | |
| 15 |
6EK-11656-00
PLANE BEARING, CONNECTING ROD
UR YELLOW
|
8 | |
| 15 |
6EK-11656-10
PLANE BEARING, CONNECTING ROD
UR GREEN
|
8 | |
| 15 |
6EK-11656-20
PLANE BEARING, CONNECTING ROD
UR BLUE
|
8 | |
| 15 |
6EK-11656-30
PLANE BEARING, CONNECTING ROD
UR RED
|
8 | |
| 15 |
6EK-11656-40
PLANE BEARING, CONNECTING ROD
UR BLACK
|
8 |
23.84 AED
Check price & stock on WhatsApp
|
