F115B’15

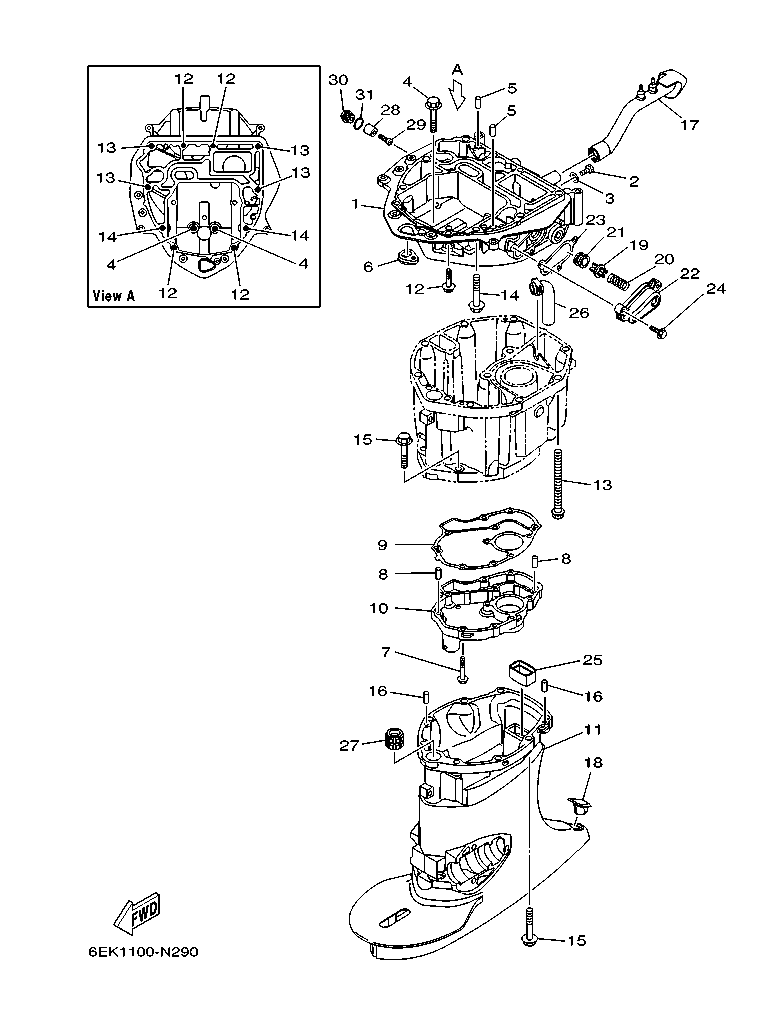

Section 30: UPPER CASING (v2)
Model code: 6EK2
Parts list
Section 30
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6EK-41137-00-CA
GUIDE, EXHAUST COLLECTEUR D'ECHAPPEMENT
|
1 | |
| 2 |
97095-08014
BOLT BOULON
|
1 | |
| 3 |
90430-08143
GASKET JOINT
|
1 |
Price:
4.47 AED
In stock
(4)
|
| 4 |
97575-10545
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
|
2 | |
| 5 |
93608-12M05
PIN, DOWEL AXE
|
2 |
Price:
3.72 AED
In stock
(32)
|
| 6 |
6EK-42727-00
GROMMET PASSE-FIL
|
1 | |
| 7 |
95895-06030
BOLT, FLANGE BOULON
|
11 | |
| 8 |
93606-12019
PIN, DOWEL GOUPILLE
|
2 |
Price:
6.70 AED
In stock
(285)
|
| 9 |
6EK-41134-00
GASKET, EXHAUST MANIFOLD JOINT, PIPE D'ECHAPPEMENT
|
1 | |
| 10 |
6EK-45181-00-9S
PLATE PLAQUETTE
|
1 | |
| 11 |
6EK-45111-00-8D
CASING, UPPER FOURREAU
|
1 | |
| 11 |
6EK-45111-10-8D
CASING, UPPER FOURREAU
|
1 | |
| 12 |
97575-08535
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
|
4 | |
| 13 |
90119-10007
BOLT, WITH WASHER BOULON, AVEC RONDELLE
|
4 | |
| 14 |
97575-10545
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
|
2 | |
| 15 |
97575-10545
BOLT, WITH WASHER VIS HEXAGONAL AVC RONDELLE
|
8 | |
| 16 |
93606-12019
PIN, DOWEL GOUPILLE
|
2 |
Price:
6.70 AED
In stock
(285)
|
| 17 |
6EK-42769-00
SEAL, RUBBER BOURRELET, CAOUTCHOUC
|
1 | |
| 18 |
6C5-45155-00
CAP CAPUCHON
|
1 | |
| 19 |
6G5-12416-00
VALVE, PRESSURE CONTROL SOUPAPE DE CONTROLEUR PRESS
|
1 | |
| 20 |
90501-200A2
SPRING, COMPRESSION RESSORT, COMPRESSION
|
1 |
Price:
8.19 AED
In stock
(5)
|
| 21 |
90480-20M05
GROMMET PASSE-FIL
|
1 |
Price:
2.98 AED
In stock
(5)
|
| 22 |
6EK-1246A-00-9S
COVER 1 COUVERCLE 1
|
1 | |
| 23 |
6EK-12435-A0
GASKET JOINT
|
1 | |
| 24 |
95895-06025
BOLT, FLANGE BOULON
|
3 | |
| 25 |
67F-45127-00
SEAL JOINT
|
1 | |
| 26 |
6EK-45135-00
PIPE
|
1 | |
| 27 |
6EK-45318-00
BUSHING, DRIVE SHAFT
|
1 | |
| 28 |
6G8-11325-00
ANODE
|
1 |
Price:
5.21 AED
In stock
(22)
|
| 29 |
98980-05025
SCREW, BIND
|
1 | |
| 30 |
6G8-11197-A0
PLUG, BLIND
|
1 | |
| 31 |
93210-13M63
O-RING
|
1 |
