bf130a2
Section F-7-40: SPEEDOMETER/TACHOMETER (v2)

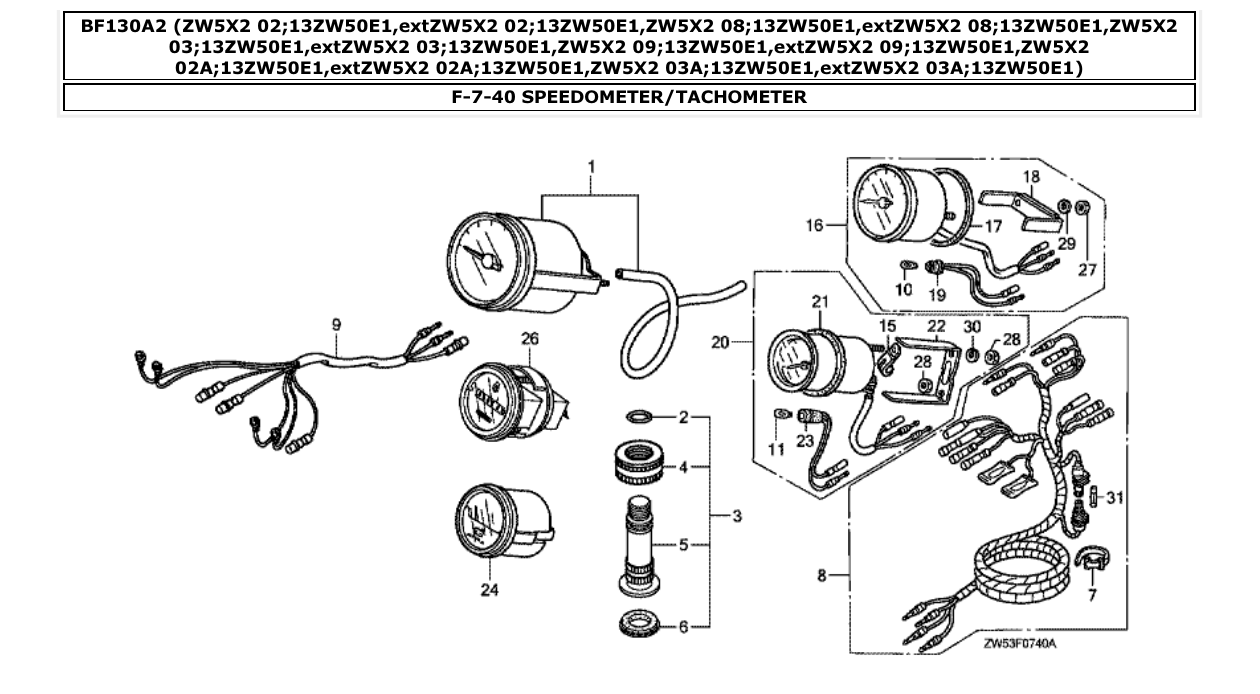

Diagram for section F-7-40: SPEEDOMETER/TACHOMETER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06372ZV5910
SPEEDOMETER KIT
|
1 | Ask on WhatsApp |
| 2 |
16997357003
O-RING, 11.8X2.4
|
1 | Ask on WhatsApp |
| 3 |
19270ZW1740
JOINT ASSY., HOSE
|
1 | Ask on WhatsApp |
| 4 |
19270881812
NUT, WATER MOUTH
|
1 | Ask on WhatsApp |
| 5 |
19271ZW1740
JOINT, WATER HOSE
|
1 | Ask on WhatsApp |
| 6 |
19272881810
SEAT, WATER MOUTH
|
1 | Ask on WhatsApp |
| 7 |
32161404000
BAND B1, WIRE XD/A
|
1 | Ask on WhatsApp |
| 8 |
32540ZV5910
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 8 |
32540ZV5911
HARNESS ASSY., METER (A) XD/A
|
1 | Ask on WhatsApp |
| 8 |
32540ZZ3000
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 9 |
32550ZV5910
HARNESS ASSY., METER (B)
|
1 | Ask on WhatsApp |
| 10 |
34908MB9871
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) XD/A
|
1 | Ask on WhatsApp |
| 11 |
34908MG9951
BULB, WEDGE BASE (12V 1.7W) XD/A
|
1 | Ask on WhatsApp |
| 15 |
37215KM1670
CLAMP XD/A
|
1 | Ask on WhatsApp |
| 16 |
37250ZV7912
TACHOMETER ASSY. XD/A
|
1 | Ask on WhatsApp |
| 16 |
37250ZV7913
TACHOMETER ASSY.
|
1 | Ask on WhatsApp |
| 17 |
37253ZV5821
PACKING XD/A
|
1 | Ask on WhatsApp |
| 18 |
37256ZV5821
BRACKET XD/A
|
1 | Ask on WhatsApp |
| 19 |
37258ZV5821
SOCKET COMP. XD/A
|
1 | Ask on WhatsApp |
| 20 |
37260ZV5305
METER ASSY., TRIM (FOR U.S.A.)
|
1 | Ask on WhatsApp |
| 20 |
37260ZV5821
METER ASSY., TRIM XD/A
|
1 | Ask on WhatsApp |
| 20 |
37260ZV5822
METER ASSY., TRIM
|
1 | Ask on WhatsApp |
