Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
CYLINDER HEAD COVER TIMING BELT TIMING BELT COVER FUEL PIPE/INJECTOR INTAKE MANIFOLD THROTTLE BODY VAPOR SEPARATOR ASSY. PIPING A.C. GENERATOR SPARK PLUG ELECTRONIC CONTROL UNIT STARTER MOTOR CYLINDER BLOCK CRANKCASE EXHAUST MANIFOLD/THERMOSTAT OIL PUMP/FLYWHEEL OIL PAN MOUNT CASE BOLT CRANKSHAFT/PISTON CYLINDER HEAD CAMSHAFT/ROCKER ARM STERN BRACKET/SWIVEL CASE SWIVEL CASE ASSY. POWER TRIM-TILT LABEL TOOL CONTROL PANEL REMOTE CONTROL SHIFT SHAFT GEAR CASE GEAR CASE ASSY. EXTENSION CASE WATER PUMP/VERTICAL SHAFT PROPELLER SHAFT (1) FUEL TUBE WIRE HARNESS STARTER CABLE (1) CLAMP ENGINE COVER FR. COVER BRACKET/FR. LOCK SHAFT WATER SEPARATOR/FUEL STRAINER MOUNT CASE REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT) REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT) REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT) REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT) ENGINE COVER CONTROL PANEL KIT CABLE (SINGLE) CABLE (DUAL) METER KIT METER KIT (DIGITAL) REMOTE CONTROL COVER KIT BOLT KIT PROPELLER WATER PUMP IMPELLER SET RIGGING HOSE KIT TRIM ADJUST PLATE SET

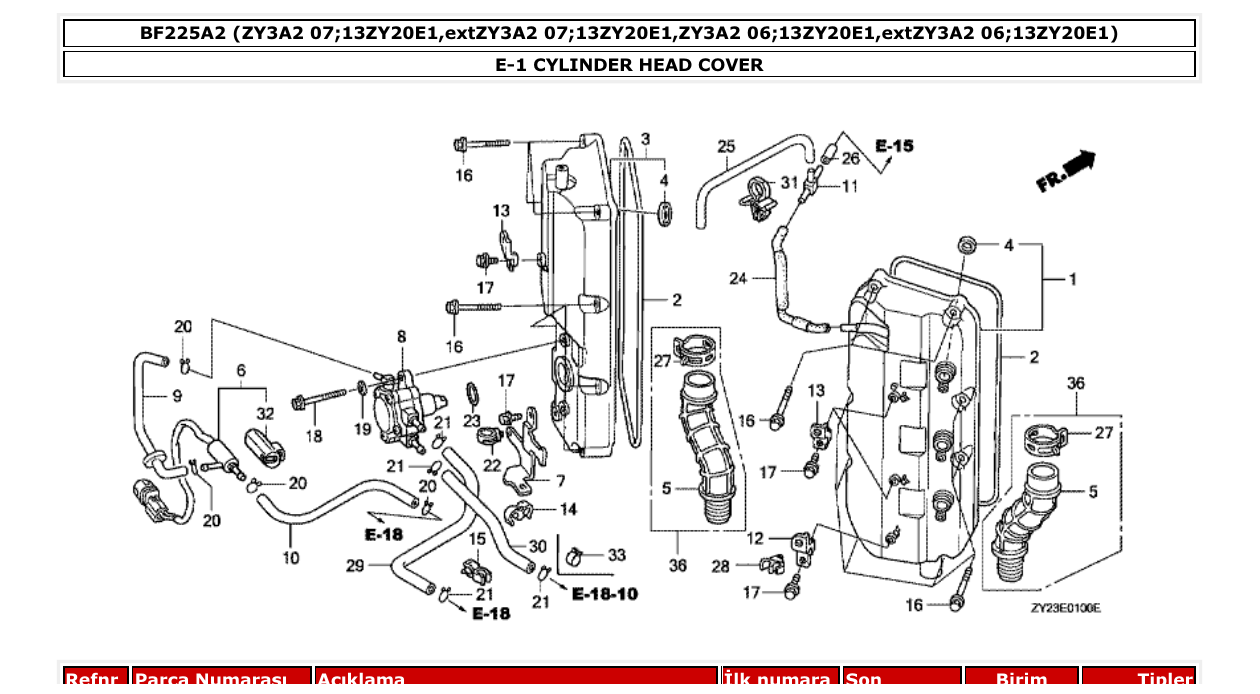

Fig. E-1 – CYLINDER HEAD COVER diagram
Fig. E-1 – CYLINDER HEAD COVER

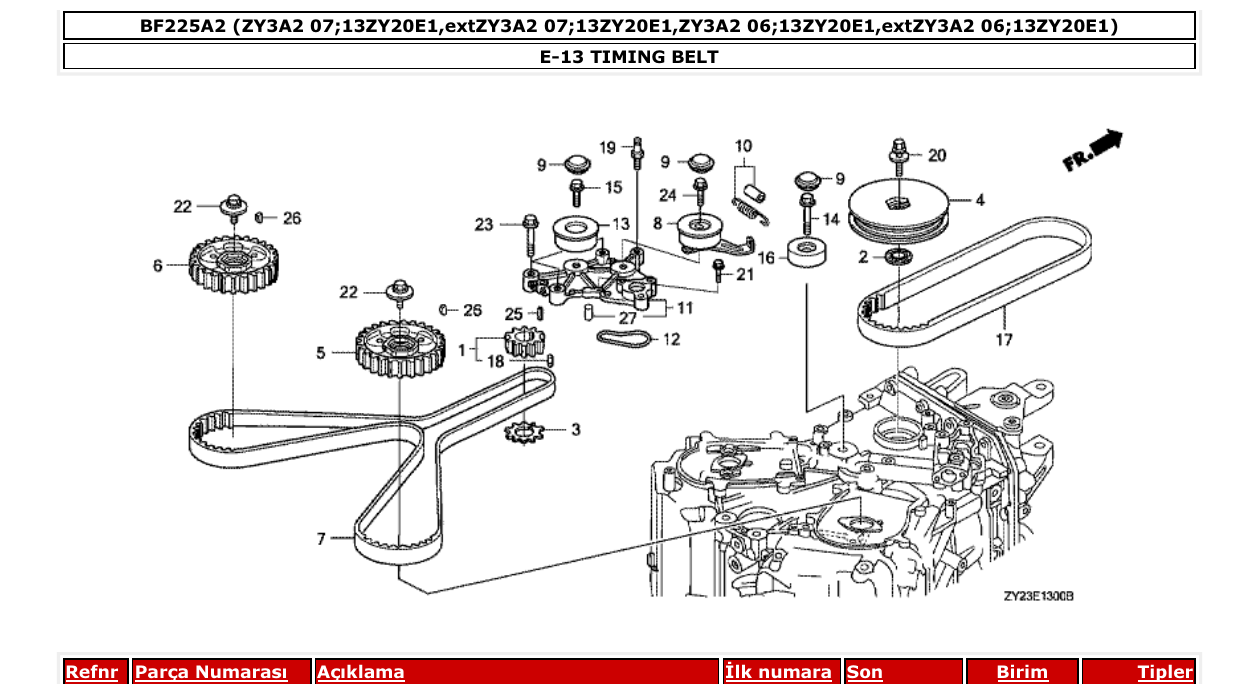

Fig. E-13 – TIMING BELT diagram
Fig. E-13 – TIMING BELT

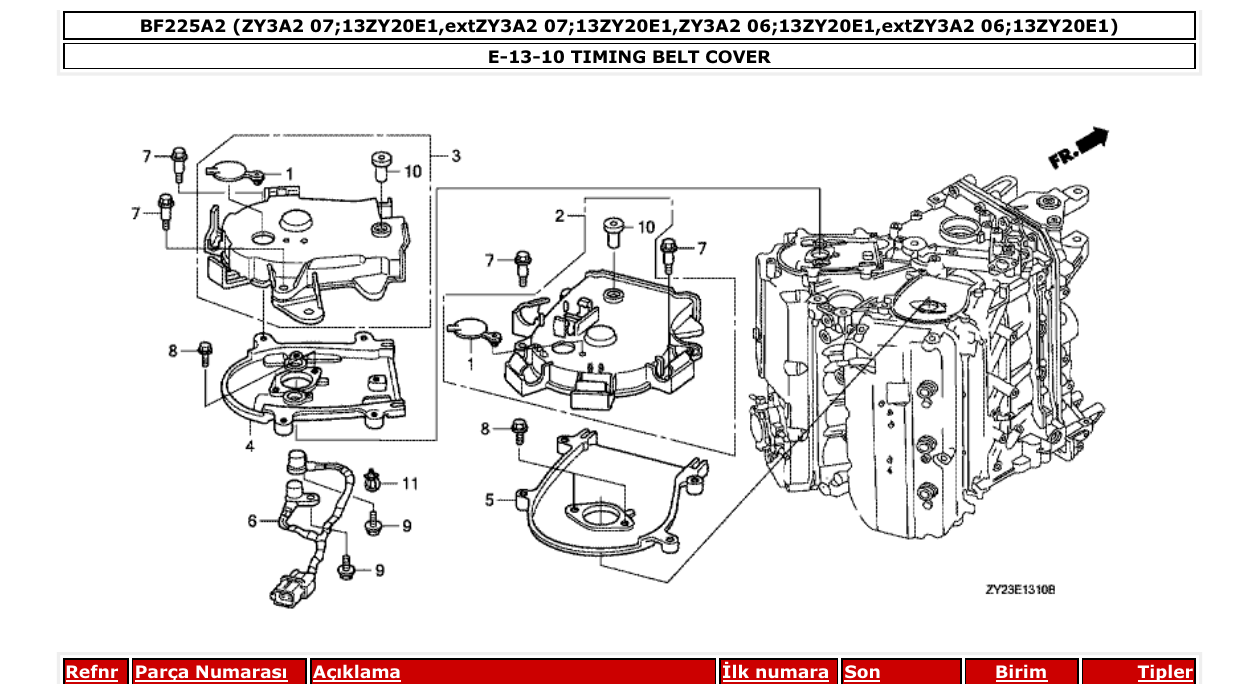

Fig. E-13-10 – TIMING BELT COVER diagram
Fig. E-13-10 – TIMING BELT COVER

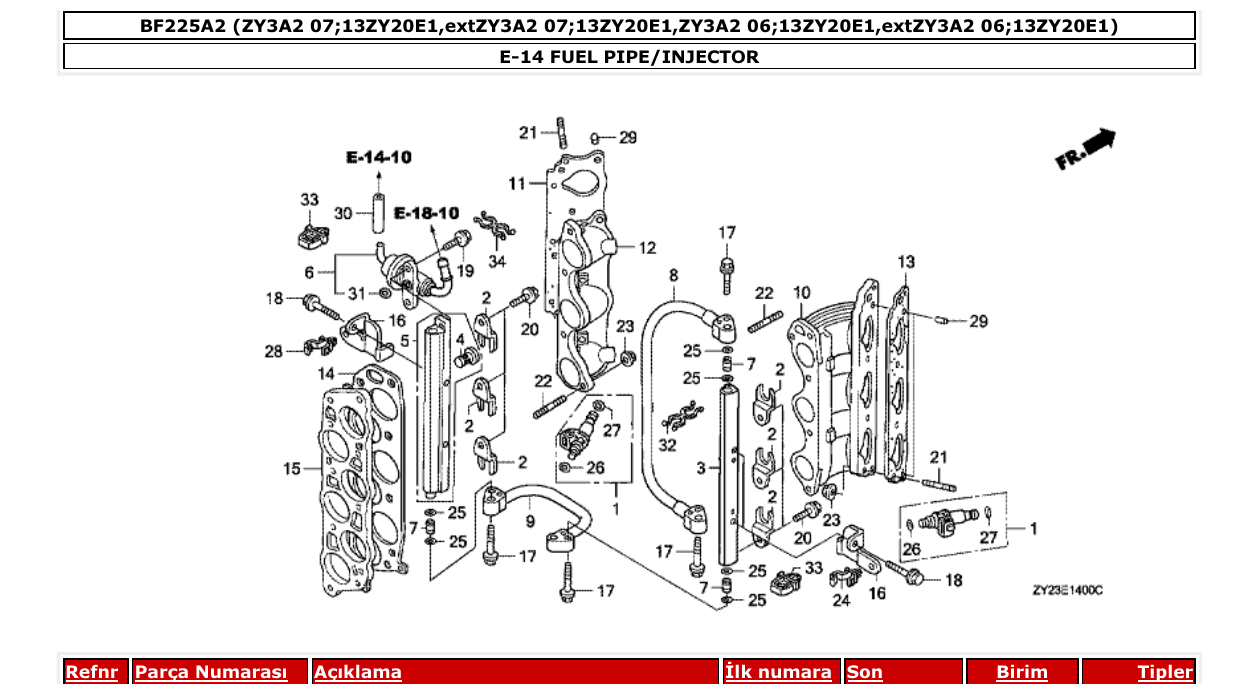

Fig. E-14 – FUEL PIPE/INJECTOR diagram
Fig. E-14 – FUEL PIPE/INJECTOR

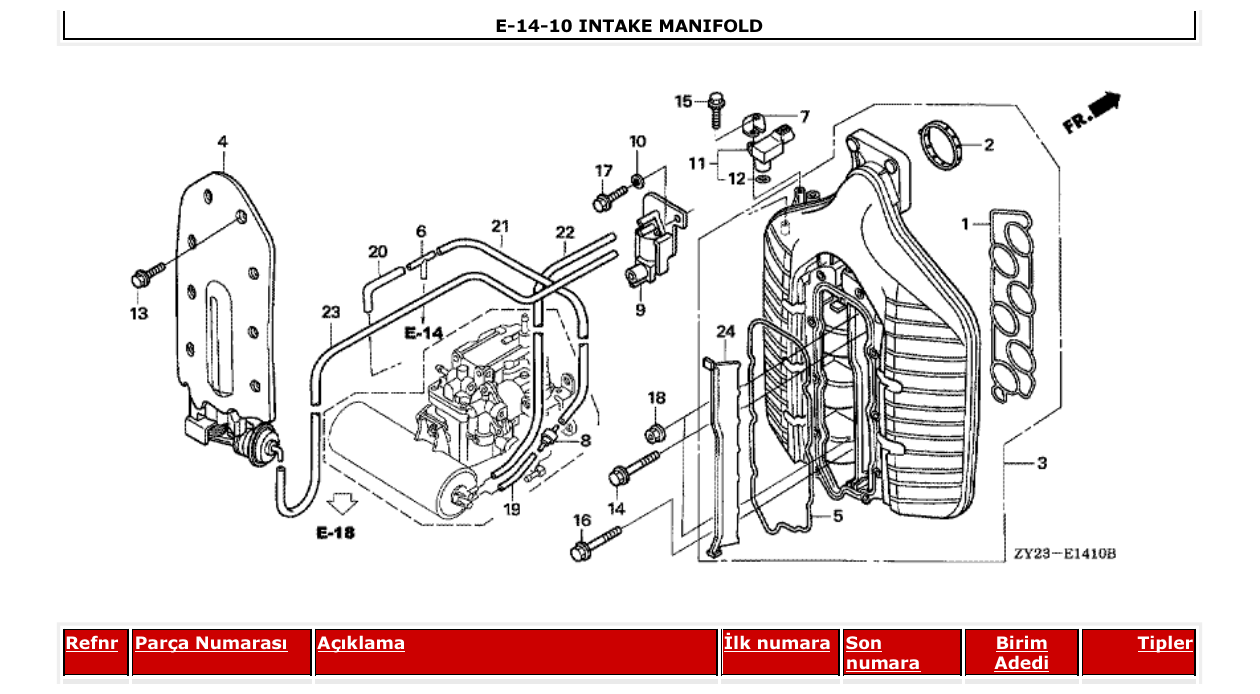

Fig. E-14-10 – INTAKE MANIFOLD diagram
Fig. E-14-10 – INTAKE MANIFOLD

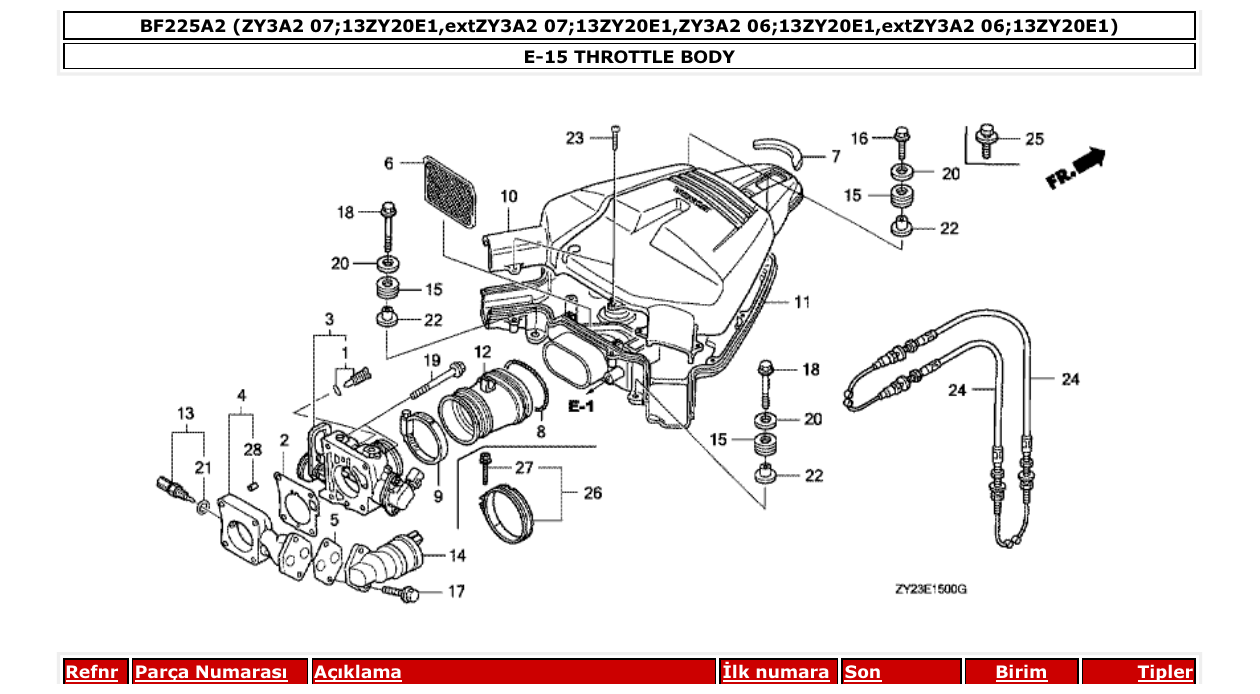

Fig. E-15 – THROTTLE BODY diagram
Fig. E-15 – THROTTLE BODY

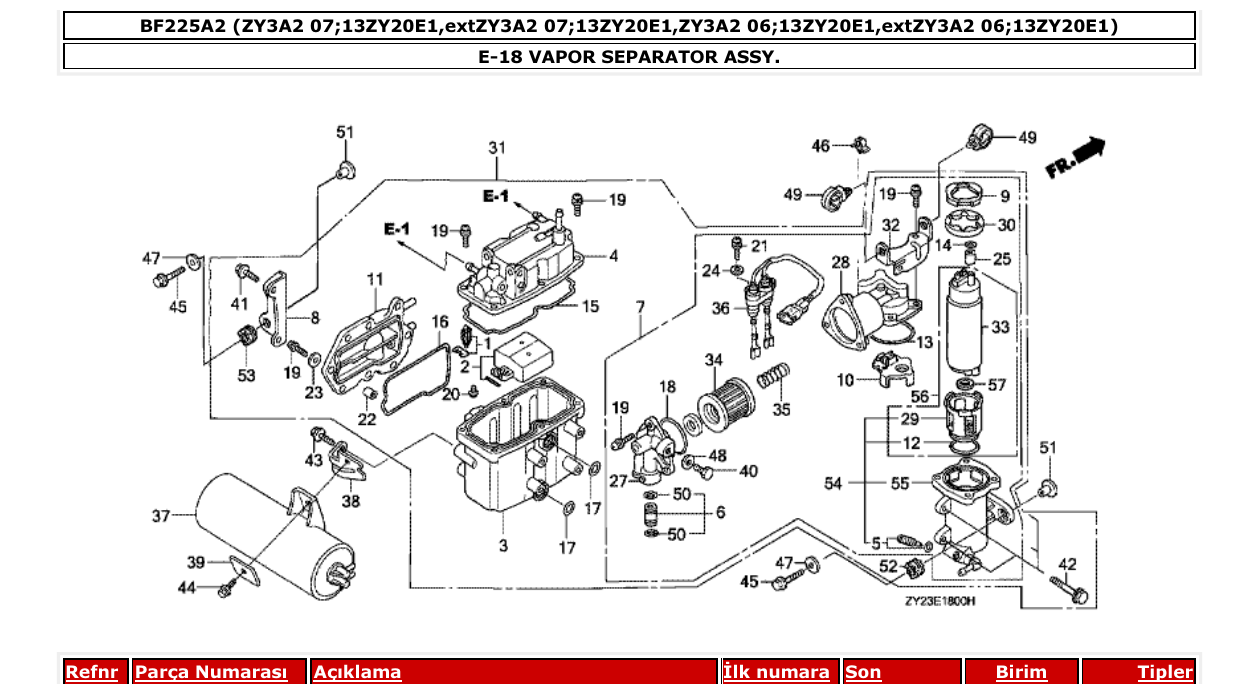

Fig. E-18 – VAPOR SEPARATOR ASSY. diagram
Fig. E-18 – VAPOR SEPARATOR ASSY.
Fig. E-18-10 – PIPING diagram
Fig. E-18-10 – PIPING

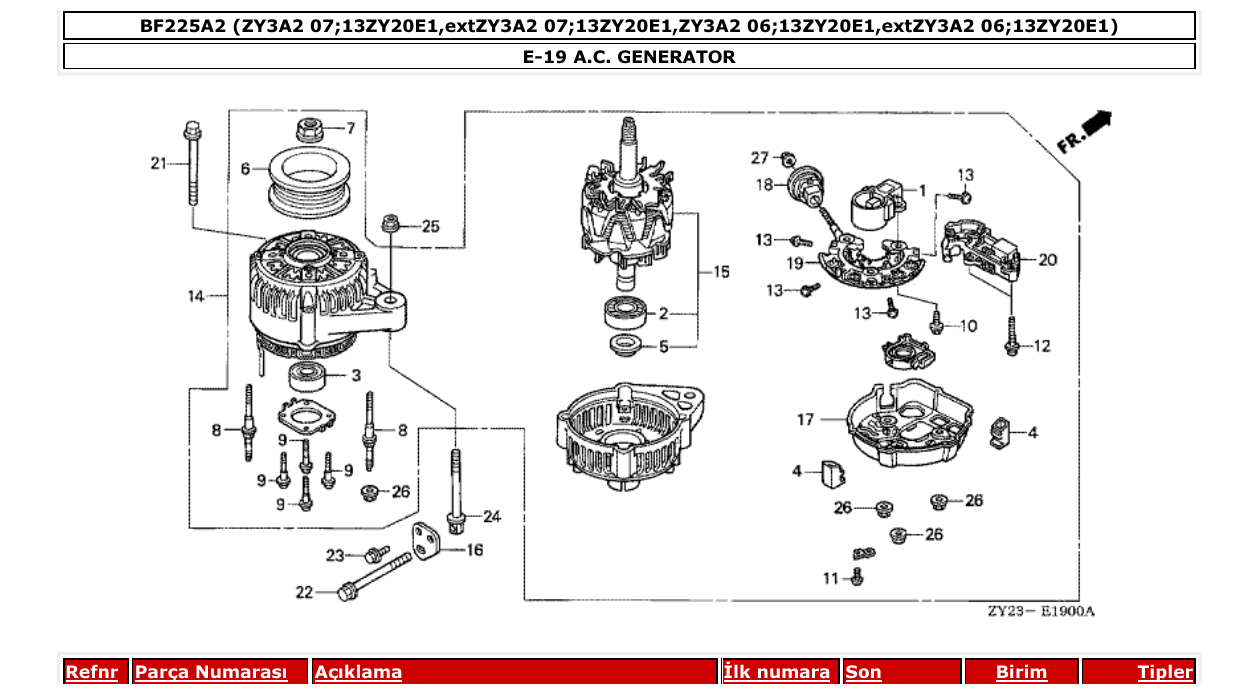

Fig. E-19 – A.C. GENERATOR diagram
Fig. E-19 – A.C. GENERATOR

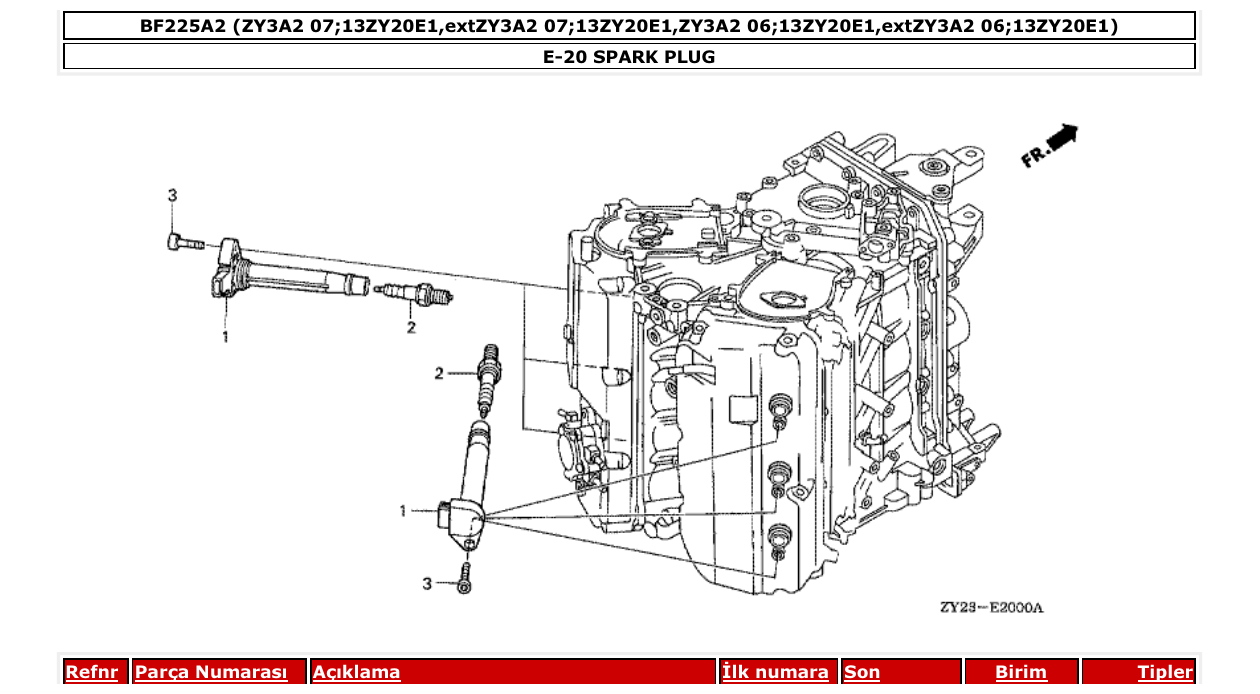

Fig. E-20 – SPARK PLUG diagram
Fig. E-20 – SPARK PLUG

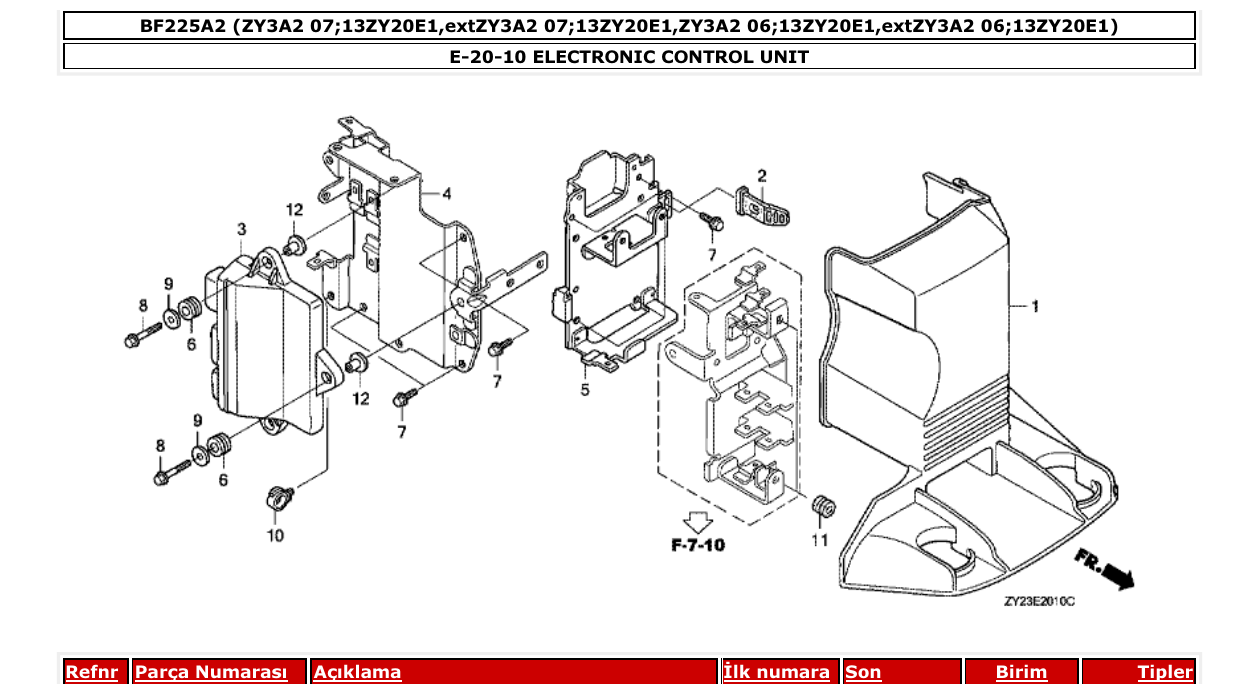

Fig. E-20-10 – ELECTRONIC CONTROL UNIT diagram
Fig. E-20-10 – ELECTRONIC CONTROL UNIT

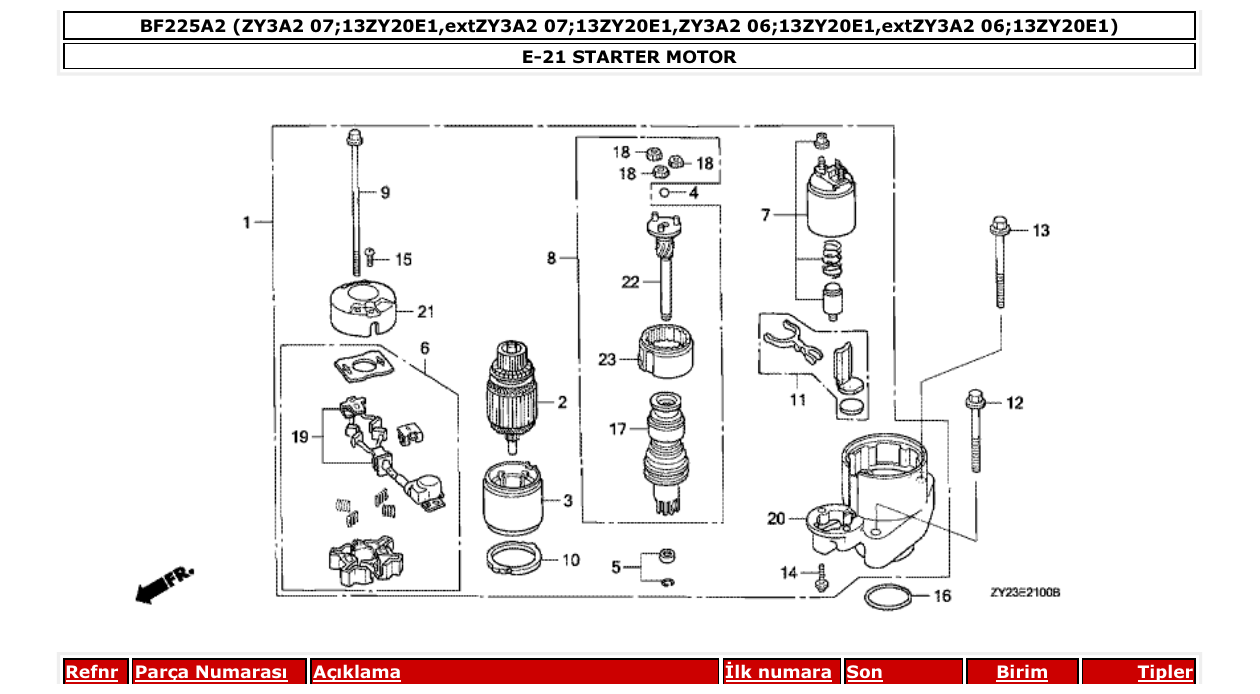

Fig. E-21 – STARTER MOTOR diagram
Fig. E-21 – STARTER MOTOR

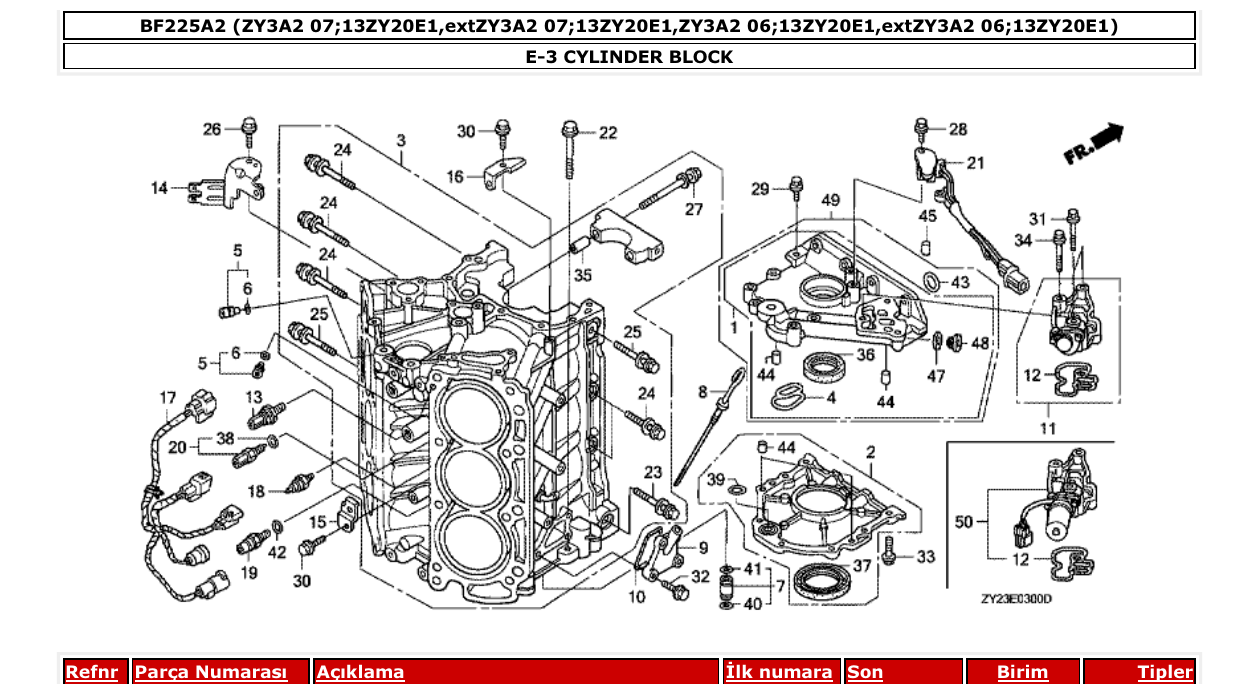

Fig. E-3 – CYLINDER BLOCK diagram
Fig. E-3 – CYLINDER BLOCK
Fig. E-3-10 – CRANKCASE diagram
Fig. E-3-10 – CRANKCASE

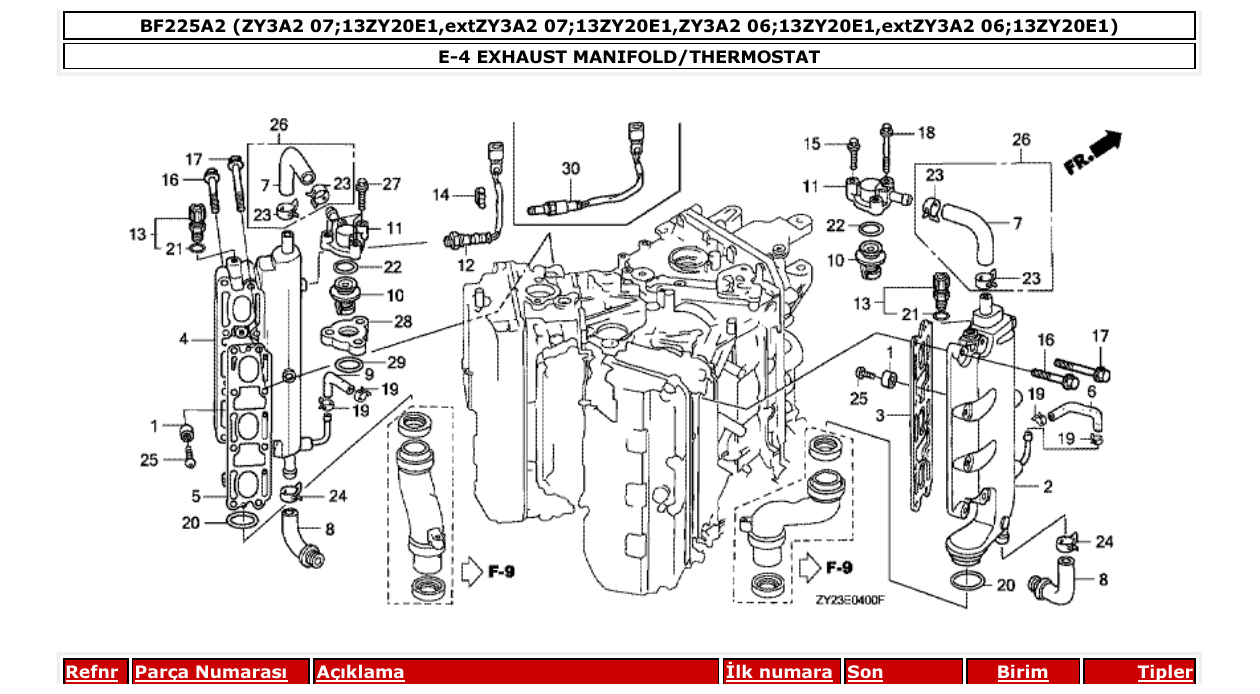

Fig. E-4 – EXHAUST MANIFOLD/THERMOSTAT diagram
Fig. E-4 – EXHAUST MANIFOLD/THERMOSTAT

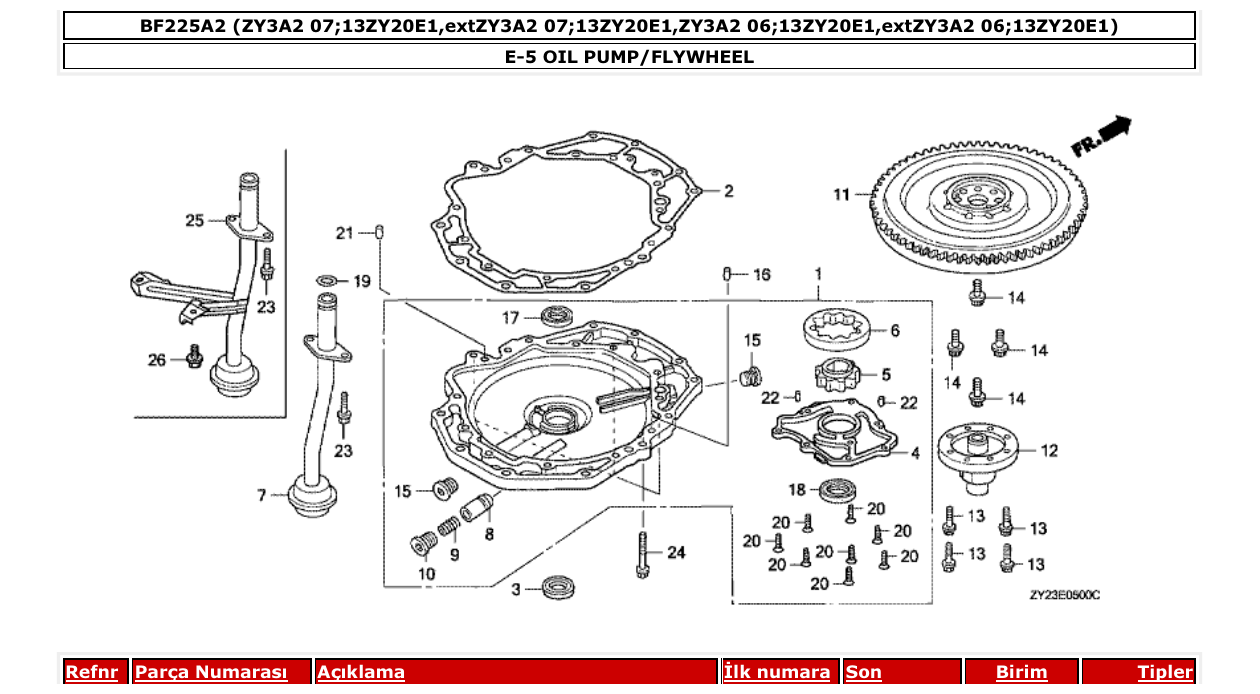

Fig. E-5 – OIL PUMP/FLYWHEEL diagram
Fig. E-5 – OIL PUMP/FLYWHEEL

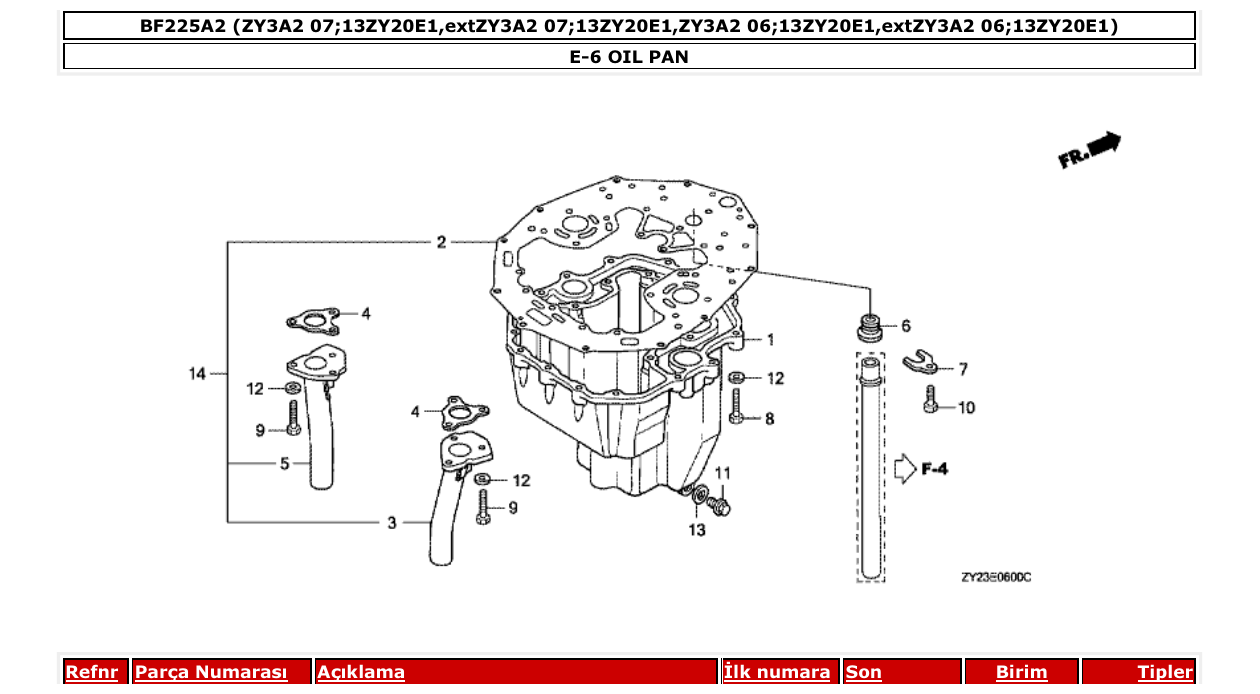

Fig. E-6 – OIL PAN diagram
Fig. E-6 – OIL PAN

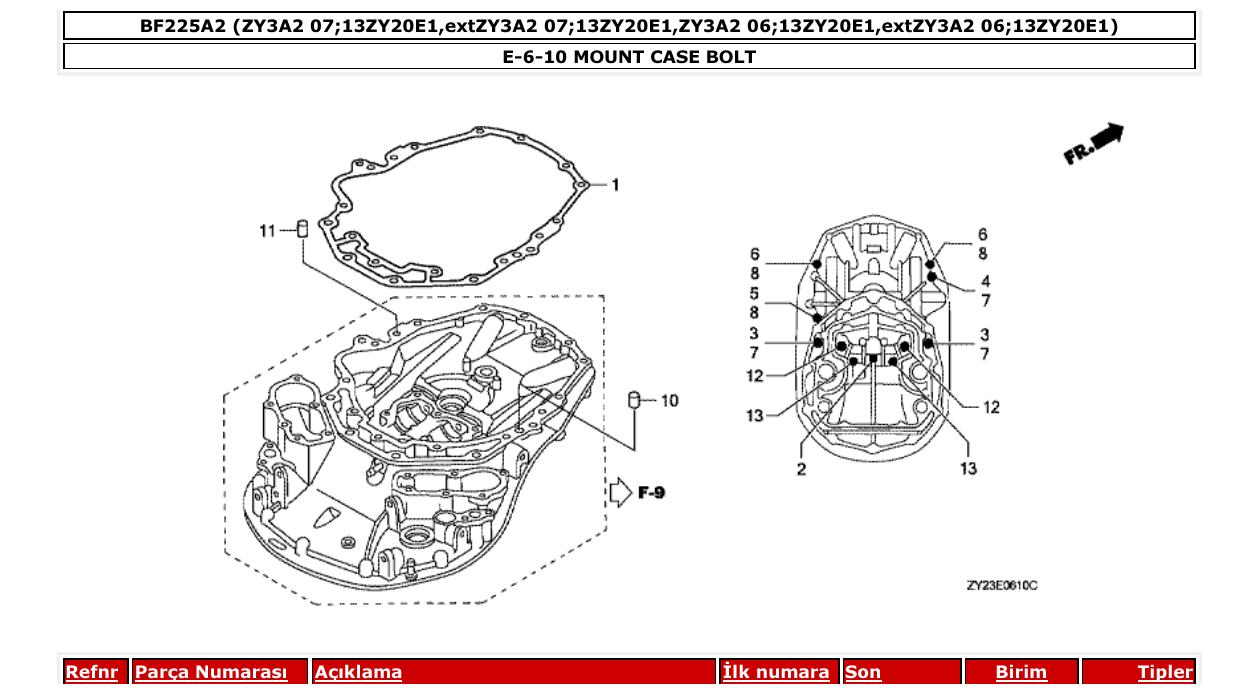

Fig. E-6-10 – MOUNT CASE BOLT diagram
Fig. E-6-10 – MOUNT CASE BOLT

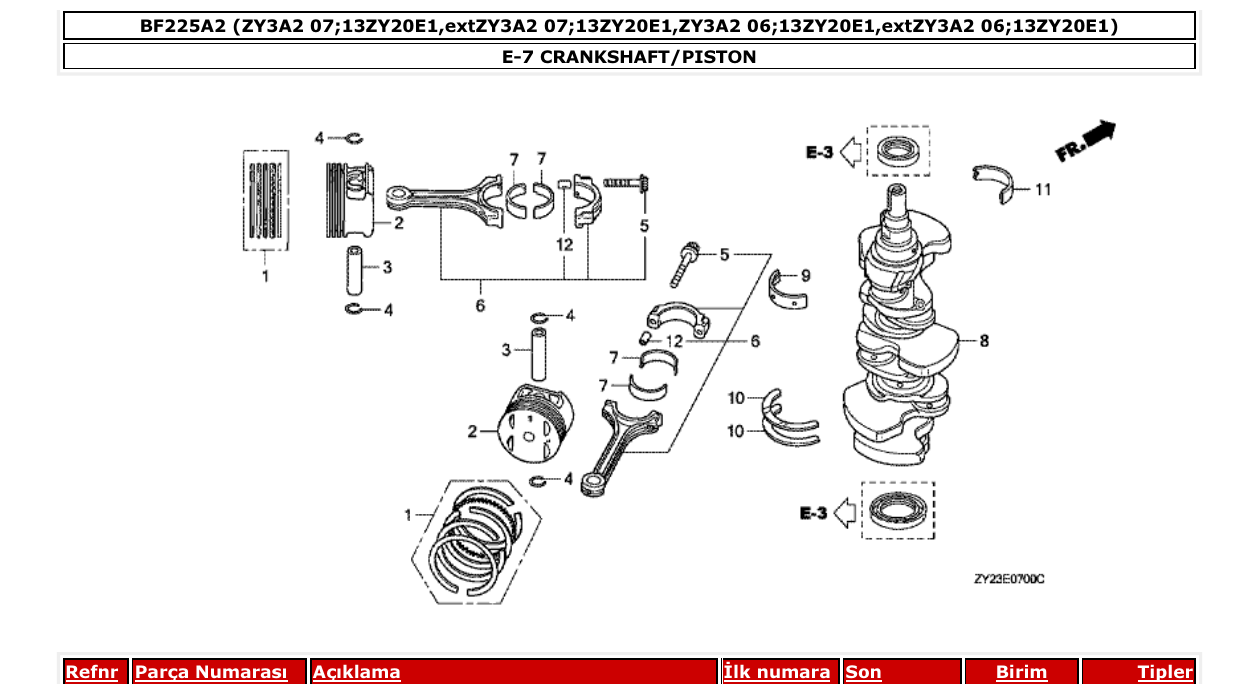

Fig. E-7 – CRANKSHAFT/PISTON diagram
Fig. E-7 – CRANKSHAFT/PISTON

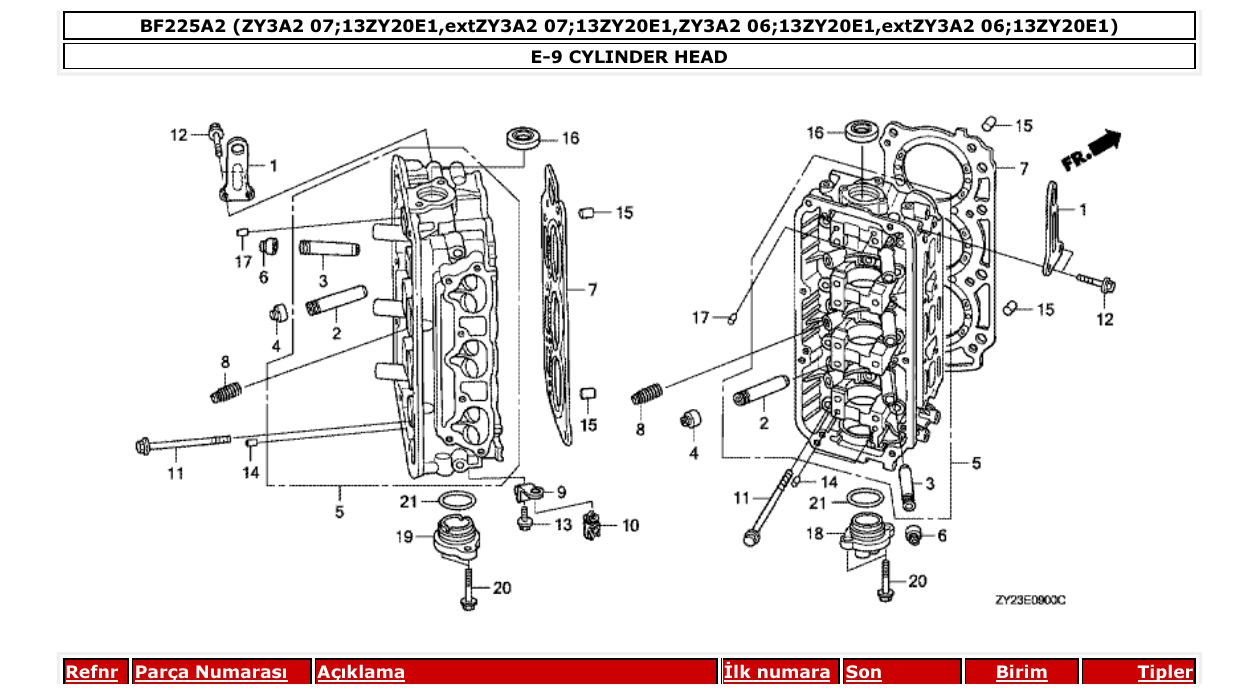

Fig. E-9 – CYLINDER HEAD diagram
Fig. E-9 – CYLINDER HEAD

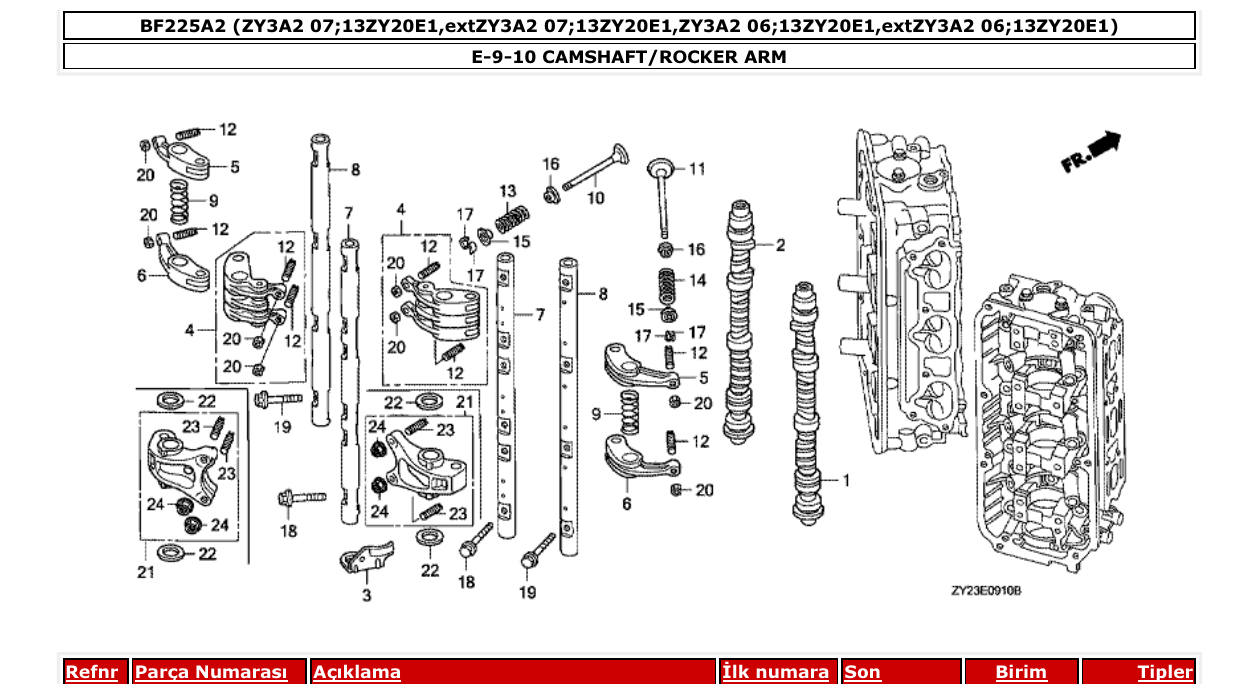

Fig. E-9-10 – CAMSHAFT/ROCKER ARM diagram
Fig. E-9-10 – CAMSHAFT/ROCKER ARM

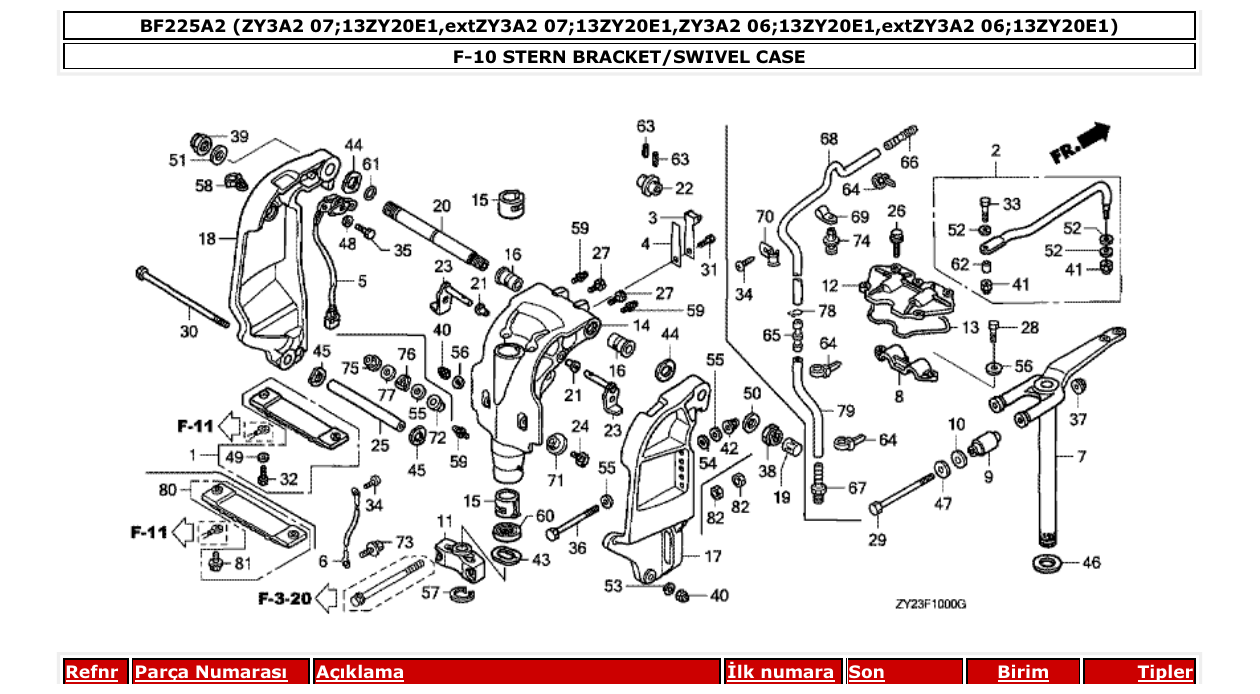

Fig. F-10 – STERN BRACKET/SWIVEL CASE diagram
Fig. F-10 – STERN BRACKET/SWIVEL CASE

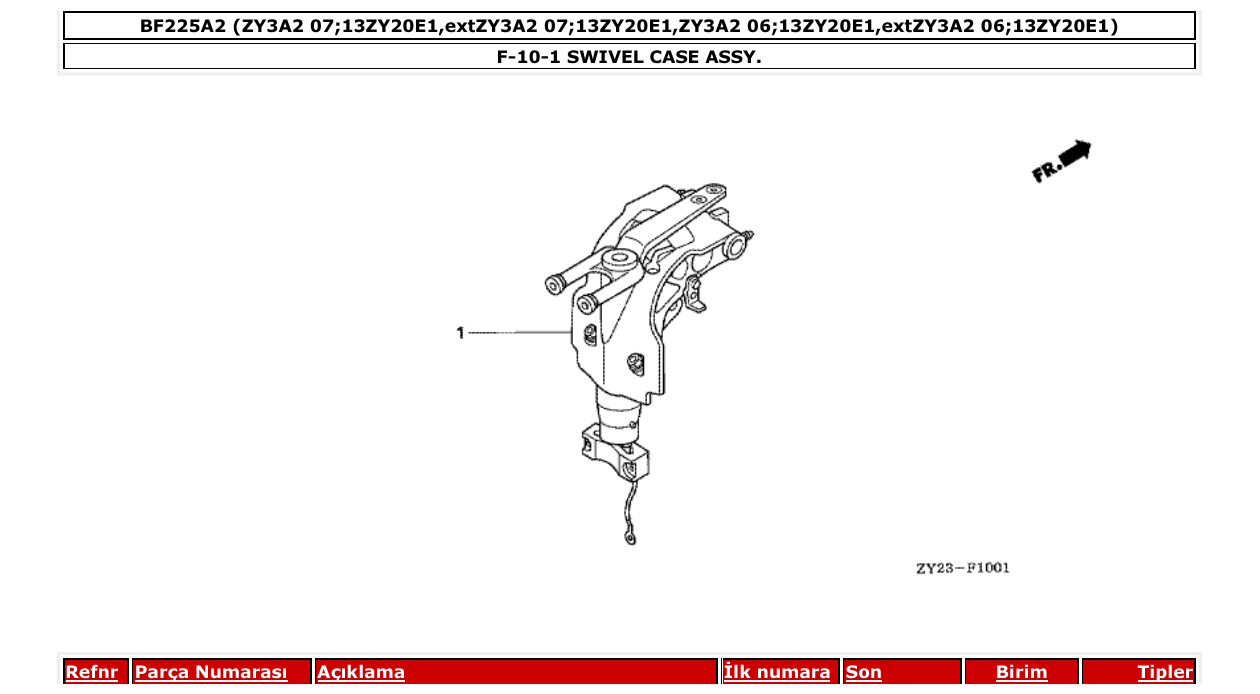

Fig. F-10-1 – SWIVEL CASE ASSY. diagram
Fig. F-10-1 – SWIVEL CASE ASSY.

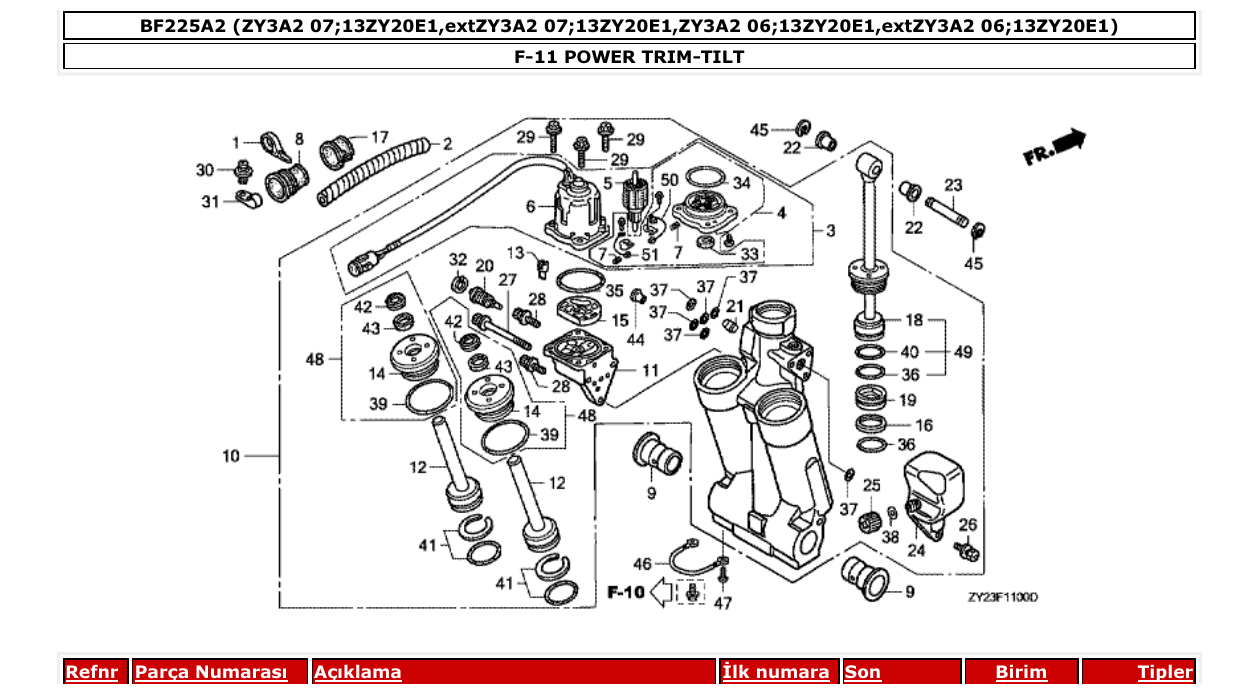

Fig. F-11 – POWER TRIM-TILT diagram
Fig. F-11 – POWER TRIM-TILT
Fig. F-12 – LABEL diagram
Fig. F-12 – LABEL

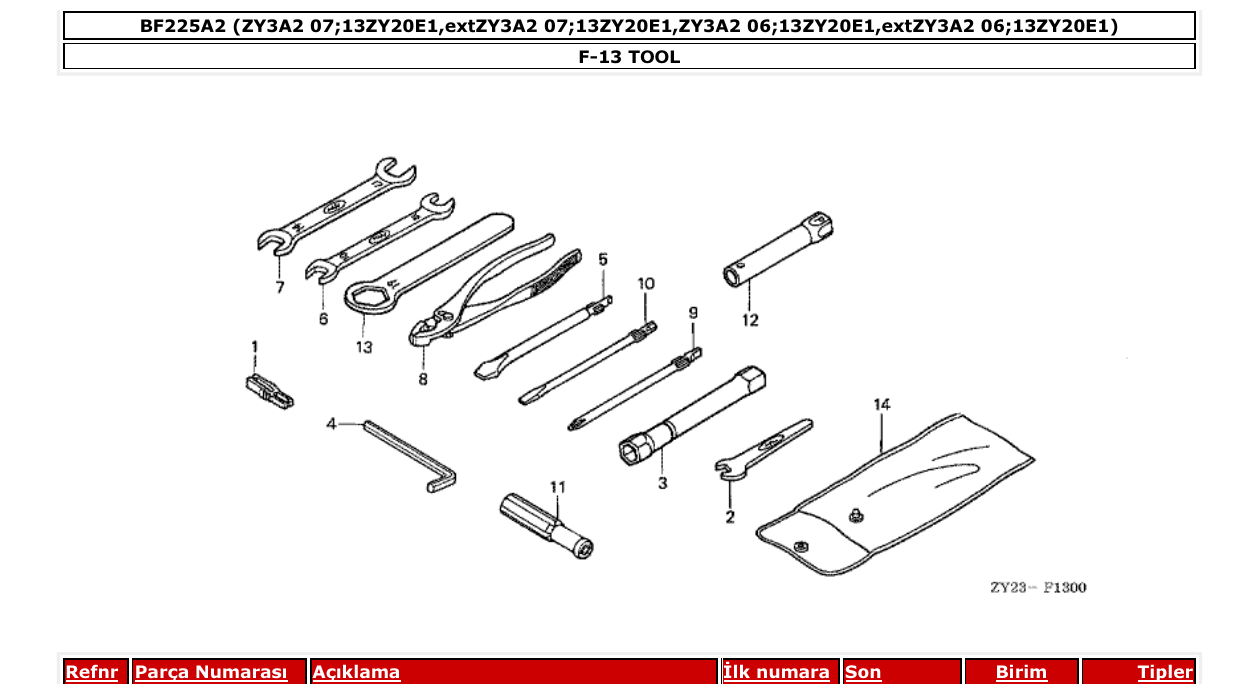

Fig. F-13 – TOOL diagram
Fig. F-13 – TOOL

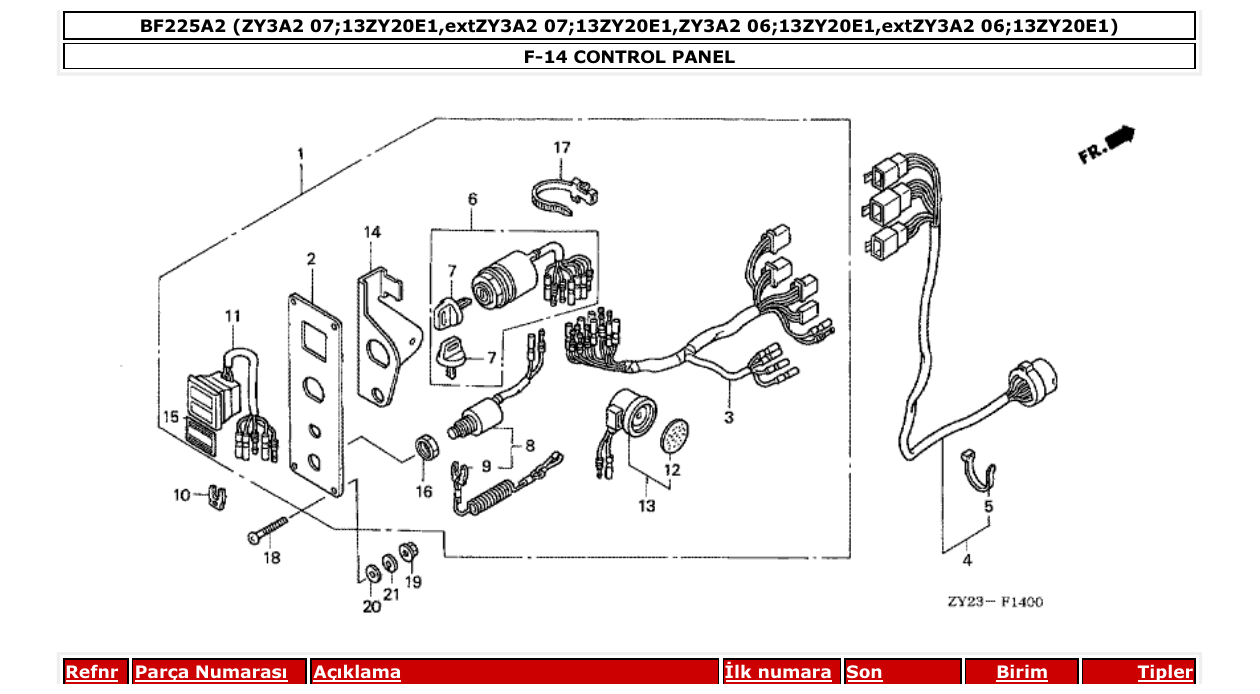

Fig. F-14 – CONTROL PANEL diagram
Fig. F-14 – CONTROL PANEL

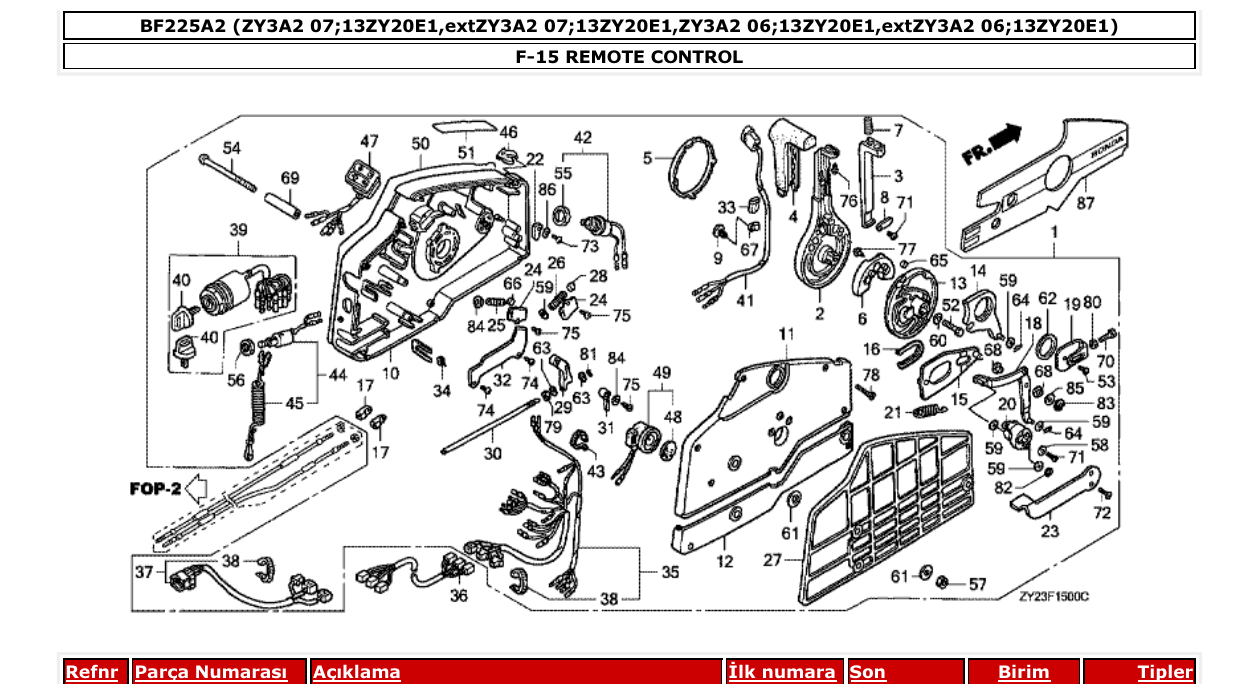

Fig. F-15 – REMOTE CONTROL diagram
Fig. F-15 – REMOTE CONTROL

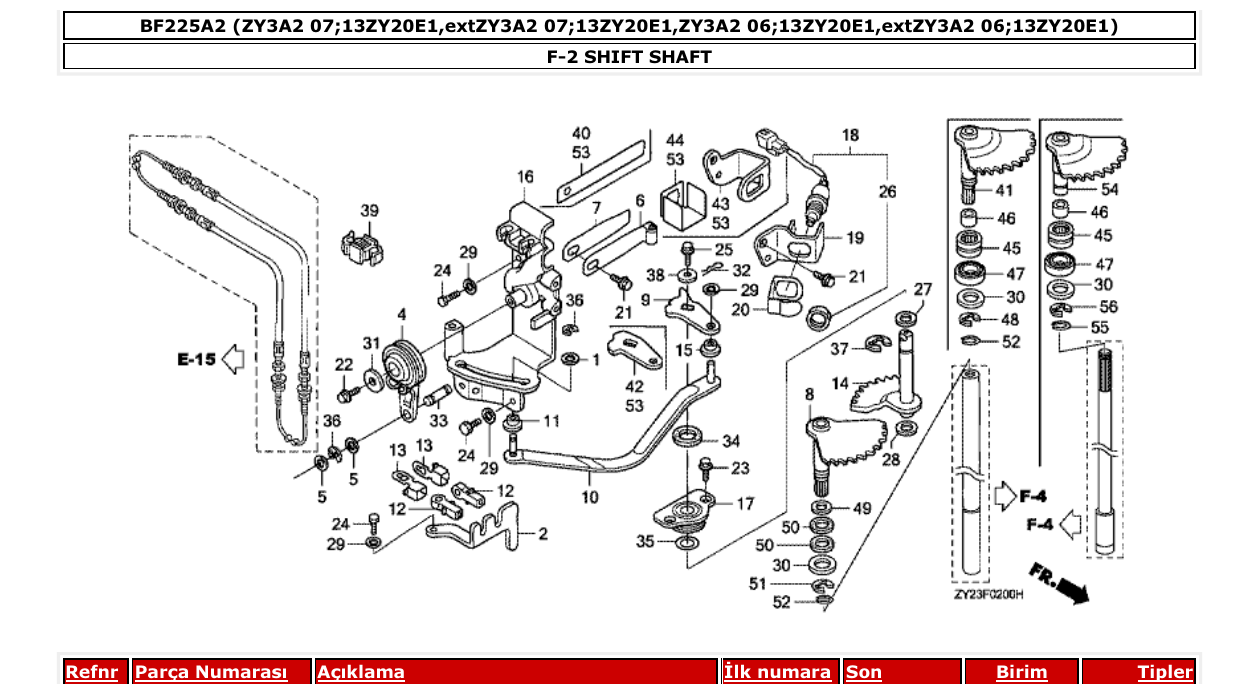

Fig. F-2 – SHIFT SHAFT diagram
Fig. F-2 – SHIFT SHAFT

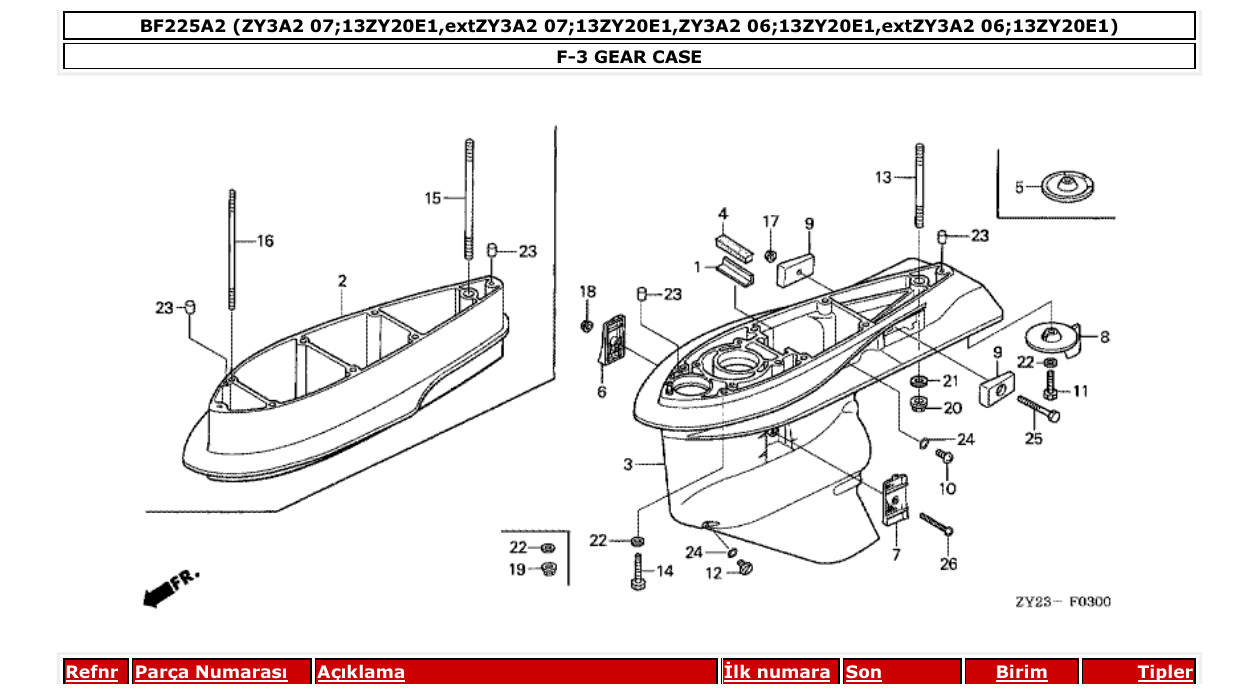

Fig. F-3 – GEAR CASE diagram
Fig. F-3 – GEAR CASE

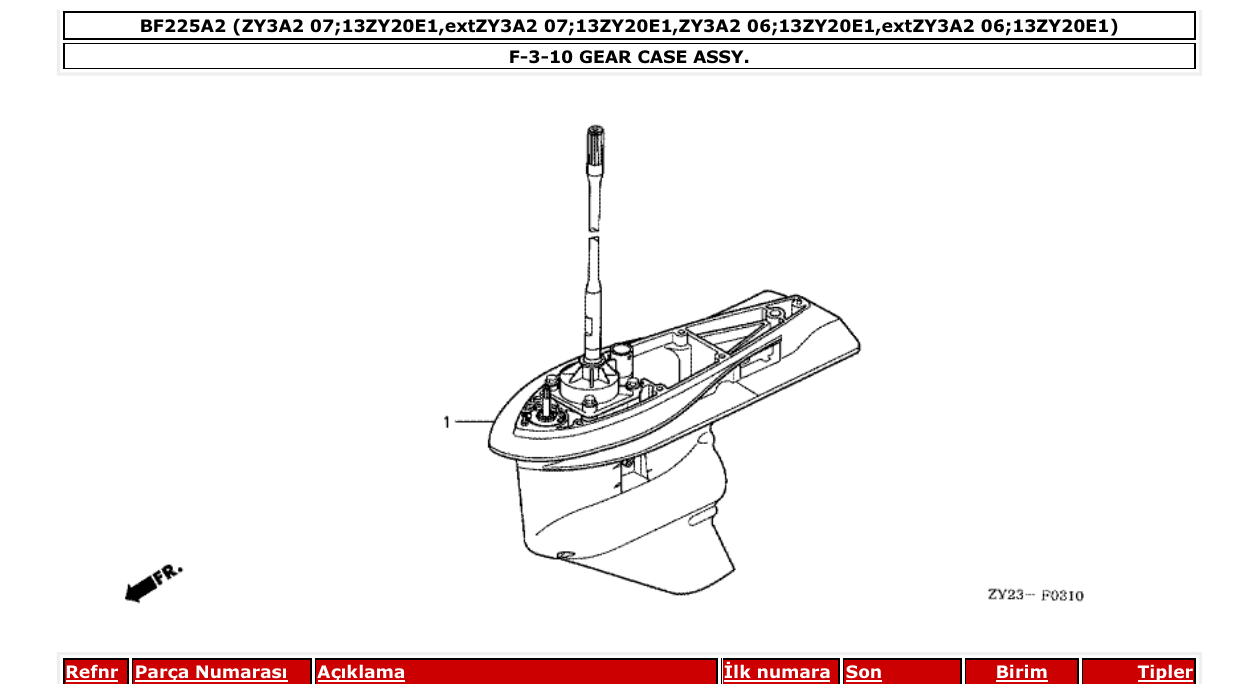

Fig. F-3-10 – GEAR CASE ASSY. diagram
Fig. F-3-10 – GEAR CASE ASSY.

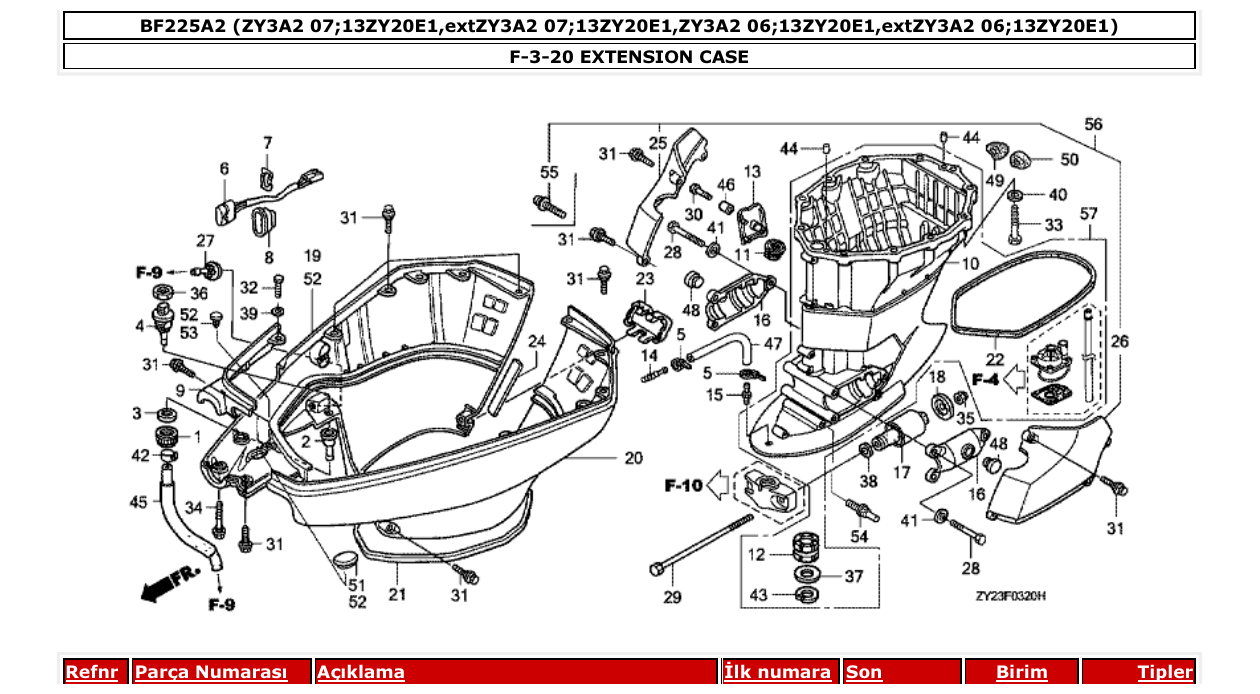

Fig. F-3-20 – EXTENSION CASE diagram
Fig. F-3-20 – EXTENSION CASE

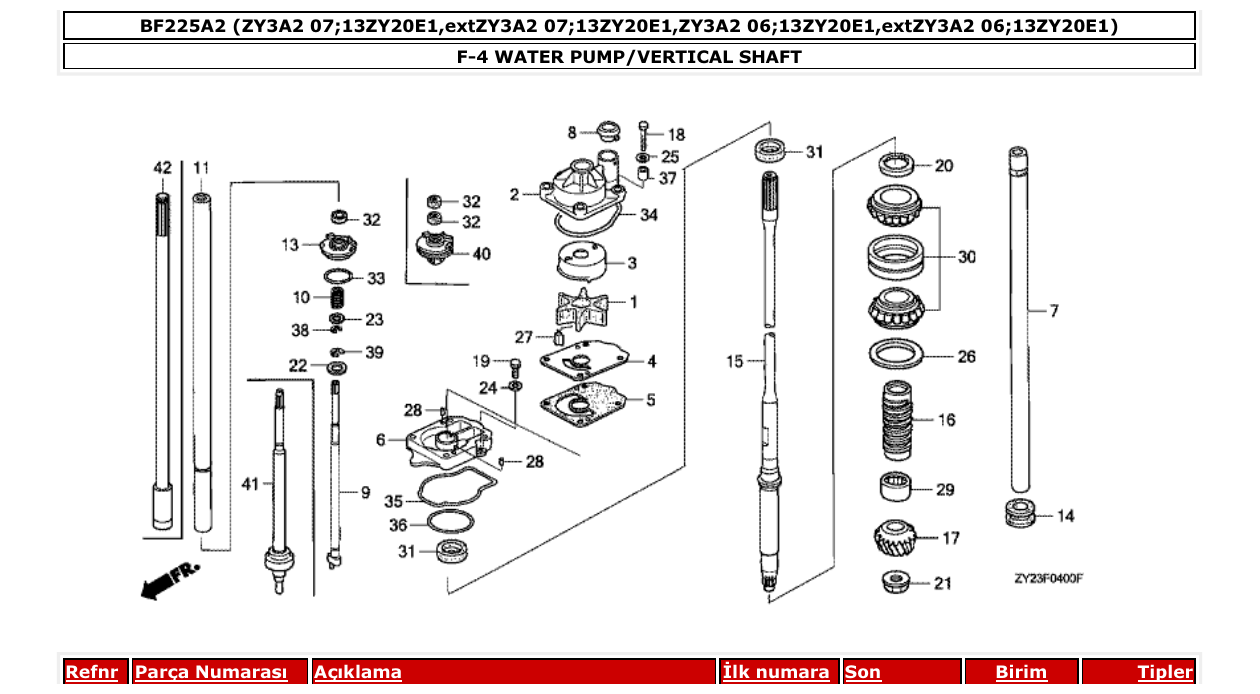

Fig. F-4 – WATER PUMP/VERTICAL SHAFT diagram
Fig. F-4 – WATER PUMP/VERTICAL SHAFT

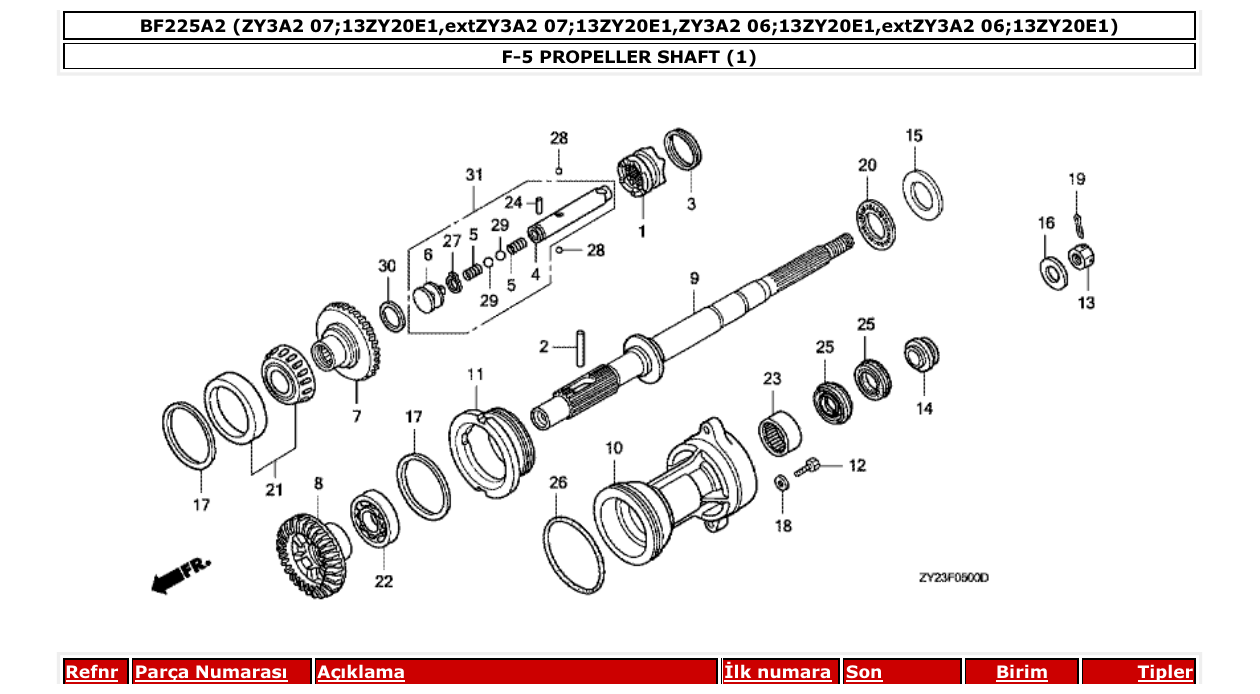

Fig. F-5 – PROPELLER SHAFT (1) diagram
Fig. F-5 – PROPELLER SHAFT (1)

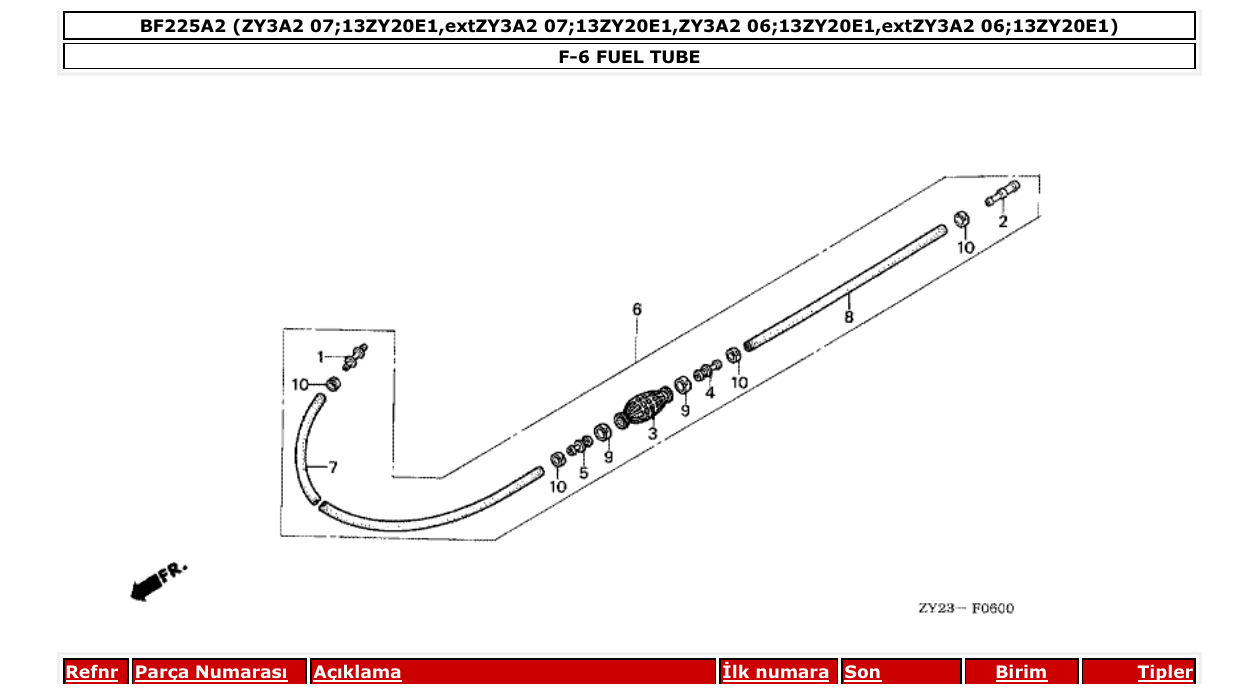

Fig. F-6 – FUEL TUBE diagram
Fig. F-6 – FUEL TUBE

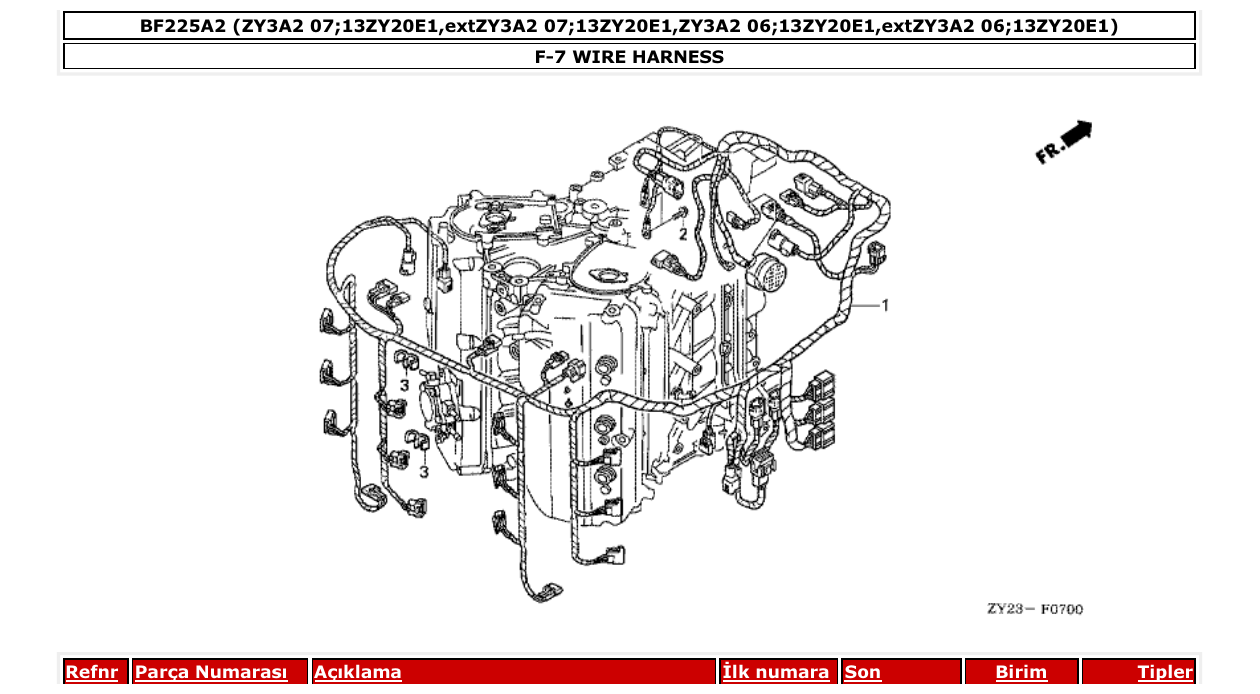

Fig. F-7 – WIRE HARNESS diagram
Fig. F-7 – WIRE HARNESS

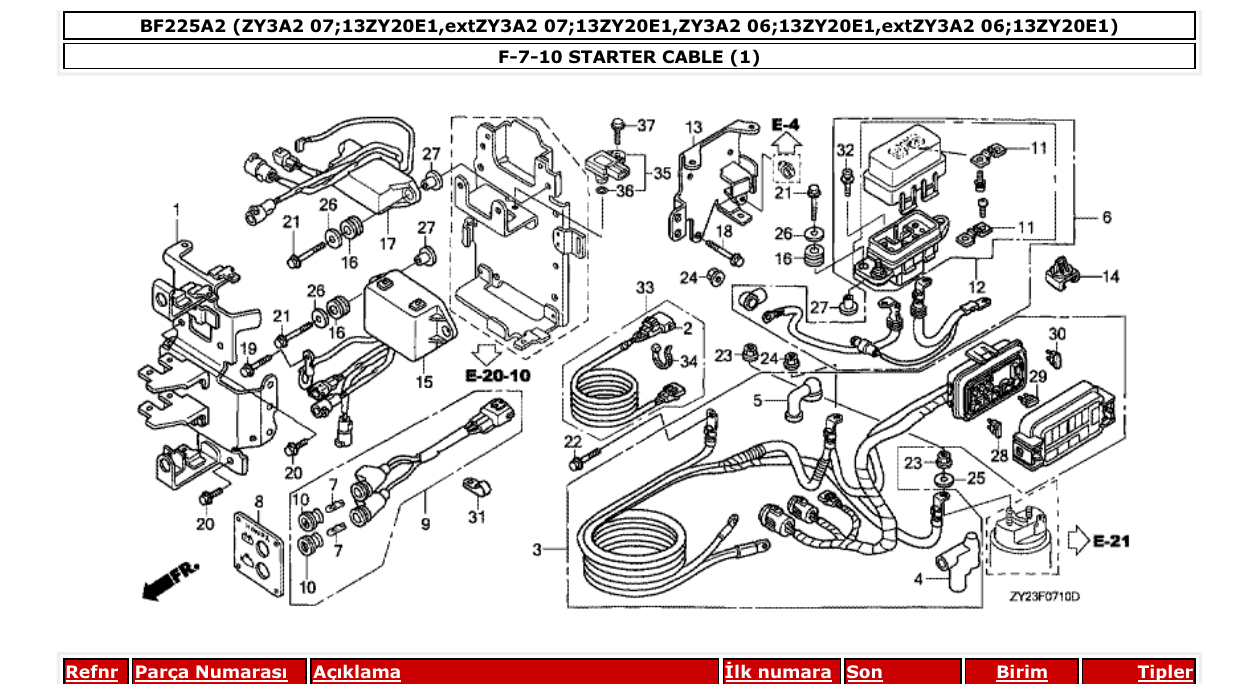

Fig. F-7-10 – STARTER CABLE (1) diagram
Fig. F-7-10 – STARTER CABLE (1)

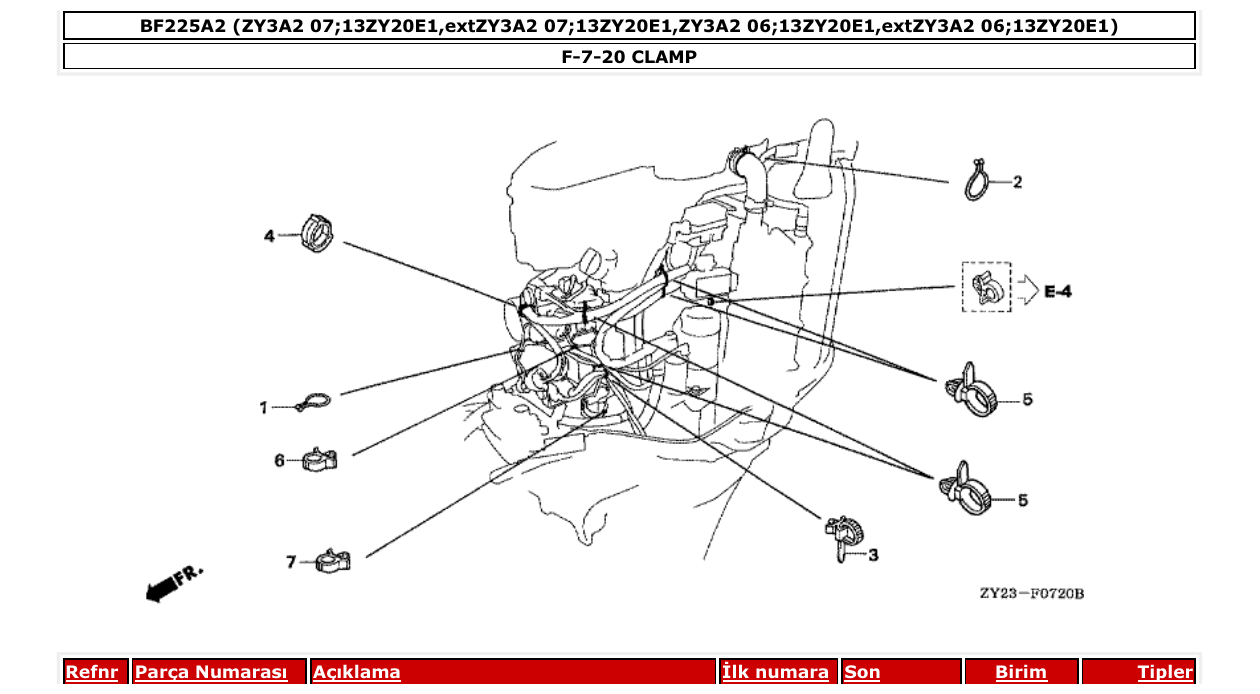

Fig. F-7-20 – CLAMP diagram
Fig. F-7-20 – CLAMP

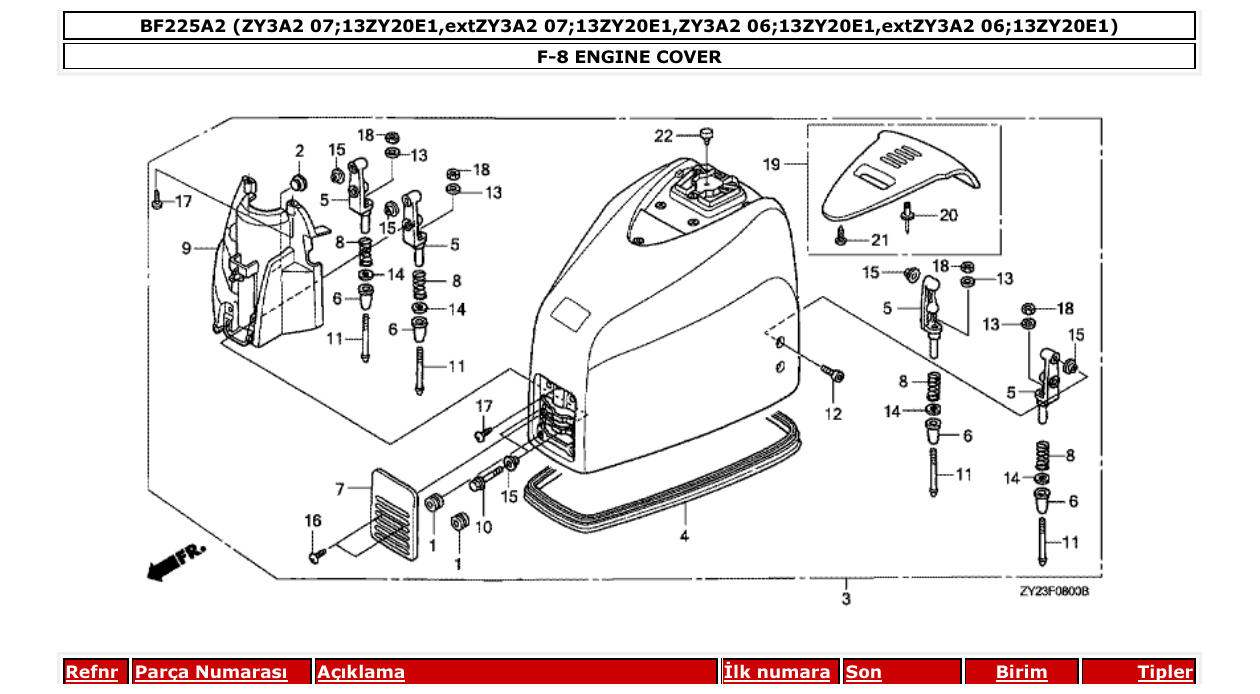

Fig. F-8 – ENGINE COVER diagram
Fig. F-8 – ENGINE COVER

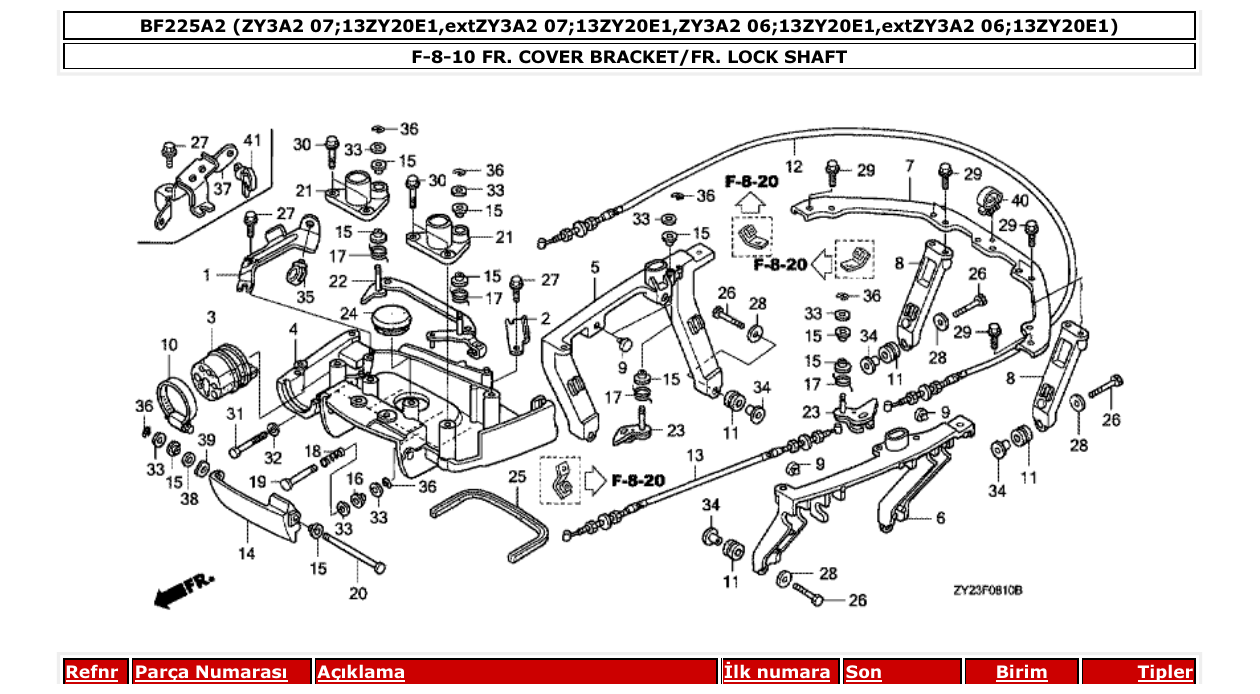

Fig. F-8-10 – FR. COVER BRACKET/FR. LOCK SHAFT diagram
Fig. F-8-10 – FR. COVER BRACKET/FR. LOCK SHAFT

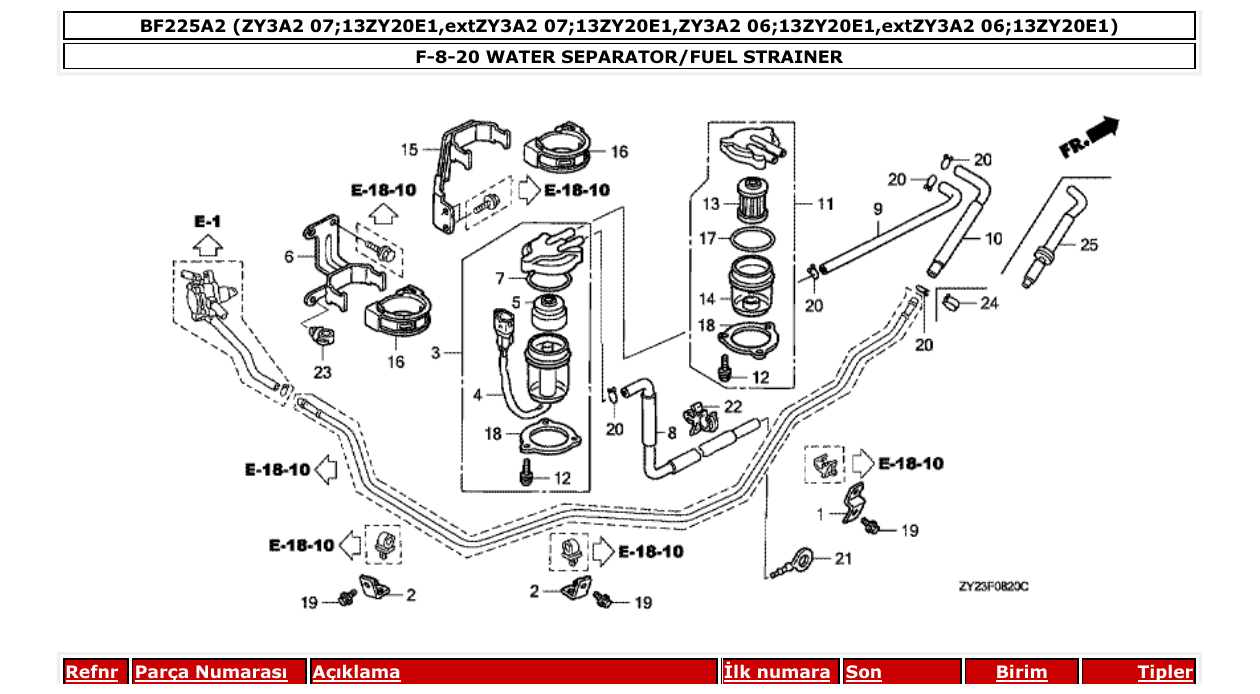

Fig. F-8-20 – WATER SEPARATOR/FUEL STRAINER diagram
Fig. F-8-20 – WATER SEPARATOR/FUEL STRAINER

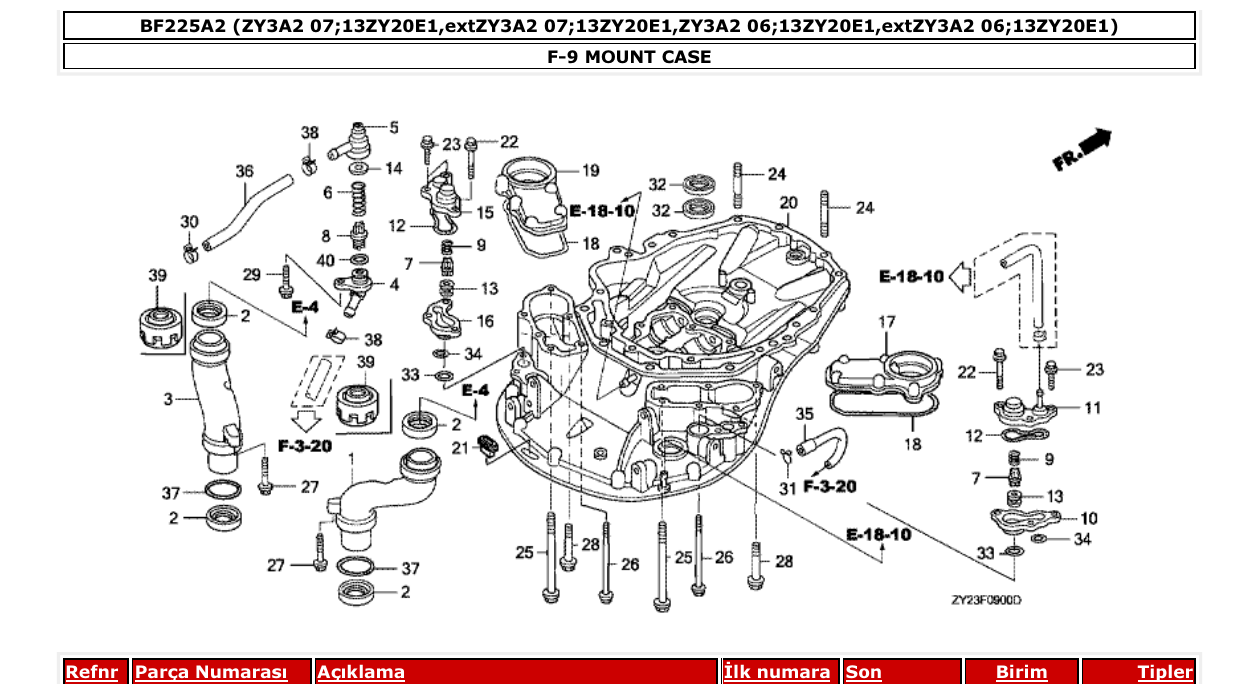

Fig. F-9 – MOUNT CASE diagram
Fig. F-9 – MOUNT CASE

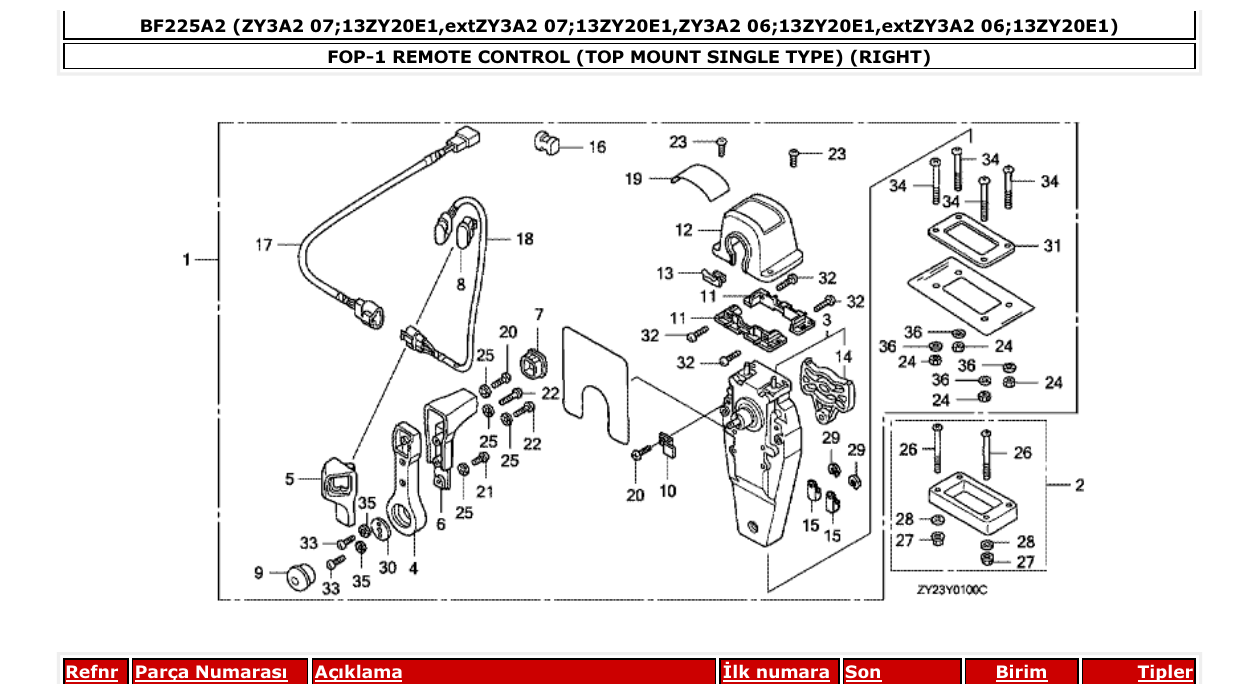

Fig. FOP-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT) diagram
Fig. FOP-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT)

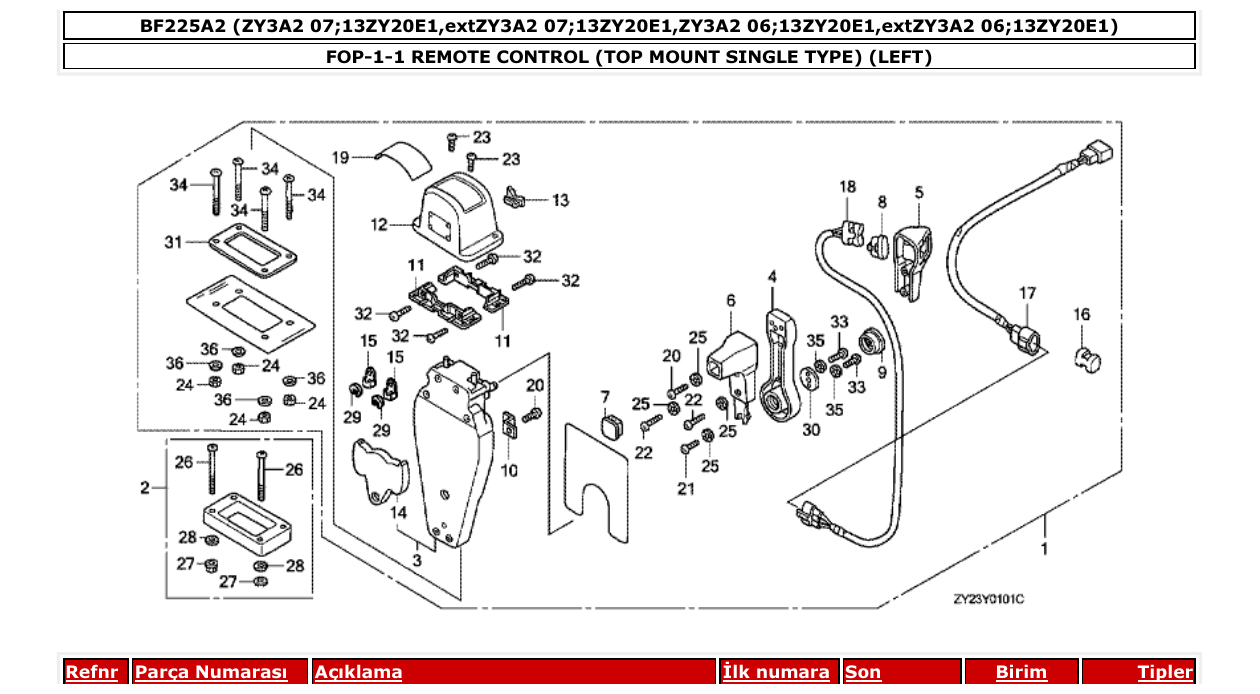

Fig. FOP-1-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) diagram
Fig. FOP-1-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT)

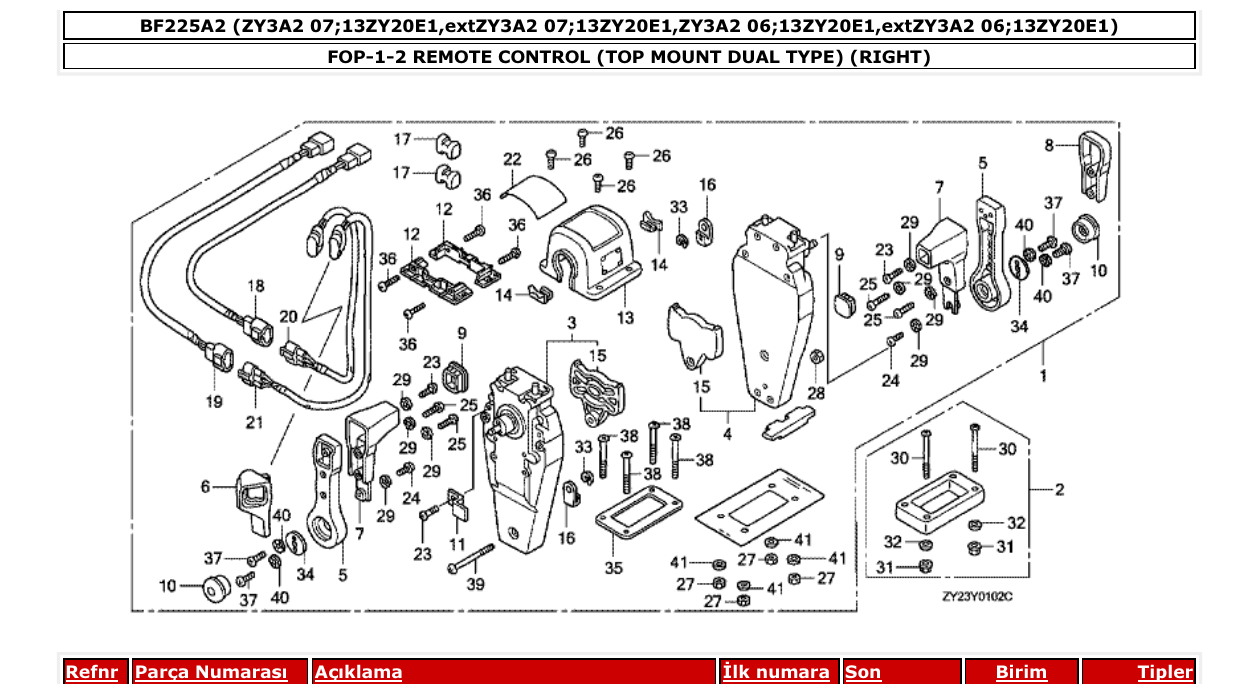

Fig. FOP-1-2 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT) diagram
Fig. FOP-1-2 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT)
Fig. FOP-1-3 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT) diagram
Fig. FOP-1-3 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT)

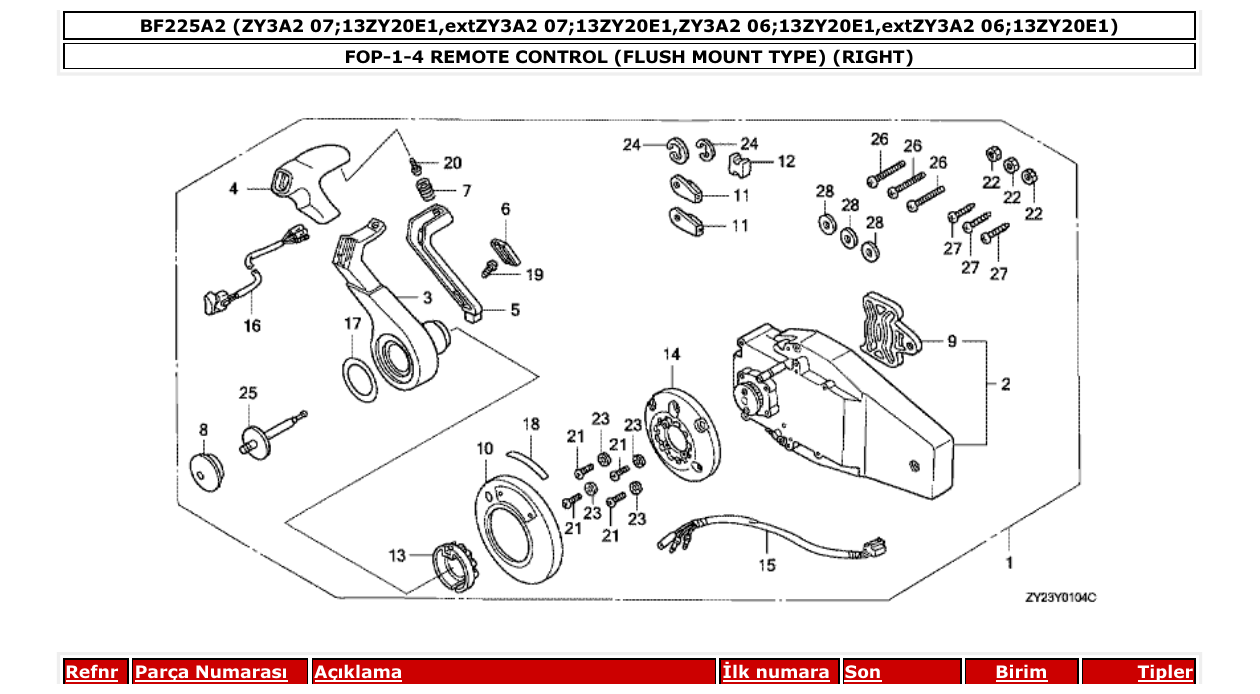

Fig. FOP-1-4 – REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT) diagram
Fig. FOP-1-4 – REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT)
Fig. FOP-1-5 – REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT) diagram
Fig. FOP-1-5 – REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT)

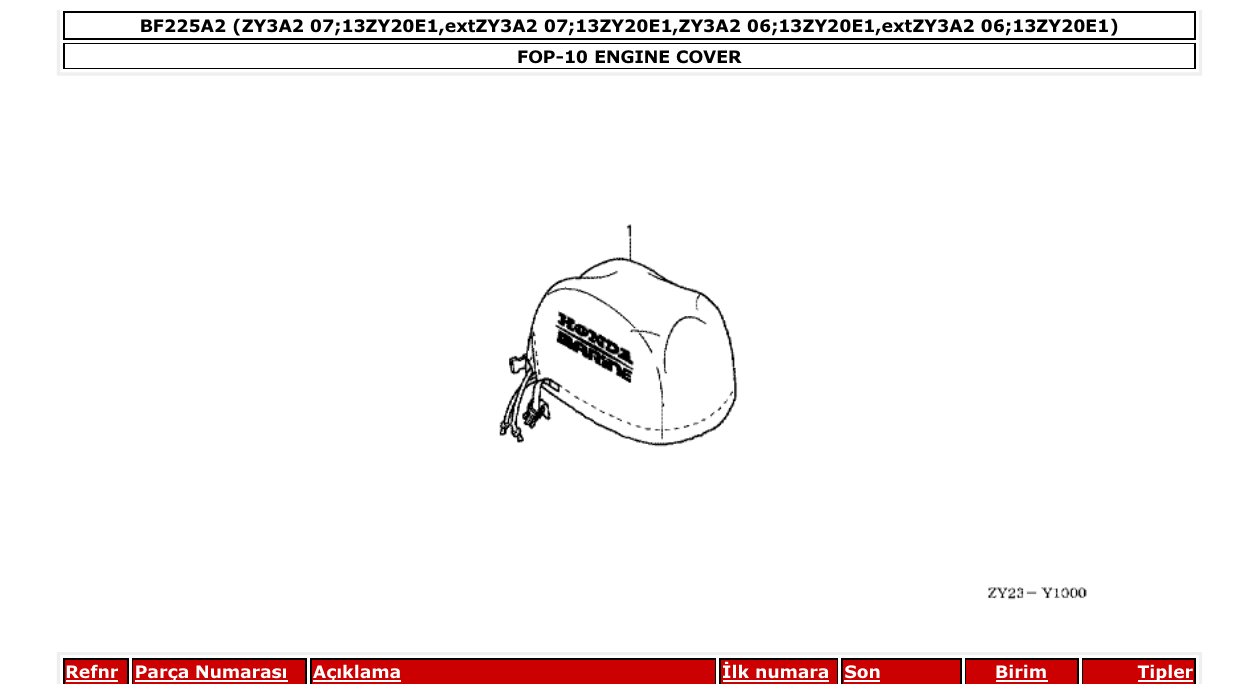

Fig. FOP-10 – ENGINE COVER diagram
Fig. FOP-10 – ENGINE COVER

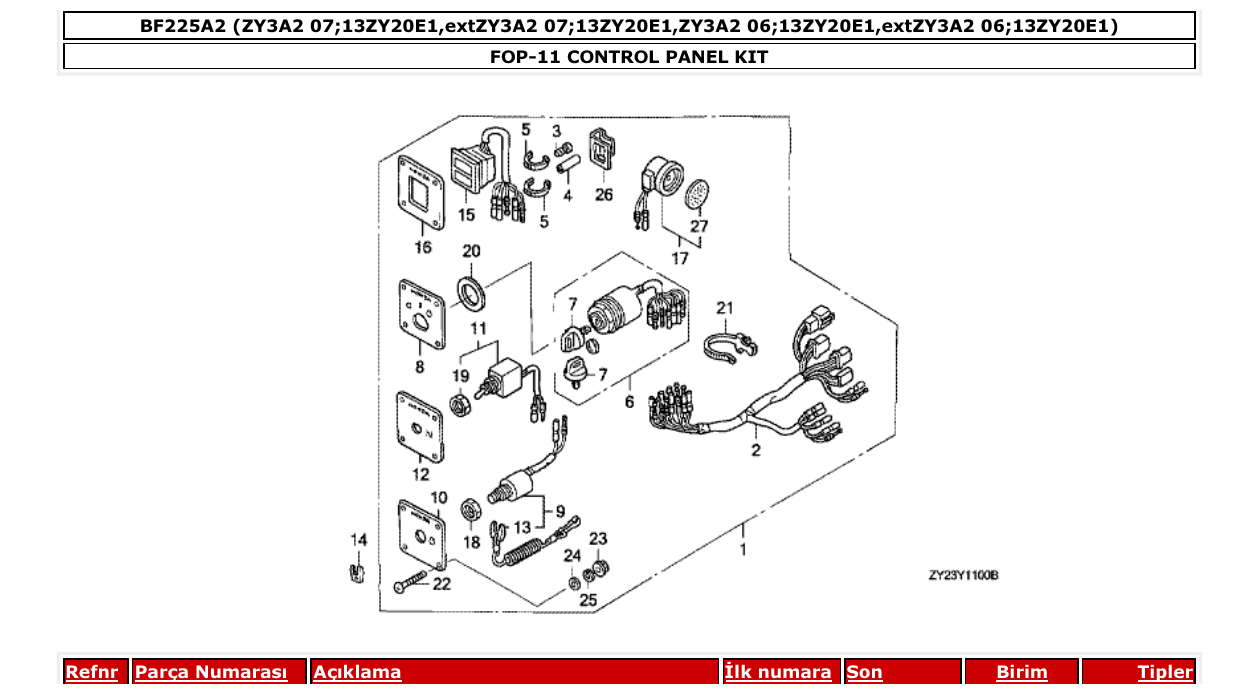

Fig. FOP-11 – CONTROL PANEL KIT diagram
Fig. FOP-11 – CONTROL PANEL KIT

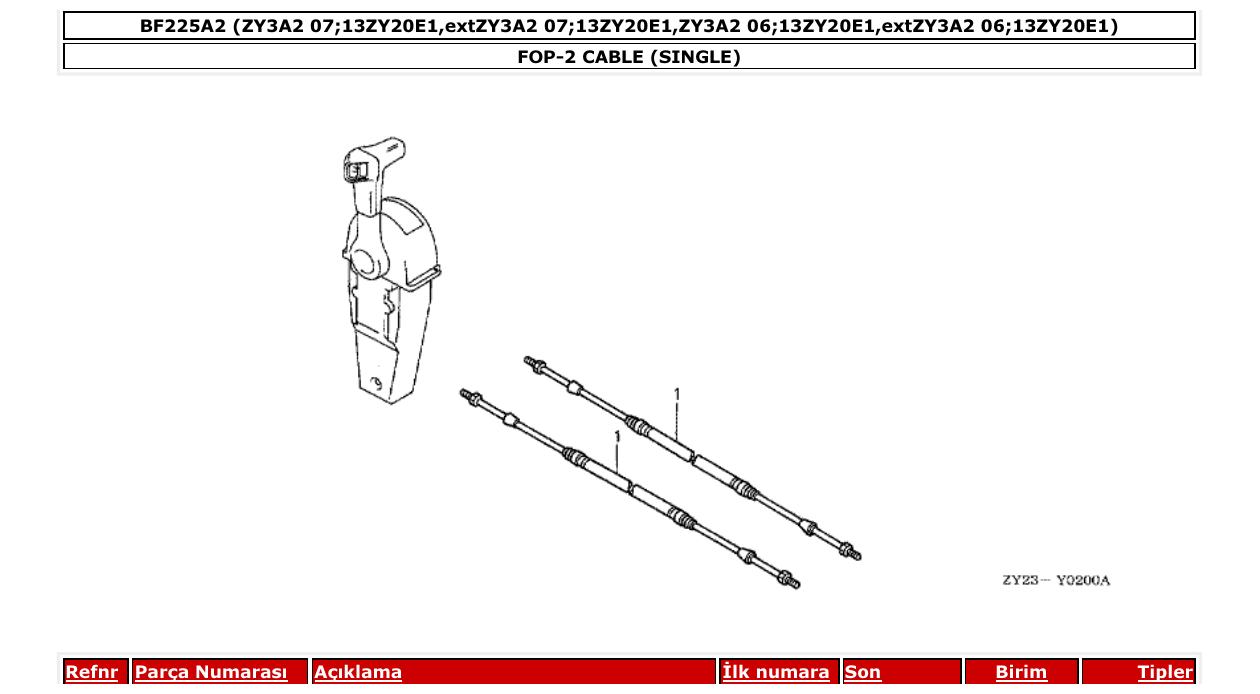

Fig. FOP-2 – CABLE (SINGLE) diagram
Fig. FOP-2 – CABLE (SINGLE)

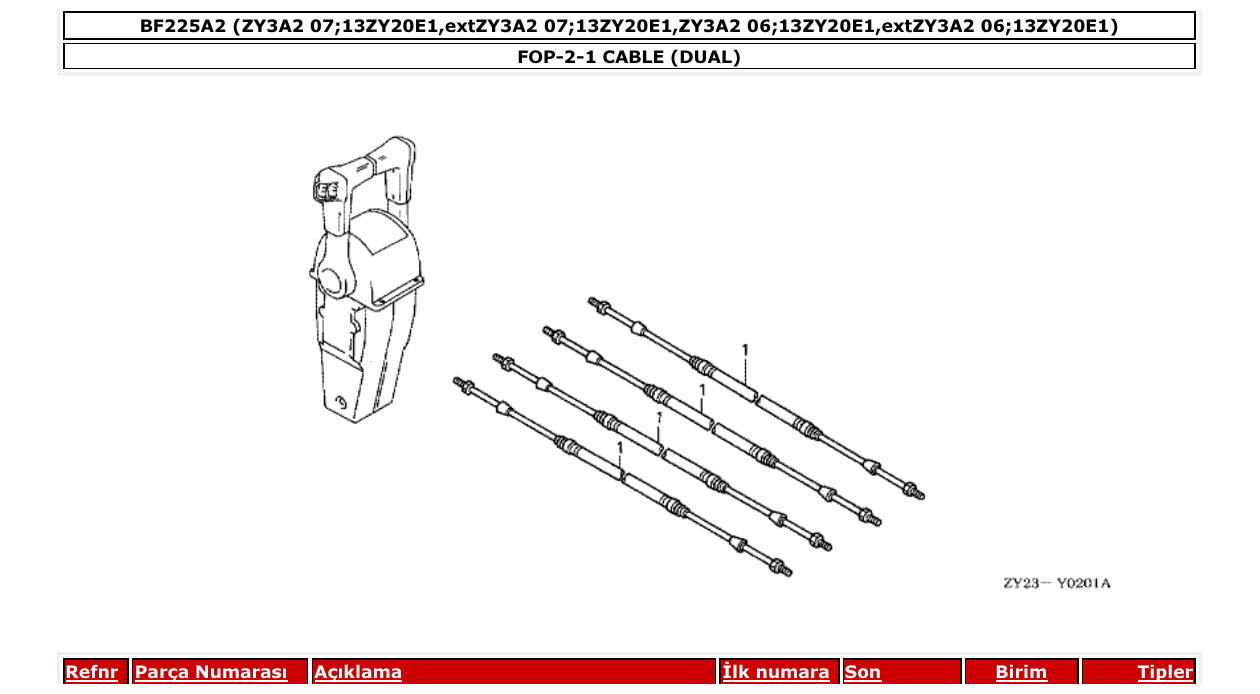

Fig. FOP-2-1 – CABLE (DUAL) diagram
Fig. FOP-2-1 – CABLE (DUAL)
Fig. FOP-3 – METER KIT diagram
Fig. FOP-3 – METER KIT

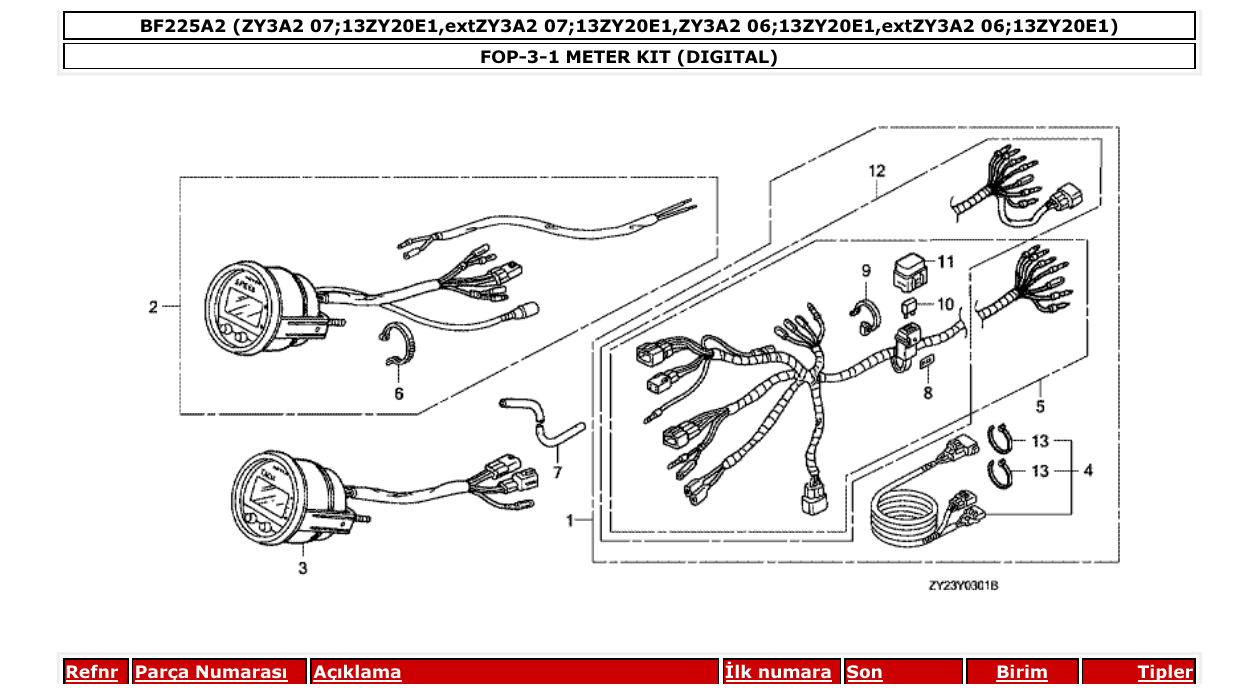

Fig. FOP-3-1 – METER KIT (DIGITAL) diagram
Fig. FOP-3-1 – METER KIT (DIGITAL)

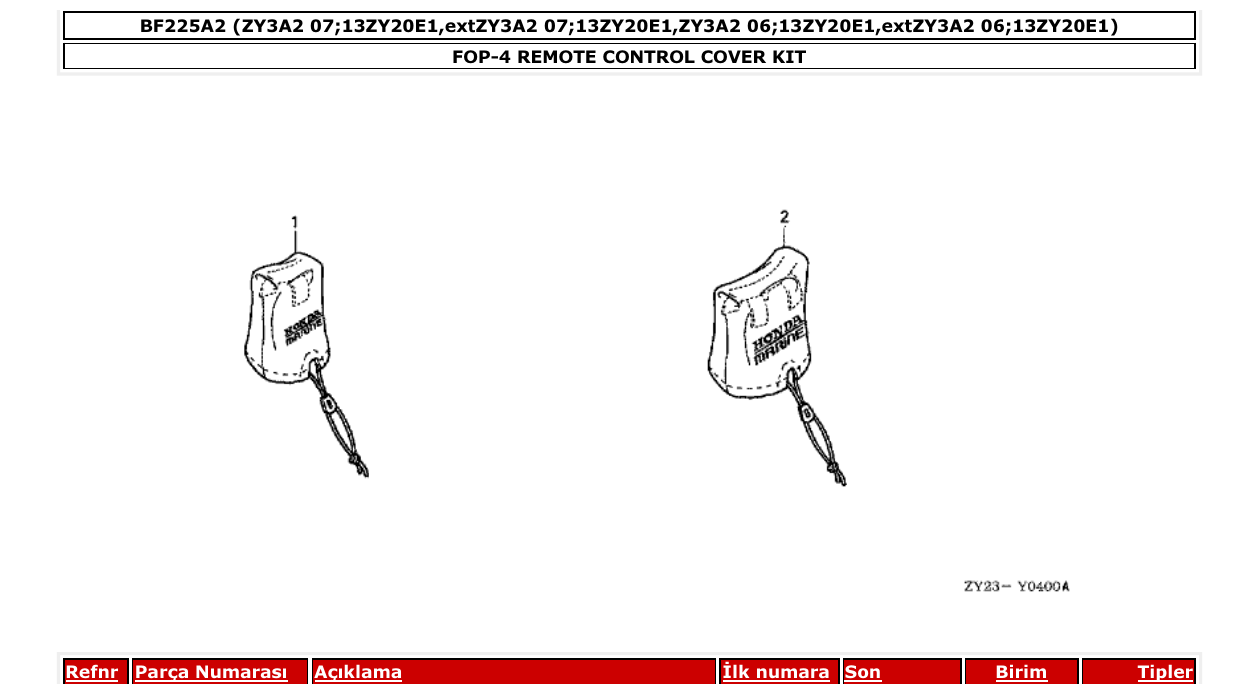

Fig. FOP-4 – REMOTE CONTROL COVER KIT diagram
Fig. FOP-4 – REMOTE CONTROL COVER KIT

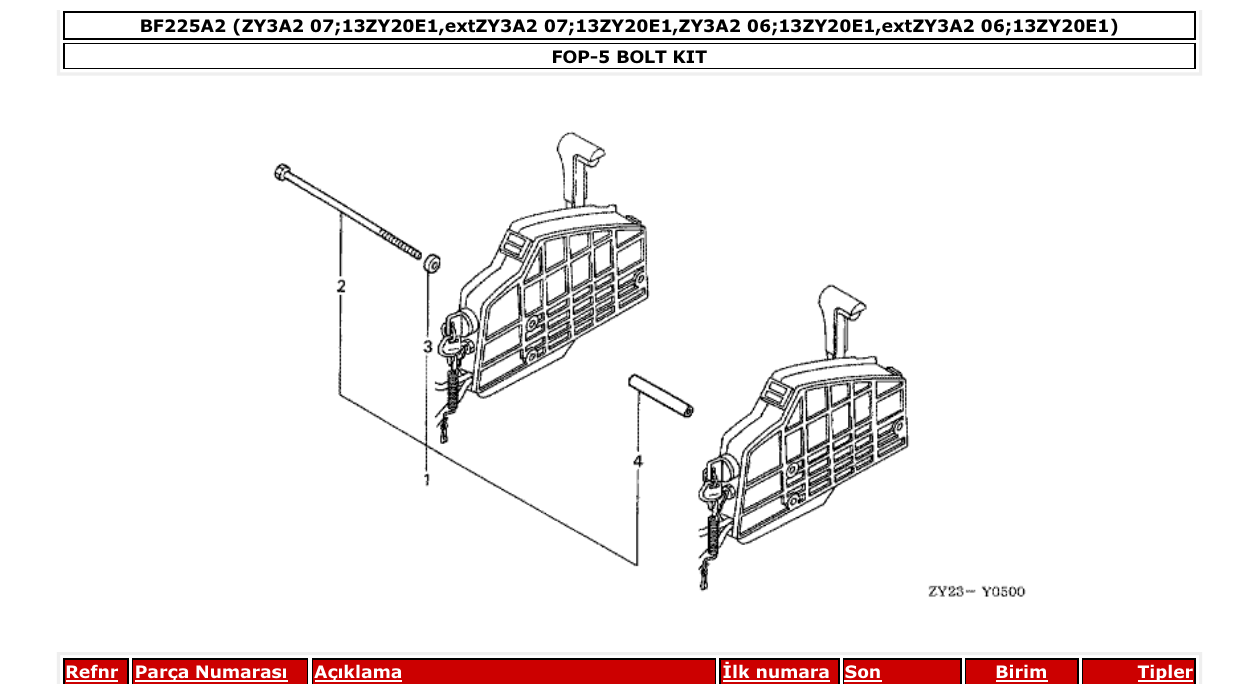

Fig. FOP-5 – BOLT KIT diagram
Fig. FOP-5 – BOLT KIT

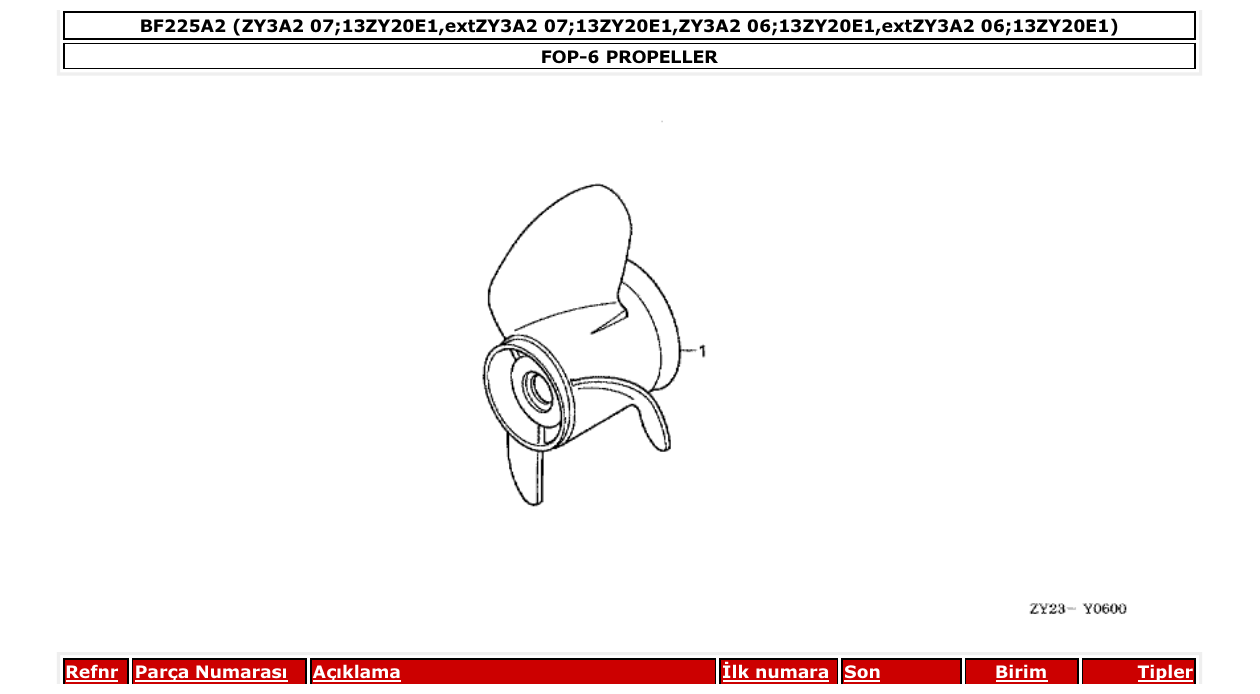

Fig. FOP-6 – PROPELLER diagram
Fig. FOP-6 – PROPELLER

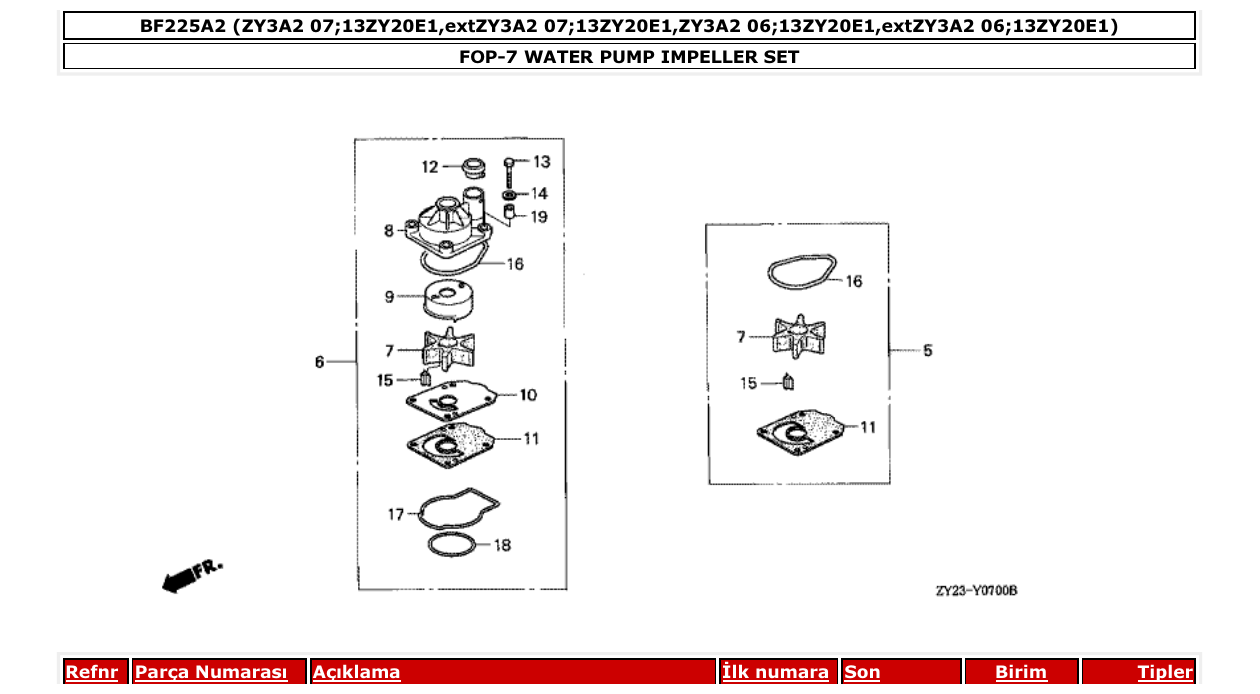

Fig. FOP-7 – WATER PUMP IMPELLER SET diagram
Fig. FOP-7 – WATER PUMP IMPELLER SET

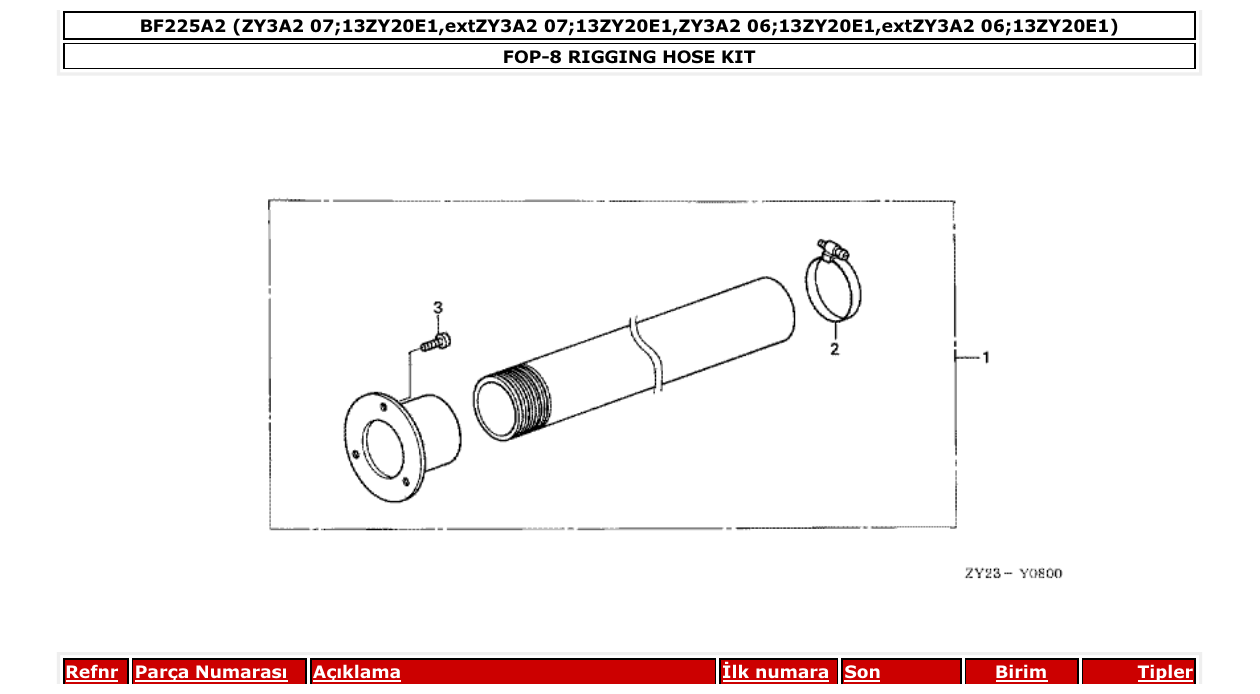

Fig. FOP-8 – RIGGING HOSE KIT diagram
Fig. FOP-8 – RIGGING HOSE KIT

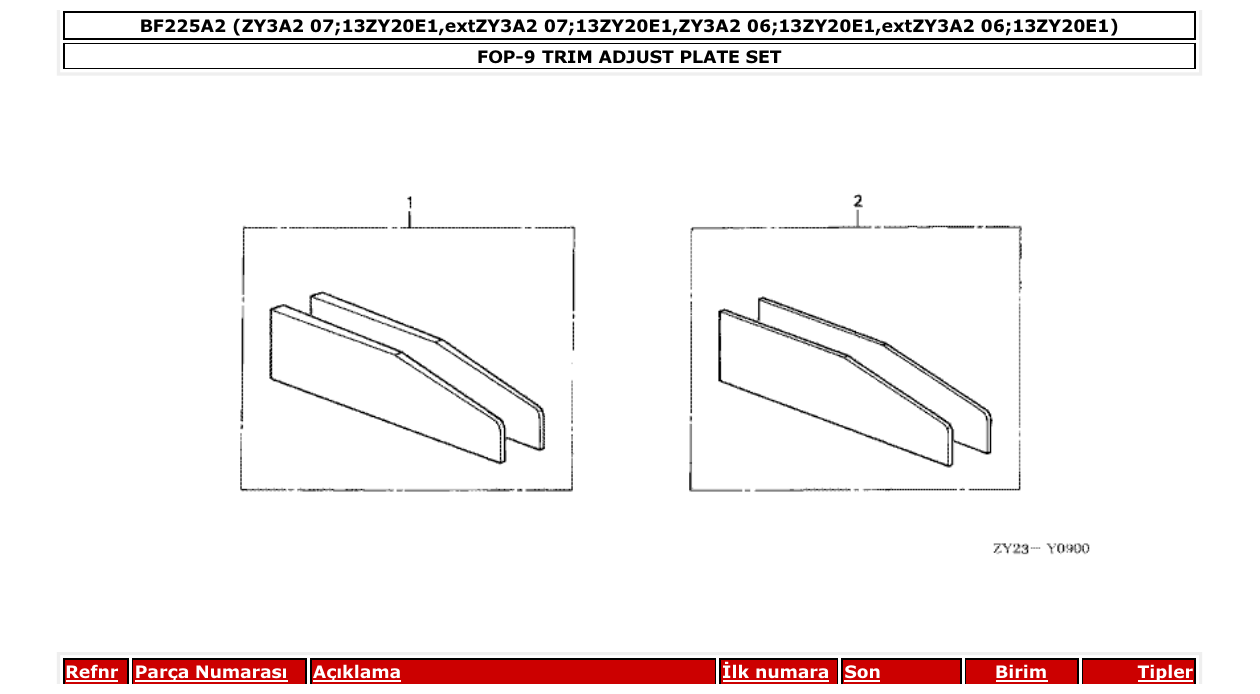

Fig. FOP-9 – TRIM ADJUST PLATE SET diagram
Fig. FOP-9 – TRIM ADJUST PLATE SET
