bf225a2
Section FOP-3: METER KIT (v2)

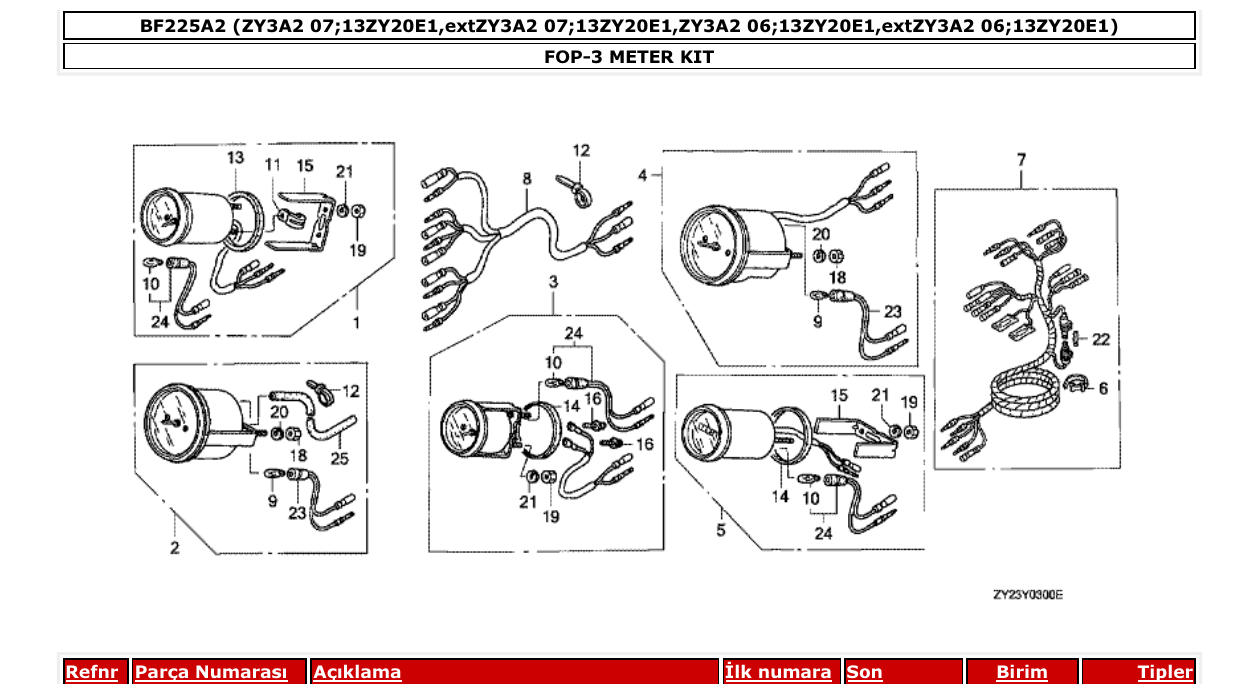

Diagram for section FOP-3: METER KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06372ZW5U00
METER KIT, TRIM
|
1 | Ask on WhatsApp |
| 1 |
06372ZW5U10
METER KIT, TRIM (B)
|
1 | Ask on WhatsApp |
| 2 |
06373ZW5U01
SPEEDOMETER KIT
|
1 | Ask on WhatsApp |
| 2 |
06373ZW5U11
SPEEDOMETER KIT (B)
|
1 | Ask on WhatsApp |
| 3 |
06374ZW5U00
METER KIT, VOLT
|
1 | Ask on WhatsApp |
| 3 |
06374ZW5U10
METER KIT, VOLT (B)
|
1 | Ask on WhatsApp |
| 4 |
06375ZW5U00
METER KIT, TACHO
|
1 | Ask on WhatsApp |
| 4 |
06375ZW5U10
METER KIT, TACHO (B)
|
1 | Ask on WhatsApp |
| 5 |
06397ZW5U00
METER KIT, HOUR
|
1 | Ask on WhatsApp |
| 5 |
06397ZW5U10
METER KIT, HOUR (B)
|
1 | Ask on WhatsApp |
| 6 |
32161404000
BAND B1, WIRE
|
1 | Ask on WhatsApp |
| 7 |
32540ZV5911
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 8 |
32550ZW5U00
HARNESS ASSY., METER (B)
|
1 | Ask on WhatsApp |
| 9 |
34908MB9871
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
|
2 | Ask on WhatsApp |
| 10 |
34908MG9951
BULB, WEDGE BASE (12V 1.7W)
|
3 | Ask on WhatsApp |
| 11 |
37215KM1670
CLAMP
|
1 | Ask on WhatsApp |
| 12 |
37226MZ5008
BAND, SELF LOCK
|
2 | Ask on WhatsApp |
| 13 |
37263ZV5821
PACKING
|
1 | Ask on WhatsApp |
| 14 |
37264ZV5821
PACKING
|
2 | Ask on WhatsApp |
| 15 |
37266ZV5821
BRACKET
|
2 | Ask on WhatsApp |
| 16 |
37305KE5008
SCREW-WASHER, 3X22
|
2 | Ask on WhatsApp |
| 18 |
90309ZV5821
NUT, HEX., 5MM
|
4 | Ask on WhatsApp |
| 19 |
90310ZV5821
NUT, HEX., 4MM
|
5 | Ask on WhatsApp |
| 20 |
90550ZV5821
WASHER, SPRING, 5MM
|
4 | Ask on WhatsApp |
| 21 |
90560ZV5821
WASHER, SPRING, 4MM
|
5 | Ask on WhatsApp |
| 22 |
9820011000
FUSE A (10A)
|
1 | Ask on WhatsApp |
| 23 |
37258ZV5U01
SOCKET COMP.
|
2 | Ask on WhatsApp |
| 24 |
37258ZW5U01
SOCKET COMP.
|
3 | Ask on WhatsApp |
| 25 |
37202ZW5U01
TUBE, SPEED METER (4X7X8000)
|
1 | Ask on WhatsApp |
