bf2d2
Section E-8: PISTON (v2)

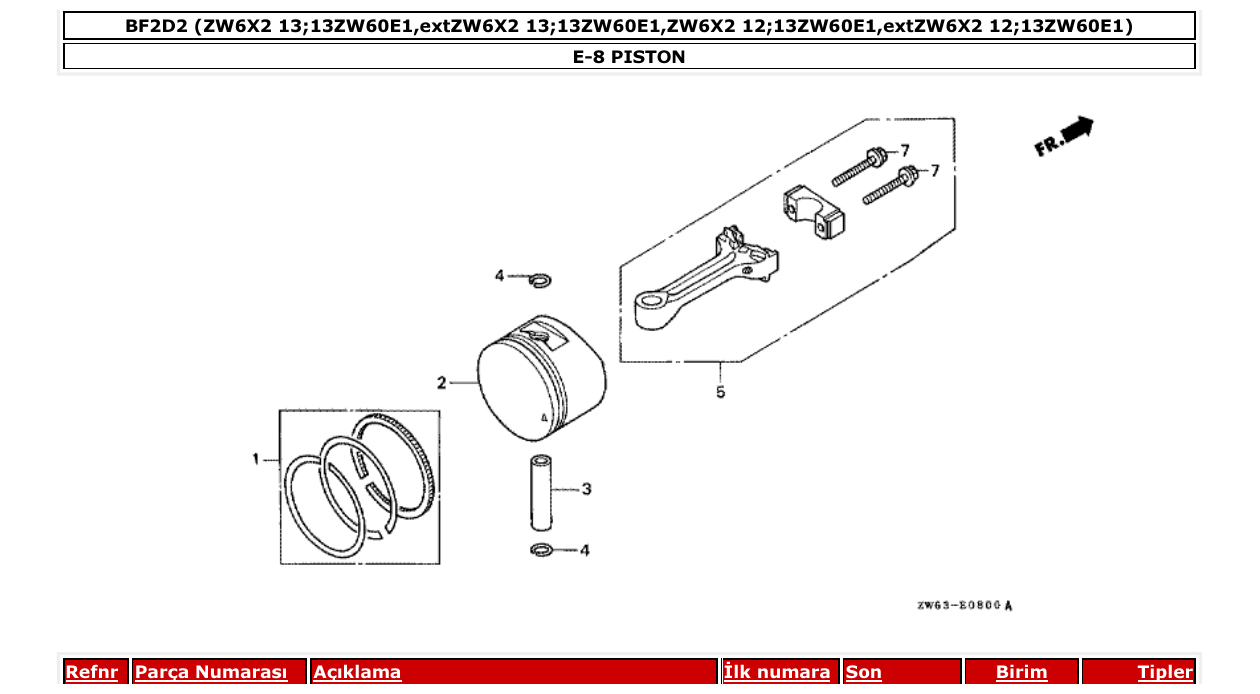

Diagram for section E-8: PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010ZW6000
RING SET, PISTON (STD.)
|
1 | Ask on WhatsApp |
| 2 |
13101ZW6000
PISTON
|
1 | Ask on WhatsApp |
| 2 |
13101ZW6010
PISTON (STD.)
|
1 | Ask on WhatsApp |
| 3 |
13111122000
PIN, PISTON, 10X33
|
1 | Ask on WhatsApp |
| 4 |
13115147000
CLIP, PISTON PIN, 10MM
|
2 | Ask on WhatsApp |
| 5 |
13200ZN4000
ROD ASSY., CONNECTING
|
1 | Ask on WhatsApp |
| 7 |
90001ZM7000
BOLT, CONNECTING ROD
|
2 | Ask on WhatsApp |
