Section F-1: STEERING HANDLE (v2)

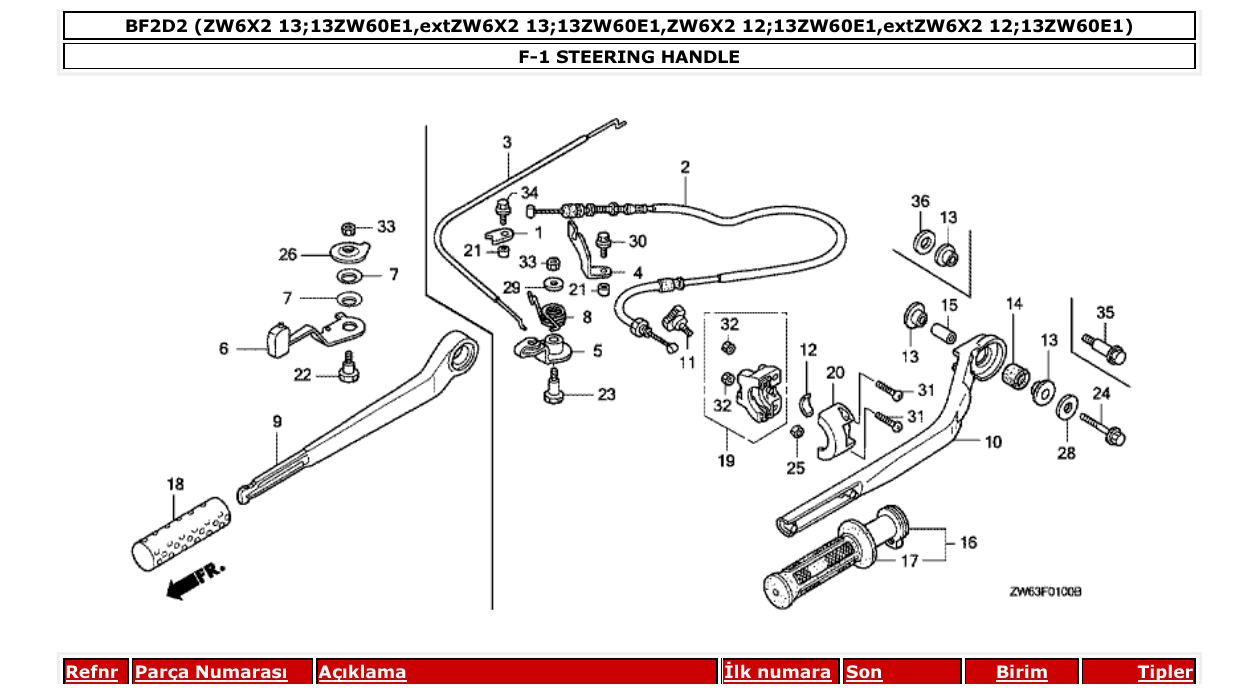

Diagram for section F-1: STEERING HANDLE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16576ZV0010
HOLDER, CABLE
|
1 | Ask on WhatsApp |
| 1 |
16576ZW6010
HOLDER, CABLE
|
1 | Ask on WhatsApp |
| 2 |
17910ZW6702
CABLE COMP., THROTTLE (A)
|
1 | Ask on WhatsApp |
| 3 |
17920ZW6000
CABLE COMP., THROTTLE (B)
|
1 | Ask on WhatsApp |
| 4 |
17921ZV1020
HOLDER, CABLE
|
1 | Ask on WhatsApp |
| 5 |
17930ZW6700
ARM COMP., THROTTLE
|
1 | Ask on WhatsApp |
| 8 |
17932ZW6700
SPRING, THROTTLE ARM
|
1 | Ask on WhatsApp |
| 10 |
53101ZW6700ZA
HANDLE, STEERING *NH246 *
|
1 | Ask on WhatsApp |
| 11 |
53104ZW6700
BOLT, FRICTION
|
1 | Ask on WhatsApp |
| 12 |
53106ZW6700
BLOCK, THROTTLE FRICTION
|
1 | Ask on WhatsApp |
| 13 |
53107ZV0000
COLLAR, HANDLE MOUNTING
|
2 | Ask on WhatsApp |
| 14 |
53108ZV0000
RUBBER, HANDLE MOUNTING
|
1 | Ask on WhatsApp |
| 15 |
53109ZV0000
COLLAR, DISTANCE
|
1 | Ask on WhatsApp |
| 16 |
53140GW0000
GRIP COMP., THROTTLE
|
1 | Ask on WhatsApp |
| 17 |
53165GW0000
GRIP, R. HANDLE
|
1 | Ask on WhatsApp |
| 19 |
53167ZW6701
HOUSING, UNDER THROTTLE
|
1 | Ask on WhatsApp |
| 20 |
53168GAH700
HOUSING, UPPER THROTTLE
|
1 | Ask on WhatsApp |
| 21 |
91553ZW6C00
COLLAR, 6.2X8.5X5
|
1 | Ask on WhatsApp |
| 23 |
90101ZW6700
BOLT, HEX., 6X24
|
1 | Ask on WhatsApp |
| 24 |
90105ZV0000
BOLT, FLANGE, 8X40
|
1 | Ask on WhatsApp |
| 25 |
94001064900S
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 28 |
90508ZV0000
WASHER, 12.5X32
|
1 | Ask on WhatsApp |
| 29 |
90511ZV4000
WASHER, PLAIN, 6MM
|
1 | Ask on WhatsApp |
| 30 |
90056ZY3000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 31 |
93500050204J
SCREW, PAN, 5X20
|
2 | Ask on WhatsApp |
| 32 |
94001054900S
NUT, HEX., 5MM
|
2 | Ask on WhatsApp |
| 33 |
90302ZW4000
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 33 |
94001060200S
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 34 |
90056ZY3000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 34 |
957010601202
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
