Section FOP-3: CONTROL PANEL/LIGHT SWITCH KIT (v2)

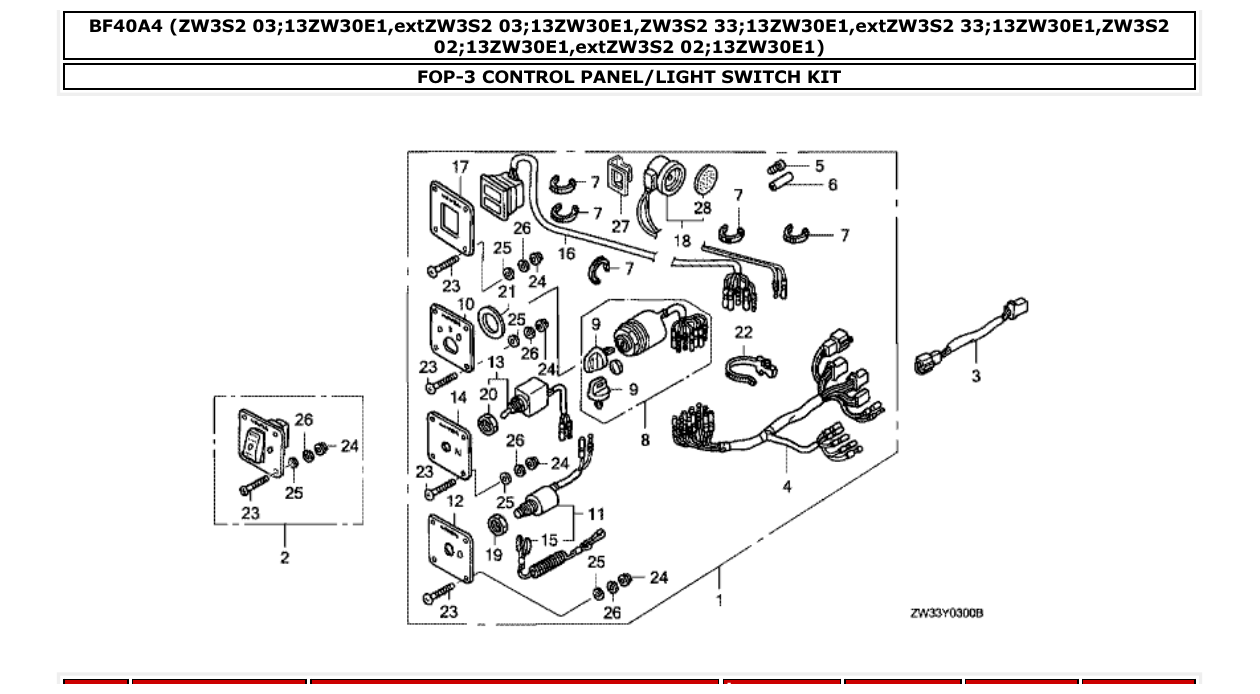

Diagram for section FOP-3: CONTROL PANEL/LIGHT SWITCH KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06323ZW5U13
PANEL KIT, CONTROL (A)
|
1 | Ask on WhatsApp |
| 1 |
06323ZW5U14
PANEL KIT, CONTROL (A)
|
1 | Ask on WhatsApp |
| 2 |
06352ZW5U00
SWITCH KIT, LIGHT
|
1 | Ask on WhatsApp |
| 2 |
06352ZW5U01
SWITCH KIT, LIGHT
|
1 | Ask on WhatsApp |
| 4 |
32545ZW1V02
HARNESS ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 4 |
32545ZW1V03
HARNESS ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 5 |
32823ZV5003
PLUG, INNER CONNECTOR
|
1 | Ask on WhatsApp |
| 6 |
32824ZV5003
PLUG, OUTER CONNECTOR
|
1 | Ask on WhatsApp |
| 7 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
5 | Ask on WhatsApp |
| 8 |
35100ZV5003
SWITCH ASSY., COMBINATION
|
1 | Ask on WhatsApp |
| 9 |
35110ZV5003
KEY ASSY., COMBINATION SWITCH
|
2 | Ask on WhatsApp |
| 10 |
35118ZW5U02
PANEL, SWITCH
|
1 | Ask on WhatsApp |
| 11 |
35180ZV7013
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 11 |
35180ZV7023
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 12 |
35184ZW5U01
PANEL, EMERGENCY STOP SWITCH
|
1 | Ask on WhatsApp |
| 13 |
35630ZW5U11
SWITCH ASSY., SOLENOID
|
1 | Ask on WhatsApp |
| 14 |
35634ZW5U12
PANEL, SOLENOID
|
1 | Ask on WhatsApp |
| 15 |
36182ZV4650
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 15 |
36182ZV4651
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 16 |
37210ZW5U01
LAMP ASSY., INDICATOR (2-LED)
|
1 | Ask on WhatsApp |
| 17 |
37214ZW5U02
PANEL, INDICATOR
|
1 | Ask on WhatsApp |
| 18 |
38410ZW5U01
BUZZER COMP., WARNING
|
1 | Ask on WhatsApp |
| 19 |
90302921000
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 20 |
90305ZW1V01
NUT, HEX., 12MM
|
1 | Ask on WhatsApp |
| 21 |
90513ZW5U00
WASHER, PLAIN
|
1 | Ask on WhatsApp |
| 22 |
90649SC2003
BAND, WIRE HARNESS (NATURAL) (150MM)
|
1 | Ask on WhatsApp |
| 23 |
90109ZW5000
SCREW, PAN, 5X40
|
0 | Ask on WhatsApp |
| 24 |
18334MT8770
NUT, FLANGE, 5MM
|
0 | Ask on WhatsApp |
| 25 |
9410305400
WASHER, PLAIN, 5MM
|
0 | Ask on WhatsApp |
| 26 |
9411105400
WASHER, SPRING, 5MM
|
0 | Ask on WhatsApp |
| 27 |
38414ZW5U00
BRACKET, BUZZER
|
1 | Ask on WhatsApp |
| 28 |
38403341672
PLATE, WINKER BUZZER BF40A4 (ZW3S2 03;13ZW30E1,extZW3S2 03;13ZW30E1,ZW3S2 33;13ZW30E1,extZW3S2 33;13ZW30E1,ZW3S2
|
1 | Ask on WhatsApp |
