Section FOP-4-4: REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT) (v2)

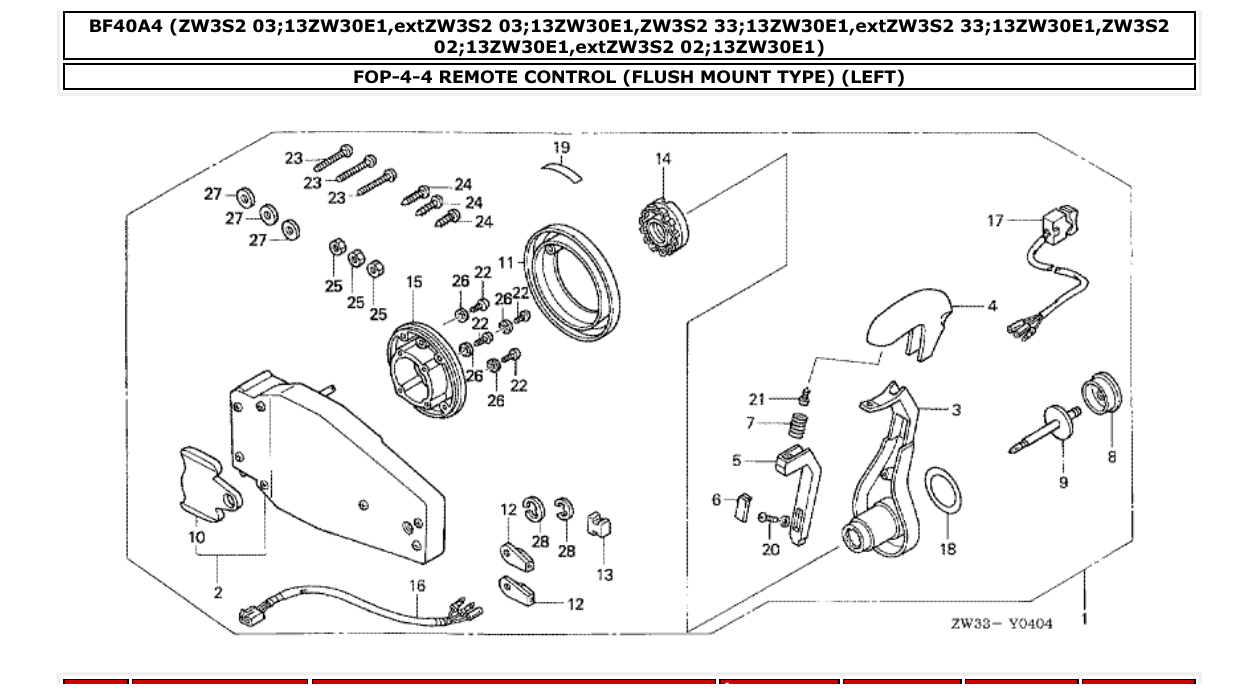

Diagram for section FOP-4-4: REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06240ZW7U10
BOX KIT, REMOTE CONTROL (FLUSH MOUNT) (L.)
|
1 | Ask on WhatsApp |
| 2 |
24810ZW7U11
HOUSING ASSY., L. INNER (FLUSH MOUNT)
|
1 | Ask on WhatsApp |
| 3 |
24811ZW7U01
HANDLE, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 4 |
24812ZW7U01
COVER, GRIP
|
1 | Ask on WhatsApp |
| 5 |
24813ZW7U01
ARM, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 6 |
24814ZW7U01
COVER, LOCK ARM
|
1 | Ask on WhatsApp |
| 7 |
24815ZW7U01
SPRING, NEUTRAL LOCK ARM
|
1 | Ask on WhatsApp |
| 8 |
24816ZW5U01
BUTTON, THROTTLE
|
1 | Ask on WhatsApp |
| 9 |
24817ZW7U01
SHAFT, THROTTLE BUTTON
|
1 | Ask on WhatsApp |
| 10 |
24826ZW5U01
PLATE, DWELL
|
1 | Ask on WhatsApp |
| 11 |
24830ZW7U01
COVER ASSY.
|
1 | Ask on WhatsApp |
| 12 |
24831ZW5U01
TERMINAL, CABLE
|
2 | Ask on WhatsApp |
| 13 |
24832ZW5U01
SPACER, CABLE CLAMP
|
1 | Ask on WhatsApp |
| 14 |
24832ZW7U01
HOLDER, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 15 |
24833ZW7U01
BASE
|
1 | Ask on WhatsApp |
| 16 |
32530ZW7U20
SUB HARNESS ASSY., POWER TRIM-TILT (C)
|
1 | Ask on WhatsApp |
| 17 |
35370ZW7U02
SWITCH ASSY., POWER TRIM-TILT (C)
|
1 | Ask on WhatsApp |
| 18 |
87701ZW7U01
MARK, HANDLE FLUSH MOUNT
|
1 | Ask on WhatsApp |
| 19 |
87703ZW7U00
MARK, FLUSH MOUNT
|
1 | Ask on WhatsApp |
| 20 |
90101ZW7U01
SCREW, TRUSS, 4X12
|
1 | Ask on WhatsApp |
| 21 |
90102ZW5U00
SCREW, PAN, 5X10
|
1 | Ask on WhatsApp |
| 22 |
90102ZW7U01
SCREW, PAN, 5X30
|
4 | Ask on WhatsApp |
| 23 |
90103ZW7U01
SCREW, PAN, 6X35
|
3 | Ask on WhatsApp |
| 24 |
90104ZW7U01
SCREW, TAPPING, 6X30
|
3 | Ask on WhatsApp |
| 25 |
90301ZW7U01
NUT, HEX., 6MM
|
3 | Ask on WhatsApp |
| 26 |
90501ZW5U00
WASHER, LOCK, 5MM
|
4 | Ask on WhatsApp |
| 27 |
90502ZW7U00
WASHER, PLAIN, 6MM
|
3 | Ask on WhatsApp |
| 28 |
9454006029
E-RING, 6MM
|
2 | Ask on WhatsApp |
