Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
TIMING BELT INLET MANIFOLD/INJECTOR THROTTLE BODY AIR INLET GUIDE TUBING VAPOR SEPARATOR A.C. GENERATOR CYLINDER HEAD ELECTRONIC CONTROL UNIT IGNITION COIL STARTER MOTOR CYLINDER BLOCK OIL PUMP OIL PAN CRANKSHAFT/PISTON CAMSHAFT STERN BRACKET SWIVEL CASE POWER TRIM TILT LABEL TOOL/OTHER PARTS REMOTE CONTROL (P/T) EXTENSION CASE GEAR CASE ASSY. PRIMARY GEAR CASE WATER PUMP PROPELLER SHAFT FUEL TANK REGULATOR WIRE HARNESS A.C. GENERATOR COVER ENGINE COVER/UNDER CASE IMPELLER PUMP KIT/WATER HOSE JOINT METER METER KIT (ANALOG) METER KIT (DIGITAL) SWITCH PANEL KIT (1) SWITCH PANEL KIT (2) REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT) REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT) REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT) REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT) CABLE (SINGLE) CABLE (DUAL) PROPELLER BOLT KIT STEERING HANDLE KIT

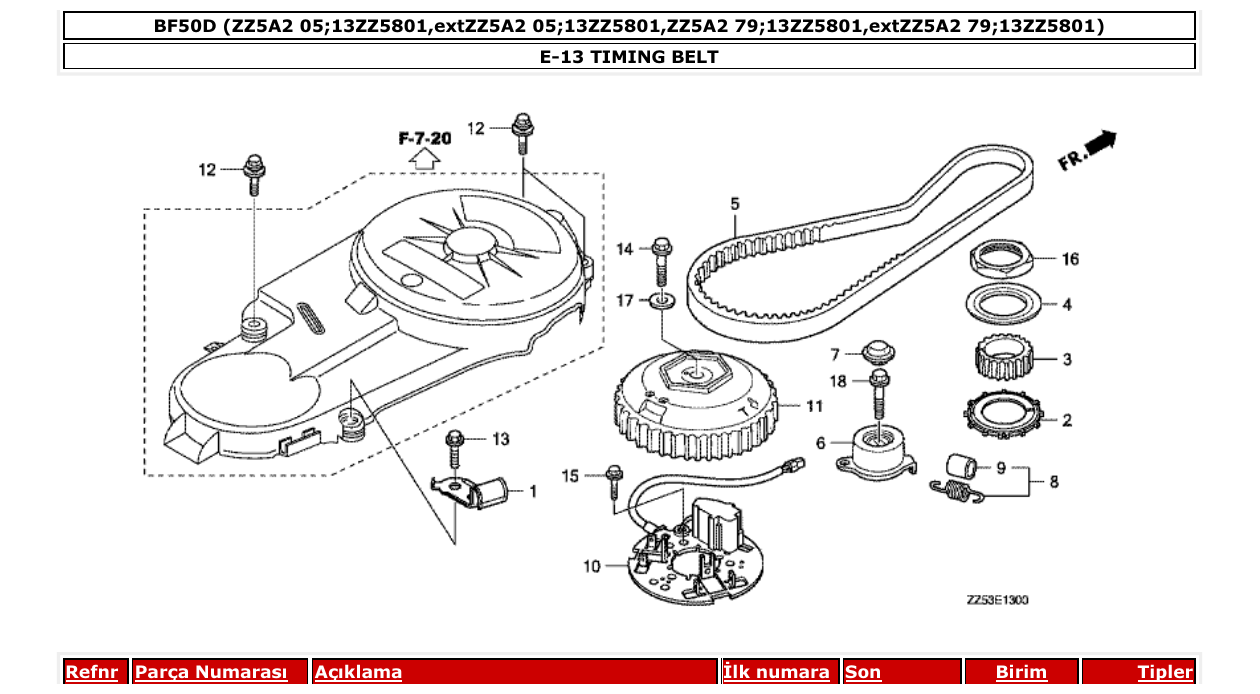

Fig. E-13 – TIMING BELT diagram
Fig. E-13 – TIMING BELT

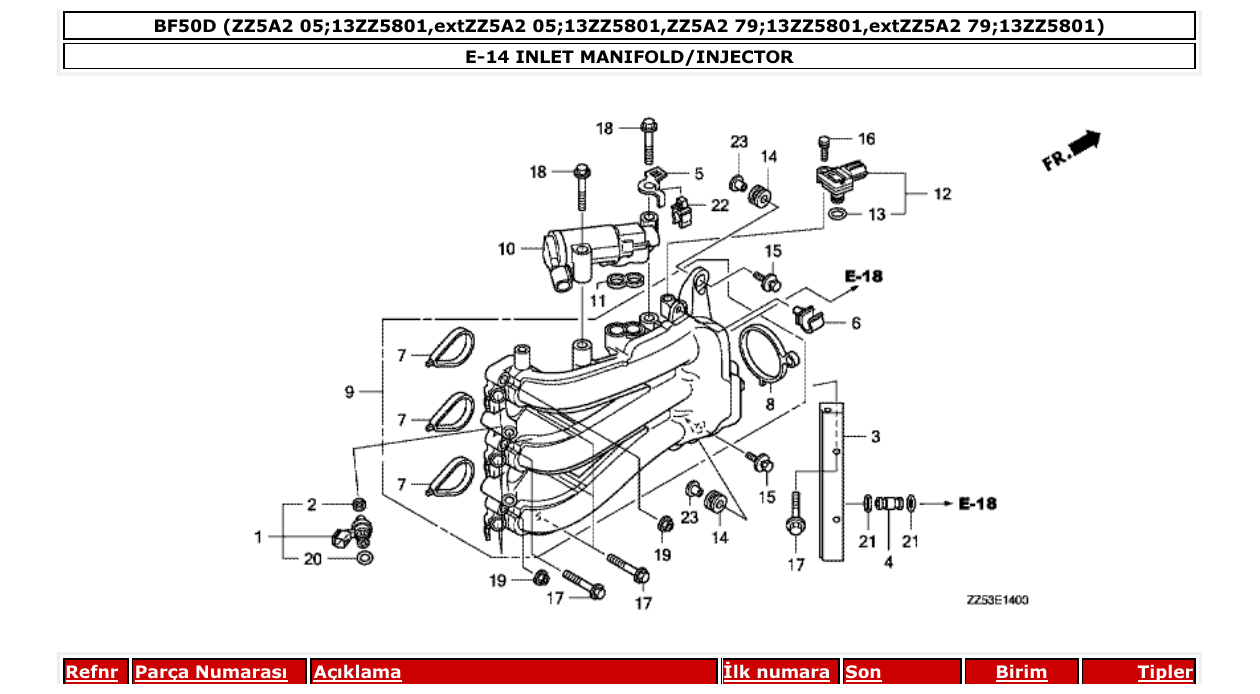

Fig. E-14 – INLET MANIFOLD/INJECTOR diagram
Fig. E-14 – INLET MANIFOLD/INJECTOR

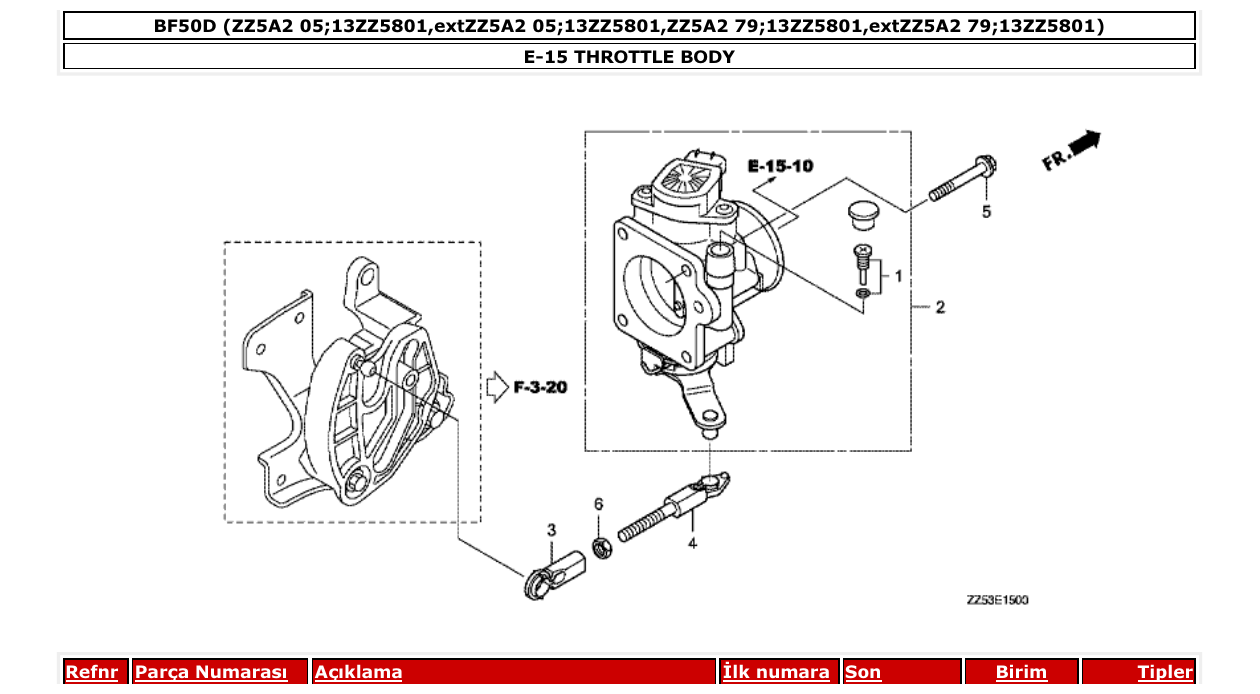

Fig. E-15 – THROTTLE BODY diagram
Fig. E-15 – THROTTLE BODY
Fig. E-15-10 – AIR INLET GUIDE diagram
Fig. E-15-10 – AIR INLET GUIDE

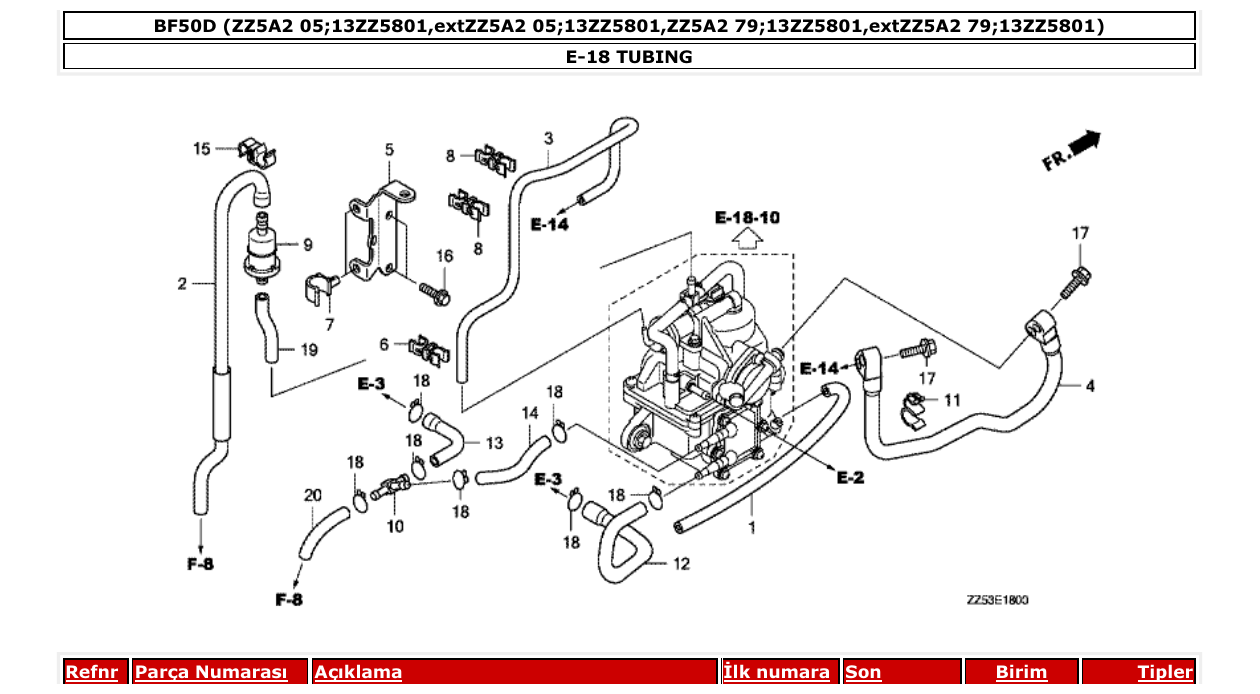

Fig. E-18 – TUBING diagram
Fig. E-18 – TUBING
Fig. E-18-10 – VAPOR SEPARATOR diagram
Fig. E-18-10 – VAPOR SEPARATOR

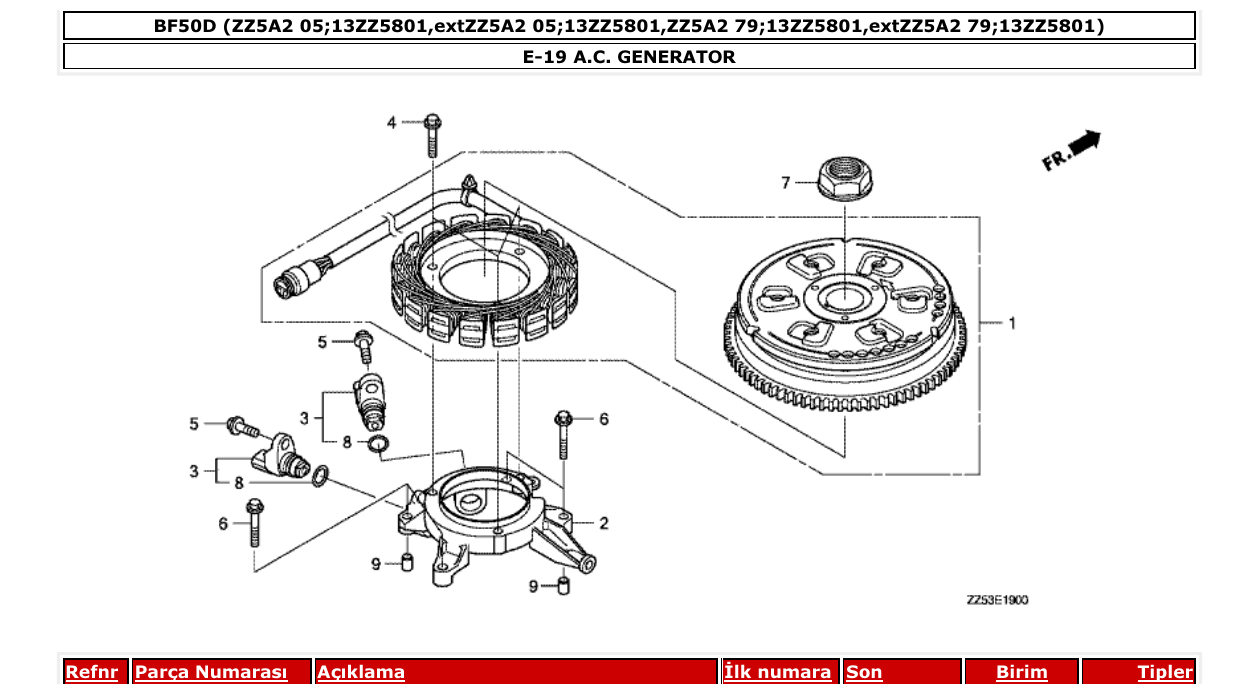

Fig. E-19 – A.C. GENERATOR diagram
Fig. E-19 – A.C. GENERATOR

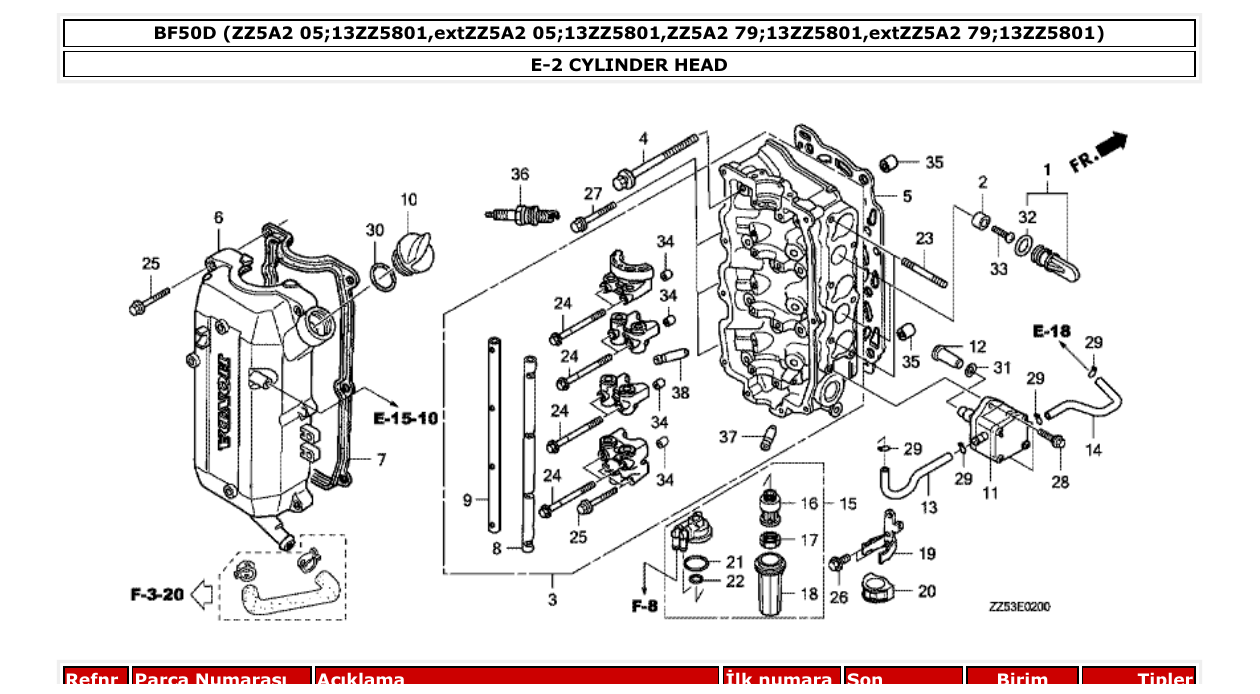

Fig. E-2 – CYLINDER HEAD diagram
Fig. E-2 – CYLINDER HEAD

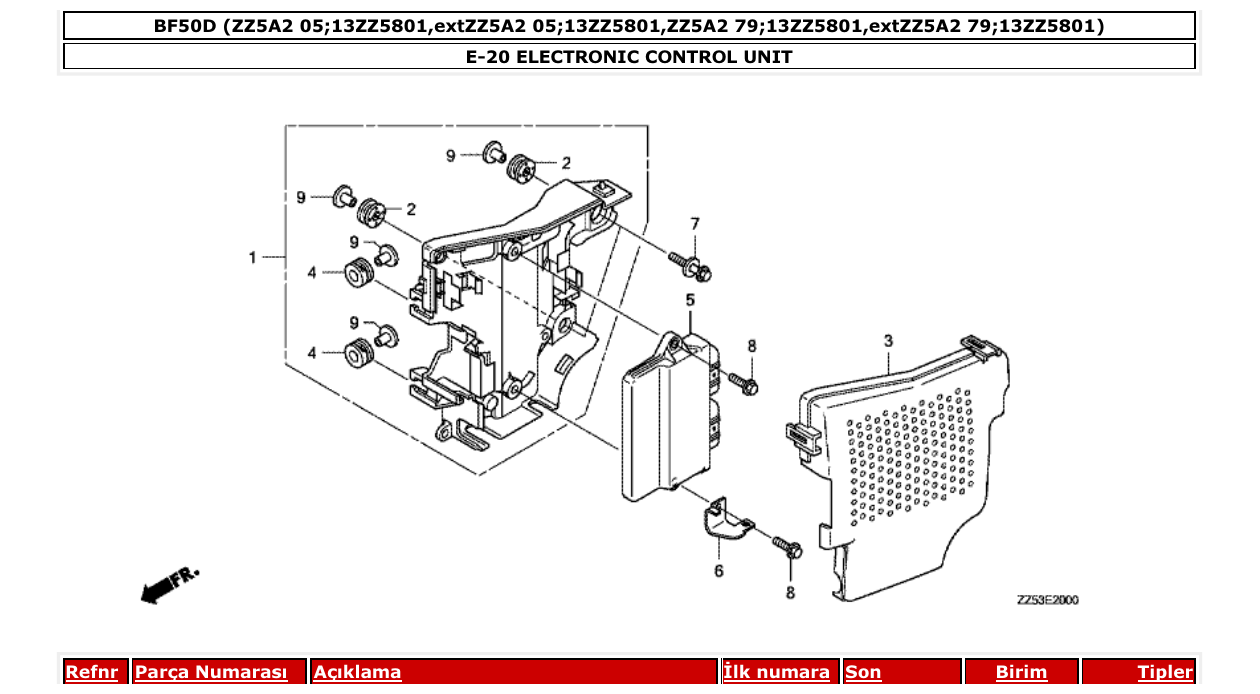

Fig. E-20 – ELECTRONIC CONTROL UNIT diagram
Fig. E-20 – ELECTRONIC CONTROL UNIT

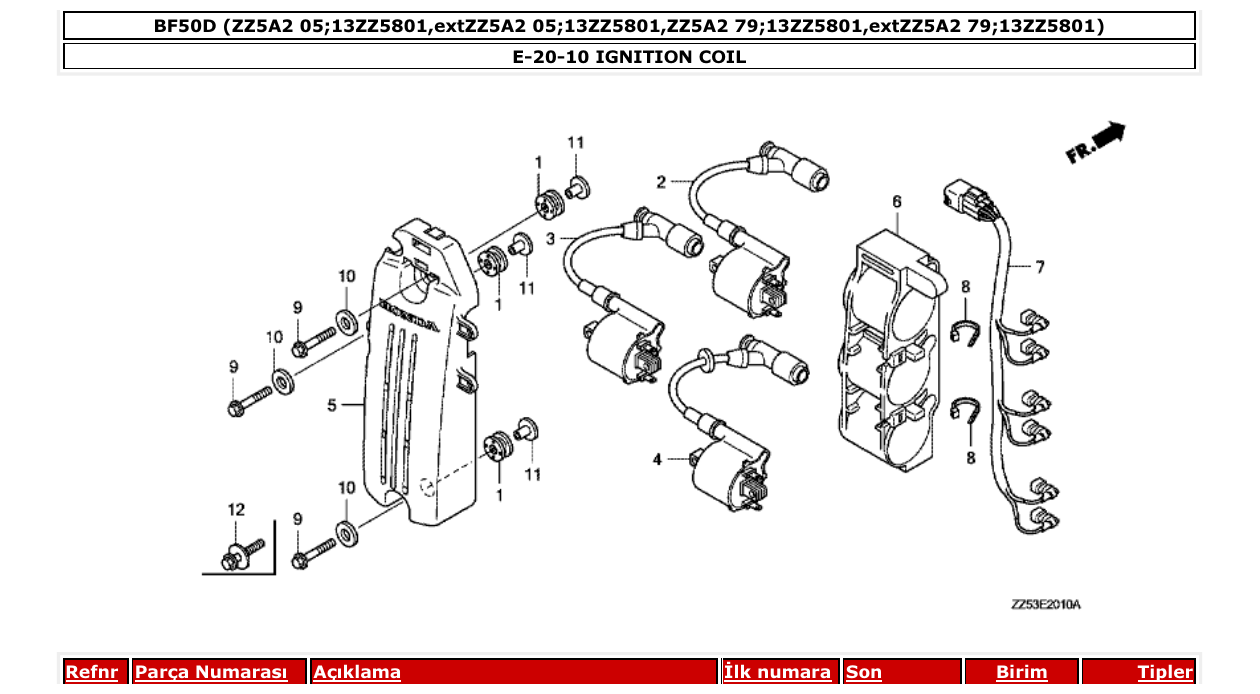

Fig. E-20-10 – IGNITION COIL diagram
Fig. E-20-10 – IGNITION COIL
Fig. E-21 – STARTER MOTOR diagram
Fig. E-21 – STARTER MOTOR

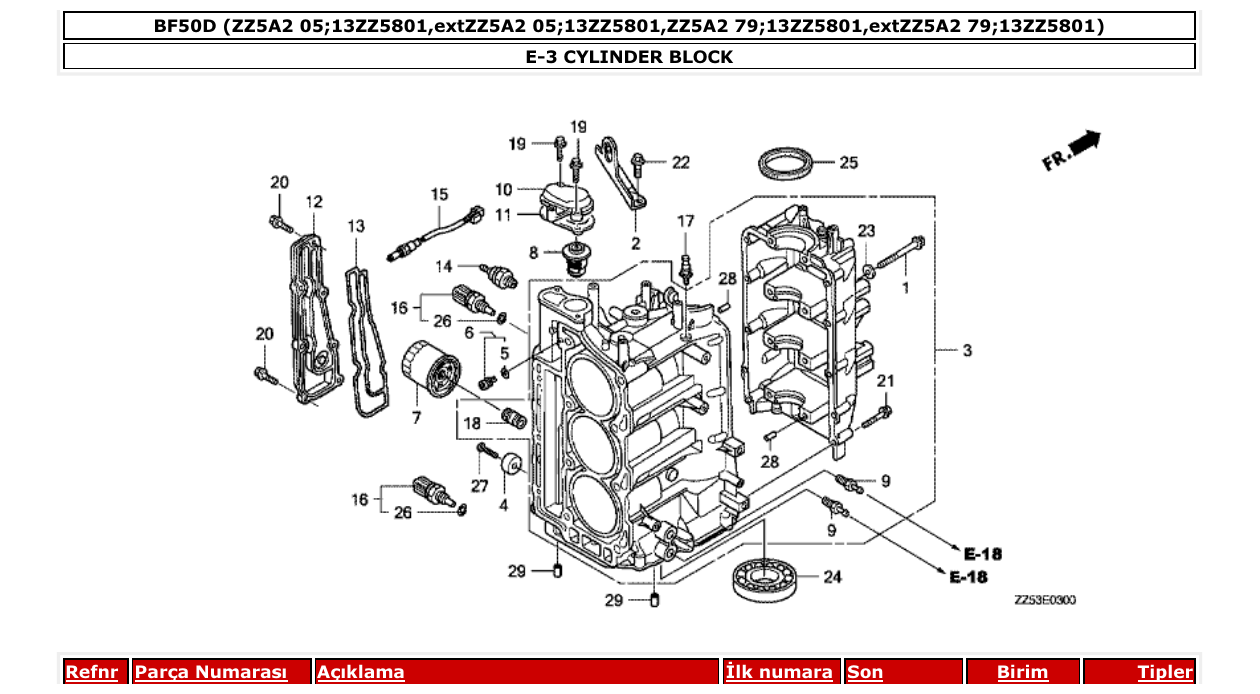

Fig. E-3 – CYLINDER BLOCK diagram
Fig. E-3 – CYLINDER BLOCK

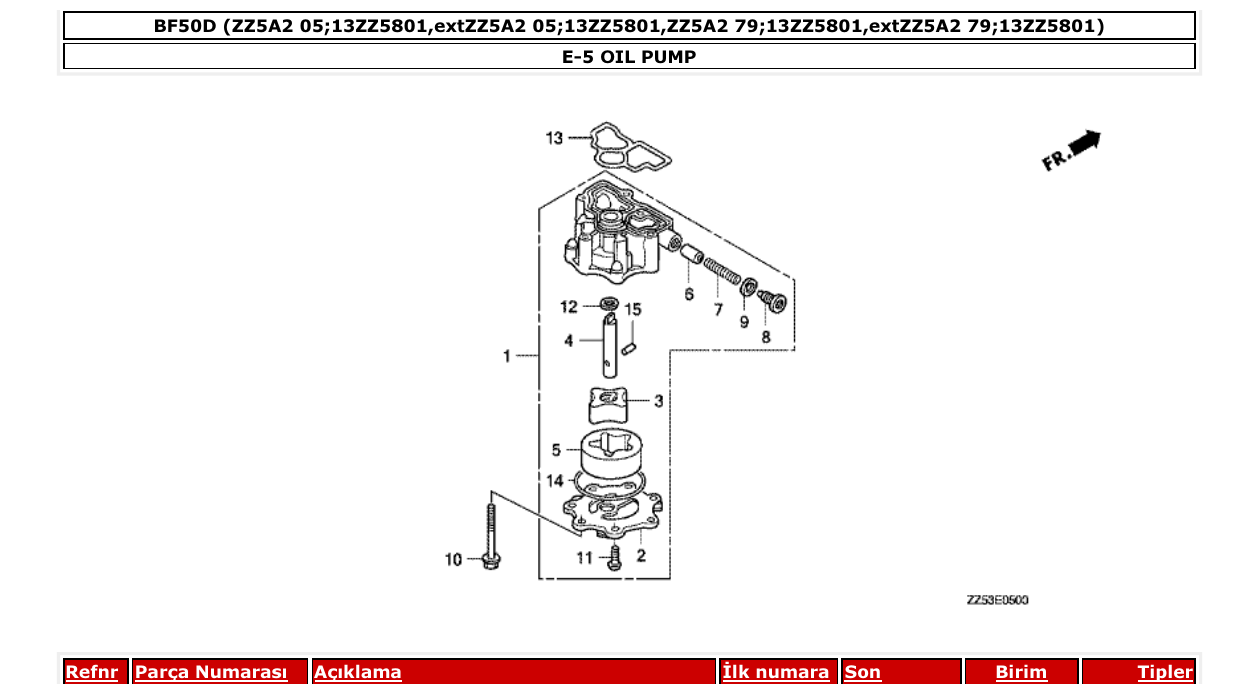

Fig. E-5 – OIL PUMP diagram
Fig. E-5 – OIL PUMP

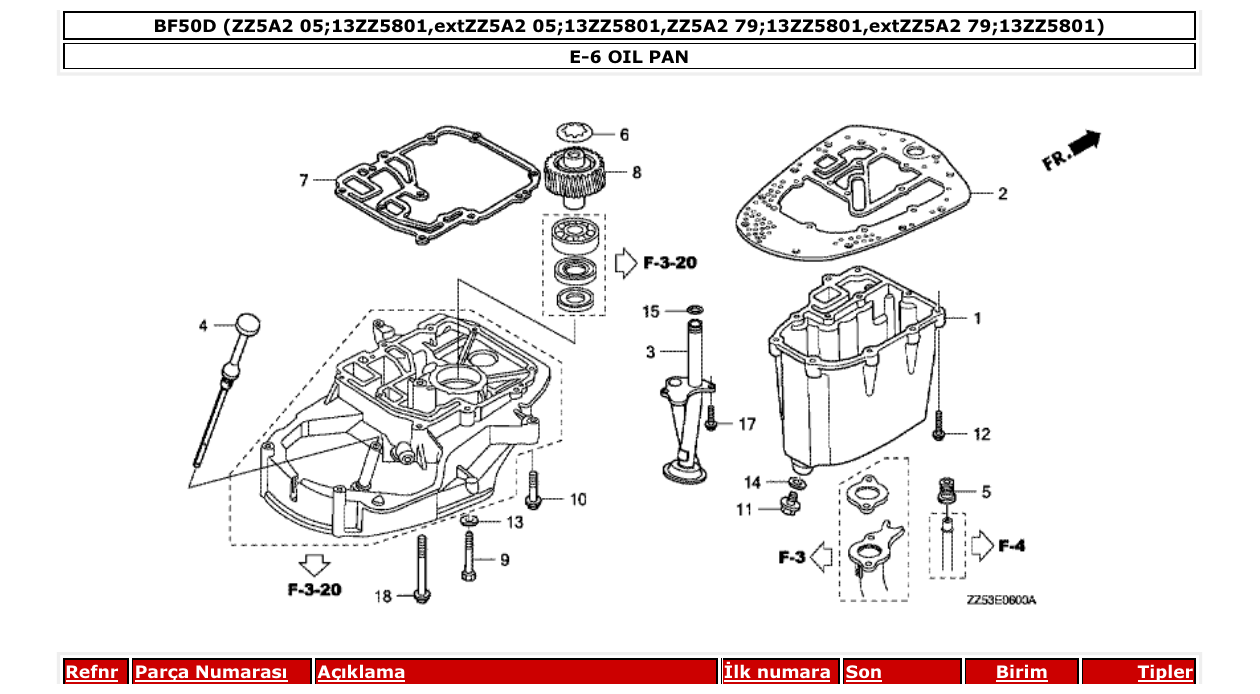

Fig. E-6 – OIL PAN diagram
Fig. E-6 – OIL PAN

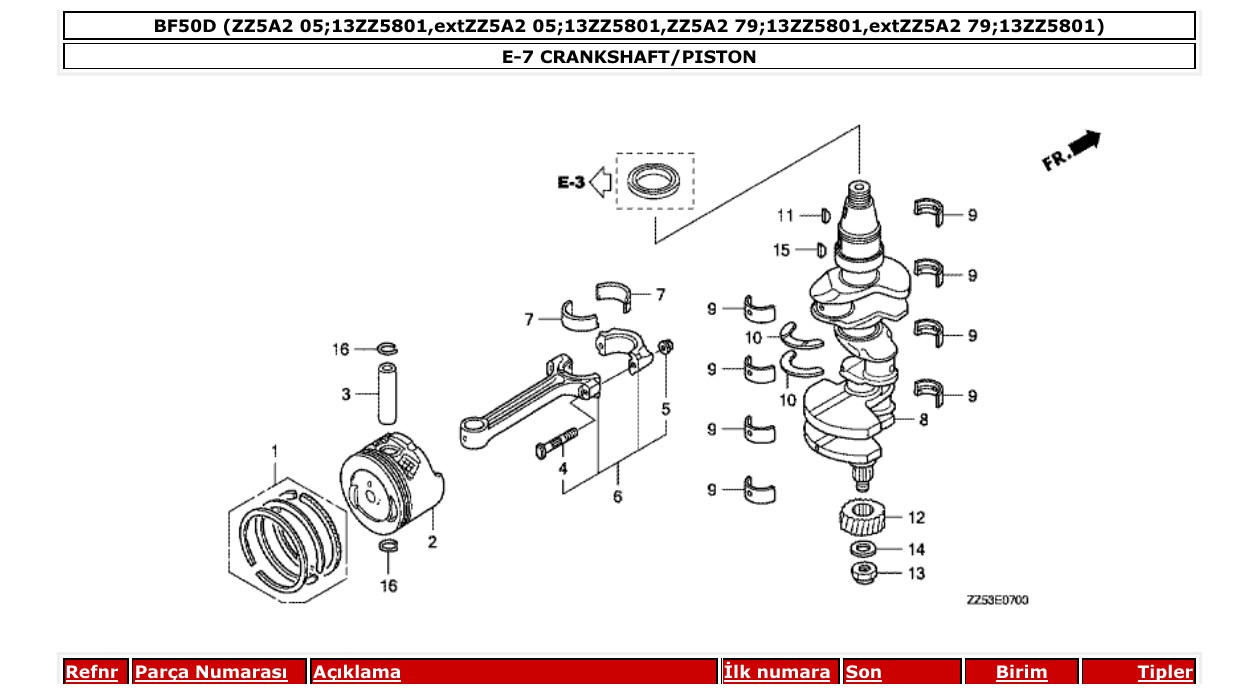

Fig. E-7 – CRANKSHAFT/PISTON diagram
Fig. E-7 – CRANKSHAFT/PISTON

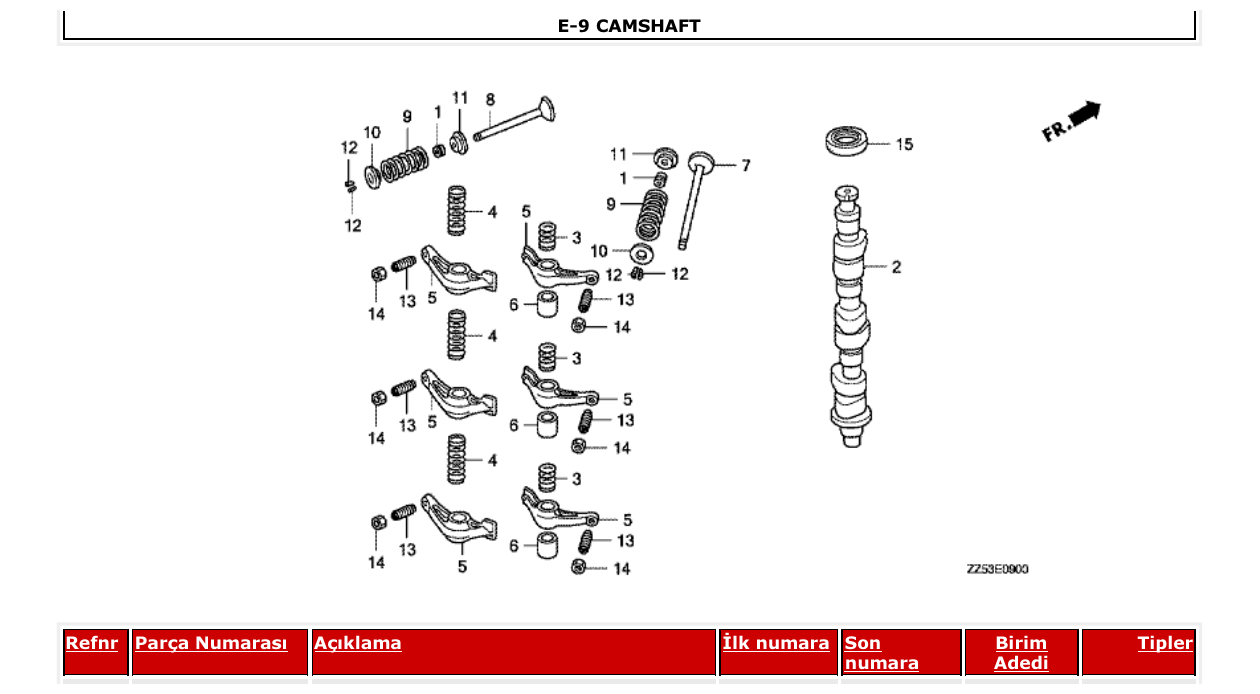

Fig. E-9 – CAMSHAFT diagram
Fig. E-9 – CAMSHAFT

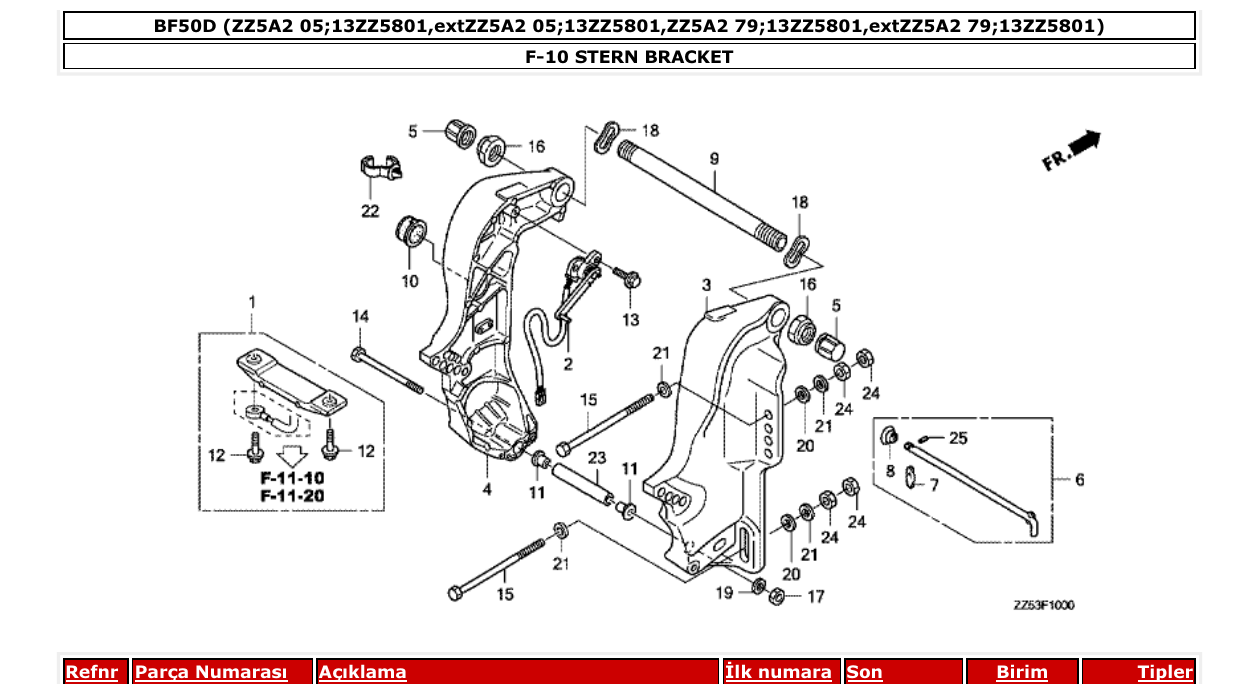

Fig. F-10 – STERN BRACKET diagram
Fig. F-10 – STERN BRACKET

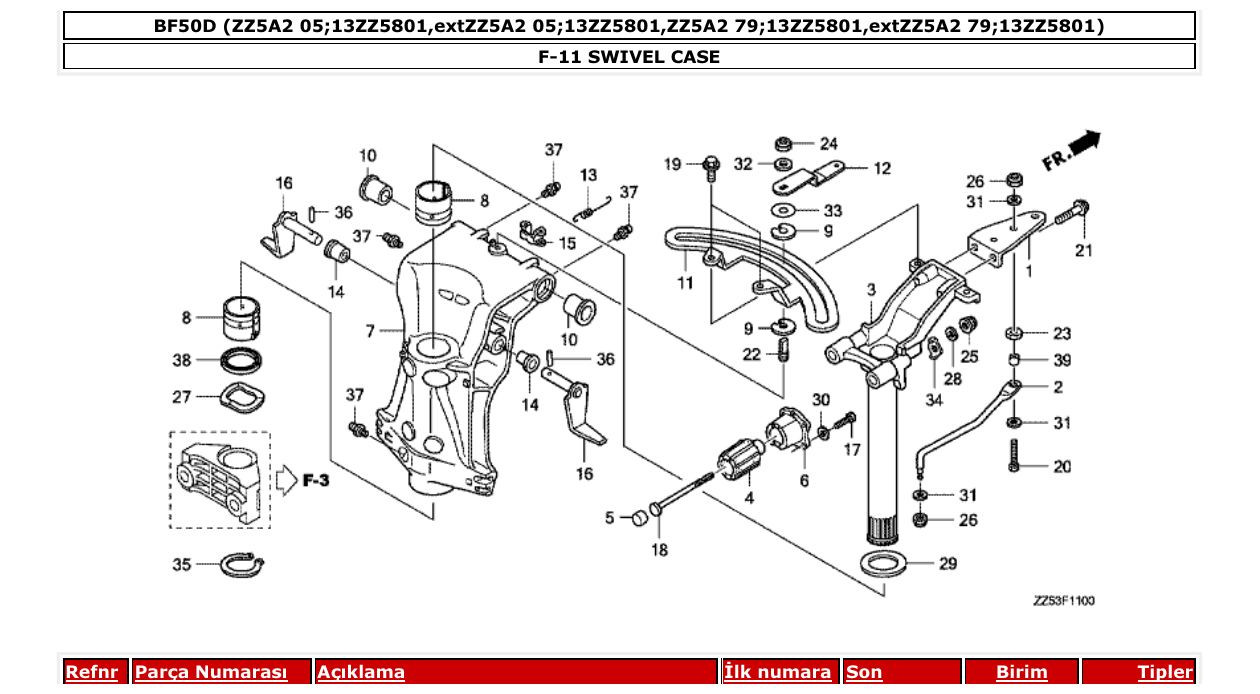

Fig. F-11 – SWIVEL CASE diagram
Fig. F-11 – SWIVEL CASE

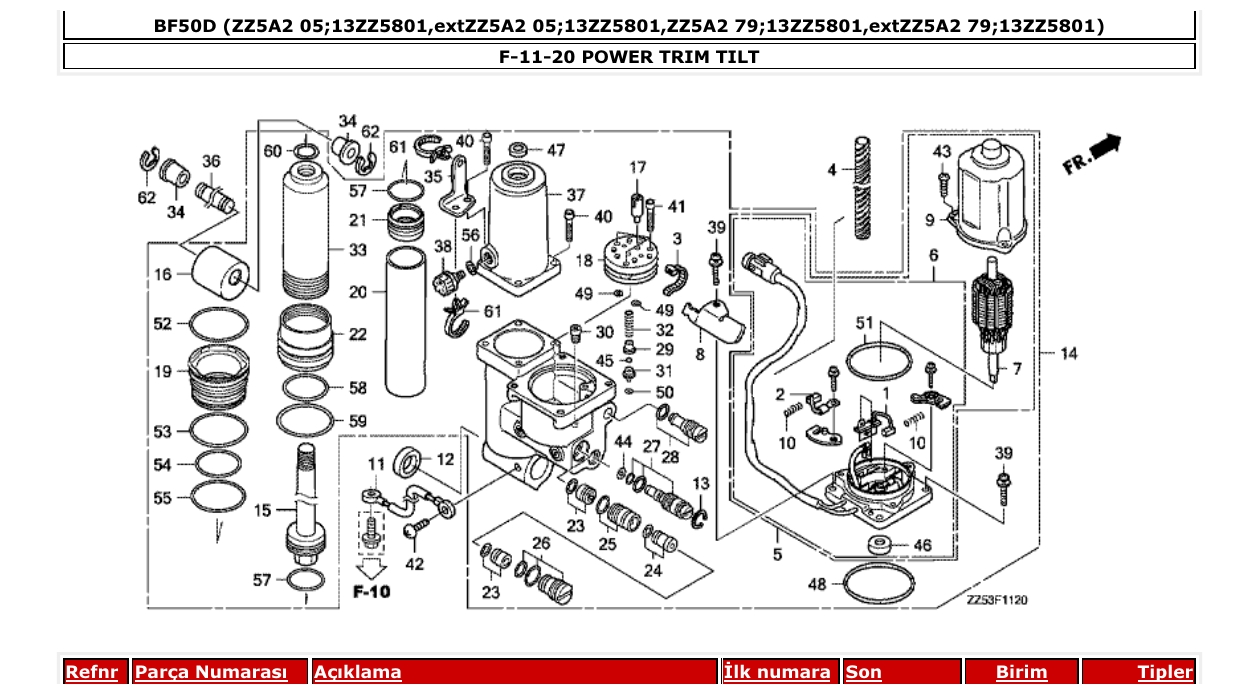

Fig. F-11-20 – POWER TRIM TILT diagram
Fig. F-11-20 – POWER TRIM TILT
Fig. F-12 – LABEL diagram
Fig. F-12 – LABEL

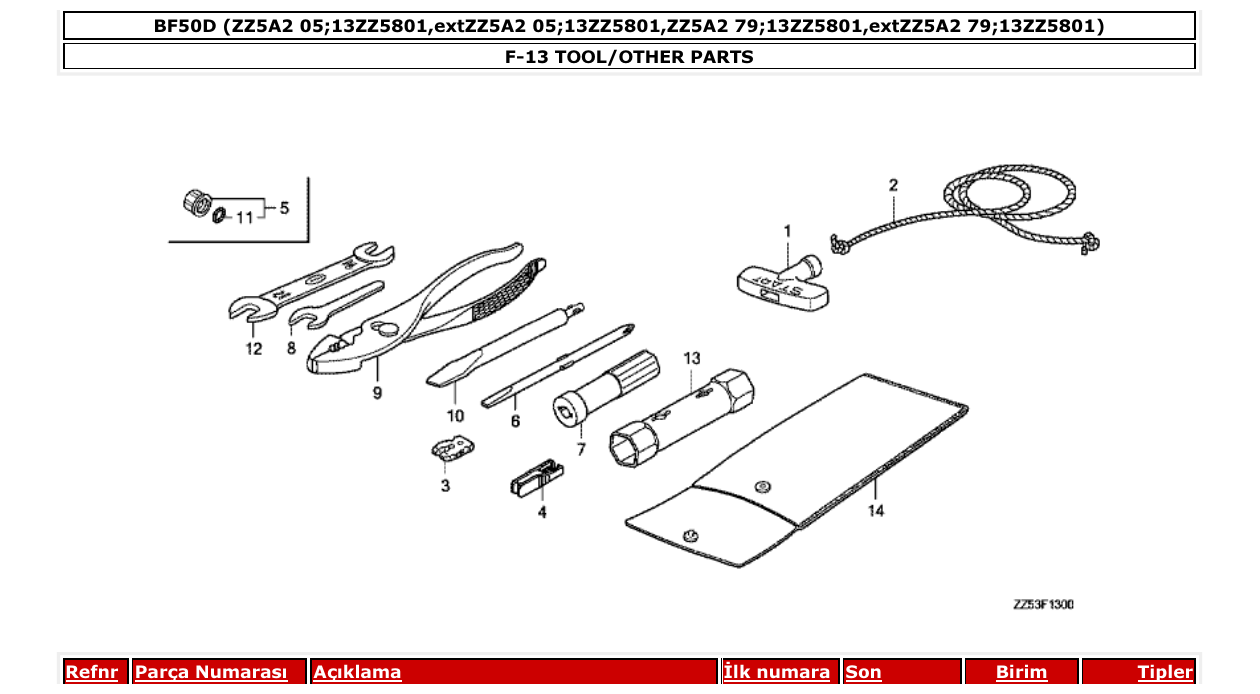

Fig. F-13 – TOOL/OTHER PARTS diagram
Fig. F-13 – TOOL/OTHER PARTS

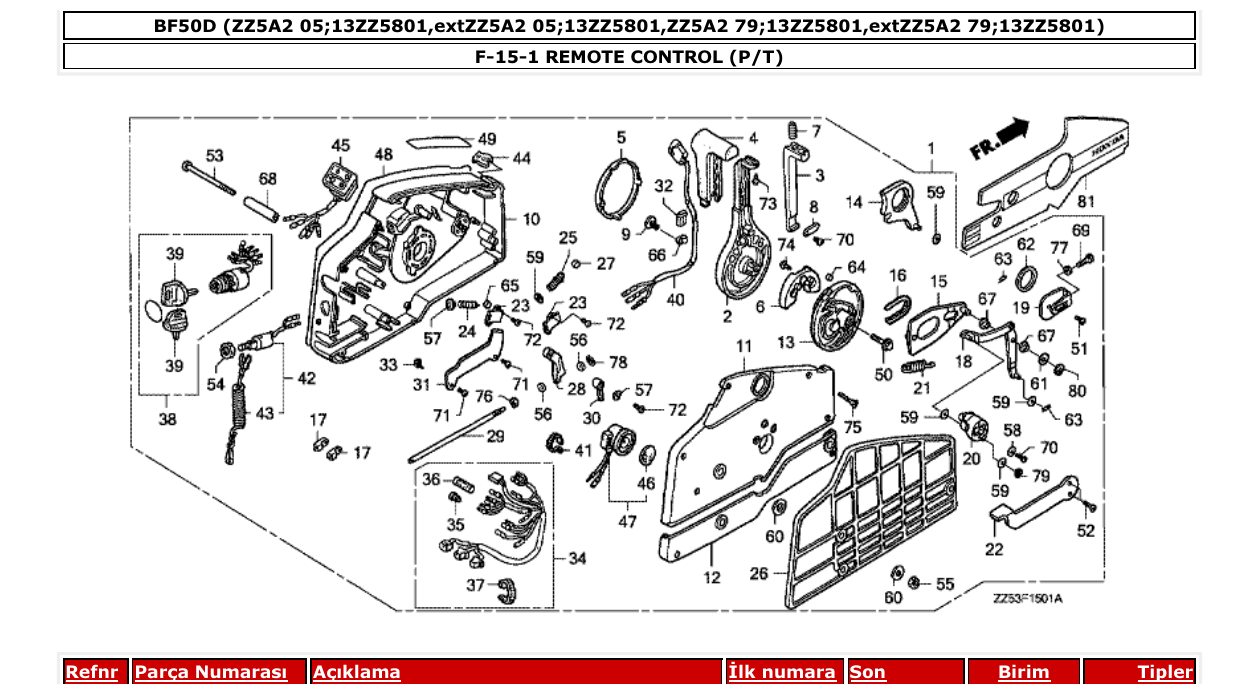

Fig. F-15-1 – REMOTE CONTROL (P/T) diagram
Fig. F-15-1 – REMOTE CONTROL (P/T)

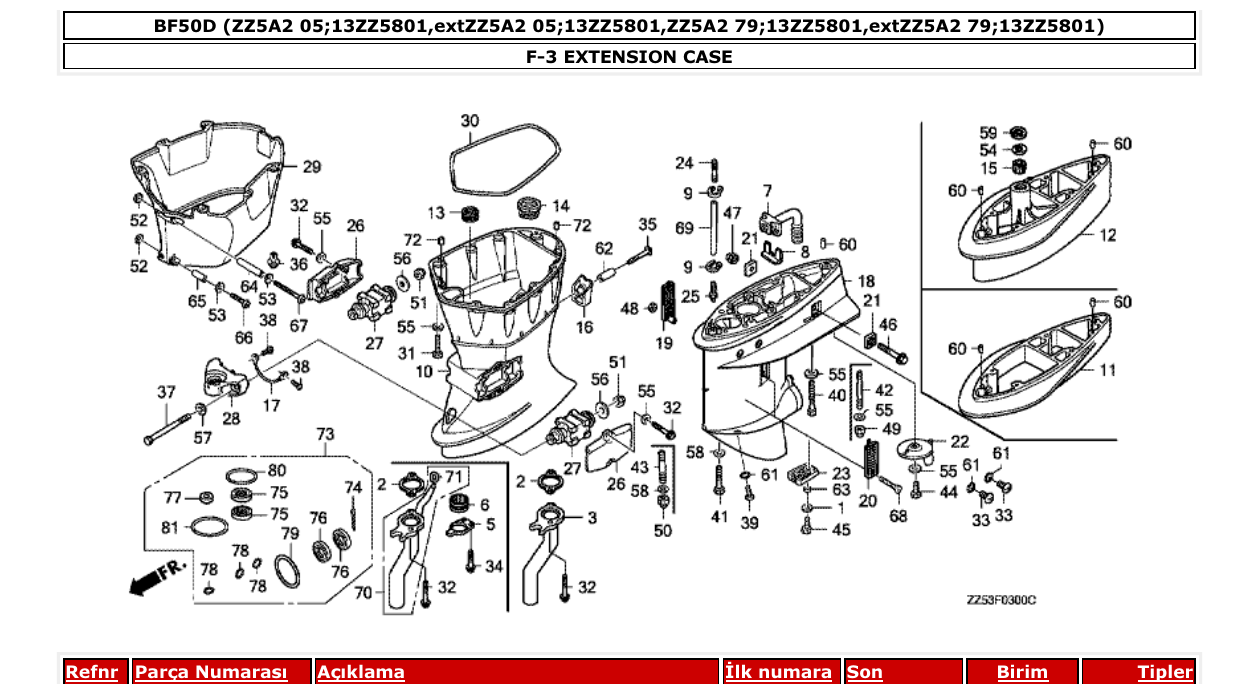

Fig. F-3 – EXTENSION CASE diagram
Fig. F-3 – EXTENSION CASE

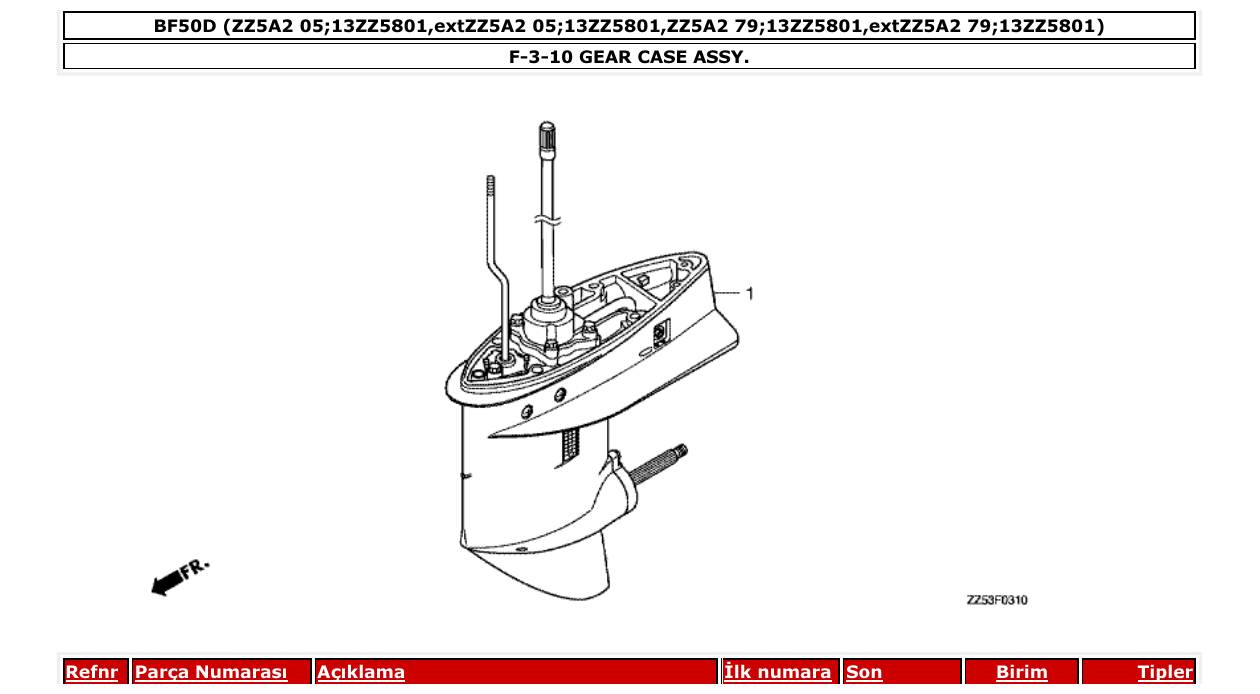

Fig. F-3-10 – GEAR CASE ASSY. diagram
Fig. F-3-10 – GEAR CASE ASSY.
Fig. F-3-20 – PRIMARY GEAR CASE diagram
Fig. F-3-20 – PRIMARY GEAR CASE
Fig. F-4 – WATER PUMP diagram
Fig. F-4 – WATER PUMP

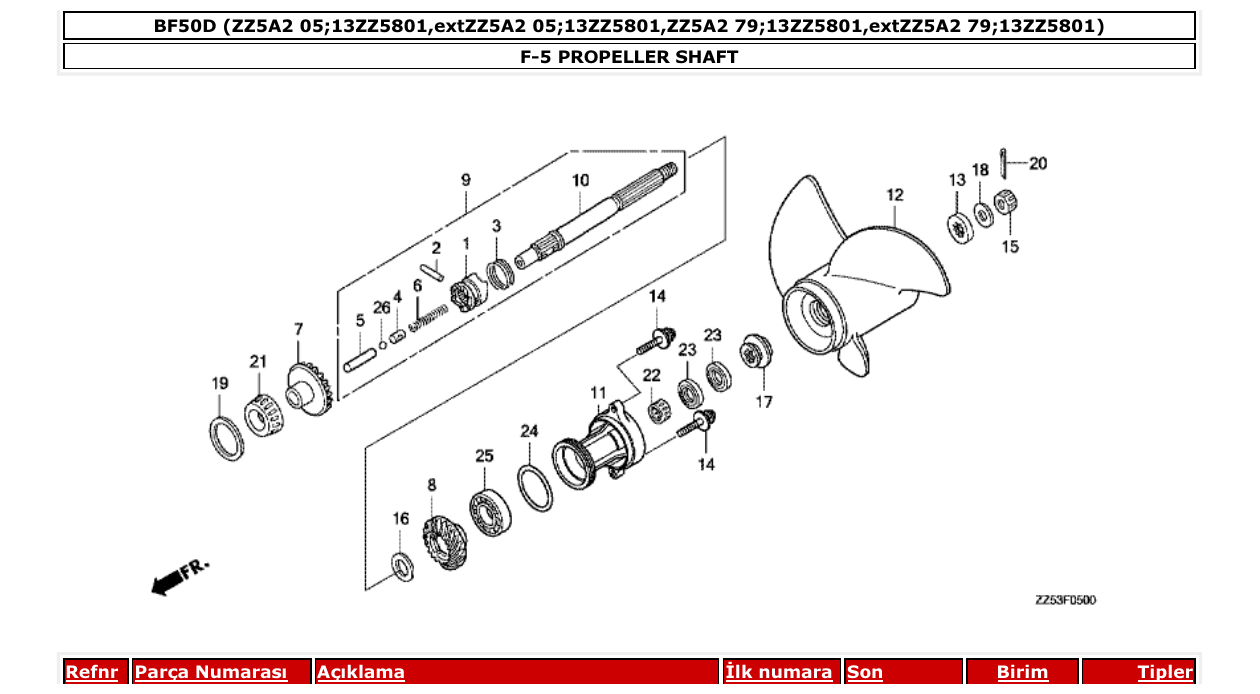

Fig. F-5 – PROPELLER SHAFT diagram
Fig. F-5 – PROPELLER SHAFT

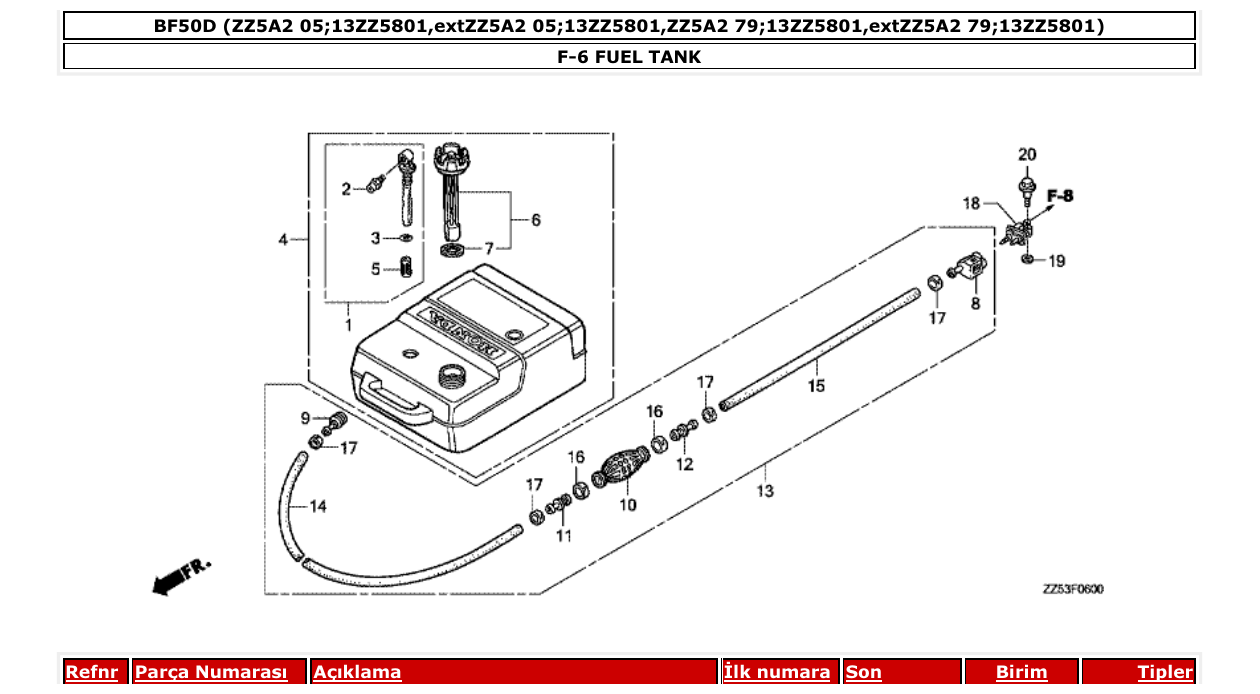

Fig. F-6 – FUEL TANK diagram
Fig. F-6 – FUEL TANK
Fig. F-7 – REGULATOR diagram
Fig. F-7 – REGULATOR

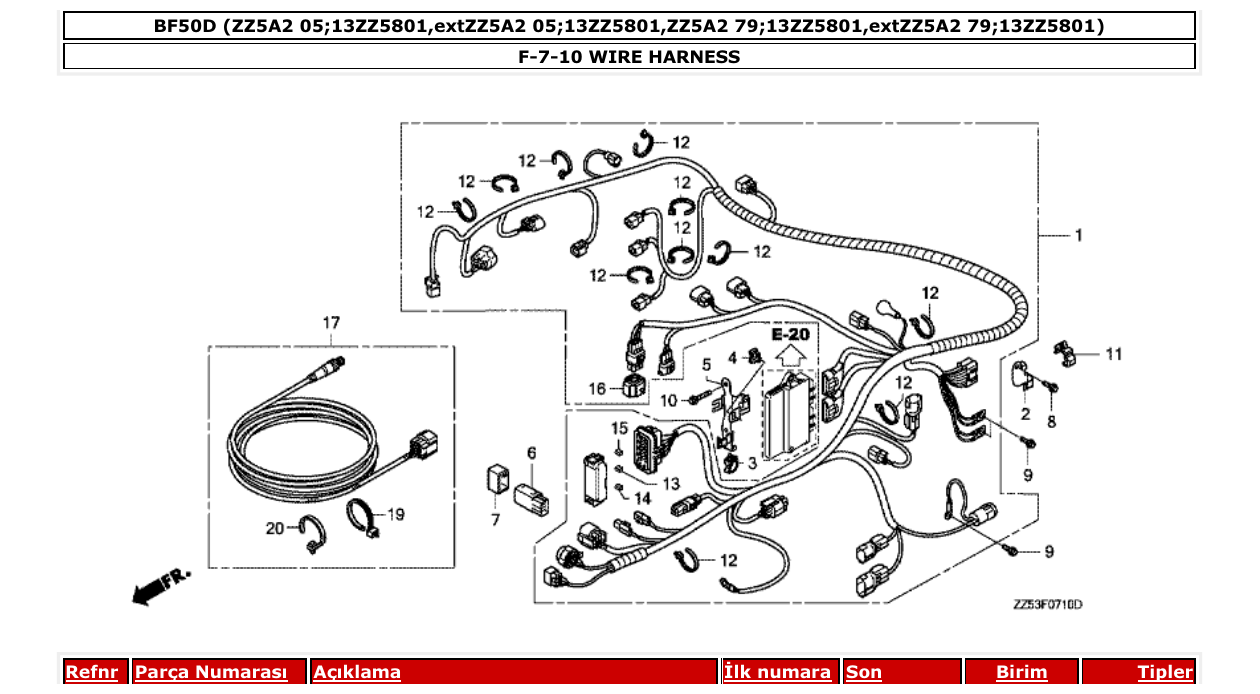

Fig. F-7-10 – WIRE HARNESS diagram
Fig. F-7-10 – WIRE HARNESS

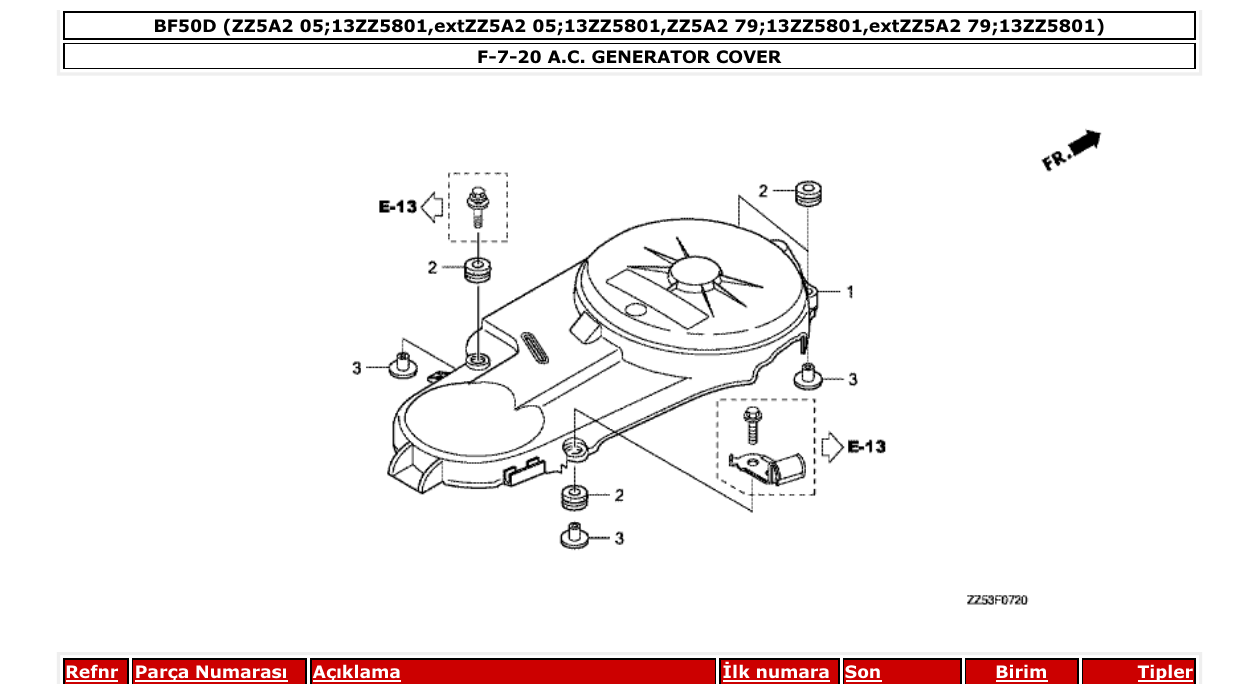

Fig. F-7-20 – A.C. GENERATOR COVER diagram
Fig. F-7-20 – A.C. GENERATOR COVER

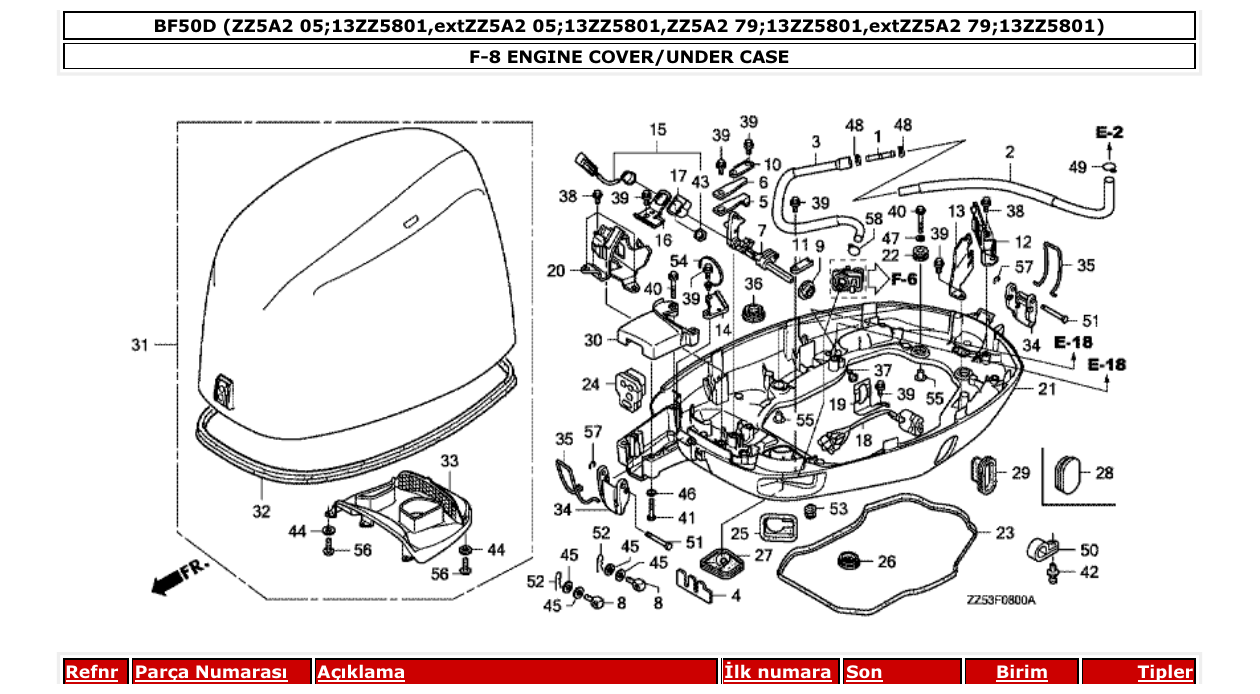

Fig. F-8 – ENGINE COVER/UNDER CASE diagram
Fig. F-8 – ENGINE COVER/UNDER CASE

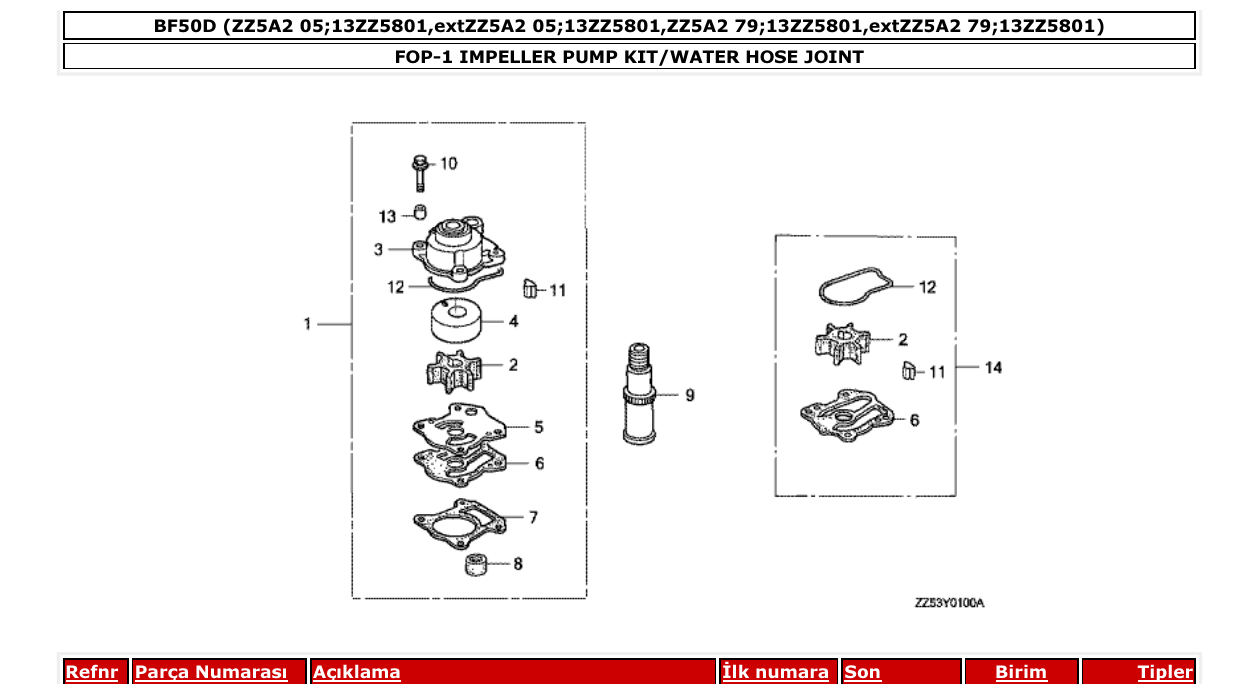

Fig. FOP-1 – IMPELLER PUMP KIT/WATER HOSE JOINT diagram
Fig. FOP-1 – IMPELLER PUMP KIT/WATER HOSE JOINT
Fig. FOP-2 – METER diagram
Fig. FOP-2 – METER

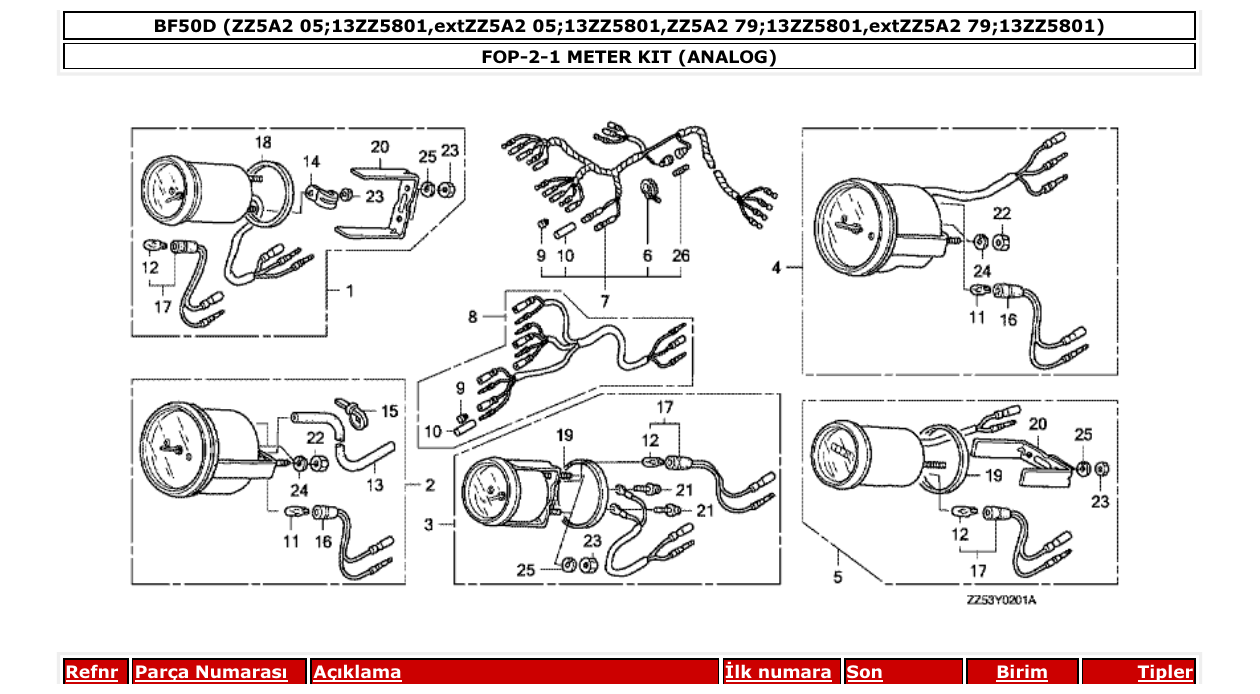

Fig. FOP-2-1 – METER KIT (ANALOG) diagram
Fig. FOP-2-1 – METER KIT (ANALOG)

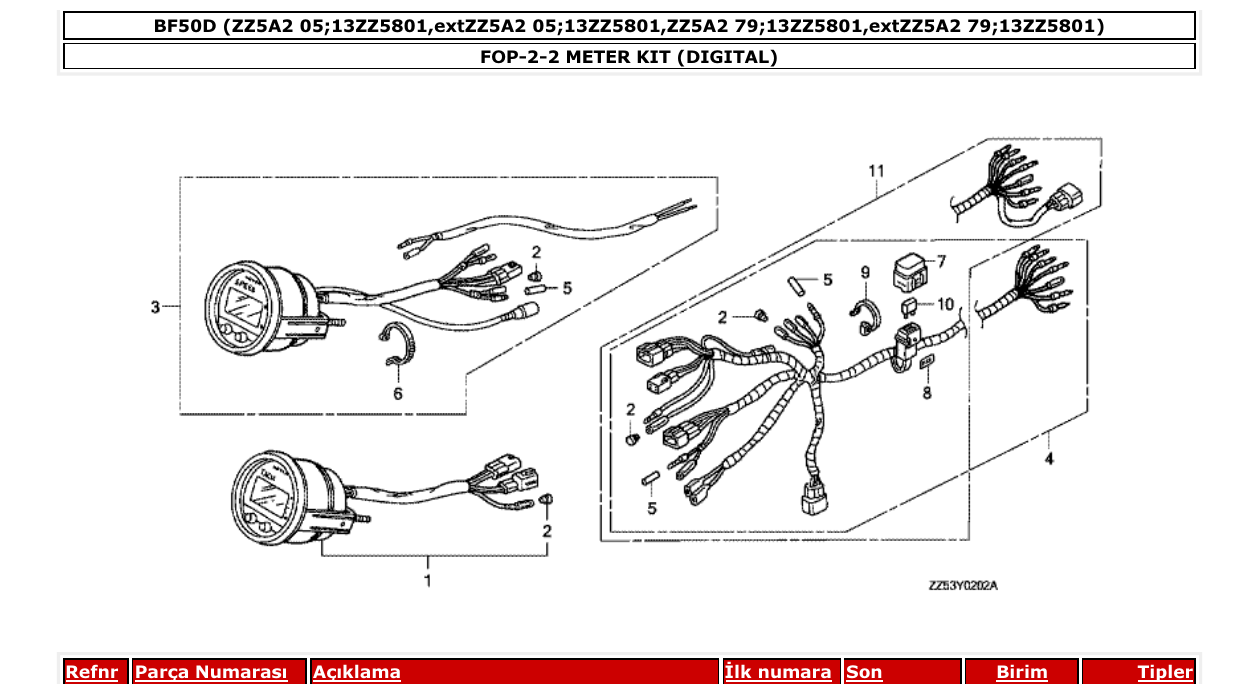

Fig. FOP-2-2 – METER KIT (DIGITAL) diagram
Fig. FOP-2-2 – METER KIT (DIGITAL)

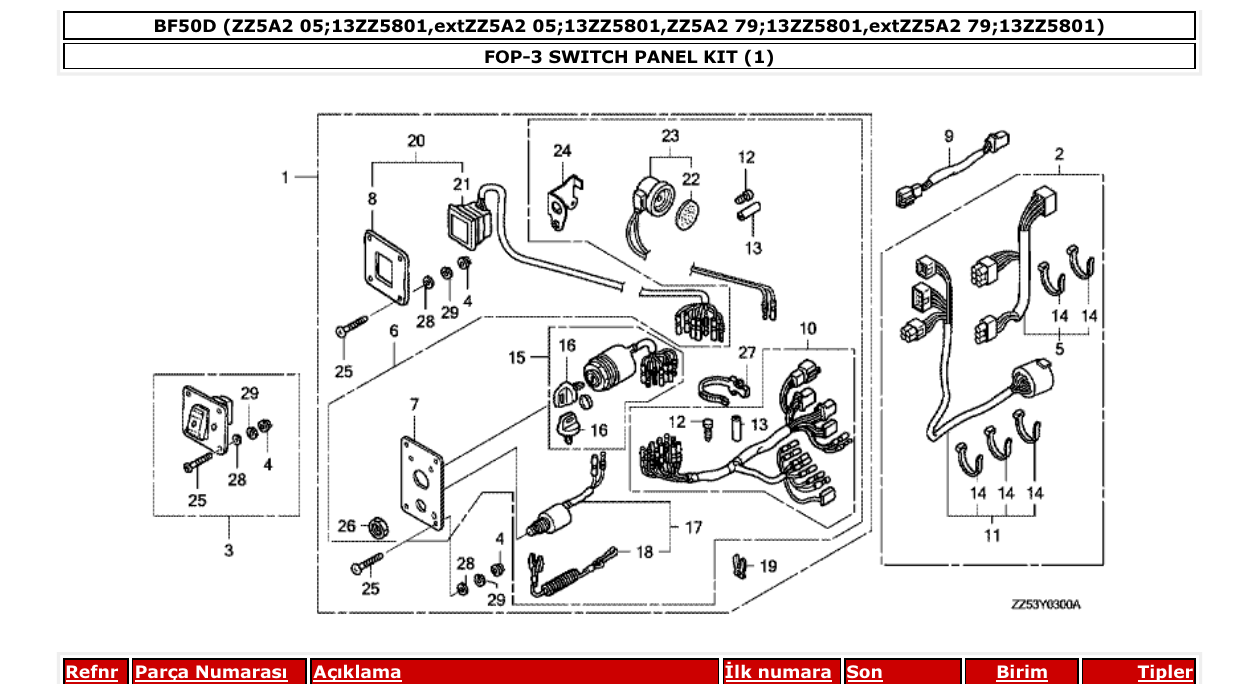

Fig. FOP-3 – SWITCH PANEL KIT (1) diagram
Fig. FOP-3 – SWITCH PANEL KIT (1)

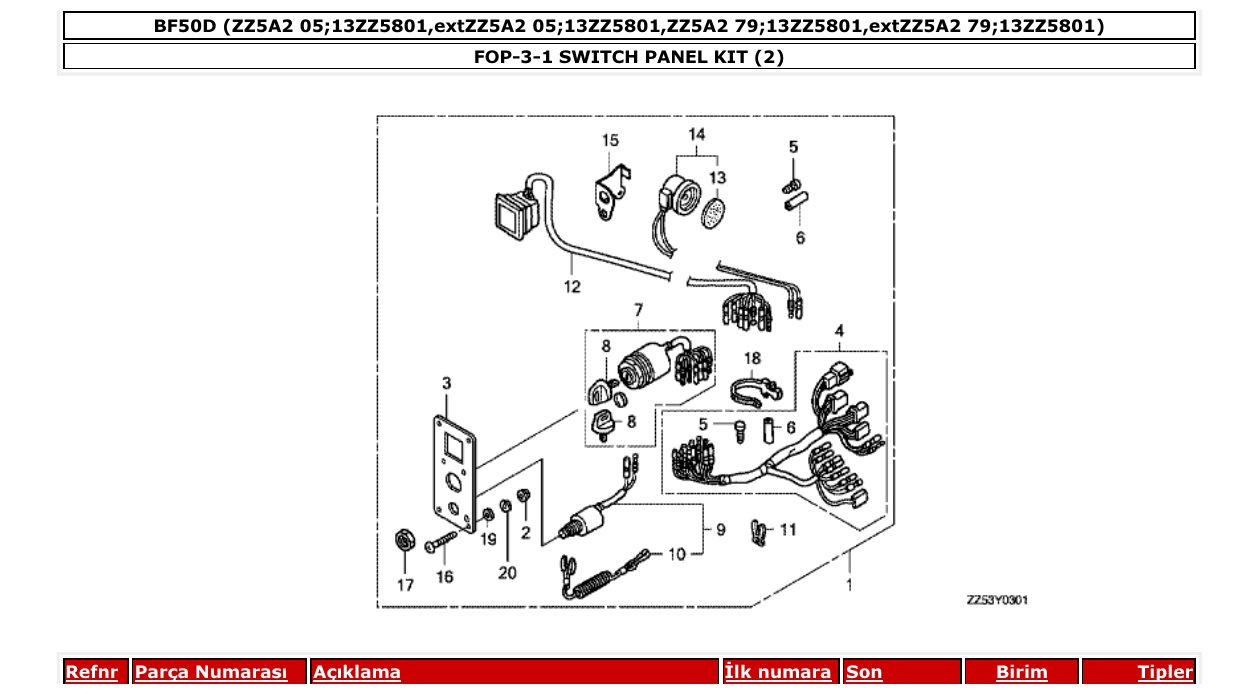

Fig. FOP-3-1 – SWITCH PANEL KIT (2) diagram
Fig. FOP-3-1 – SWITCH PANEL KIT (2)

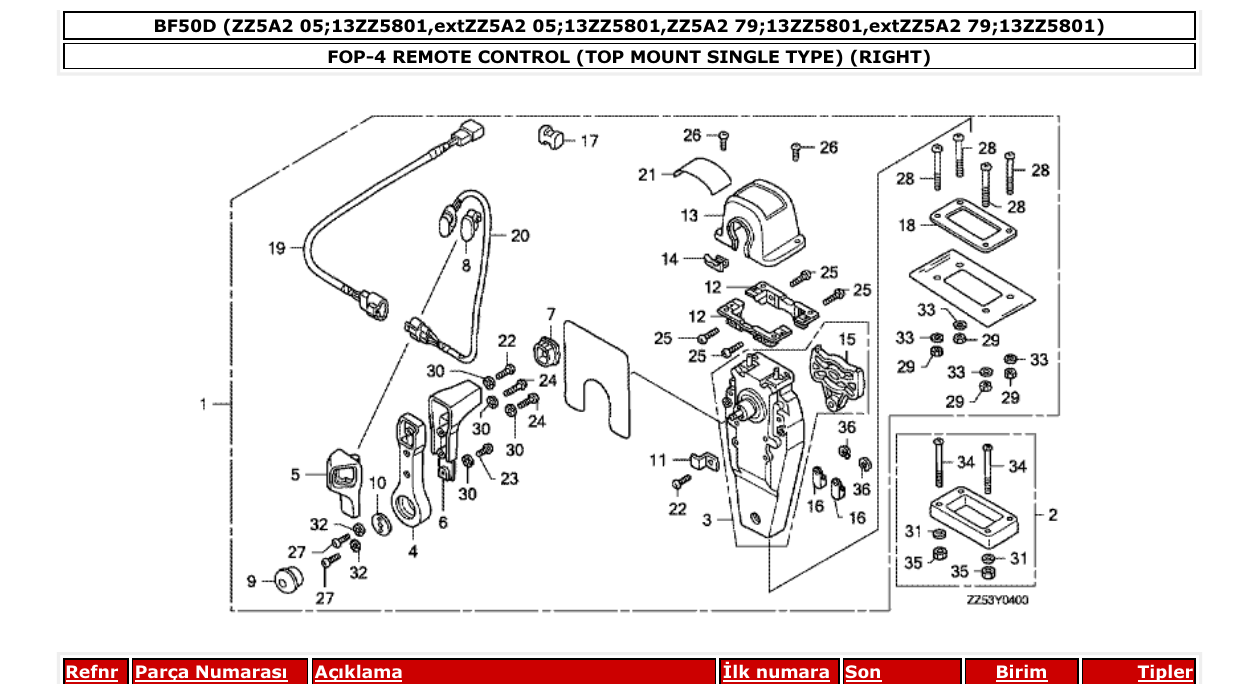

Fig. FOP-4 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT) diagram
Fig. FOP-4 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (RIGHT)

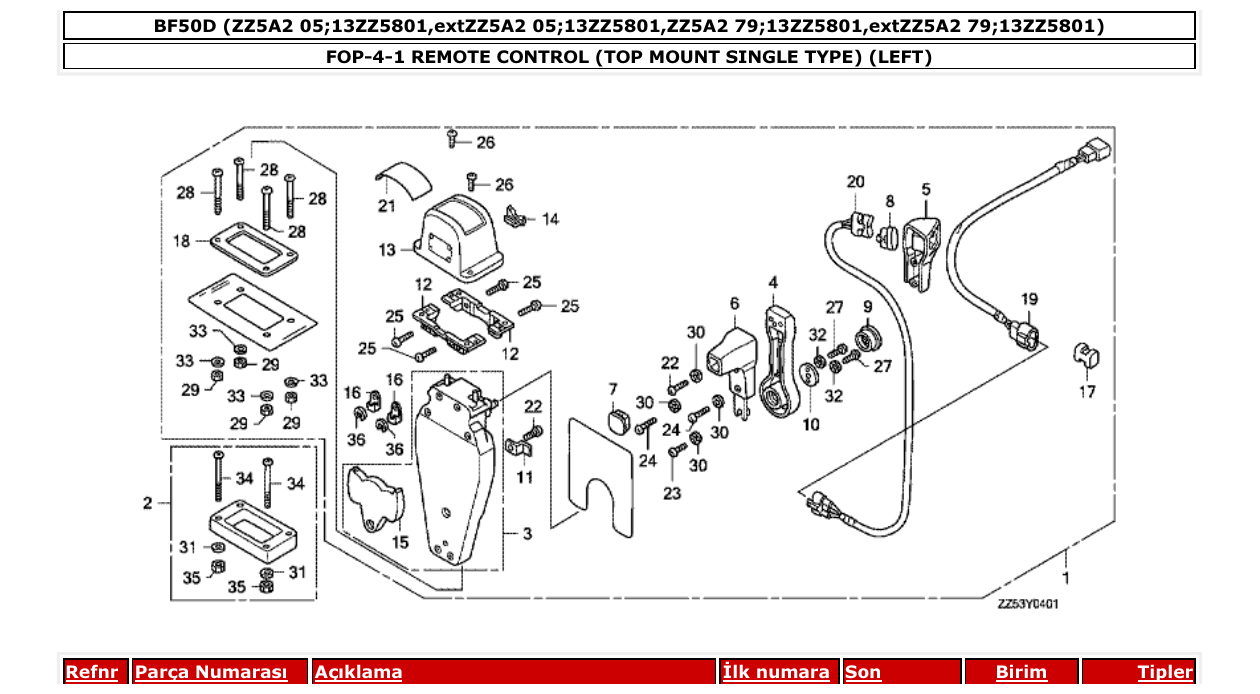

Fig. FOP-4-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) diagram
Fig. FOP-4-1 – REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT)

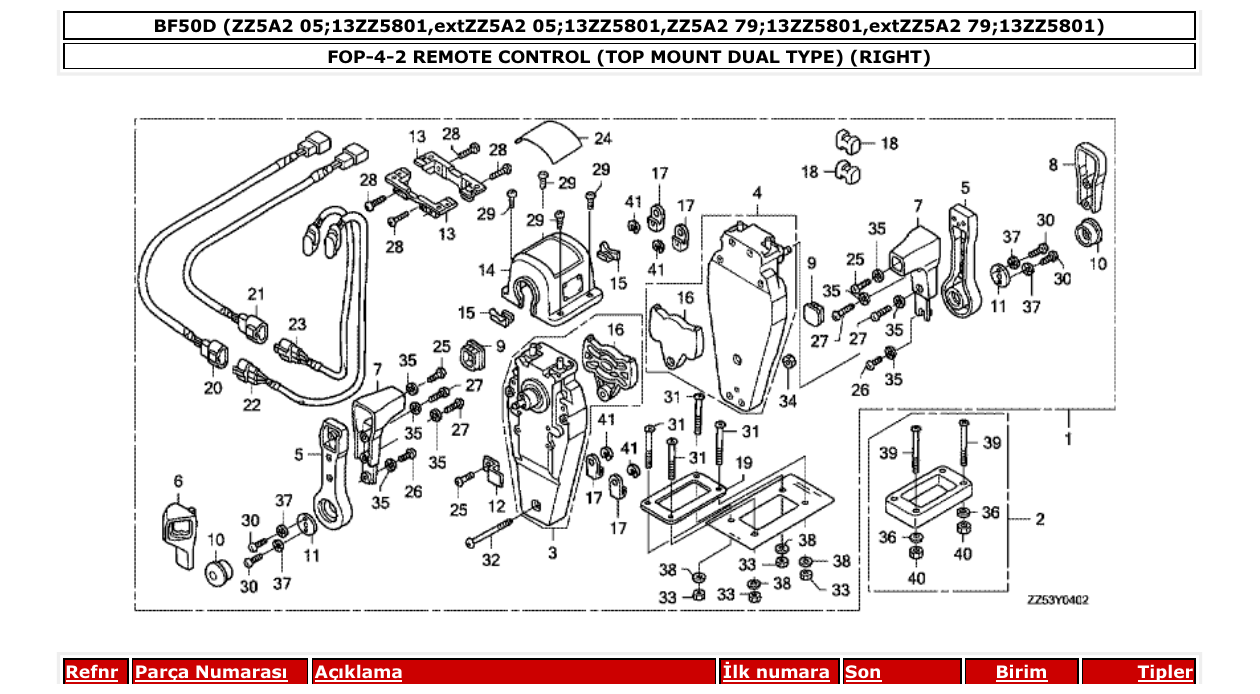

Fig. FOP-4-2 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT) diagram
Fig. FOP-4-2 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (RIGHT)
Fig. FOP-4-3 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT) diagram
Fig. FOP-4-3 – REMOTE CONTROL (TOP MOUNT DUAL TYPE) (LEFT)

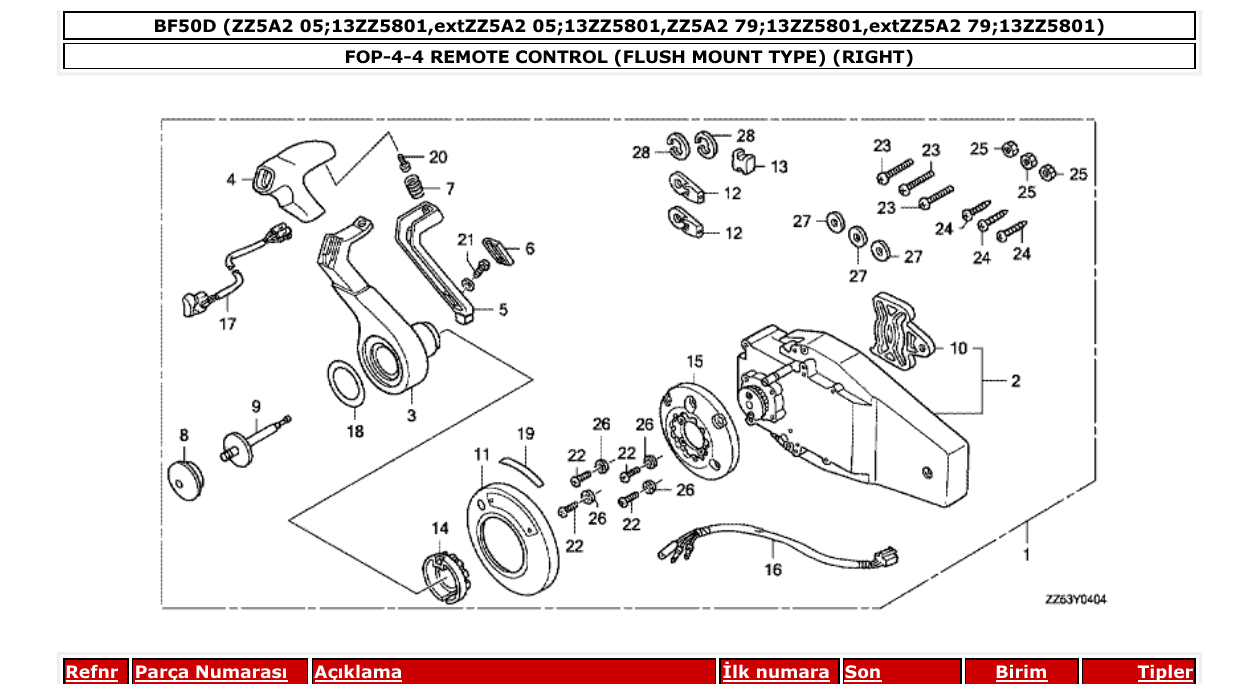

Fig. FOP-4-4 – REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT) diagram
Fig. FOP-4-4 – REMOTE CONTROL (FLUSH MOUNT TYPE) (RIGHT)

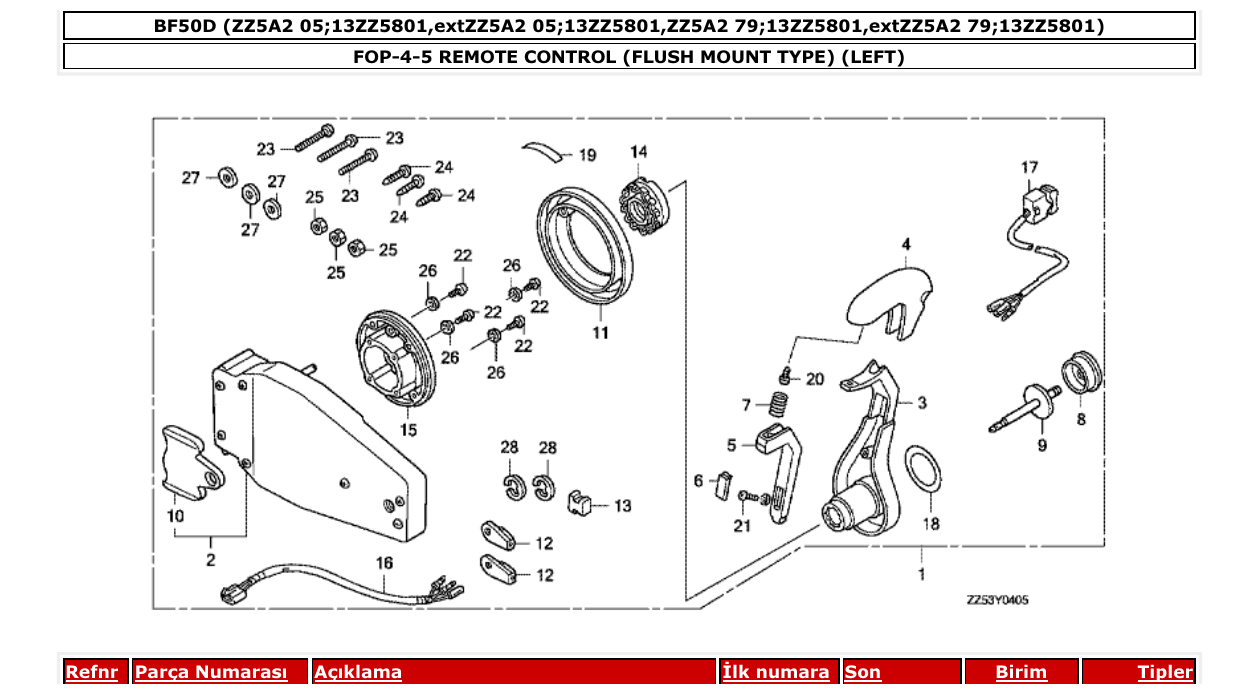

Fig. FOP-4-5 – REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT) diagram
Fig. FOP-4-5 – REMOTE CONTROL (FLUSH MOUNT TYPE) (LEFT)
Fig. FOP-5 – CABLE (SINGLE) diagram
Fig. FOP-5 – CABLE (SINGLE)

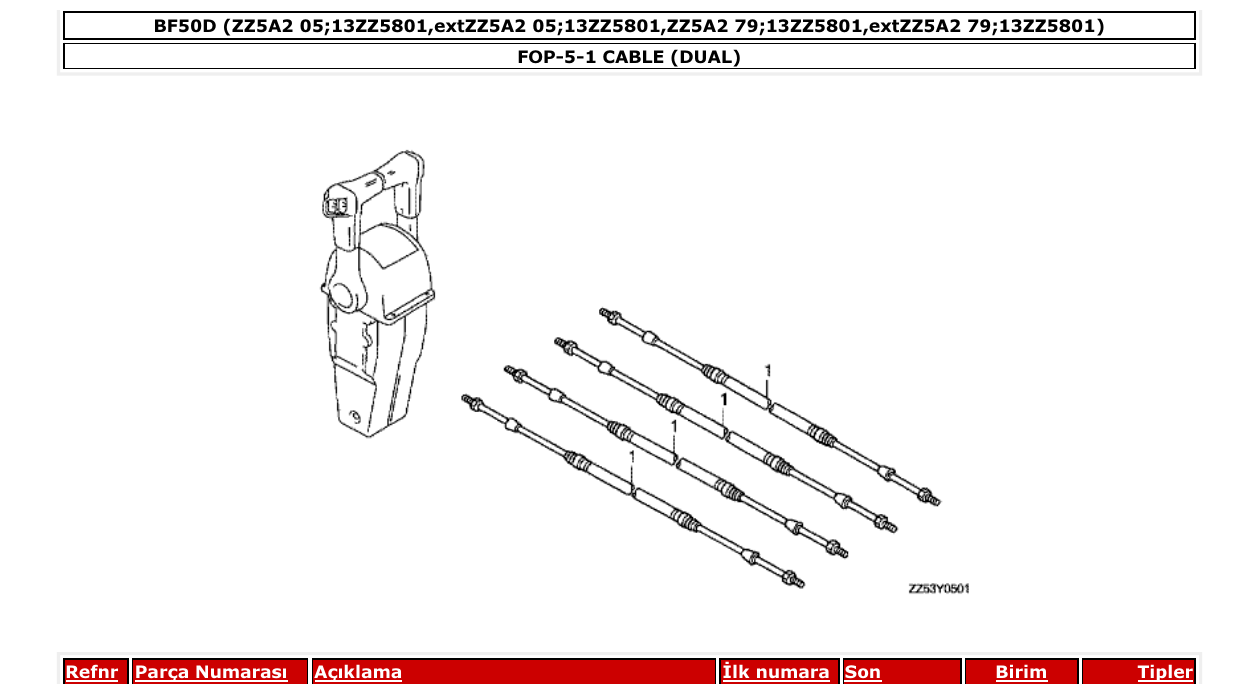

Fig. FOP-5-1 – CABLE (DUAL) diagram
Fig. FOP-5-1 – CABLE (DUAL)

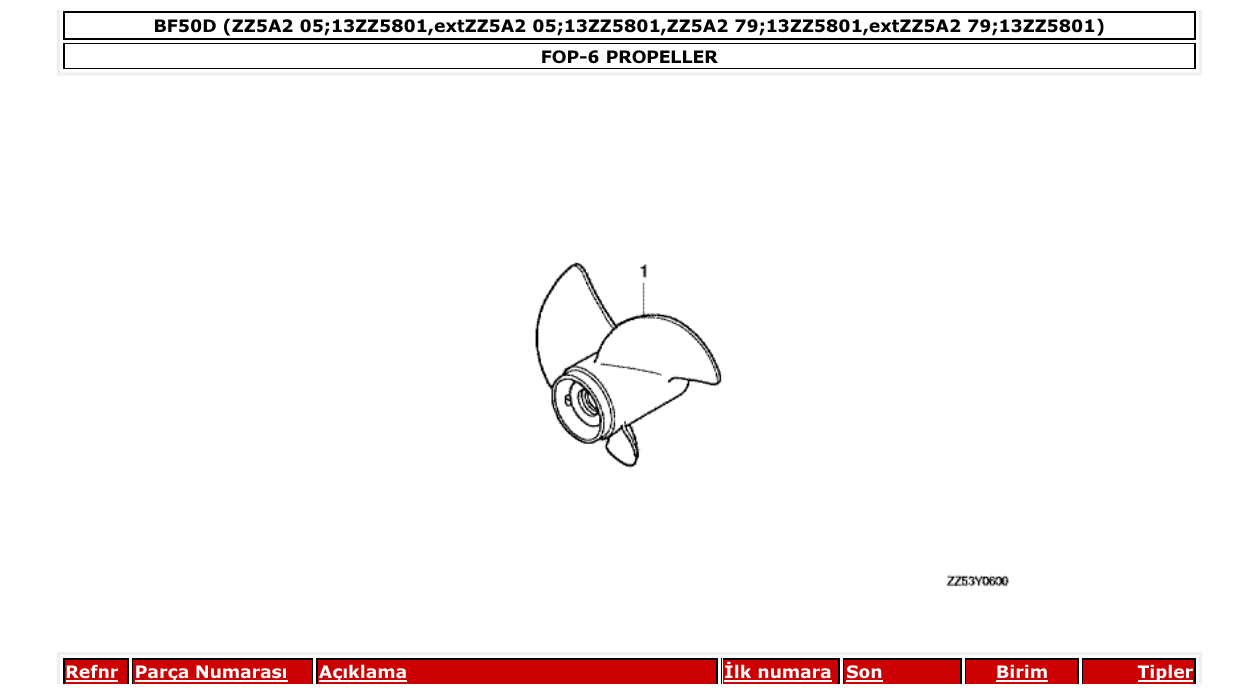

Fig. FOP-6 – PROPELLER diagram
Fig. FOP-6 – PROPELLER

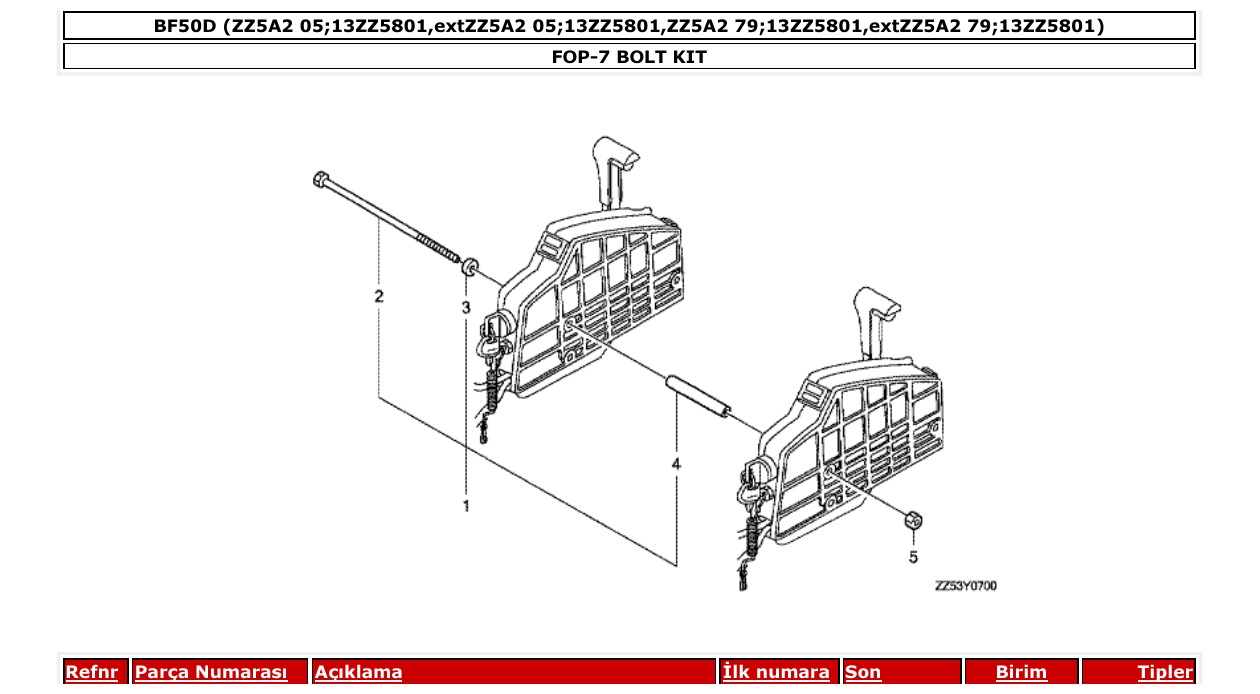

Fig. FOP-7 – BOLT KIT diagram
Fig. FOP-7 – BOLT KIT

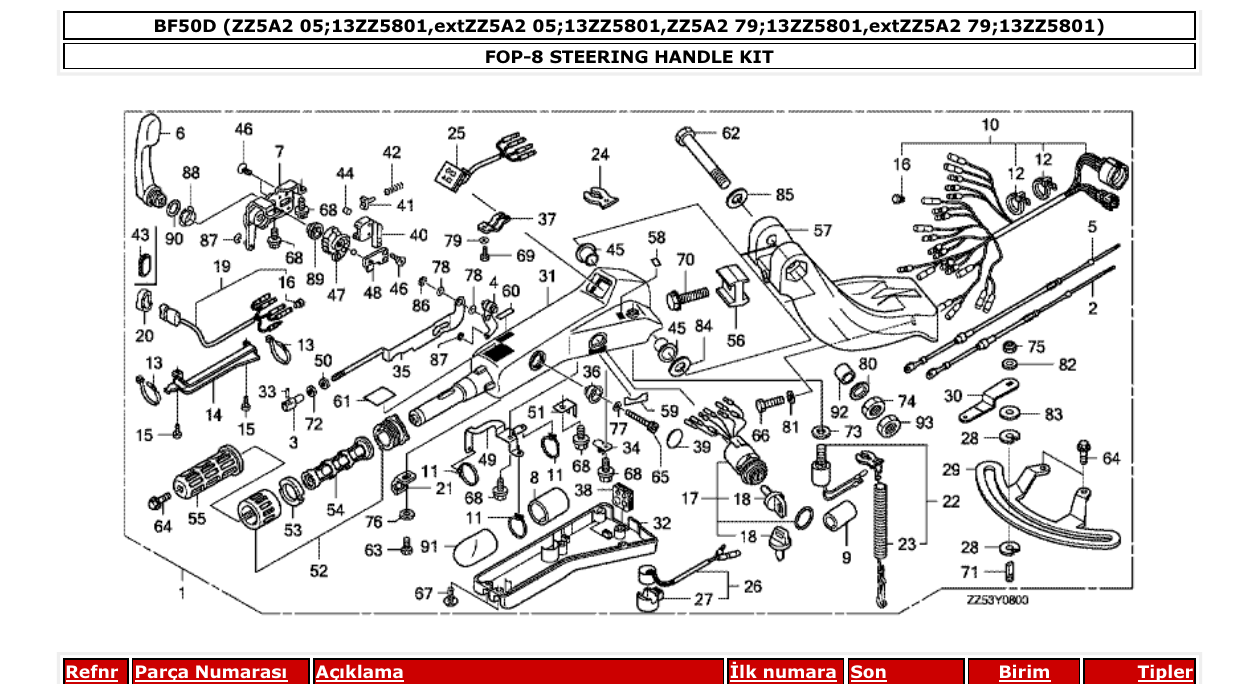

Fig. FOP-8 – STEERING HANDLE KIT diagram
Fig. FOP-8 – STEERING HANDLE KIT
