bf50d
Section F-7: REGULATOR (v2)

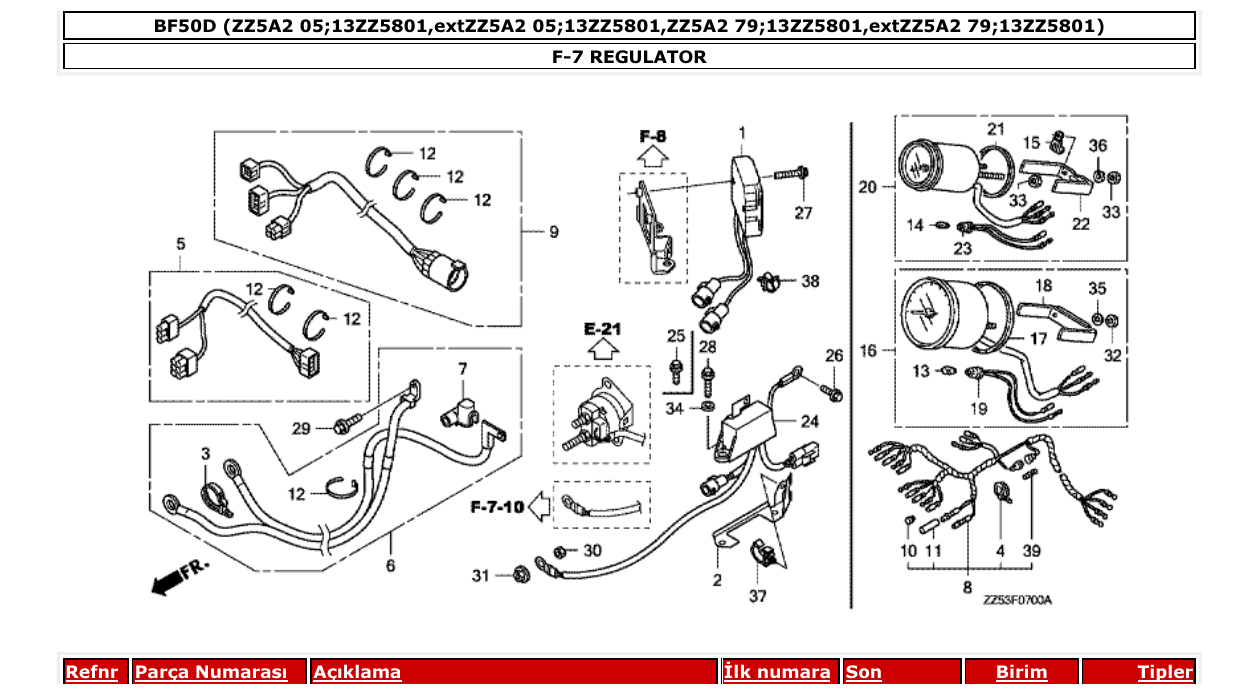

Diagram for section F-7: REGULATOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
31750ZZ5003
RECTIFIER ASSY., REGULATOR
|
1 | Ask on WhatsApp |
| 2 |
32111ZZ5000
BRACKET A, HARNESS CLIP
|
1 | Ask on WhatsApp |
| 3 |
32121HA0003
BAND, CORD
|
1 | Ask on WhatsApp |
| 4 |
32161404000
BAND B1, WIRE
|
1 | Ask on WhatsApp |
| 5 |
32185ZZ5600
CORD ASSY., INDICATOR (20FT)
|
1 | Ask on WhatsApp |
| 6 |
32410ZZ5000
CABLE ASSY., STARTER
|
1 | Ask on WhatsApp |
| 7 |
32411ZZ5000
COVER, TERMINAL
|
1 | Ask on WhatsApp |
| 8 |
32540ZV5911
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 8 |
32540ZV5911
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 8 |
32540ZZ3000
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 8 |
32540ZZ3000
HARNESS ASSY., METER (A)
|
1 | Ask on WhatsApp |
| 9 |
32580ZZ5600
CABLE ASSY., SWITCH PANEL (20FT)
|
1 | Ask on WhatsApp |
| 10 |
32823ZV5003
PLUG, INNER CONNECTOR
|
5 | Ask on WhatsApp |
| 11 |
32824ZV5003
PLUG, OUTER CONNECTOR
|
4 | Ask on WhatsApp |
| 12 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
6 | Ask on WhatsApp |
| 12 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
1 | Ask on WhatsApp |
| 13 |
34908MB9871
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
|
1 | Ask on WhatsApp |
| 14 |
34908MG9951
BULB, WEDGE BASE (12V 1.7W)
|
1 | Ask on WhatsApp |
| 15 |
37215KM1670
CLAMP
|
1 | Ask on WhatsApp |
| 16 |
37250ZV7913
TACHOMETER ASSY.
|
1 | Ask on WhatsApp |
| 17 |
37253ZV5821
PACKING
|
1 | Ask on WhatsApp |
| 18 |
37256ZV5821
BRACKET
|
1 | Ask on WhatsApp |
| 19 |
37258ZV5821
SOCKET COMP.
|
1 | Ask on WhatsApp |
| 20 |
37260ZV5822
METER ASSY., TRIM
|
1 | Ask on WhatsApp |
| 21 |
37263ZV5821
PACKING
|
1 | Ask on WhatsApp |
| 22 |
37266ZV5821
BRACKET
|
1 | Ask on WhatsApp |
| 23 |
37268ZV5821
SOCKET COMP.
|
1 | Ask on WhatsApp |
| 24 |
38550ZZ5003
RELAY ASSY., POWER TILT
|
1 | Ask on WhatsApp |
| 26 |
90013ZW9000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 27 |
90016ZW9000
BOLT, FLANGE, 6X25
|
2 | Ask on WhatsApp |
| 28 |
90017ZV0C10
BOLT, FLANGE, 6X18 (CT200)
|
2 | Ask on WhatsApp |
| 29 |
90107ZY3000
BOLT, FLANGE, 8X18
|
1 | Ask on WhatsApp |
| 30 |
90203ZV5000
NUT, HEX., 6MM
|
1 | Ask on WhatsApp |
| 31 |
90203ZY1801
NUT, LOCK, 6MM
|
1 | Ask on WhatsApp |
| 32 |
90309ZV5821
NUT, HEX., 5MM
|
2 | Ask on WhatsApp |
| 33 |
90310ZV5821
NUT, HEX., 4MM
|
3 | Ask on WhatsApp |
| 34 |
90403ZW1000
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
