bf75dk0
Section E-9-10: CHAIN CASE (v2)

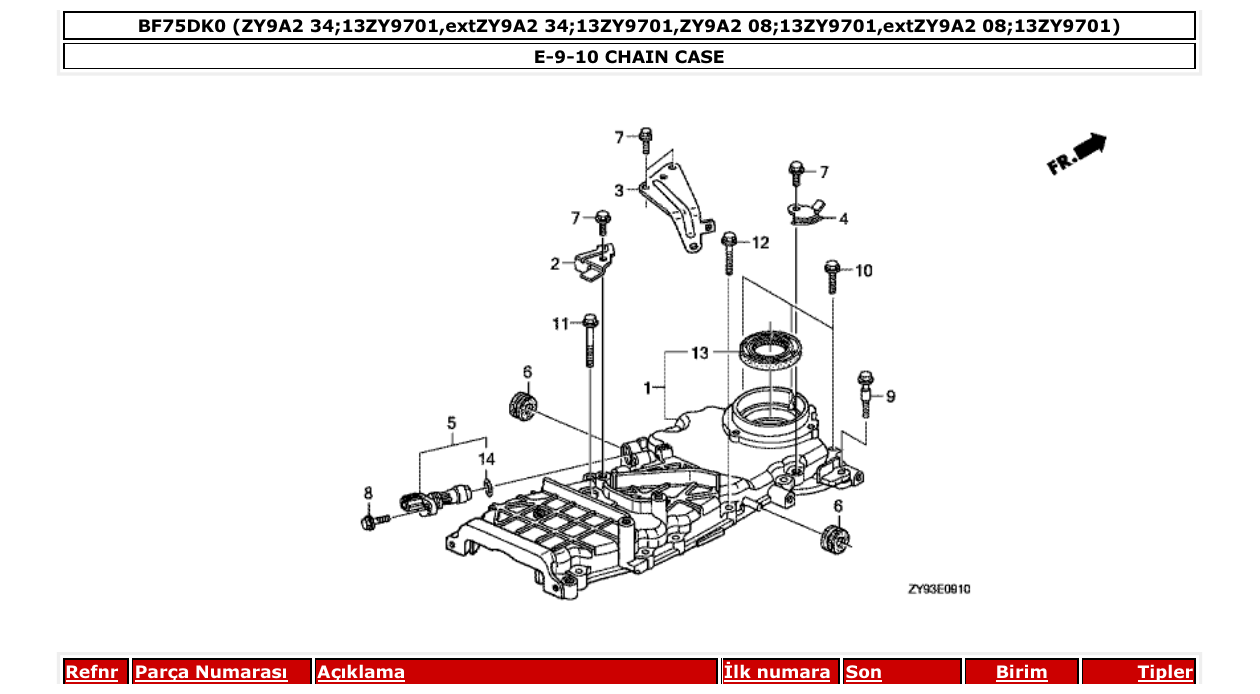

Diagram for section E-9-10: CHAIN CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11411ZY9405ZA
CASE COMP., CHAIN *NH8 *
|
1 | Ask on WhatsApp |
| 2 |
32111ZY9000
BRACKET A, HARNESS CLIP
|
1 | Ask on WhatsApp |
| 3 |
32113ZY9000
BRACKET C, HARNESS CLIP
|
1 | Ask on WhatsApp |
| 4 |
32115ZY9000
BRACKET E, HARNESS CLIP
|
1 | Ask on WhatsApp |
| 5 |
37500PNB003
SENSOR ASSY., CRANK
|
1 | Ask on WhatsApp |
| 6 |
40102ZV5000
GROMMET, UNDER CASE
|
2 | Ask on WhatsApp |
| 7 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
4 | Ask on WhatsApp |
| 8 |
90017ZY3000
BOLT, FLANGE, 6X16
|
1 | Ask on WhatsApp |
| 9 |
90023ZY6000
BOLT, SPECIAL, 6X31
|
2 | Ask on WhatsApp |
| 10 |
90030ZY3000
BOLT, FLANGE, 6X22
|
3 | Ask on WhatsApp |
| 11 |
90145ZW4000
BOLT, FLANGE, 6X40
|
1 | Ask on WhatsApp |
| 12 |
90016ZY3000
BOLT, FLANGE, 6X28
|
10 | Ask on WhatsApp |
| 12 |
90016ZY3000
BOLT, FLANGE, 6X28
|
10 | Ask on WhatsApp |
| 12 |
90166ZW4000
BOLT, FLANGE, 6X28
|
10 | Ask on WhatsApp |
| 12 |
90166ZW4000
BOLT, FLANGE, 6X28
|
10 | Ask on WhatsApp |
| 13 |
91212PWA003
OIL SEAL, 40X55X7 (NOK)
|
1 | Ask on WhatsApp |
| 14 |
91333PNA003
O-RING, 15X1.9
|
1 | Ask on WhatsApp |
