bf75dk0
Section FOP-1: SPEEDOMETER KIT (DIGITAL) (v2)

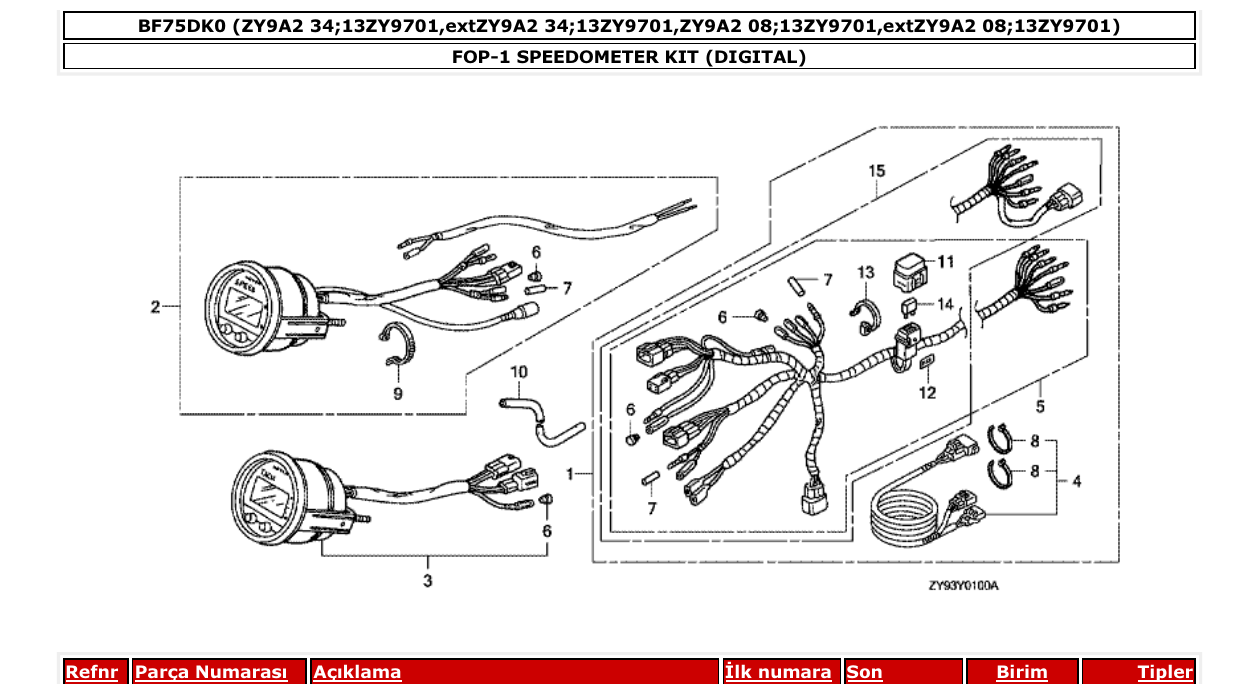

Diagram for section FOP-1: SPEEDOMETER KIT (DIGITAL).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06326ZY3801
HARNESS KIT, METER (DIGITAL) (INCLUDE 32540-ZY3-801)
|
1 | Ask on WhatsApp |
| 1 |
06326ZY3802
HARNESS KIT, METER (DIGITAL) (INCLUDE 32540-ZY3-802)
|
1 | Ask on WhatsApp |
| 2 |
06373ZY3810
SPEEDOMETER KIT (DIGITAL) (USE FOR 32540- ZY3-800/801)
|
1 | Ask on WhatsApp |
| 2 |
06373ZY3811
SPEEDOMETER KIT (DIGITAL)
|
1 | Ask on WhatsApp |
| 3 |
06375ZY3810
METER KIT, TACHO (DIGITAL) (USE FOR 32540- ZY3-800/801)
|
1 | Ask on WhatsApp |
| 3 |
06375ZY3812
METER KIT, TACHO (DIGITAL) (USE FOR 32540- ZY3-802)
|
1 | Ask on WhatsApp |
| 4 |
32185ZY6000
CORD ASSY., INDICATOR (DIGITAL)
|
1 | Ask on WhatsApp |
| 5 |
32540ZY3801
HARNESS ASSY., METER (A) (DIGITAL)
|
1 | Ask on WhatsApp |
| 6 |
32823ZV5003
PLUG, INNER CONNECTOR
|
8 | Ask on WhatsApp |
| 7 |
32824ZV5003
PLUG, OUTER CONNECTOR
|
5 | Ask on WhatsApp |
| 8 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
2 | Ask on WhatsApp |
| 9 |
35701MG9950
BAND (BLACK 3.5X140)
|
3 | Ask on WhatsApp |
| 10 |
37202ZW5U01
TUBE, SPEED METER (4X7X8000)
|
1 | Ask on WhatsApp |
| 11 |
38216ZY3801
COVER ASSY., FUSE (7.5A)
|
1 | Ask on WhatsApp |
| 12 |
87117ZY3800
MARK, FUSE (7.5A)
|
1 | Ask on WhatsApp |
| 13 |
90650ZY1003
TIE, CABLE
|
1 | Ask on WhatsApp |
| 14 |
9820030750
FUSE, BLADE (7.5A)
|
2 | Ask on WhatsApp |
| 15 |
32540ZY3802
HARNESS ASSY., METER (A) (DIGITAL)
|
1 | Ask on WhatsApp |
| 15 |
32540ZZ3740
HARNESS ASSY., METER (A) (DIGITAL)
|
1 | Ask on WhatsApp |
