L200FETO ’02

Section 33: STEERING GUIDE ATTACHMENT 2 (v2)

Engine sections in this catalog
TOP COWLING OIL PUMP 2 OIL TANK FUEL 1 FUEL 2 FUEL 3 FUEL 4 GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR CYLINDER. CRANKCASE 1 BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 LOWER CASING. DRIVE 3 CYLINDER. CRANKCASE 2 LOWER CASING. DRIVE 4 FUEL TANK STEERING GUIDE ATTACHMENT 1 STEERING GUIDE ATTACHMENT 2 REMOTE CONTROL BOX REMOTE CONTROL ASSY 1 REMOTE CONTROL ASSY 2 METER SWITCH. PANEL REPAIR KIT 1 CRANKSHAFT. PISTON REPAIR KIT 2 REPAIR KIT 3 CYLINDER. CRANKCASE 3 INTAKE 1 INTAKE 2 CARBURETOR OIL PUMP 1

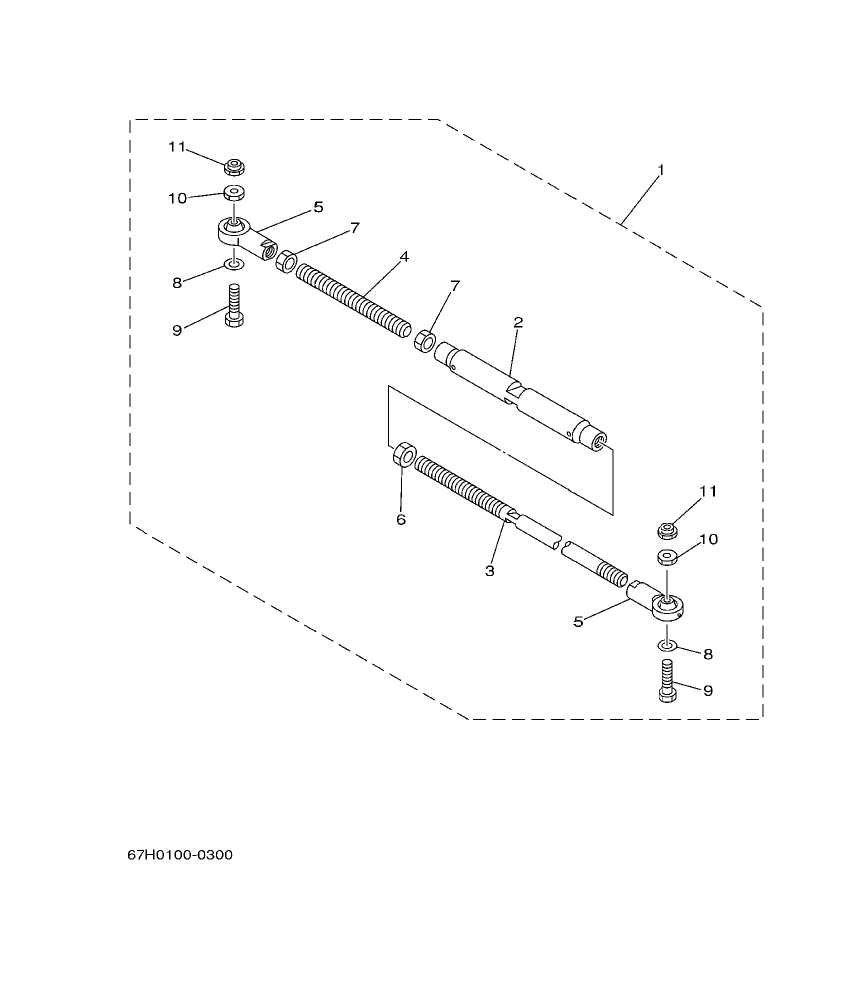

L200FETO ’02 – section 33 STEERING GUIDE ATTACHMENT 2 parts diagram

Diagram for section 33: STEERING GUIDE ATTACHMENT 2.

Ref Part No. Qty Buy
1
6E5-61301-01
TWIN KIT (L:600-800MM)
 1 Ask on WhatsApp
2
6E5-61313-00
.ADJUSTER
 1 Ask on WhatsApp
3
6E5-61311-11
.TIE BAR
 1 Ask on WhatsApp
4
6E5-61315-00
.TIE BAR
 1 Ask on WhatsApp
5
6E5-61303-00
.STEERING EYE COMP.
 2 Ask on WhatsApp
6
90170-14M06
.NUT
 1 Ask on WhatsApp
7
95380-14700
.NUT
 2 Ask on WhatsApp
8
90201-10M76
.WASHER, PLATE
 2 Ask on WhatsApp
9
90101-09M70
.BOLT
 2 Ask on WhatsApp
10
90170-09M05
.NUT
 2 Ask on WhatsApp
11
90185-09M01
.NUT, SELF-LOCKING
 2 Ask on WhatsApp
