55BET’02

Section 20: METER (v2)

Engine sections in this catalog

TOP COWLING CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER. CRANKCASE METER REPAIR KIT 1 REPAIR KIT 2 INTAKE FUEL GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING

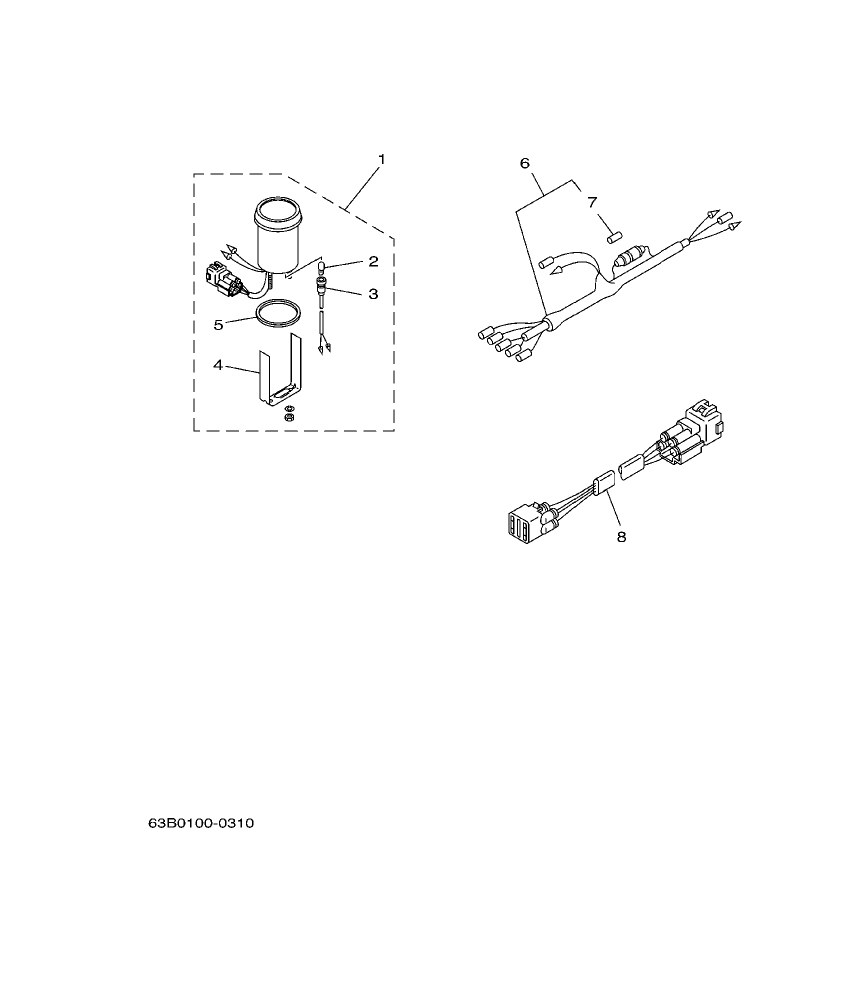

55BET’02 – section 20 METER parts diagram

Diagram for section 20: METER.

Ref	Part No.	Description	Qty	Buy
1	6Y5-83670-12 TRIM METER ASSY.	TRIM METER ASSY.	1	Ask on WhatsApp
2	6Y5-83518-00 .BULB (12V-1.7W, T6.5)	.BULB (12V-1.7W, T6.5)	1	Ask on WhatsApp
3	6Y5-83536-00 .SOCKET, METER	.SOCKET, METER	1	Ask on WhatsApp
4	6Y5-83544-00 .PLATE, FITTING	.PLATE, FITTING	1	Ask on WhatsApp
5	688-83664-00 .DAMPER	.DAMPER	1	Ask on WhatsApp
6	6Y5-83553-00 WIRE, LEAD	WIRE, LEAD	1	Ask on WhatsApp
7	1E6-82151-00 .FUSE (10A)	.FUSE (10A)	1	Ask on WhatsApp
8	6R3-82553-70 EXTENSION, WIRE LEAD	EXTENSION, WIRE LEAD	1	Ask on WhatsApp
